M 70CX

Choose a section to open the exploded parts diagram with live pricing. (v2)

Model code: M70CX

Engine sections in this model

CYLINDER CRANK CASE PISTON CRANK SHAFT INTAKE MANIFOLD REED VALVE INTAKE SILENCER CARBURETOR FUEL LINE THROTTLE RECOIL STARTER MAGNETO ELECTRIC PARTS CD UNIT DRIVE SHAFT HOUSING GEAR CASE DRIVE SHAFT GEAR CASE PROPELLER SHAFT BRACKET GAS SHOCK ABSORBER TILLER HANDLE BOTTOM COWL SHIFT TOP COWL FUEL TANK ACCESSORIES OPTIONAL PARTS 1 ASSEMBLY KIT PARTS

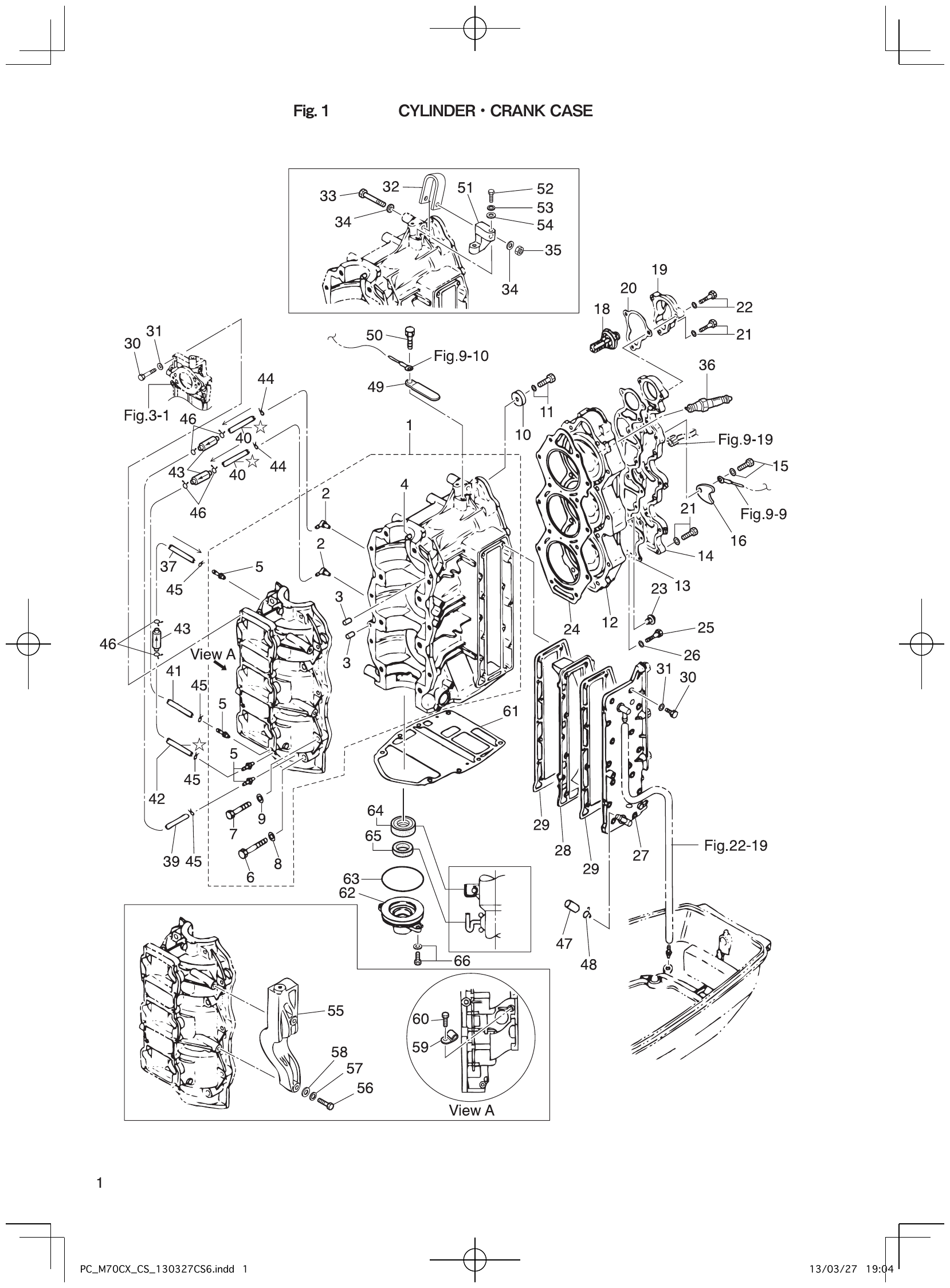

Fig. 1 – cylinder crank case diagram

Fig. 1 – cylinder crank case

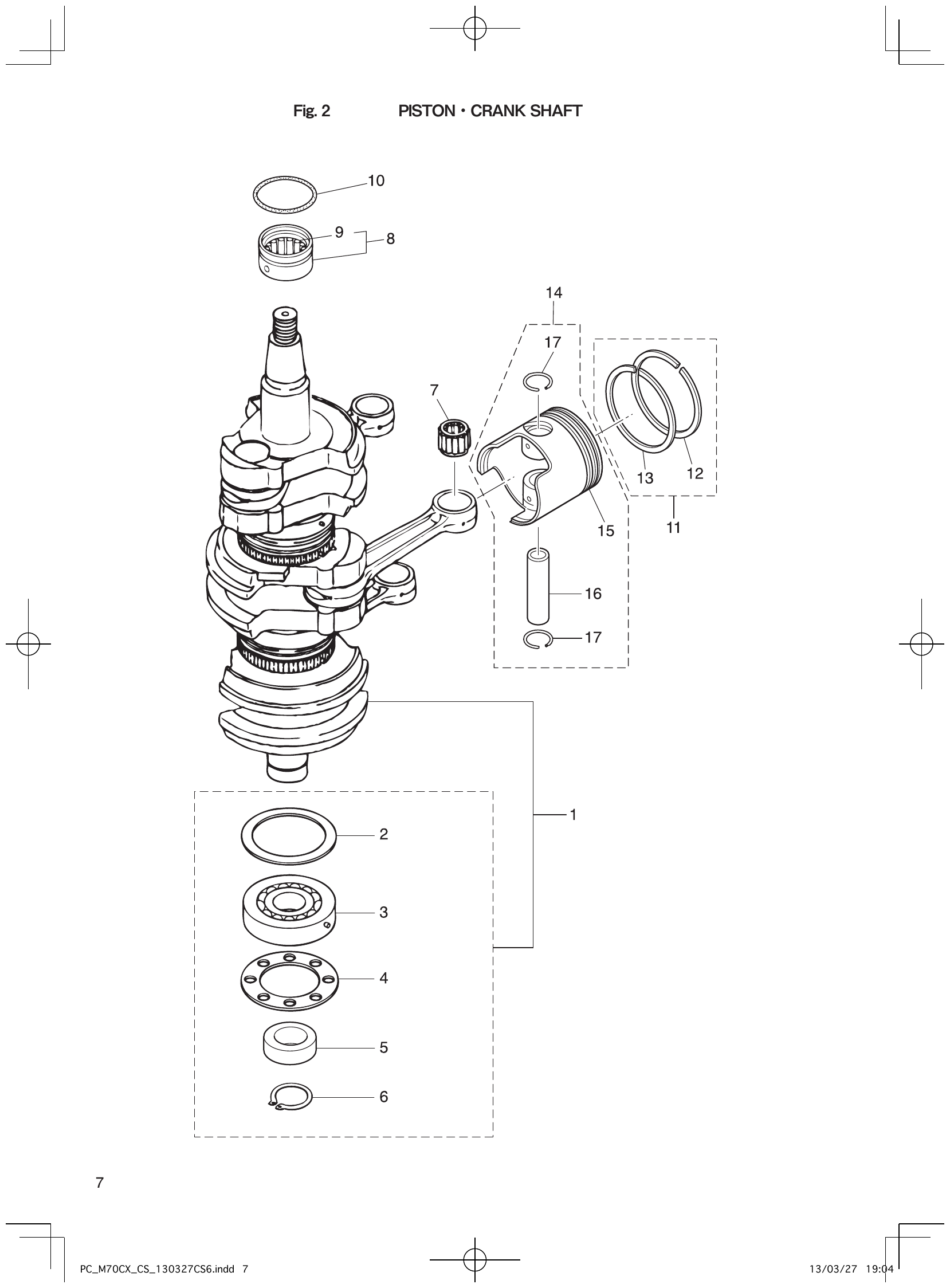

Fig. 2 – piston crank shaft diagram

Fig. 2 – piston crank shaft

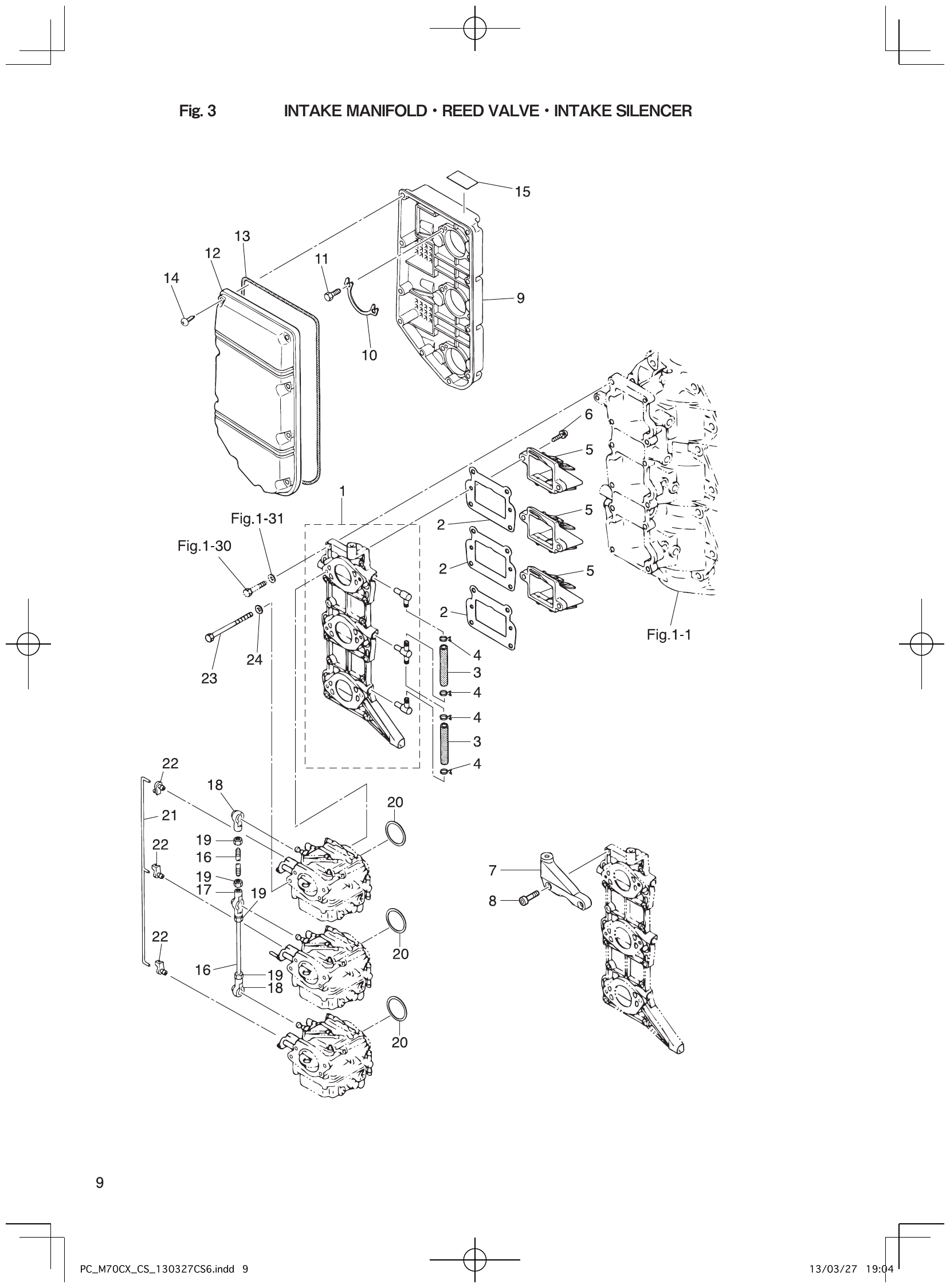

Fig. 3 – intake manifold reed valve intake silencer diagram

Fig. 3 – intake manifold reed valve intake silencer

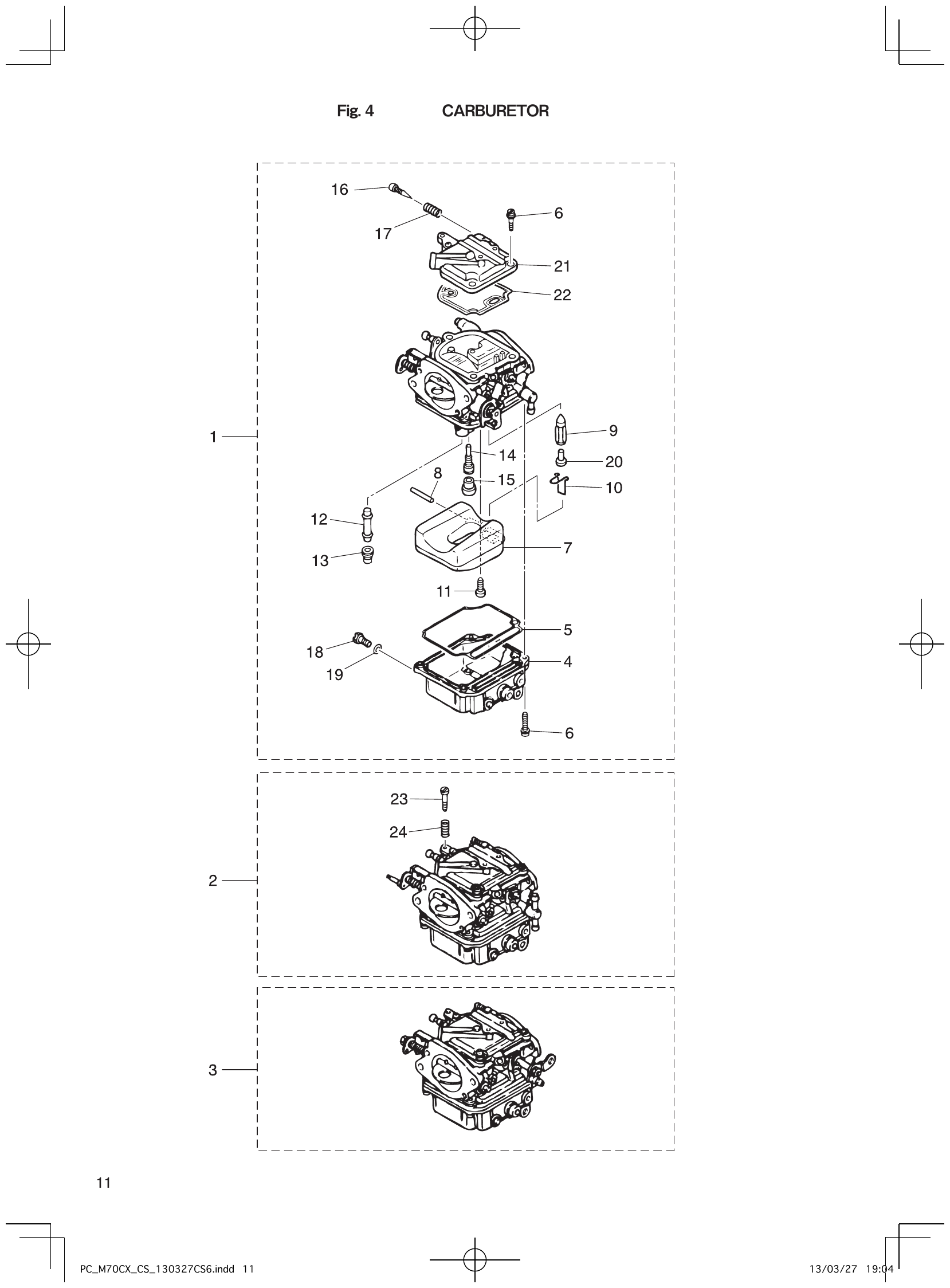

Fig. 4 – carburetor diagram

Fig. 4 – carburetor

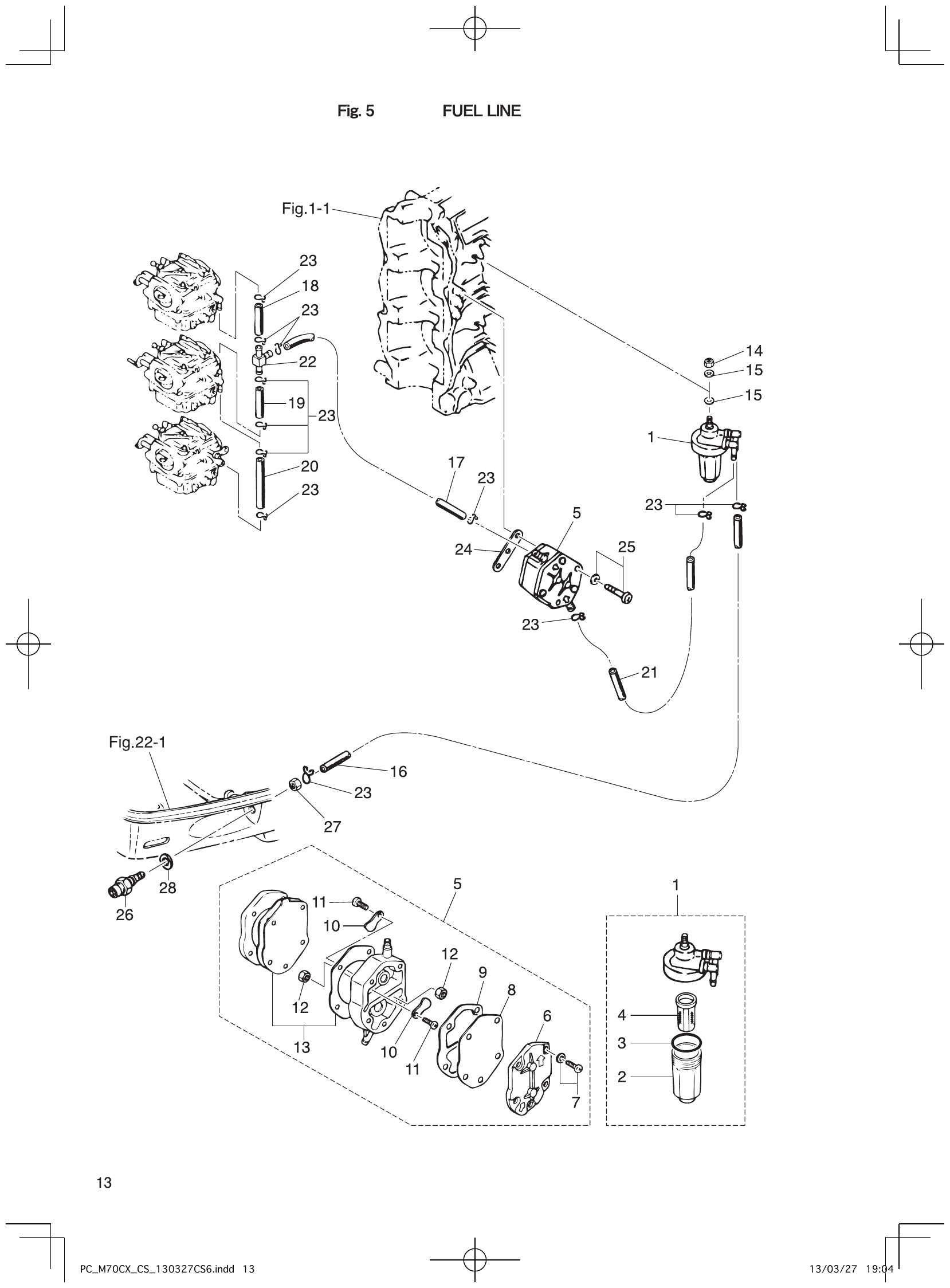

Fig. 5 – fuel line diagram

Fig. 5 – fuel line

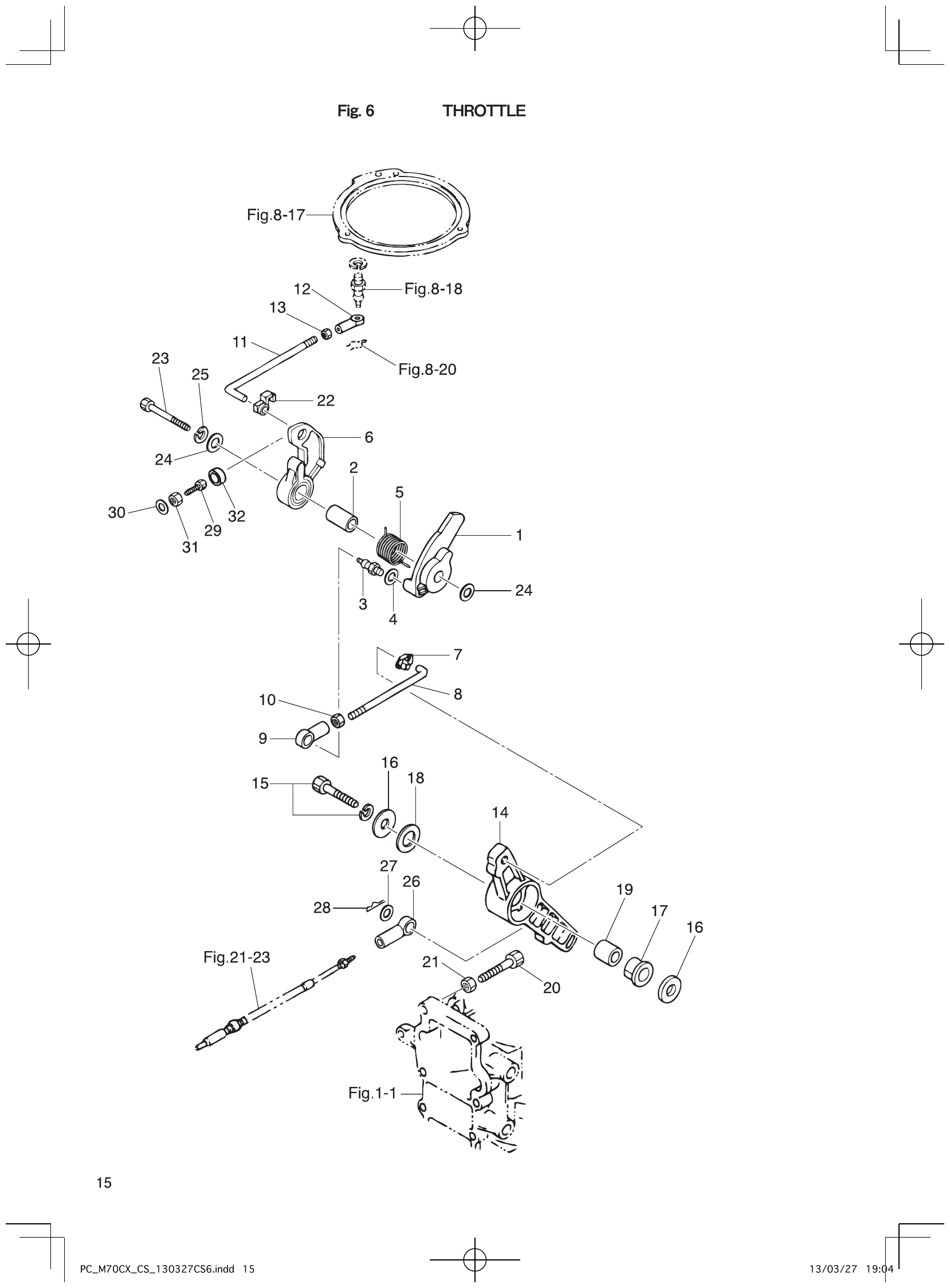

Fig. 6 – throttle diagram

Fig. 6 – throttle

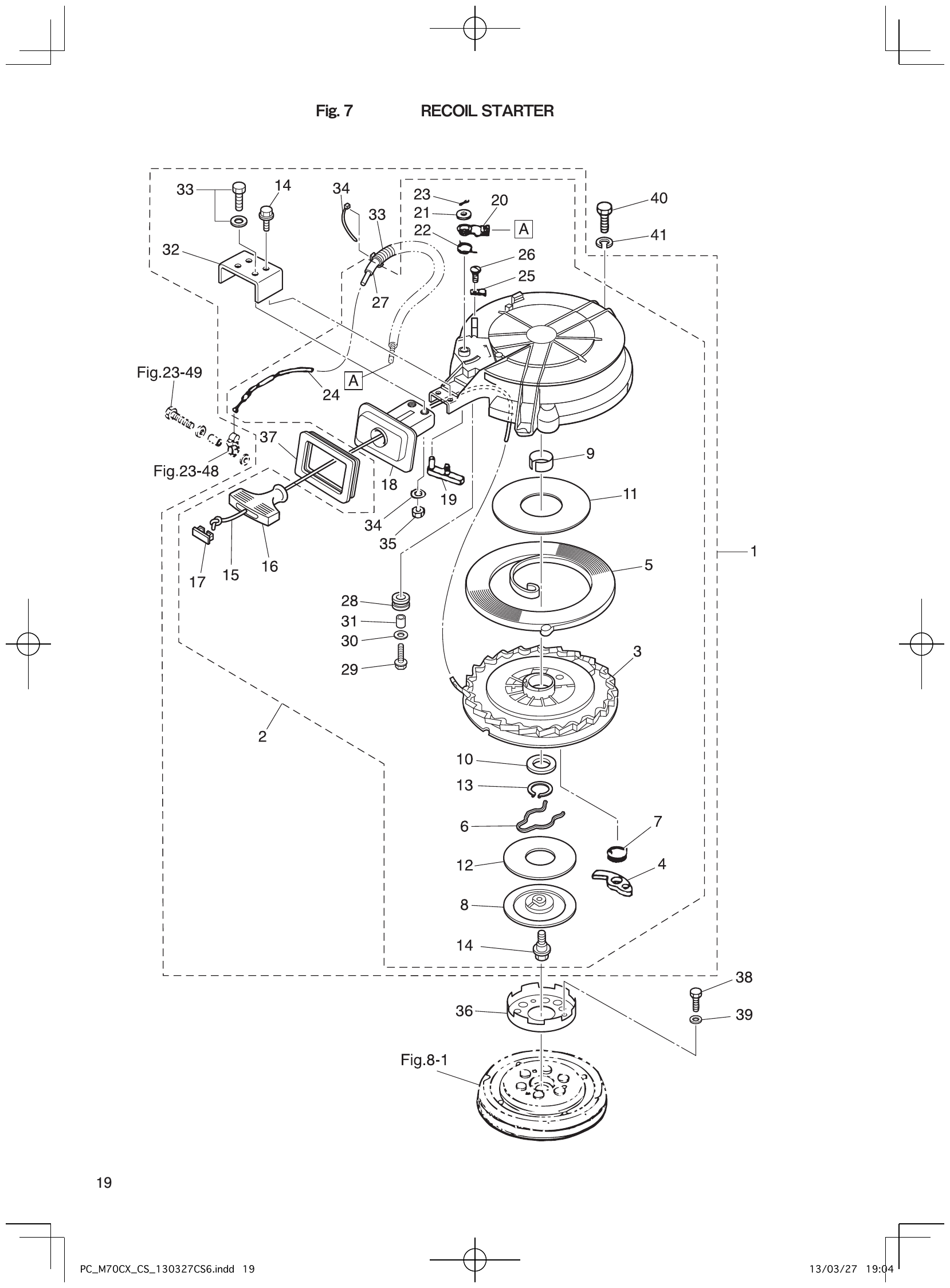

Fig. 7 – recoil starter diagram

Fig. 7 – recoil starter

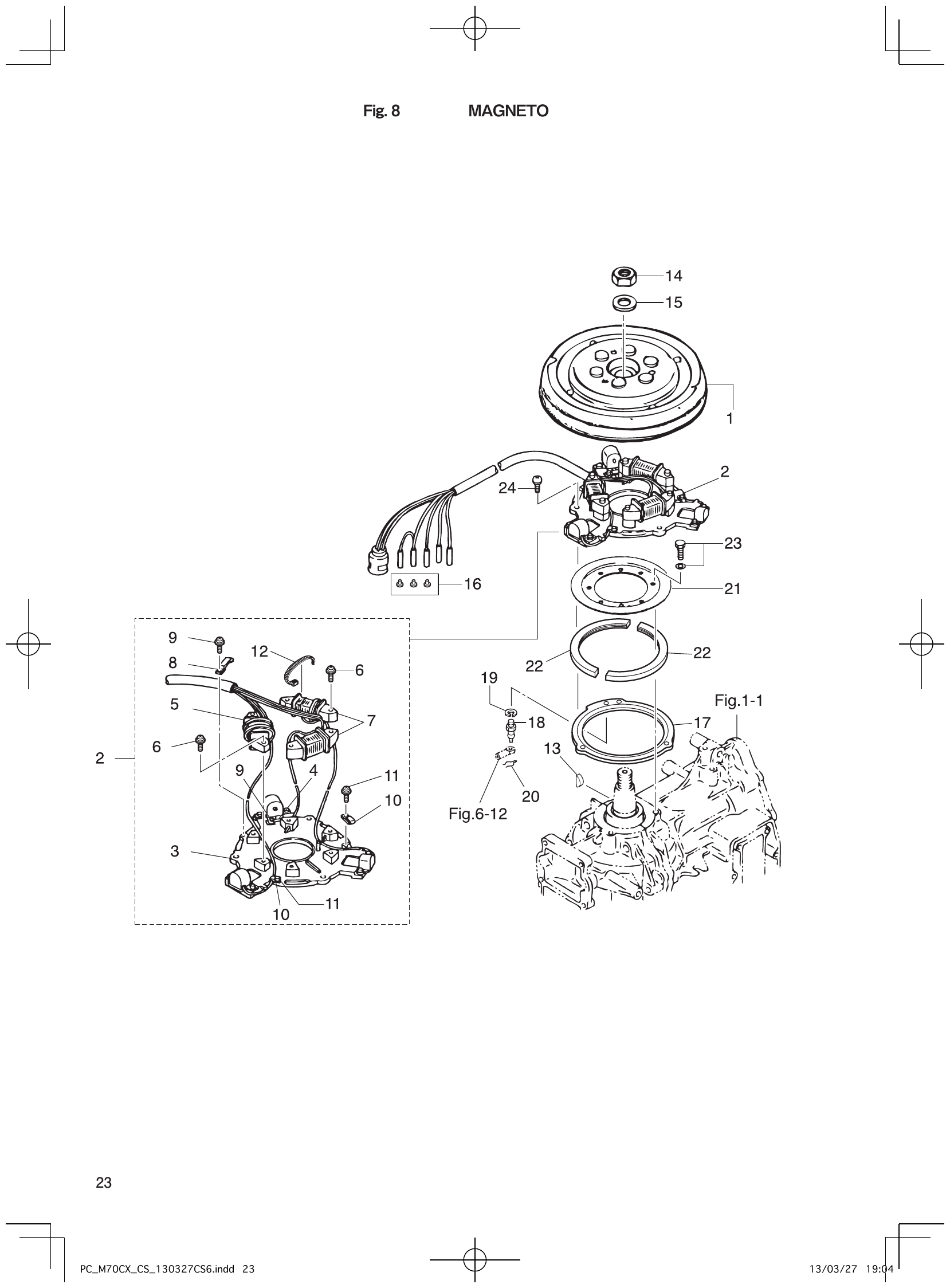

Fig. 8 – magneto diagram

Fig. 8 – magneto

Fig. 9 – electric parts cd unit diagram

Fig. 9 – electric parts cd unit

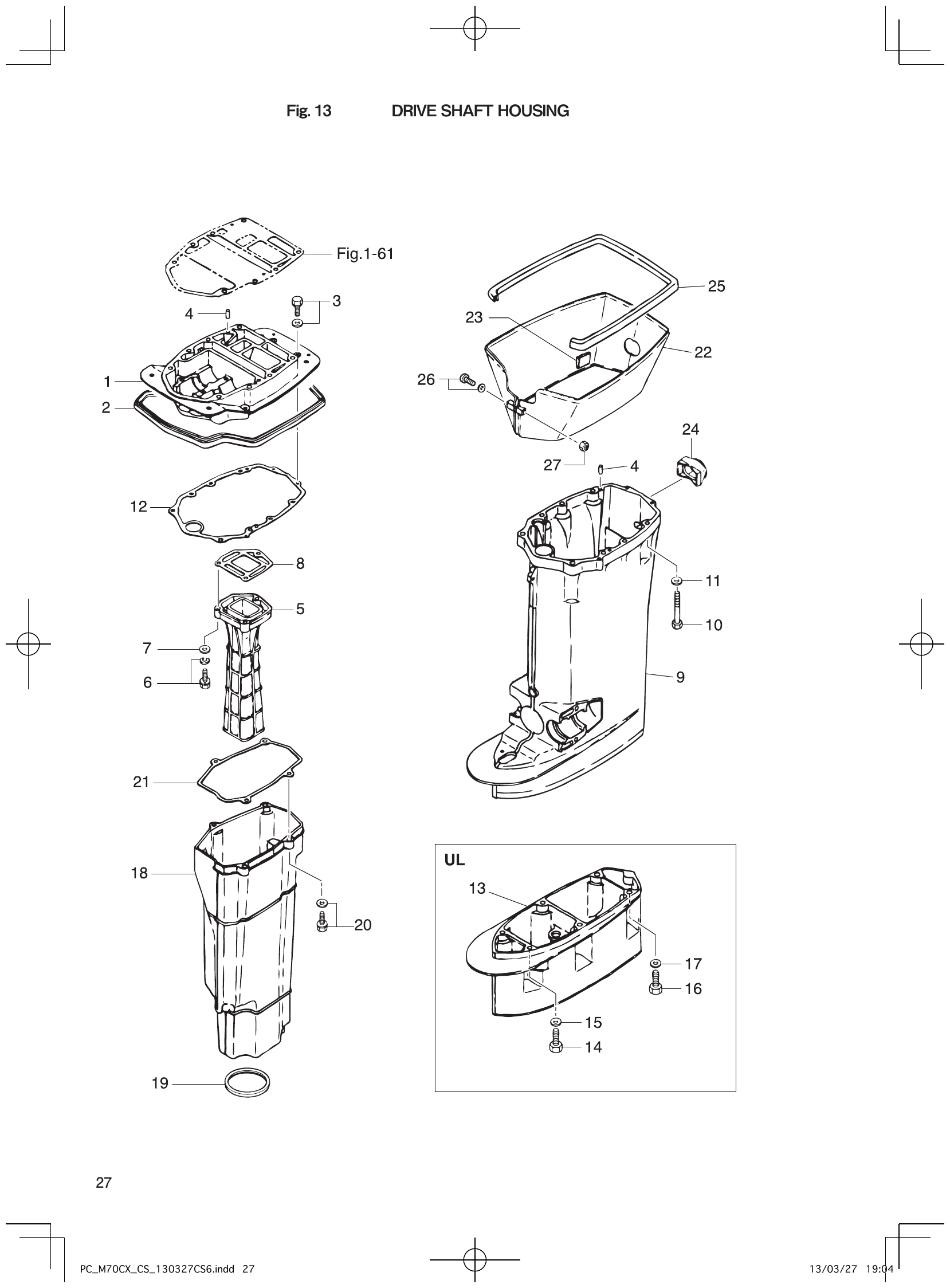

Fig. 13 – drive shaft housing diagram

Fig. 13 – drive shaft housing

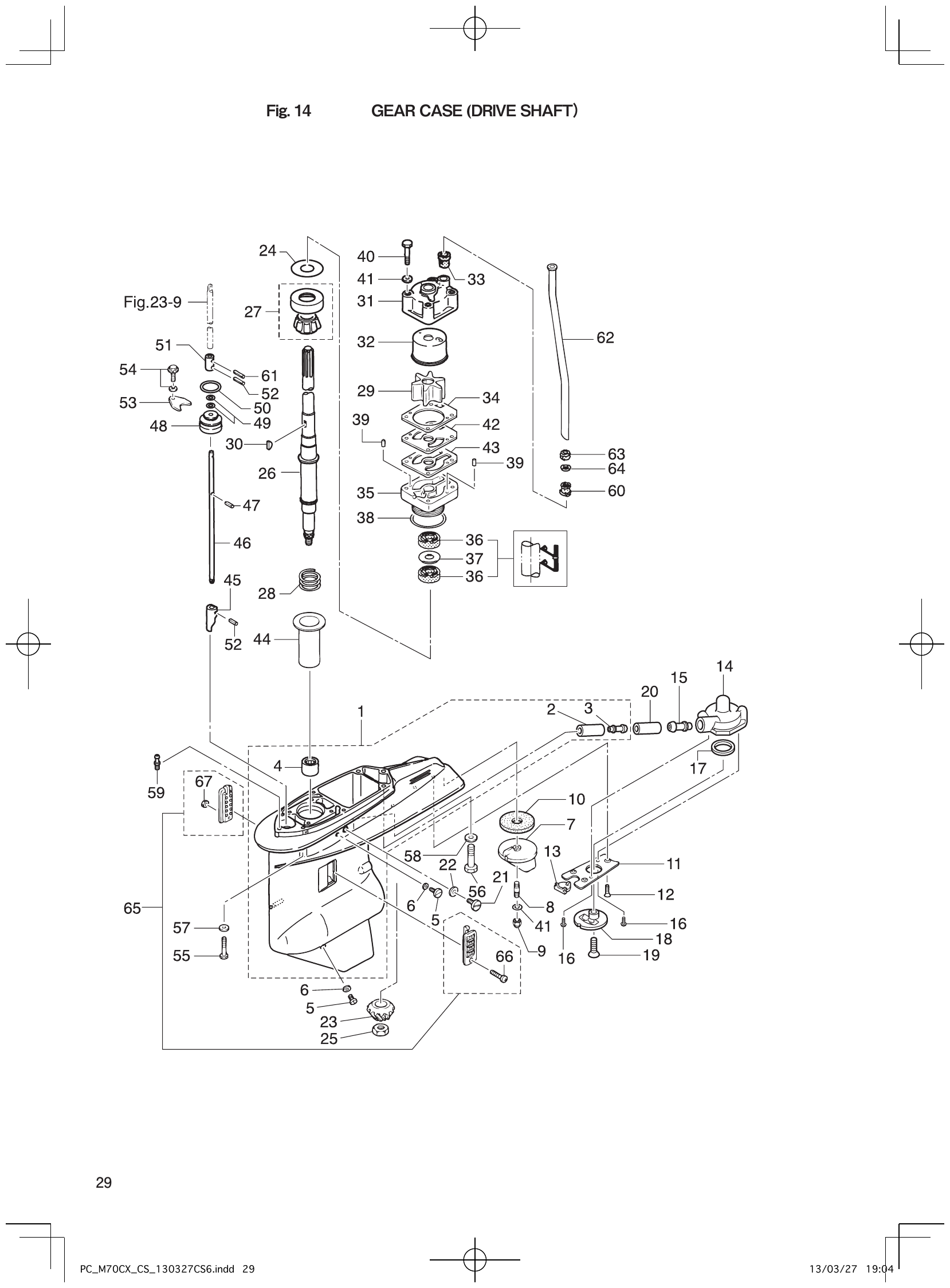

Fig. 14 – gear case drive shaft diagram

Fig. 14 – gear case drive shaft

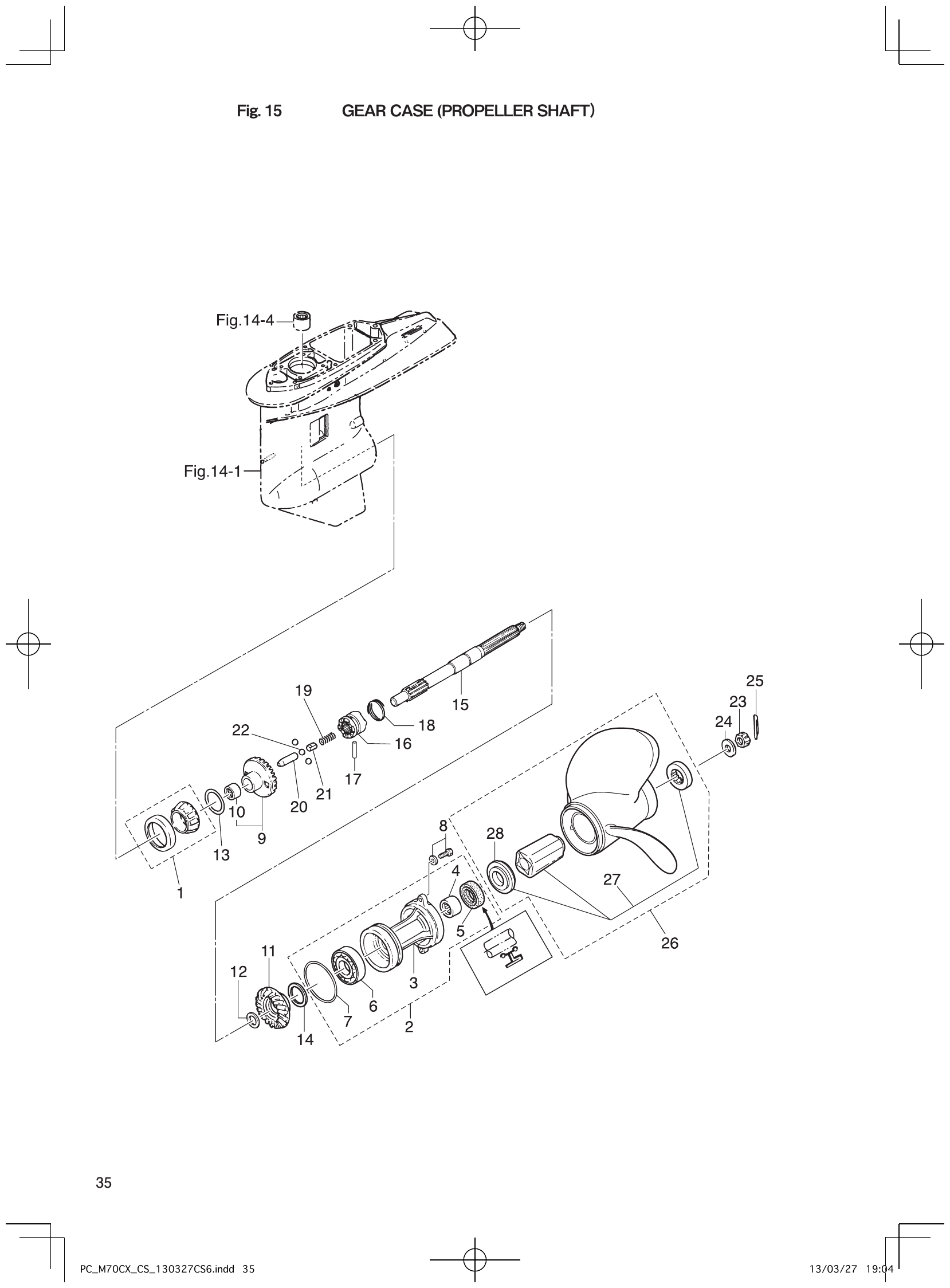

Fig. 15 – gear case propeller shaft diagram

Fig. 15 – gear case propeller shaft

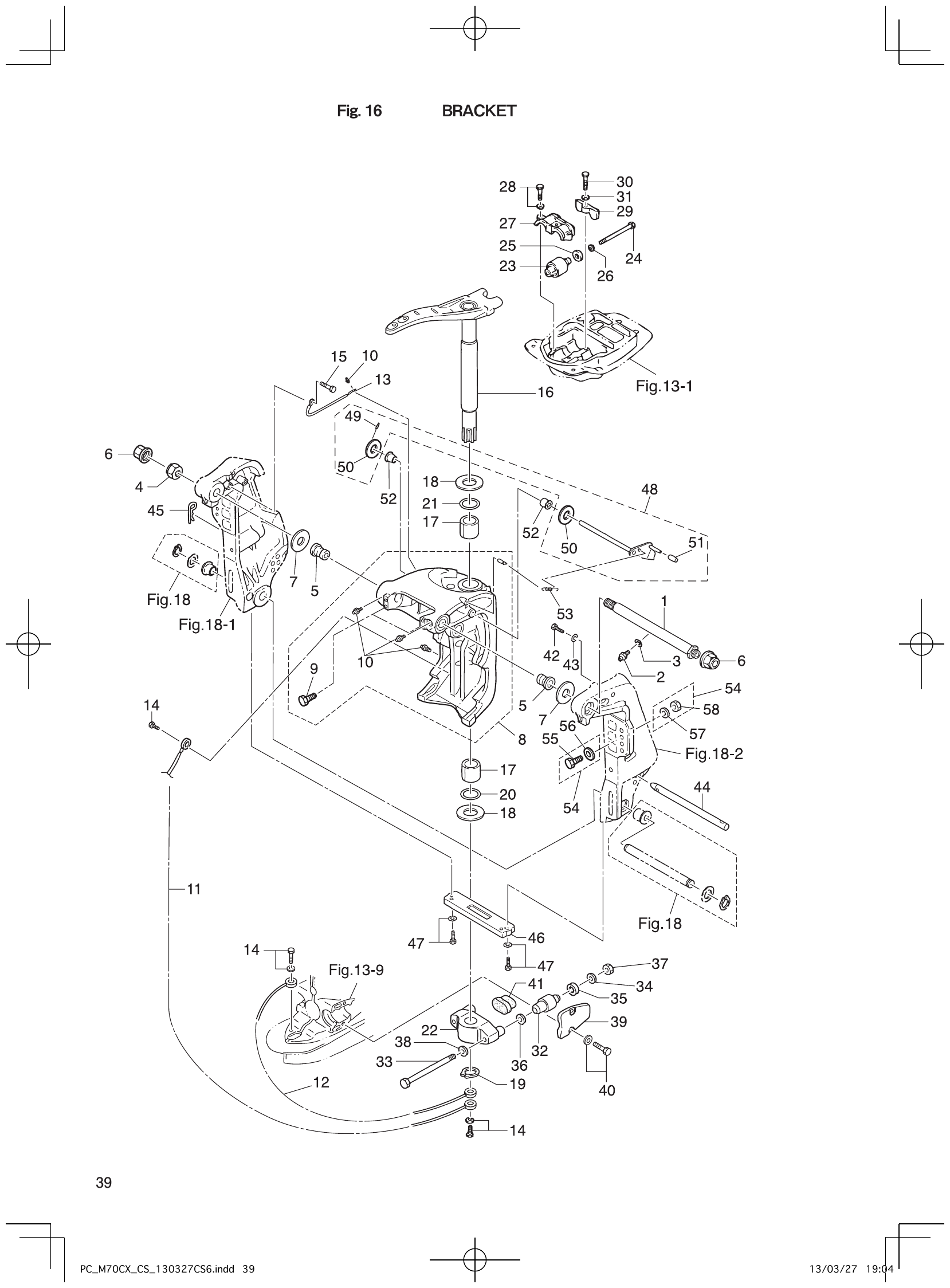

Fig. 16 – bracket diagram

Fig. 16 – bracket

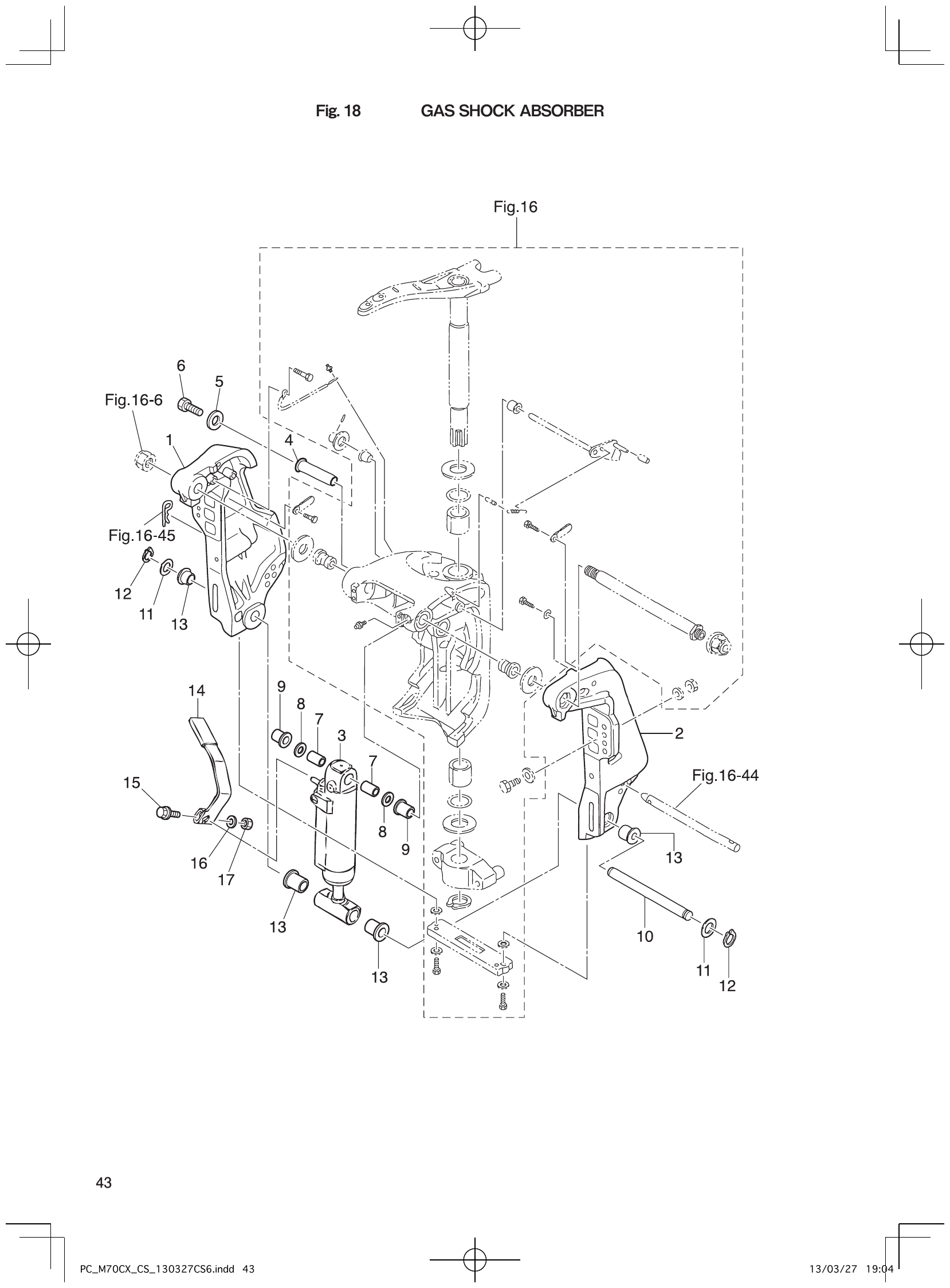

Fig. 18 – gas shock absorber diagram

Fig. 18 – gas shock absorber

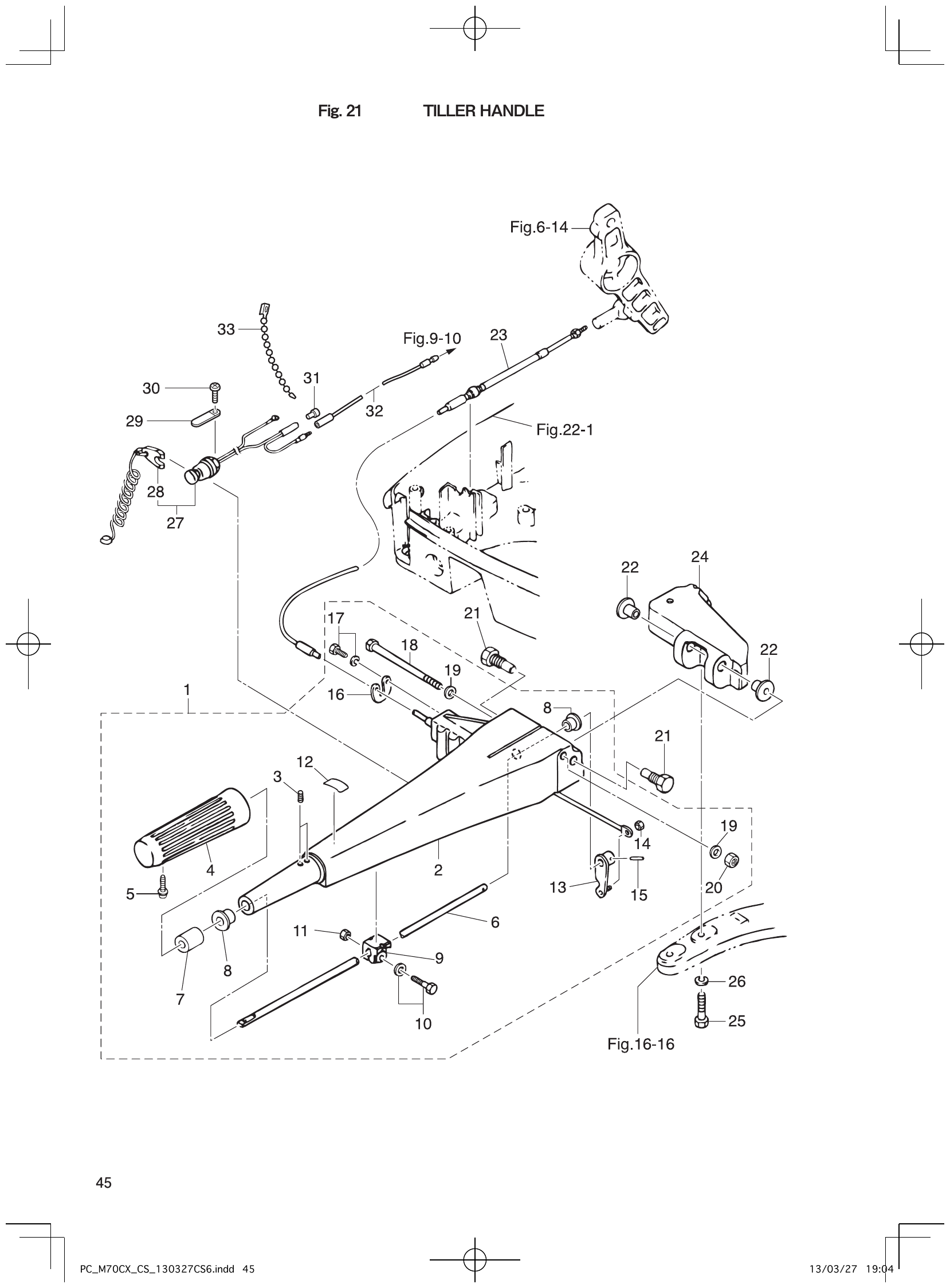

Fig. 21 – tiller handle diagram

Fig. 21 – tiller handle

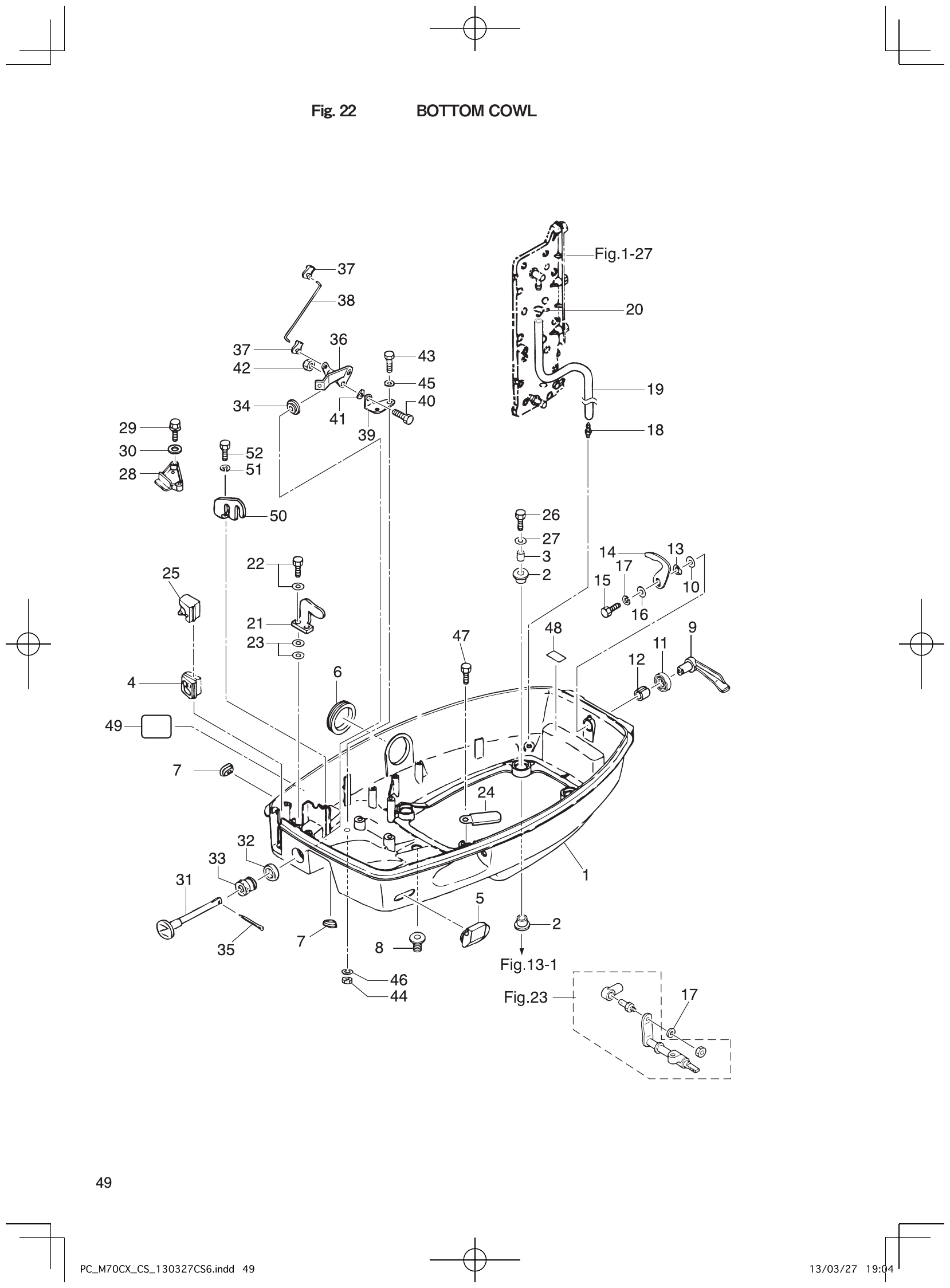

Fig. 22 – bottom cowl diagram

Fig. 22 – bottom cowl

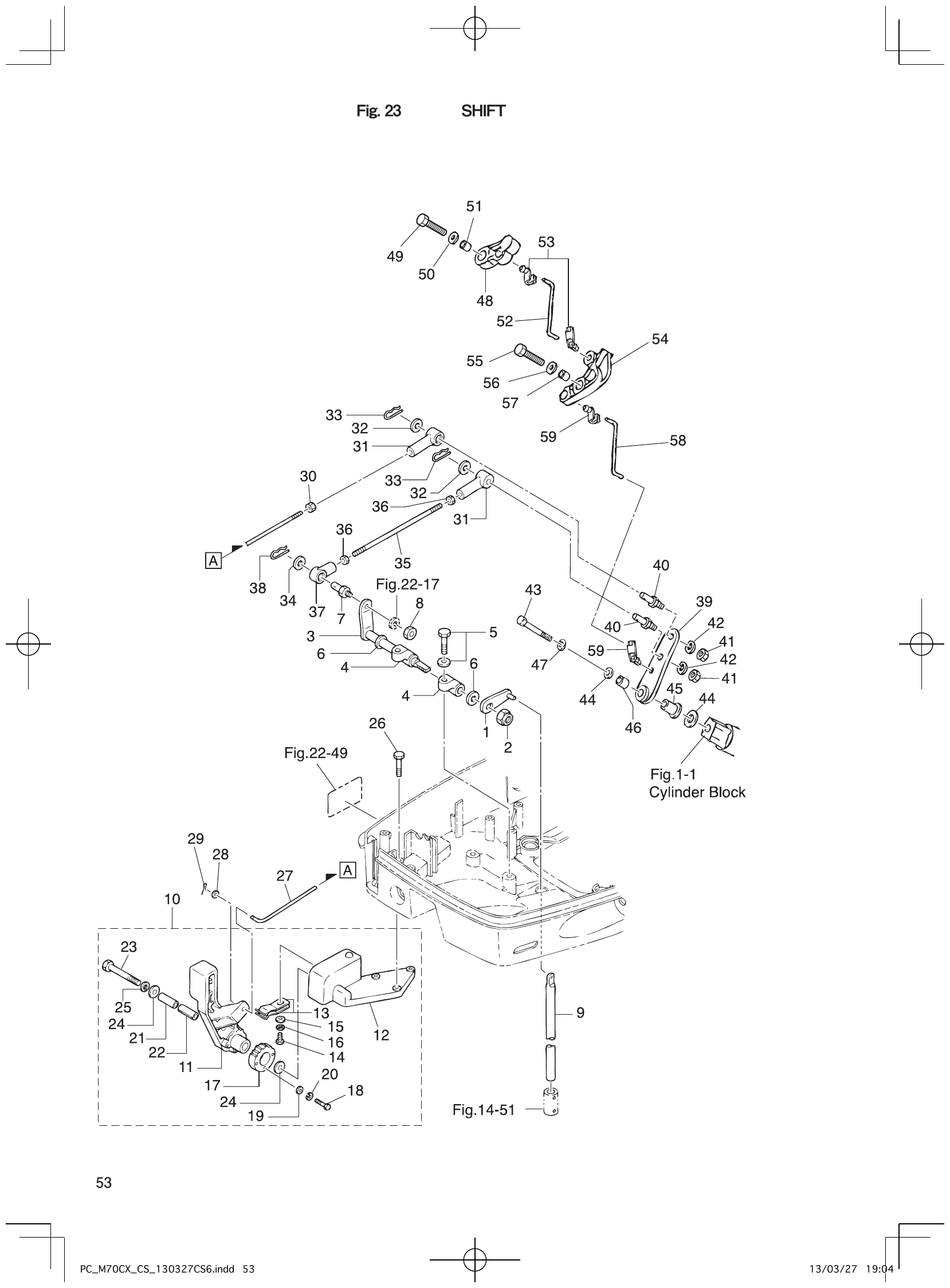

Fig. 23 – shift diagram

Fig. 23 – shift

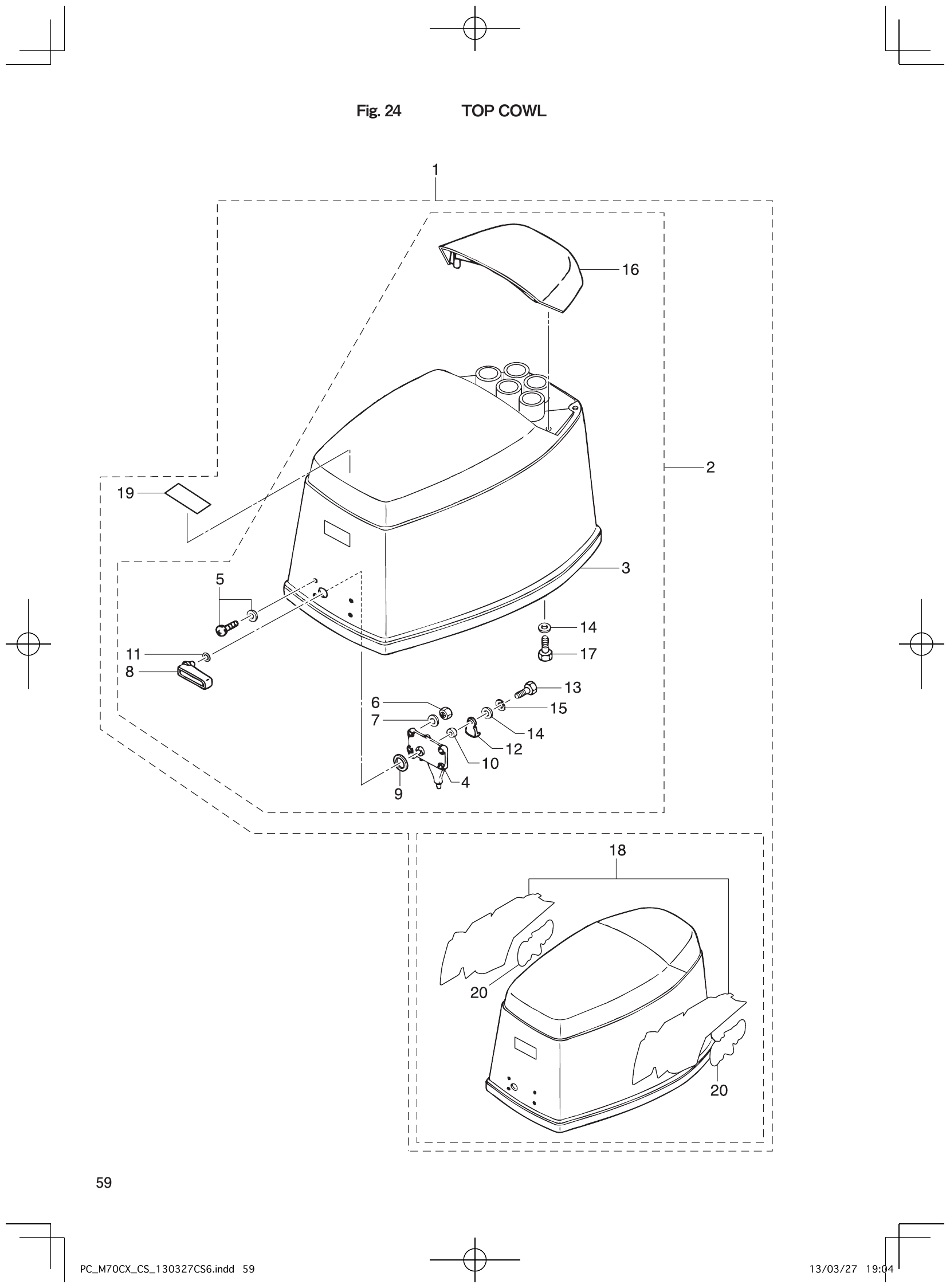

Fig. 24 – top cowl diagram

Fig. 24 – top cowl

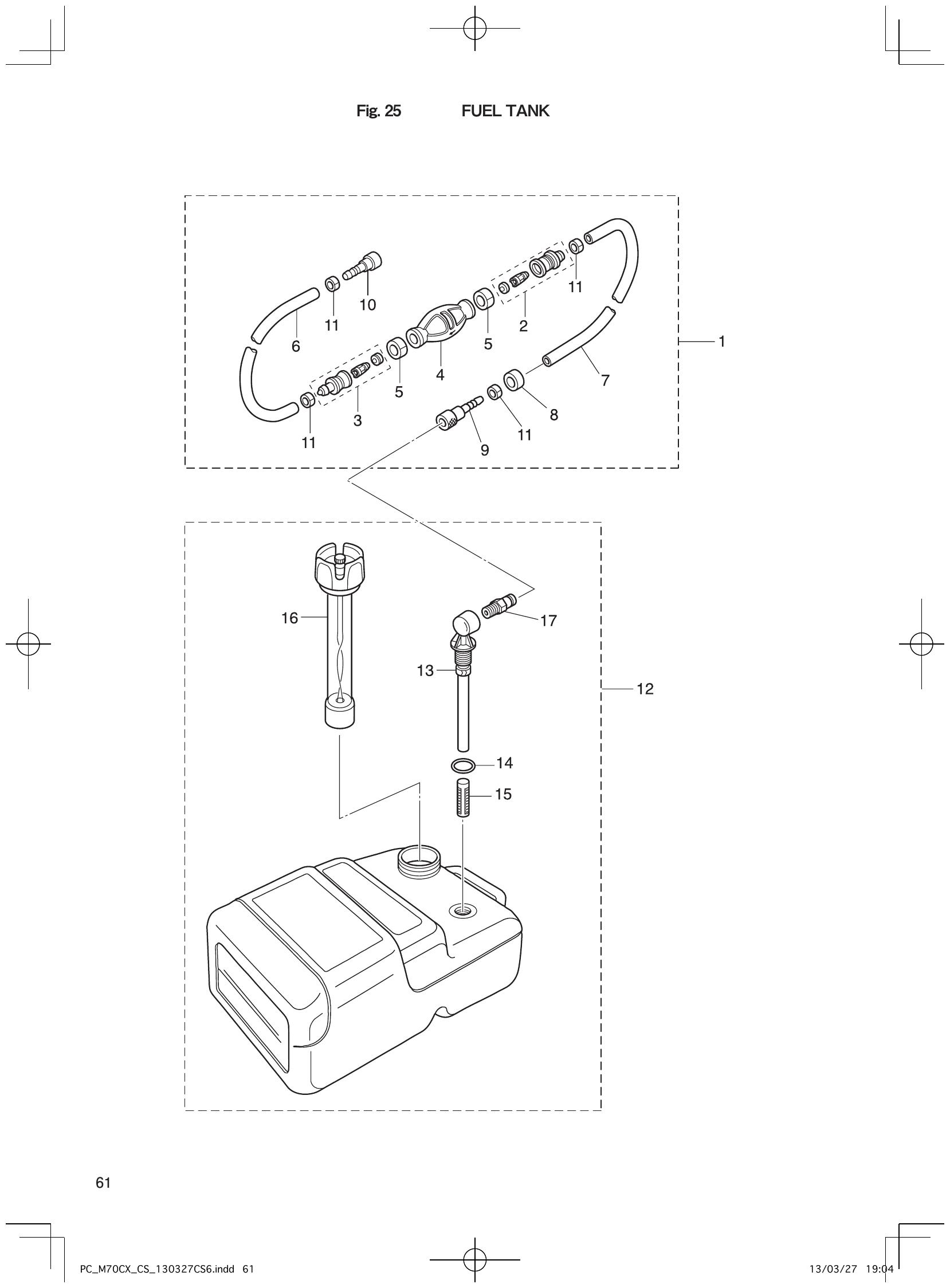

Fig. 25 – fuel tank diagram

Fig. 25 – fuel tank

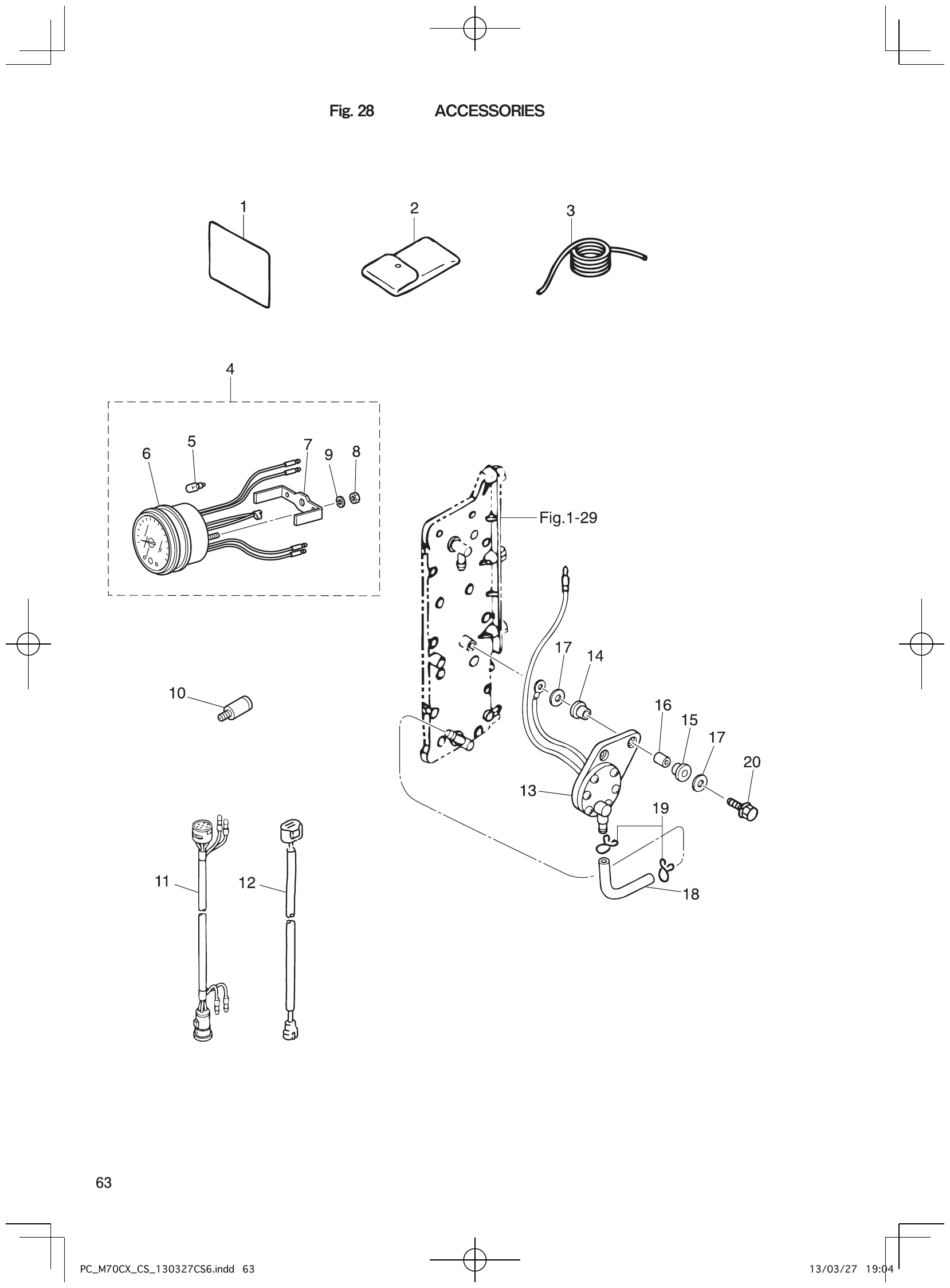

Fig. 28 – accessories diagram

Fig. 28 – accessories

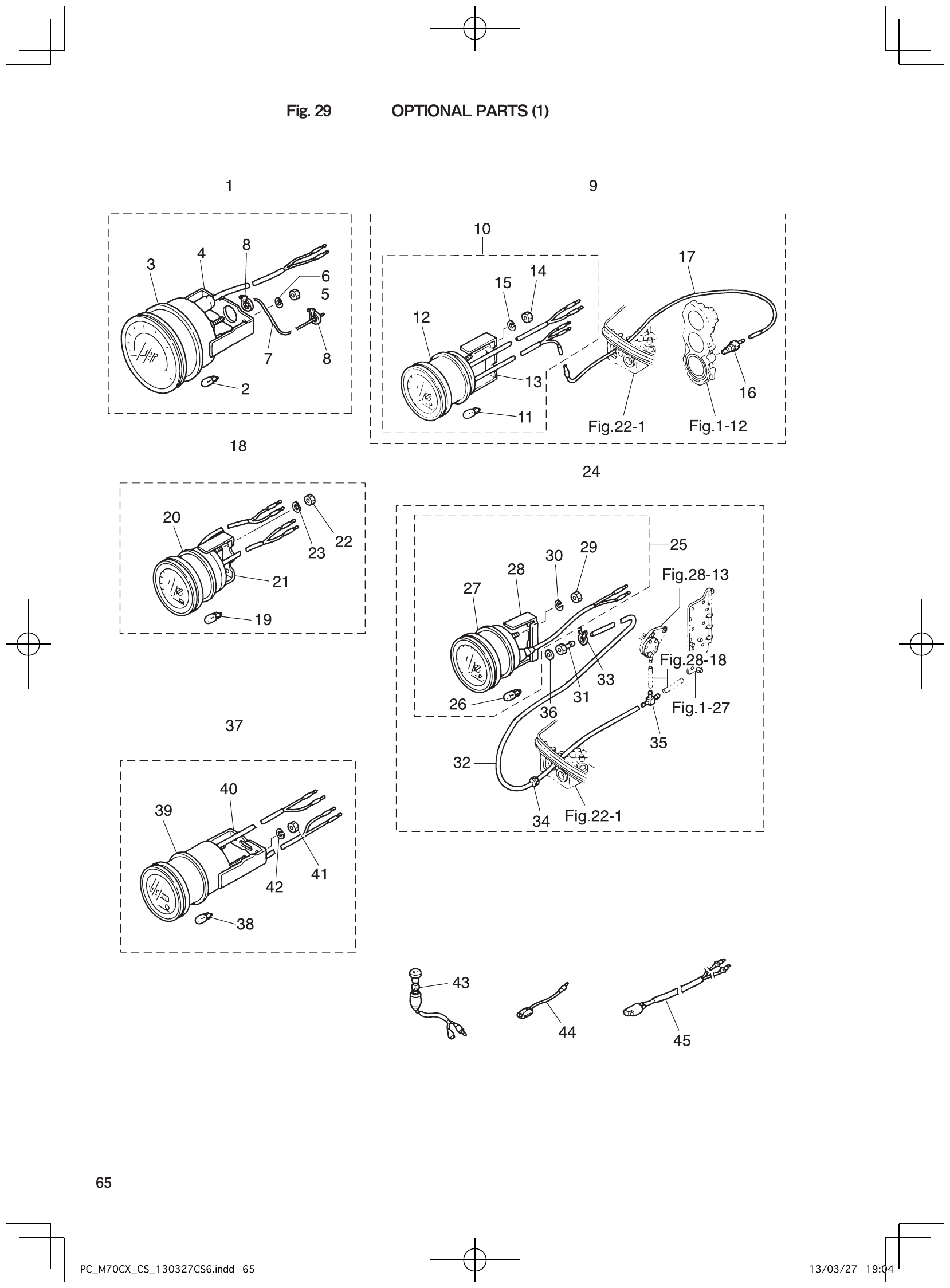

Fig. 29 – optional parts 1 diagram

Fig. 29 – optional parts 1

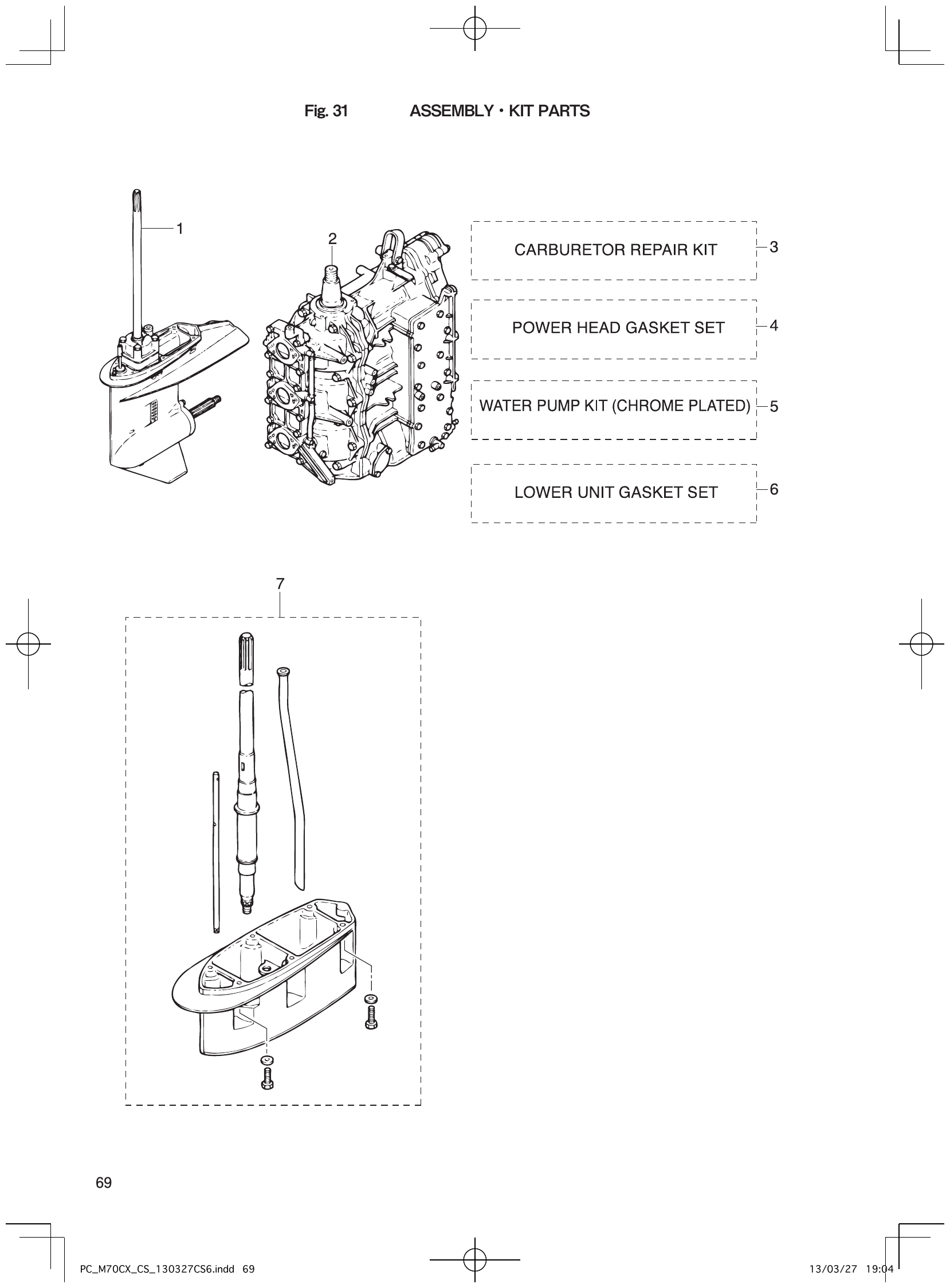

Fig. 31 – assembly kit parts diagram

Fig. 31 – assembly kit parts
