M90A2

Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model
CYLINDER CRANK CASE PISTON CRANK SHAFT INTAKE MANIFOLD REED VALVE INTAKE SILENCER CARBURETOR FUEL LINE THROTTLE MAGNETO ELECTRIC PARTS (C.D. UNIT) ELECTRIC PARTS (STARTER MOTOR) OIL PUMP (AUTO MIXING) DRIVE SHAFT HOUSING GEAR CASE (DRIVE SHAFT) GEAR CASE (PROPELLER SHAFT) BRACKET POWER TRIM & TILT (PTT) BOTTOM COWL SHIFT TOP COWL FUEL TANK COMPONENT PARTS OF REMOTE CONTROL COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS) ACCESSORIES OPTIONAL PARTS (1) OPTIONAL PARTS (2) ASSEMBLY KIT PARTS

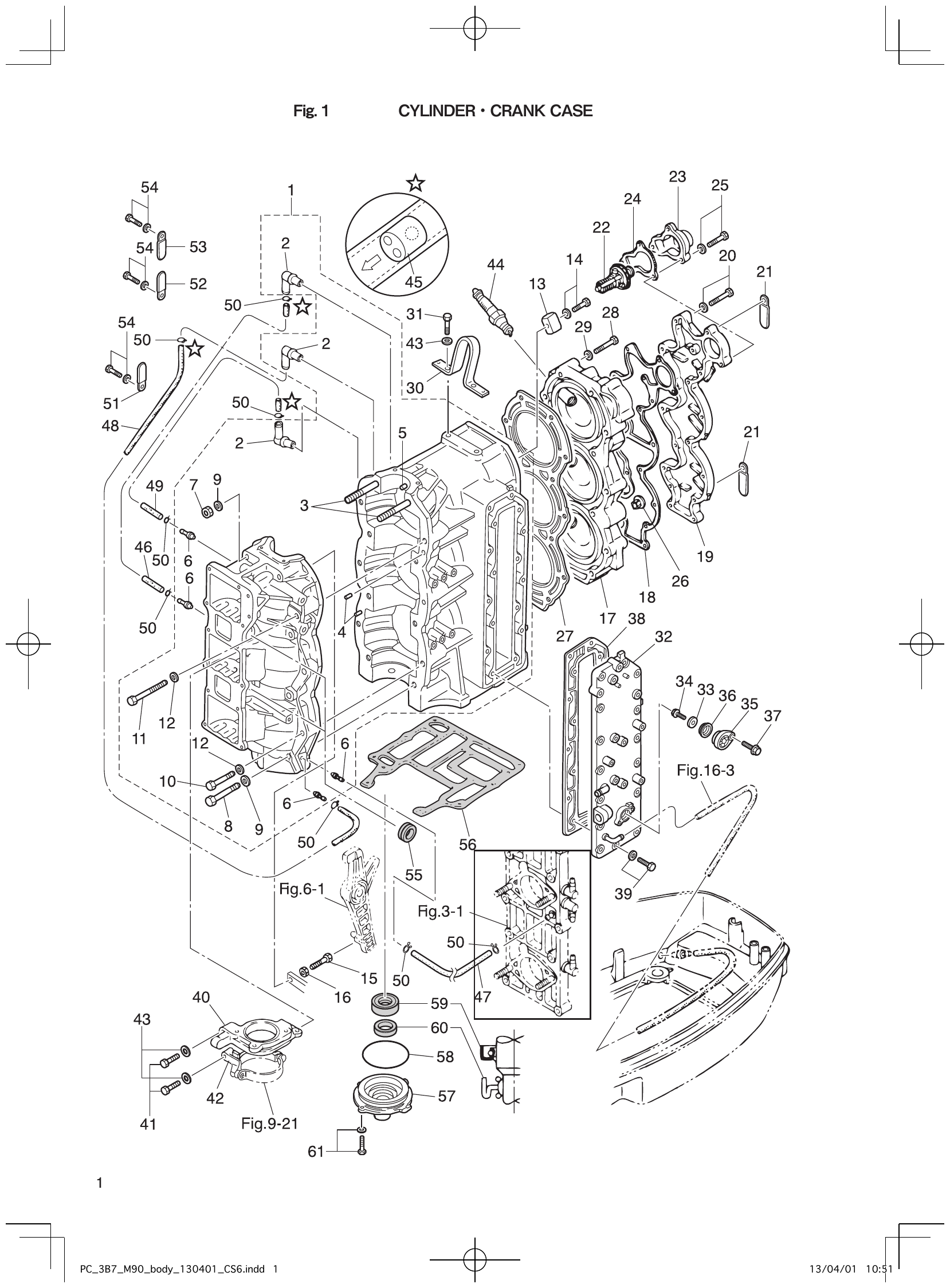

Fig. 1 – CYLINDER CRANK CASE diagram
Fig. 1 – CYLINDER CRANK CASE

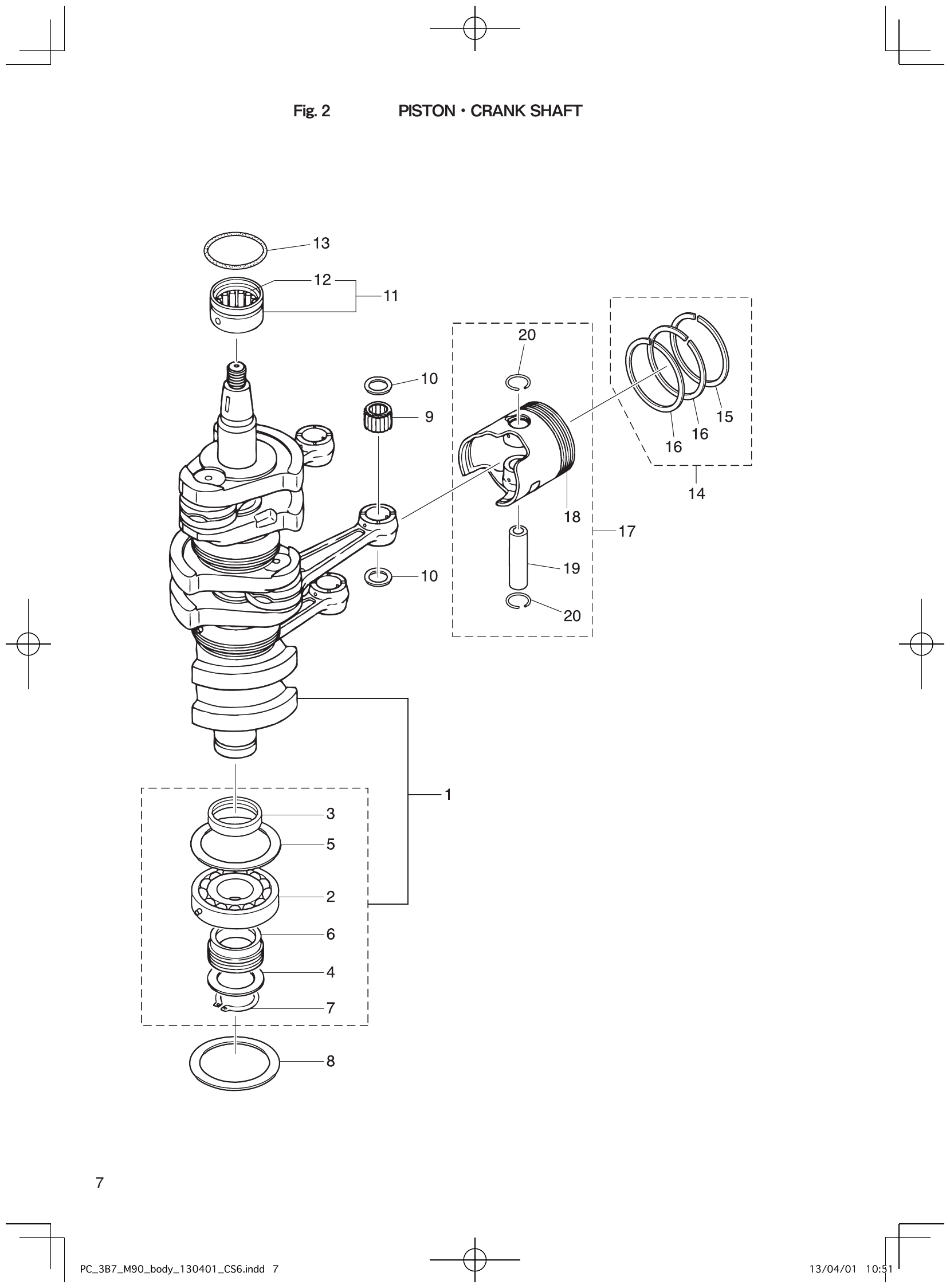

Fig. 2 – PISTON CRANK SHAFT diagram
Fig. 2 – PISTON CRANK SHAFT
Fig. 3 – INTAKE MANIFOLD REED VALVE diagram
Fig. 3 – INTAKE MANIFOLD REED VALVE
Fig. 4 – INTAKE SILENCER CARBURETOR diagram
Fig. 4 – INTAKE SILENCER CARBURETOR
Fig. 5 – FUEL LINE diagram
Fig. 5 – FUEL LINE

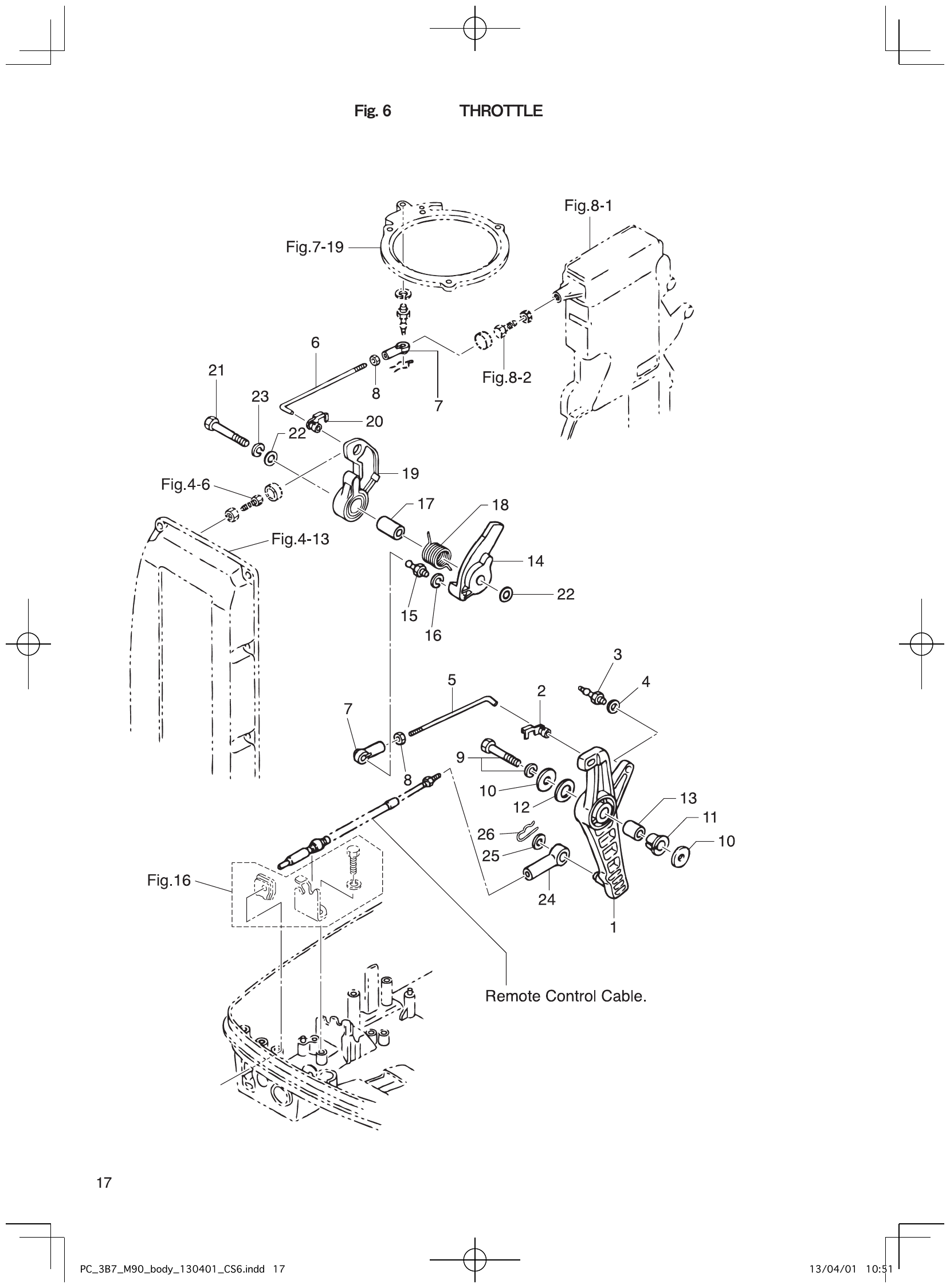

Fig. 6 – THROTTLE diagram
Fig. 6 – THROTTLE

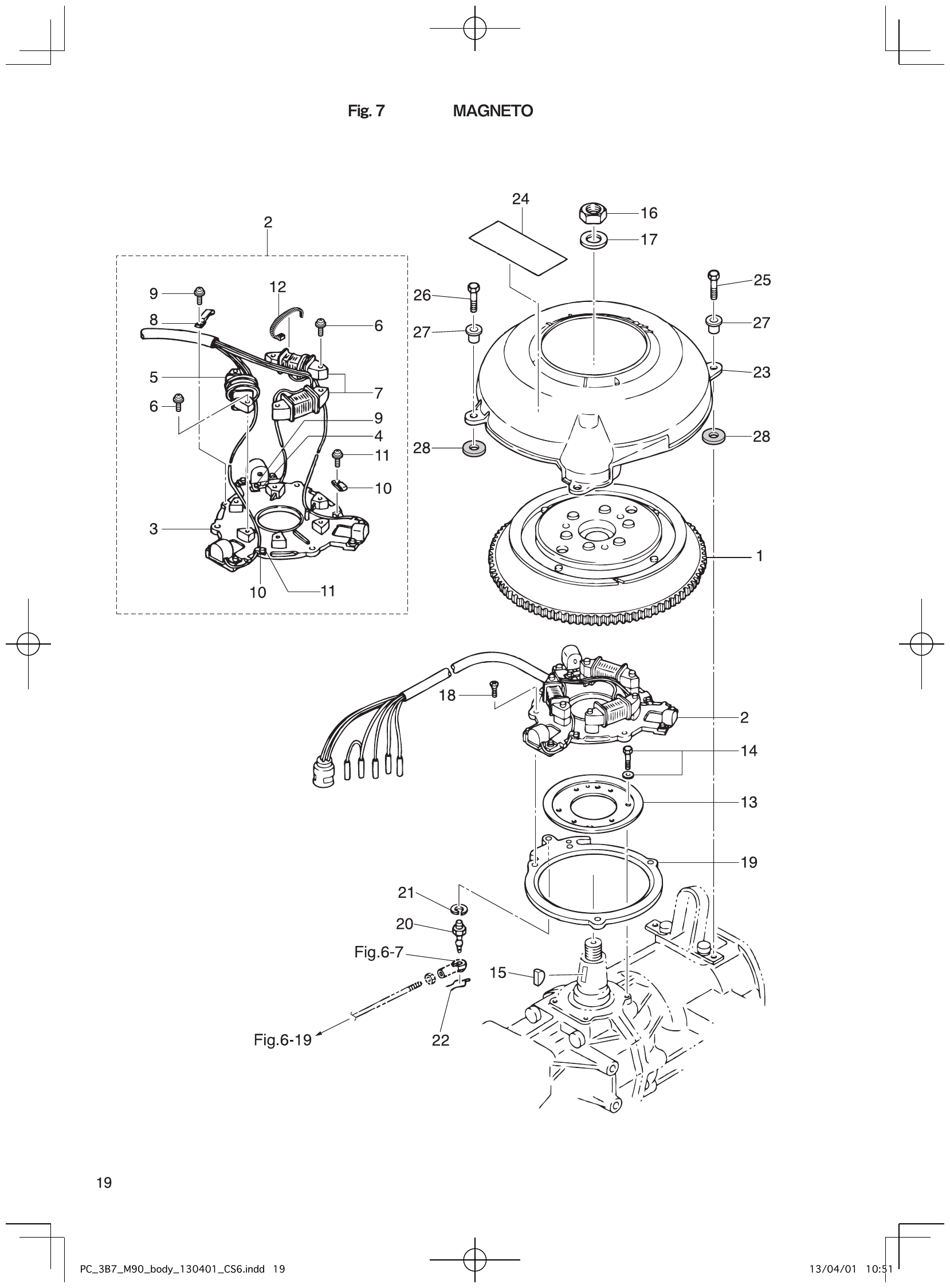

Fig. 7 – MAGNETO diagram
Fig. 7 – MAGNETO
Fig. 8 – ELECTRIC PARTS (C.D. UNIT) diagram
Fig. 8 – ELECTRIC PARTS (C.D. UNIT)

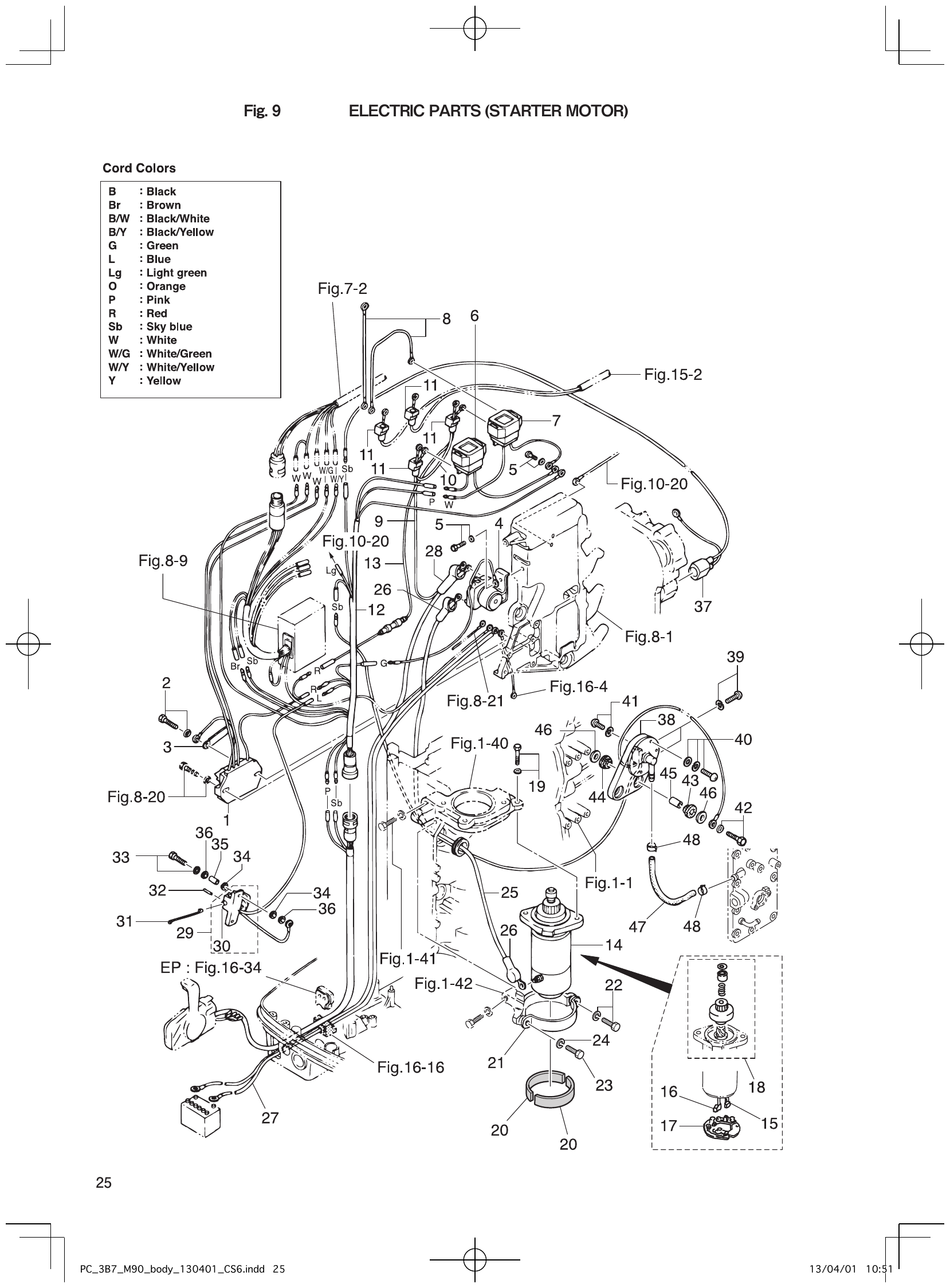

Fig. 9 – ELECTRIC PARTS (STARTER MOTOR) diagram
Fig. 9 – ELECTRIC PARTS (STARTER MOTOR)
Fig. 10 – OIL PUMP (AUTO MIXING) diagram
Fig. 10 – OIL PUMP (AUTO MIXING)

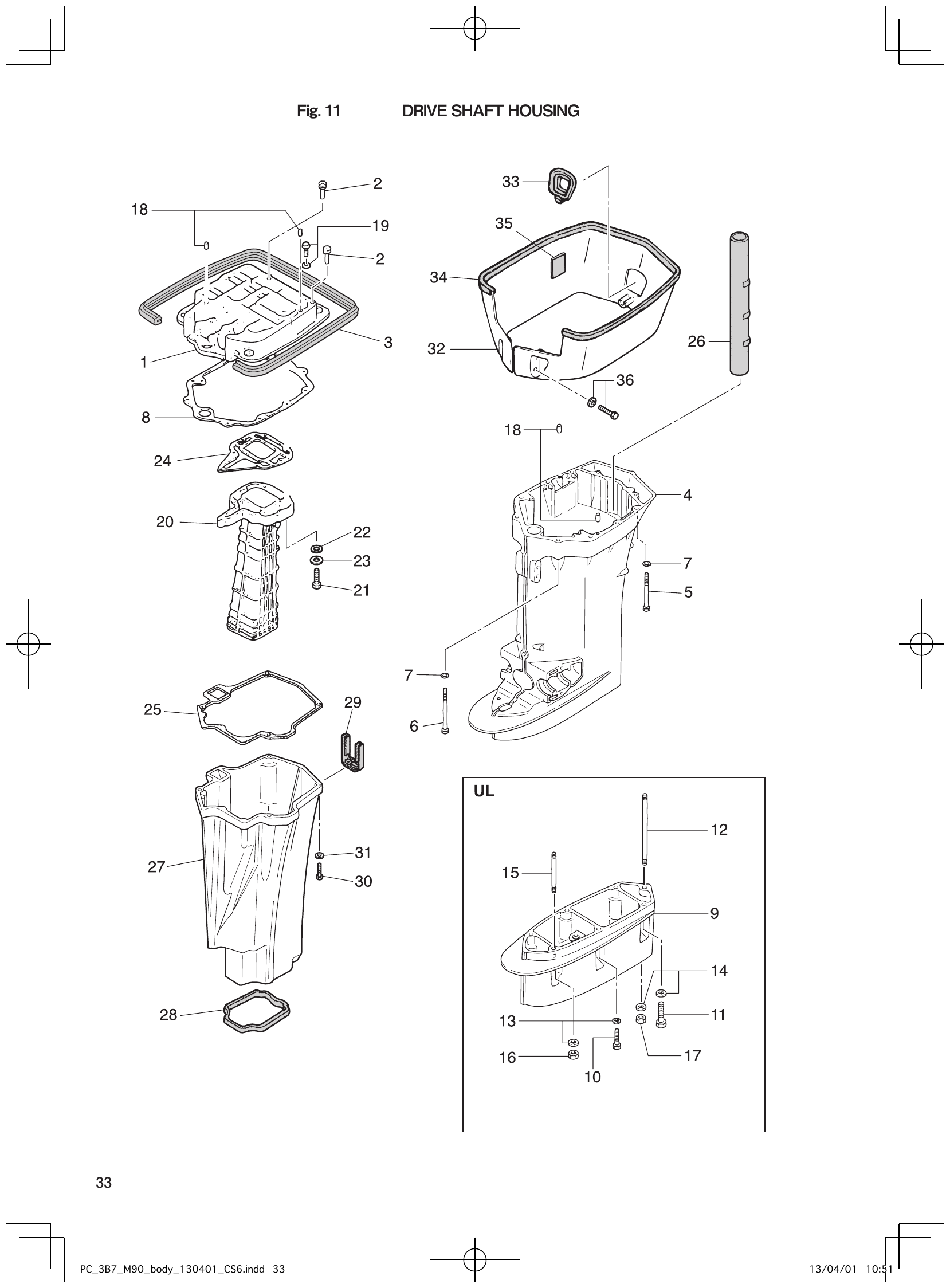

Fig. 11 – DRIVE SHAFT HOUSING diagram
Fig. 11 – DRIVE SHAFT HOUSING

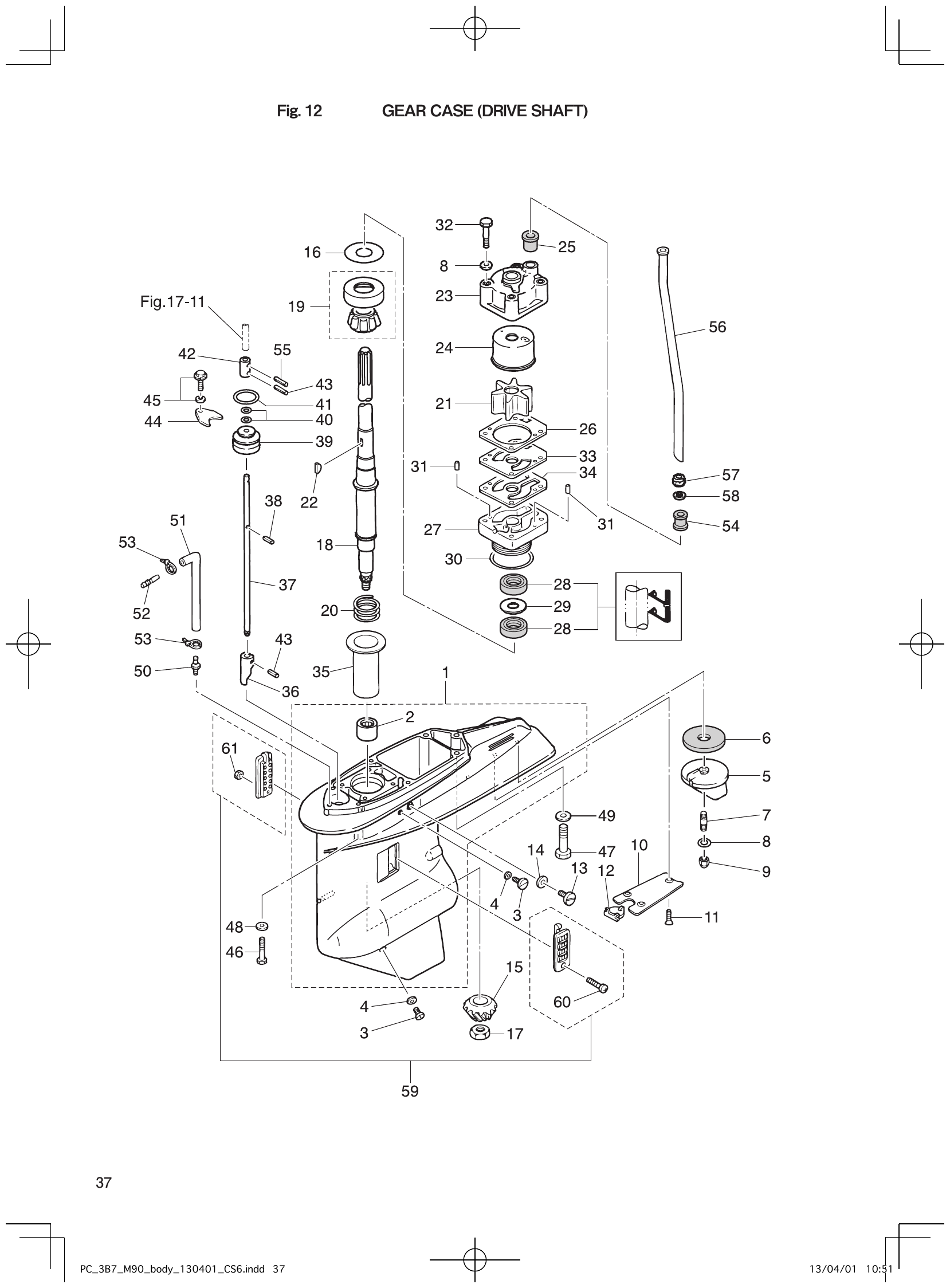

Fig. 12 – GEAR CASE (DRIVE SHAFT) diagram
Fig. 12 – GEAR CASE (DRIVE SHAFT)
Fig. 13 – GEAR CASE (PROPELLER SHAFT) diagram
Fig. 13 – GEAR CASE (PROPELLER SHAFT)

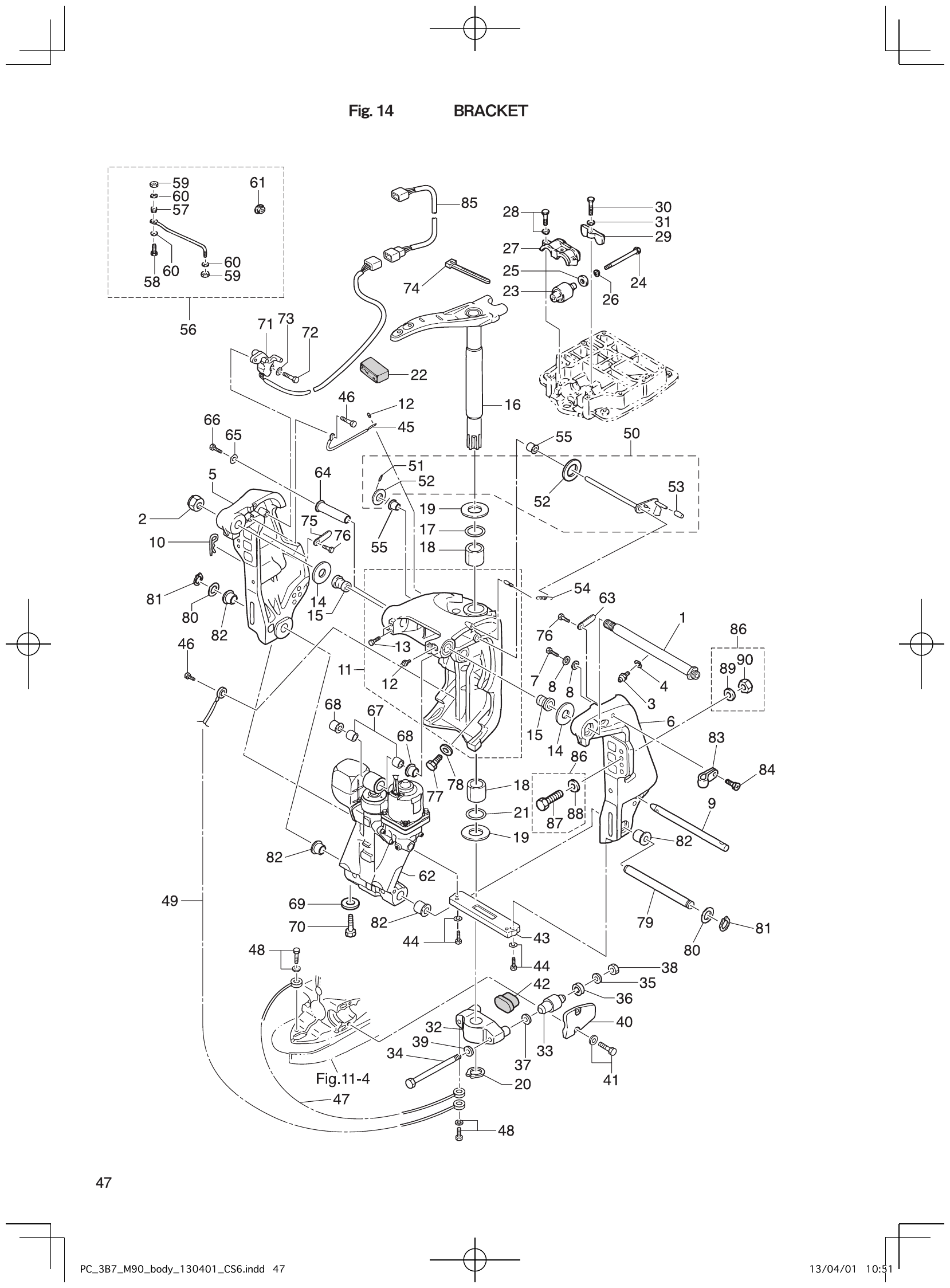

Fig. 14 – BRACKET diagram
Fig. 14 – BRACKET

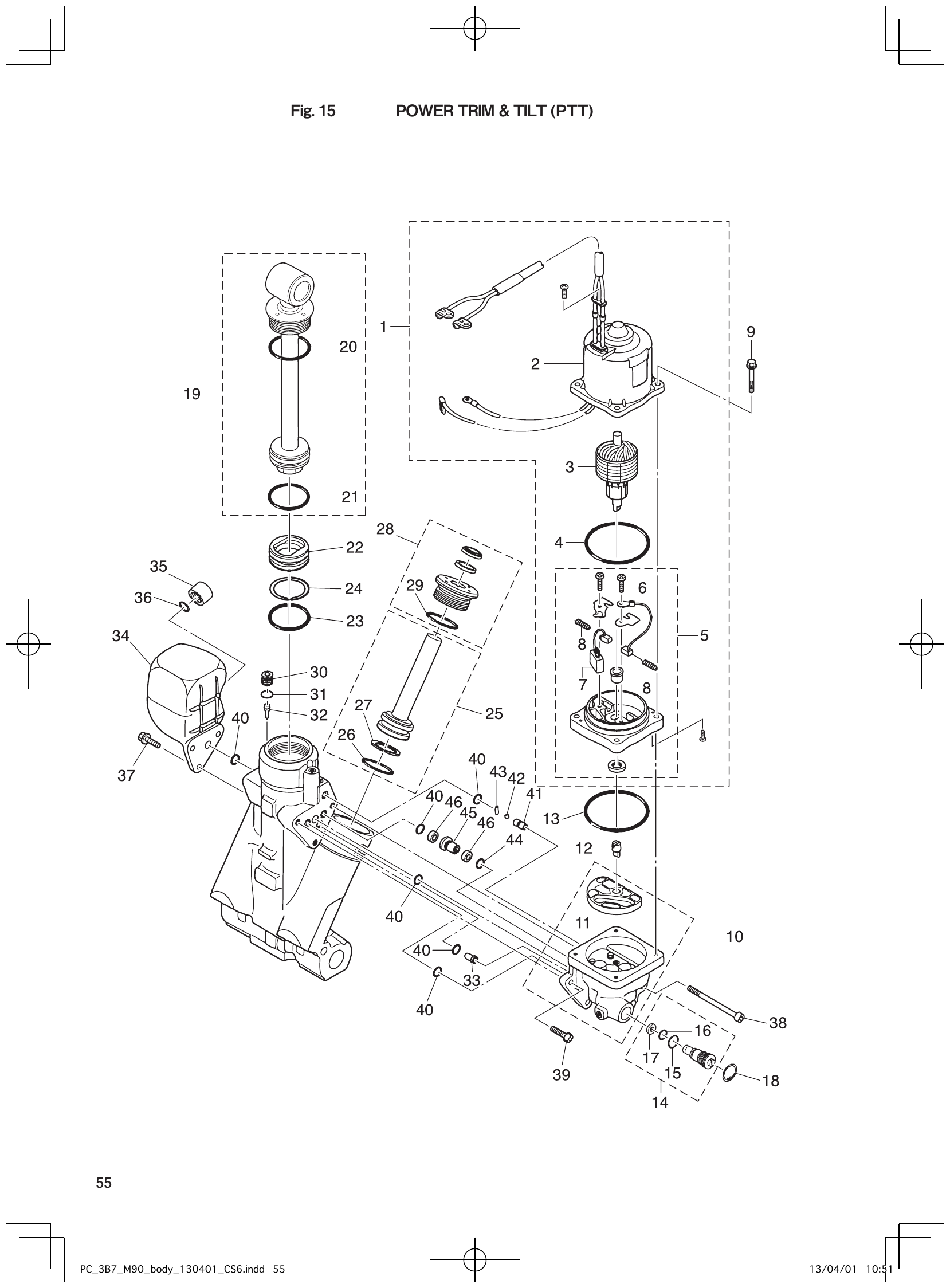

Fig. 15 – POWER TRIM & TILT (PTT) diagram
Fig. 15 – POWER TRIM & TILT (PTT)

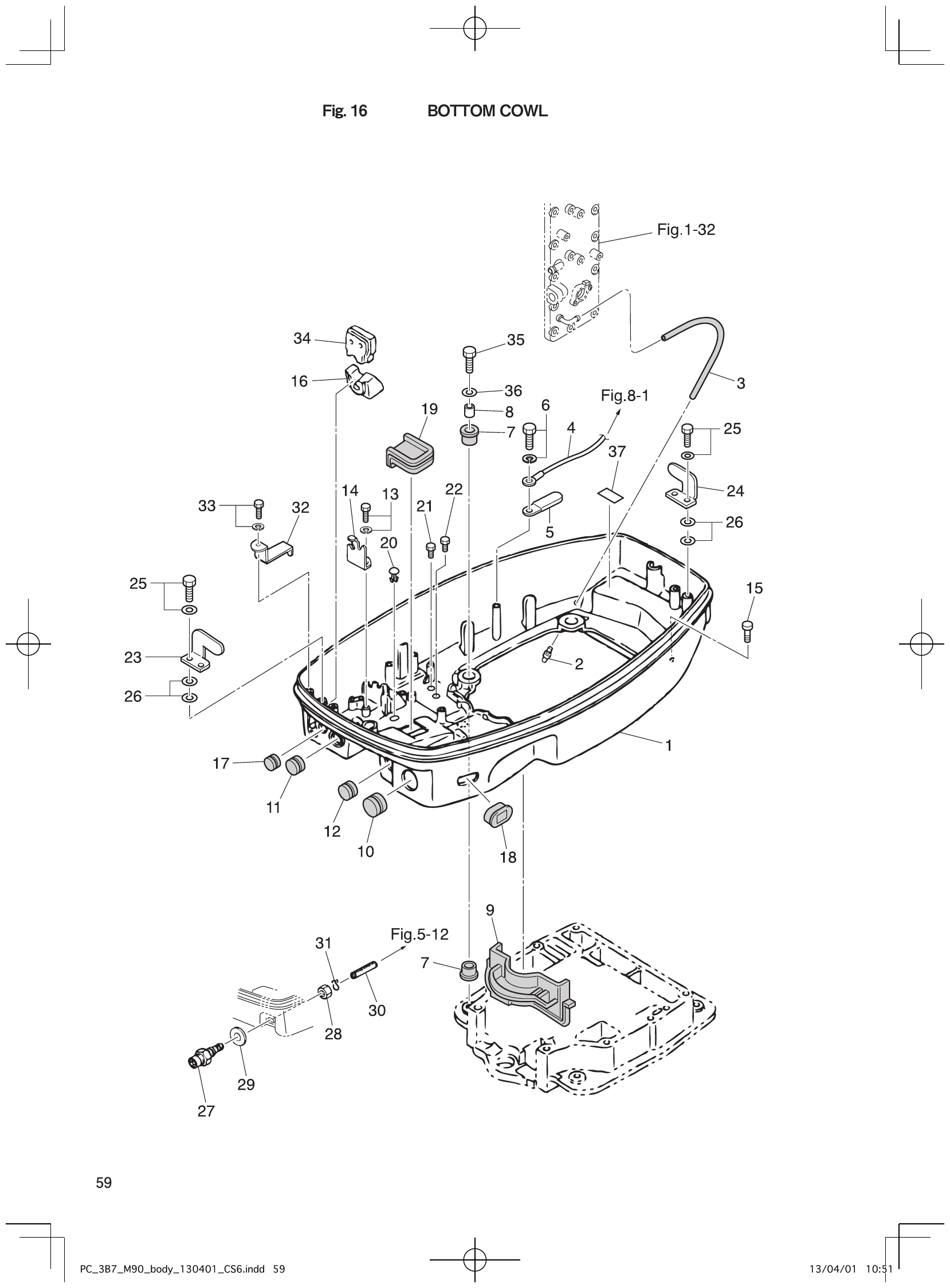

Fig. 16 – BOTTOM COWL diagram
Fig. 16 – BOTTOM COWL

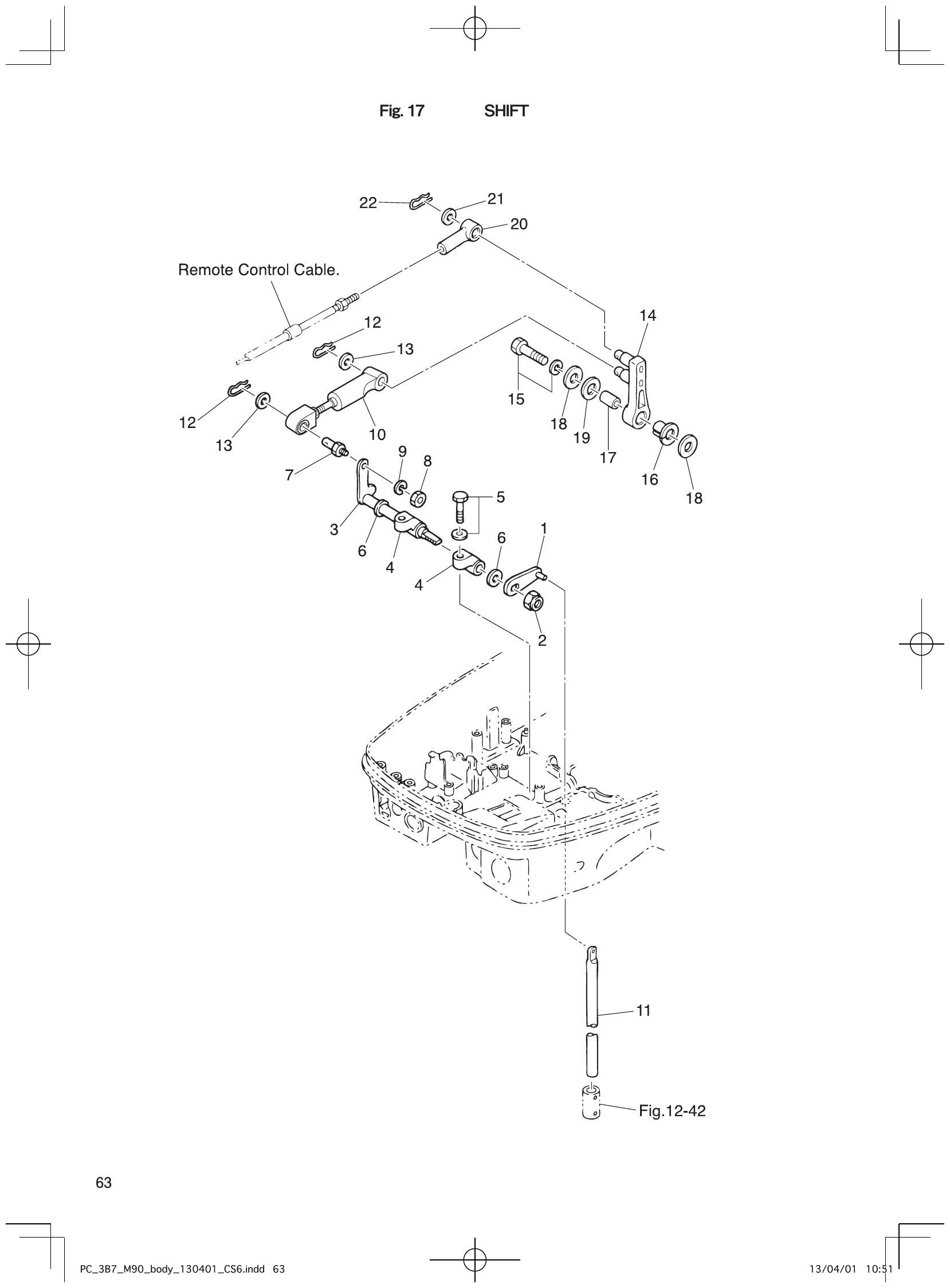

Fig. 17 – SHIFT diagram
Fig. 17 – SHIFT

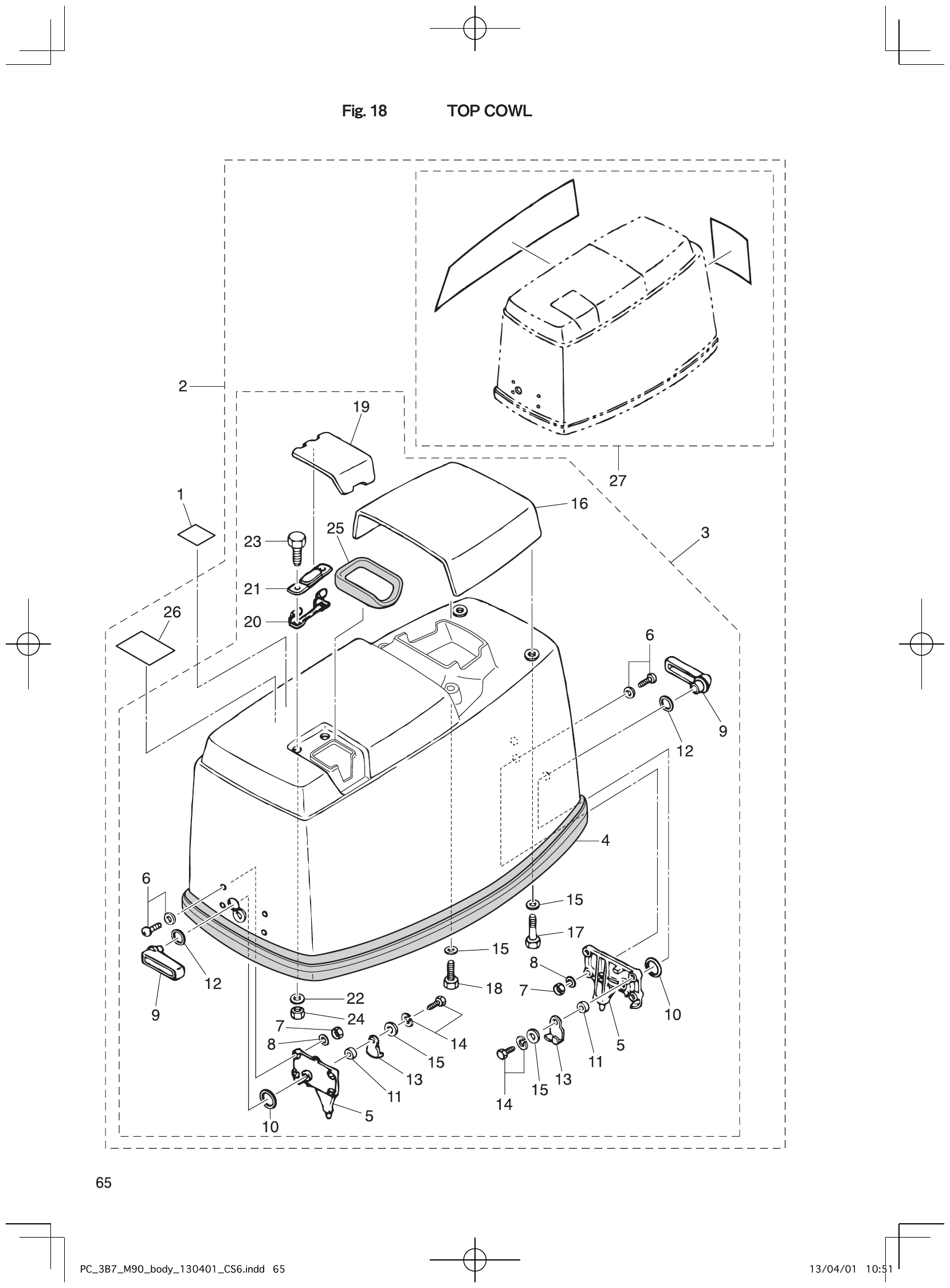

Fig. 18 – TOP COWL diagram
Fig. 18 – TOP COWL

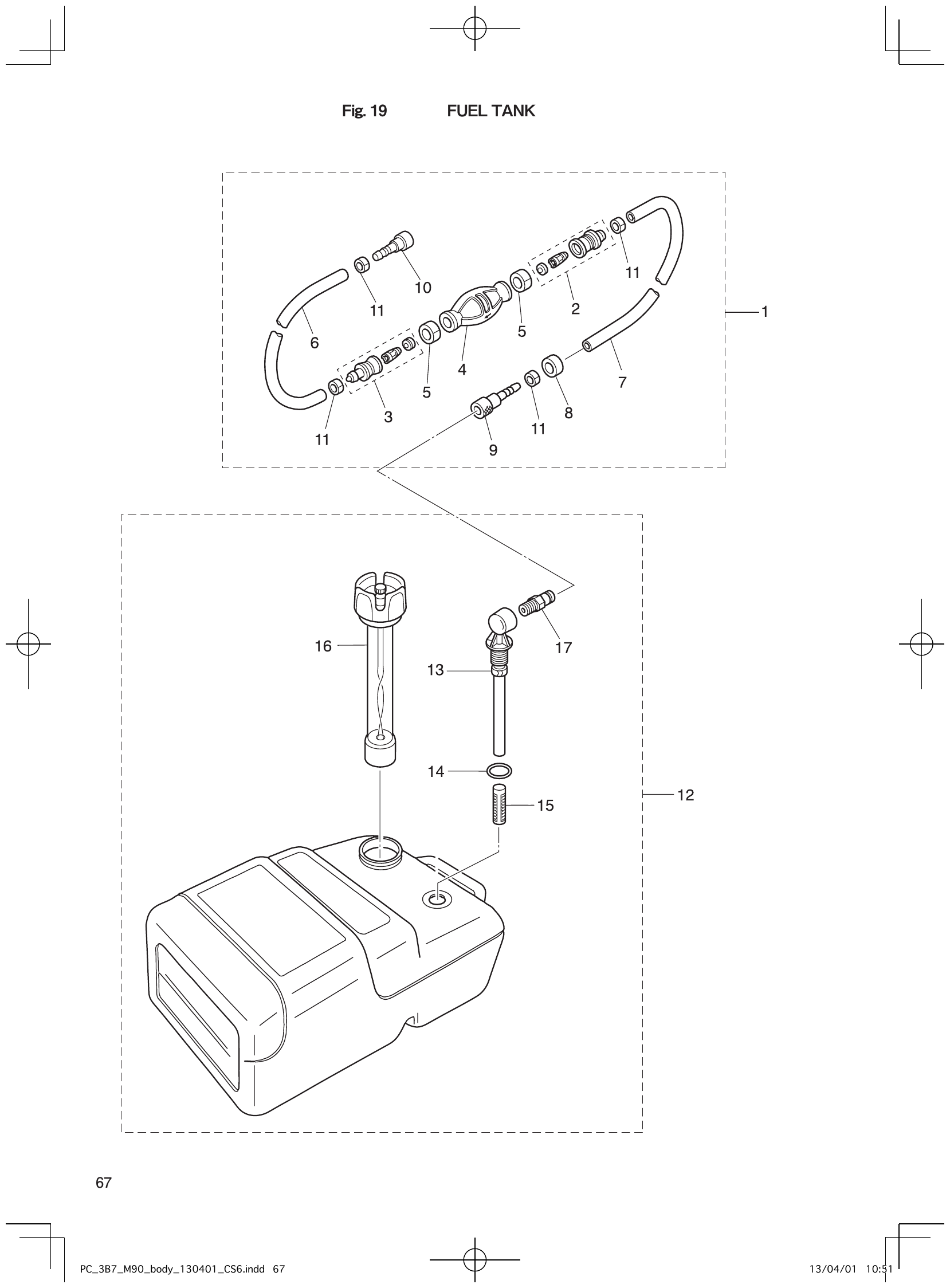

Fig. 19 – FUEL TANK diagram
Fig. 19 – FUEL TANK

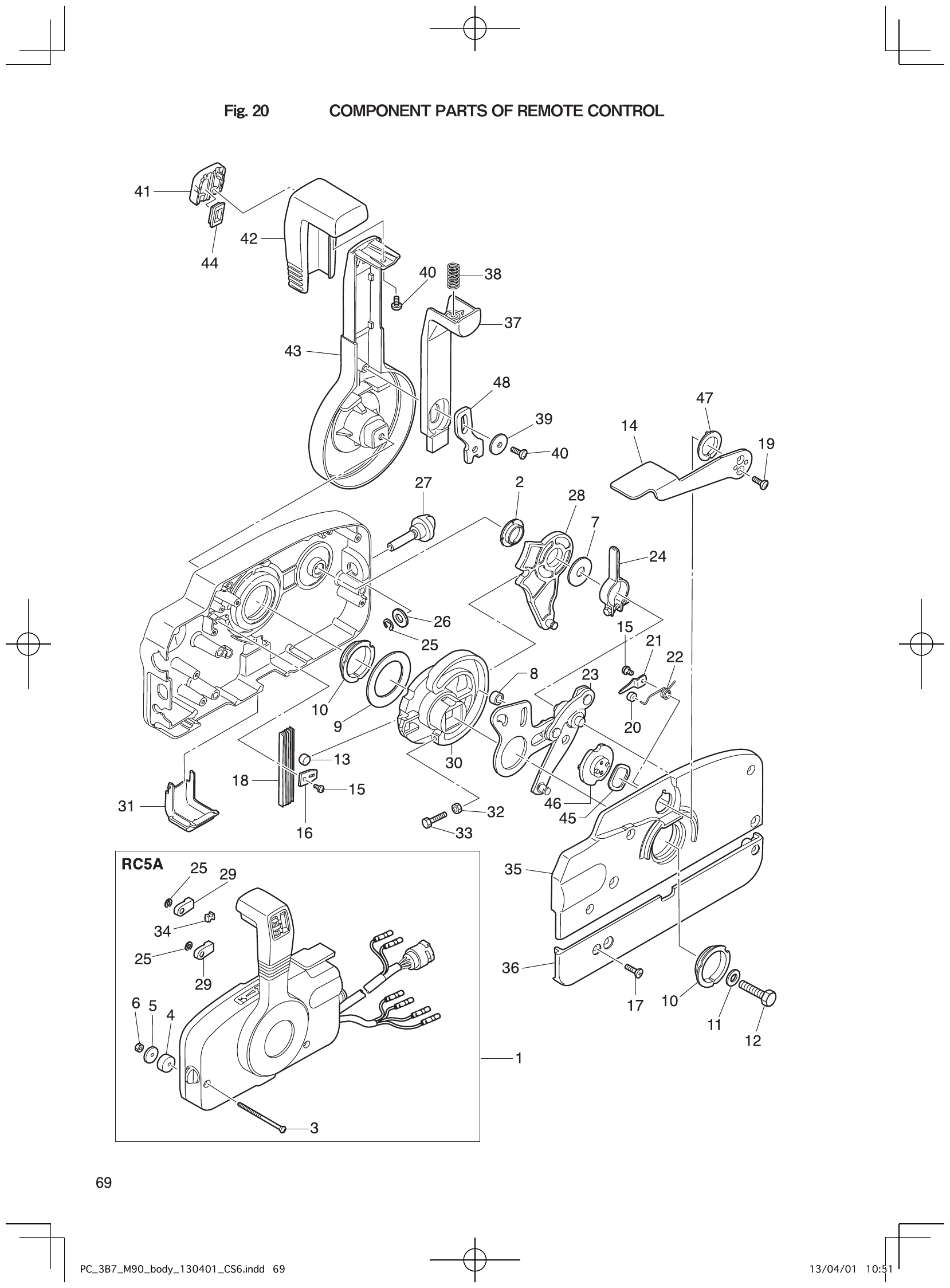

Fig. 20 – COMPONENT PARTS OF REMOTE CONTROL diagram
Fig. 20 – COMPONENT PARTS OF REMOTE CONTROL

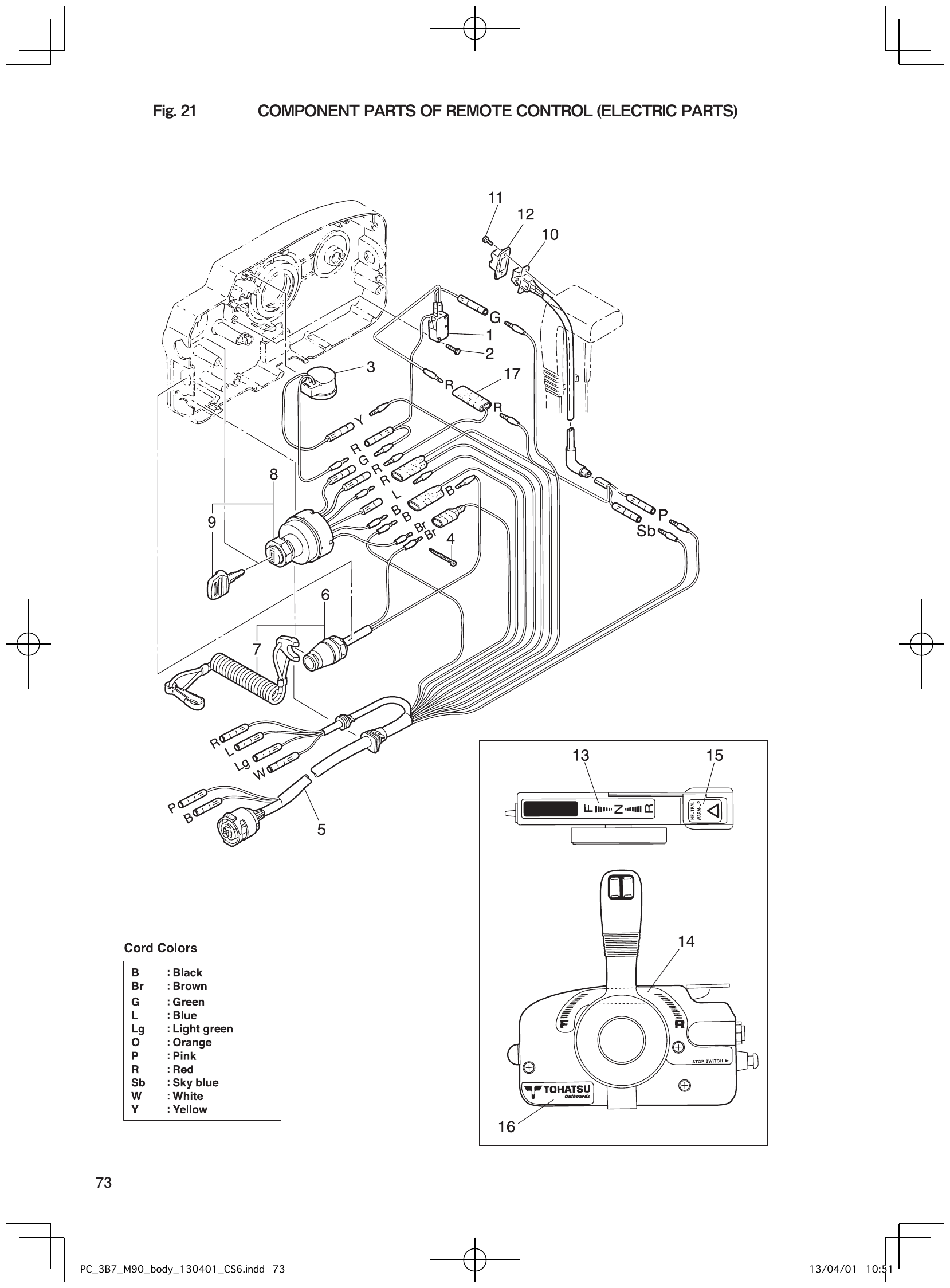

Fig. 21 – COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS) diagram
Fig. 21 – COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)

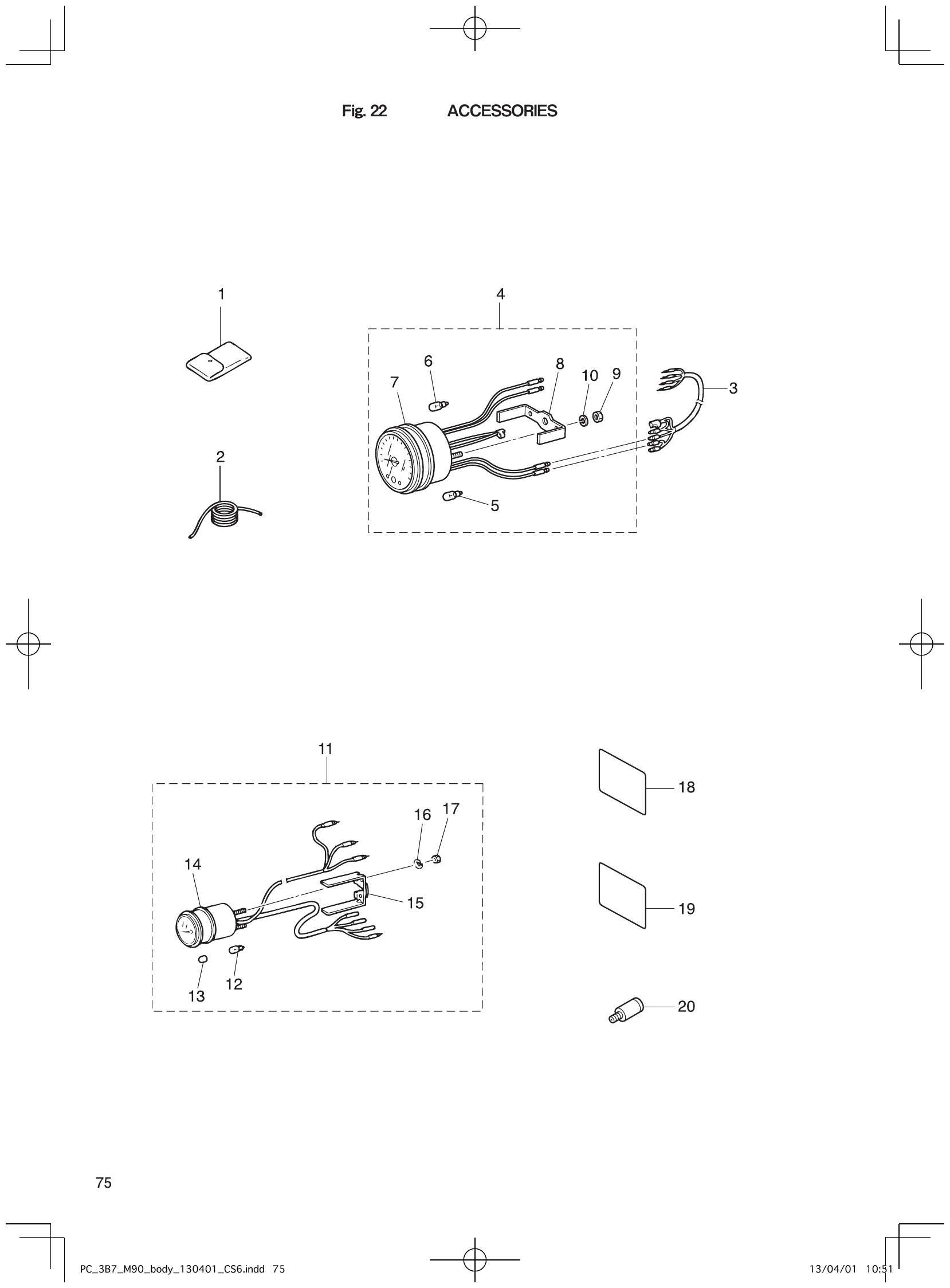

Fig. 22 – ACCESSORIES diagram
Fig. 22 – ACCESSORIES

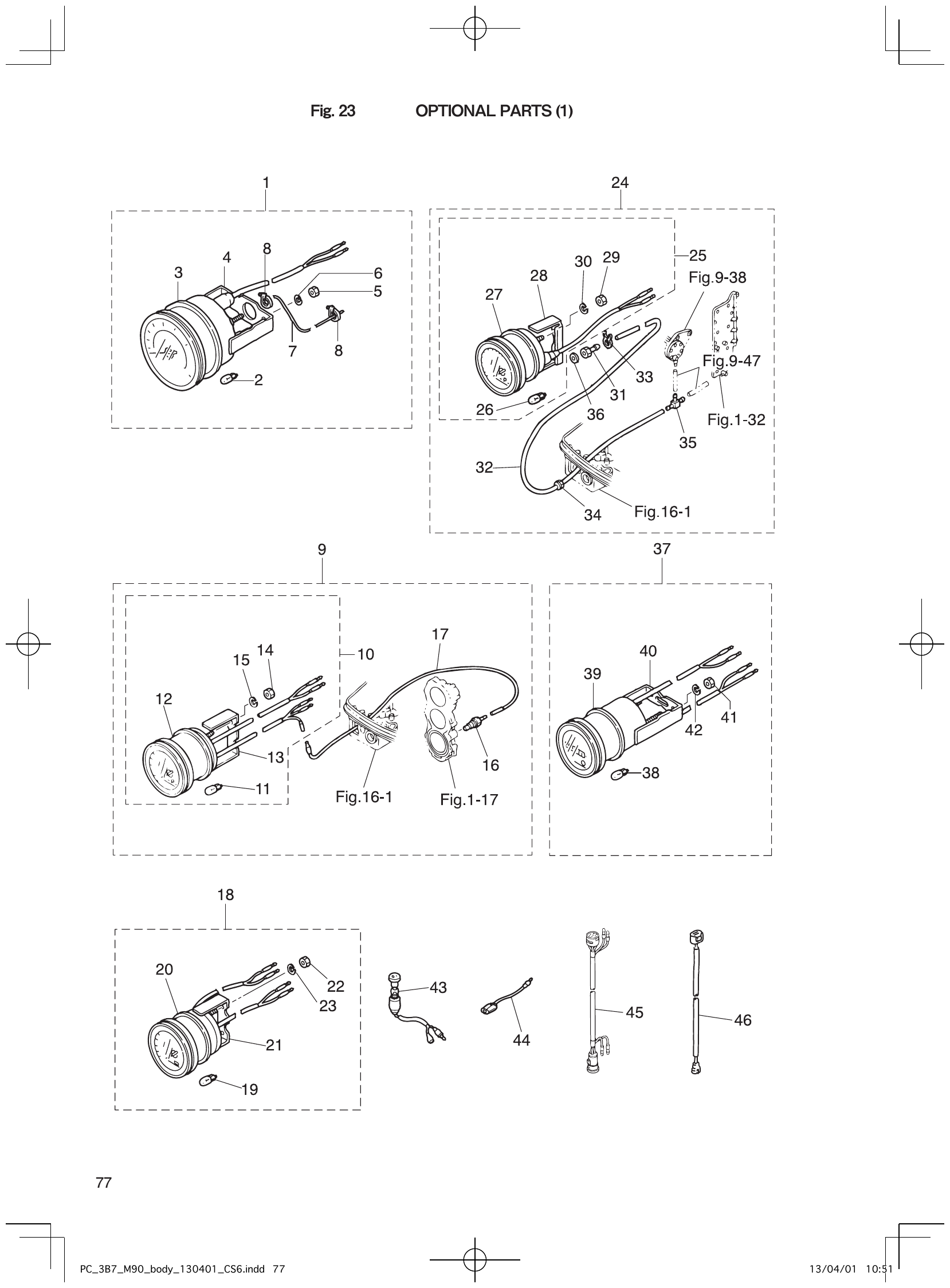

Fig. 23 – OPTIONAL PARTS (1) diagram
Fig. 23 – OPTIONAL PARTS (1)

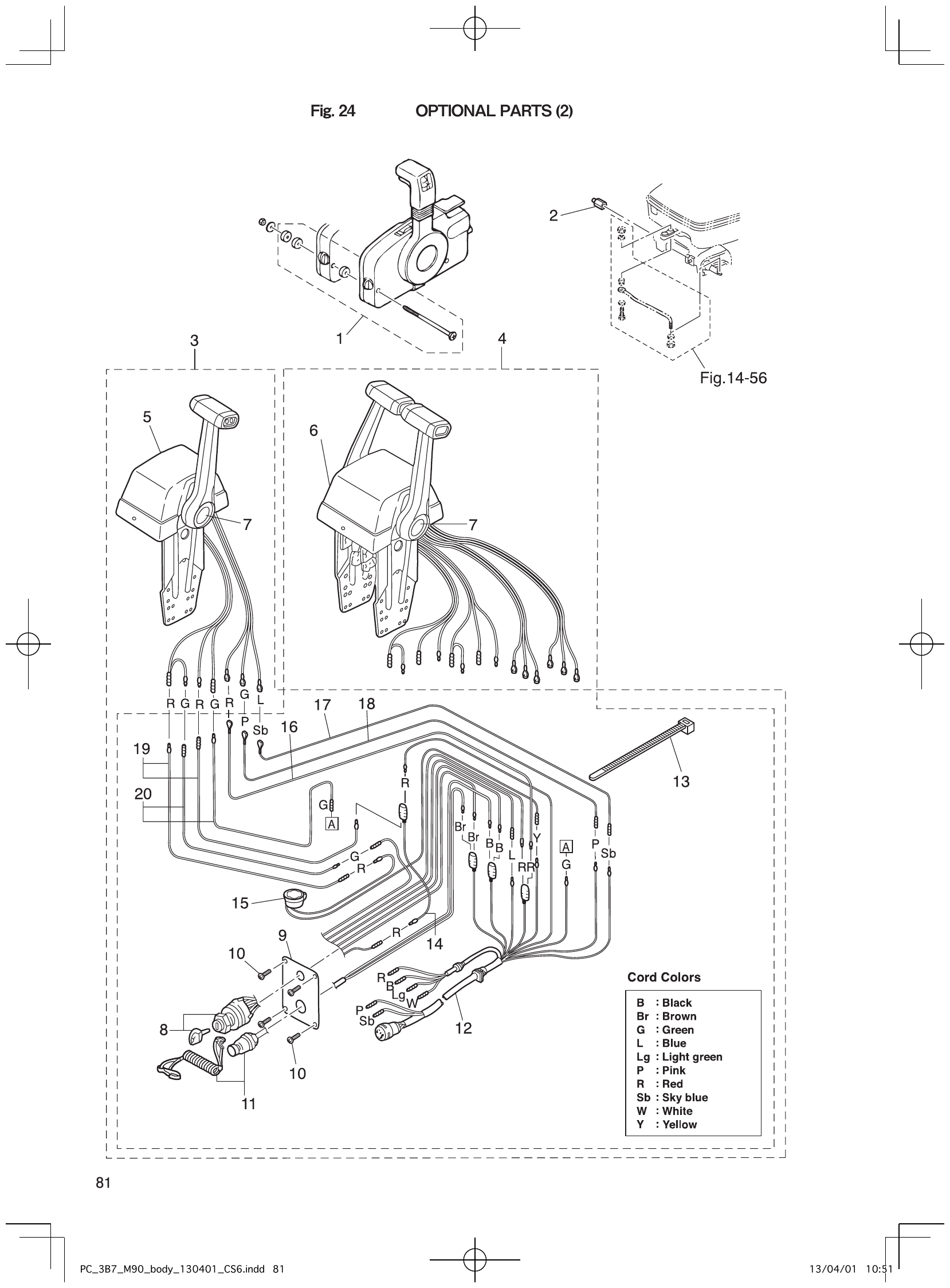

Fig. 24 – OPTIONAL PARTS (2) diagram
Fig. 24 – OPTIONAL PARTS (2)

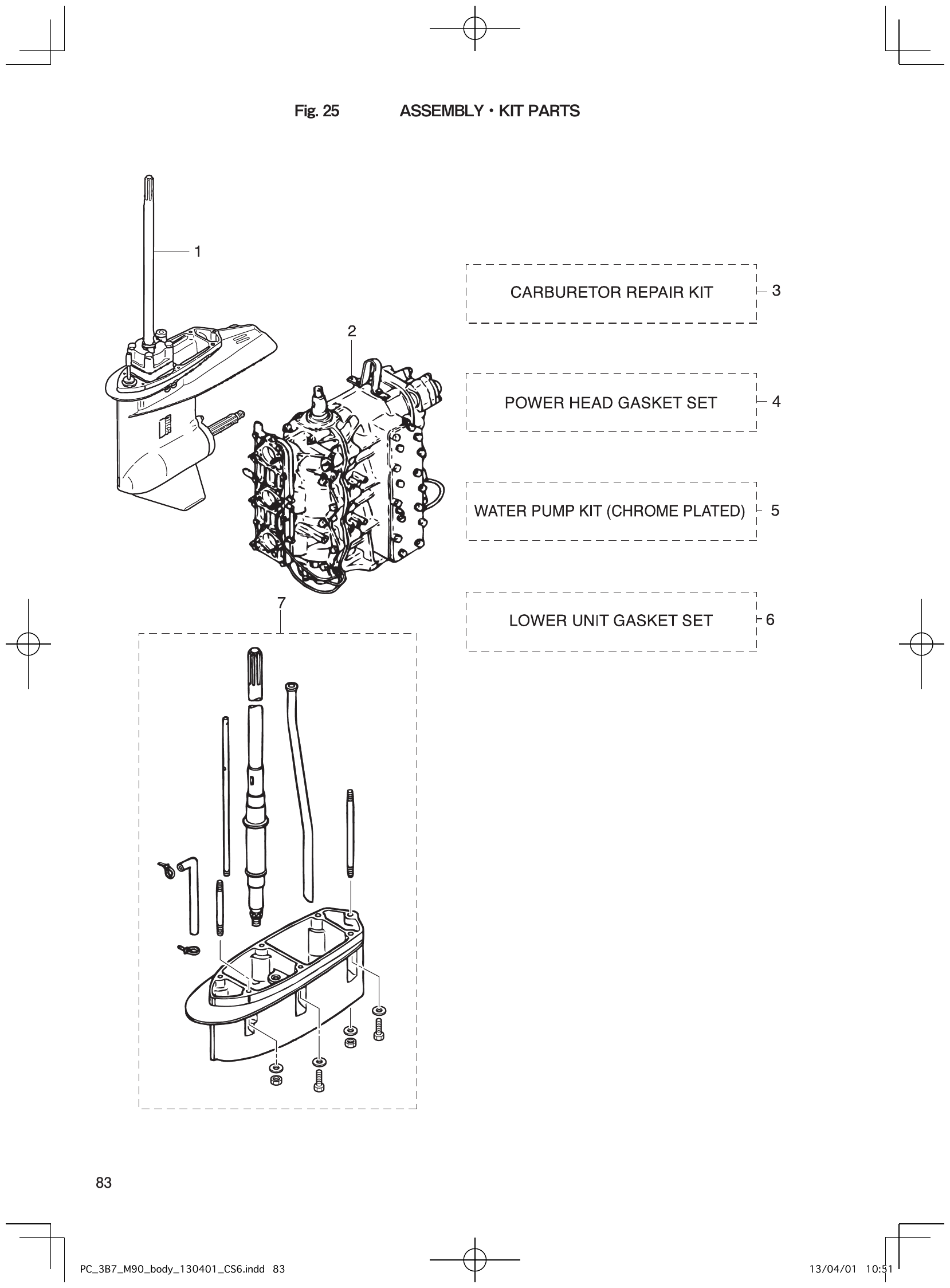

Fig. 25 – ASSEMBLY KIT PARTS diagram
Fig. 25 – ASSEMBLY KIT PARTS
