E40XMH

Choose a section to open the exploded parts diagram with live pricing. (v2)

Model code: 66T6
Engine sections in this model
TOP COWLING CYLINDER & CRANKCASE CRANKSHAFT & PISTON INTAKE CARBURETOR FUEL STARTER GENERATOR ELECTRICAL 1 ELECTRICAL 2 STARTING MOTOR BOTTOM COWLING STEERING STEERING FRICTION CONTROL REMO CON ATTACHMENT BRACKET 1 BRACKET 2 BRACKET 3 POWER TRIM & TILT ASSY UPPER CASING LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 FUEL TANK STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3

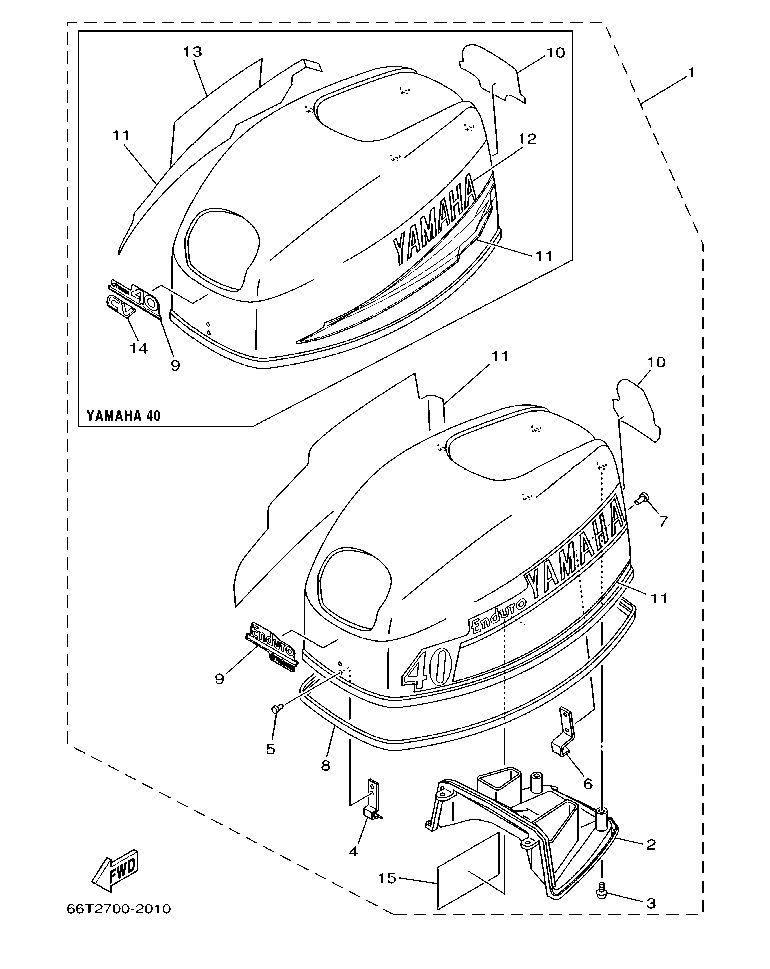

Fig. 1 – TOP COWLING diagram
Fig. 1 – TOP COWLING

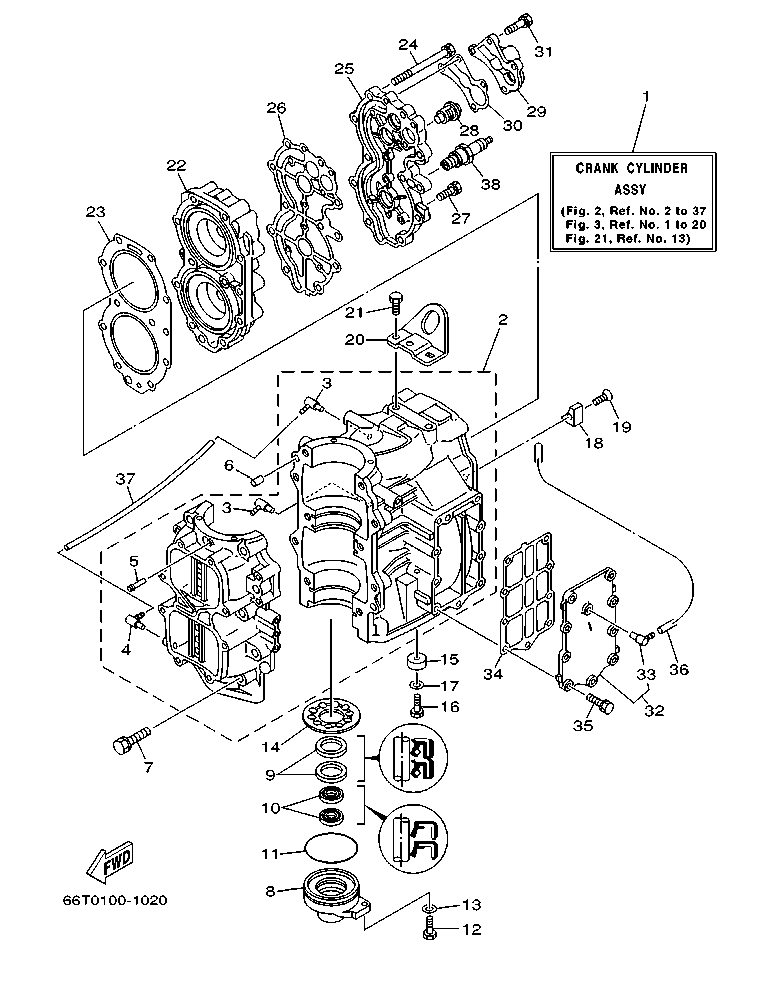

Fig. 2 – CYLINDER & CRANKCASE diagram
Fig. 2 – CYLINDER & CRANKCASE

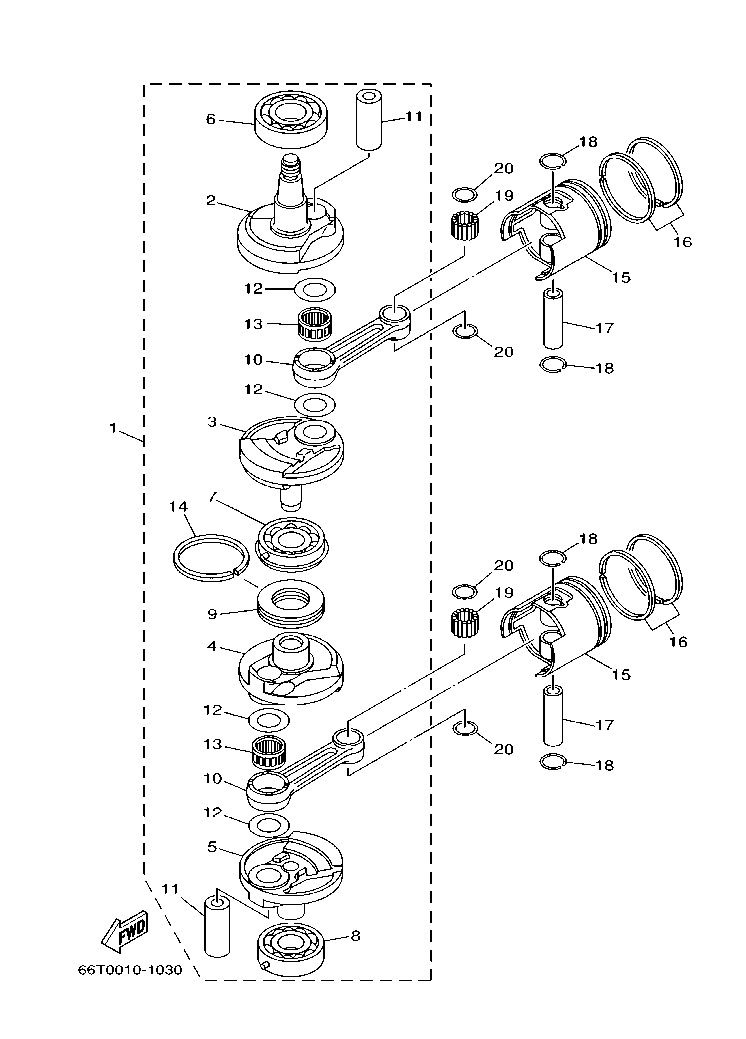

Fig. 3 – CRANKSHAFT & PISTON diagram
Fig. 3 – CRANKSHAFT & PISTON

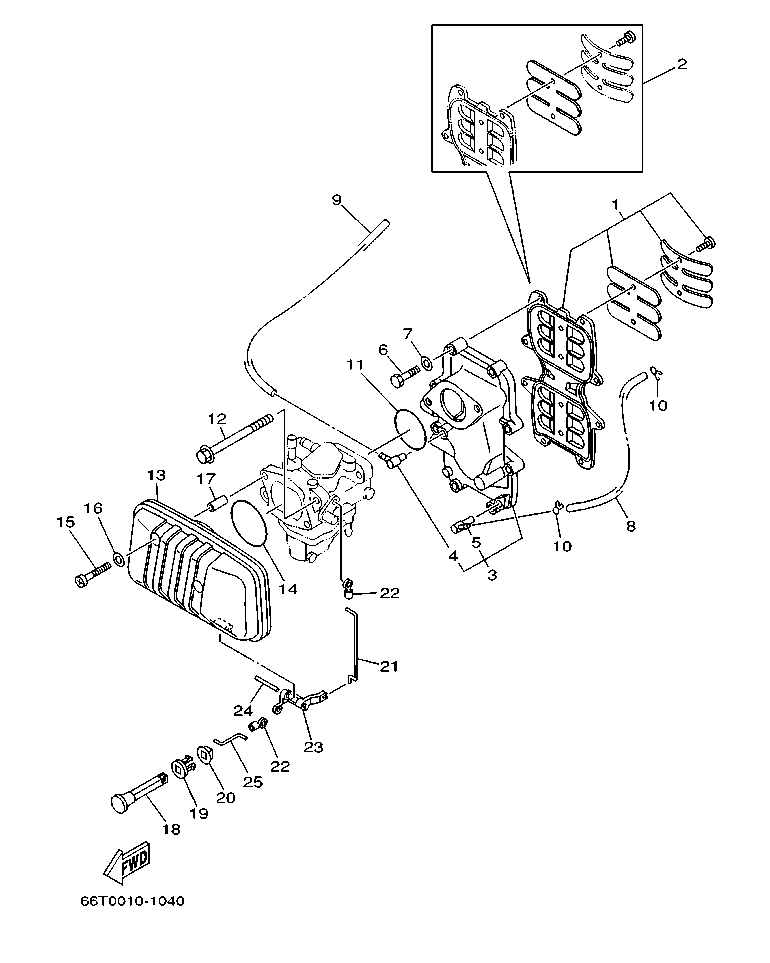

Fig. 4 – INTAKE diagram
Fig. 4 – INTAKE

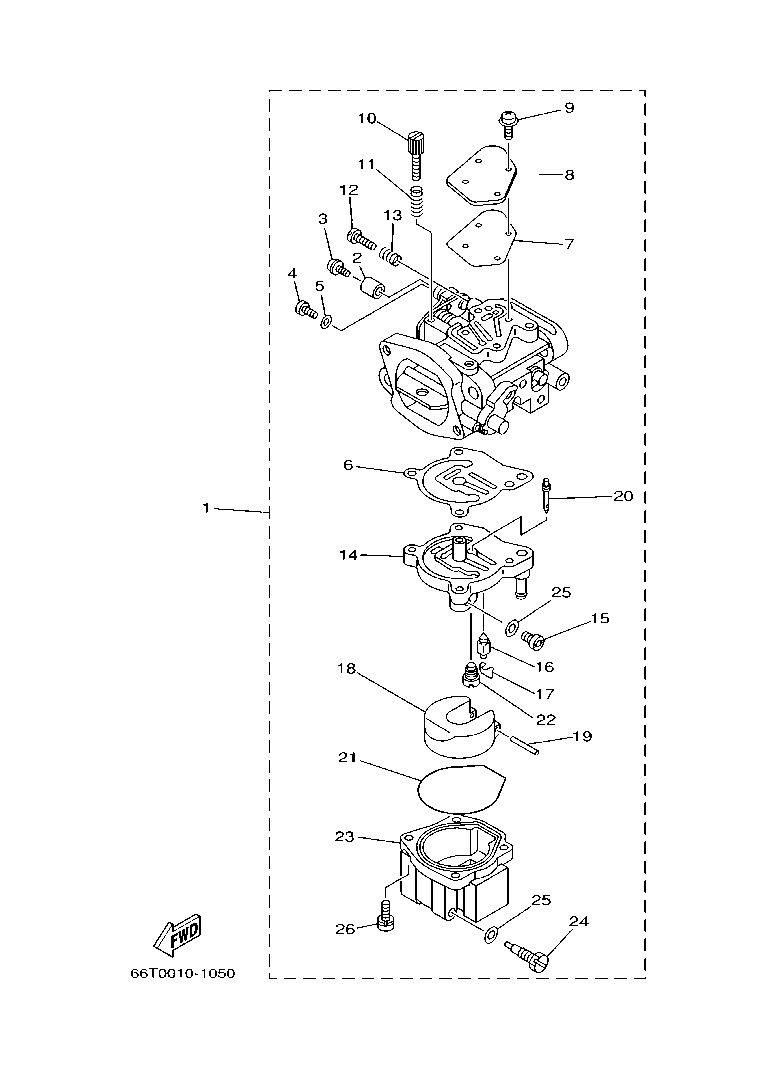

Fig. 5 – CARBURETOR diagram
Fig. 5 – CARBURETOR
Fig. 6 – FUEL diagram
Fig. 6 – FUEL

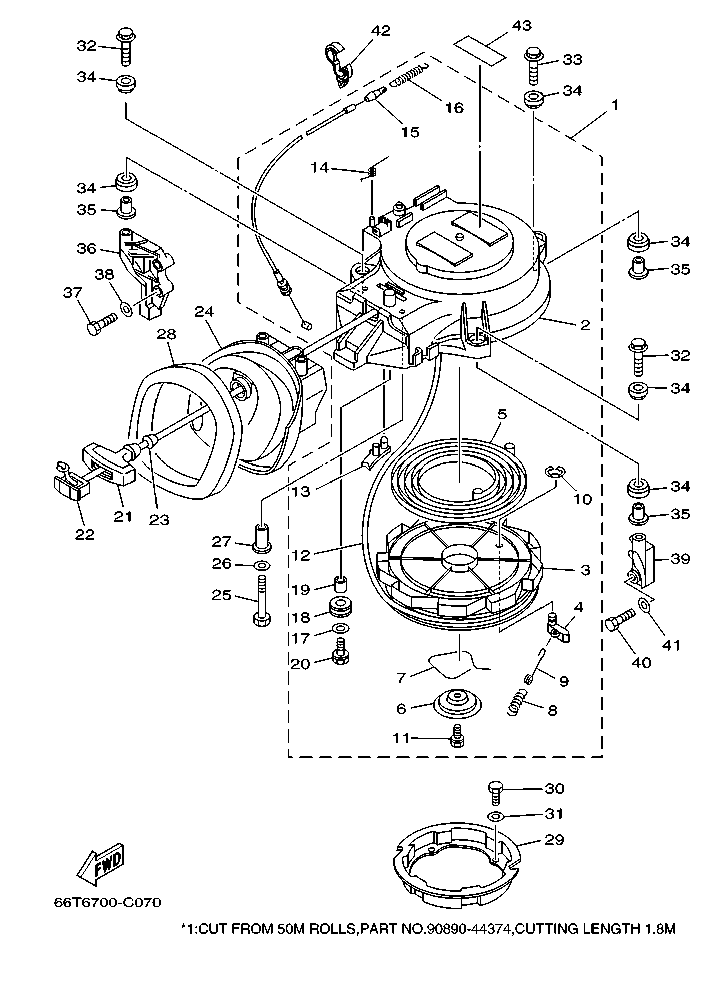

Fig. 7 – STARTER diagram
Fig. 7 – STARTER

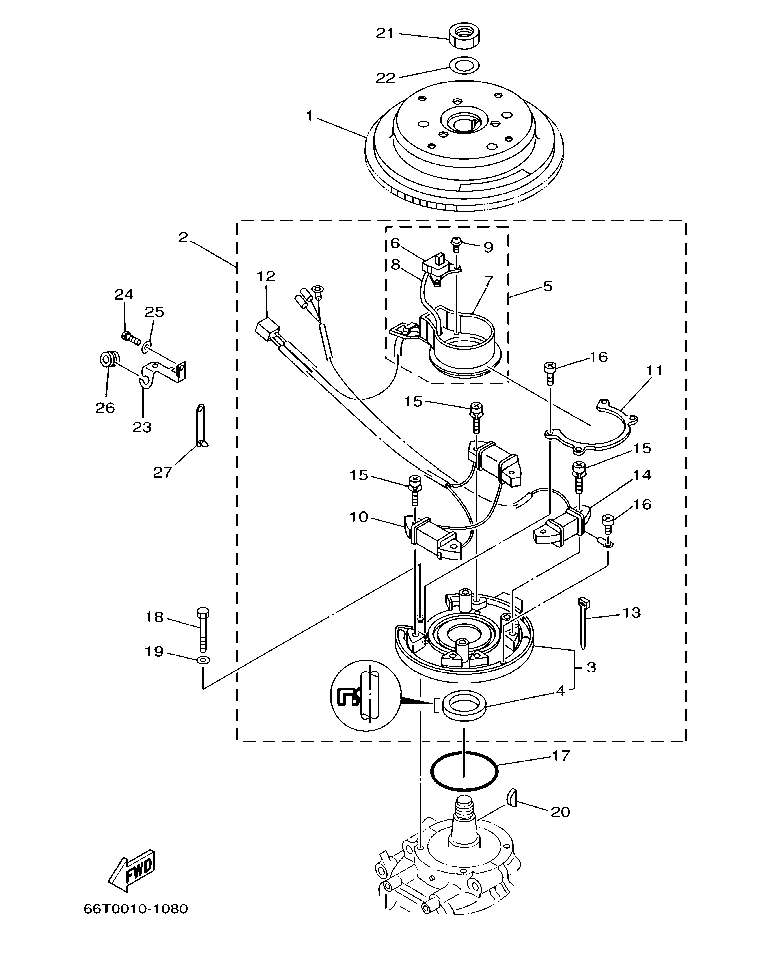

Fig. 8 – GENERATOR diagram
Fig. 8 – GENERATOR

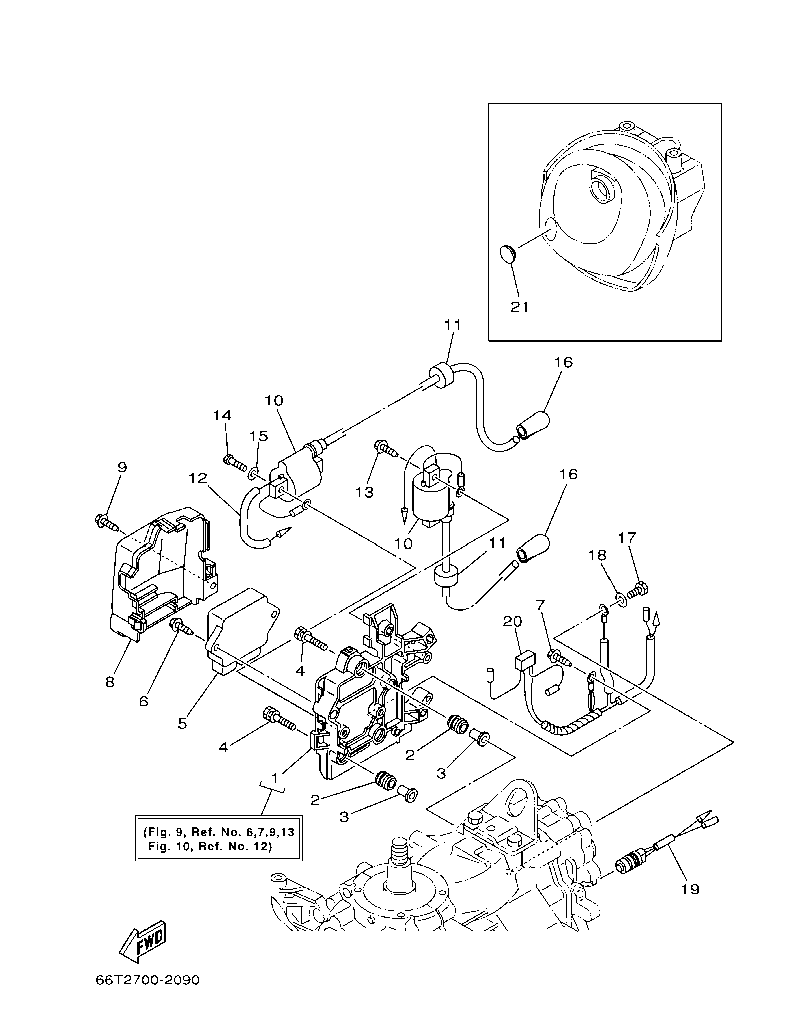

Fig. 9 – ELECTRICAL 1 diagram
Fig. 9 – ELECTRICAL 1

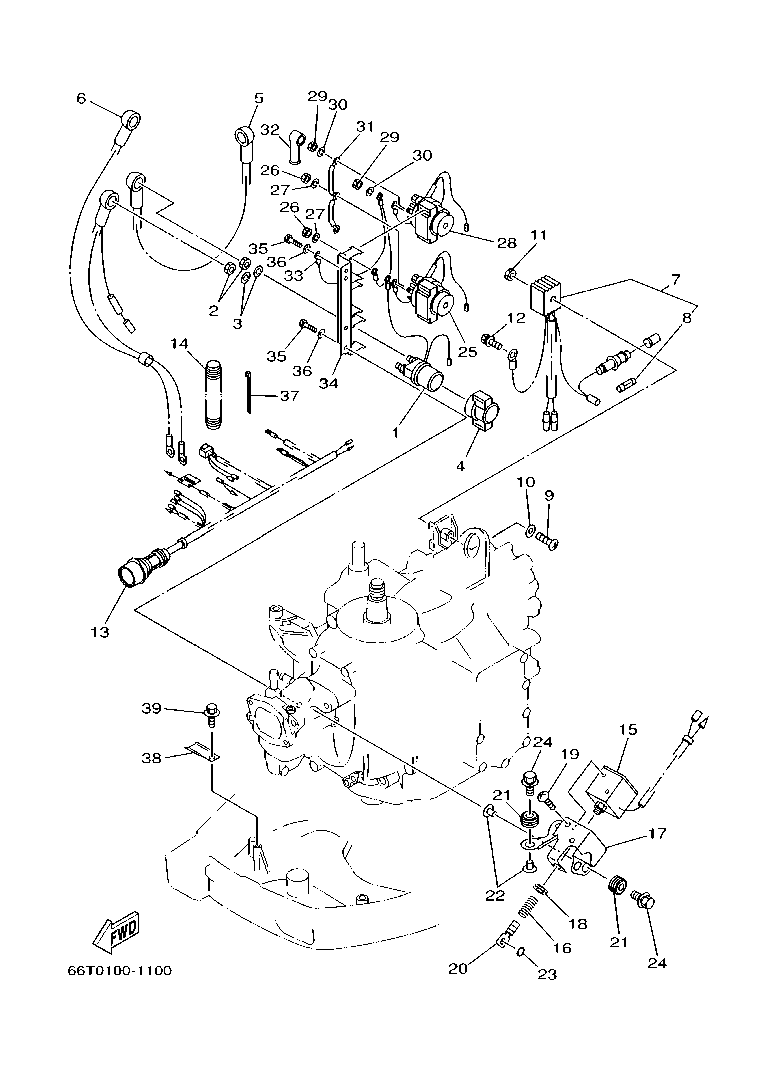

Fig. 10 – ELECTRICAL 2 diagram
Fig. 10 – ELECTRICAL 2

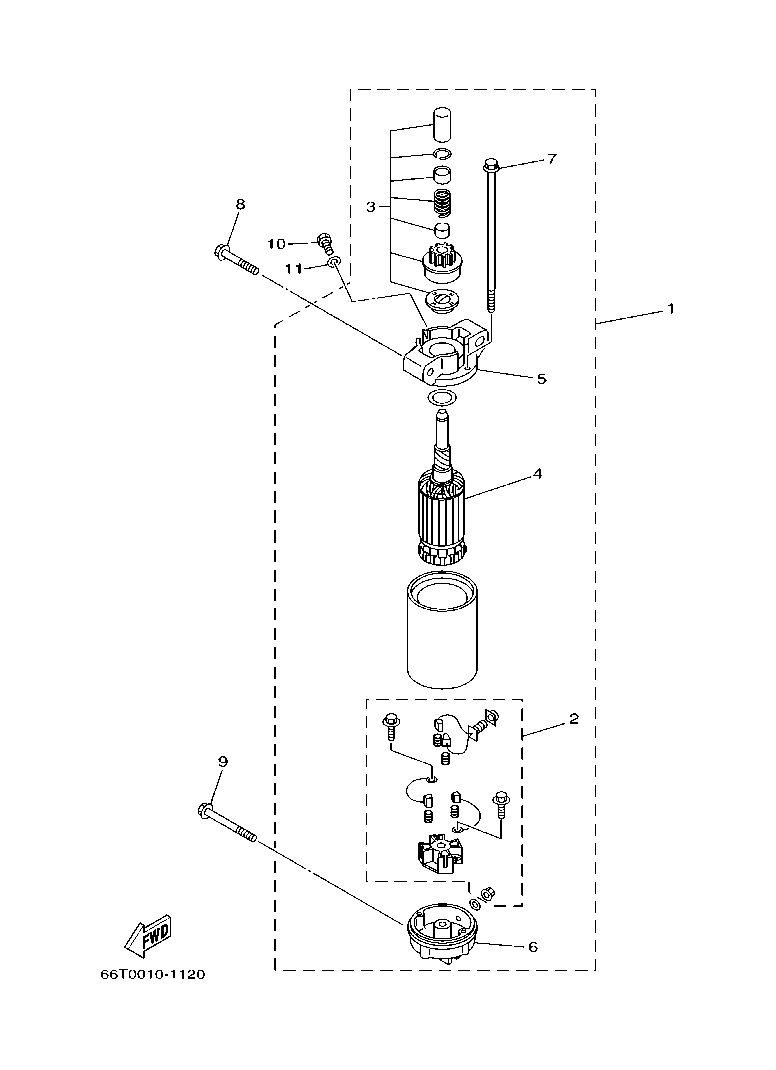

Fig. 11 – STARTING MOTOR diagram
Fig. 11 – STARTING MOTOR
Fig. 12 – BOTTOM COWLING diagram
Fig. 12 – BOTTOM COWLING
Fig. 13 – STEERING diagram
Fig. 13 – STEERING

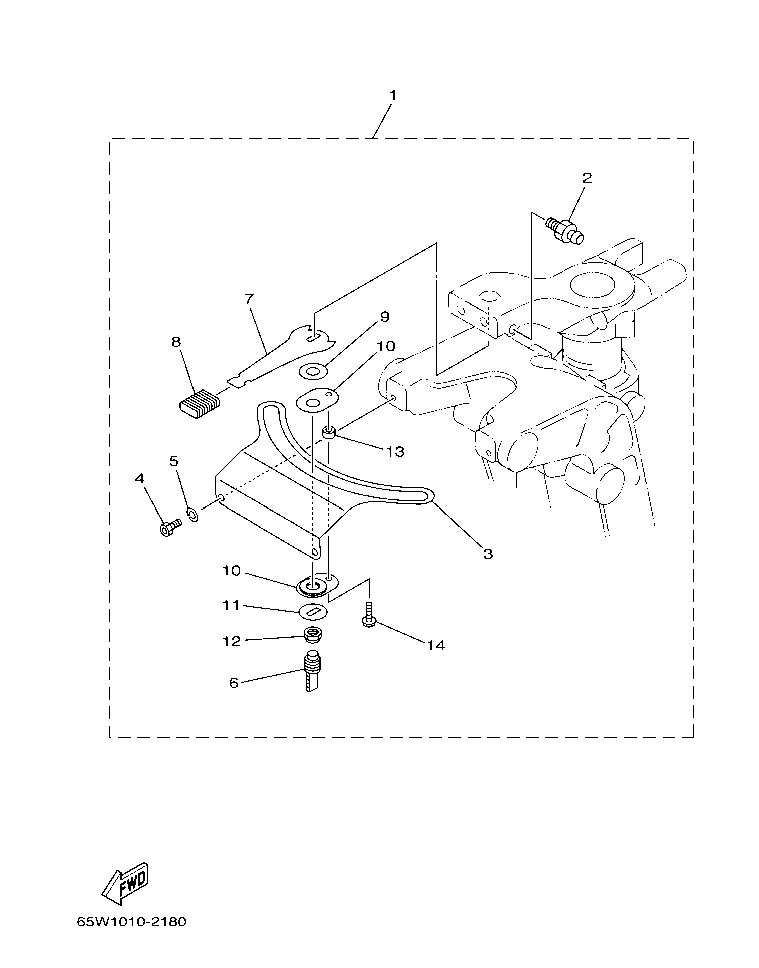

Fig. 14 – STEERING FRICTION diagram
Fig. 14 – STEERING FRICTION

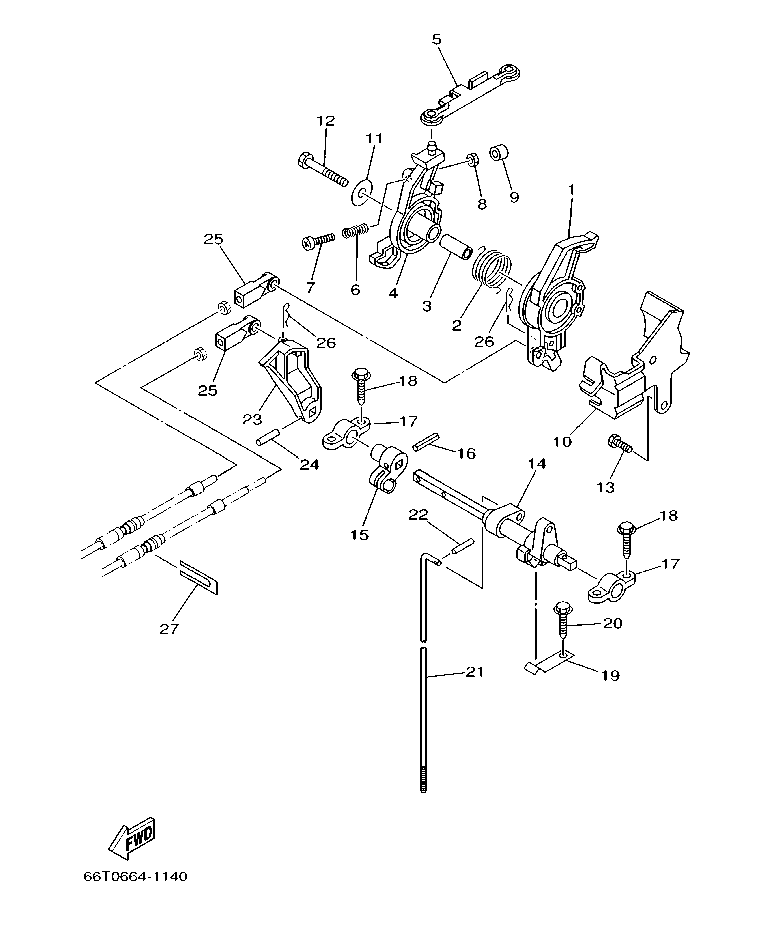

Fig. 15 – CONTROL diagram
Fig. 15 – CONTROL

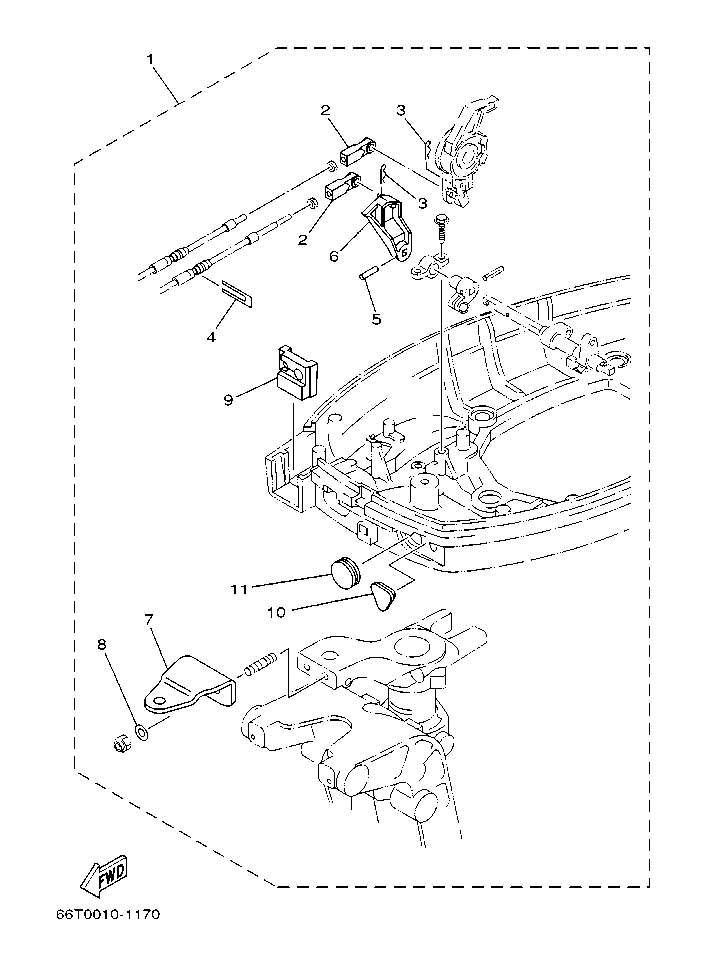

Fig. 16 – REMO CON ATTACHMENT diagram
Fig. 16 – REMO CON ATTACHMENT
Fig. 17 – BRACKET 1 diagram
Fig. 17 – BRACKET 1
Fig. 18 – BRACKET 2 diagram
Fig. 18 – BRACKET 2

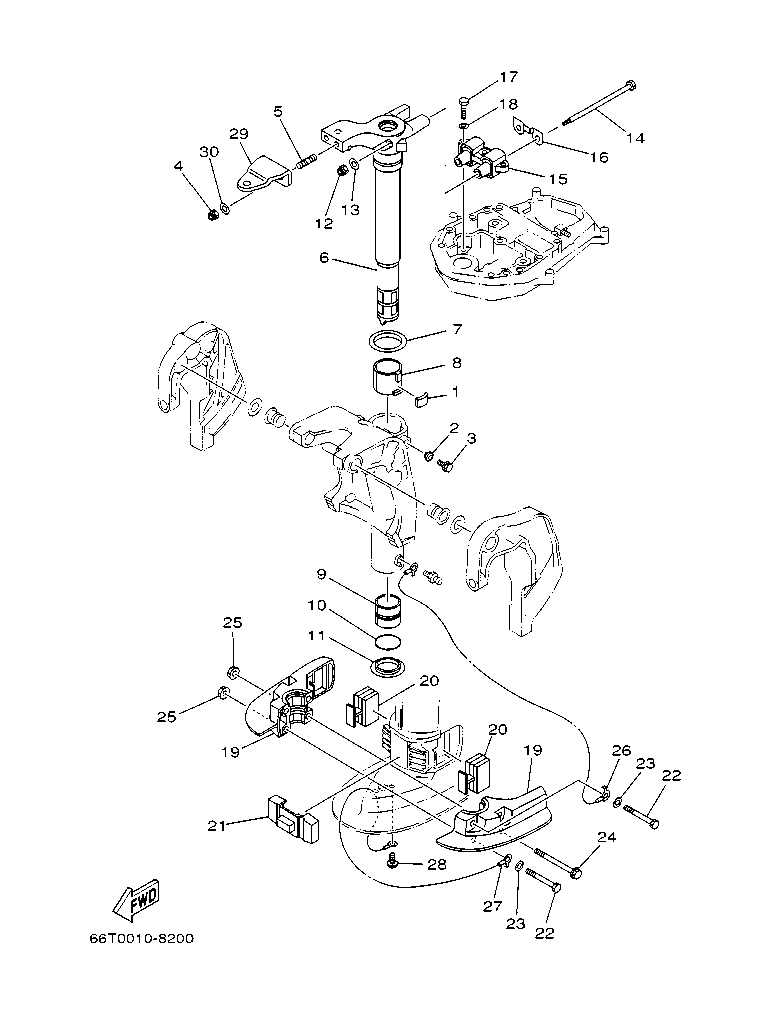

Fig. 19 – BRACKET 3 diagram
Fig. 19 – BRACKET 3

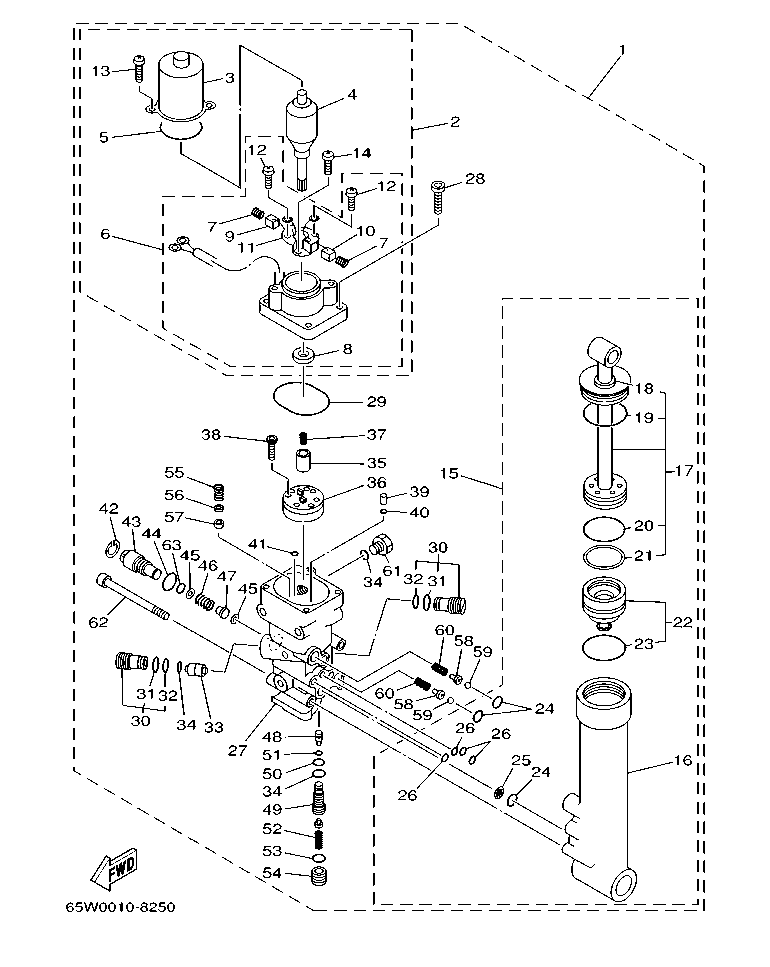

Fig. 20 – POWER TRIM & TILT ASSY diagram
Fig. 20 – POWER TRIM & TILT ASSY

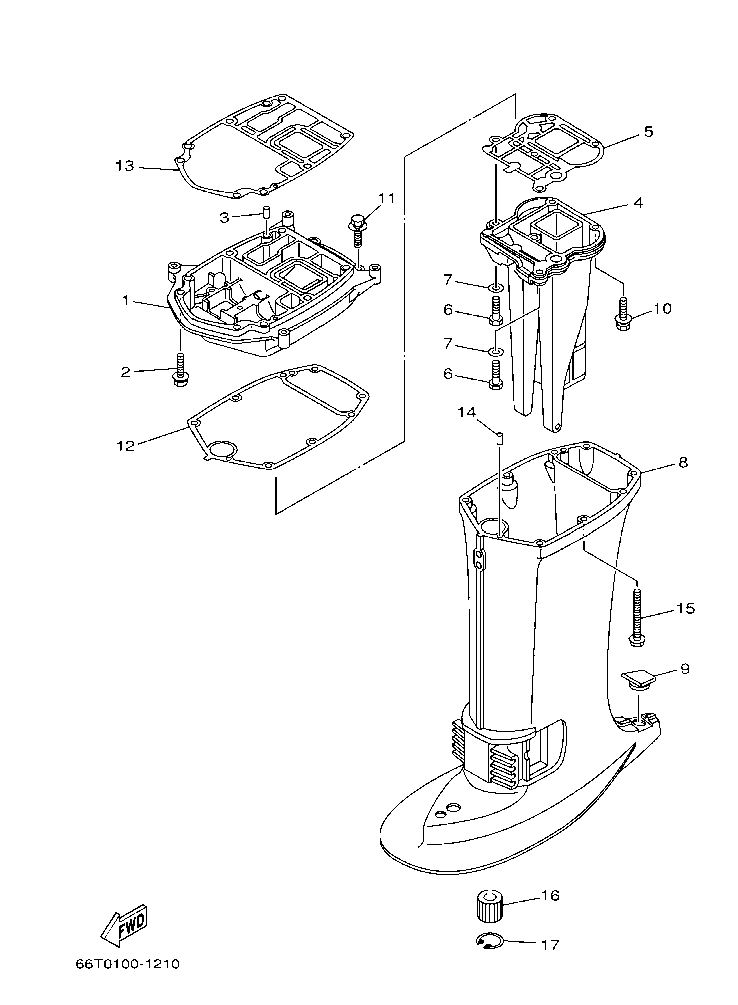

Fig. 21 – UPPER CASING diagram
Fig. 21 – UPPER CASING

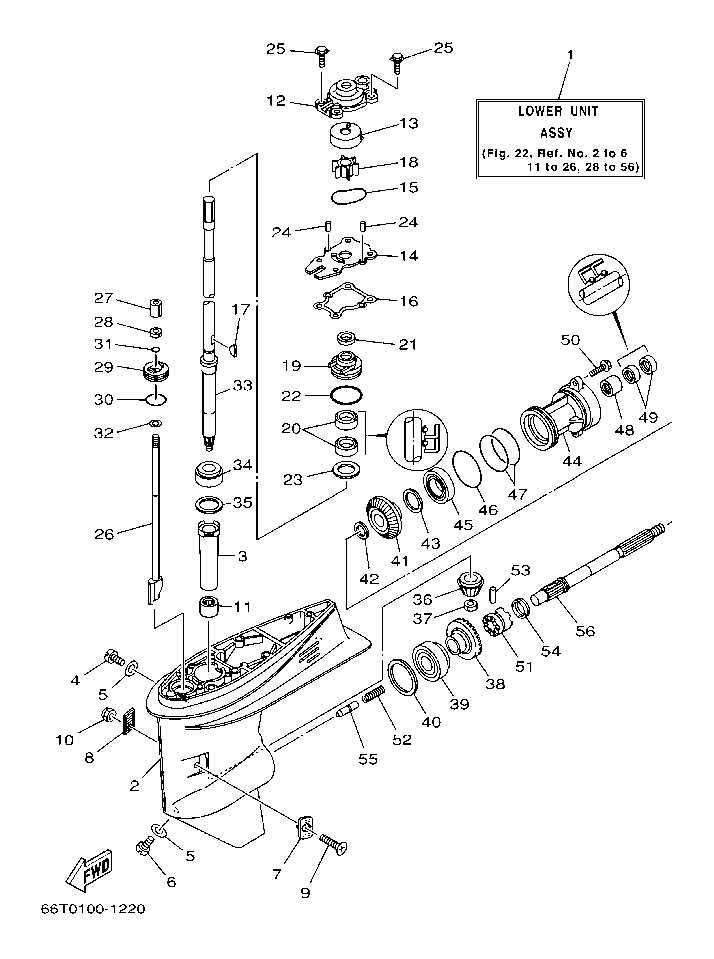

Fig. 22 – LOWER CASING & DRIVE 1 diagram
Fig. 22 – LOWER CASING & DRIVE 1

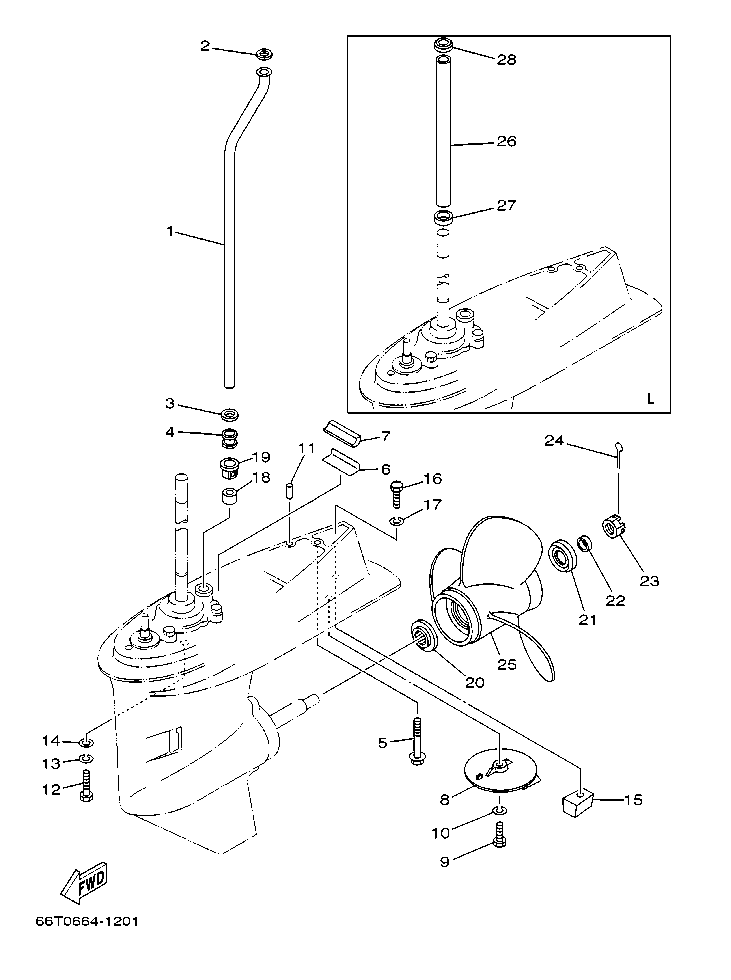

Fig. 23 – LOWER CASING & DRIVE 2 diagram
Fig. 23 – LOWER CASING & DRIVE 2
Fig. 24 – FUEL TANK diagram
Fig. 24 – FUEL TANK

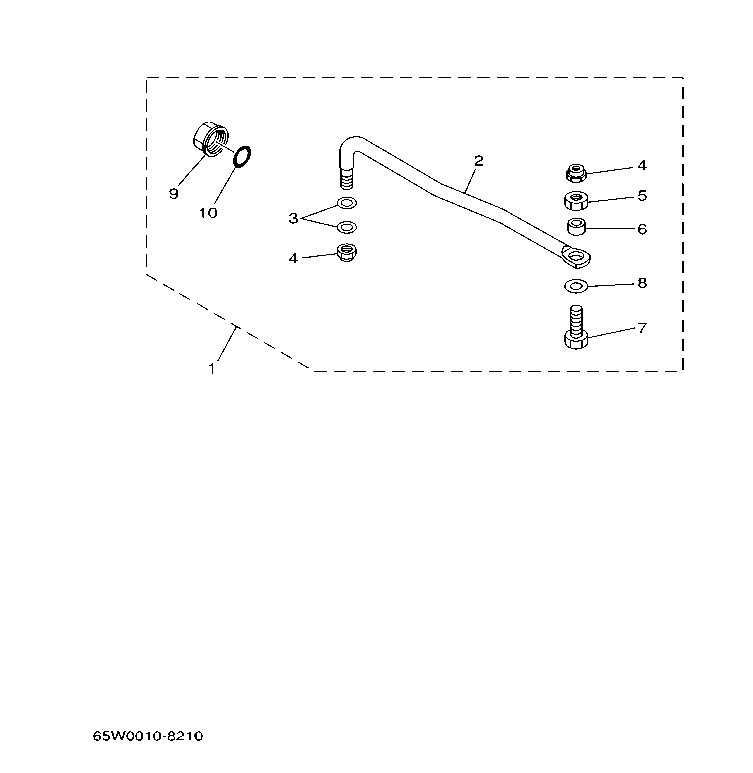

Fig. 25 – STEERING GUIDE diagram
Fig. 25 – STEERING GUIDE
Fig. 26 – REMOTE CONTROL BOX diagram
Fig. 26 – REMOTE CONTROL BOX

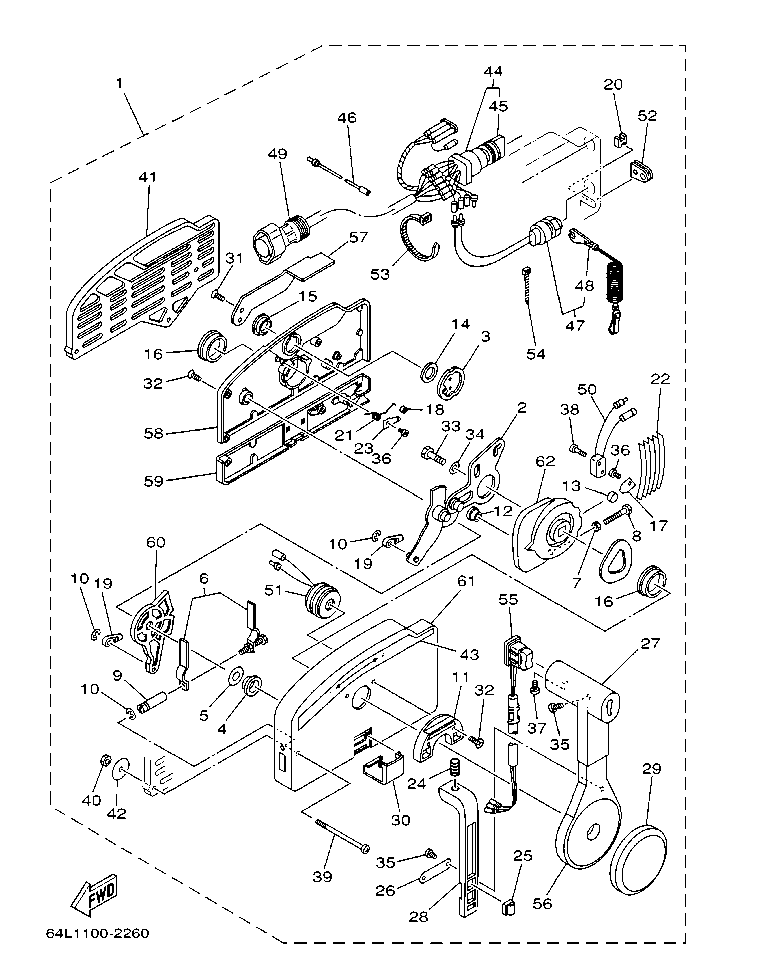

Fig. 27 – REMOTE CONTROL ASSY diagram
Fig. 27 – REMOTE CONTROL ASSY
Fig. 28 – REPAIR KIT 1 diagram
Fig. 28 – REPAIR KIT 1

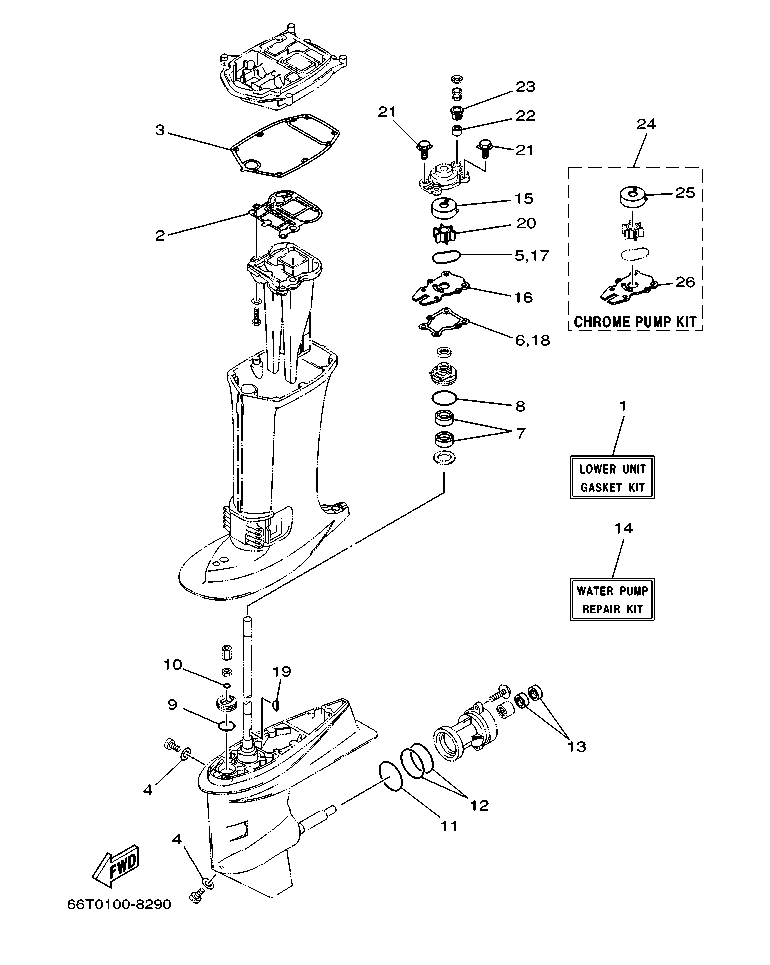

Fig. 29 – REPAIR KIT 2 diagram
Fig. 29 – REPAIR KIT 2

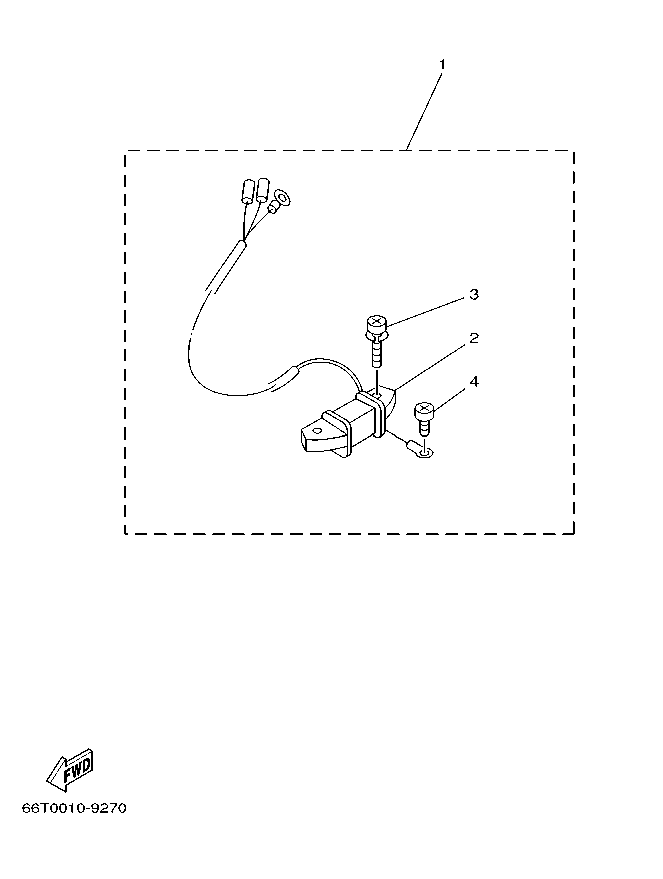

Fig. 30 – REPAIR KIT 3 diagram
Fig. 30 – REPAIR KIT 3
