40XWT

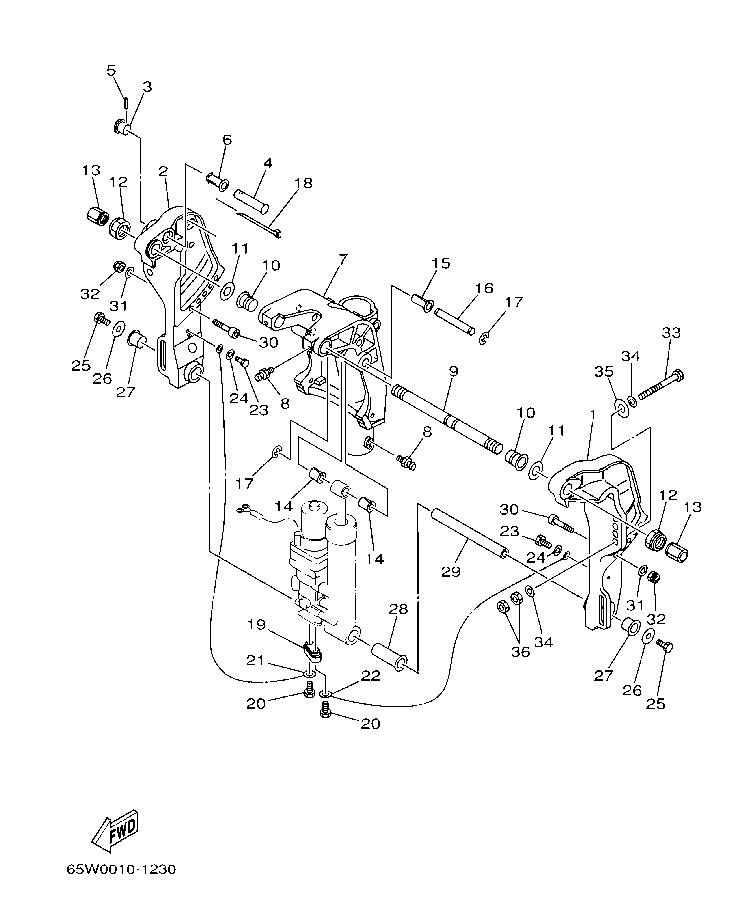

Section 18: BRACKET 2 (v2)
Model code: 66T7
Parts list
Section 18
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
65W–43111–10–4D
BRACKET, CLAMP
|
1 | |
| 2 |
65W–43112–10–4D
BRACKET, CLAMP
|
1 | |
| 3 |
65W–43192–00
KNOB, STOPPER
|
1 |
Price:
5.96 AED
In stock
(7)
|
| 4 |
65W–43191–00
SHAFT, STOPPER
|
1 |
Price:
32.77 AED
In stock
(6)
|
| 5 |
91690–30018
PIN, SPRING
|
1 |
Price:
3.72 AED
In stock
(3)
|
| 6 |
90386–14MA1
BUSH
|
1 |
Price:
4.47 AED
In stock
(4)
|
| 7 |
65W–43311–10–4D
BRACKET, SWIVEL 1
|
1 | |
| 8 |
93700–06M03
NIPPLE, GREASE
|
3 |
Price:
5.96 AED
In stock
(235)
|
| 9 |
63D–43131–01
BOLT, CLAMP BRACKET
|
1 | |
| 10 |
90386–22M15
BUSH
|
2 |
Price:
11.17 AED
In stock
(97)
|
| 11 |
90201–22M03
WASHER, PLATE
|
2 |
Price:
5.96 AED
In stock
(1)
|
| 12 |
90185–22M11
NUT, SELF-LOCKING
|
2 | |
| 13 |
6G5–43145–01
CAP, CLAMP BRACKET
|
2 |
Price:
14.90 AED
In stock
(1)
|
| 14 |
90386–12MA0
BUSH
|
2 | |
| 15 |
90386–12M98
BUSH
|
1 | |
| 16 |
90249–12M38
PIN
|
1 | |
| 17 |
93430–10M00
CIRCLIP
|
2 | |
| 18 |
90465–13M11
CLAMP
|
2 | |
| 19 |
65W–45251–00
ANODE
|
1 |
Price:
40.97 AED
In stock
(114)
|
| 20 |
90101–06020
BOLT
|
2 | |
| 21 |
6H1–82148–00
WIRE, LEAD 4
|
1 | |
| 22 |
6U0–82127–00
WIRE, LEAD 2
|
1 | |
| 23 |
97095–06014
BOLT
|
2 | |
| 24 |
92995–06600
WASHER
|
2 | |
| 25 |
97080–08016
BOLT
|
2 | |
| 26 |
90201–08M00
WASHER, PLATE
|
2 | |
| 27 |
90386–18M44
BUSH
|
2 |
Price:
5.96 AED
In stock
(2)
|
| 28 |
90386–18MA0
BUSH
|
1 | |
| 29 |
90249–18M35
PIN
|
1 | |
| 30 |
90110–10M02
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 31 |
92995–10600
WASHER
|
2 | |
| 32 |
90185–10M13
NUT, SELF-LOCKING
|
2 | |
| 33 |
90101–12M65
BOLT
|
4 | |
| 34 |
92995–12200
WASHER
|
8 | |
| 35 |
90201–12426
WASHER, PLATE
|
4 | |
| 36 |
95380–12600
NUT
|
8 |
Price:
11.17 AED
In stock
(30)
|
