BFT150A
Section E-20-10: 1 (v2)

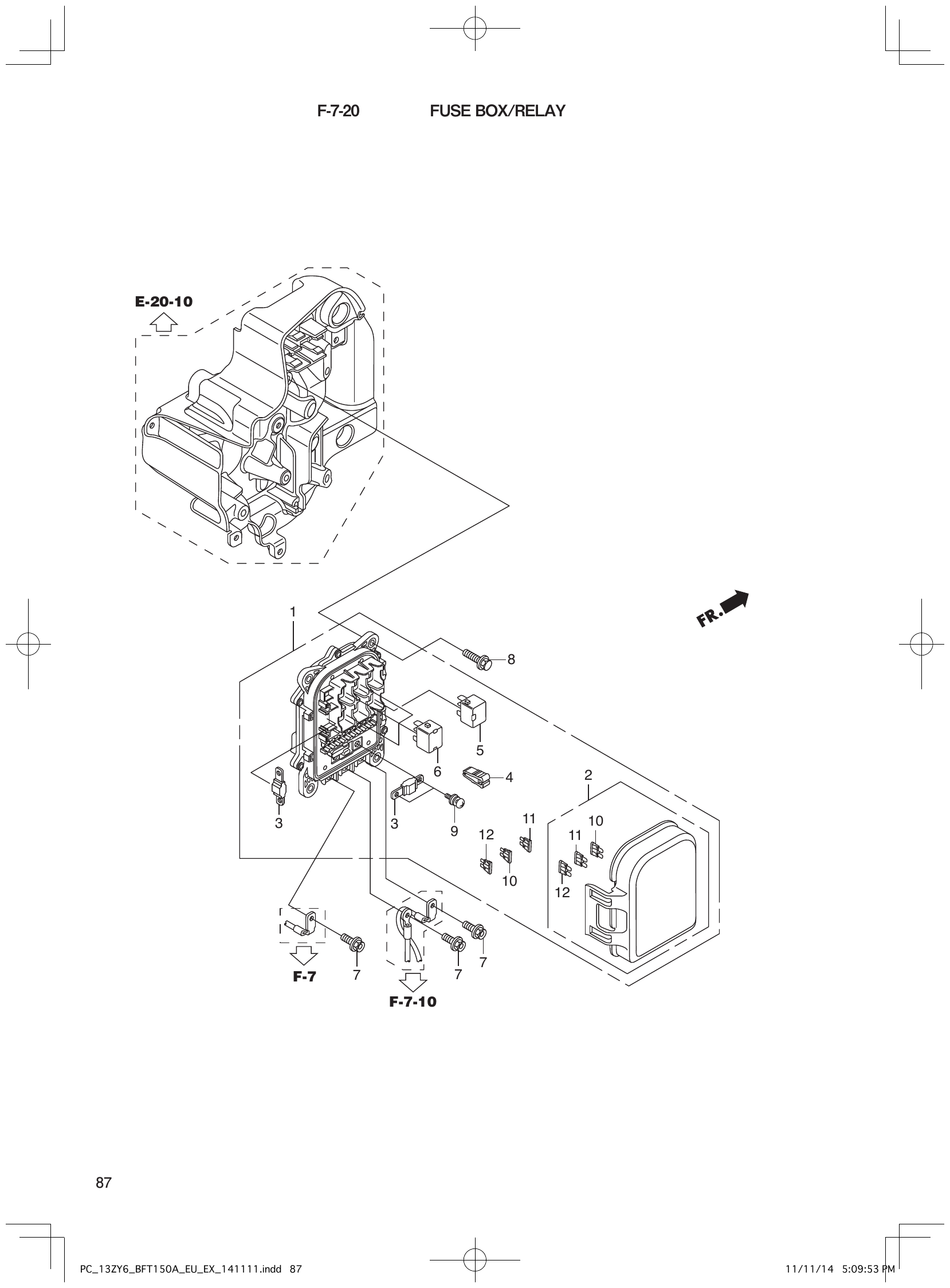

Diagram for section E-20-10: 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
|
HMG9-35701-950
BAND(BLACK�3.5X140)
|
1 | Ask on WhatsApp | |
| F-7-20 |
HZY6-32371-004
COVER�COMP.,�FUSE
|
1 | Ask on WhatsApp |
| F-7-20 |
HZY6-32370-004
BOX�ASSY.,�JUNCTION
|
1 | Ask on WhatsApp |
| F-7-20 |
HCO-98200-43000
FUSE,�MINI(30A)
|
3 | Ask on WhatsApp |
| F-7-20 |
HCO-98200-41500
FUSE,�MINI(15A)
|
3 | Ask on WhatsApp |
| F-7-20 |
HCO-98200-41000
FUSE,�MINI(10A)
|
4 | Ask on WhatsApp |
| F-7-20 |
HZY6-90135-004
SCREW-WASHER,�5X15
|
2 | Ask on WhatsApp |
| F-7-20 |
HZW5-90018-000
BOLT,�FLANGE,�6X20
|
4 | Ask on WhatsApp |
| F-7-20 |
HZW9-90013-000
BOLT,�FLANGE,�6X12
|
3 | Ask on WhatsApp |
| F-7-20 |
HZY6-39794-003
RELAY�ASSY.,�POWER(12V-20A)
|
3 | Ask on WhatsApp |
| F-7-20 |
HSDA-39794-004
RELAY�ASSY.,�FUEL�PUMP(DENSO)
|
1 | Ask on WhatsApp |
| F-7-20 |
HZY6-38235-004
PULLER,�MINI�FUSE
|
1 | Ask on WhatsApp |
| F-7-20 |
HZY6-38228-003
FUSE,�BLOCK�100A(L�TYPE)
|
2 | Ask on WhatsApp |
| F-7-30 |
HVM0-16965-771
CLAMP,�HOSE
|
2 | Ask on WhatsApp |
| F-7-30 |
HSM4-32134-003
BAND,�HARNESS�OFFSET(10)
|
1 | Ask on WhatsApp |
| F-7-30 |
HPK1-32742-003
CLAMP,�ENGINE�SUB�CORD
|
1 | Ask on WhatsApp |
| F-8 |
HZY3-90109-010
BOLT,�COVER�LOCK
|
3 | Ask on WhatsApp |
| F-8 |
HCO-94002-06490-0S
NUT,�HEX.,�6MM
|
3 | Ask on WhatsApp |
| F-8 |
HCO-93913-142J0
SCREW,�TAPPING,�4X12
|
8 | Ask on WhatsApp |
| F-8 |
HZY3-91556-000
COLLAR,�DISTANCE,�6.5X9X3
|
11 | Ask on WhatsApp |
| F-8 |
HZY3-90507-000
WASHER,�PLAIN,�12MM
|
3 | Ask on WhatsApp |
| F-8 |
H921-90504-010
WASHER,�PLAIN,�6MM
|
3 | Ask on WhatsApp |
| F-8 |
HZX1-90133-R00
BOLT,�SOCKET,�6X16
|
1 | Ask on WhatsApp |
| F-8 |
HZX1-90101-R00
BOLT,�SOCKET,�6X20
|
5 | Ask on WhatsApp |
| F-8 |
HZY6-63144-000
GUIDE,�ENGINE�COVER�AIR
|
1 | Ask on WhatsApp |
| F-8 |
HZY3-63119-000
SPRING,�LOCK�ADJUSTER
|
3 | Ask on WhatsApp |
| F-8 |
HZY3-63108-000
DAMPER,�HOOK
|
3 | Ask on WhatsApp |
| F-8 |
HZY3-63107-000
BRACKET,�HOOK
|
3 | Ask on WhatsApp |
| F-8 |
HZY6-63102-010
SEAL,�ENGINE�COVER
|
1 | Ask on WhatsApp |
| F-8 |
HZX1-63100-R00ZA
COVER�ASSY.,�ENGINE
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-63224-000
SHAFT,�COVER�OPEN
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-63205-000
BUSH�A,�COVER�LOCK
|
7 | Ask on WhatsApp |
| F-8-10 |
HZY6-63225-000
SHAFT,�FR.�LOCK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-63240-000
LOCK�COMP.,�FR.
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-63260-000
LOCK�COMP.,�SIDE
|
2 | Ask on WhatsApp |
| F-8-10 |
HZC0-63515-700
CAP,�L.�SIDE�COVER
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-90001-000
BOLT,�FLANGE,�8X55
|
2 | Ask on WhatsApp |
| F-8-10 |
HZY3-90030-000
BOLT,�FLANGE,�6X22
|
2 | Ask on WhatsApp |
| F-8-10 |
HZY6-90105-000
BOLT-WASHER,�8X30
|
2 | Ask on WhatsApp |
| F-8-10 |
HMM8-90501-610
WASHER,�PLAIN,�8MM
|
1 | Ask on WhatsApp |
| F-8-10 |
HMM8-90502-610
WASHER,�PLAIN,�10MM
|
1 | Ask on WhatsApp |
| F-8-10 |
HZW9-90506-000
WASHER,�WAVE,�10MM
|
2 | Ask on WhatsApp |
| F-8-10 |
H921-90518-000
WASHER,�PLAIN,�8MM
|
4 | Ask on WhatsApp |
| F-8-10 |
HCO-94540-06029
E-RING,�6MM
|
5 | Ask on WhatsApp |
| F-8-10 |
HZY6-63212-000
SPRING,�COVER�LOCK�HOOK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-63223-000
SPRING,�LOCK�LEVER�RETURN
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-40105-020
GROMMET,�REMOTE�CONTROL�CABLE
|
1 | Ask on WhatsApp |
| F-8-10 |
HZW1-40107-700
GROMMET,�UNDER�CASE(C)
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-40119-003
BAND,�UNDER�CASE�GROMMET
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-40154-000ZC
BRACKET,�FR.�UNDER�COVER
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-40155-000
BRACKET,�R.�SIDE�COVER
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-40157-000
BRACKET,�L.�SIDE�COVER
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-60180-003
CABLE�COMP.�A,�COVER�LOCK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-60185-003
CABLE�COMP.�B,�COVER�LOCK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-63201-000ZC
LEVER,�COVER�LOCK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY6-63205-000
BUSH�A,�COVER�LOCK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-63208-000
BUSH�B,�COVER�LOCK
|
1 | Ask on WhatsApp |
| F-8-10 |
HZY3-63212-000
SPRING,�COVER�LOCK�HOOK
|
2 | Ask on WhatsApp |
| F-8-20 |
HCO-95011-62000
RUBBER�B,�STAND�STOPPER
|
2 | Ask on WhatsApp |
| F-8-20 |
HCO-93500-06025-4J
SCREW,�PAN,�6X25
|
6 | Ask on WhatsApp |
| F-8-20 |
HZY6-91553-000
COLLAR,�DISTANCE,�6.5X9X5
|
6 | Ask on WhatsApp |
| F-8-20 |
HKJ2-90683-003
CLIP,�WIRE�HARNESS
|
1 | Ask on WhatsApp |
| F-8-20 |
HHC4-90653-900
CLIP,�MUDGUARD
|
6 | Ask on WhatsApp |
| F-8-20 |
H921-90302-000
NUT,�HEX.,�16MM
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-90301-000
NUT,�CLIP
|
6 | Ask on WhatsApp |
| F-8-20 |
HZY3-90111-000
BOLT,�SPECIAL,�6X17
|
12 | Ask on WhatsApp |
| F-8-20 |
HZY6-82873-000
GROMMET,�WATER�CHECK
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-63719-000
SEAL�B,�COVER�UNDER
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-63718-000
SEAL�A,�COVER�UNDER
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-63716-010ZC
COVER,�L.�ENGINE�UNDER
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-63711-010ZC
COVER,�R.�ENGINE�UNDER
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-40212-020ZC
COVER,�DRAIN�PLUG
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-40152-300
SEAL,�FR.�SEPARATE�COVER
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-40151-010ZD
COVER,�FR.�SEPARATE
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-40116-000
GROMMET,�UNDER�COVER
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-40114-010
GROMMET,�POWER�TILT�SWITCH
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY3-35645-000
STAY,�POWER�TILT�SWITCH
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-35640-003
SWITCH�ASSY.,�POWER�TILT
|
1 | Ask on WhatsApp |
| F-8-20 |
HZY6-19289-000
CAP,�WATER�JOINT
|
1 | Ask on WhatsApp |
