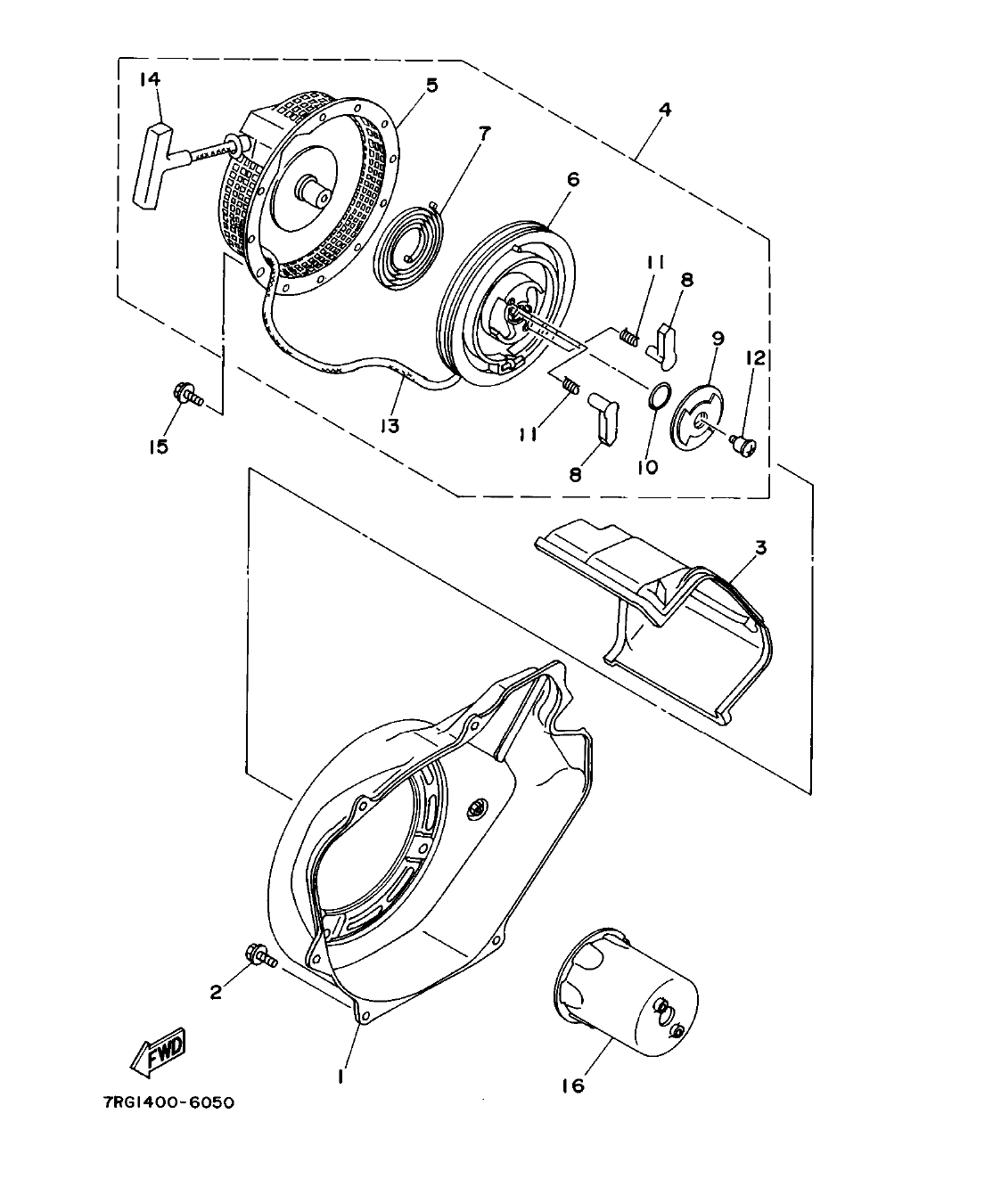

EF5200D
Section 5: AIR SHROUD. STARTER (v2)
Model code: 7VX2
Parts list
Section 5
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
7RH-12621-00
CASE, FAN
|
1 | |
| 2 |
95807-06012
BOLT, FLANGE
|
5 | |
| 3 |
7RH-12651-01
AIR SHROUD, CYLINDER 1
|
1 | |
| 4 |
7RH-15710-00
STARTER ASSY
|
1 | |
| 5 |
7RH-15711-00
.CASE, STARTER
|
1 | |
| 6 |
7RH-15714-00
.DRUM, SHEAVE
|
1 | |
| 7 |
7RH-15713-00
.SPRING, STARTER
|
1 | |
| 8 |
7RH-15741-00
.PAWL, DRIVE
|
2 | |
| 9 |
7RH-15716-00
.PLATE, DRIVE
|
1 | |
| 10 |
7RH-15715-00
.SPRING, FRICTION
|
1 | |
| 11 |
JK4-15743-00
.SPRING, RETURN
|
2 | |
| 12 |
7NJ-15793-00
.SCREW
|
1 | |
| 13 |
7RH-15751-00
.WIRE, STARTER
|
1 | |
| 14 |
7RH-15755-00
.HANDLE, STARTER
|
1 | |
| 15 |
95807-06008
BOLT, FLANGE
|
4 | |
| 16 |
7RH-15723-00
PULLEY, STARTER
|
1 |
