E40XMH
Section 6: FUEL (v2)
Model code: 66T6

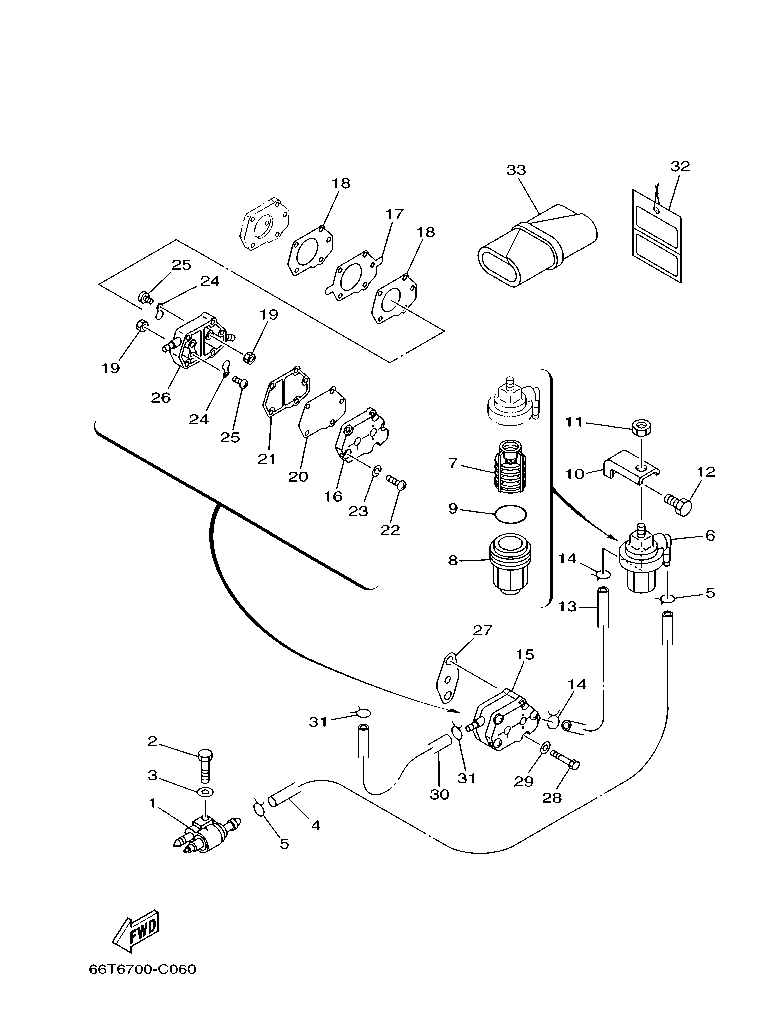

Parts list
Section 6
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6G1–24304–02
FUEL PIPE JOINT COMP. 1
|
1 | |
| 2 |
97095–06030
BOLT
|
1 | |
| 3 |
92995–06600
WASHER
|
1 | |
| 4 |
90445–09M08
HOSE (L550)
|
1 | |
| 5 |
90467–08004
CLIP
|
2 | |
| 6 |
61N–24560–00
FILTER ASSY
|
1 | |
| 7 |
61N–24563–00
.ELEMENT, FILTER
|
1 | |
| 8 |
61N–24521–00
.CUP, FILTER
|
1 | |
| 9 |
93210–32738
.O-RING
|
1 |
Price:
2.98 AED
In stock
(75)
|
| 10 |
648–24566–02
BRACKET, FILTER
|
1 | |
| 11 |
95380–08600
NUT
|
1 | |
| 12 |
97013–06014
BOLT
|
1 | |
| 13 |
90445–09086
HOSE (L170)
|
1 | |
| 14 |
90467–08004
CLIP
|
2 | |
| 15 |
692–24410–00
FUEL PUMP ASSY
|
1 | |
| 16 |
6A0–24413–00
.BODY 2
|
1 | |
| 17 |
692–24411–00
.DIAPHRAGM
|
1 |
Price:
47.67 AED
In stock
(27)
|
| 18 |
648–24434–01
.GASKET, BODY
|
2 |
Price:
9.68 AED
In stock
(31)
|
| 19 |
95380–03600
.NUT
|
2 | |
| 20 |
663–24411–00
.DIAPHRAGM
|
1 |
Price:
20.11 AED
In stock
(62)
|
| 21 |
648–24435–02
.GASKET, BODY 2
|
1 | |
| 22 |
98503–05028
.SCREW, PAN HEAD
|
3 | |
| 23 |
92990–05100
.WASHER, SPRING
|
3 |
Price:
2.98 AED
In stock
(3)
|
| 24 |
6A0–24421–01
.VALVE, CHECK
|
2 | |
| 25 |
6A0–14325–00
.SCREW, PAN HEAD
|
2 | |
| 26 |
6A0–24412–02
.BODY 1
|
1 | |
| 27 |
650–24431–A0
GASKET, FUEL PUMP 1
|
1 |
Price:
2.98 AED
In stock
(1)
|
| 28 |
97095–06040
BOLT
|
2 | |
| 29 |
92995–06600
WASHER
|
2 | |
| 30 |
90445–09086
HOSE (L170)
|
1 | |
| 31 |
90467–08004
CLIP
|
2 | |
| 32 |
61H–2819R–31
TAG, WARNING
|
1 | |
| 33 |
676–W2810–01
TOOL KIT
|
1 |
