FL115B’15
Section 25: CONTROL (v2)
Model code: 6EL2

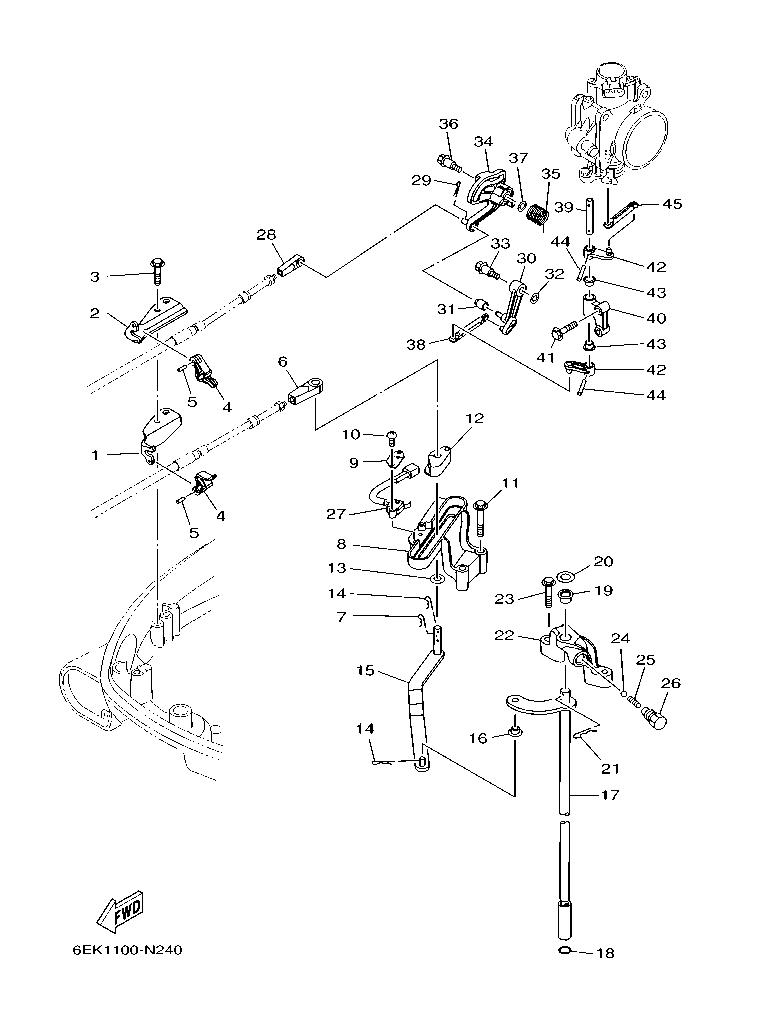

Parts list
Section 25
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6EK-48531-00
BRACKET, REMOTE CONTROL 1 ETRIER 1, COMMANDE A DISTANCE
|
1 | |
| 2 |
6EK-48532-00
BRACKET, REMOTE CONTROL 2 ETRIER 2, COMMANDE A DISTANCE
|
1 | |
| 3 |
90109-06M81
BOLT BOULON
|
2 | |
| 4 |
6EK-48538-00
CLAMP, CABLE 1 COLLIER
|
2 | |
| 5 |
91690-30010
PIN, SPRING AGRAFFE
|
2 | |
| 6 |
6E5-48344-00
CABLE END, REMOTE CONTROL CHAPE CABLE
|
1 |
Price:
8.19 AED
In stock
(156)
|
| 7 |
90468-18008
CLIP JONC
|
1 |
Price:
4.47 AED
In stock
(27)
|
| 8 |
6EK-44117-00
BRACKET SUPPORT
|
1 | |
| 9 |
61A-82588-01
PLATE PLAQUE
|
1 | |
| 10 |
97985-04116
SCREW, WITH WASHER VIS, AVEC RONDELLE
|
2 | |
| 11 |
95875-06040
BOLT, FLANGE BOULON, A COLLERETTE
|
2 | |
| 12 |
63P-44122-00
BUSHING, SHIFT ROD LEVER DOUILLE, LEVIER D'EMBRAYAGE
|
1 | |
| 13 |
90202-08M20
WASHER, PLATE RONDELLE, PLATE
|
1 | |
| 14 |
90468-18008
CLIP JONC
|
2 |
Price:
4.47 AED
In stock
(27)
|
| 15 |
6EK-44121-00
LEVER, SHIFT ROD LEVIER, TIGE D'INVERSION
|
1 | |
| 16 |
90386-06M12
BUSH DOUILLE
|
1 | |
| 17 |
6EK-44120-10
HANDLE GEAR SHIFT ASSY LEVIER D'EMBRAYAGE
|
1 | |
| 18 |
93210-09165
O-RING JOINT TORIQUE
|
1 | |
| 19 |
90386-10001
BUSH DOUILLE
|
1 |
Price:
2.98 AED
In stock
(5)
|
| 20 |
90201-11008
WASHER, PLATE RONDELLE, PLATE
|
1 |
Price:
22.35 AED
In stock
(8)
|
| 21 |
90468-180A0
CLIP JONC
|
1 |
Price:
2.98 AED
In stock
(3)
|
| 22 |
6EK-44118-00
BRACKET SUPPORT
|
1 | |
| 23 |
95895-06030
BOLT, FLANGE BOULON
|
2 | |
| 24 |
93501-04M02
BALL BILLE
|
1 |
Price:
2.98 AED
In stock
(14)
|
| 25 |
90501-12082
SPRING, COMPRESSION RESSORT, COMPRESSION
|
1 |
Price:
3.72 AED
In stock
(65)
|
| 26 |
648-42715-00
BUSHING
|
1 |
Price:
14.90 AED
In stock
(67)
|
| 27 |
60V-8259F-00
SWITCH ASSY COMMUTATEUR
|
1 | |
| 28 |
6E5-48344-00
CABLE END, REMOTE CONTROL CHAPE CABLE
|
1 |
Price:
8.19 AED
In stock
(156)
|
| 29 |
90468-18008
CLIP JONC
|
1 |
Price:
4.47 AED
In stock
(27)
|
| 30 |
6EK-42154-00
LEVER, THROTTLE CONTROL LEVIER DE COMMANDE D'AVANCE
|
1 | |
| 31 |
68V-42171-00
BUSHING COUSSINET
|
1 | |
| 32 |
90201-06M05
WASHER, PLATE RONDELLE, PLATE
|
1 | |
| 33 |
90109-06288
BOLT BOULON
|
1 | |
| 34 |
6EK-41213-00
CAM, ACCEL. CAME, ACCELERATION
|
1 | |
| 35 |
6EK-44135-00
SPRING RESSORT
|
1 | |
| 36 |
90109-06288
BOLT
|
1 | |
| 37 |
90201-06M05
WASHER, PLATE RONDELLE, PLATE
|
1 | |
| 38 |
6EK-41237-10
JOINT, LINK RACCORD
|
1 | |
| 39 |
6EK-41635-00
SHAFT, LINK CONNECTING AXE, RACCORD
|
1 | |
| 40 |
6EK-41662-00
BRACKET 2 SUPPORT 2
|
1 | |
| 41 |
95895-06030
BOLT, FLANGE BOULON
|
2 | |
| 42 |
6EK-42157-00
LEVER, THROTTLE LEVIER DE AVANCE
|
2 | |
| 43 |
90386-10001
BUSH DOUILLE
|
2 |
Price:
2.98 AED
In stock
(5)
|
| 44 |
91690-30018
PIN, SPRING AGRAFFE
|
2 |
Price:
3.72 AED
In stock
(3)
|
| 45 |
6EK-41237-00
JOINT, LINK
|
1 |
