FL115B’15
Section 13: FUEL 1 (v2)
Model code: 6EL2

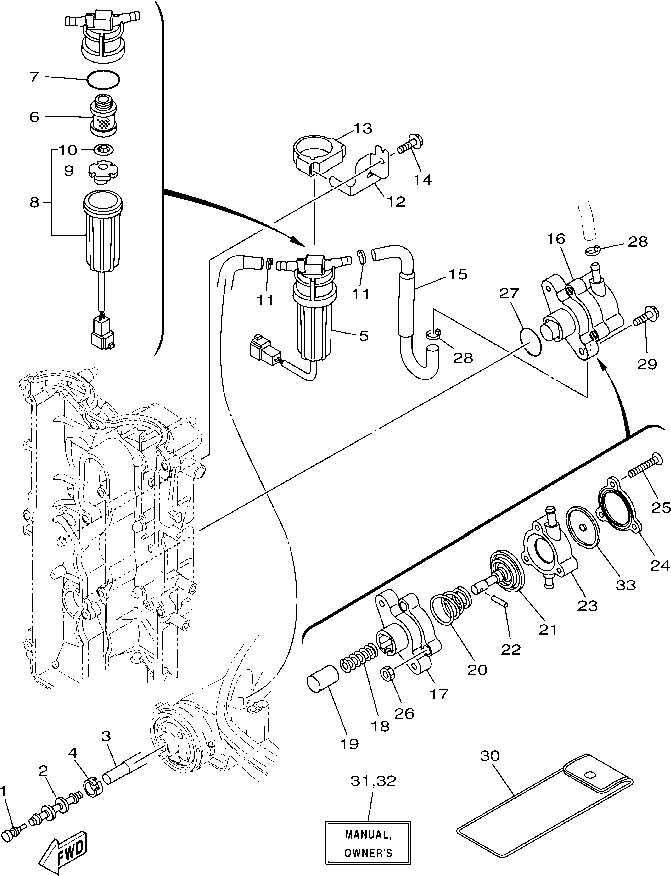

Parts list
Section 13
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
689-85547-00
DAMPER AMORTISSEUR
|
1 | |
| 2 |
6AW-24377-01
PIPE, JOINT 2 DURITE RACCORDEMENT 2
|
1 |
44.69 AED
Check price & stock on WhatsApp
|
| 3 |
6EK-24314-00
PIPE 4 DURITE 4
|
1 | |
| 4 |
6E5-24351-51
BAND 1 COLLIER 1
|
1 |
19.37 AED
Check price & stock on WhatsApp
|
| 5 |
6EK-24560-00
FILTER ASSY ENS FILTRE
|
1 | |
| 6 |
6D8-24563-00
.ELEMENT, FILTER .ELEMENT, FILTRE
|
1 | |
| 7 |
6D8-24564-00
.GASKET .JOINT
|
1 | |
| 8 |
6D8-24562-00
.CUP, FILTER .CUVETTE, FILTRE
|
1 | |
| 9 |
6D8-24469-00
..FLOAT, WATER LEVEL ..FLOTTEUR
|
1 | |
| 10 |
6D8-24519-00
..CLIP ..JONC
|
1 | |
| 11 |
90465-11M10
CLAMP BRIDE
|
2 | |
| 12 |
6EK-24566-00
BRACKET, FILTER SUPPORT, FILTRE
|
1 | |
| 13 |
6EK-24568-00
BAND, FILTER COLLIER, FILTRE
|
1 | |
| 14 |
95895-06016
BOLT, FLANGE BOULON
|
1 | |
| 15 |
6EK-24311-00
PIPE, FUEL 1 DURITE A ESSENCE
|
1 | |
| 16 |
6EK-24410-00
FUEL PUMP ASSY POMPE A ESSENCE
|
1 |
619.00 AED
Check price & stock on WhatsApp
|
| 17 |
68V-24412-00
.BODY 1 .CORPS 1
|
1 | |
| 18 |
68V-24454-00
.SPRING .RESSORT
|
1 |
29.80 AED
Check price & stock on WhatsApp
|
| 19 |
63P-13131-00
.PLUNGER .PLONGEUR
|
1 | |
| 20 |
63P-24423-00
.SPRING, DIAPHRAGM .RESSORT, DIAPHRAGME
|
1 | |
| 21 |
68V-24411-00
.DIAPHRAGM .DIAPHRAGME
|
1 | |
| 22 |
68V-24374-00
.PIN .GOUPILLE
|
1 | |
| 23 |
6EK-24413-00
.BODY 2 .CORPS 2
|
1 | |
| 24 |
6EK-24414-00
.BODY 3 .CORPS 3
|
1 | |
| 25 |
68V-24444-00
.SCREW .VIS
|
3 | |
| 26 |
68V-24149-00
.NUT .ECROU
|
3 | |
| 27 |
93210-30682
O-RING JOINT TORIQUE
|
1 | |
| 28 |
90465-11M10
CLAMP
|
2 | |
| 29 |
90105-06208
BOLT, FLANGE
|
2 | |
| 30 |
67F-28100-01
TOOL KIT
AP
|
1 | |
| 31 |
6EK-28199-71-S0
MANUAL,OWNER'S
UR (ES)
|
1 | |
| 31 |
6EK-28199-71-H0
MANUAL,OWNER'S
UR (I)
|
1 | |
| 31 |
6EK-28199-71-D0
MANUAL,OWNER'S
UR (NL)
|
1 | |
| 31 |
6EK-28199-71-G0
MANUAL,OWNER'S
UR (D)
|
1 | |
| 31 |
6EK-28199-71-F0
MANUAL,OWNER'S
UR (F)
|
1 | |
| 31 |
6EK-28199-71-E0
MANUAL,OWNER'S
UR (E)
|
1 | |
| 32 |
6EK-28199-81-K0
MANUAL,OWNER'S
UR (DK)
|
1 | |
| 32 |
6EK-28199-81-R0
MANUAL,OWNER'S
UR (GR)
|
1 | |
| 32 |
6EK-28199-81-P0
MANUAL,OWNER'S
UR (P)
|
1 | |
| 32 |
6EK-28199-81-N0
MANUAL,OWNER'S
UR (N)
|
1 | |
| 32 |
6EK-28199-81-M0
MANUAL,OWNER'S
UR (S)
|
1 | |
| 32 |
6EK-28199-81-L0
MANUAL,OWNER'S
UR (SF)
|
1 | |
| 33 |
68V-24471-10
.DIAPHRAGM
|
1 |
