FL115B’15

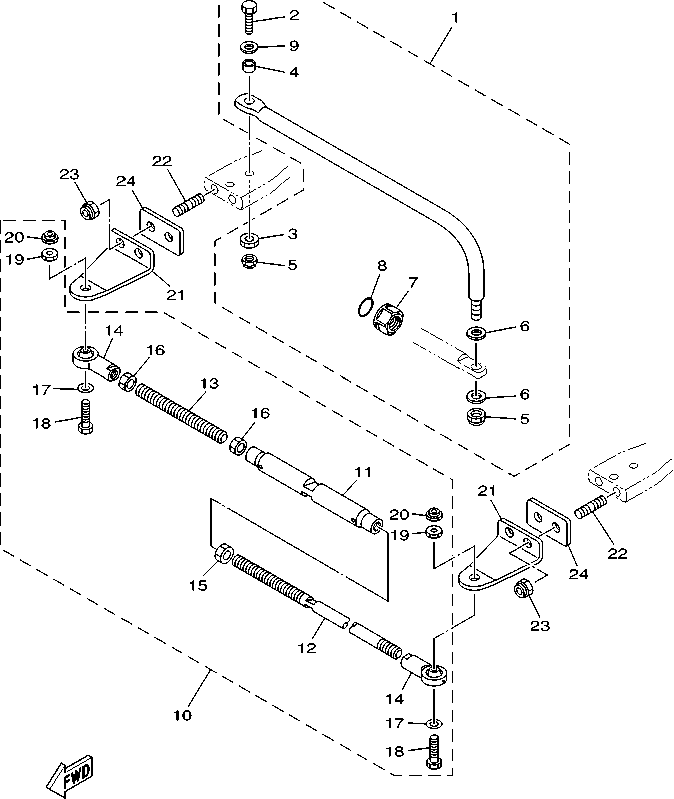

Section 36: STEERING GUIDE (v2)
Model code: 6EL2
Parts list
Section 36
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6EK-61350-00
STEERING GUIDE ATTACHMENT KIT
|
1 | |
| 2 |
6E5-61355-00
.BOLT .BOULON
|
1 |
Price:
52.14 AED
In stock
(8)
|
| 3 |
90170-09M03
.NUT .ECROU
|
1 | |
| 4 |
90387-10M42
.COLLAR .COLLERETTE
|
1 | |
| 5 |
90185-09M01
.NUT, SELF-LOCKING .ECROU,AUTO-BLOQUANT
|
2 |
Price:
11.92 AED
In stock
(14)
|
| 6 |
90201-10M20
.WASHER, PLATE .RONDELLE, PLATE
|
2 | |
| 7 |
6E5-43145-01
.CAP, CLAMP BRACKET .CAPUCHON, PRESSE
|
1 | |
| 8 |
93210-16275
.O-RING .JOINT TORIQUE
|
1 | |
| 9 |
90201-10M63
.WASHER, PLATE .RONDELLE, PLATE
|
1 | |
| 10 |
6E5-61301-01
TWIN KIT (L:600-800MM)
|
1 |
Price:
1,898.22 AED
In stock
(280)
|
| 11 |
6E5-61313-00
.ADJUSTER .TENDEUR
|
1 | |
| 12 |
6E5-61311-11
.TIE BAR .BARRE D'ACCOUPLEMENT
|
1 | |
| 13 |
6E5-61315-00
.TIE BAR .BARRE D'ACCOUPLEMENT
|
1 | |
| 14 |
6E5-61303-00
.STEERING AXLE COMP. .AXLE COMP.
|
2 | |
| 15 |
90170-14M06
.NUT .ECROU
|
1 | |
| 16 |
95380-14700
.NUT .ECROU
|
2 | |
| 17 |
90201-10M76
.WASHER, PLATE .RONDELLE, PLATE
|
2 | |
| 18 |
90101-09M70
.BOLT .BOULON
|
2 | |
| 19 |
90170-09M05
.NUT .ECROU
|
2 | |
| 20 |
90185-09M01
.NUT, SELF-LOCKING .ECROU,AUTO-BLOQUANT
|
2 |
Price:
11.92 AED
In stock
(14)
|
| 21 |
688-48511-02
HOOK, STEERING ATTACHE, DIRECTION
|
2 |
Price:
67.04 AED
In stock
(30)
|
| 22 |
90116-10063
BOLT, STUD GOUJON
|
4 |
Price:
12.66 AED
In stock
(373)
|
| 23 |
90185-10027
NUT, SELF-LOCKING ECROU,AUTO-BLOQUANT
|
4 |
Price:
3.72 AED
In stock
(3)
|
| 24 |
6EK-42121-00
BRACKET
|
2 |
