bf100f

Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model

RECOIL STARTER STARTER CASE/CAM PULLEY CARBURETOR/AIR GUIDE FUEL PUMP FLYWHEEL/IGNITION COIL CYLINDER HEAD/CYLINDER BARREL INLET MANIFOLD/C.D.I. UNIT OIL PUMP/OIL FILTER/EXHAUST PIPE CRANKSHAFT/PISTON CAMSHAFT/VALVE SAFETY SWITCH GASKET KIT STEERING HANDLE/THROTTLE CABLE STERN BRACKET/ADJUST ROD SWIVEL CASE/SWIVEL SHAFT (1) LABEL TOOLS/STARTER ROPE SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER GEAR CASE/EXTENSION CASE/SHIFT ROD WATER PUMP/VERTICAL SHAFT PROPELLER SHAFT/PROPELLER FUEL TANK/SUB TANK (1) OIL CASE/ENGINE COVER (1) MOUNT FRAME/UPPER MOUNT RUBBER REMOTE CONTROL VERTICAL STARTER WATER MOUTH/BODY COVER

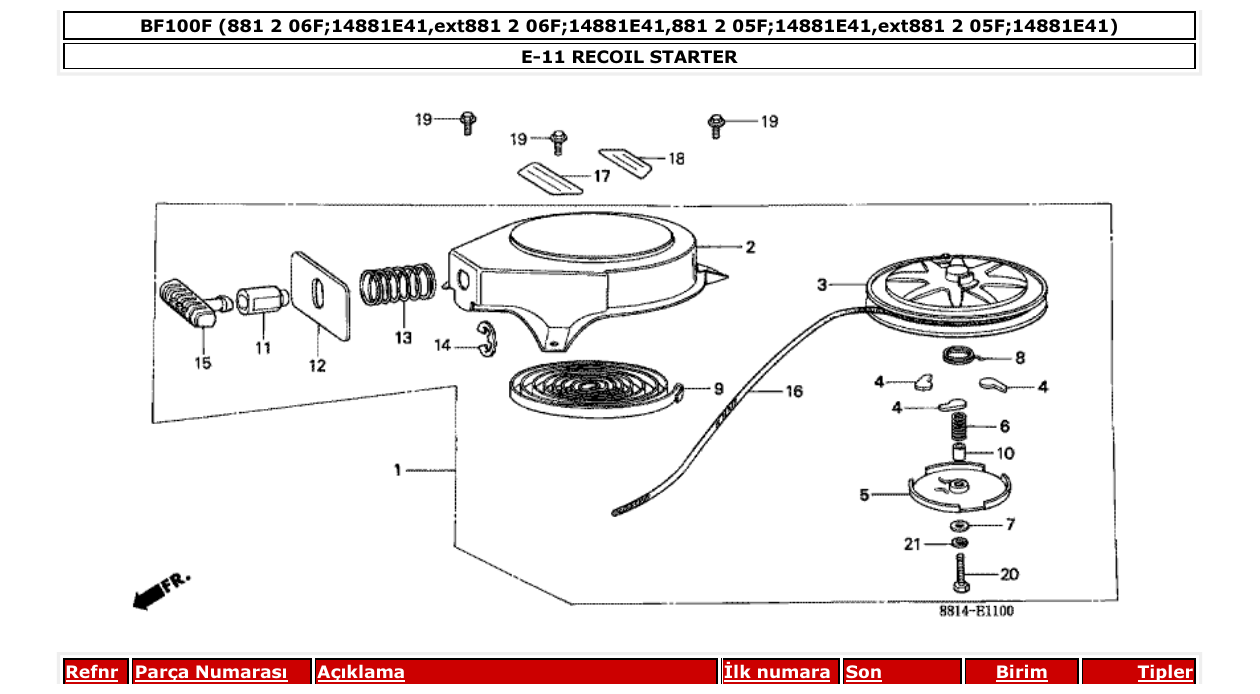

Fig. E-11 – RECOIL STARTER diagram

Fig. E-11 – RECOIL STARTER

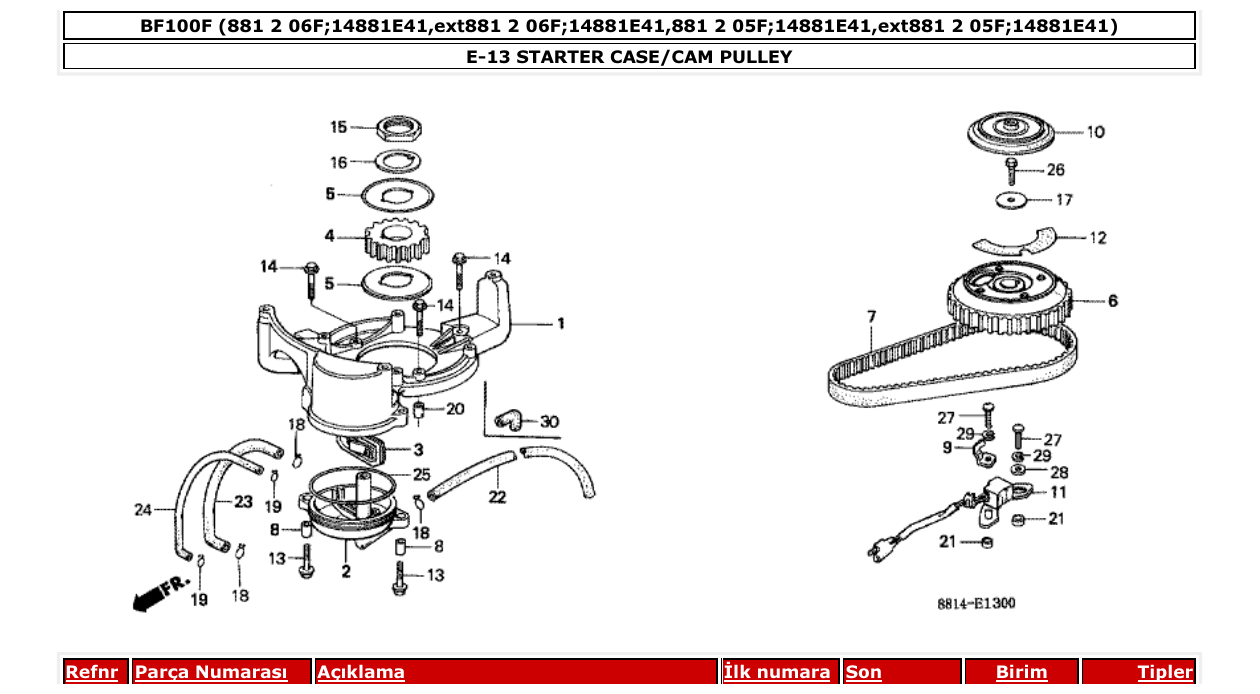

Fig. E-13 – STARTER CASE/CAM PULLEY diagram

Fig. E-13 – STARTER CASE/CAM PULLEY

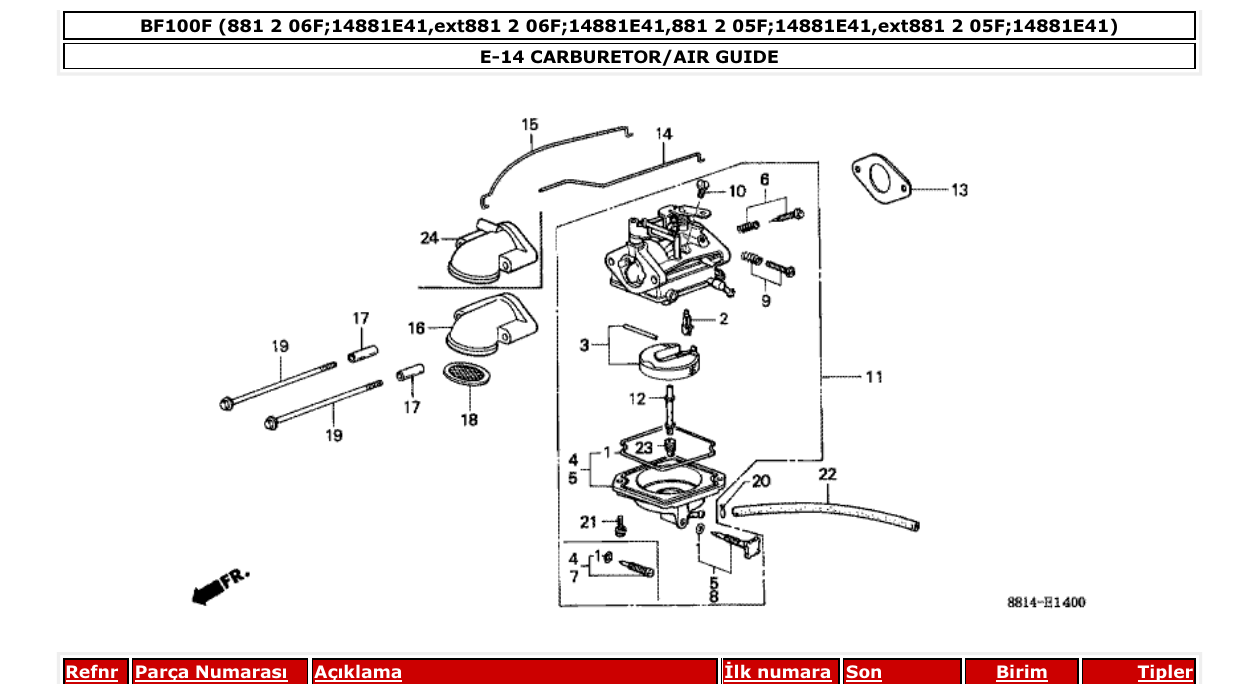

Fig. E-14 – CARBURETOR/AIR GUIDE diagram

Fig. E-14 – CARBURETOR/AIR GUIDE

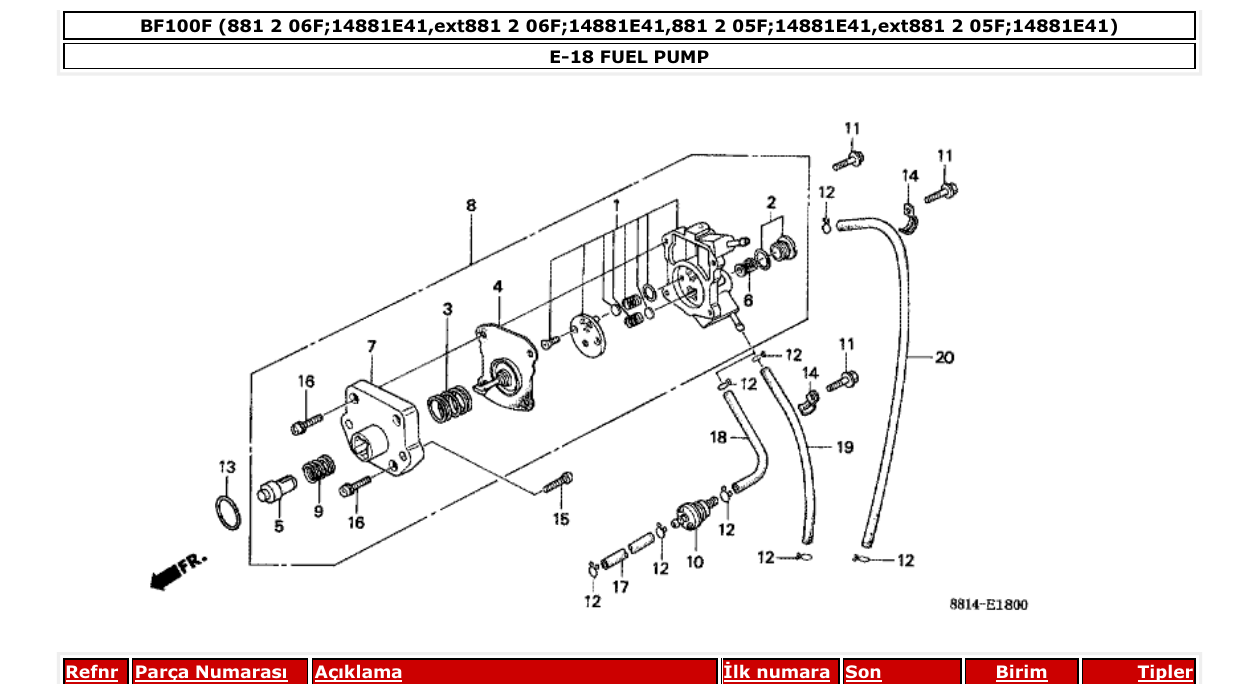

Fig. E-18 – FUEL PUMP diagram

Fig. E-18 – FUEL PUMP

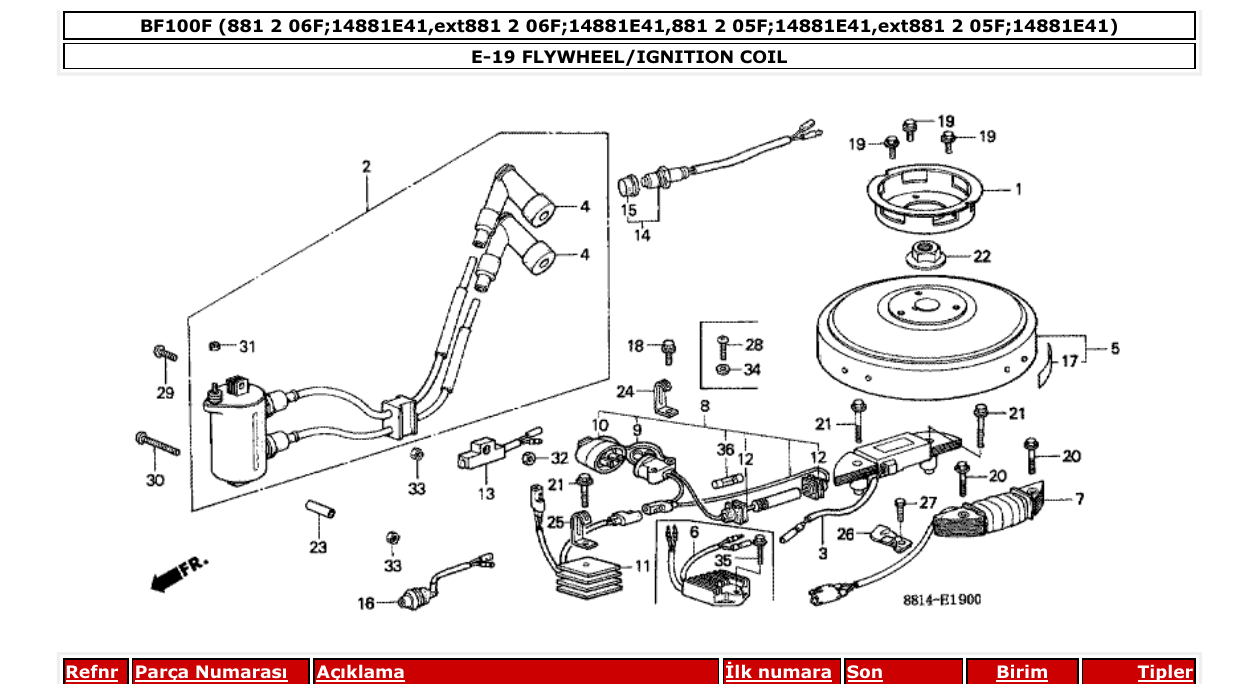

Fig. E-19 – FLYWHEEL/IGNITION COIL diagram

Fig. E-19 – FLYWHEEL/IGNITION COIL

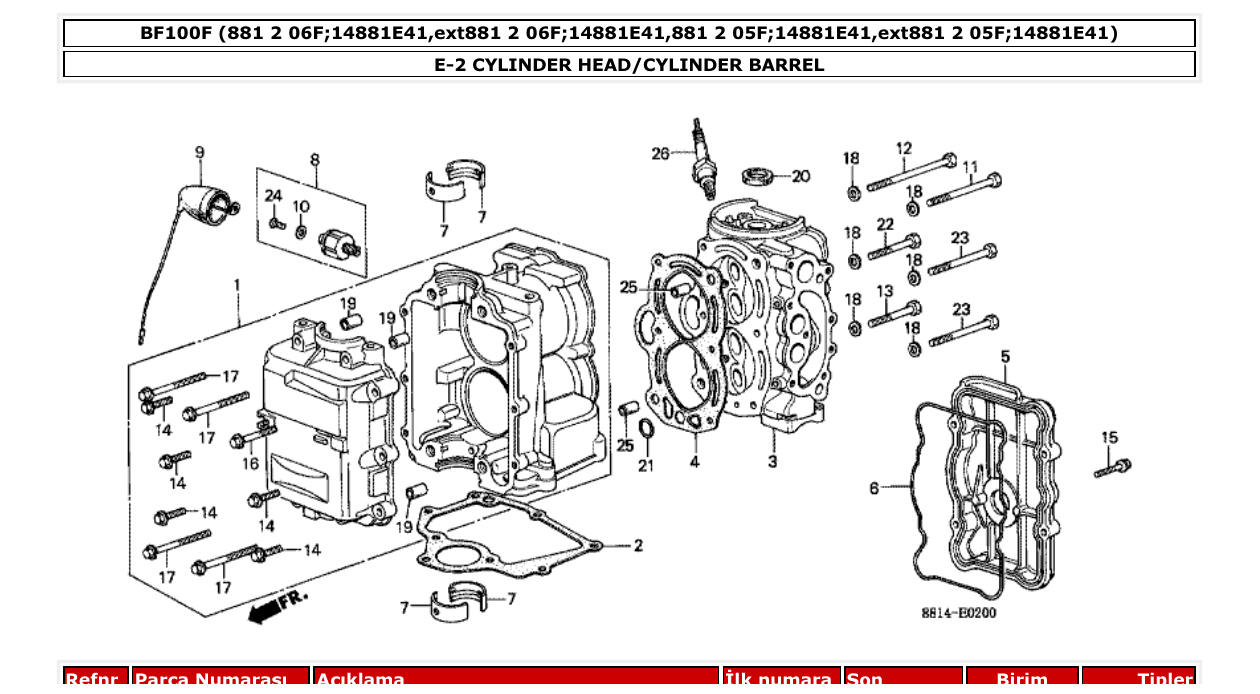

Fig. E-2 – CYLINDER HEAD/CYLINDER BARREL diagram

Fig. E-2 – CYLINDER HEAD/CYLINDER BARREL

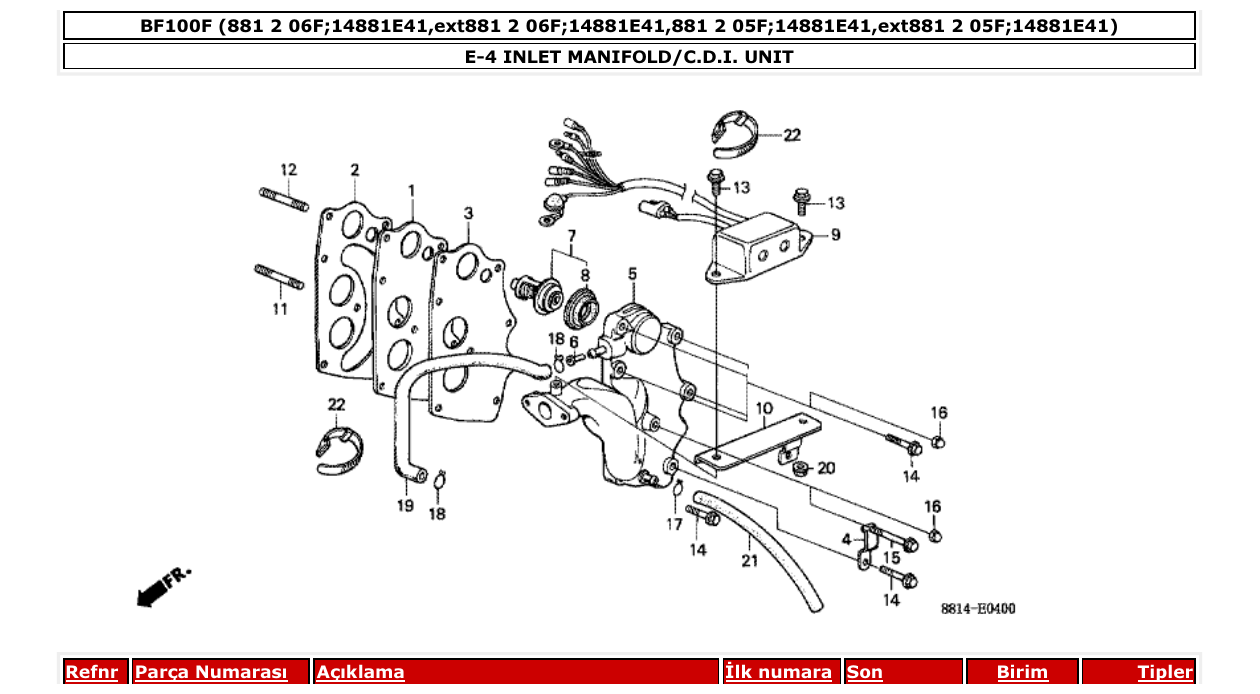

Fig. E-4 – INLET MANIFOLD/C.D.I. UNIT diagram

Fig. E-4 – INLET MANIFOLD/C.D.I. UNIT

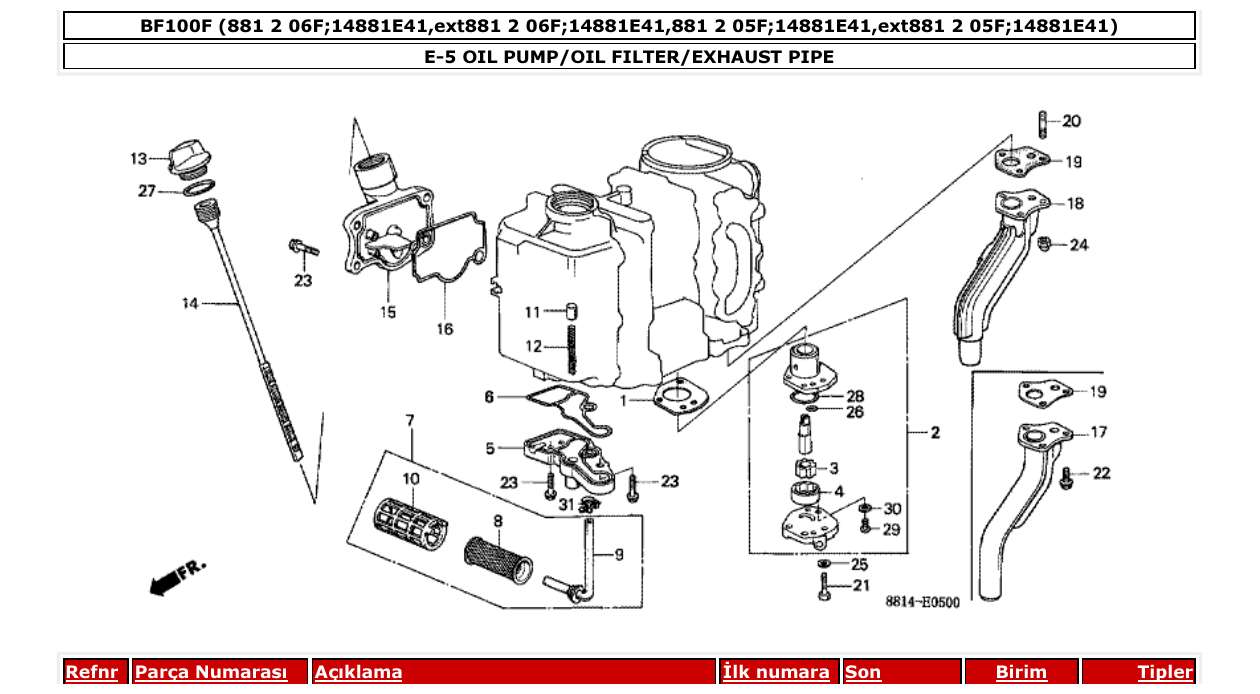

Fig. E-5 – OIL PUMP/OIL FILTER/EXHAUST PIPE diagram

Fig. E-5 – OIL PUMP/OIL FILTER/EXHAUST PIPE

Fig. E-7 – CRANKSHAFT/PISTON diagram

Fig. E-7 – CRANKSHAFT/PISTON

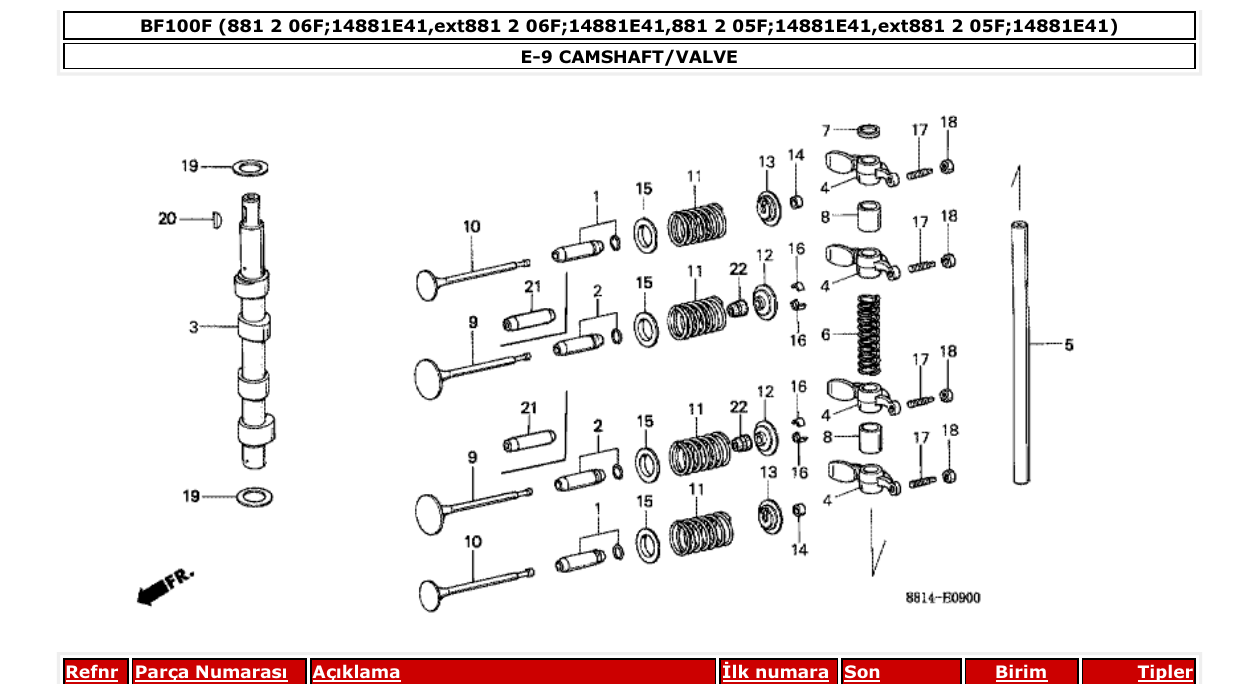

Fig. E-9 – CAMSHAFT/VALVE diagram

Fig. E-9 – CAMSHAFT/VALVE

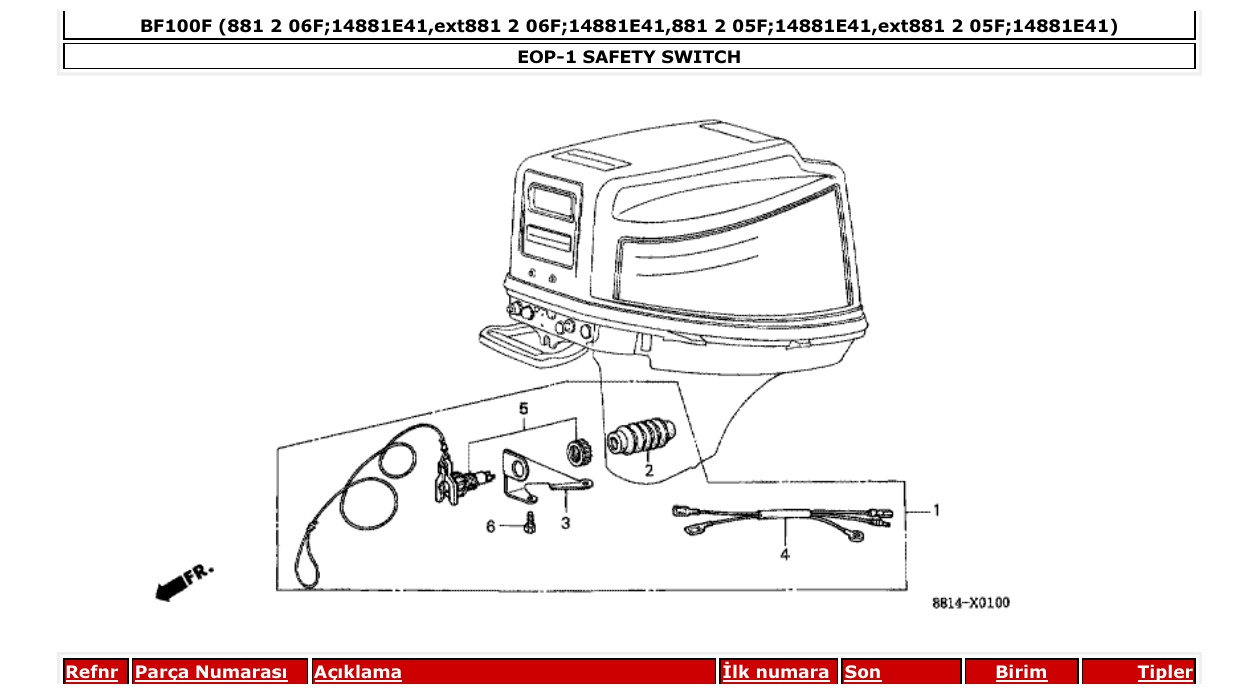

Fig. EOP-1 – SAFETY SWITCH diagram

Fig. EOP-1 – SAFETY SWITCH

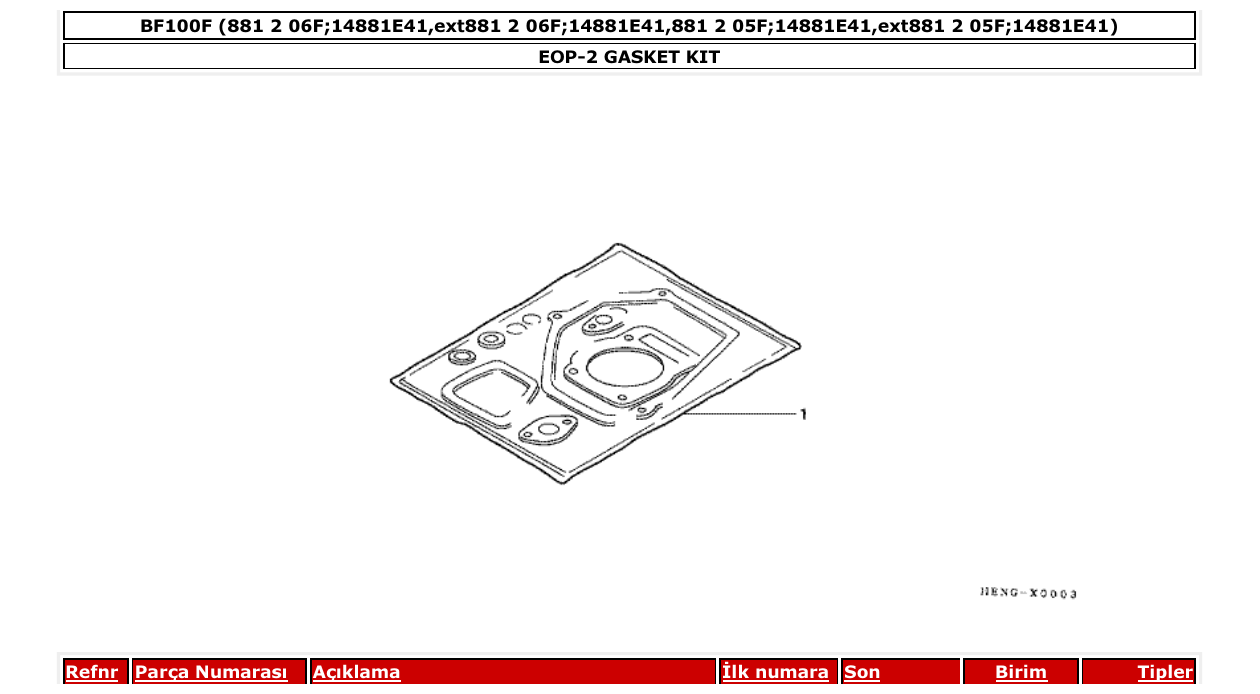

Fig. EOP-2 – GASKET KIT diagram

Fig. EOP-2 – GASKET KIT

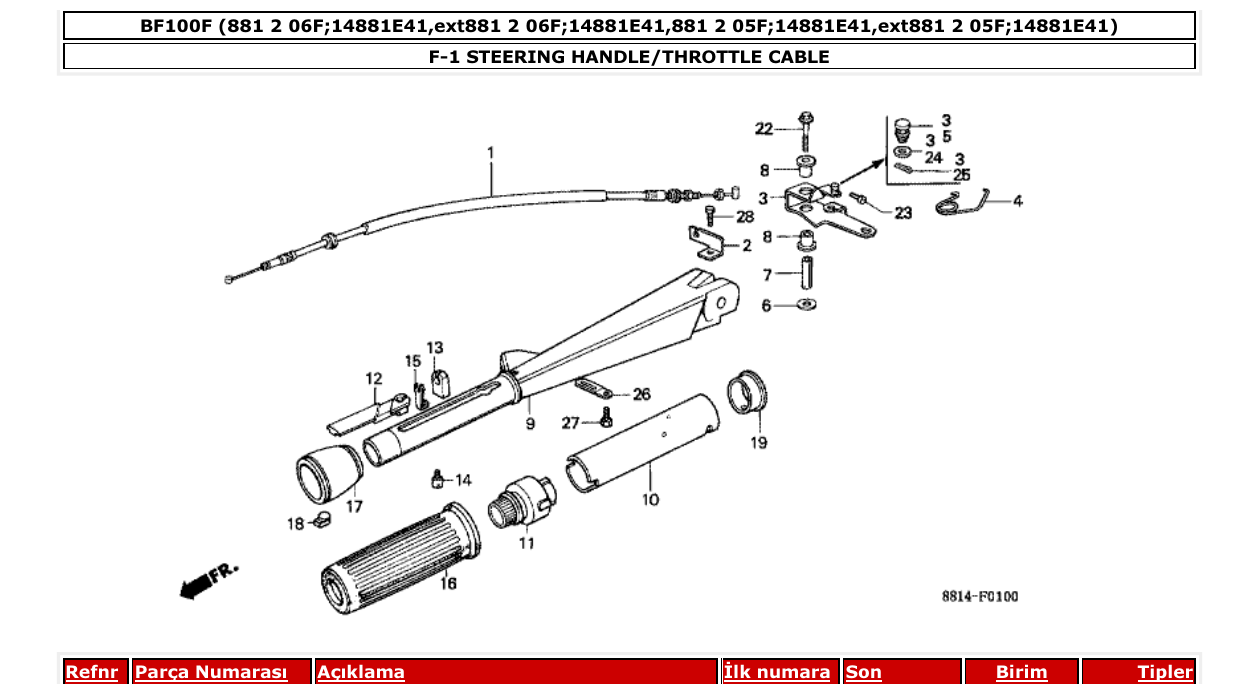

Fig. F-1 – STEERING HANDLE/THROTTLE CABLE diagram

Fig. F-1 – STEERING HANDLE/THROTTLE CABLE

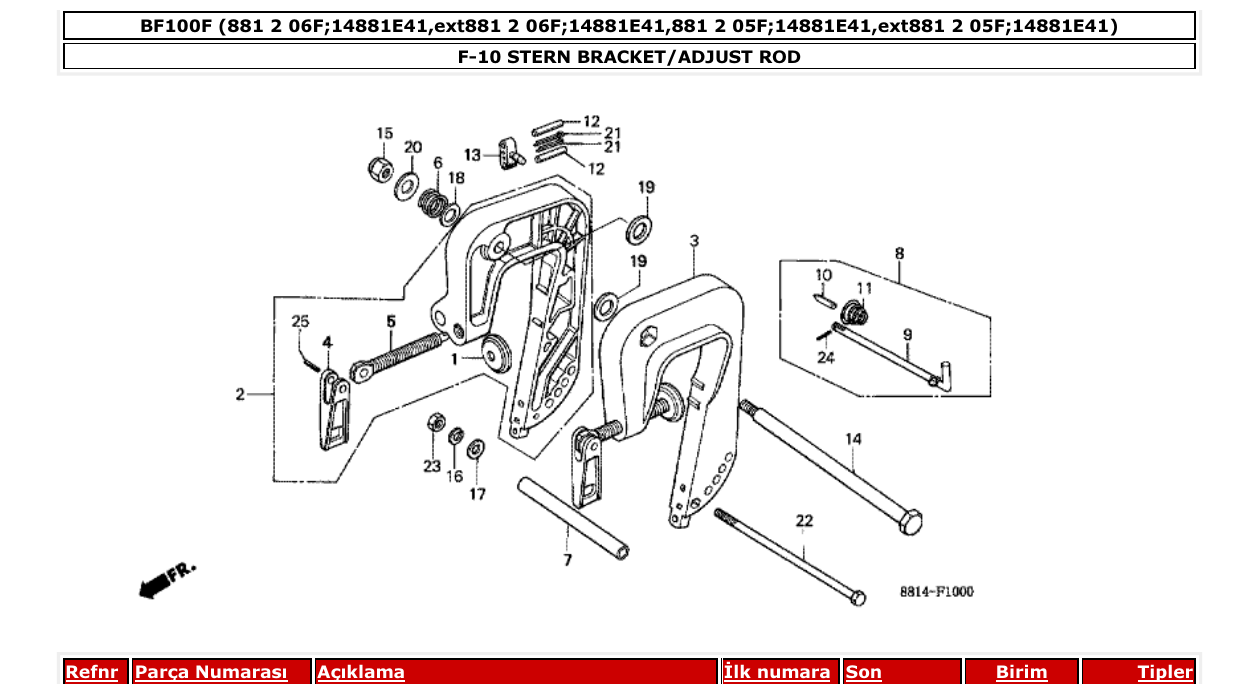

Fig. F-10 – STERN BRACKET/ADJUST ROD diagram

Fig. F-10 – STERN BRACKET/ADJUST ROD

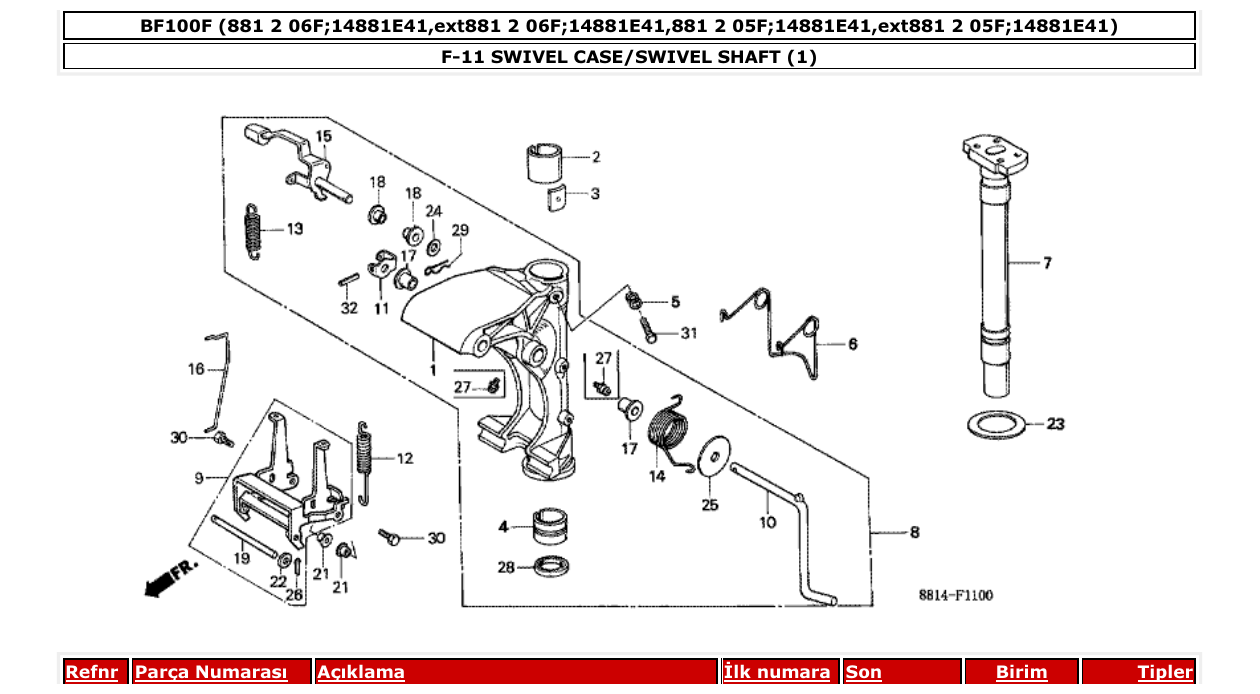

Fig. F-11 – SWIVEL CASE/SWIVEL SHAFT (1) diagram

Fig. F-11 – SWIVEL CASE/SWIVEL SHAFT (1)

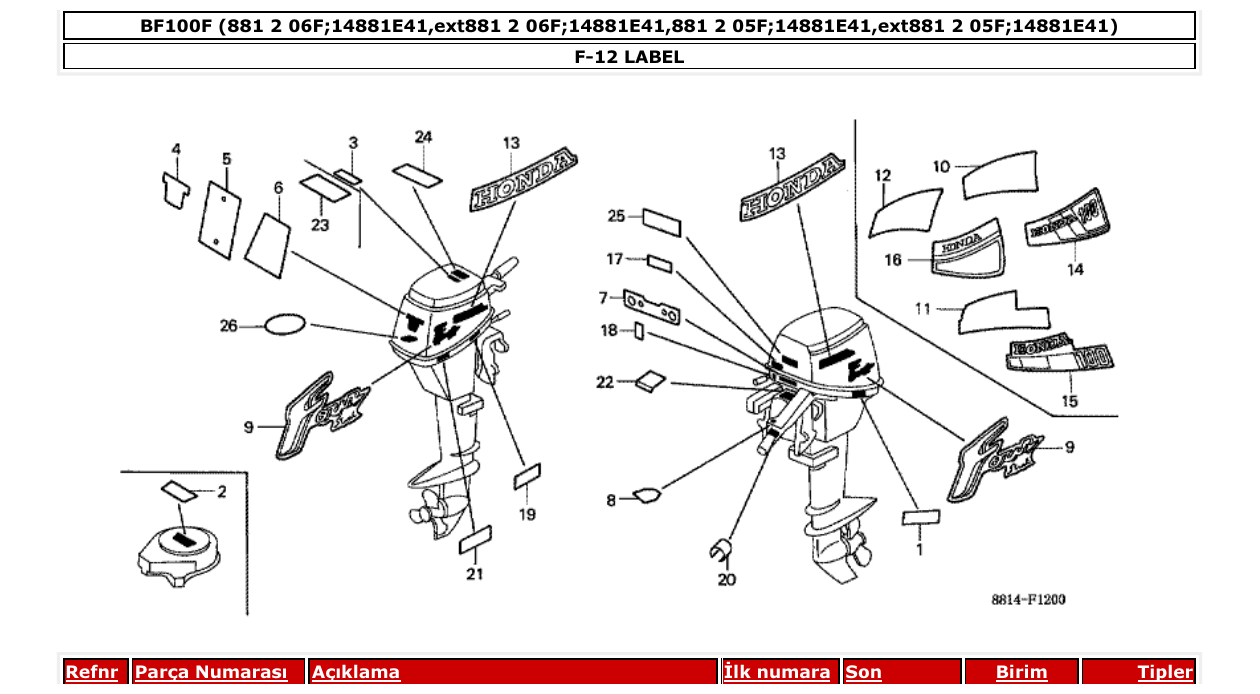

Fig. F-12 – LABEL diagram

Fig. F-12 – LABEL

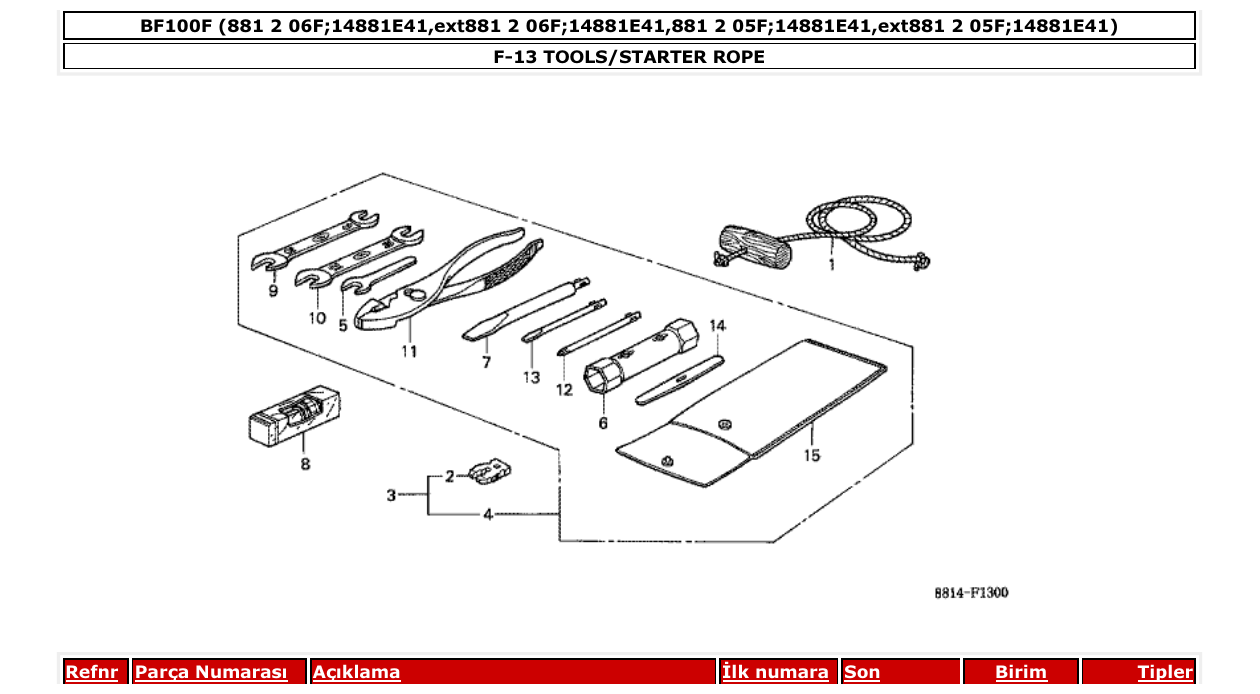

Fig. F-13 – TOOLS/STARTER ROPE diagram

Fig. F-13 – TOOLS/STARTER ROPE

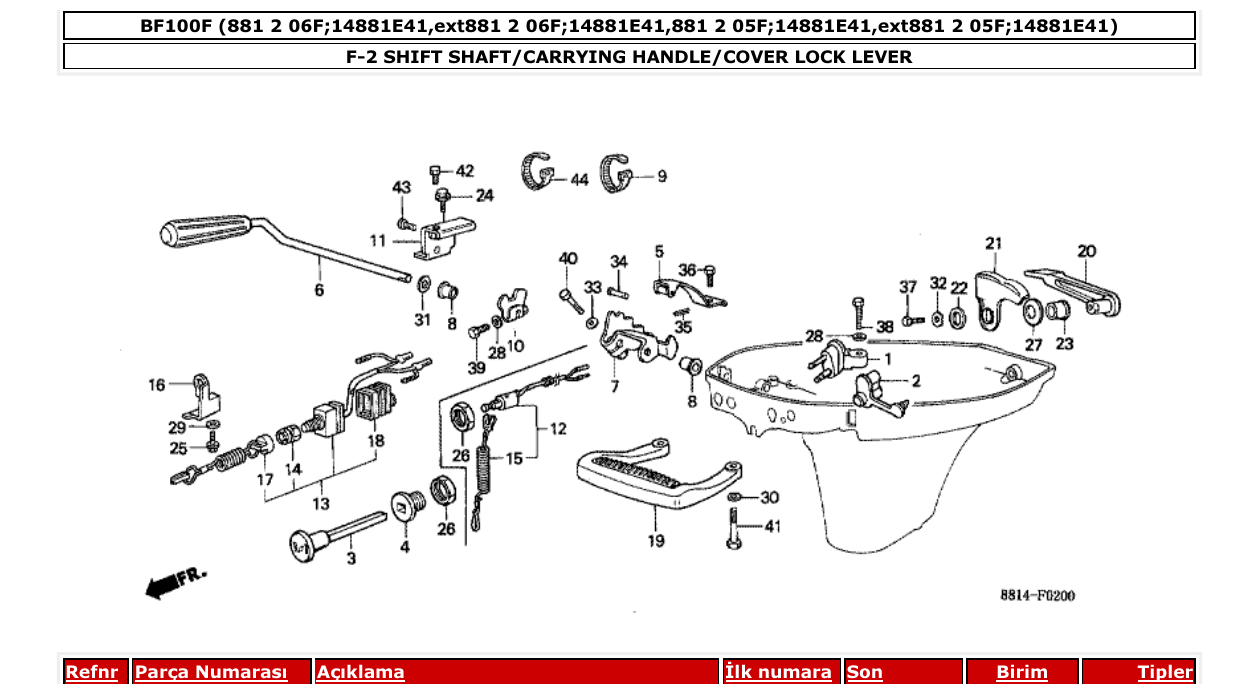

Fig. F-2 – SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER diagram

Fig. F-2 – SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER

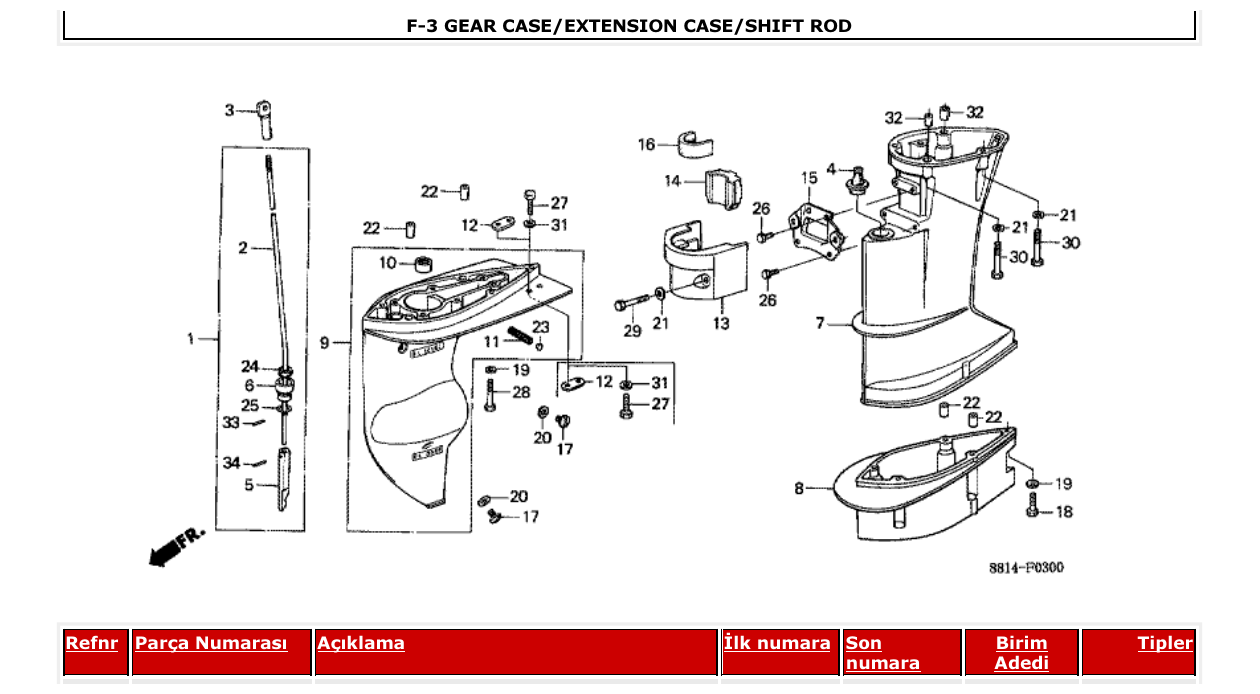

Fig. F-3 – GEAR CASE/EXTENSION CASE/SHIFT ROD diagram

Fig. F-3 – GEAR CASE/EXTENSION CASE/SHIFT ROD

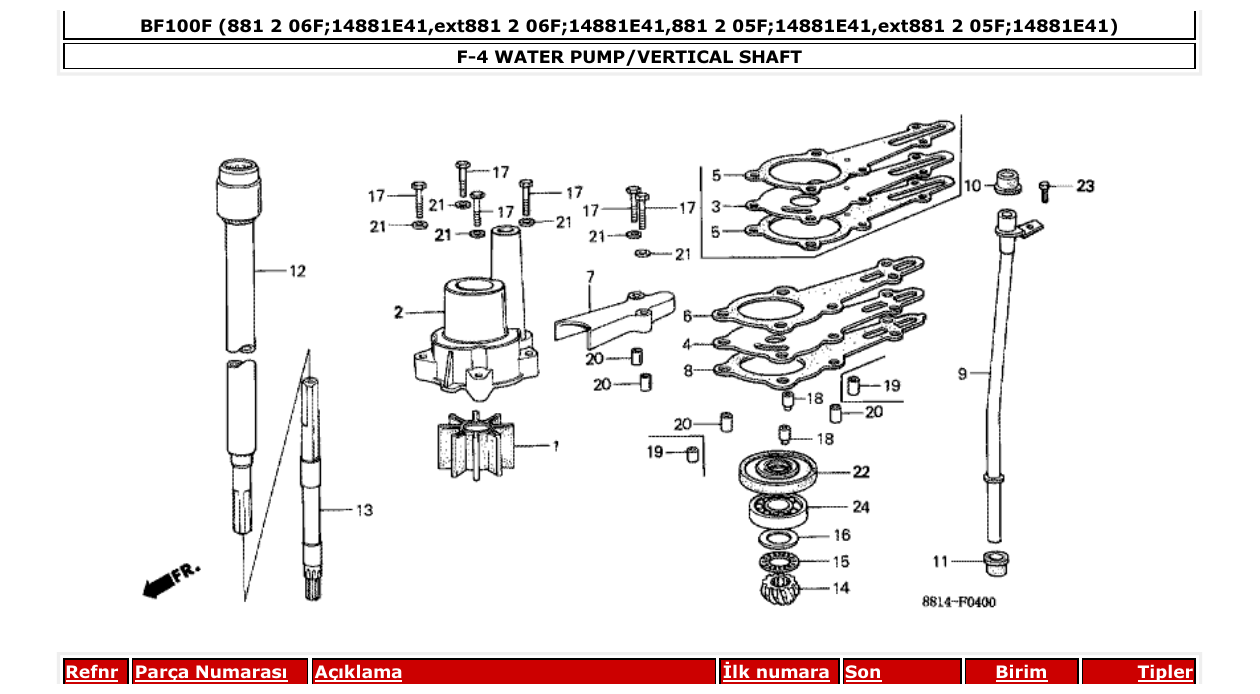

Fig. F-4 – WATER PUMP/VERTICAL SHAFT diagram

Fig. F-4 – WATER PUMP/VERTICAL SHAFT

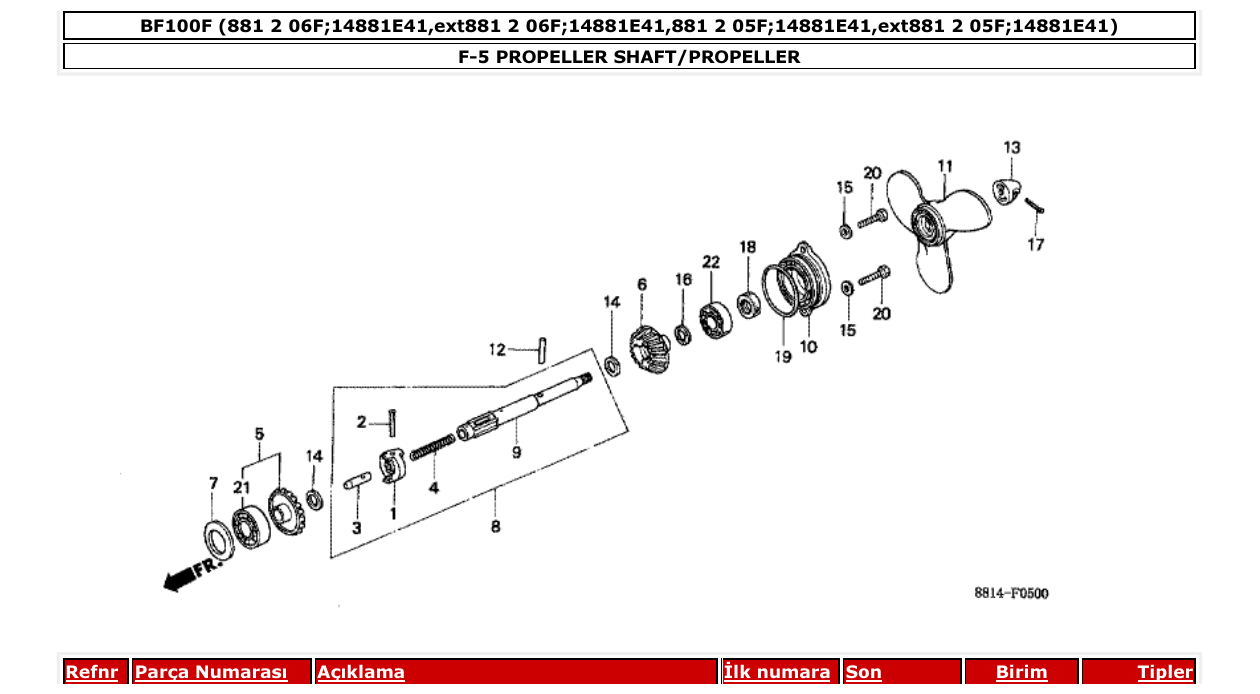

Fig. F-5 – PROPELLER SHAFT/PROPELLER diagram

Fig. F-5 – PROPELLER SHAFT/PROPELLER

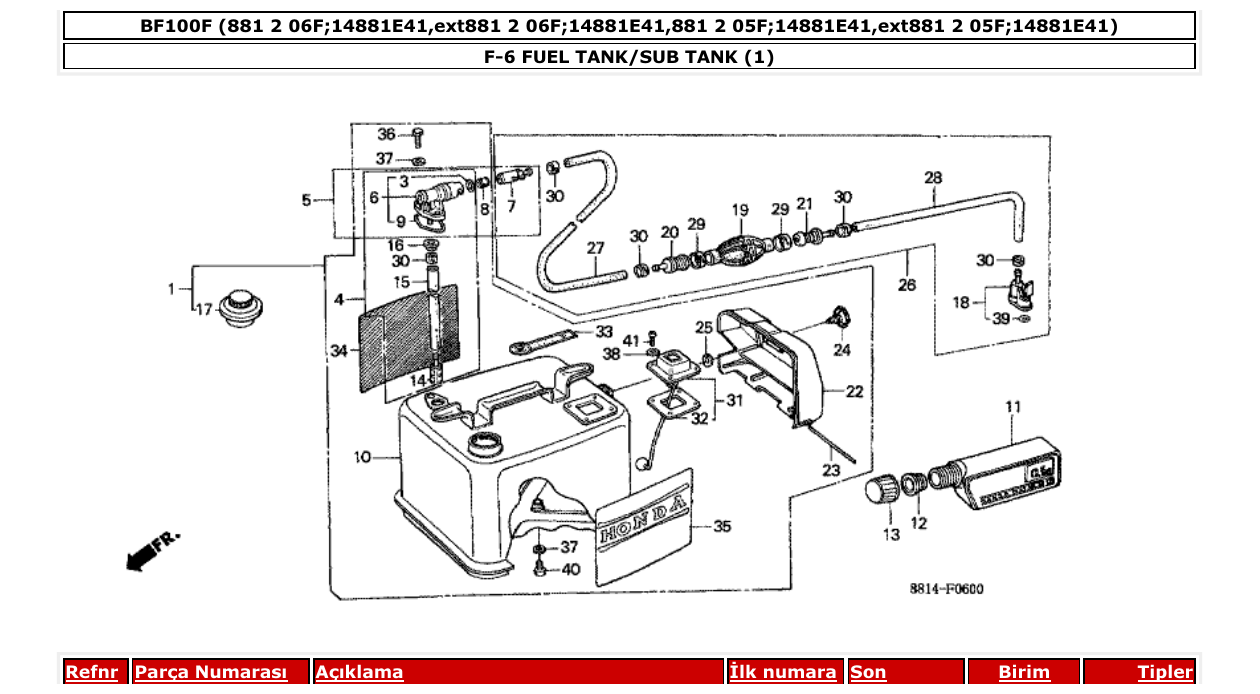

Fig. F-6 – FUEL TANK/SUB TANK (1) diagram

Fig. F-6 – FUEL TANK/SUB TANK (1)

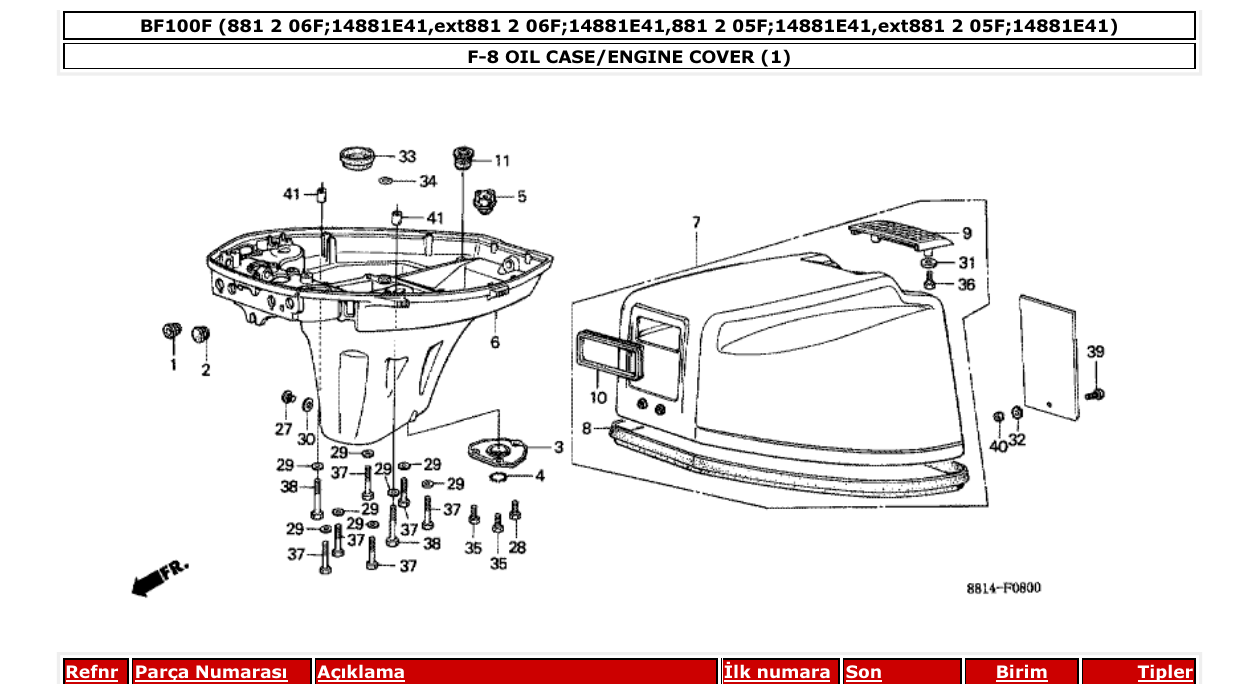

Fig. F-8 – OIL CASE/ENGINE COVER (1) diagram

Fig. F-8 – OIL CASE/ENGINE COVER (1)

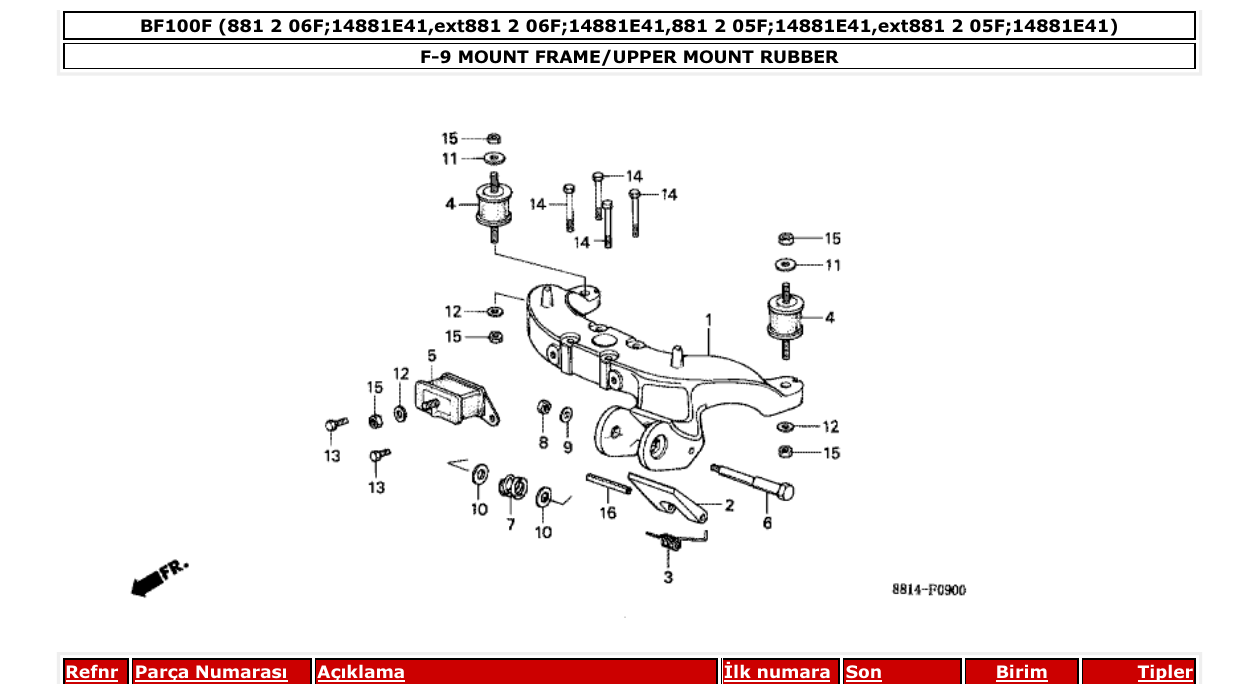

Fig. F-9 – MOUNT FRAME/UPPER MOUNT RUBBER diagram

Fig. F-9 – MOUNT FRAME/UPPER MOUNT RUBBER

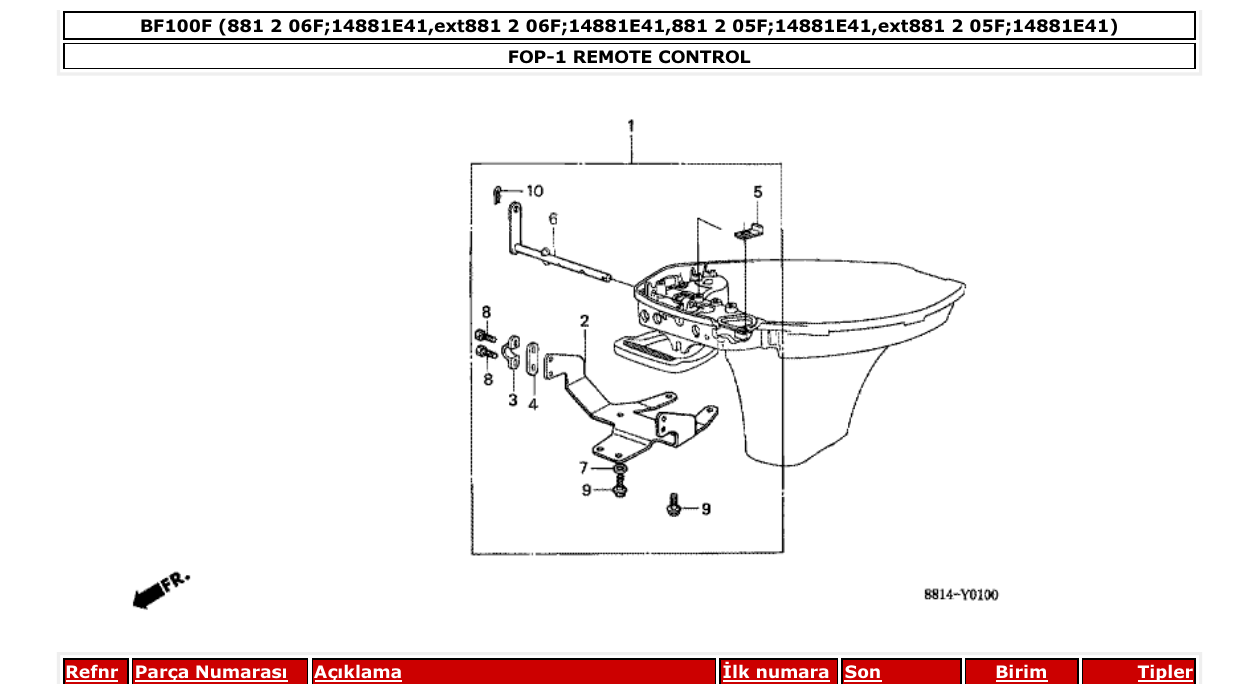

Fig. FOP-1 – REMOTE CONTROL diagram

Fig. FOP-1 – REMOTE CONTROL

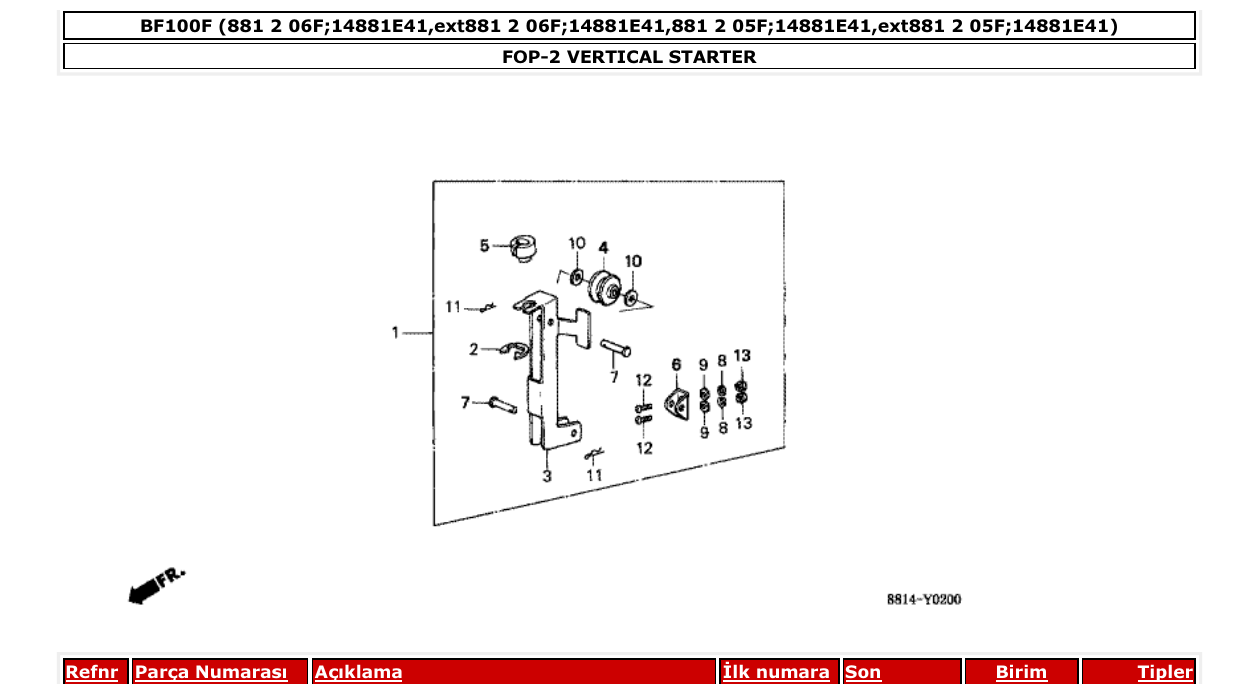

Fig. FOP-2 – VERTICAL STARTER diagram

Fig. FOP-2 – VERTICAL STARTER

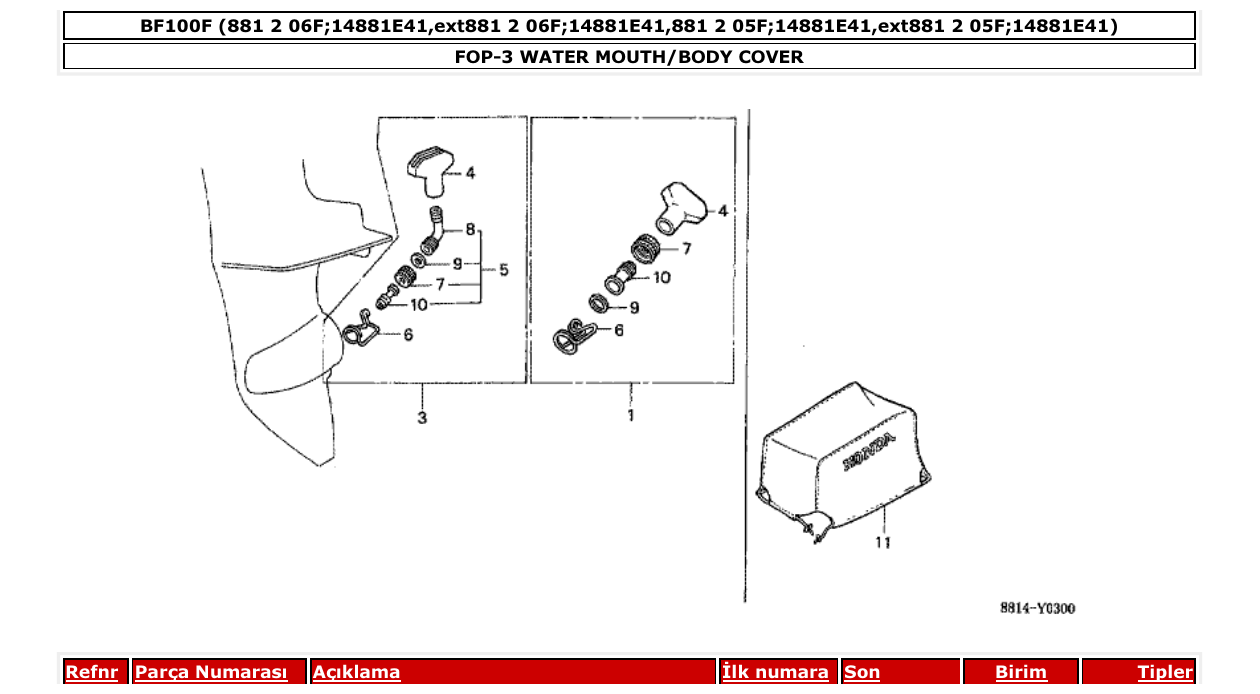

Fig. FOP-3 – WATER MOUTH/BODY COVER diagram

Fig. FOP-3 – WATER MOUTH/BODY COVER
