bf15am
Section F-13: TOOL (v2)

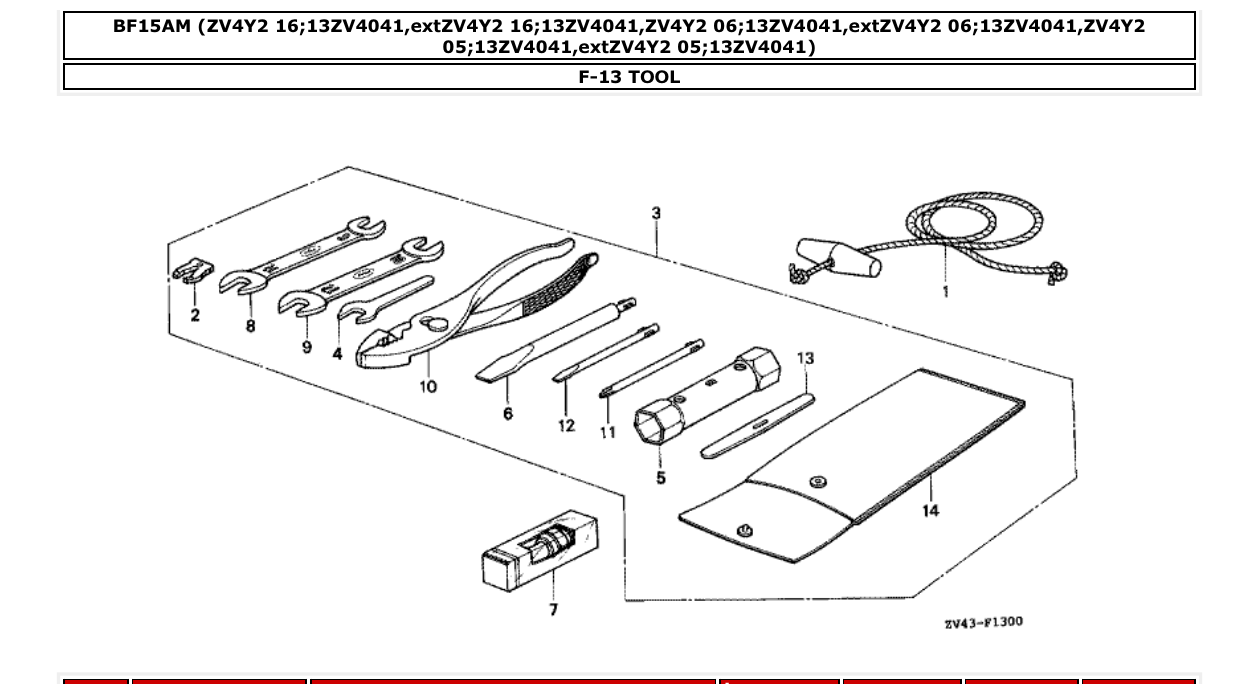

Diagram for section F-13: TOOL.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
28470816000
ROPE, STARTER
|
1 | Ask on WhatsApp |
| 2 |
36187ZV4651
CLIP, EMERGENCY LOCK
|
1 | Ask on WhatsApp |
| 3 |
89000881C00
TOOL KIT (###)
|
1 | Ask on WhatsApp |
| 4 |
89203836000
SPANNER, 8MM
|
1 | Ask on WhatsApp |
| 5 |
89211881000
WRENCH, BOX (P18X19)
|
1 | Ask on WhatsApp |
| 6 |
89301921000
DRIVER, CHECK BOLT
|
1 | Ask on WhatsApp |
| 6 |
89301921010
DRIVER, CHECK BOLT
|
1 | Ask on WhatsApp |
| 7 |
9806656726
PLUG, SPARK (X20FSR-U) (DENSO)
|
1 | Ask on WhatsApp |
| 8 |
9900109120
SPANNER, 9X12
|
1 | Ask on WhatsApp |
| 9 |
9900110120
SPANNER, 10X12
|
1 | Ask on WhatsApp |
| 10 |
9900213500
PLIERS, 135
|
1 | Ask on WhatsApp |
| 11 |
9900310000
DRIVER 1, PLUS SCREW (NO.2)
|
1 | Ask on WhatsApp |
| 12 |
9900330000
DRIVER 3, MINUS SCREW (NO.2)
|
1 | Ask on WhatsApp |
| 13 |
9900340000
LEVER
|
1 | Ask on WhatsApp |
| 14 |
9900802000
BAG, TOOL, 200MM
|
1 | Ask on WhatsApp |
