bf15ax

Choose a section to open the exploded parts diagram with live pricing. (v2)

Engine sections in this model
RECOIL STARTER TIMING BELT CARBURETOR FUEL PUMP FLYWHEEL CYLINDER HEAD IGNITION COIL STARTER MOTOR CYLINDER BARREL INTAKE MANIFOLD/THERMOSTAT OIL PUMP/EXHAUST PIPE CRANKSHAFT/PISTON CAMSHAFT CHARGE COIL KIT BRACKET KIT CARBURETOR KIT STEERING HANDLE STERN BRACKET SWIVEL CASE/MOUNT FRAME LABEL TOOL GEAR CASE/EXTENSION CASE GEAR CASE ASSY. WATER PUMP/VERTICAL SHAFT PROPELLER SHAFT/PROPELLER FUEL TANK (STANDARD) FUEL STRAINER WATER TUBE REGULATOR/STARTER CABLE OIL CASE/ENGINE COVER CHARGE RECEPTACLE KIT (6A) CHARGE RECEPTACLE KIT (10A) REMOTE CONTROL KIT BRACKET KIT WATER PUMP IMPELLER KIT REMOTE CONTROL BOX CONTROL BOX SET ENGINE COVER KIT

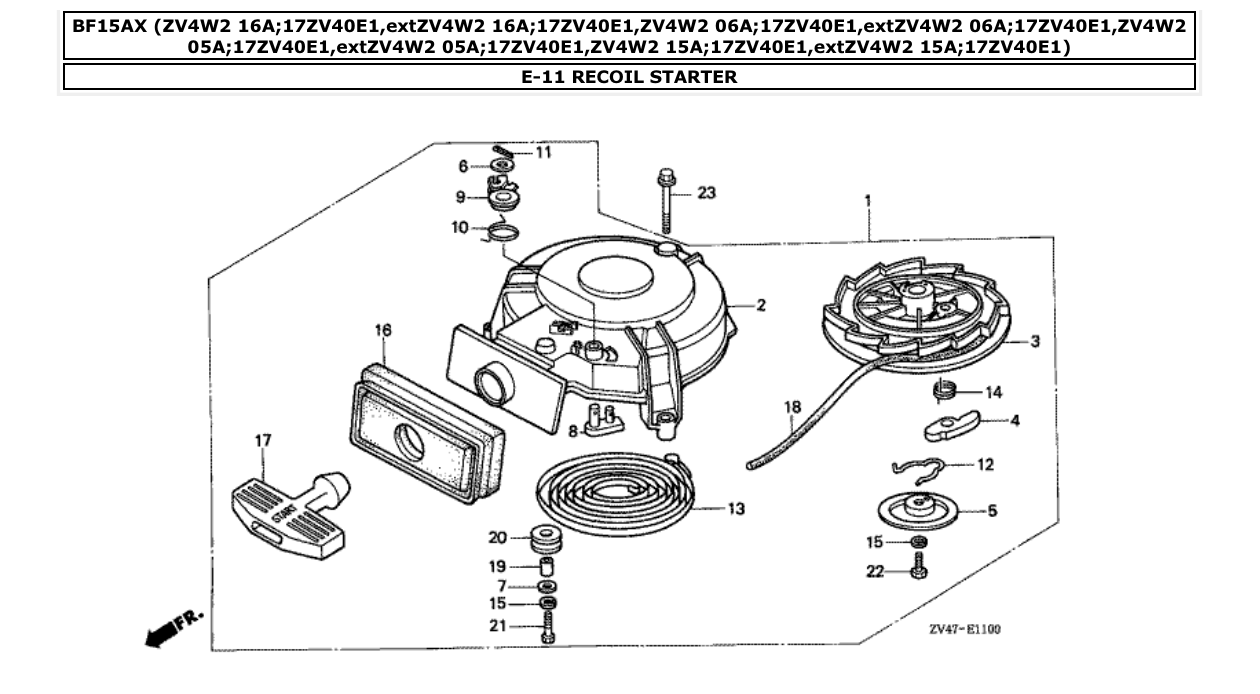

Fig. E-11 – RECOIL STARTER diagram
Fig. E-11 – RECOIL STARTER

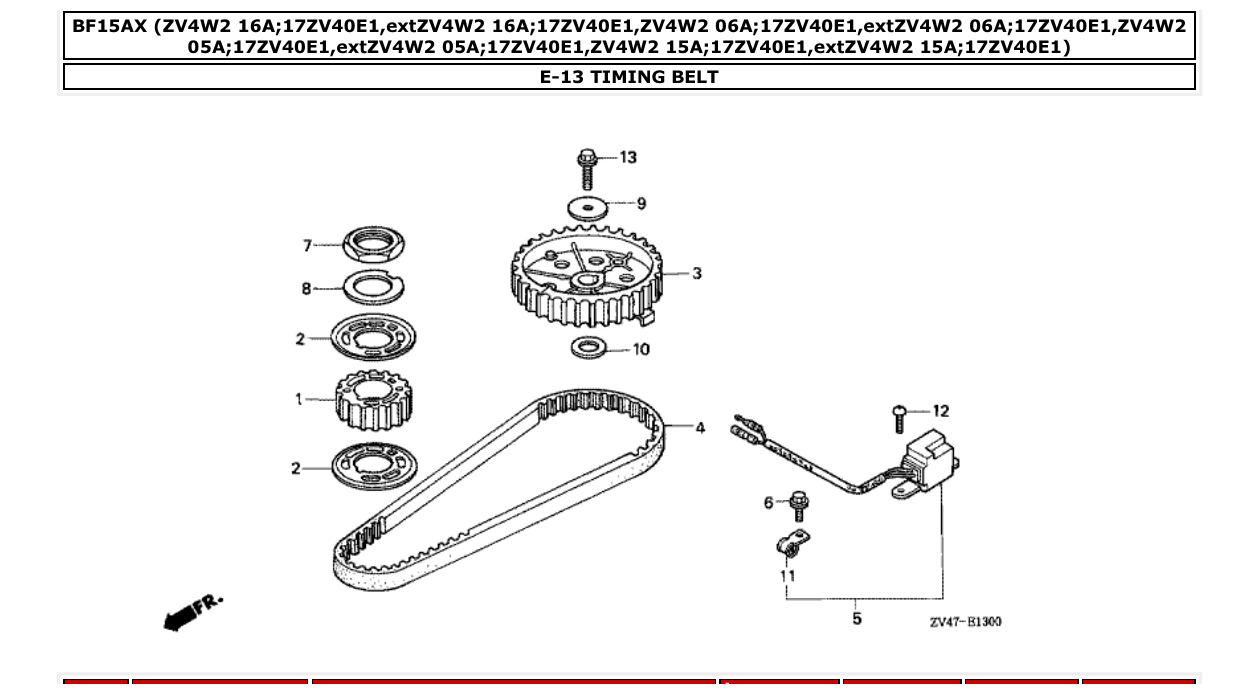

Fig. E-13 – TIMING BELT diagram
Fig. E-13 – TIMING BELT

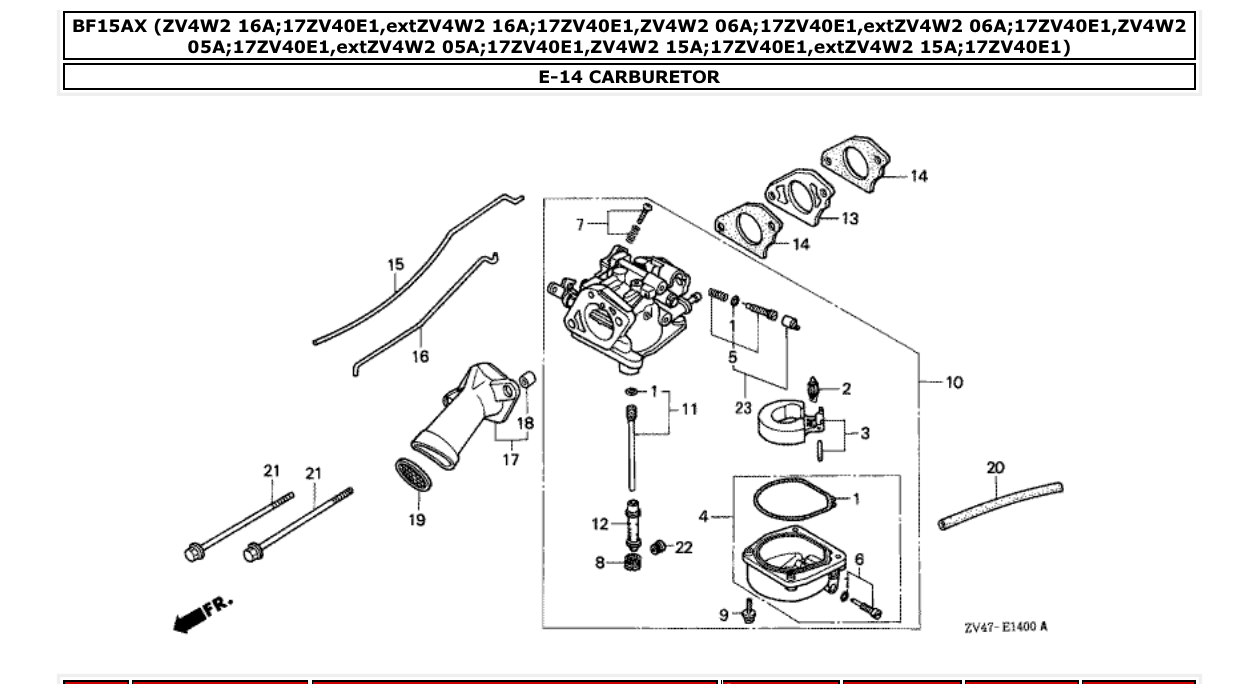

Fig. E-14 – CARBURETOR diagram
Fig. E-14 – CARBURETOR

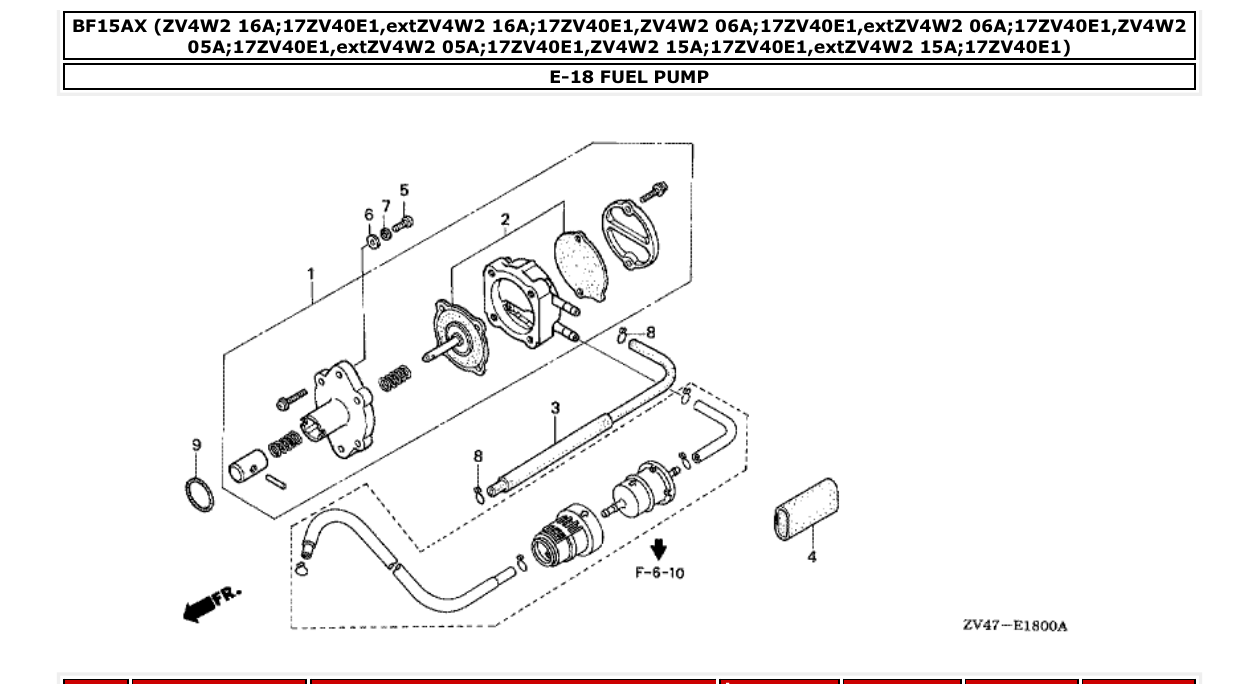

Fig. E-18 – FUEL PUMP diagram
Fig. E-18 – FUEL PUMP
Fig. E-19 – FLYWHEEL diagram
Fig. E-19 – FLYWHEEL

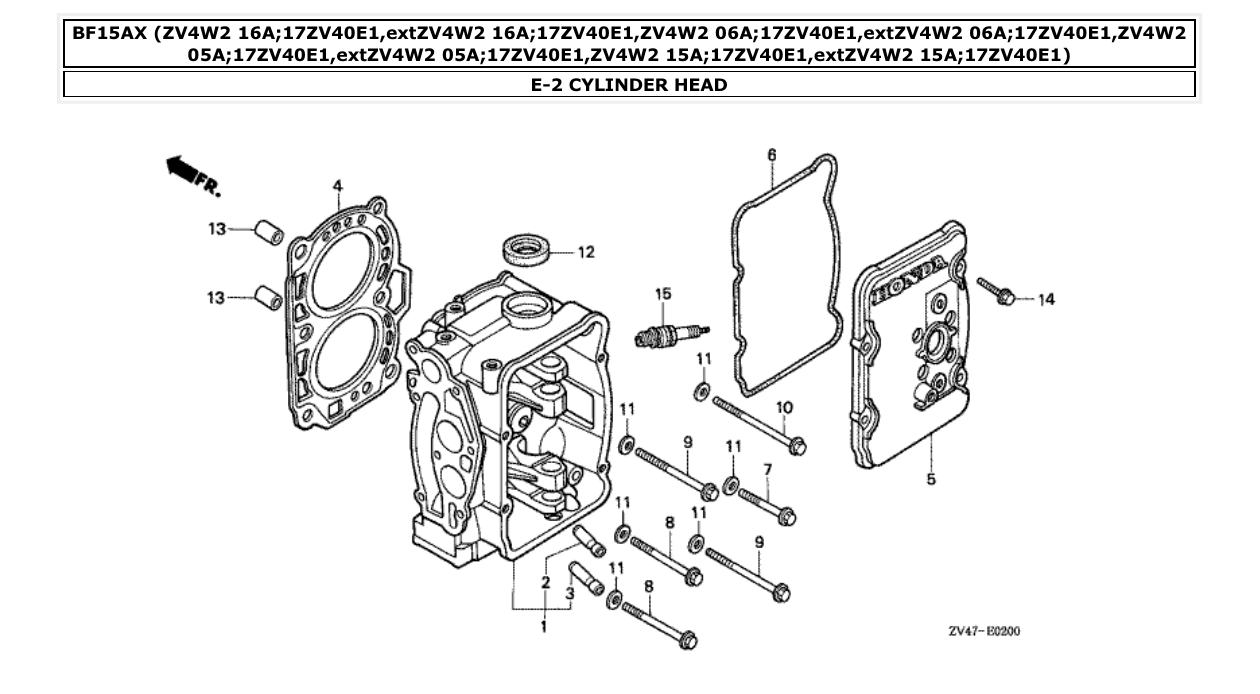

Fig. E-2 – CYLINDER HEAD diagram
Fig. E-2 – CYLINDER HEAD

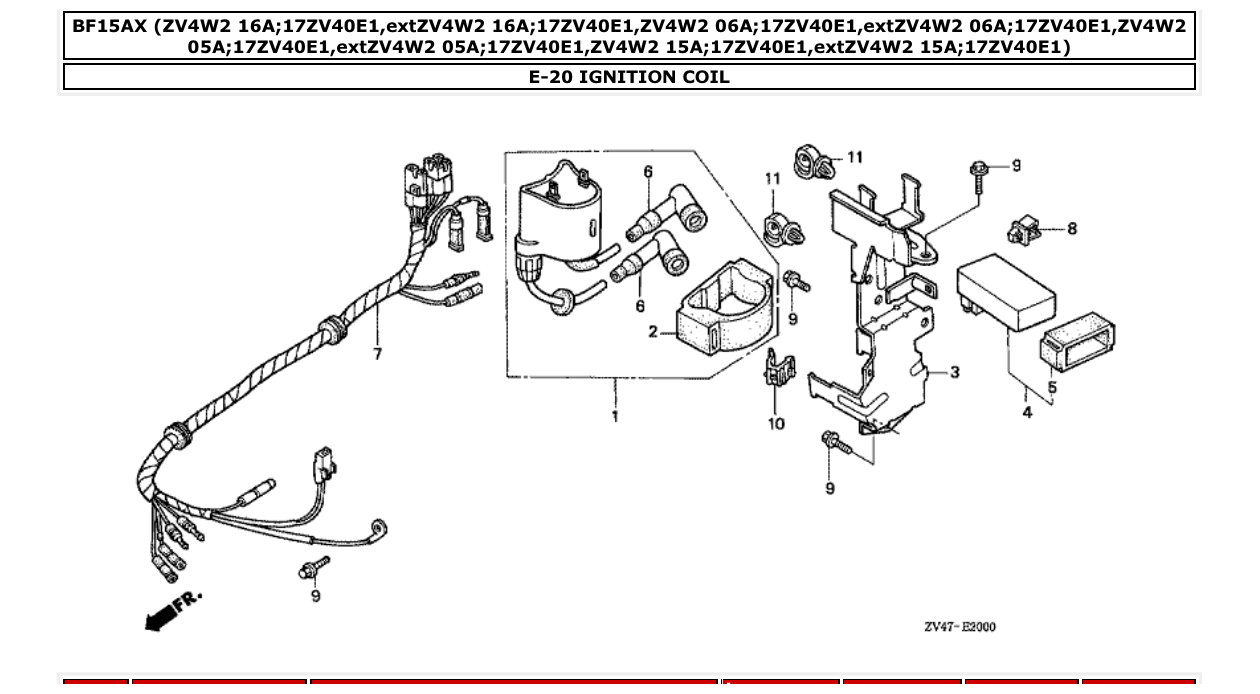

Fig. E-20 – IGNITION COIL diagram
Fig. E-20 – IGNITION COIL

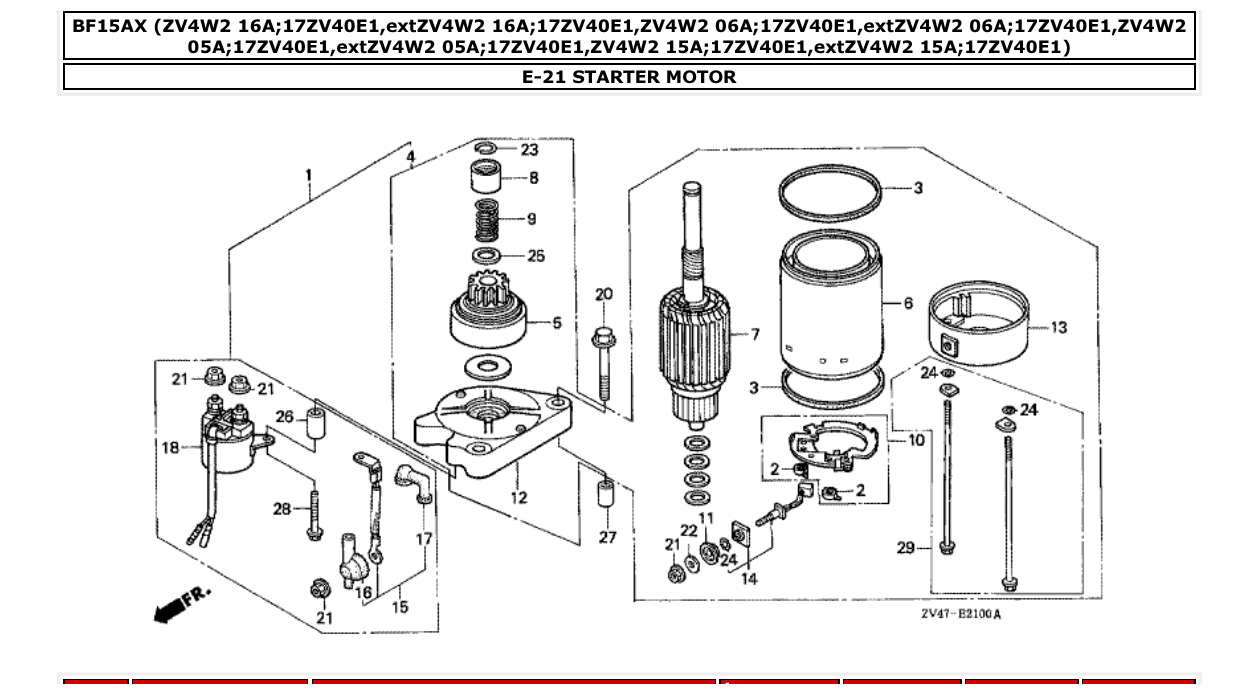

Fig. E-21 – STARTER MOTOR diagram
Fig. E-21 – STARTER MOTOR

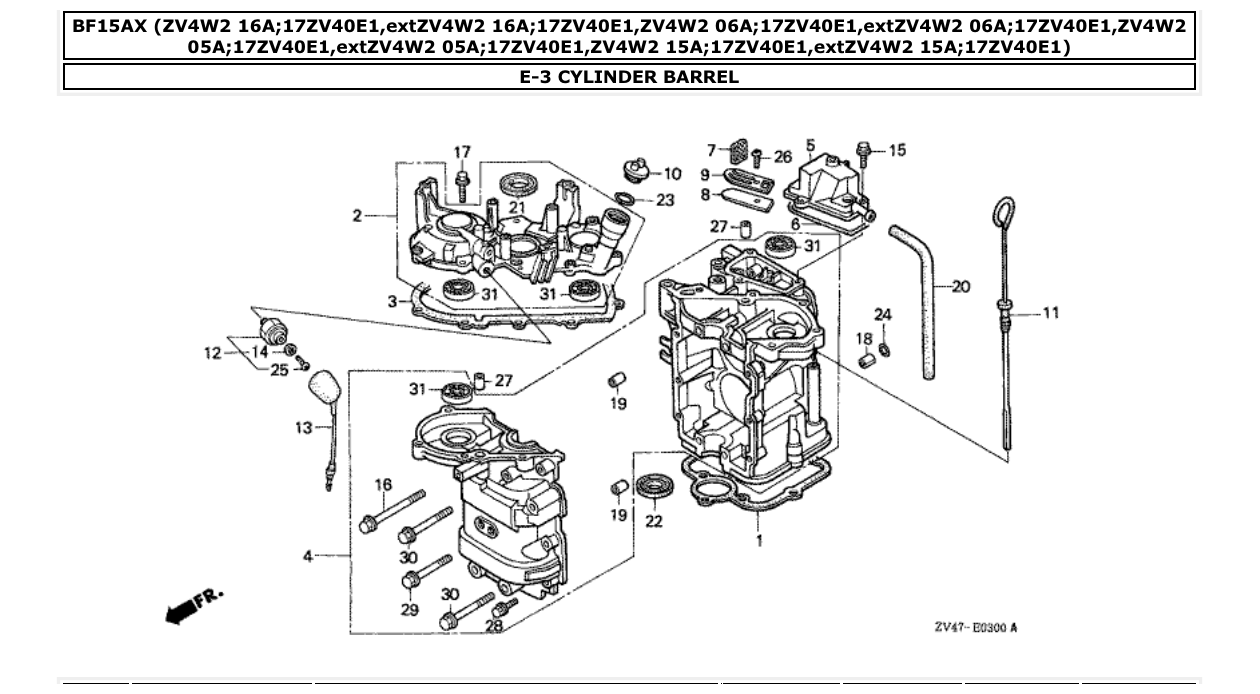

Fig. E-3 – CYLINDER BARREL diagram
Fig. E-3 – CYLINDER BARREL

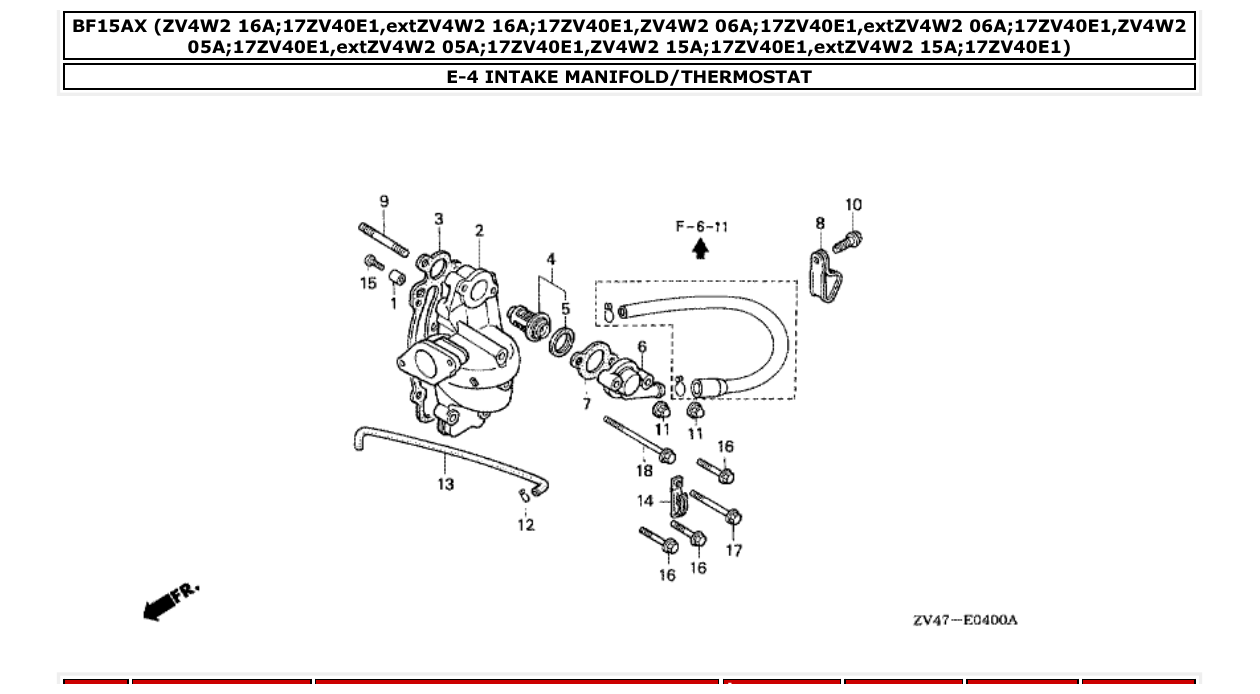

Fig. E-4 – INTAKE MANIFOLD/THERMOSTAT diagram
Fig. E-4 – INTAKE MANIFOLD/THERMOSTAT

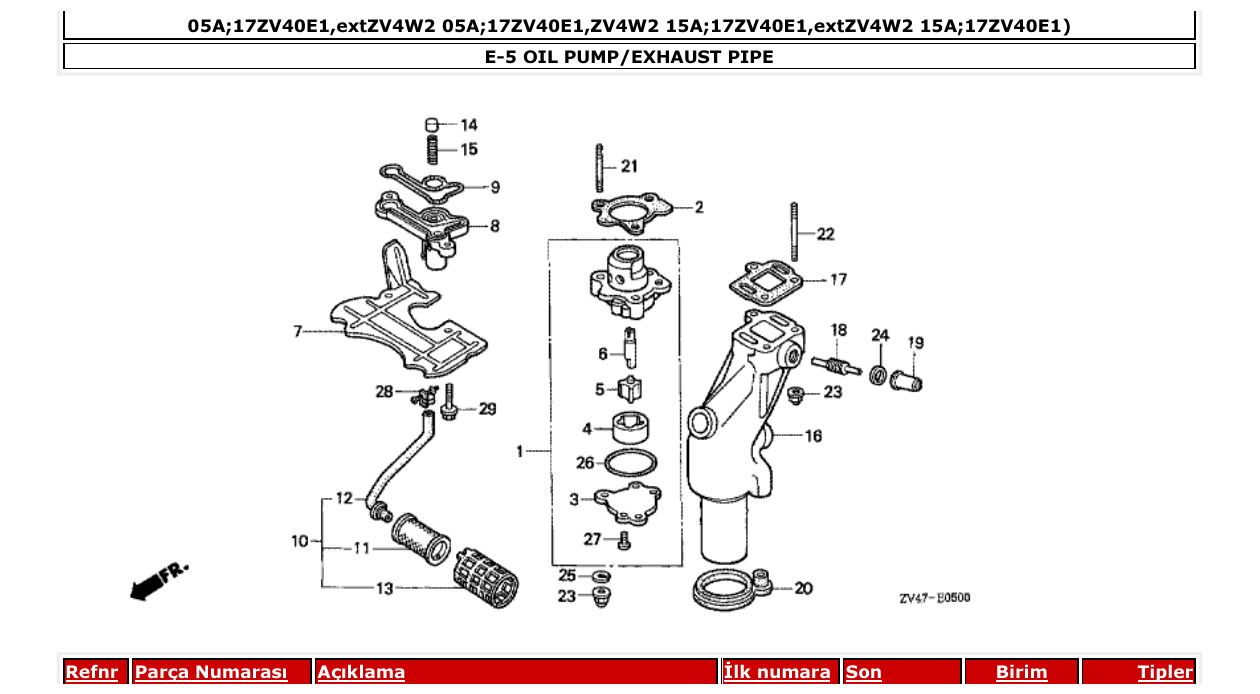

Fig. E-5 – OIL PUMP/EXHAUST PIPE diagram
Fig. E-5 – OIL PUMP/EXHAUST PIPE

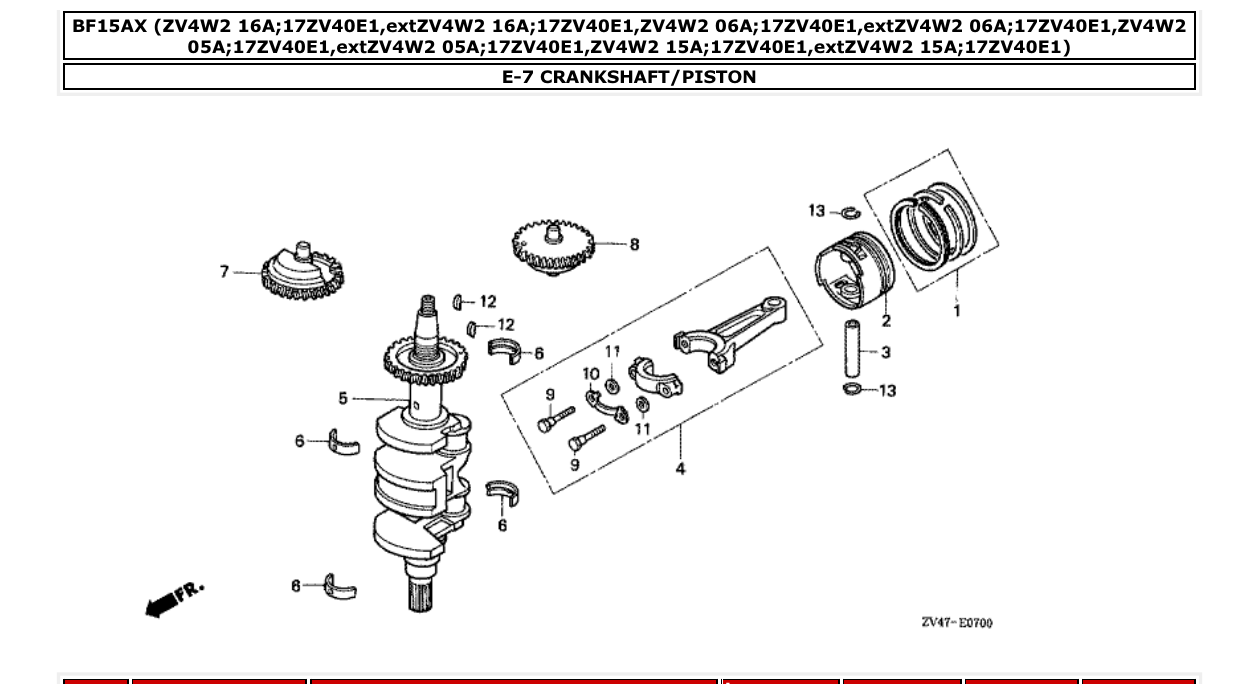

Fig. E-7 – CRANKSHAFT/PISTON diagram
Fig. E-7 – CRANKSHAFT/PISTON

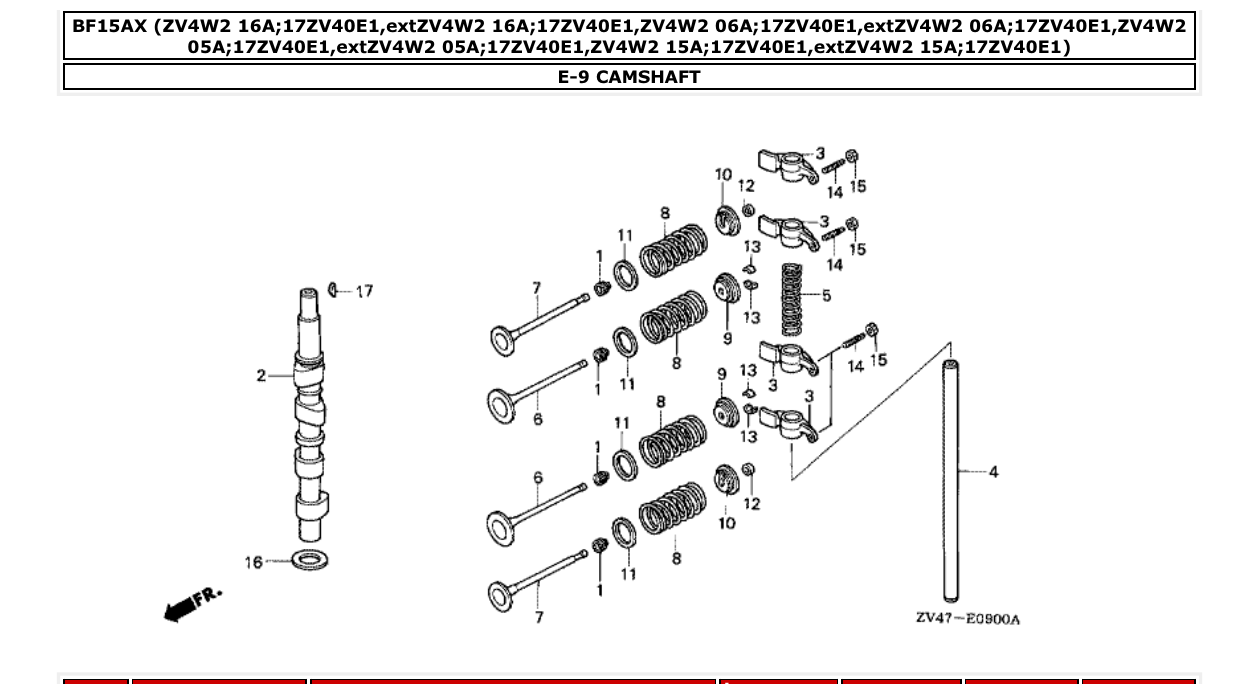

Fig. E-9 – CAMSHAFT diagram
Fig. E-9 – CAMSHAFT

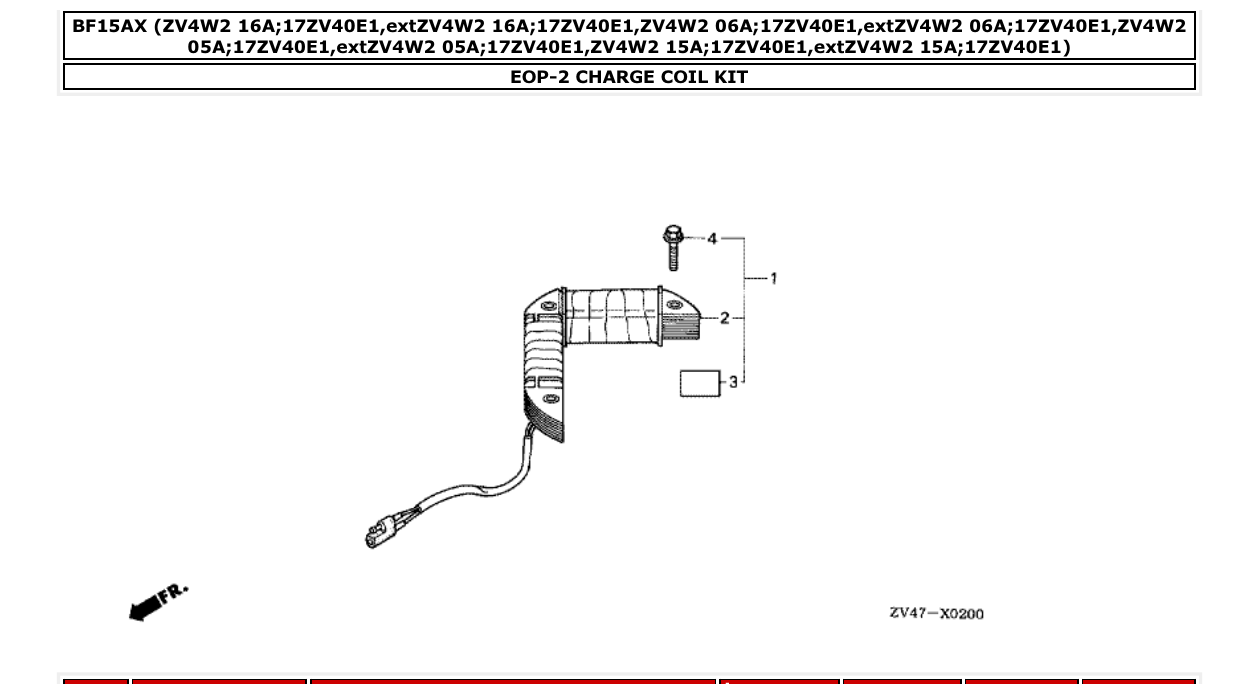

Fig. EOP-2 – CHARGE COIL KIT diagram
Fig. EOP-2 – CHARGE COIL KIT
Fig. EOP-3 – BRACKET KIT diagram
Fig. EOP-3 – BRACKET KIT

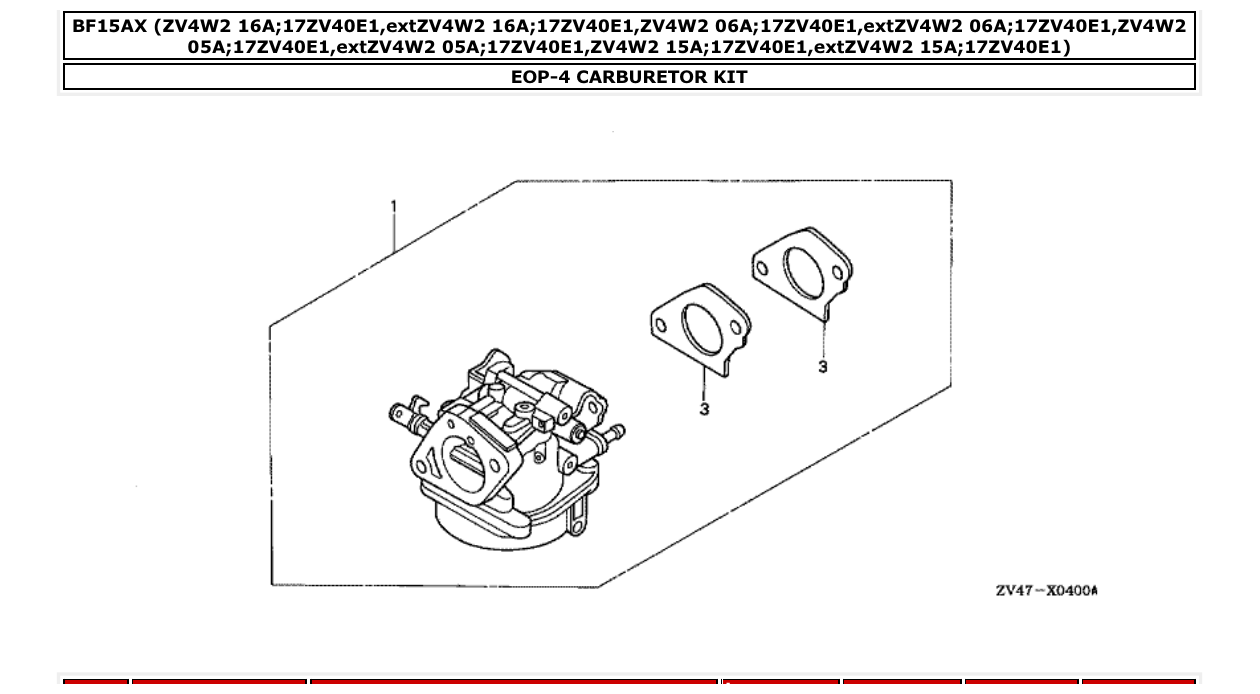

Fig. EOP-4 – CARBURETOR KIT diagram
Fig. EOP-4 – CARBURETOR KIT
Fig. F-1 – STEERING HANDLE diagram
Fig. F-1 – STEERING HANDLE
Fig. F-10 – STERN BRACKET diagram
Fig. F-10 – STERN BRACKET

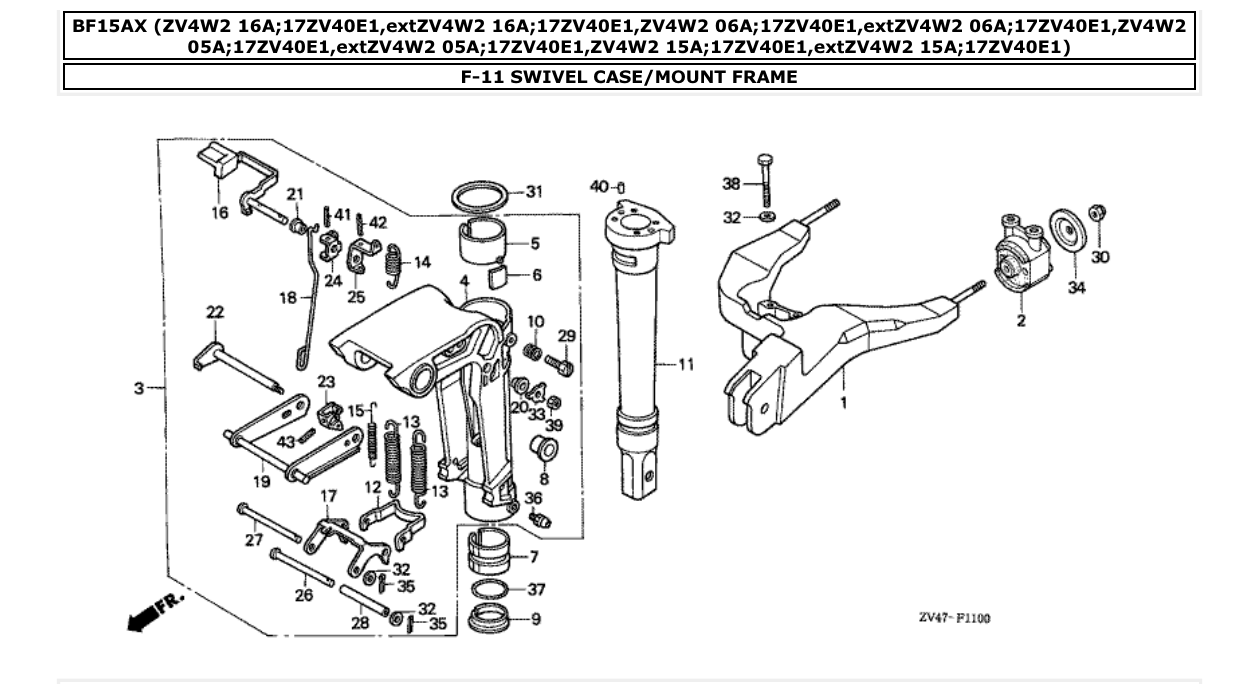

Fig. F-11 – SWIVEL CASE/MOUNT FRAME diagram
Fig. F-11 – SWIVEL CASE/MOUNT FRAME

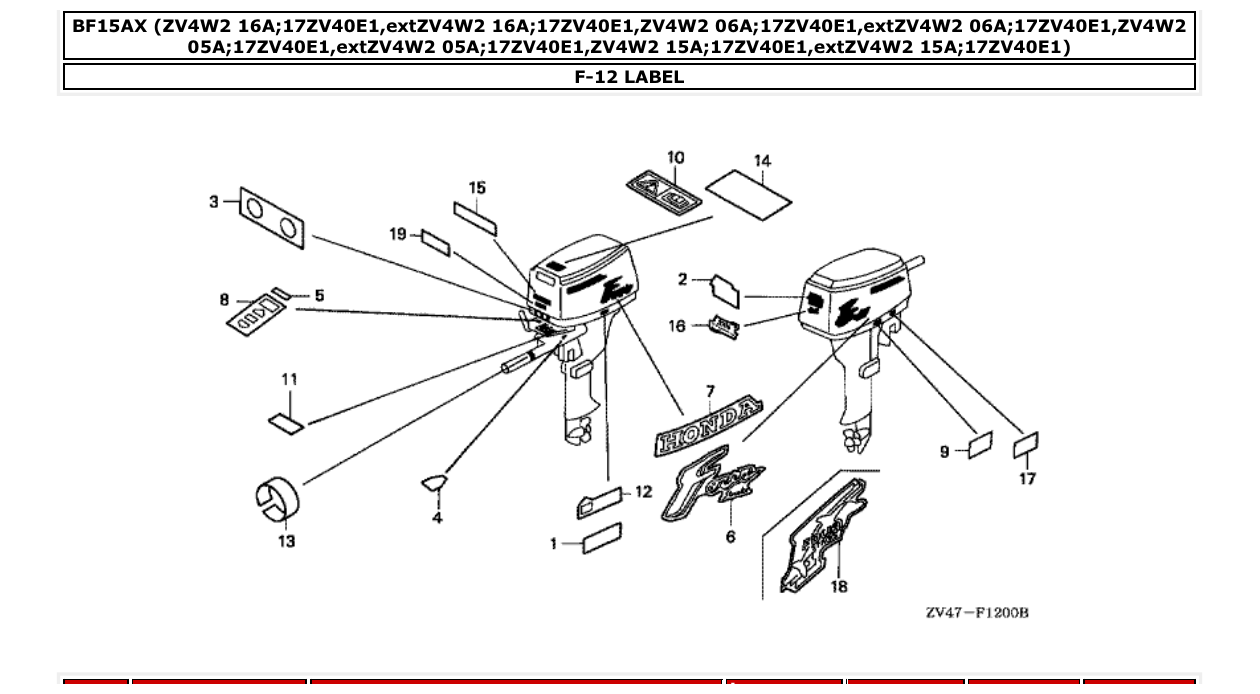

Fig. F-12 – LABEL diagram
Fig. F-12 – LABEL

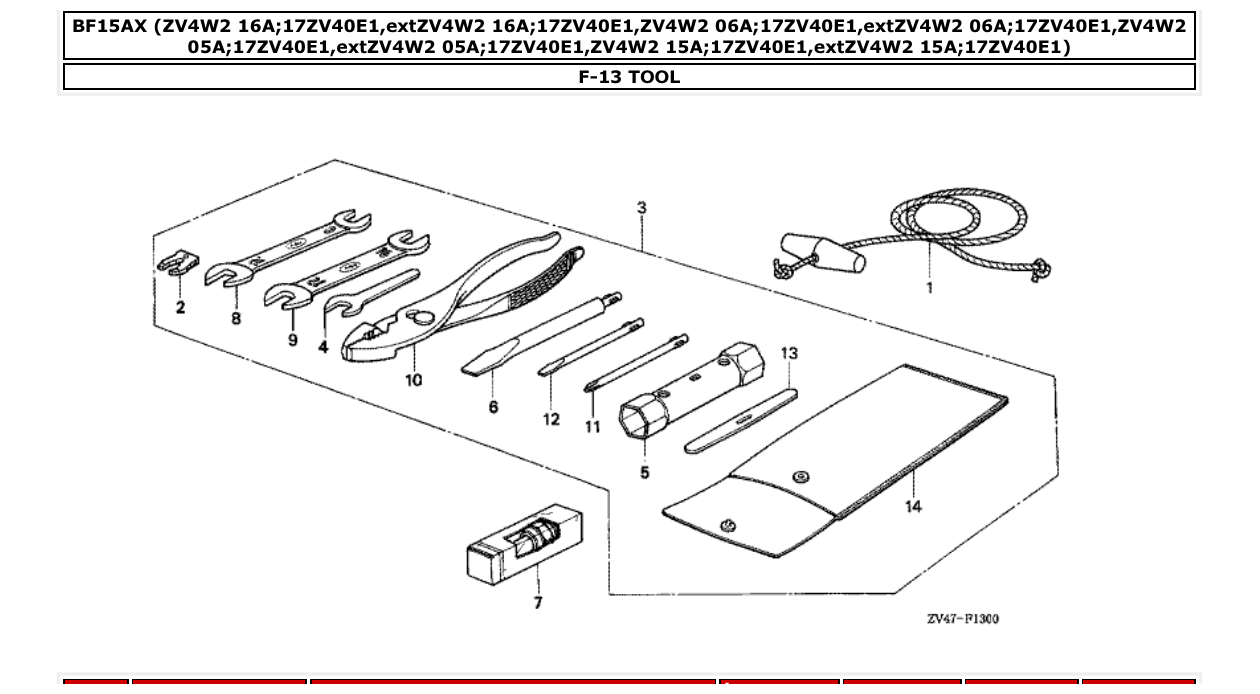

Fig. F-13 – TOOL diagram
Fig. F-13 – TOOL

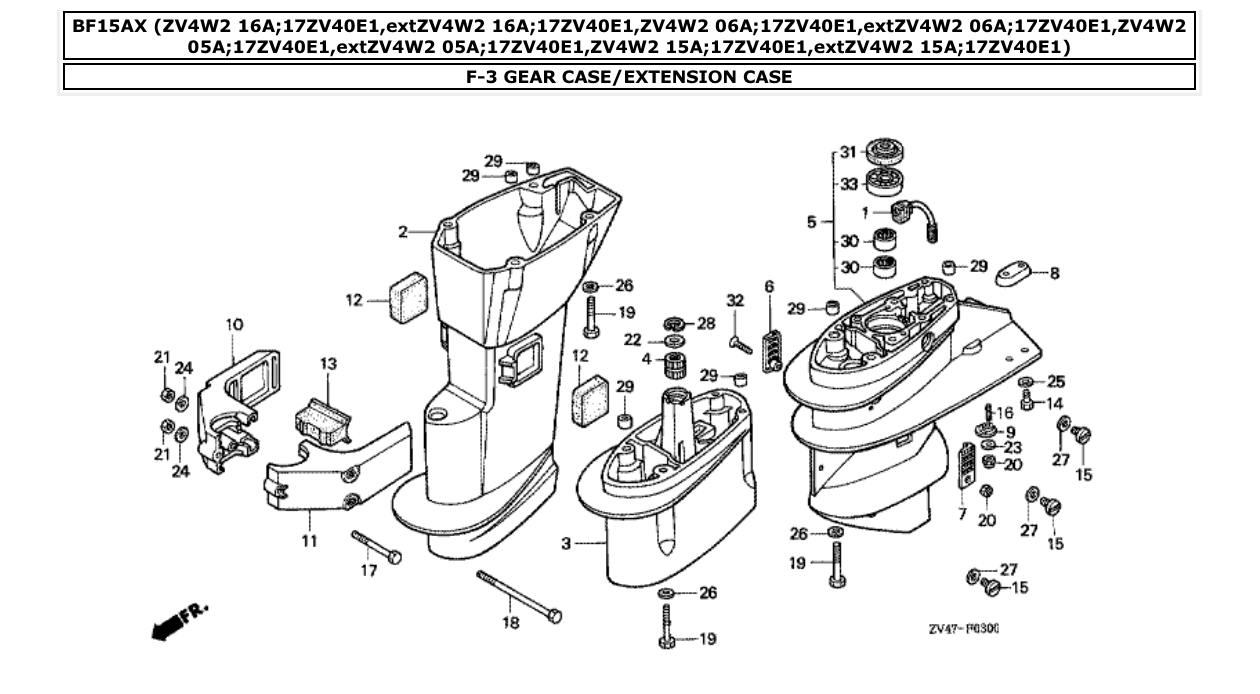

Fig. F-3 – GEAR CASE/EXTENSION CASE diagram
Fig. F-3 – GEAR CASE/EXTENSION CASE

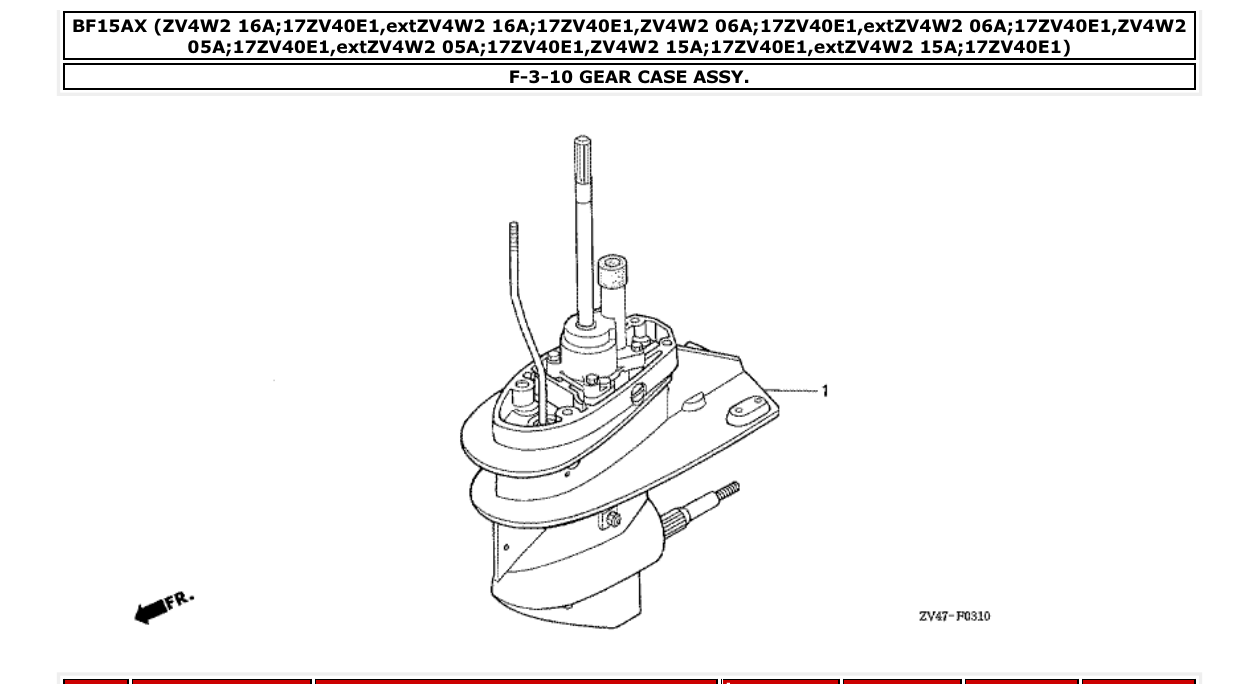

Fig. F-3-10 – GEAR CASE ASSY. diagram
Fig. F-3-10 – GEAR CASE ASSY.

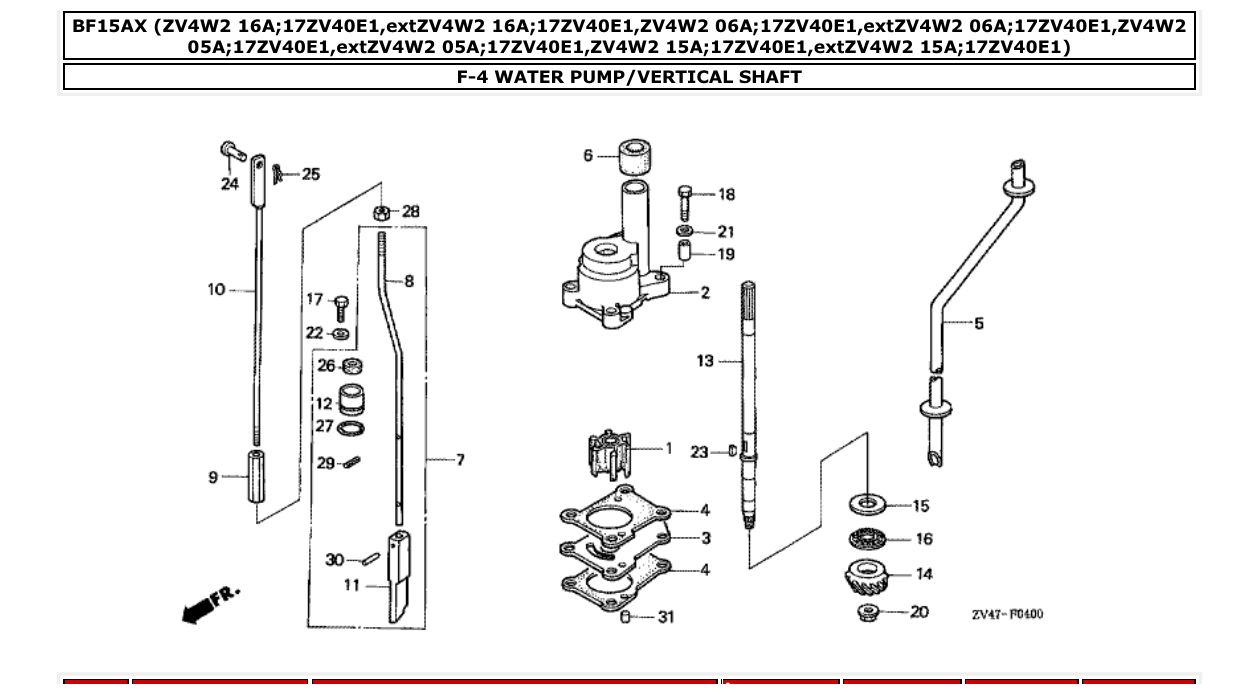

Fig. F-4 – WATER PUMP/VERTICAL SHAFT diagram
Fig. F-4 – WATER PUMP/VERTICAL SHAFT

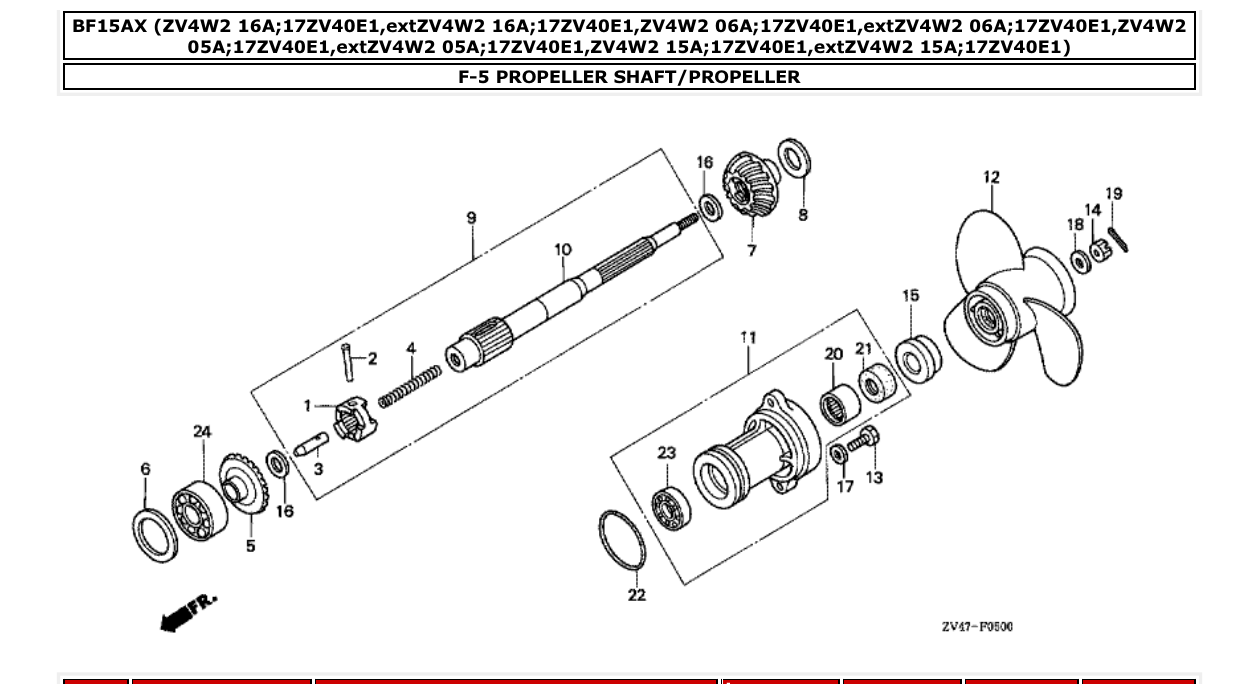

Fig. F-5 – PROPELLER SHAFT/PROPELLER diagram
Fig. F-5 – PROPELLER SHAFT/PROPELLER

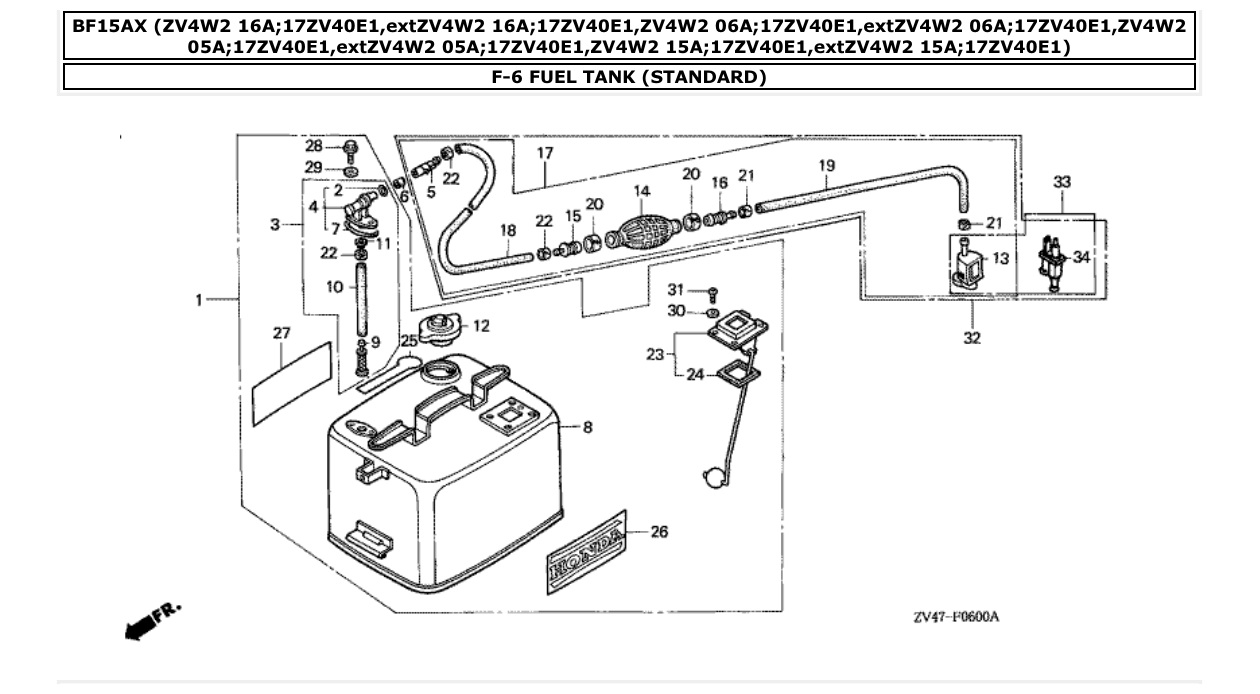

Fig. F-6 – FUEL TANK (STANDARD) diagram
Fig. F-6 – FUEL TANK (STANDARD)

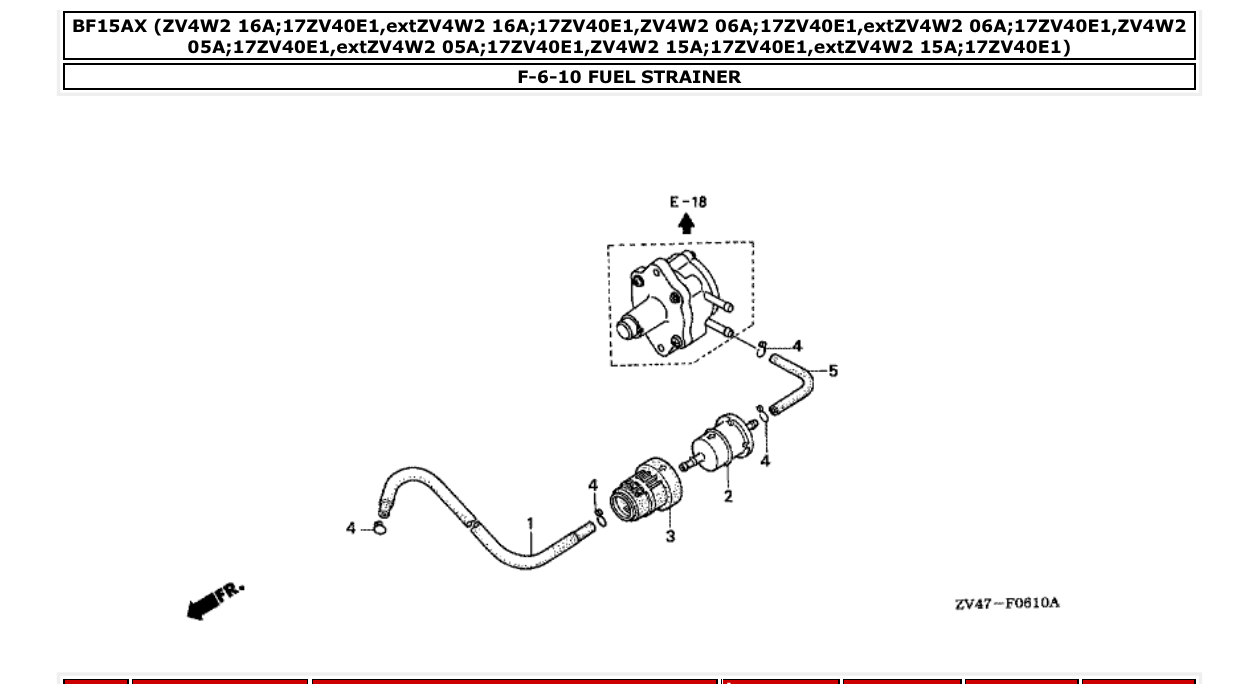

Fig. F-6-10 – FUEL STRAINER diagram
Fig. F-6-10 – FUEL STRAINER

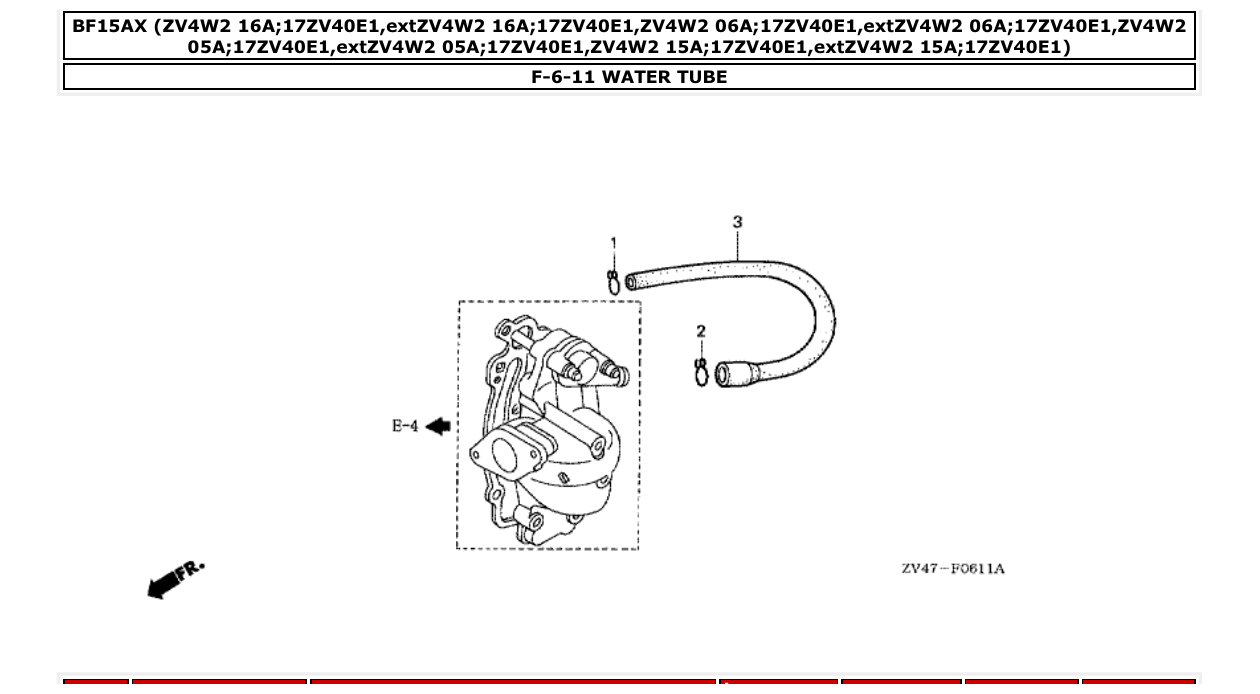

Fig. F-6-11 – WATER TUBE diagram
Fig. F-6-11 – WATER TUBE
Fig. F-7 – REGULATOR/STARTER CABLE diagram
Fig. F-7 – REGULATOR/STARTER CABLE

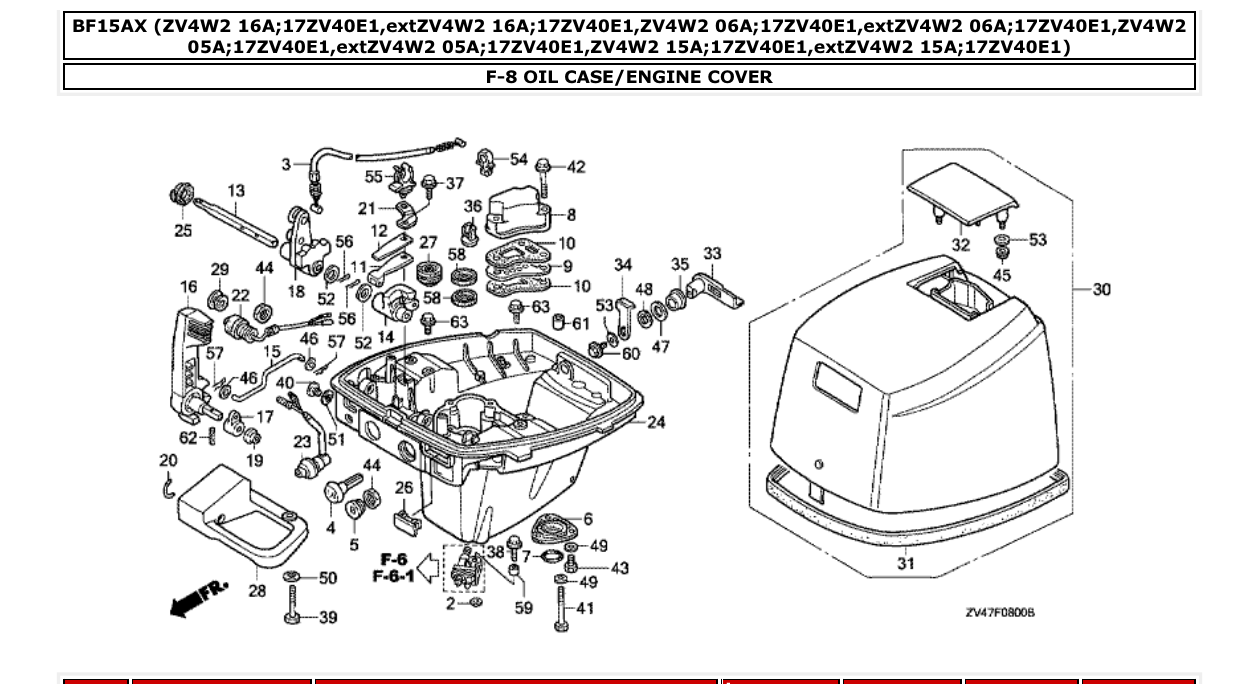

Fig. F-8 – OIL CASE/ENGINE COVER diagram
Fig. F-8 – OIL CASE/ENGINE COVER

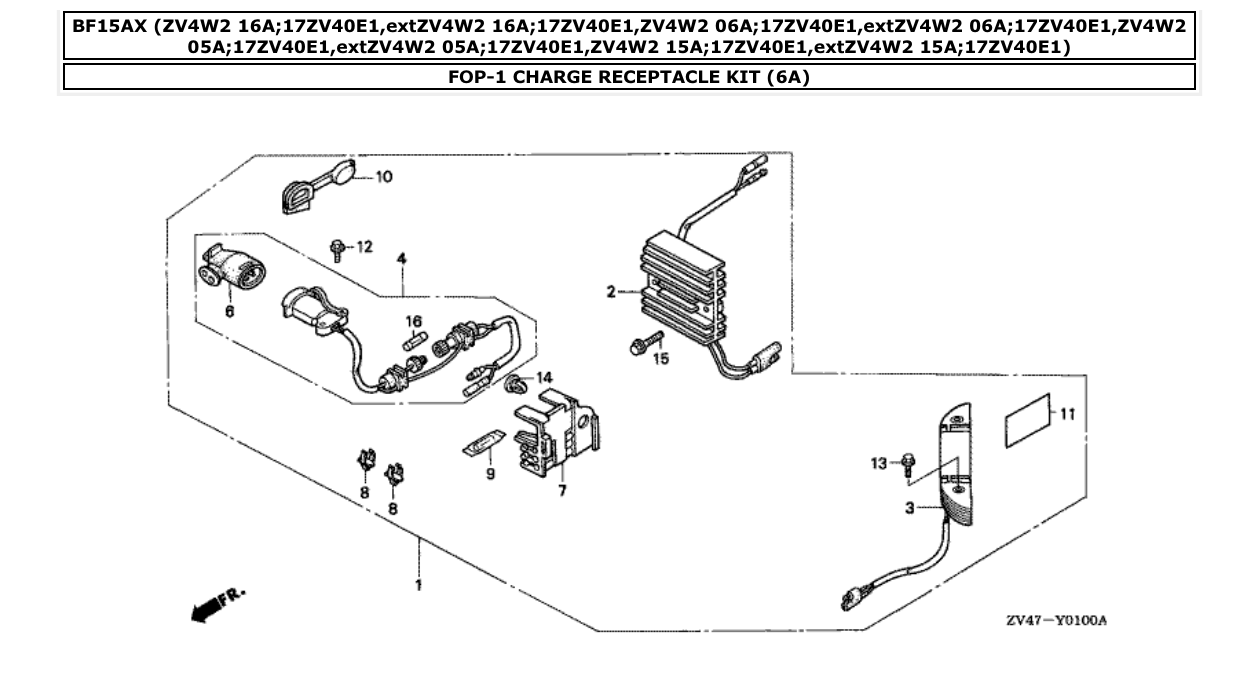

Fig. FOP-1 – CHARGE RECEPTACLE KIT (6A) diagram
Fig. FOP-1 – CHARGE RECEPTACLE KIT (6A)

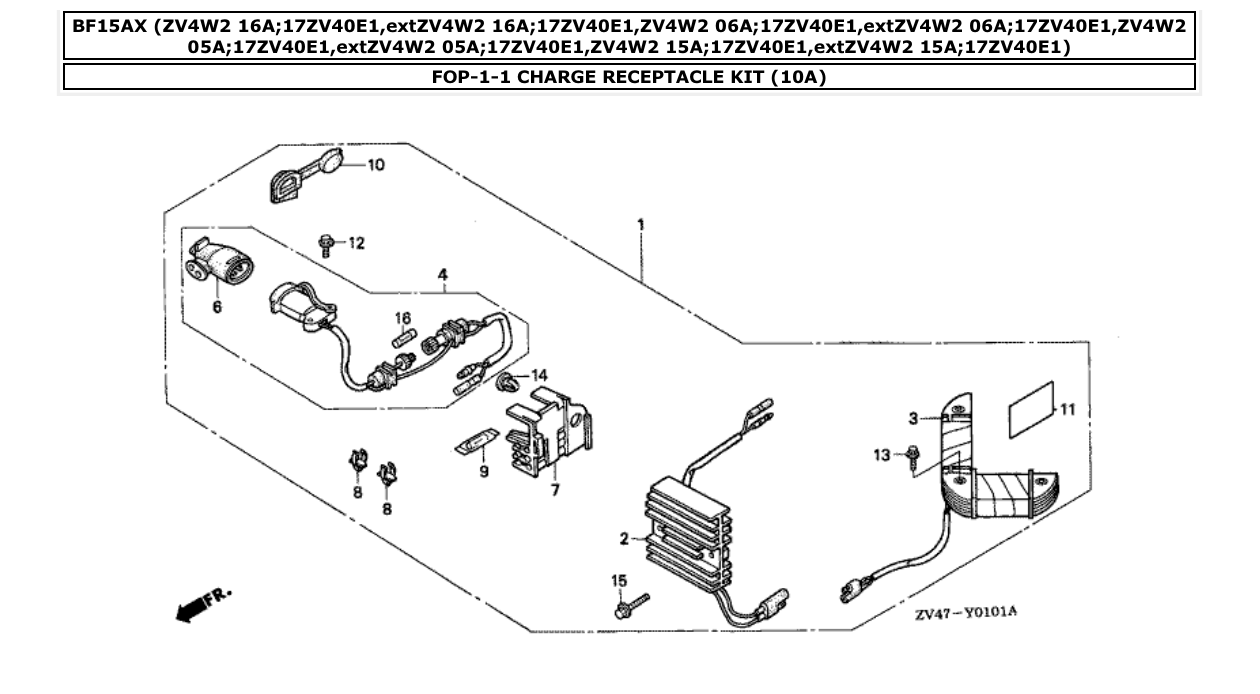

Fig. FOP-1-1 – CHARGE RECEPTACLE KIT (10A) diagram
Fig. FOP-1-1 – CHARGE RECEPTACLE KIT (10A)
Fig. FOP-2 – REMOTE CONTROL KIT diagram
Fig. FOP-2 – REMOTE CONTROL KIT

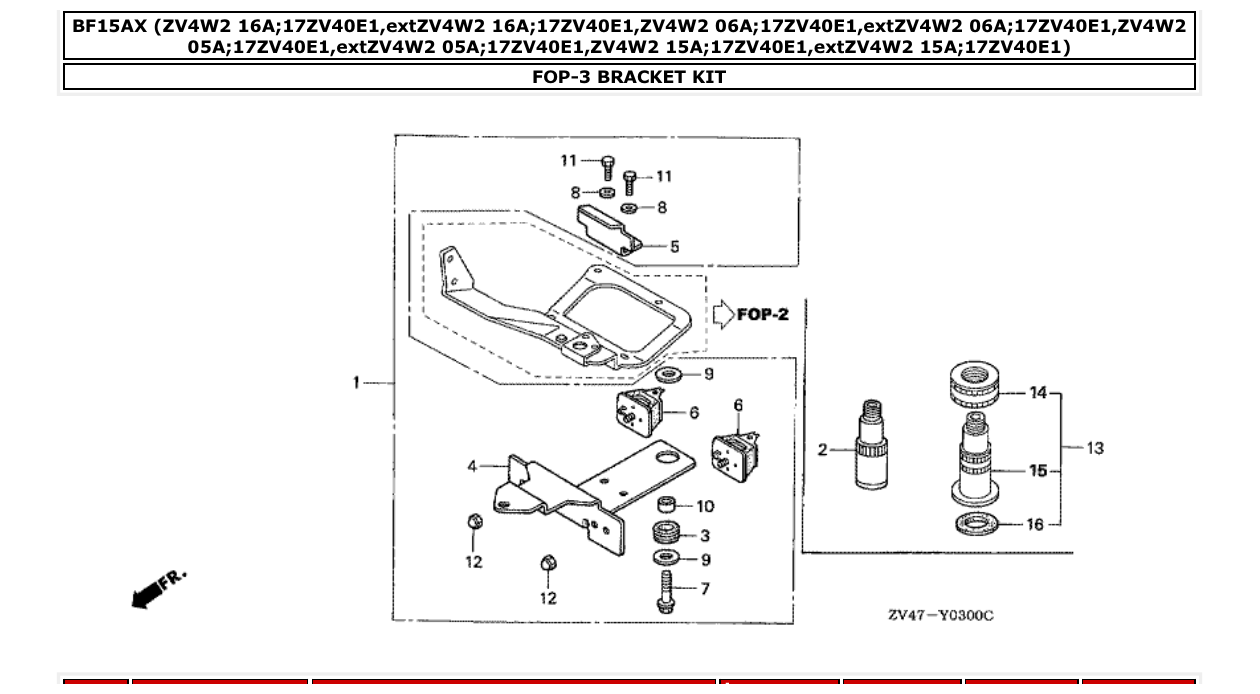

Fig. FOP-3 – BRACKET KIT diagram
Fig. FOP-3 – BRACKET KIT

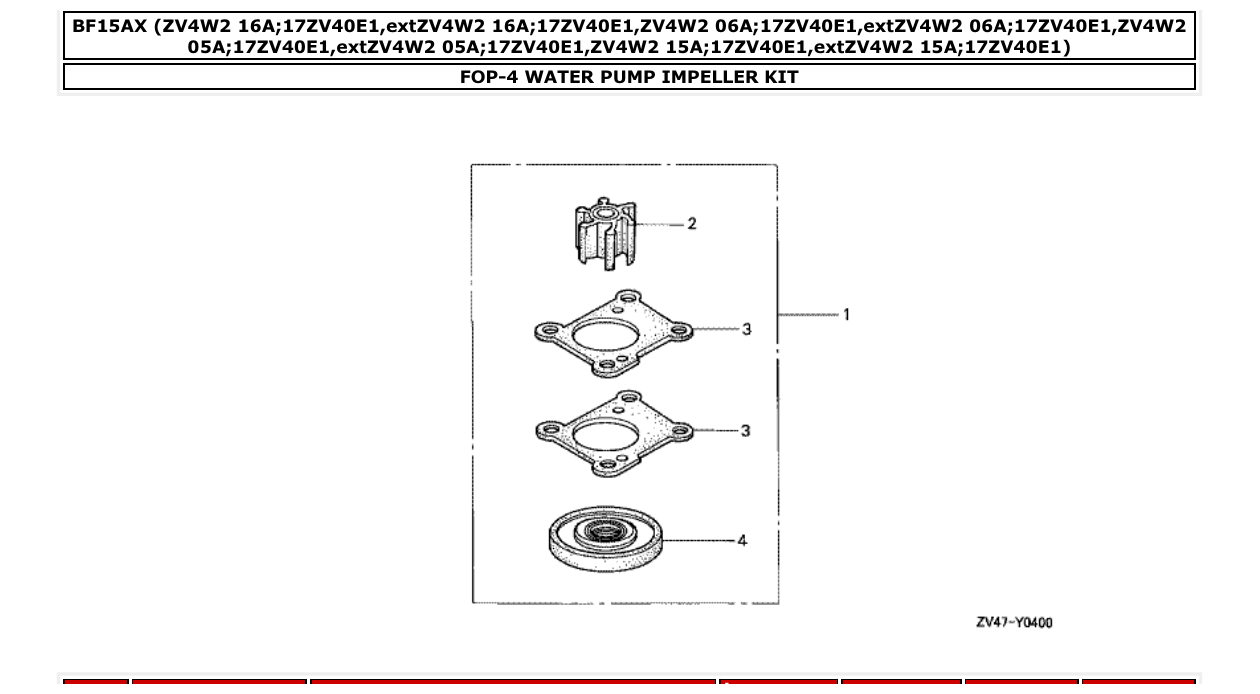

Fig. FOP-4 – WATER PUMP IMPELLER KIT diagram
Fig. FOP-4 – WATER PUMP IMPELLER KIT
Fig. FOP-5 – REMOTE CONTROL BOX diagram
Fig. FOP-5 – REMOTE CONTROL BOX

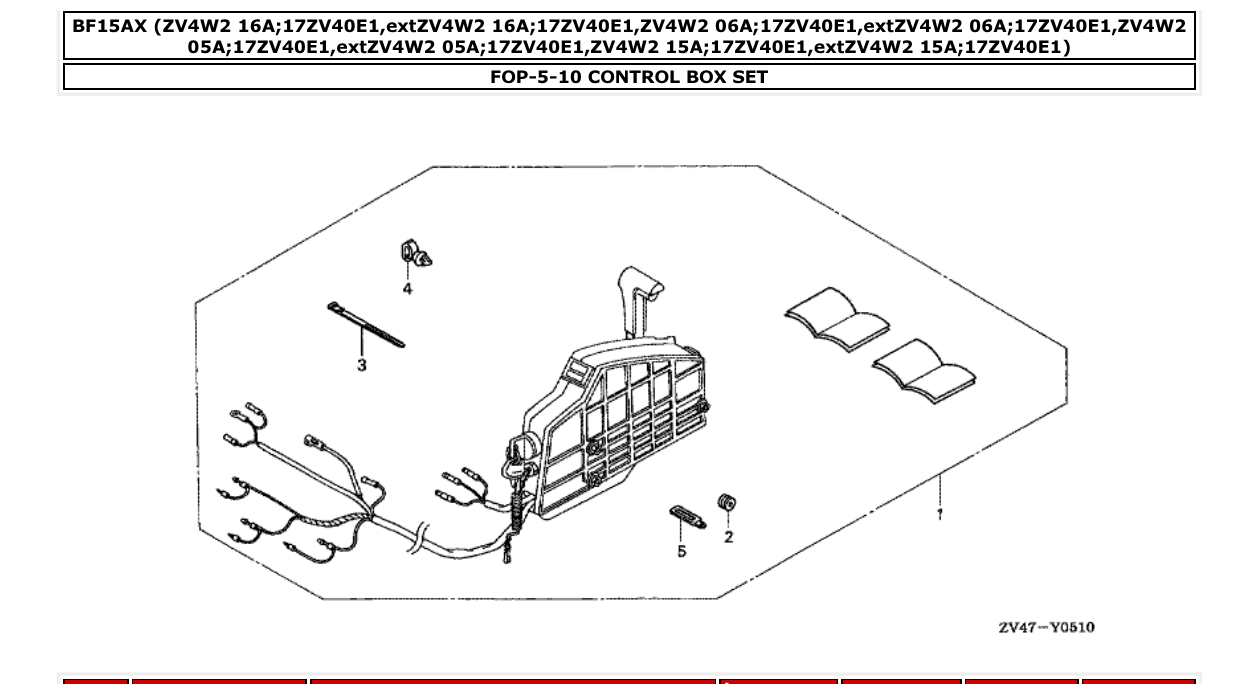

Fig. FOP-5-10 – CONTROL BOX SET diagram
Fig. FOP-5-10 – CONTROL BOX SET
Fig. FOP-6 – ENGINE COVER KIT diagram
Fig. FOP-6 – ENGINE COVER KIT
