bf20d3

Section F-8: ENGINE COVER (v2)

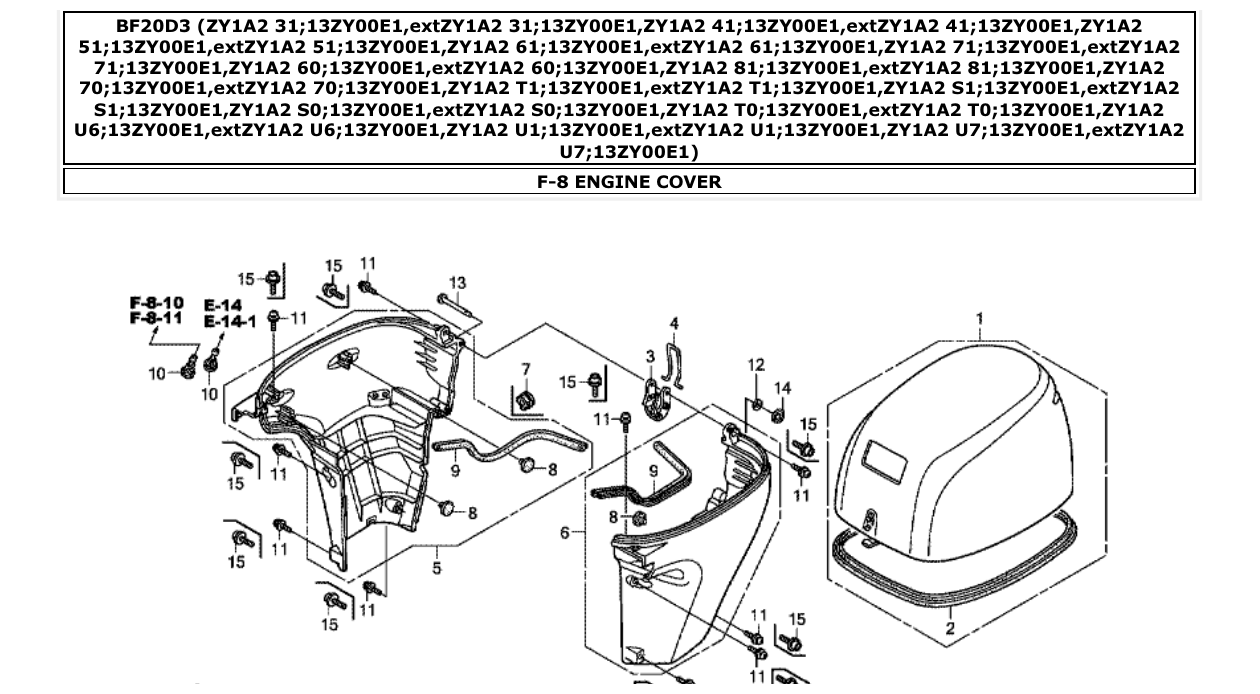

bf20d3 – section F-8 ENGINE COVER parts diagram

Diagram for section F-8: ENGINE COVER.

Parts list for bf20d3 section F-8 ENGINE COVER
Ref	Part No.	Description	Qty	Buy
1	63100ZY1010ZA COVER COMP., ENGINE NH282MU LRTU	COVER COMP., ENGINE NH282MU LRTU	1	Ask on WhatsApp
1	88163ZY1U00 COVER, ENGINE LRU	COVER, ENGINE LRU	1	Ask on WhatsApp
2	63102ZY1300 SEAL, ENGINE COVER LRTU	SEAL, ENGINE COVER LRTU	1	Ask on WhatsApp
3	63232ZW9010 LEVER, FASTENER LRTU	LEVER, FASTENER LRTU	1	Ask on WhatsApp
4	63236ZW9010 WIRE, FASTENER (3.2) LRTU	WIRE, FASTENER (3.2) LRTU	1	Ask on WhatsApp
5	63710ZY1000ZA COVER COMP., R. UNDER ENGINE NH282MU	COVER COMP., R. UNDER ENGINE NH282MU	1	Ask on WhatsApp
5	63710ZY1000ZA COVER COMP., R. UNDER ENGINE NH282MU	COVER COMP., R. UNDER ENGINE NH282MU	1	Ask on WhatsApp
