bf25a
Section F-5: PROPELLER (v2)

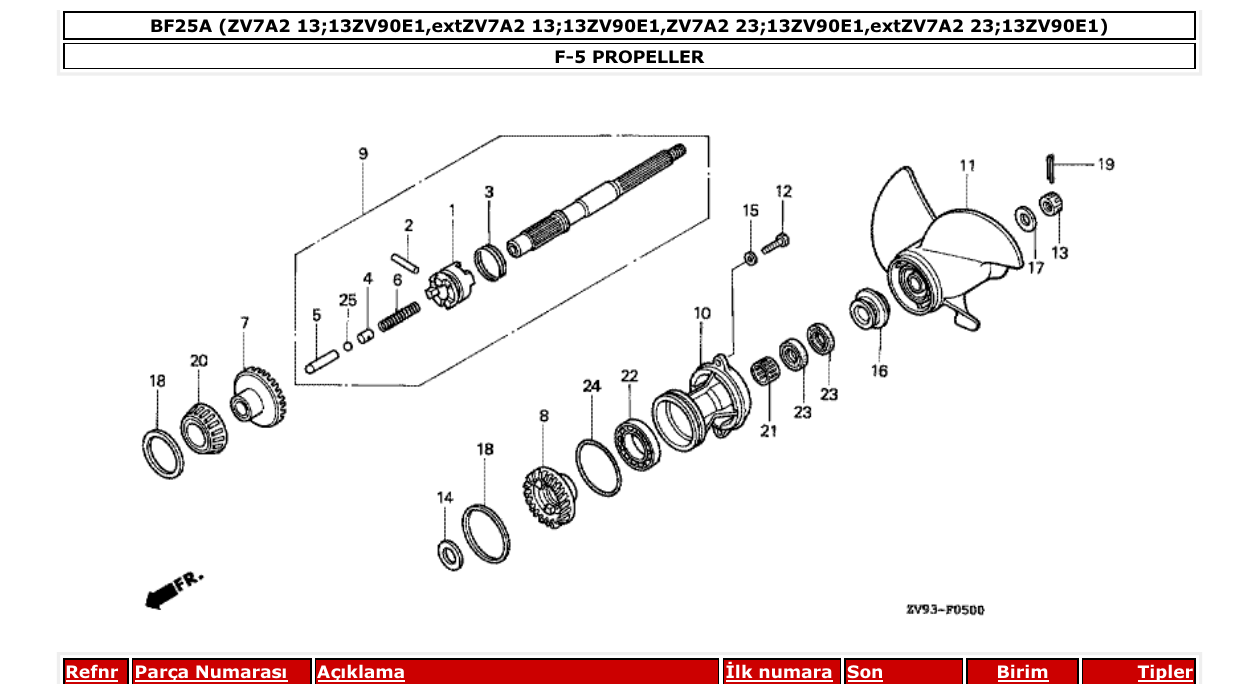

Diagram for section F-5: PROPELLER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
24101ZV7000
SHIFTER, CLUTCH
|
1 | Ask on WhatsApp |
| 2 |
24102ZV7000
PIN, SHIFTER
|
1 | Ask on WhatsApp |
| 3 |
24103ZV7000
RING, CROSS PIN
|
1 | Ask on WhatsApp |
| 4 |
24106ZV5000
HOLDER, SHIFTER PIN
|
1 | Ask on WhatsApp |
| 5 |
24122ZV7000
SLIDER, SHIFT
|
1 | Ask on WhatsApp |
| 6 |
24123ZV5003
SPRING, SHIFT
|
1 | Ask on WhatsApp |
| 7 |
41145ZV7000
GEAR COMP., FR. BEVEL
|
1 | Ask on WhatsApp |
| 8 |
41151ZV7000
GEAR, RR. BEVEL
|
1 | Ask on WhatsApp |
| 9 |
41160ZV7000
SHAFT ASSY., PROPELLER
|
1 | Ask on WhatsApp |
| 10 |
41201ZV7000ZA
HOLDER, PROPELLER SHAFT *NH282MU *
|
1 | Ask on WhatsApp |
| 11 |
58130ZV7000ZA
PROPELLER COMP., THREE BLADES (9-1/4X12) (91X120) *NH283 *
|
1 | Ask on WhatsApp |
| 11 |
58130ZV7850ZA
PROPELLER COMP., THREE BLADES (9-3/4X9-7/8) (98X99) *NH283*
|
1 | Ask on WhatsApp |
| 11 |
58130ZV7860ZB
PROPELLER COMP., THREE BLADES (10X8-1/4) (100X83) *NH283*
|
1 | Ask on WhatsApp |
| 12 |
90124ZV4000
BOLT, HEX., 6X20
|
2 | Ask on WhatsApp |
| 13 |
90301ZV7000
NUT, CASTLE
|
1 | Ask on WhatsApp |
| 14 |
90503ZV5000
WASHER, 22MM
|
1 | Ask on WhatsApp |
| 15 |
90506ZV4000
WASHER, PLAIN, 6MM
|
2 | Ask on WhatsApp |
| 16 |
90506ZV7000
WASHER, PROPELLER THRUST
|
1 | Ask on WhatsApp |
| 17 |
90508ZV7000
WASHER
|
1 | Ask on WhatsApp |
| 18 |
90528ZV5000
SHIM, FR. BEVEL (A) (51X57X0.10)
|
2 | Ask on WhatsApp |
| 18 |
90529ZV5000
SHIM, FR. BEVEL (B) (51X57X0.15)
|
2 | Ask on WhatsApp |
| 18 |
90530ZV5000
SHIM, FR. BEVEL (C) (51X57X0.30)
|
2 | Ask on WhatsApp |
| 18 |
90531ZV5000
SHIM, FR. BEVEL (D) (51X57X0.50)
|
2 | Ask on WhatsApp |
| 19 |
90758ZV1000
PIN, SPLIT
|
1 | Ask on WhatsApp |
| 20 |
91051ZV5003
BEARING, 32X58X17
|
1 | Ask on WhatsApp |
| 21 |
91053ZV5003
BEARING, NEEDLE, 22X28X20
|
1 | Ask on WhatsApp |
| 22 |
91062HA7672
BEARING, RADIAL BALL, 32X58X13 (KOYO)
|
1 | Ask on WhatsApp |
| 23 |
91252ZV5003
SEAL, WATER, 22X35X7
|
2 | Ask on WhatsApp |
| 24 |
91351ZV7003
O-RING, 64X3
|
1 | Ask on WhatsApp |
| 25 |
9621111000
BALL, STEEL, #11 (11/32) BF25A (ZV7A2 13;13ZV90E1,extZV7A2 13;13ZV90E1,ZV7A2 23;13ZV90E1,extZV7A2 23;13ZV90E1)
|
1 | Ask on WhatsApp |
