Section F-8: ENGINE COVER (v2)

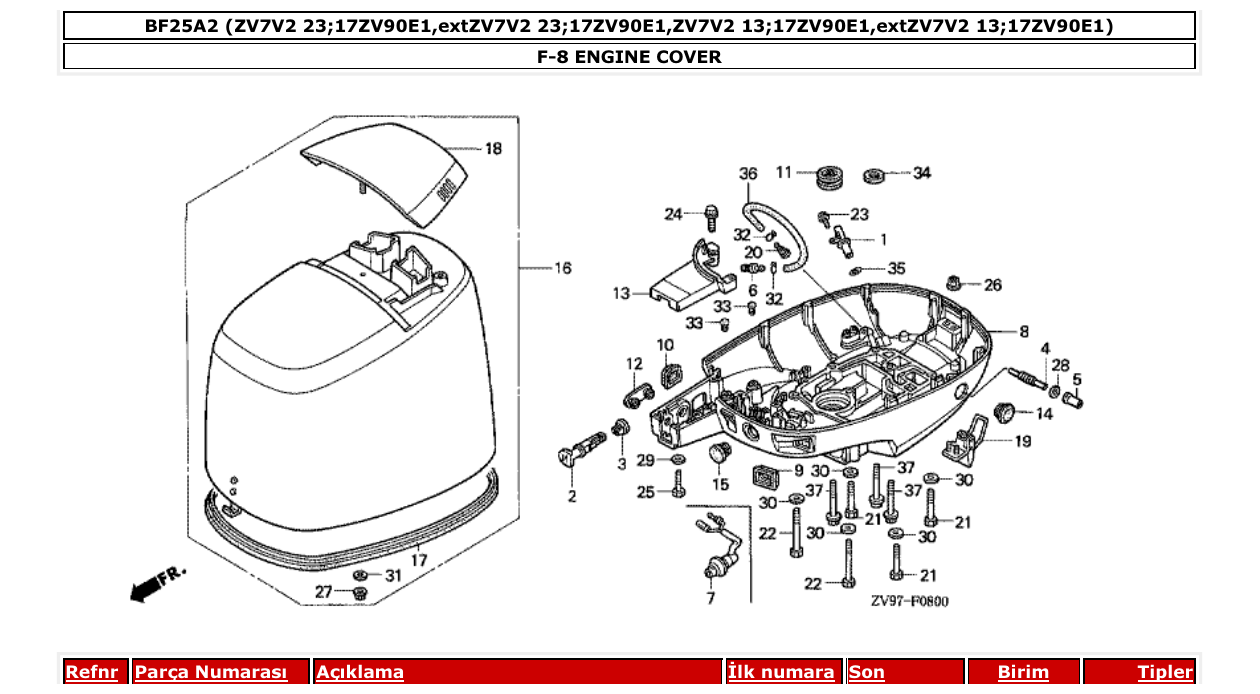

Diagram for section F-8: ENGINE COVER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
15665ZV7010
PIPE COMP., OIL LEVEL
|
1 | Ask on WhatsApp |
| 1 |
88163ZV7U00
COVER, ENGINE
|
1 | Ask on WhatsApp |
| 2 |
17951ZV5000
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 3 |
17953ZV5000
GUIDE, CHOKE KNOB
|
1 | Ask on WhatsApp |
| 6 |
19271ZV5000
JOINT, WATER HOSE
|
1 | Ask on WhatsApp |
| 7 |
37210ZV4003
LAMP ASSY., INDICATOR
|
1 | Ask on WhatsApp |
| 8 |
40101ZV7010ZA
CASE, ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 9 |
40106ZV5000
GROMMET, UNDER CASE (B)
|
1 | Ask on WhatsApp |
| 10 |
40107ZV7750
GROMMET, UNDER CASE (C)
|
1 | Ask on WhatsApp |
| 11 |
40109ZV4010
GROMMET, OIL CASE (E)
|
1 | Ask on WhatsApp |
| 12 |
40113ZV5000
GROMMET, UNDER CASE (F)
|
1 | Ask on WhatsApp |
| 13 |
40151ZV7000ZA
CASE, SEPARATE *NH282MU *
|
1 | Ask on WhatsApp |
| 15 |
53115732000
CAP, LOWER HANDLE
|
1 | Ask on WhatsApp |
| 16 |
63100ZV7752ZA
COVER COMP., ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 17 |
63102ZV7300
SEAL, ENGINE COVER
|
1 | Ask on WhatsApp |
| 18 |
63105ZV5000ZA
HANDLE, TILT *NH282MU *
|
1 | Ask on WhatsApp |
| 19 |
63240ZV5000
LEVER COMP., FASTENER
|
1 | Ask on WhatsApp |
| 20 |
82873ZV5000
GROMMET, WATER CHECK
|
1 | Ask on WhatsApp |
| 21 |
90010ZV5000
BOLT, HEX., 8X55
|
3 | Ask on WhatsApp |
| 22 |
90010ZV7000
BOLT, HEX., 8X80
|
2 | Ask on WhatsApp |
| 23 |
90013ZV0010
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 24 |
90015ZV0C10
BOLT, FLANGE, 6X28 (CT200)
|
2 | Ask on WhatsApp |
| 25 |
90121ZV4000
BOLT, HEX., 6X45
|
2 | Ask on WhatsApp |
| 26 |
90205PP9020
NUT, SELF-LOCK, 6MM
|
2 | Ask on WhatsApp |
| 27 |
90301473003
NUT, U, 6MM
|
3 | Ask on WhatsApp |
| 29 |
90506ZV4000
WASHER, PLAIN, 6MM
|
2 | Ask on WhatsApp |
| 30 |
90507ZV4000
WASHER, PLAIN, 8MM
|
5 | Ask on WhatsApp |
| 31 |
90512921010
WASHER, 6MM
|
3 | Ask on WhatsApp |
| 32 |
90602921000
CLIP, TUBE (B8)
|
2 | Ask on WhatsApp |
| 33 |
90801SB0000
PLUG, CHANGE REINFORCEMENT
|
2 | Ask on WhatsApp |
| 34 |
91221ZV5005
SEAL, WATER, 17X26X7
|
1 | Ask on WhatsApp |
| 35 |
91309PJ7010
O-RING, 11.5X3.5
|
1 | Ask on WhatsApp |
| 36 |
950054533030
TUBE, 4.5X330 (95005-45001-30M)
|
1 | Ask on WhatsApp |
| 37 |
957010807000
BOLT, FLANGE, 8X70 BF25A2 (ZV7V2 23;17ZV90E1,extZV7V2 23;17ZV90E1,ZV7V2 13;17ZV90E1,extZV7V2 13;17ZV90E1)
|
3 | Ask on WhatsApp |
