bf2ah
Section E-14: CARBURETOR (v2)

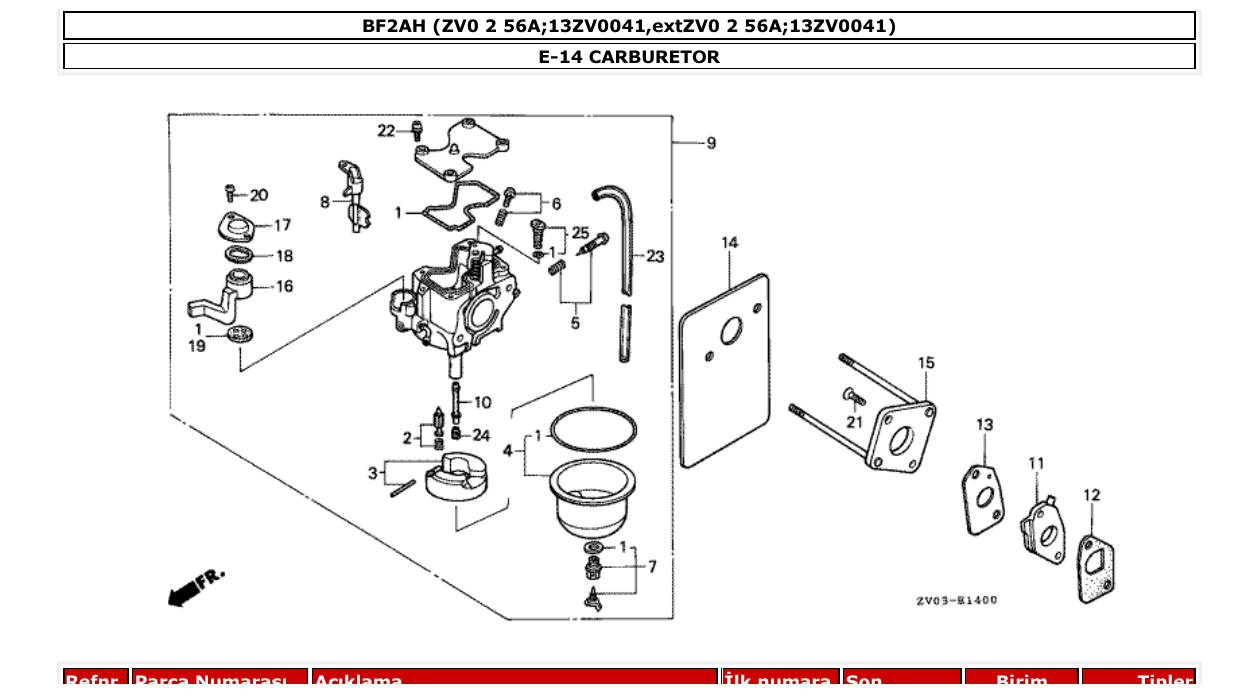

Diagram for section E-14: CARBURETOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16010ZV0015
GASKET SET BF22A C
|
1 | Ask on WhatsApp |
| 2 |
16011ZE0005
VALVE SET, FLOAT
|
1 | Ask on WhatsApp |
| 3 |
16013ZG0811
FLOAT SET
|
1 | Ask on WhatsApp |
| 4 |
16015ZV0005
CHAMBER SET, FLOAT
|
1 | Ask on WhatsApp |
| 5 |
16016ZE0005
SCREW SET, PILOT
|
1 | Ask on WhatsApp |
| 6 |
16016ZV0015
SCREW SET BF22A C
|
1 | Ask on WhatsApp |
| 6 |
16016ZV0025
SCREW SET BF22A D
|
1 | Ask on WhatsApp |
| 7 |
16028ZV0025
SCREW SET BF22A C
|
1 | Ask on WhatsApp |
| 8 |
16044ZV0005
LEVER SET, CHOKE
|
1 | Ask on WhatsApp |
| 9 |
16100ZV0055
CARBURETOR ASSY. (BF22A C)
|
1 | Ask on WhatsApp |
| 9 |
16100ZV0065
CARBURETOR ASSY. (BF22A D)
|
1 | Ask on WhatsApp |
| 9 |
16100ZV0075
CARBURETOR ASSY. (BF22A E)
|
1 | Ask on WhatsApp |
| 10 |
16166ZV0015
NOZZLE, MAIN BF22A C
|
1 | Ask on WhatsApp |
| 11 |
16211ZV0000
INSULATOR, CARBURETOR
|
1 | Ask on WhatsApp |
| 12 |
16212ZV0000
PACKING, INSULATOR
|
1 | Ask on WhatsApp |
| 13 |
16221ZG0010
PACKING, CARBURETOR
|
1 | Ask on WhatsApp |
| 14 |
16221ZV0010
GASKET, CARBURETOR
|
1 | Ask on WhatsApp |
| 15 |
16225ZV0000
PLATE, CARBURETOR JOINT
|
1 | Ask on WhatsApp |
| 16 |
16953ZV0015
LEVER, COCK BF09A D
|
1 | Ask on WhatsApp |
| 17 |
16954ZV0005
PLATE, LEVER SETTING
|
1 | Ask on WhatsApp |
| 18 |
16956ZE1811
SPRING, COCK LEVER
|
1 | Ask on WhatsApp |
| 19 |
16957ZE1811
PACKING, FUEL COCK BF22A E
|
1 | Ask on WhatsApp |
| 20 |
93500030080H
SCREW, PAN, 3X8 BF22A B
|
2 | Ask on WhatsApp |
| 21 |
93600050200B
SCREW, FLAT, 5X20
|
2 | Ask on WhatsApp |
| 22 |
938920401208
SCREW-WASHER, 4X12
|
4 | Ask on WhatsApp |
| 23 |
950030907531
TUBE, VINYL, 4.5X8X750 (95003-09001-60M)
|
1 | Ask on WhatsApp |
| 24 |
991011870600
JET, MAIN, #60 BF22B C
|
1 | Ask on WhatsApp |
| 24 |
991011870620
JET, MAIN, #62 BF22B C
|
1 | Ask on WhatsApp |
| 24 |
991011870650
JET, MAIN, #65 BF22A B
|
1 | Ask on WhatsApp |
| 25 |
99204ZE00350
JET SET, PILOT, #35
|
1 | Ask on WhatsApp |
