bf30a2
Section FOP-1-1: METER KIT (v2)

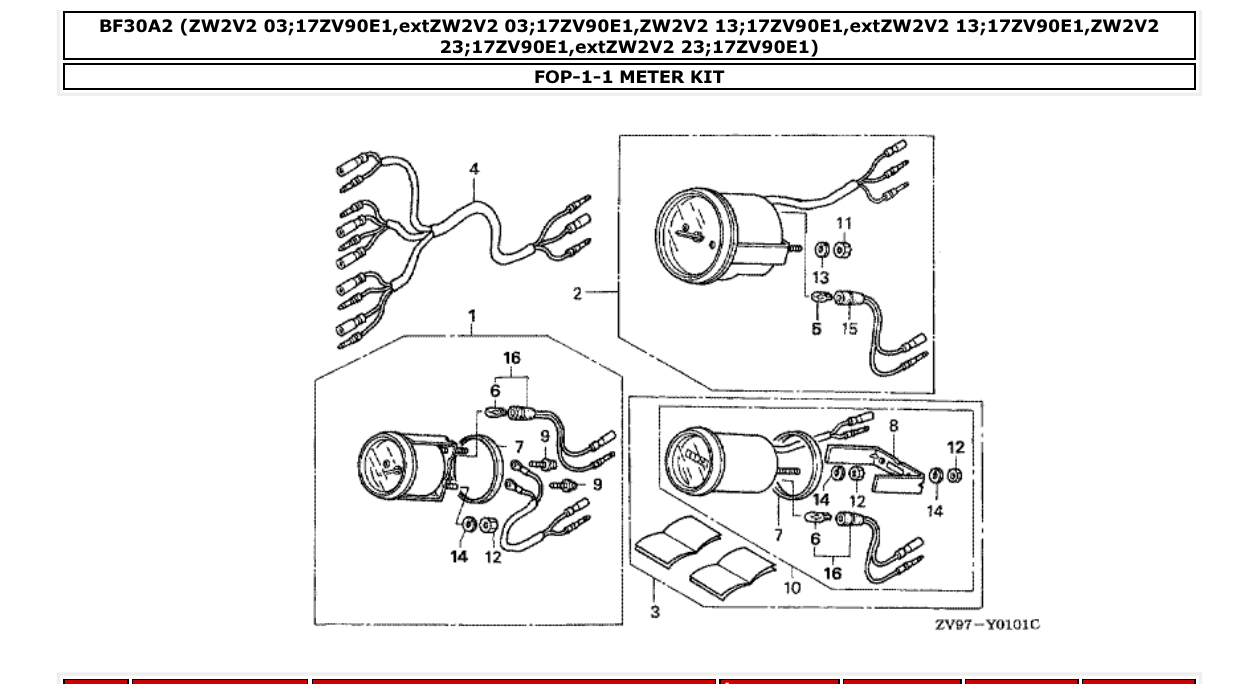

Diagram for section FOP-1-1: METER KIT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
06374ZW5U00
METER KIT, VOLT
|
1 | Ask on WhatsApp |
| 1 |
06374ZW5U10
METER KIT, VOLT (B)
|
1 | Ask on WhatsApp |
| 2 |
06375ZV7U00
METER KIT, TACHO
|
1 | Ask on WhatsApp |
| 2 |
06375ZV7U10
METER KIT, TACHO (B)
|
1 | Ask on WhatsApp |
| 3 |
06397ZW5U00
METER KIT, HOUR
|
1 | Ask on WhatsApp |
| 3 |
06397ZW5U10
METER KIT, HOUR (B)
|
1 | Ask on WhatsApp |
| 4 |
32550ZW5U00
HARNESS ASSY., METER (B)
|
1 | Ask on WhatsApp |
| 5 |
34908MB9871
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
|
1 | Ask on WhatsApp |
| 6 |
34908MG9951
BULB, WEDGE BASE (12V 1.7W)
|
2 | Ask on WhatsApp |
| 7 |
37264ZV5821
PACKING
|
2 | Ask on WhatsApp |
| 8 |
37266ZV5821
BRACKET
|
1 | Ask on WhatsApp |
| 9 |
37305KE5008
SCREW-WASHER, 3X22
|
2 | Ask on WhatsApp |
| 10 |
39700ZW5U01
METER ASSY., HOUR
|
1 | Ask on WhatsApp |
| 10 |
39700ZW5U11
METER ASSY., HOUR (B)
|
1 | Ask on WhatsApp |
| 11 |
90309ZV5821
NUT, HEX., 5MM
|
2 | Ask on WhatsApp |
| 12 |
90310ZV5821
NUT, HEX., 4MM
|
4 | Ask on WhatsApp |
| 13 |
90550ZV5821
WASHER, SPRING, 5MM
|
2 | Ask on WhatsApp |
| 14 |
90560ZV5821
WASHER, SPRING, 4MM
|
4 | Ask on WhatsApp |
| 15 |
37258ZV5U01
SOCKET COMP.
|
1 | Ask on WhatsApp |
| 16 |
37258ZW5U01
SOCKET COMP.
|
2 | Ask on WhatsApp |
