bf75av
Section F-11: POWER TRIM-TILT/DAMPER (v2)

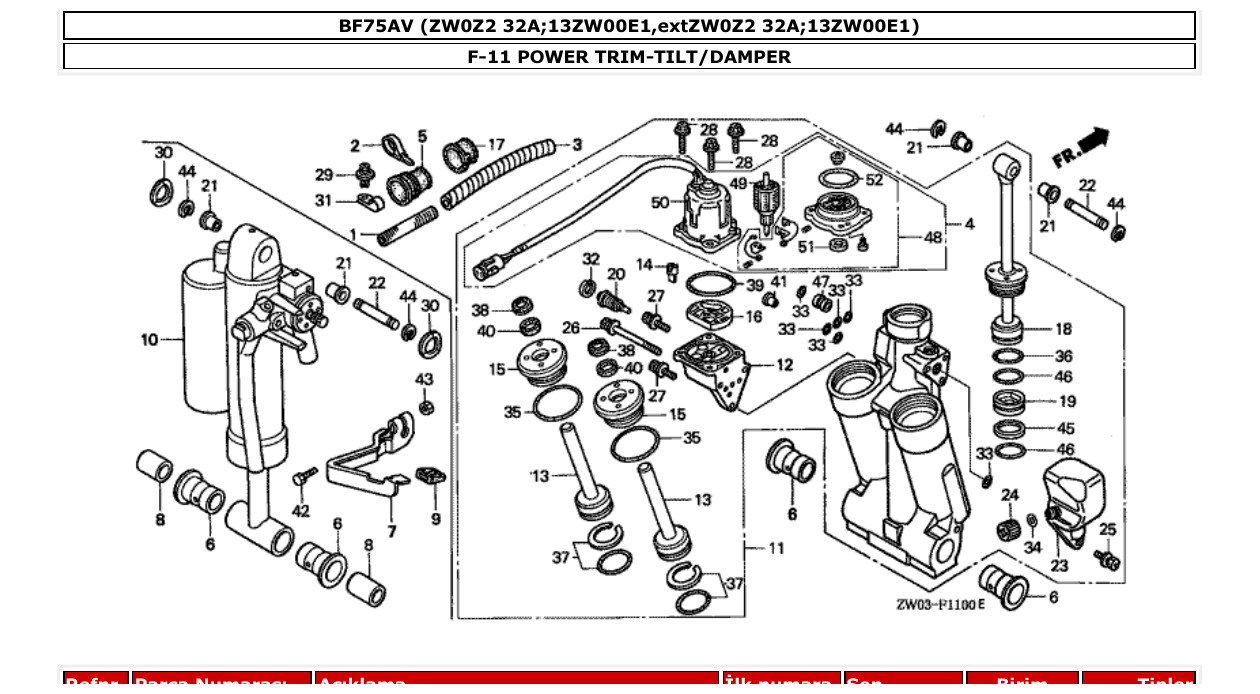

Diagram for section F-11: POWER TRIM-TILT/DAMPER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
17735ZW1000
TUBE, CORRUGATE (10MM)
|
1 | Ask on WhatsApp |
| 2 |
35701MG9950
BAND (BLACK 3.5X140)
|
2 | Ask on WhatsApp |
| 3 |
36104ZW1003
TUBE, SPIRAL (12X14.6)
|
1 | Ask on WhatsApp |
| 4 |
36120ZW1701
MOTOR ASSY., POWER TILT
|
1 | Ask on WhatsApp |
| 5 |
40107ZW1700
GROMMET, UNDER CASE (C)
|
1 | Ask on WhatsApp |
| 6 |
50214ZV5003
BUSH, SWIVEL CASE
|
2 | Ask on WhatsApp |
| 11 |
56000ZW1701ZA
TRIM-TILT ASSY., POWER *NH283 *
|
1 | Ask on WhatsApp |
| 12 |
56100ZW1701
PUMP ASSY.
|
1 | Ask on WhatsApp |
| 12 |
56100ZW1702
PUMP ASSY.
|
1 | Ask on WhatsApp |
| 13 |
56110ZW1701
ROD COMP., PISTON (B)
|
2 | Ask on WhatsApp |
| 14 |
56113ZW1701
JOINT, DRIVE
|
1 | Ask on WhatsApp |
| 15 |
56115ZW1701
GUIDE COMP., ROD
|
2 | Ask on WhatsApp |
| 16 |
56116ZW1701
FILTER B
|
1 | Ask on WhatsApp |
| 17 |
56118ZV5820
BUSH, MOTOR CODE
|
1 | Ask on WhatsApp |
| 18 |
56120ZW1701
ROD COMP., PISTON
|
1 | Ask on WhatsApp |
| 19 |
56130ZW1701
PISTON COMP., FREE
|
1 | Ask on WhatsApp |
| 20 |
56170ZW1701
VALVE COMP., MANUAL
|
1 | Ask on WhatsApp |
| 20 |
56170ZW1702
VALVE COMP., MANUAL
|
1 | Ask on WhatsApp |
| 21 |
56513ZV5000
BUSH, LOWER CYLINDER
|
2 | Ask on WhatsApp |
| 22 |
56532ZW1000
PIN, UPPER CYLINDER
|
1 | Ask on WhatsApp |
| 23 |
56851ZW1701
TANK, OIL
|
1 | Ask on WhatsApp |
| 24 |
56860ZW1701
CAP COMP., OIL TANK
|
1 | Ask on WhatsApp |
| 25 |
90113ZW1701
BOLT, RECESSED
|
3 | Ask on WhatsApp |
| 26 |
90114ZW1701
BOLT, SOCKET (A)
|
1 | Ask on WhatsApp |
| 27 |
90115ZW1701
BOLT, SOCKET (B)
|
2 | Ask on WhatsApp |
| 28 |
90116ZW1701
BOLT, HEX.
|
4 | Ask on WhatsApp |
| 29 |
90127ZV5003
SCREW, RIVET, 5X10
|
1 | Ask on WhatsApp |
| 31 |
90602SB0003
CLIP, 10.7MM
|
1 | Ask on WhatsApp |
| 32 |
90652ZW1701
CIRCLIP, INTERNAL
|
1 | Ask on WhatsApp |
| 33 |
91352ZW1701
O-RING
|
6 | Ask on WhatsApp |
| 33 |
91352ZW1702
O-RING, 1.8X7.7
|
6 | Ask on WhatsApp |
| 34 |
91353ZW1701
O-RING
|
1 | Ask on WhatsApp |
| 35 |
91354ZW1701
O-RING, 3.5X35.7
|
2 | Ask on WhatsApp |
| 36 |
91355ZW1701
O-RING, 3.5X41.7
|
1 | Ask on WhatsApp |
| 37 |
91357ZW1701
O-RING SET, 3.5X31.7
|
2 | Ask on WhatsApp |
| 38 |
91358ZW1701
SEAL, WATER
|
2 | Ask on WhatsApp |
