Section F-7: REGULATOR/STARTER CABLE (v2)

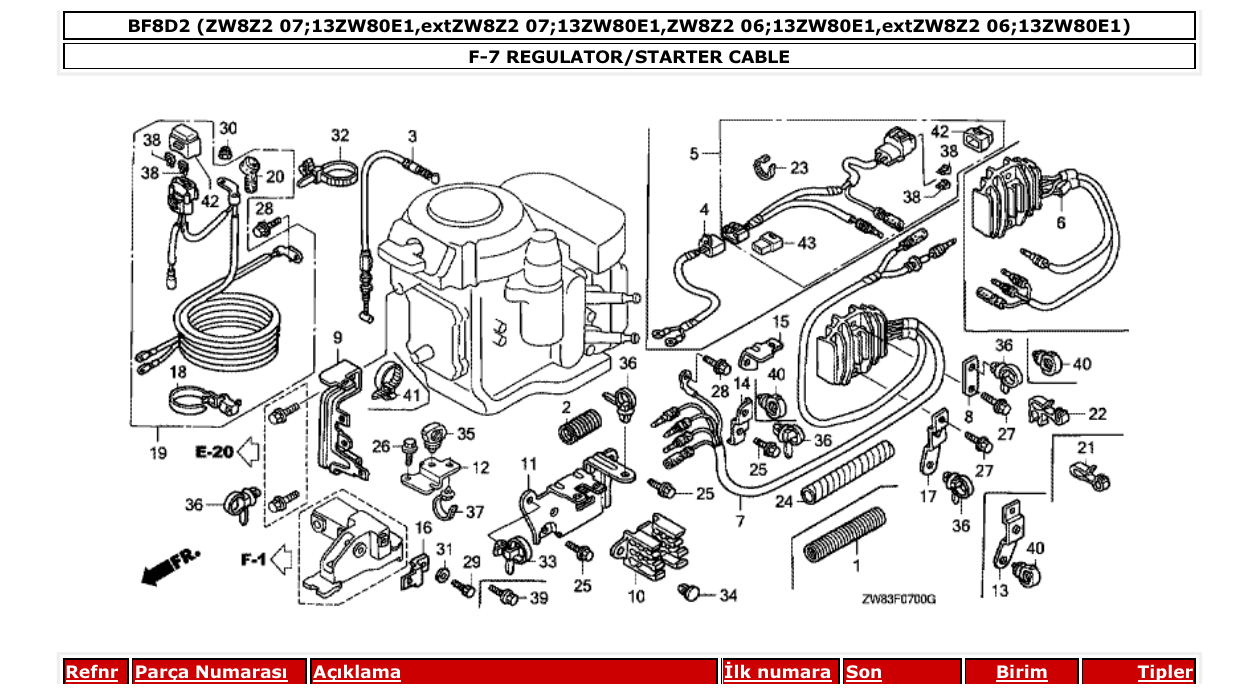

Diagram for section F-7: REGULATOR/STARTER CABLE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 3 |
17940ZW9010
CABLE COMP., NEUTRAL STARTING
|
1 | Ask on WhatsApp |
| 4 |
31575ZW9000
CORD ASSY., BATTERY CHARGE
|
1 | Ask on WhatsApp |
| 5 |
31650ZW9000
RECEPTACLE ASSY., CHARGE
|
1 | Ask on WhatsApp |
| 6 |
31750ZW9003
RECTIFIER ASSY., REGULATOR
|
1 | Ask on WhatsApp |
| 6 |
31750ZW9013
RECTIFIER ASSY., REGULATOR
|
1 | Ask on WhatsApp |
| 8 |
32103ZW9000
BRACKET, CLIP F
|
1 | Ask on WhatsApp |
| 8 |
32103ZW9010
BRACKET, CLIP F
|
1 | Ask on WhatsApp |
| 9 |
32108ZW9000
BRACKET, COUPLER A
|
1 | Ask on WhatsApp |
| 10 |
32109ZV4000
BRACKET, CONNECTOR (B)
|
1 | Ask on WhatsApp |
| 11 |
32111ZW9000
BRACKET, COUPLER C
|
1 | Ask on WhatsApp |
| 12 |
32112ZW9000
BRACKET, STARTER CABLE
|
1 | Ask on WhatsApp |
| 14 |
32114ZW9730
BRACKET, CLIP B
|
1 | Ask on WhatsApp |
| 15 |
32115ZW9000
BRACKET, FUSE CASE
|
1 | Ask on WhatsApp |
| 16 |
32117ZW9000
BRACKET, COUPLER D
|
1 | Ask on WhatsApp |
| 17 |
32118ZW9730
BRACKET, CLIP E
|
1 | Ask on WhatsApp |
| 22 |
32765PD6000
CLAMP, DISTRIBUTOR CORD
|
1 | Ask on WhatsApp |
| 23 |
32901952770
TIE, CABLE (2.4X92) (NATURAL)
|
1 | Ask on WhatsApp |
| 24 |
36104ZW9003
TUBE, SPIRAL A
|
2 | Ask on WhatsApp |
| 25 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
3 | Ask on WhatsApp |
| 26 |
90011ZW9000
BOLT, FLANGE, 6X14 (CT200)
|
1 | Ask on WhatsApp |
| 27 |
90114ZW9000
BOLT, FLANGE, 6X26 (CT200)
|
2 | Ask on WhatsApp |
| 33 |
90672SA0003
STRAP, CABLE, 118MM (BLACK)
|
1 | Ask on WhatsApp |
| 34 |
90683ZV4003
CLIP, ANCHOR
|
1 | Ask on WhatsApp |
| 35 |
90691ZB7003
CLIP, HARNESS
|
1 | Ask on WhatsApp |
| 36 |
91540S30003
CLIP, HARNESS BAND (NATURAL) (151.5MM)
|
1 | Ask on WhatsApp |
| 38 |
9820032000
FUSE, BLADE (20A)
|
2 | Ask on WhatsApp |
| 39 |
90102ZW9000
BOLT, FLANGE, 6X12
|
1 | Ask on WhatsApp |
| 42 |
38218ZW9003
COVER ASSY., FUSE (20A)
|
1 | Ask on WhatsApp |
| 43 |
32521ZW9000
COUPLER, DUMMY
|
1 | Ask on WhatsApp |
