Section F-4-1: WATER PUMP/VERTICAL SHAFT (BF75AV,X,1/BF90AV,X,1) (v2)

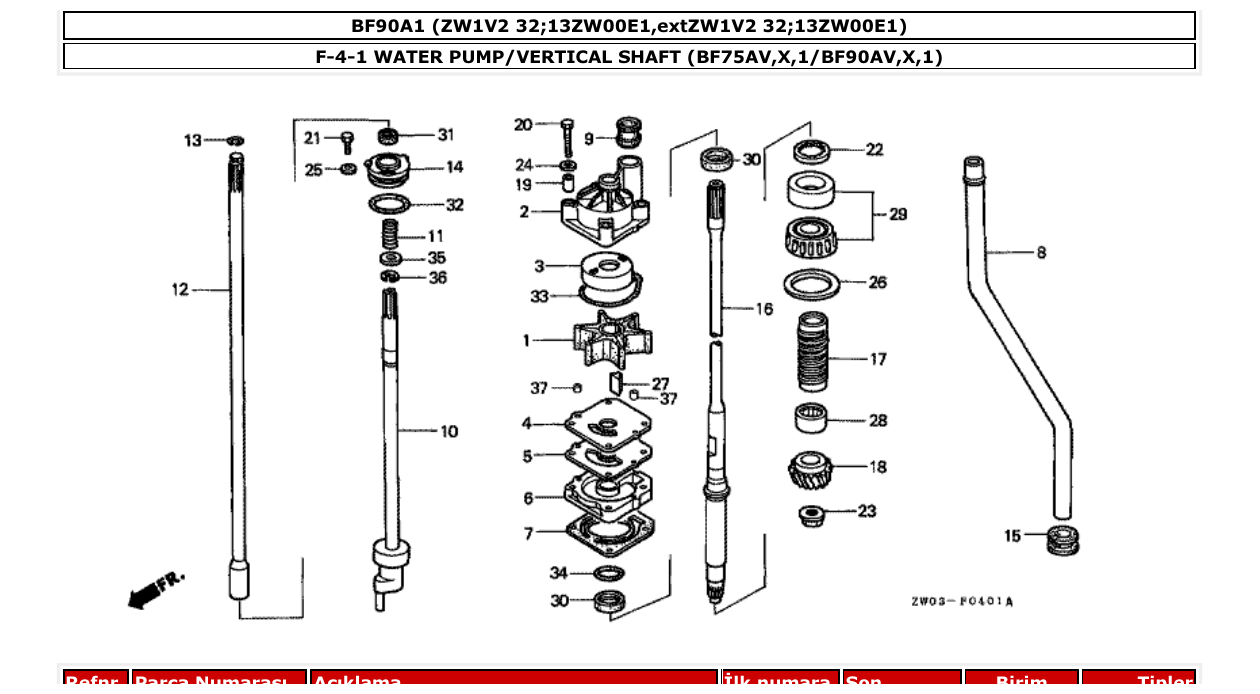

Diagram for section F-4-1: WATER PUMP/VERTICAL SHAFT (BF75AV,X,1/BF90AV,X,1).
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
19210ZW1B03
IMPELLER, PUMP
|
1 | Ask on WhatsApp |
| 2 |
19221ZW1B01
HOUSING, IMPELLER
|
1 | Ask on WhatsApp |
| 3 |
19223ZW1B00
LINER, PUMP
|
1 | Ask on WhatsApp |
| 4 |
19231ZW1B00
COVER, IMPELLER
|
1 | Ask on WhatsApp |
| 5 |
19234ZW1B00
GASKET B, IMPELLER
|
1 | Ask on WhatsApp |
| 6 |
19241ZW1B01
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 7 |
19242ZW1B00
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 8 |
19251ZW1900
TUBE, WATER (L)
|
1 | Ask on WhatsApp |
| 9 |
19253ZW1B01
RING, WATER TUBE SEAL
|
1 | Ask on WhatsApp |
| 10 |
24310ZW1B00
ROD COMP., SHIFT (L)
|
1 | Ask on WhatsApp |
| 11 |
24318ZW1B00
SPRING, SHIFT ROD
|
1 | Ask on WhatsApp |
| 12 |
24320ZW1B00
ROD A COMP., SHIFT
|
1 | Ask on WhatsApp |
| 13 |
24327ZW1000
RING, STOPPER
|
1 | Ask on WhatsApp |
| 14 |
24343ZW1B00
HOLDER, SHIFT ROD
|
1 | Ask on WhatsApp |
| 15 |
40204ZW1000
GROMMET, EXTENSION CASE
|
1 | Ask on WhatsApp |
| 16 |
41112ZW1B01
SHAFT, VERTICAL (L)
|
1 | Ask on WhatsApp |
| 17 |
41116ZW1B00
SLINGER, OIL
|
1 | Ask on WhatsApp |
| 18 |
41131ZW1B01
GEAR, PINION (12T)
|
1 | Ask on WhatsApp |
| 19 |
53109ZV0000
COLLAR, DISTANCE
|
4 | Ask on WhatsApp |
| 20 |
90010ZV5000
BOLT, HEX., 8X55
|
4 | Ask on WhatsApp |
| 21 |
90105881000
BOLT, HEX., 6X12
|
1 | Ask on WhatsApp |
| 22 |
90242MB0000
NUT, LOCK, 64MM
|
1 | Ask on WhatsApp |
| 23 |
90303ZW1B02
NUT, HEX., 16MM
|
1 | Ask on WhatsApp |
| 24 |
90401ZW1000
WASHER, PLAIN, 8MM
|
4 | Ask on WhatsApp |
| 25 |
90511ZV4000
WASHER, PLAIN, 6MM
|
1 | Ask on WhatsApp |
| 26 |
90518ZW1B00
SHIM A, GEAR (0.10)
|
1 | Ask on WhatsApp |
| 26 |
90519ZW1B00
SHIM B, GEAR (0.15)
|
1 | Ask on WhatsApp |
| 26 |
90520ZW1B00
SHIM C, GEAR (0.30)
|
1 | Ask on WhatsApp |
| 26 |
90521ZW1B00
SHIM D, GEAR (0.50)
|
1 | Ask on WhatsApp |
| 27 |
90752ZW1B02
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 28 |
91052ZW1B02
BEARING, NEEDLE (1-1/8X1-1/2X1-1/4)
|
1 | Ask on WhatsApp |
| 29 |
91054ZW1B02
BEARING, TAPER ROLLER, 30X62X21.25
|
1 | Ask on WhatsApp |
| 30 |
91251ZW1B03
SEAL, WATER, 23X36X6
|
2 | Ask on WhatsApp |
| 31 |
91253ZW1B02
SEAL, WATER, 10X21X6
|
1 | Ask on WhatsApp |
| 32 |
91308MJ0003
O-RING
|
1 | Ask on WhatsApp |
| 33 |
91356ZW1B00
O-RING, WATER PUMP
|
1 | Ask on WhatsApp |
