Section F-8: ENGINE COVER/UNDER CASE (v2)

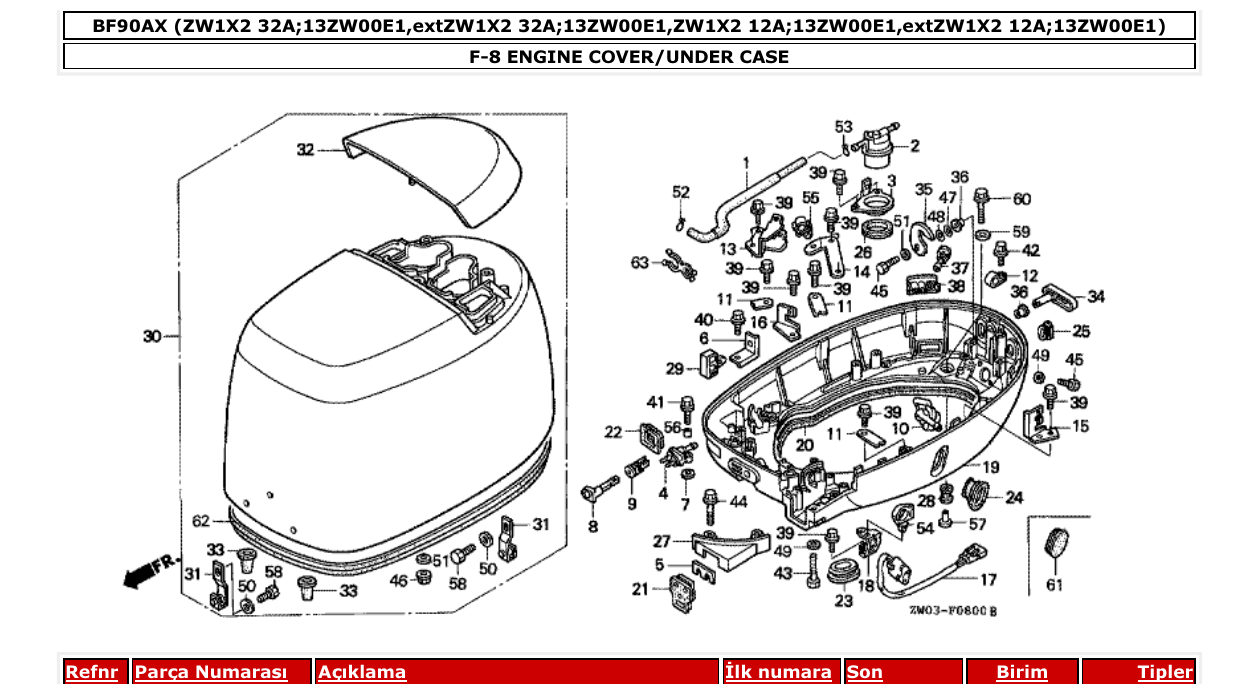

Diagram for section F-8: ENGINE COVER/UNDER CASE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
16850ZW1000
TUBE COMP., FUEL
|
1 | Ask on WhatsApp |
| 2 |
16900SA5004
STRAINER COMP., FUEL (TOYO ROKI)
|
1 | Ask on WhatsApp |
| 3 |
16914ZW1000
STAY, FUEL STRAINER
|
1 | Ask on WhatsApp |
| 4 |
17710ZV4005
CONNECTOR ASSY., FUEL (B)
|
1 | Ask on WhatsApp |
| 5 |
17877ZW1000
PLATE, REMOTE CONTROL CABLE
|
1 | Ask on WhatsApp |
| 6 |
17922ZW1000
HOLDER, THROTTLE CABLE
|
1 | Ask on WhatsApp |
| 7 |
17936921000
WASHER, PIVOT
|
1 | Ask on WhatsApp |
| 8 |
17951ZV5000
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 9 |
17953ZW1000
GUIDE, CHOKE KNOB
|
1 | Ask on WhatsApp |
| 10 |
19266ZW1010
JOINT, WATER INLET
|
1 | Ask on WhatsApp |
| 11 |
24626ZV5000
PLATE, SHIFT SHAFT
|
2 | Ask on WhatsApp |
| 12 |
30564ZE8003
CLAMPER, HIGH TENSION CORD
|
2 | Ask on WhatsApp |
| 13 |
32109ZV5000
BRACKET, COUPLER
|
1 | Ask on WhatsApp |
| 14 |
32112ZW1000
BRACKET, CLIP A
|
1 | Ask on WhatsApp |
| 15 |
32113ZW1000
BRACKET, CLIP B
|
1 | Ask on WhatsApp |
| 16 |
32114ZV5820
BRACKET, HARNESS CLIP
|
1 | Ask on WhatsApp |
| 17 |
35640ZW1003
SWITCH ASSY., POWER TRIM-TILT
|
1 | Ask on WhatsApp |
| 18 |
35645ZW1000
STAY, POWER TILT SWITCH
|
1 | Ask on WhatsApp |
| 19 |
40101ZW1405ZA
CASE, ENGINE UNDER *NH282MU *
|
1 | Ask on WhatsApp |
| 20 |
40103ZW1000
SEAL, UNDER CASE
|
1 | Ask on WhatsApp |
| 21 |
40105ZW1000
GROMMET, UNDER CASE (A)
|
1 | Ask on WhatsApp |
| 22 |
40106ZV5000
GROMMET, UNDER CASE (B)
|
1 | Ask on WhatsApp |
| 24 |
40114ZV5820
GROMMET, UNDER CASE (G)
|
1 | Ask on WhatsApp |
| 25 |
40116ZW1000
GROMMET, UNDER CASE
|
2 | Ask on WhatsApp |
| 26 |
40146ZV5000
GROMMET, FUEL STRAINER
|
1 | Ask on WhatsApp |
| 27 |
40151ZW1000ZA
CASE, SEPARATE *NH282MU *
|
1 | Ask on WhatsApp |
| 28 |
51640121730
RUBBER, FR. CARRIER CUSHION
|
4 | Ask on WhatsApp |
| 29 |
53728SF1A51
CLIP, RETURN PIPE, 6MM
|
1 | Ask on WhatsApp |
| 30 |
63100ZW1000ZA
COVER ASSY., ENGINE *NH282MU *
|
1 | Ask on WhatsApp |
| 31 |
63103ZW1000
HOOK COMP., ENGINE COVER
|
2 | Ask on WhatsApp |
| 32 |
63105ZW1000ZA
HANDLE, TILT *NH282MU *
|
1 | Ask on WhatsApp |
| 33 |
63108ZW1000
DAMPER, HOOK
|
3 | Ask on WhatsApp |
| 34 |
63201ZW1000ZA
LEVER, COVER LOCK *NH282MU *
|
2 | Ask on WhatsApp |
| 35 |
63202ZW1000
HOOK, COVER LOCK
|
2 | Ask on WhatsApp |
| 36 |
63205920000
BUSH, COVER LOCK
|
4 | Ask on WhatsApp |
| 37 |
82873ZV5000
GROMMET, WATER CHECK
|
1 | Ask on WhatsApp |
| 38 |
82873ZW1000
GROMMET, WATER CHECK
|
1 | Ask on WhatsApp |
