115BETO’02
Section 17: BRACKET 1 (v2)
Engine sections in this catalog
TOP COWLING
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
BRACKET 2
POWER TRIM & TILT ASSY 1
CYLINDER. CRANKCASE 1
POWER TRIM & TILT ASSY 2
UPPER CASING
LOWER CASING. DRIVE 1
LOWER CASING. DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
METER
REPAIR KIT 1
REPAIR KIT 2
CRANKSHAFT. PISTON
CYLINDER. CRANKCASE 2
INTAKE
CARBURETOR
OIL PUMP
OIL TANK
FUEL 1

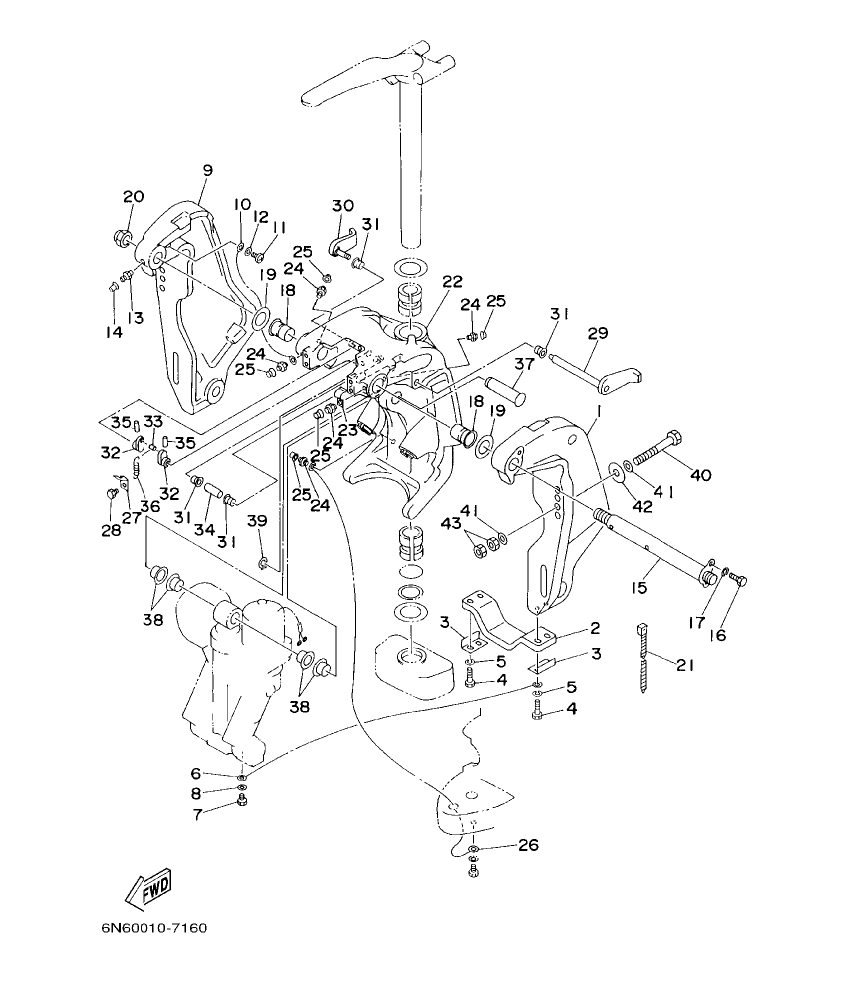

Diagram for section 17: BRACKET 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
64E–43111–02–8D
BRACKET, CLAMP
|
1 | Ask on WhatsApp |
| 2 |
6G5–45251–02
ANODE
|
1 | Ask on WhatsApp |
| 3 |
6G5–44526–00
PLATE
|
2 | Ask on WhatsApp |
| 4 |
97095–06030
BOLT
|
4 | Ask on WhatsApp |
| 5 |
92995–06100
WASHER, SPRING
|
4 | Ask on WhatsApp |
| 6 |
6E5–82148–00
WIRE, LEAD 4
|
1 | Ask on WhatsApp |
| 7 |
97095–06010
BOLT
|
1 | Ask on WhatsApp |
| 8 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 9 |
64E–43112–02–8D
BRACKET, CLAMP
|
1 | Ask on WhatsApp |
| 10 |
6E5–82148–00
WIRE, LEAD 4
|
1 | Ask on WhatsApp |
| 11 |
97880–06012
SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 12 |
92990–06600
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 13 |
93700–06M03
NIPPLE, GREASE
|
1 | Ask on WhatsApp |
| 14 |
663–45119–00
CAP, GREASE NIPPLE
|
1 | Ask on WhatsApp |
| 15 |
64E–43131–01
BOLT, CLAMP BRACKET
|
1 | Ask on WhatsApp |
| 16 |
97095–08020
BOLT
|
1 | Ask on WhatsApp |
| 17 |
92995–08100
WASHER
|
1 | Ask on WhatsApp |
| 18 |
90386–25M31
BUSH
|
2 | Ask on WhatsApp |
| 19 |
90201–26M59
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 20 |
90185–22M11
NUT, SELF–LOCKING
|
1 | Ask on WhatsApp |
| 21 |
90465–11M10
CLAMP
|
1 | Ask on WhatsApp |
| 22 |
64E–43311–10–8D
BRACKET, SWIVEL 1
|
1 | Ask on WhatsApp |
| 23 |
90465–08M63
CLAMP
|
1 | Ask on WhatsApp |
| 24 |
93700–06M03
NIPPLE, GREASE
|
5 | Ask on WhatsApp |
| 25 |
663–45119–00
CAP, GREASE NIPPLE
|
5 | Ask on WhatsApp |
| 26 |
6E5–82147–00
WIRE, LEAD 4
|
1 | Ask on WhatsApp |
| 27 |
6G5–43144–00
HOOK, SPRING
|
1 | Ask on WhatsApp |
| 28 |
97095–06010
|
1 | Ask on WhatsApp |
| 29 |
6G5–43181–02
|
1 | Ask on WhatsApp |
| 30 |
6G5–43185–02
|
1 | Ask on WhatsApp |
| 31 |
90386–10M16
|
4 | Ask on WhatsApp |
| 32 |
6G5–43148–00
|
2 | Ask on WhatsApp |
| 33 |
90249–06M19
|
1 | Ask on WhatsApp |
| 34 |
90387–10M05
|
1 | Ask on WhatsApp |
| 35 |
91690–30020
|
2 | Ask on WhatsApp |
| 36 |
90506–14M24
|
1 | Ask on WhatsApp |
| 37 |
64E–43126–00
|
1 | Ask on WhatsApp |
| 38 |
90386–22M98
|
4 | Ask on WhatsApp |
| 39 |
93410–22M11
|
1 | Ask on WhatsApp |
| 40 |
90101–12M03
|
4 | Ask on WhatsApp |
| 41 |
90201–13M01
|
8 | Ask on WhatsApp |
| 42 |
90201–12M05
|
4 | Ask on WhatsApp |
| 43 |
95380–12600
|
8 | Ask on WhatsApp |
