Honda BF100F Parts Catalog

Honda BF100F Outboard parts and diagrams

Honda BF100F outboard parts catalog includes RECOIL STARTER, STARTER CASE/CAM PULLEY, CARBURETOR/AIR GUIDE, FUEL PUMP, FLYWHEEL/IGNITION COIL, CYLINDER HEAD/CYLINDER BARREL, INLET MANIFOLD/C.D.I. UNIT, OIL PUMP/OIL FILTER/EXHAUST PIPE, CRANKSHAFT/PISTON, CAMSHAFT/VALVE, STEERING HANDLE/THROTTLE CABLE, STERN BRACKET/ADJUST ROD, SWIVEL CASE/SWIVEL SHAFT (1), LABEL, TOOLS/STARTER ROPE, SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER, GEAR CASE/EXTENSION CASE/SHIFT ROD, WATER PUMP/VERTICAL SHAFT. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

This catalog is available as a reference parts list; contact Marmoom Marine to confirm price and availability. 597 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

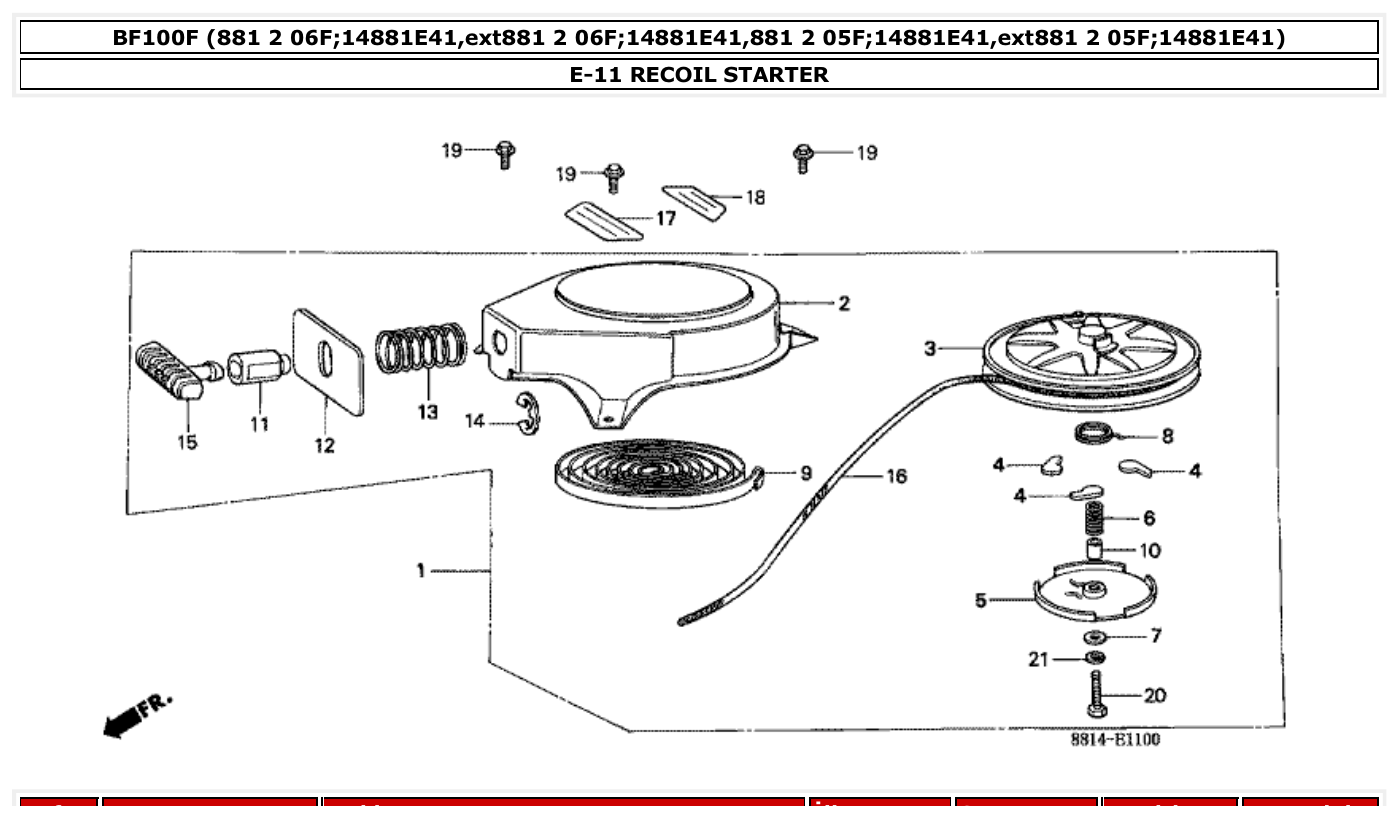

Honda BF100F RECOIL STARTER parts diagram
Fig. E-11 — RECOIL STARTER
20 items

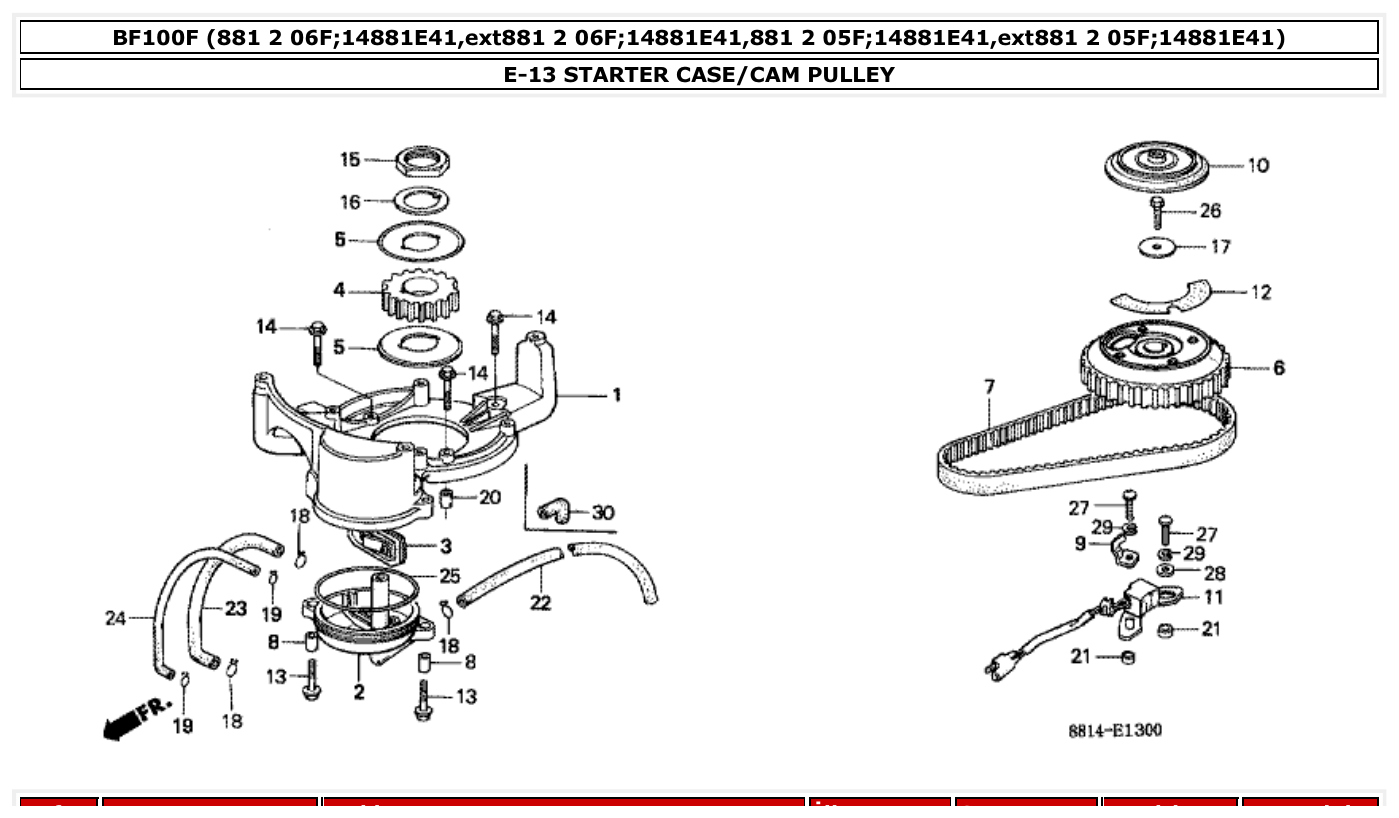

Honda BF100F STARTER CASE/CAM PULLEY parts diagram
Fig. E-13 — STARTER CASE/CAM PULLEY
29 items

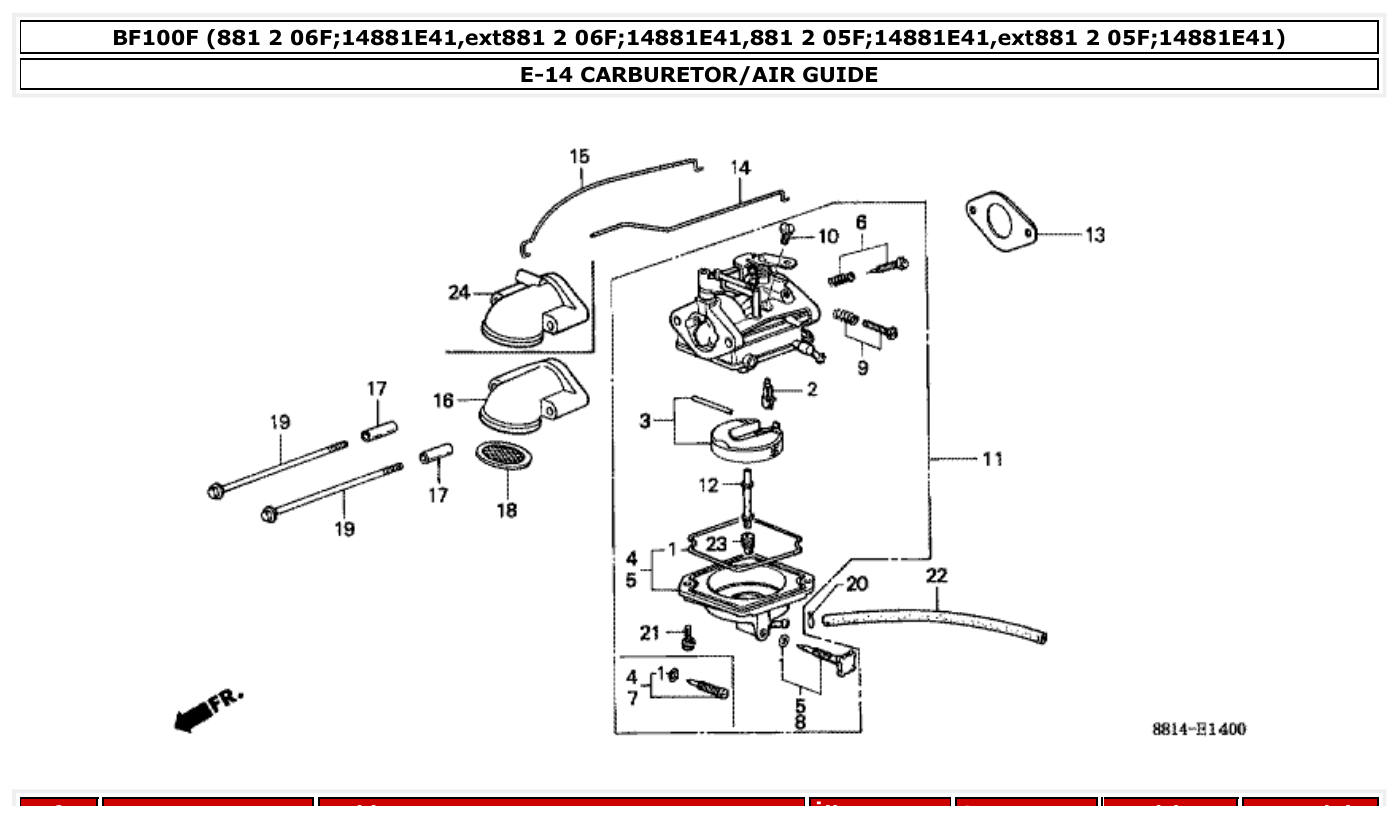

Honda BF100F CARBURETOR/AIR GUIDE parts diagram
Fig. E-14 — CARBURETOR/AIR GUIDE
28 items

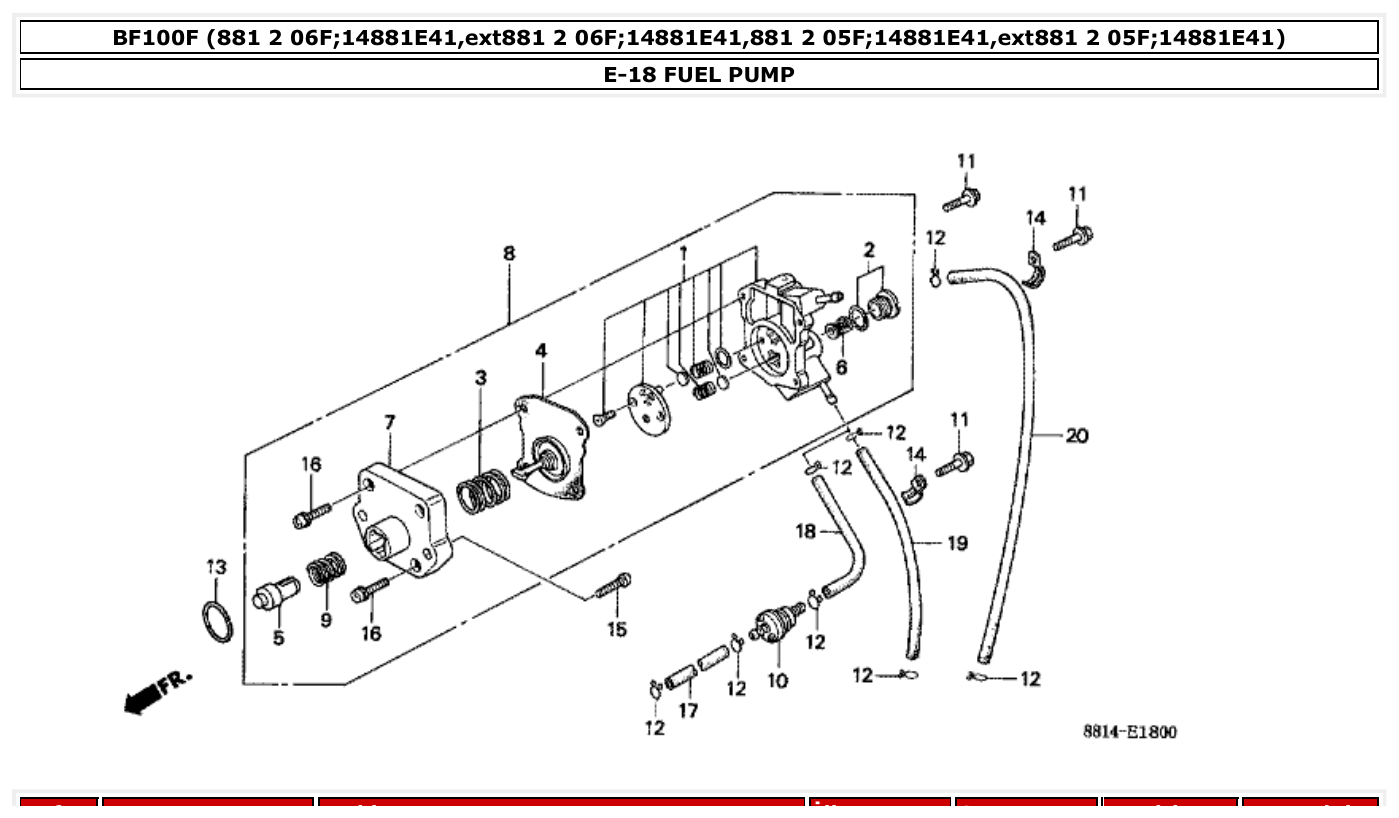

Honda BF100F FUEL PUMP parts diagram
Fig. E-18 — FUEL PUMP
19 items

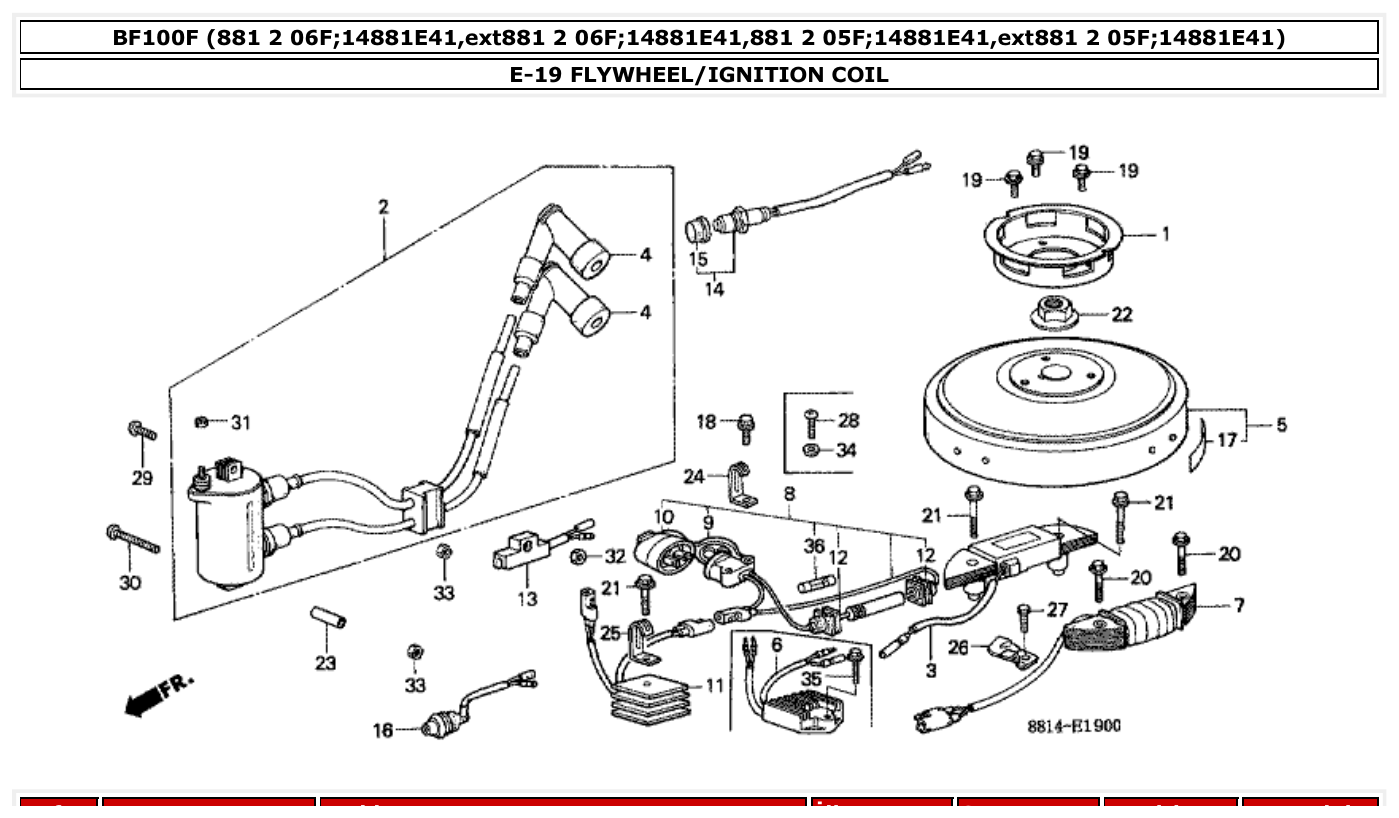

Honda BF100F FLYWHEEL/IGNITION COIL parts diagram
Fig. E-19 — FLYWHEEL/IGNITION COIL
41 items

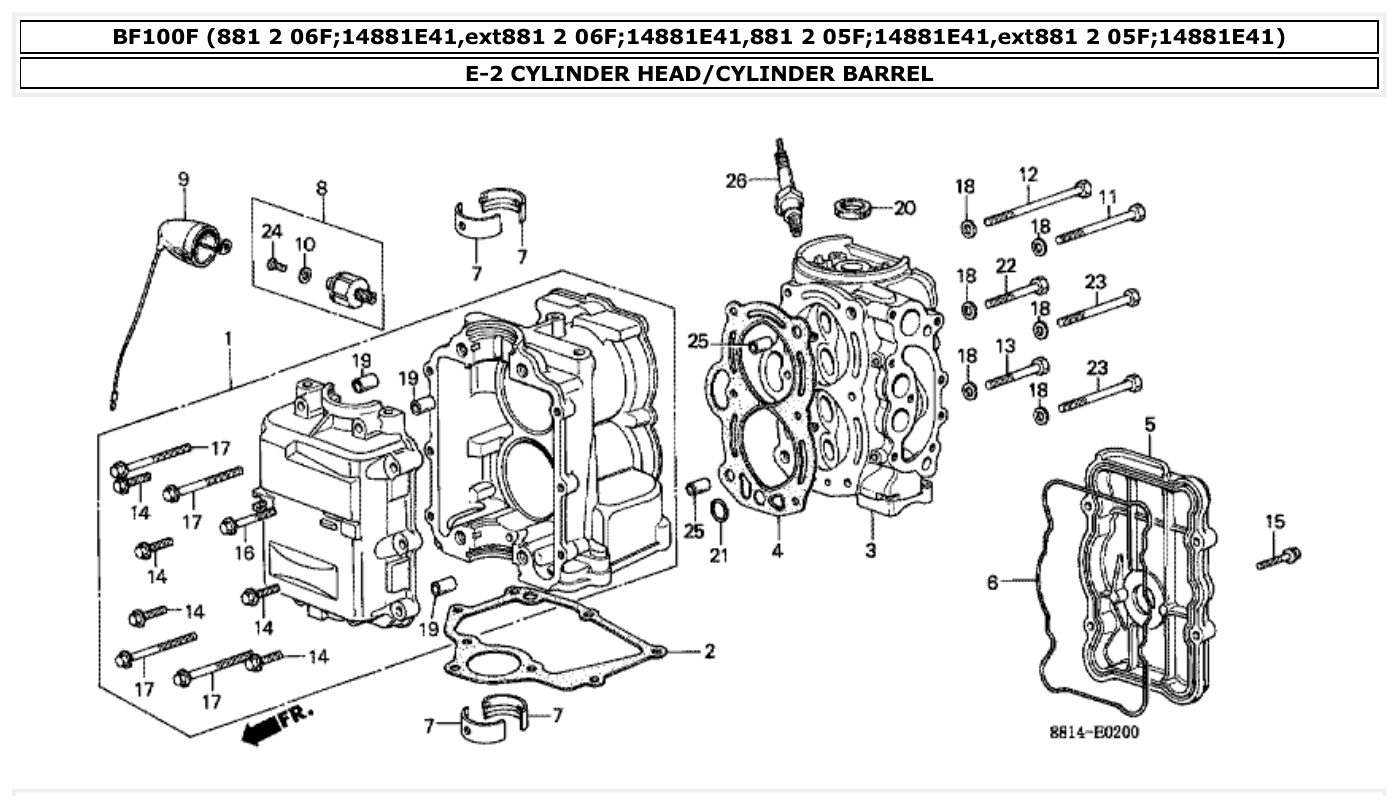

Honda BF100F CYLINDER HEAD/CYLINDER BARREL parts diagram
Fig. E-2 — CYLINDER HEAD/CYLINDER BARREL
28 items

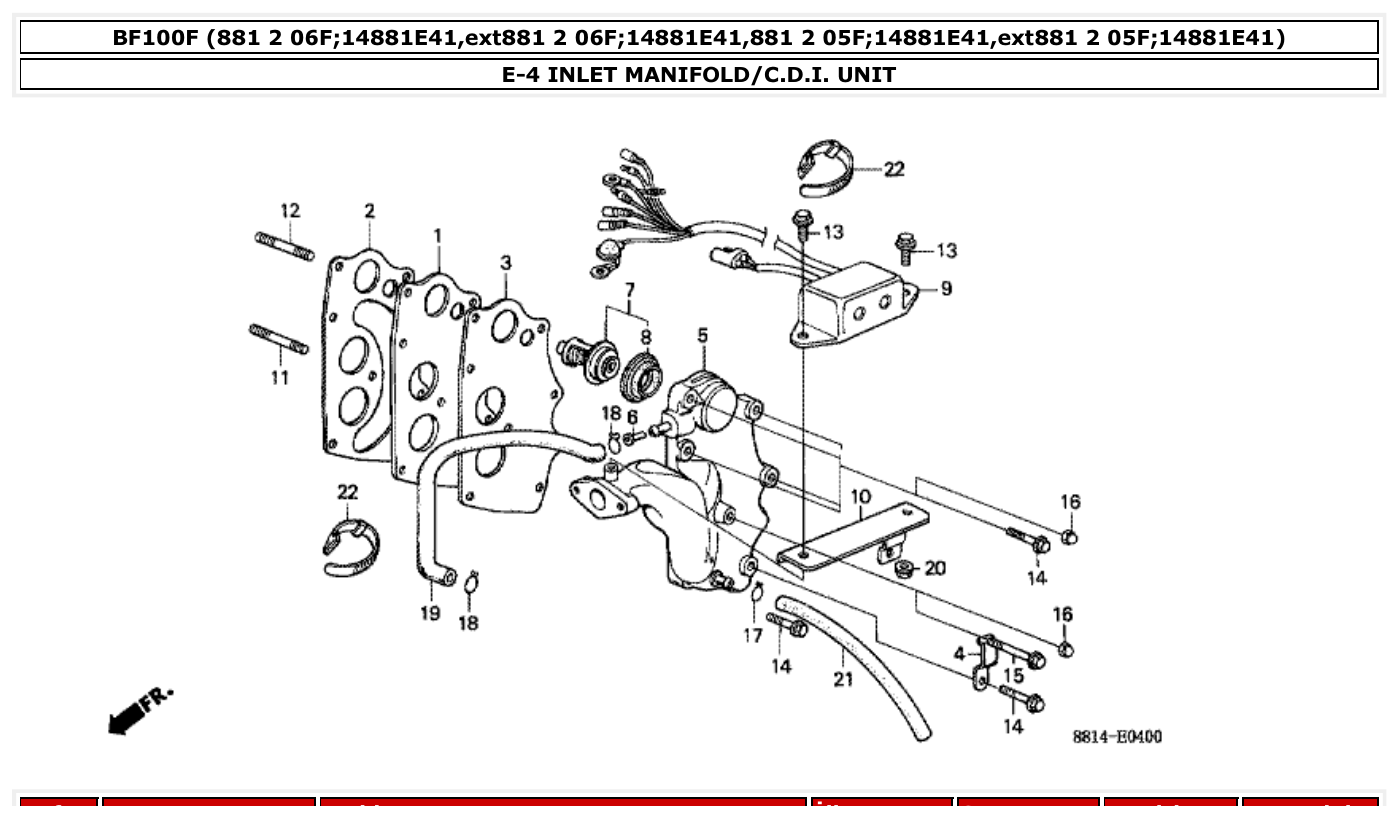

Honda BF100F INLET MANIFOLD/C.D.I. UNIT parts diagram
Fig. E-4 — INLET MANIFOLD/C.D.I. UNIT
20 items

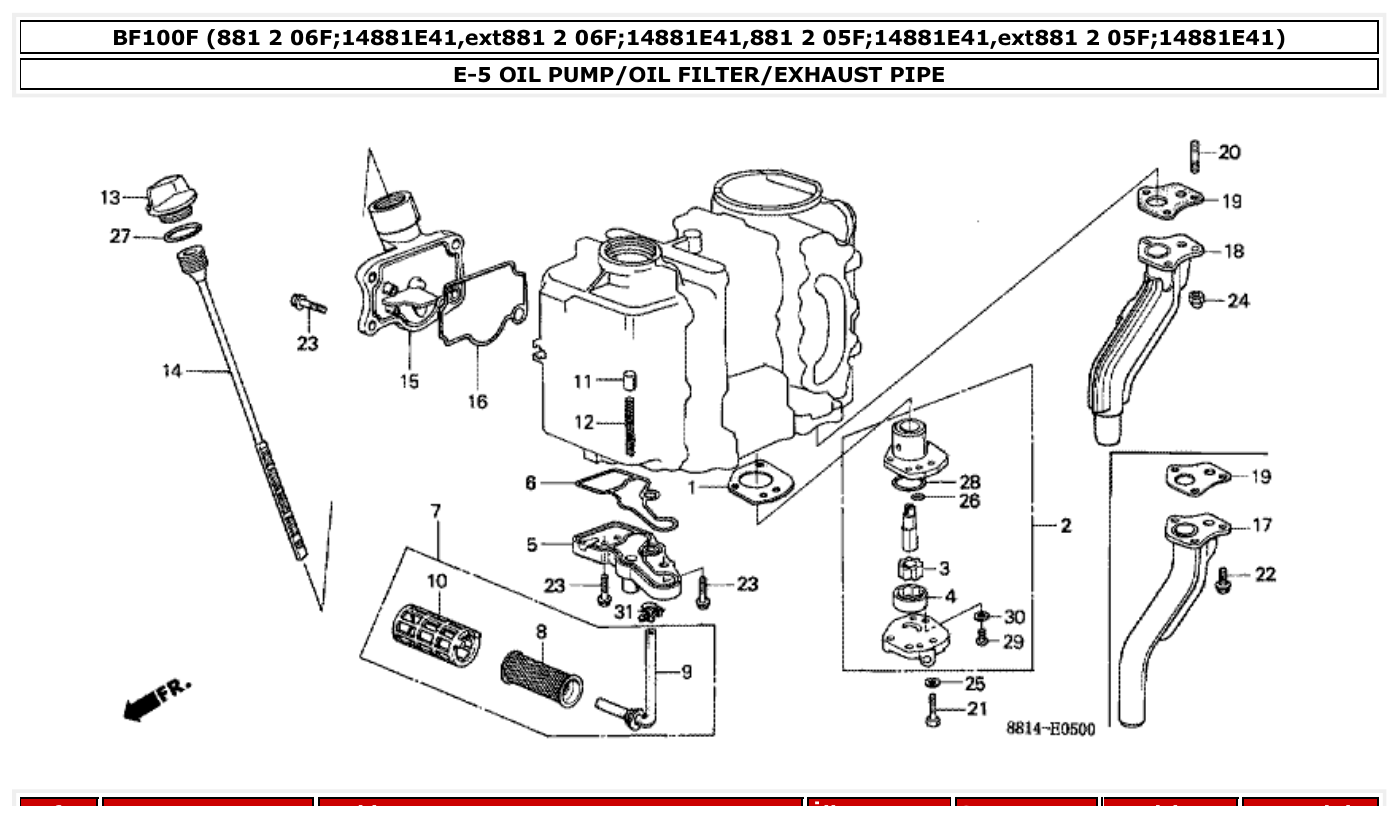

Honda BF100F OIL PUMP/OIL FILTER/EXHAUST PIPE parts diagram
Fig. E-5 — OIL PUMP/OIL FILTER/EXHAUST PIPE
31 items

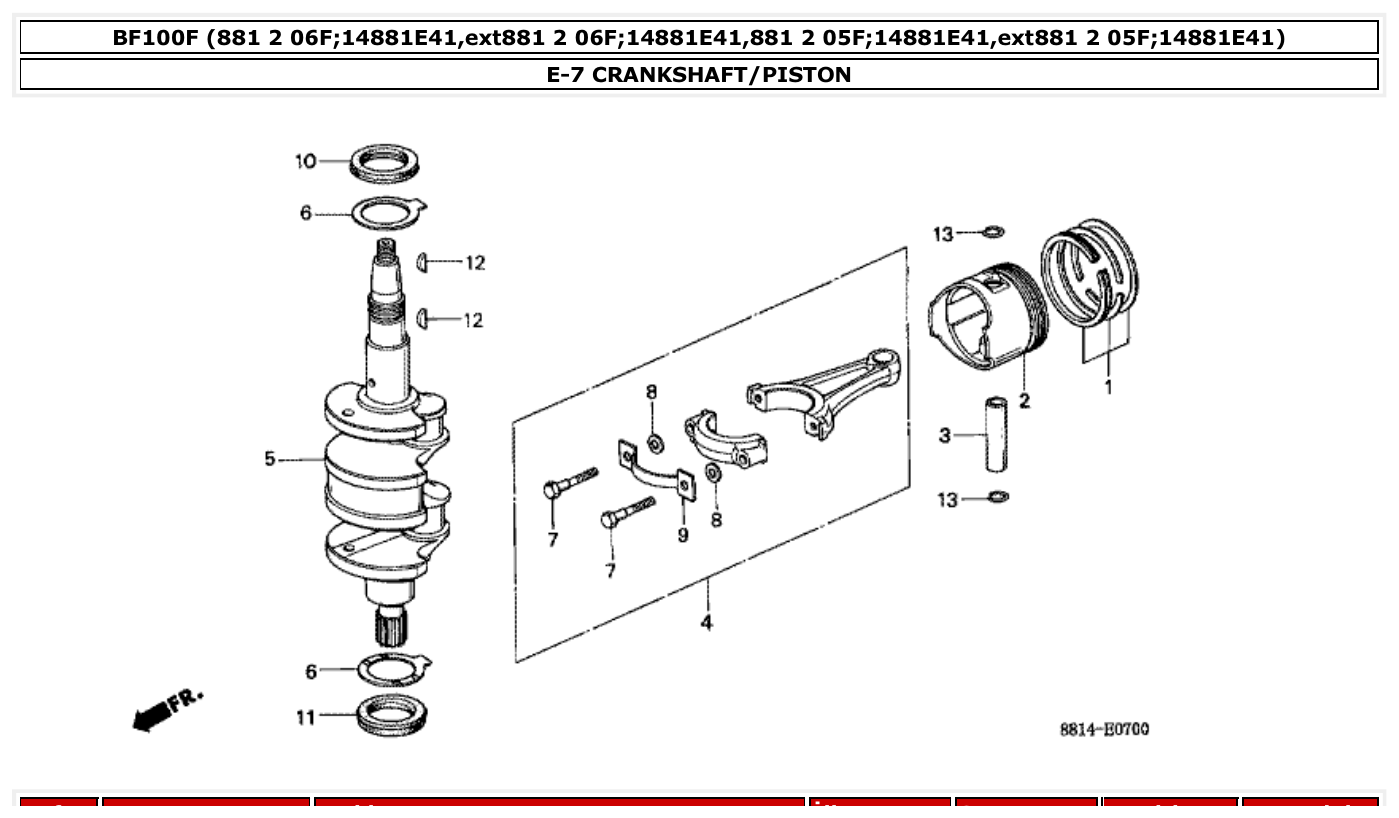

Honda BF100F CRANKSHAFT/PISTON parts diagram
Fig. E-7 — CRANKSHAFT/PISTON
13 items

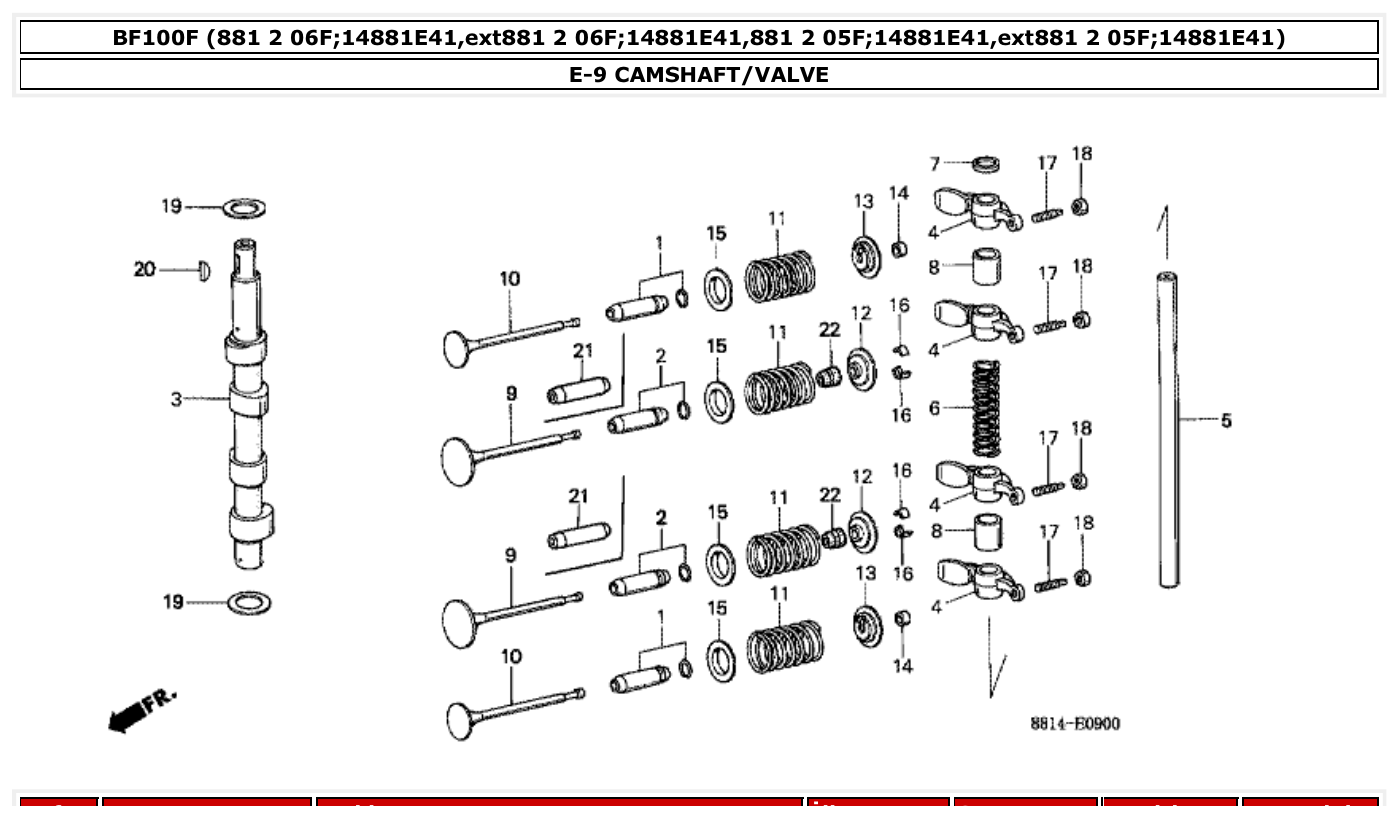

Honda BF100F CAMSHAFT/VALVE parts diagram
Fig. E-9 — CAMSHAFT/VALVE
20 items

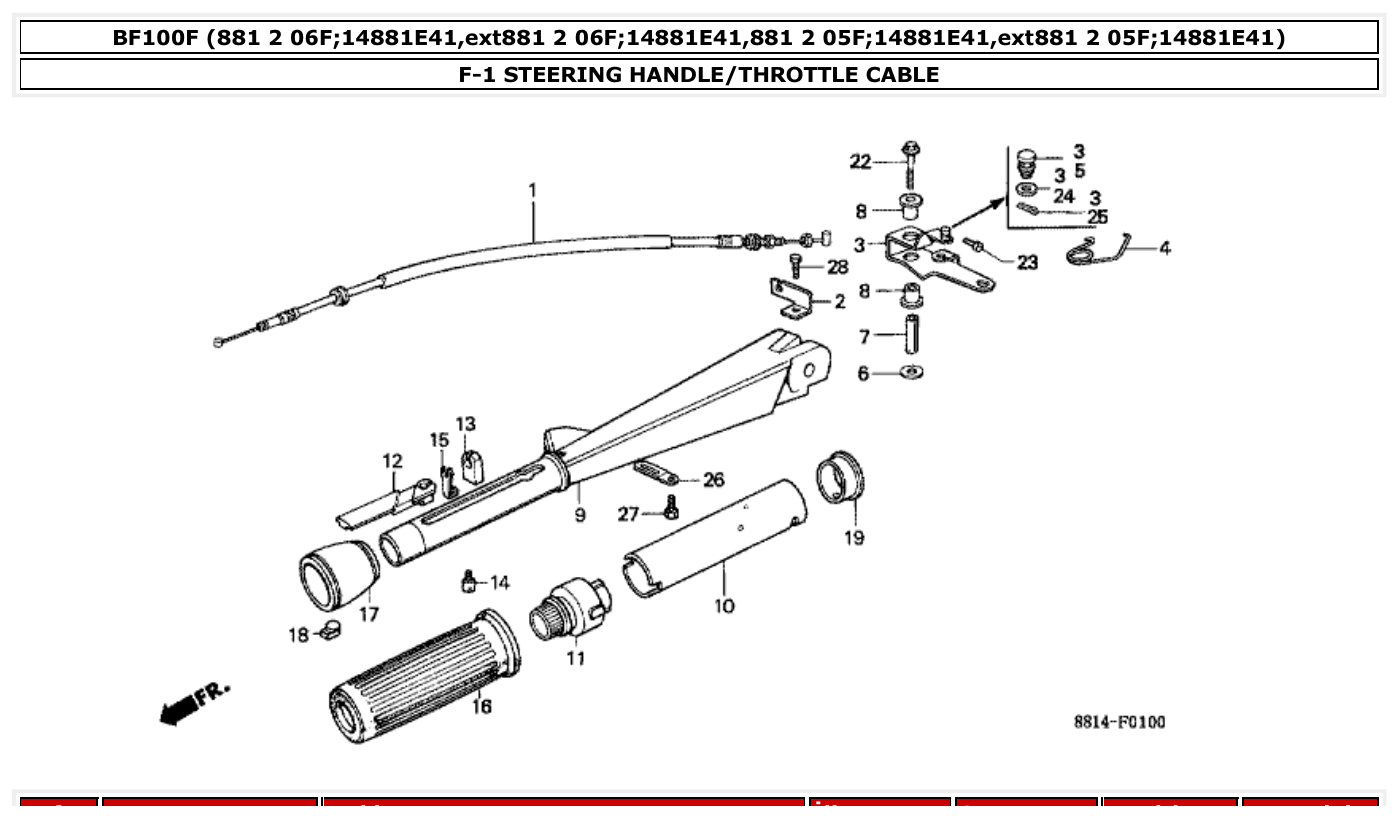

Honda BF100F STEERING HANDLE/THROTTLE CABLE parts diagram
Fig. F-1 — STEERING HANDLE/THROTTLE CABLE
25 items

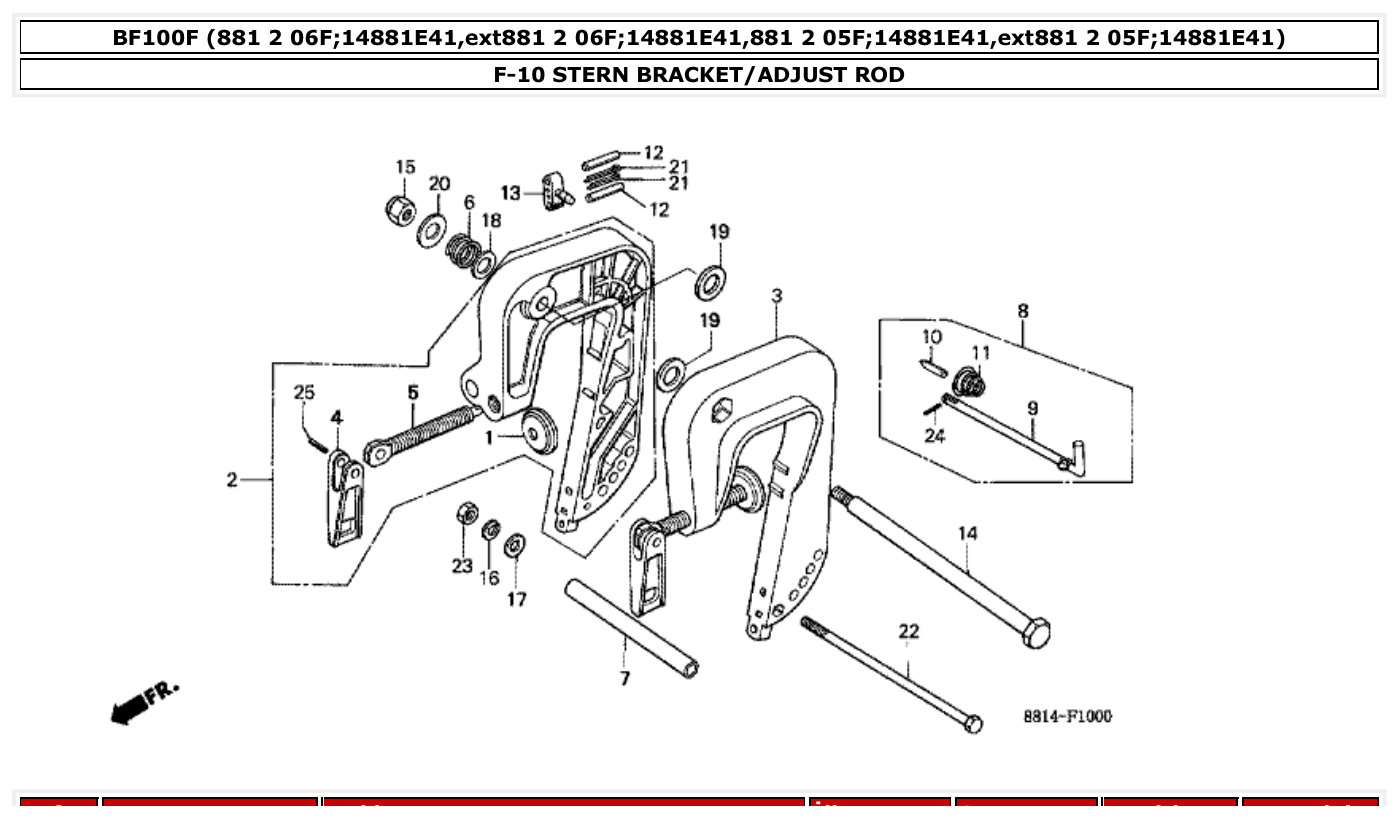

Honda BF100F STERN BRACKET/ADJUST ROD parts diagram
Fig. F-10 — STERN BRACKET/ADJUST ROD
25 items

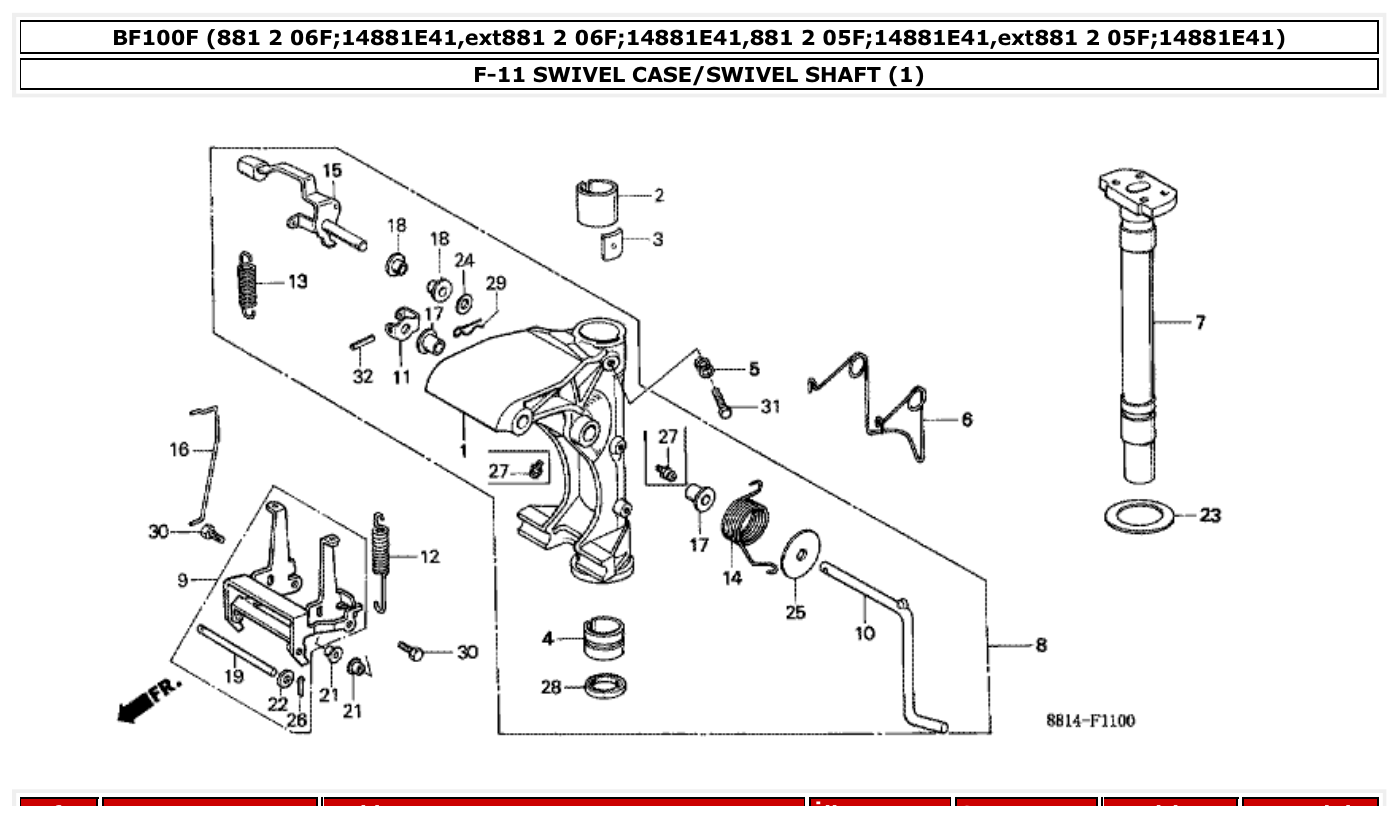

Honda BF100F SWIVEL CASE/SWIVEL SHAFT (1) parts diagram
Fig. F-11 — SWIVEL CASE/SWIVEL SHAFT (1)
32 items

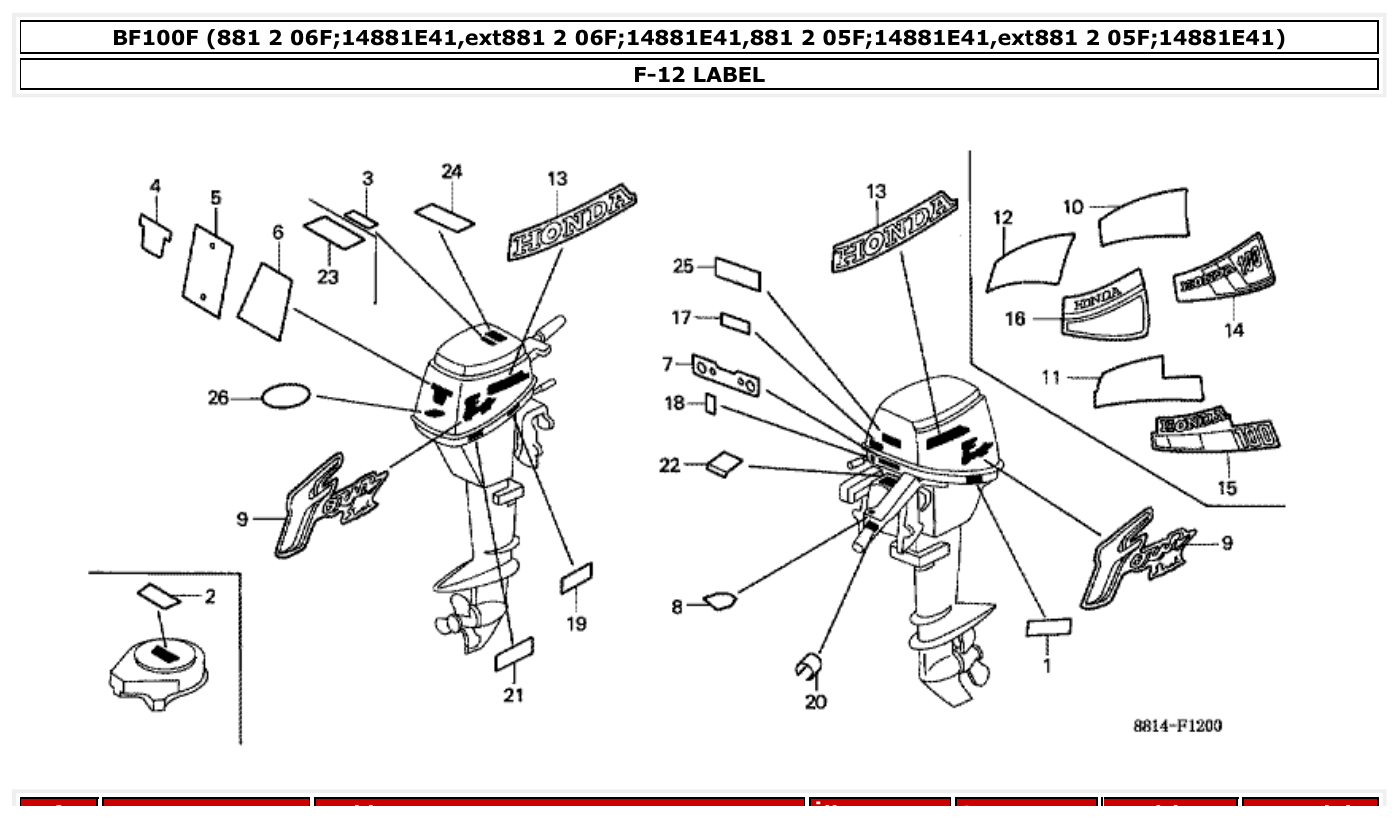

Honda BF100F LABEL parts diagram
Fig. F-12 — LABEL
11 items

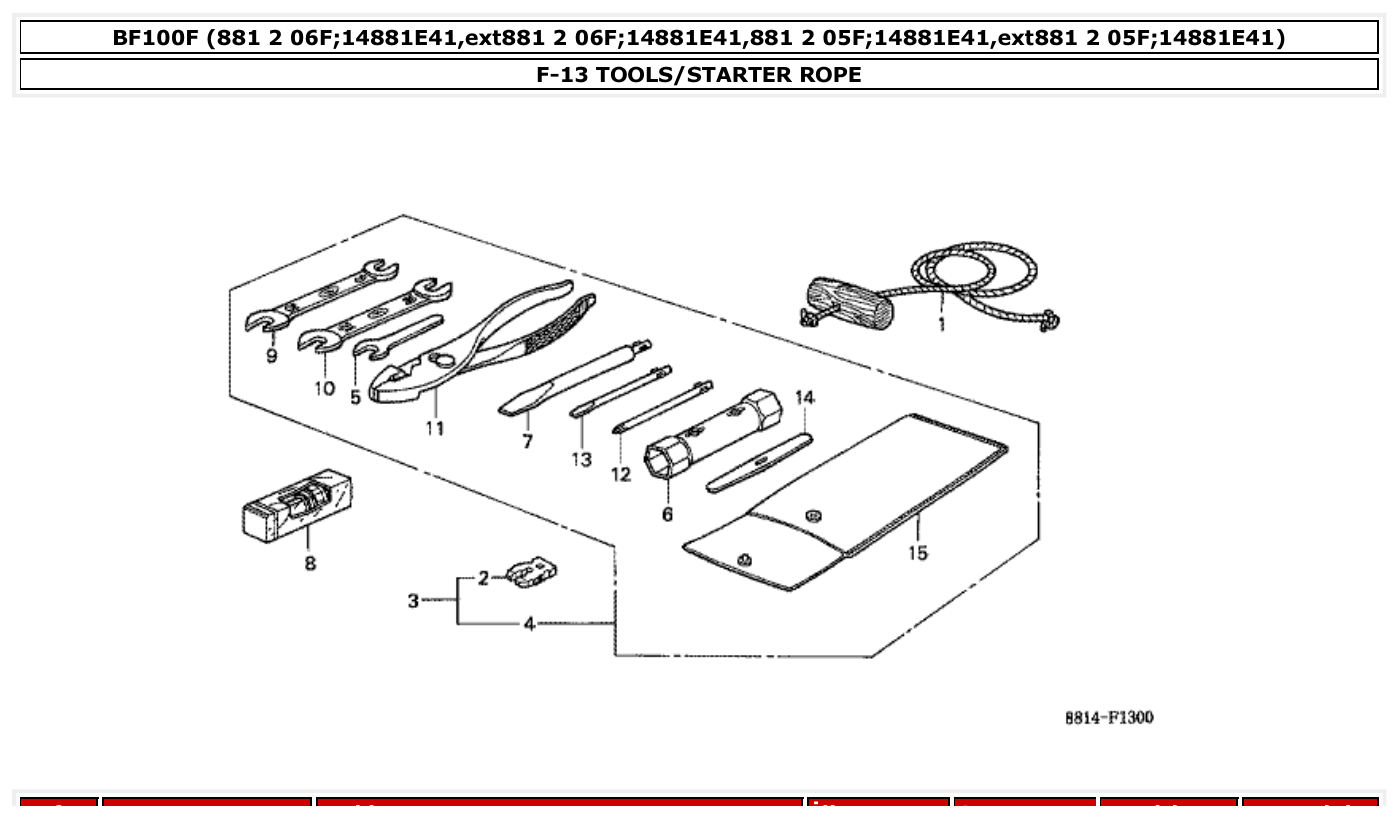

Honda BF100F TOOLS/STARTER ROPE parts diagram
Fig. F-13 — TOOLS/STARTER ROPE
45 items

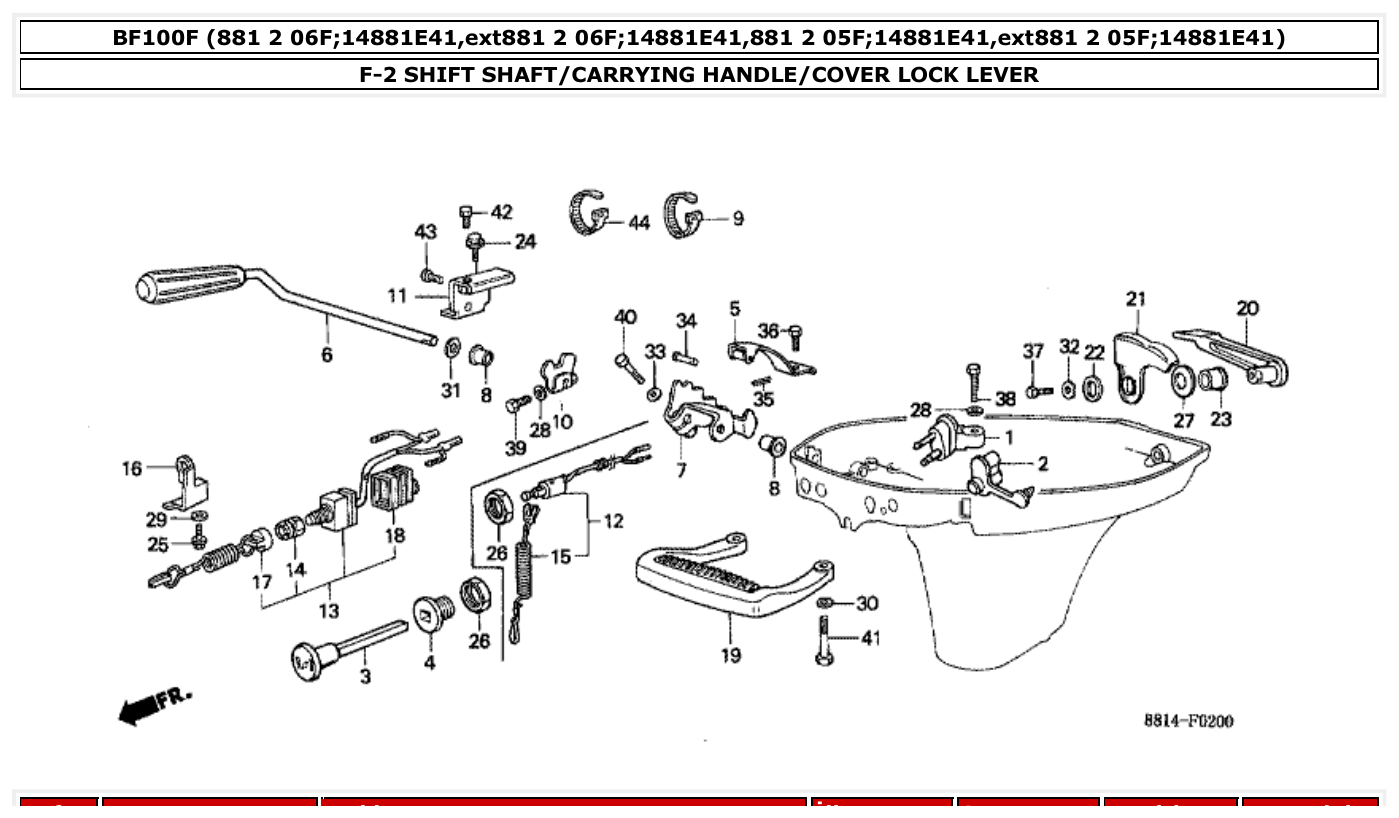

Honda BF100F SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER parts diagram
Fig. F-2 — SHIFT SHAFT/CARRYING HANDLE/COVER LOCK LEVER
33 items

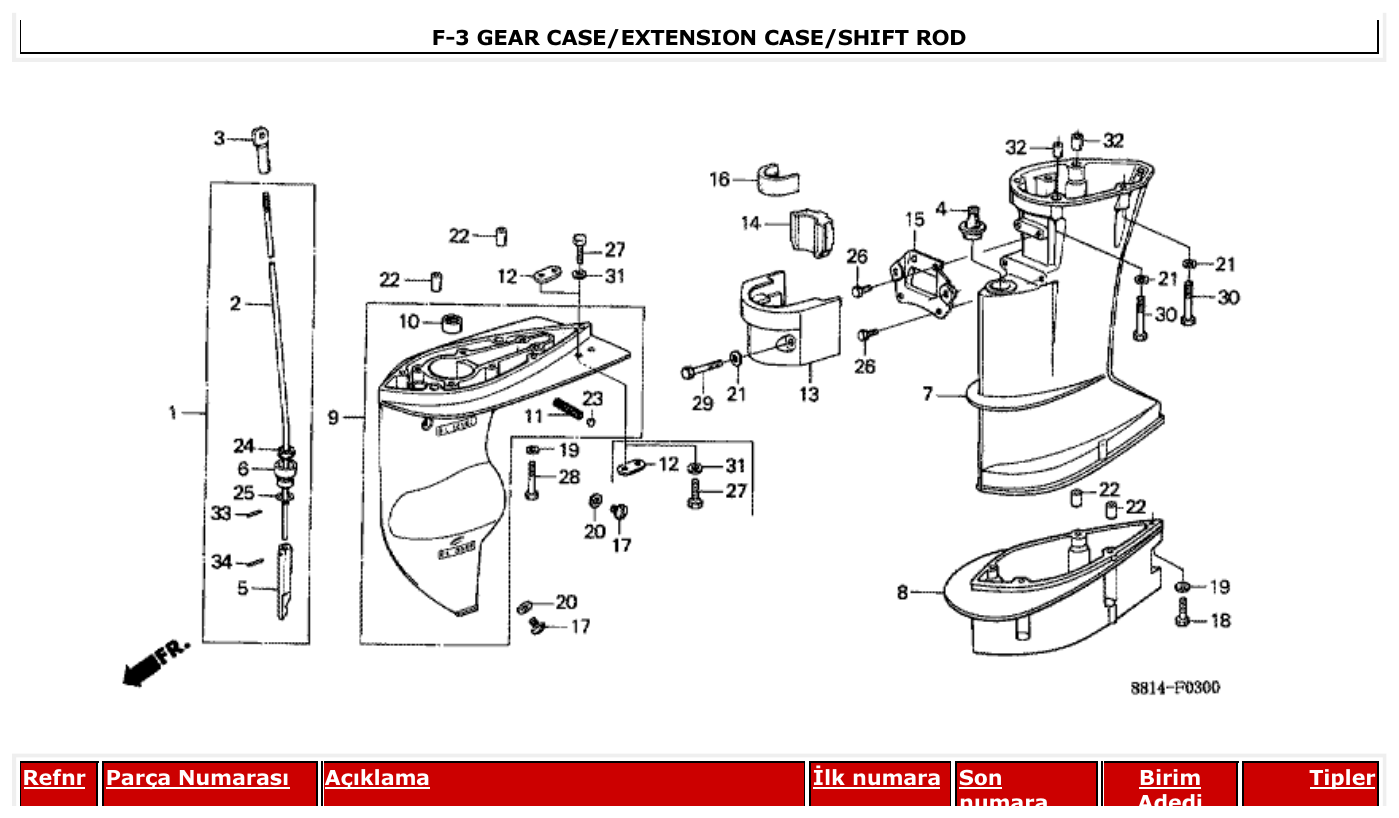

Honda BF100F GEAR CASE/EXTENSION CASE/SHIFT ROD parts diagram
Fig. F-3 — GEAR CASE/EXTENSION CASE/SHIFT ROD
35 items

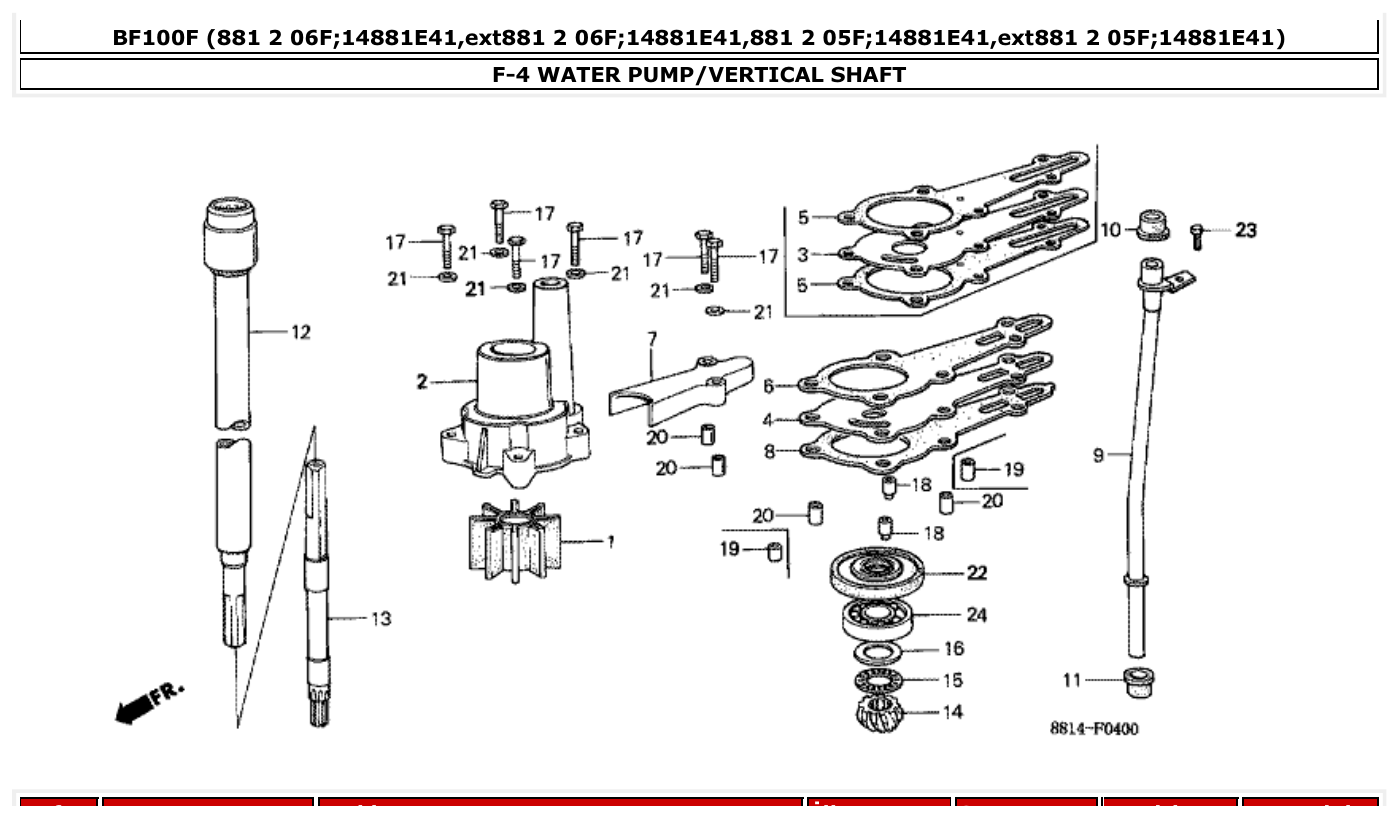

Honda BF100F WATER PUMP/VERTICAL SHAFT parts diagram
Fig. F-4 — WATER PUMP/VERTICAL SHAFT
25 items

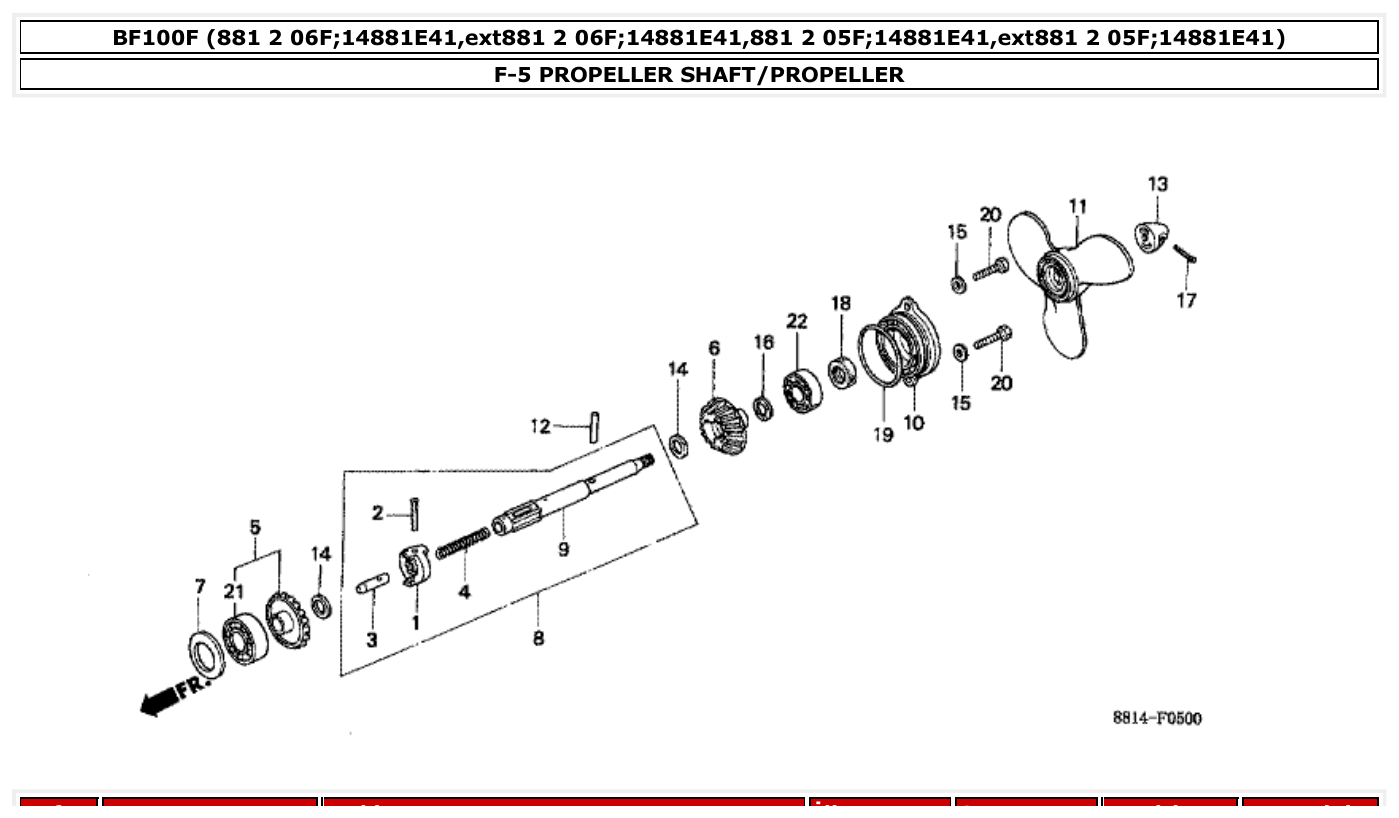

Honda BF100F PROPELLER SHAFT/PROPELLER parts diagram
Fig. F-5 — PROPELLER SHAFT/PROPELLER
25 items

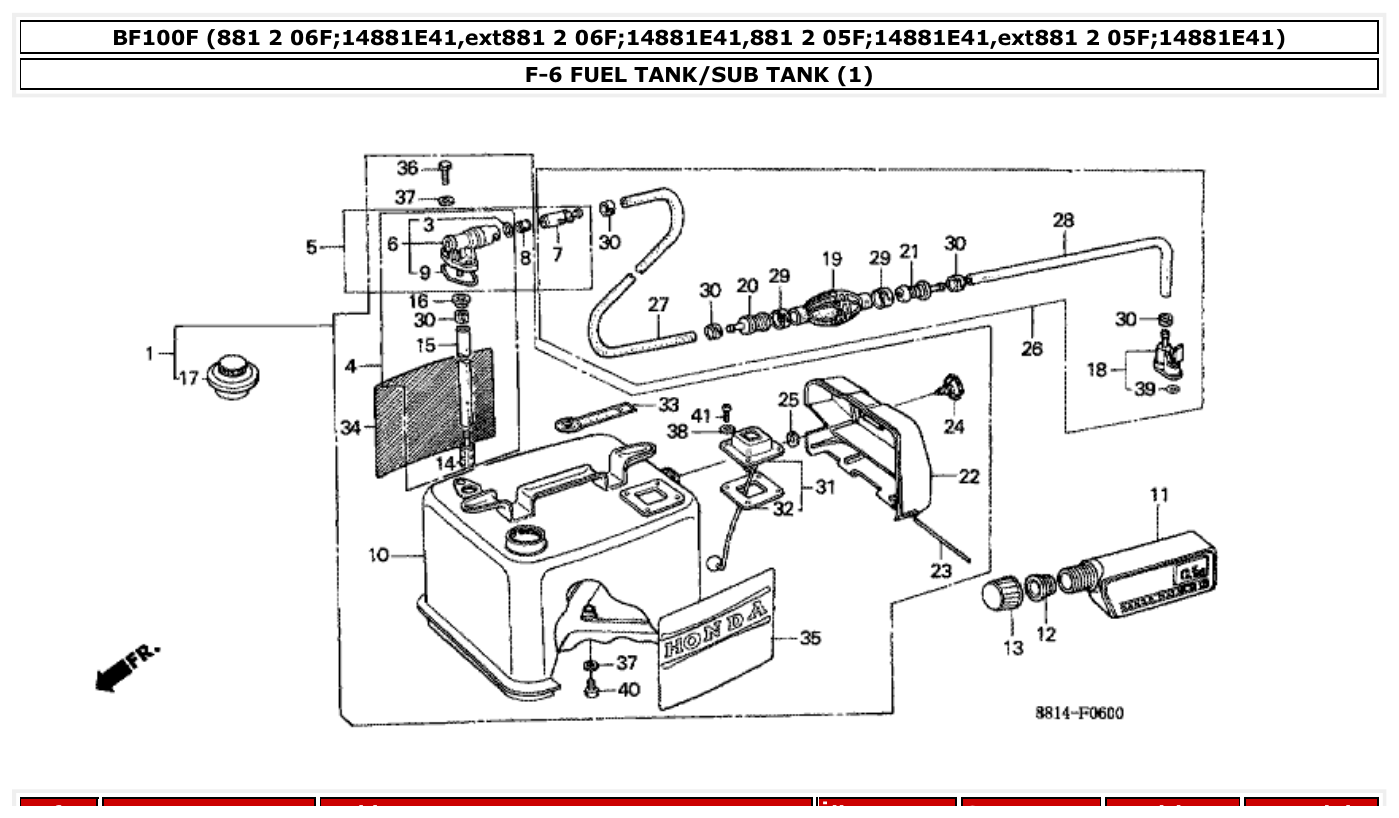

Honda BF100F FUEL TANK/SUB TANK (1) parts diagram
Fig. F-6 — FUEL TANK/SUB TANK (1)
49 items

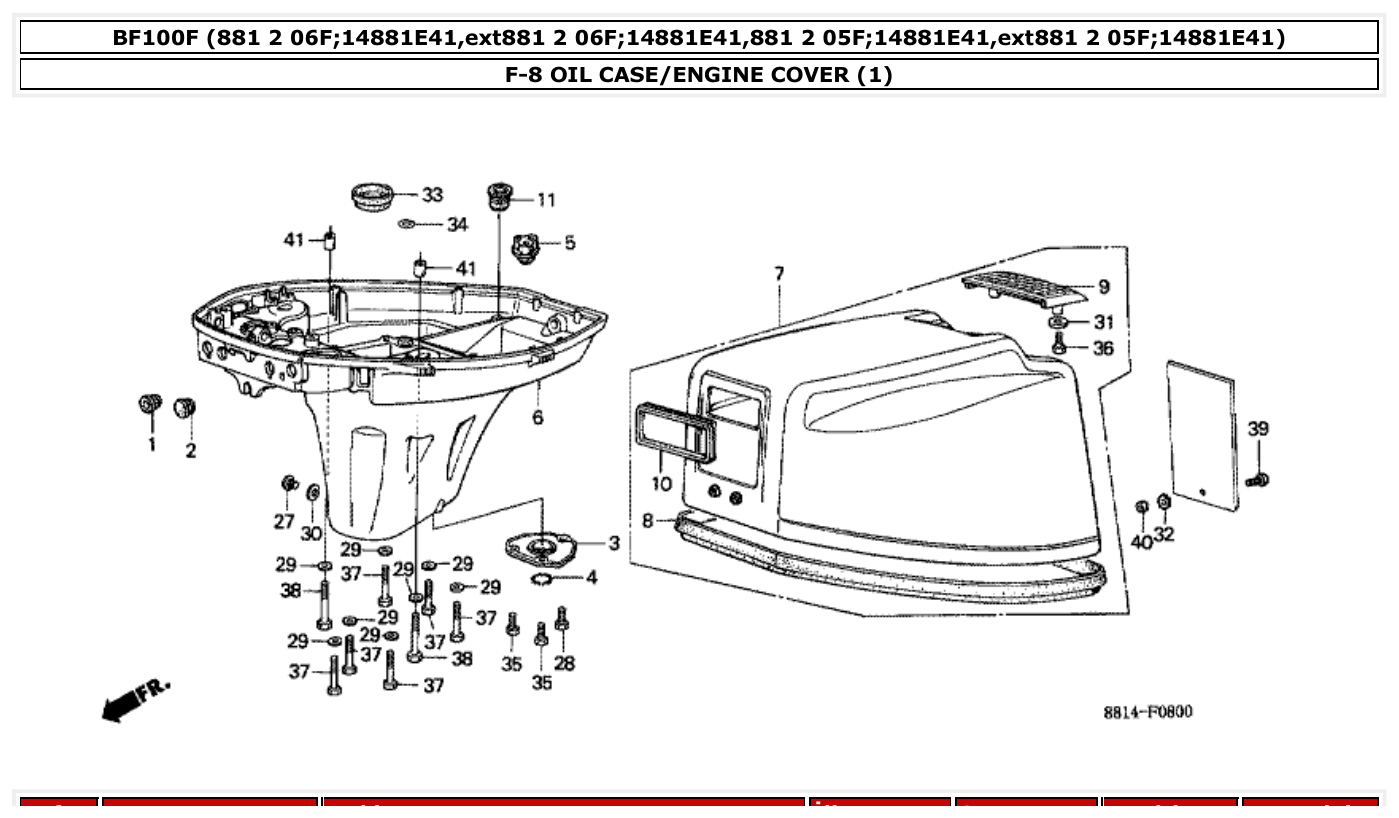

Honda BF100F OIL CASE/ENGINE COVER (1) parts diagram
Fig. F-8 — OIL CASE/ENGINE COVER (1)
27 items

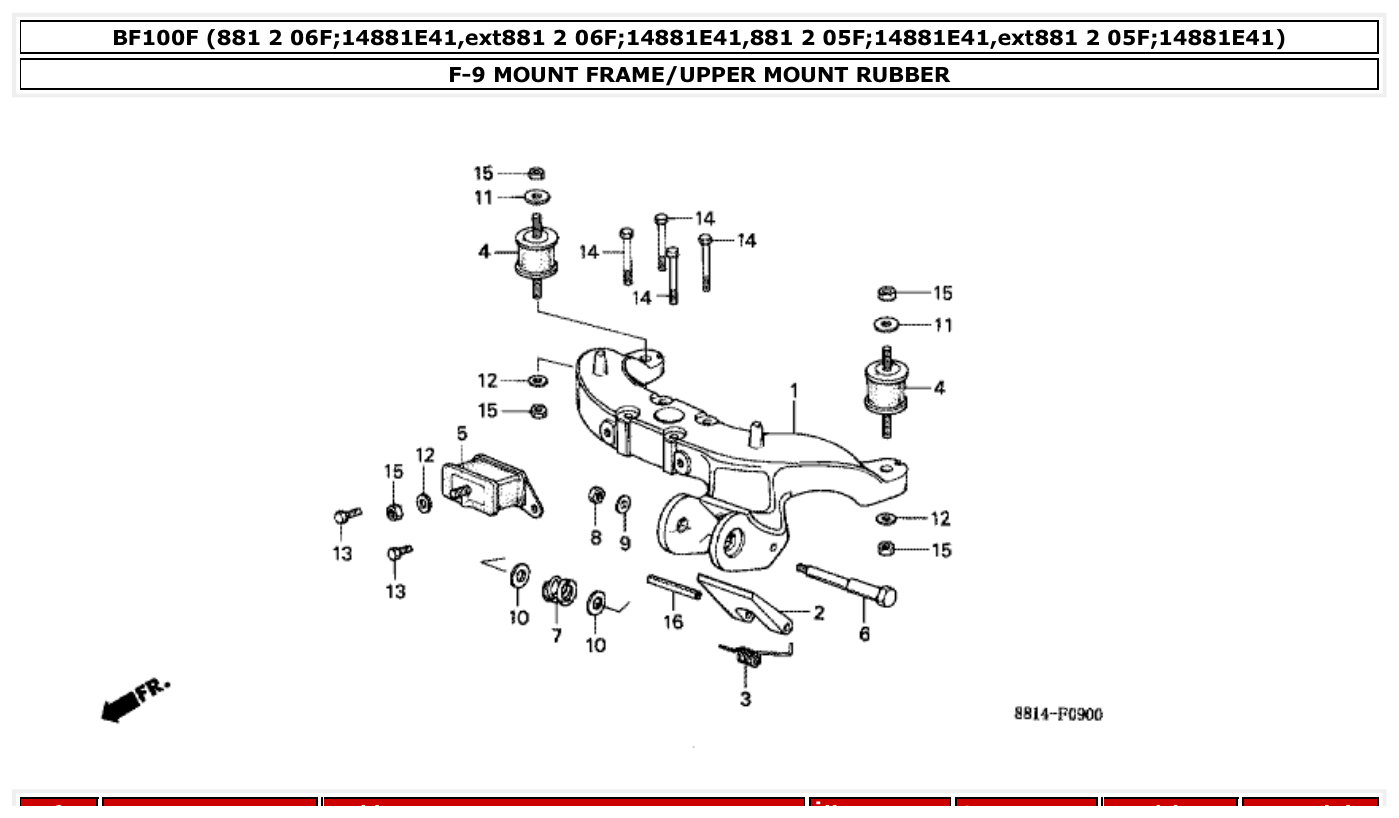

Honda BF100F MOUNT FRAME/UPPER MOUNT RUBBER parts diagram
Fig. F-9 — MOUNT FRAME/UPPER MOUNT RUBBER
16 items
