Honda BF225A2 Parts Catalog

Honda BF225A2 Outboard parts and diagrams

Honda BF225A2 outboard parts catalog includes CYLINDER HEAD COVER, TIMING BELT, TIMING BELT COVER, FUEL PIPE/INJECTOR, INTAKE MANIFOLD, THROTTLE BODY, VAPOR SEPARATOR ASSY., PIPING, A.C. GENERATOR, SPARK PLUG, ELECTRONIC CONTROL UNIT, STARTER MOTOR, CYLINDER BLOCK, CRANKCASE, EXHAUST MANIFOLD/THERMOSTAT, OIL PUMP/FLYWHEEL, OIL PAN, MOUNT CASE BOLT. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

12 linked store products are available across 42 catalog sections. 1664 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Honda BF225A2 CYLINDER HEAD COVER parts diagram

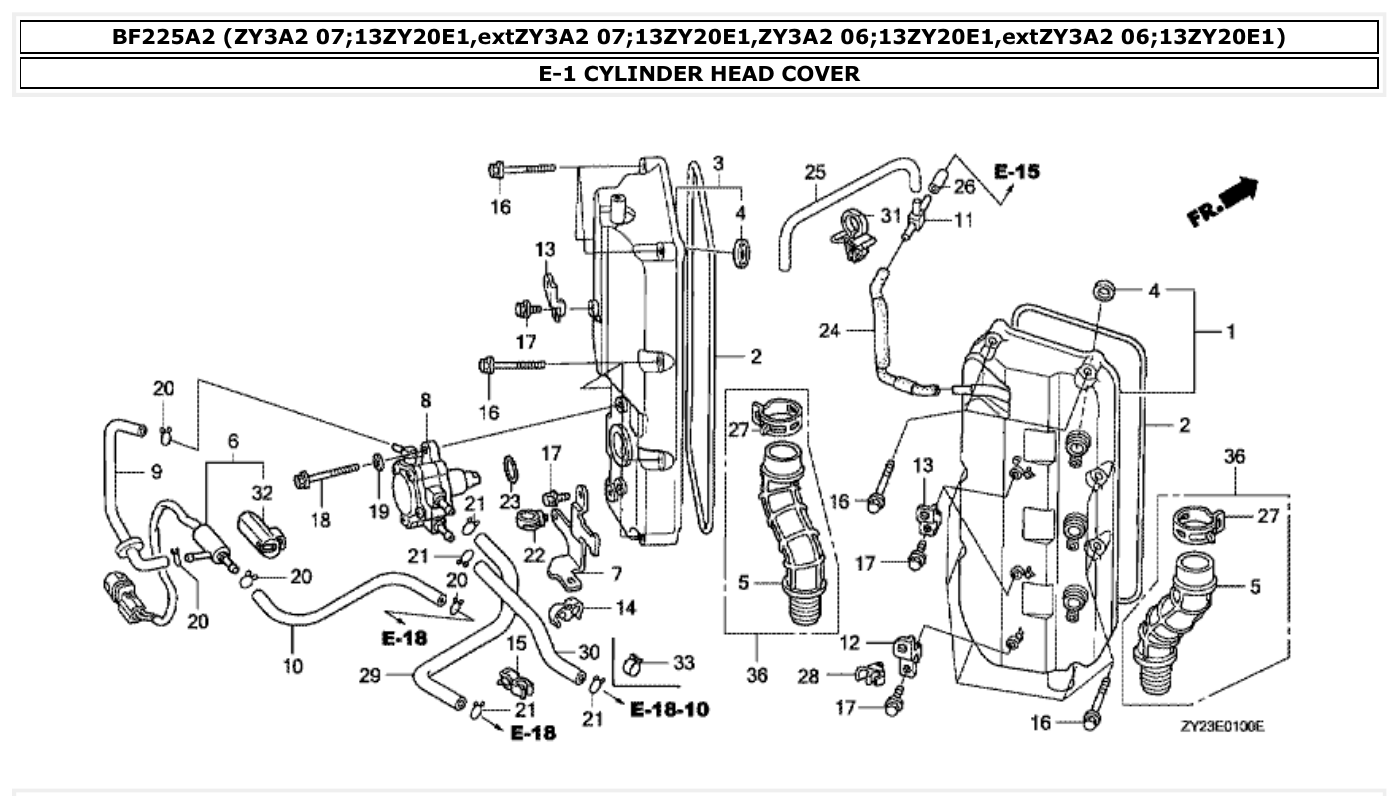

Fig. E-1 — CYLINDER HEAD COVER
36 items
Honda BF225A2 TIMING BELT parts diagram

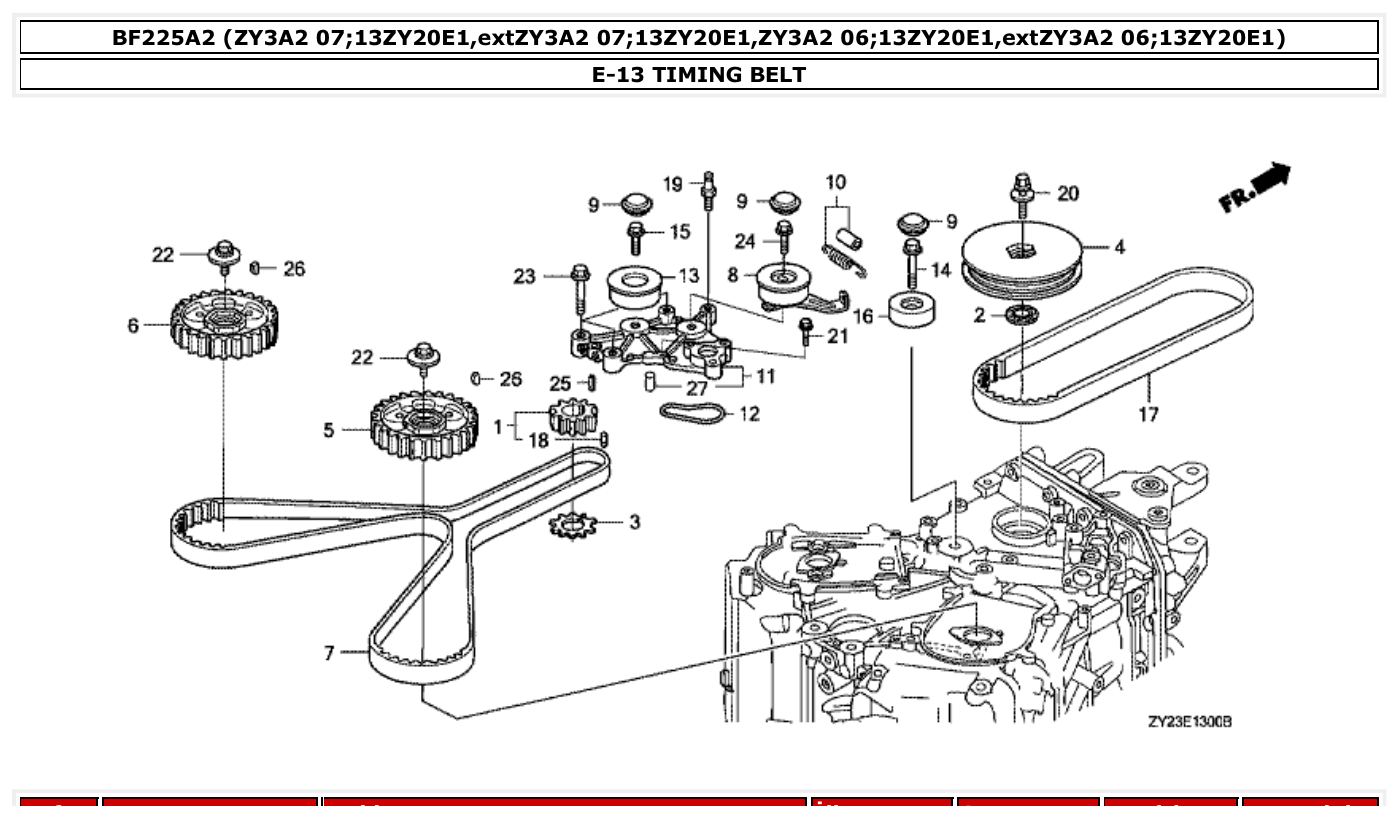

Fig. E-13 — TIMING BELT
29 items

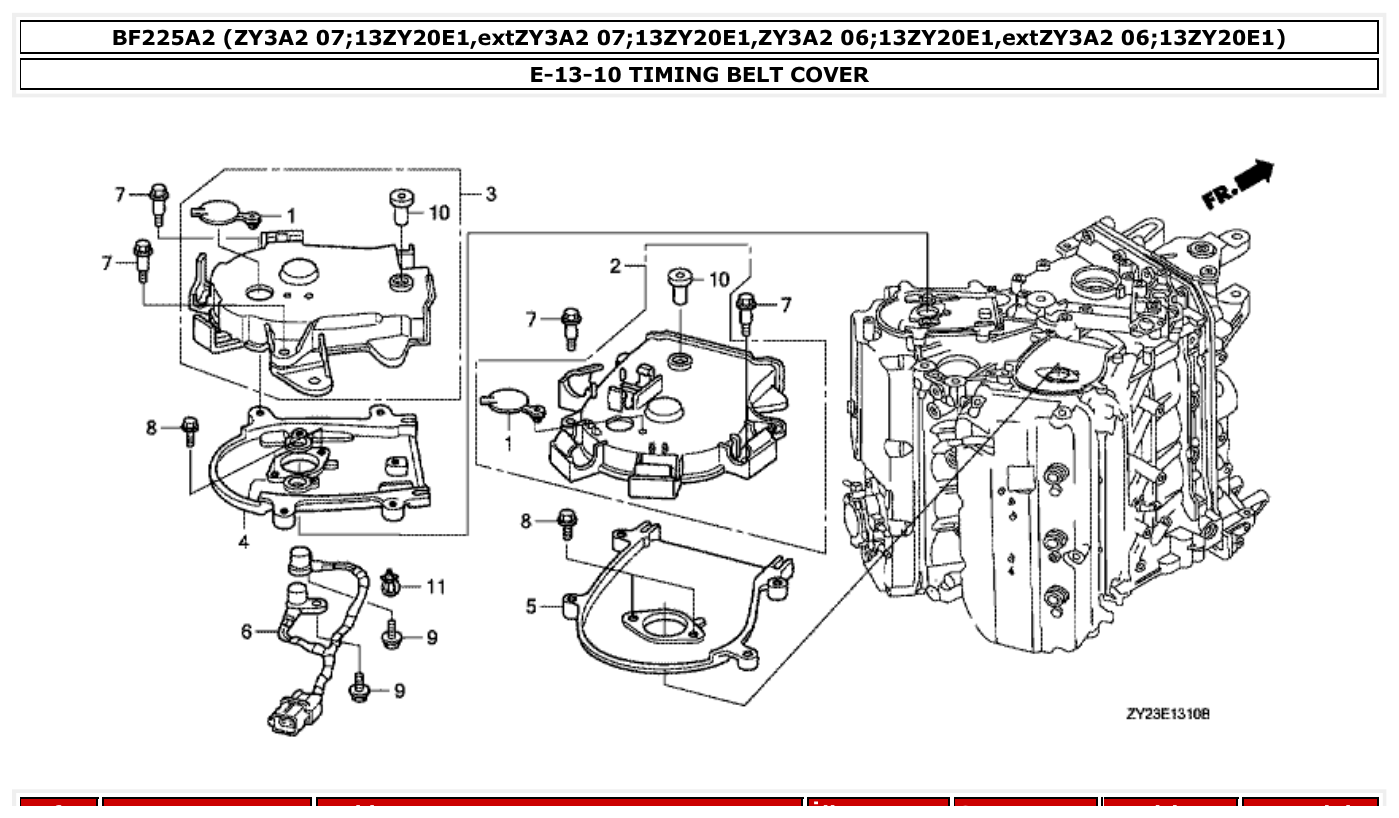

Honda BF225A2 TIMING BELT COVER parts diagram
Fig. E-13-10 — TIMING BELT COVER
12 items

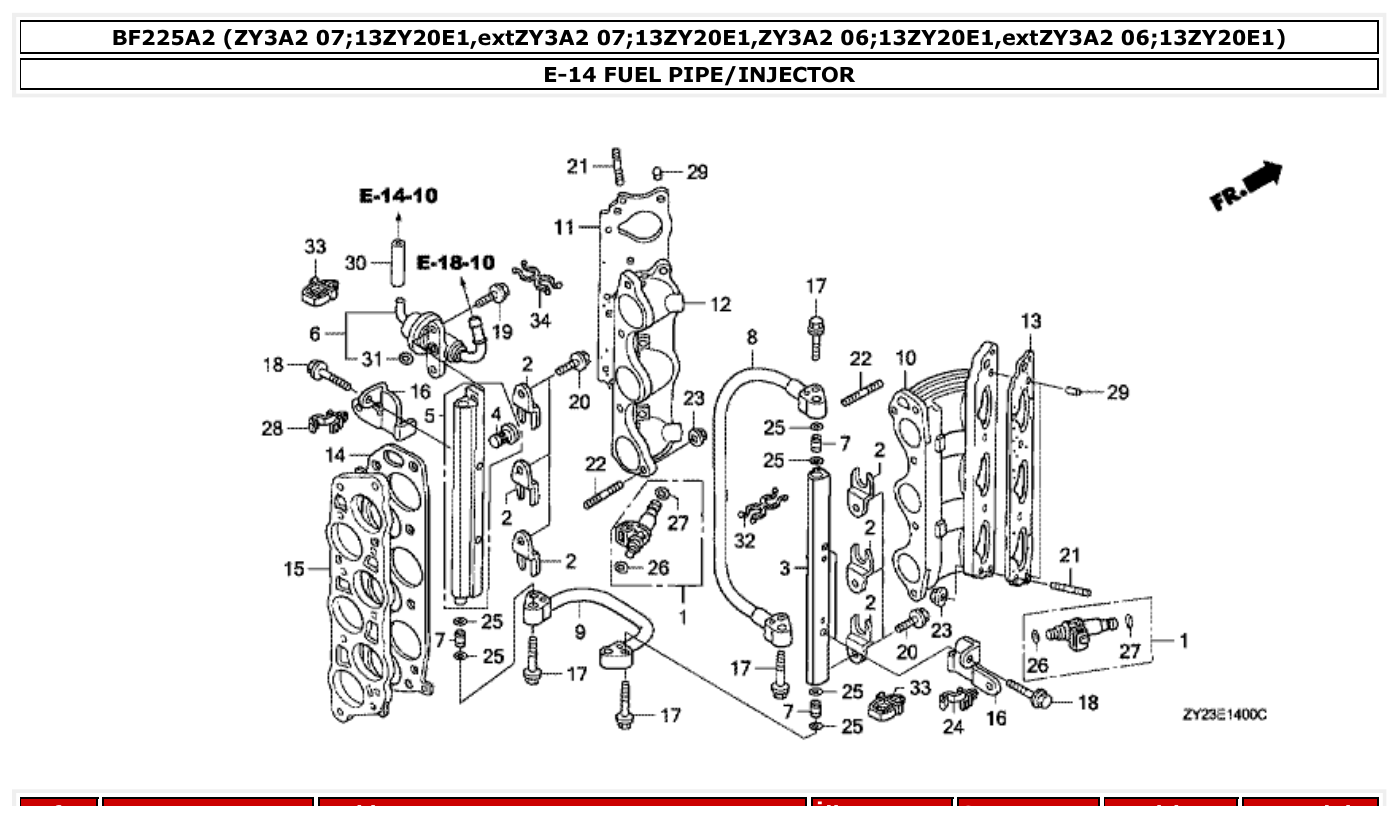

Honda BF225A2 FUEL PIPE/INJECTOR parts diagram
Fig. E-14 — FUEL PIPE/INJECTOR
33 items
Honda BF225A2 INTAKE MANIFOLD parts diagram

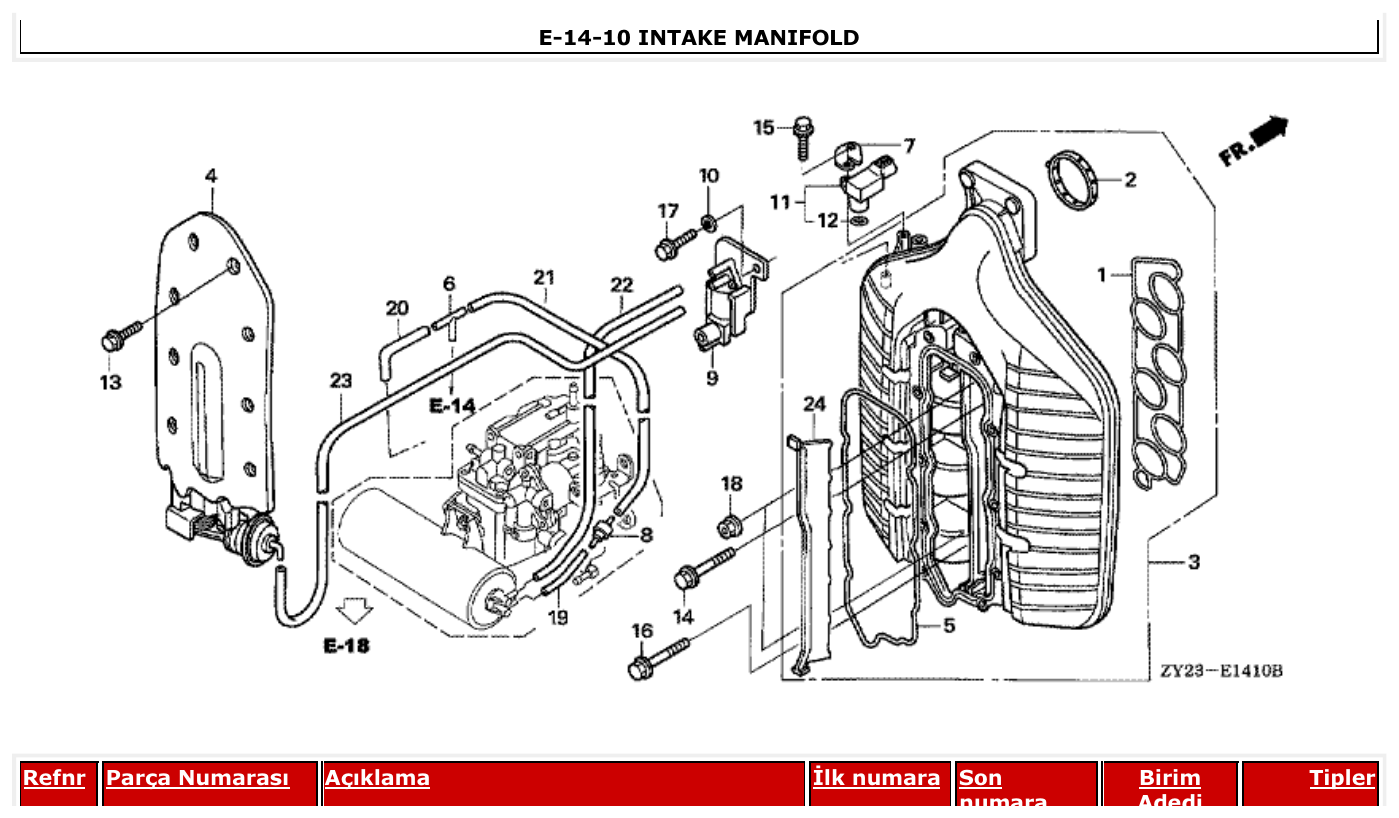

Fig. E-14-10 — INTAKE MANIFOLD
23 items

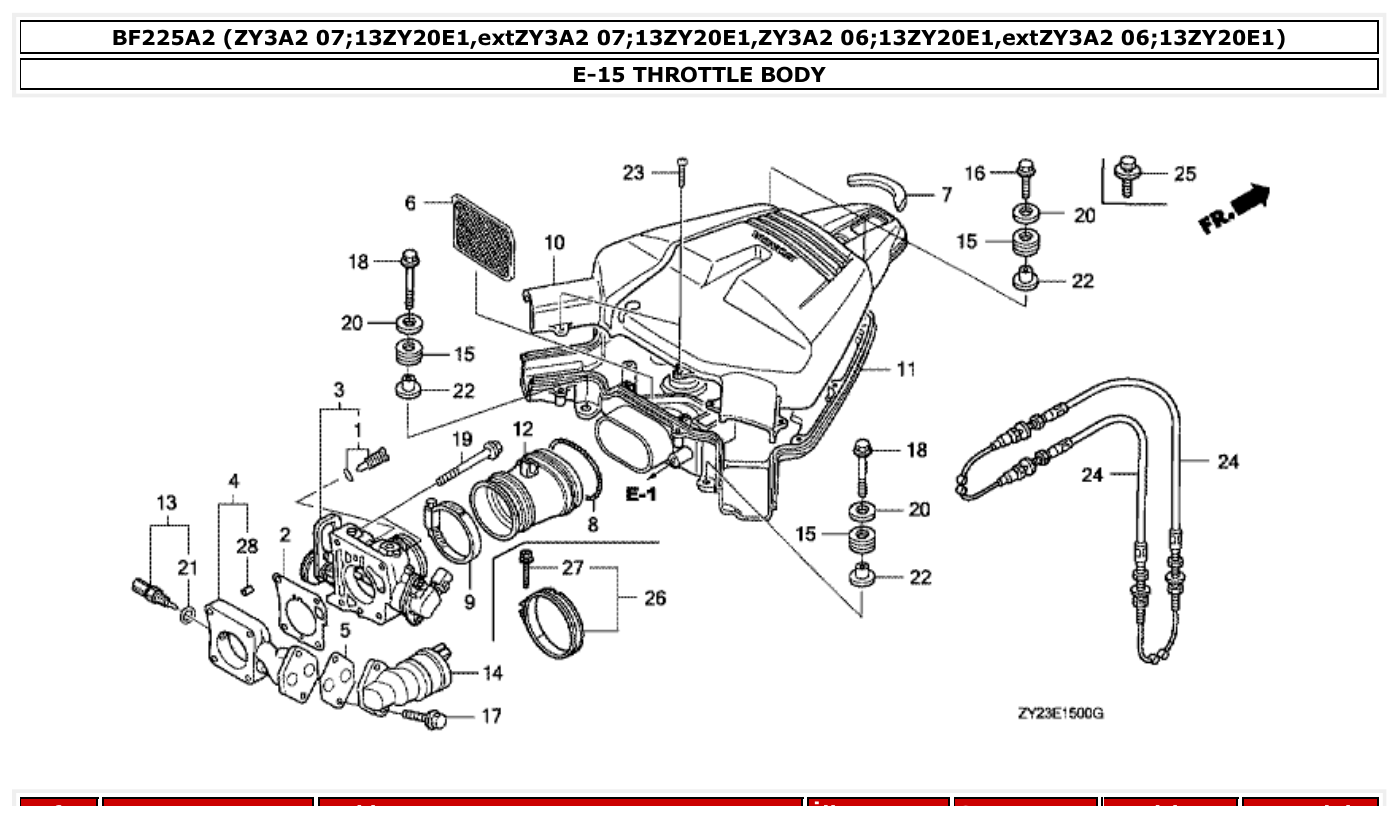

Honda BF225A2 THROTTLE BODY parts diagram
Fig. E-15 — THROTTLE BODY
28 items
Honda BF225A2 VAPOR SEPARATOR ASSY. parts diagram

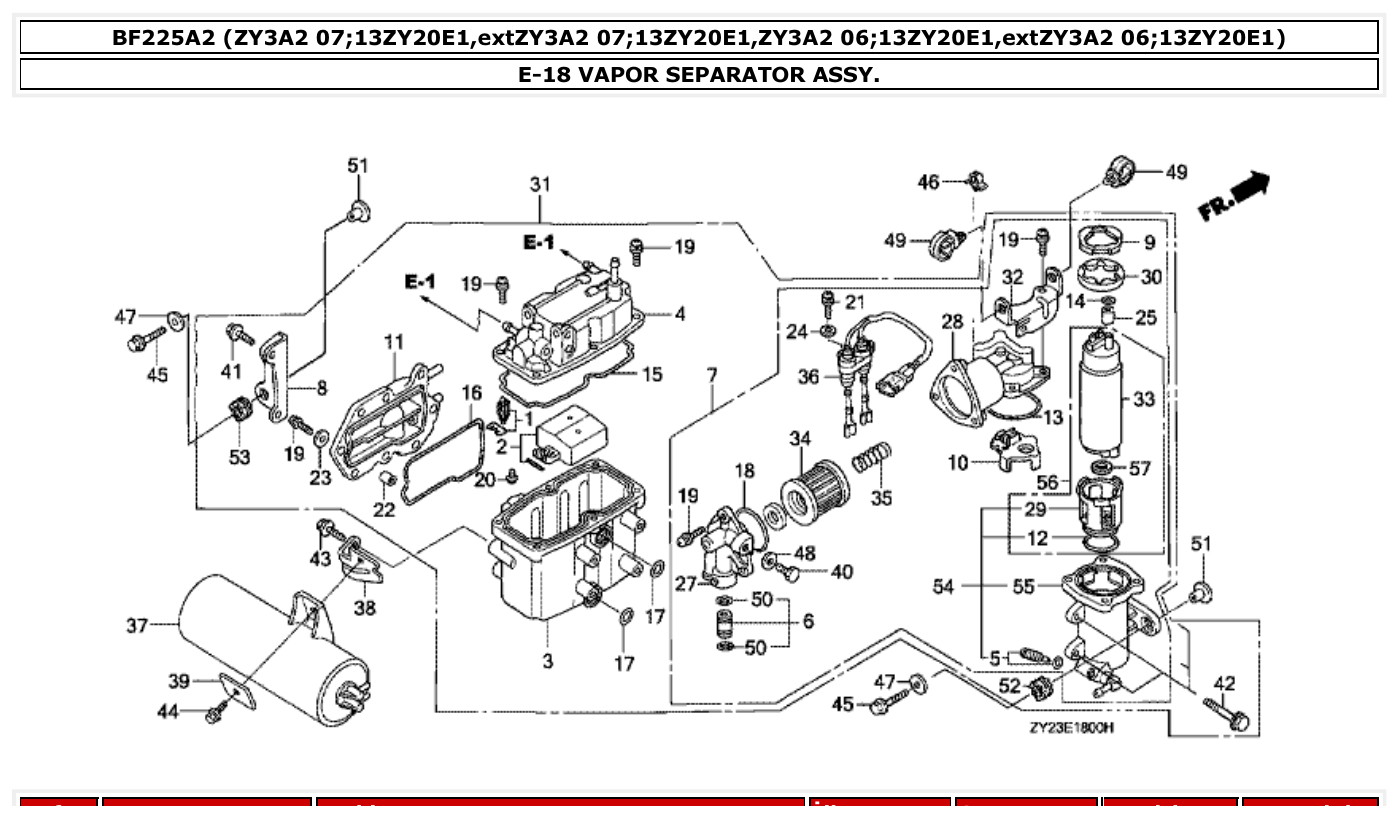

Fig. E-18 — VAPOR SEPARATOR ASSY.
56 items

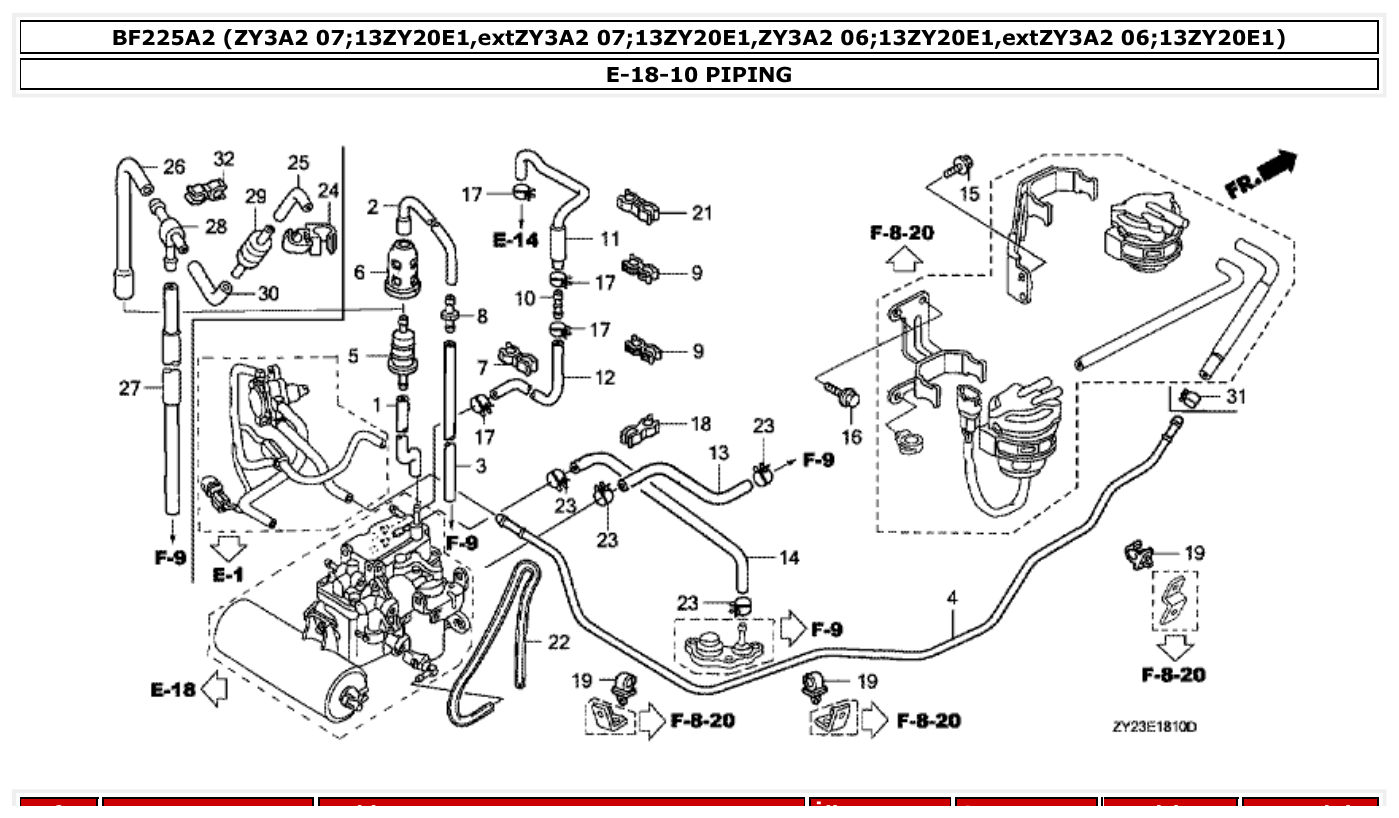

Honda BF225A2 PIPING parts diagram
Fig. E-18-10 — PIPING
31 items
Honda BF225A2 A.C. GENERATOR parts diagram

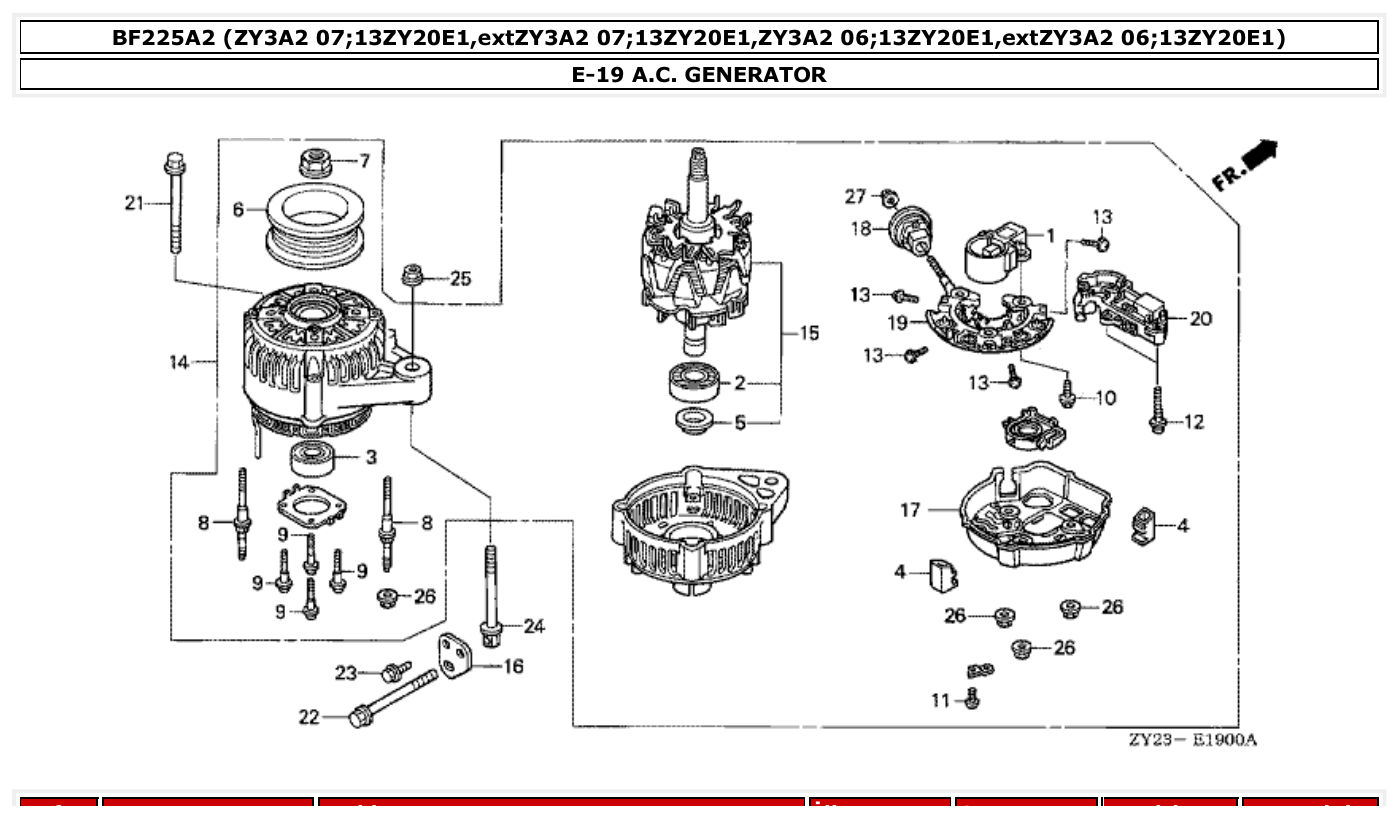

Fig. E-19 — A.C. GENERATOR
28 items
Honda BF225A2 SPARK PLUG parts diagram

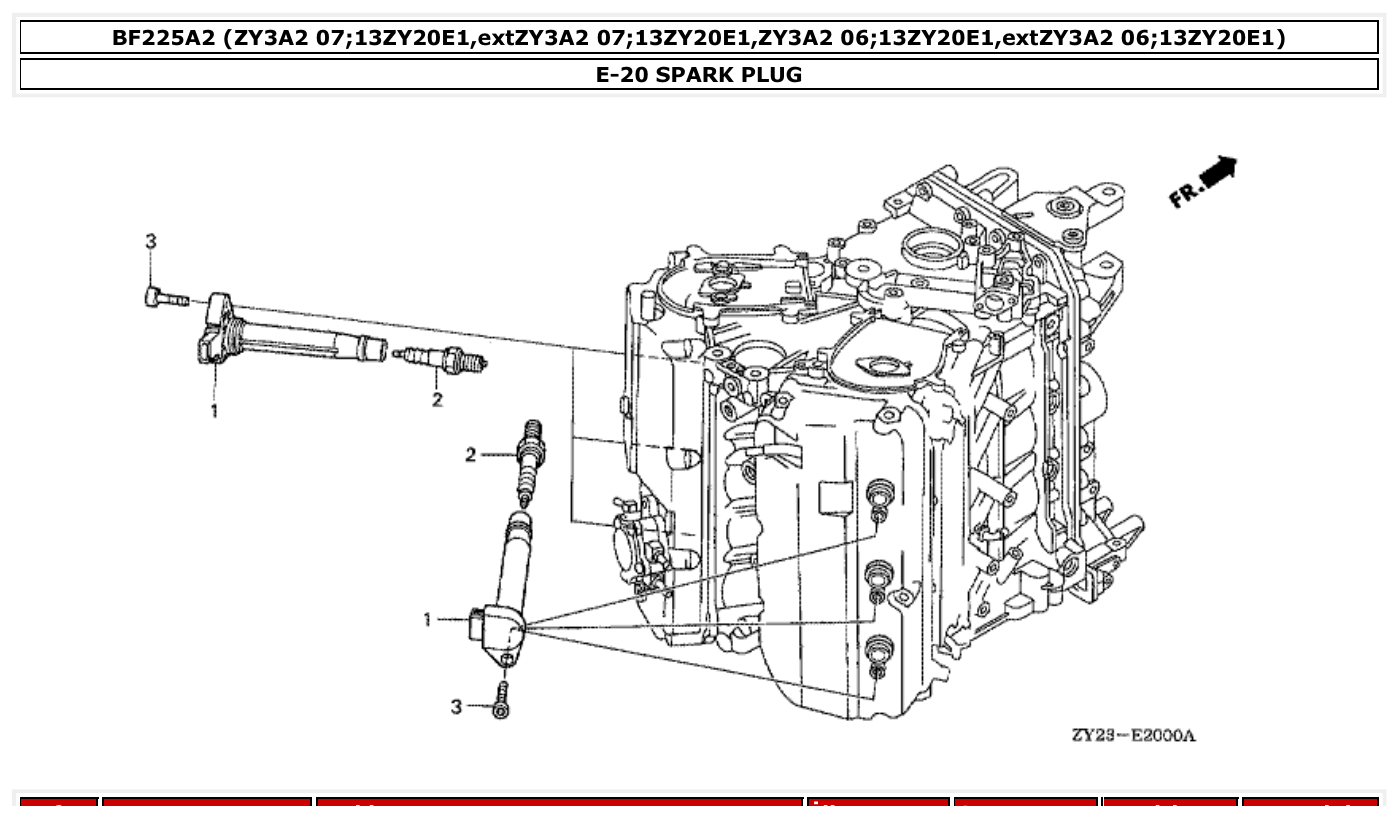

Fig. E-20 — SPARK PLUG
4 items

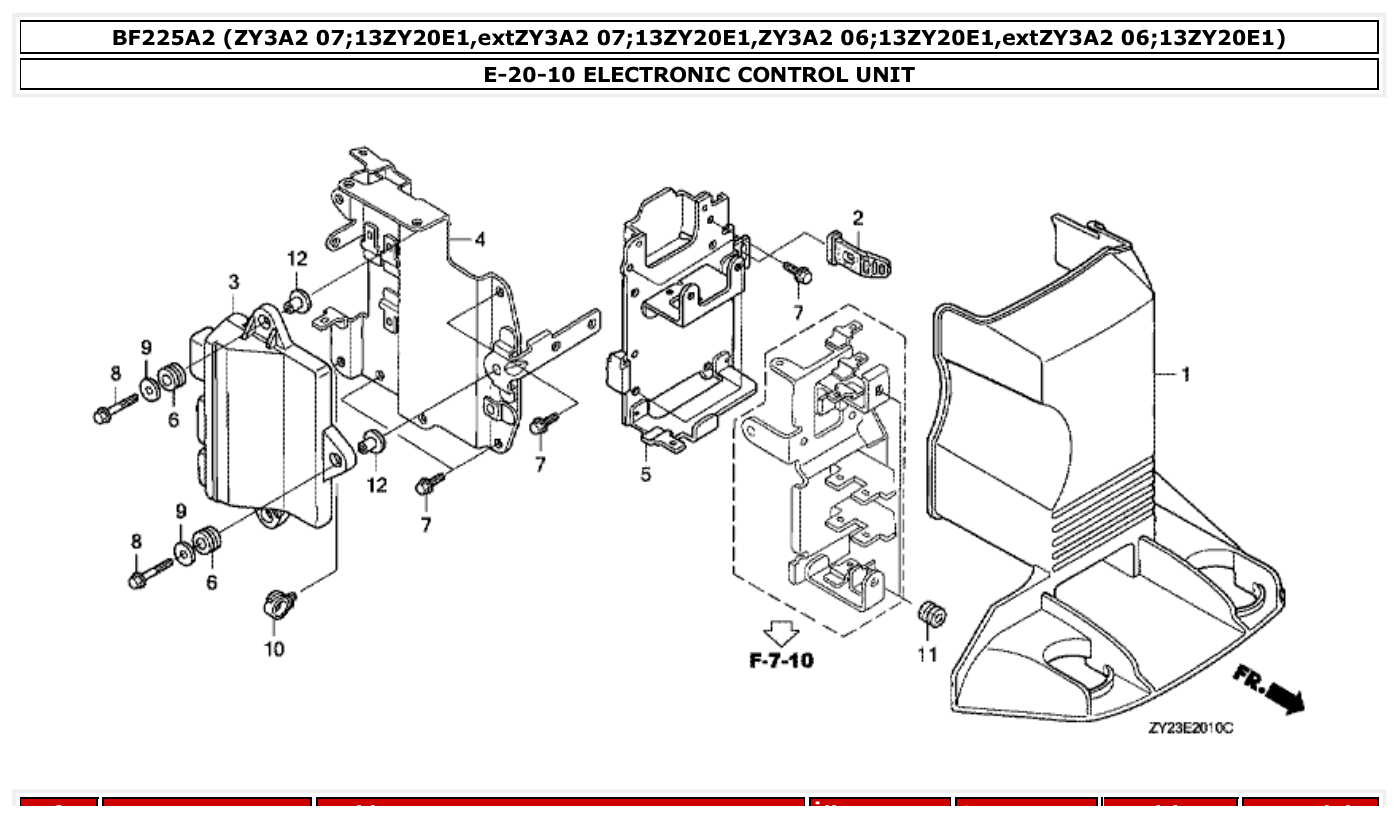

Honda BF225A2 ELECTRONIC CONTROL UNIT parts diagram
Fig. E-20-10 — ELECTRONIC CONTROL UNIT
15 items

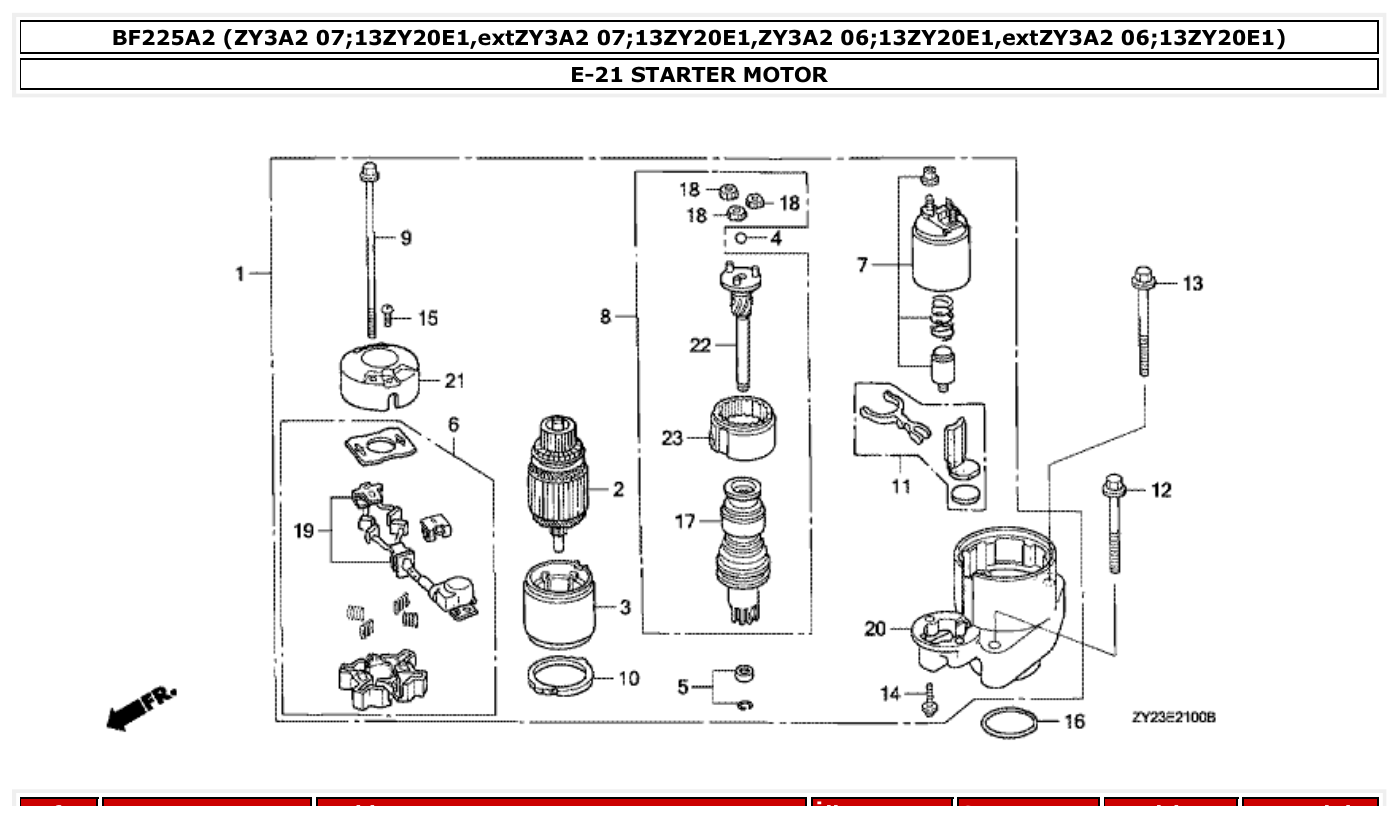

Honda BF225A2 STARTER MOTOR parts diagram
Fig. E-21 — STARTER MOTOR
23 items
Honda BF225A2 CYLINDER BLOCK parts diagram

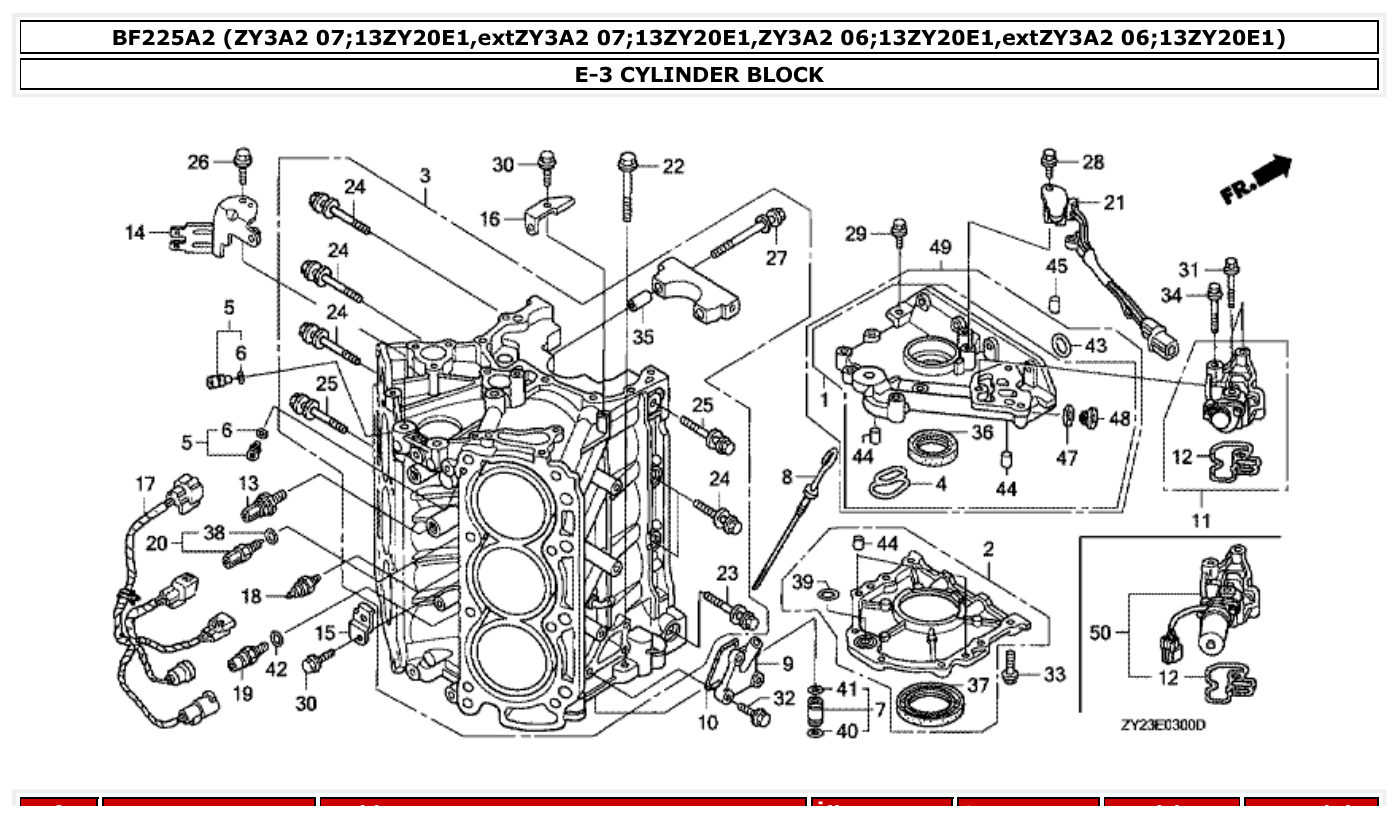

Fig. E-3 — CYLINDER BLOCK
53 items
Honda BF225A2 CRANKCASE parts diagram

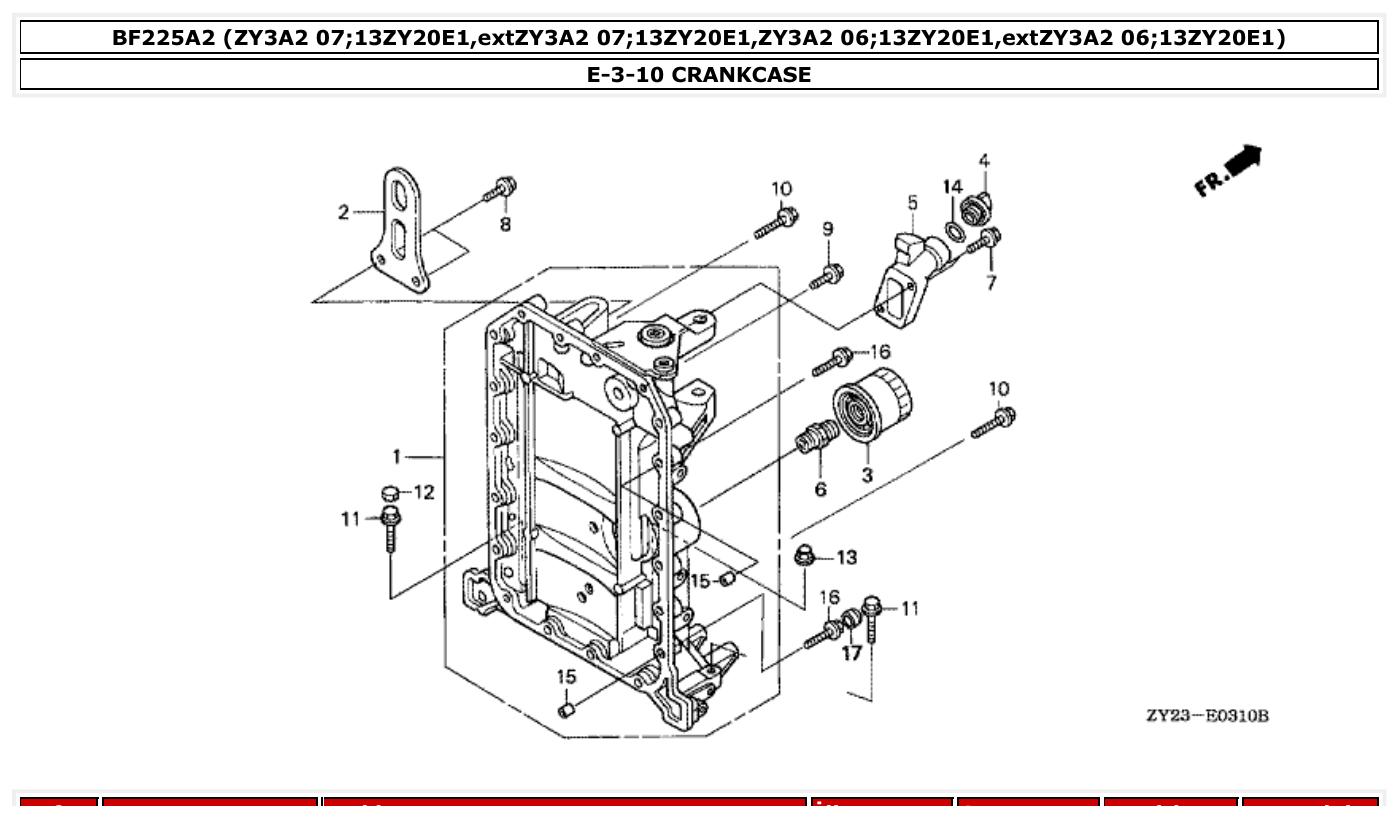

Fig. E-3-10 — CRANKCASE
17 items

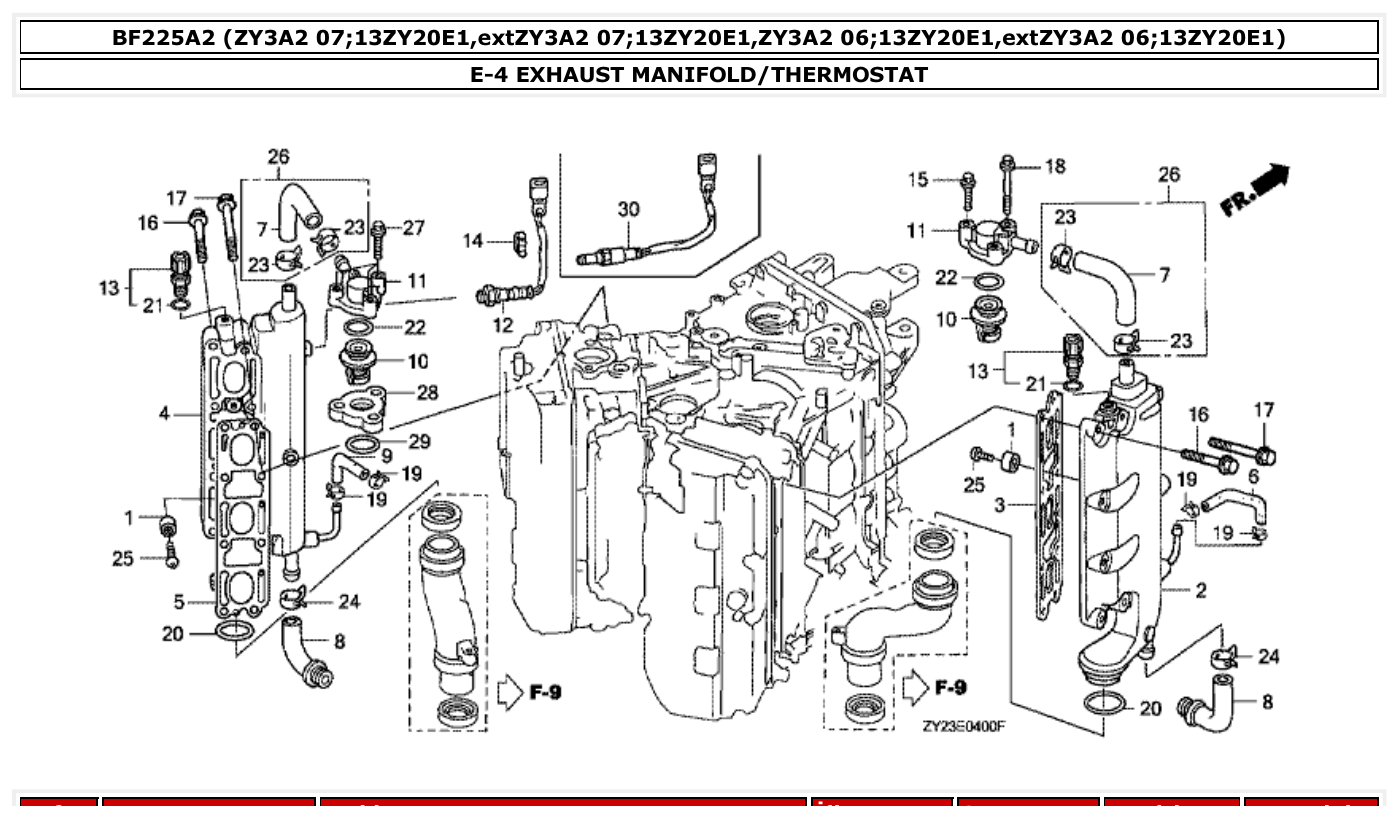

Honda BF225A2 EXHAUST MANIFOLD/THERMOSTAT parts diagram
Fig. E-4 — EXHAUST MANIFOLD/THERMOSTAT
29 items · 2 available products

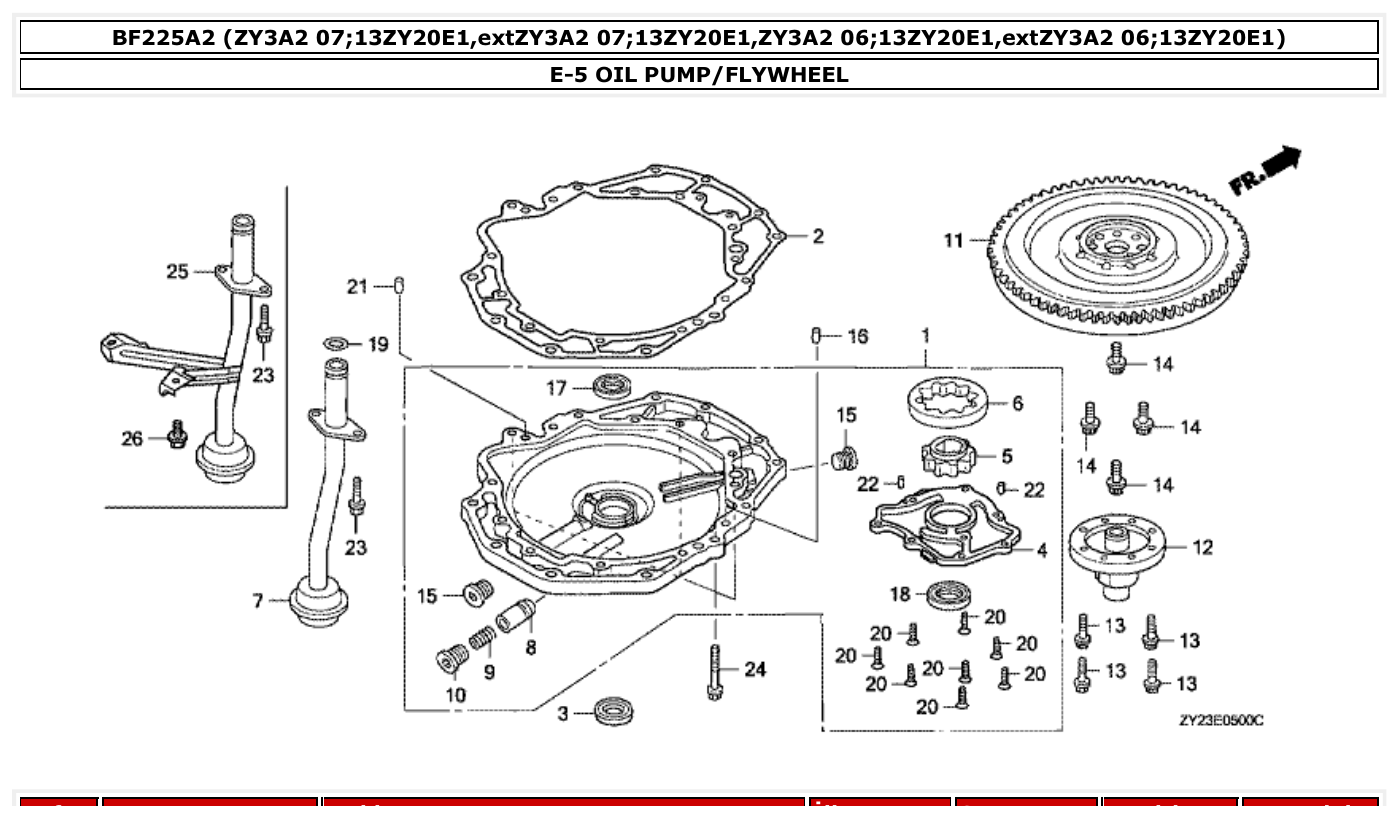

Honda BF225A2 OIL PUMP/FLYWHEEL parts diagram
Fig. E-5 — OIL PUMP/FLYWHEEL
27 items · 1 available products
Honda BF225A2 OIL PAN parts diagram

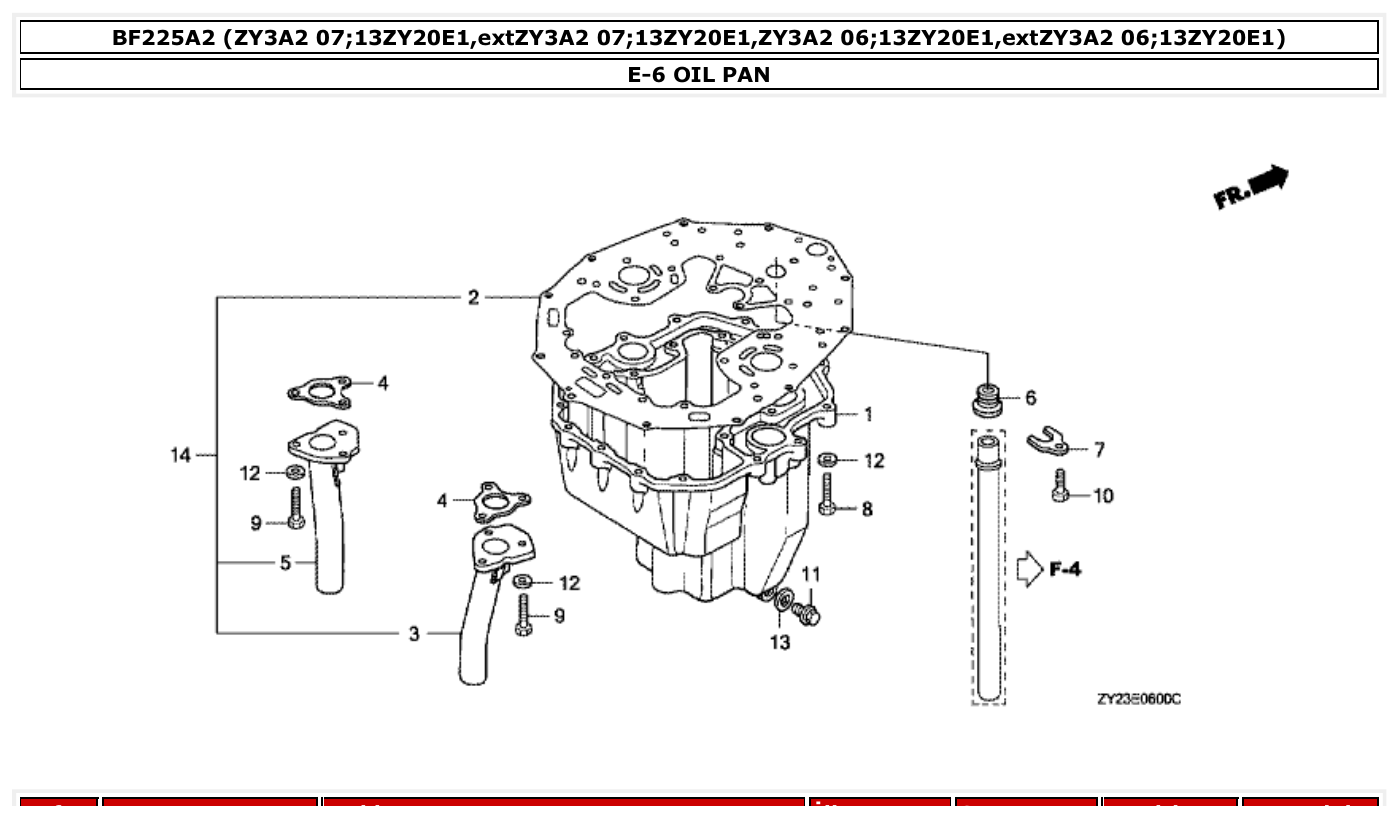

Fig. E-6 — OIL PAN
14 items

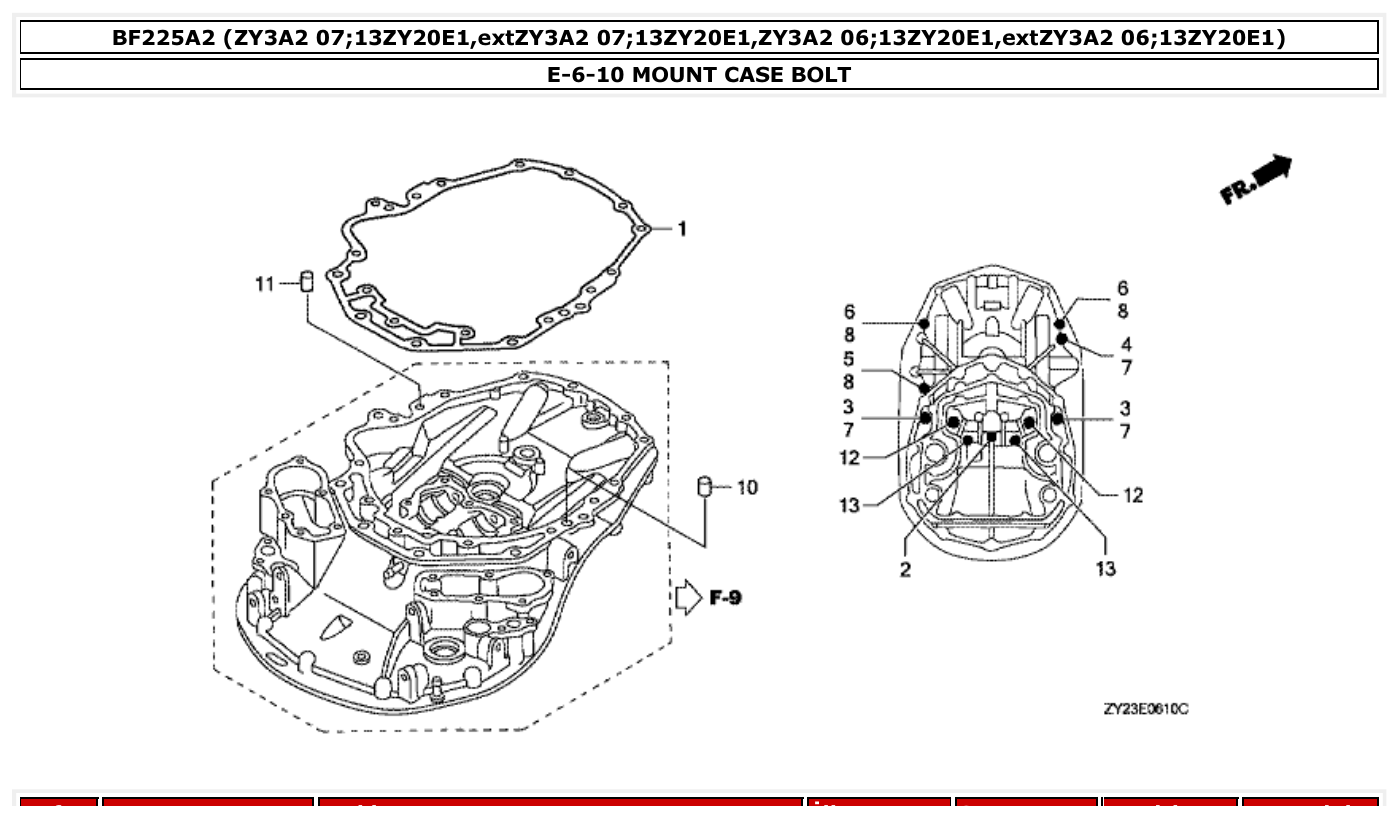

Honda BF225A2 MOUNT CASE BOLT parts diagram
Fig. E-6-10 — MOUNT CASE BOLT
12 items
Honda BF225A2 CRANKSHAFT/PISTON parts diagram

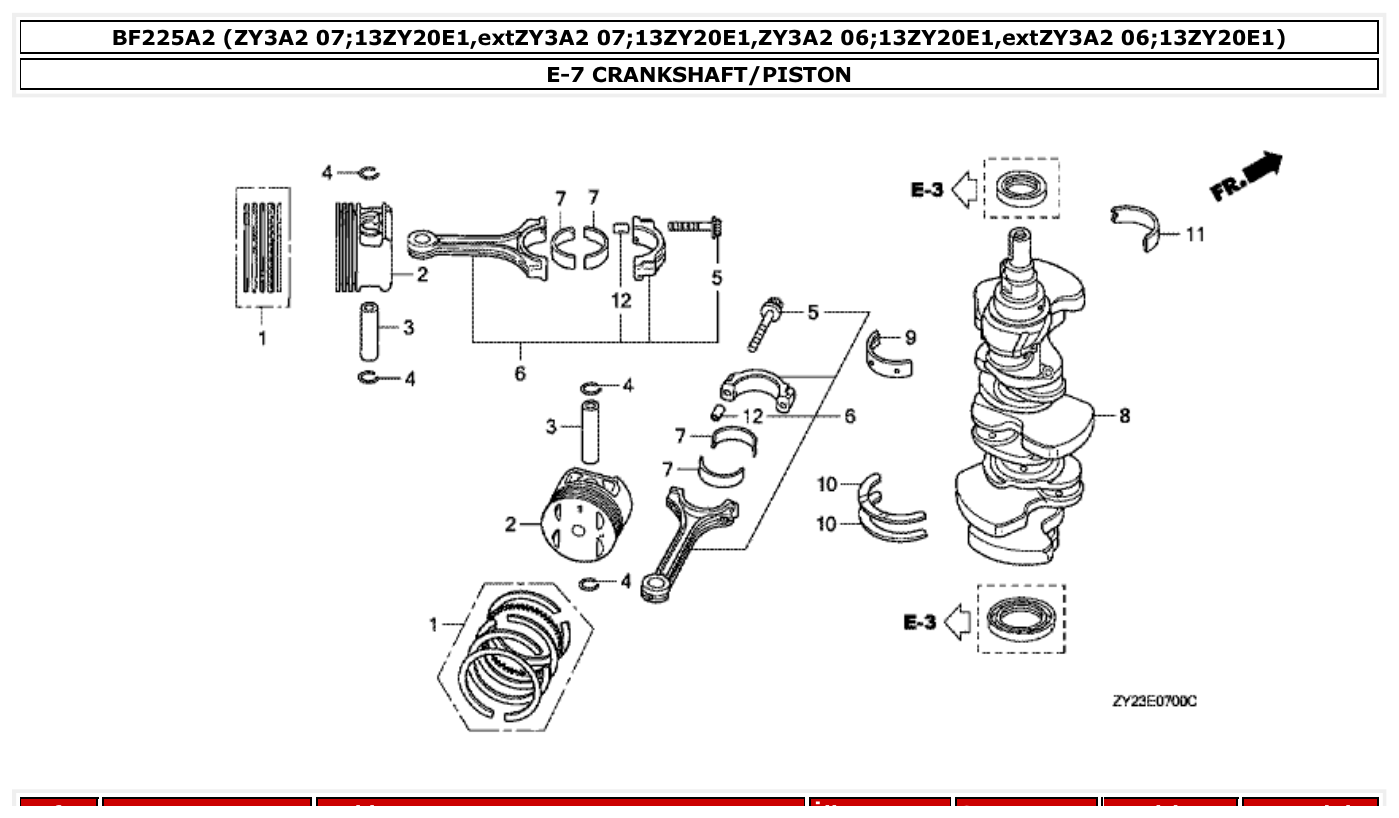

Fig. E-7 — CRANKSHAFT/PISTON
28 items
Honda BF225A2 CYLINDER HEAD parts diagram

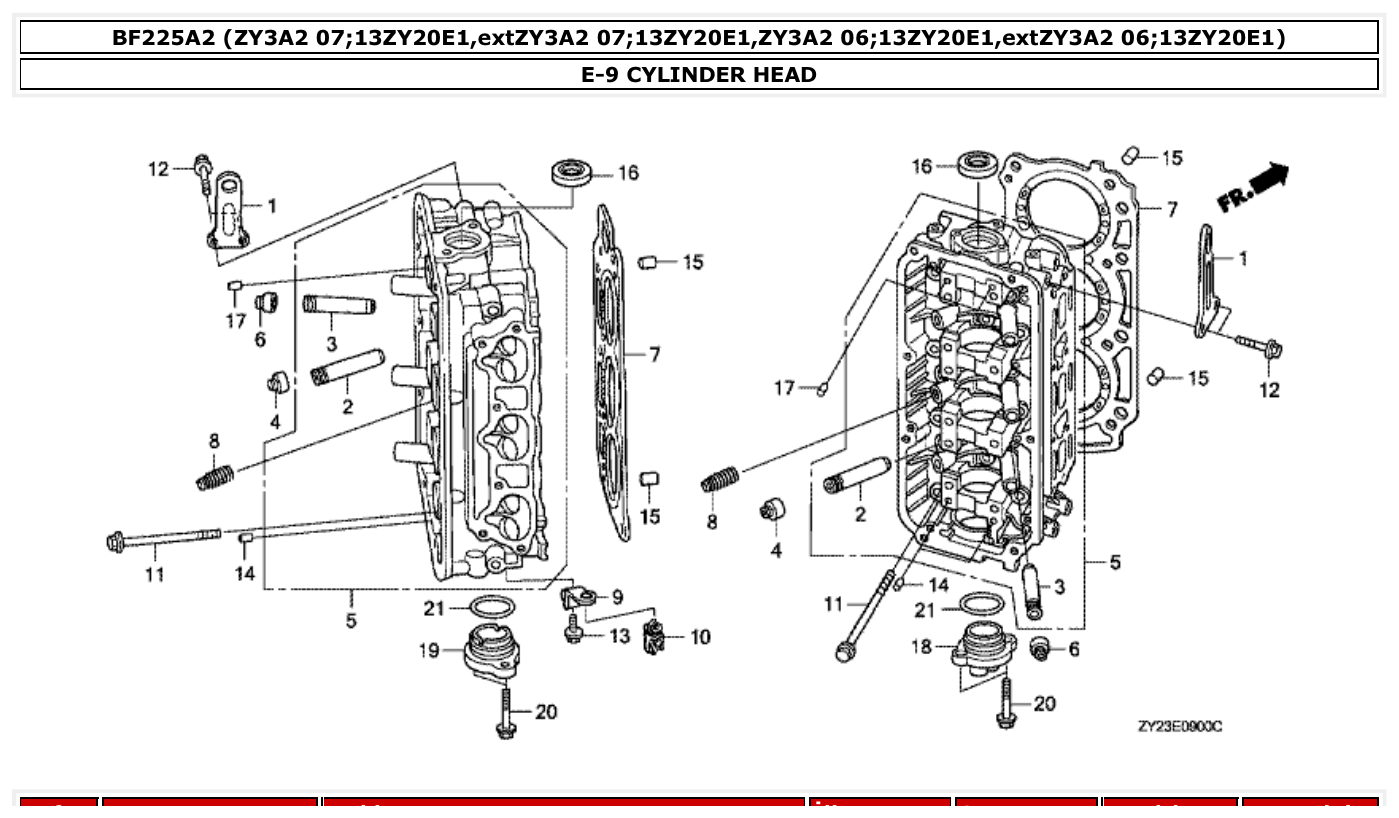

Fig. E-9 — CYLINDER HEAD
22 items

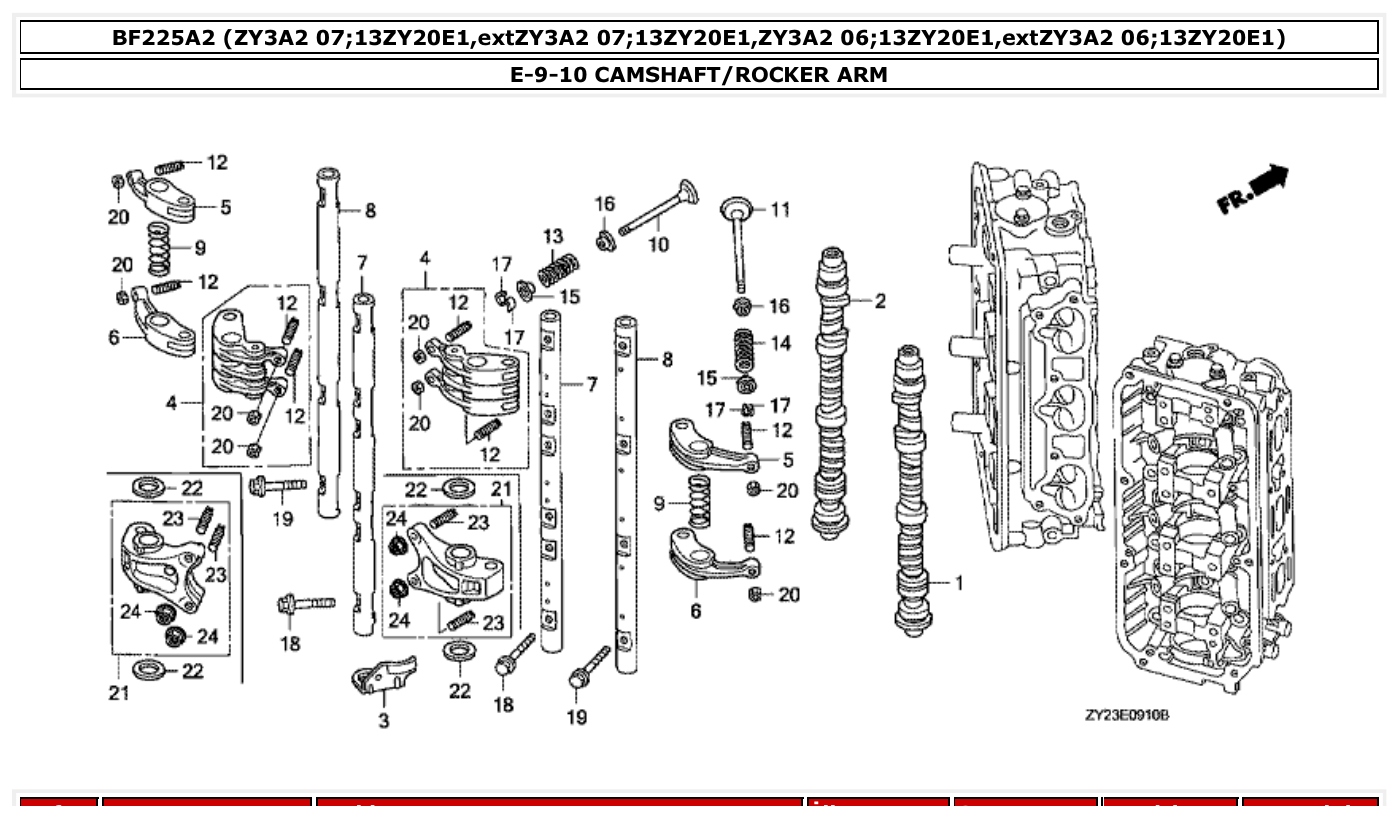

Honda BF225A2 CAMSHAFT/ROCKER ARM parts diagram
Fig. E-9-10 — CAMSHAFT/ROCKER ARM
21 items
Honda BF225A2 STERN BRACKET/SWIVEL CASE parts diagram

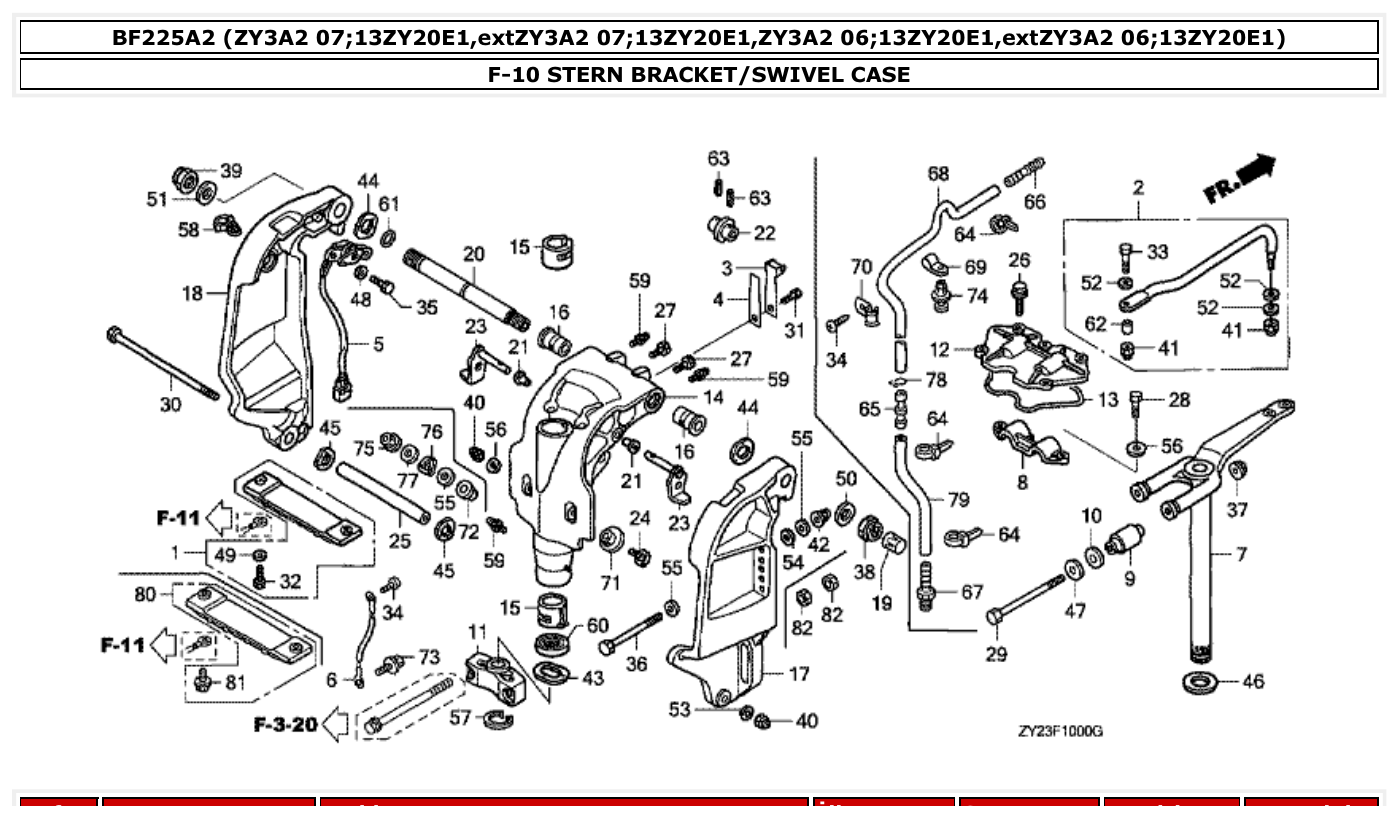

Fig. F-10 — STERN BRACKET/SWIVEL CASE
75 items · 1 available products
Honda BF225A2 SWIVEL CASE ASSY. parts diagram

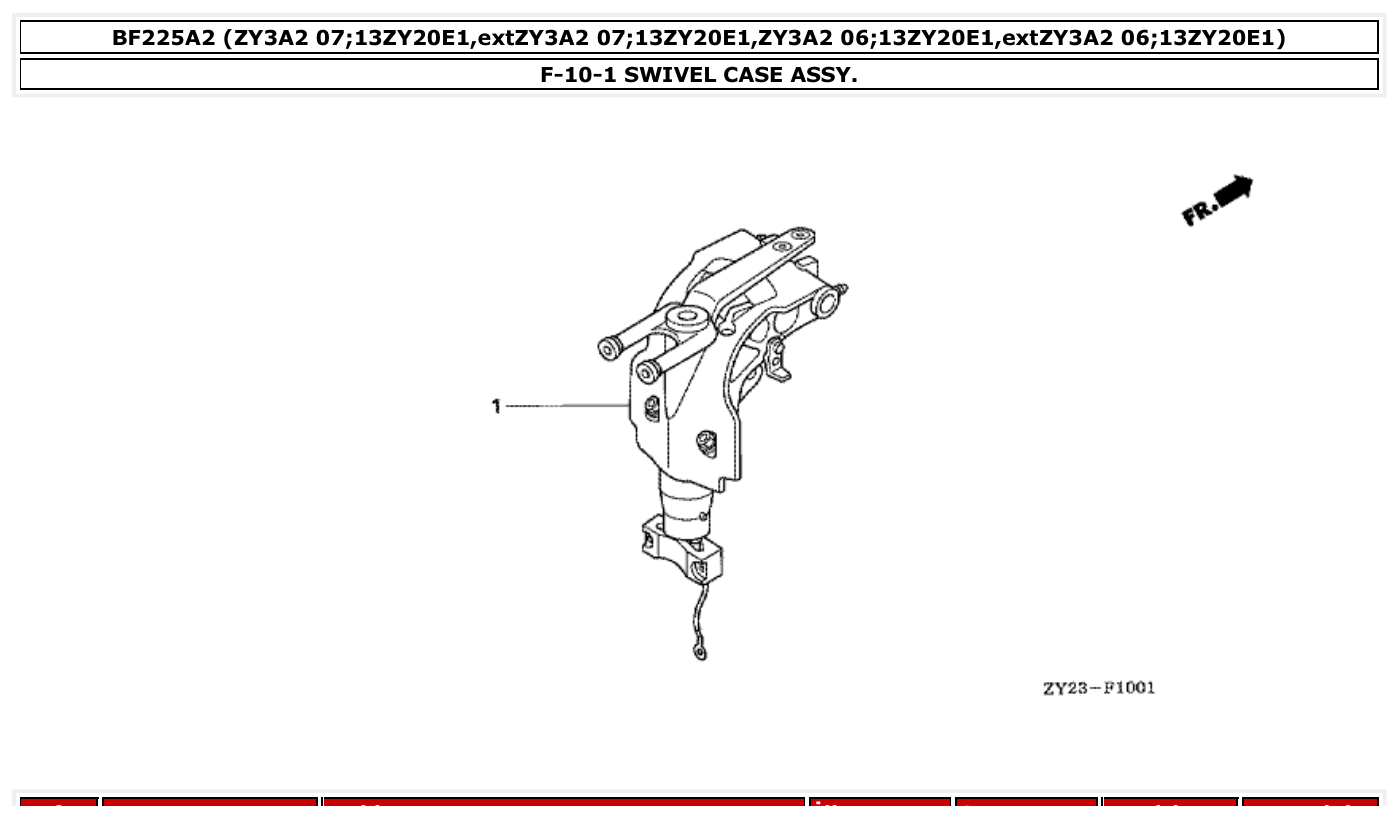

Fig. F-10-1 — SWIVEL CASE ASSY.
2 items

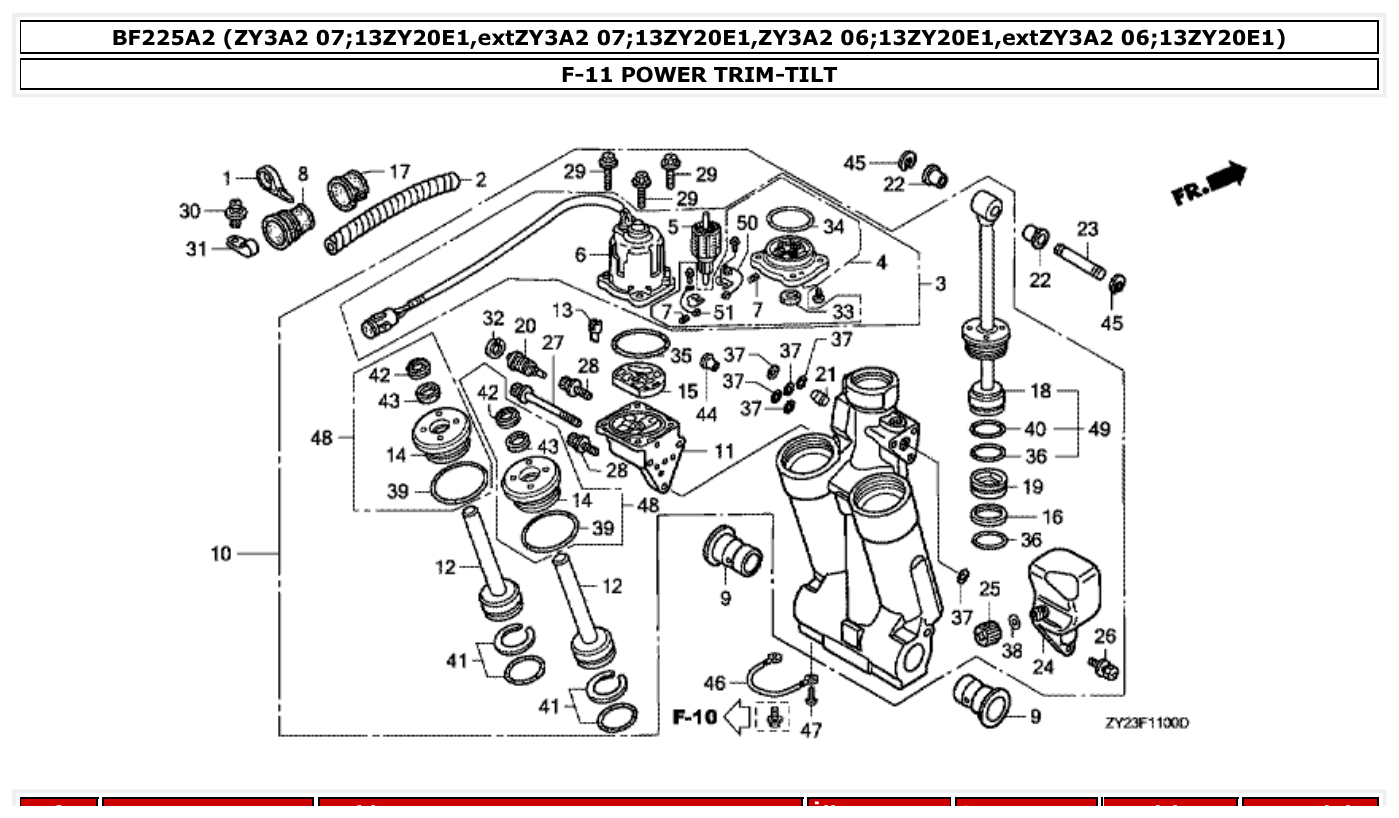

Honda BF225A2 POWER TRIM-TILT parts diagram
Fig. F-11 — POWER TRIM-TILT
49 items
Honda BF225A2 LABEL parts diagram

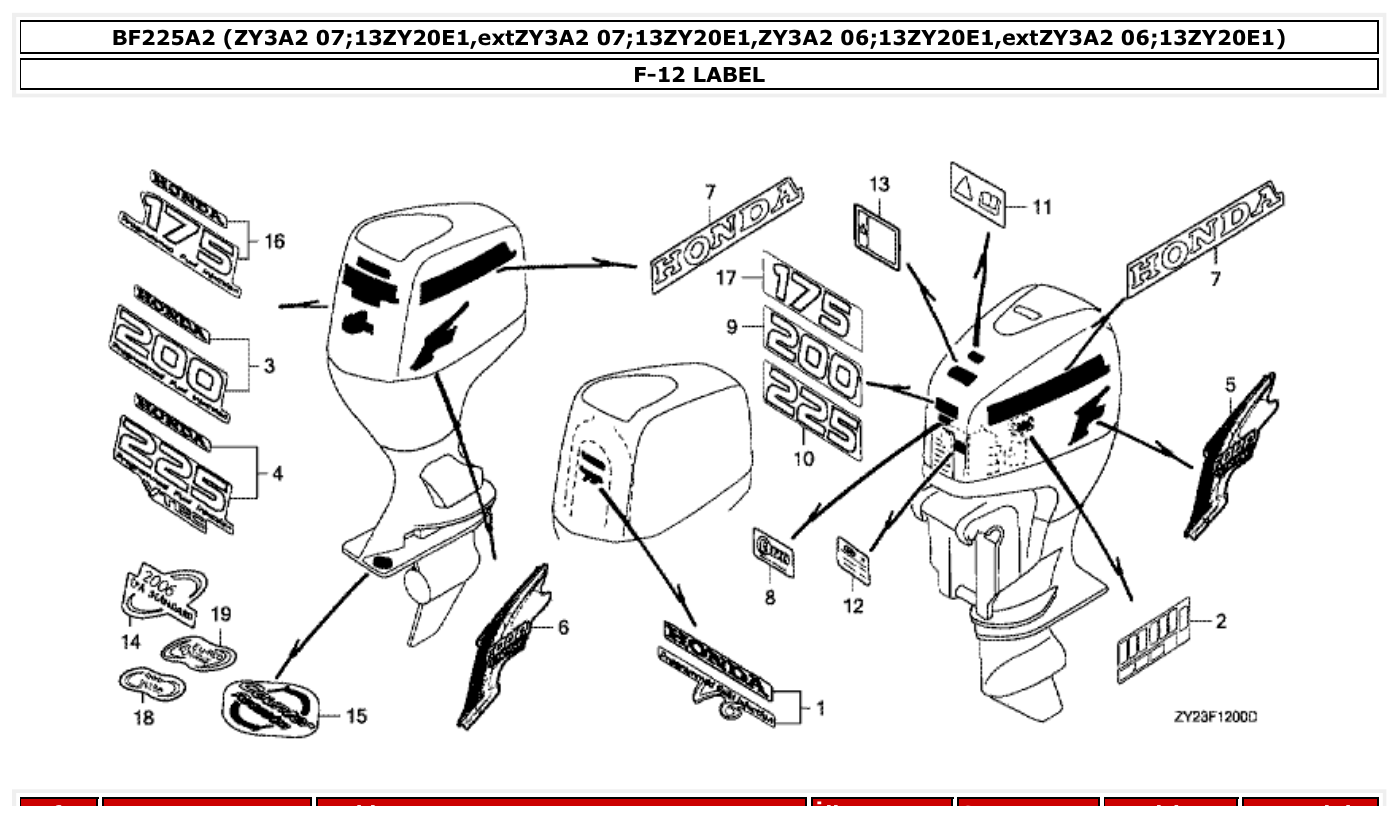

Fig. F-12 — LABEL
13 items

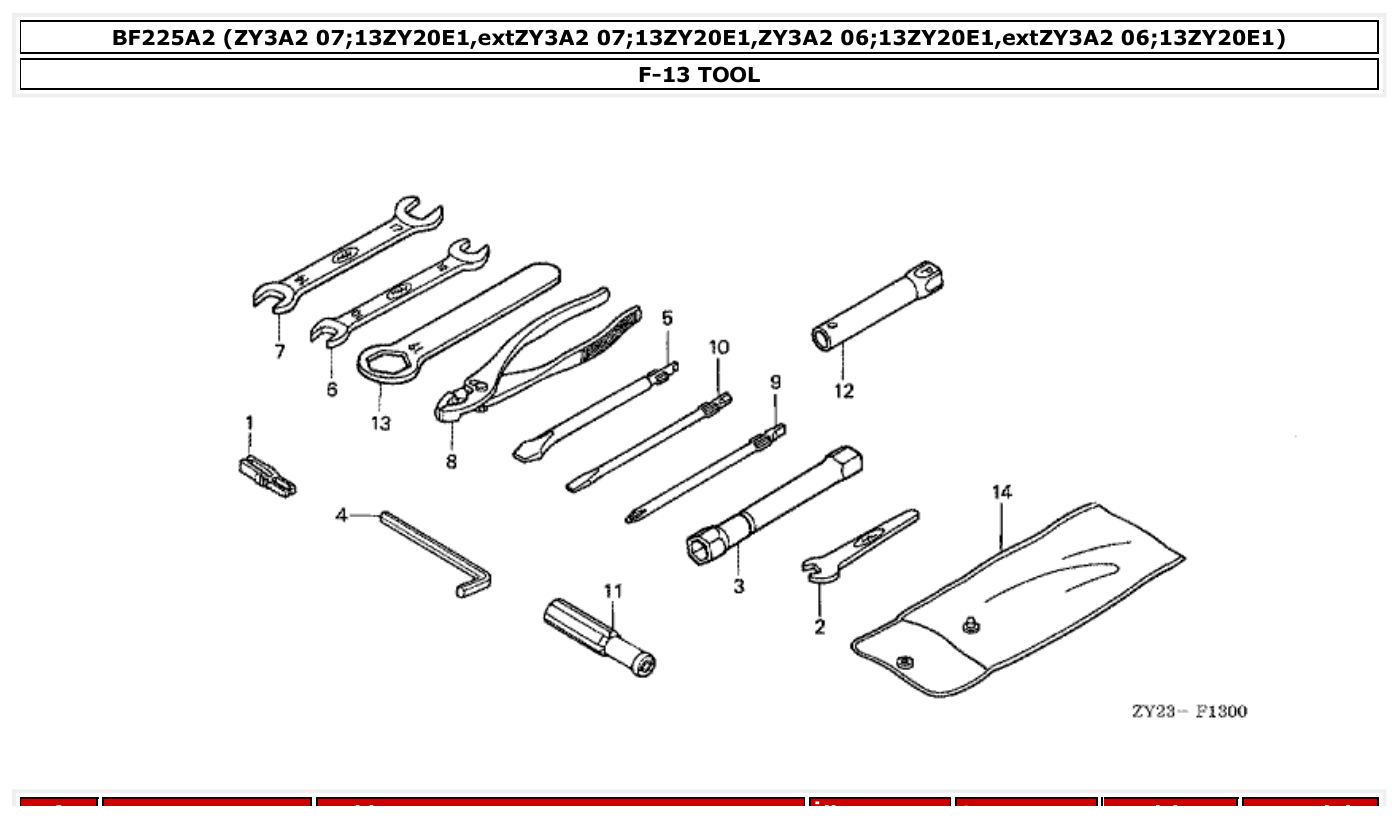

Honda BF225A2 TOOL parts diagram
Fig. F-13 — TOOL
14 items
Honda BF225A2 CONTROL PANEL parts diagram

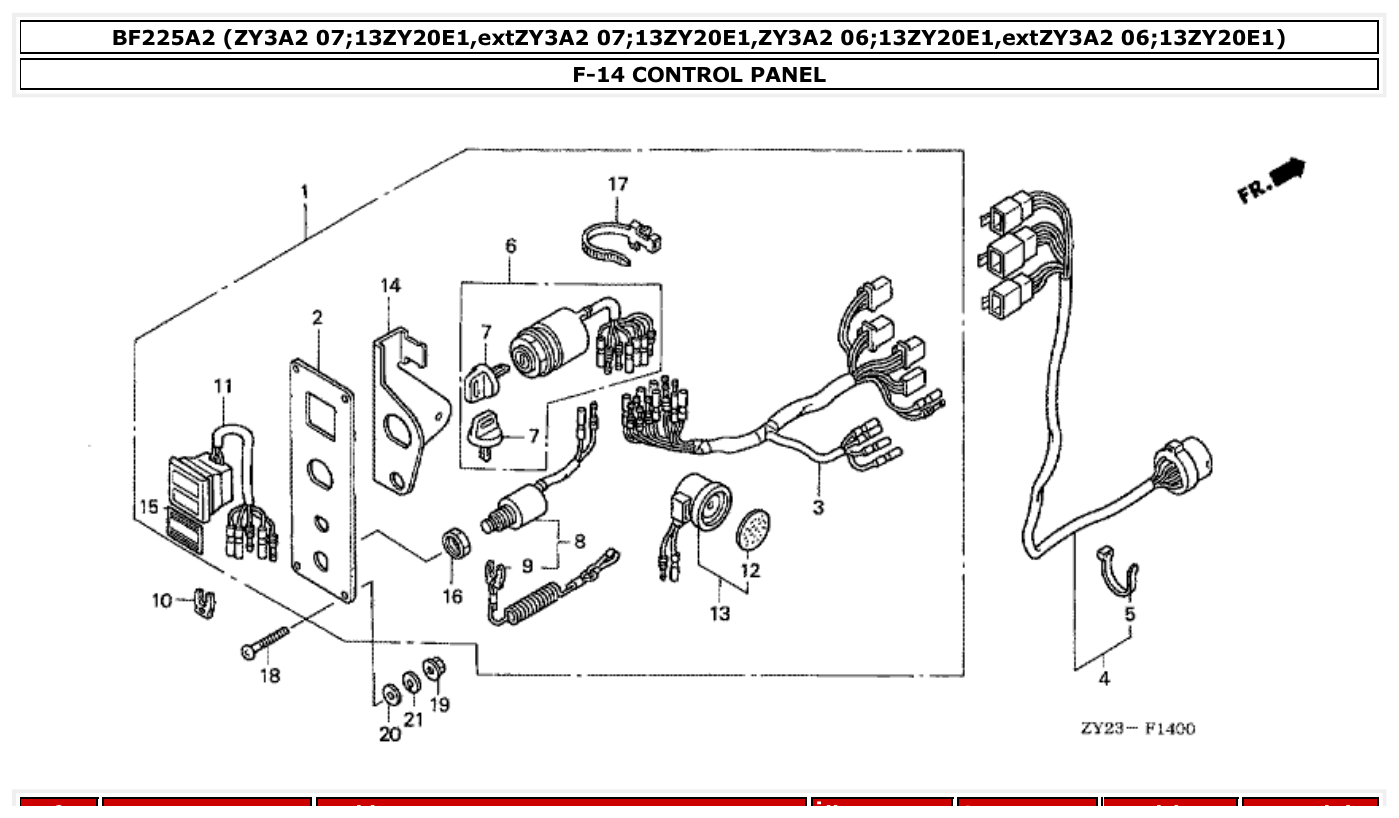

Fig. F-14 — CONTROL PANEL
22 items
Honda BF225A2 REMOTE CONTROL parts diagram

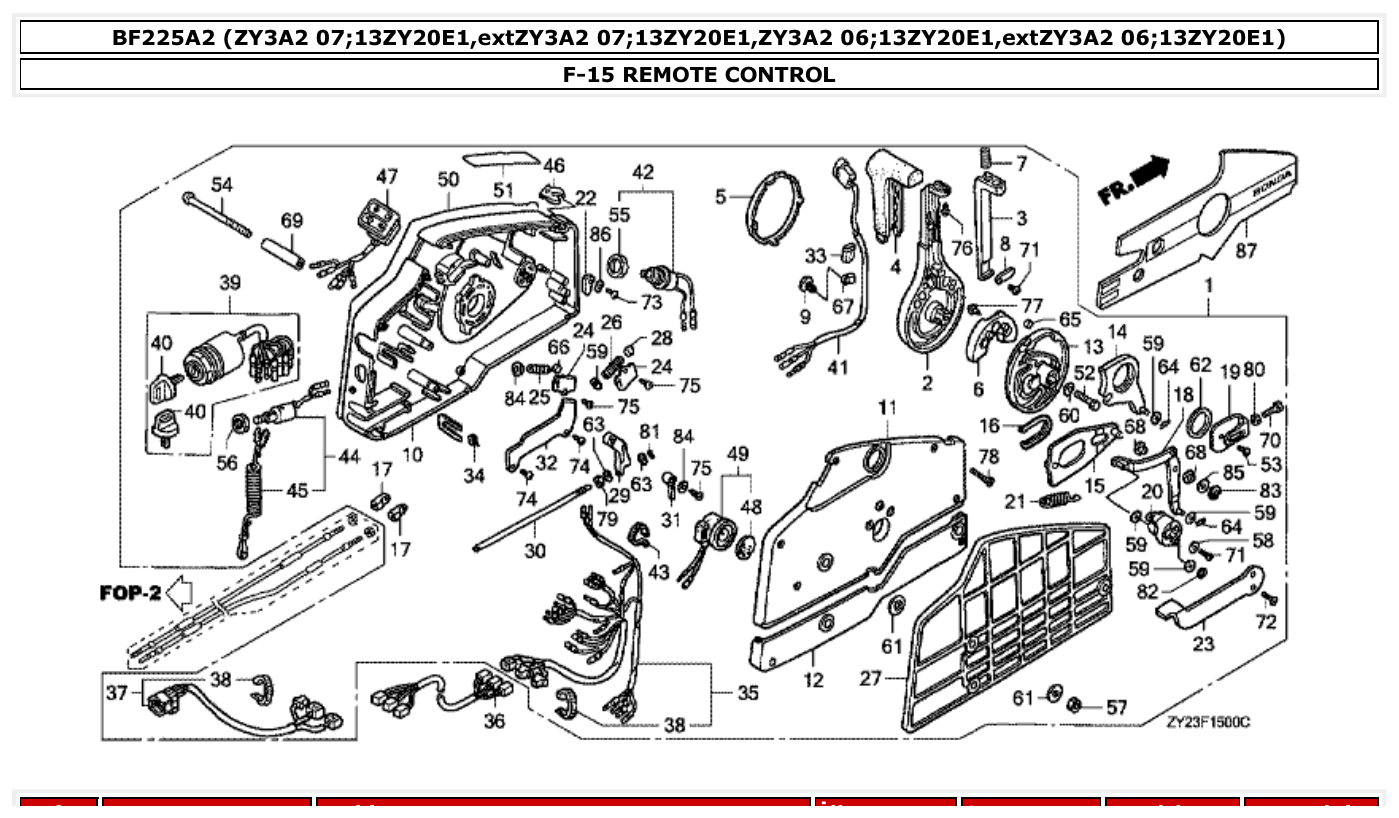

Fig. F-15 — REMOTE CONTROL
529 items · 1 available products
Honda BF225A2 SHIFT SHAFT parts diagram

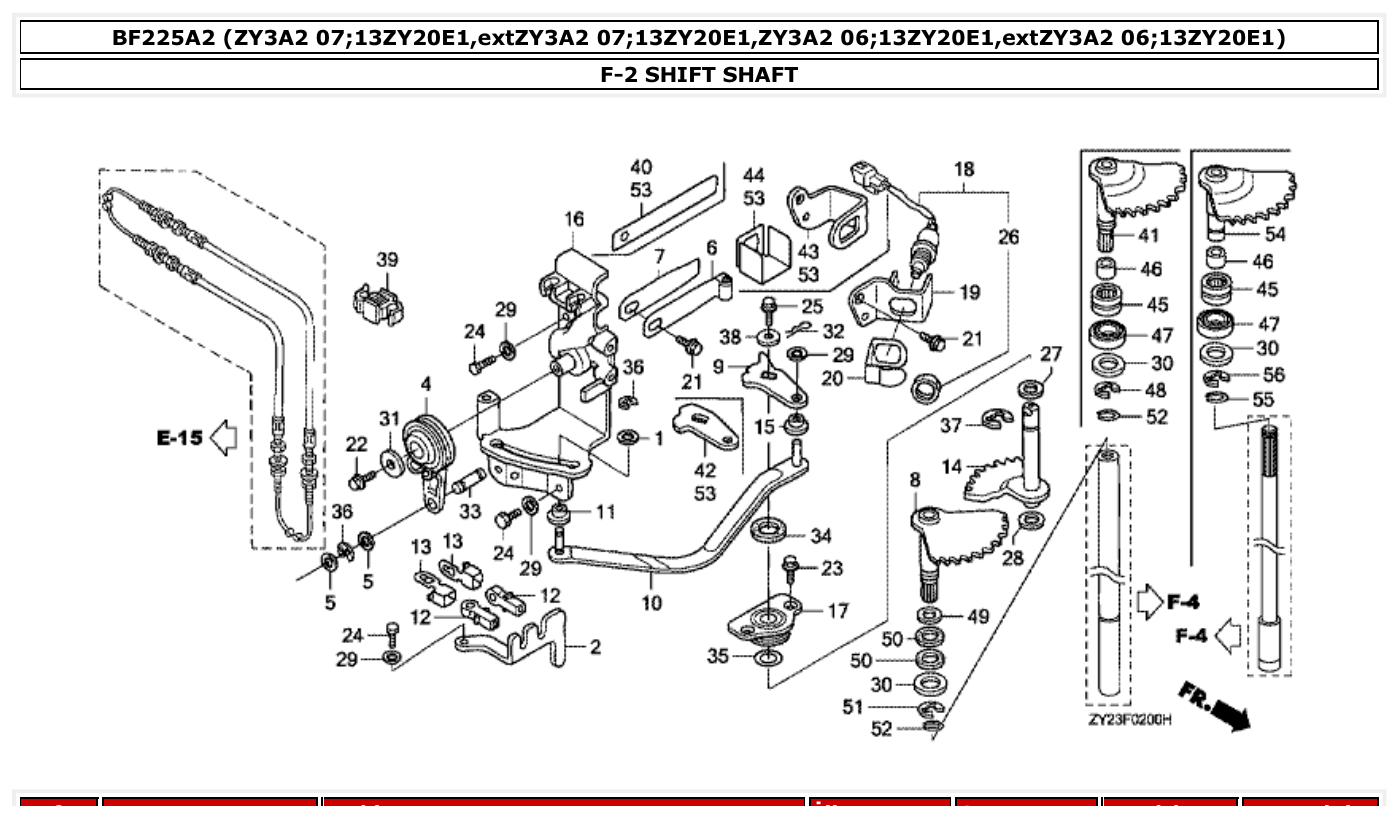

Fig. F-2 — SHIFT SHAFT
53 items
Honda BF225A2 GEAR CASE parts diagram

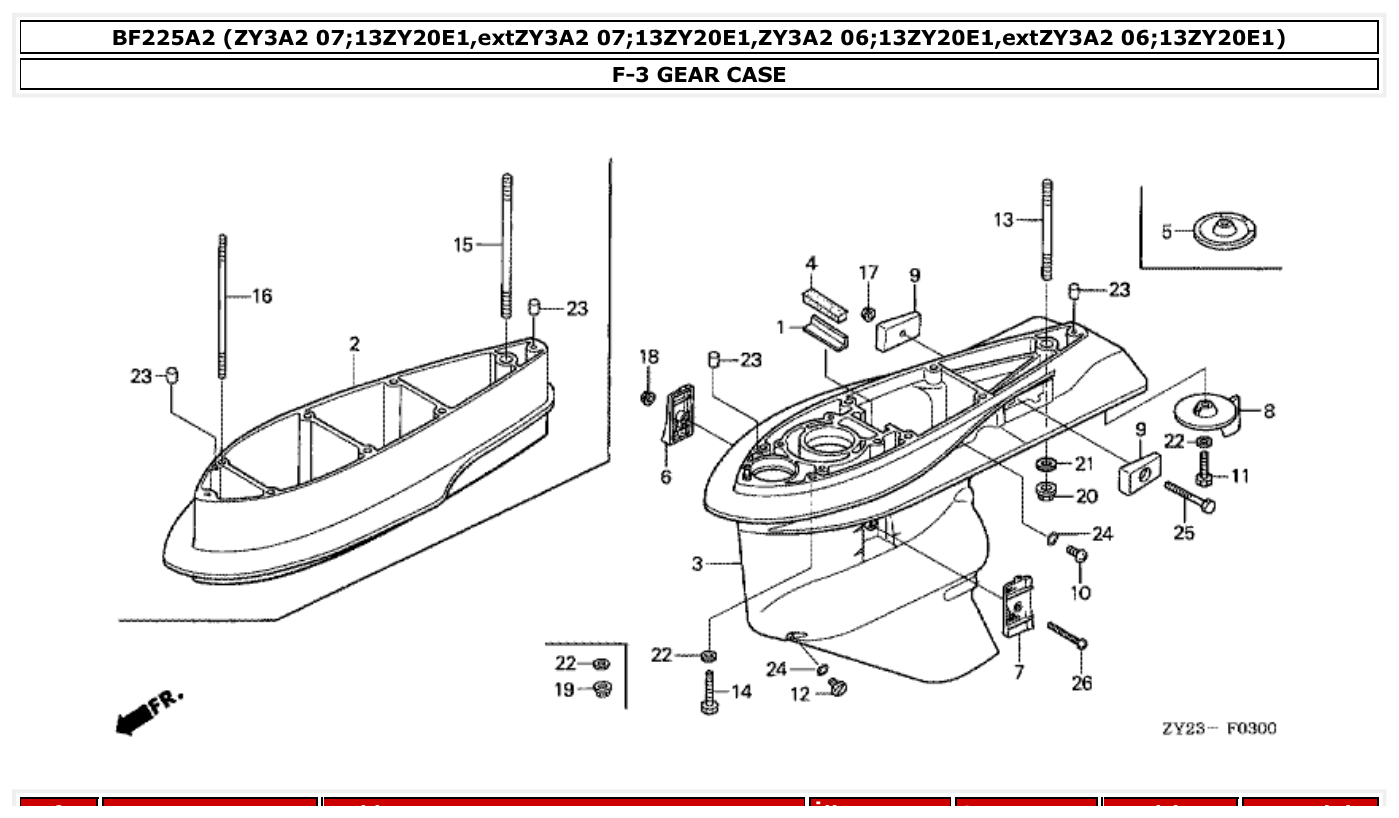

Fig. F-3 — GEAR CASE
27 items
Honda BF225A2 GEAR CASE ASSY. parts diagram

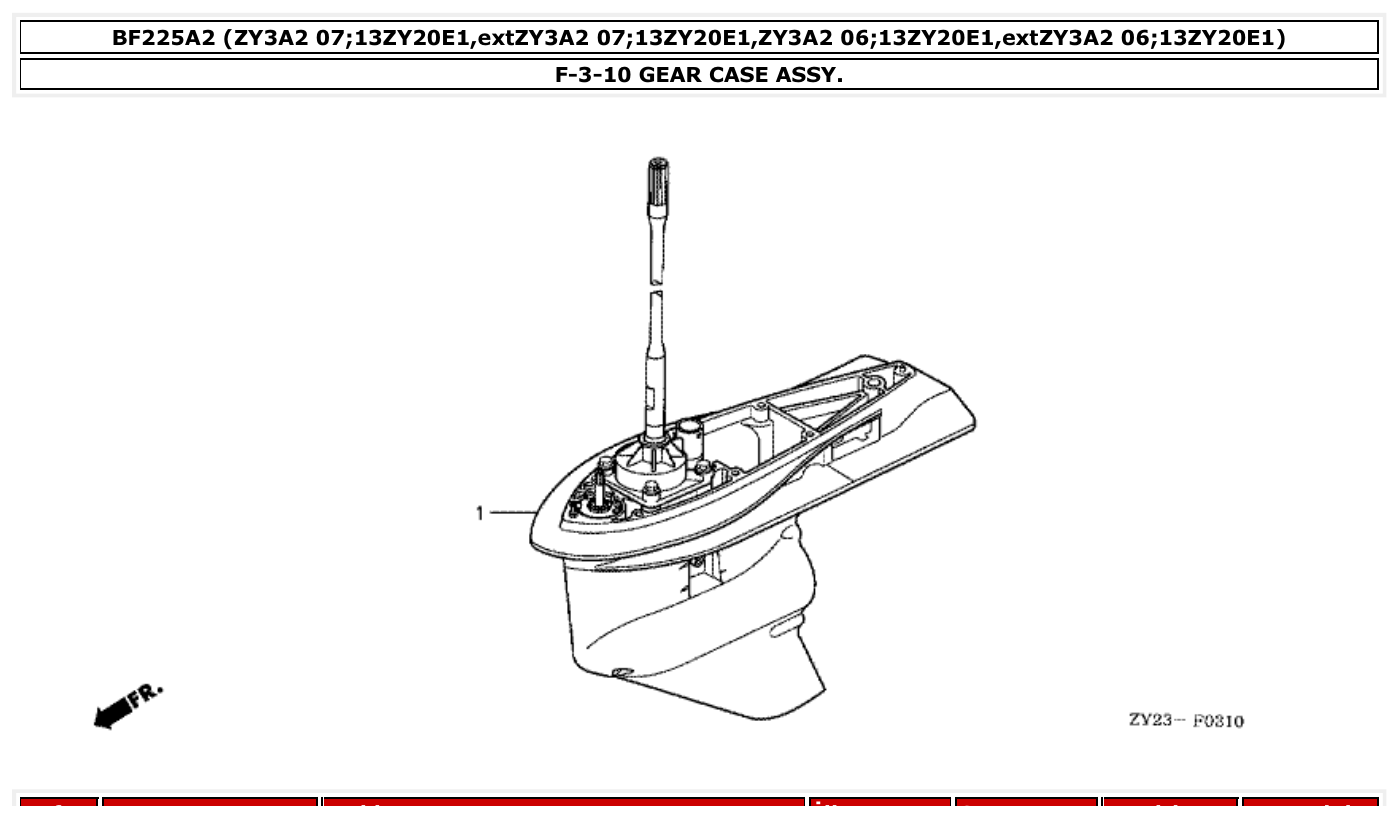

Fig. F-3-10 — GEAR CASE ASSY.
10 items
Honda BF225A2 EXTENSION CASE parts diagram

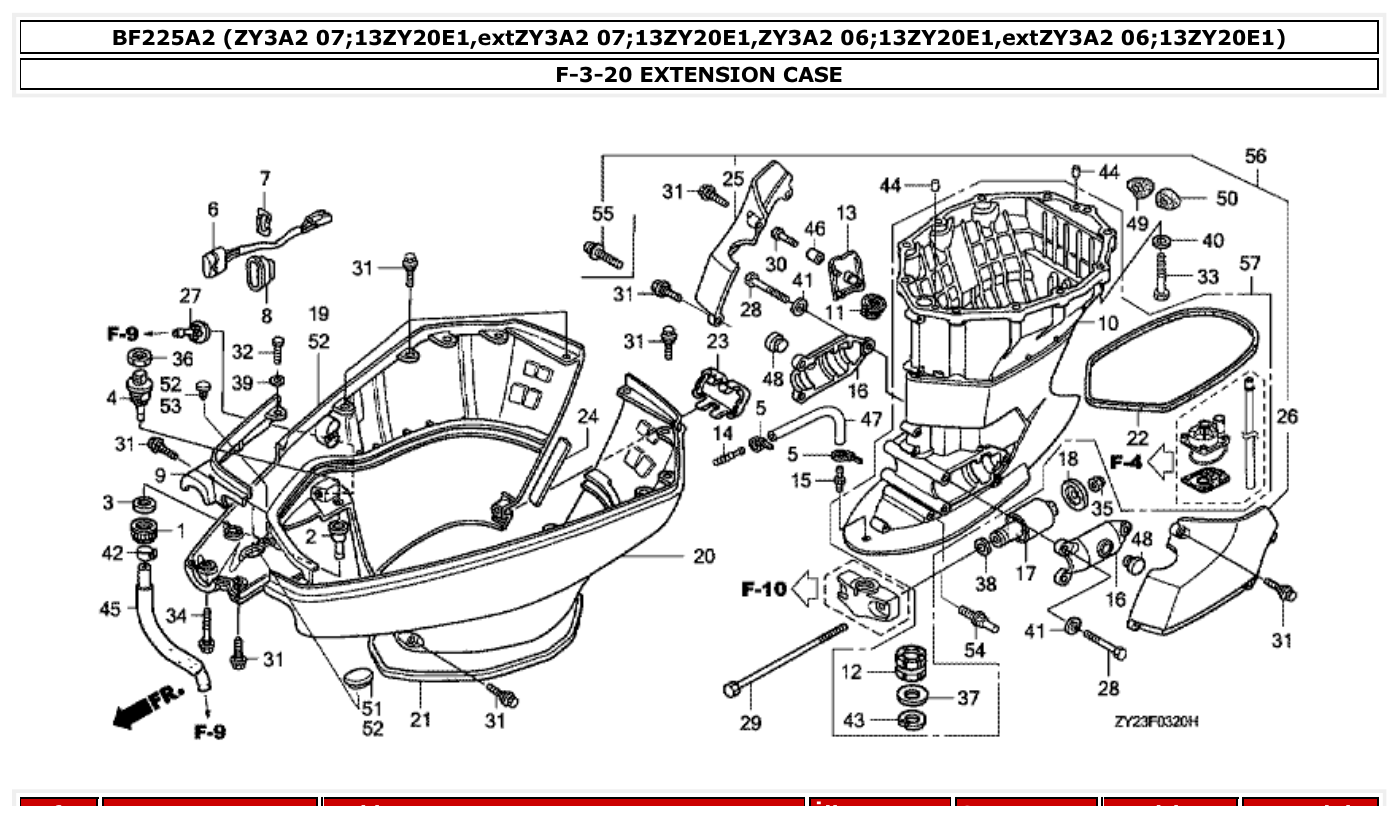

Fig. F-3-20 — EXTENSION CASE
58 items
Honda BF225A2 WATER PUMP/VERTICAL SHAFT parts diagram

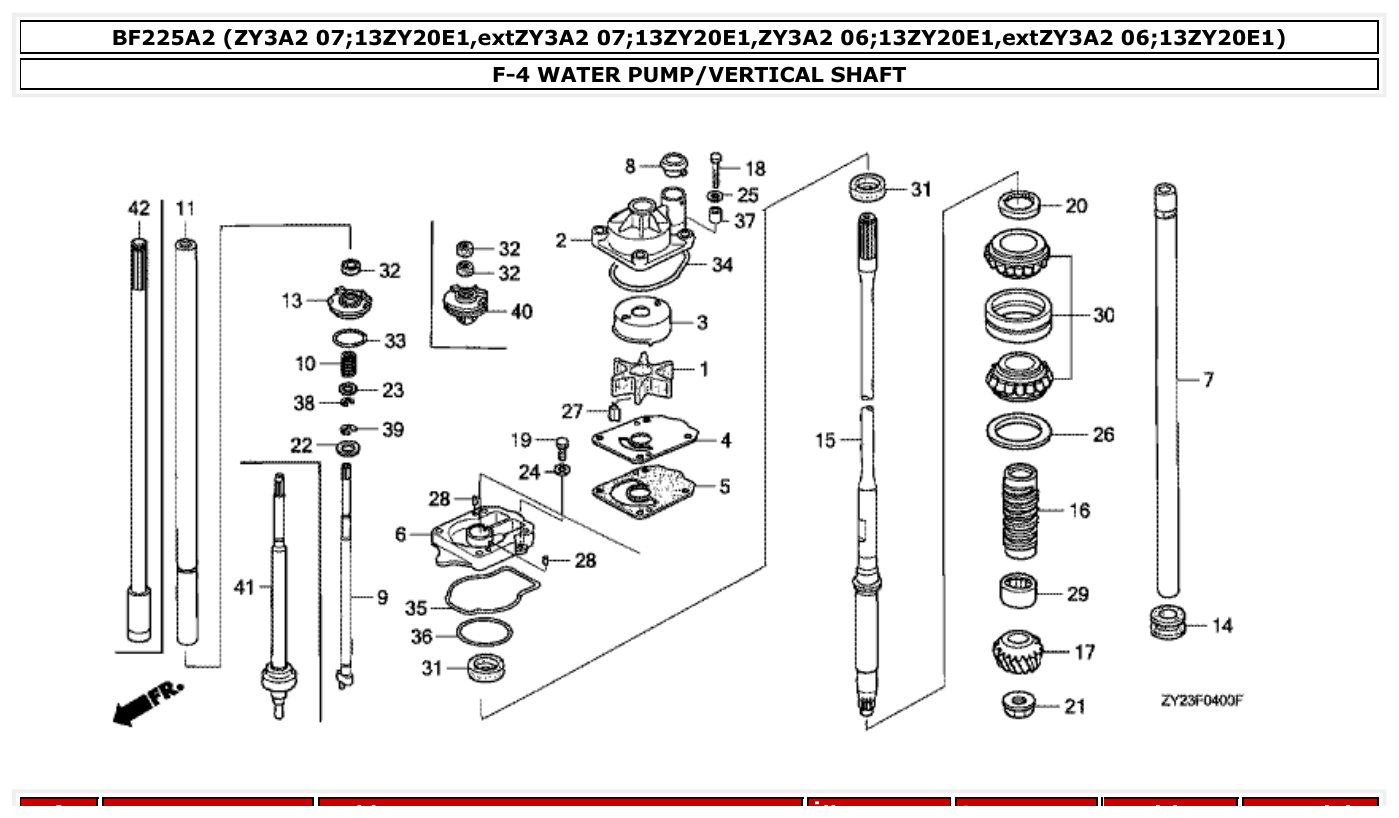

Fig. F-4 — WATER PUMP/VERTICAL SHAFT
47 items · 2 available products
Honda BF225A2 PROPELLER SHAFT (1) parts diagram

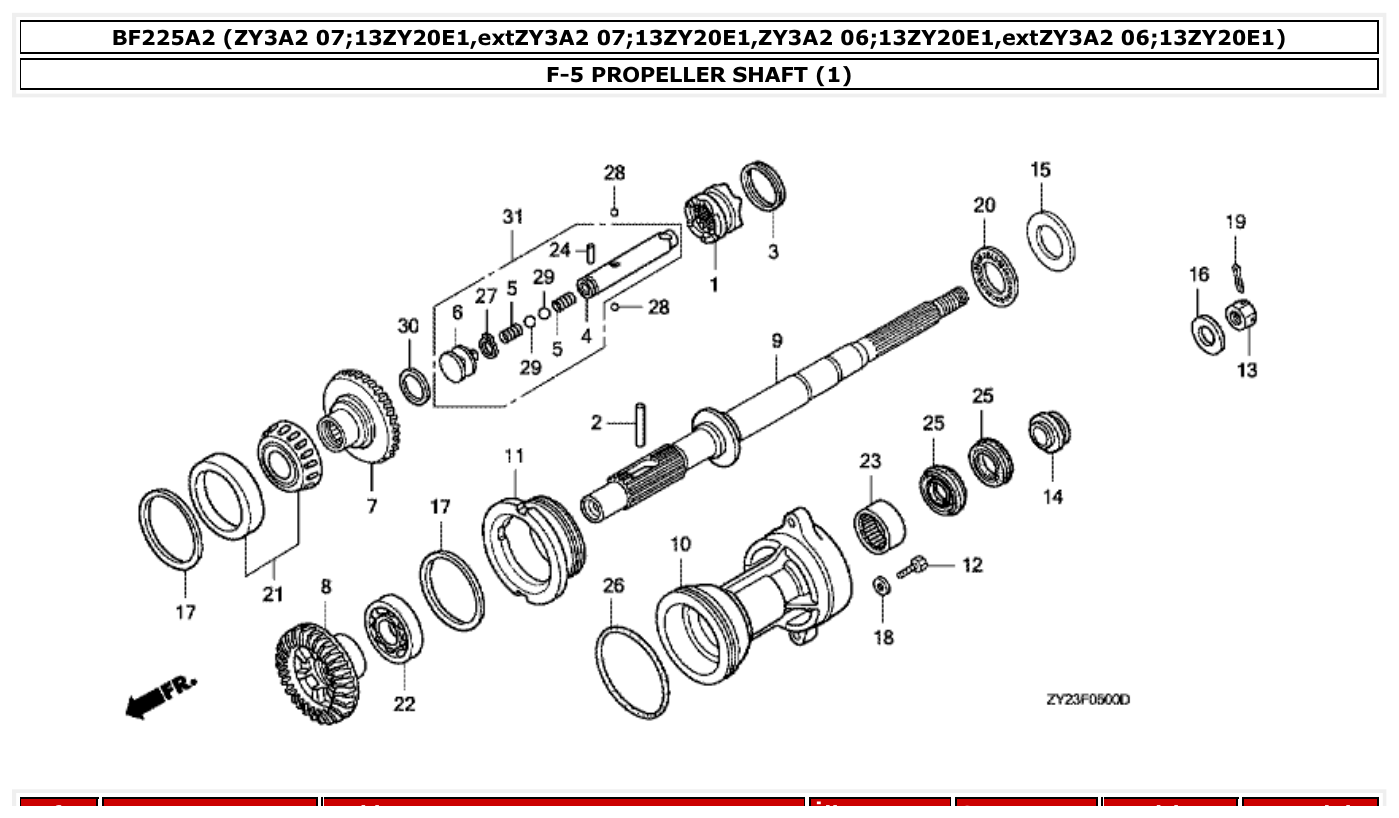

Fig. F-5 — PROPELLER SHAFT (1)
40 items · 5 available products
Honda BF225A2 FUEL TUBE parts diagram

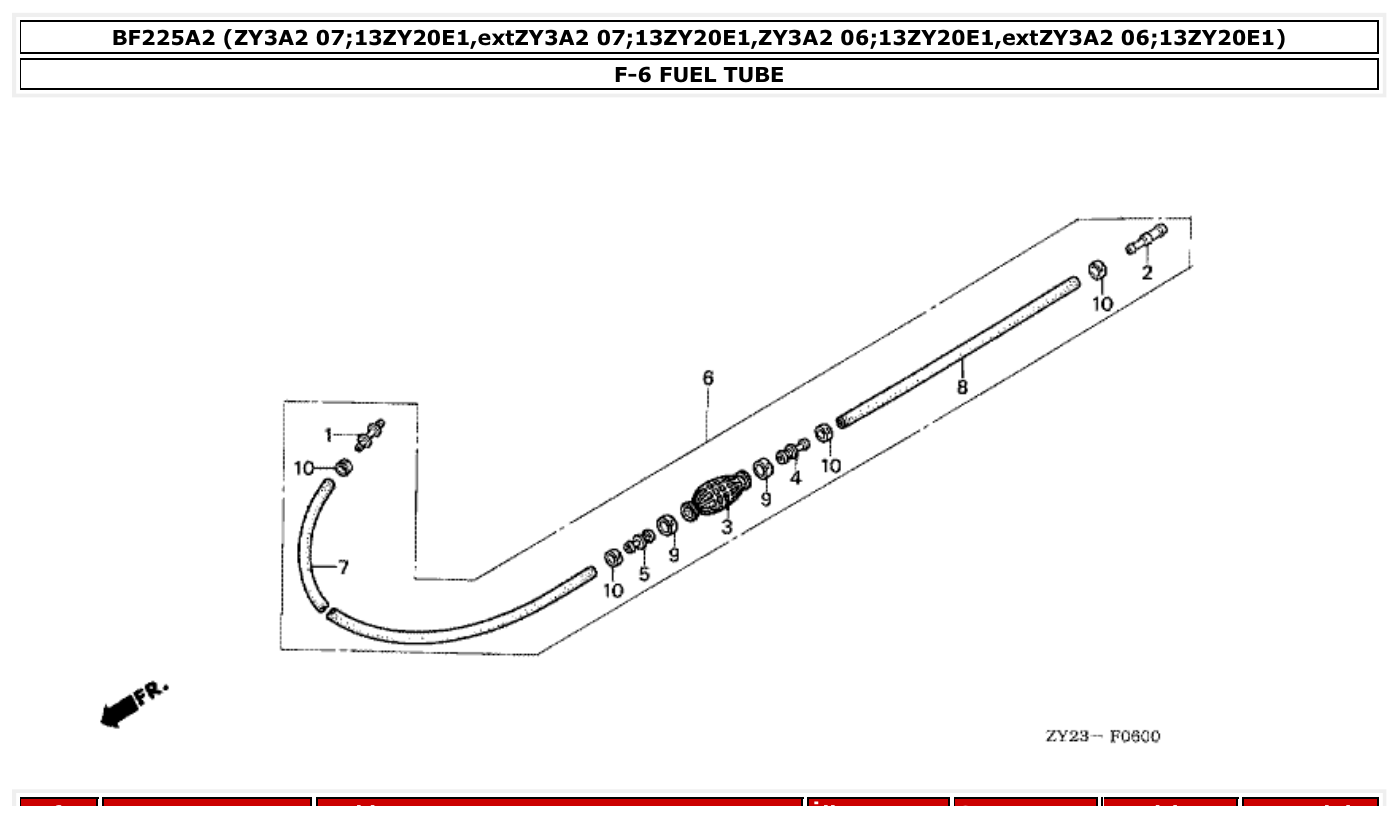

Fig. F-6 — FUEL TUBE
11 items

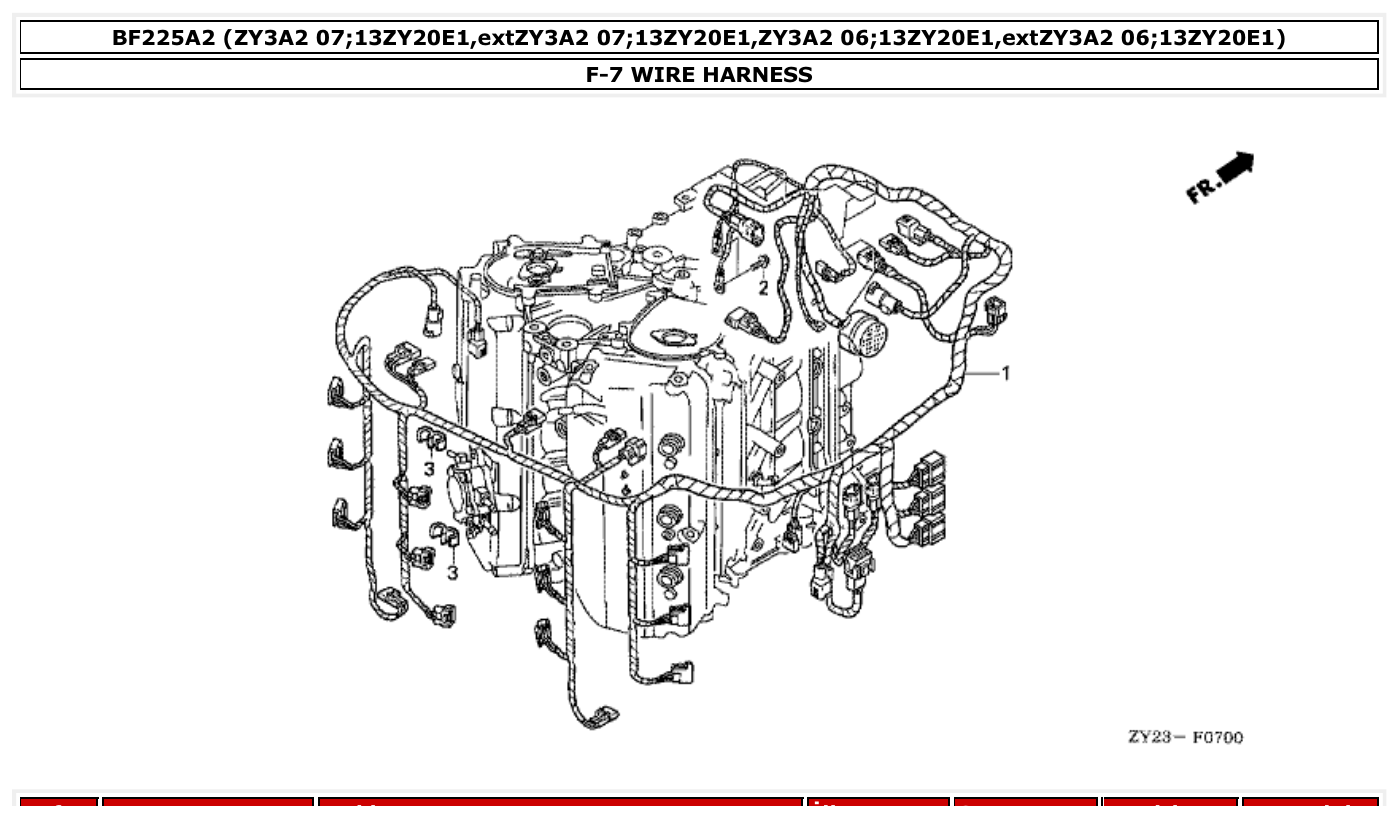

Honda BF225A2 WIRE HARNESS parts diagram
Fig. F-7 — WIRE HARNESS
4 items
Honda BF225A2 STARTER CABLE (1) parts diagram

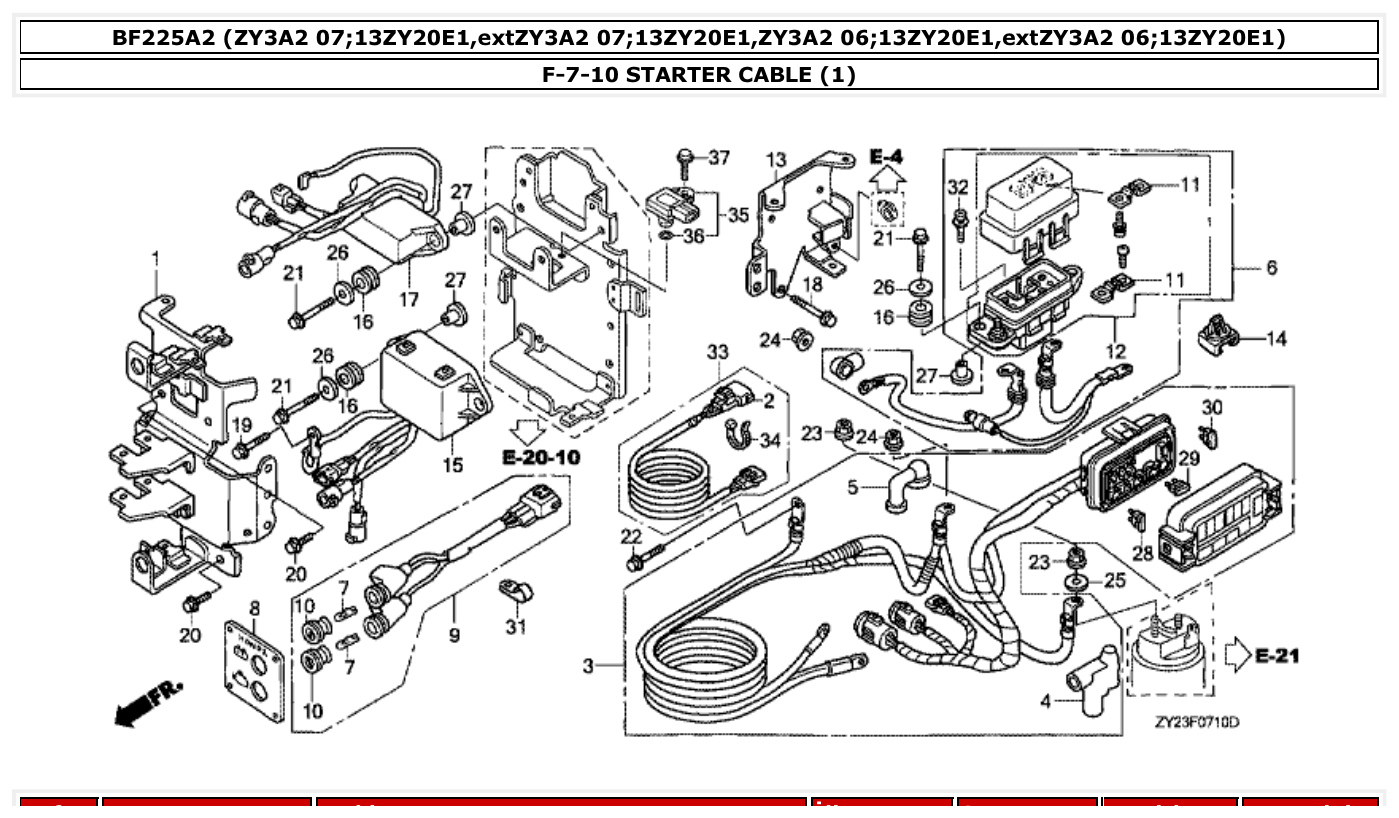

Fig. F-7-10 — STARTER CABLE (1)
42 items

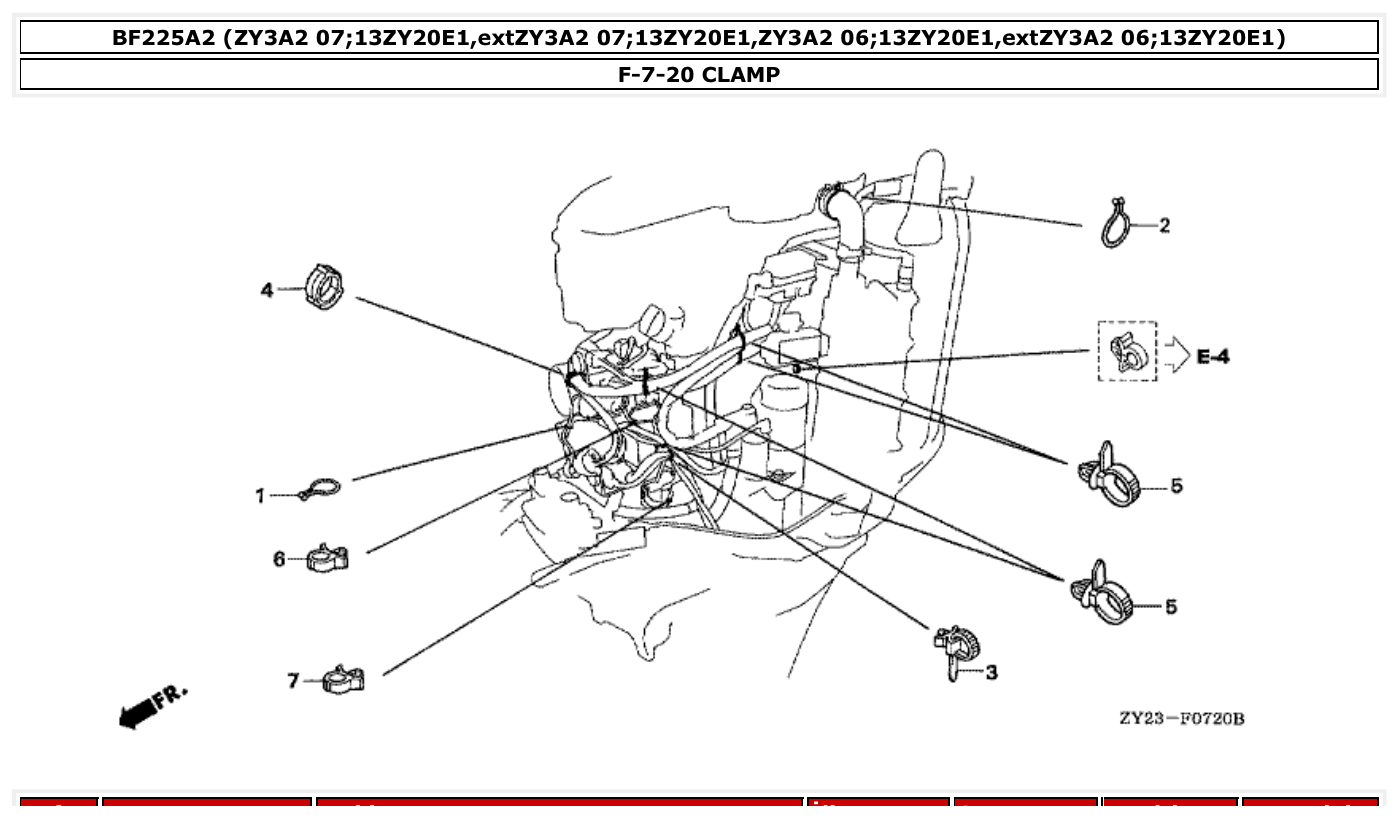

Honda BF225A2 CLAMP parts diagram
Fig. F-7-20 — CLAMP
6 items

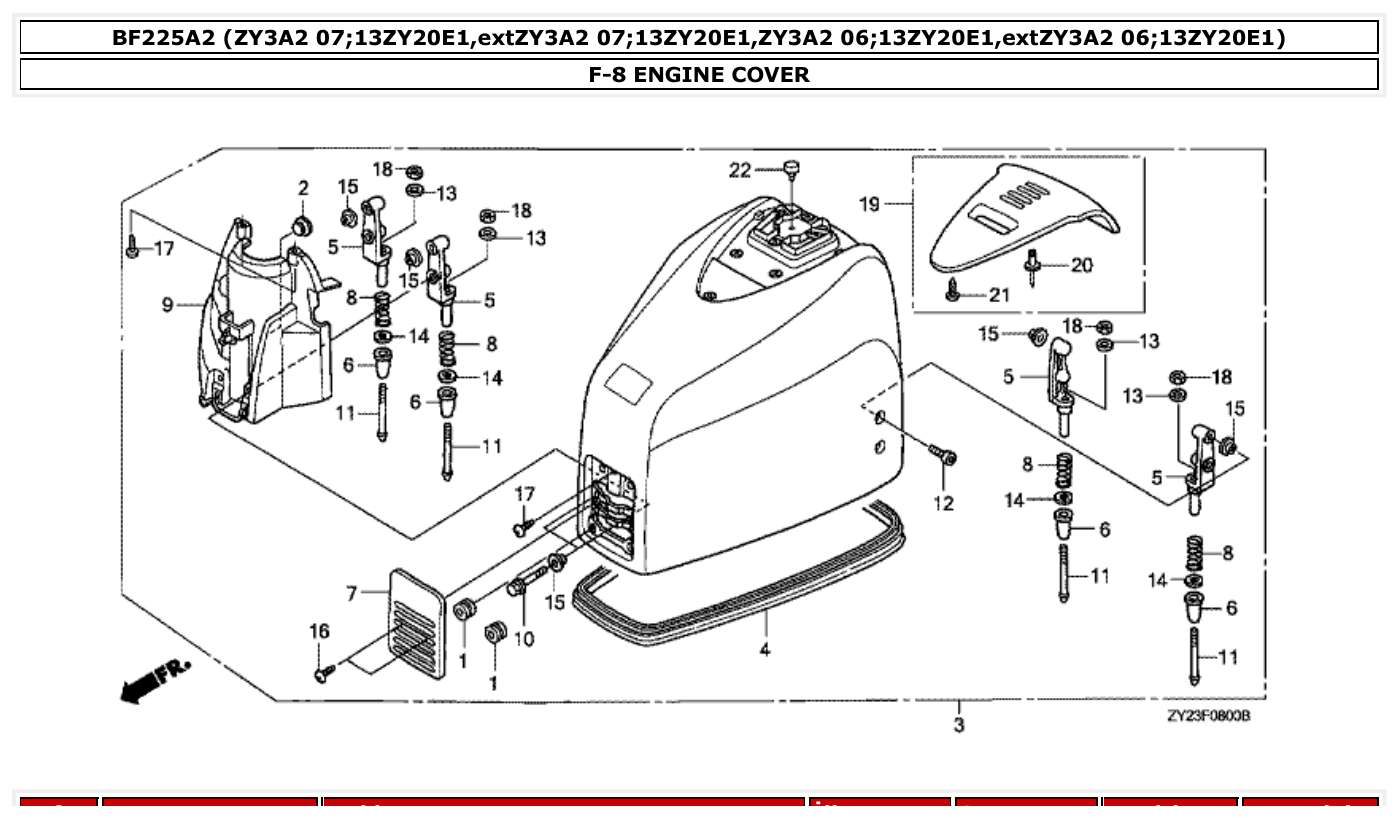

Honda BF225A2 ENGINE COVER parts diagram
Fig. F-8 — ENGINE COVER
22 items
Honda BF225A2 FR. COVER BRACKET/FR. LOCK SHAFT parts diagram

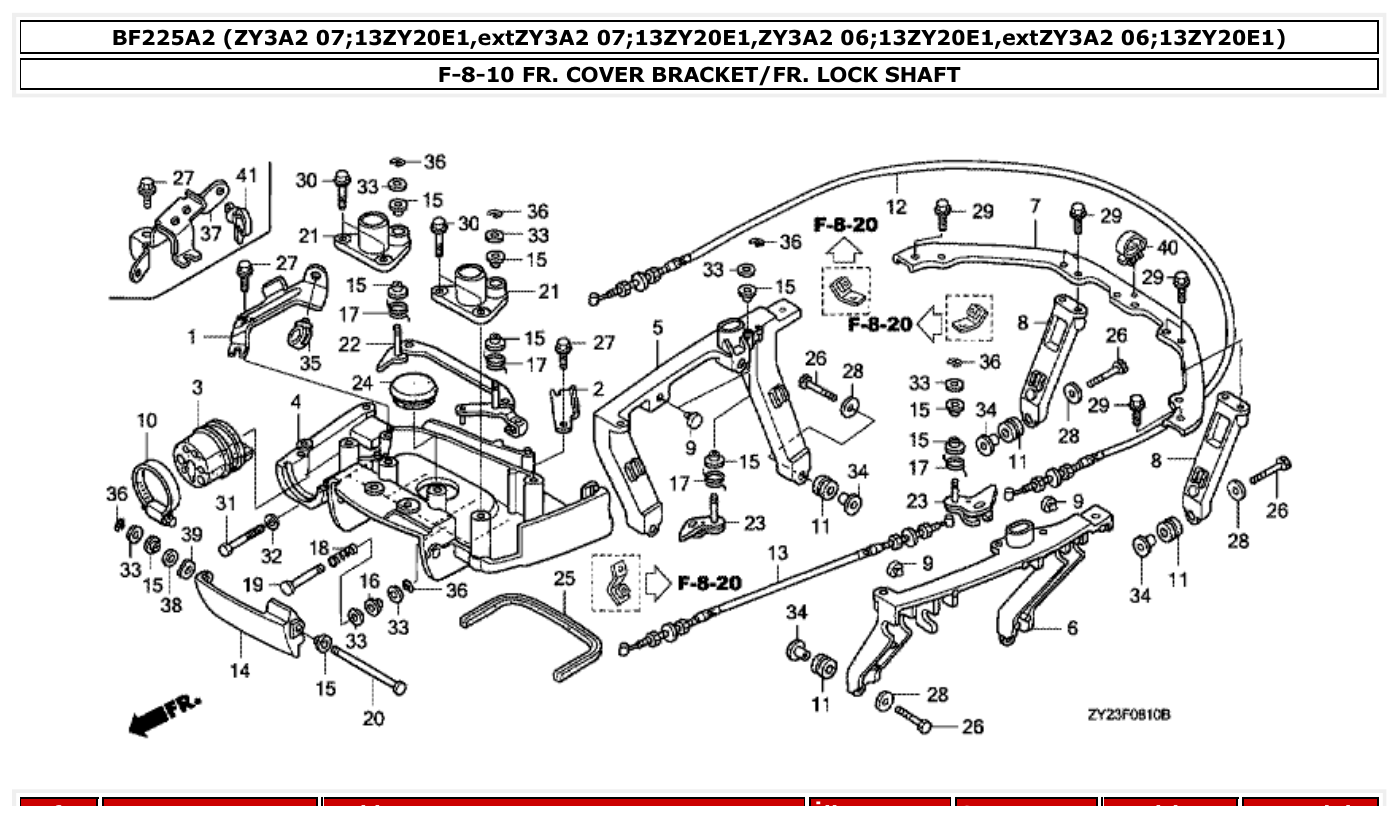

Fig. F-8-10 — FR. COVER BRACKET/FR. LOCK SHAFT
37 items
Honda BF225A2 WATER SEPARATOR/FUEL STRAINER parts diagram

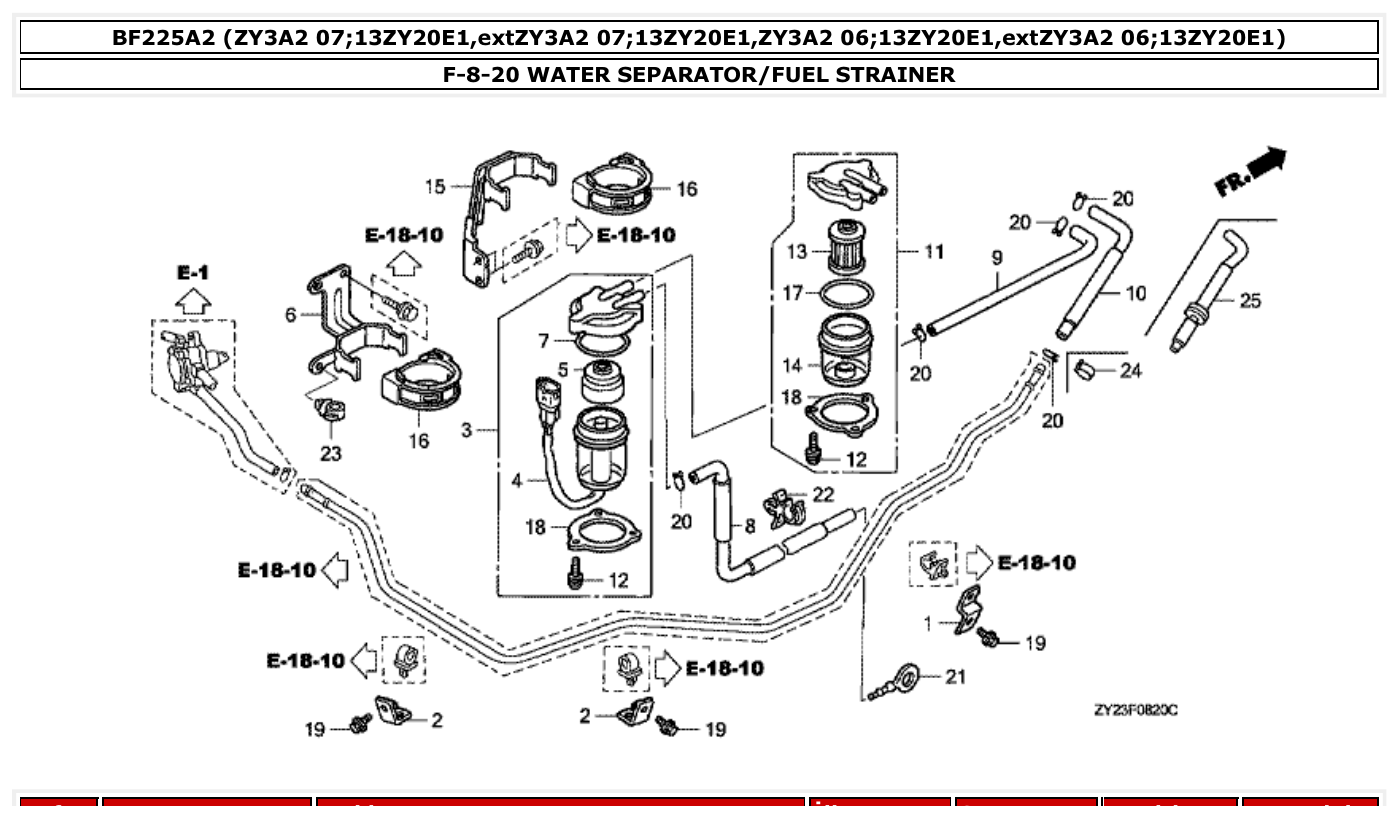

Fig. F-8-20 — WATER SEPARATOR/FUEL STRAINER
23 items

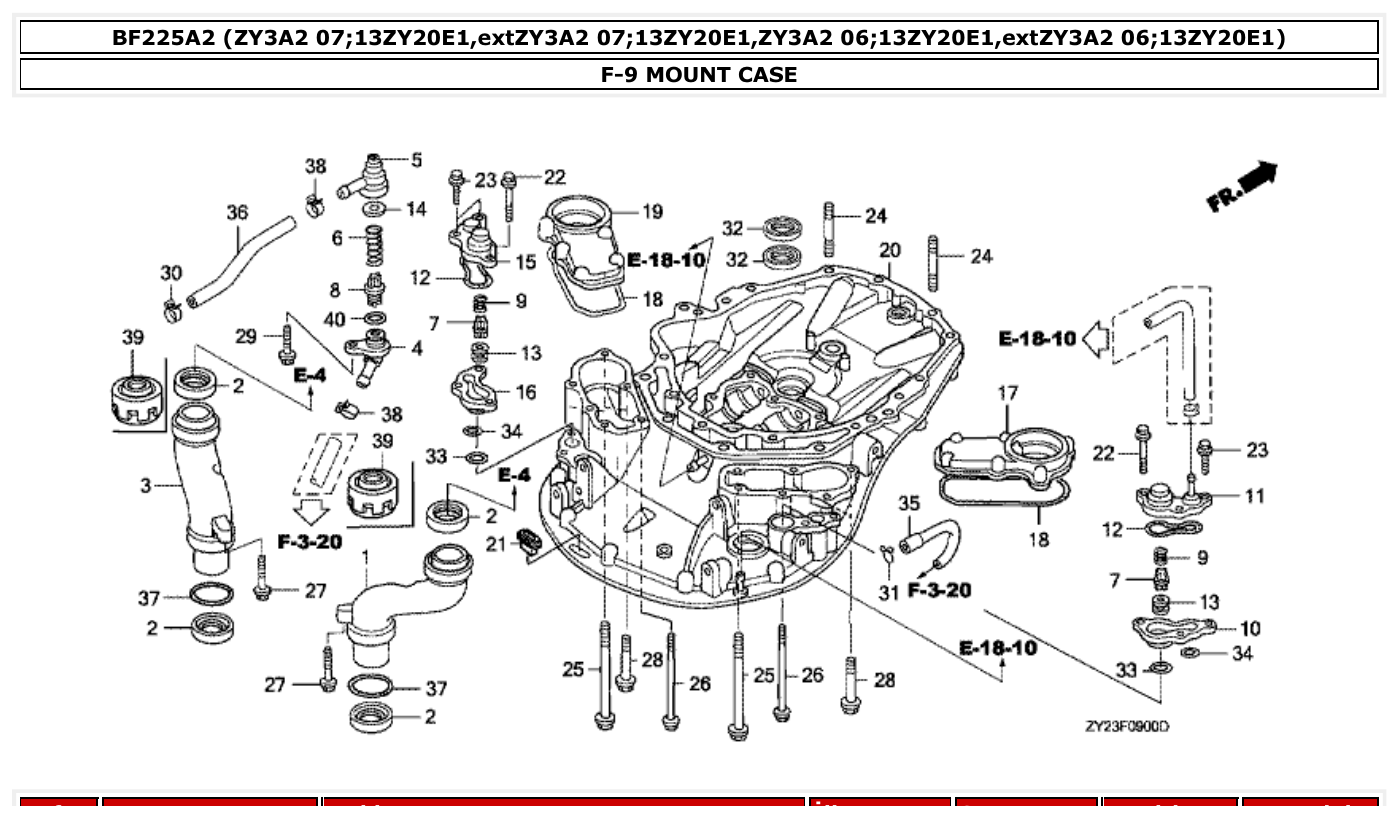

Honda BF225A2 MOUNT CASE parts diagram
Fig. F-9 — MOUNT CASE
39 items
