Honda BF50AX Parts Catalog

Honda BF50AX Outboard parts and diagrams

Honda BF50AX outboard parts catalog includes TIMING BELT/FLYWHEEL COVER, CARBURETOR, THROTTLE ROD, SILENCER COVER, FLYWHEEL, CYLINDER HEAD, IGNITION COIL/C.D.I. UNIT, STARTER MOTOR, CYLINDER BLOCK, OIL PUMP/EXHAUST PIPE, PRIMARY GEAR CASE/OIL PAN, CRANKSHAFT/PISTON, CAMSHAFT/VALVE, STEERING HANDLE, STERN BRACKET, SWIVEL CASE/MOUNT FRAME, POWER TRIM-TILT/DAMPER, POWER TRIM-TILT COMPONENTS. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

17 linked store products are available across 30 catalog sections. 1221 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Honda BF50AX TIMING BELT/FLYWHEEL COVER parts diagram

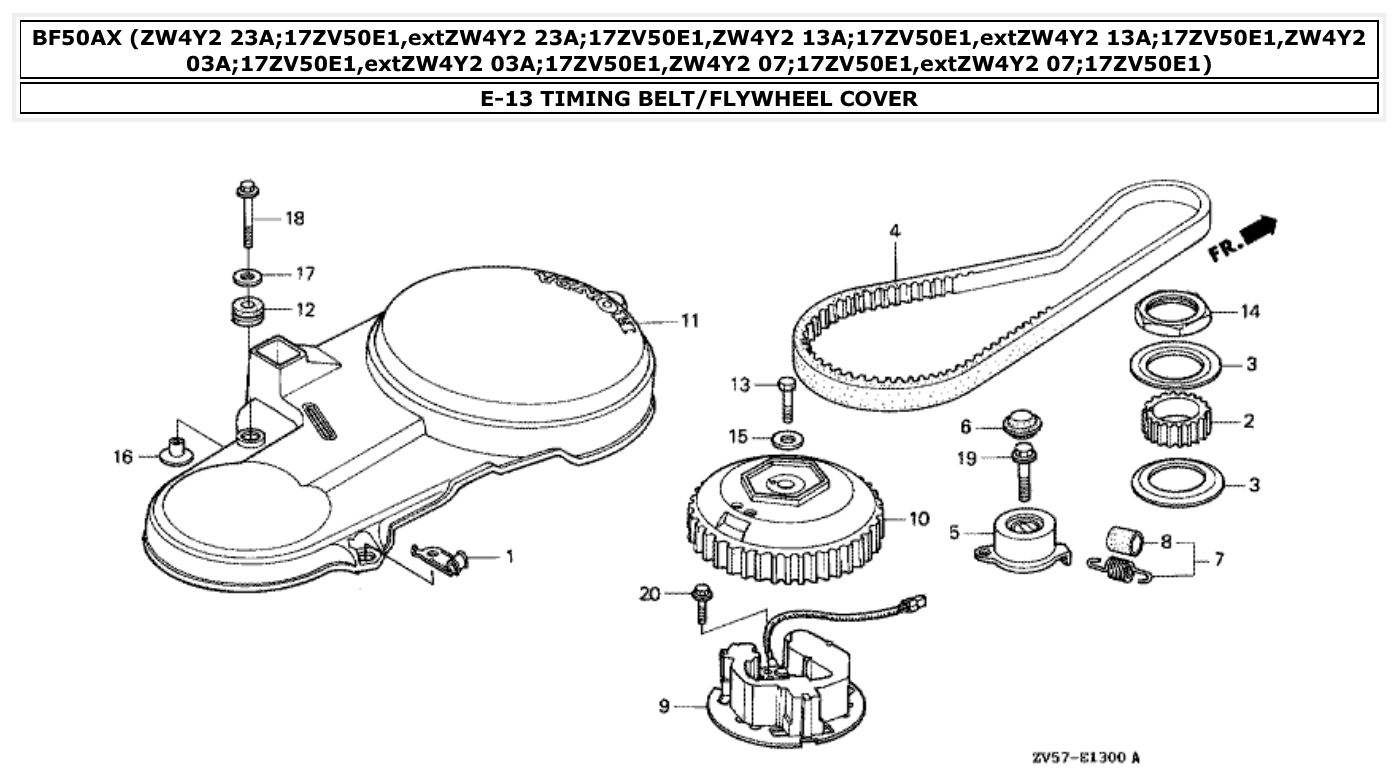

Fig. E-13 — TIMING BELT/FLYWHEEL COVER
20 items

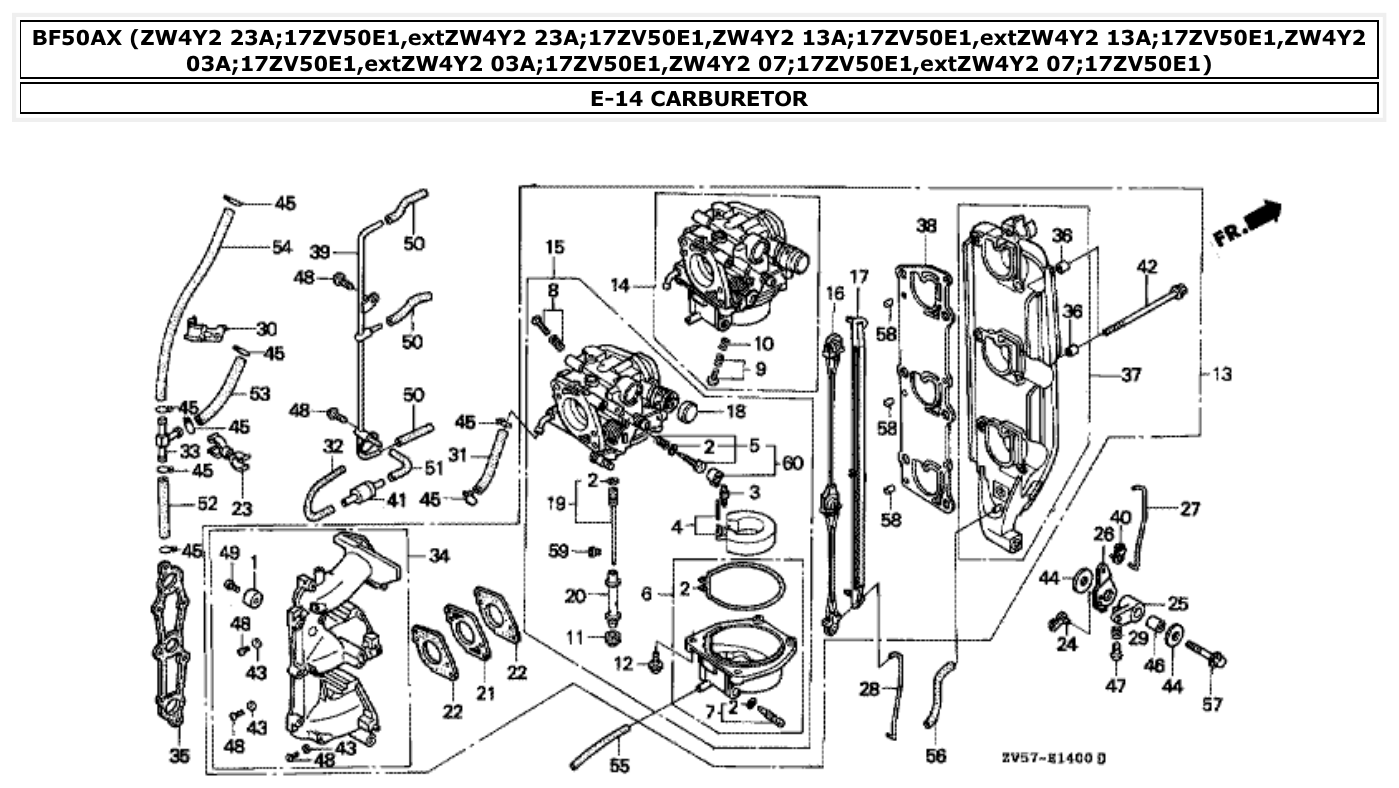

Honda BF50AX CARBURETOR parts diagram
Fig. E-14 — CARBURETOR
66 items · 3 available products

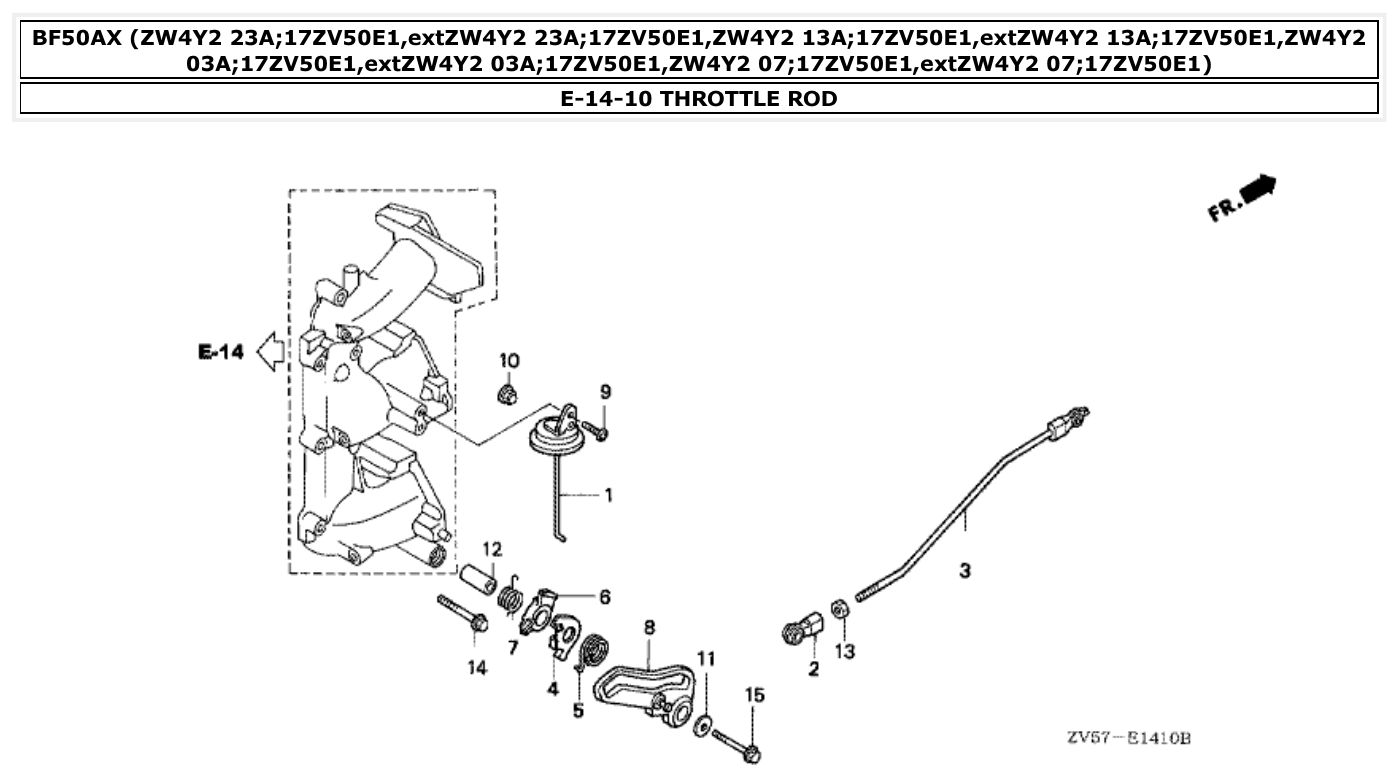

Honda BF50AX THROTTLE ROD parts diagram
Fig. E-14-10 — THROTTLE ROD
15 items
Honda BF50AX SILENCER COVER parts diagram
Fig. E-14-20 — SILENCER COVER
16 items

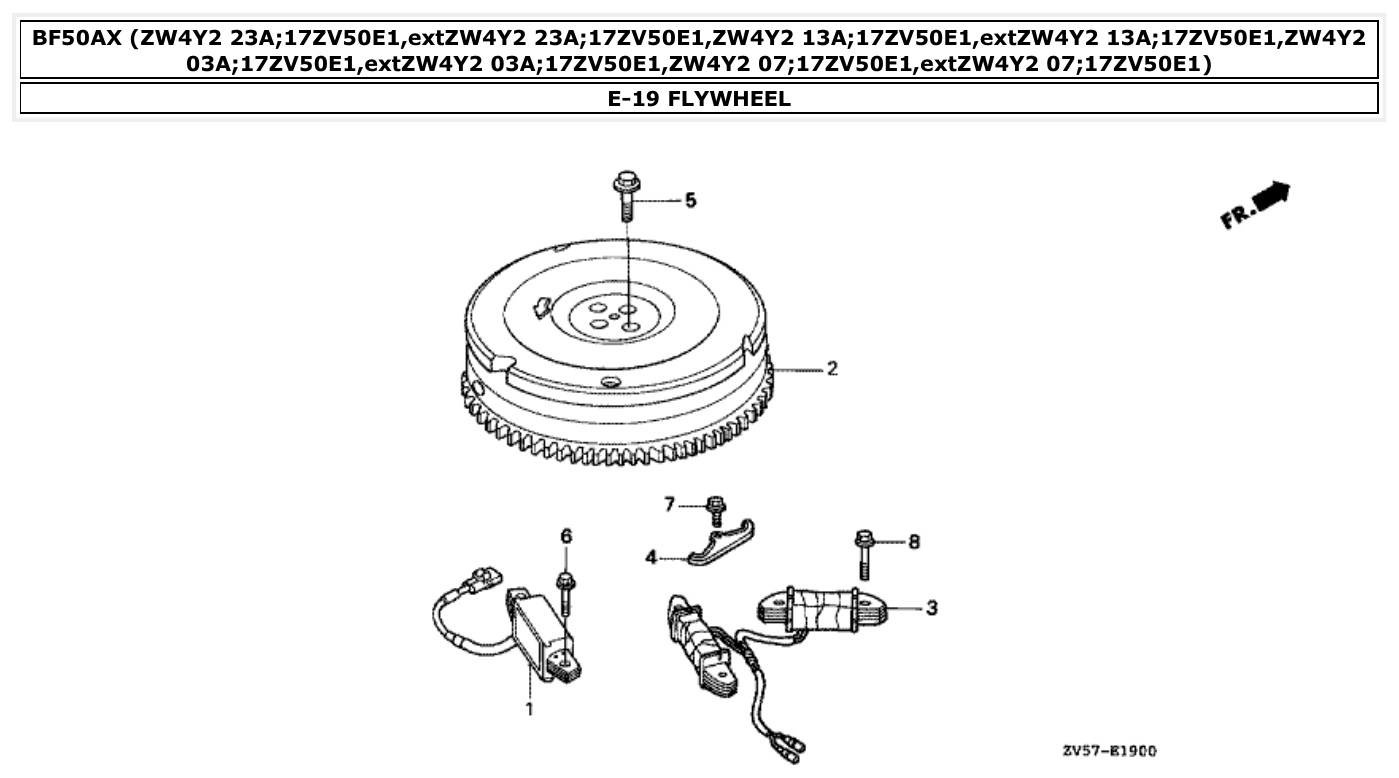

Honda BF50AX FLYWHEEL parts diagram
Fig. E-19 — FLYWHEEL
8 items

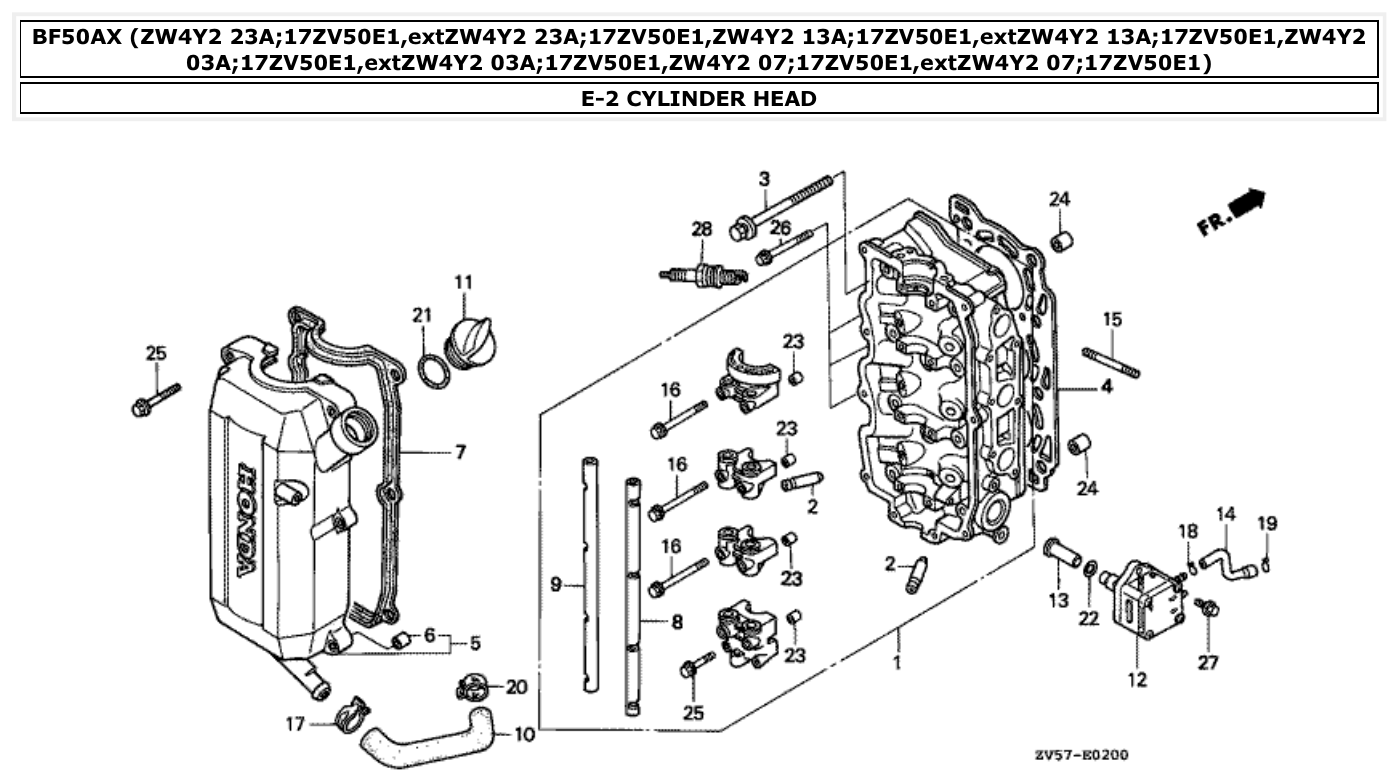

Honda BF50AX CYLINDER HEAD parts diagram
Fig. E-2 — CYLINDER HEAD
26 items

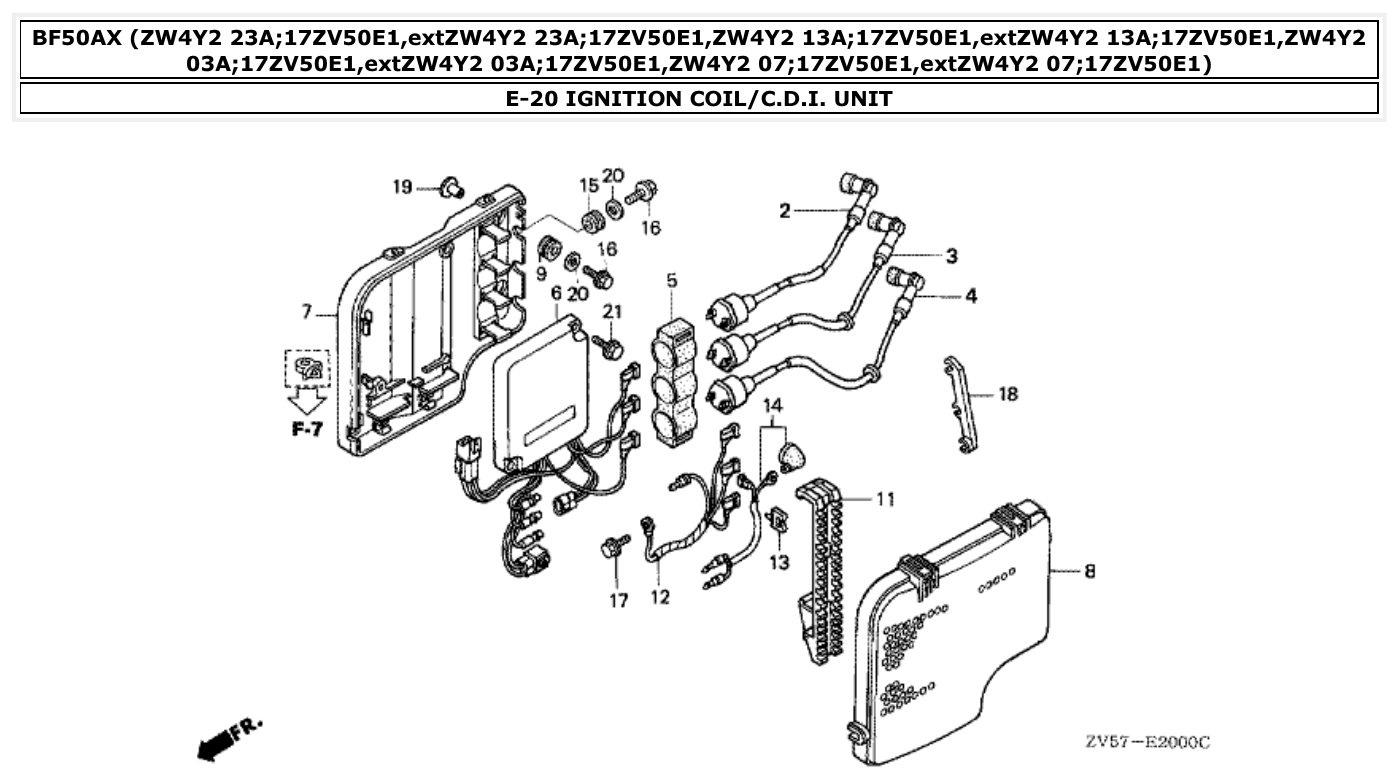

Honda BF50AX IGNITION COIL/C.D.I. UNIT parts diagram
Fig. E-20 — IGNITION COIL/C.D.I. UNIT
7 items

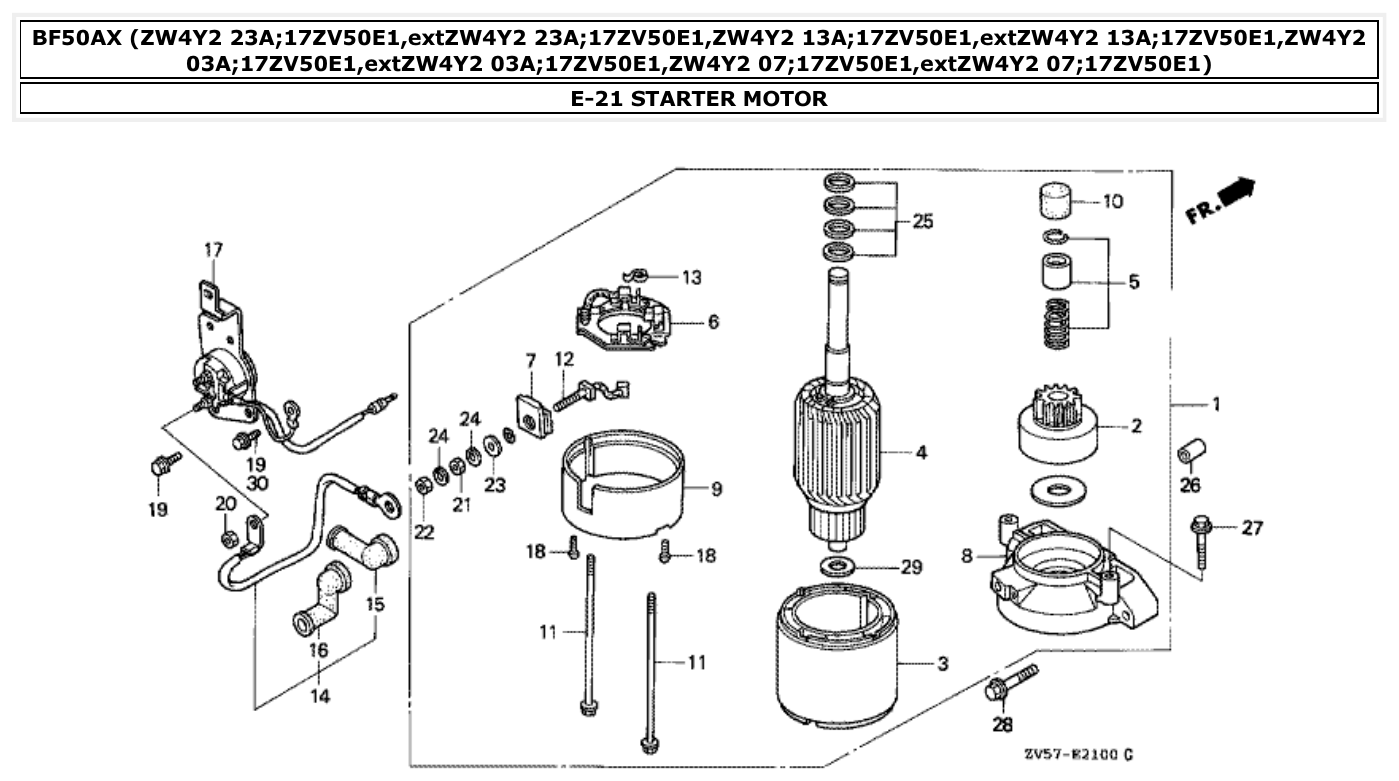

Honda BF50AX STARTER MOTOR parts diagram
Fig. E-21 — STARTER MOTOR
40 items

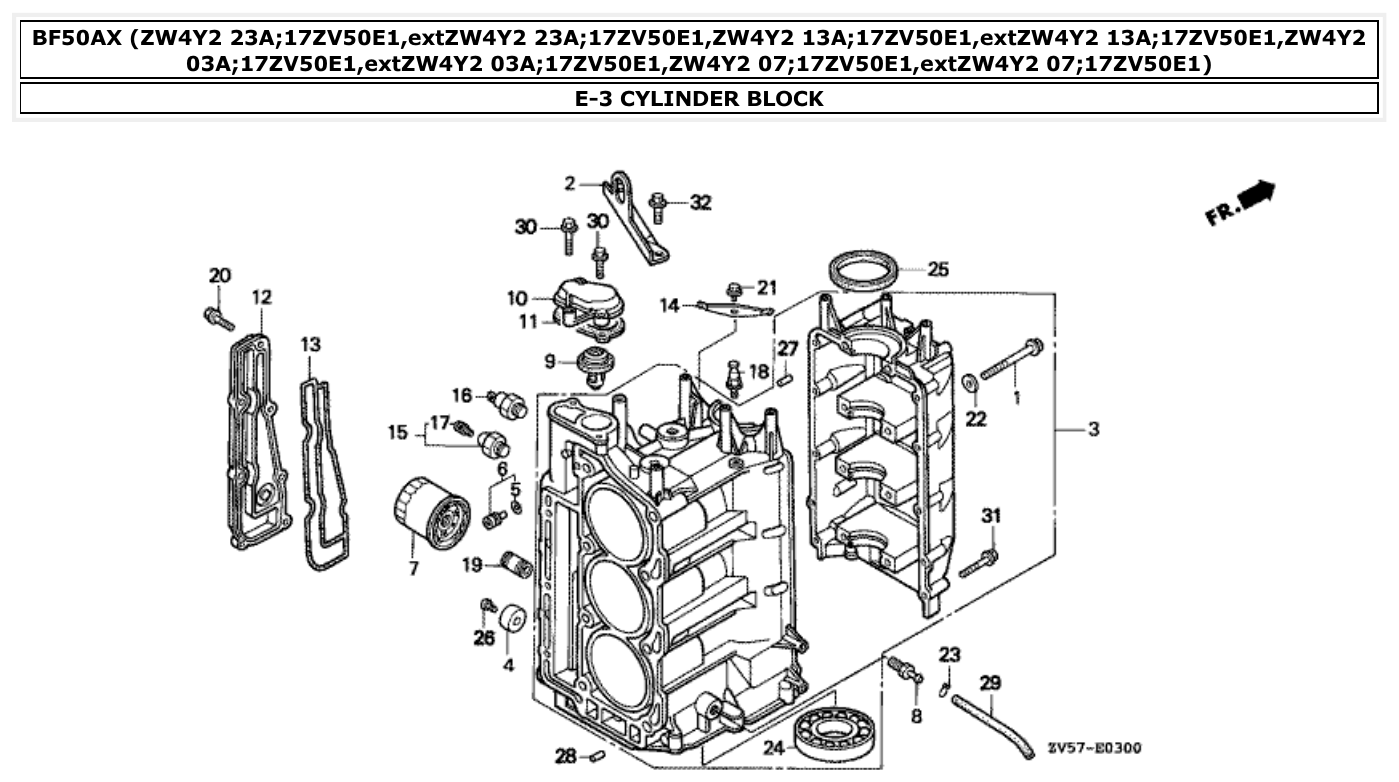

Honda BF50AX CYLINDER BLOCK parts diagram
Fig. E-3 — CYLINDER BLOCK
32 items

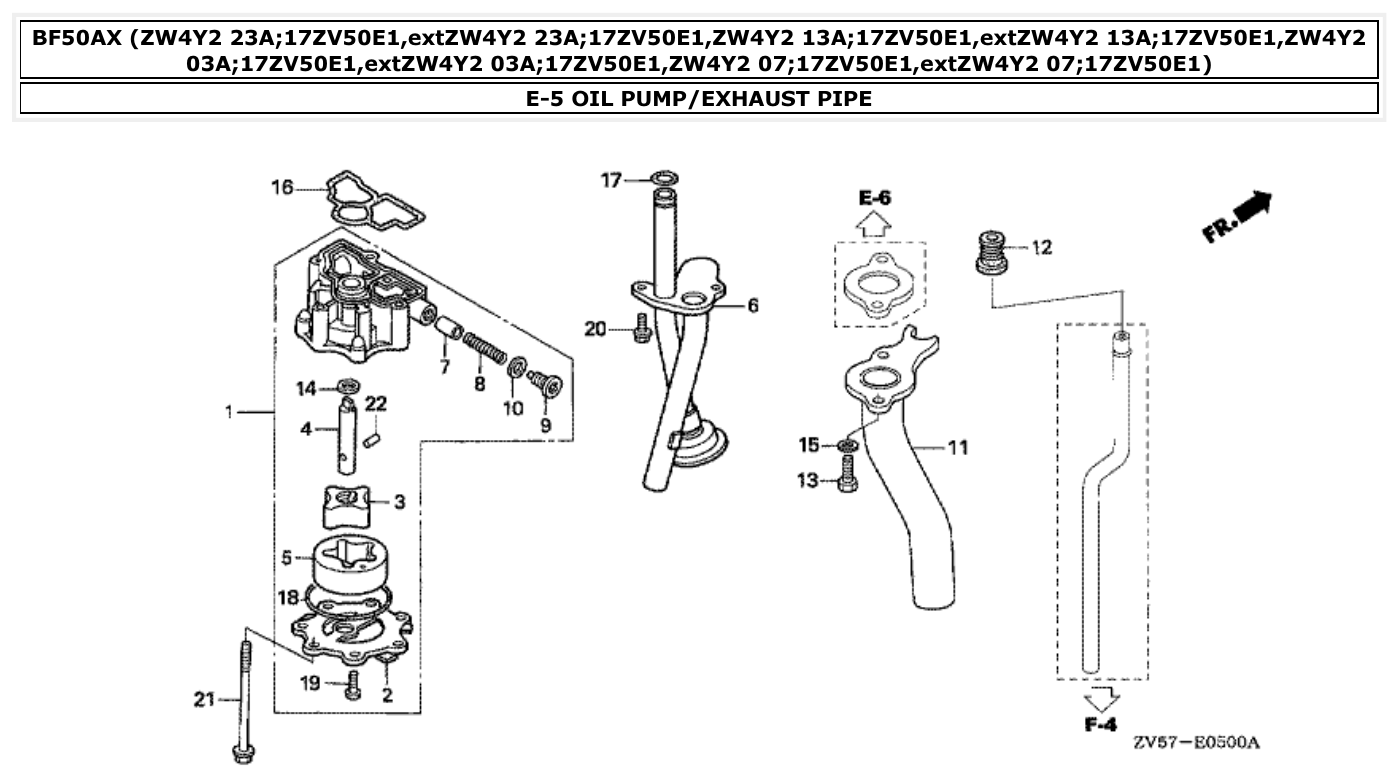

Honda BF50AX OIL PUMP/EXHAUST PIPE parts diagram
Fig. E-5 — OIL PUMP/EXHAUST PIPE
22 items

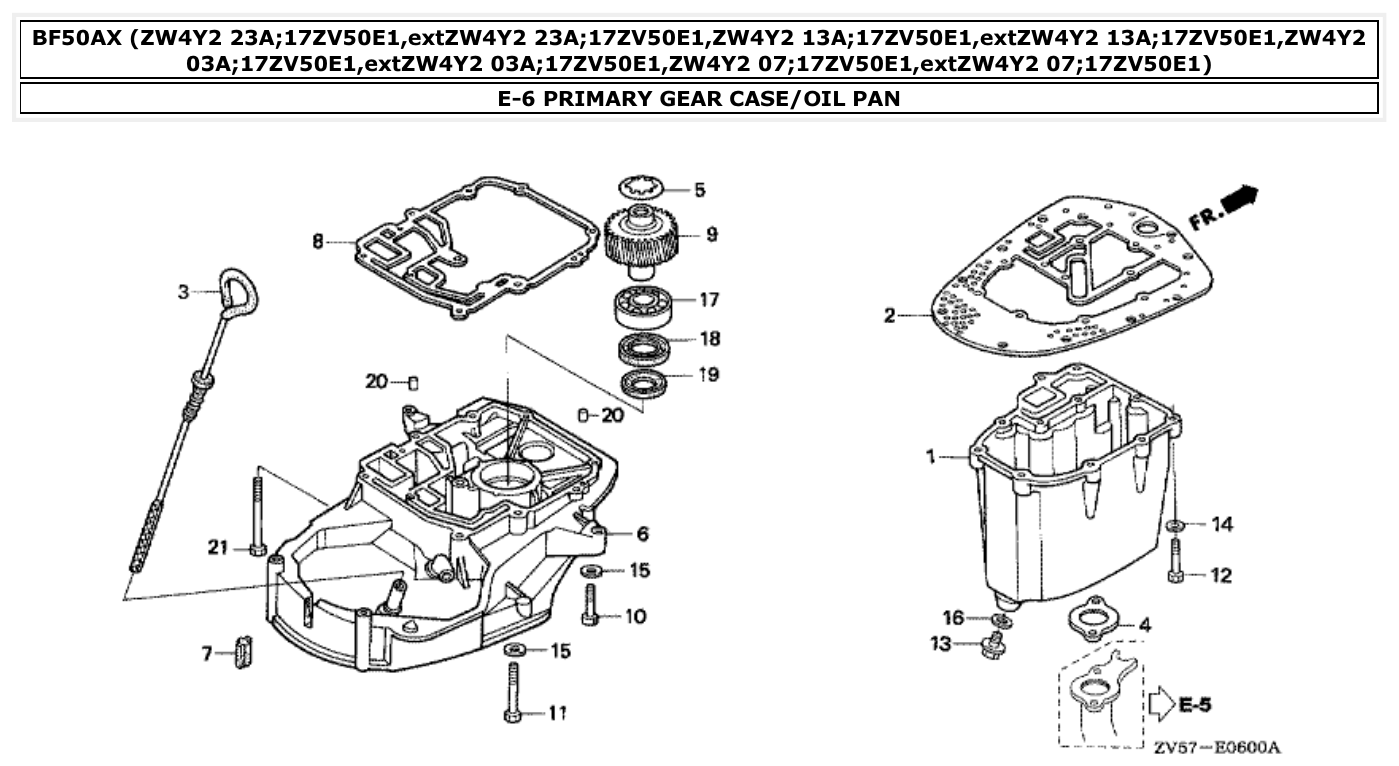

Honda BF50AX PRIMARY GEAR CASE/OIL PAN parts diagram
Fig. E-6 — PRIMARY GEAR CASE/OIL PAN
18 items

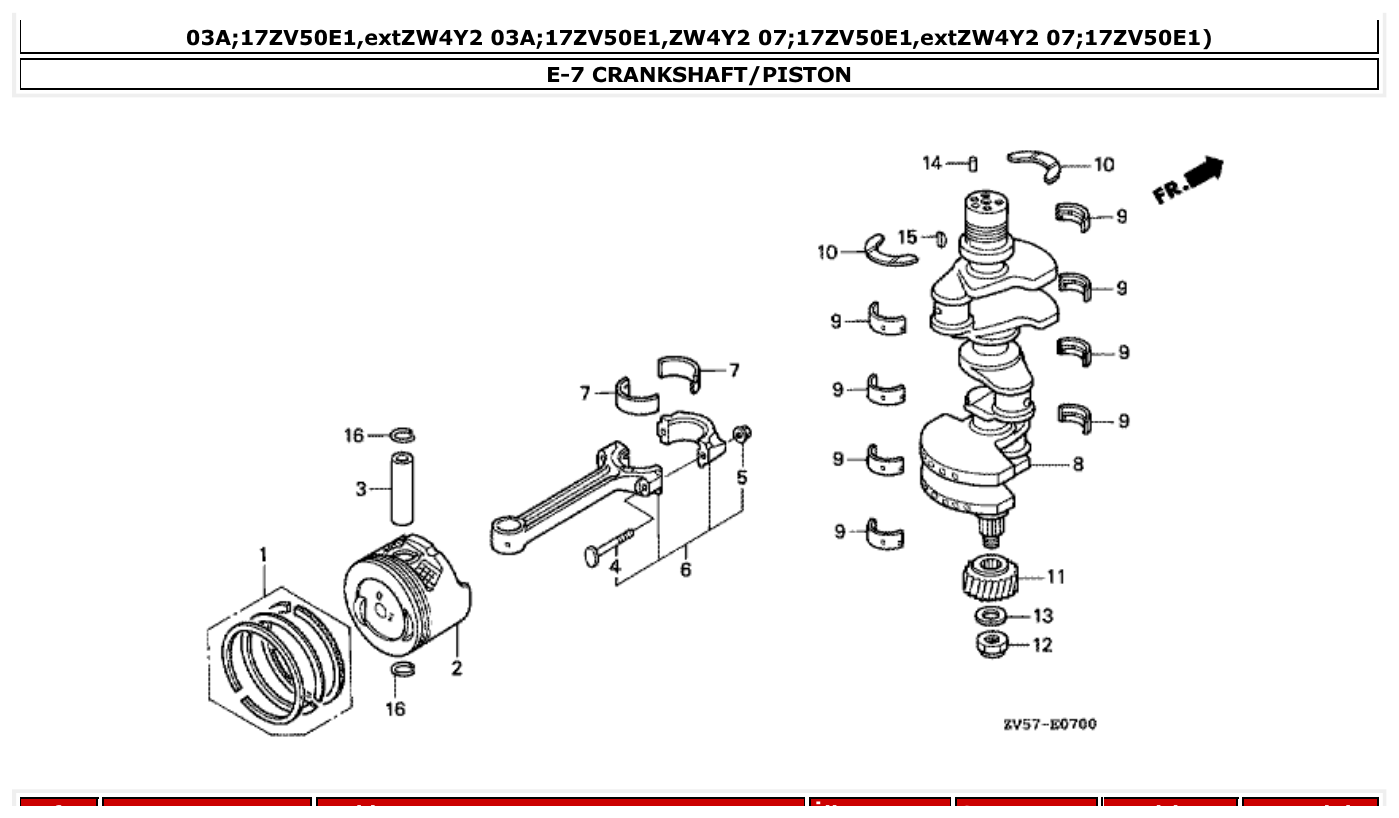

Honda BF50AX CRANKSHAFT/PISTON parts diagram
Fig. E-7 — CRANKSHAFT/PISTON
40 items · 1 available products

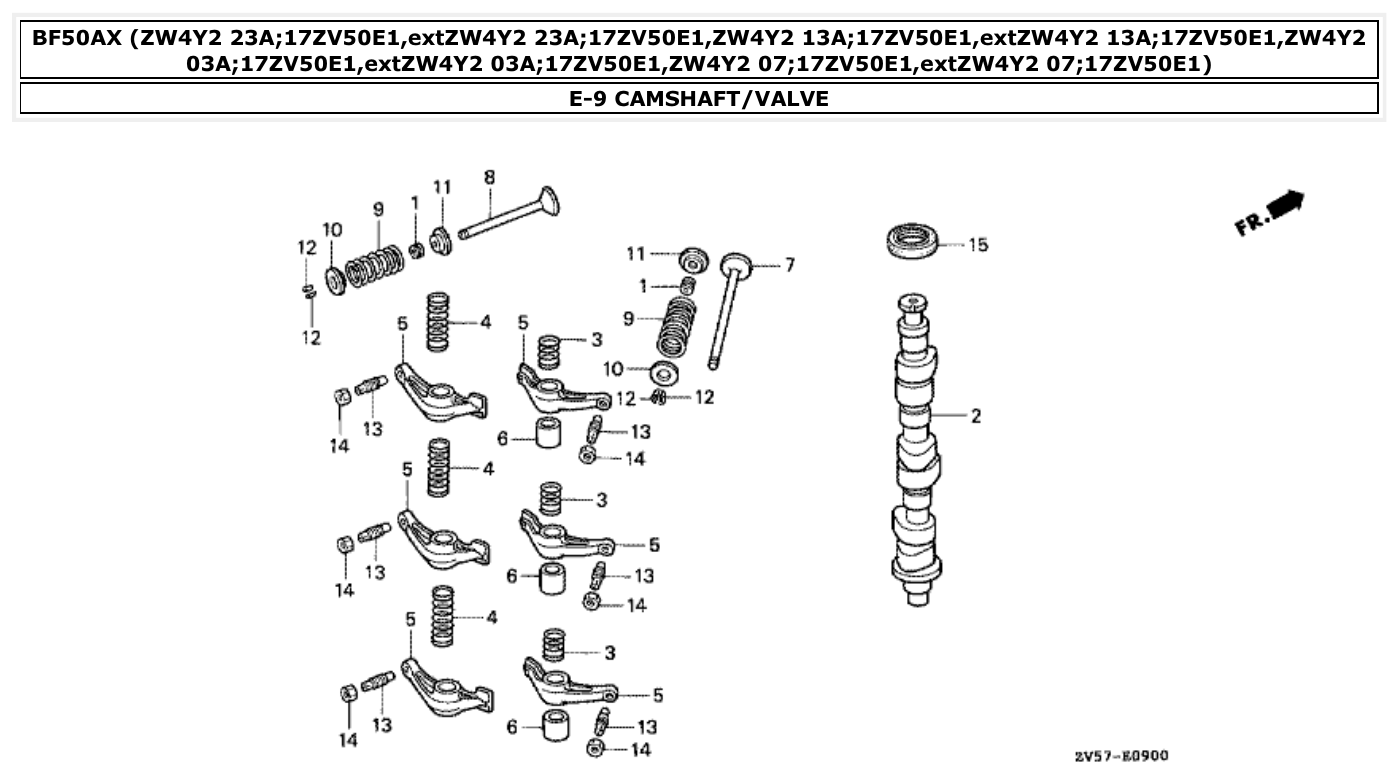

Honda BF50AX CAMSHAFT/VALVE parts diagram
Fig. E-9 — CAMSHAFT/VALVE
16 items
Honda BF50AX STEERING HANDLE parts diagram

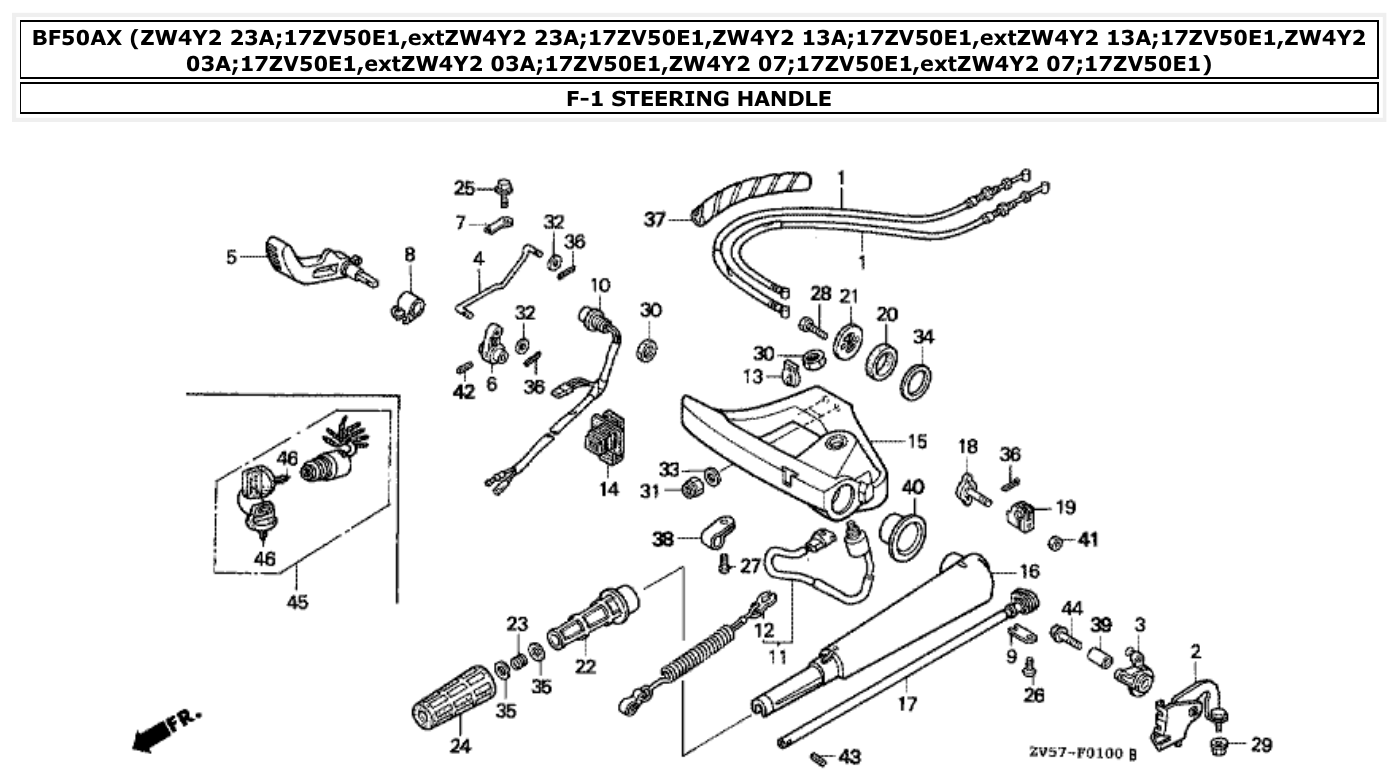

Fig. F-1 — STEERING HANDLE
46 items
Honda BF50AX STERN BRACKET parts diagram

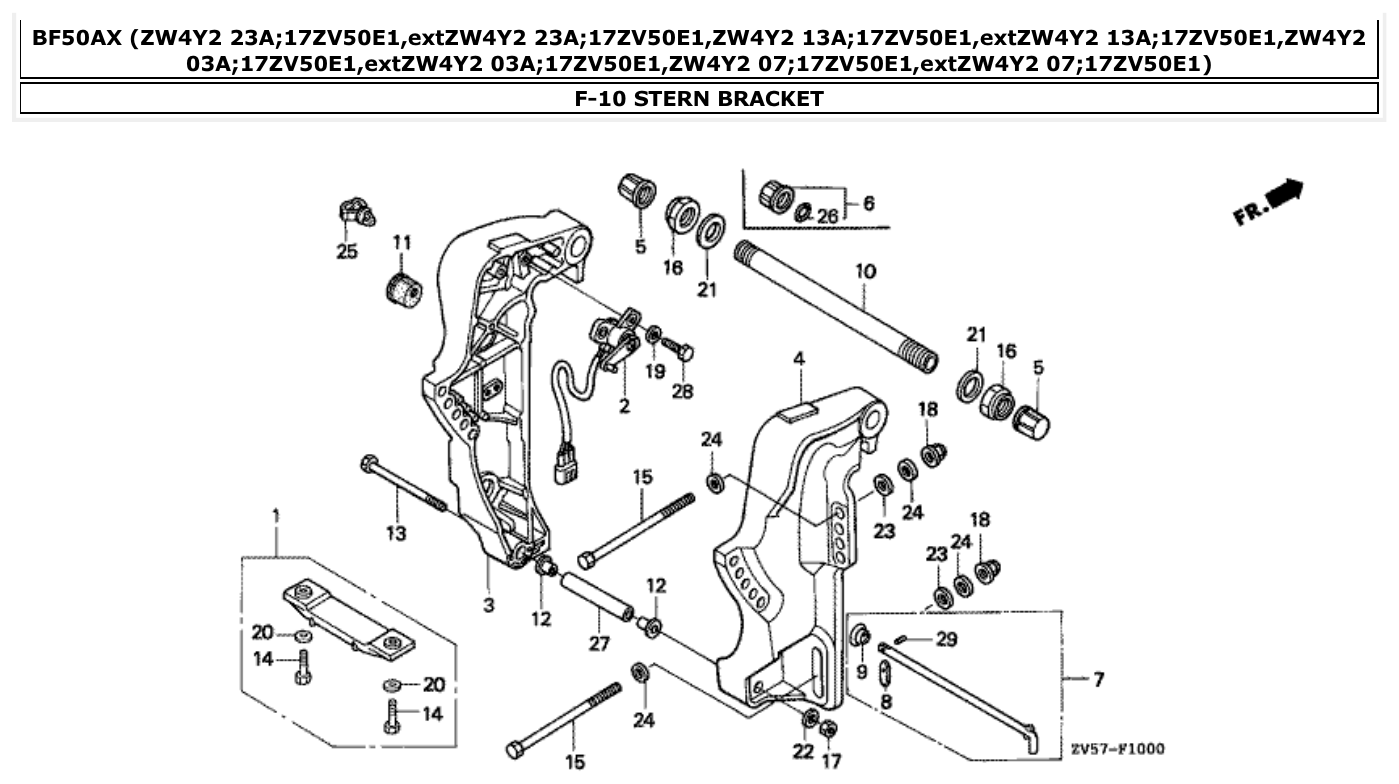

Fig. F-10 — STERN BRACKET
32 items

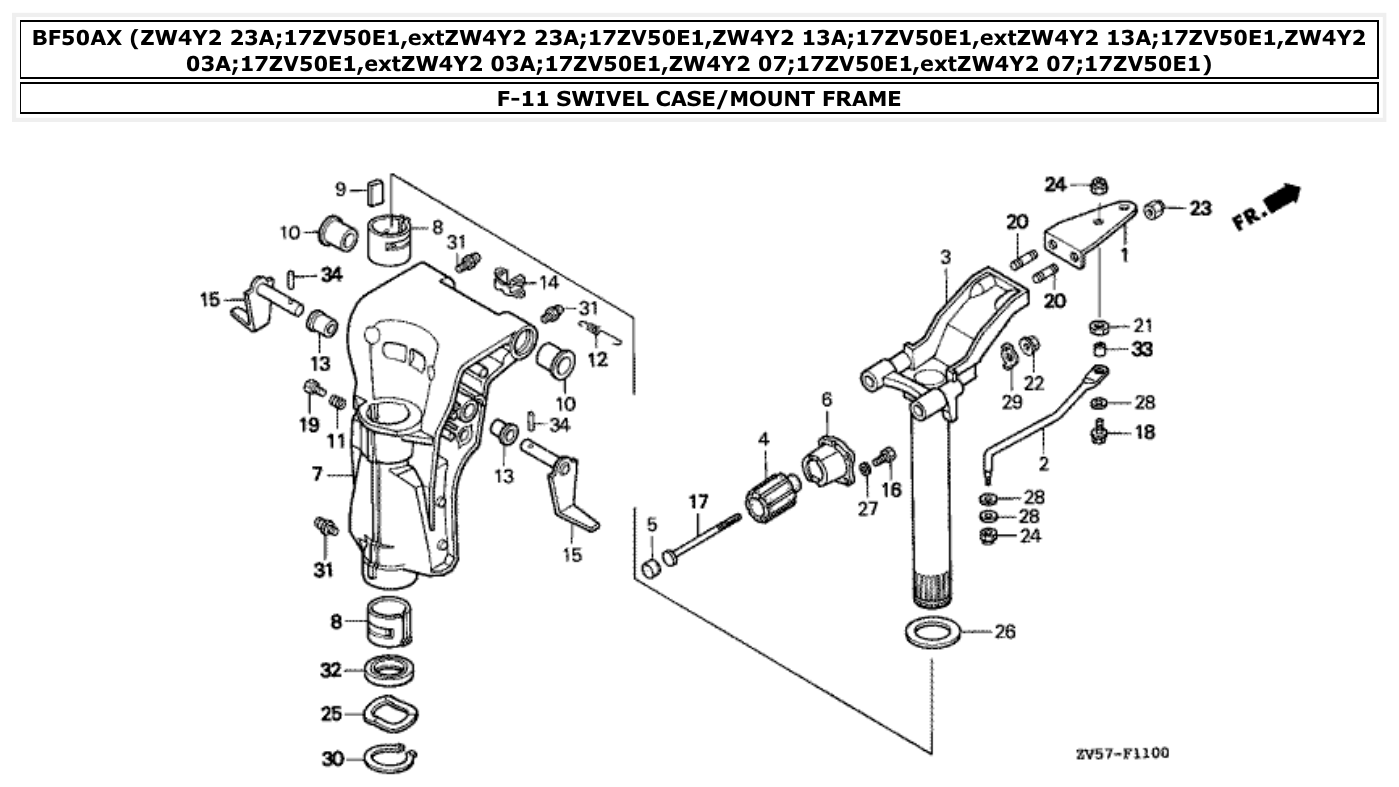

Honda BF50AX SWIVEL CASE/MOUNT FRAME parts diagram
Fig. F-11 — SWIVEL CASE/MOUNT FRAME
36 items

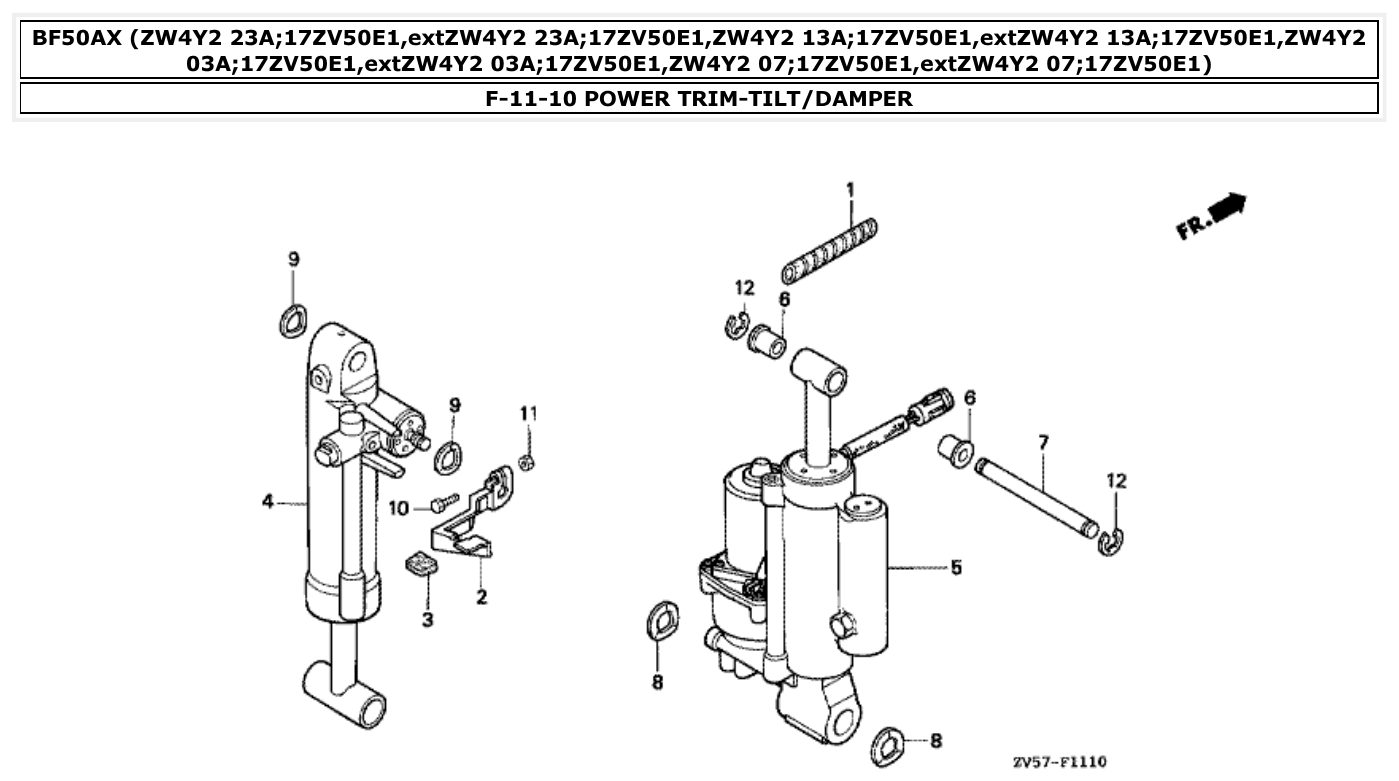

Honda BF50AX POWER TRIM-TILT/DAMPER parts diagram
Fig. F-11-10 — POWER TRIM-TILT/DAMPER
14 items
Honda BF50AX POWER TRIM-TILT COMPONENTS parts diagram

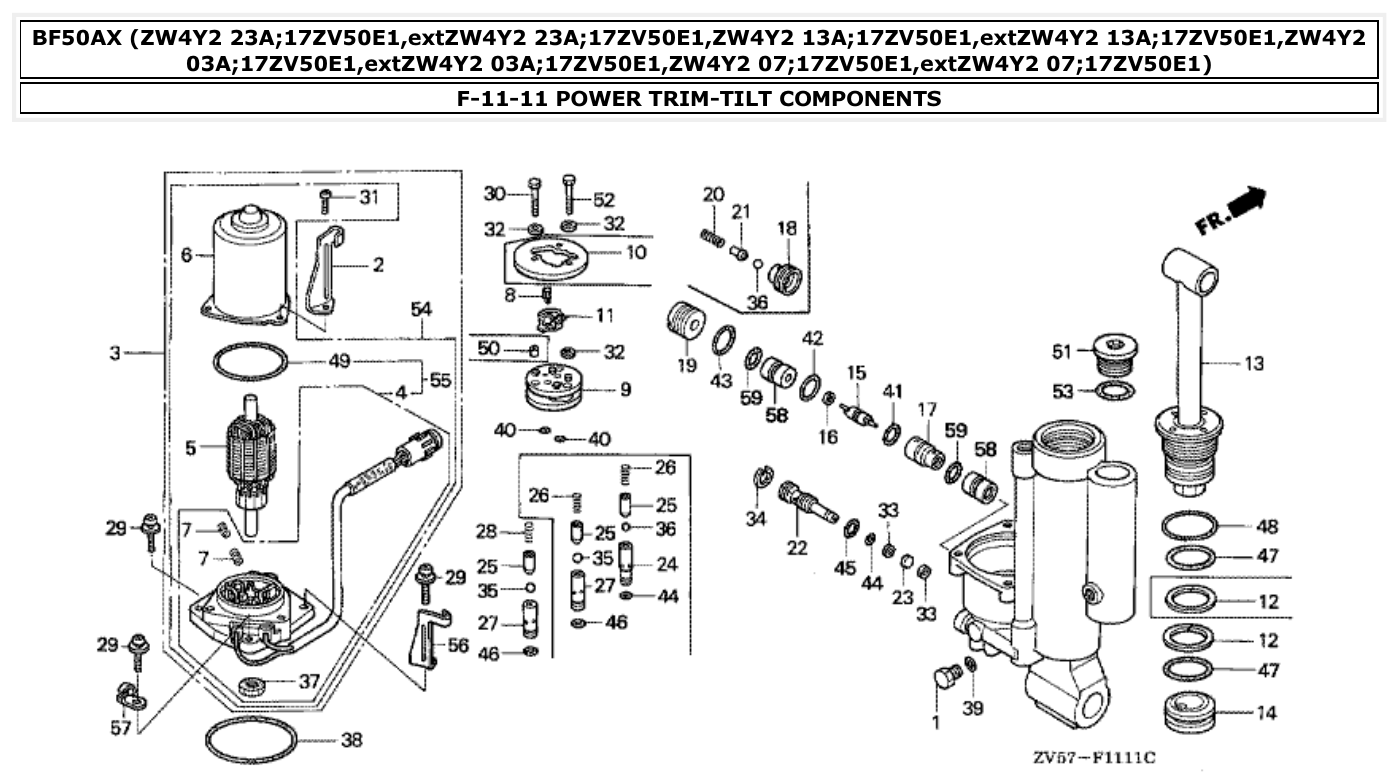

Fig. F-11-11 — POWER TRIM-TILT COMPONENTS
46 items

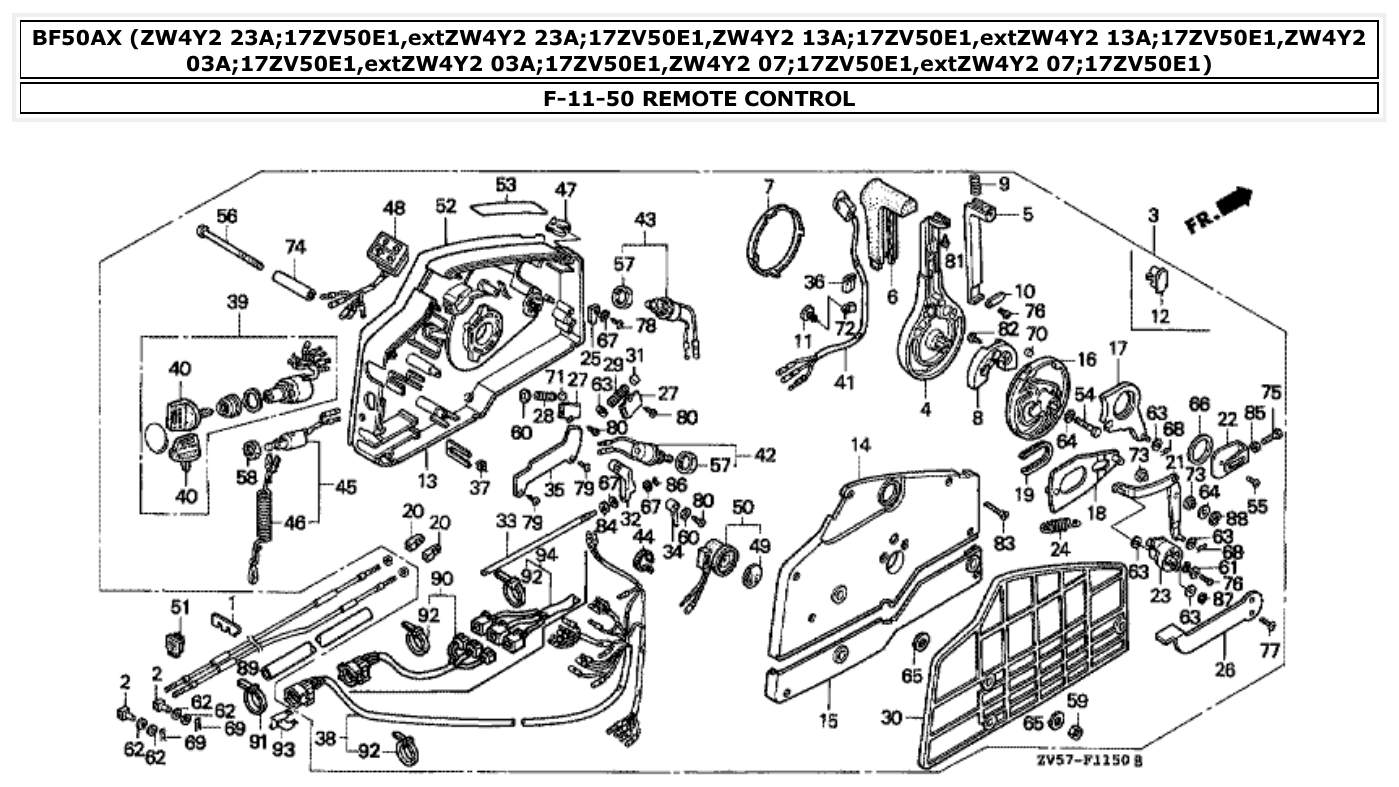

Honda BF50AX REMOTE CONTROL parts diagram
Fig. F-11-50 — REMOTE CONTROL
97 items

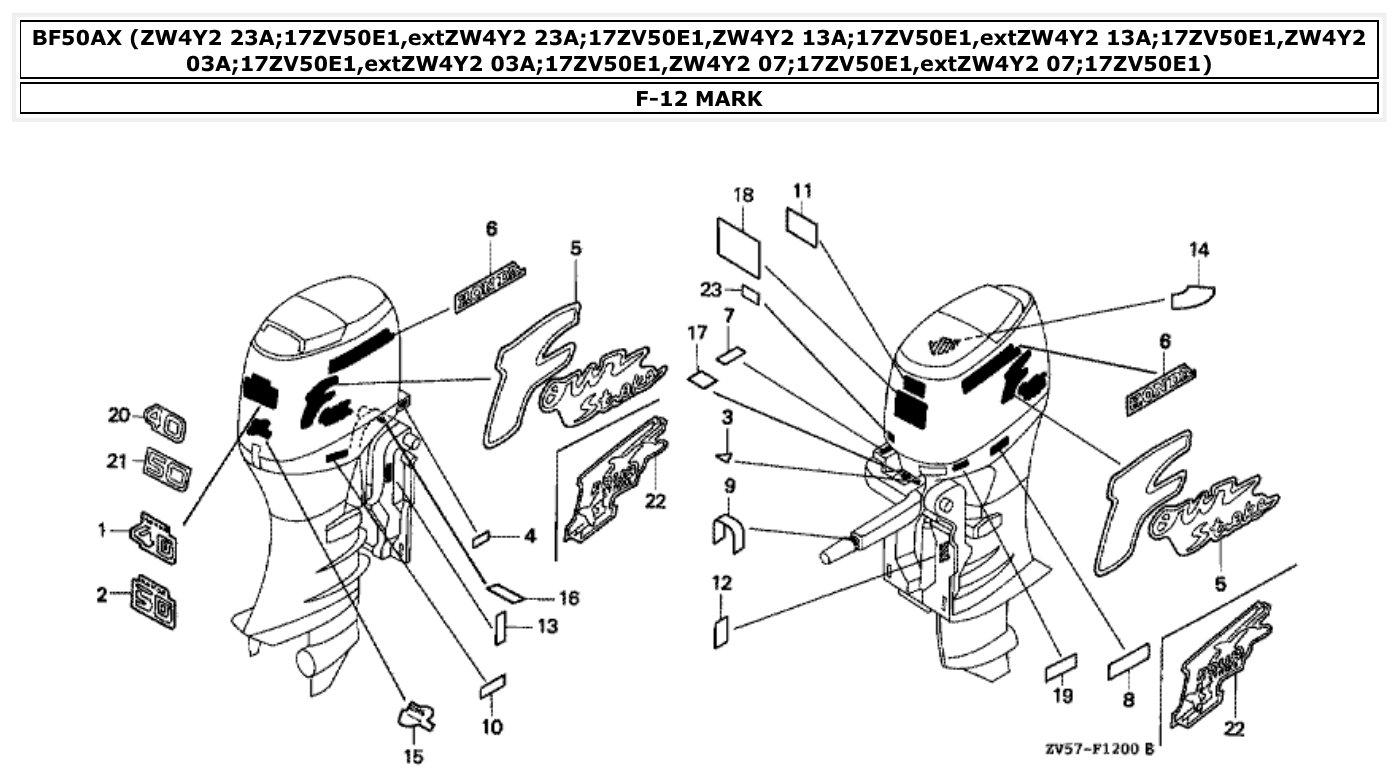

Honda BF50AX MARK parts diagram
Fig. F-12 — MARK
20 items

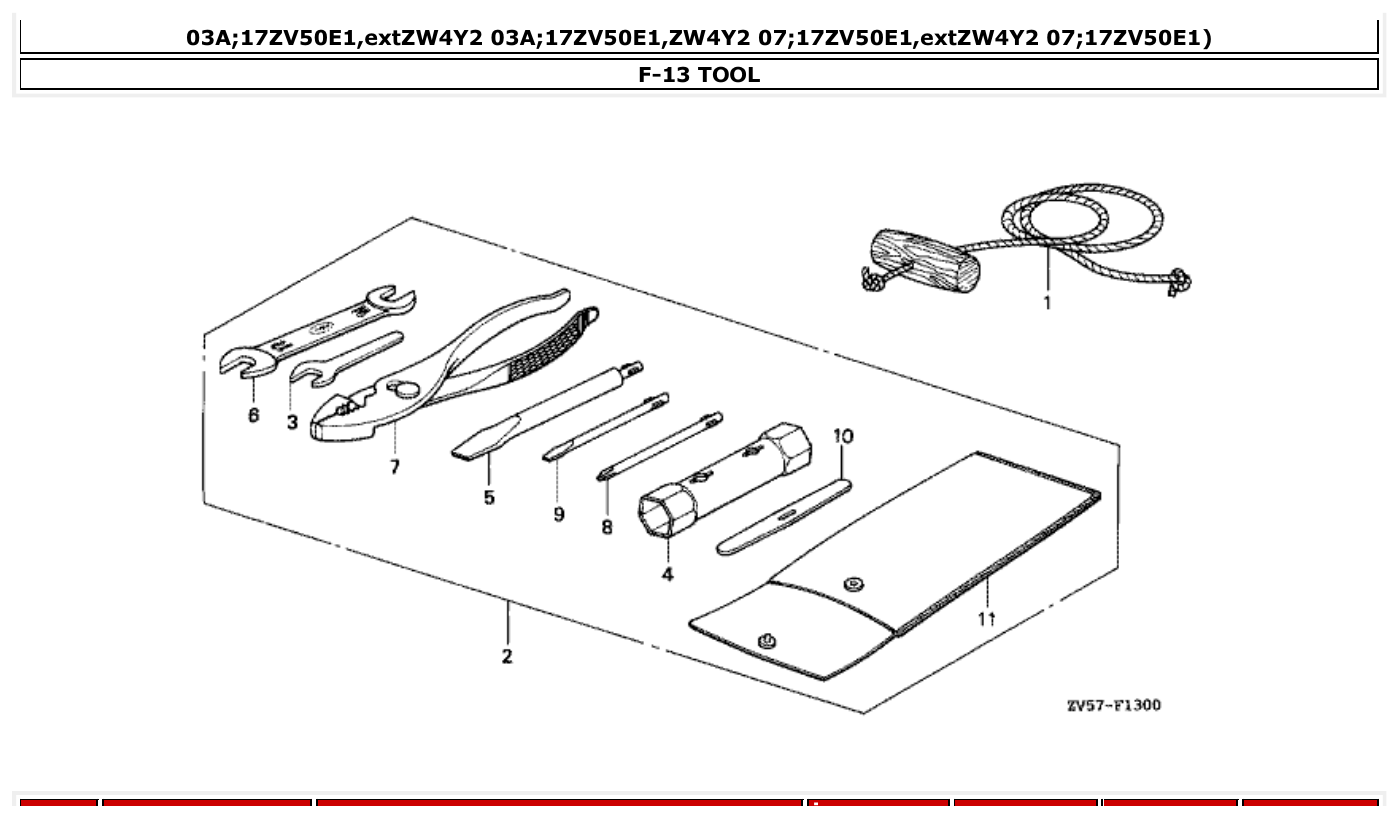

Honda BF50AX TOOL parts diagram
Fig. F-13 — TOOL
316 items · 2 available products

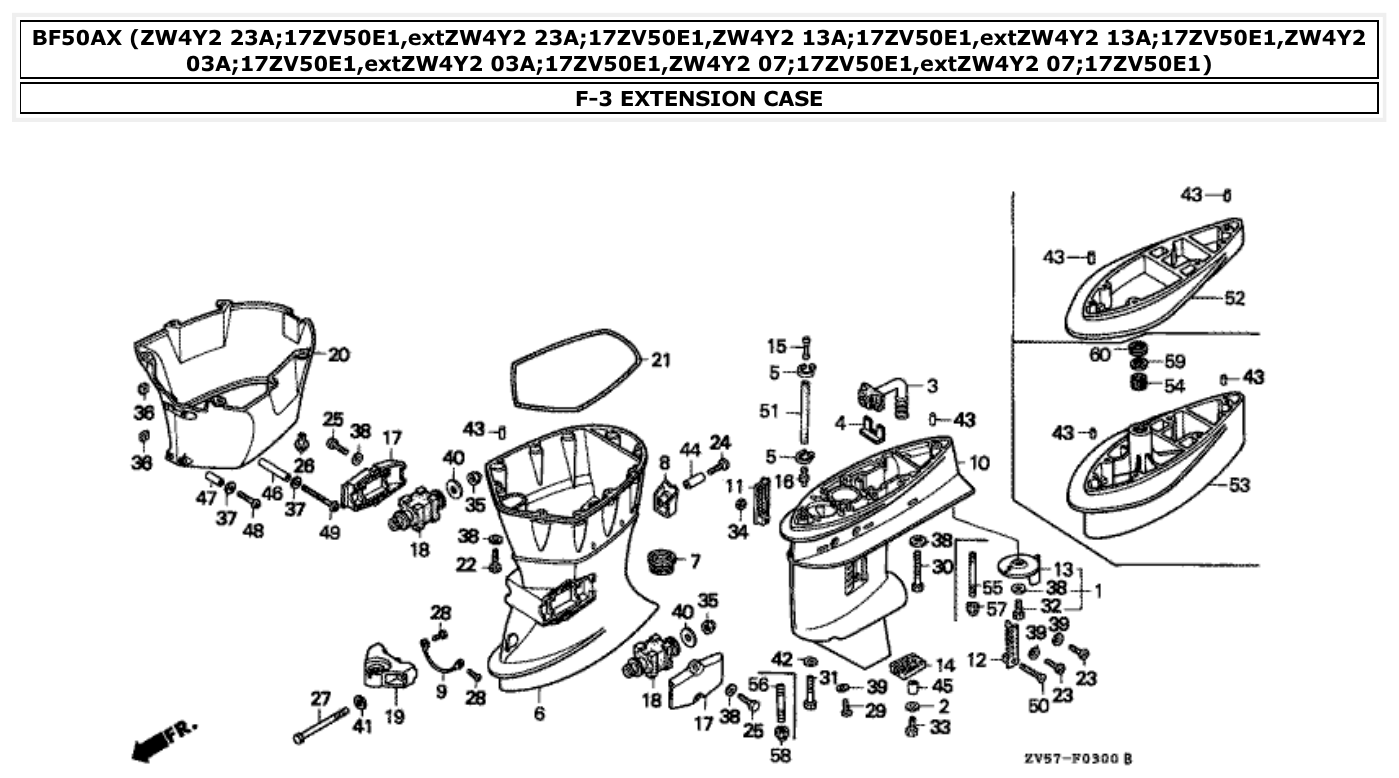

Honda BF50AX EXTENSION CASE parts diagram
Fig. F-3 — EXTENSION CASE
51 items · 3 available products

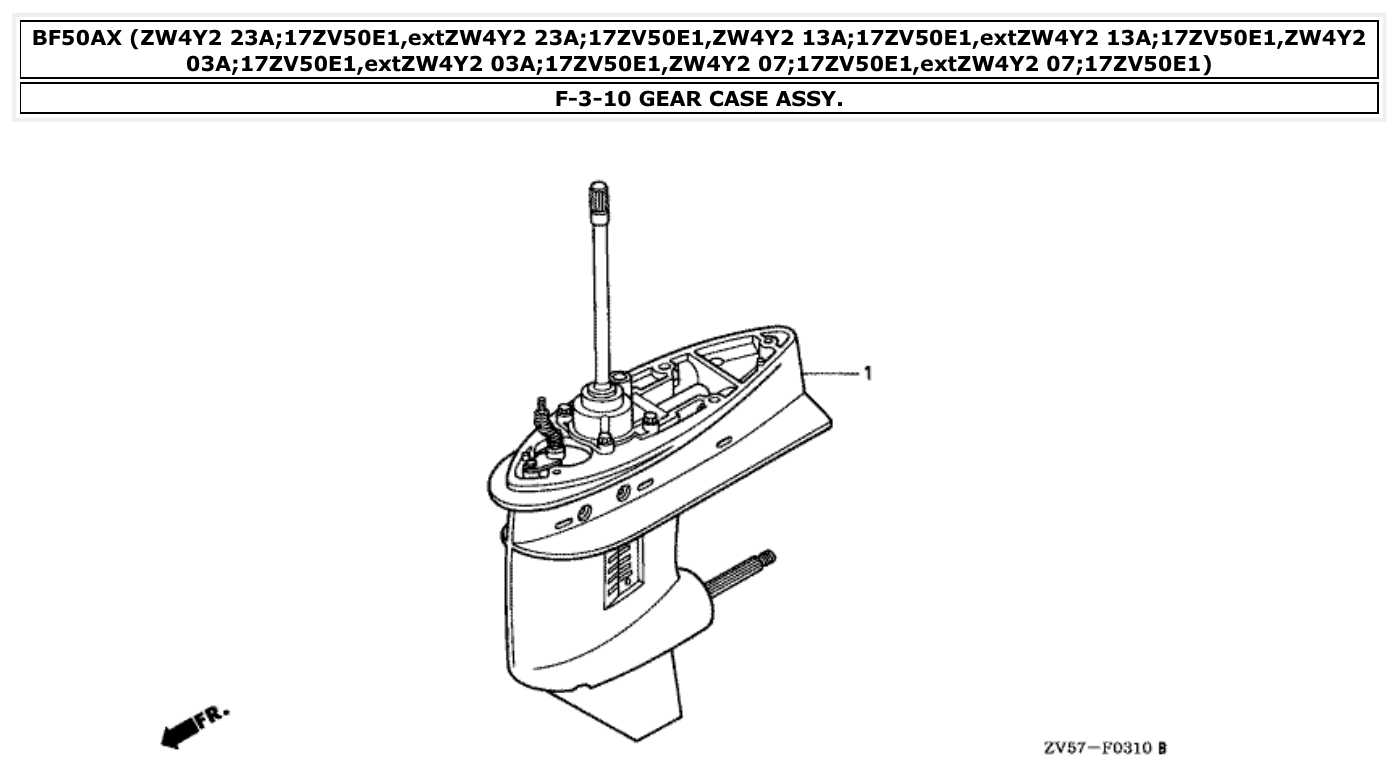

Honda BF50AX GEAR CASE ASSY. parts diagram
Fig. F-3-10 — GEAR CASE ASSY.
2 items

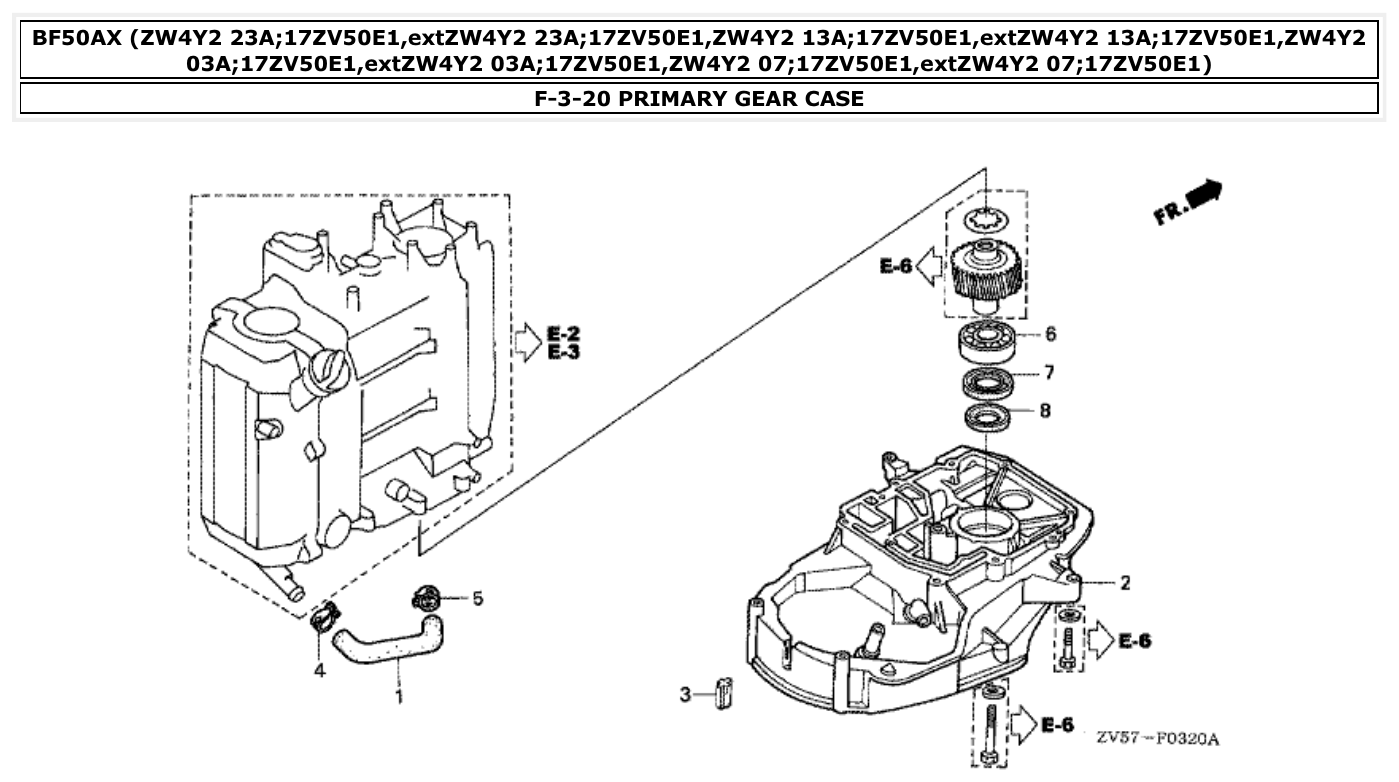

Honda BF50AX PRIMARY GEAR CASE parts diagram
Fig. F-3-20 — PRIMARY GEAR CASE
8 items

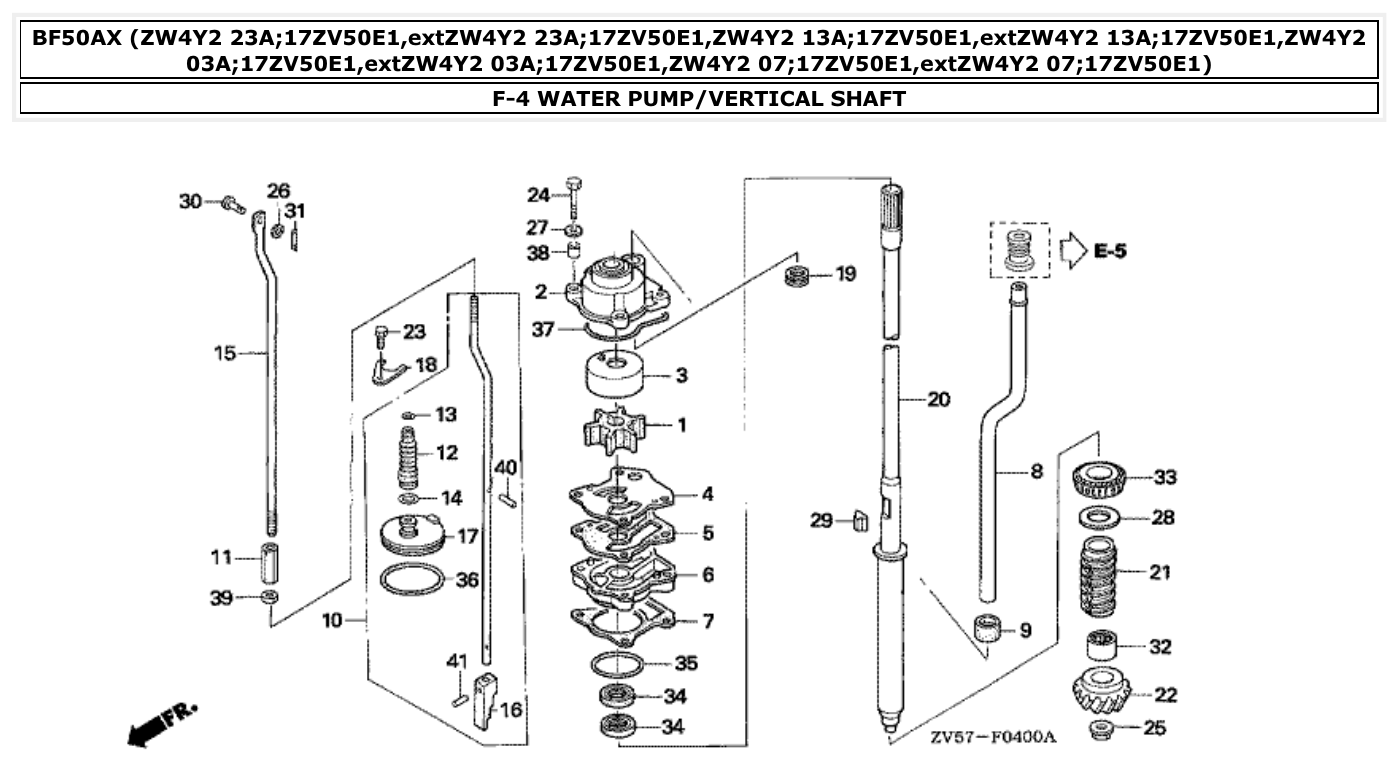

Honda BF50AX WATER PUMP/VERTICAL SHAFT parts diagram
Fig. F-4 — WATER PUMP/VERTICAL SHAFT
45 items · 2 available products

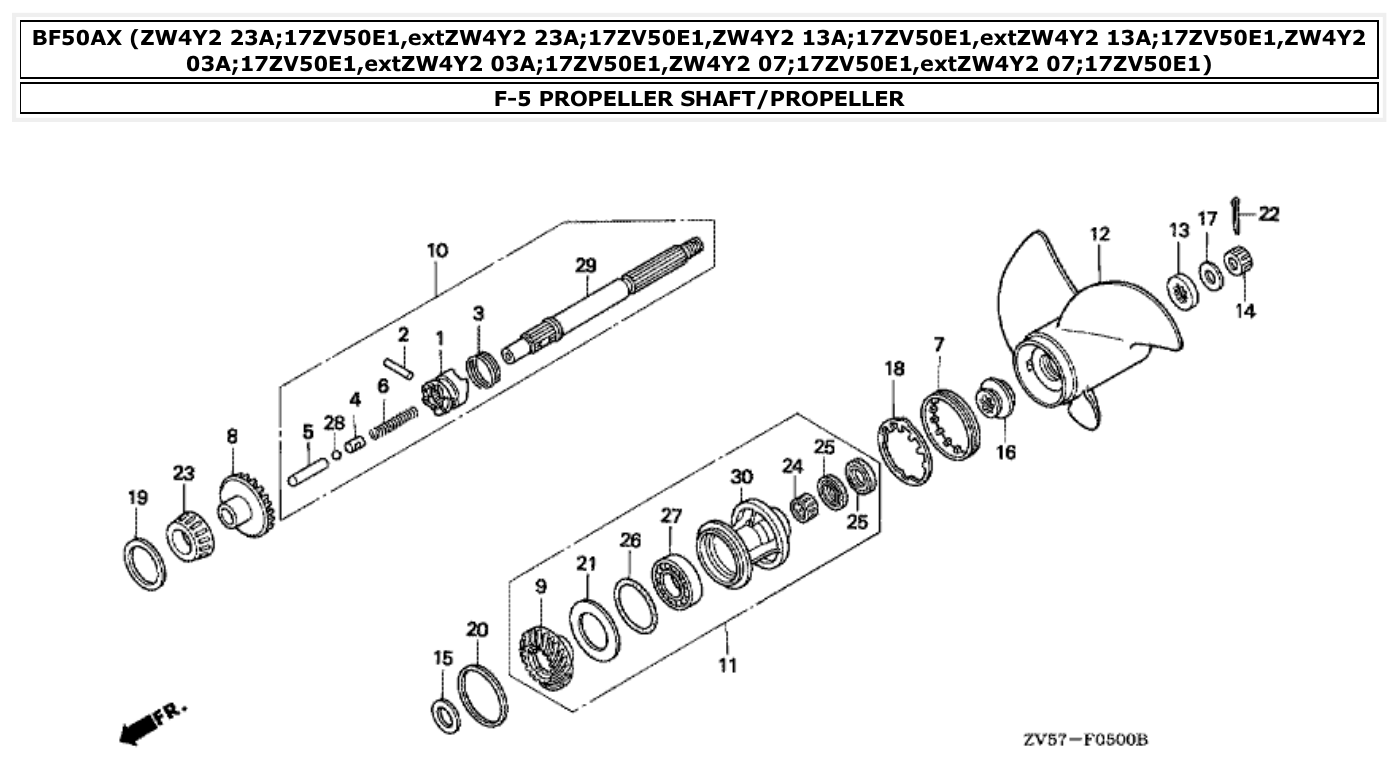

Honda BF50AX PROPELLER SHAFT/PROPELLER parts diagram
Fig. F-5 — PROPELLER SHAFT/PROPELLER
39 items · 2 available products

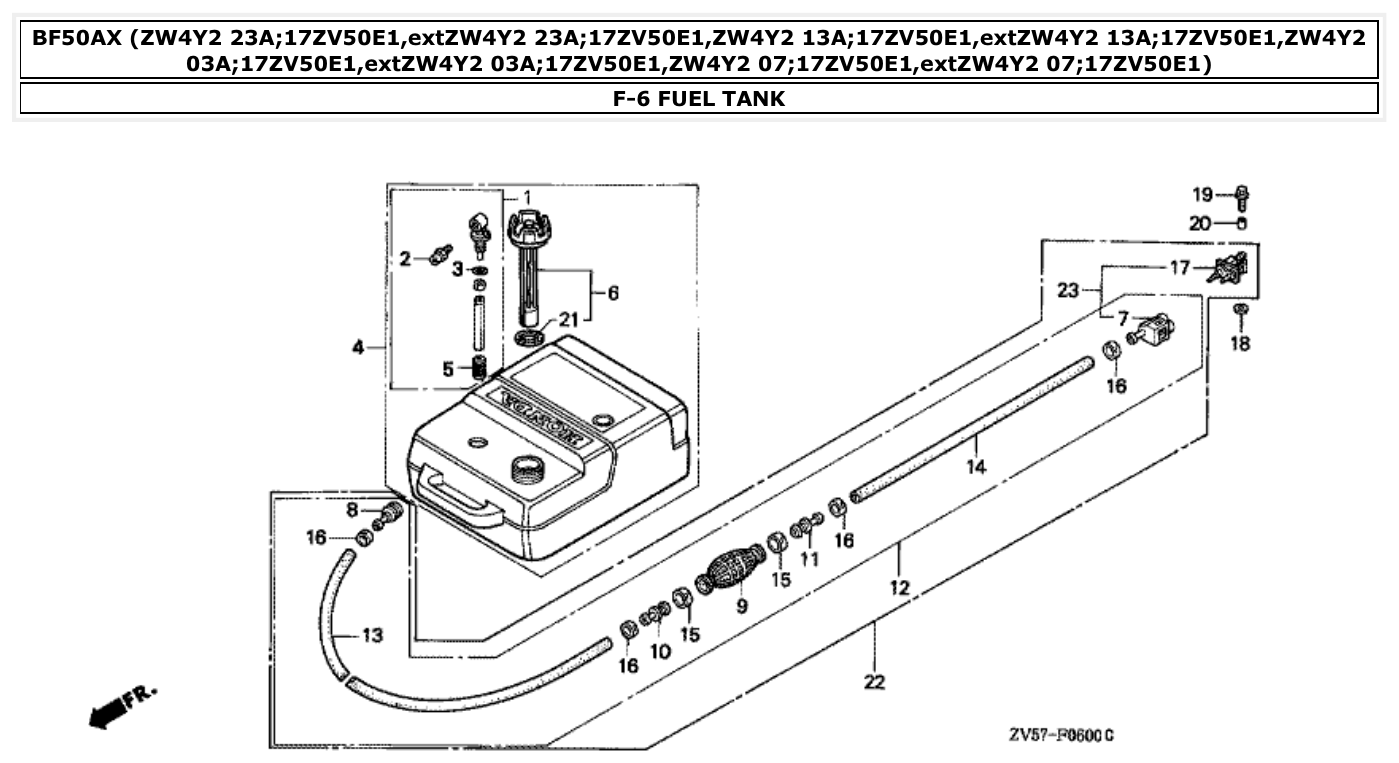

Honda BF50AX FUEL TANK parts diagram
Fig. F-6 — FUEL TANK
24 items · 2 available products

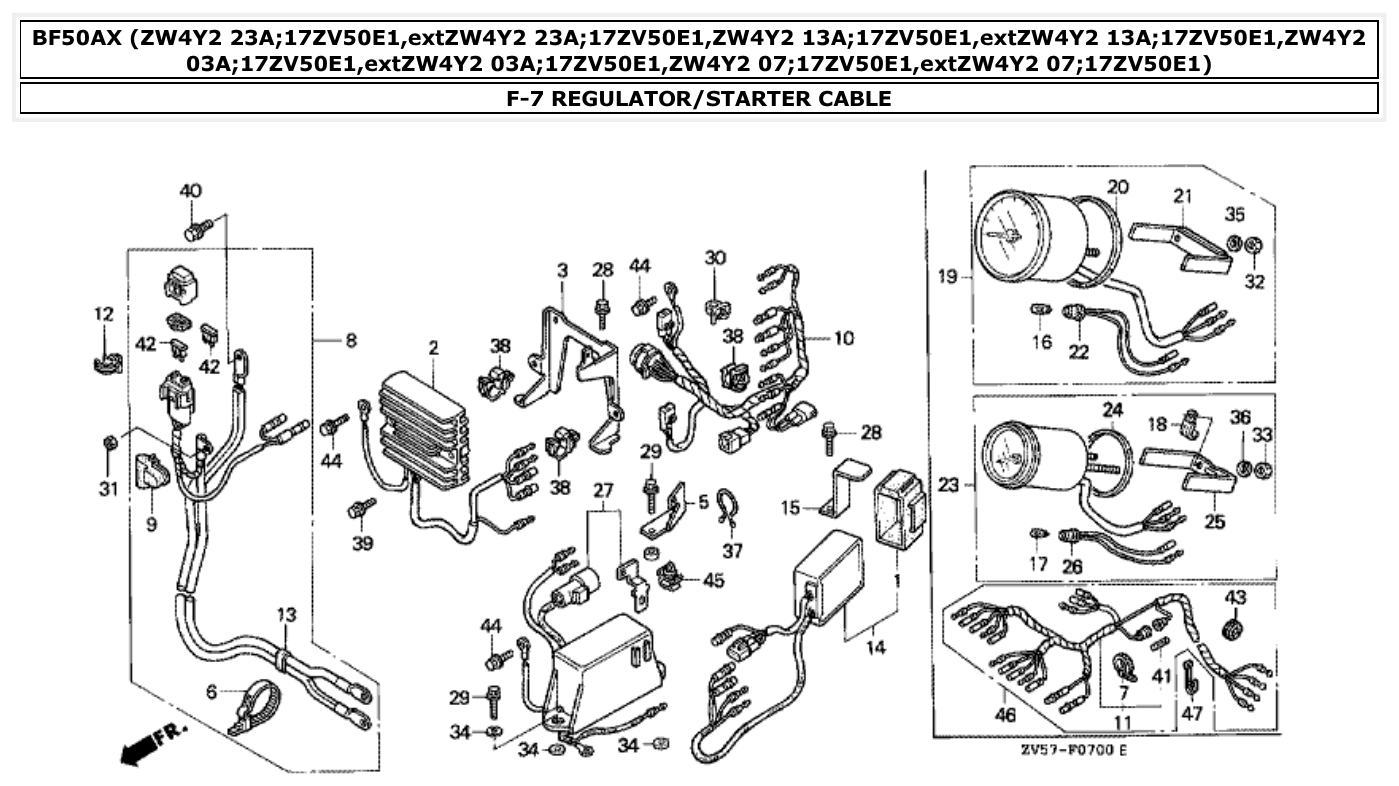

Honda BF50AX REGULATOR/STARTER CABLE parts diagram
Fig. F-7 — REGULATOR/STARTER CABLE
46 items

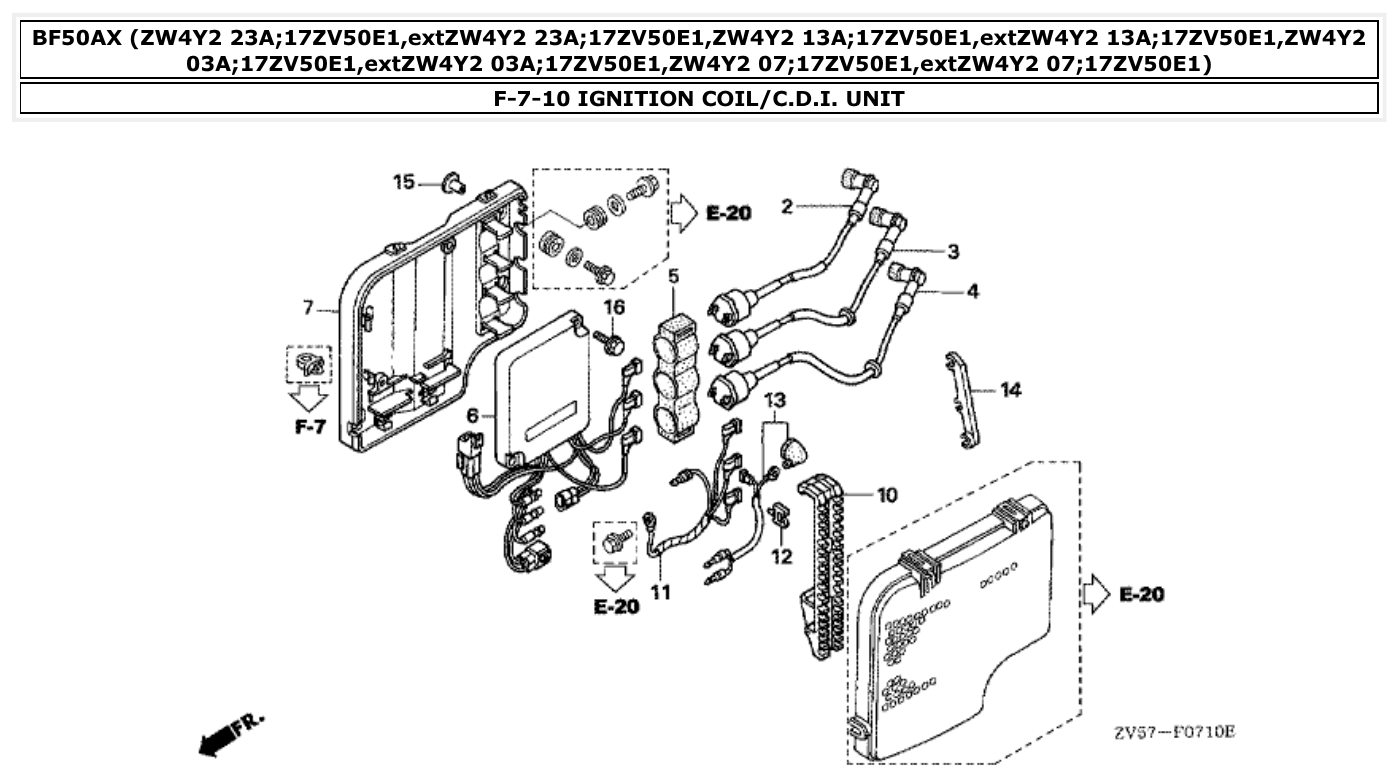

Honda BF50AX IGNITION COIL/C.D.I. UNIT parts diagram
Fig. F-7-10 — IGNITION COIL/C.D.I. UNIT
12 items
Honda BF50AX ENGINE COVER/UNDER CASE parts diagram

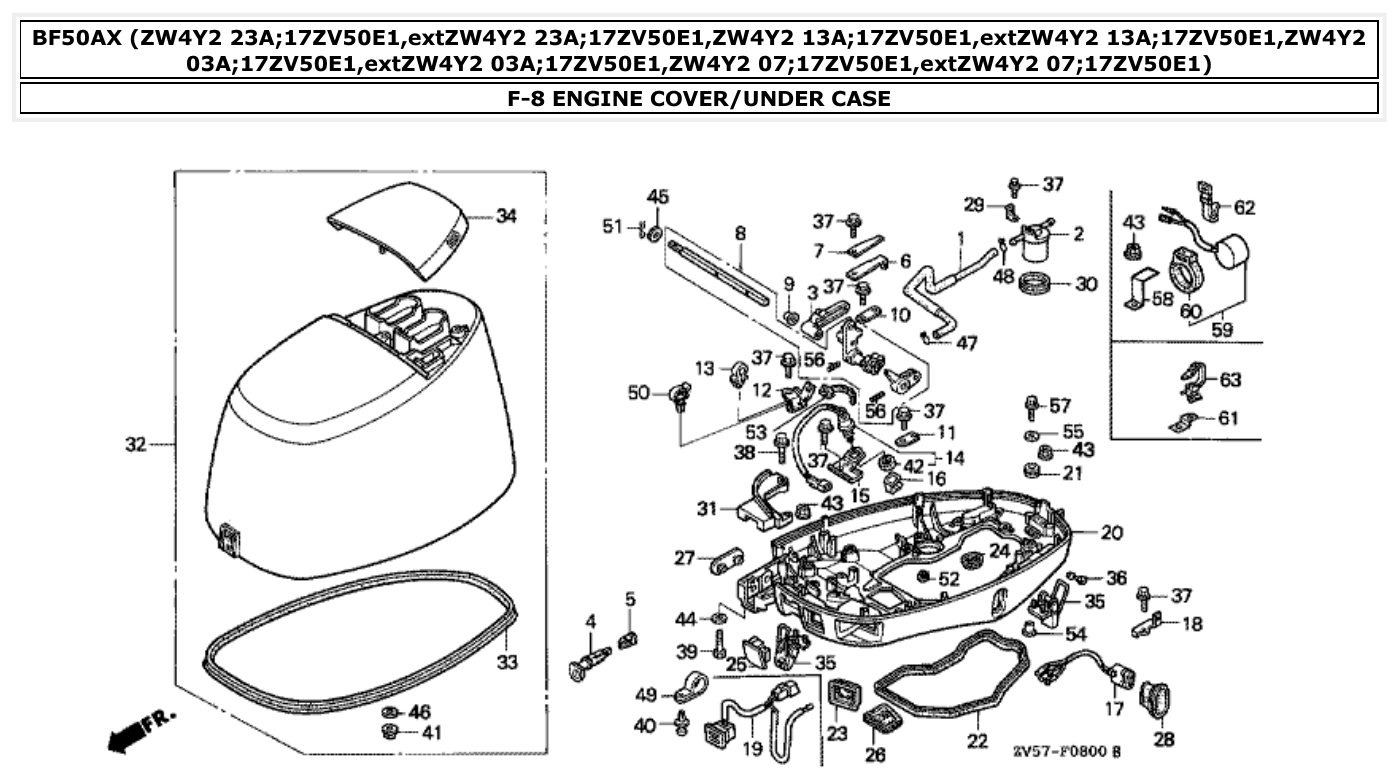

Fig. F-8 — ENGINE COVER/UNDER CASE
61 items · 2 available products
