Honda BF50D Parts Catalog

Honda BF50D Outboard parts and diagrams

Honda BF50D outboard parts catalog includes TIMING BELT, INLET MANIFOLD/INJECTOR, THROTTLE BODY, AIR INLET GUIDE, TUBING, VAPOR SEPARATOR, A.C. GENERATOR, CYLINDER HEAD, ELECTRONIC CONTROL UNIT, IGNITION COIL, STARTER MOTOR, CYLINDER BLOCK, OIL PUMP, OIL PAN, CRANKSHAFT/PISTON, CAMSHAFT, STERN BRACKET, SWIVEL CASE. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

10 linked store products are available across 32 catalog sections. 1556 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Honda BF50D TIMING BELT parts diagram

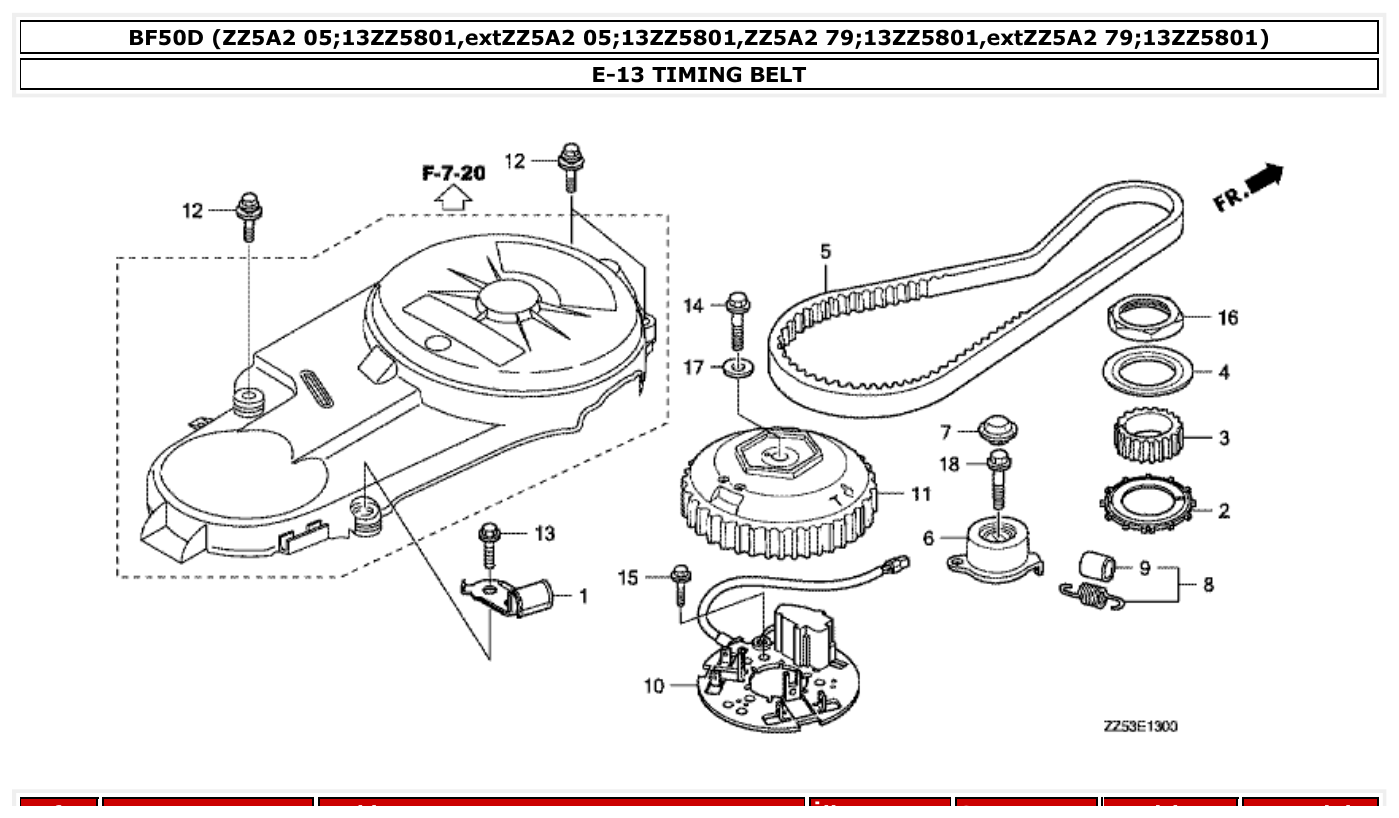

Fig. E-13 — TIMING BELT
18 items

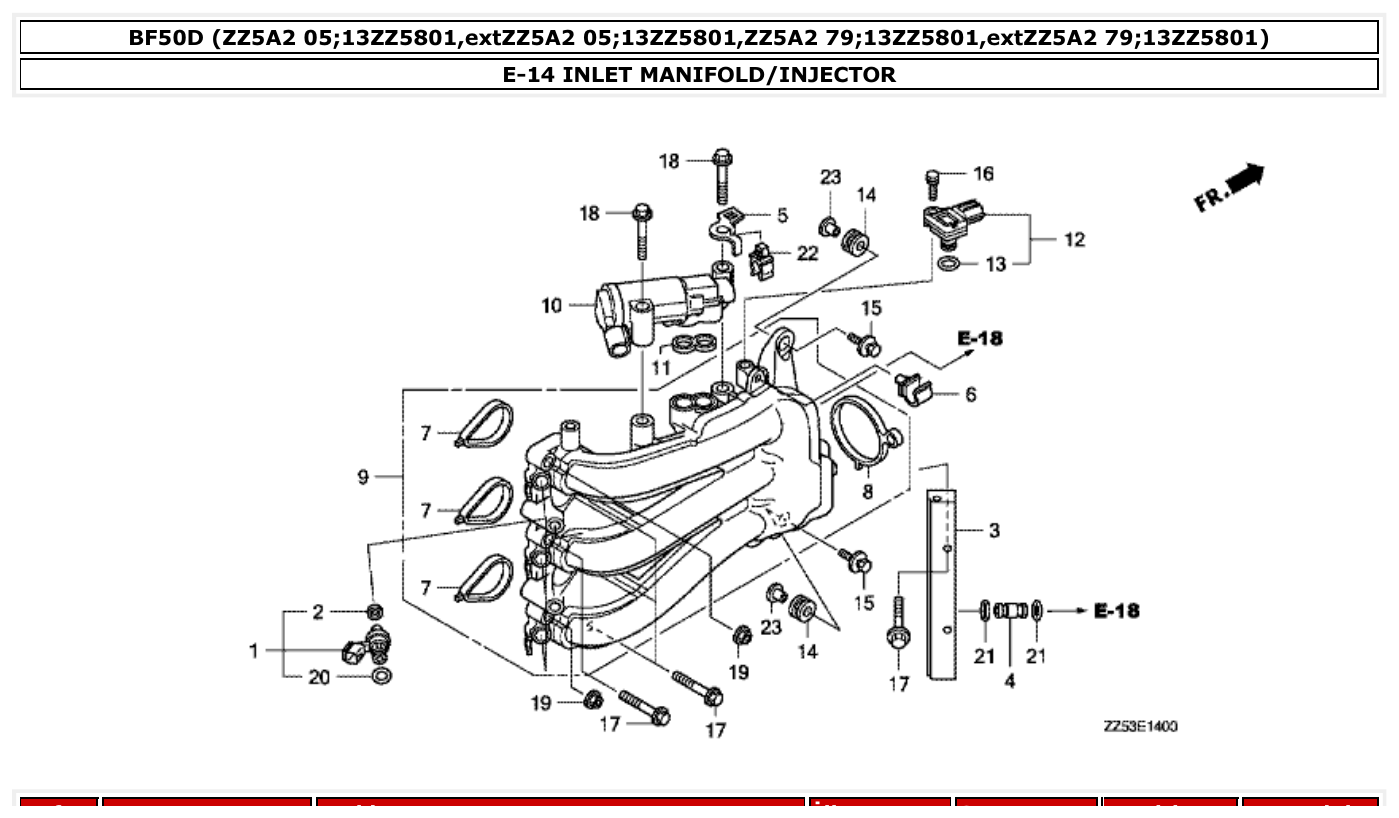

Honda BF50D INLET MANIFOLD/INJECTOR parts diagram
Fig. E-14 — INLET MANIFOLD/INJECTOR
25 items · 1 available products

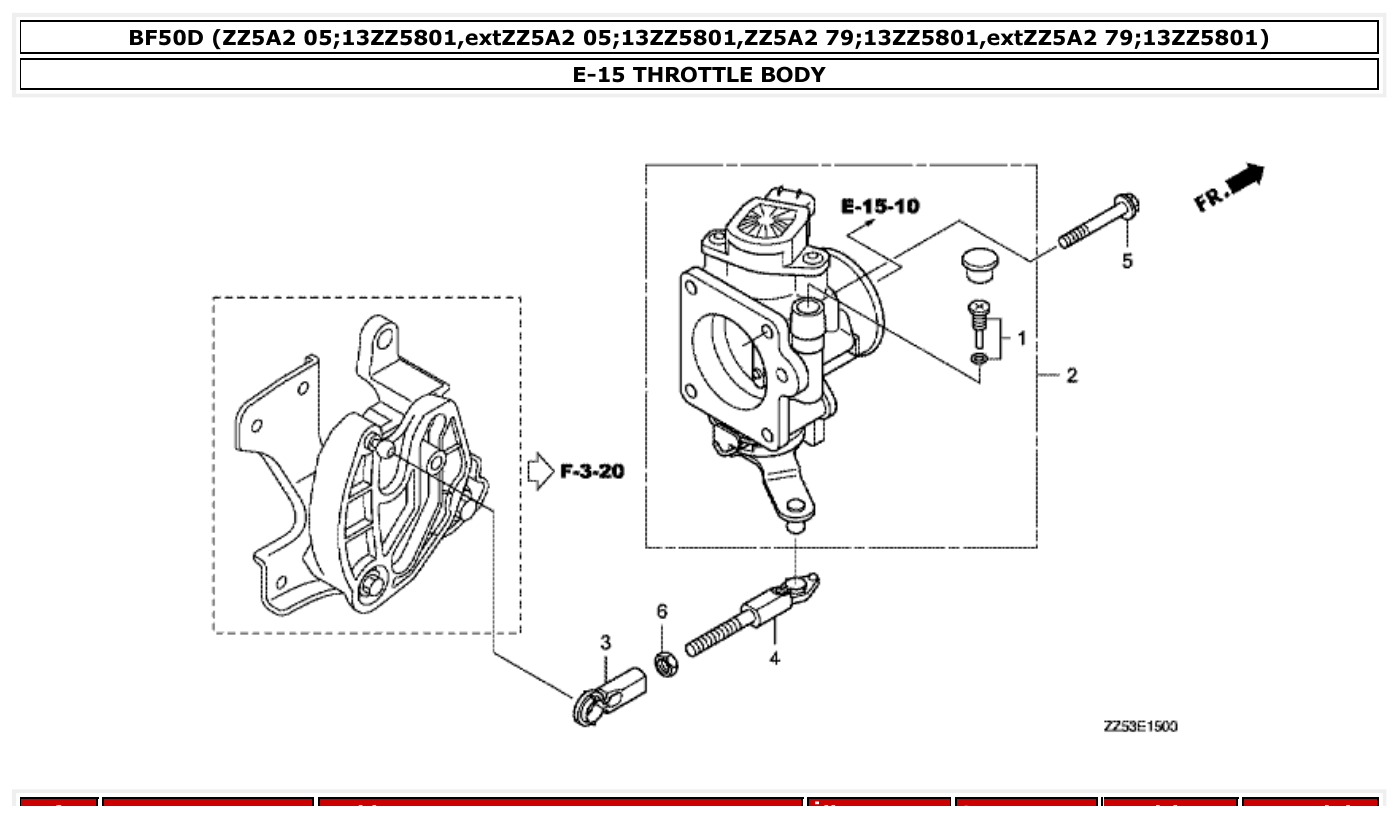

Honda BF50D THROTTLE BODY parts diagram
Fig. E-15 — THROTTLE BODY
8 items
Honda BF50D AIR INLET GUIDE parts diagram

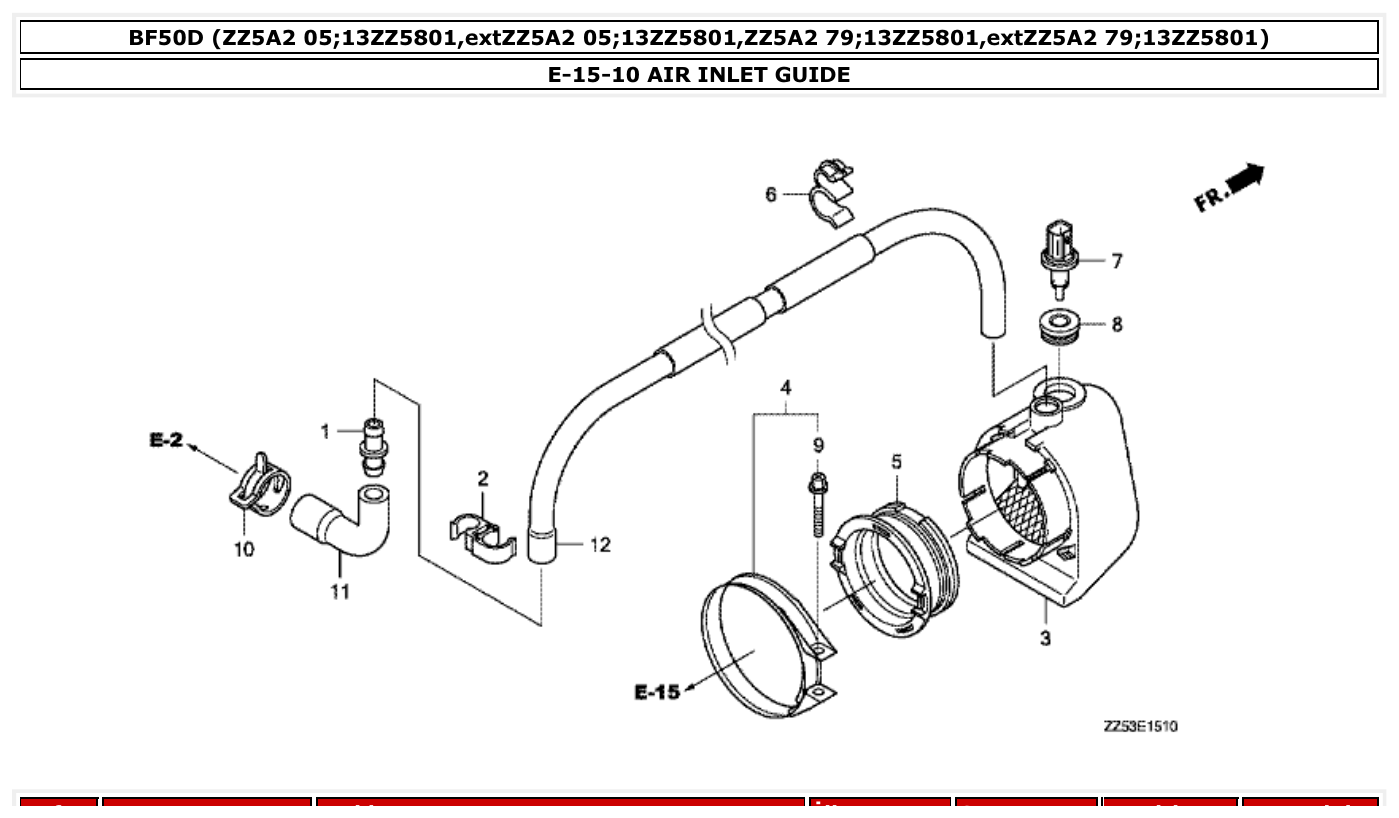

Fig. E-15-10 — AIR INLET GUIDE
12 items

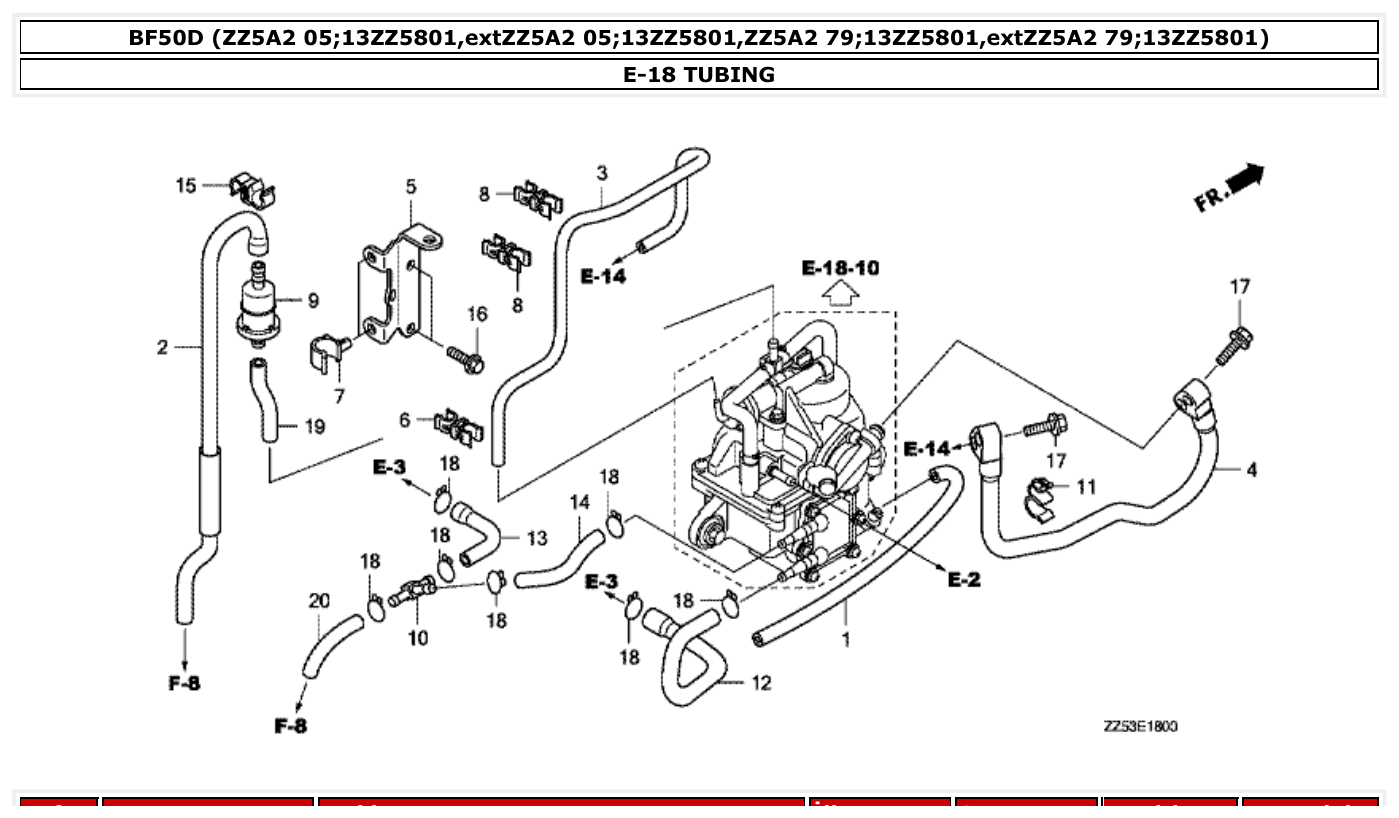

Honda BF50D TUBING parts diagram
Fig. E-18 — TUBING
22 items

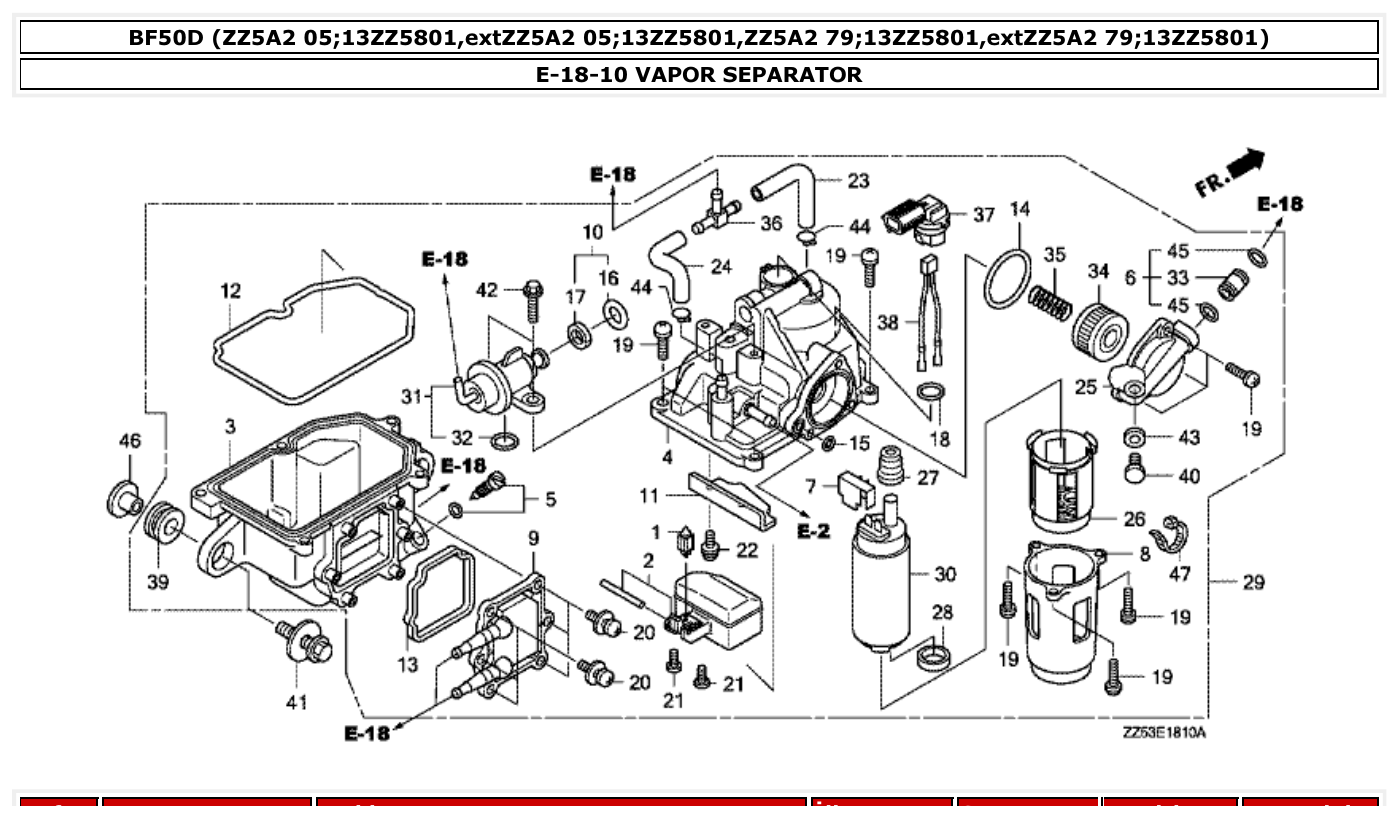

Honda BF50D VAPOR SEPARATOR parts diagram
Fig. E-18-10 — VAPOR SEPARATOR
53 items

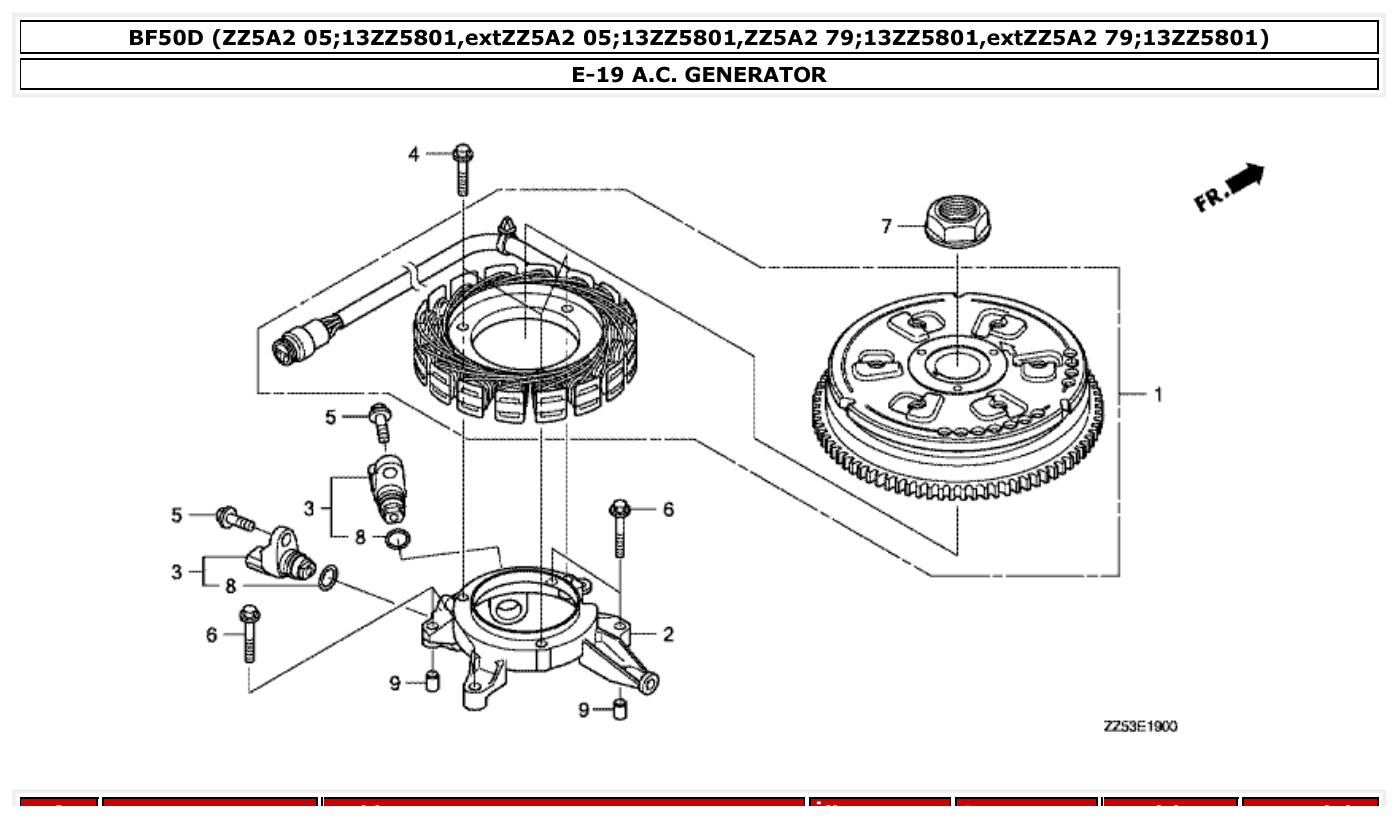

Honda BF50D A.C. GENERATOR parts diagram
Fig. E-19 — A.C. GENERATOR
9 items

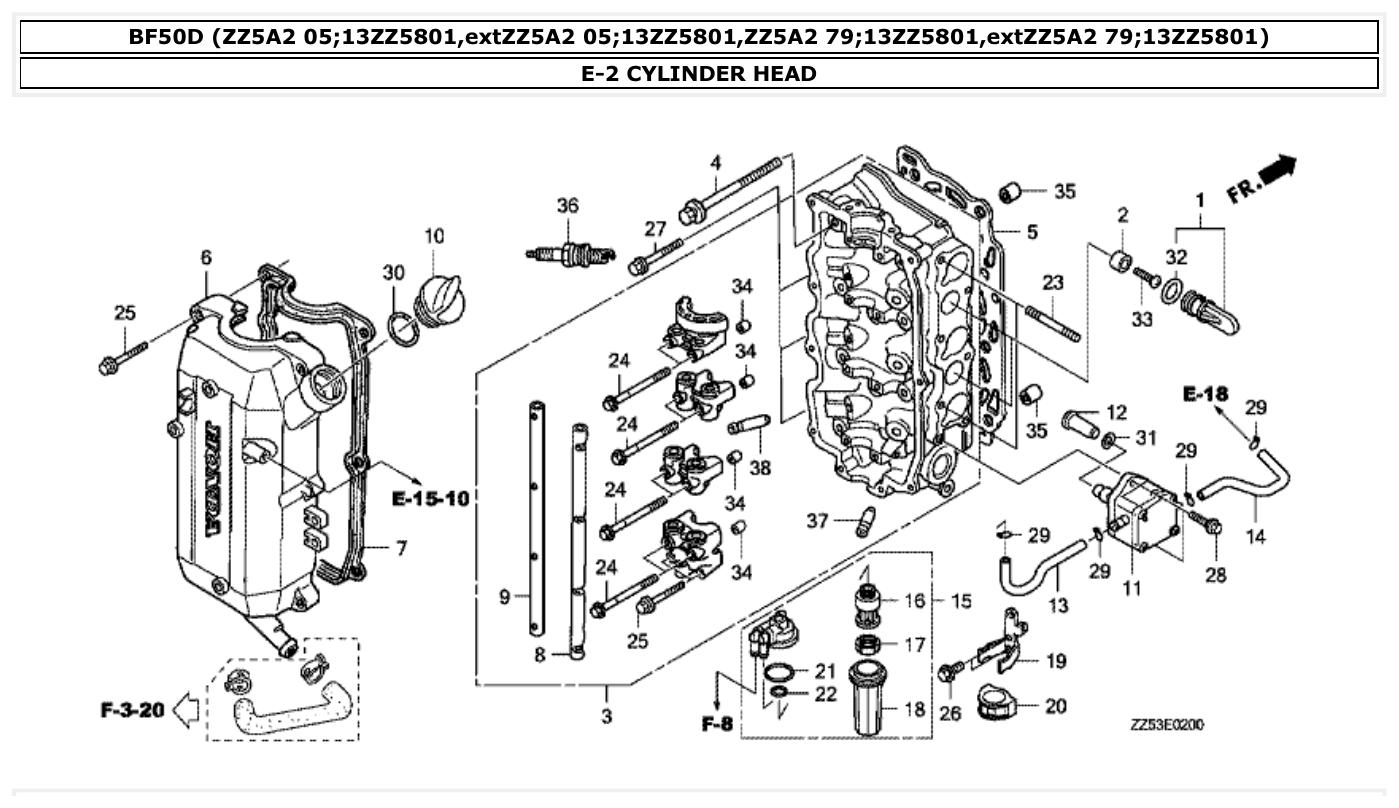

Honda BF50D CYLINDER HEAD parts diagram
Fig. E-2 — CYLINDER HEAD
43 items

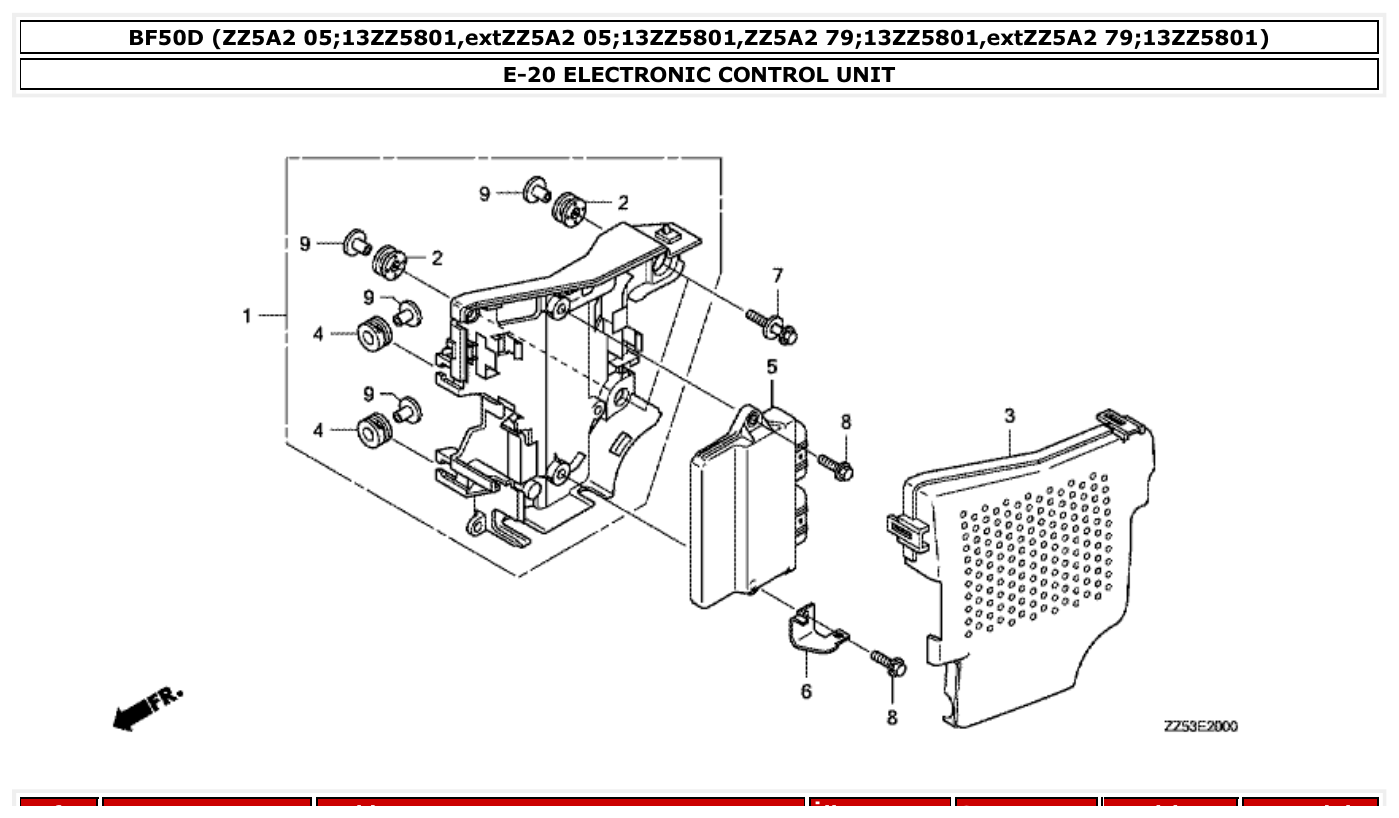

Honda BF50D ELECTRONIC CONTROL UNIT parts diagram
Fig. E-20 — ELECTRONIC CONTROL UNIT
14 items
Honda BF50D IGNITION COIL parts diagram

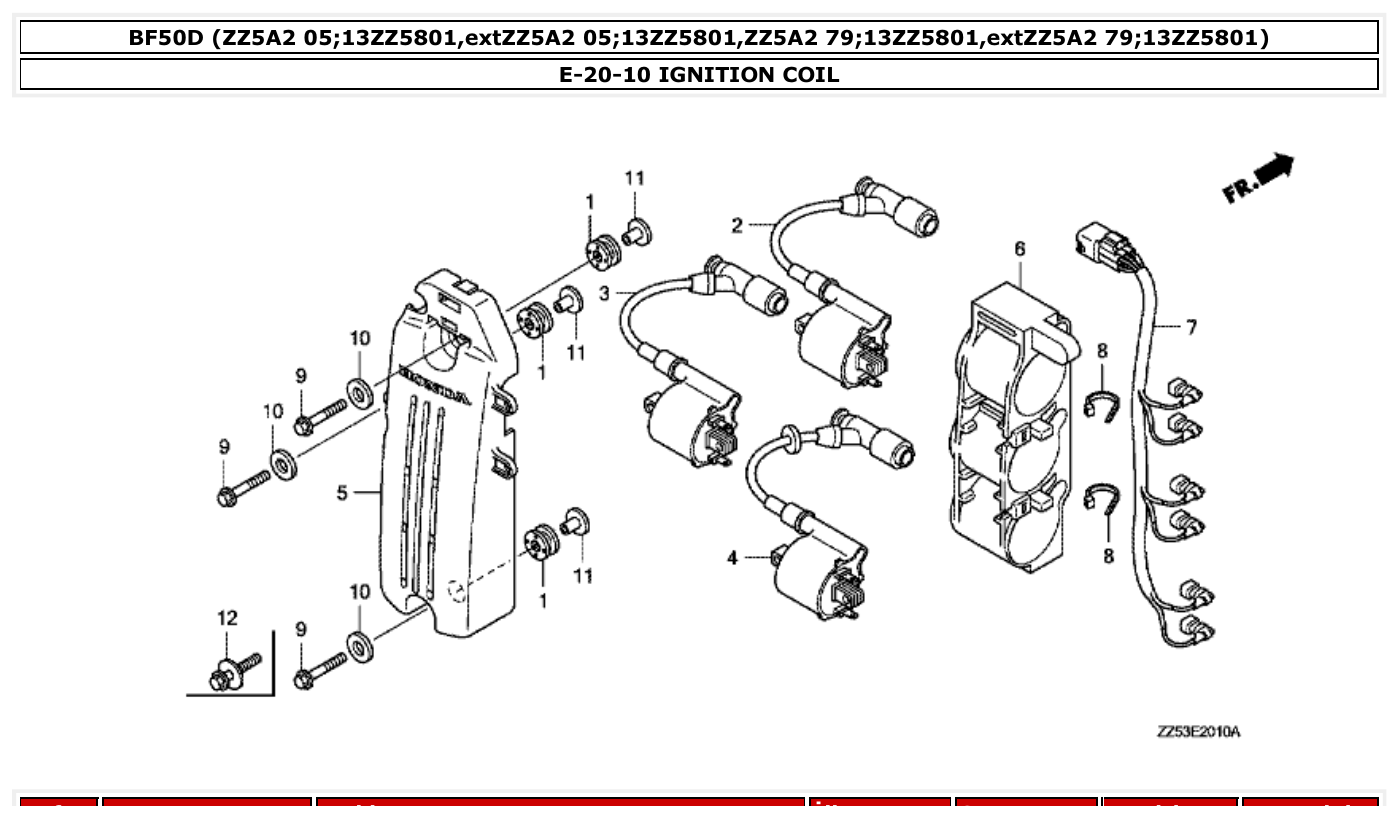

Fig. E-20-10 — IGNITION COIL
21 items
Honda BF50D STARTER MOTOR parts diagram
Fig. E-21 — STARTER MOTOR
30 items

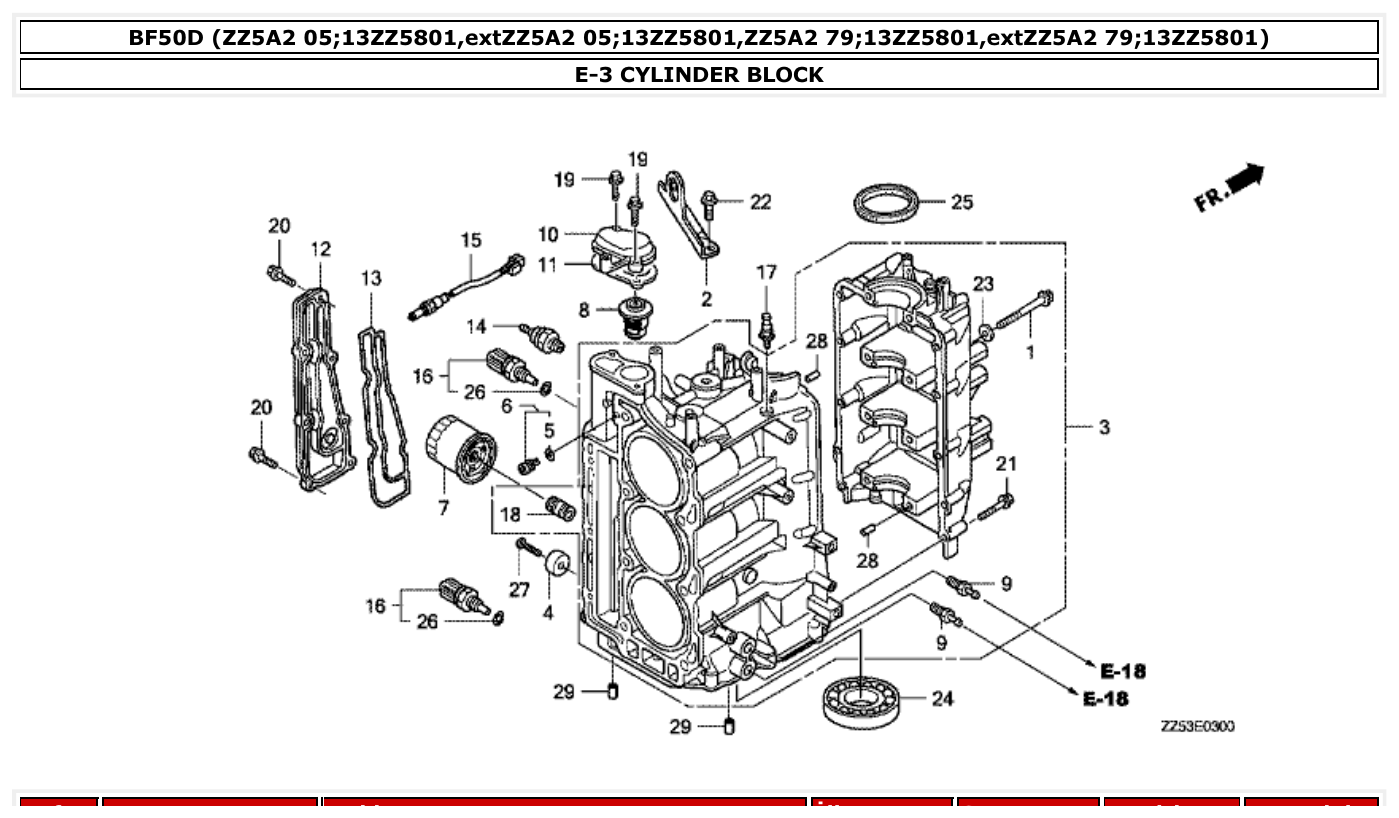

Honda BF50D CYLINDER BLOCK parts diagram
Fig. E-3 — CYLINDER BLOCK
31 items

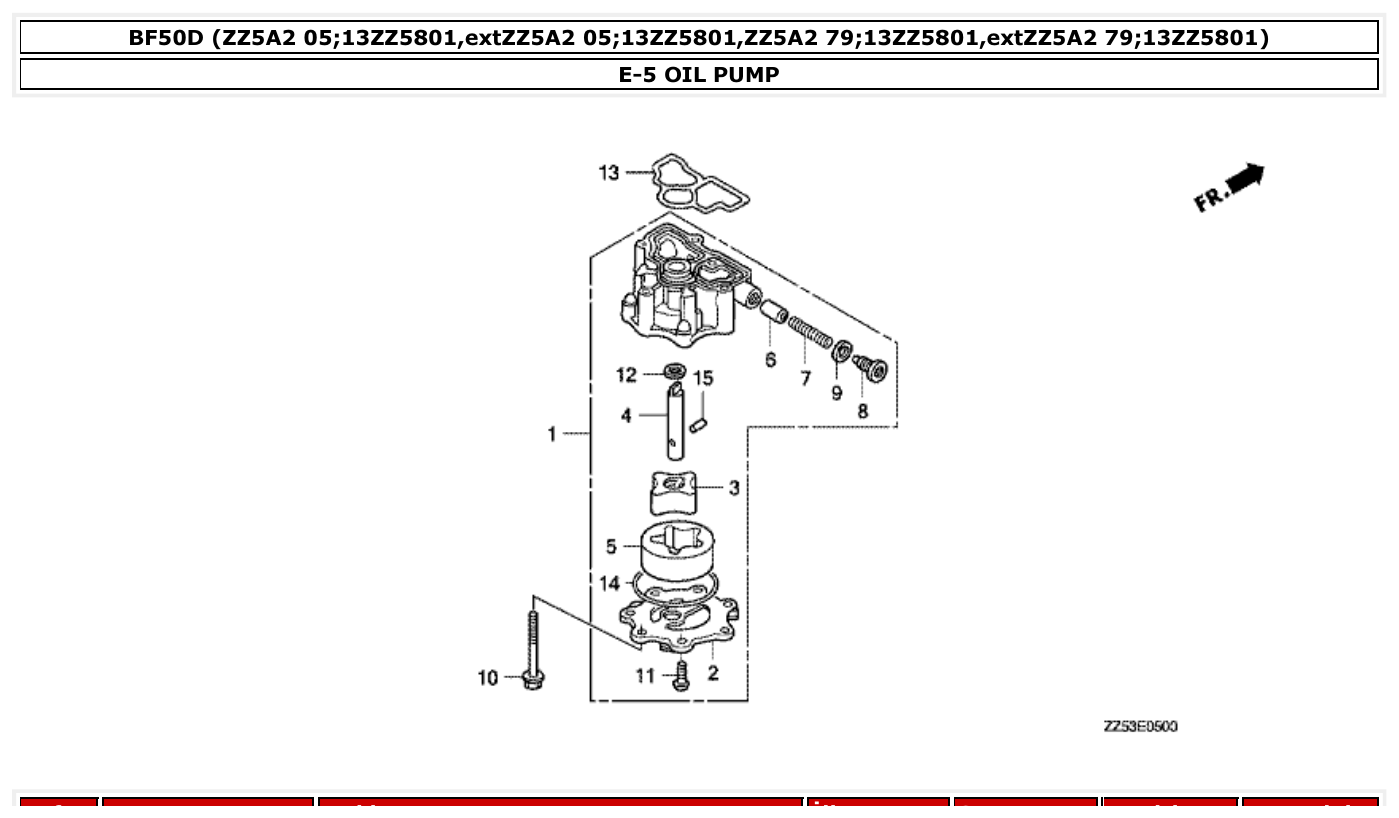

Honda BF50D OIL PUMP parts diagram
Fig. E-5 — OIL PUMP
17 items
Honda BF50D OIL PAN parts diagram

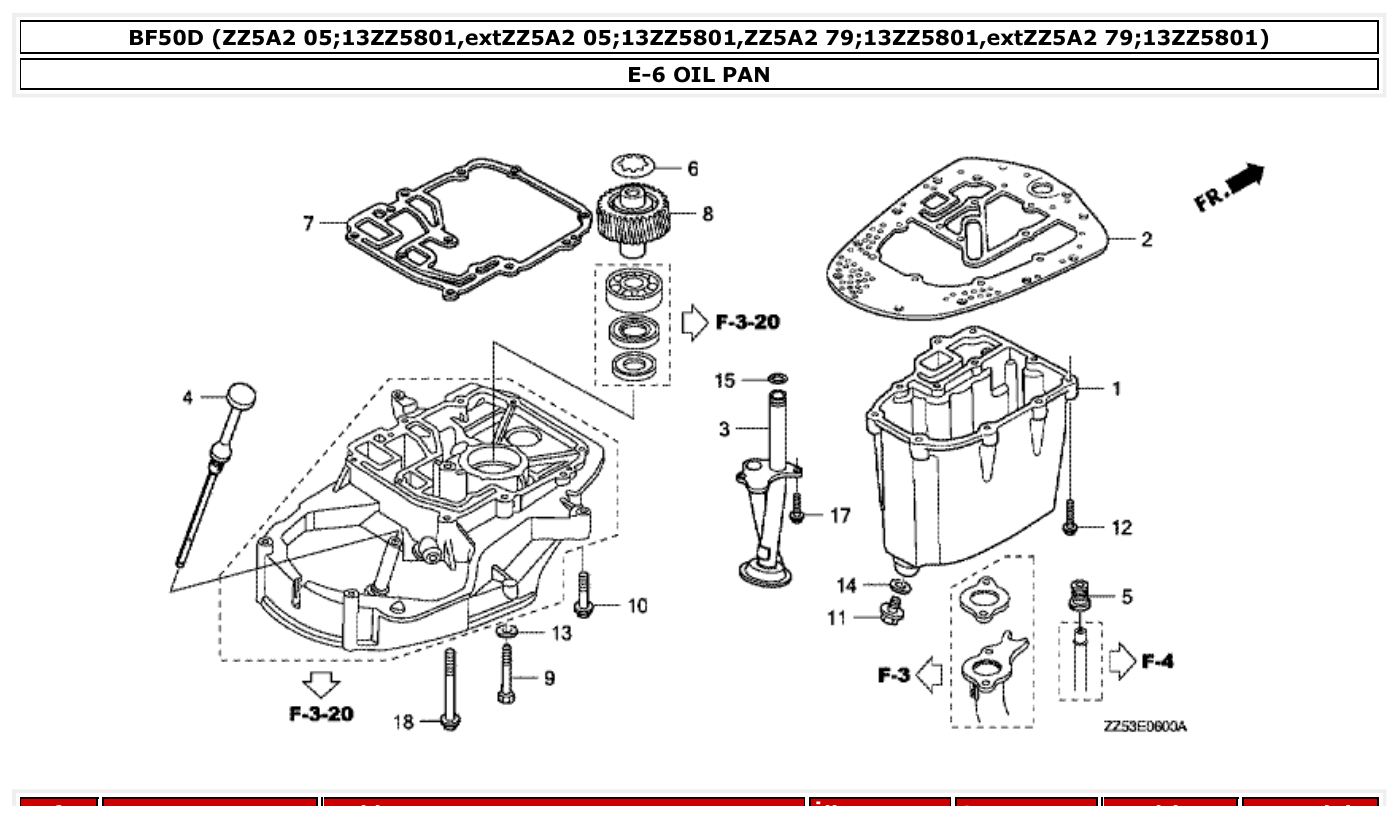

Fig. E-6 — OIL PAN
17 items

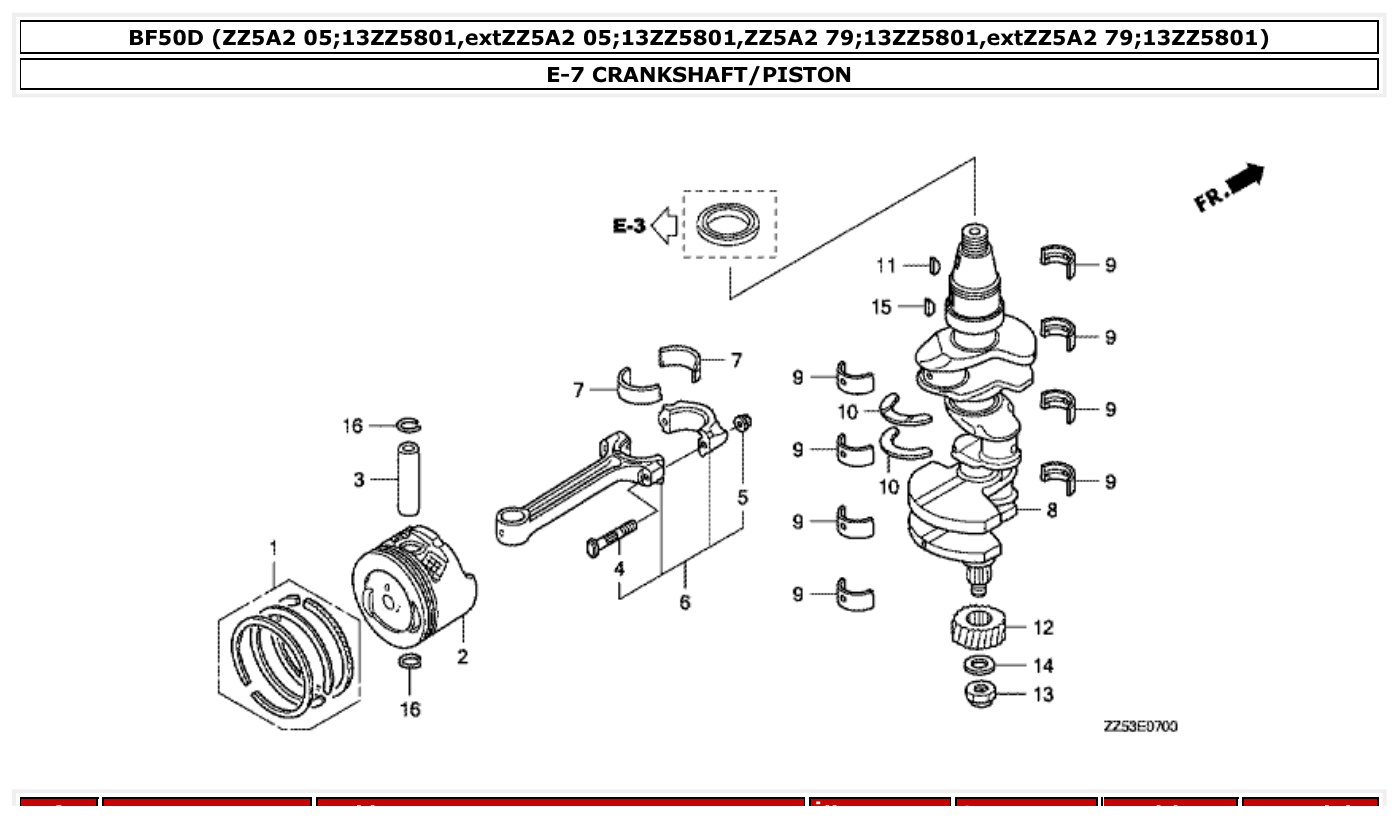

Honda BF50D CRANKSHAFT/PISTON parts diagram
Fig. E-7 — CRANKSHAFT/PISTON
32 items · 1 available products

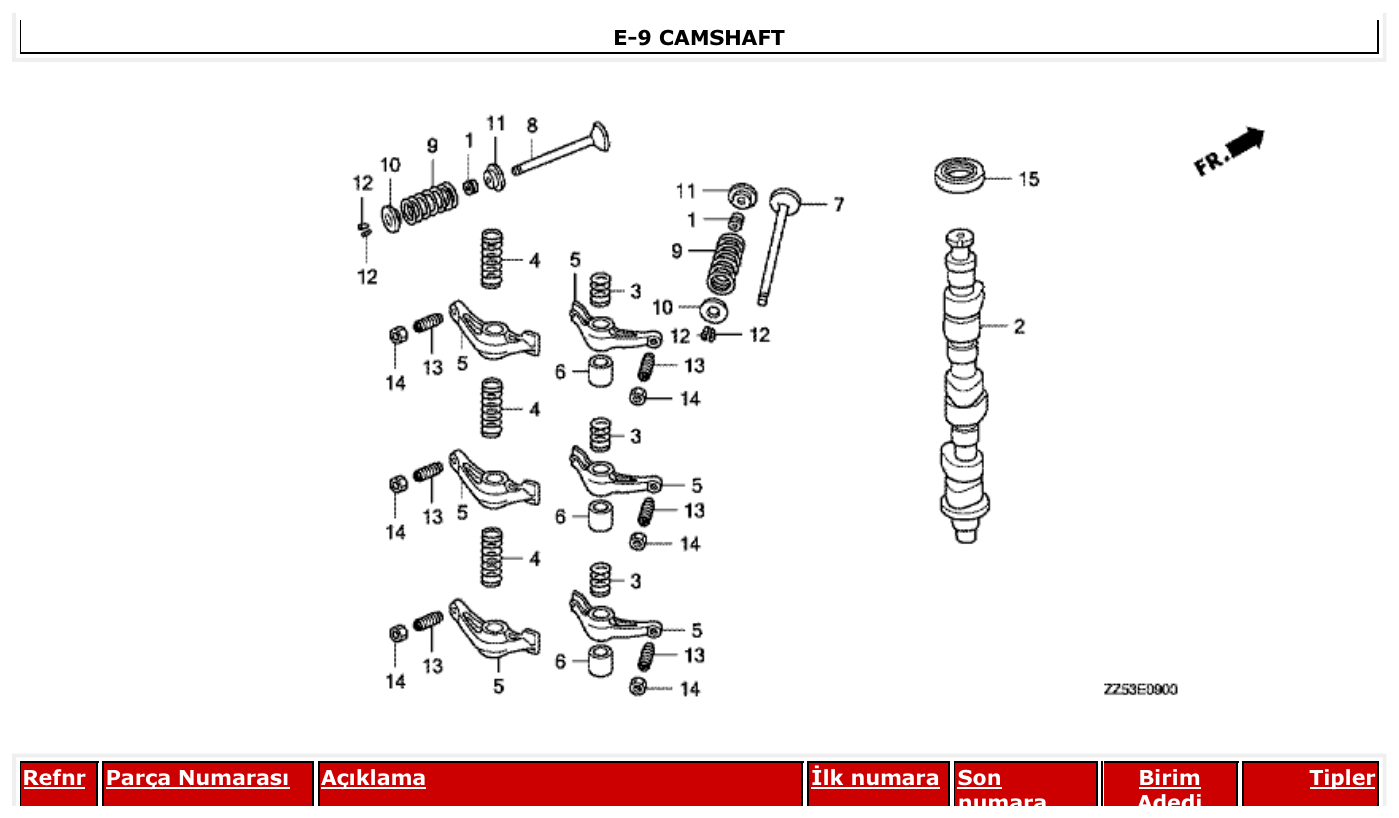

Honda BF50D CAMSHAFT parts diagram
Fig. E-9 — CAMSHAFT
15 items

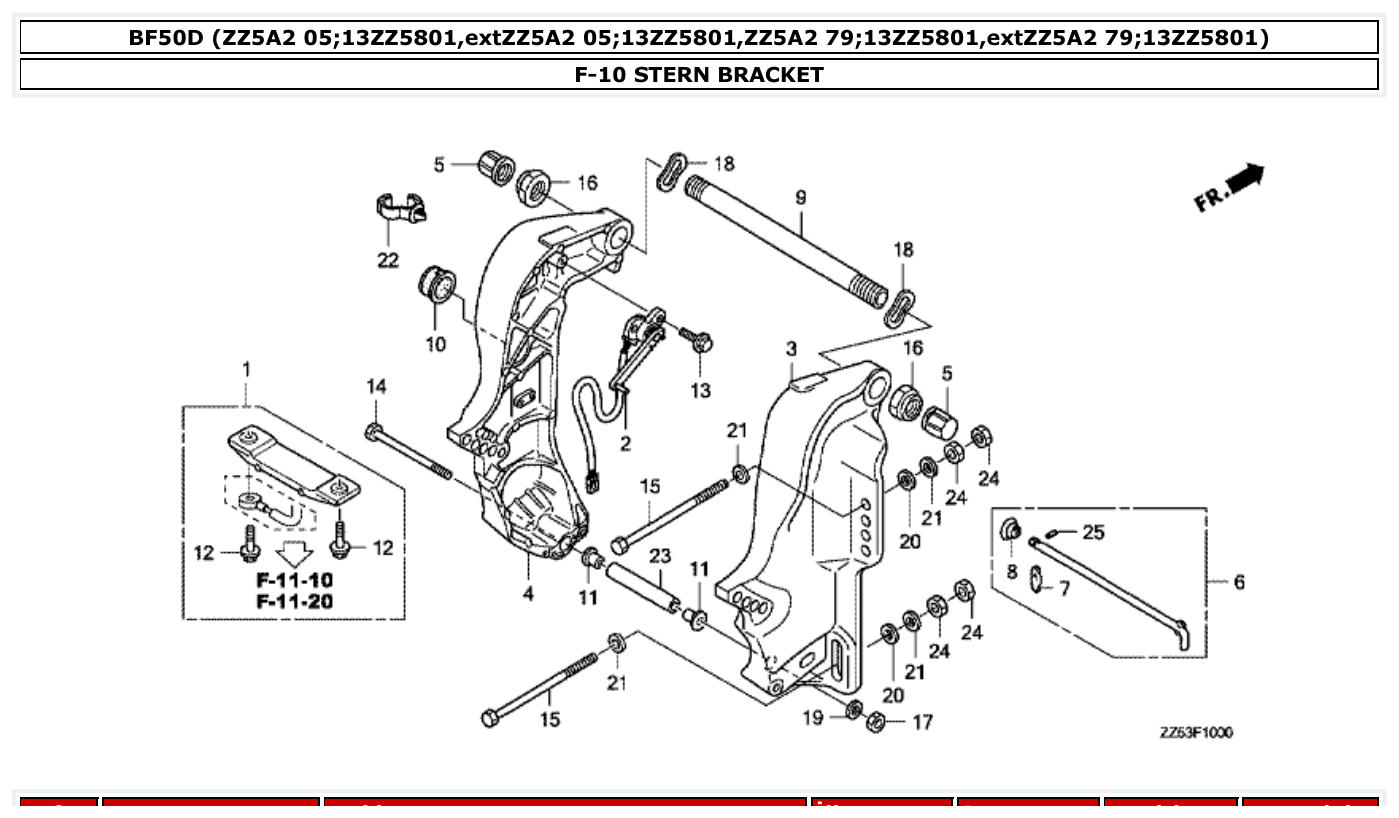

Honda BF50D STERN BRACKET parts diagram
Fig. F-10 — STERN BRACKET
37 items

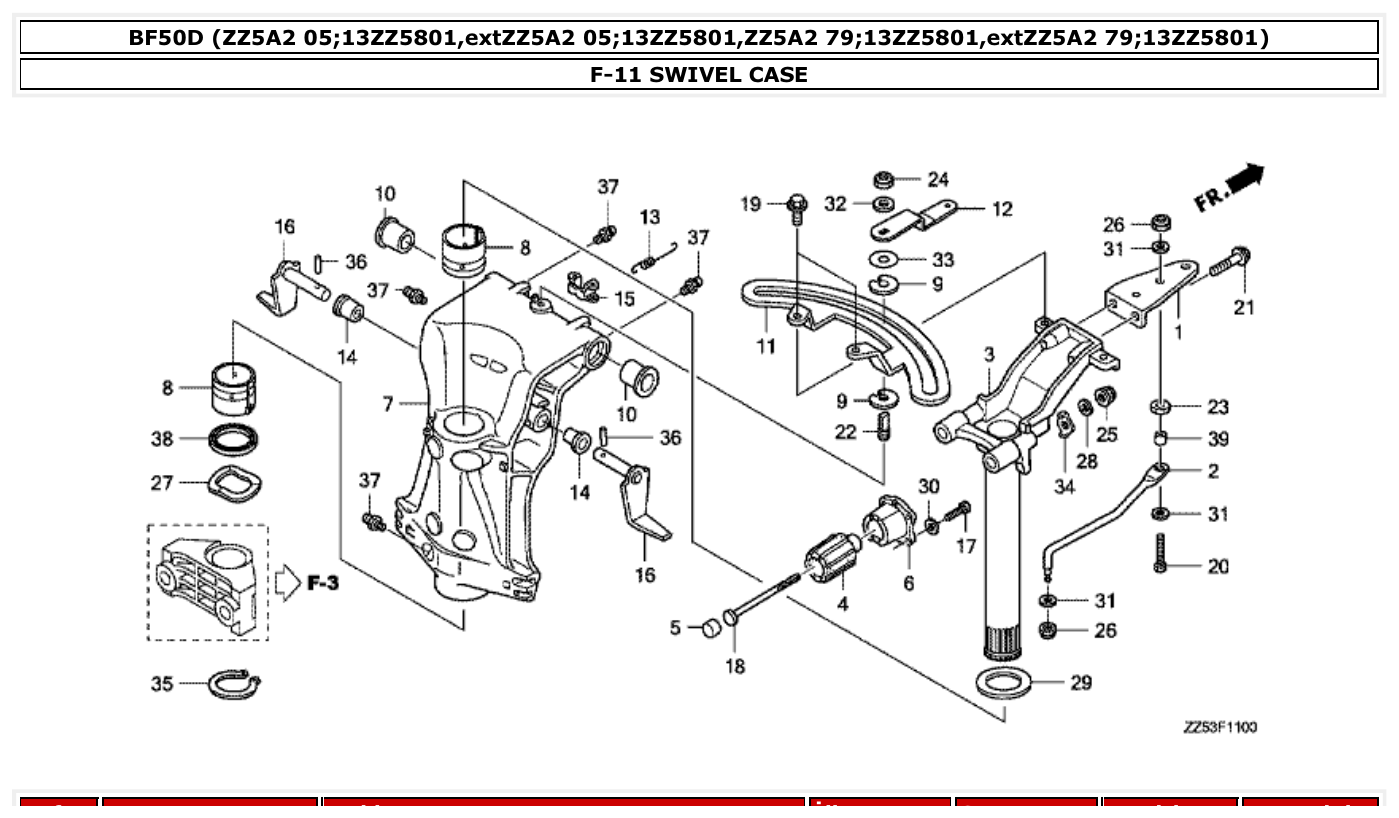

Honda BF50D SWIVEL CASE parts diagram
Fig. F-11 — SWIVEL CASE
34 items

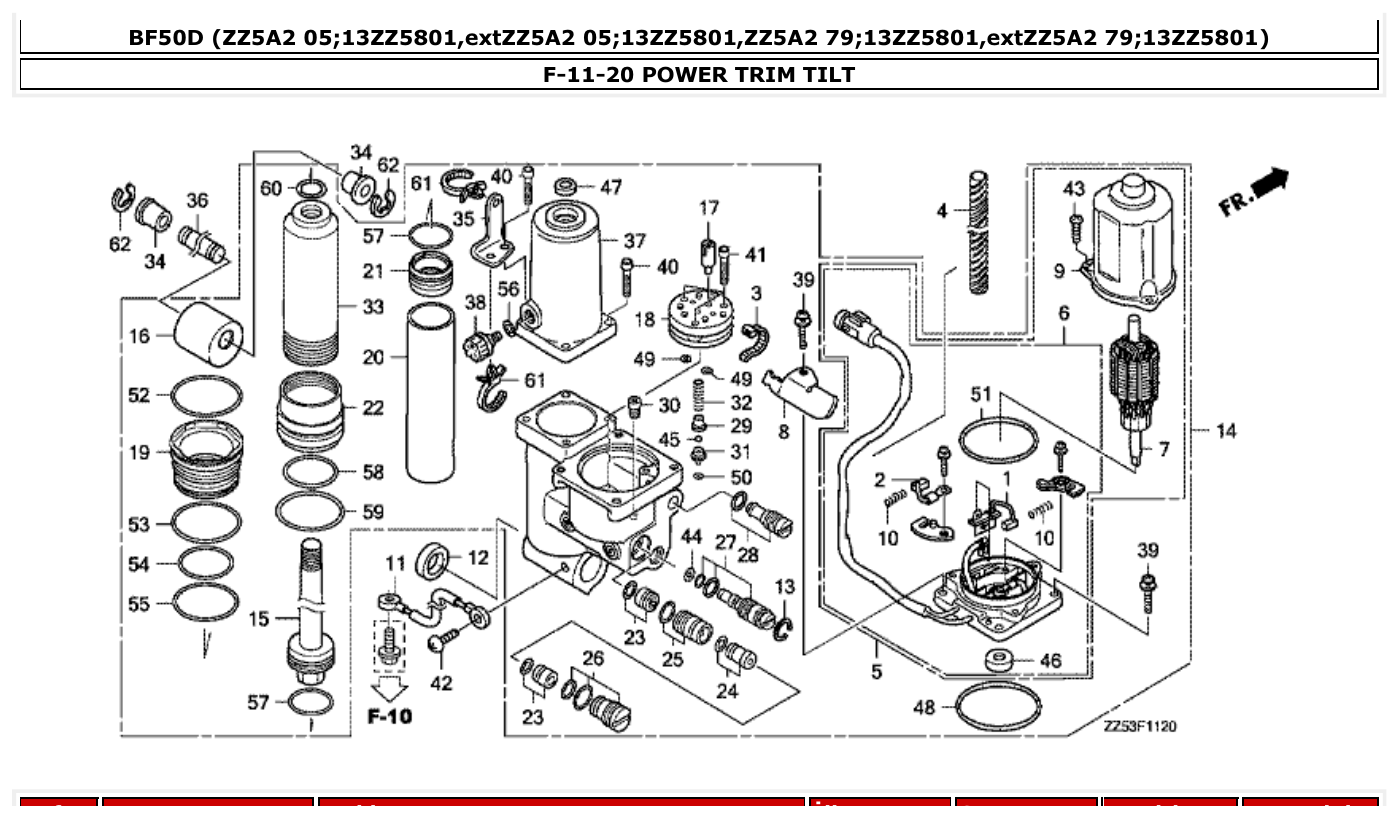

Honda BF50D POWER TRIM TILT parts diagram
Fig. F-11-20 — POWER TRIM TILT
67 items · 1 available products
Honda BF50D LABEL parts diagram

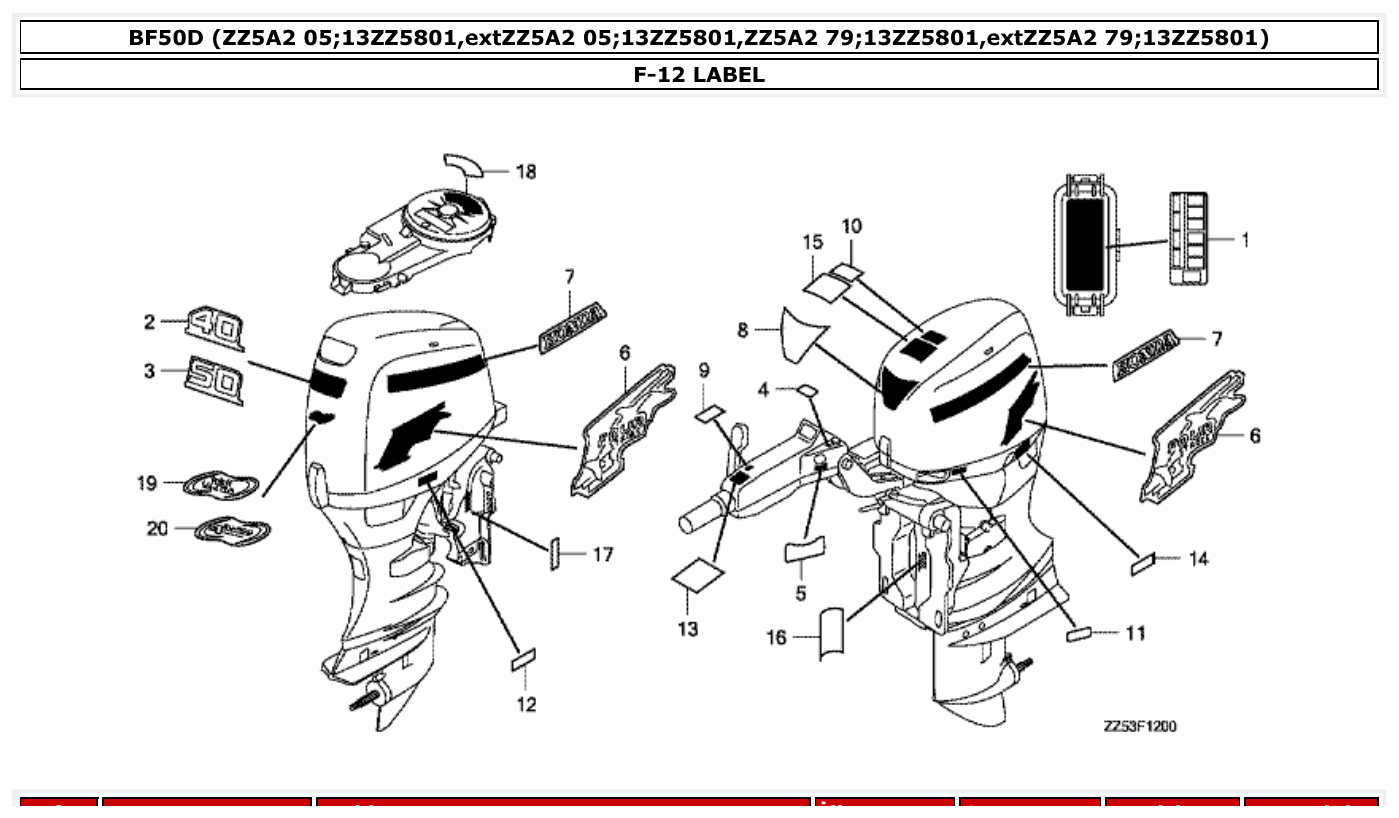

Fig. F-12 — LABEL
27 items
Honda BF50D TOOL/OTHER PARTS parts diagram

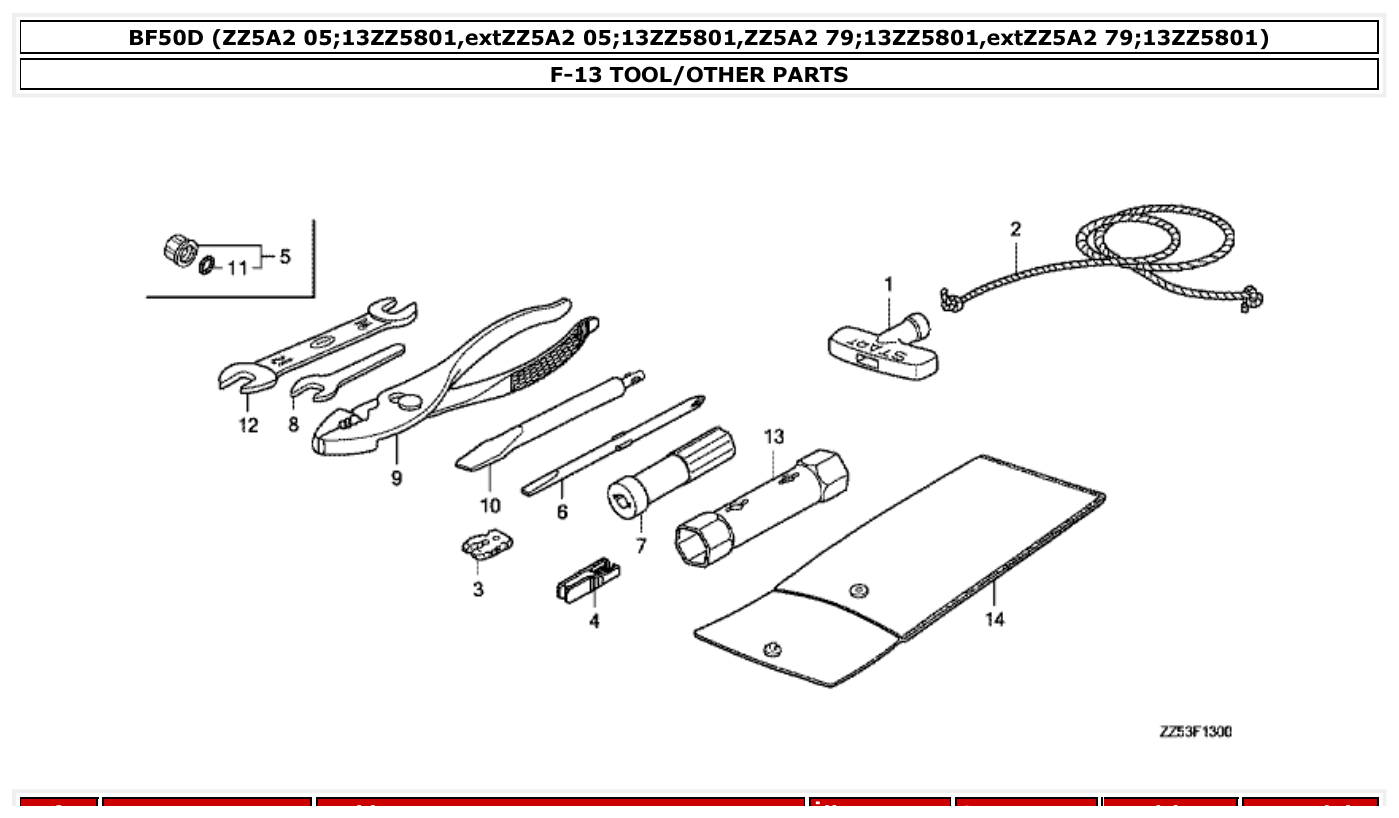

Fig. F-13 — TOOL/OTHER PARTS
15 items

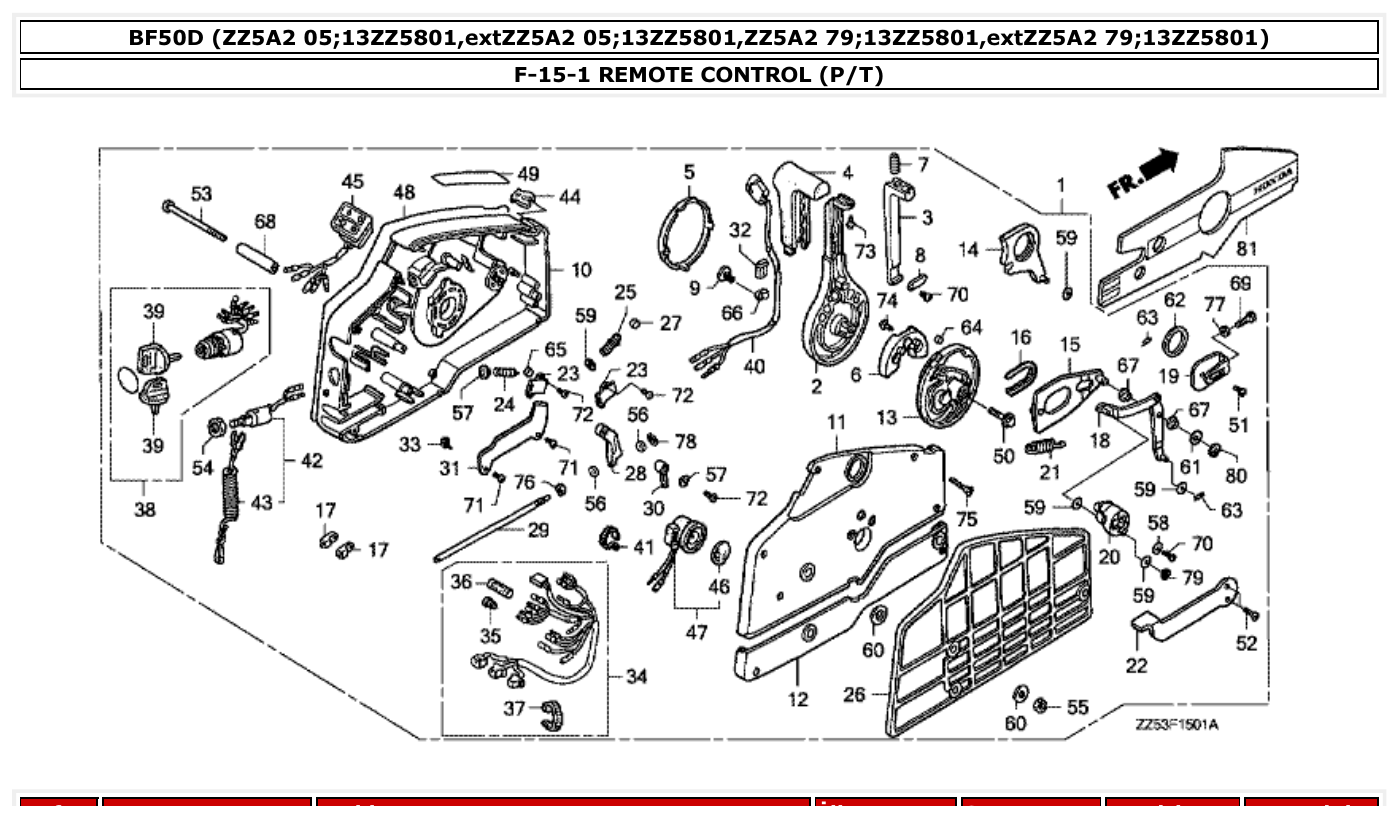

Honda BF50D REMOTE CONTROL (P/T) parts diagram
Fig. F-15-1 — REMOTE CONTROL (P/T)
696 items · 2 available products
Honda BF50D EXTENSION CASE parts diagram
Fig. F-3 — EXTENSION CASE
73 items · 1 available products

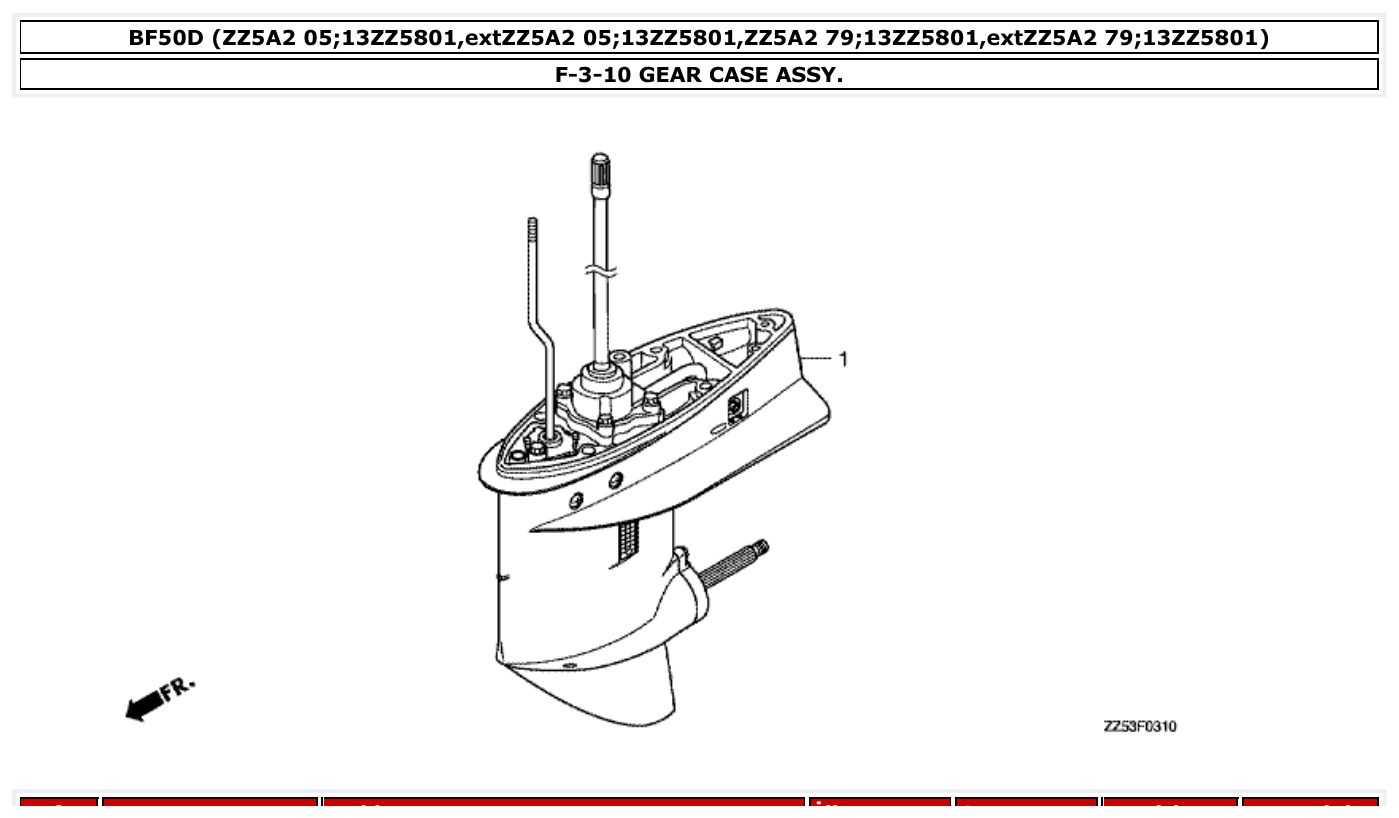

Honda BF50D GEAR CASE ASSY. parts diagram
Fig. F-3-10 — GEAR CASE ASSY.
1 items
Honda BF50D PRIMARY GEAR CASE parts diagram

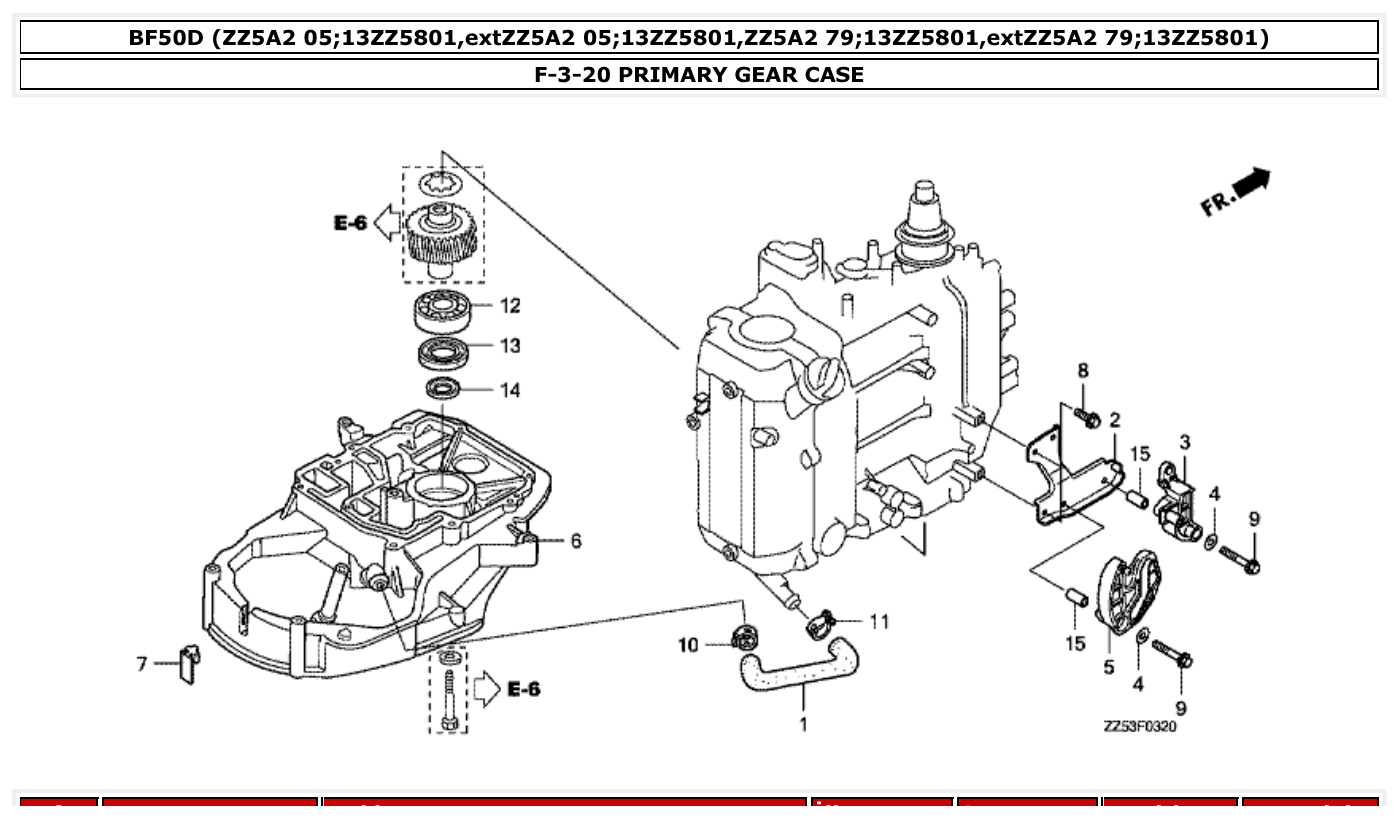

Fig. F-3-20 — PRIMARY GEAR CASE
17 items

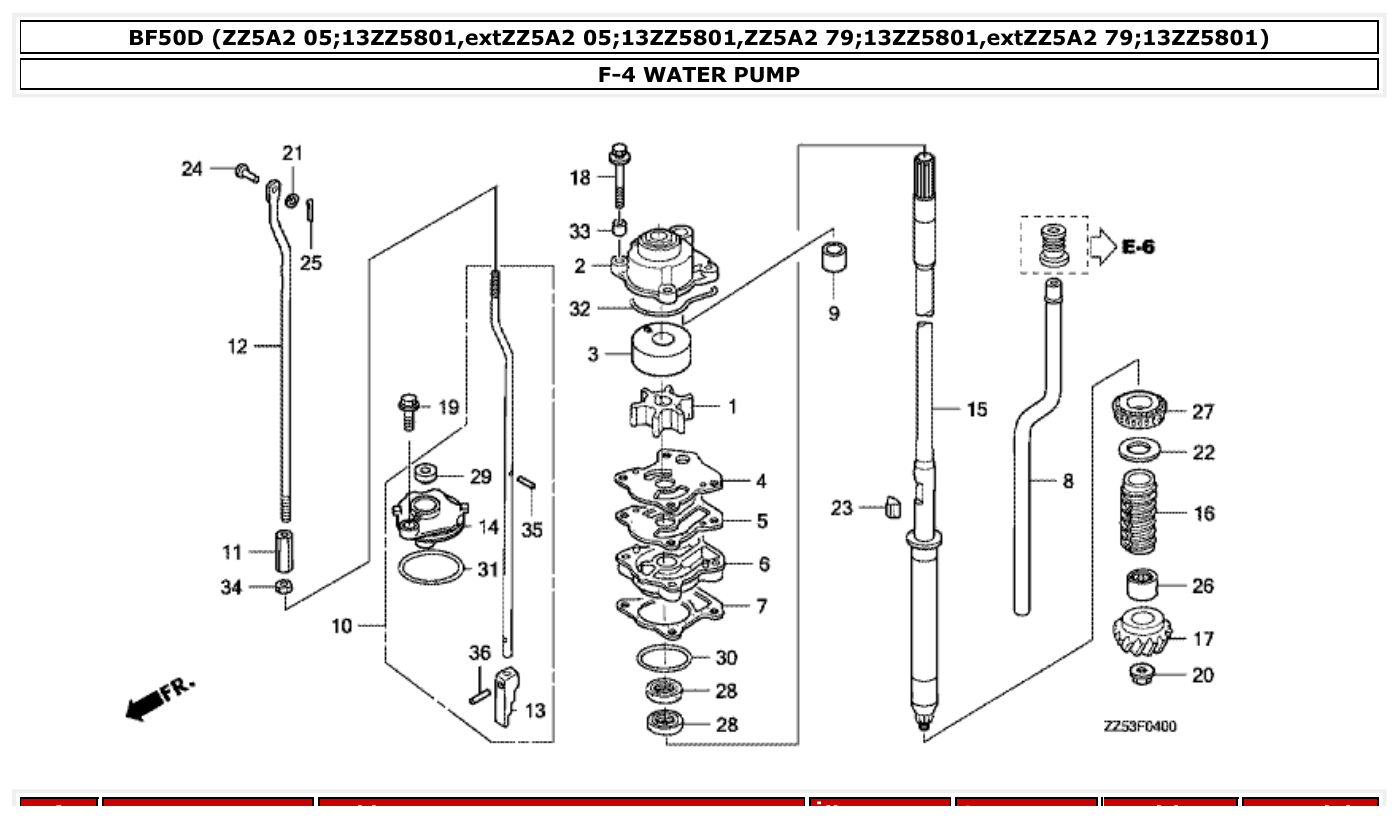

Honda BF50D WATER PUMP parts diagram
Fig. F-4 — WATER PUMP
39 items · 2 available products
Honda BF50D PROPELLER SHAFT parts diagram

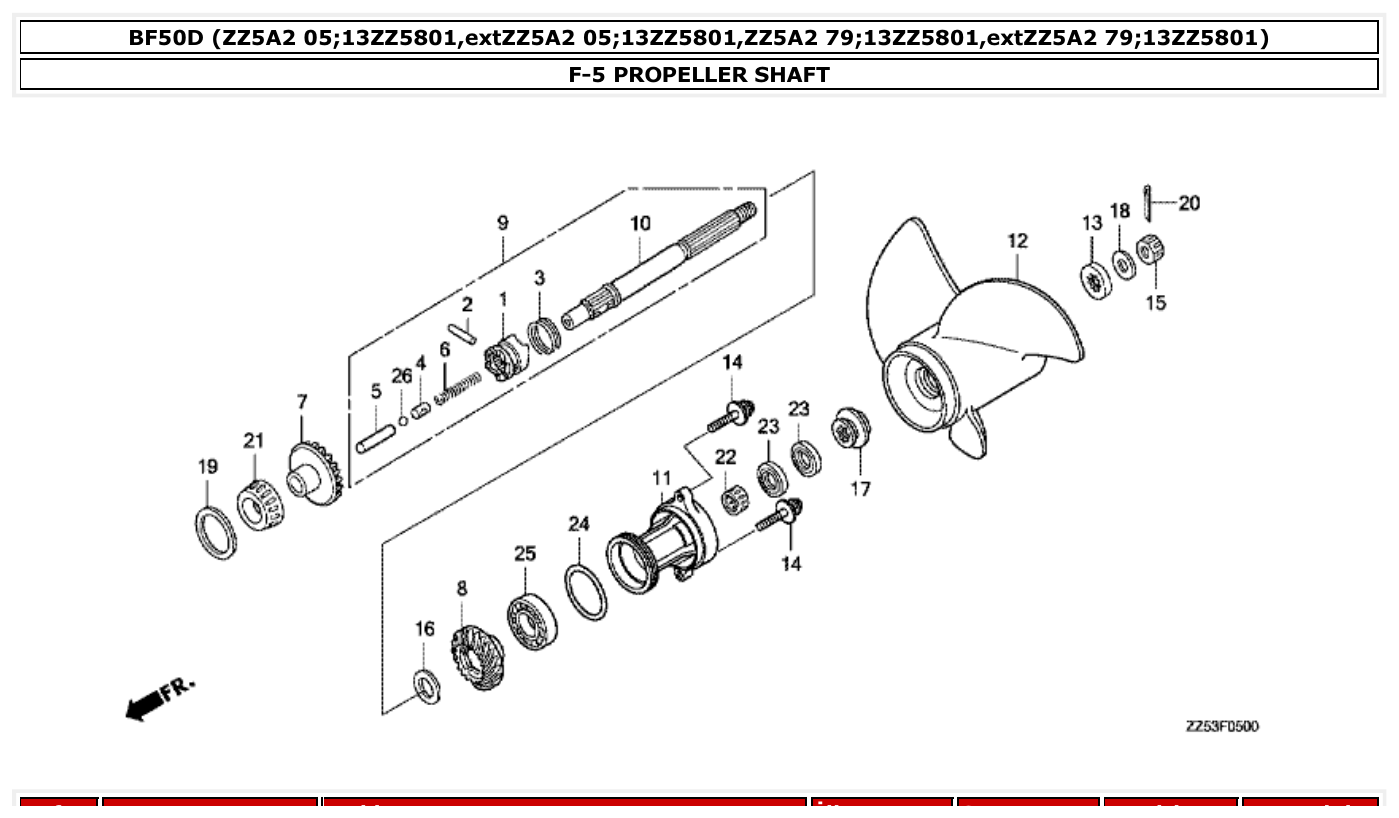

Fig. F-5 — PROPELLER SHAFT
29 items · 1 available products

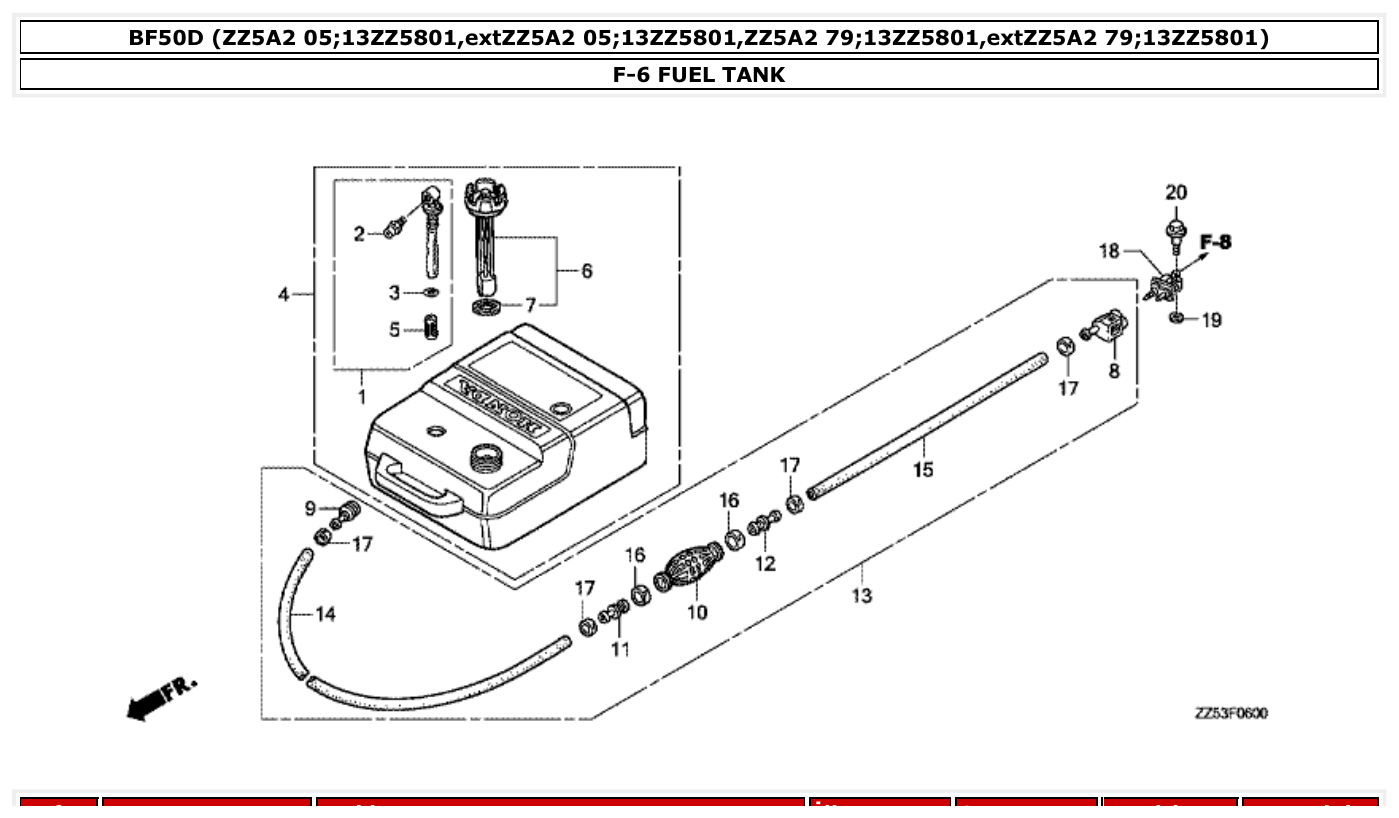

Honda BF50D FUEL TANK parts diagram
Fig. F-6 — FUEL TANK
24 items · 1 available products

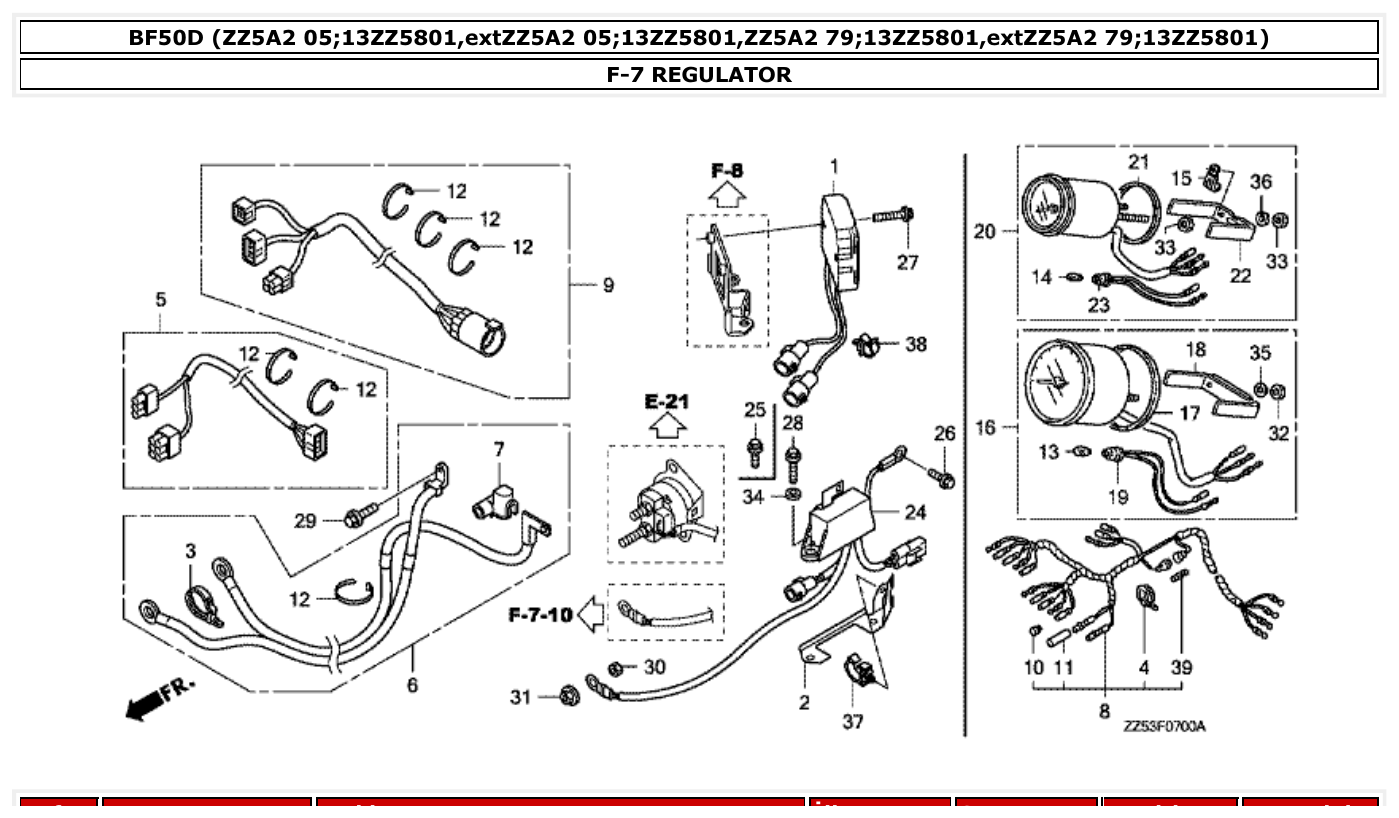

Honda BF50D REGULATOR parts diagram
Fig. F-7 — REGULATOR
42 items

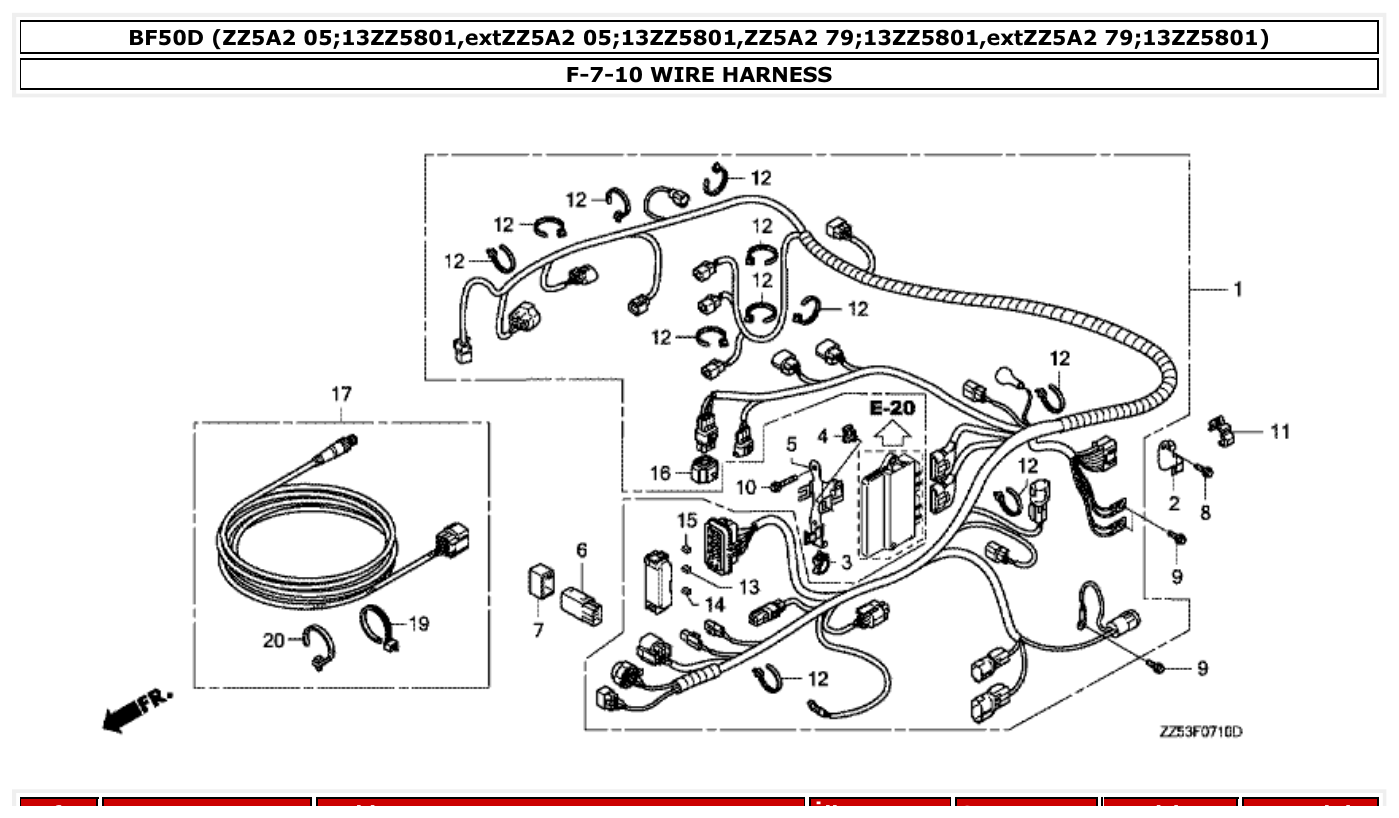

Honda BF50D WIRE HARNESS parts diagram
Fig. F-7-10 — WIRE HARNESS
26 items

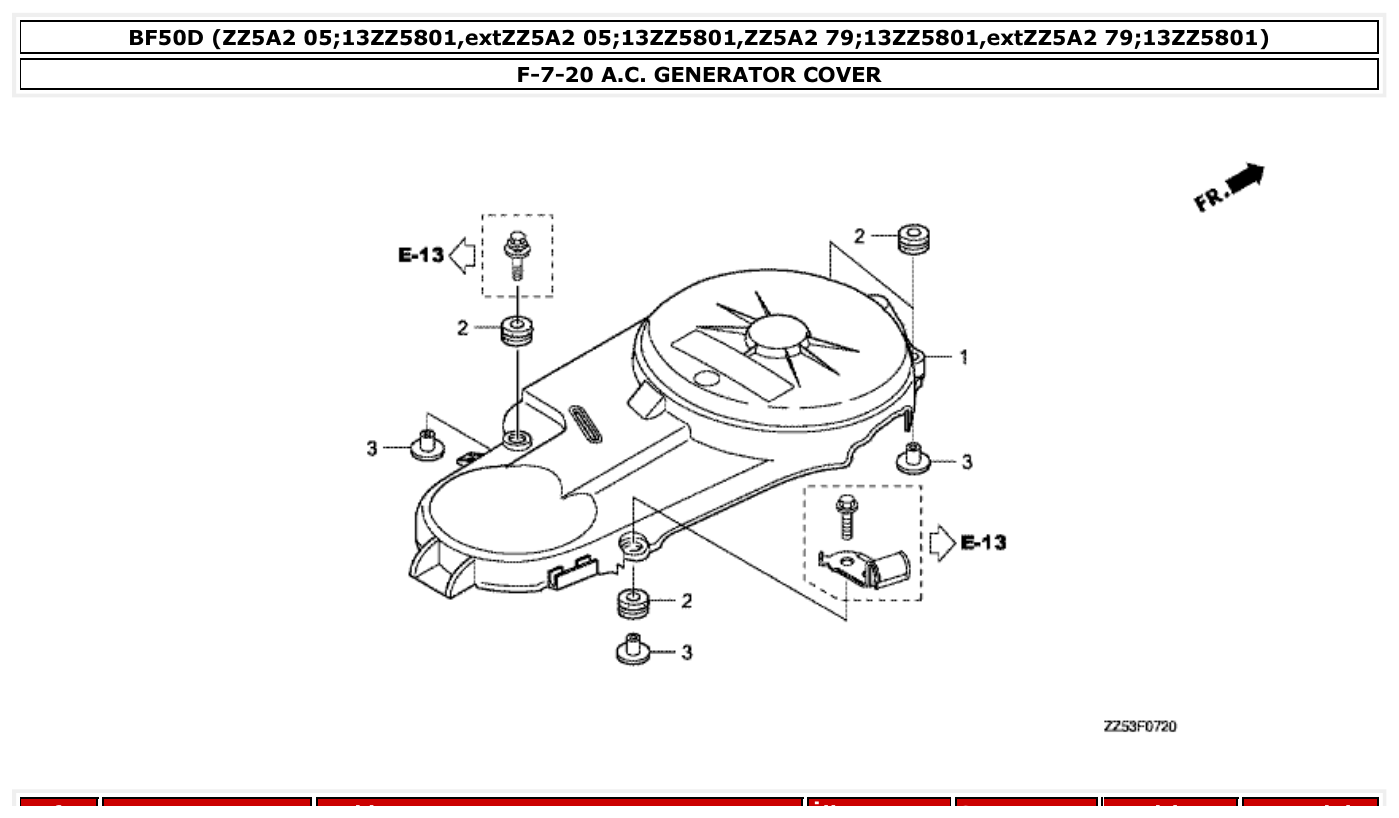

Honda BF50D A.C. GENERATOR COVER parts diagram
Fig. F-7-20 — A.C. GENERATOR COVER
3 items

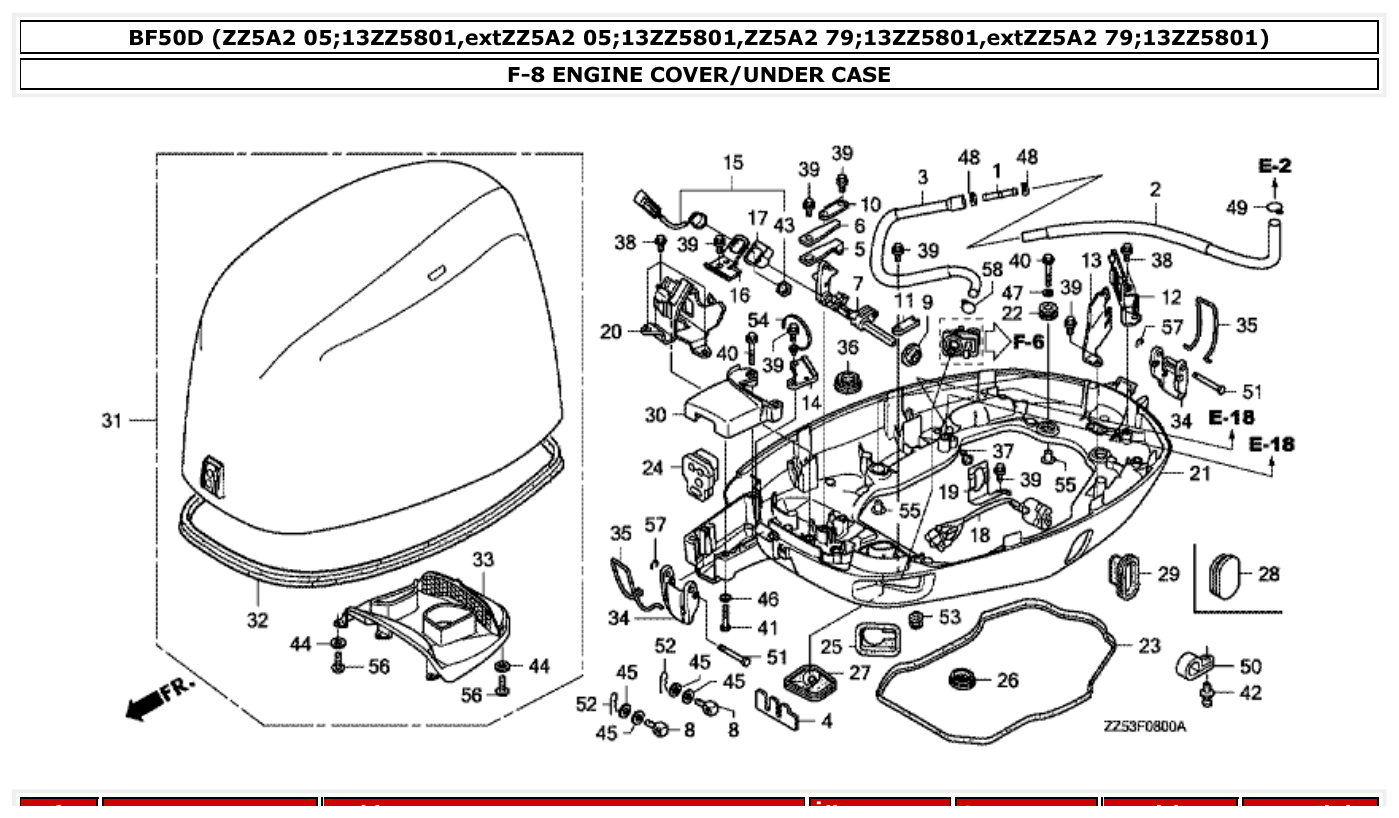

Honda BF50D ENGINE COVER/UNDER CASE parts diagram
Fig. F-8 — ENGINE COVER/UNDER CASE
59 items
