Honda BF5A2 Parts Catalog

Honda BF5A2 Outboard parts and diagrams

Honda BF5A2 outboard parts catalog includes RECOIL STARTER, CARBURETOR, FUEL PUMP, FLYWHEEL/IGNITION COIL, CYLINDER HEAD, CYLINDER BARREL, OIL PAN, CRANKSHAFT/PISTON, CAMSHAFT, STEERING HANDLE/THROTTLECABLE, STERN BRACKET, MOUNT FRAME/SWIVEL CASE, LABEL, TOOL, SHIFT SHAFT/COVER LOCK LEVER, EXTENSION CASE/GEAR CASE, VERTICAL SHAFT/WATER PUMP, PROPELLER/PROPELLER SHAFT. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

5 linked store products are available across 21 catalog sections. 601 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

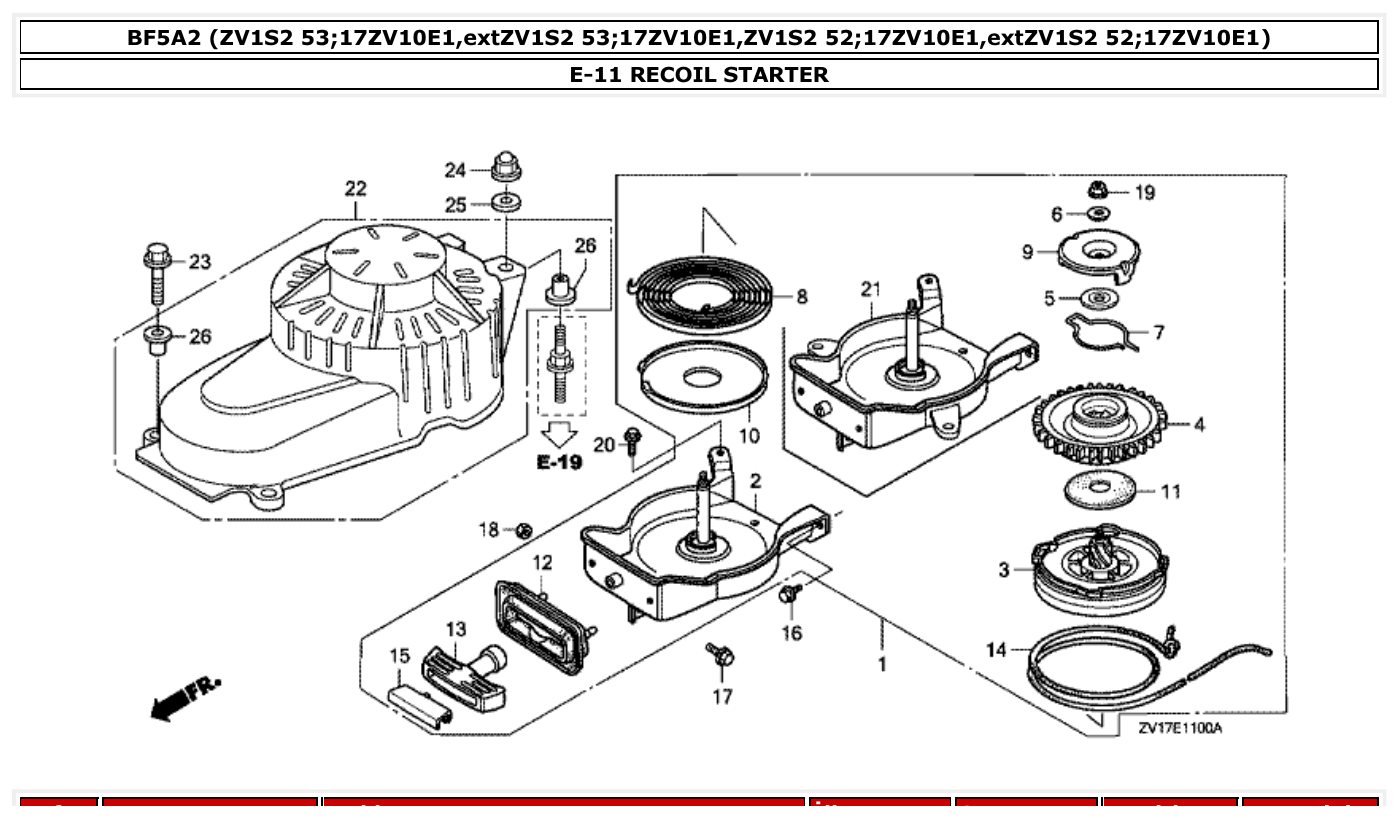

Honda BF5A2 RECOIL STARTER parts diagram
Fig. E-11 — RECOIL STARTER
29 items

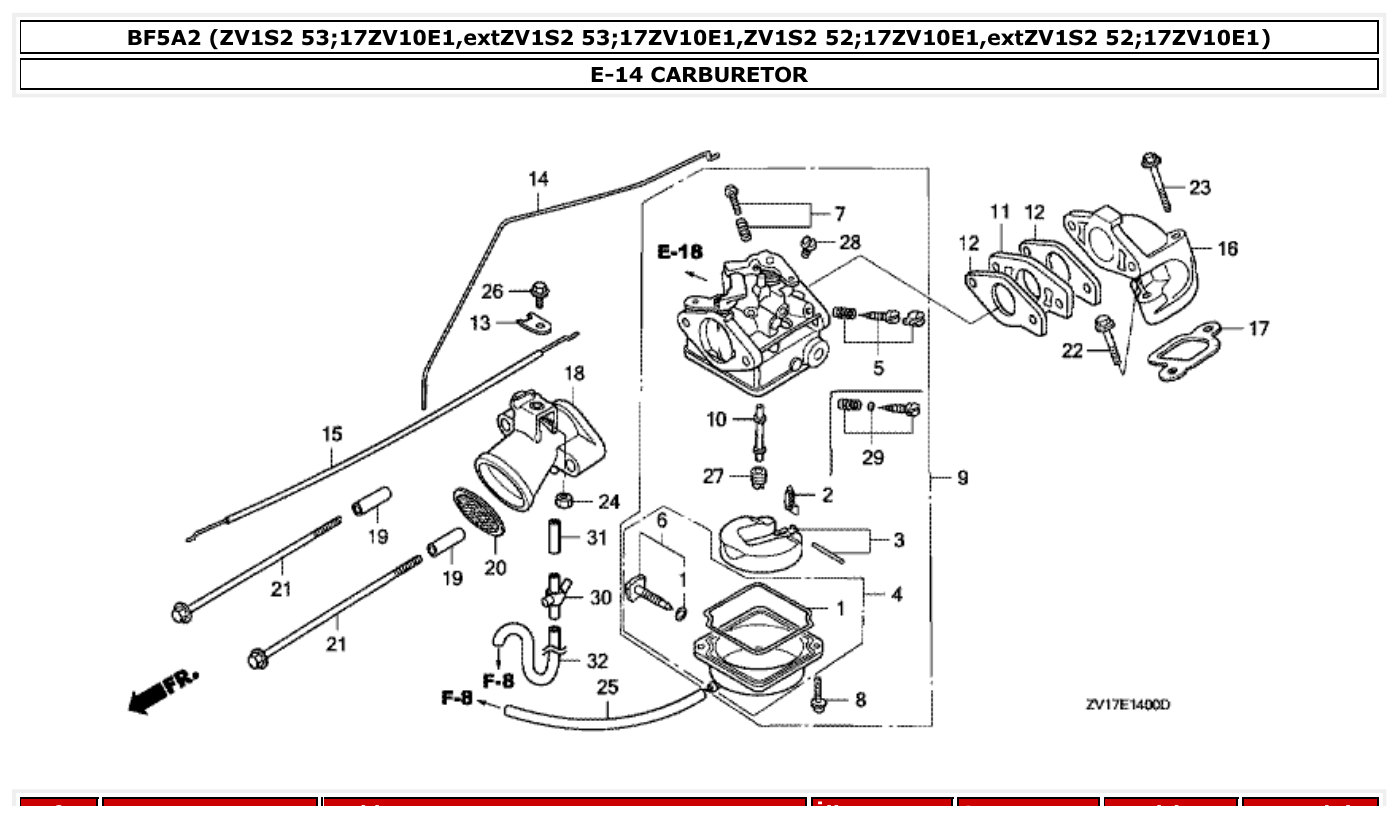

Honda BF5A2 CARBURETOR parts diagram
Fig. E-14 — CARBURETOR
41 items

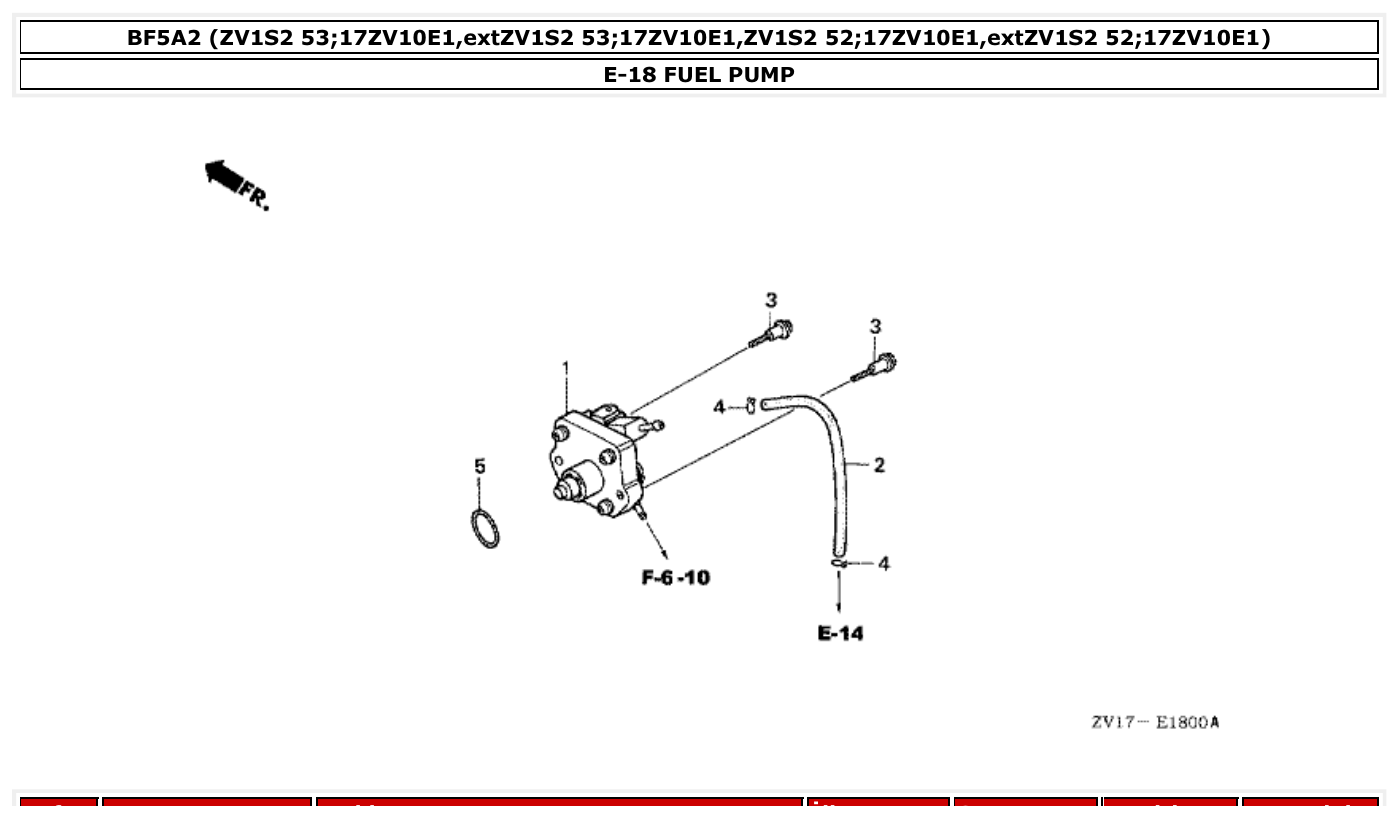

Honda BF5A2 FUEL PUMP parts diagram
Fig. E-18 — FUEL PUMP
8 items

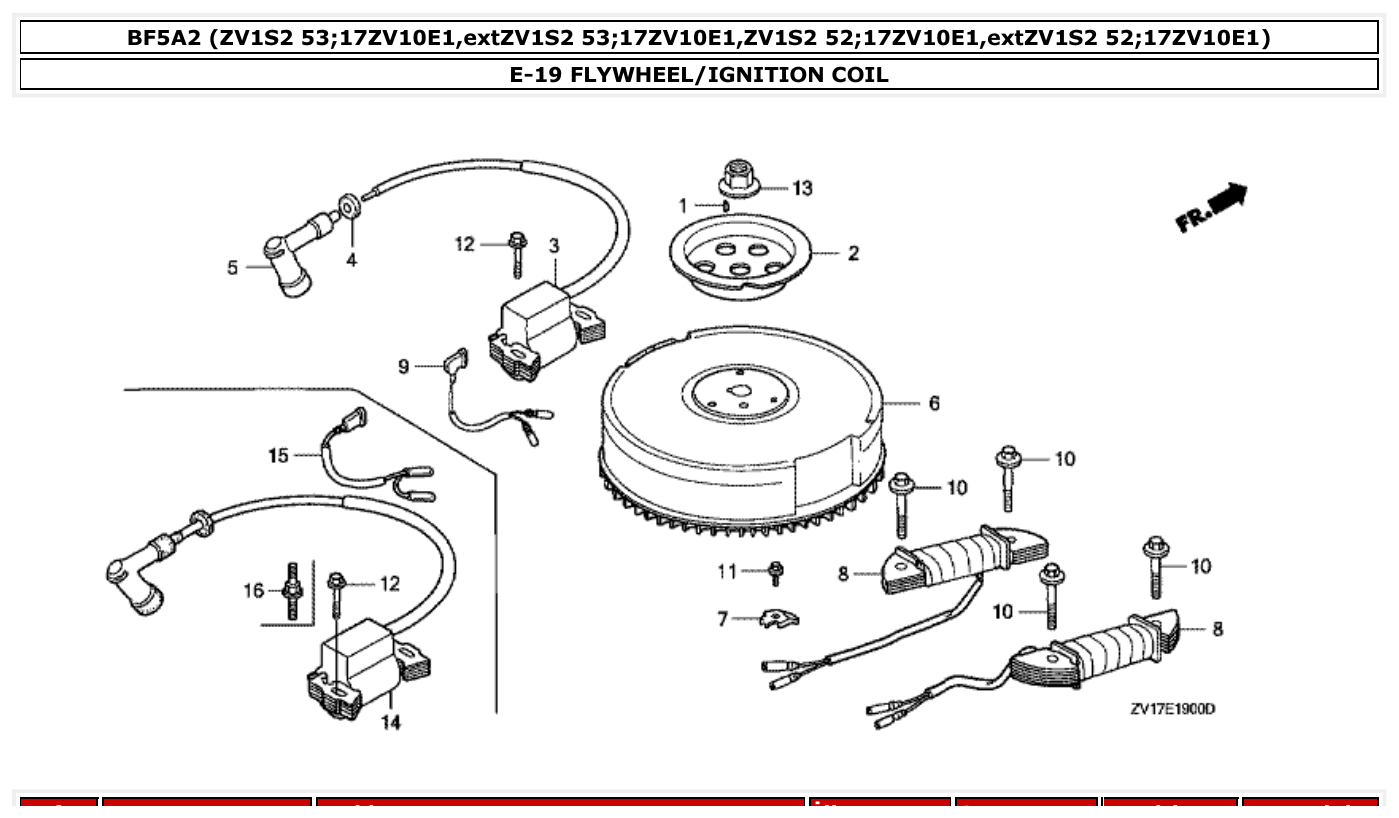

Honda BF5A2 FLYWHEEL/IGNITION COIL parts diagram
Fig. E-19 — FLYWHEEL/IGNITION COIL
31 items
Honda BF5A2 CYLINDER HEAD parts diagram

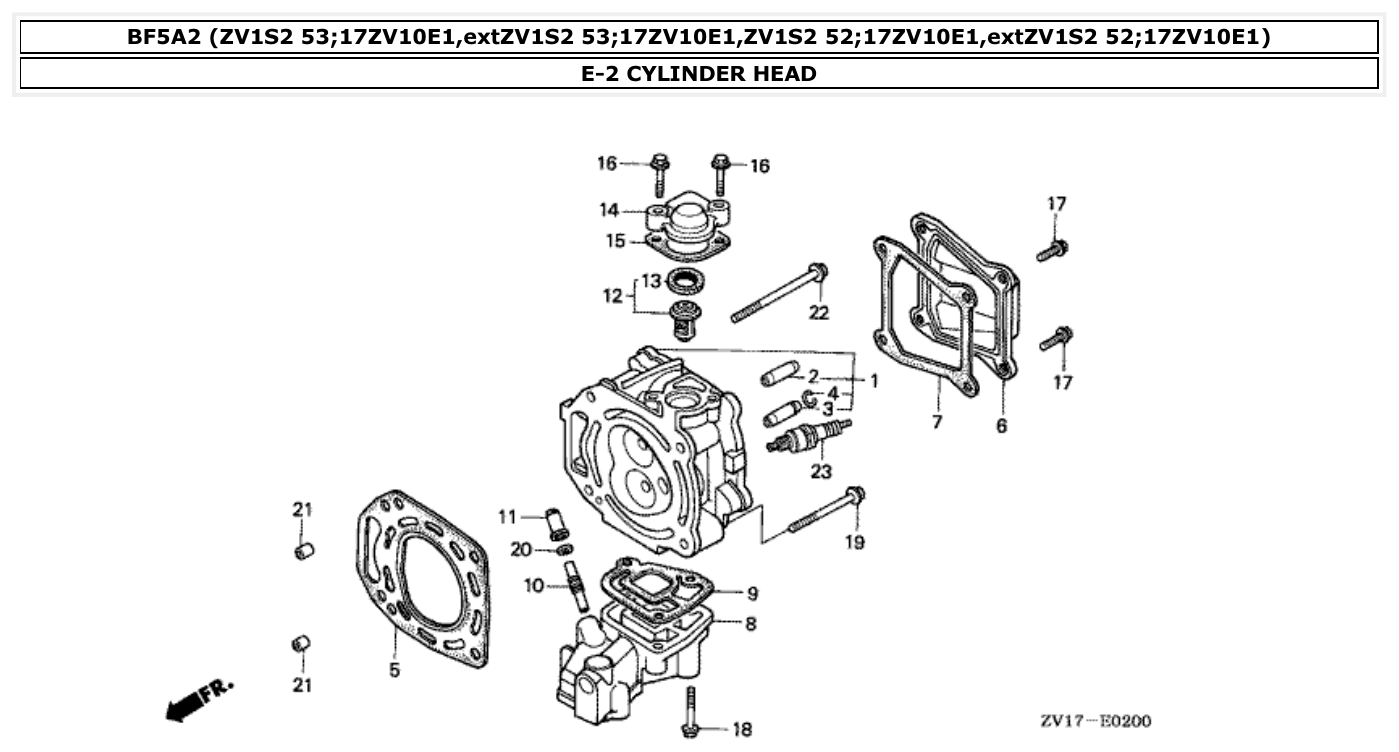

Fig. E-2 — CYLINDER HEAD
30 items

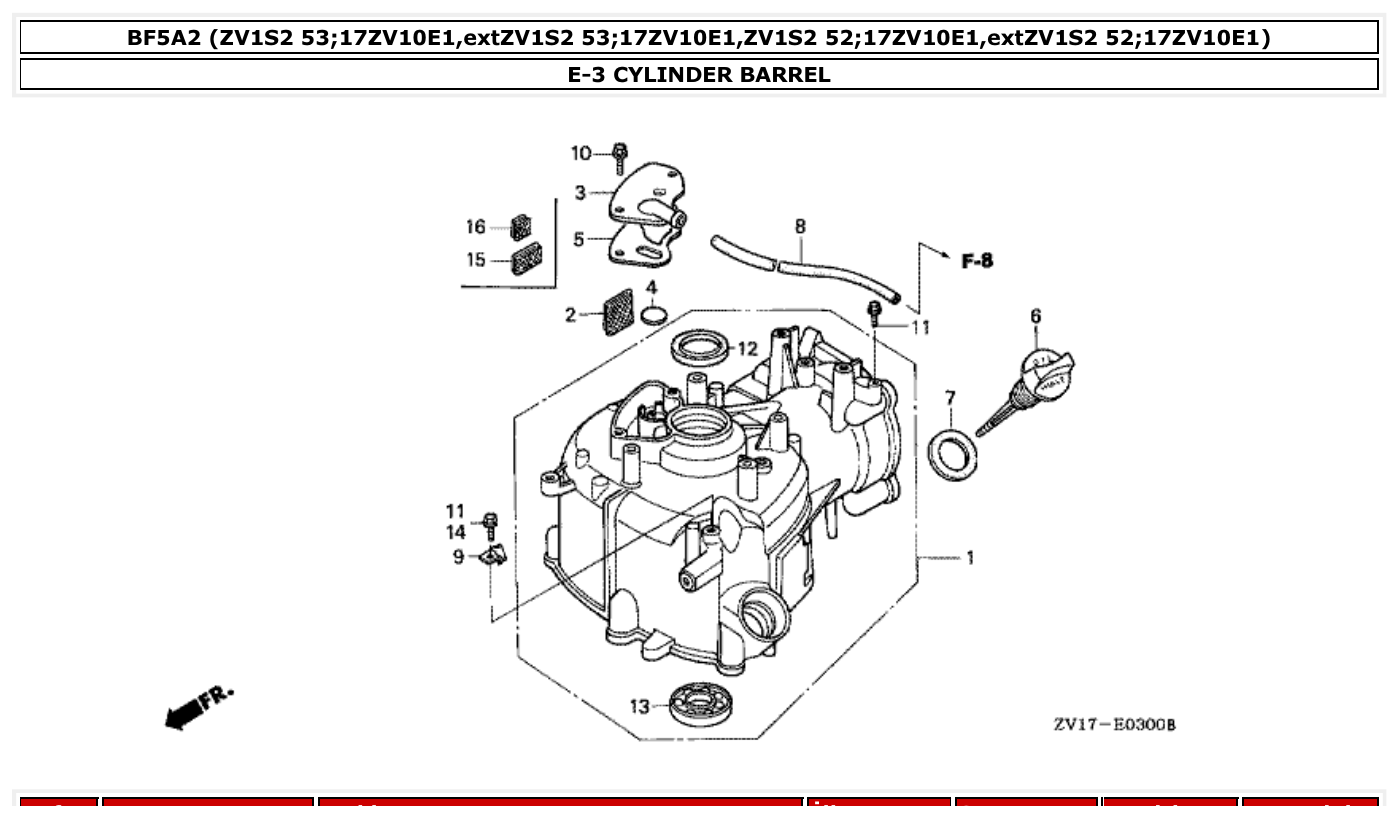

Honda BF5A2 CYLINDER BARREL parts diagram
Fig. E-3 — CYLINDER BARREL
19 items
Honda BF5A2 OIL PAN parts diagram

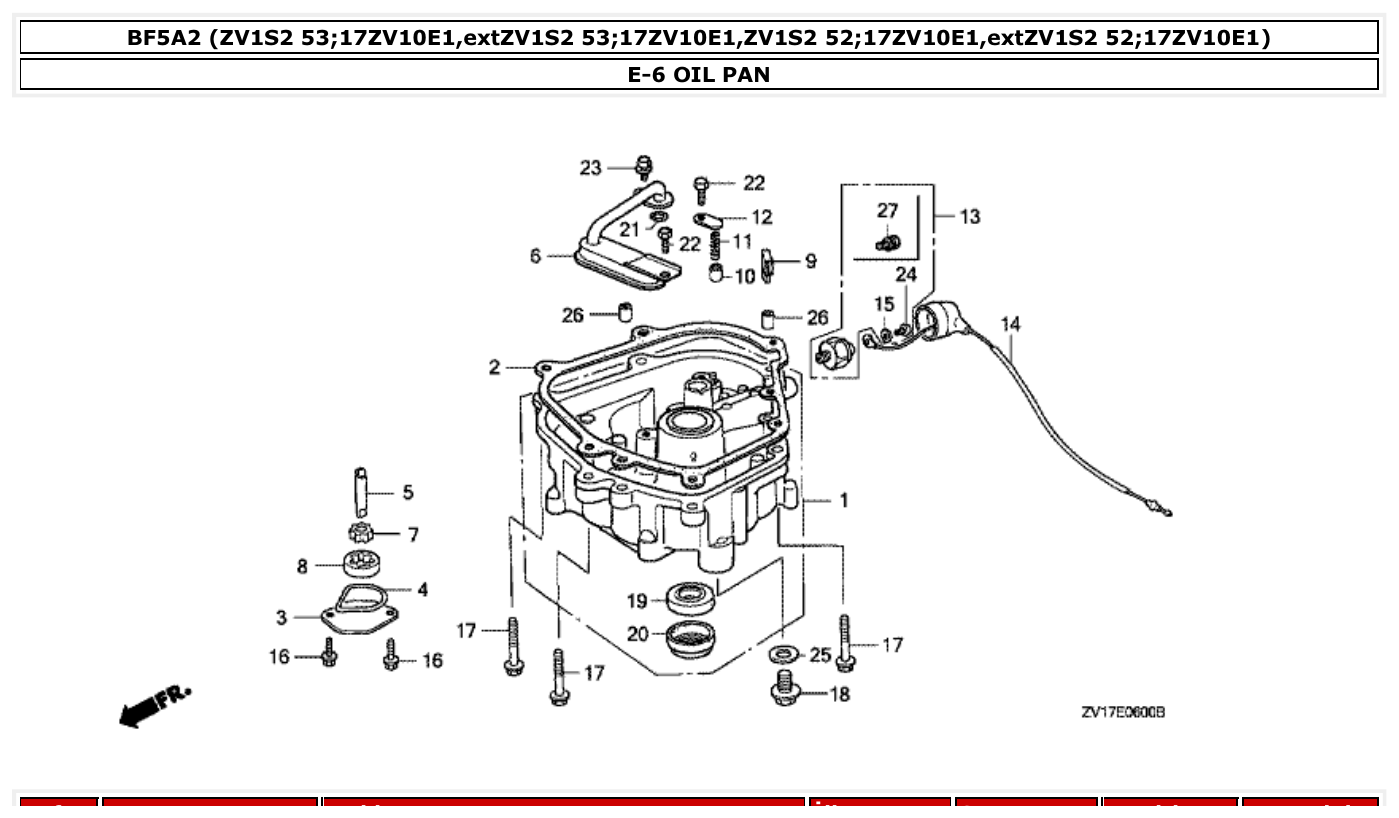

Fig. E-6 — OIL PAN
31 items

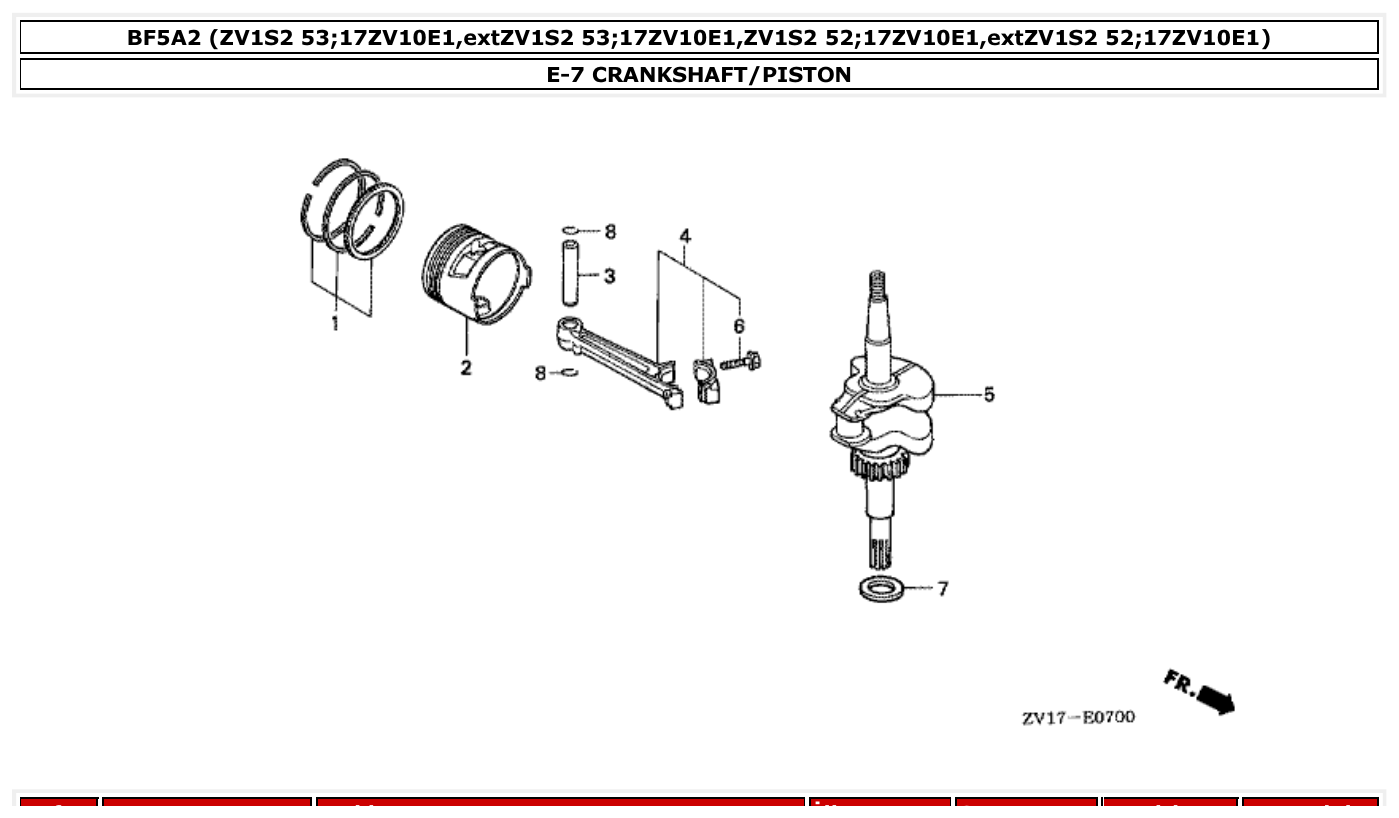

Honda BF5A2 CRANKSHAFT/PISTON parts diagram
Fig. E-7 — CRANKSHAFT/PISTON
9 items

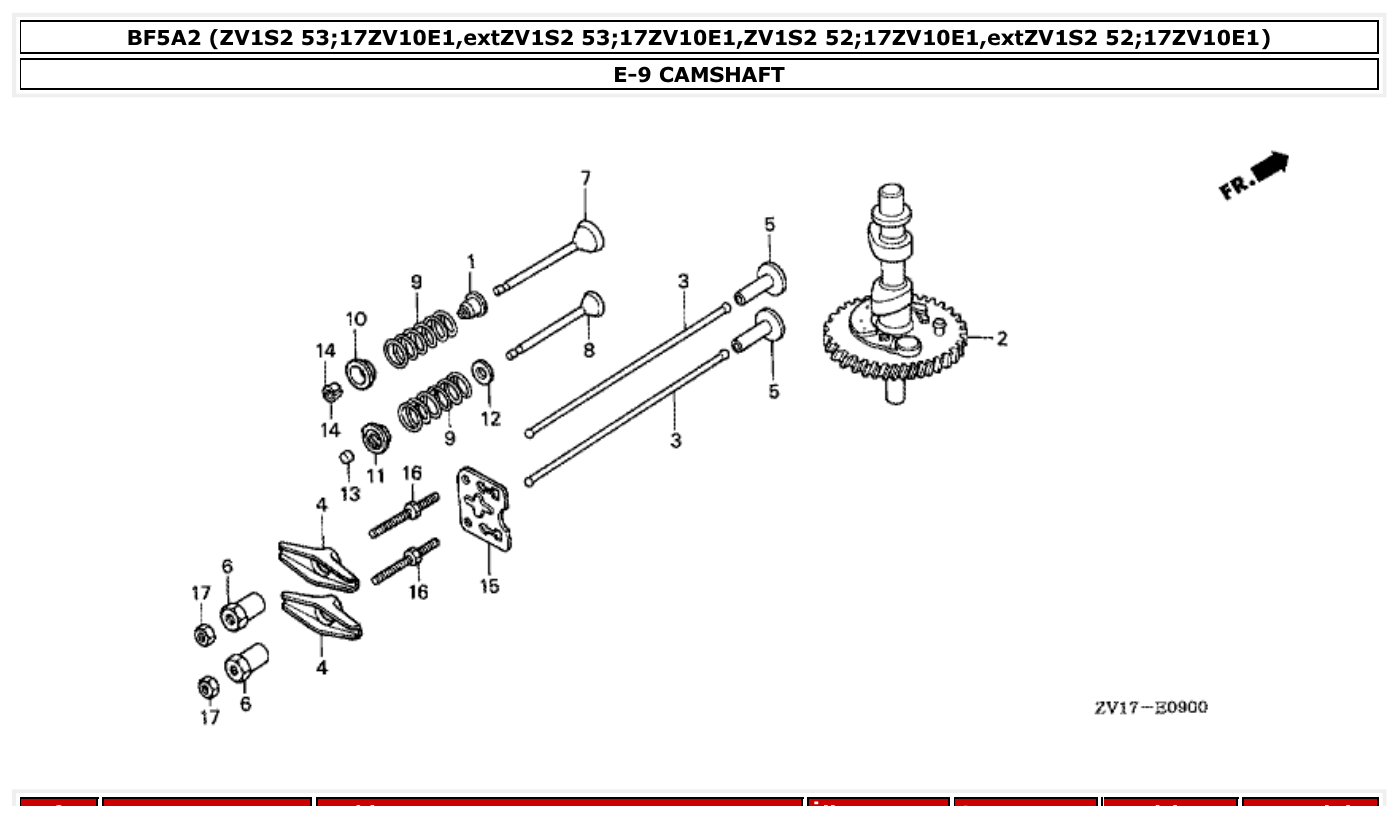

Honda BF5A2 CAMSHAFT parts diagram
Fig. E-9 — CAMSHAFT
19 items

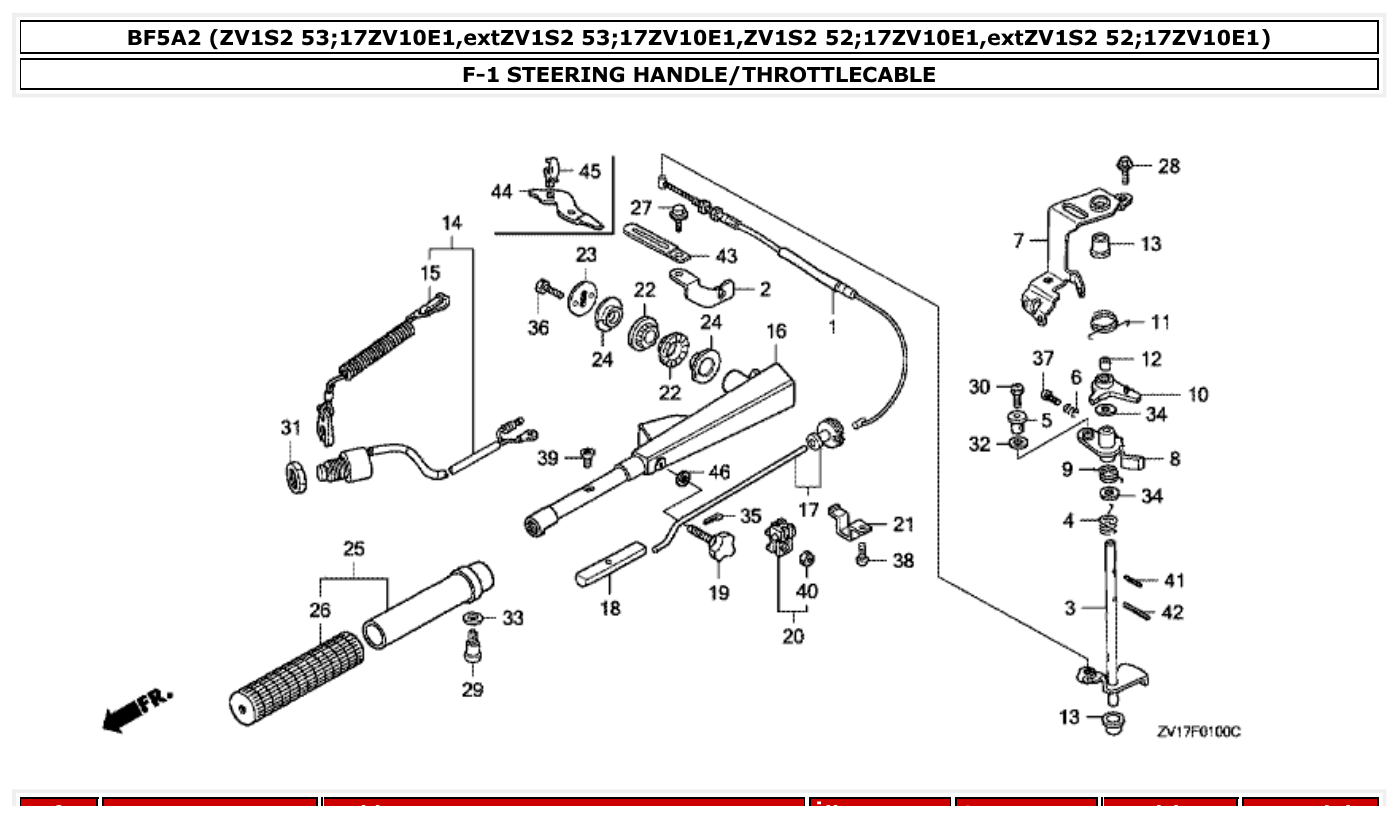

Honda BF5A2 STEERING HANDLE/THROTTLECABLE parts diagram
Fig. F-1 — STEERING HANDLE/THROTTLECABLE
43 items
Honda BF5A2 STERN BRACKET parts diagram

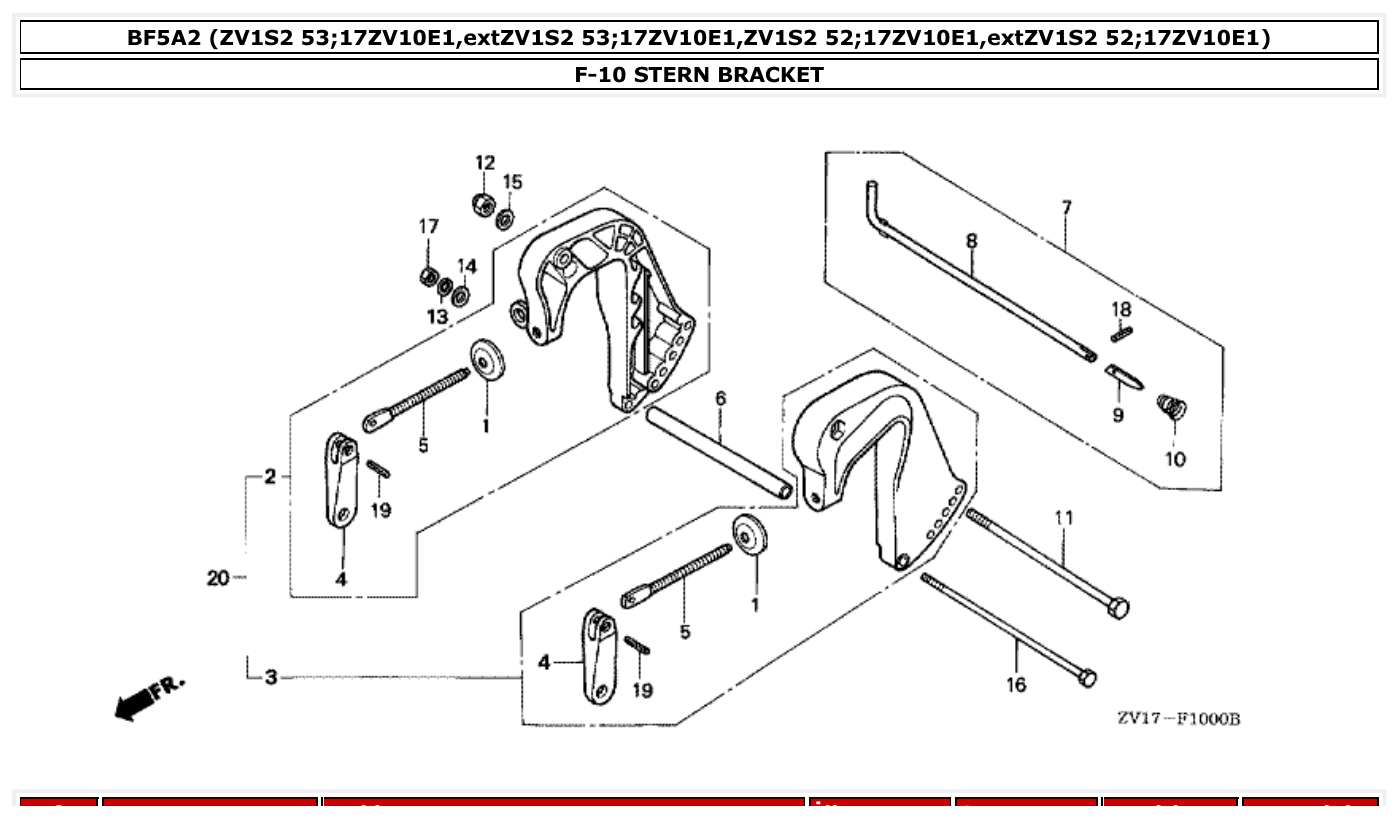

Fig. F-10 — STERN BRACKET
19 items
Honda BF5A2 MOUNT FRAME/SWIVEL CASE parts diagram

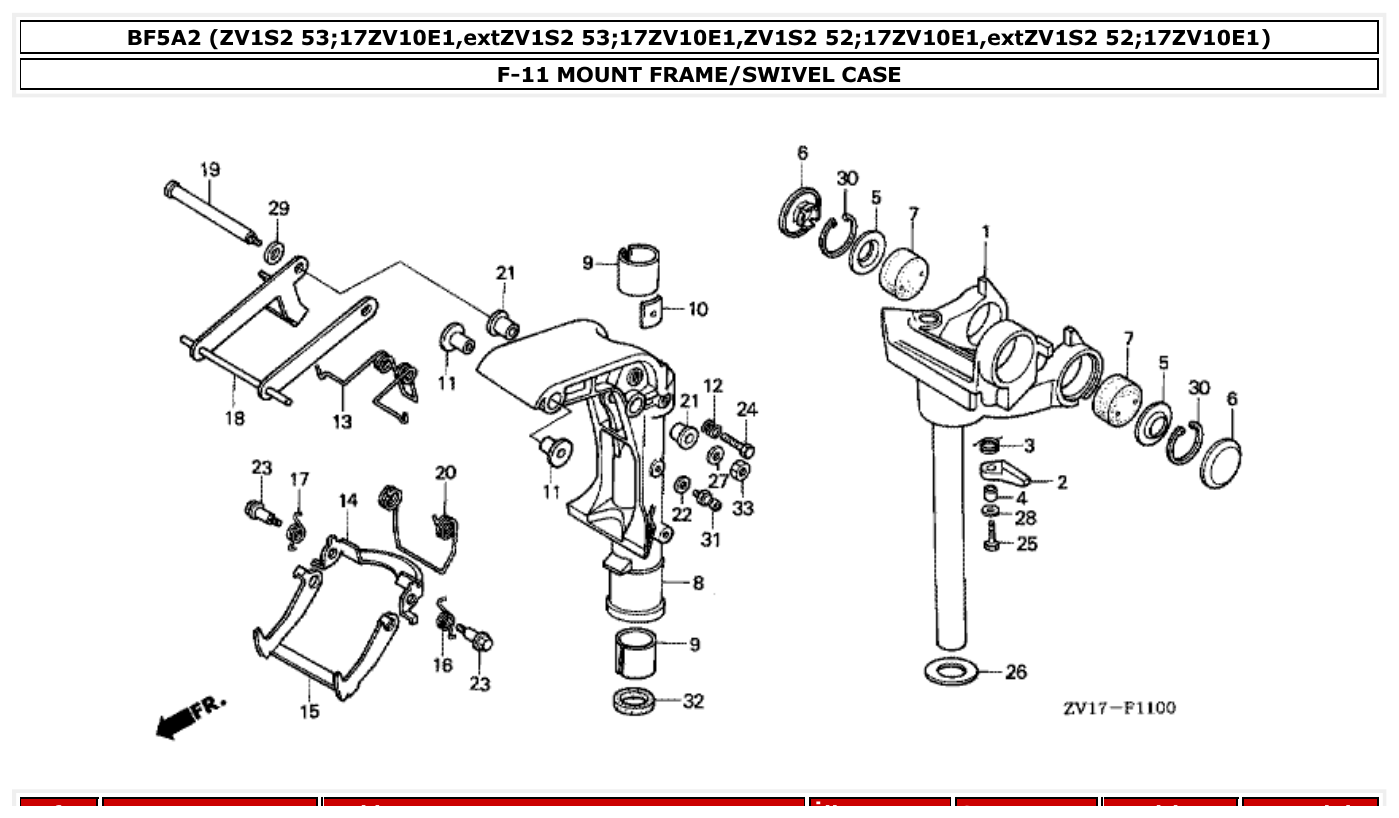

Fig. F-11 — MOUNT FRAME/SWIVEL CASE
33 items

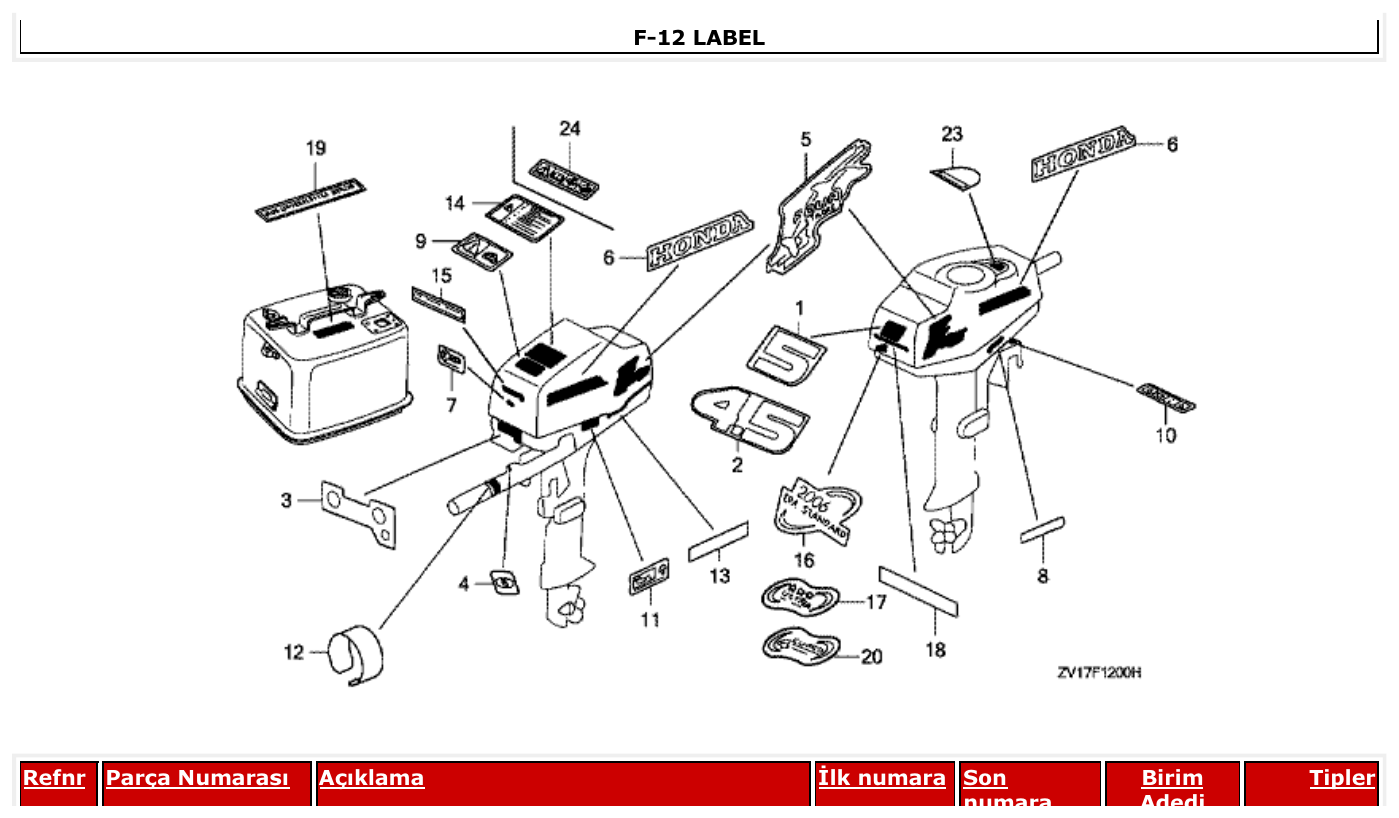

Honda BF5A2 LABEL parts diagram
Fig. F-12 — LABEL
17 items

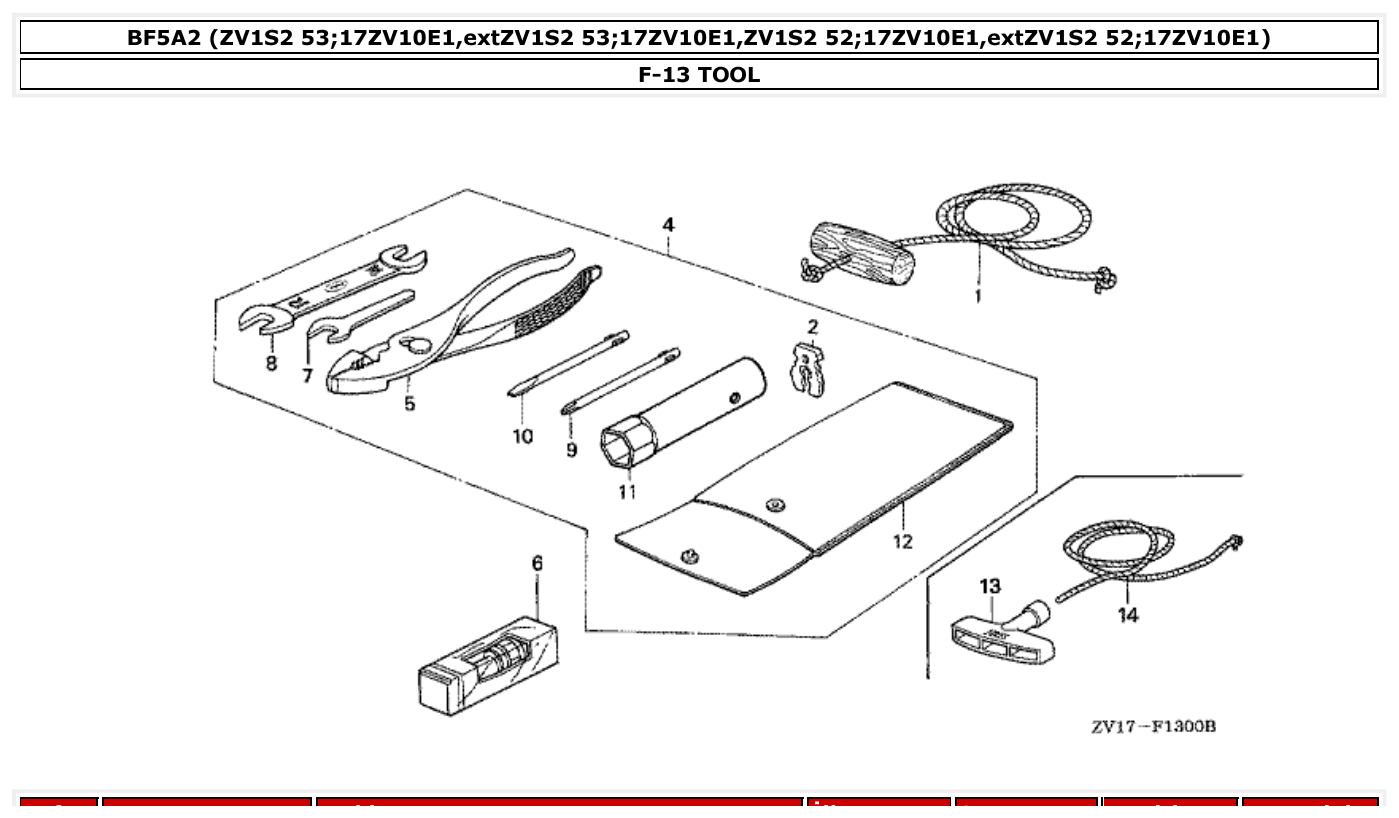

Honda BF5A2 TOOL parts diagram
Fig. F-13 — TOOL
53 items · 2 available products

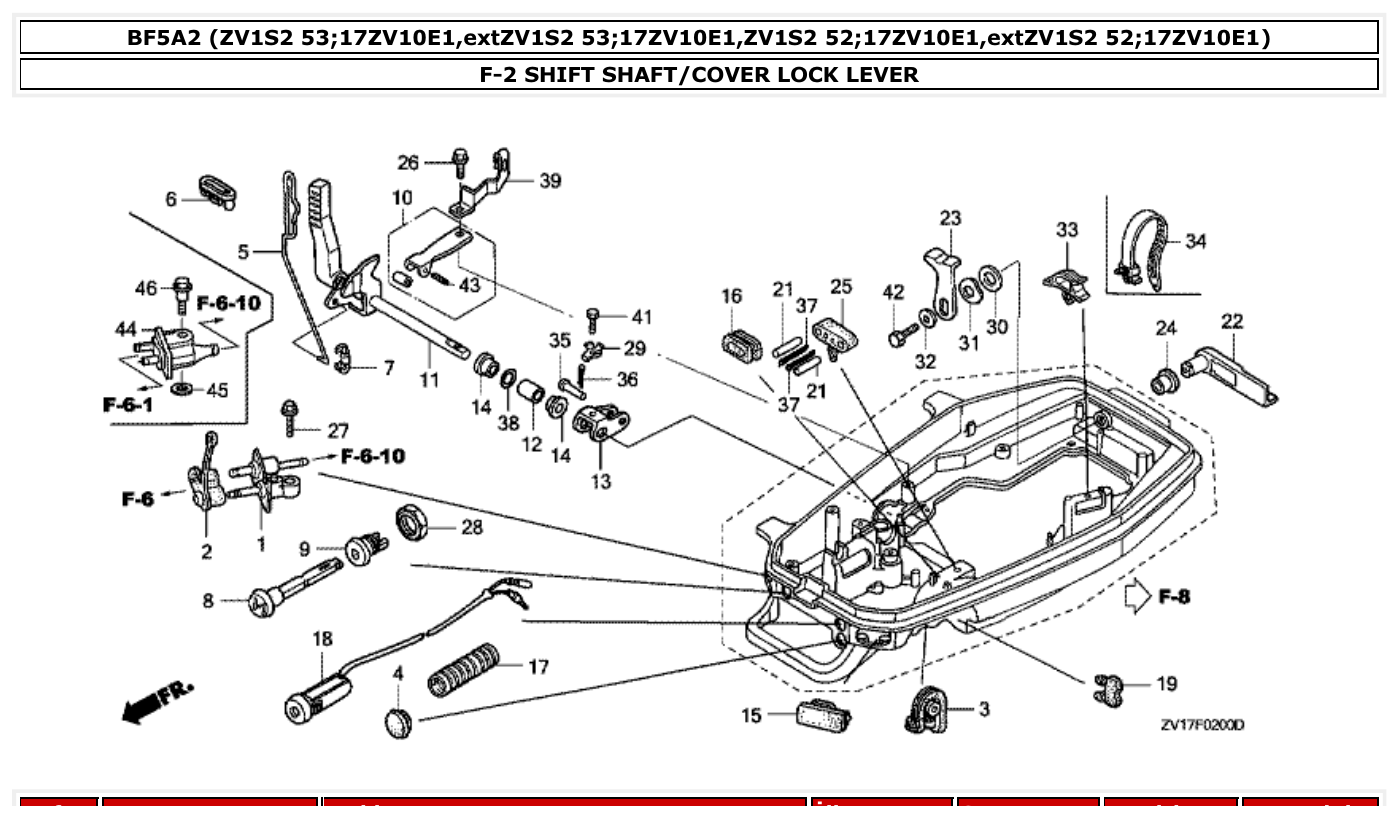

Honda BF5A2 SHIFT SHAFT/COVER LOCK LEVER parts diagram
Fig. F-2 — SHIFT SHAFT/COVER LOCK LEVER
42 items · 1 available products

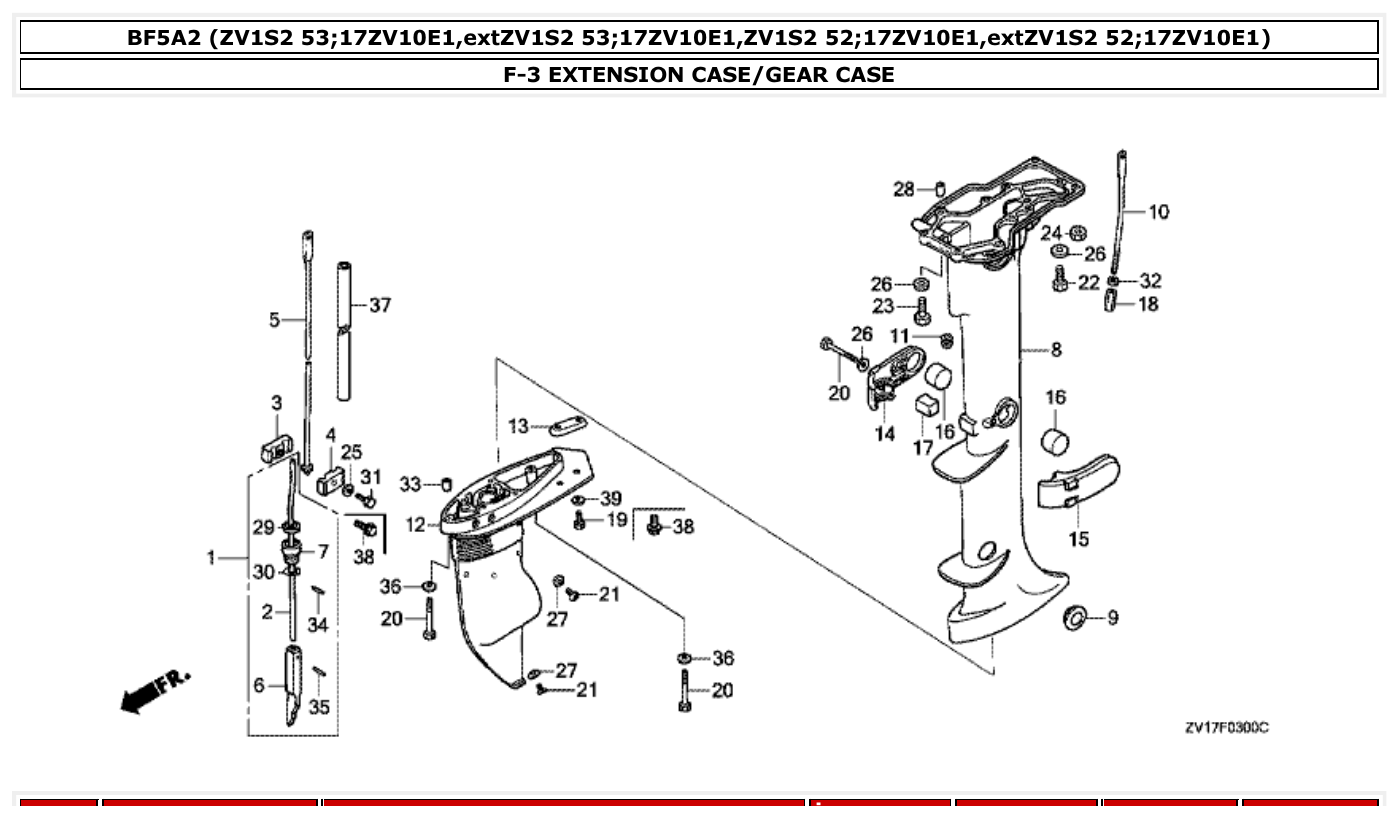

Honda BF5A2 EXTENSION CASE/GEAR CASE parts diagram
Fig. F-3 — EXTENSION CASE/GEAR CASE
44 items · 1 available products

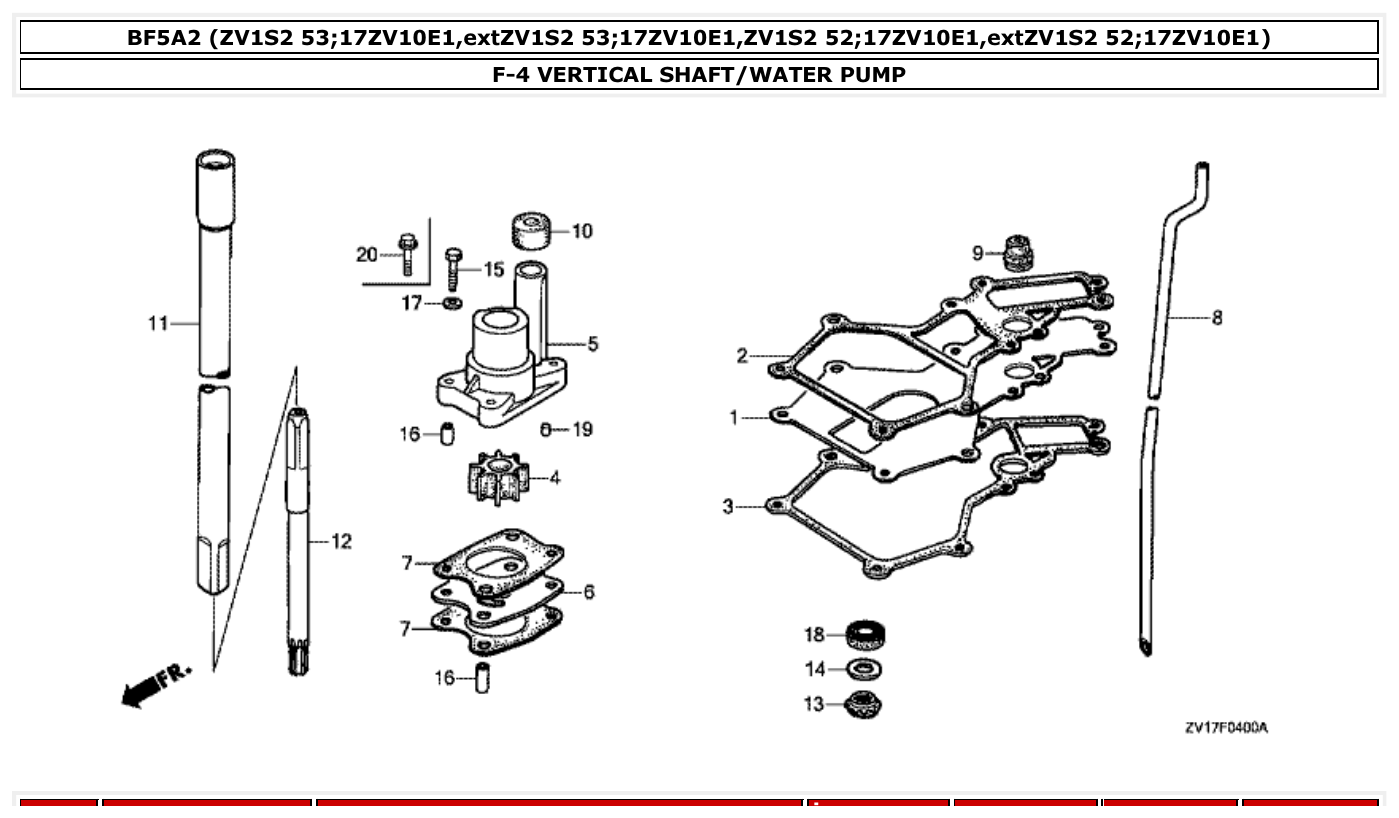

Honda BF5A2 VERTICAL SHAFT/WATER PUMP parts diagram
Fig. F-4 — VERTICAL SHAFT/WATER PUMP
22 items · 1 available products

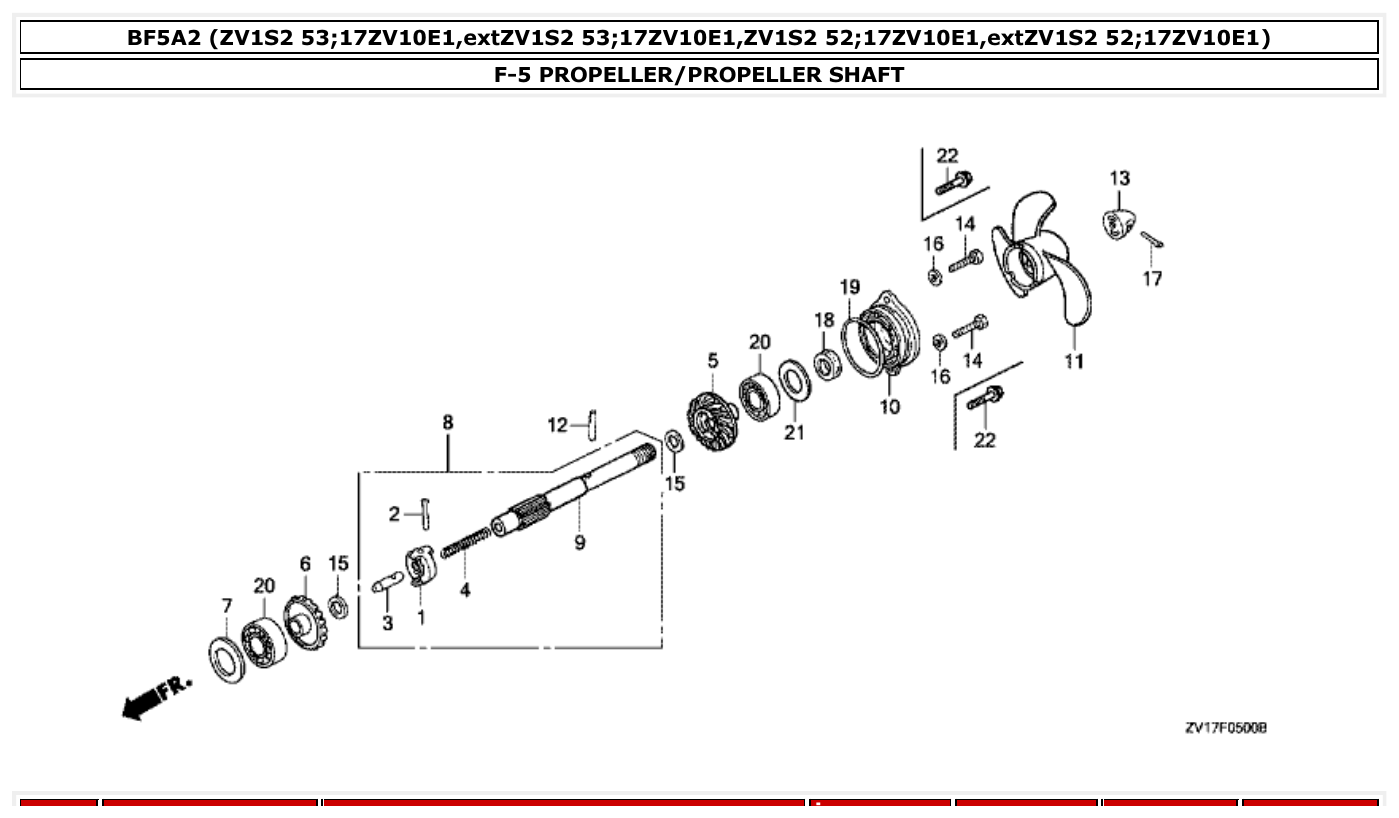

Honda BF5A2 PROPELLER/PROPELLER SHAFT parts diagram
Fig. F-5 — PROPELLER/PROPELLER SHAFT
36 items

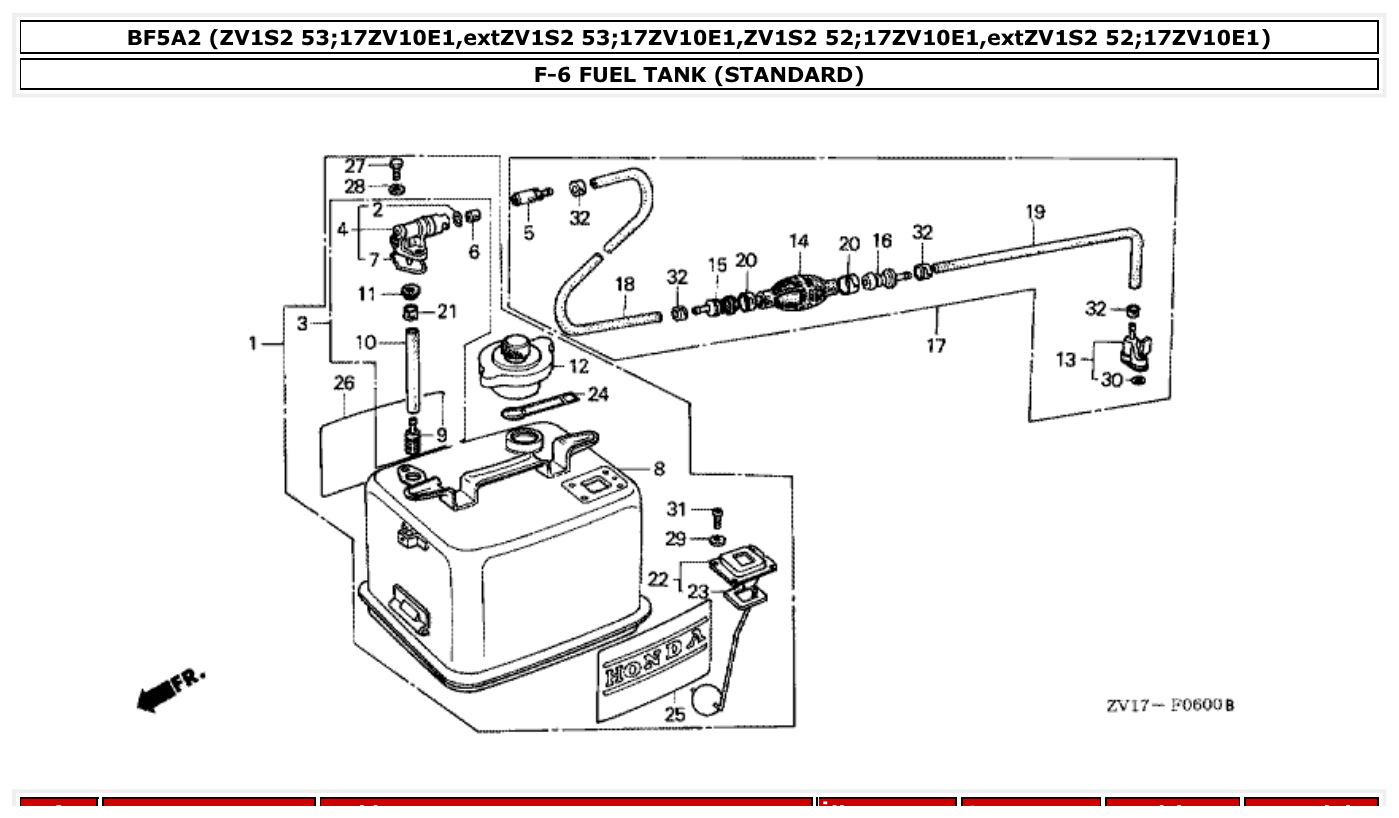

Honda BF5A2 FUEL TANK (STANDARD) parts diagram
Fig. F-6 — FUEL TANK (STANDARD)
59 items

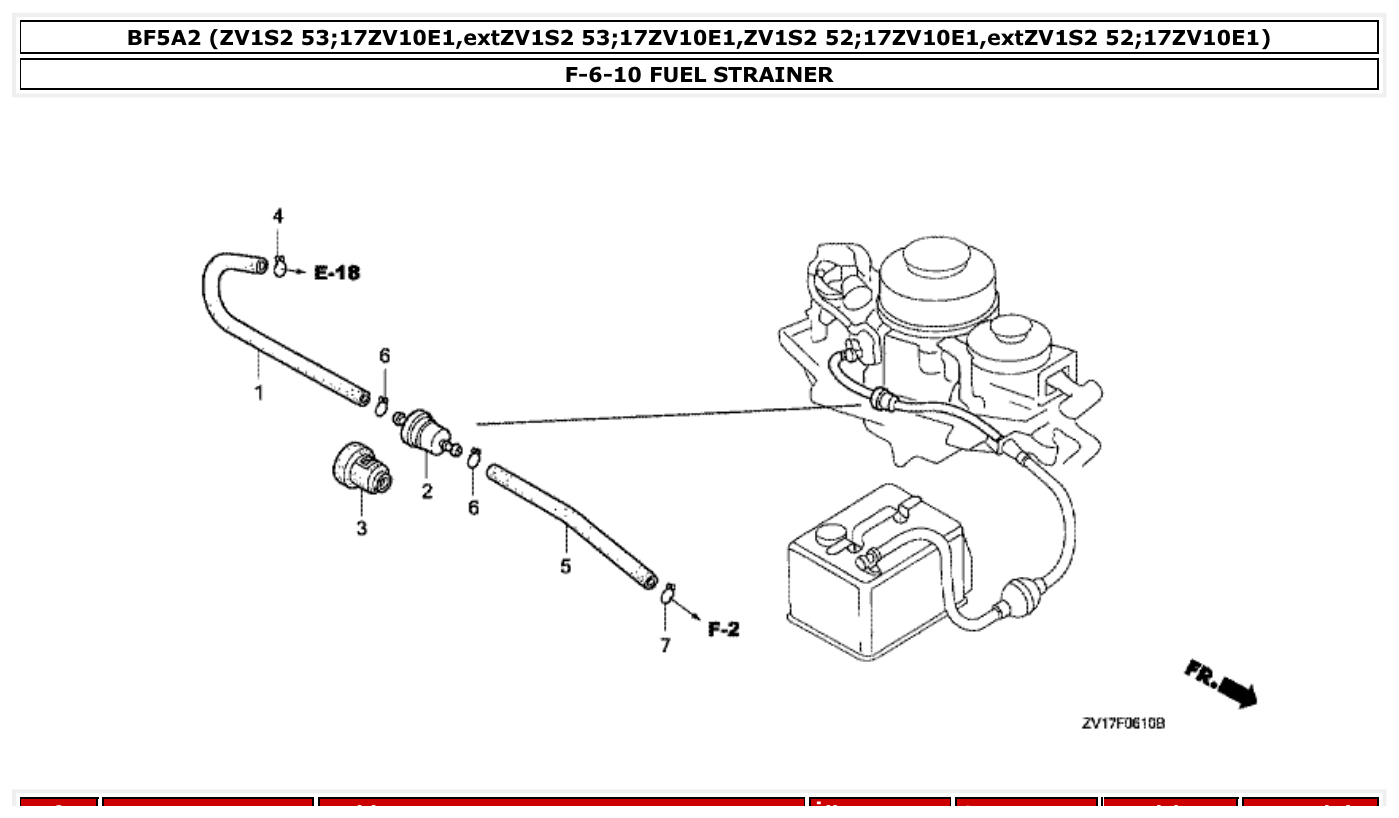

Honda BF5A2 FUEL STRAINER parts diagram
Fig. F-6-10 — FUEL STRAINER
8 items
Honda BF5A2 ENGINE COVER parts diagram
Fig. F-8 — ENGINE COVER
8 items
