Honda BF5A4 Parts Catalog

Honda BF5A4 Outboard parts and diagrams

Honda BF5A4 outboard parts catalog includes RECOIL STARTER, CARBURETOR, FUEL PUMP, FLYWHEEL/IGNITION COIL, CYLINDER HEAD, CYLINDER BARREL, OIL PAN, CRANKSHAFT/PISTON, CAMSHAFT, STEERING HANDLE/THROTTLECABLE, STERN BRACKET, MOUNT FRAME/SWIVEL CASE, LABEL, TOOL, SHIFT SHAFT/COVER LOCK LEVER, EXTENSION CASE/GEAR CASE, GEAR CASE ASSY., VERTICAL SHAFT/WATER PUMP. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

6 linked store products are available across 23 catalog sections. 1038 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

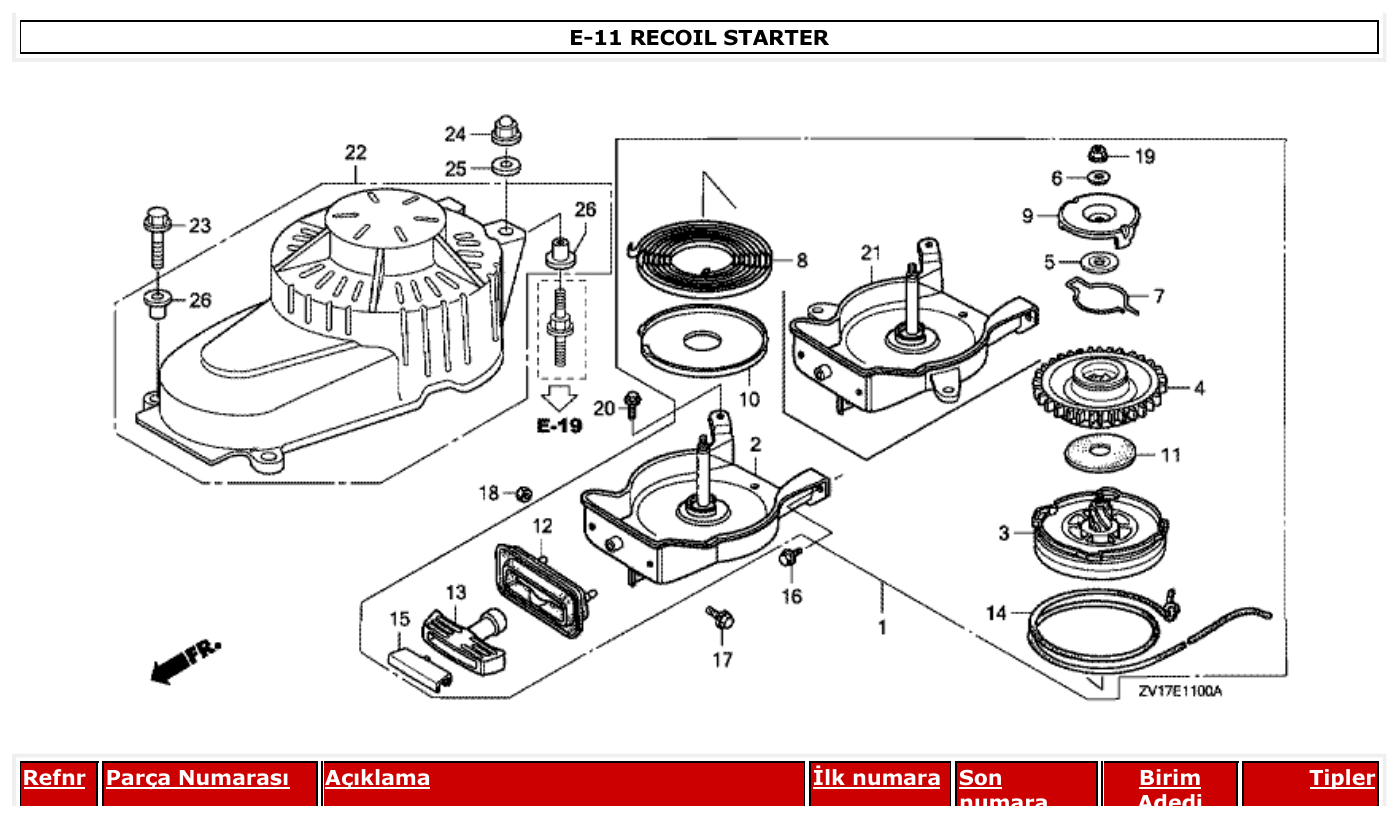

Honda BF5A4 RECOIL STARTER parts diagram
Fig. E-11 — RECOIL STARTER
61 items

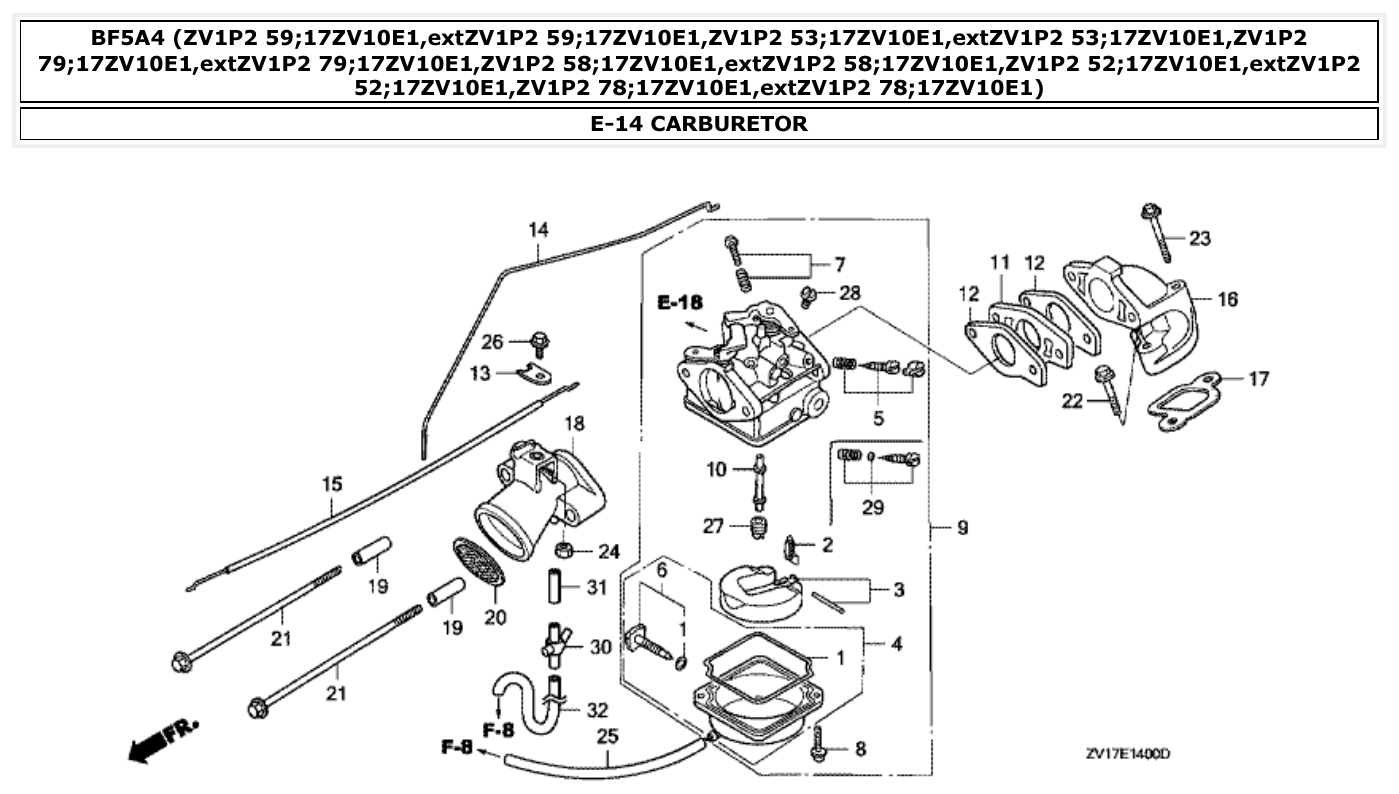

Honda BF5A4 CARBURETOR parts diagram
Fig. E-14 — CARBURETOR
58 items

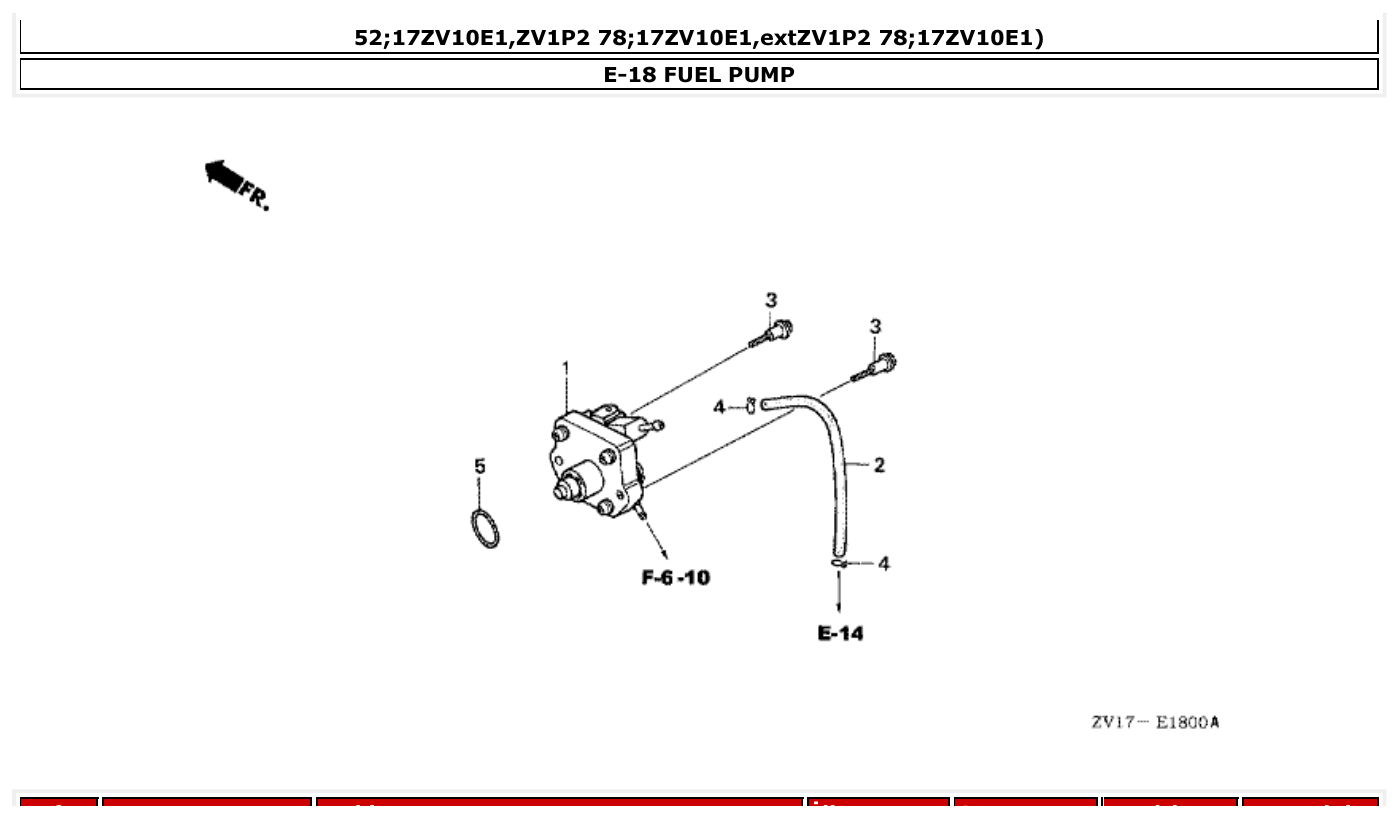

Honda BF5A4 FUEL PUMP parts diagram
Fig. E-18 — FUEL PUMP
8 items
Honda BF5A4 FLYWHEEL/IGNITION COIL parts diagram

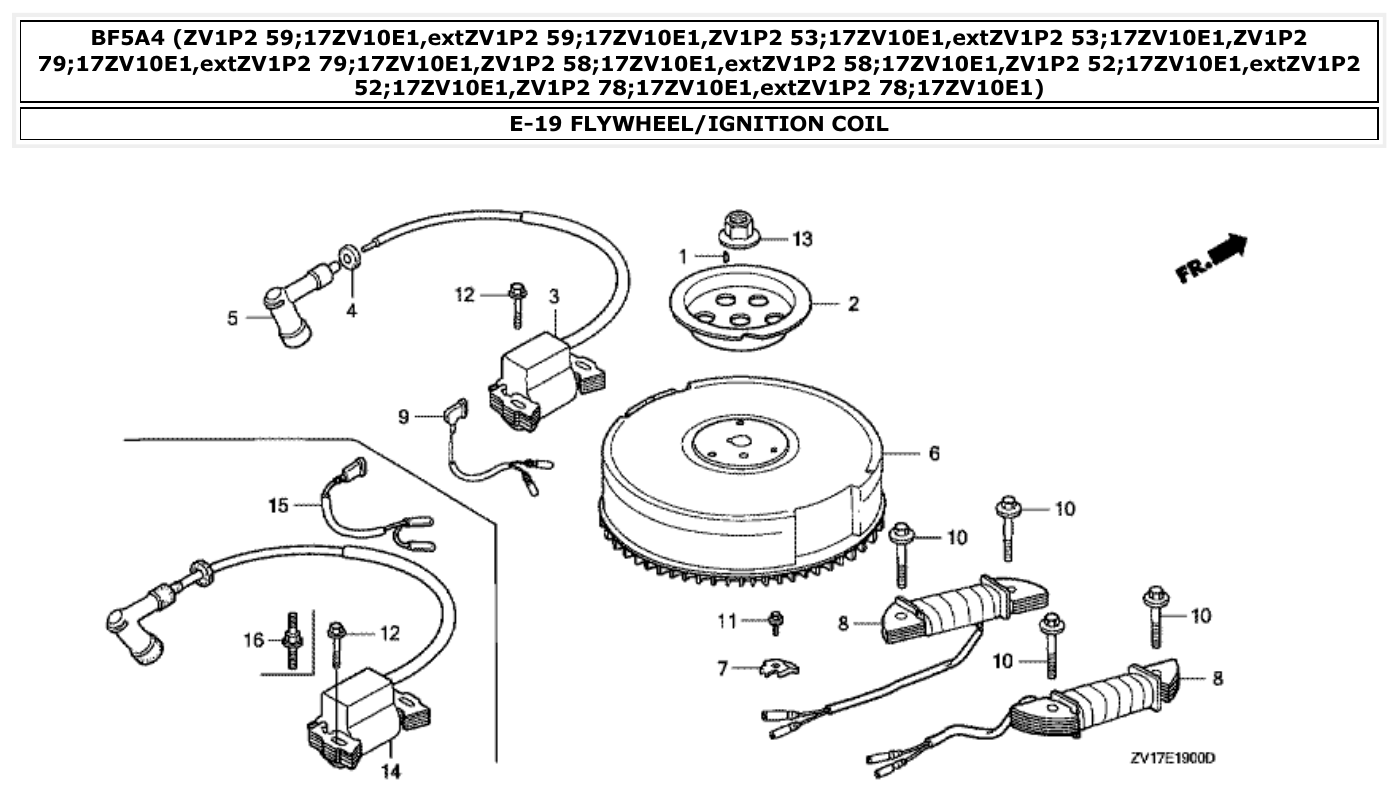

Fig. E-19 — FLYWHEEL/IGNITION COIL
34 items

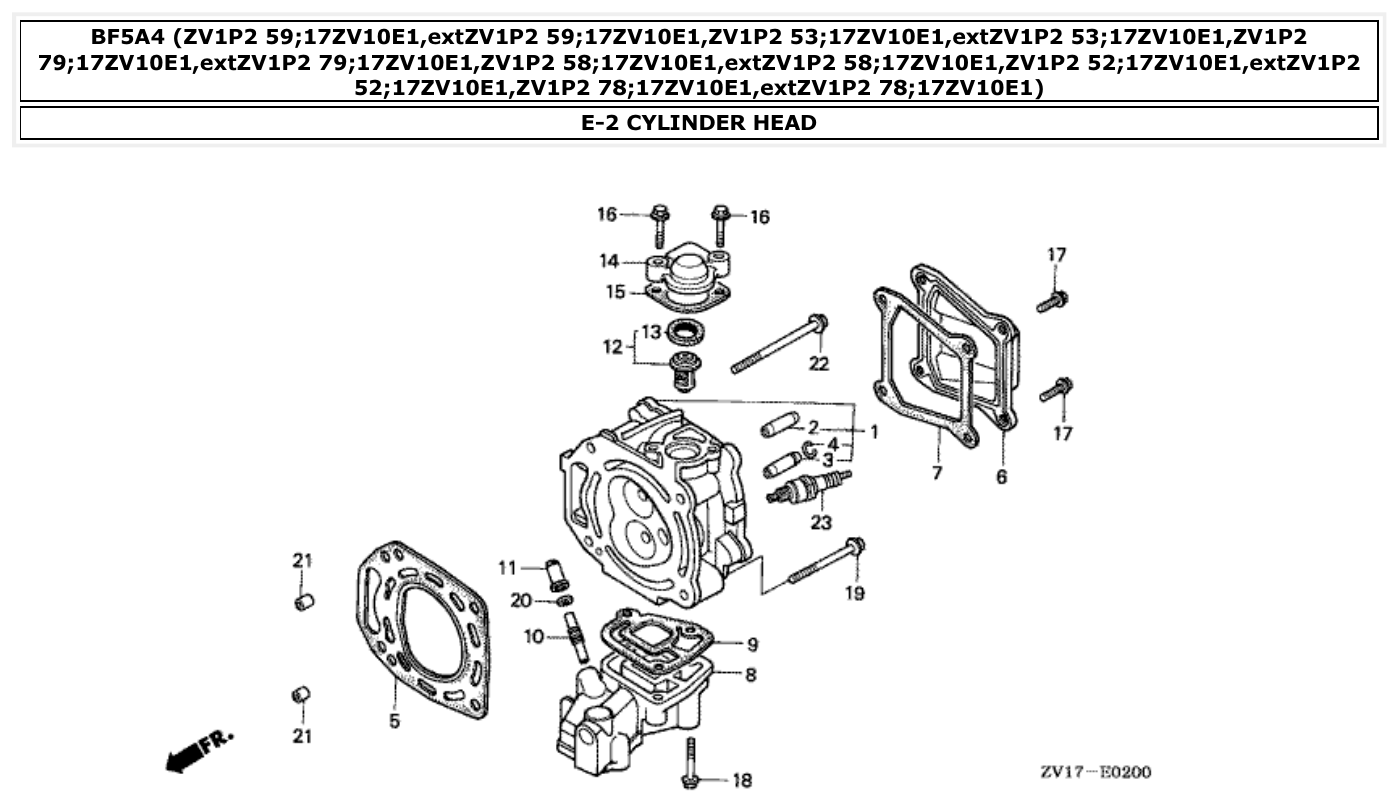

Honda BF5A4 CYLINDER HEAD parts diagram
Fig. E-2 — CYLINDER HEAD
29 items

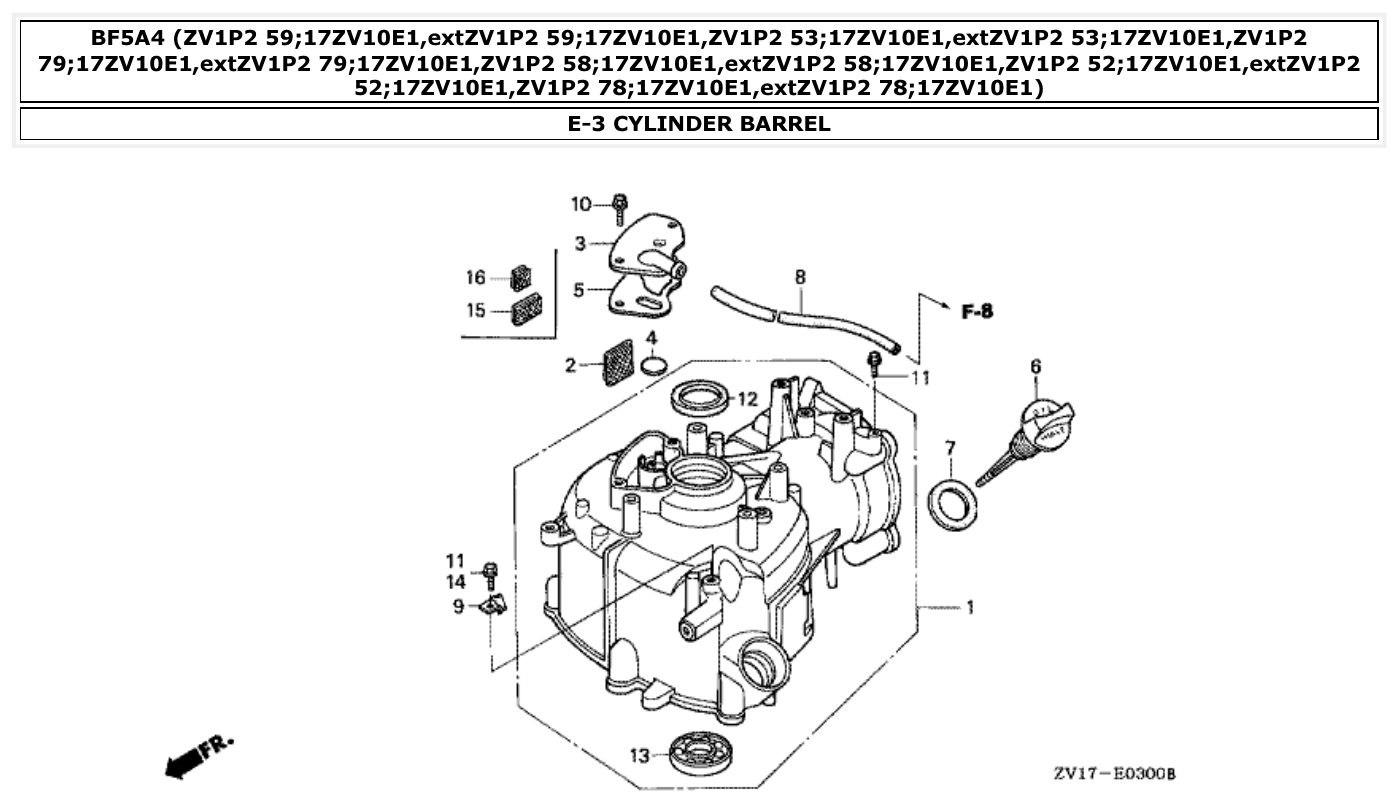

Honda BF5A4 CYLINDER BARREL parts diagram
Fig. E-3 — CYLINDER BARREL
19 items

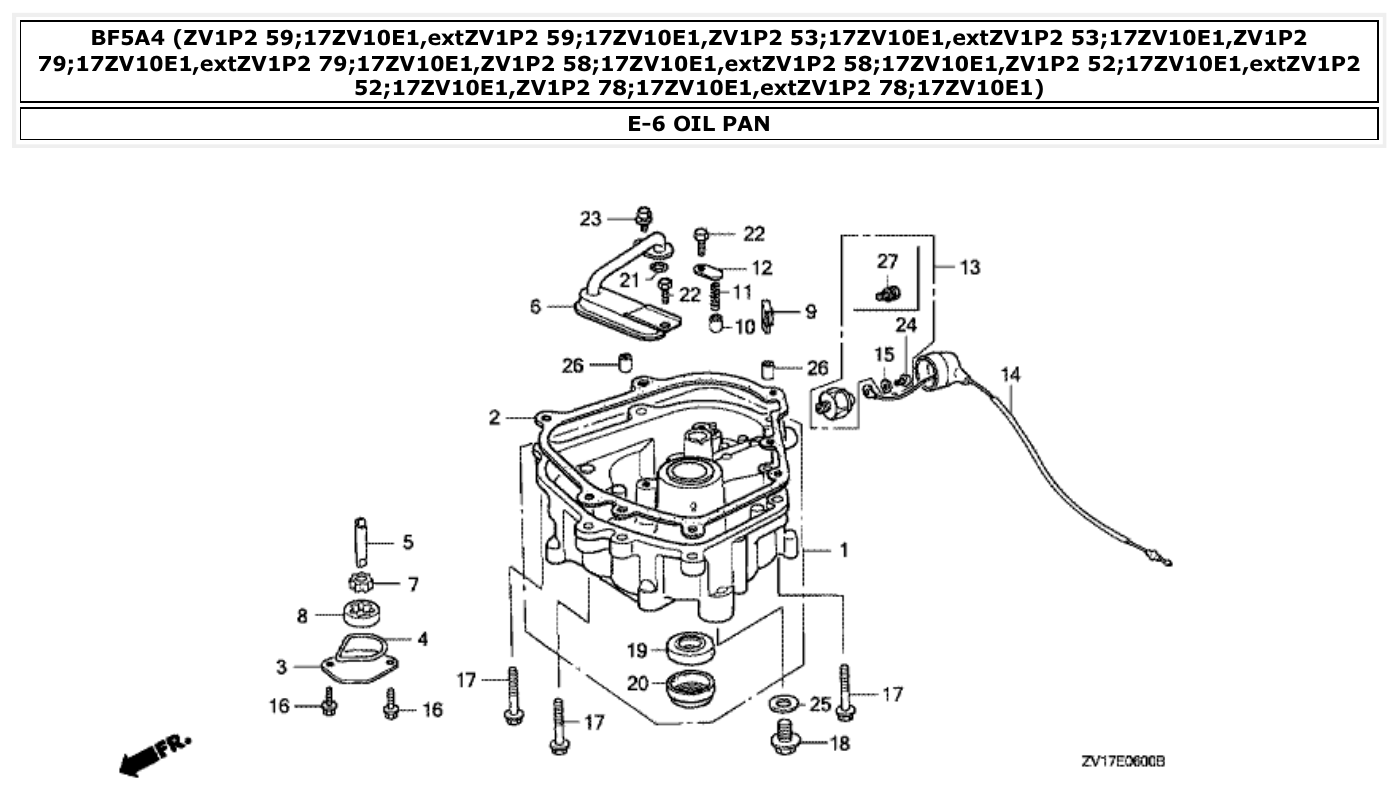

Honda BF5A4 OIL PAN parts diagram
Fig. E-6 — OIL PAN
33 items

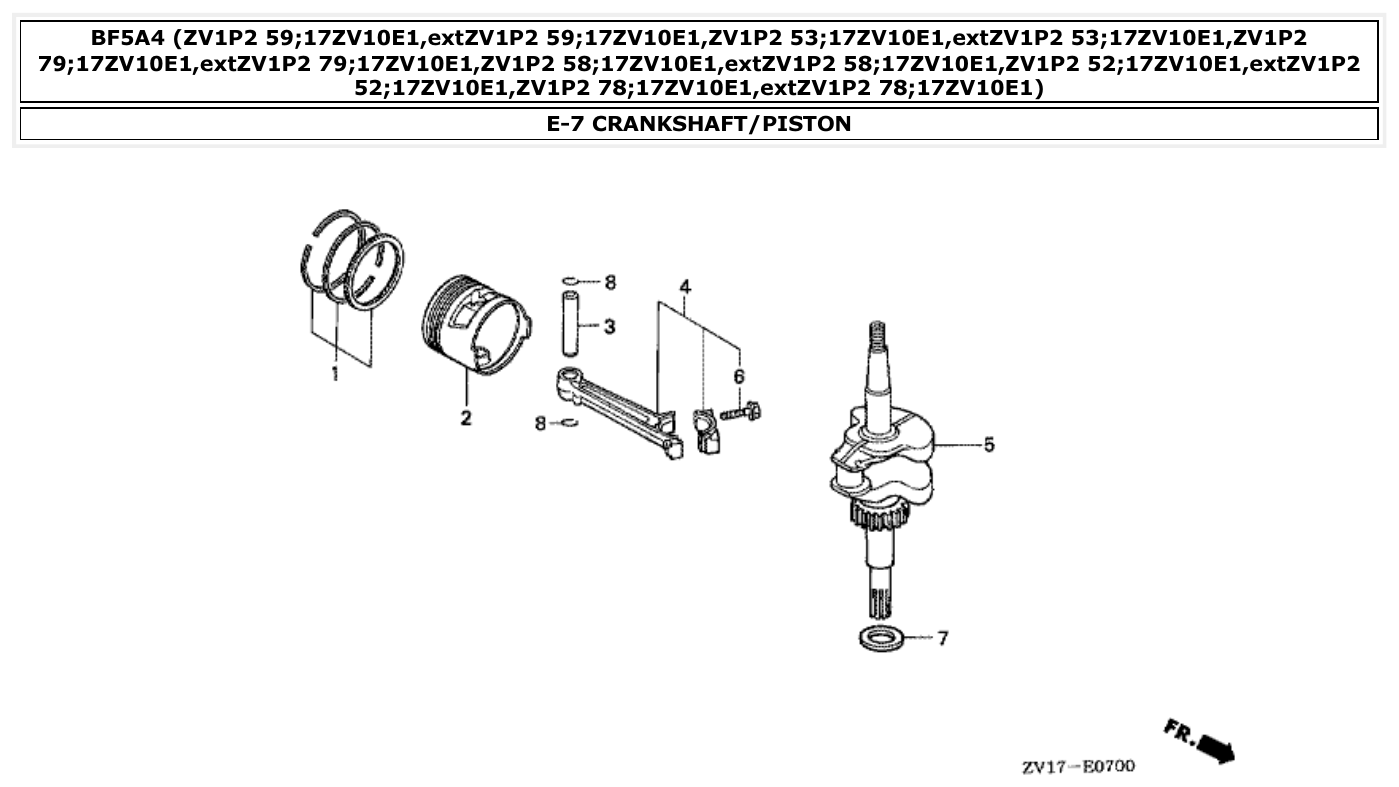

Honda BF5A4 CRANKSHAFT/PISTON parts diagram
Fig. E-7 — CRANKSHAFT/PISTON
10 items

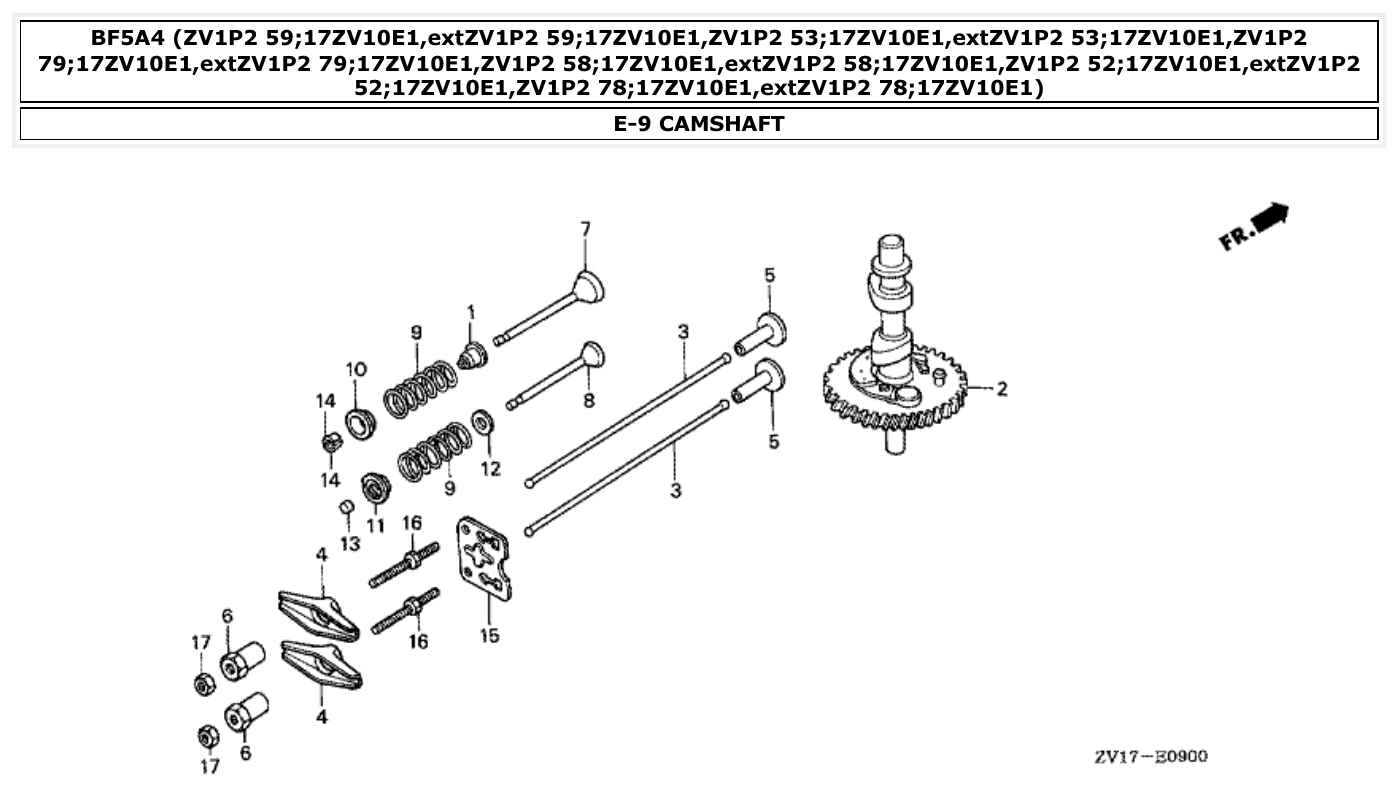

Honda BF5A4 CAMSHAFT parts diagram
Fig. E-9 — CAMSHAFT
17 items

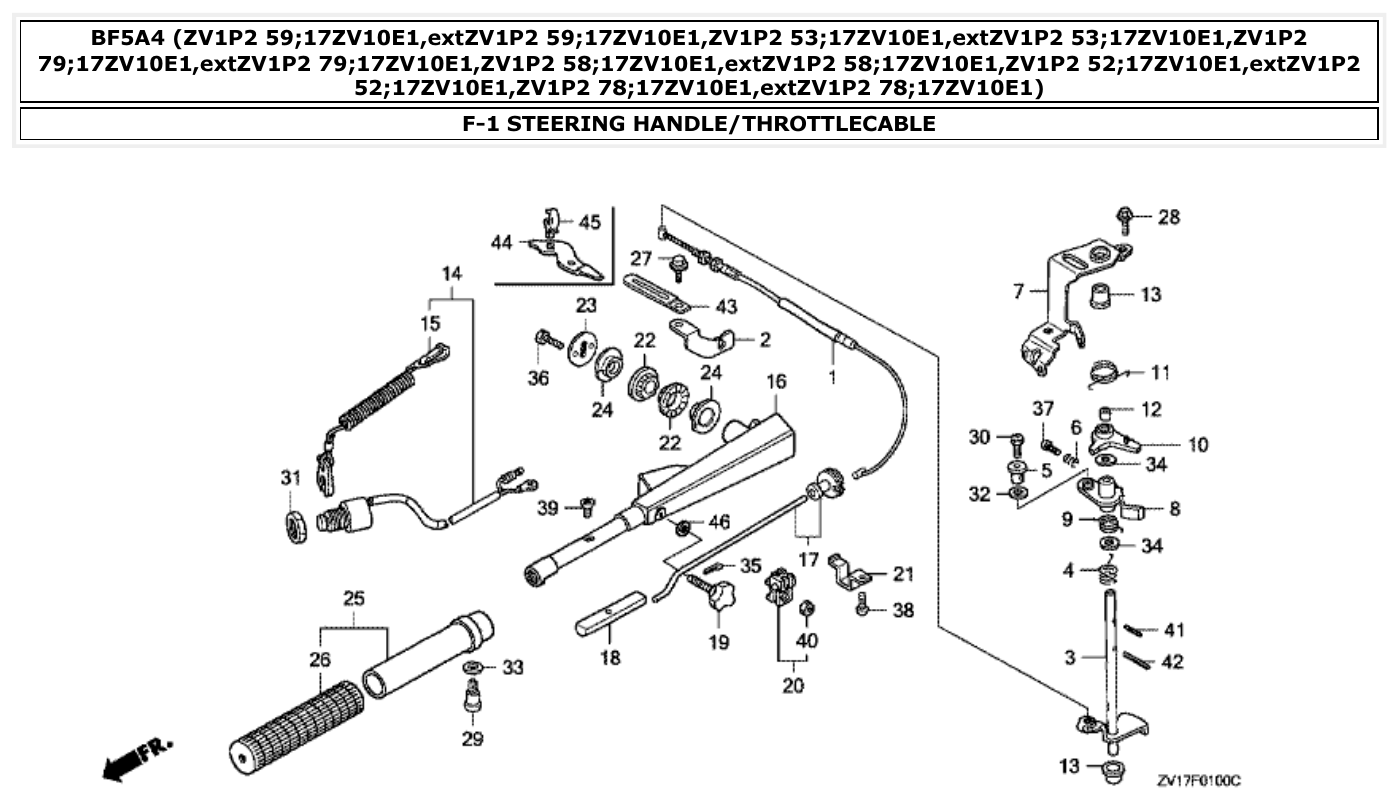

Honda BF5A4 STEERING HANDLE/THROTTLECABLE parts diagram
Fig. F-1 — STEERING HANDLE/THROTTLECABLE
86 items
Honda BF5A4 STERN BRACKET parts diagram

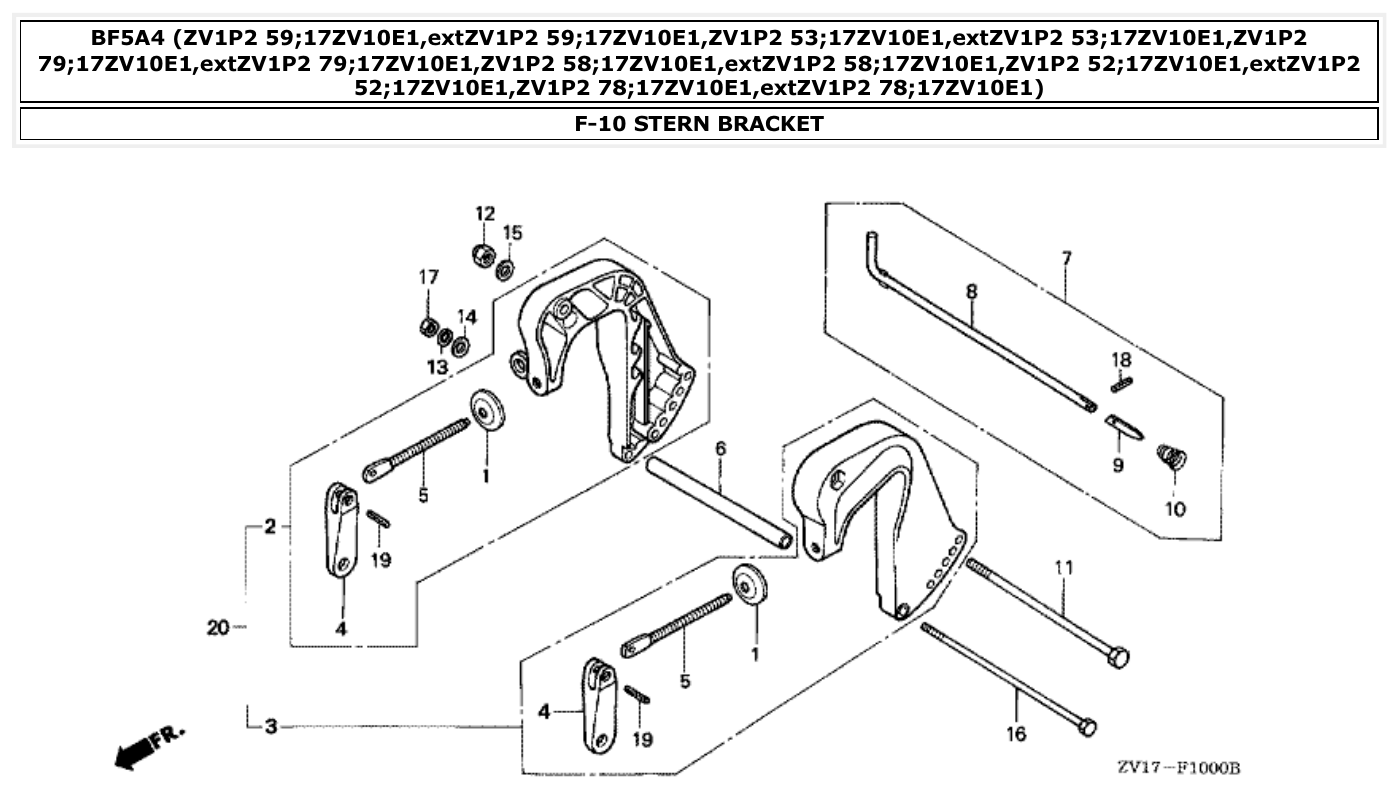

Fig. F-10 — STERN BRACKET
60 items
Honda BF5A4 MOUNT FRAME/SWIVEL CASE parts diagram

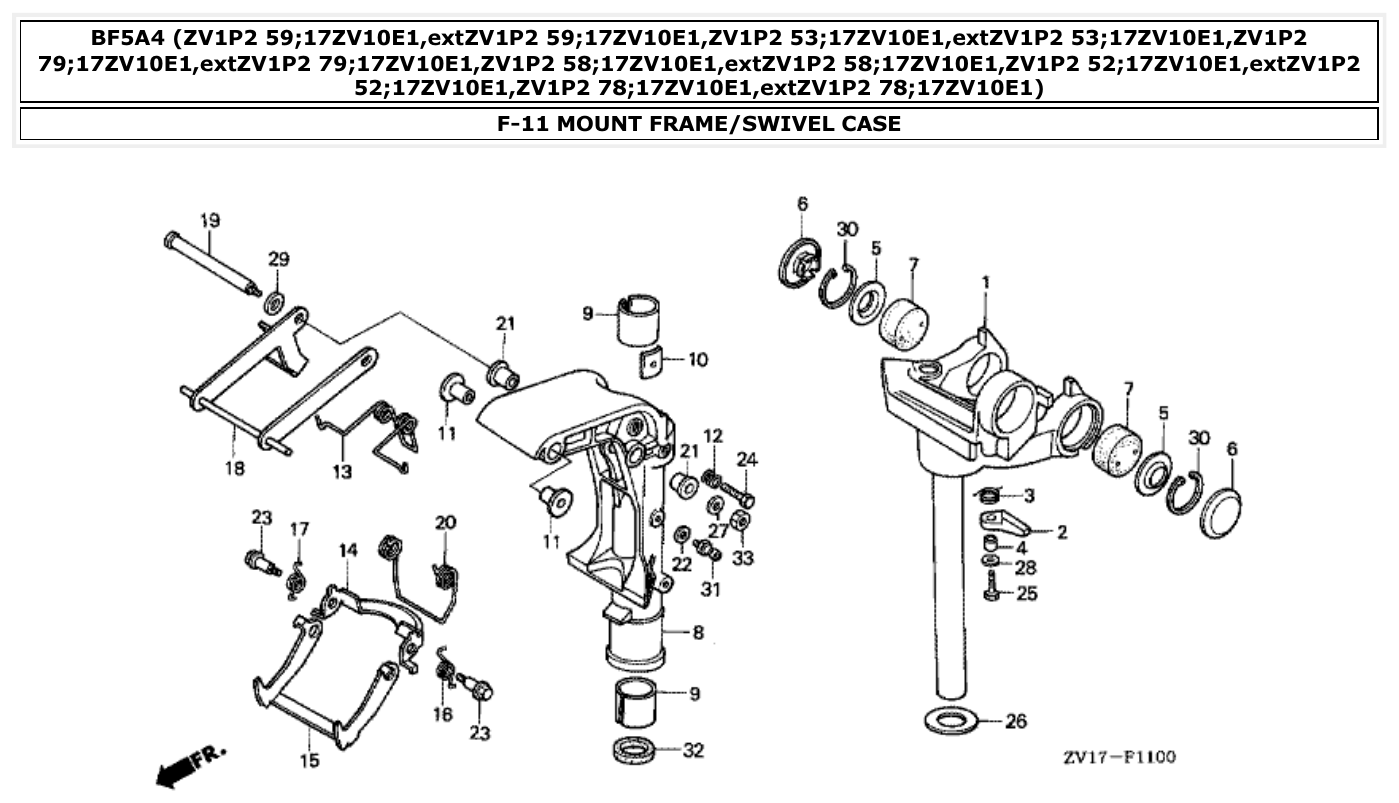

Fig. F-11 — MOUNT FRAME/SWIVEL CASE
33 items

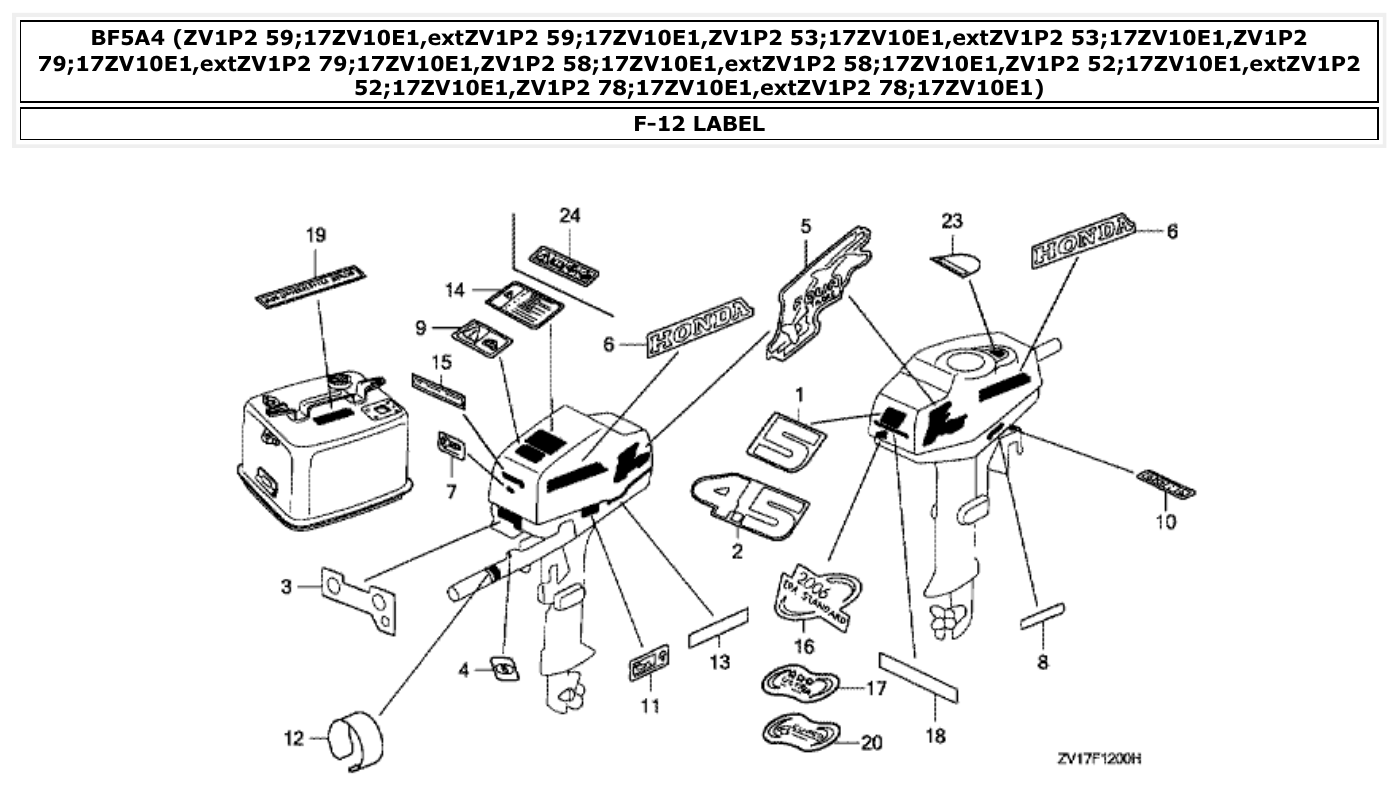

Honda BF5A4 LABEL parts diagram
Fig. F-12 — LABEL
44 items
Honda BF5A4 TOOL parts diagram

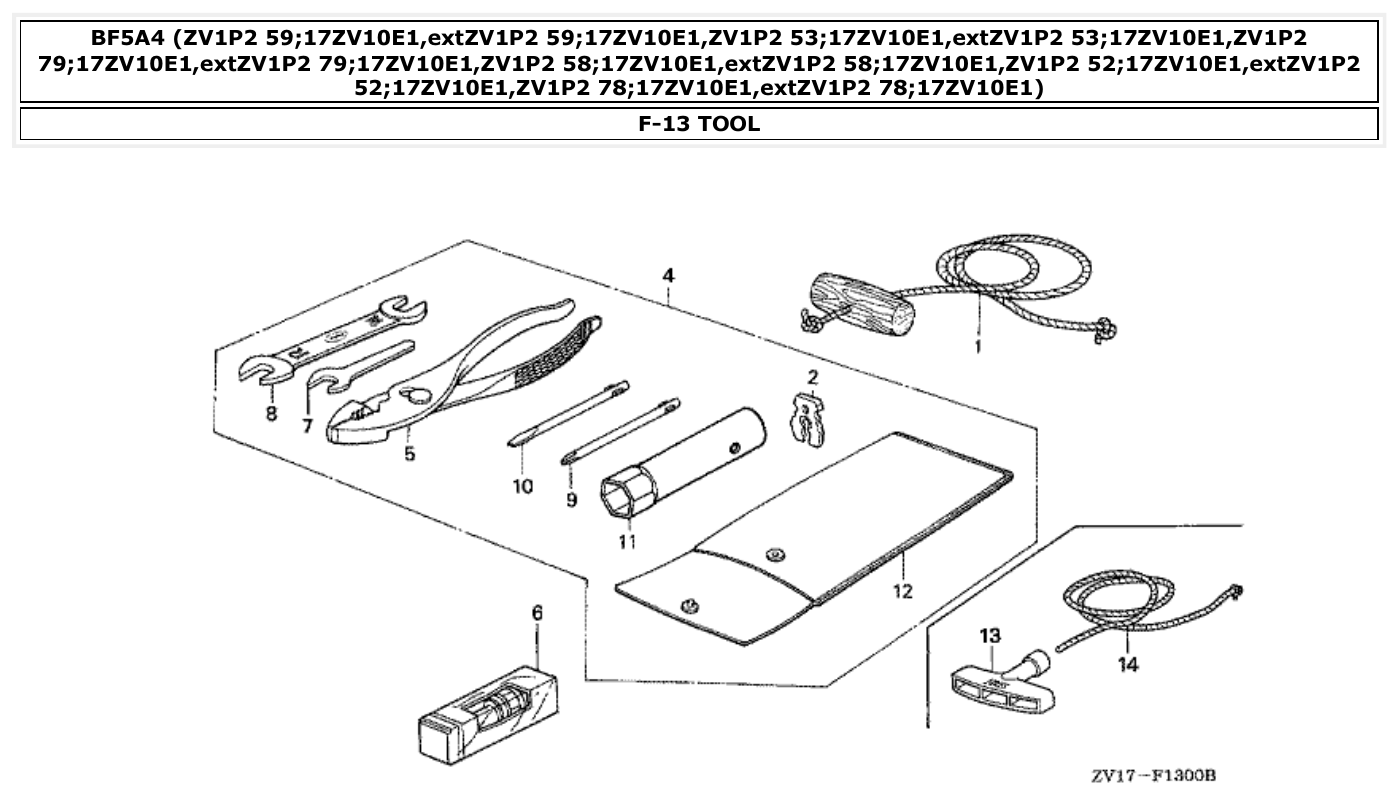

Fig. F-13 — TOOL
105 items · 2 available products
Honda BF5A4 SHIFT SHAFT/COVER LOCK LEVER parts diagram

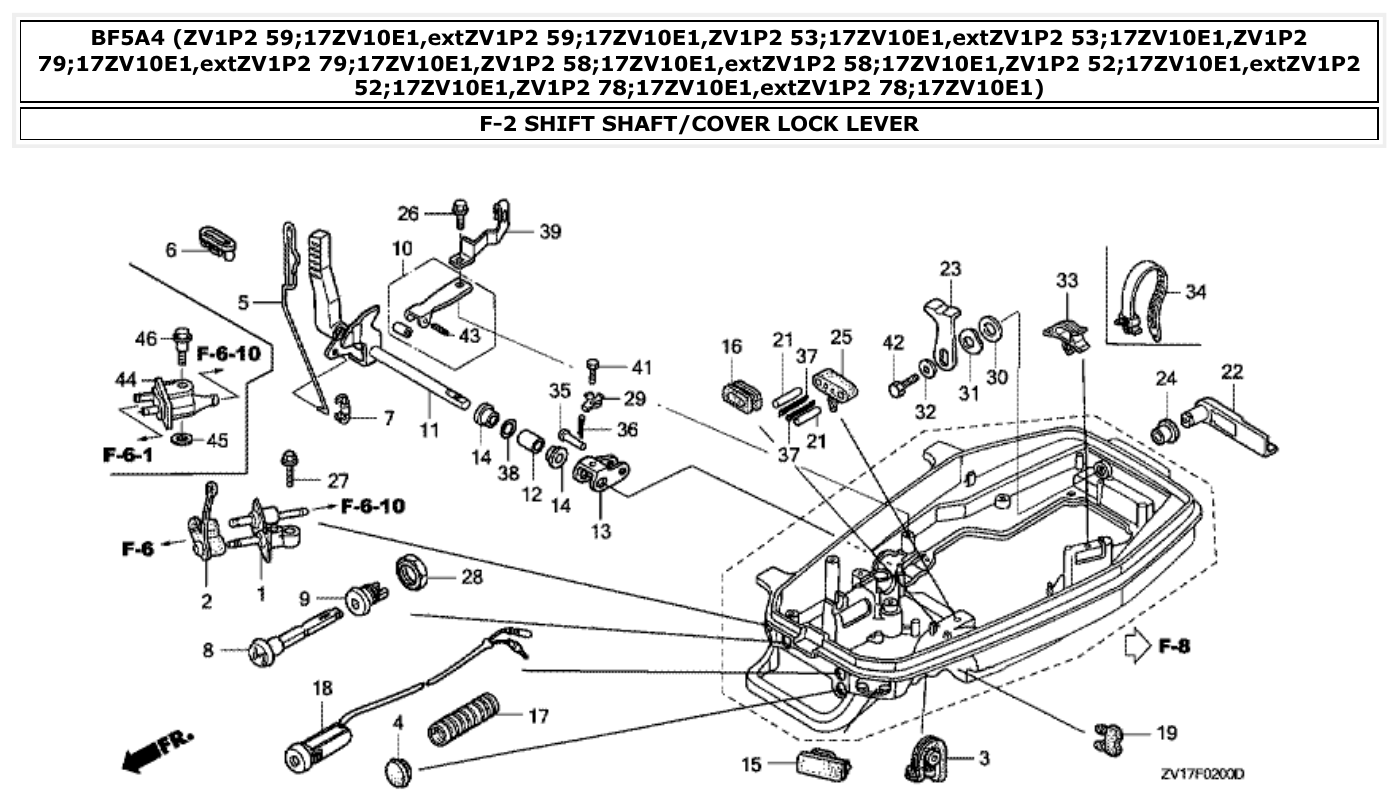

Fig. F-2 — SHIFT SHAFT/COVER LOCK LEVER
56 items · 1 available products

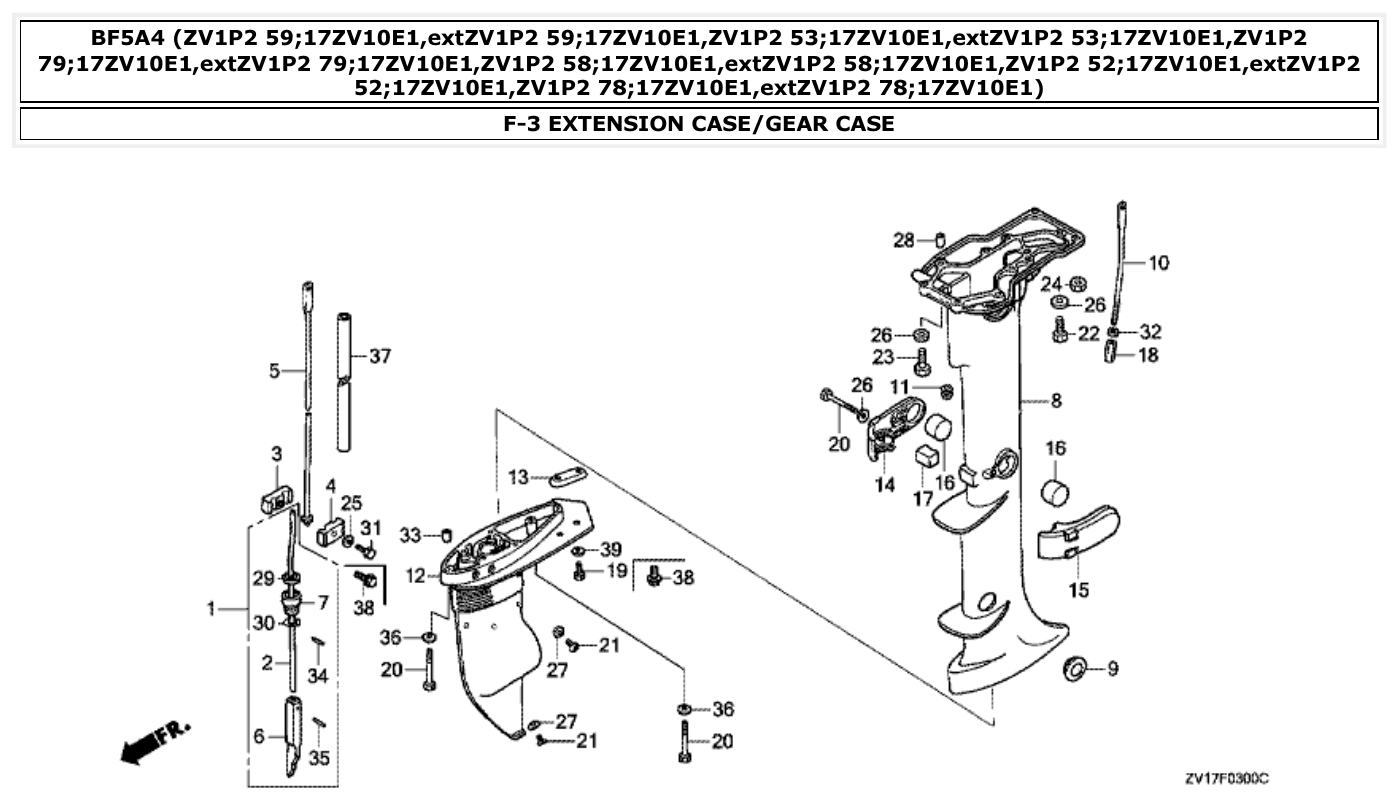

Honda BF5A4 EXTENSION CASE/GEAR CASE parts diagram
Fig. F-3 — EXTENSION CASE/GEAR CASE
58 items · 1 available products

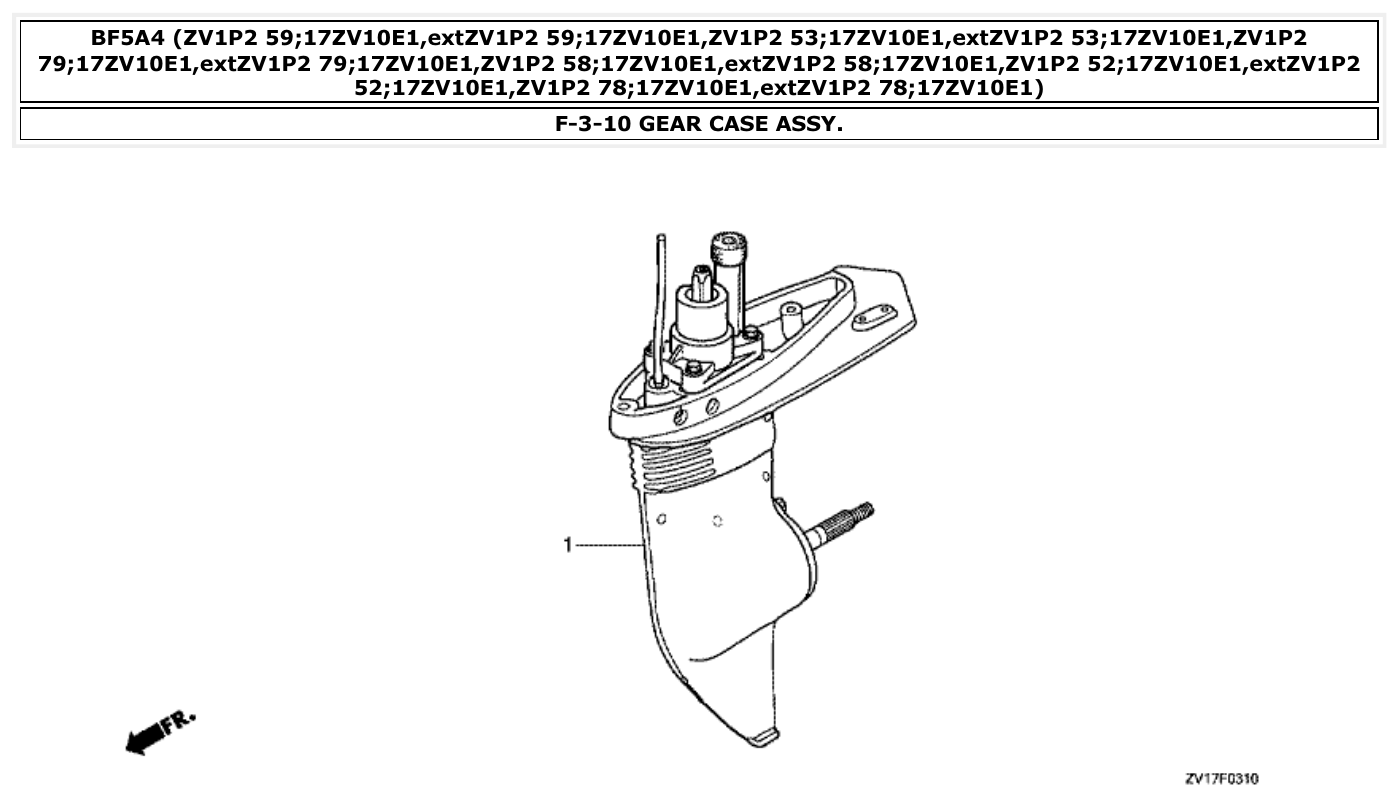

Honda BF5A4 GEAR CASE ASSY. parts diagram
Fig. F-3-10 — GEAR CASE ASSY.
2 items
Honda BF5A4 VERTICAL SHAFT/WATER PUMP parts diagram

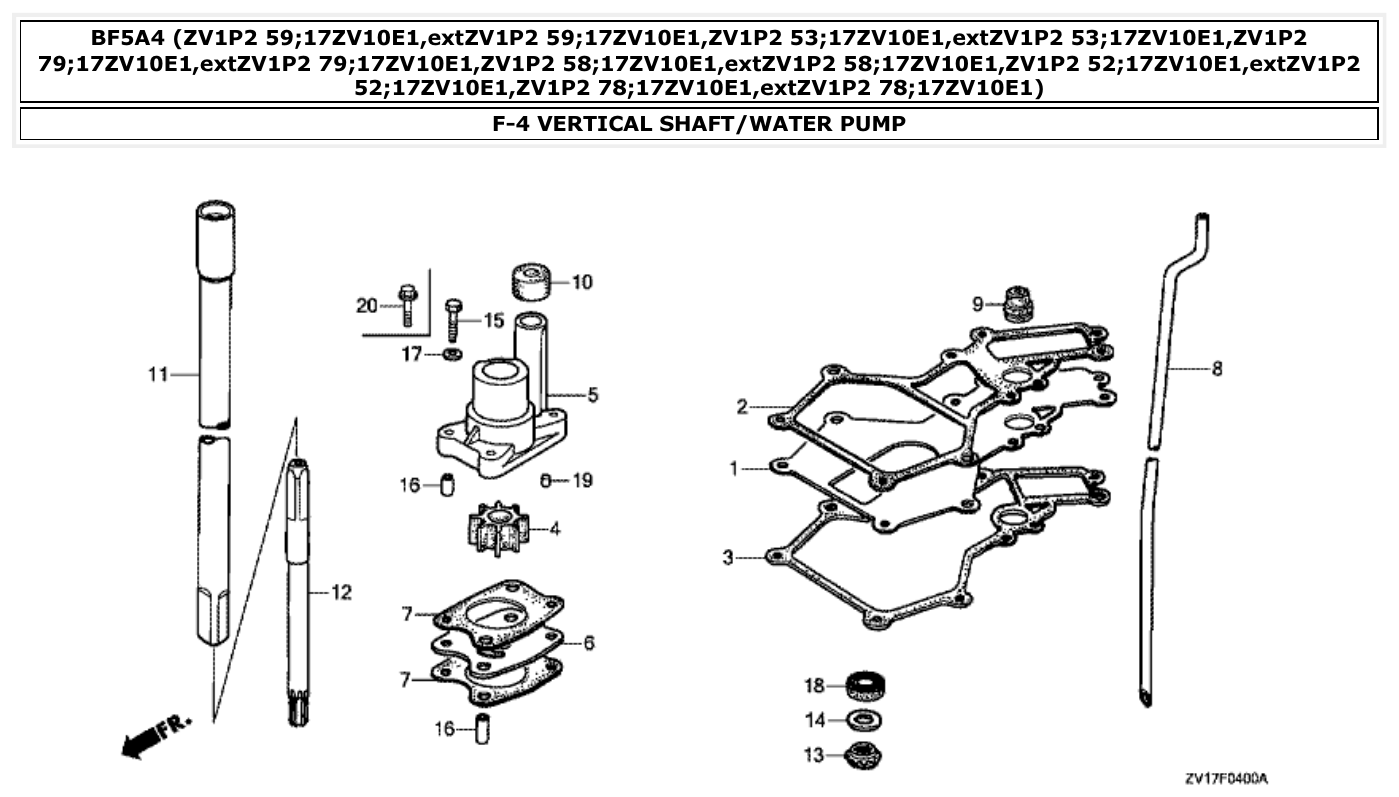

Fig. F-4 — VERTICAL SHAFT/WATER PUMP
28 items · 1 available products

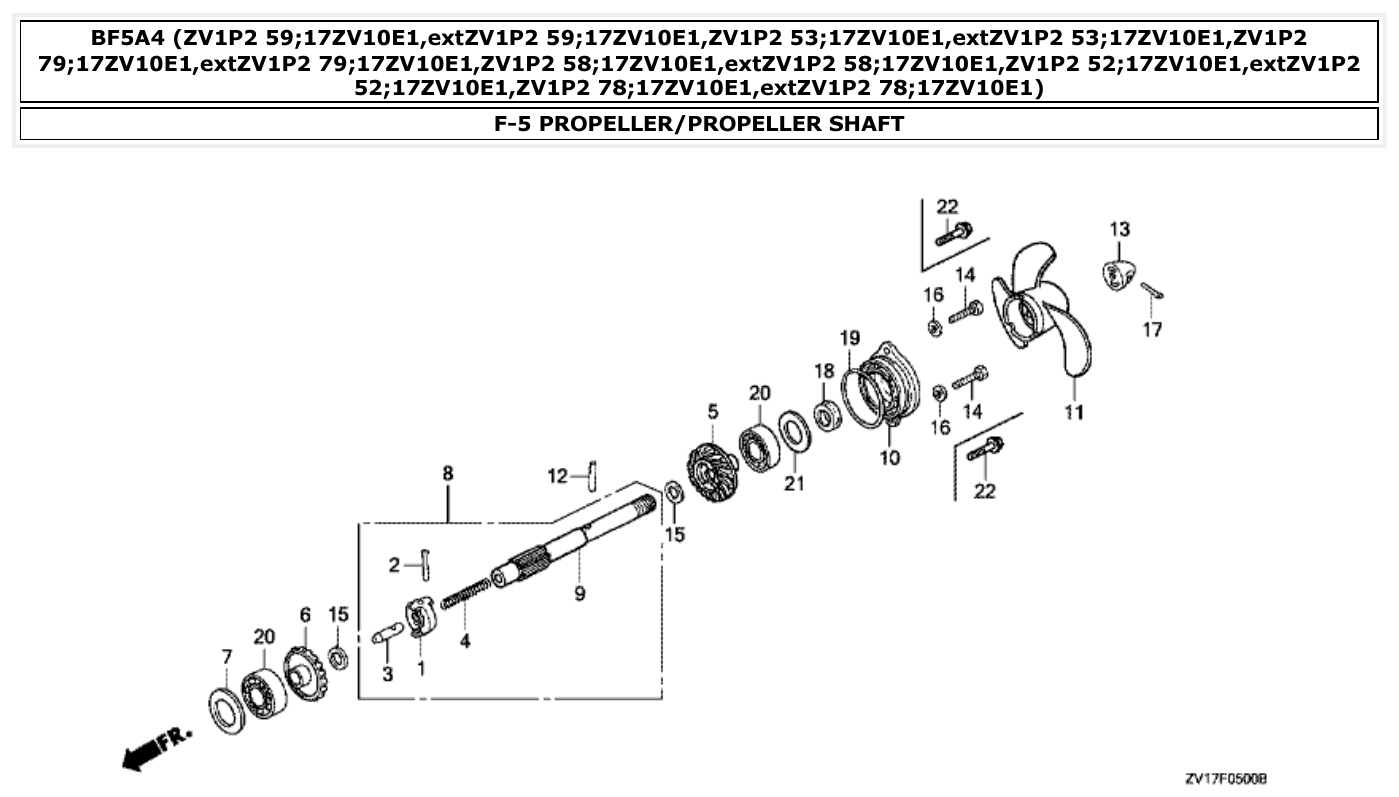

Honda BF5A4 PROPELLER/PROPELLER SHAFT parts diagram
Fig. F-5 — PROPELLER/PROPELLER SHAFT
40 items

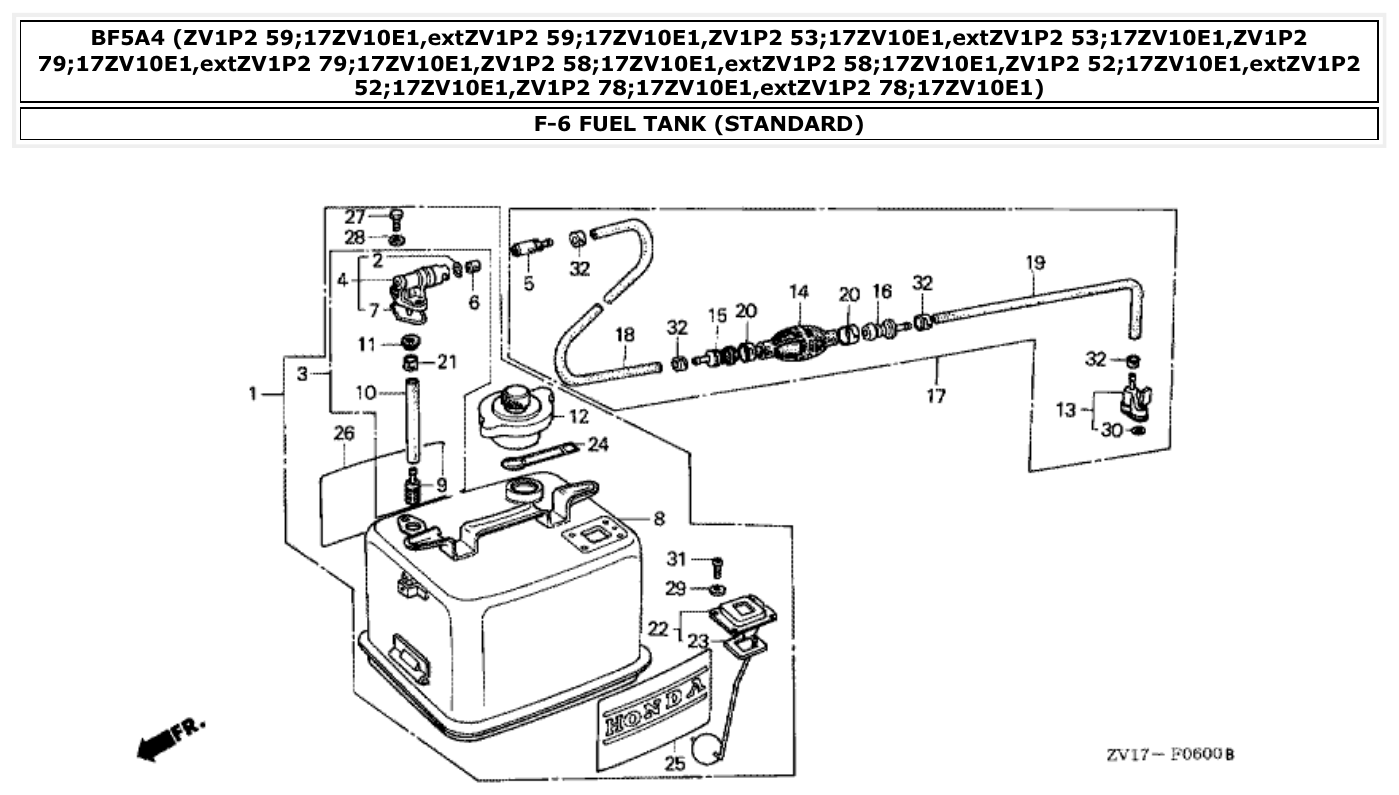

Honda BF5A4 FUEL TANK (STANDARD) parts diagram
Fig. F-6 — FUEL TANK (STANDARD)
97 items
Honda BF5A4 FUEL TANK (PLASTICS) parts diagram

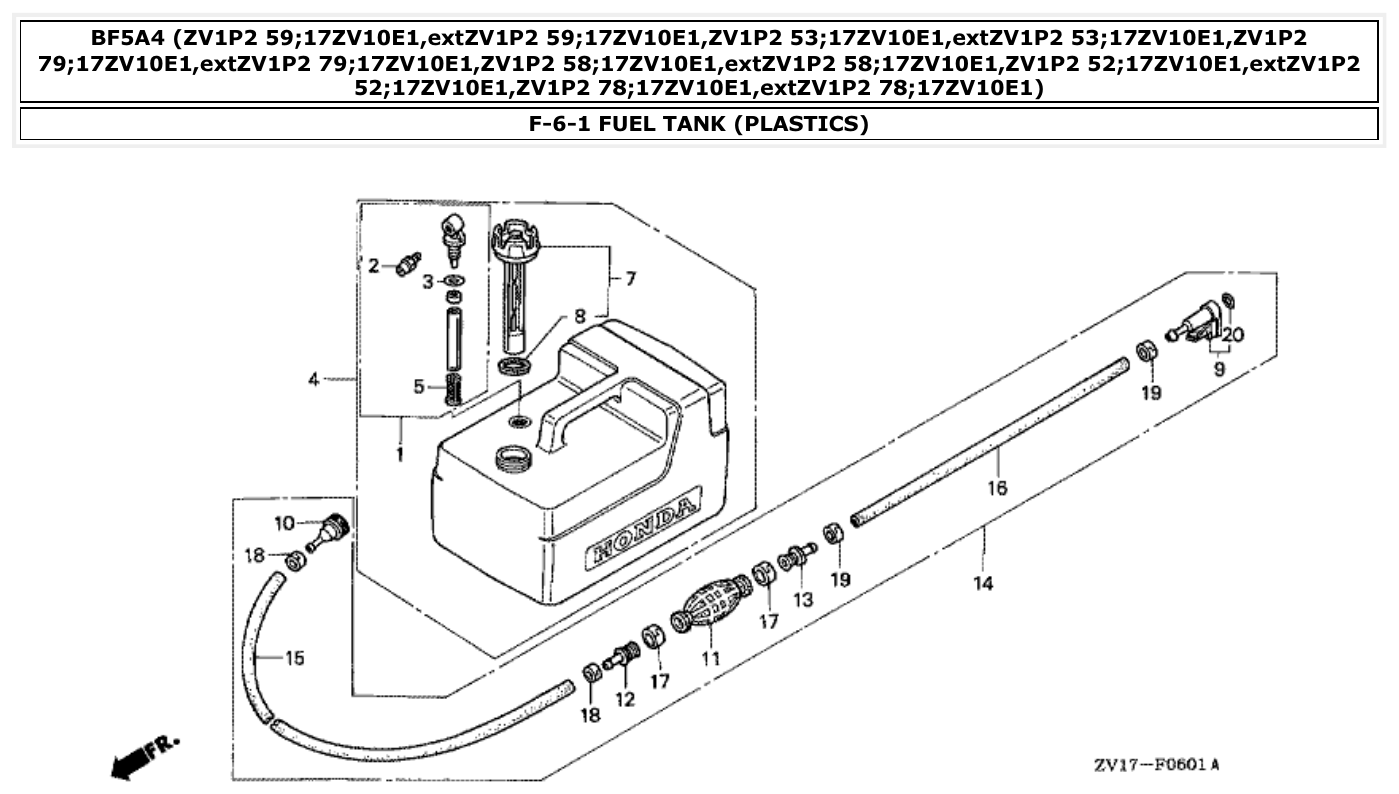

Fig. F-6-1 — FUEL TANK (PLASTICS)
108 items · 1 available products
Honda BF5A4 FUEL STRAINER parts diagram

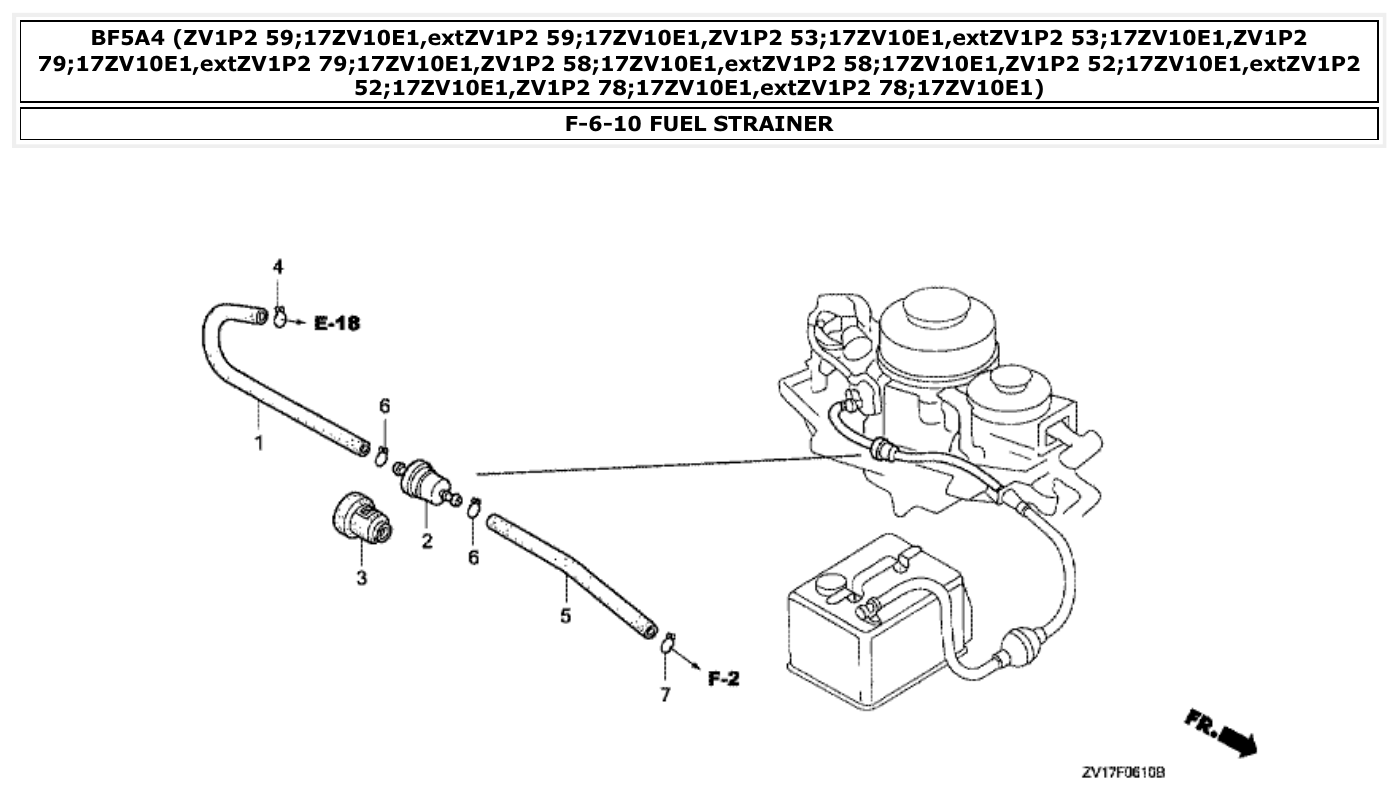

Fig. F-6-10 — FUEL STRAINER
32 items

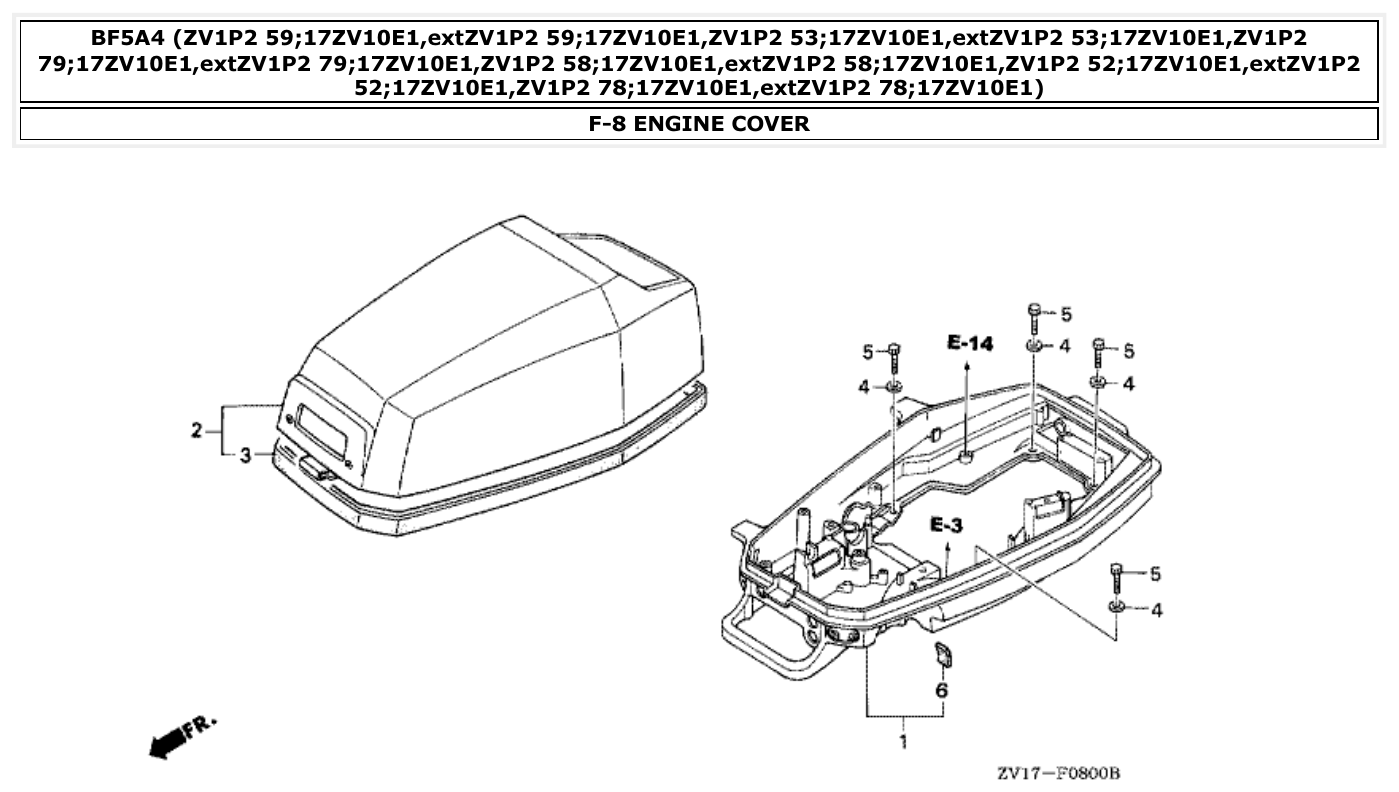

Honda BF5A4 ENGINE COVER parts diagram
Fig. F-8 — ENGINE COVER
20 items
