Honda BF5AM Parts Catalog

Honda BF5AM Outboard parts and diagrams

Honda BF5AM outboard parts catalog includes RECOIL STARTER, CARBURETOR, FUEL PUMP, IGNITION COIL/FLYWHEEL, CYLINDER HEAD, CYLINDER BARREL, OIL PAN, PISTON/CRANKSHAFT, CAMSHAFT/VALVE, STEERING HANDLE/THROTTLE CABLE, STERN BRACKET/ADJUST ROD, LABEL, TOOL/STARTER ROPE, SHIFT SHAFT/COVER LOCK LEVER, EXTENSION CASE/GEAR CASE/SHIFT ROD, WATER PUMP/VERTICAL SHAFT, PROPELLER SHAFT/PROPELLER, FUEL TANK/SUB TANK. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

3 linked store products are available across 20 catalog sections. 528 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

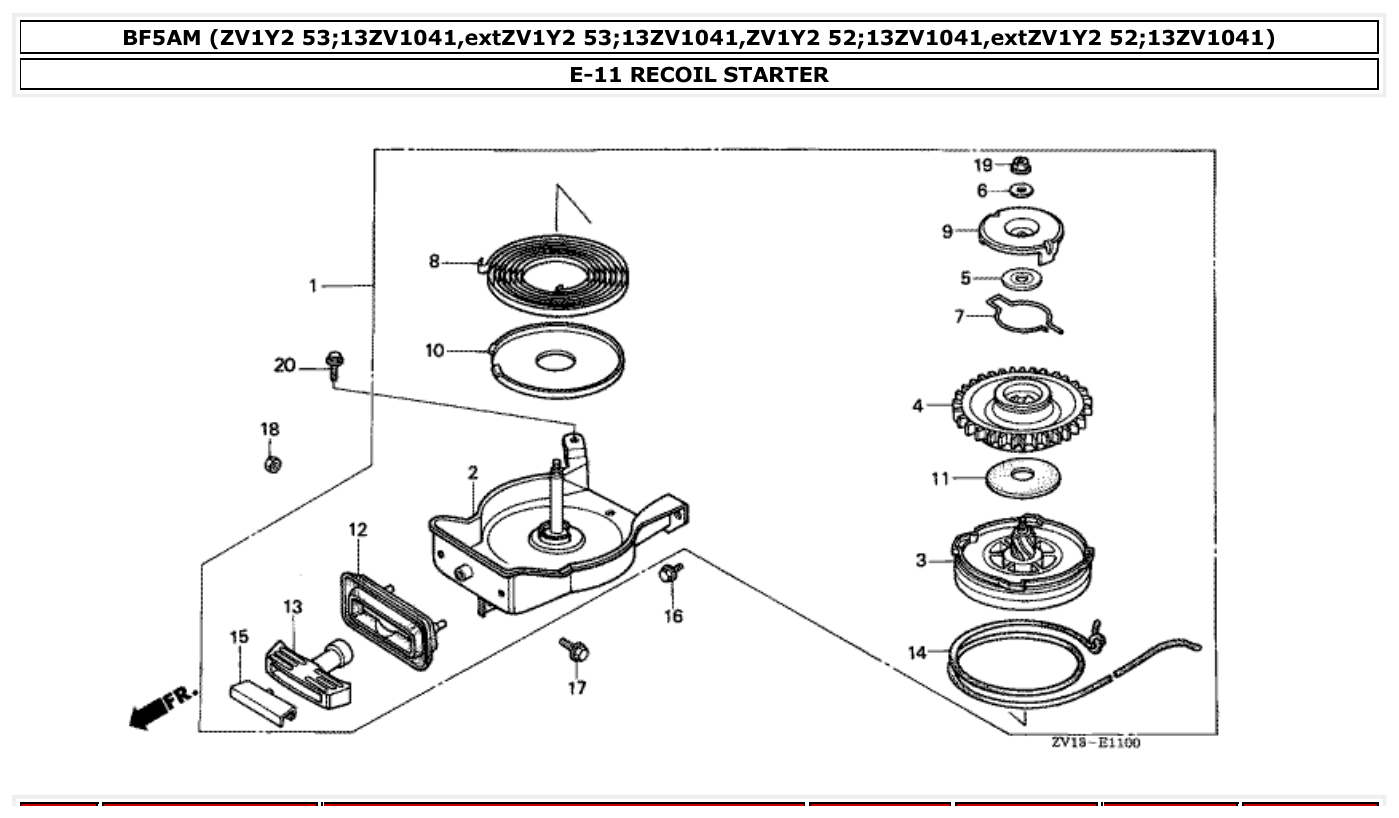

Honda BF5AM RECOIL STARTER parts diagram
Fig. E-11 — RECOIL STARTER
22 items

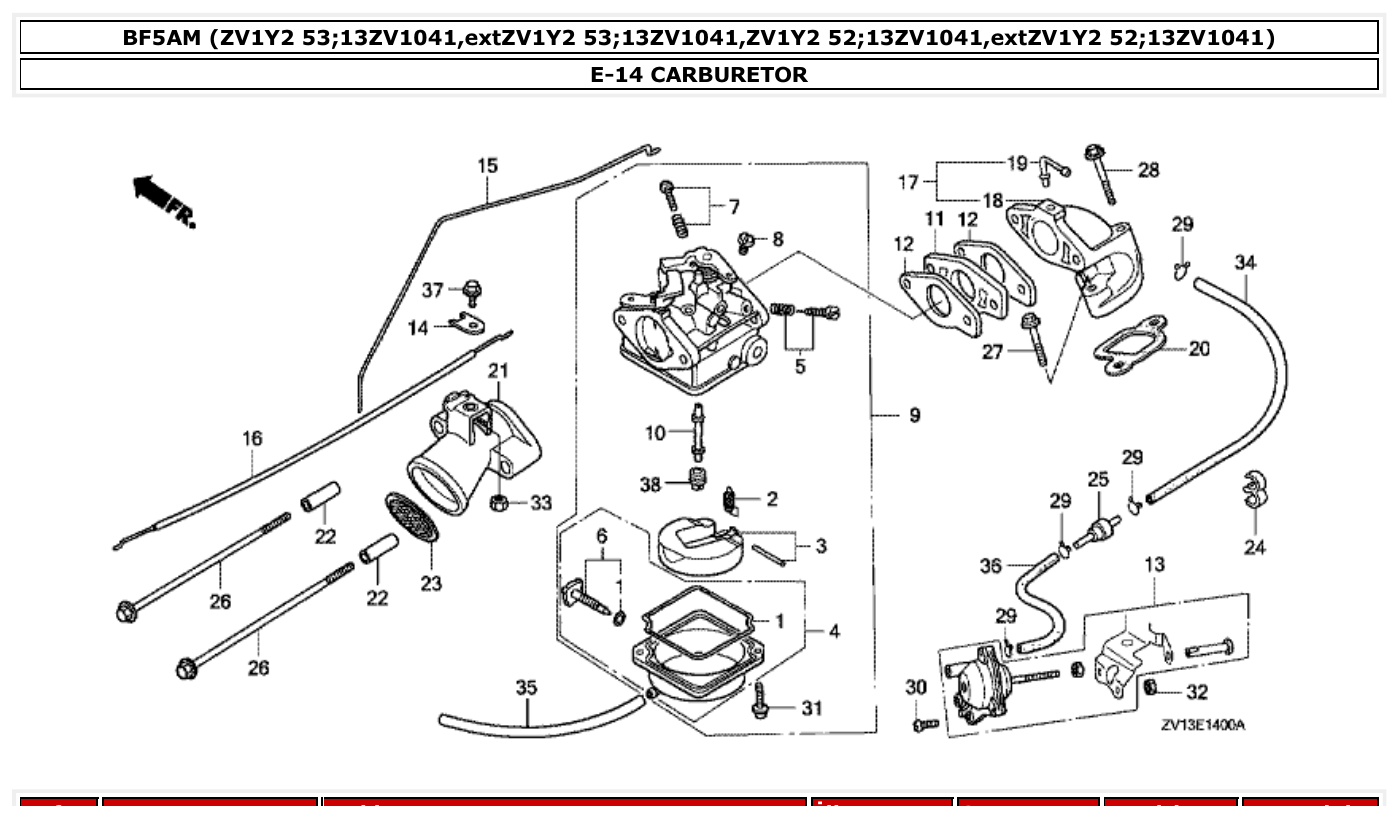

Honda BF5AM CARBURETOR parts diagram
Fig. E-14 — CARBURETOR
46 items
Honda BF5AM FUEL PUMP parts diagram
Fig. E-18 — FUEL PUMP
9 items

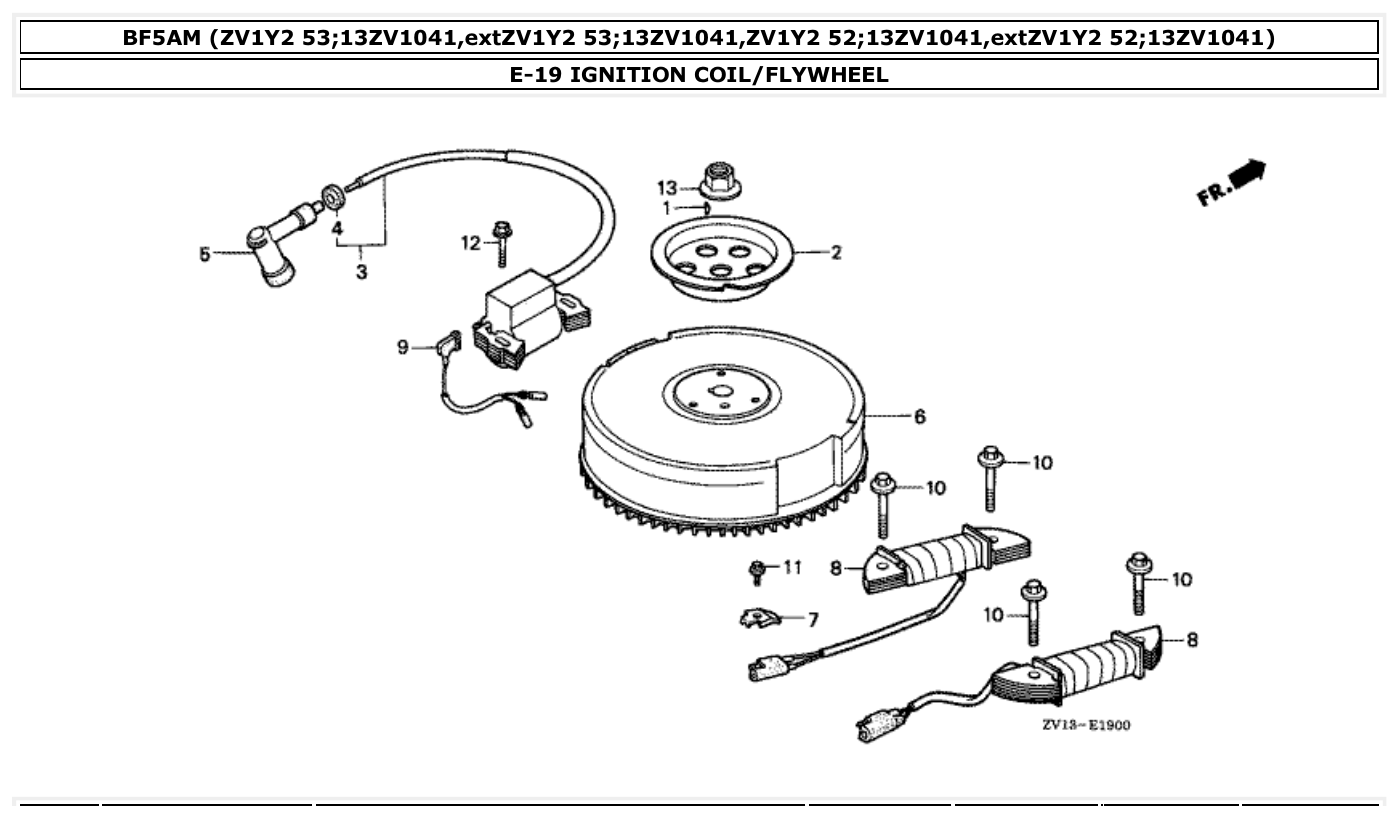

Honda BF5AM IGNITION COIL/FLYWHEEL parts diagram
Fig. E-19 — IGNITION COIL/FLYWHEEL
25 items

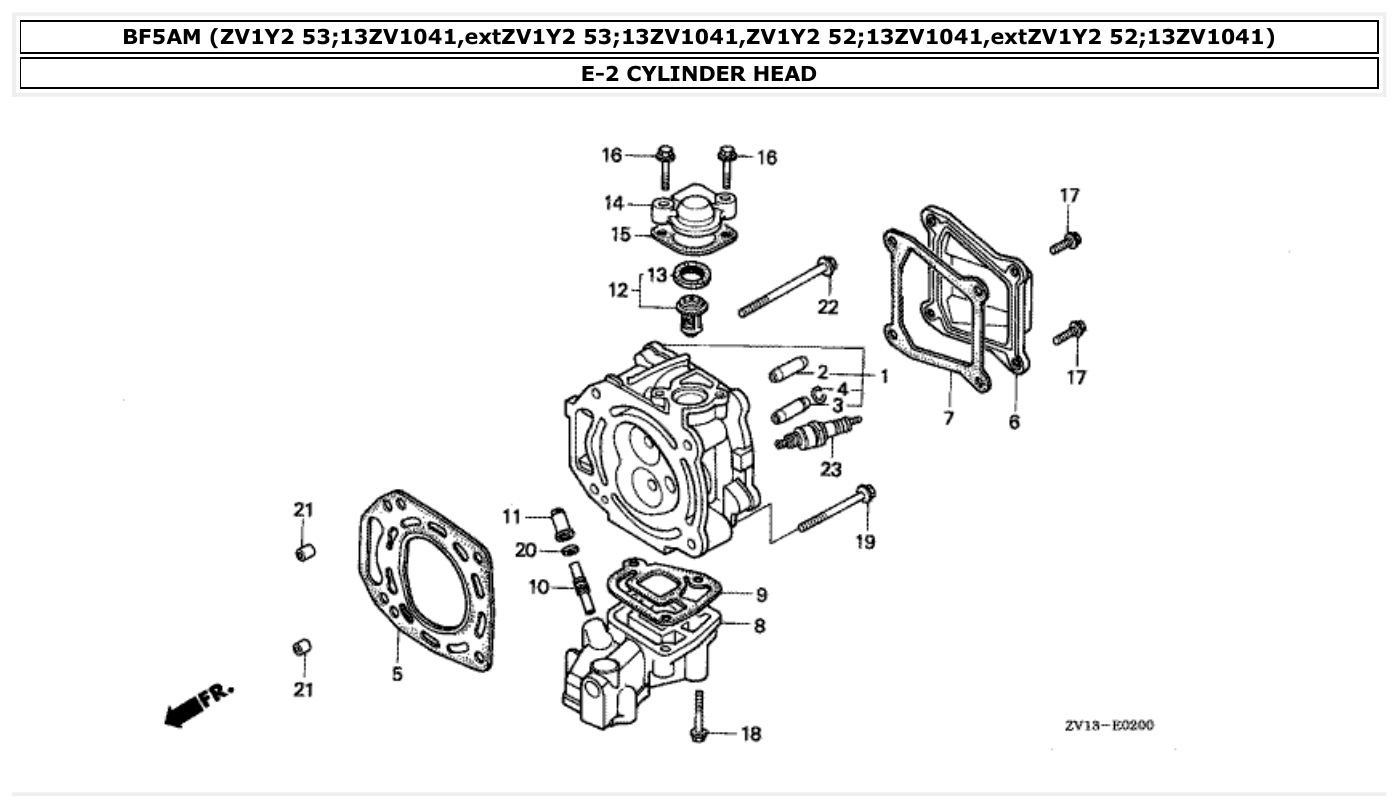

Honda BF5AM CYLINDER HEAD parts diagram
Fig. E-2 — CYLINDER HEAD
21 items

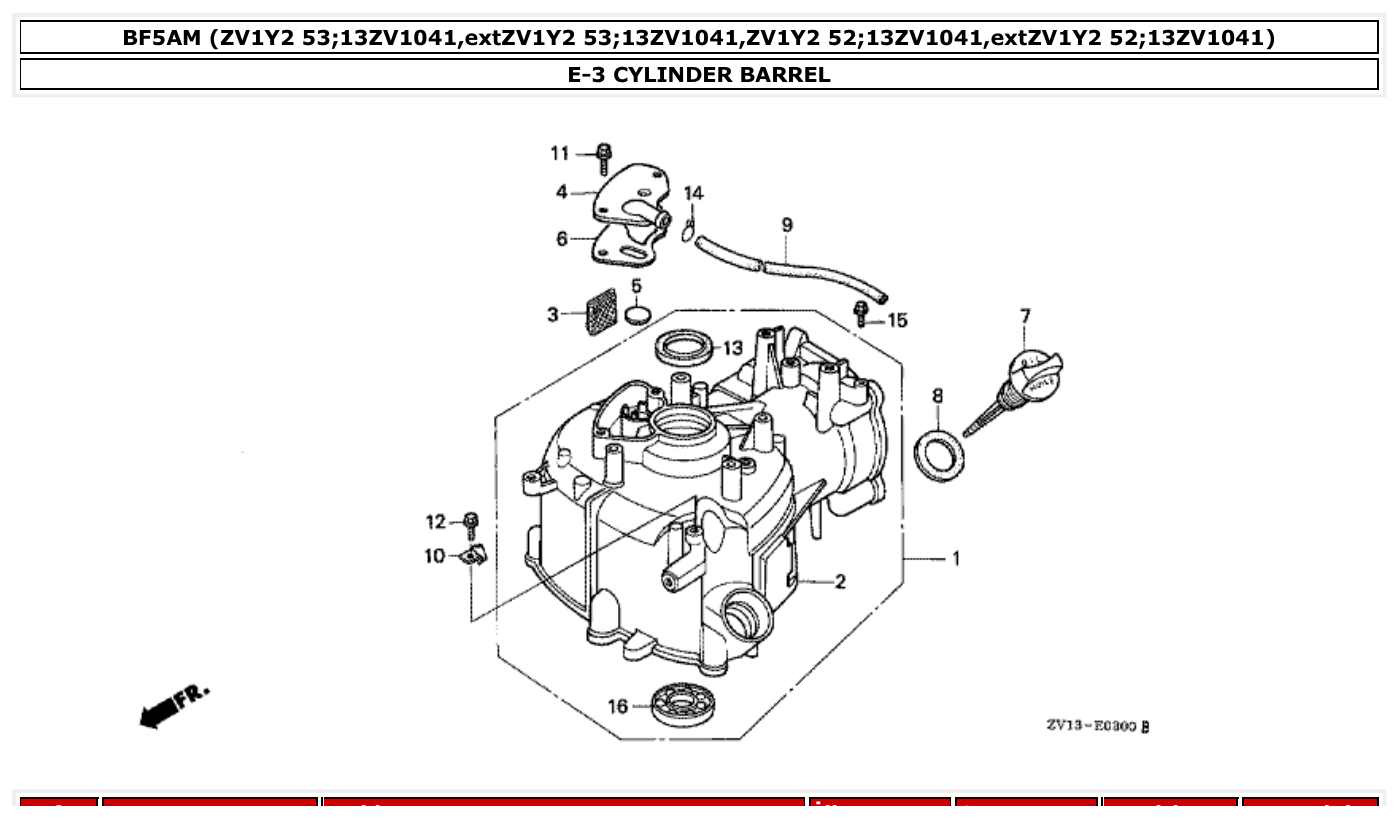

Honda BF5AM CYLINDER BARREL parts diagram
Fig. E-3 — CYLINDER BARREL
16 items

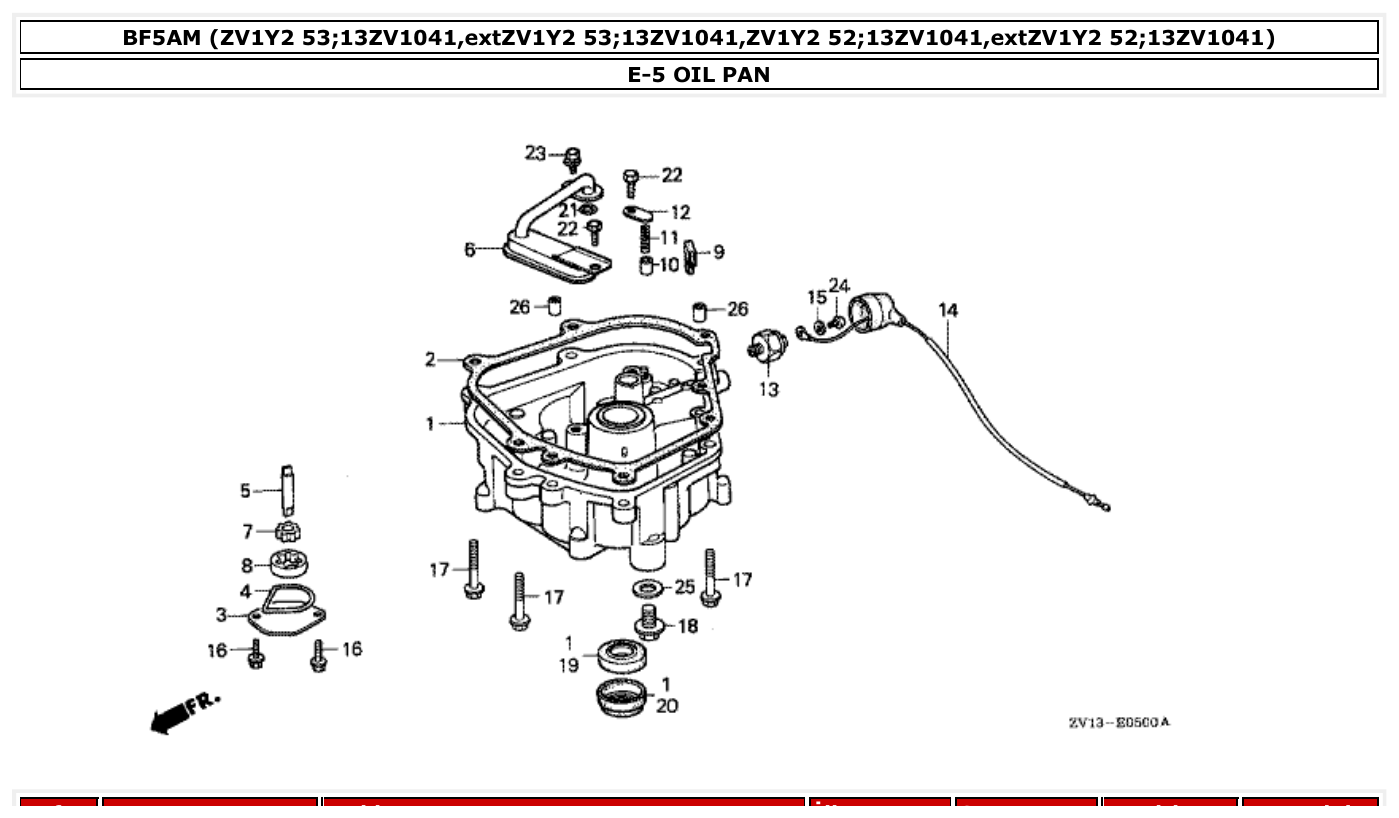

Honda BF5AM OIL PAN parts diagram
Fig. E-5 — OIL PAN
27 items

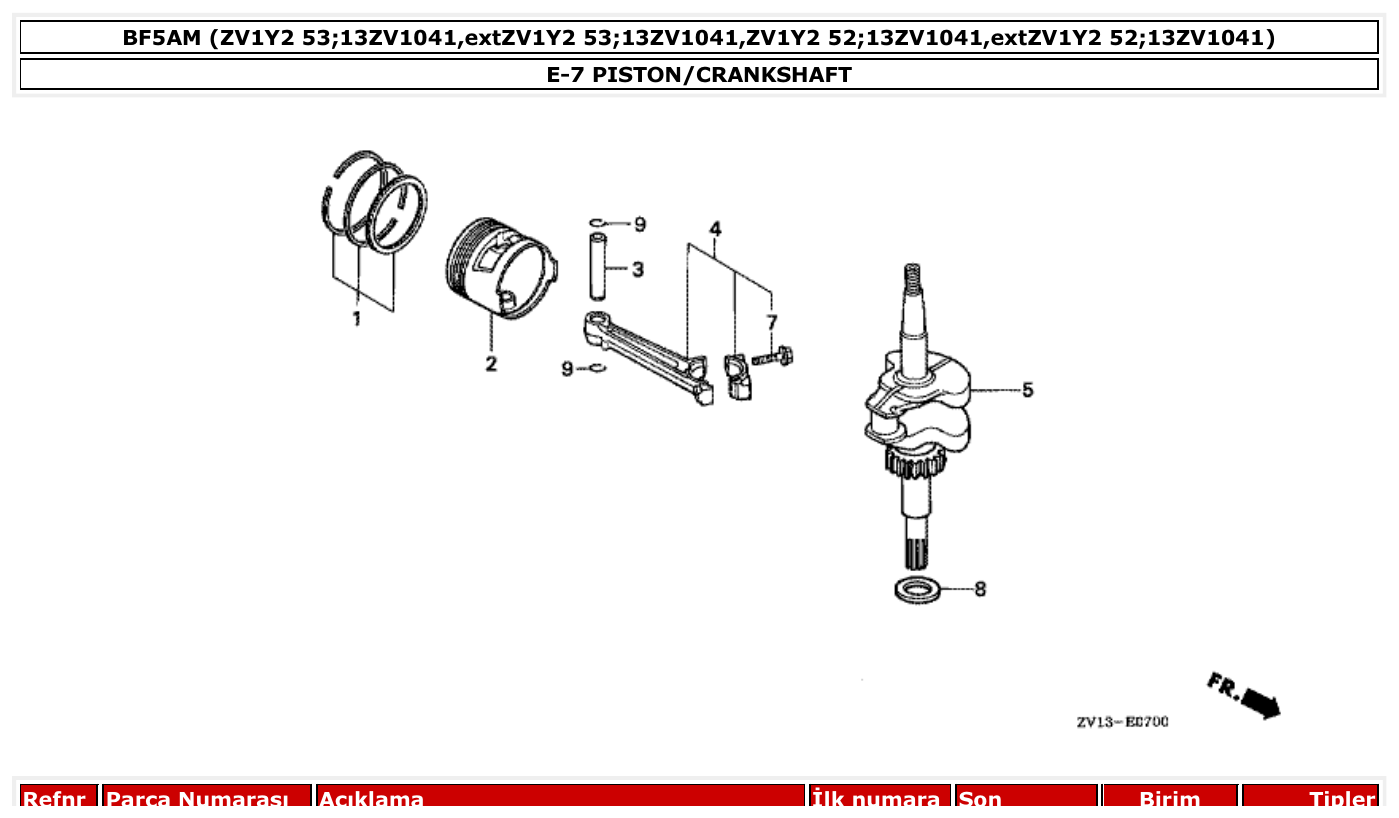

Honda BF5AM PISTON/CRANKSHAFT parts diagram
Fig. E-7 — PISTON/CRANKSHAFT
15 items

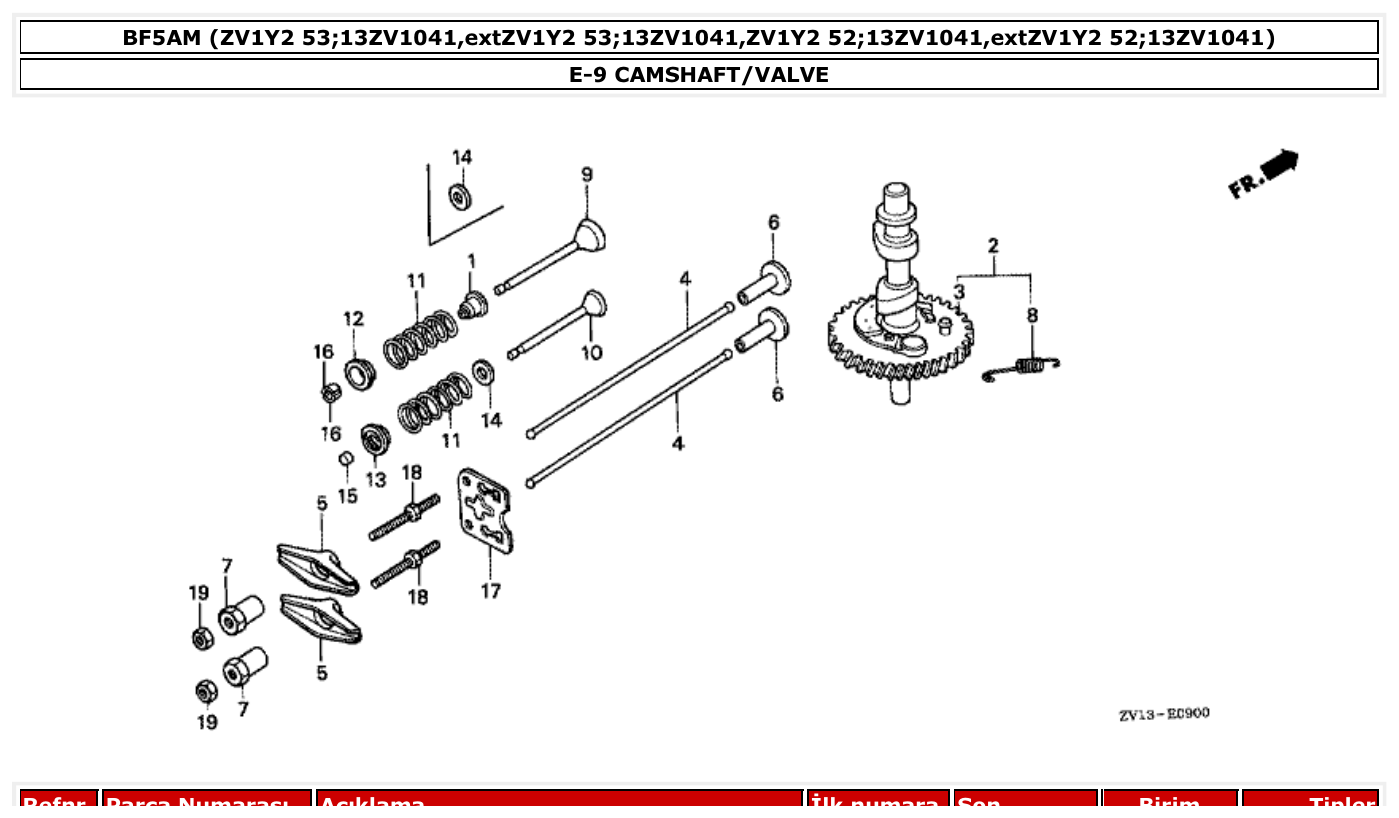

Honda BF5AM CAMSHAFT/VALVE parts diagram
Fig. E-9 — CAMSHAFT/VALVE
21 items

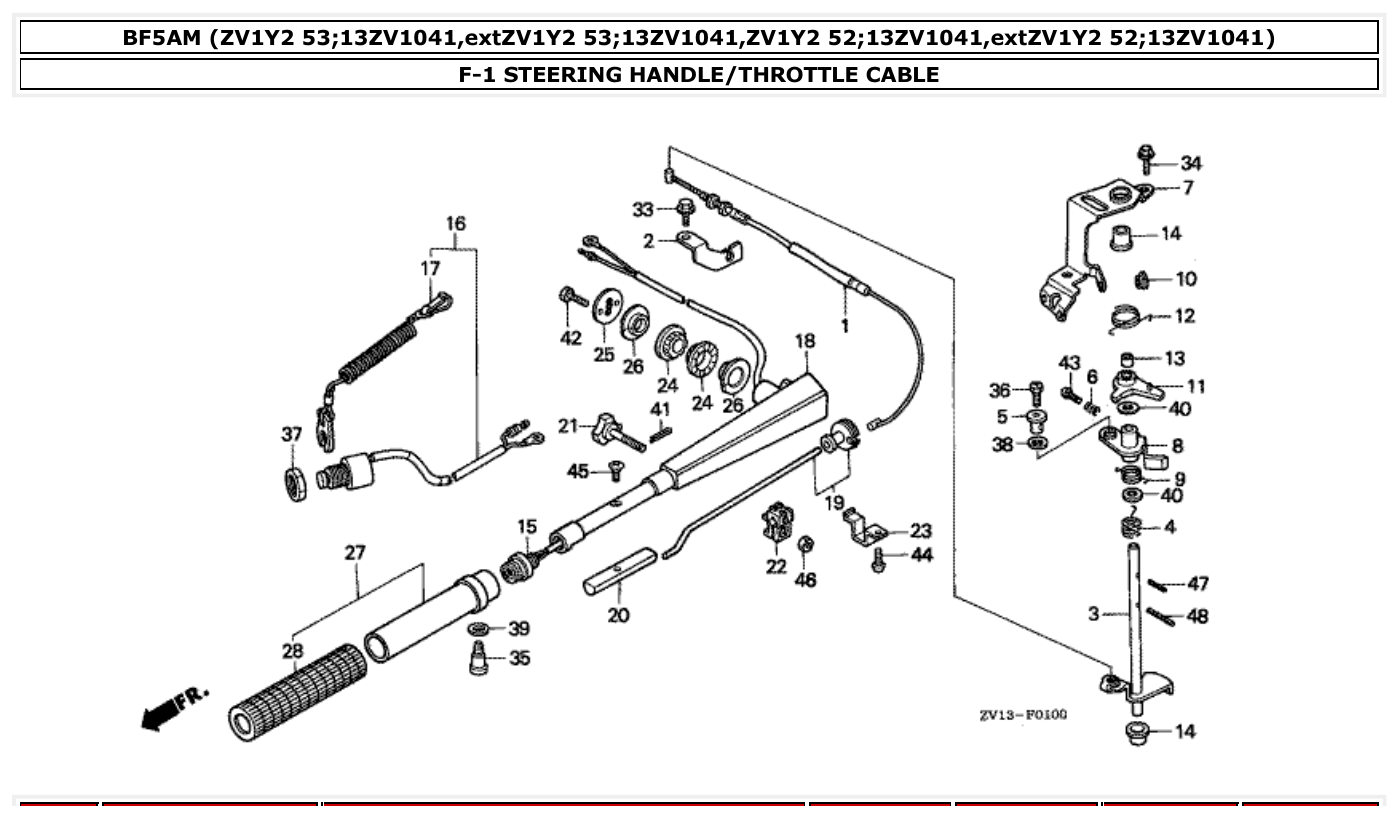

Honda BF5AM STEERING HANDLE/THROTTLE CABLE parts diagram
Fig. F-1 — STEERING HANDLE/THROTTLE CABLE
44 items

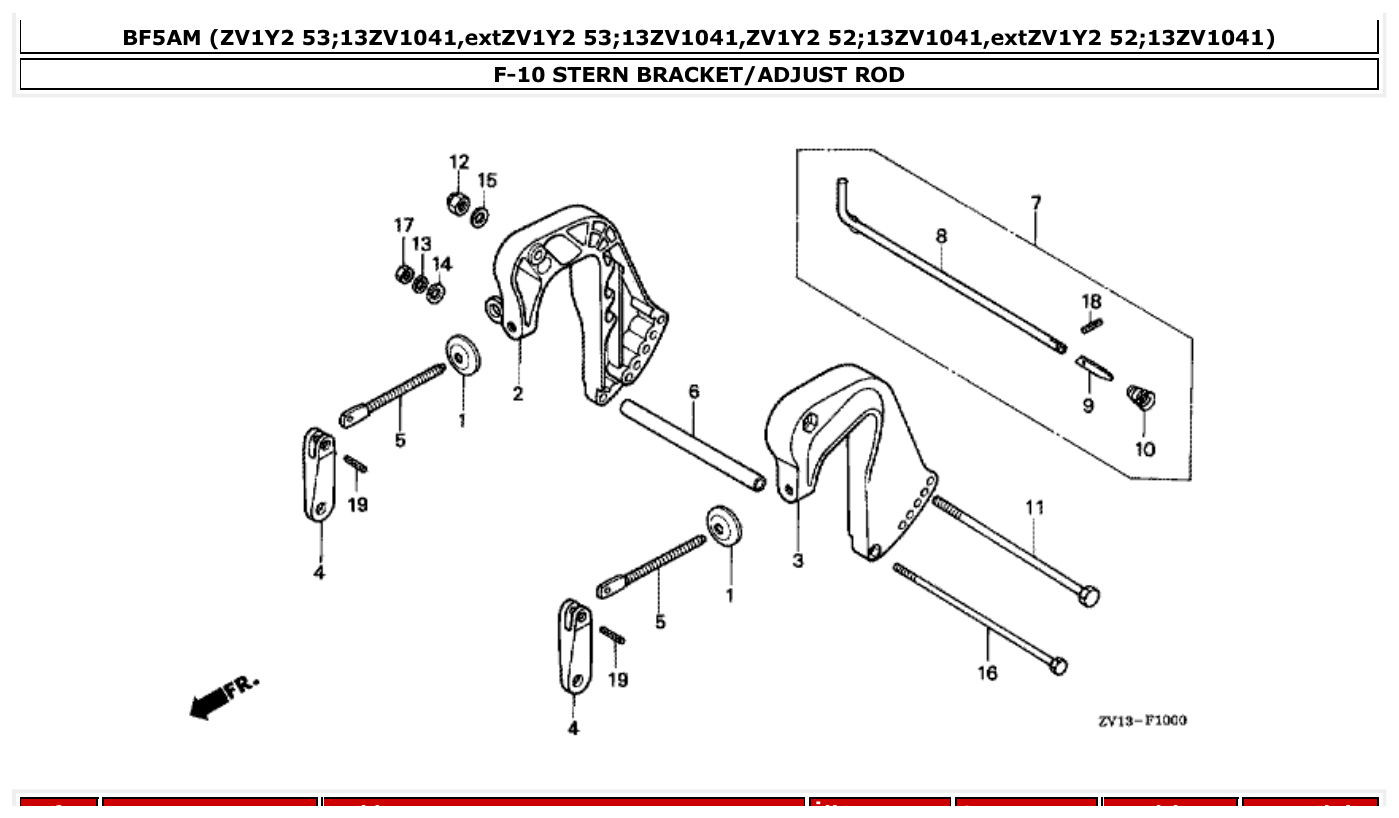

Honda BF5AM STERN BRACKET/ADJUST ROD parts diagram
Fig. F-10 — STERN BRACKET/ADJUST ROD
19 items

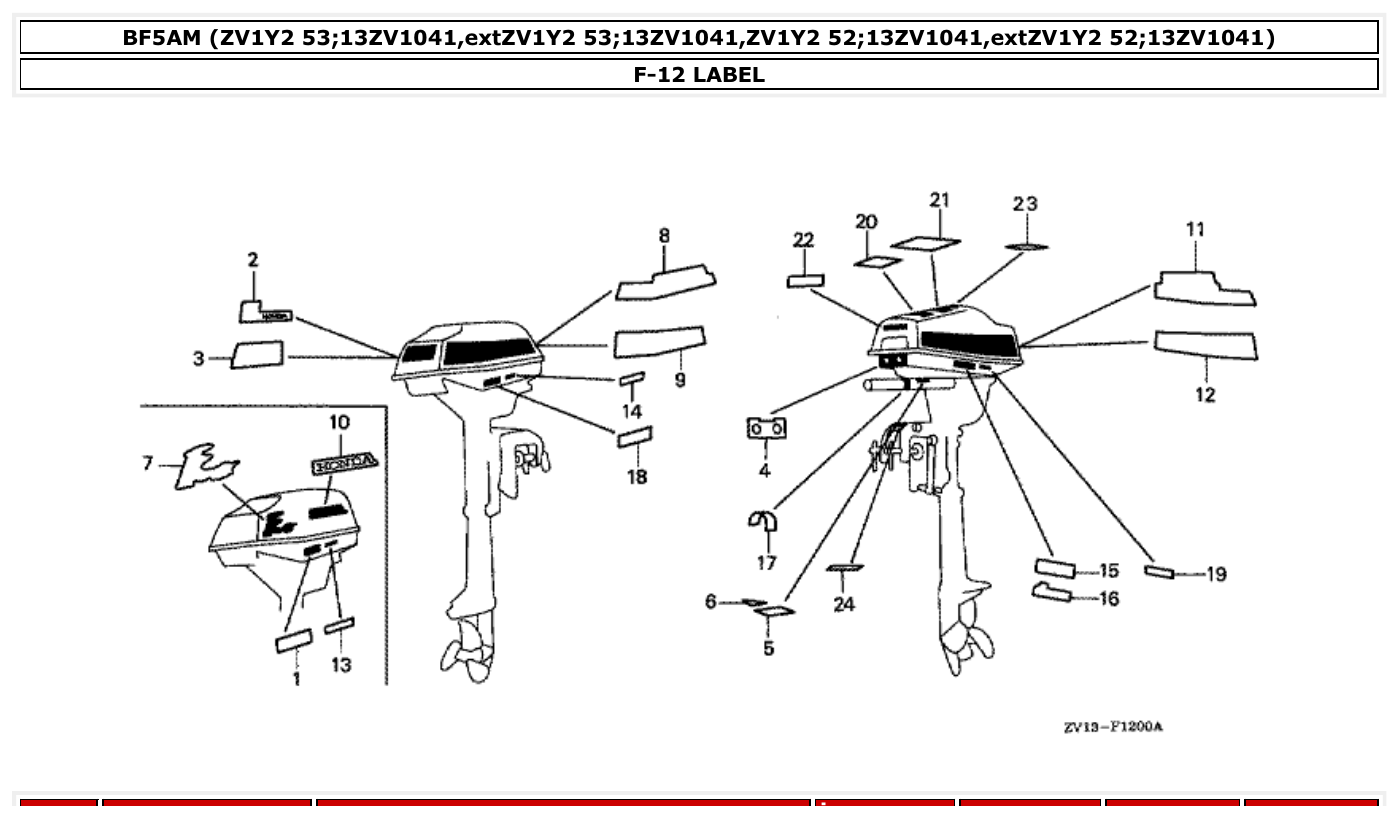

Honda BF5AM LABEL parts diagram
Fig. F-12 — LABEL
22 items

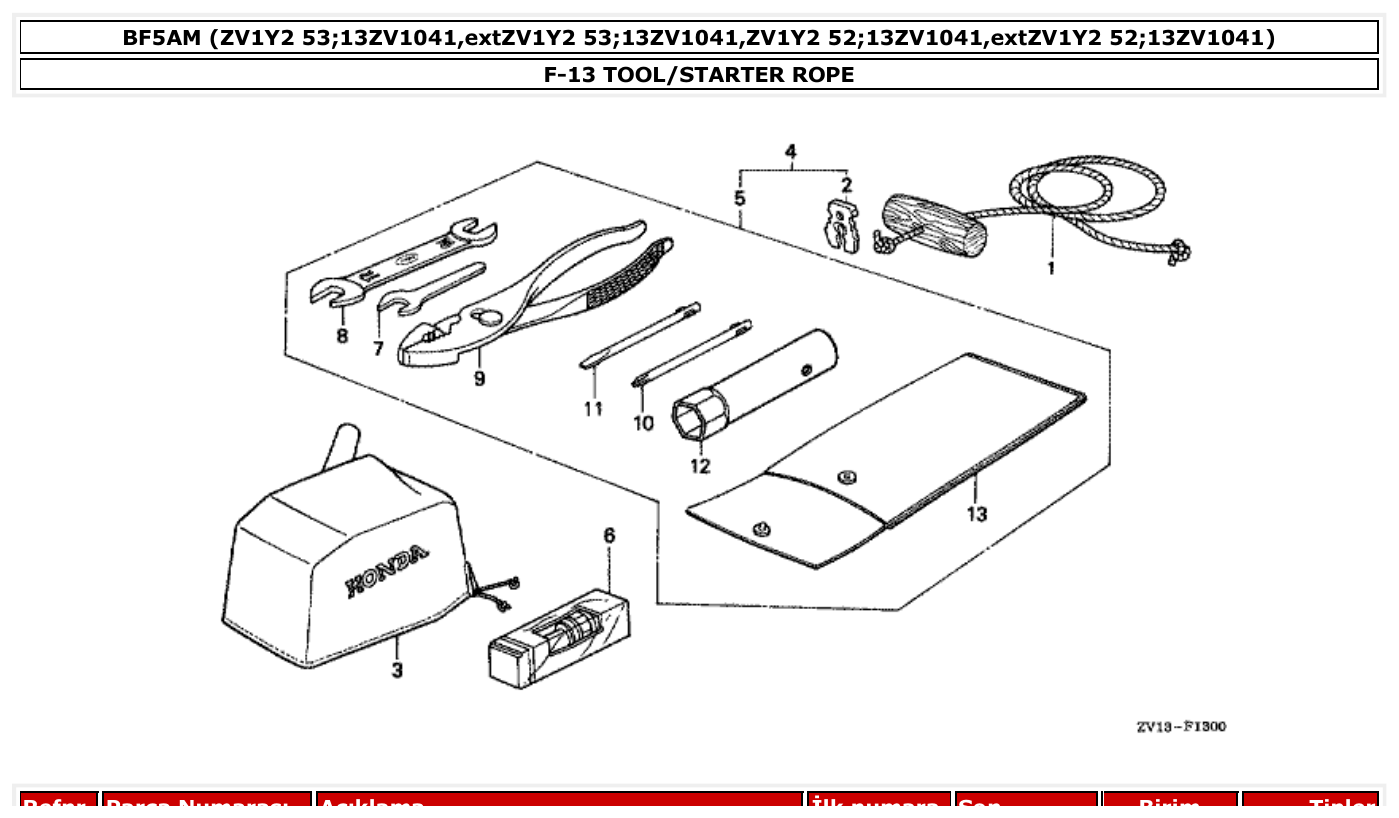

Honda BF5AM TOOL/STARTER ROPE parts diagram
Fig. F-13 — TOOL/STARTER ROPE
42 items

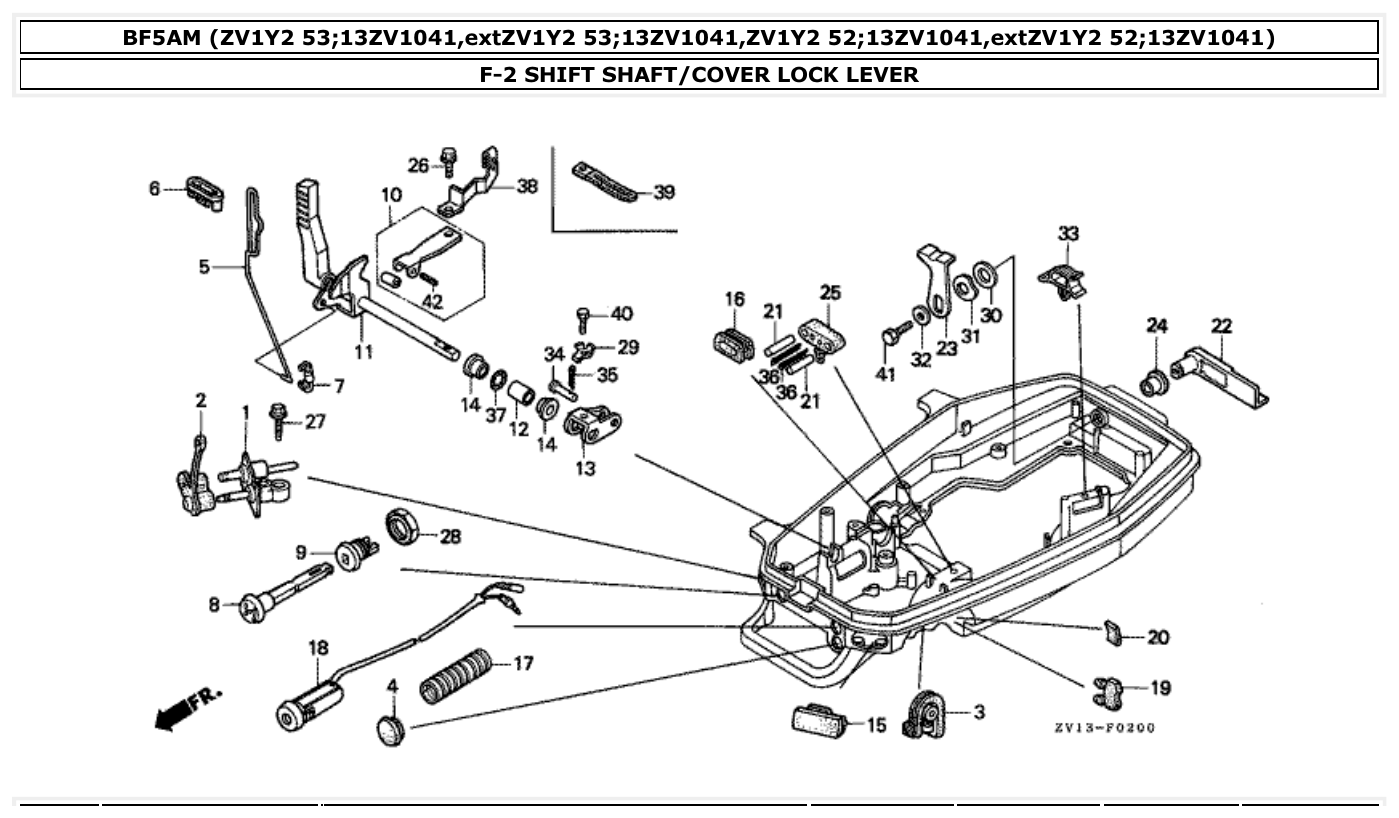

Honda BF5AM SHIFT SHAFT/COVER LOCK LEVER parts diagram
Fig. F-2 — SHIFT SHAFT/COVER LOCK LEVER
41 items · 1 available products

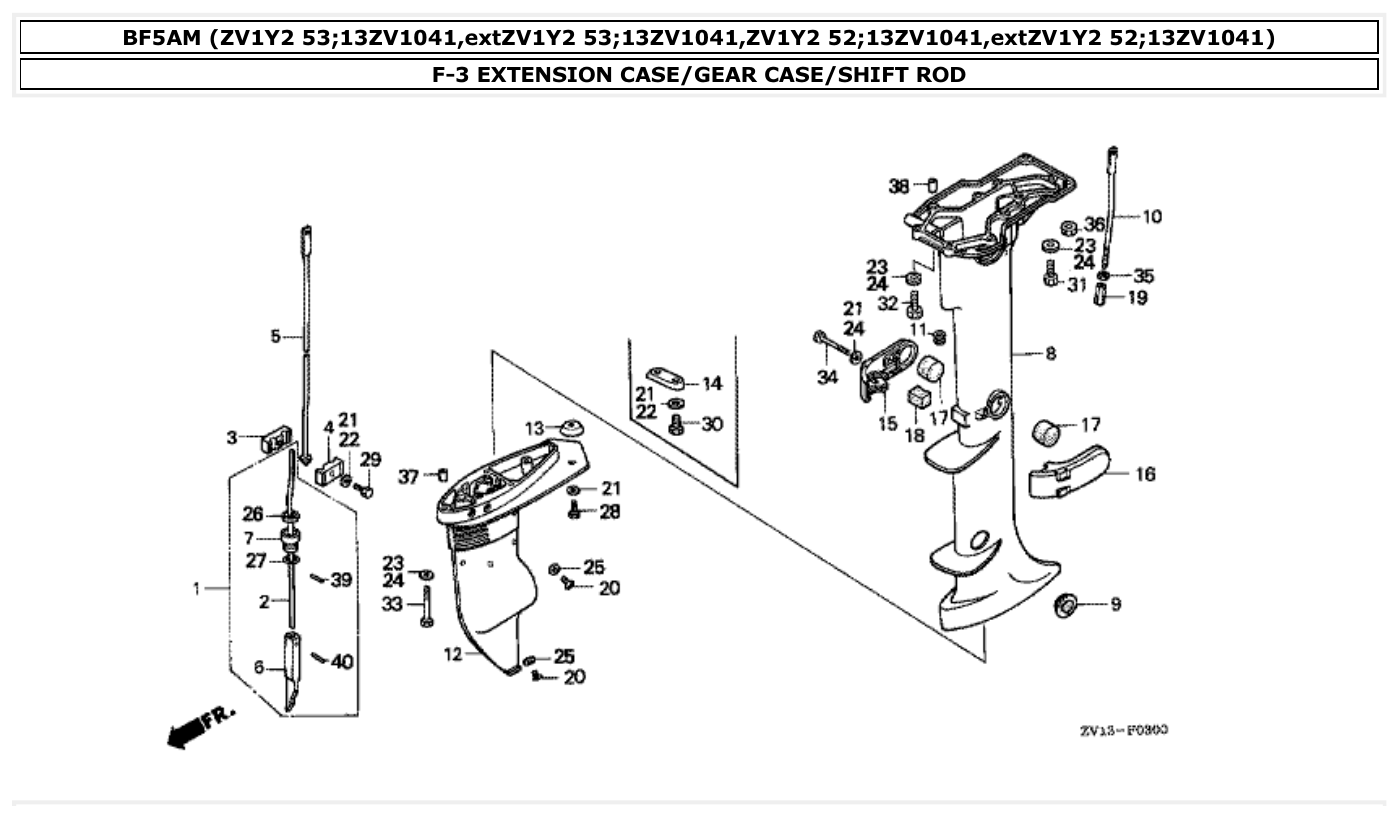

Honda BF5AM EXTENSION CASE/GEAR CASE/SHIFT ROD parts diagram
Fig. F-3 — EXTENSION CASE/GEAR CASE/SHIFT ROD
38 items · 1 available products

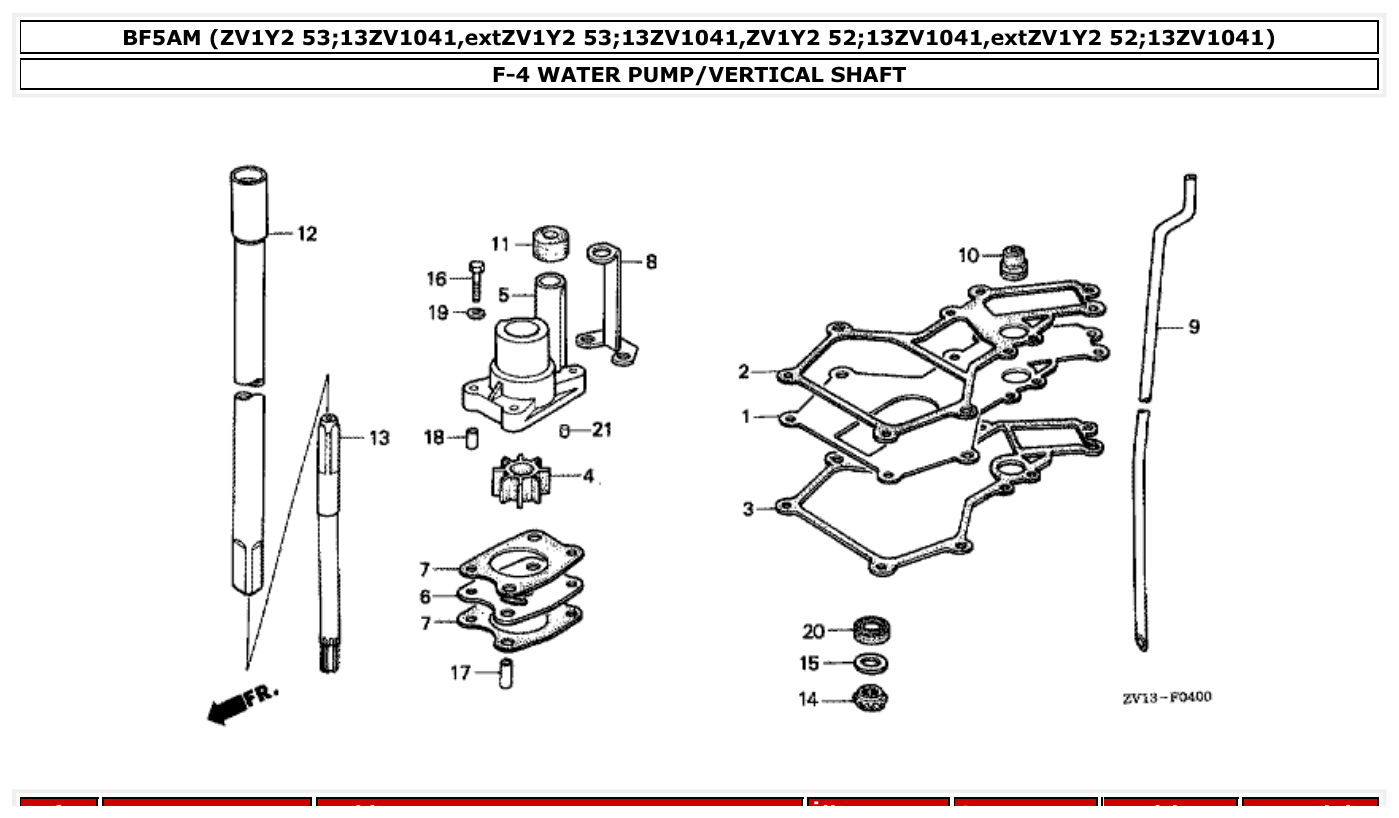

Honda BF5AM WATER PUMP/VERTICAL SHAFT parts diagram
Fig. F-4 — WATER PUMP/VERTICAL SHAFT
26 items · 1 available products

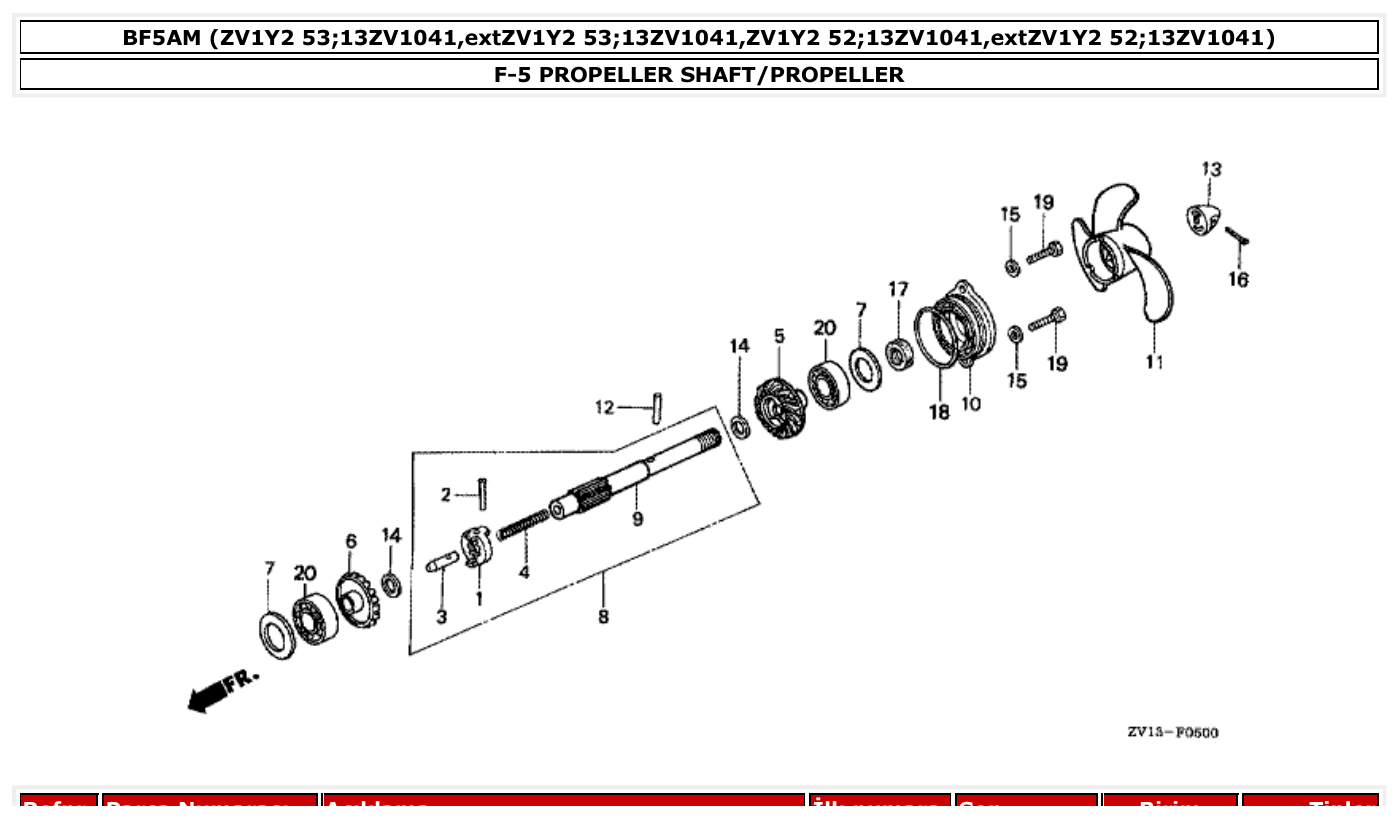

Honda BF5AM PROPELLER SHAFT/PROPELLER parts diagram
Fig. F-5 — PROPELLER SHAFT/PROPELLER
22 items

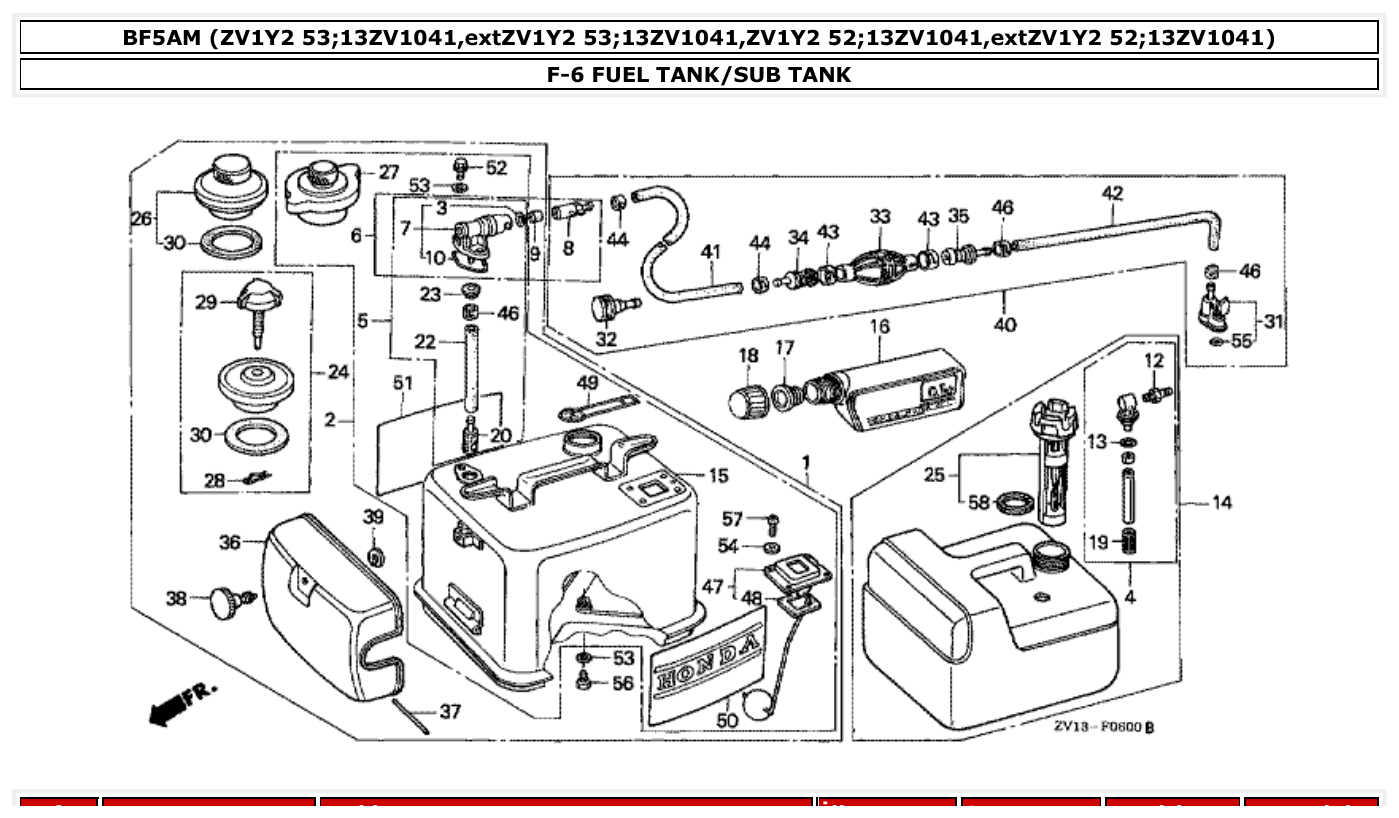

Honda BF5AM FUEL TANK/SUB TANK parts diagram
Fig. F-6 — FUEL TANK/SUB TANK
33 items

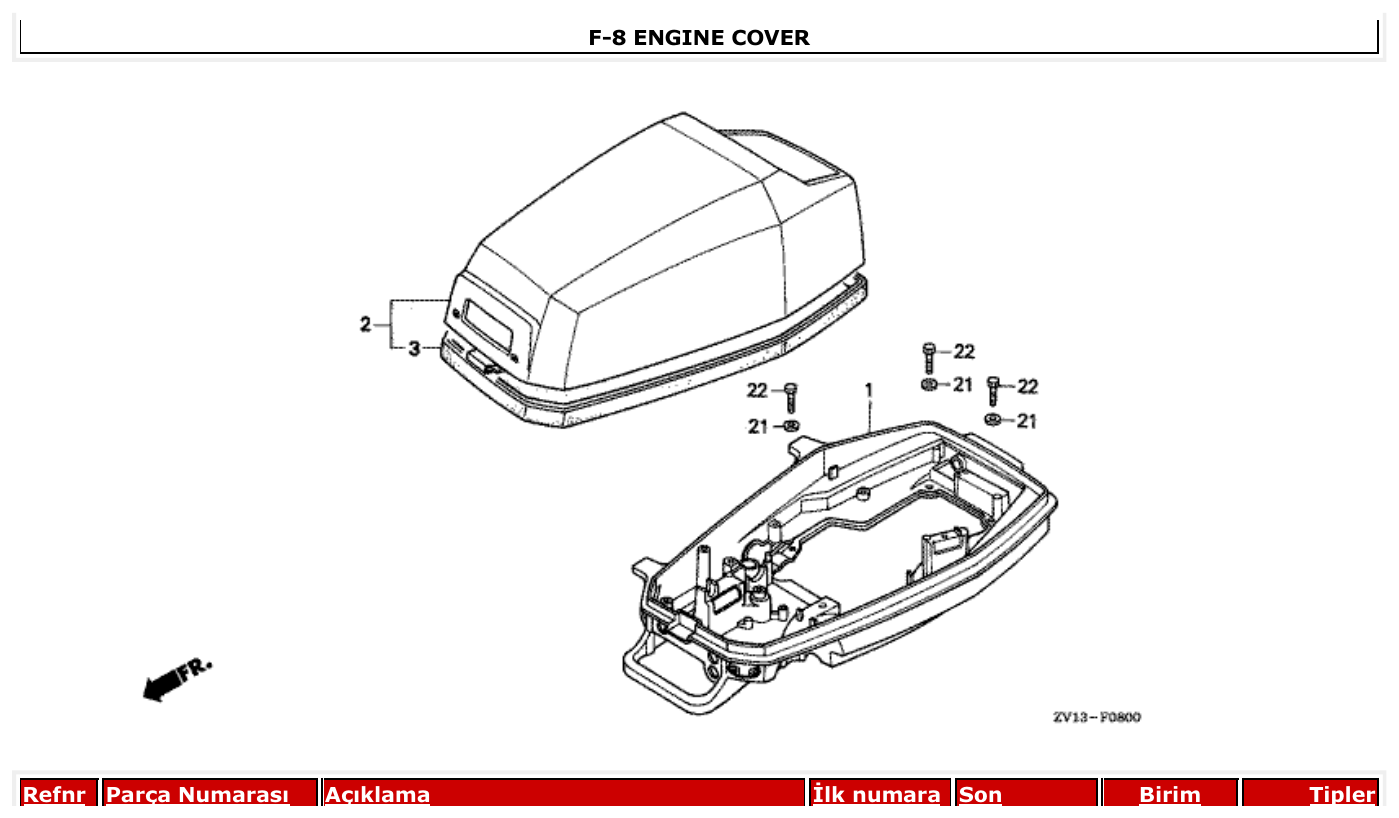

Honda BF5AM ENGINE COVER parts diagram
Fig. F-8 — ENGINE COVER
5 items

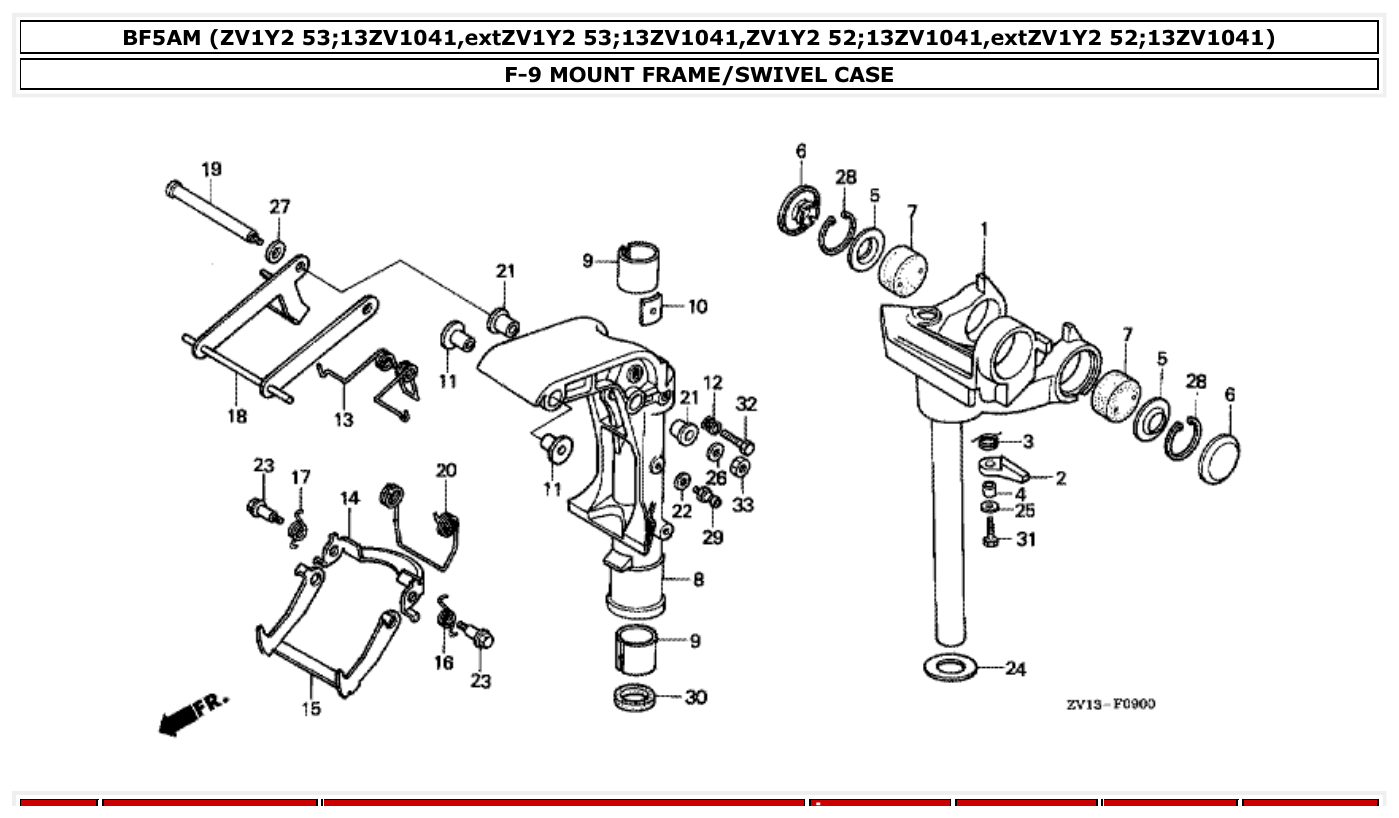

Honda BF5AM MOUNT FRAME/SWIVEL CASE parts diagram
Fig. F-9 — MOUNT FRAME/SWIVEL CASE
34 items
