Honda BF9.9AX Parts Catalog

Honda BF9.9AX Outboard parts and diagrams

Honda BF9.9AX outboard parts catalog includes RECOIL STARTER, TIMING BELT, CARBURETOR, FUEL PUMP, FLYWHEEL, CYLINDER HEAD, IGNITION COIL, STARTER MOTOR, CYLINDER BARREL, INTAKE MANIFOLD/THERMOSTAT, OIL PUMP/EXHAUST PIPE, CRANKSHAFT/PISTON, CAMSHAFT, STEERING HANDLE, STERN BRACKET, SWIVEL CASE/MOUNT FRAME, LABEL, TOOL. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

7 linked store products are available across 28 catalog sections. 811 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

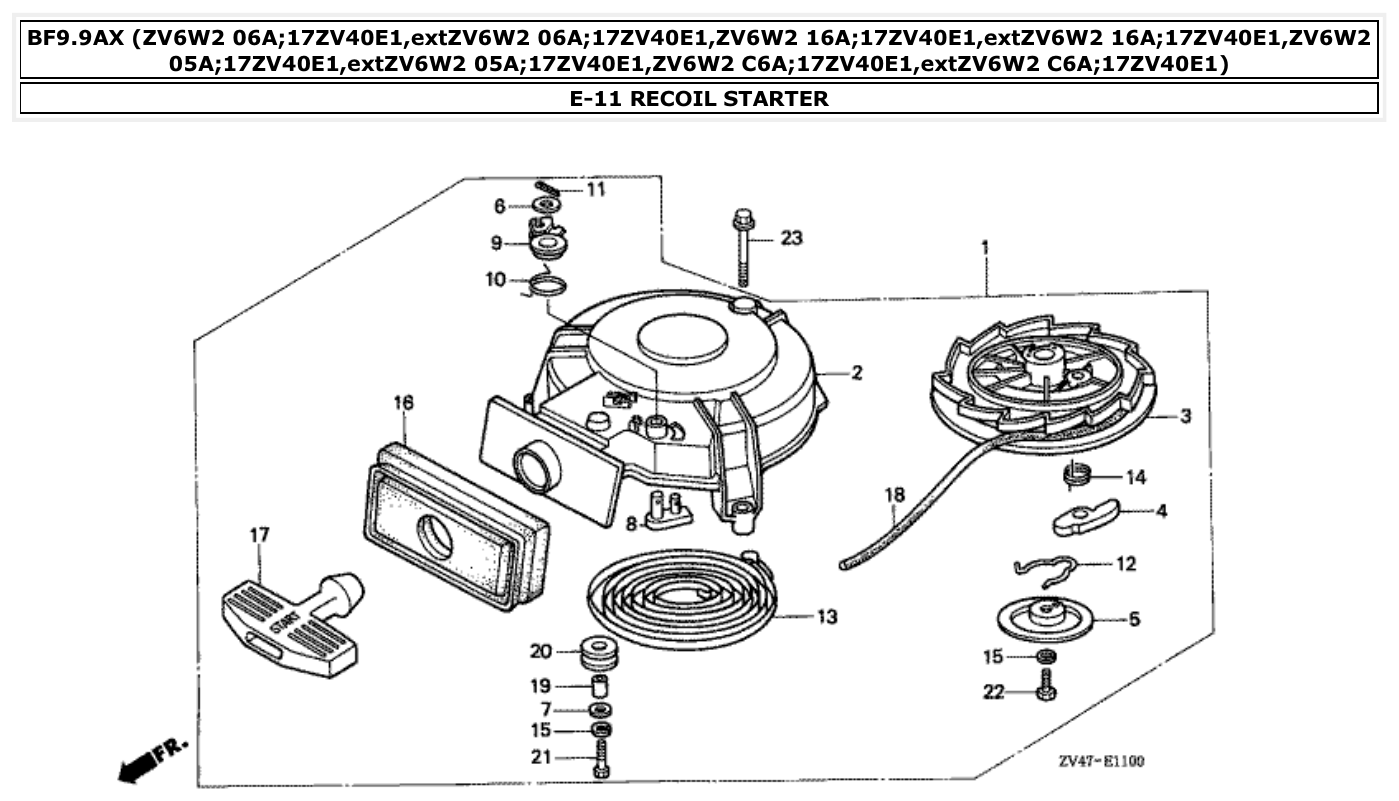

Honda BF9.9AX RECOIL STARTER parts diagram
Fig. E-11 — RECOIL STARTER
23 items

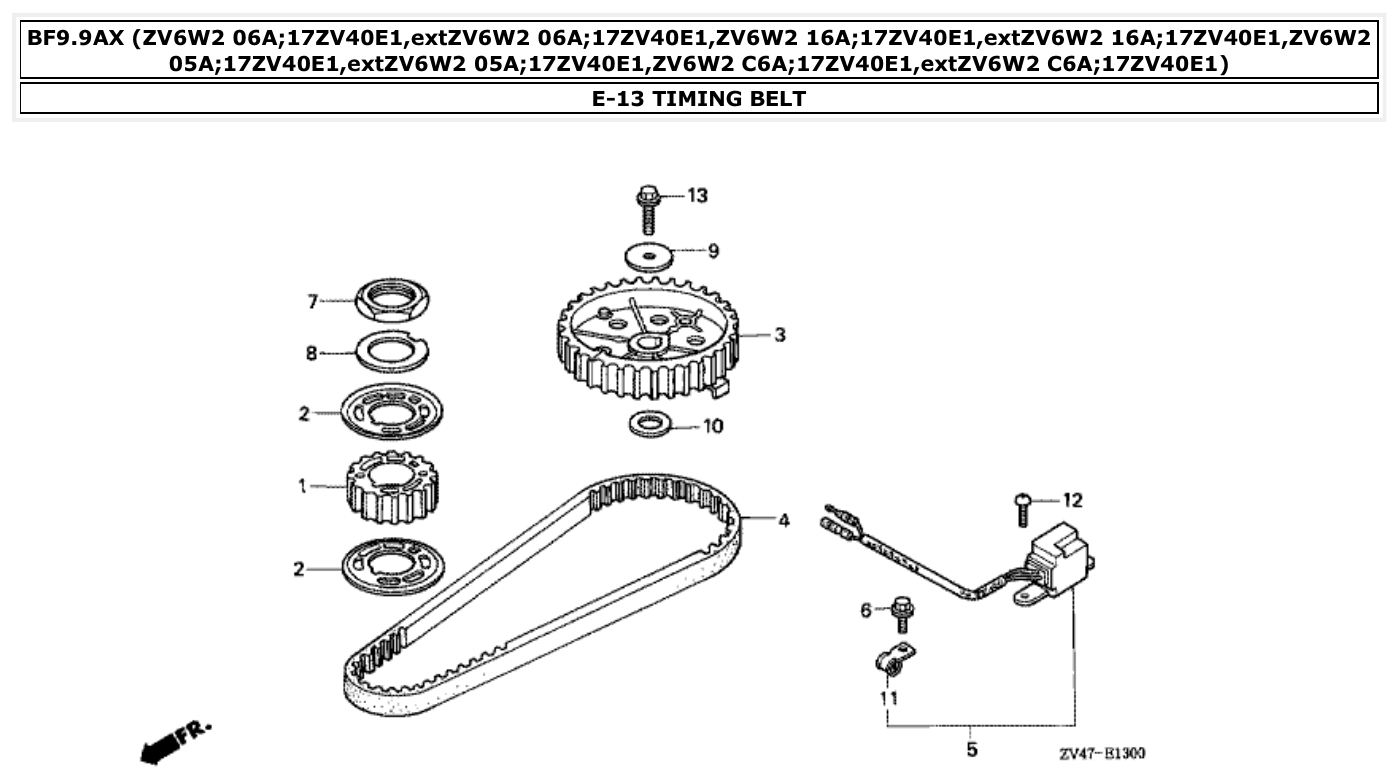

Honda BF9.9AX TIMING BELT parts diagram
Fig. E-13 — TIMING BELT
13 items

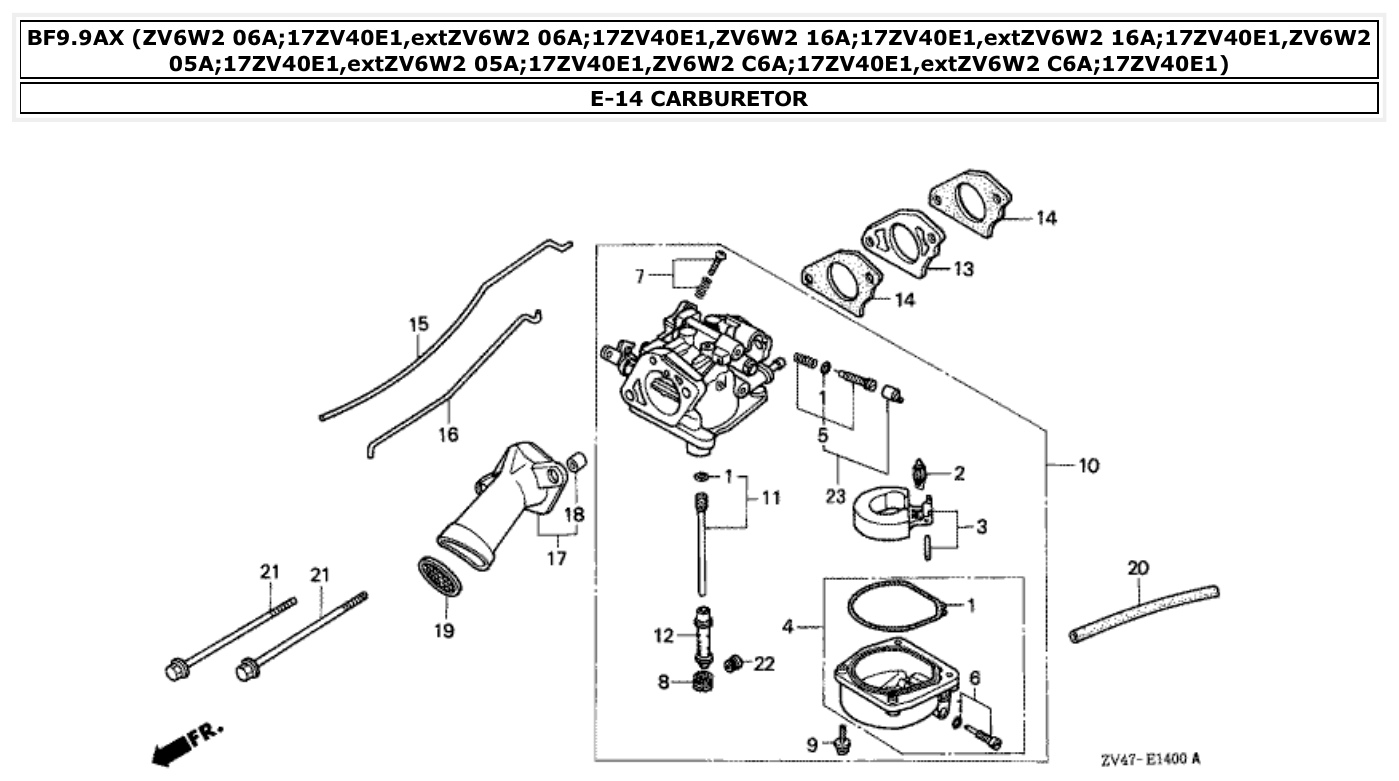

Honda BF9.9AX CARBURETOR parts diagram
Fig. E-14 — CARBURETOR
24 items · 2 available products
Honda BF9.9AX FUEL PUMP parts diagram

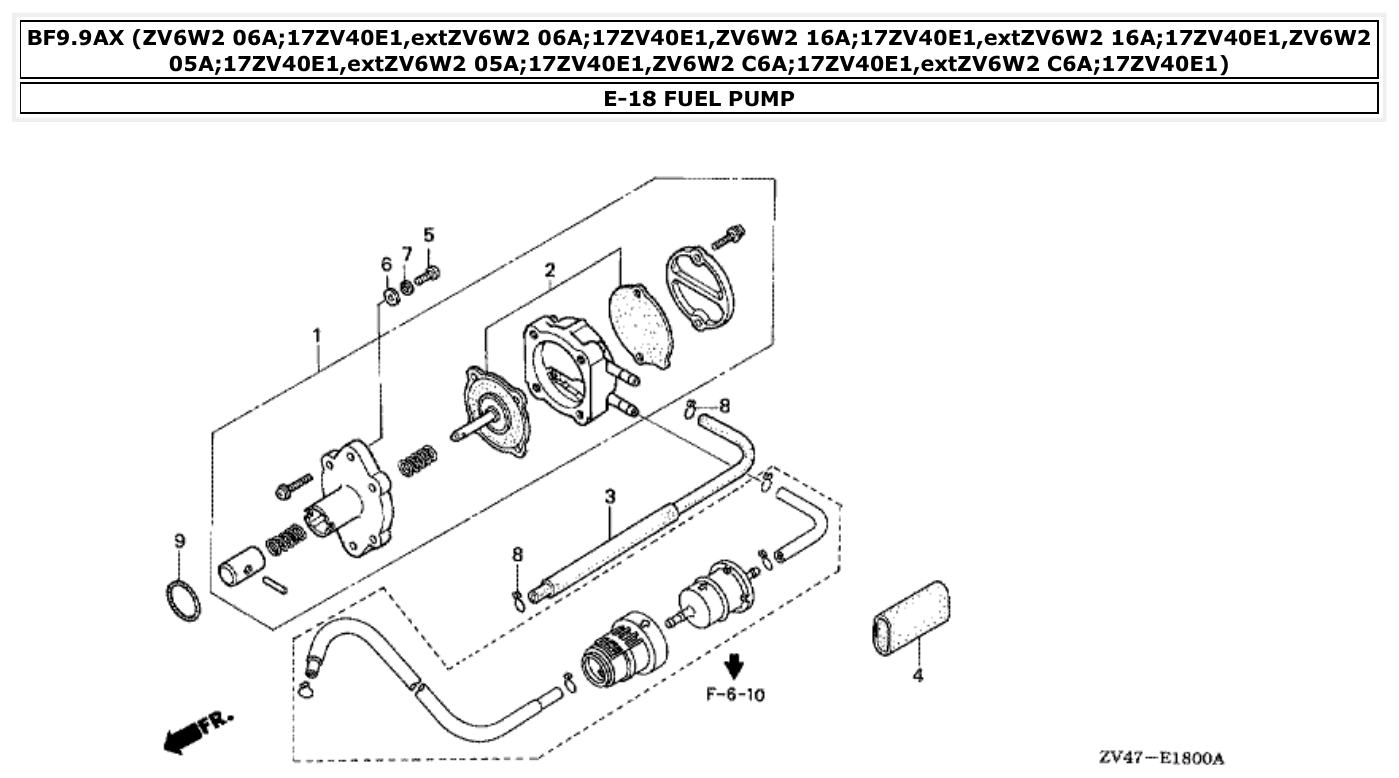

Fig. E-18 — FUEL PUMP
9 items

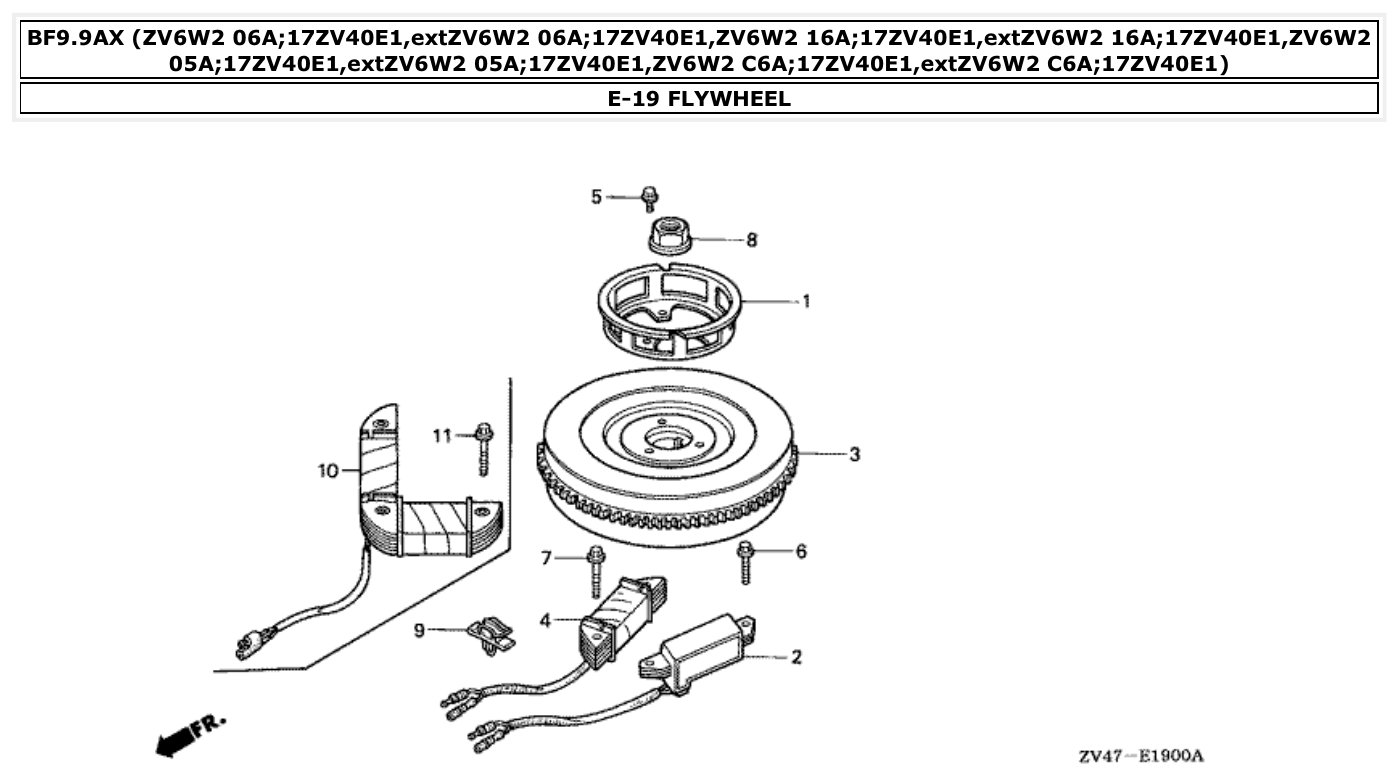

Honda BF9.9AX FLYWHEEL parts diagram
Fig. E-19 — FLYWHEEL
12 items

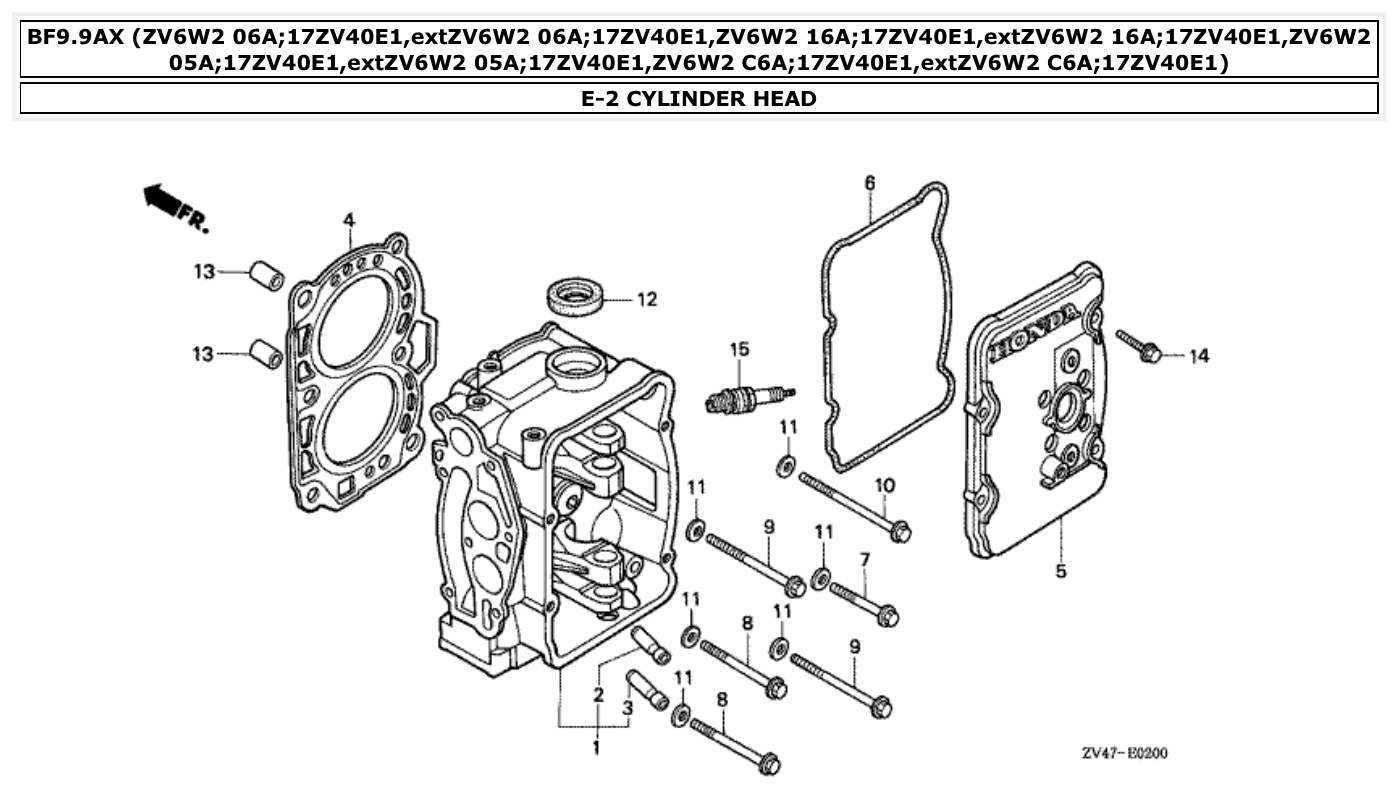

Honda BF9.9AX CYLINDER HEAD parts diagram
Fig. E-2 — CYLINDER HEAD
16 items

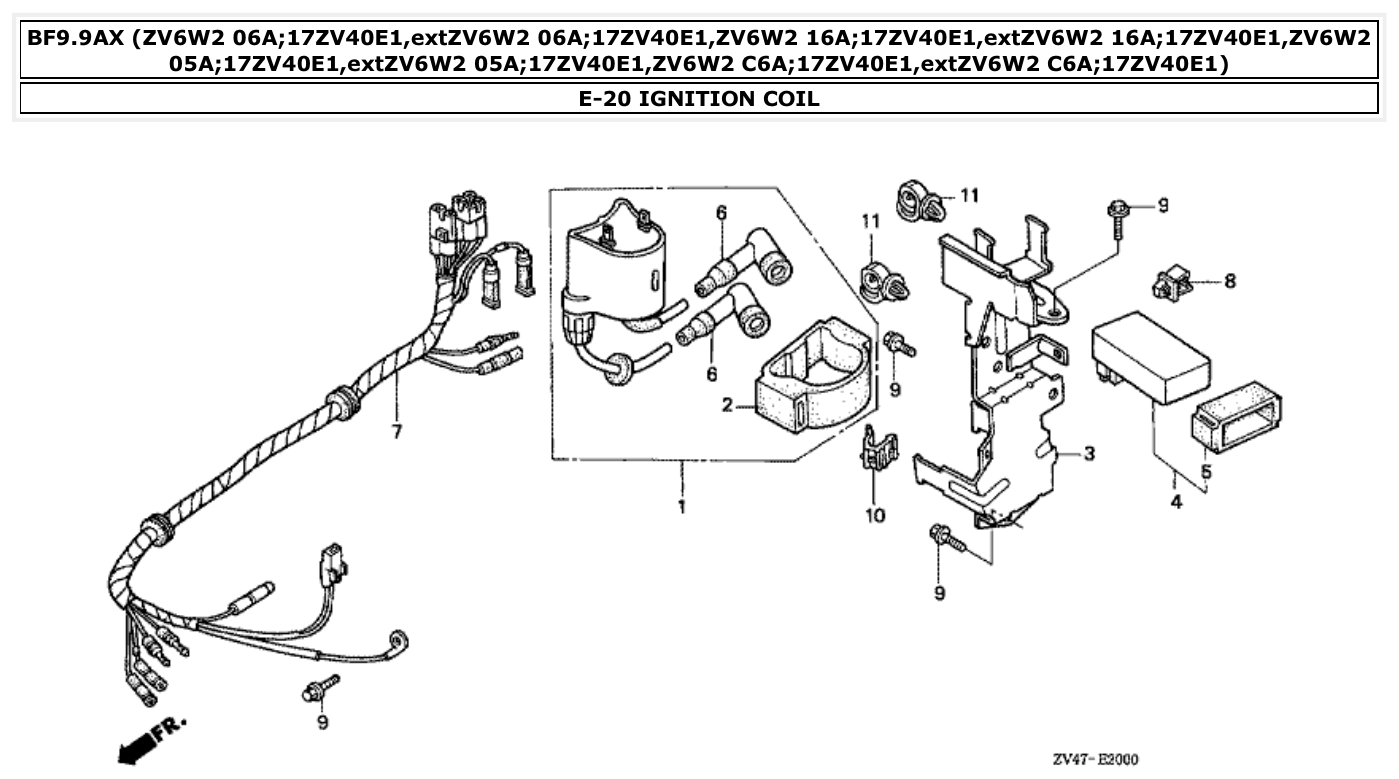

Honda BF9.9AX IGNITION COIL parts diagram
Fig. E-20 — IGNITION COIL
11 items
Honda BF9.9AX STARTER MOTOR parts diagram

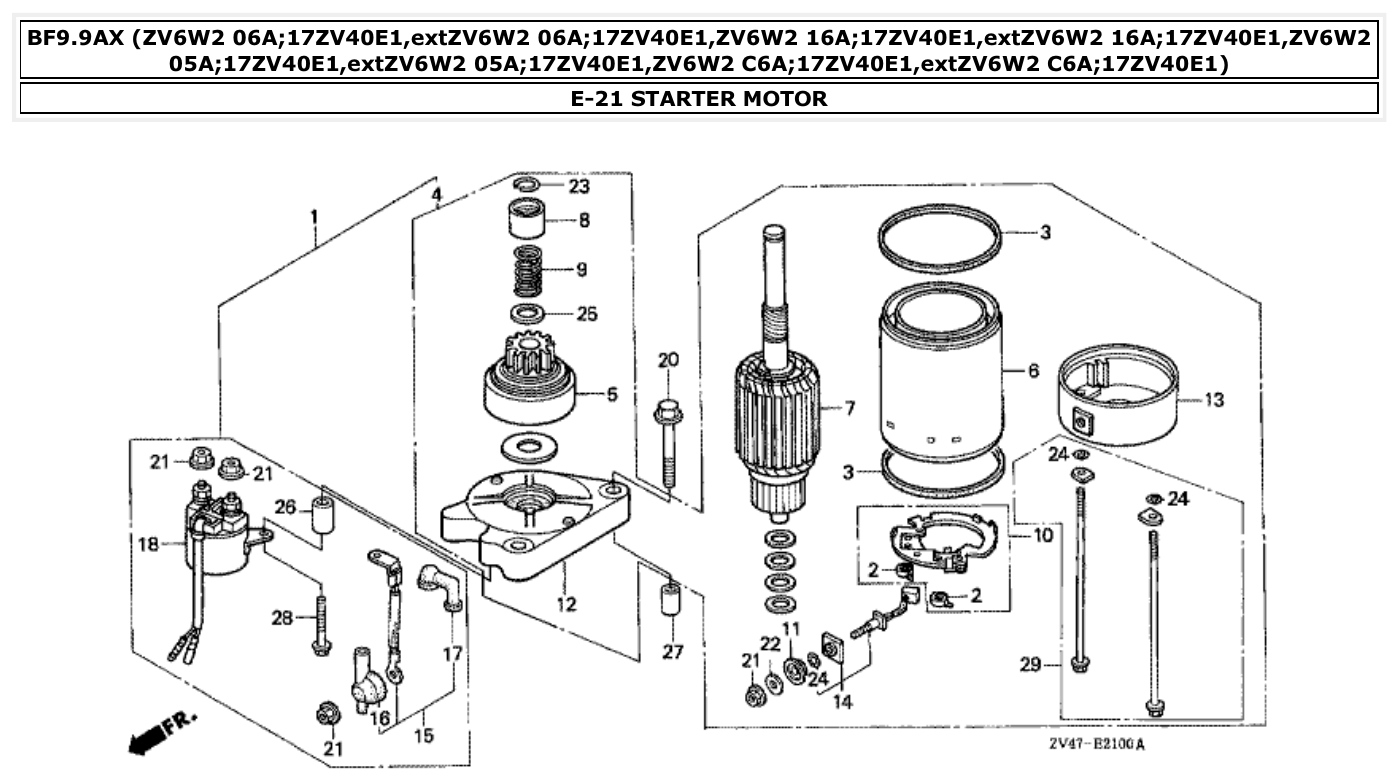

Fig. E-21 — STARTER MOTOR
36 items
Honda BF9.9AX CYLINDER BARREL parts diagram

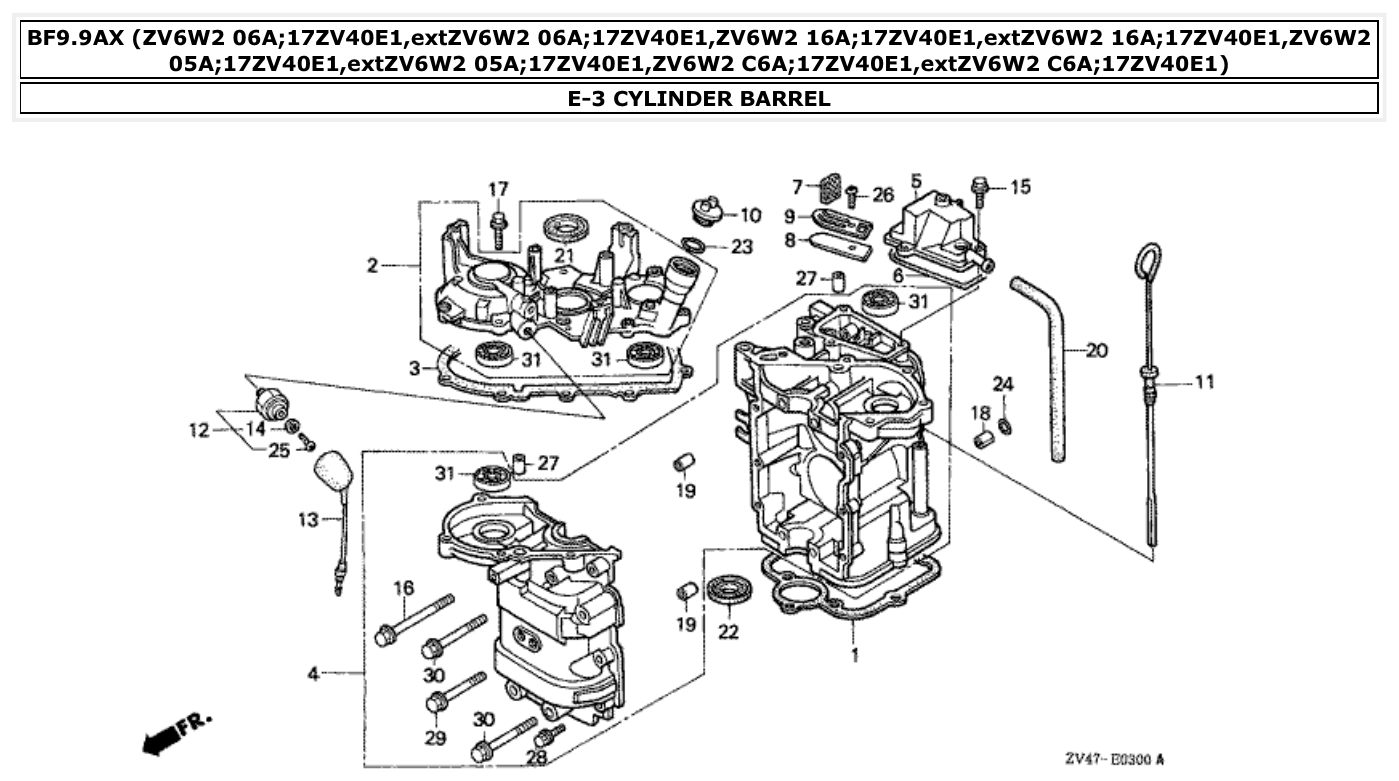

Fig. E-3 — CYLINDER BARREL
32 items

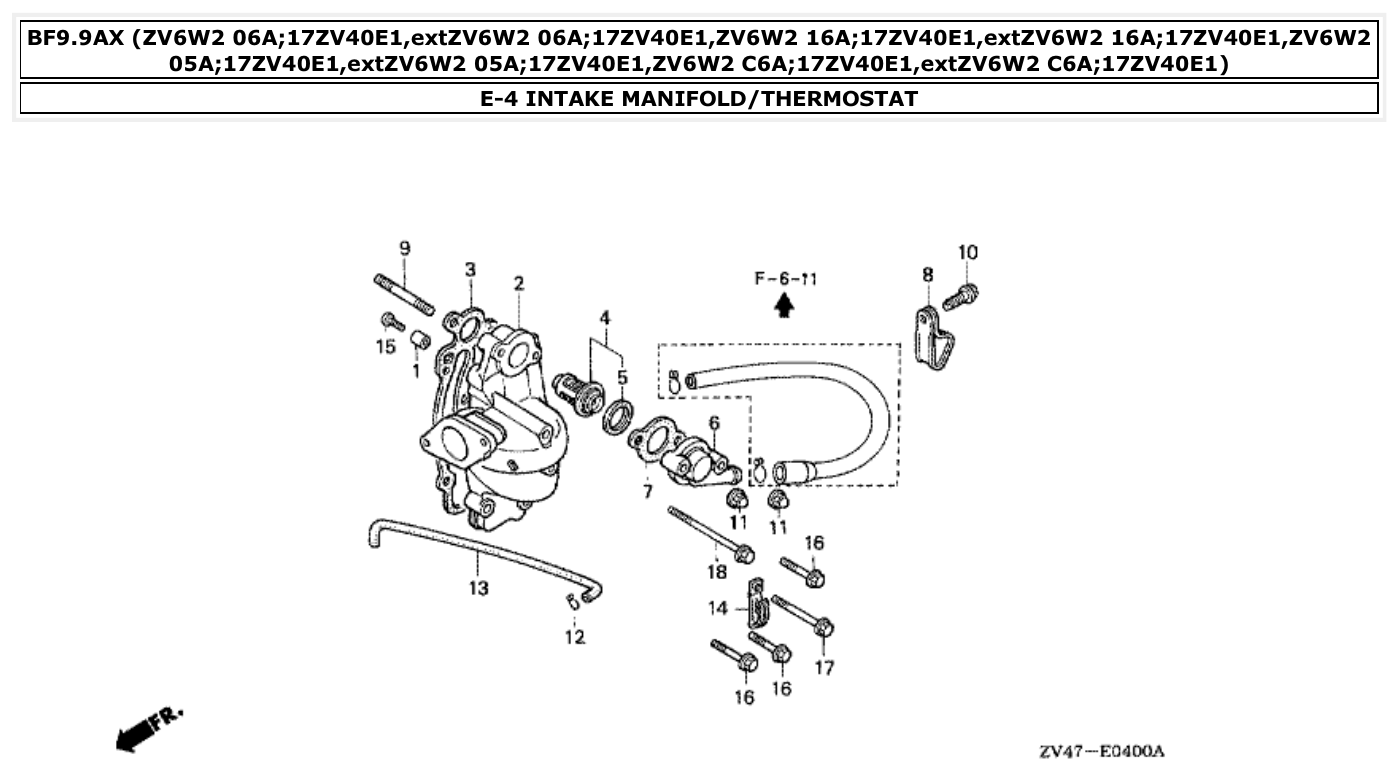

Honda BF9.9AX INTAKE MANIFOLD/THERMOSTAT parts diagram
Fig. E-4 — INTAKE MANIFOLD/THERMOSTAT
18 items

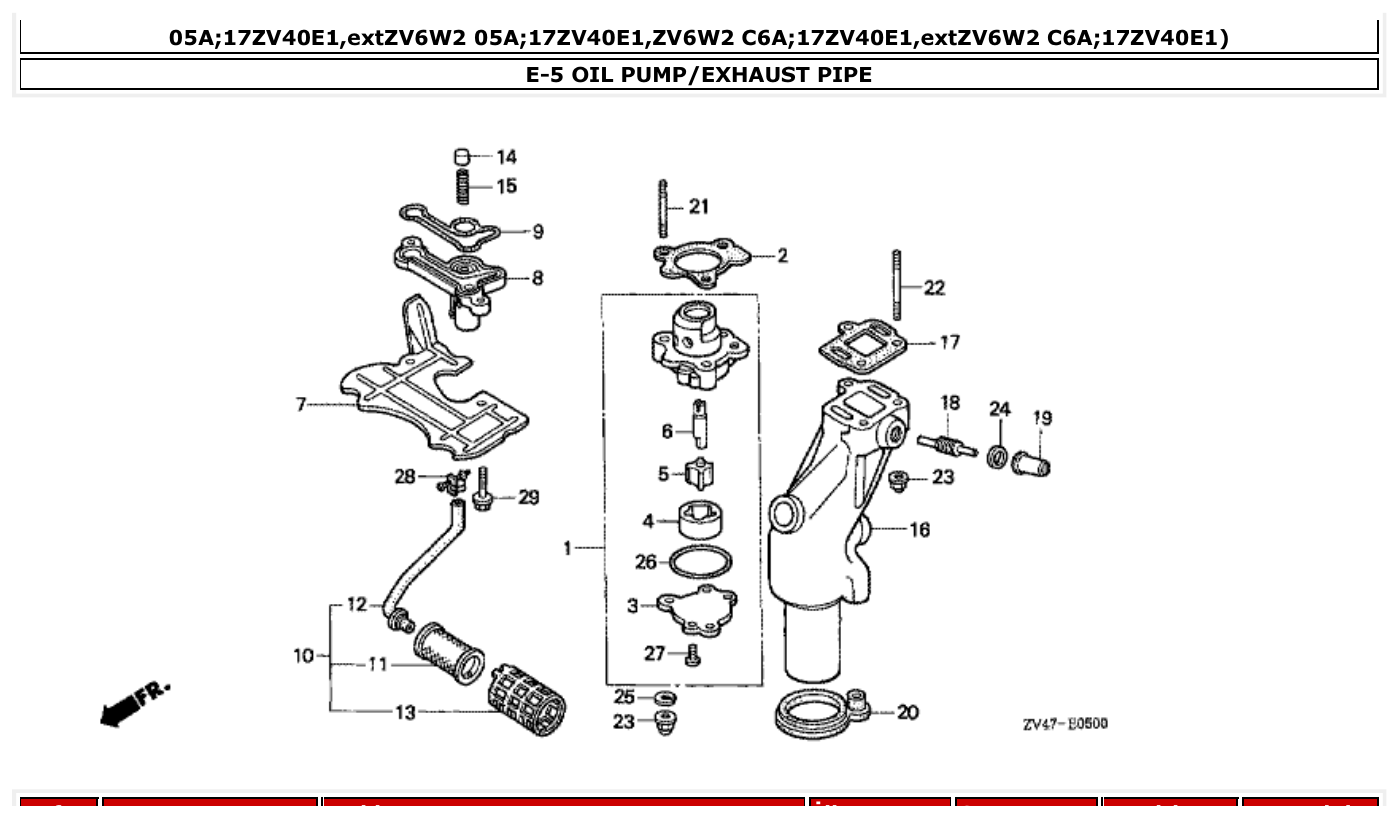

Honda BF9.9AX OIL PUMP/EXHAUST PIPE parts diagram
Fig. E-5 — OIL PUMP/EXHAUST PIPE
26 items
Honda BF9.9AX CRANKSHAFT/PISTON parts diagram

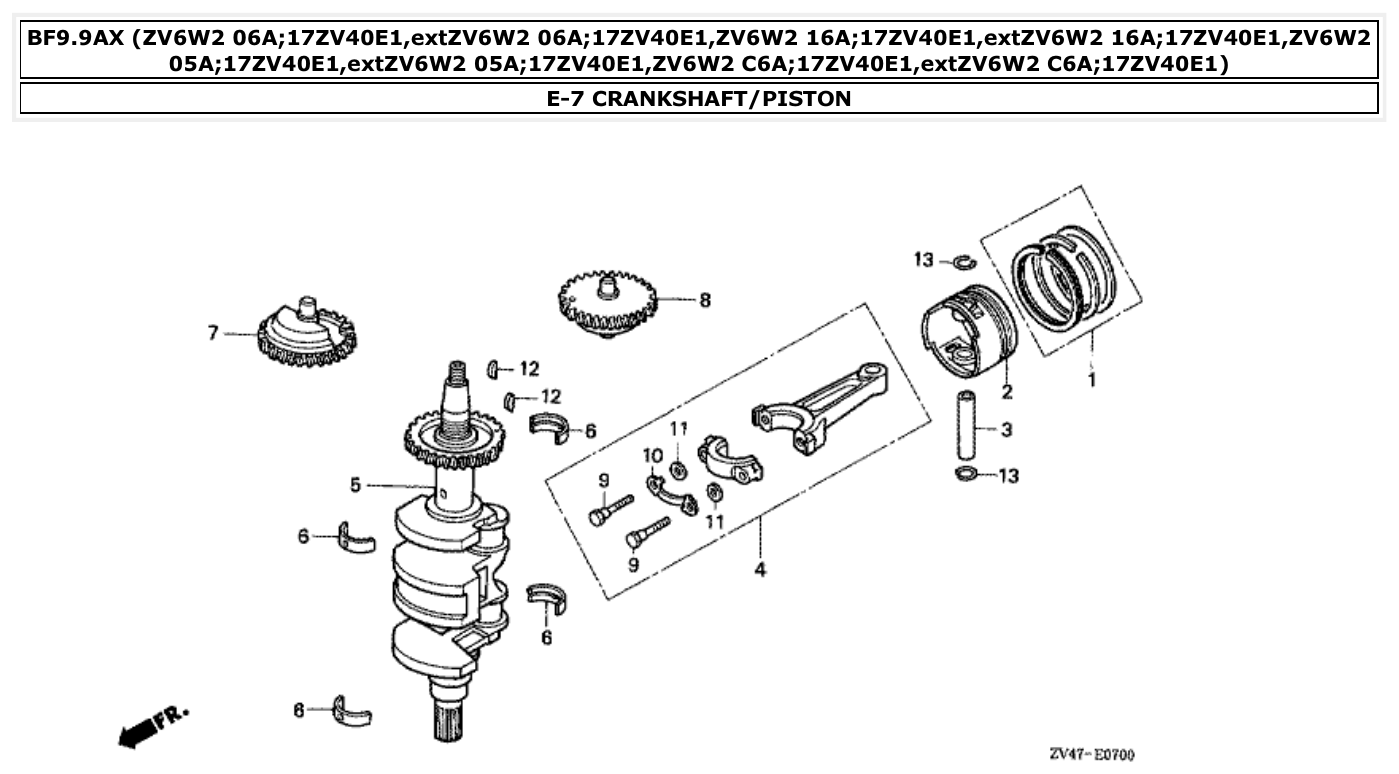

Fig. E-7 — CRANKSHAFT/PISTON
17 items

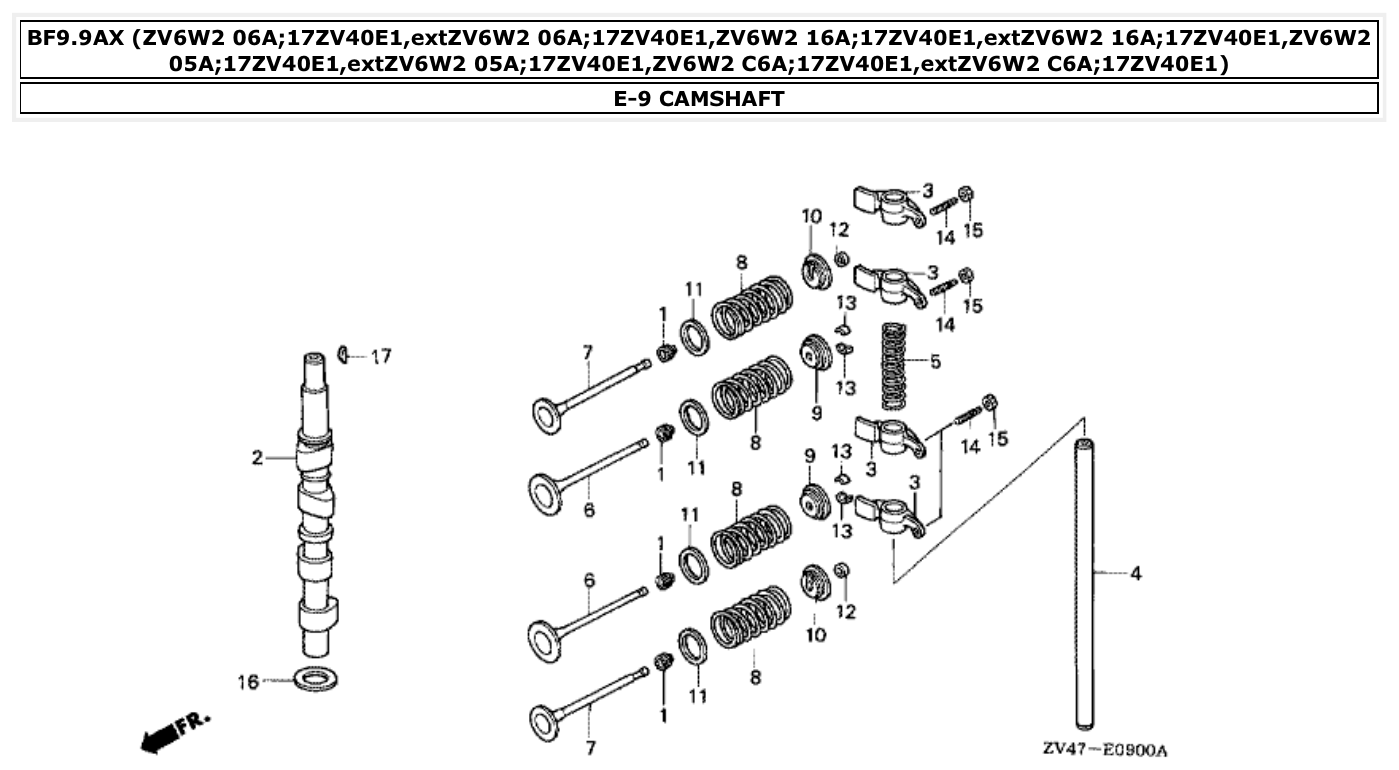

Honda BF9.9AX CAMSHAFT parts diagram
Fig. E-9 — CAMSHAFT
17 items

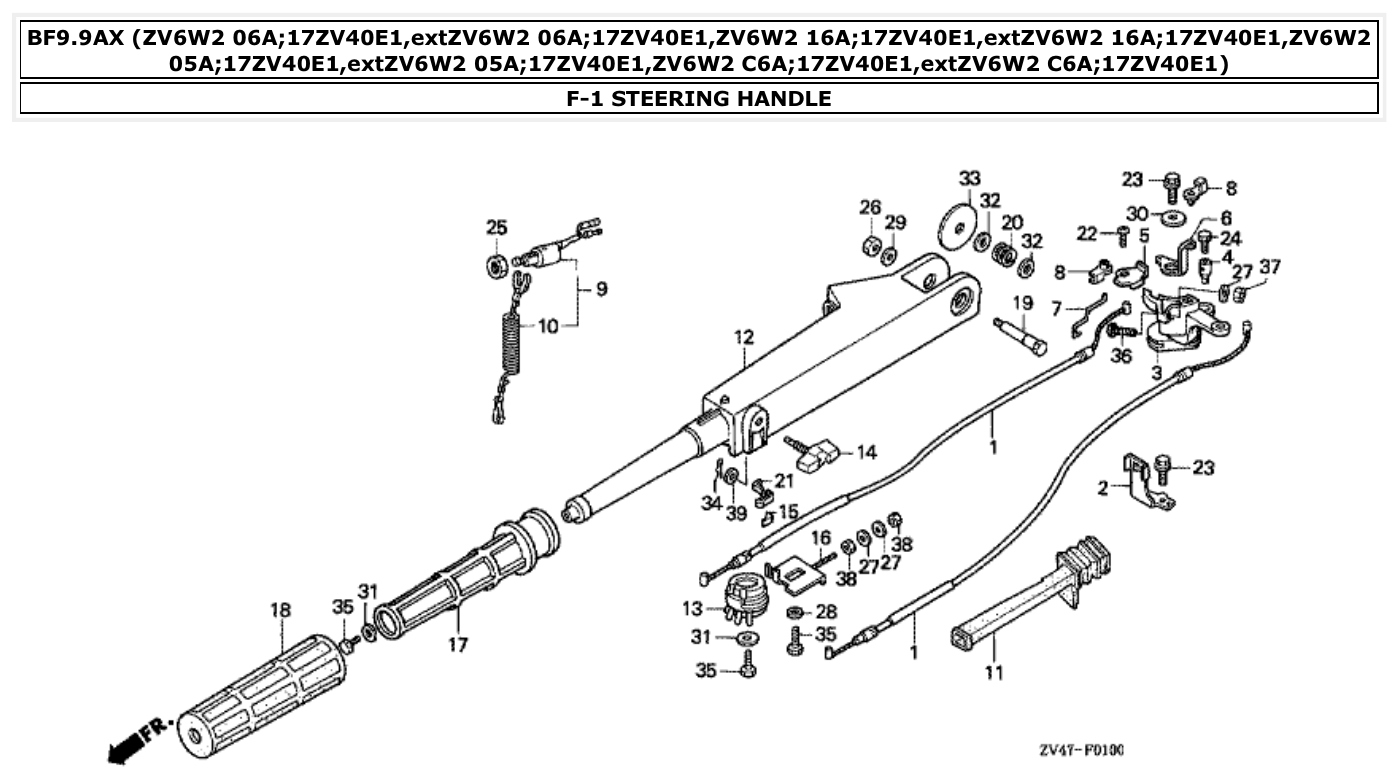

Honda BF9.9AX STEERING HANDLE parts diagram
Fig. F-1 — STEERING HANDLE
37 items

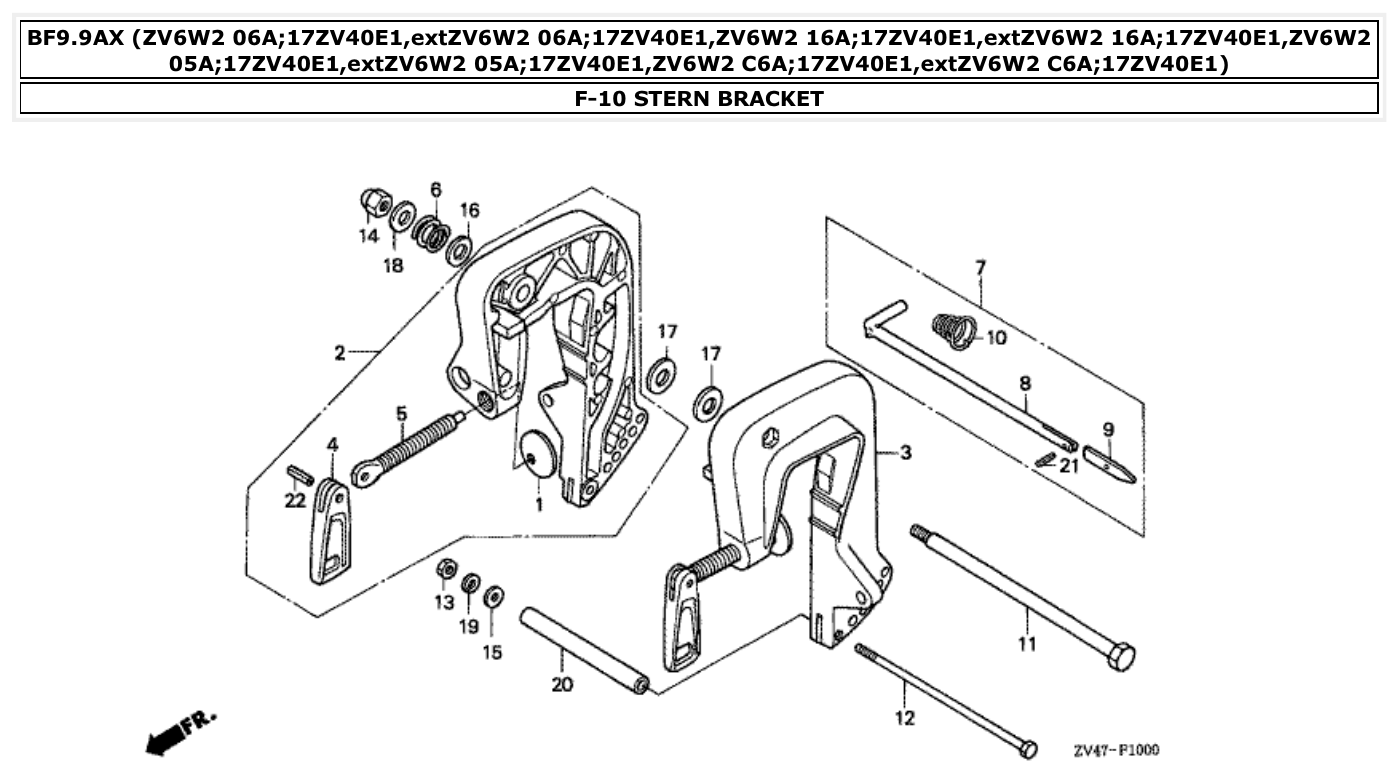

Honda BF9.9AX STERN BRACKET parts diagram
Fig. F-10 — STERN BRACKET
22 items
Honda BF9.9AX SWIVEL CASE/MOUNT FRAME parts diagram

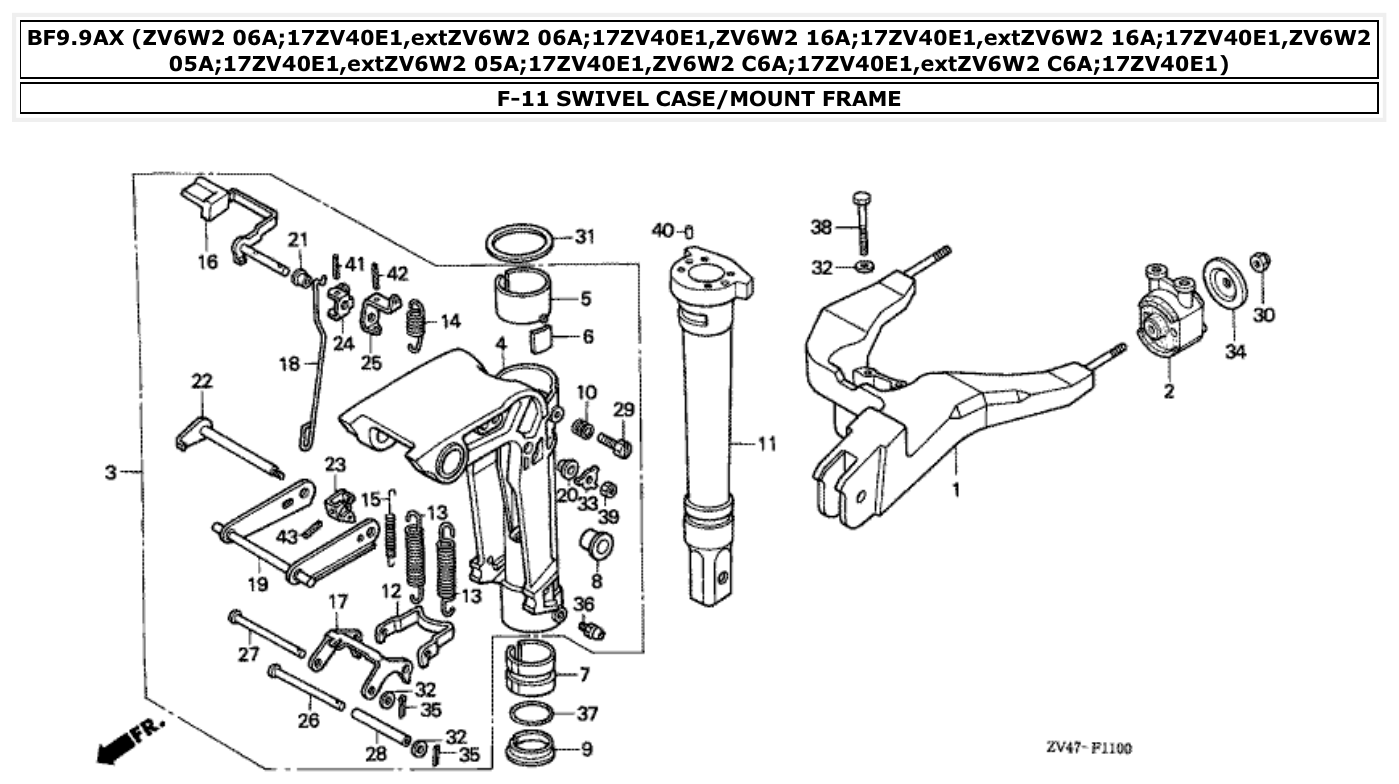

Fig. F-11 — SWIVEL CASE/MOUNT FRAME
50 items

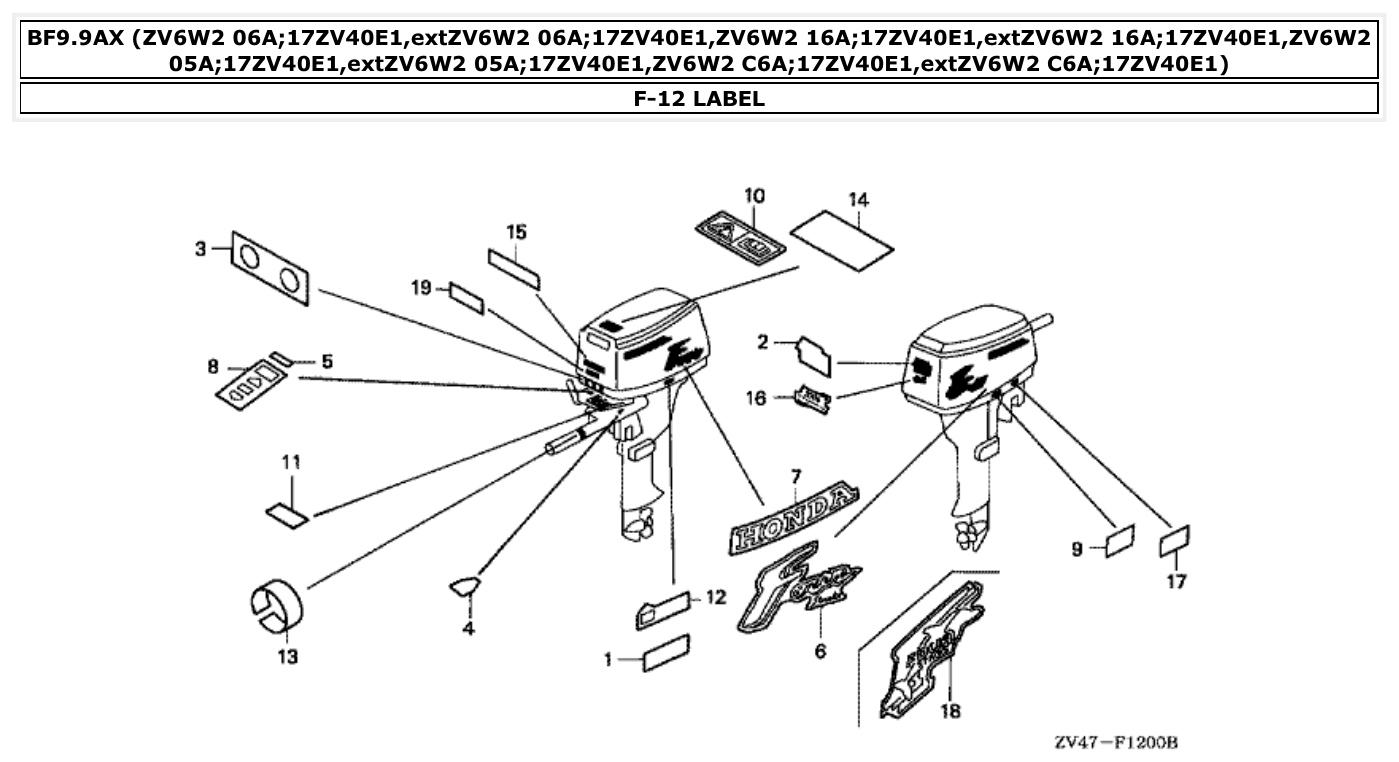

Honda BF9.9AX LABEL parts diagram
Fig. F-12 — LABEL
21 items

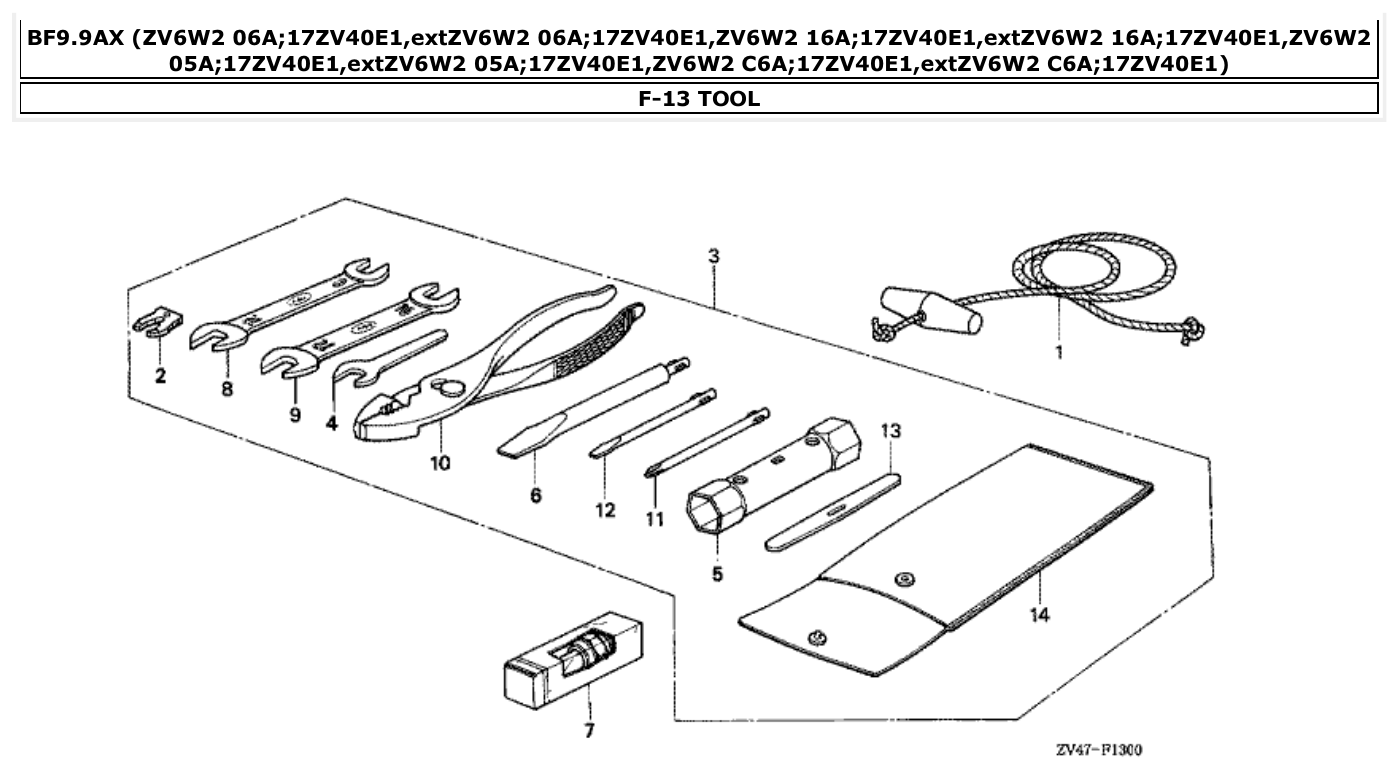

Honda BF9.9AX TOOL parts diagram
Fig. F-13 — TOOL
171 items

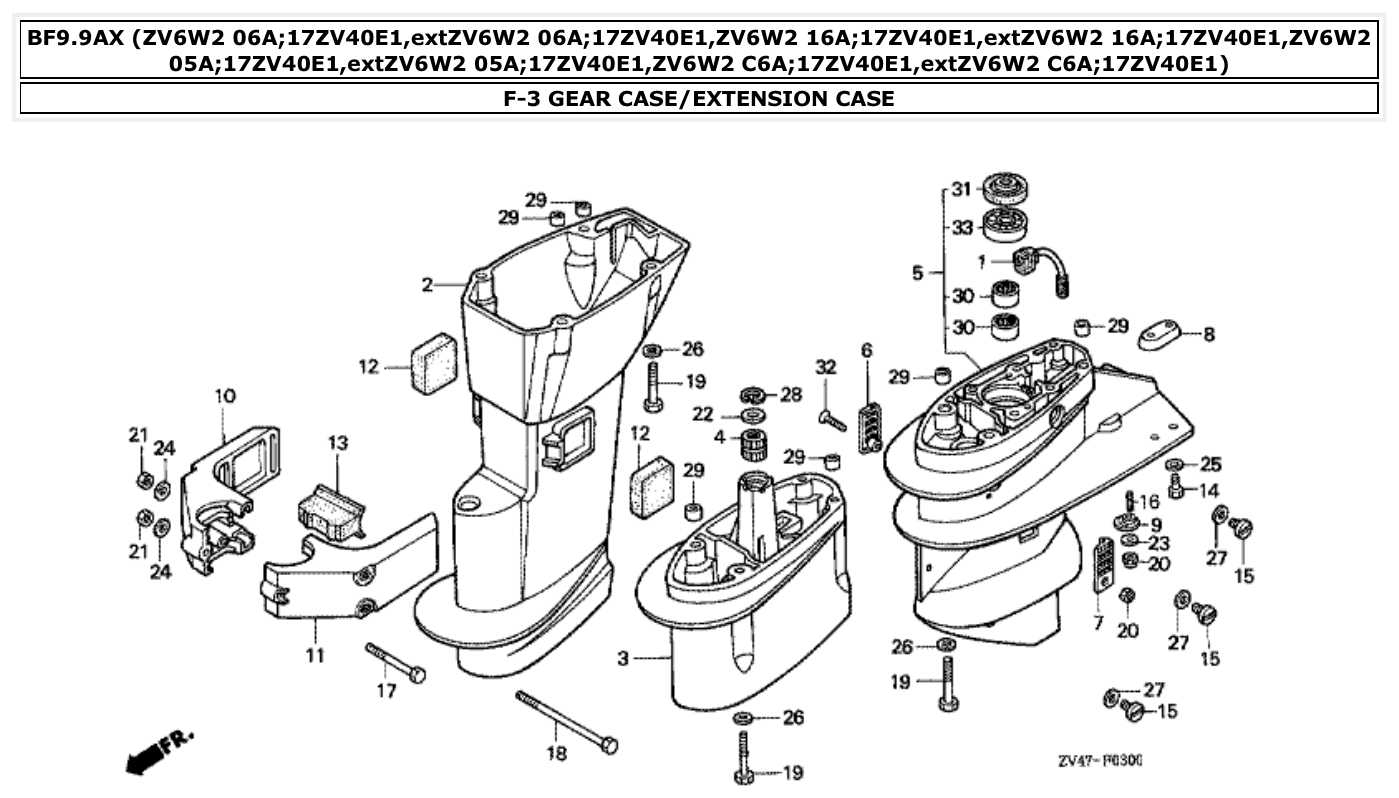

Honda BF9.9AX GEAR CASE/EXTENSION CASE parts diagram
Fig. F-3 — GEAR CASE/EXTENSION CASE
34 items

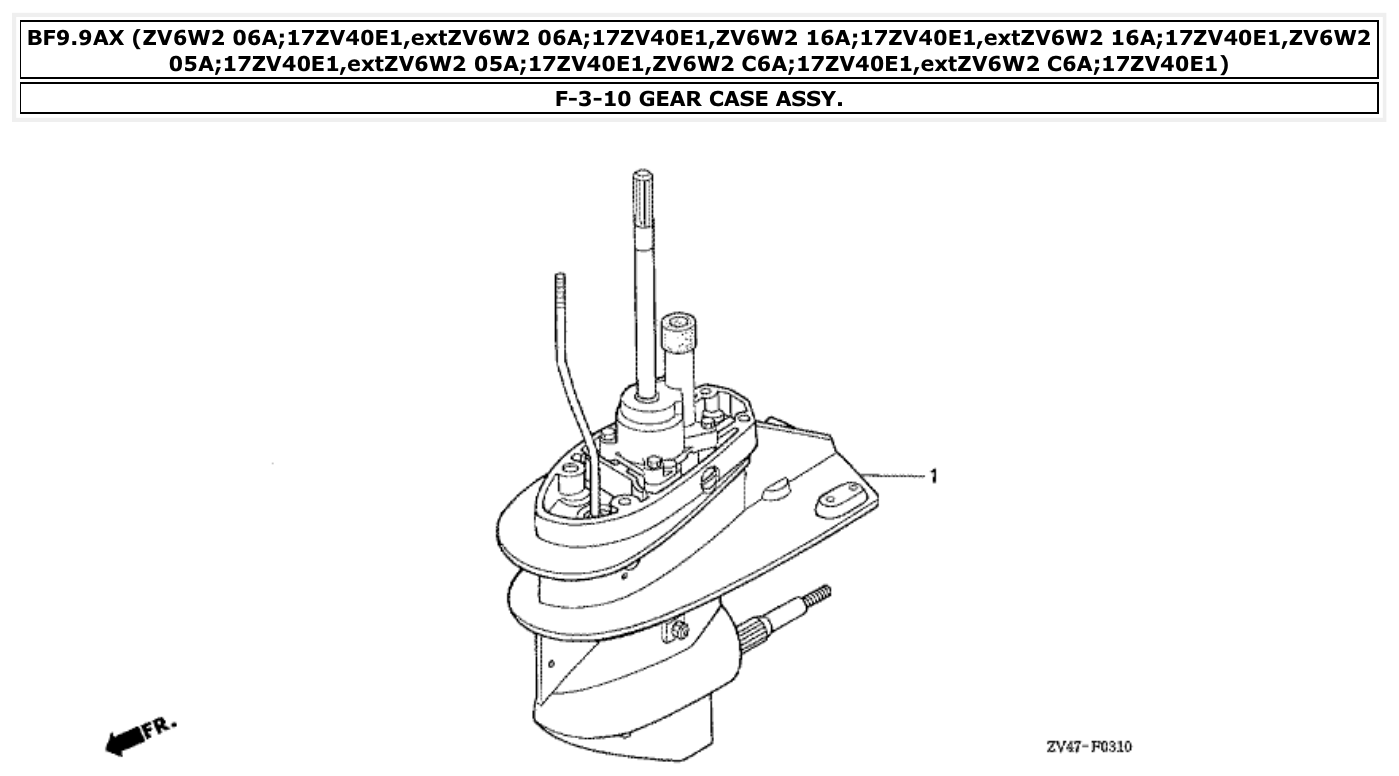

Honda BF9.9AX GEAR CASE ASSY. parts diagram
Fig. F-3-10 — GEAR CASE ASSY.
3 items

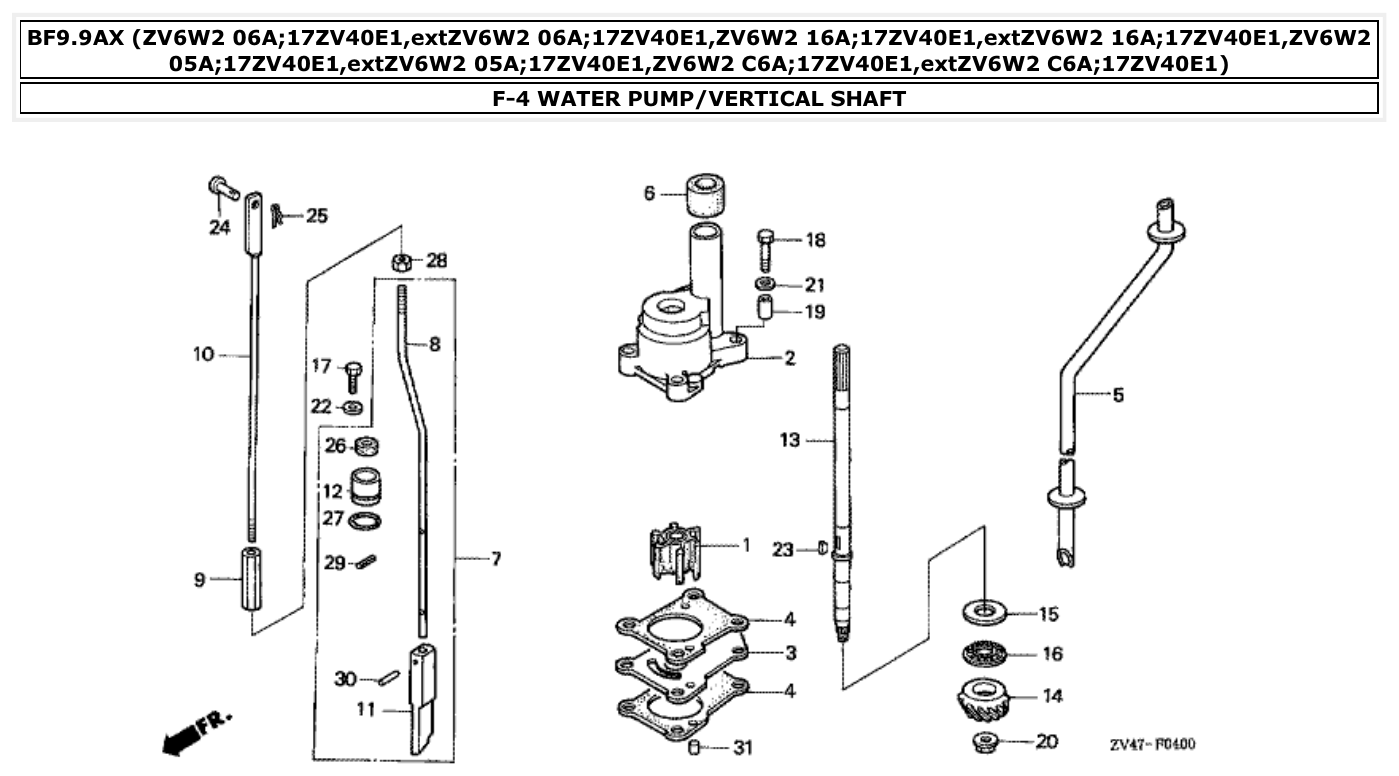

Honda BF9.9AX WATER PUMP/VERTICAL SHAFT parts diagram
Fig. F-4 — WATER PUMP/VERTICAL SHAFT
42 items · 2 available products

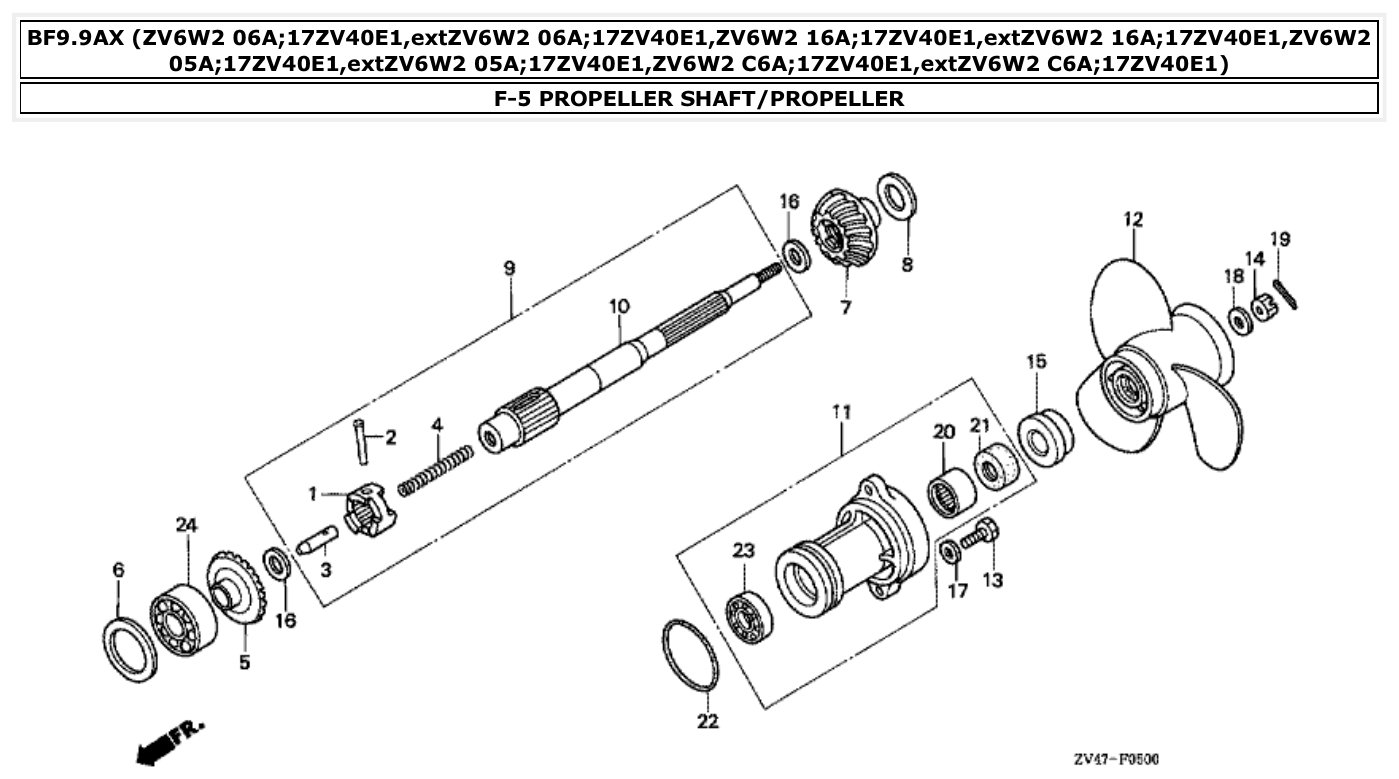

Honda BF9.9AX PROPELLER SHAFT/PROPELLER parts diagram
Fig. F-5 — PROPELLER SHAFT/PROPELLER
29 items · 1 available products

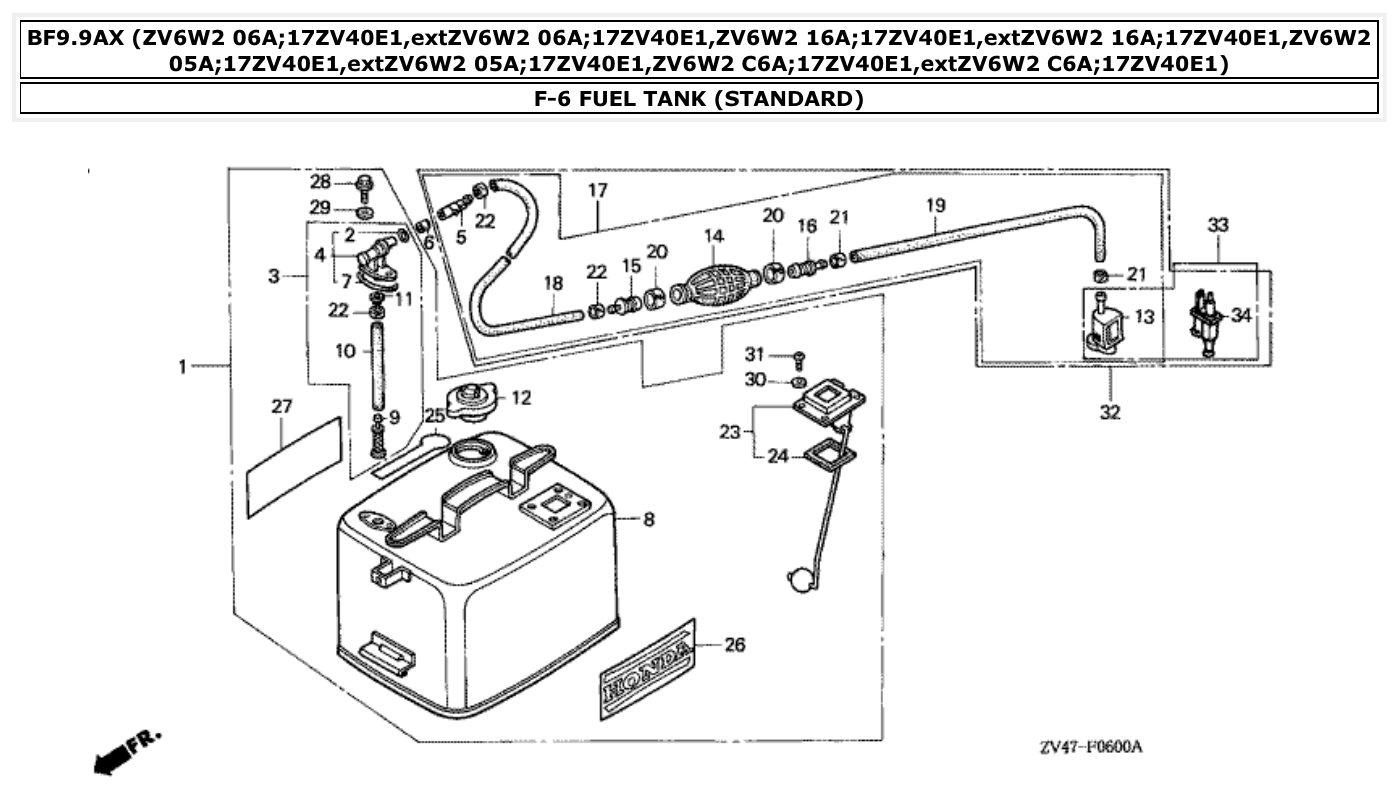

Honda BF9.9AX FUEL TANK (STANDARD) parts diagram
Fig. F-6 — FUEL TANK (STANDARD)
31 items · 1 available products

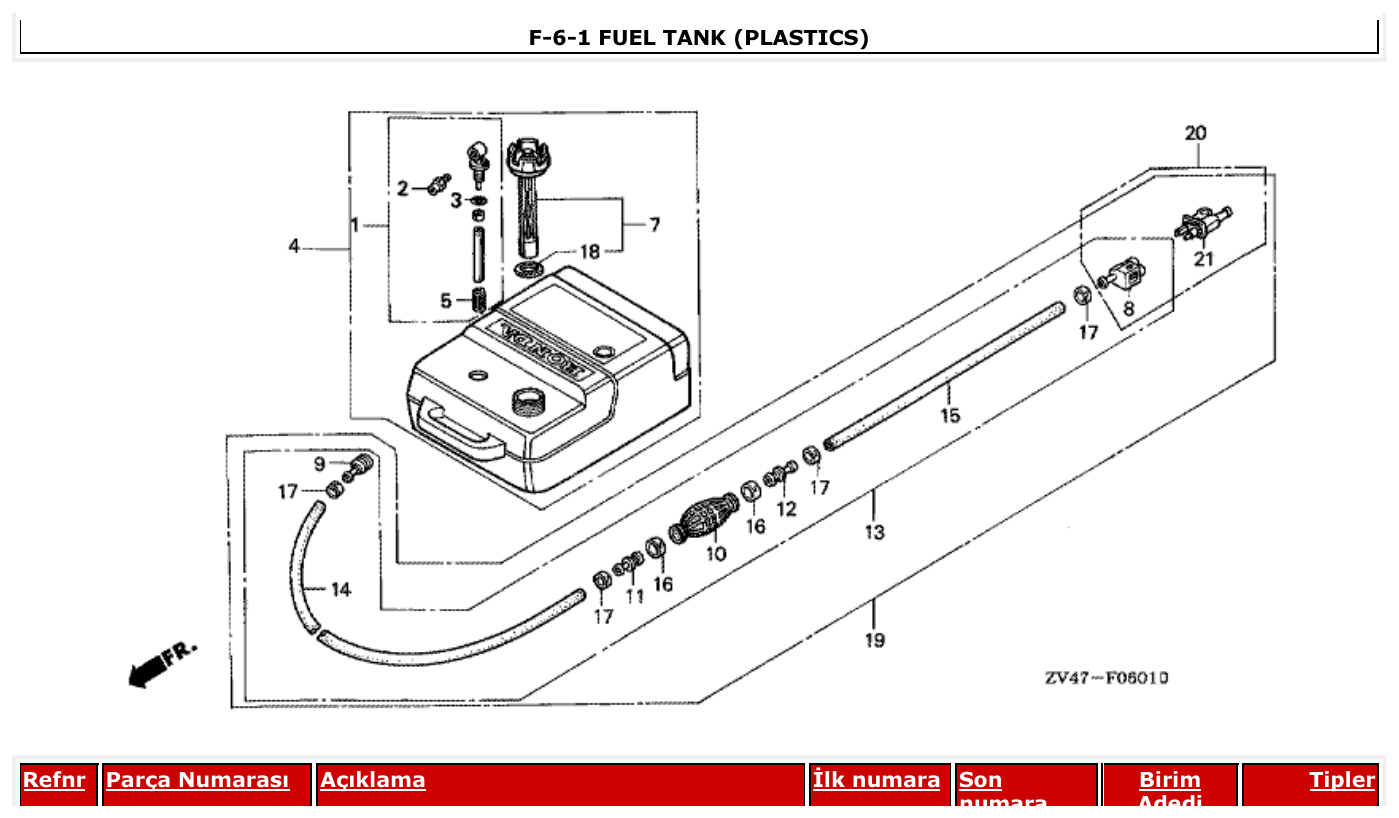

Honda BF9.9AX FUEL TANK (PLASTICS) parts diagram
Fig. F-6-1 — FUEL TANK (PLASTICS)
17 items · 1 available products
Honda BF9.9AX FUEL STRAINER parts diagram

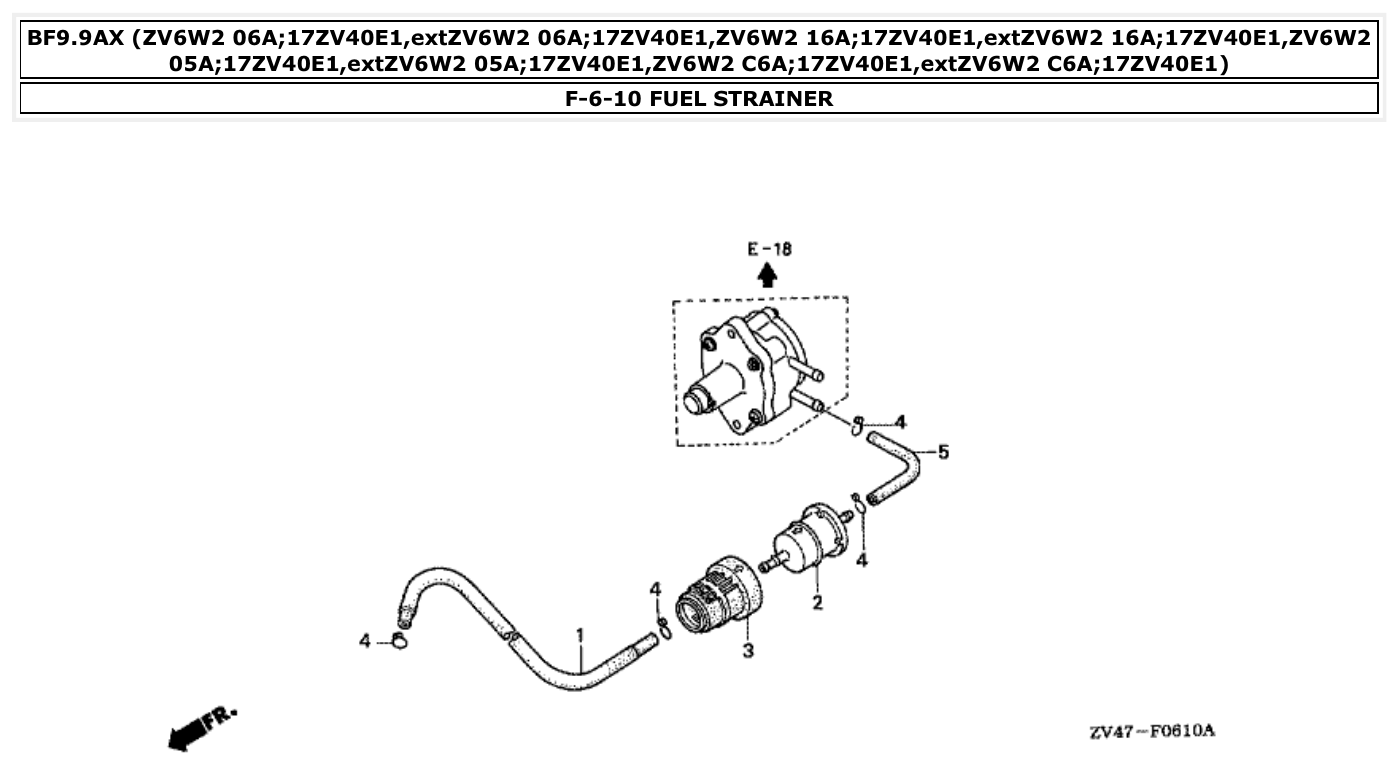

Fig. F-6-10 — FUEL STRAINER
5 items
Honda BF9.9AX WATER TUBE parts diagram

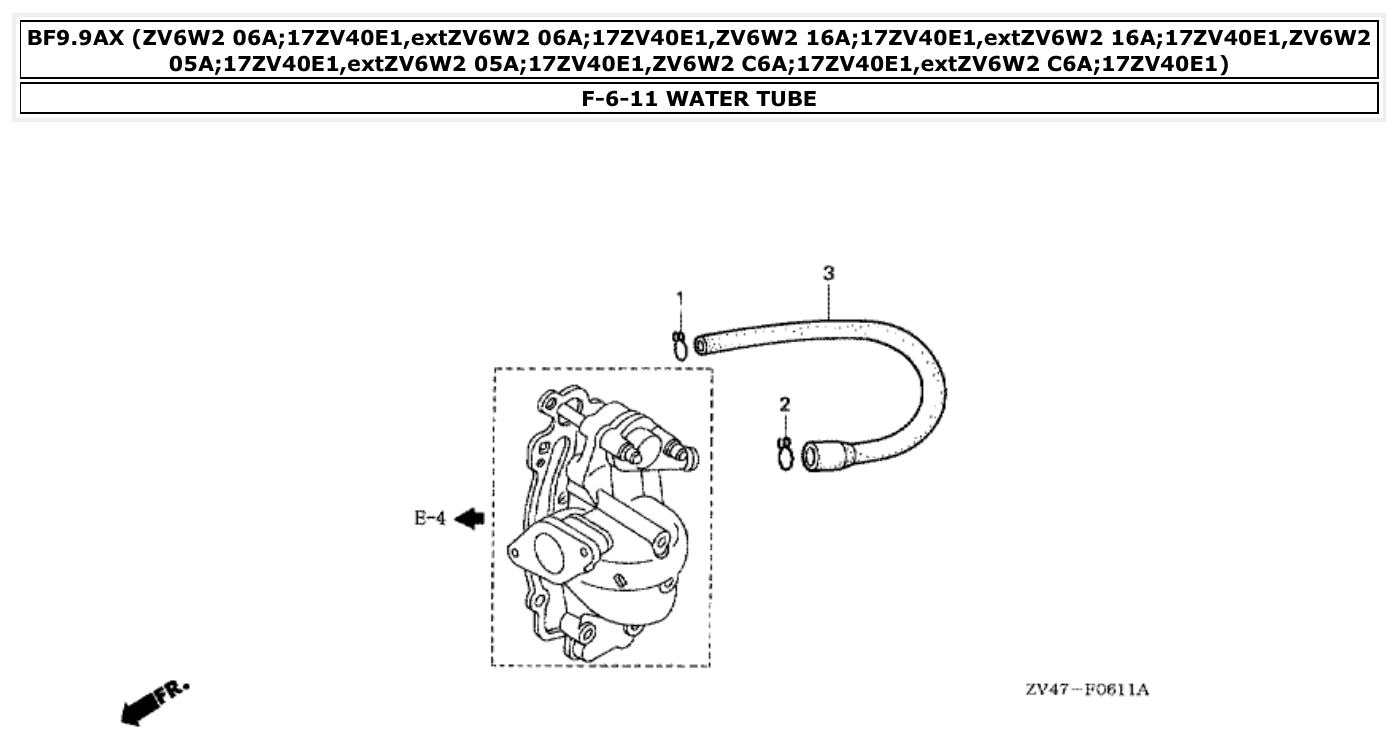

Fig. F-6-11 — WATER TUBE
3 items
Honda BF9.9AX REGULATOR/STARTER CABLE parts diagram

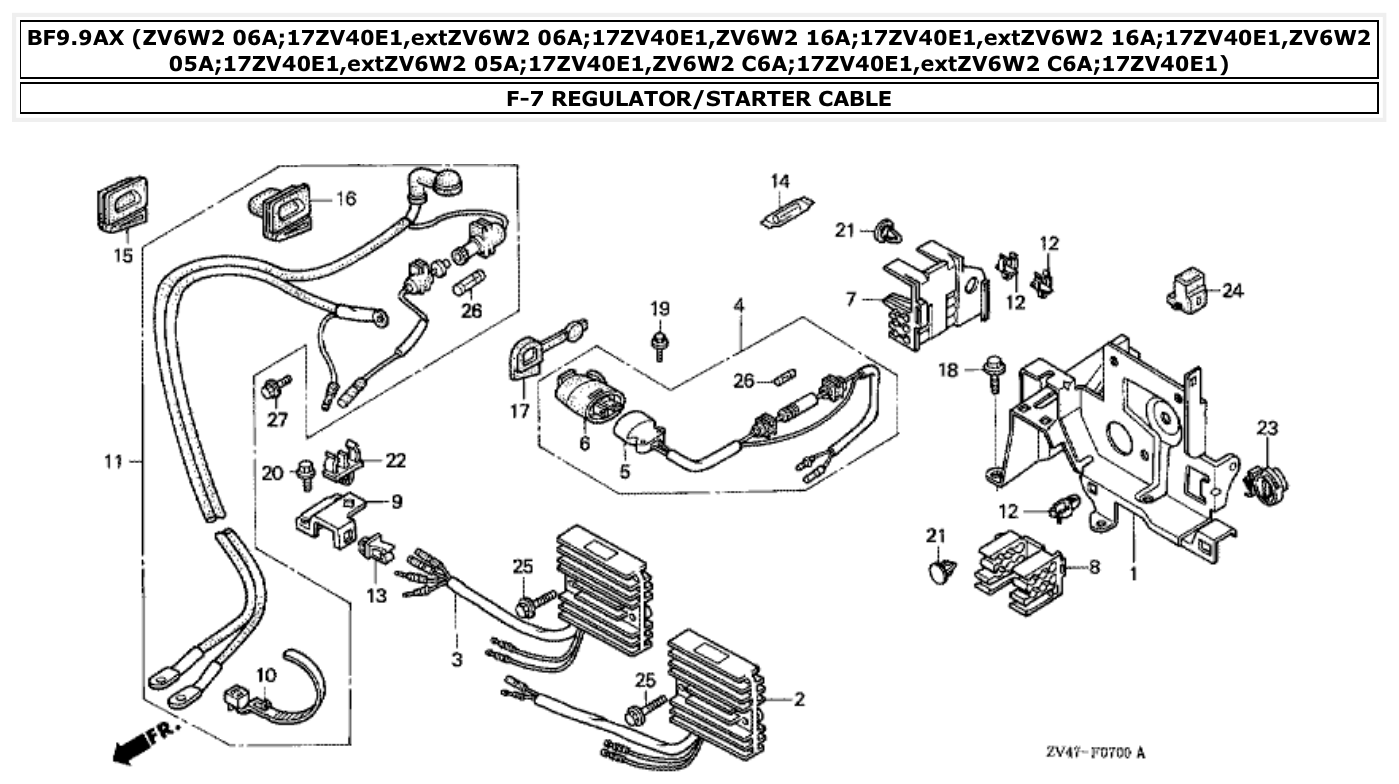

Fig. F-7 — REGULATOR/STARTER CABLE
28 items

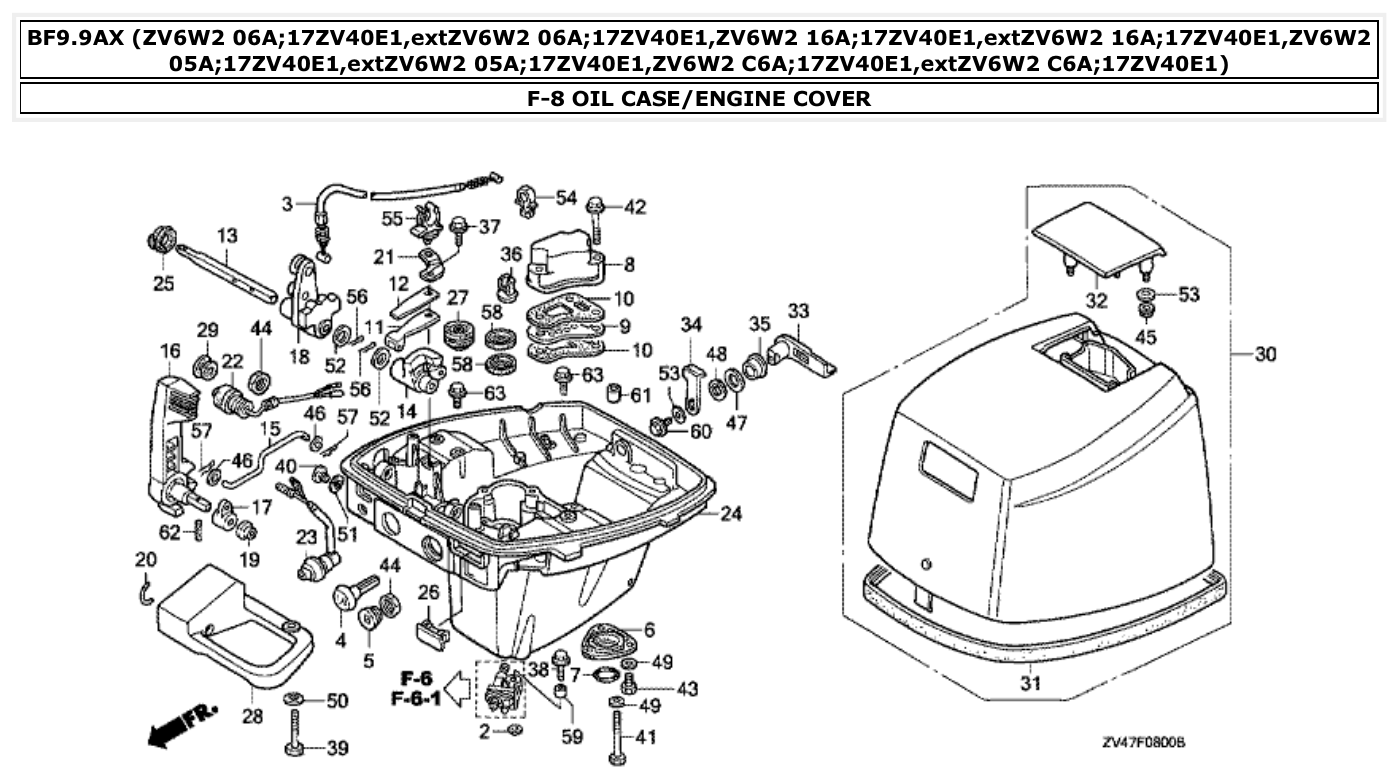

Honda BF9.9AX OIL CASE/ENGINE COVER parts diagram
Fig. F-8 — OIL CASE/ENGINE COVER
64 items
