Honda BF90DK0 Parts Catalog

Honda BF90DK0 Outboard parts and diagrams

Honda BF90DK0 outboard parts catalog includes CYLINDER HEAD COVER, INLET MANIFOLD/INJECTOR, SILENCER CASE, FUEL PUMP, WATER SEPARATOR, VAPOR SEPARATOR, A.C. GENERATOR, CYLINDER HEAD, PLUG TOP COIL, ELECTRONIC CONTROL UNIT, STARTER MOTOR, CYLINDER BLOCK, OIL PUMP, OIL CASE, CRANKSHAFT/PISTON, CAMSHAFT/VALVE, CHAIN CASE, STEERING HANDLE. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

12 linked store products are available across 42 catalog sections. 2319 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Honda BF90DK0 CYLINDER HEAD COVER parts diagram

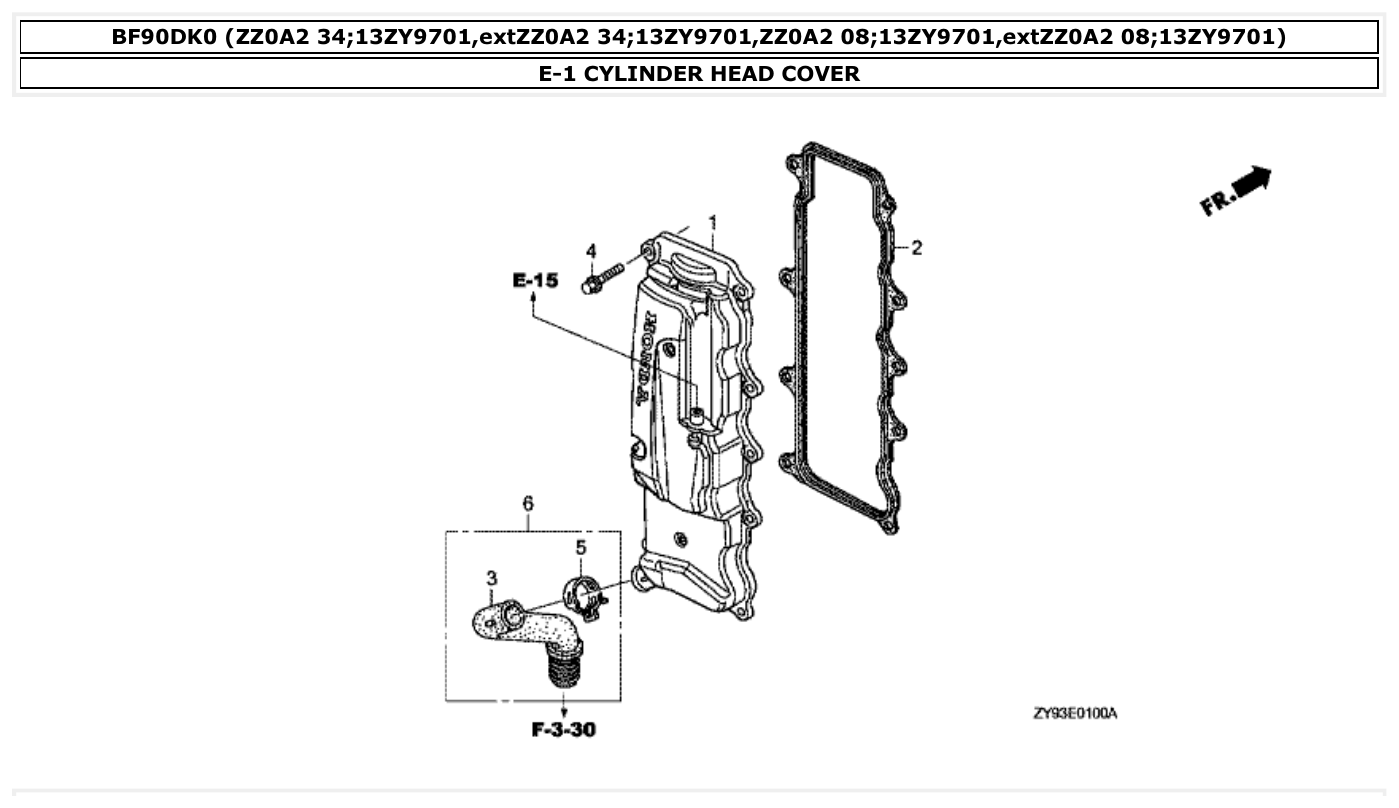

Fig. E-1 — CYLINDER HEAD COVER
9 items
Honda BF90DK0 INLET MANIFOLD/INJECTOR parts diagram

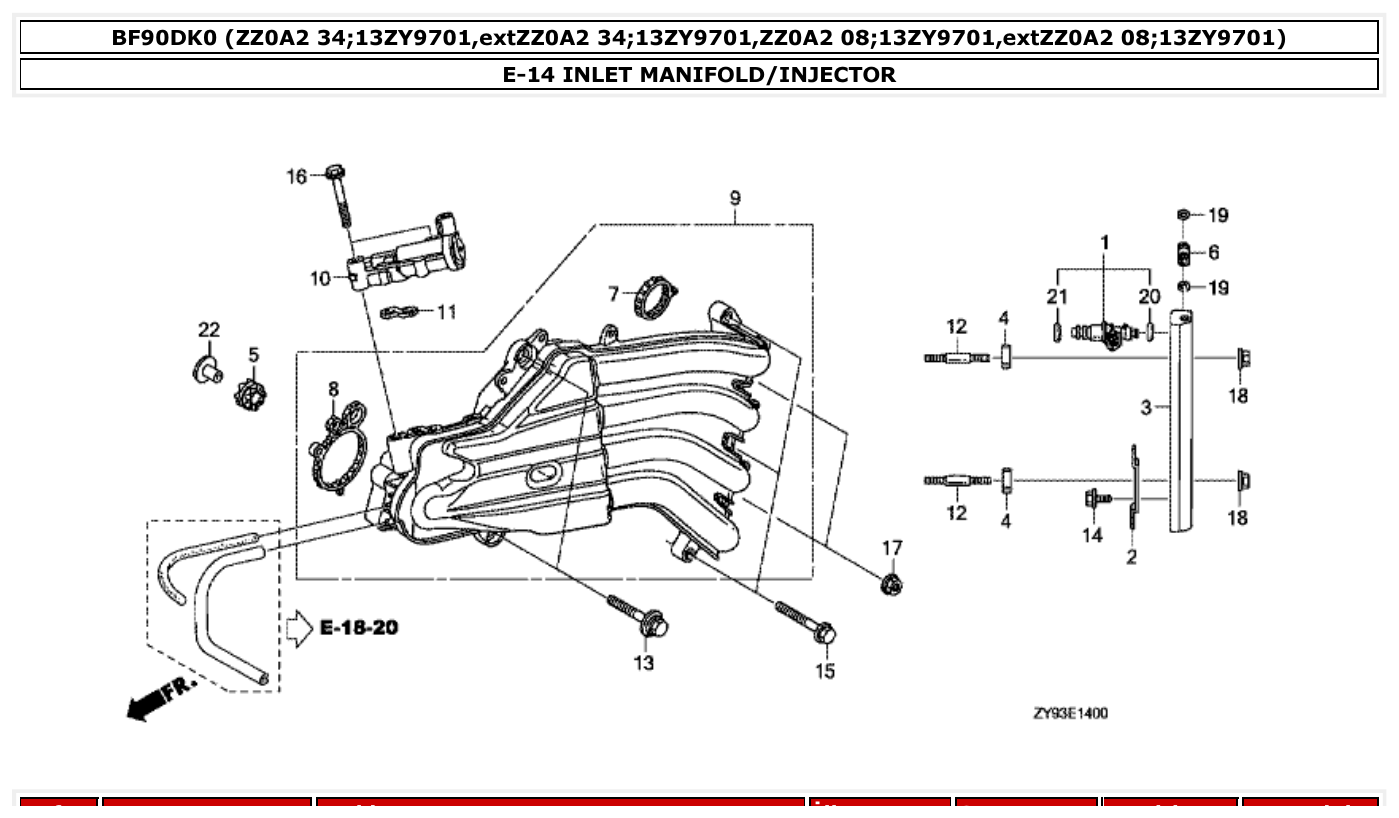

Fig. E-14 — INLET MANIFOLD/INJECTOR
24 items
Honda BF90DK0 SILENCER CASE parts diagram

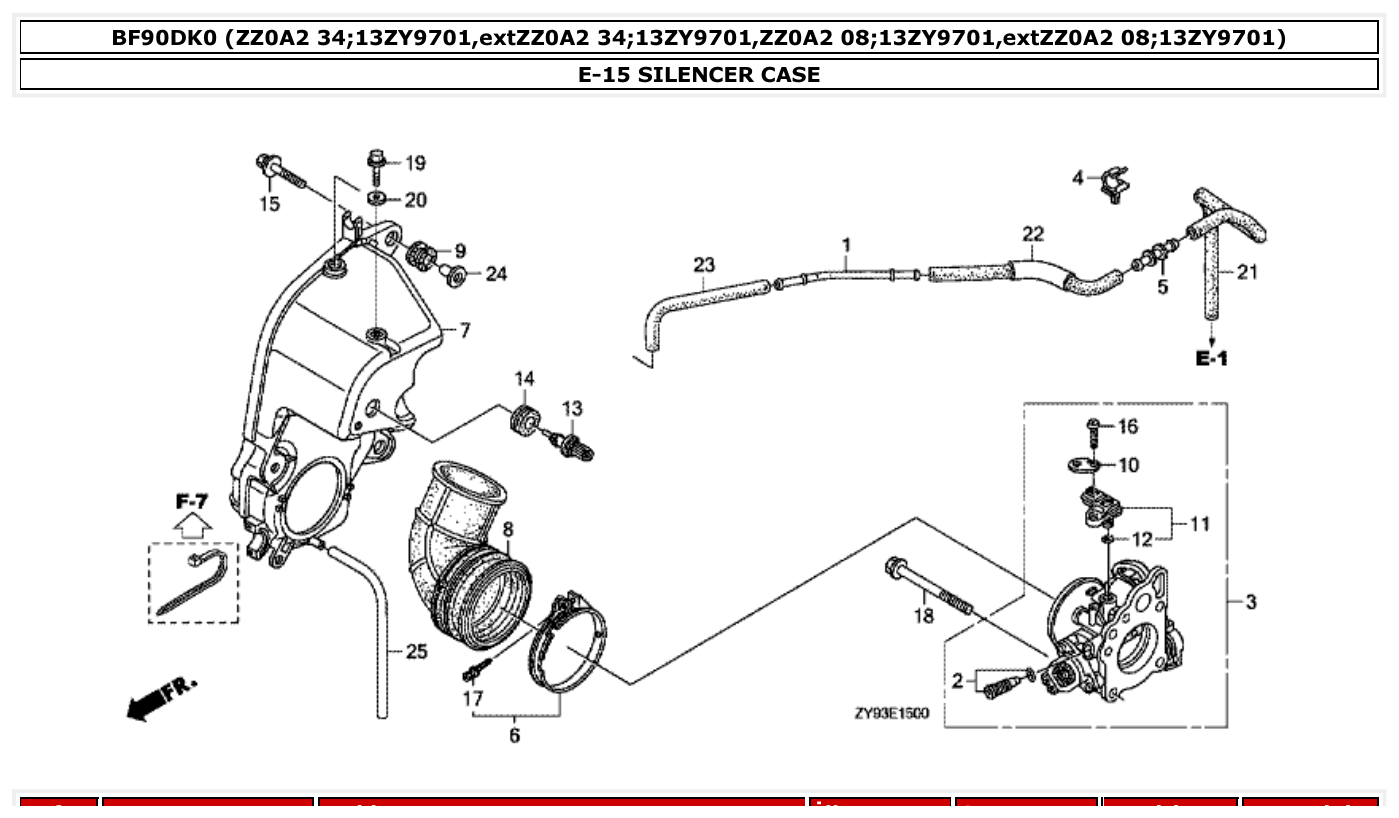

Fig. E-15 — SILENCER CASE
25 items
Honda BF90DK0 FUEL PUMP parts diagram

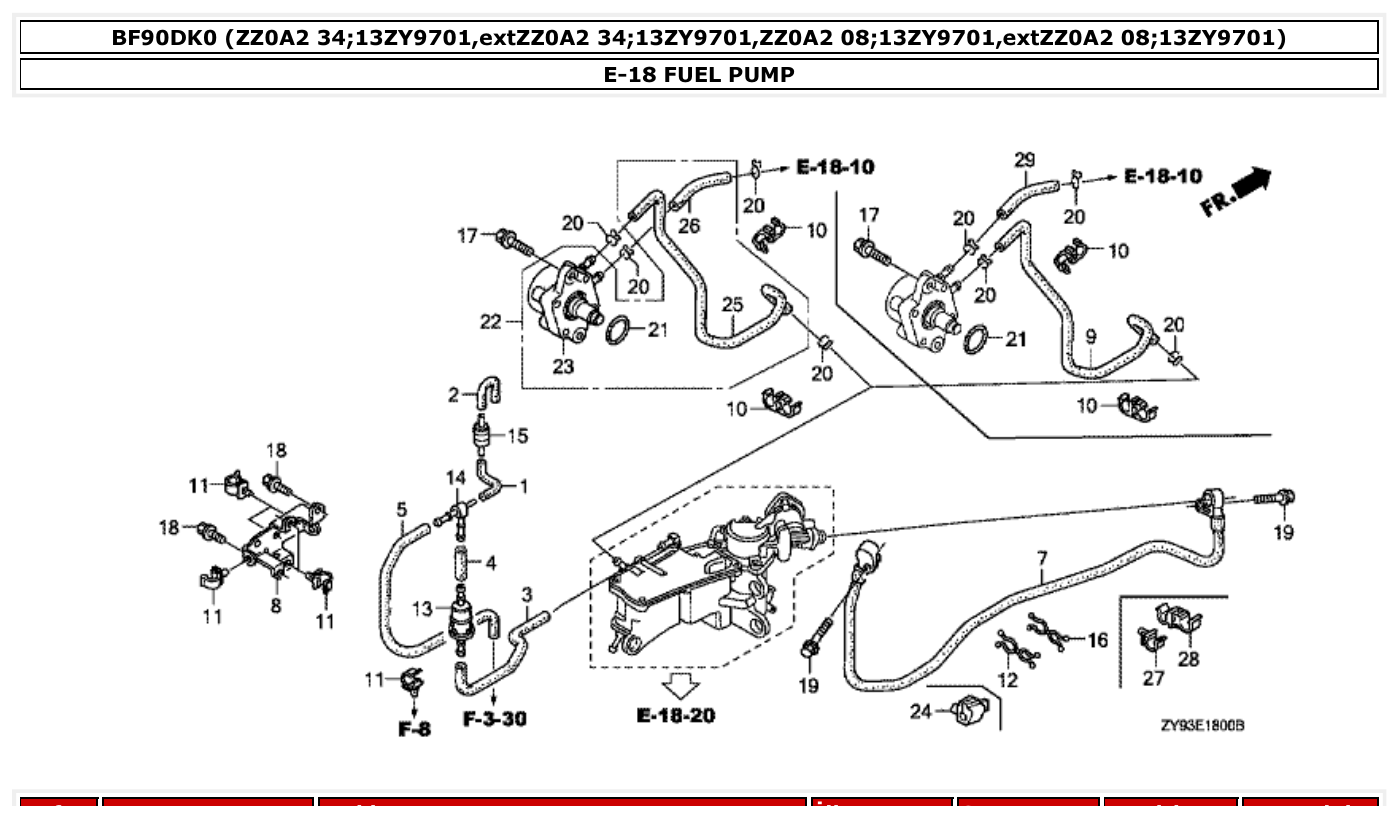

Fig. E-18 — FUEL PUMP
40 items

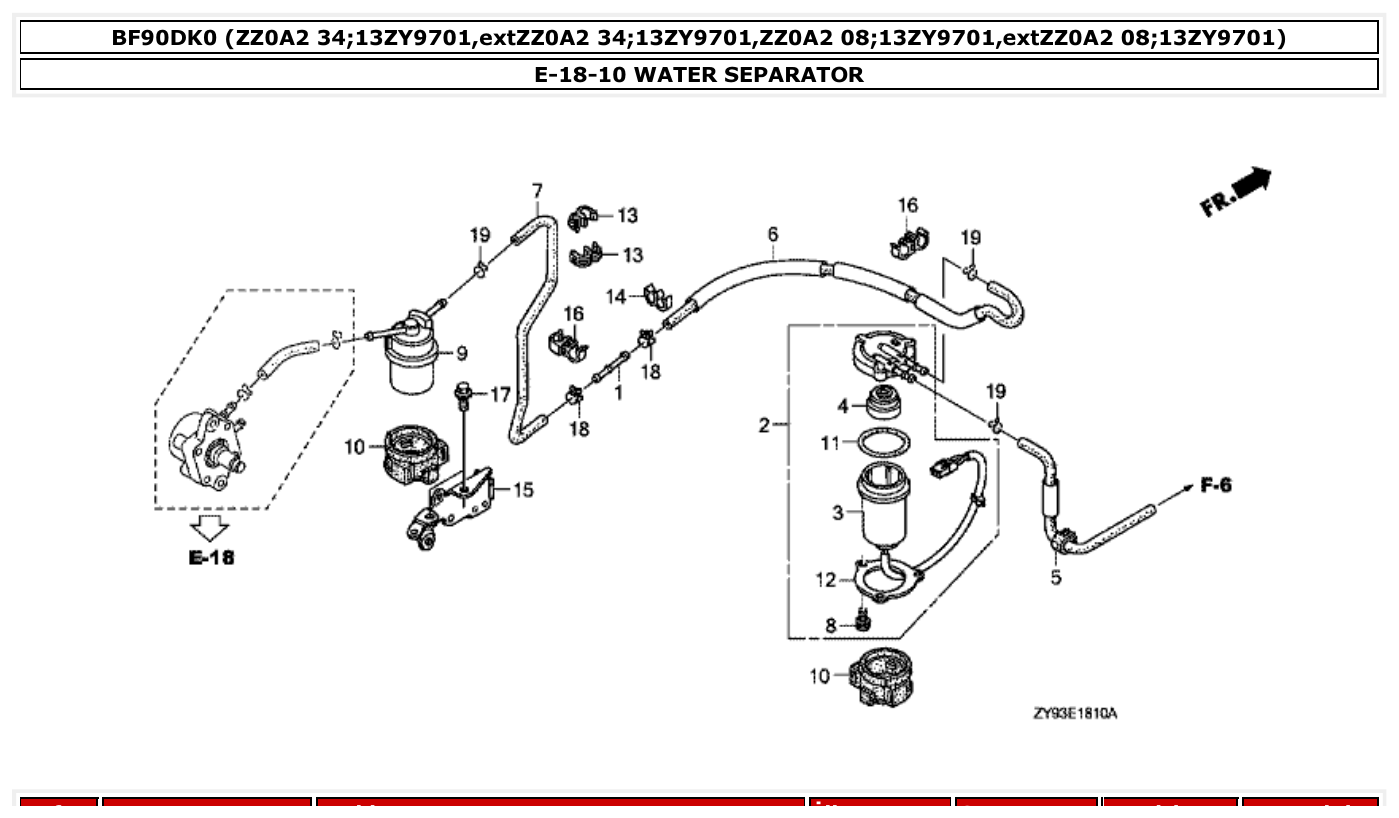

Honda BF90DK0 WATER SEPARATOR parts diagram
Fig. E-18-10 — WATER SEPARATOR
22 items · 1 available products
Honda BF90DK0 VAPOR SEPARATOR parts diagram

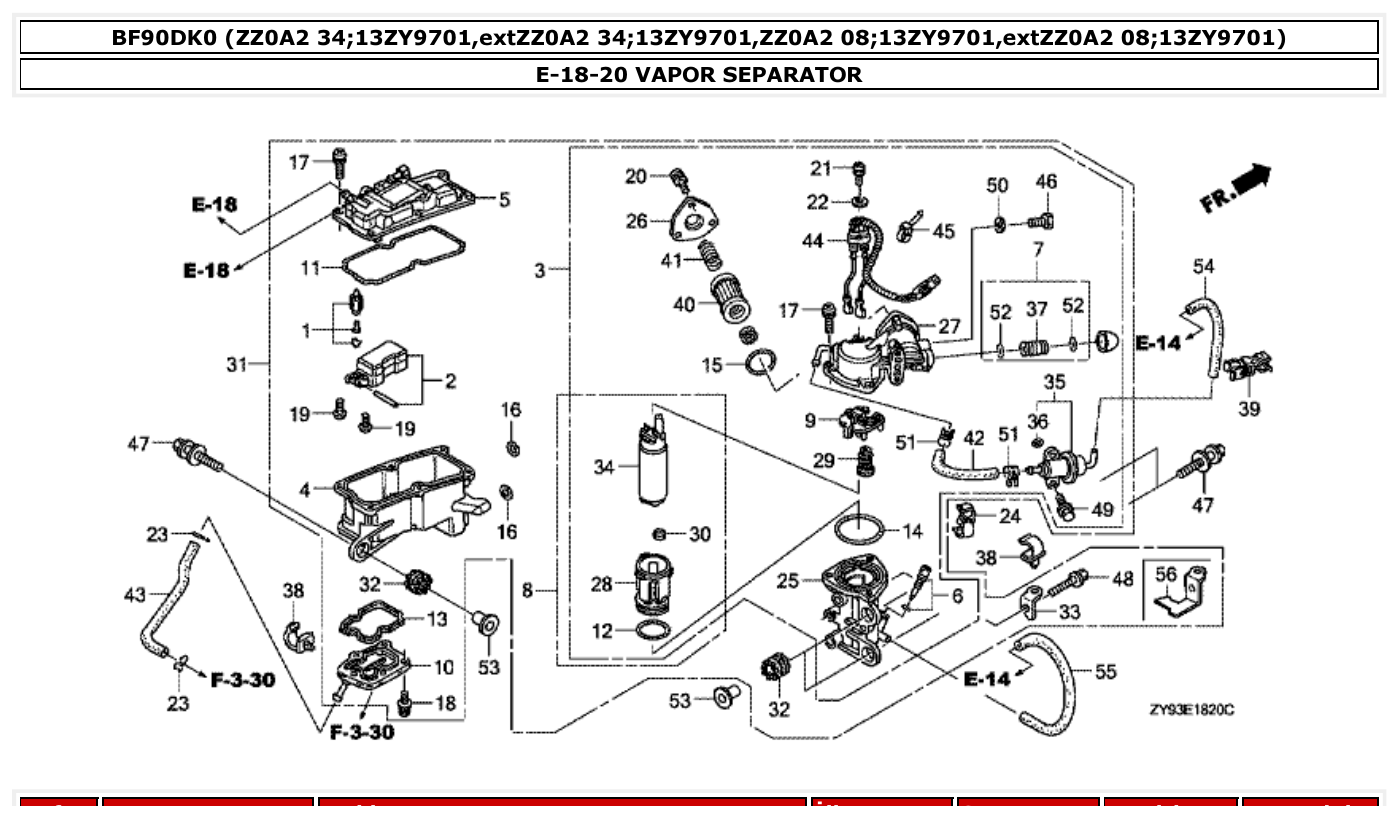

Fig. E-18-20 — VAPOR SEPARATOR
75 items
Honda BF90DK0 A.C. GENERATOR parts diagram

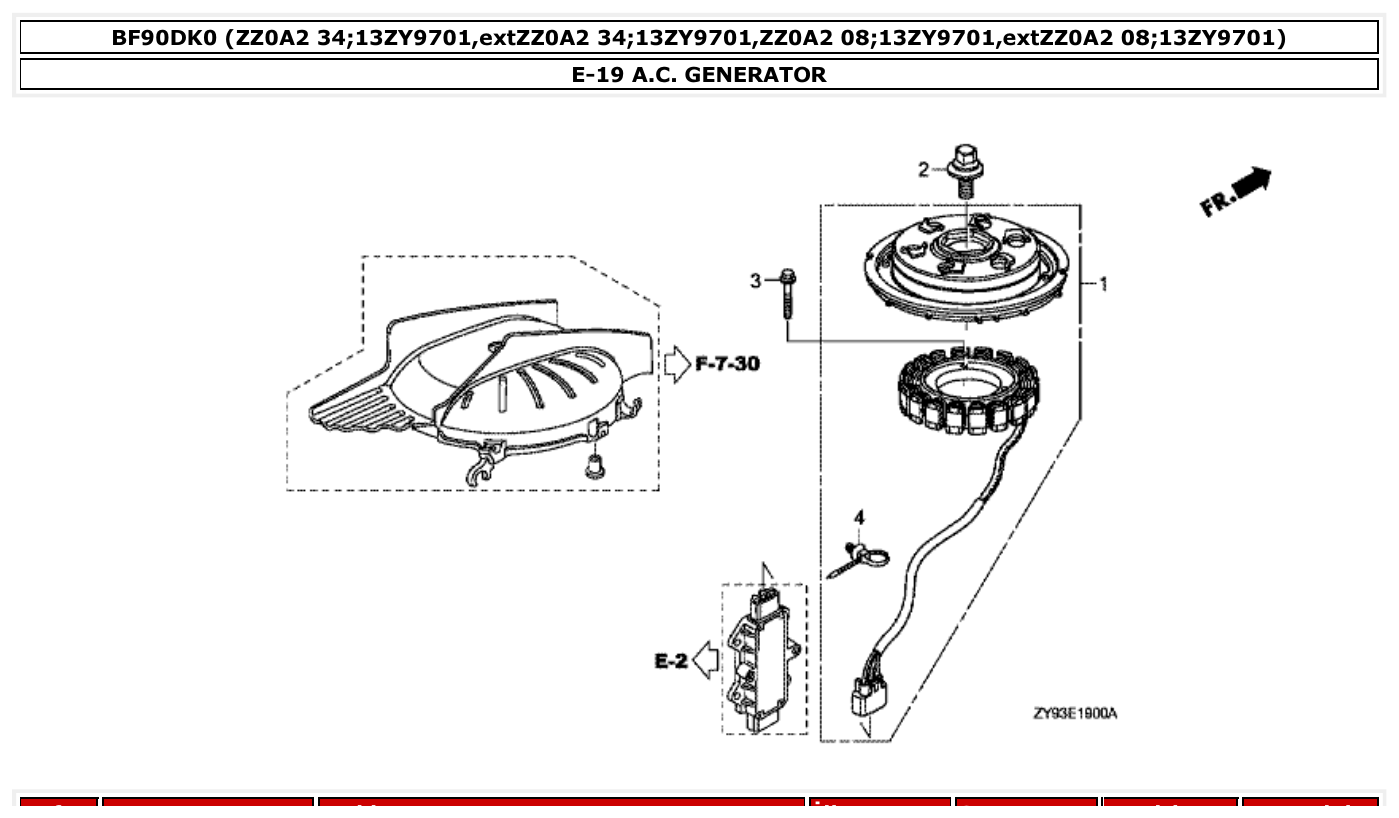

Fig. E-19 — A.C. GENERATOR
6 items

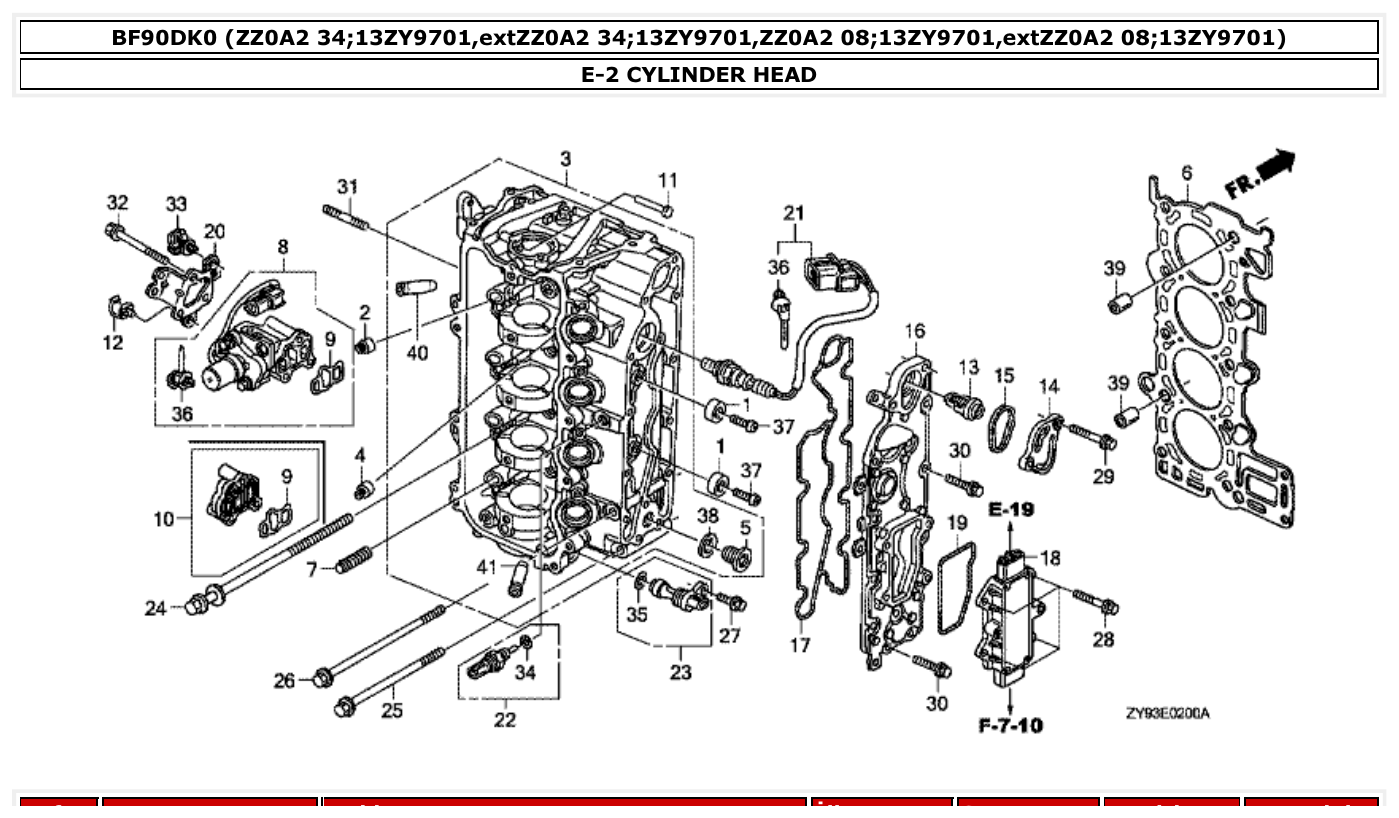

Honda BF90DK0 CYLINDER HEAD parts diagram
Fig. E-2 — CYLINDER HEAD
45 items

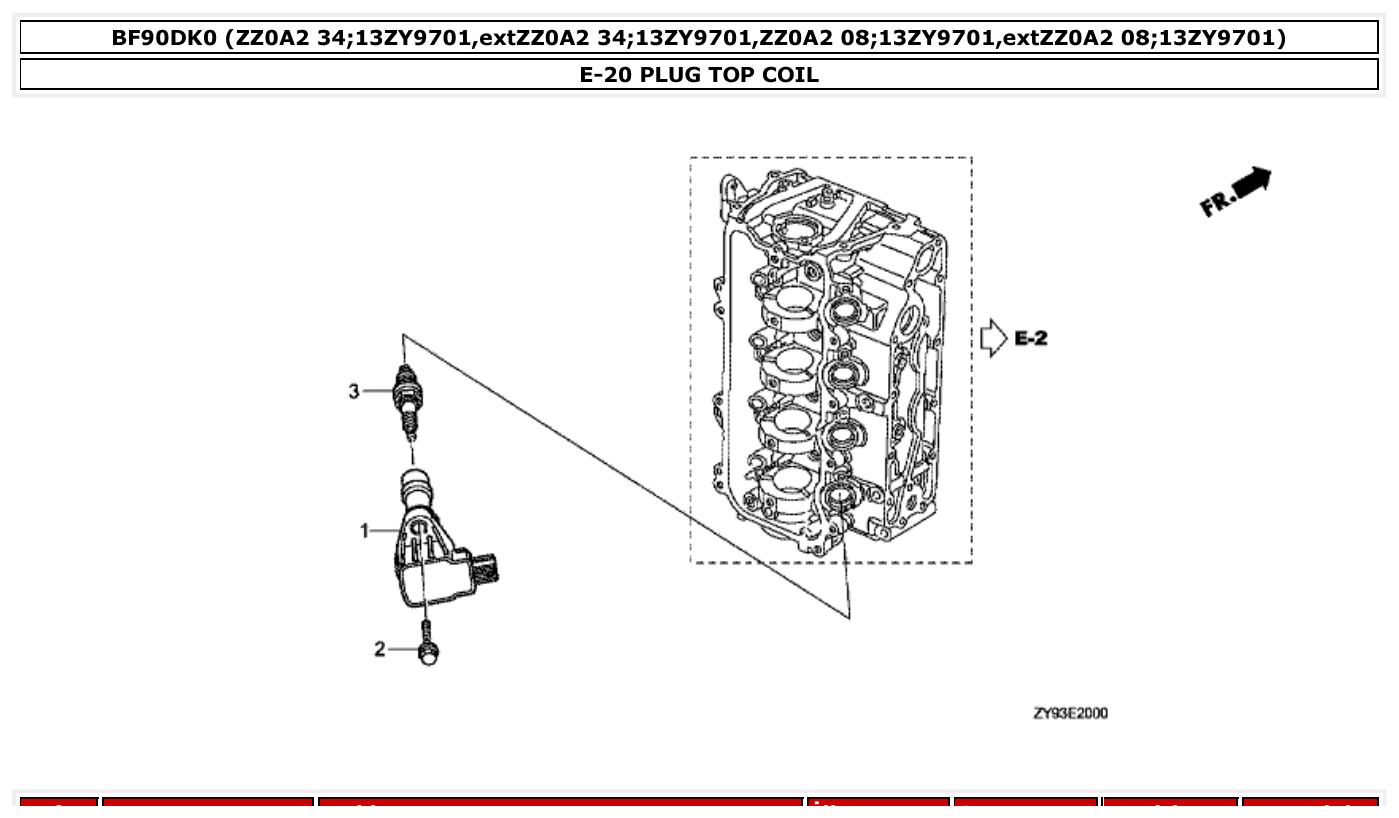

Honda BF90DK0 PLUG TOP COIL parts diagram
Fig. E-20 — PLUG TOP COIL
3 items
Honda BF90DK0 ELECTRONIC CONTROL UNIT parts diagram

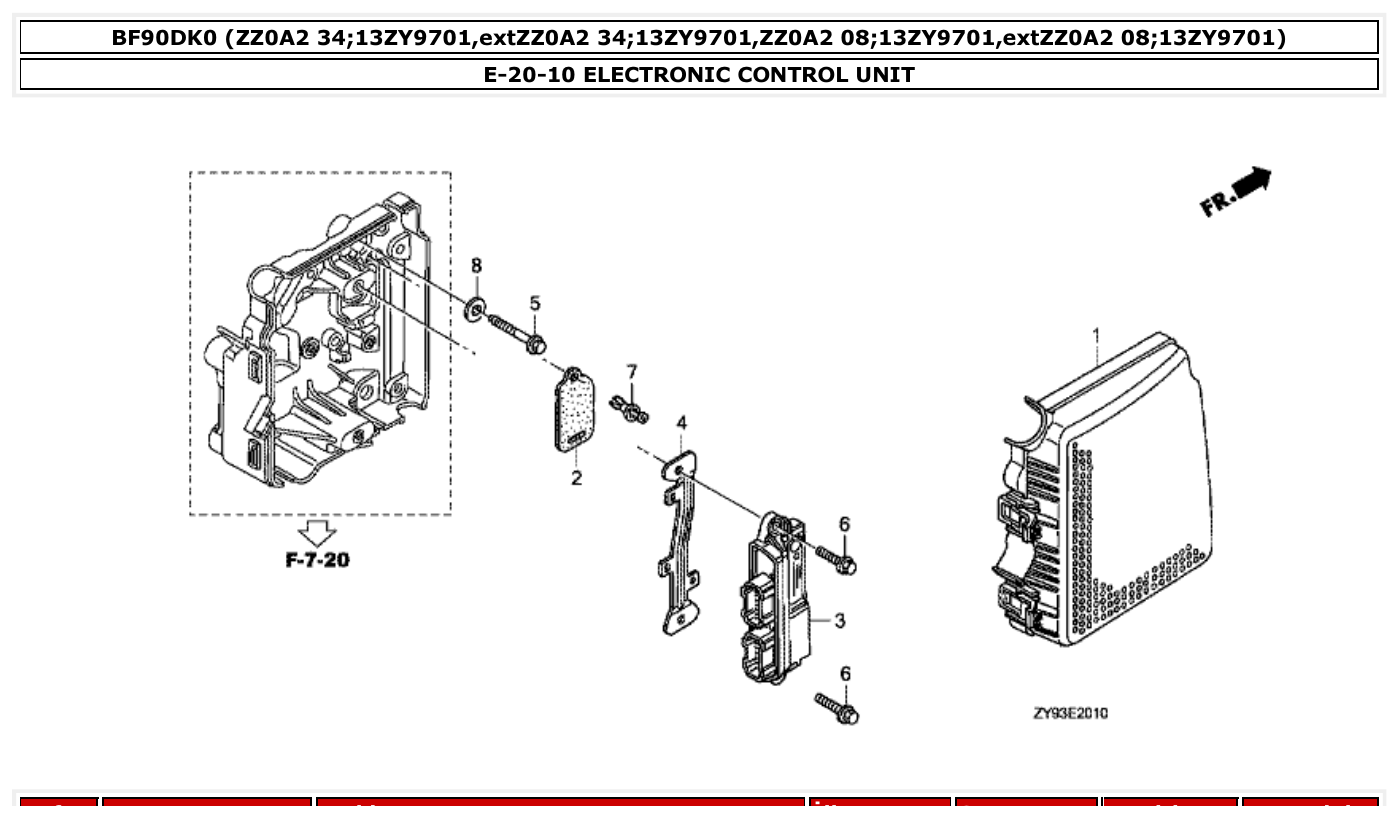

Fig. E-20-10 — ELECTRONIC CONTROL UNIT
11 items

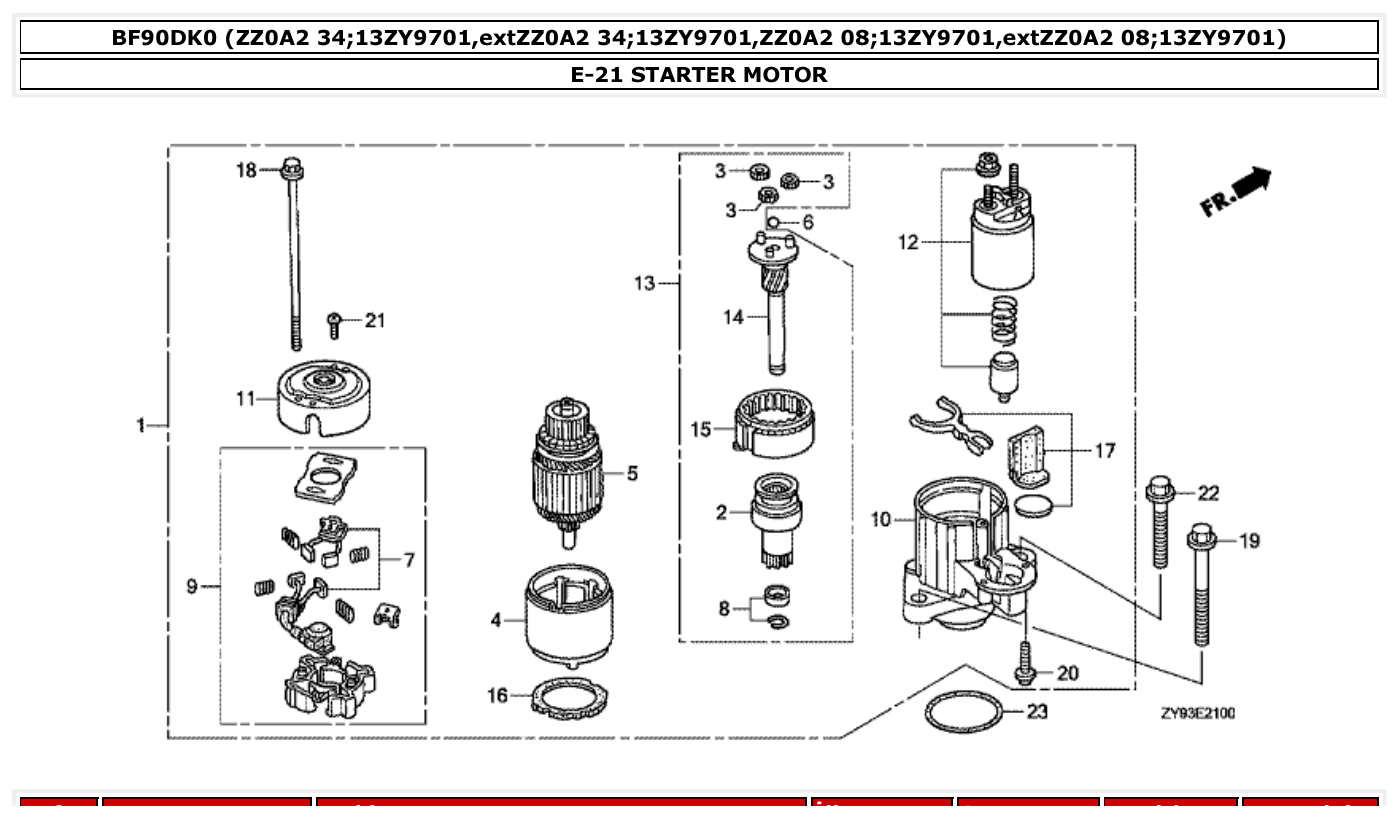

Honda BF90DK0 STARTER MOTOR parts diagram
Fig. E-21 — STARTER MOTOR
23 items

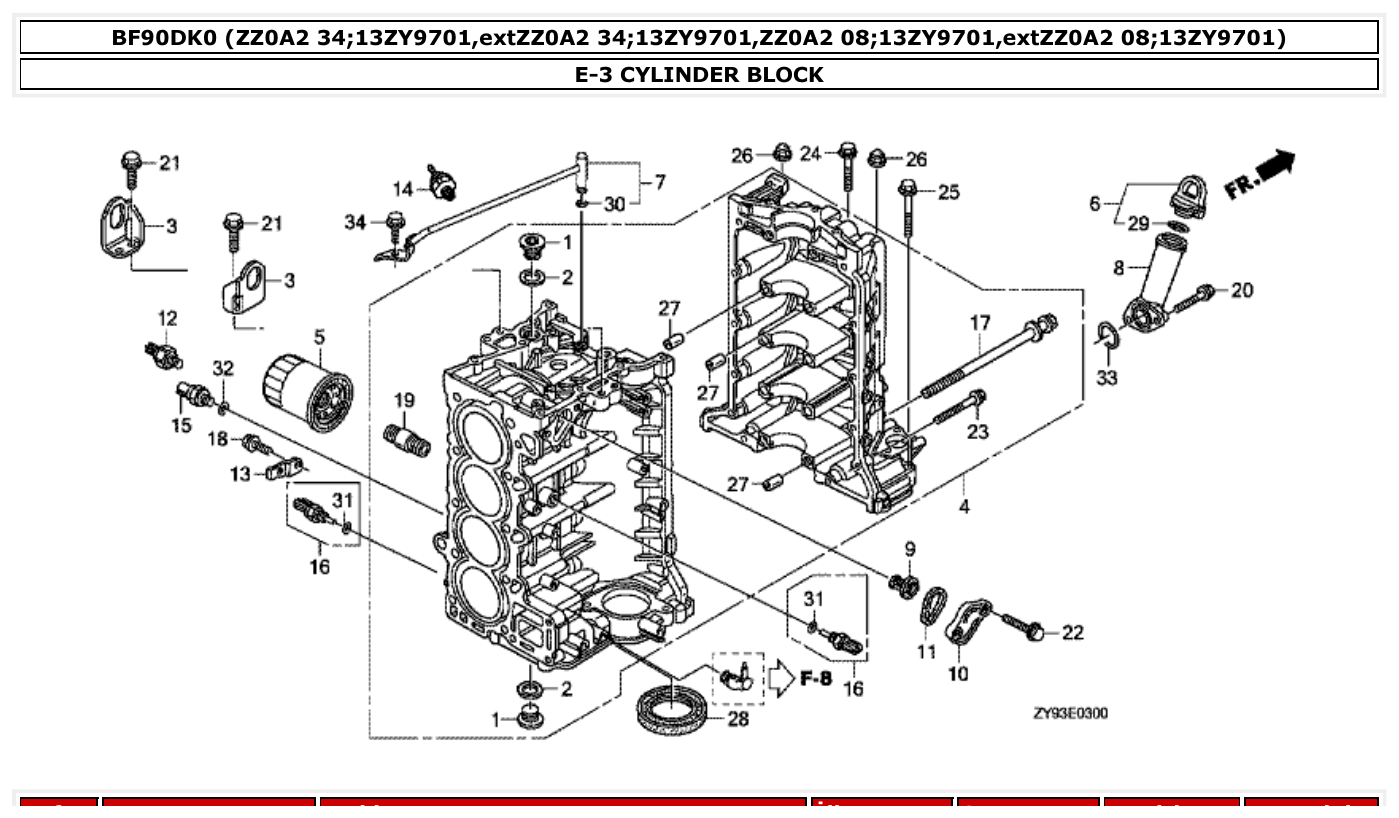

Honda BF90DK0 CYLINDER BLOCK parts diagram
Fig. E-3 — CYLINDER BLOCK
38 items

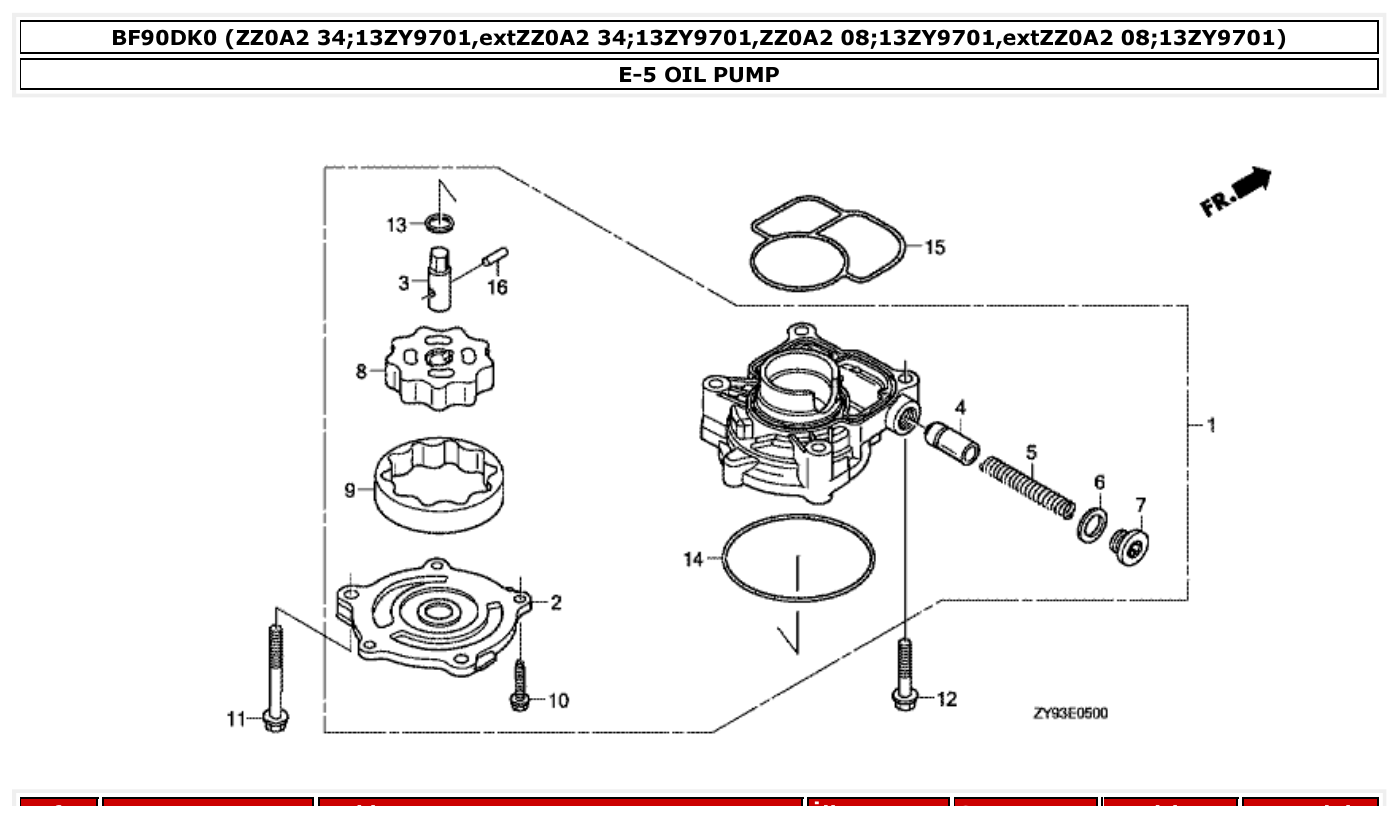

Honda BF90DK0 OIL PUMP parts diagram
Fig. E-5 — OIL PUMP
16 items

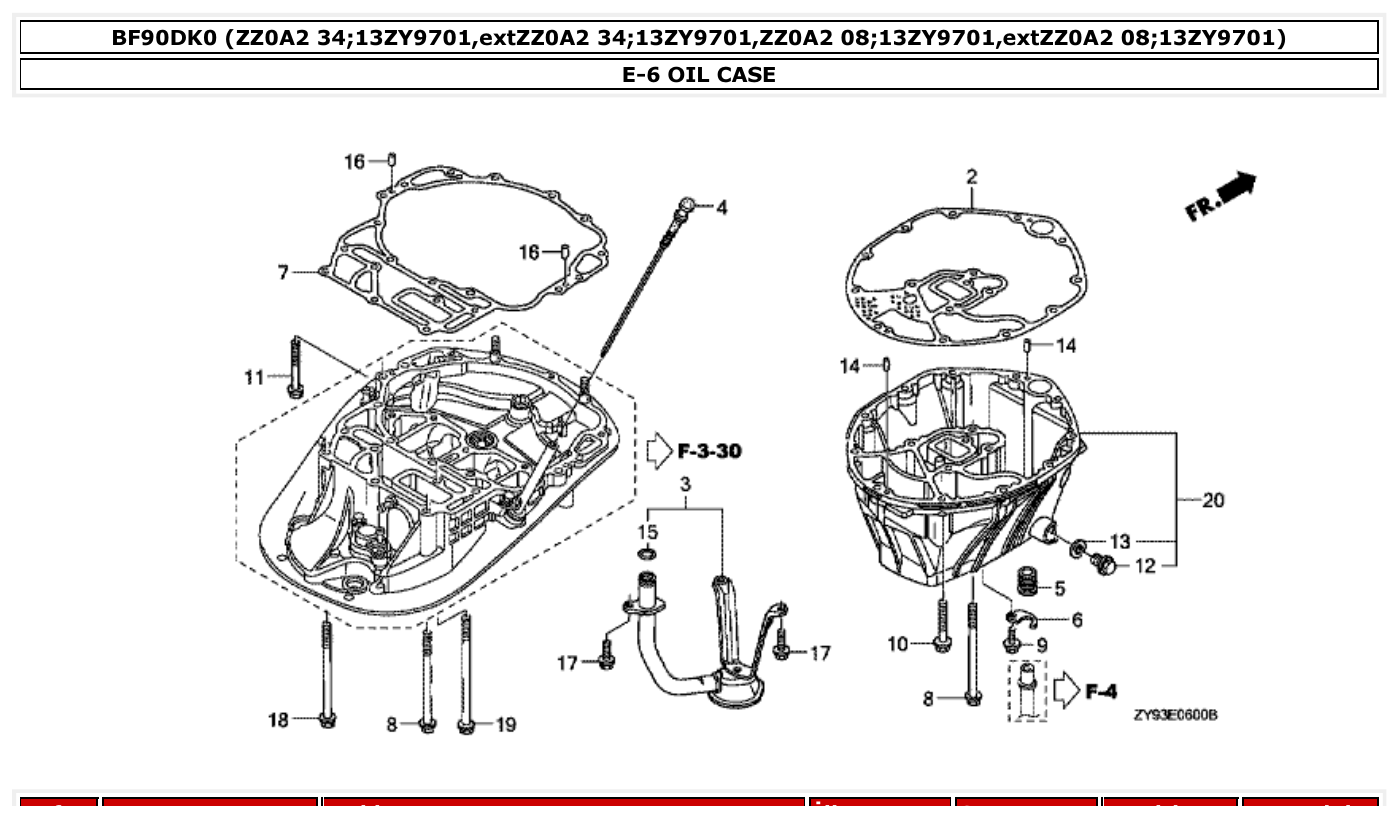

Honda BF90DK0 OIL CASE parts diagram
Fig. E-6 — OIL CASE
25 items
Honda BF90DK0 CRANKSHAFT/PISTON parts diagram

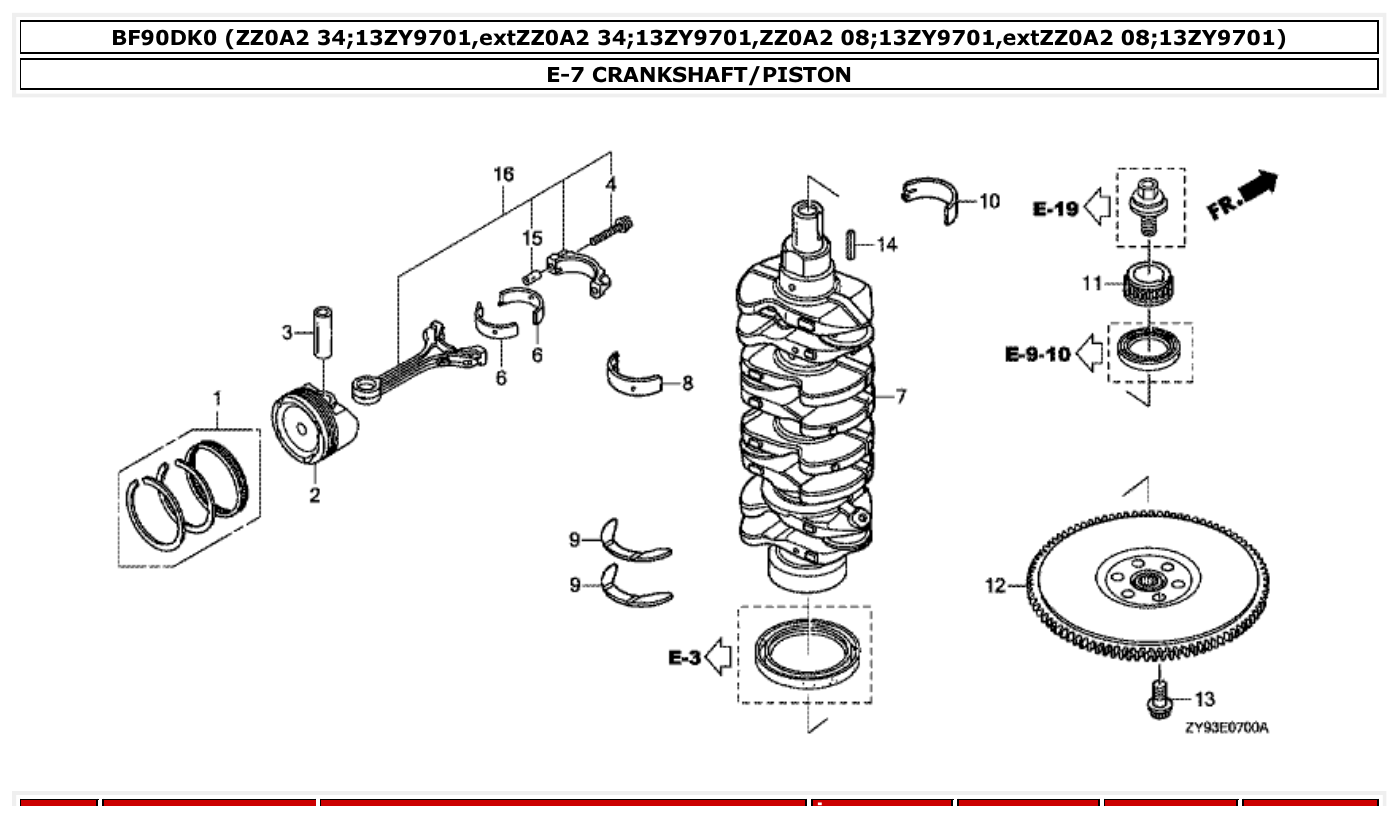

Fig. E-7 — CRANKSHAFT/PISTON
36 items

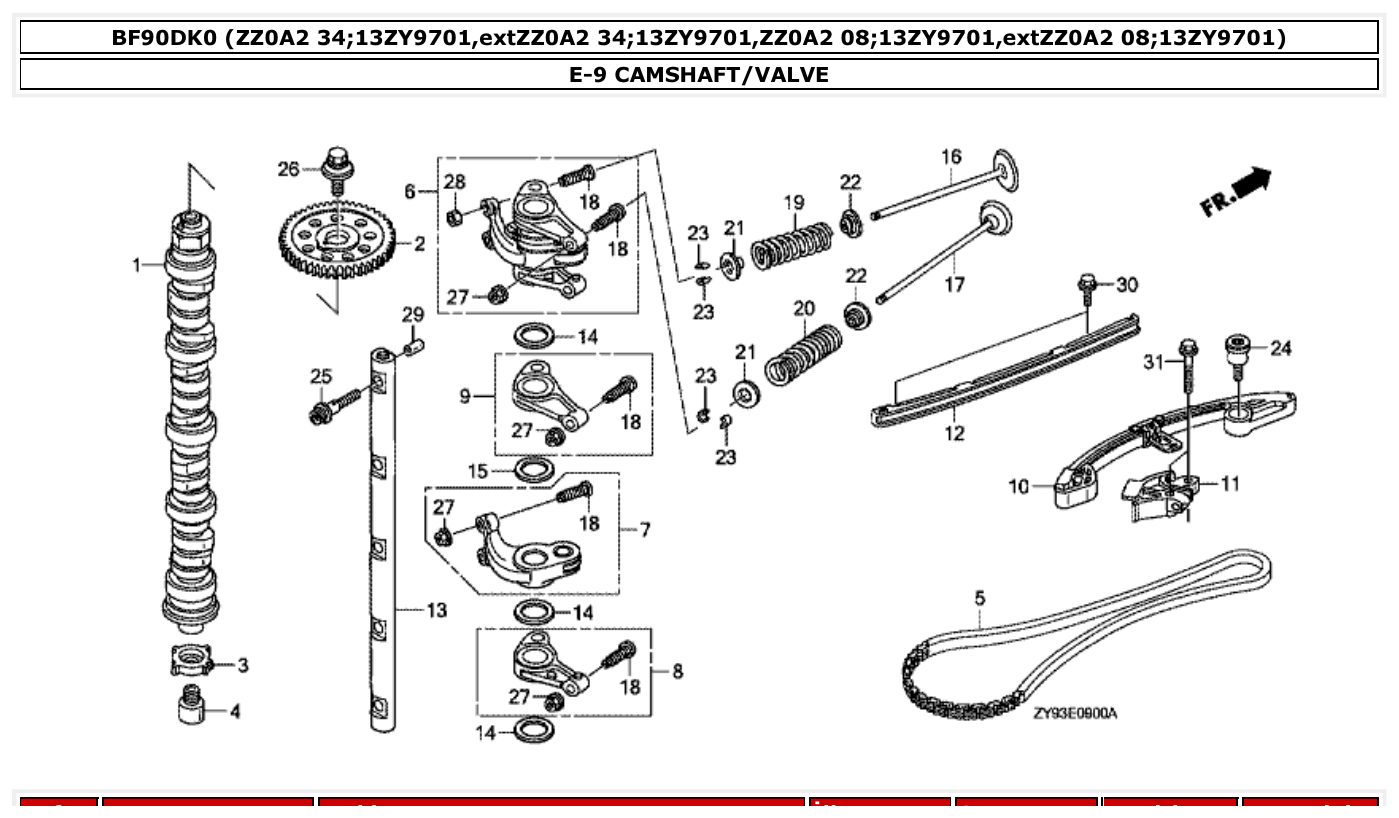

Honda BF90DK0 CAMSHAFT/VALVE parts diagram
Fig. E-9 — CAMSHAFT/VALVE
27 items
Honda BF90DK0 CHAIN CASE parts diagram

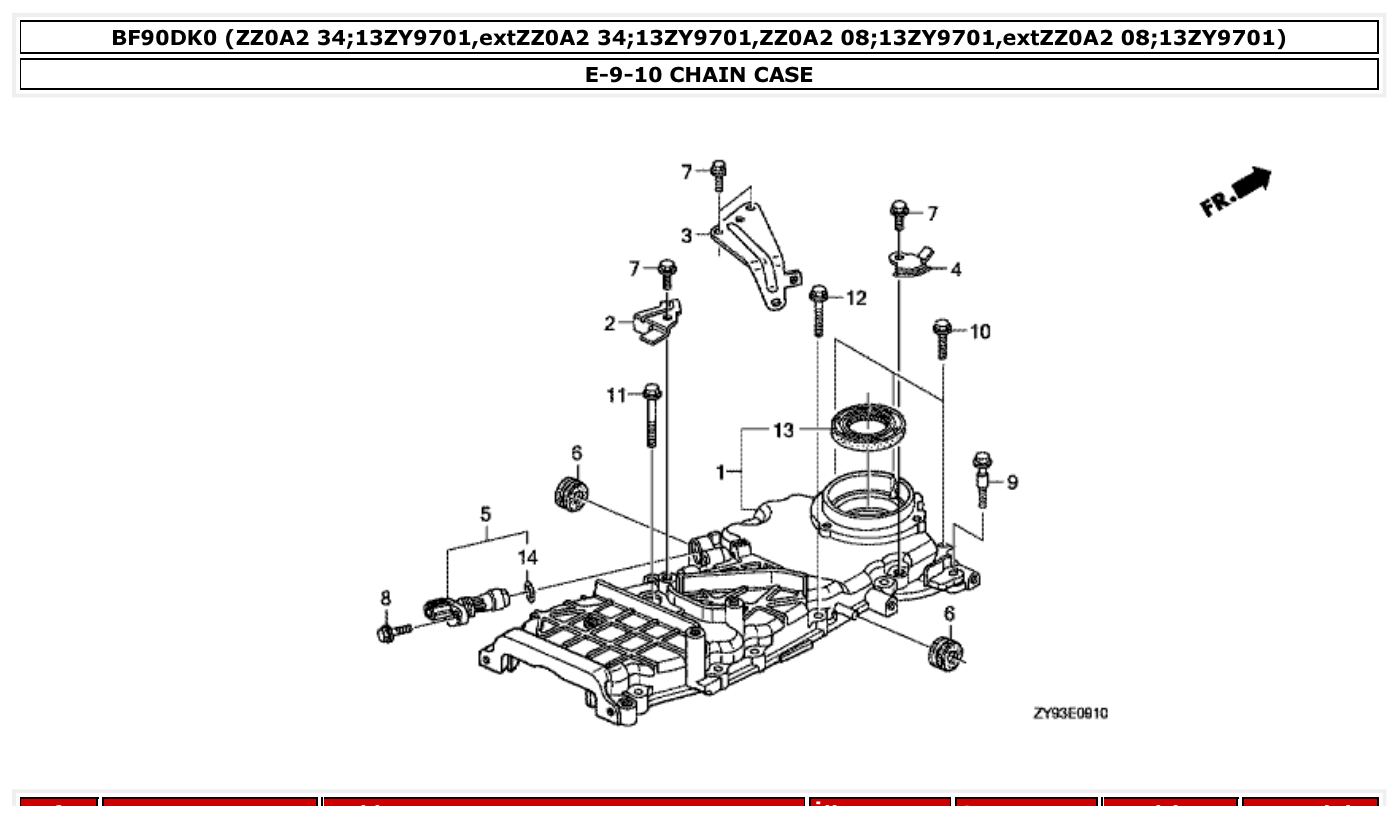

Fig. E-9-10 — CHAIN CASE
15 items

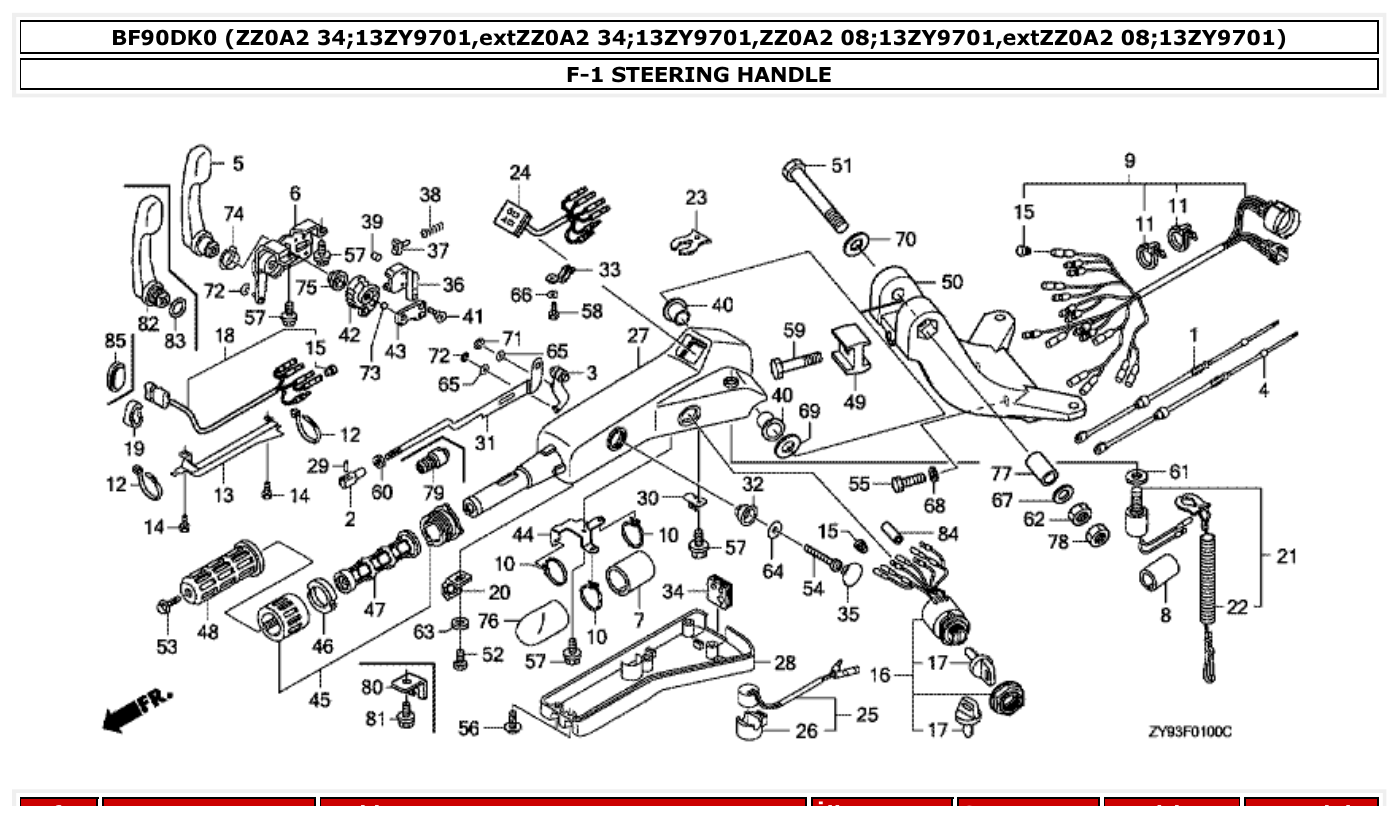

Honda BF90DK0 STEERING HANDLE parts diagram
Fig. F-1 — STEERING HANDLE
211 items
Honda BF90DK0 STERN BRACKET/SWIVEL CASE parts diagram

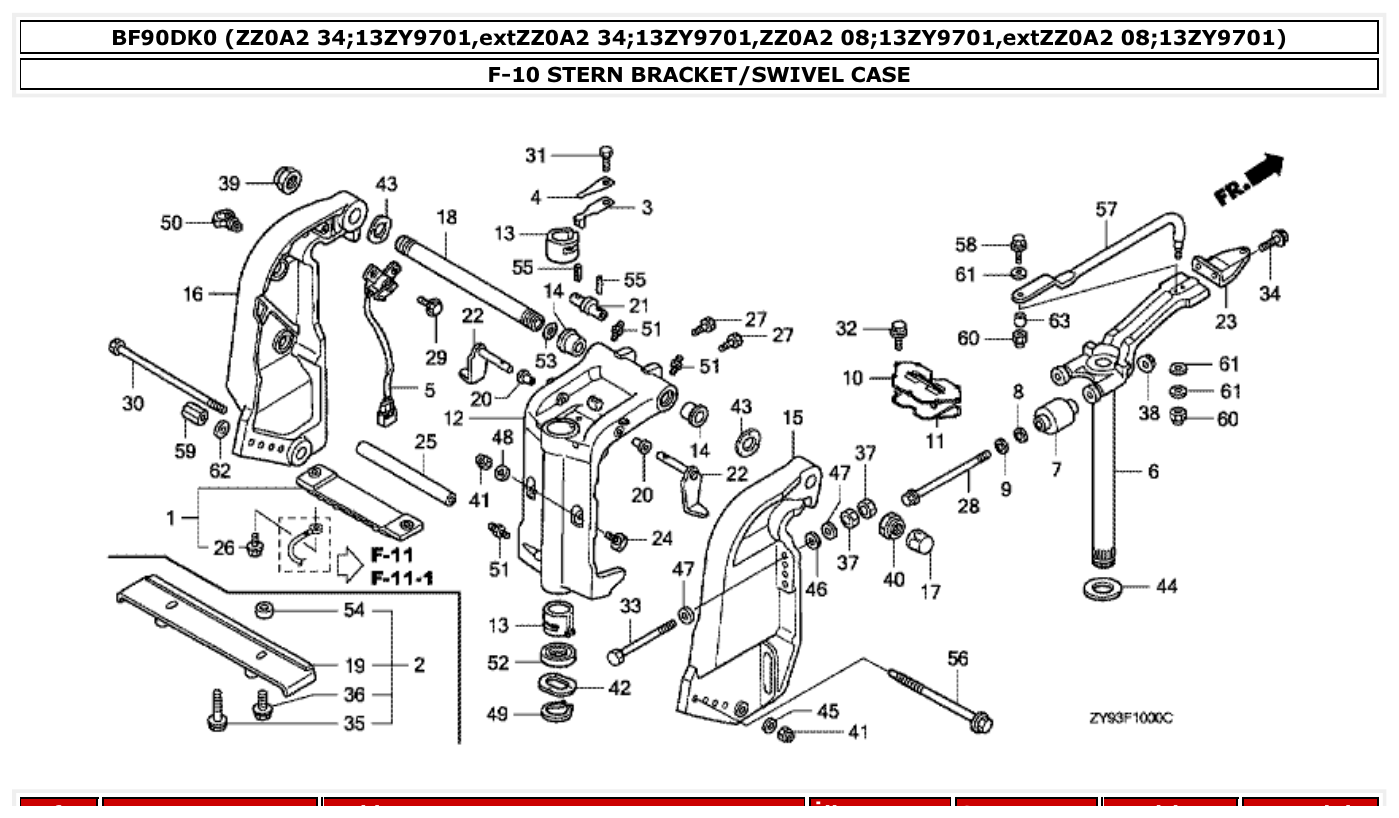

Fig. F-10 — STERN BRACKET/SWIVEL CASE
85 items · 1 available products
Honda BF90DK0 STEERING FRICTION SHAFT parts diagram

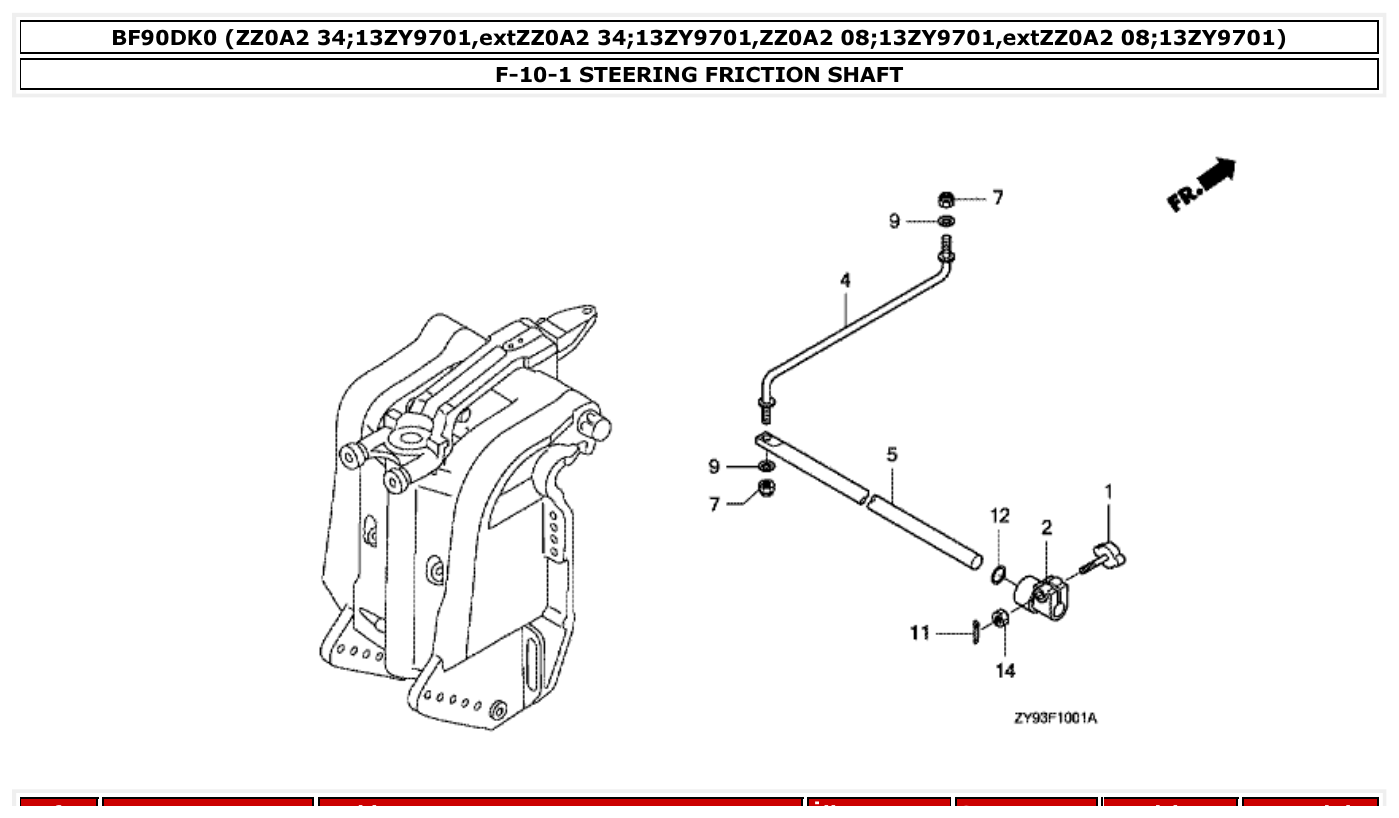

Fig. F-10-1 — STEERING FRICTION SHAFT
18 items
Honda BF90DK0 POWER TRIM-TILT parts diagram

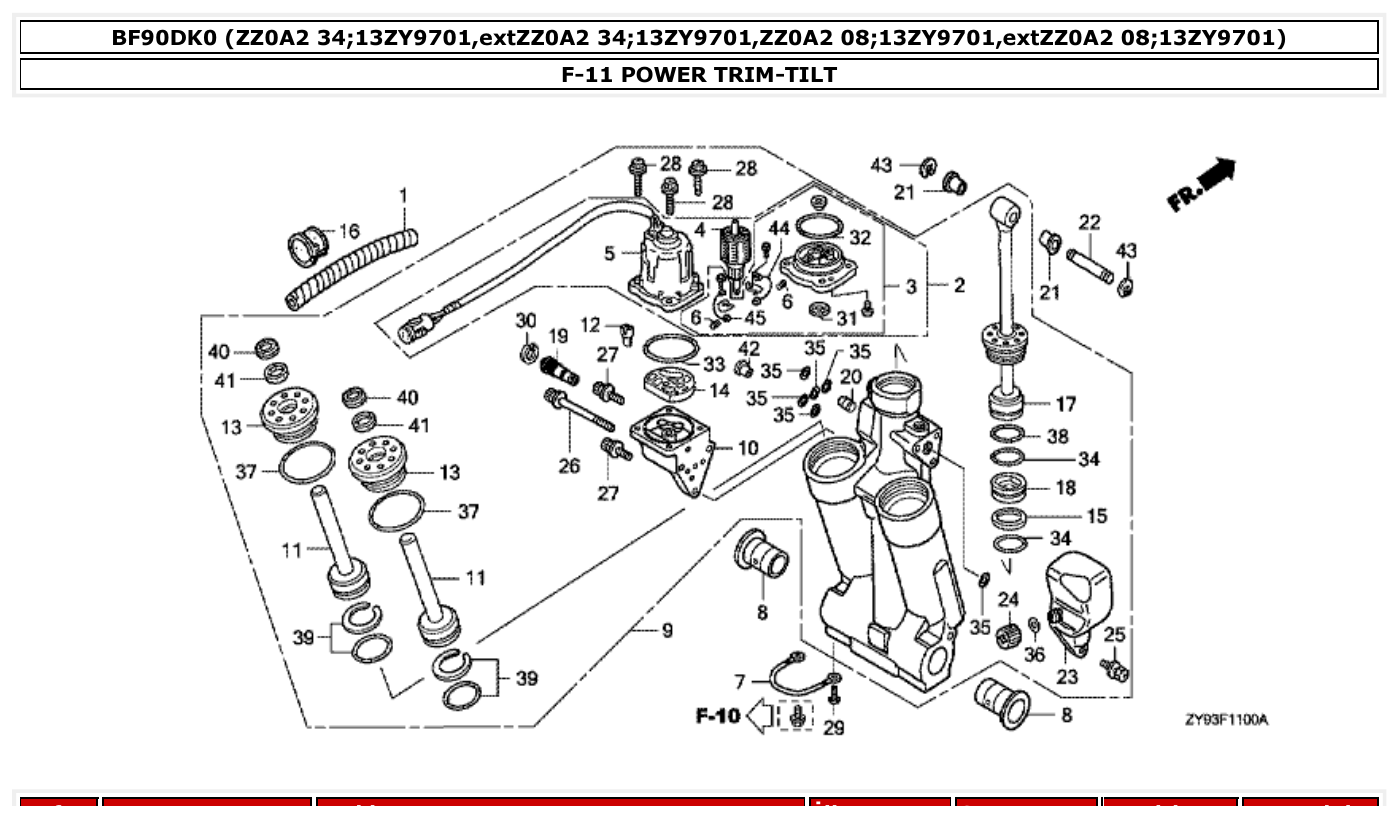

Fig. F-11 — POWER TRIM-TILT
45 items
Honda BF90DK0 LABEL parts diagram

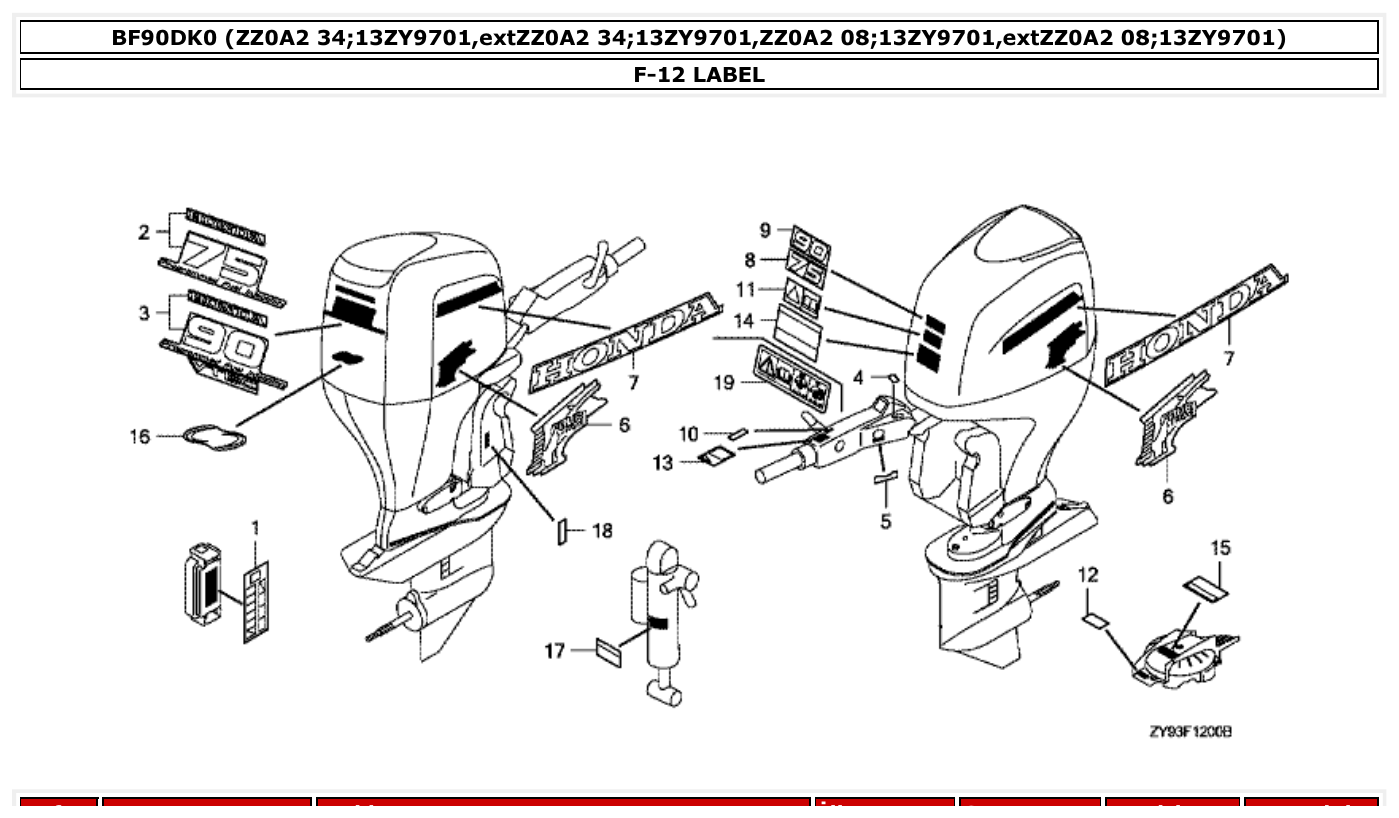

Fig. F-12 — LABEL
26 items
Honda BF90DK0 TOOL parts diagram

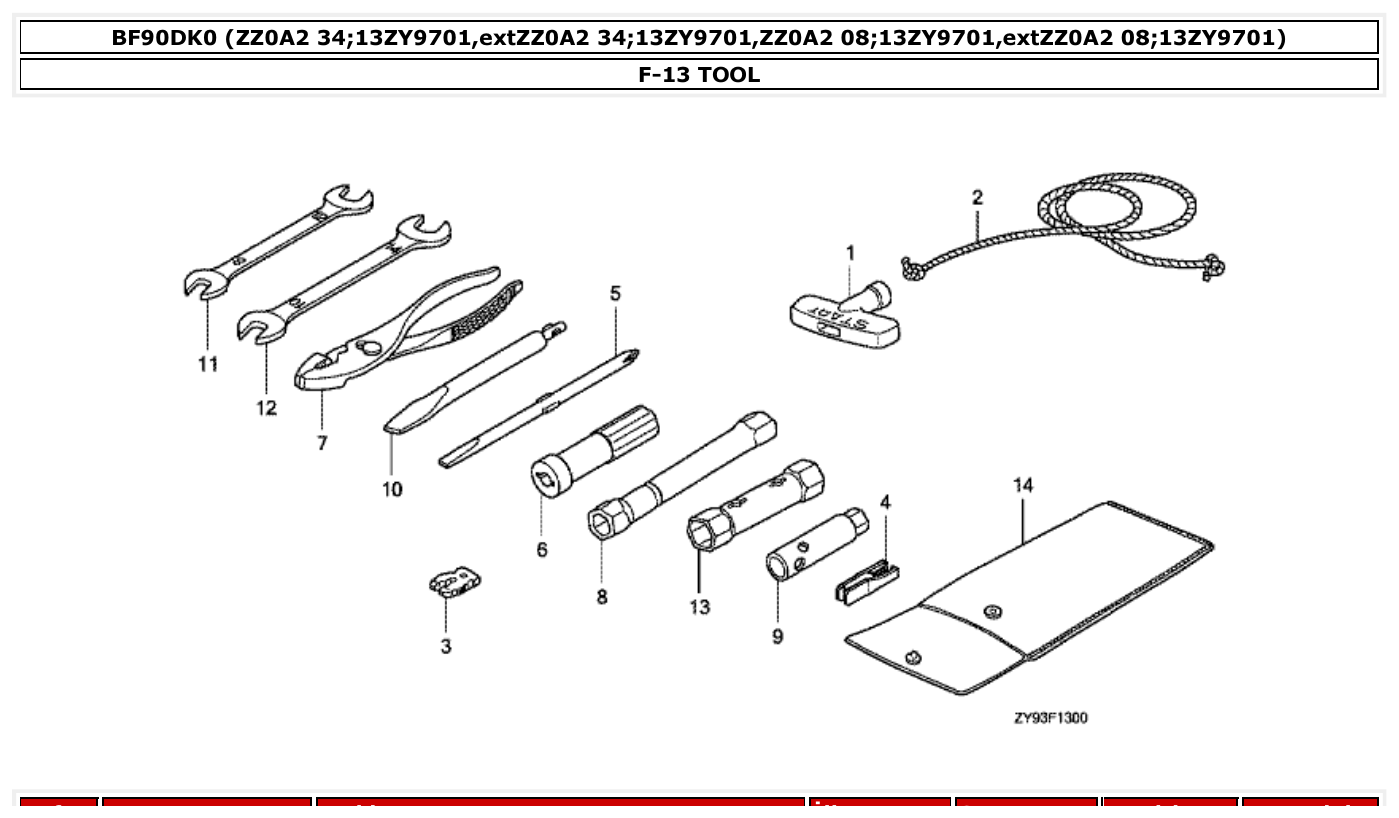

Fig. F-13 — TOOL
16 items
Honda BF90DK0 CONTROL PANEL (SINGLE) (2-LED) parts diagram
Fig. F-14 — CONTROL PANEL (SINGLE) (2-LED)
31 items
Honda BF90DK0 CONTROL PANEL (DUAL) (2-LED) parts diagram

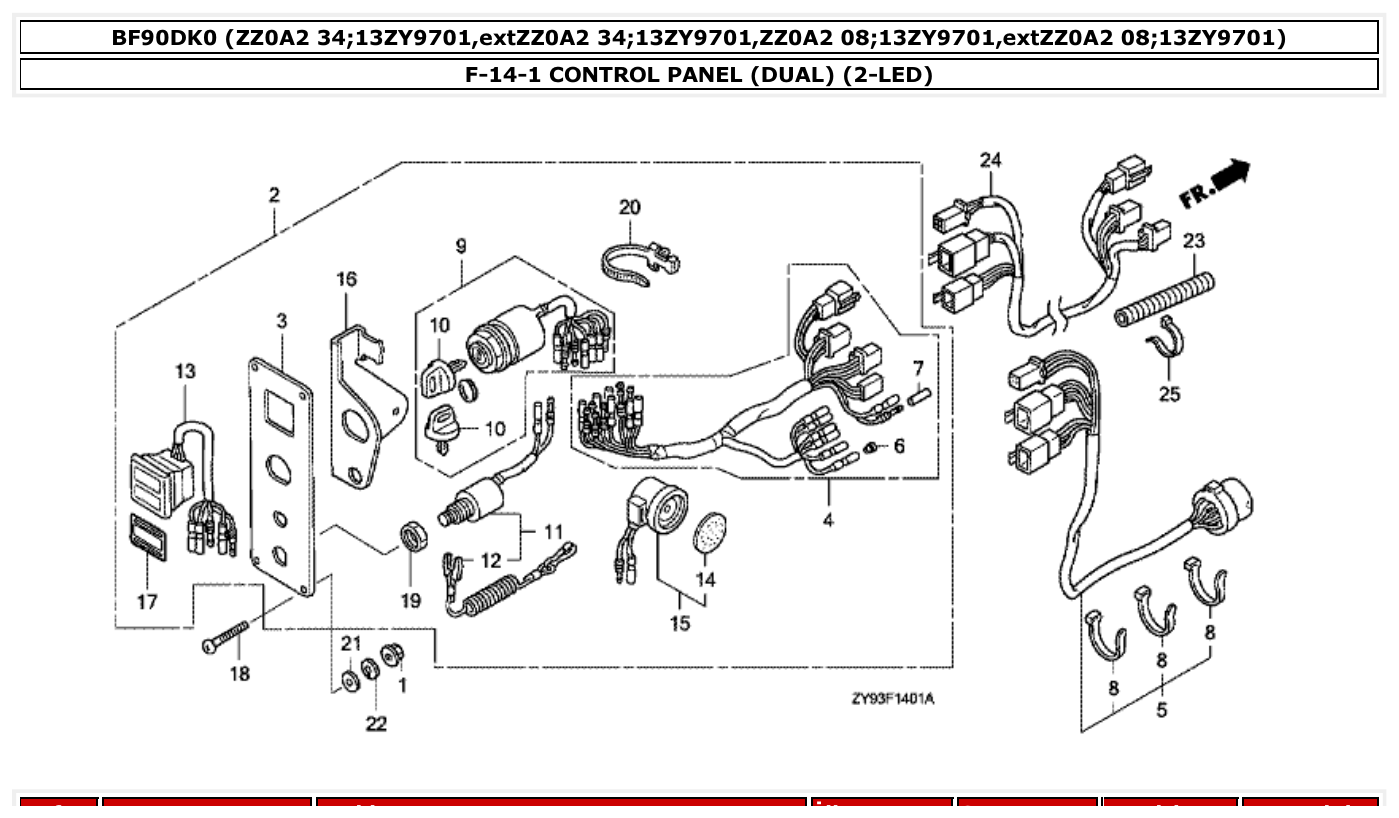

Fig. F-14-1 — CONTROL PANEL (DUAL) (2-LED)
31 items
Honda BF90DK0 REMOTE CONTROL (SIDE MOUNT) parts diagram

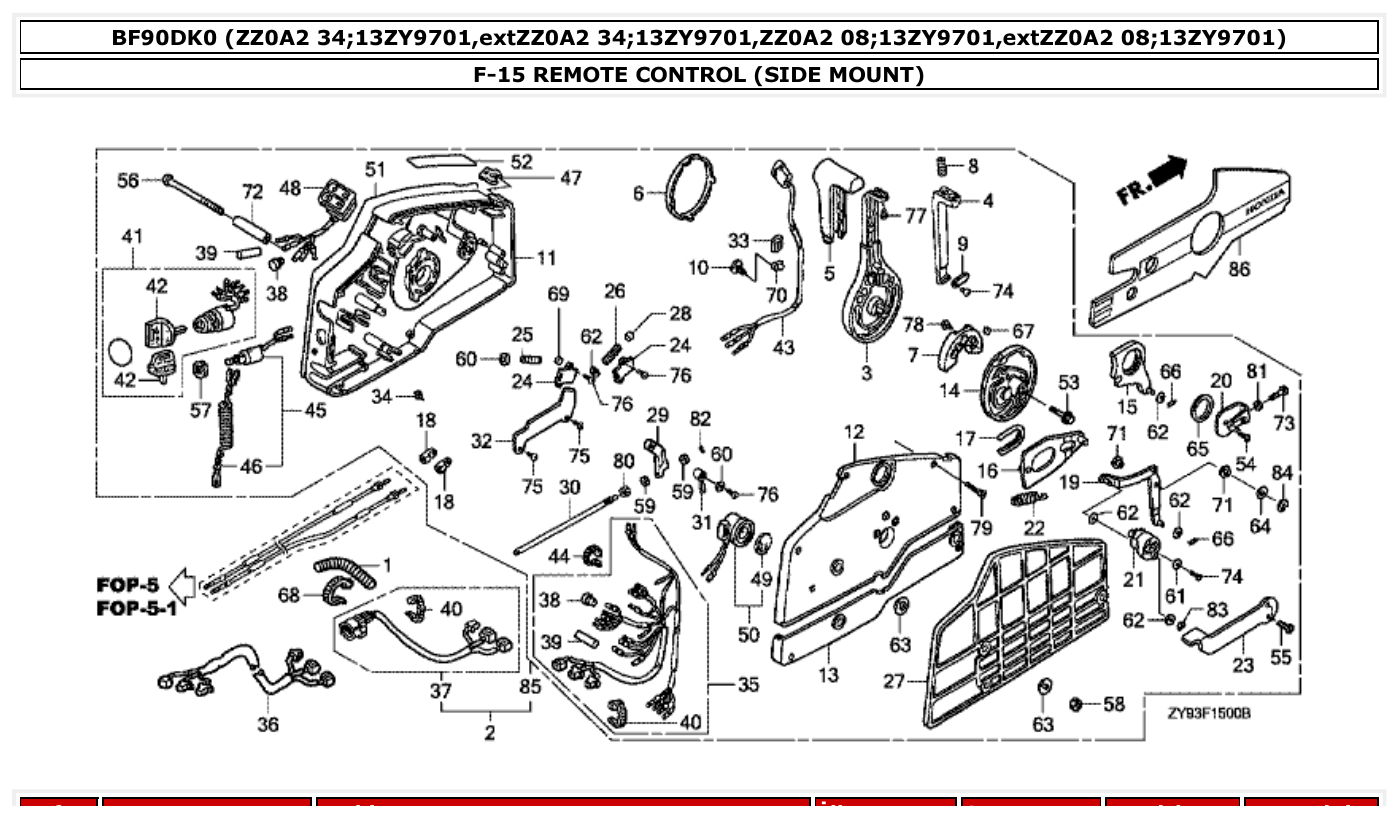

Fig. F-15 — REMOTE CONTROL (SIDE MOUNT)
214 items · 1 available products
Honda BF90DK0 REMOTE CONTROL (PANEL MOUNT) parts diagram

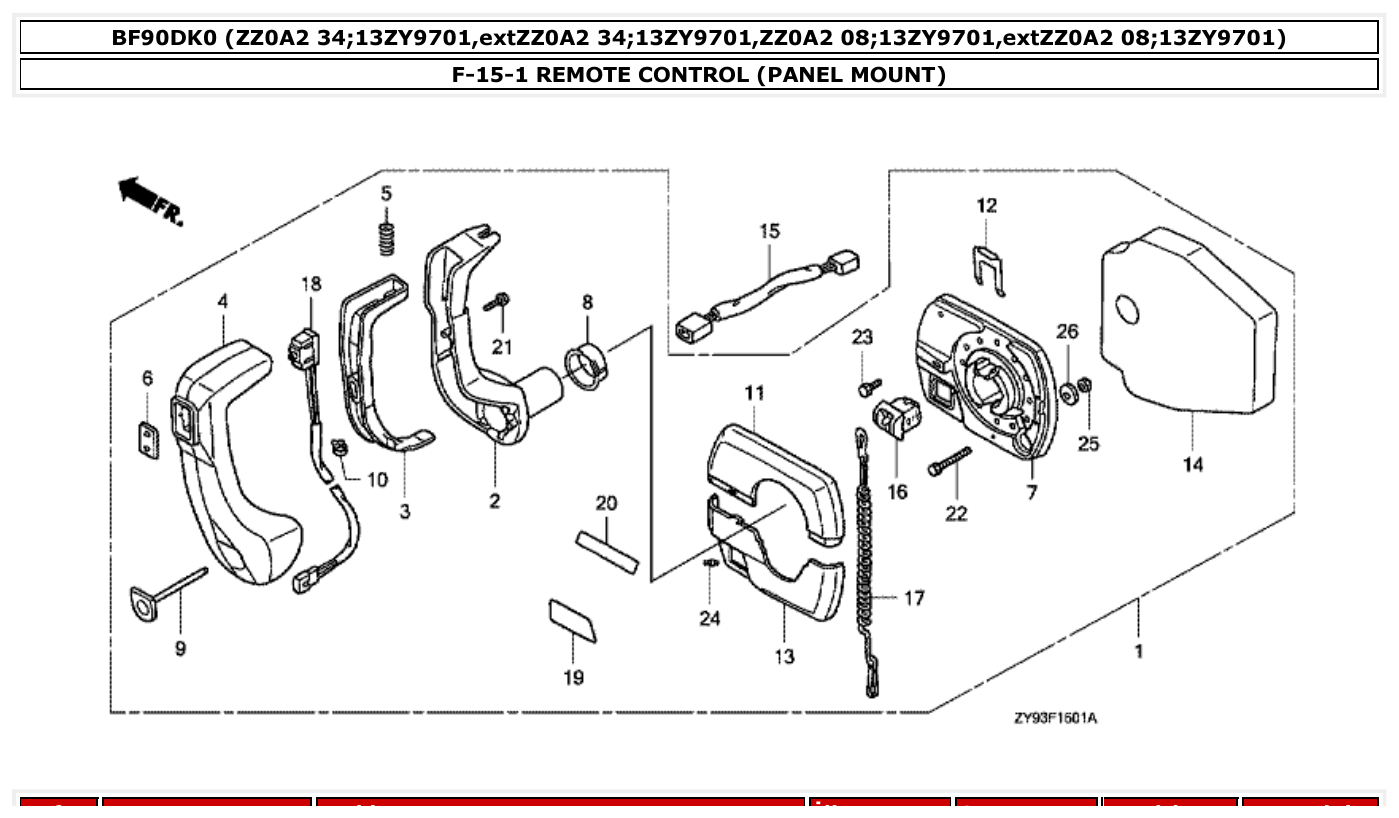

Fig. F-15-1 — REMOTE CONTROL (PANEL MOUNT)
27 items
Honda BF90DK0 REMOTE CONTROL (INNER HOUSING) parts diagram

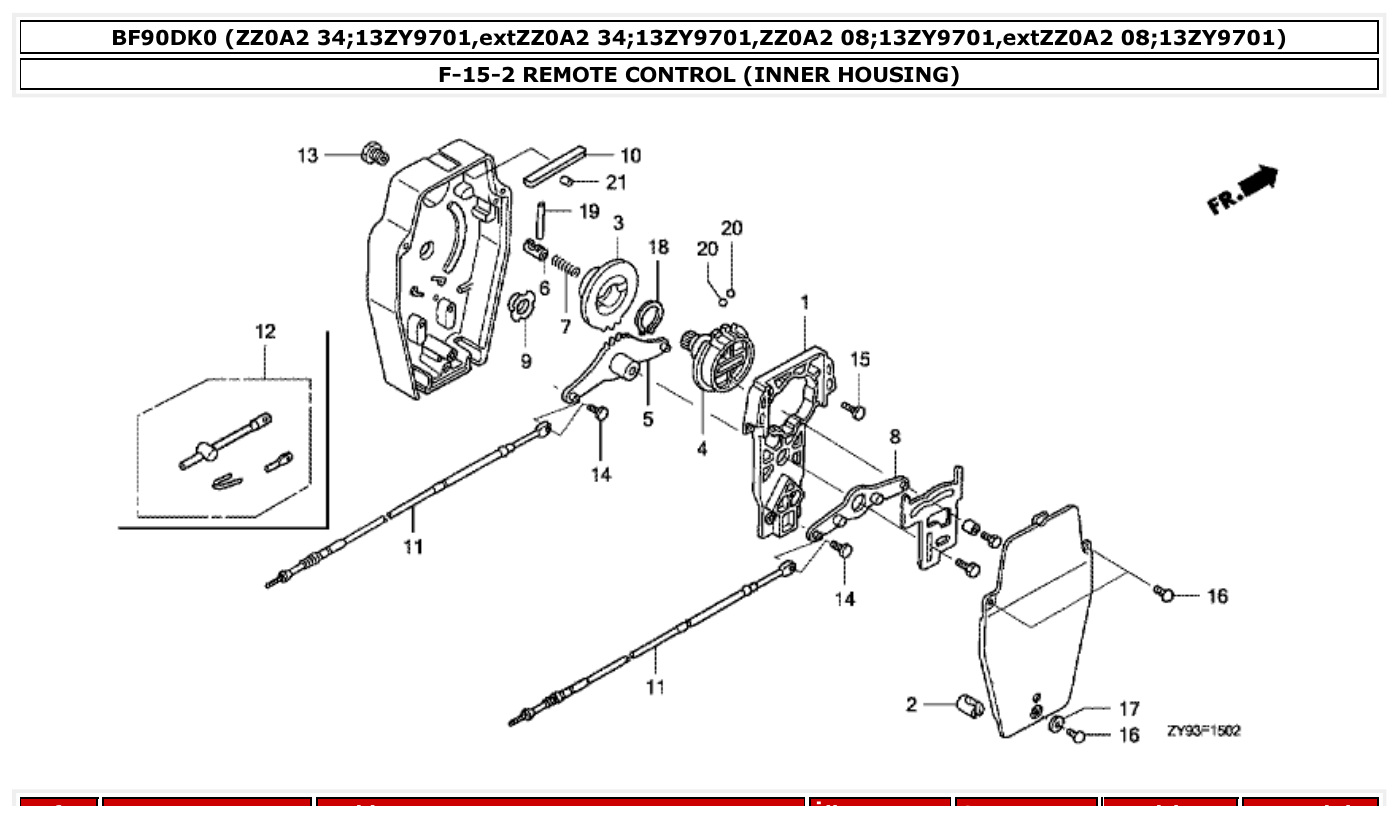

Fig. F-15-2 — REMOTE CONTROL (INNER HOUSING)
705 items · 3 available products

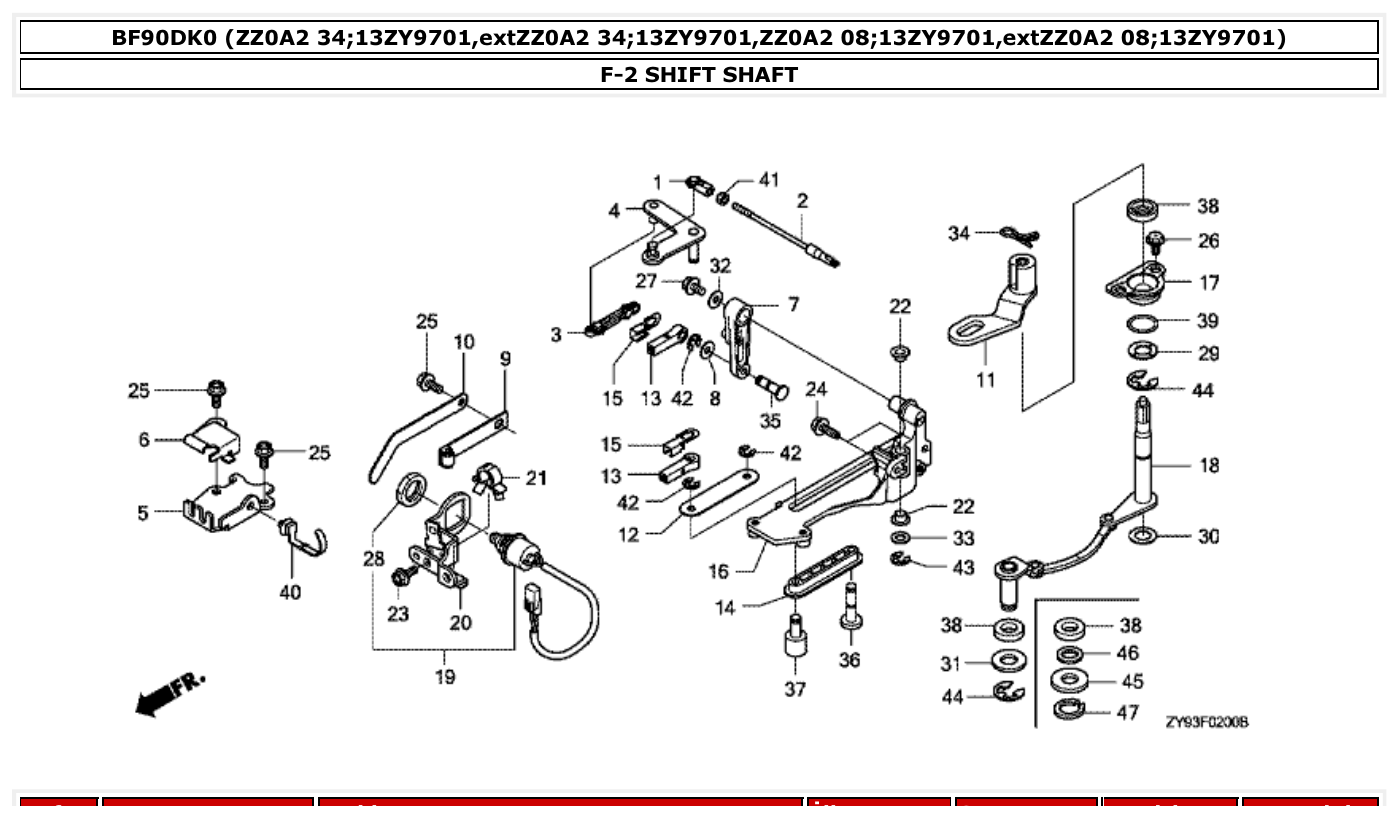

Honda BF90DK0 SHIFT SHAFT parts diagram
Fig. F-2 — SHIFT SHAFT
57 items
Honda BF90DK0 EXTENSION CASE parts diagram

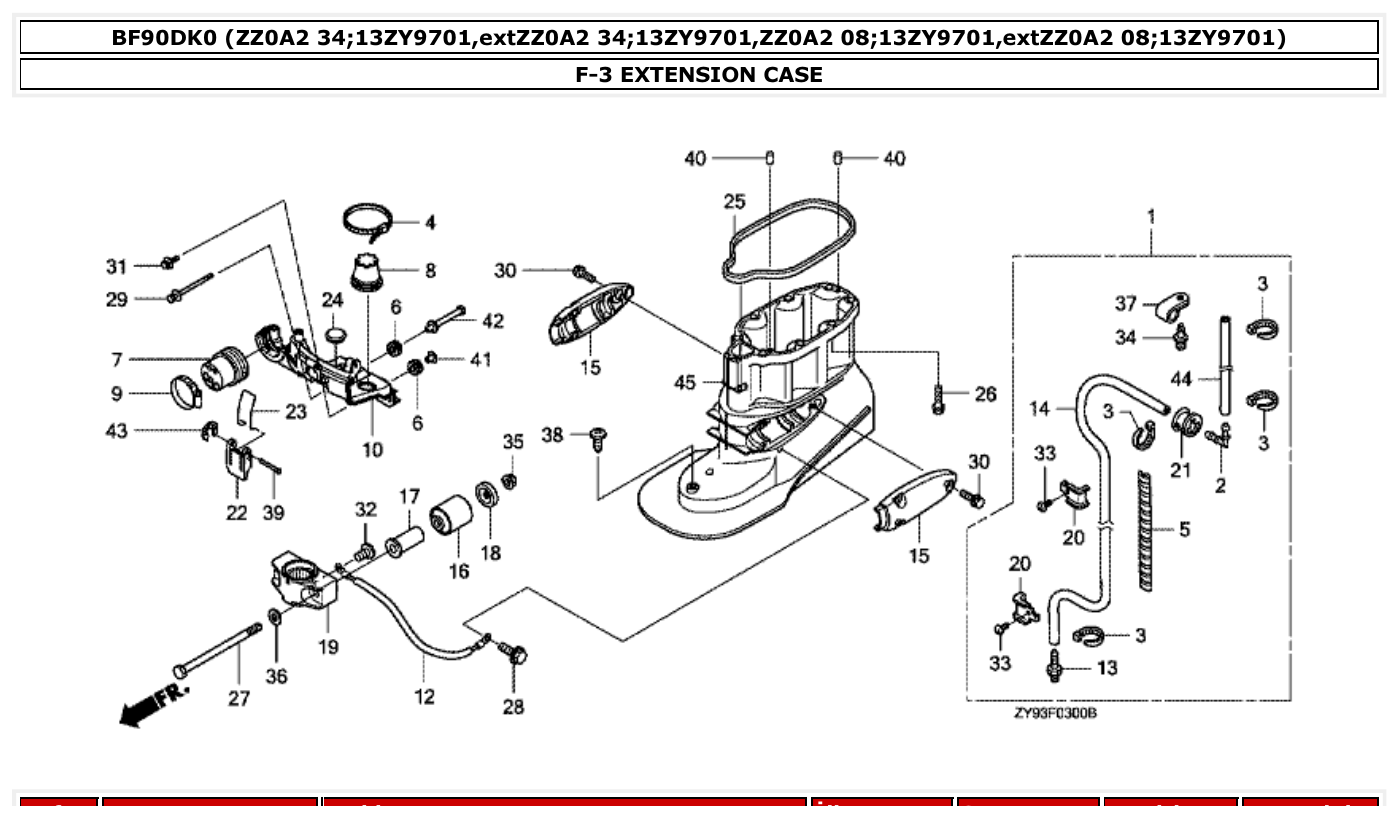

Fig. F-3 — EXTENSION CASE
50 items

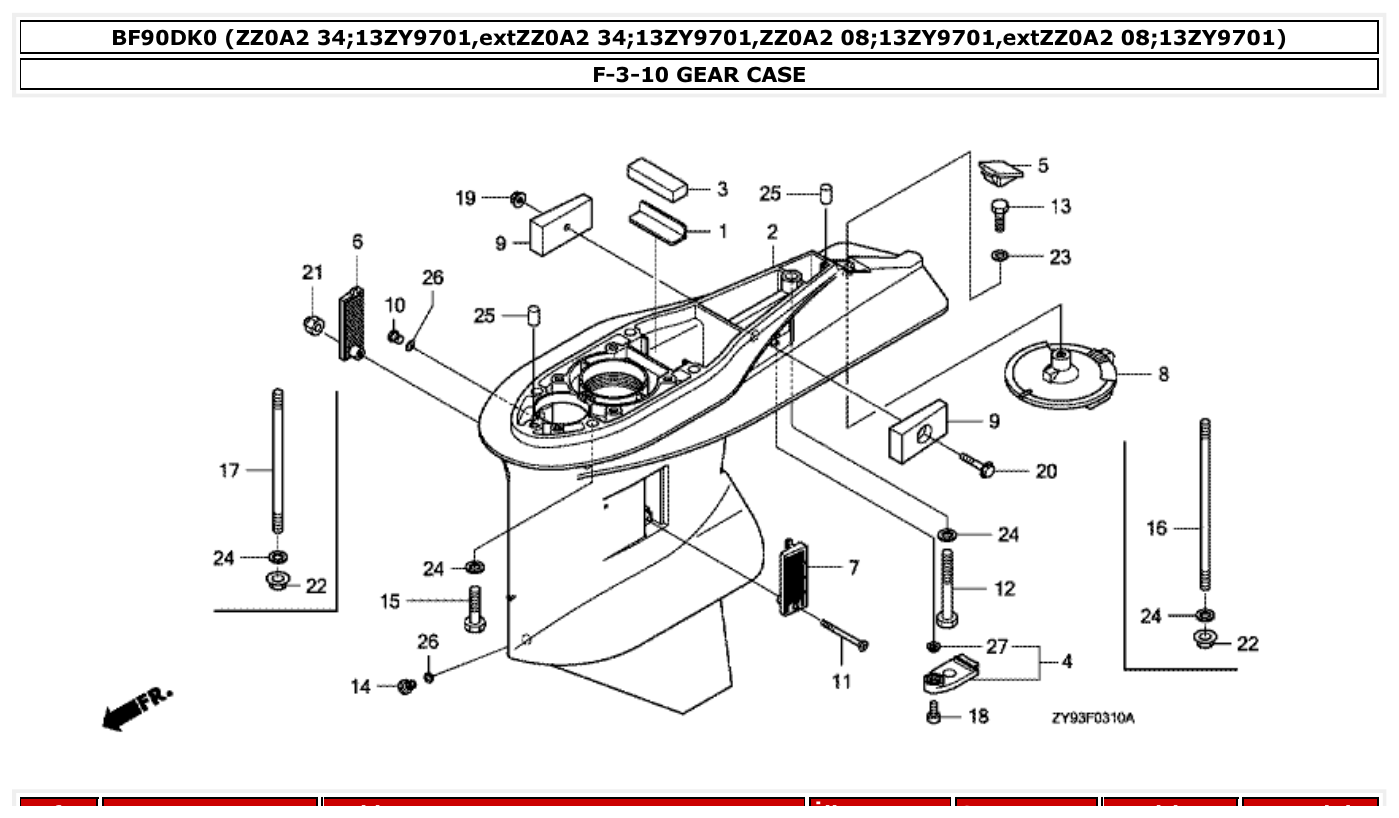

Honda BF90DK0 GEAR CASE parts diagram
Fig. F-3-10 — GEAR CASE
24 items
Honda BF90DK0 GEAR CASE ASSY parts diagram

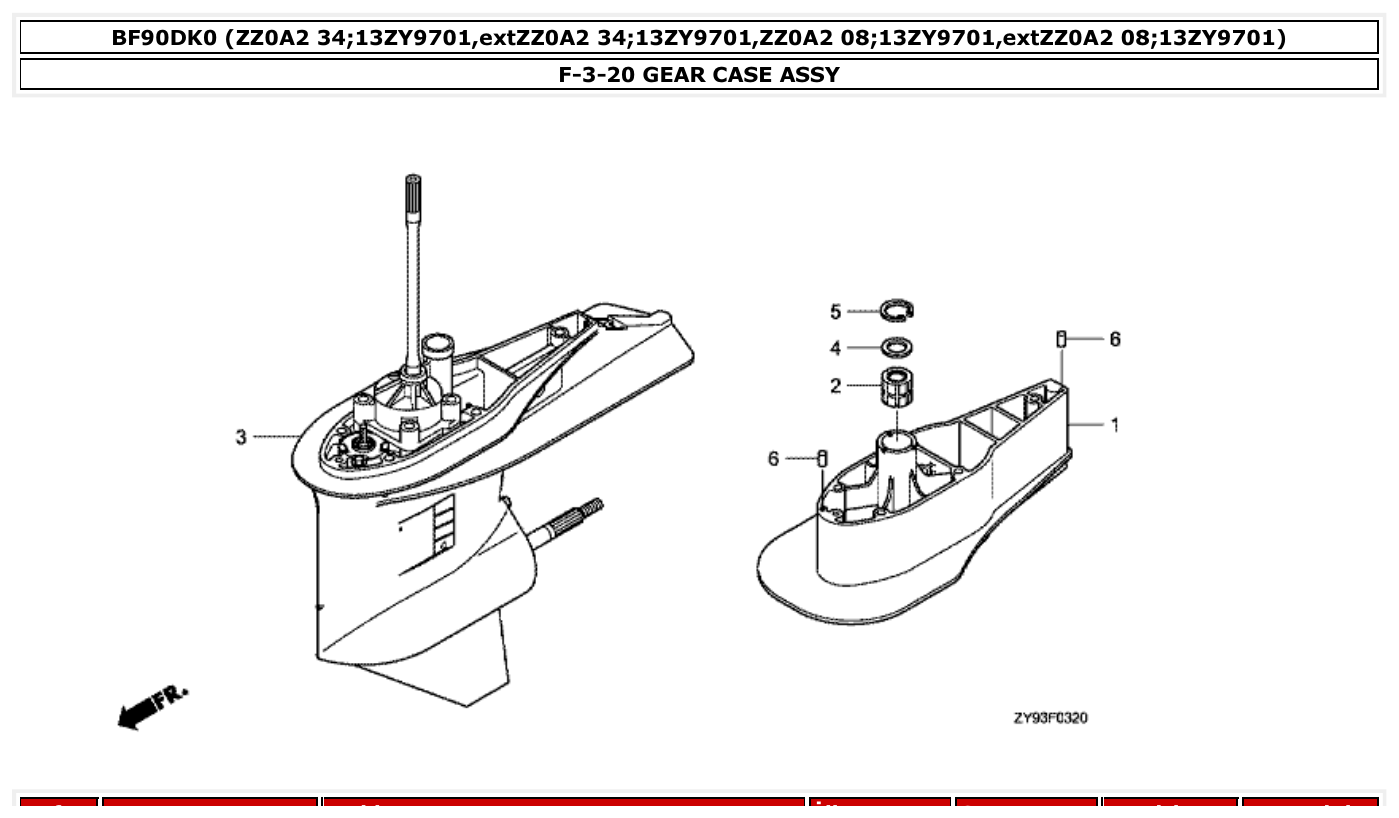

Fig. F-3-20 — GEAR CASE ASSY
4 items
Honda BF90DK0 MOUNT CASE parts diagram

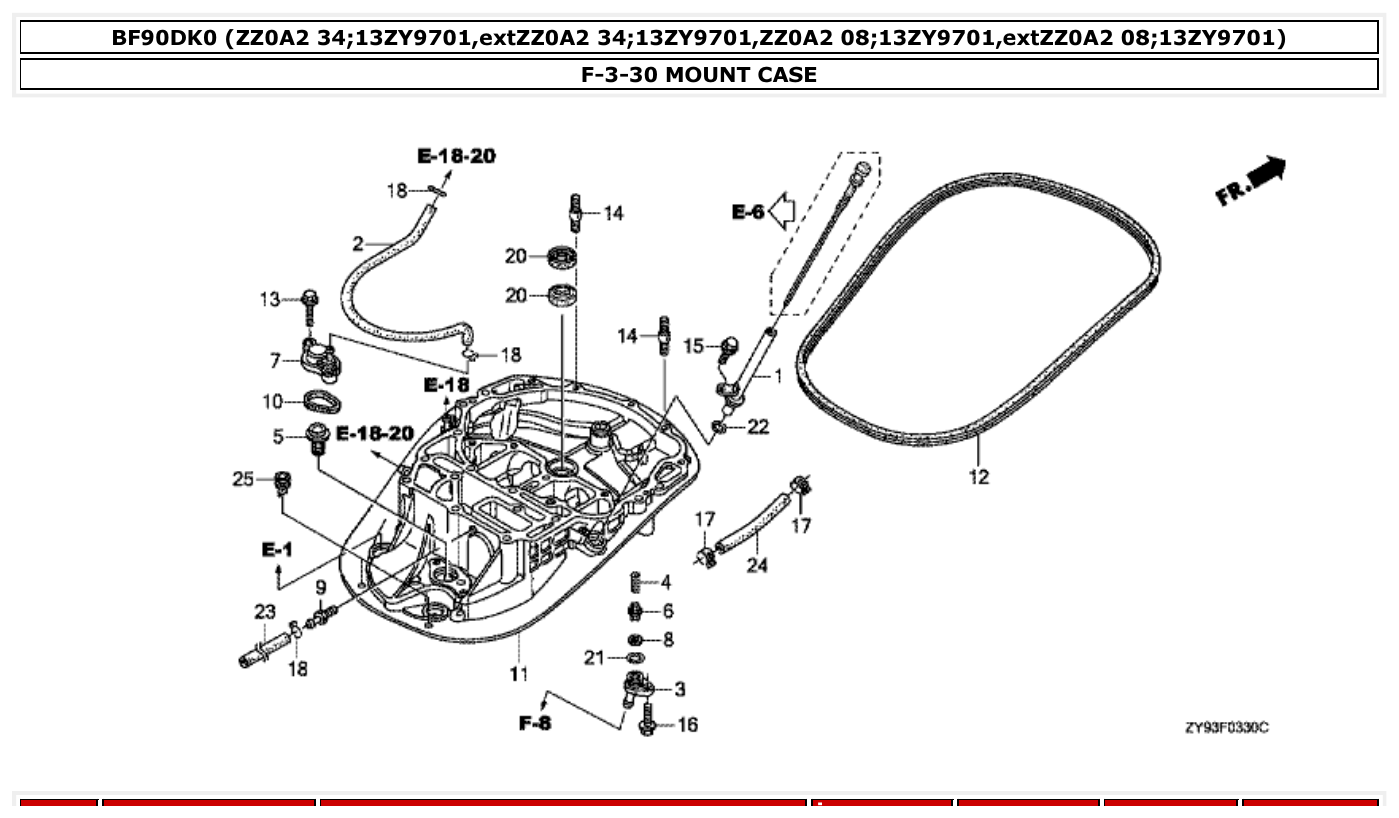

Fig. F-3-30 — MOUNT CASE
31 items

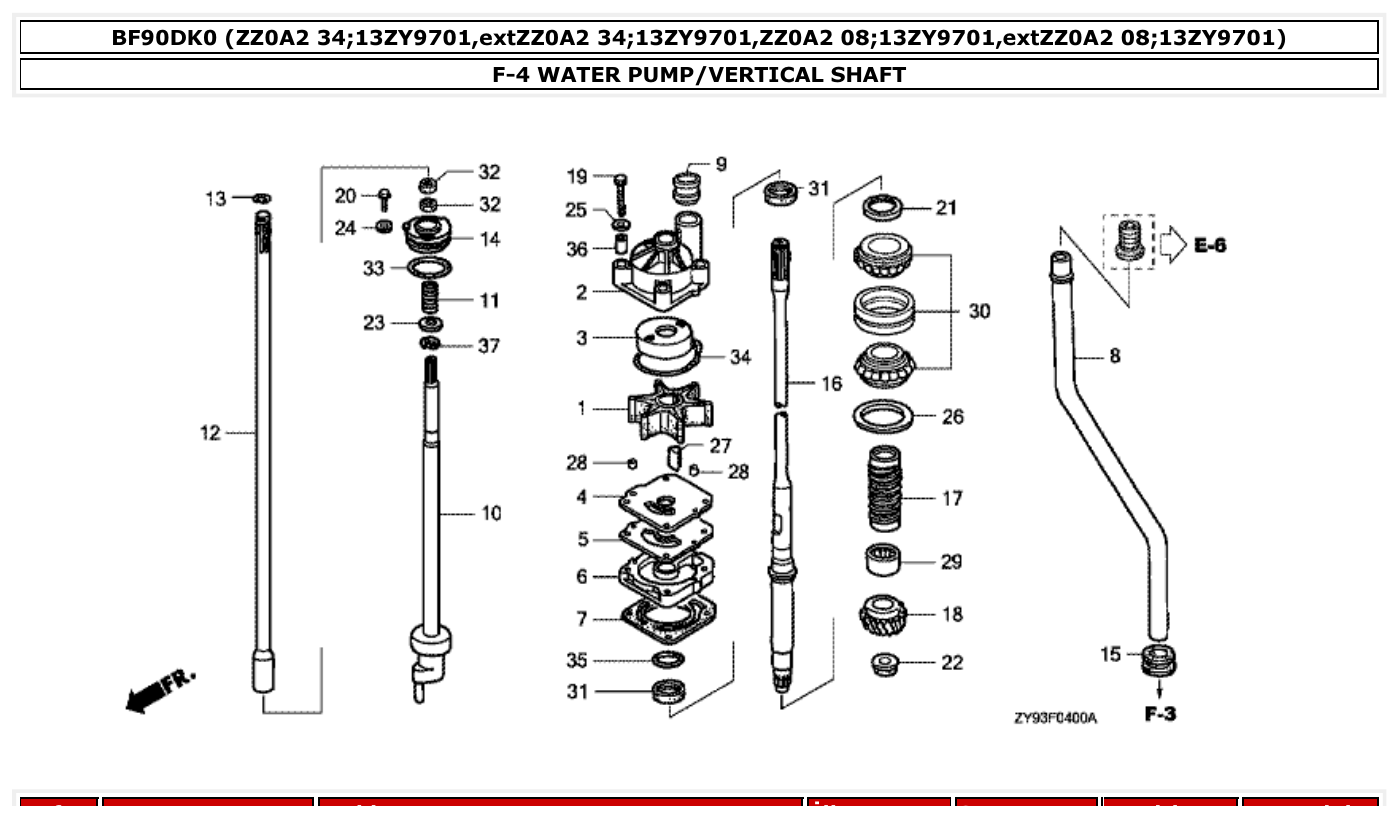

Honda BF90DK0 WATER PUMP/VERTICAL SHAFT parts diagram
Fig. F-4 — WATER PUMP/VERTICAL SHAFT
45 items · 3 available products

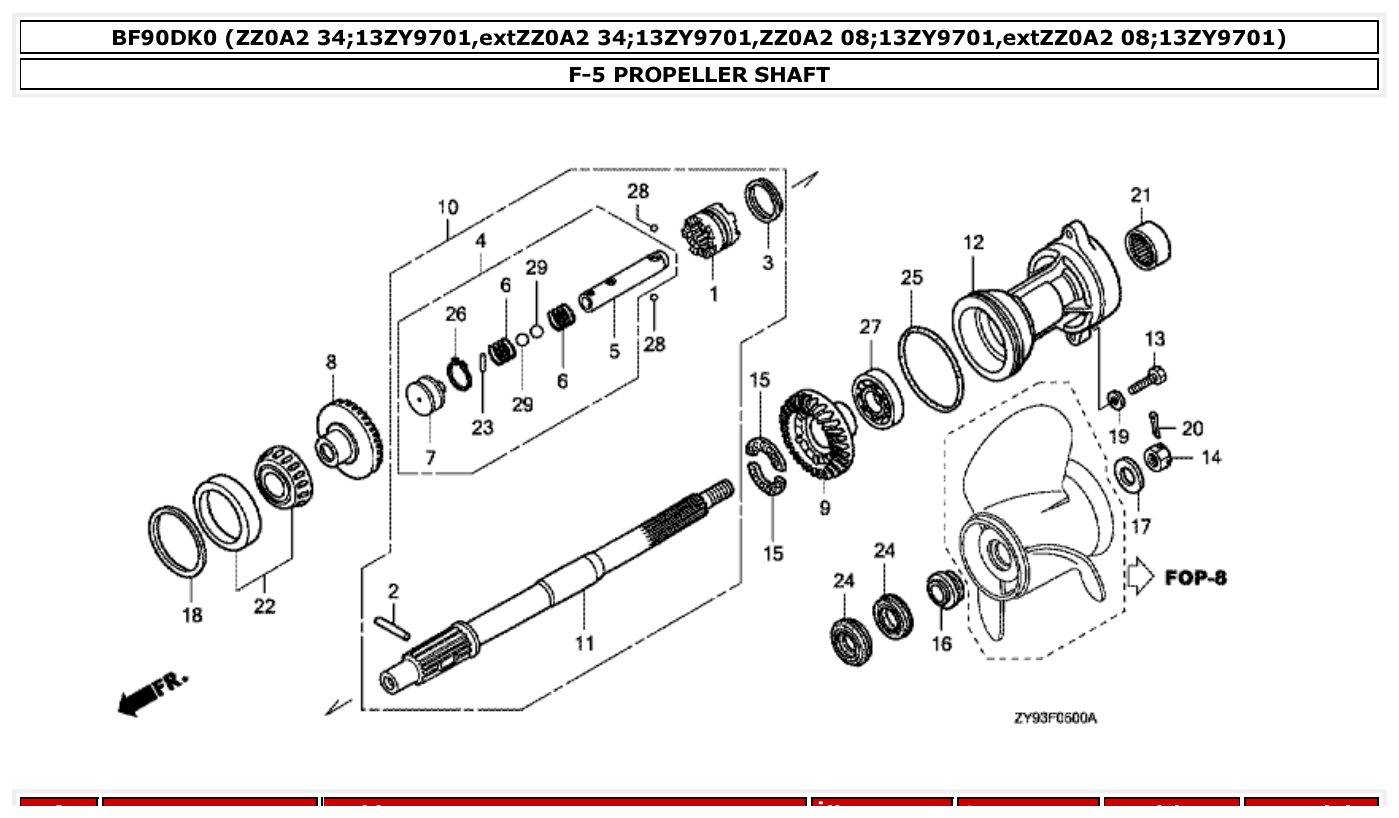

Honda BF90DK0 PROPELLER SHAFT parts diagram
Fig. F-5 — PROPELLER SHAFT
32 items · 1 available products

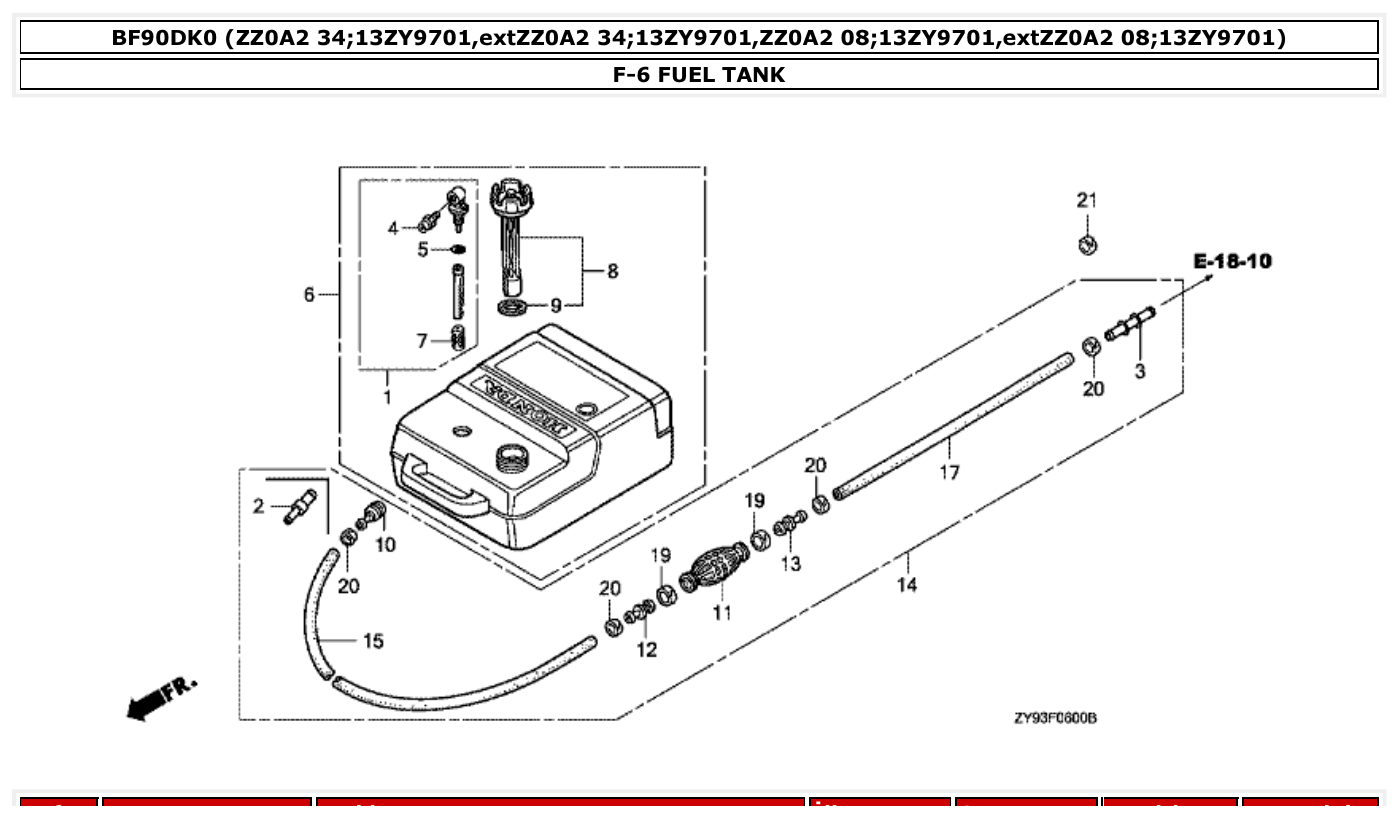

Honda BF90DK0 FUEL TANK parts diagram
Fig. F-6 — FUEL TANK
46 items · 1 available products

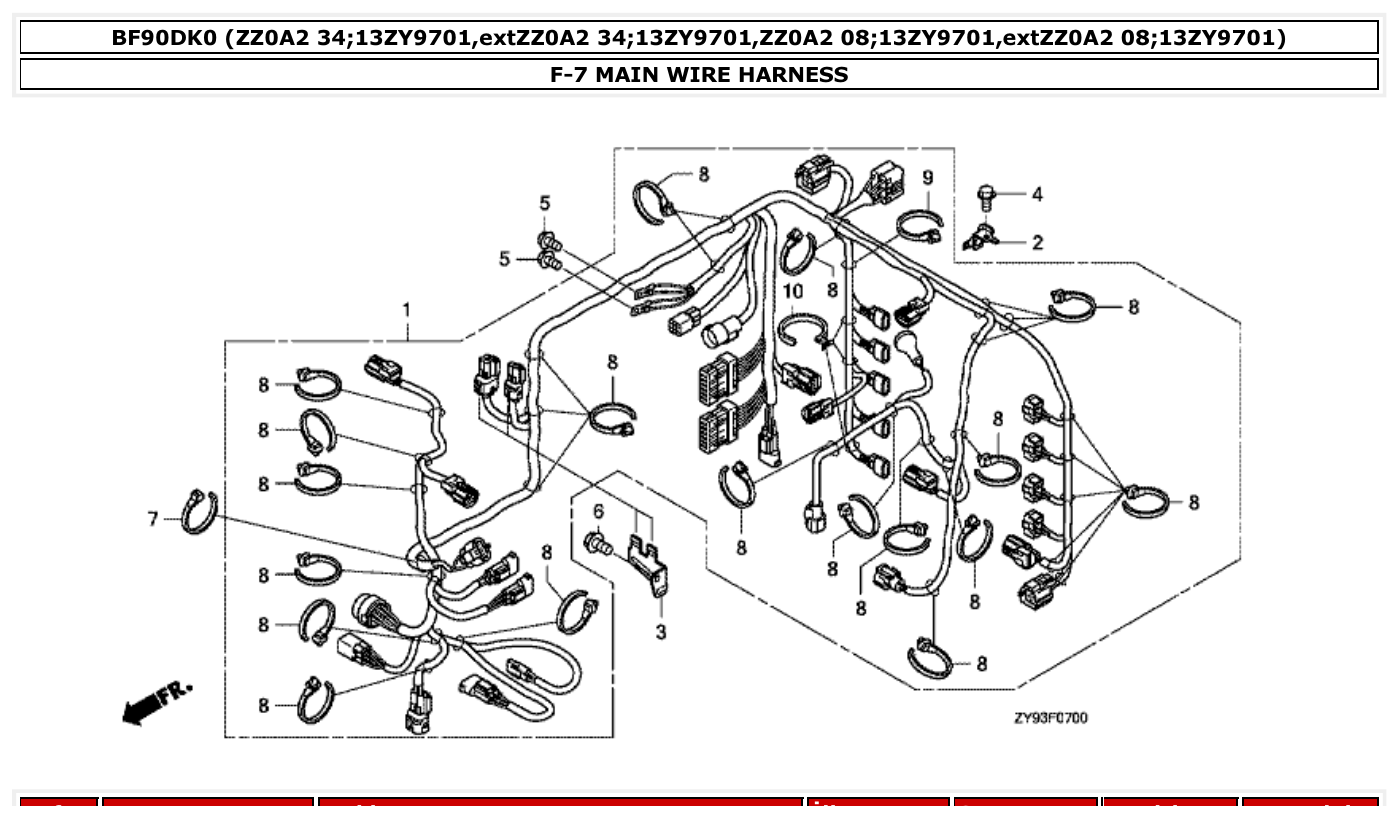

Honda BF90DK0 MAIN WIRE HARNESS parts diagram
Fig. F-7 — MAIN WIRE HARNESS
11 items
Honda BF90DK0 STARTER CABLE parts diagram

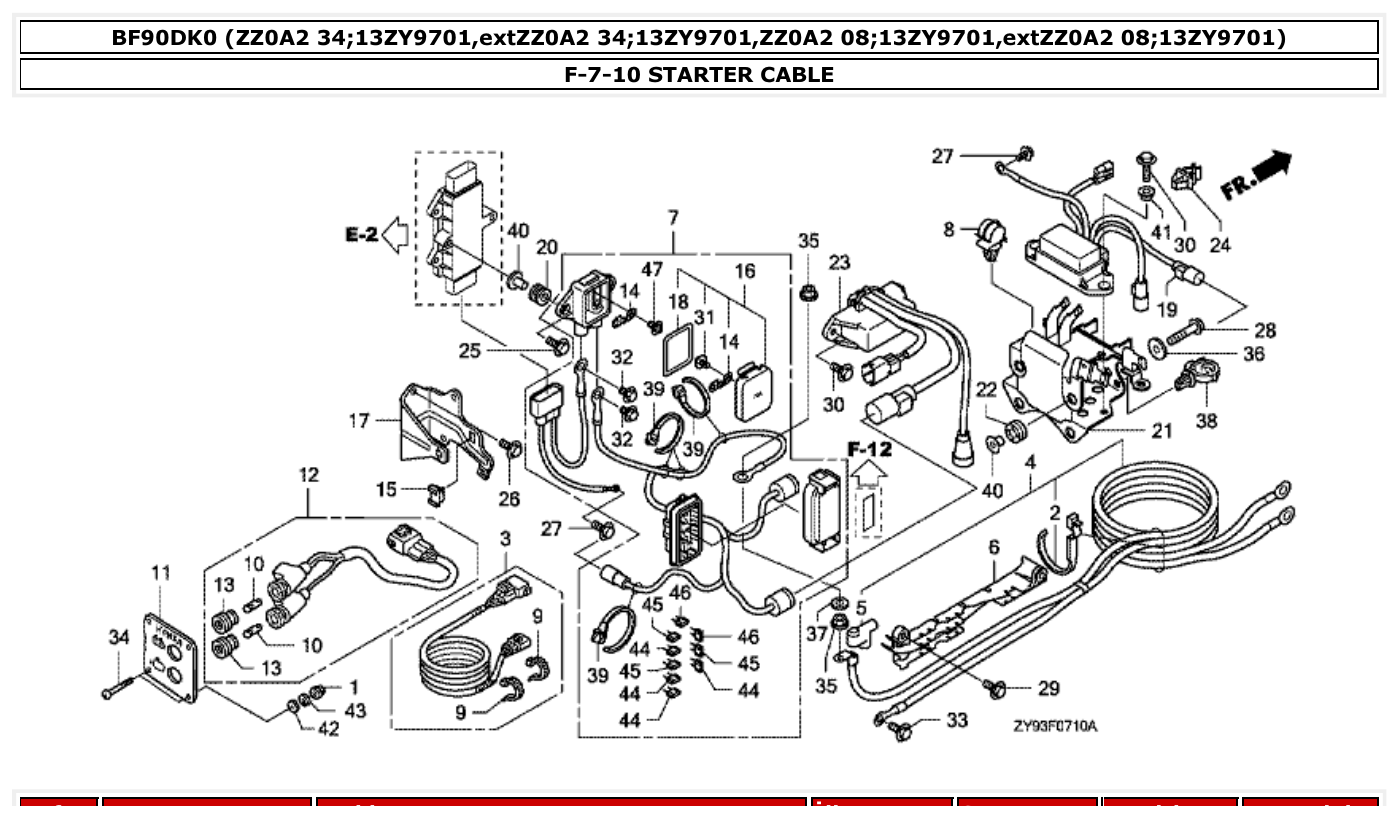

Fig. F-7-10 — STARTER CABLE
61 items · 1 available products

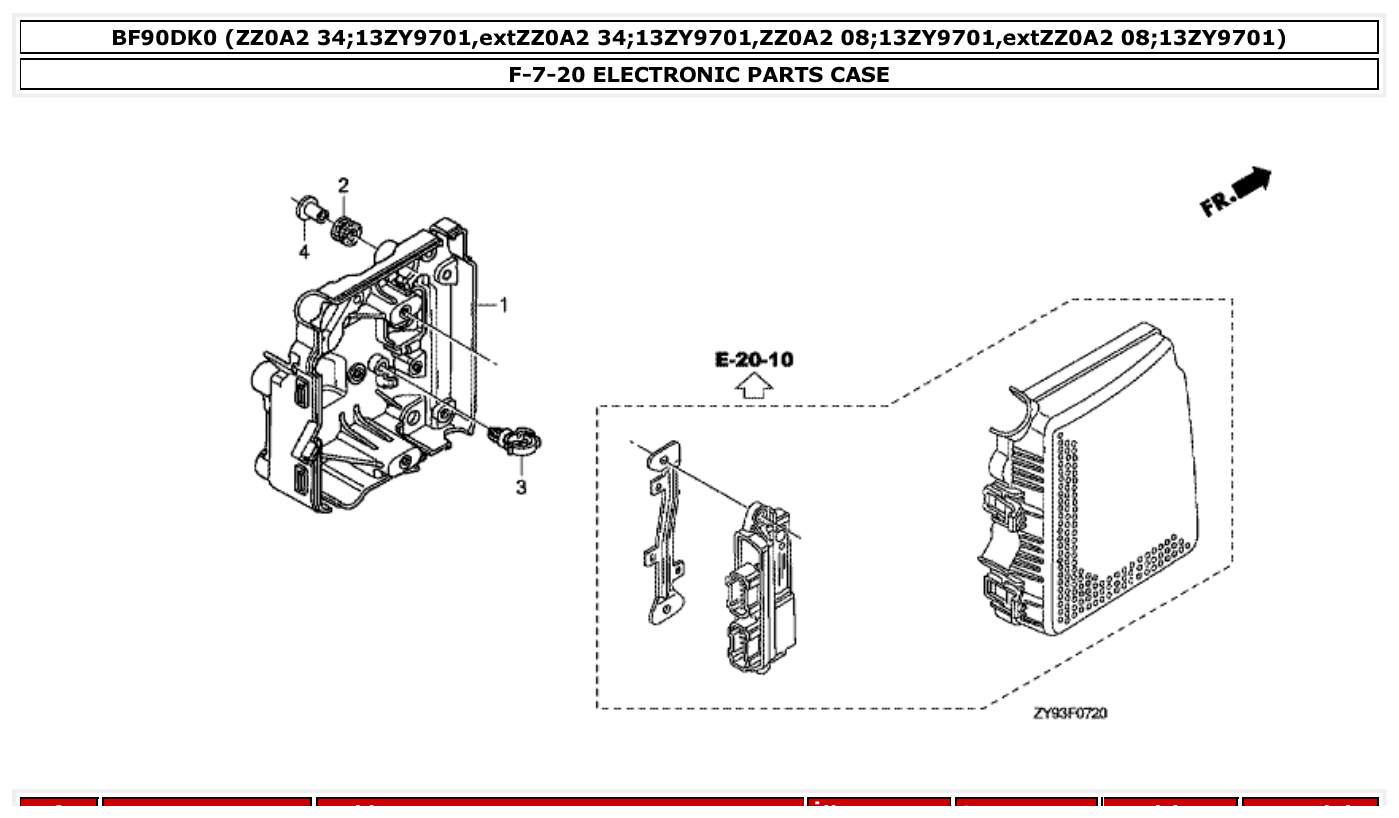

Honda BF90DK0 ELECTRONIC PARTS CASE parts diagram
Fig. F-7-20 — ELECTRONIC PARTS CASE
4 items

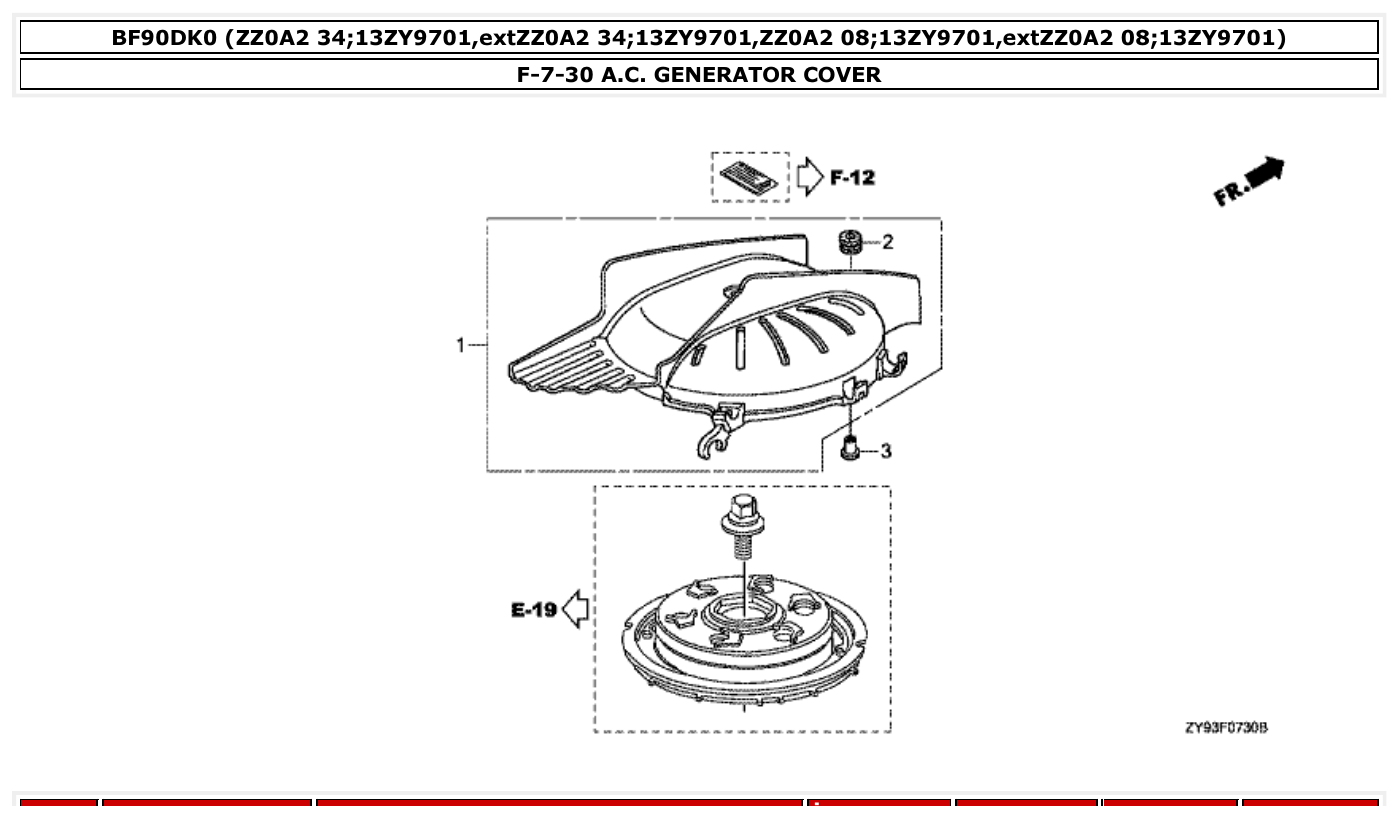

Honda BF90DK0 A.C. GENERATOR COVER parts diagram
Fig. F-7-30 — A.C. GENERATOR COVER
3 items
Honda BF90DK0 TRIM METER/TACHOMETER parts diagram

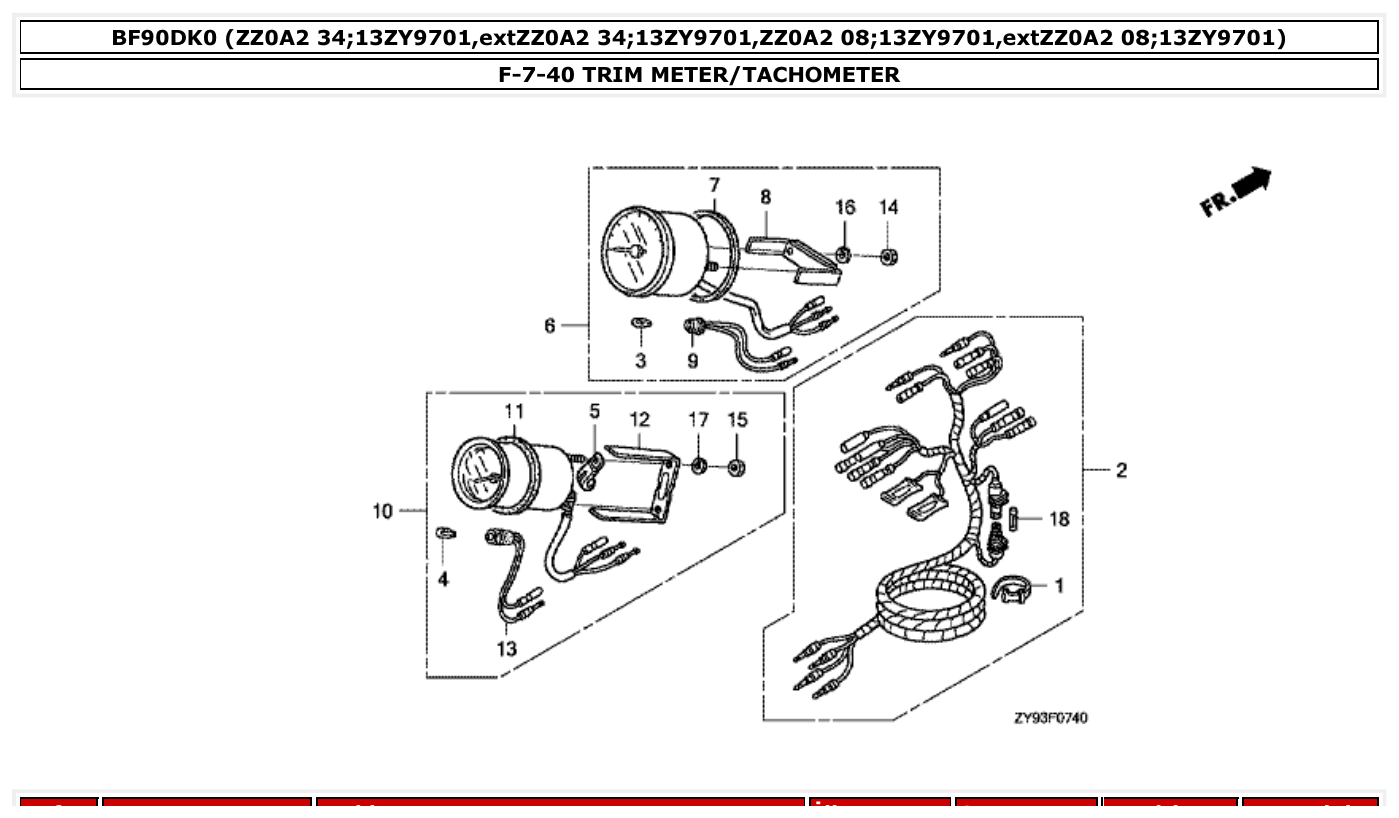

Fig. F-7-40 — TRIM METER/TACHOMETER
40 items
Honda BF90DK0 ENGINE COVER/UNDER CASE parts diagram

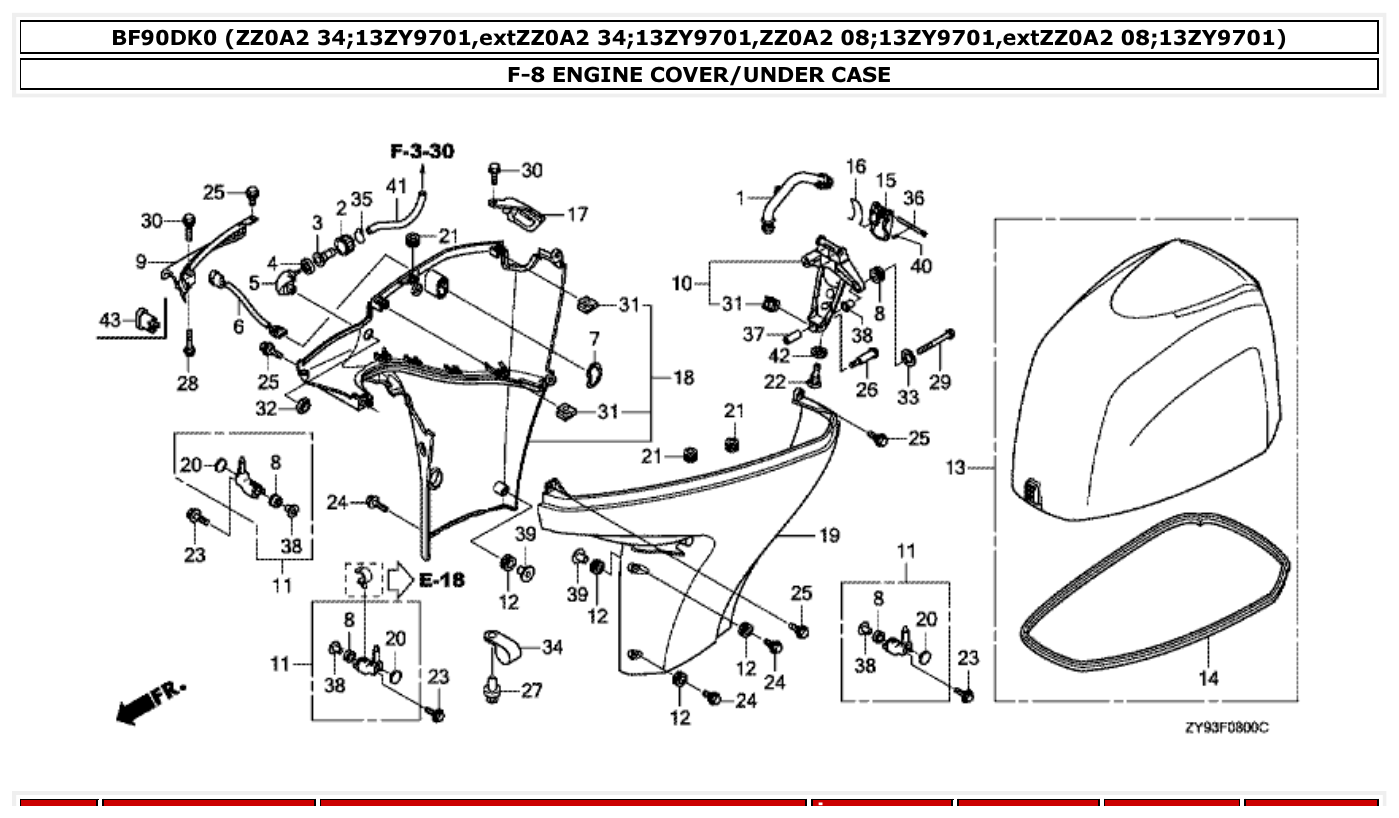

Fig. F-8 — ENGINE COVER/UNDER CASE
62 items
