Suzuki GSX1300RRQM2_E03(9900B-31813-000)-1 Section 350B Parts Diagram
WIRING HARNESS (E03,E28)
28 catalog rows · 10 linked store rows
Section 350B — WIRING HARNESS (E03,E28)
GSX1300RRQM2_E03(9900B-31813-000)-1
100%

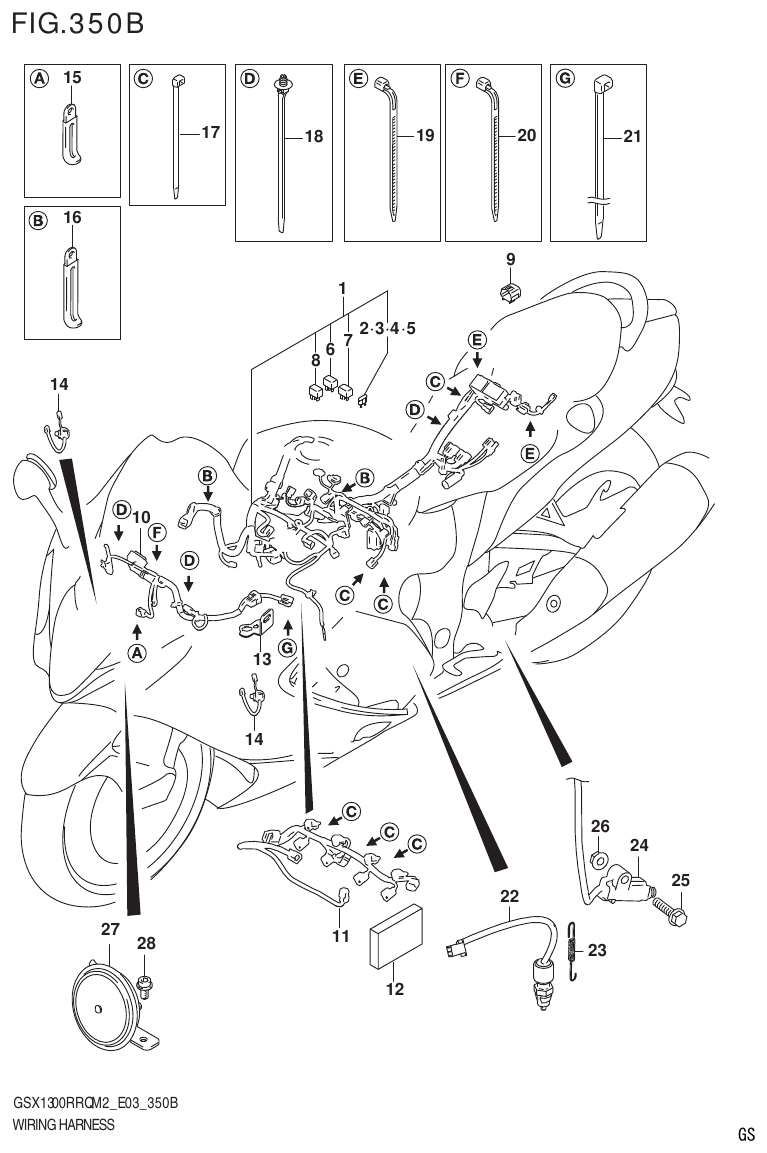

-1/images/fig-350b-wiring-harness-e03-e28.png)
Diagram image
Open full size
Parts list
Section 350B
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
36610-10L30
HARNESS,WIRING
|
1 | |
| 2 |
09481-07504
.FUSE (7.5A)
|
1 | |
| 3 |
09481-10504
.FUSE (10A)
|
1 | |
| 4 |
09481-15504
.FUSE (15A)
|
1 | |
| 5 |
09481-30504
.FUSE (30A)
|
1 | |
| 6 |
38860-76F01
.RELAY ASSY
FUEL PUMP
|
1 | |
| 7 |
38860-76F01
.RELAY ASSY
FAN MOTOR
|
1 | |
| 8 |
38860-76F01
.RELAY ASSY
SUB START
|
1 | |
| 9 |
36654-28K00
CAP,OBD CONNECTOR
|
1 | |
| 10 |
36620-10L00
HARNESS,WIRING NO.2
|
1 | |
| 11 |
36630-10L00
HARNESS,WIRING NO.3
|
1 | |
| 12 |
36652-10L00
CUSHION,HARNESS WIRING
|
1 | |
| 13 |
36672-10L00
BRACKET,WIRING HARNESS
|
1 | |
| 14 |
36852-10L00
WIRE,FAN MOTOR LEAD
|
2 | |
| 15 |
09404-06429
CLAMP (L:45)
|
1 | |
| 16 |
09407-11401
CLAMP (L:95)
|
1 | |
| 17 |
09407-14407
CLAMP (L:145)
|
6 | |
| 18 |
09407-17403
CLAMP (L:170)
|
3 | |
| 19 |
09407-19401
CLAMP (L:190)
|
2 | |
| 20 |
09407-21401
CLAMP (L:210)
|
1 | |
| 21 |
09407-38402
CLAMP,WIRING HARNESS
|
1 | |
| 22 |
37740-10L00
SWITCH ASSY,STOP LAMP
|
1 | |
| 23 |
09443-06012
SPRING
|
1 | |
| 24 |
37840-24F01
SWITCH ASSY,SIDE STAND
|
1 | |
| 25 |
09103-08357
BOLT (8X35)
|
1 | |
| 26 |
08316-1008B
NUT
|
1 | |
| 27 |
38500-24F40
HORN ASSY
|
1 | |
| 28 |
07120-0612A
BOLT
|
1 |
