Suzuki GSX1300RRQM2_E03(9900B-31813-000)-1 Section 330A Parts Diagram
SPEEDOMETER (E03,E33)
7 catalog rows · 2 linked store rows
Section 330A — SPEEDOMETER (E03,E33)
GSX1300RRQM2_E03(9900B-31813-000)-1
100%

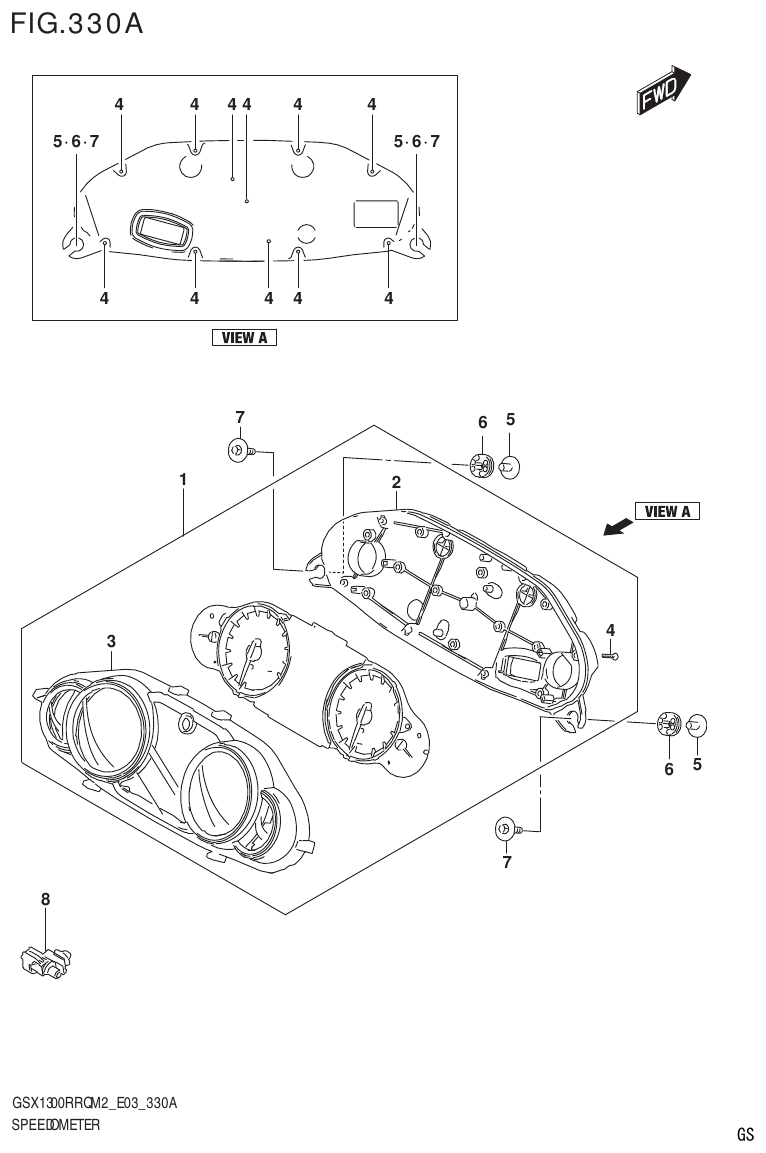

-1/images/fig-330a-speedometer-e03-e33.png)
Diagram image
Open full size
Parts list
Section 330A
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
SPEEDOMETER ASSY
|
1 | |
| 2 |
.CASE ASSY,LOWER
|
1 | |
| 3 |
.CASE ASSY,UPPER
|
1 | |
| 4 |
.SCREW
|
11 | |
| 5 |
WASHER
|
2 | |
| 6 |
CUSHION,SPEEDOMETER
|
2 | |
| 7 |
BOLT (6X25)
|
2 |
