Tohatsu M70CX Parts Catalog

Tohatsu M70CX Outboard parts and diagrams

Tohatsu M70CX outboard parts catalog includes CYLINDER・CRANK CASE, PISTON・CRANK SHAFT, INTAKE MANIFOLD・REED VALVE・INTAKE SILENCER, CARBURETOR, FUEL LINE, THROTTLE, RECOIL STARTER, MAGNETO, ELECTRIC PARTS (C.D. UNIT), DRIVE SHAFT HOUSING, GEAR CASE (DRIVE SHAFT）, GEAR CASE (PROPELLER SHAFT）, BRACKET, GAS SHOCK ABSORBER, TILLER HANDLE, BOTTOM COWL, SHIFT, TOP COWL. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

82 linked store products are available across 22 catalog sections. 804 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Tohatsu M70CX CYLINDER・CRANK CASE parts diagram

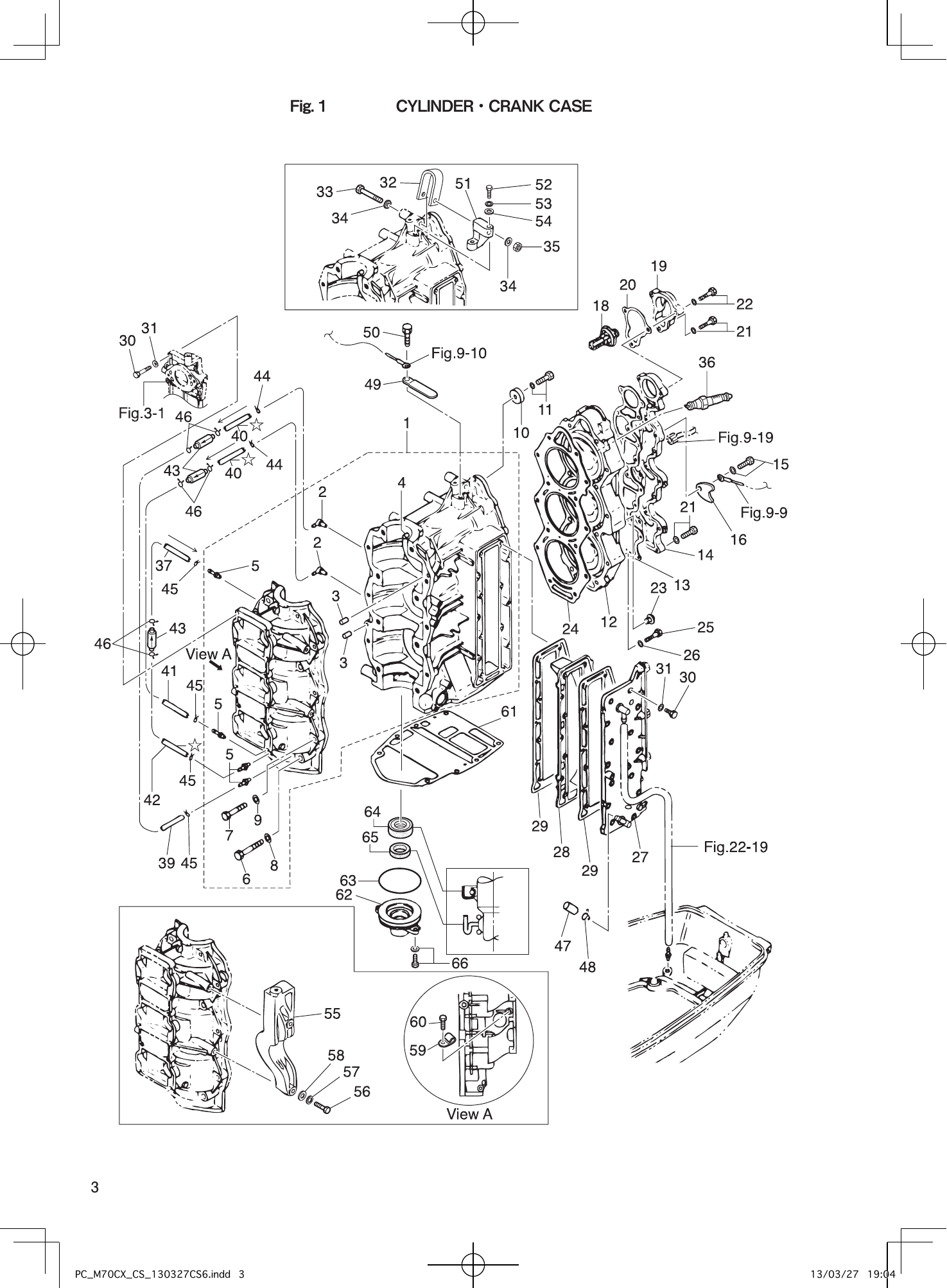

Fig. 1 — CYLINDER・CRANK CASE
64 items · 10 available products
Tohatsu M70CX PISTON・CRANK SHAFT parts diagram

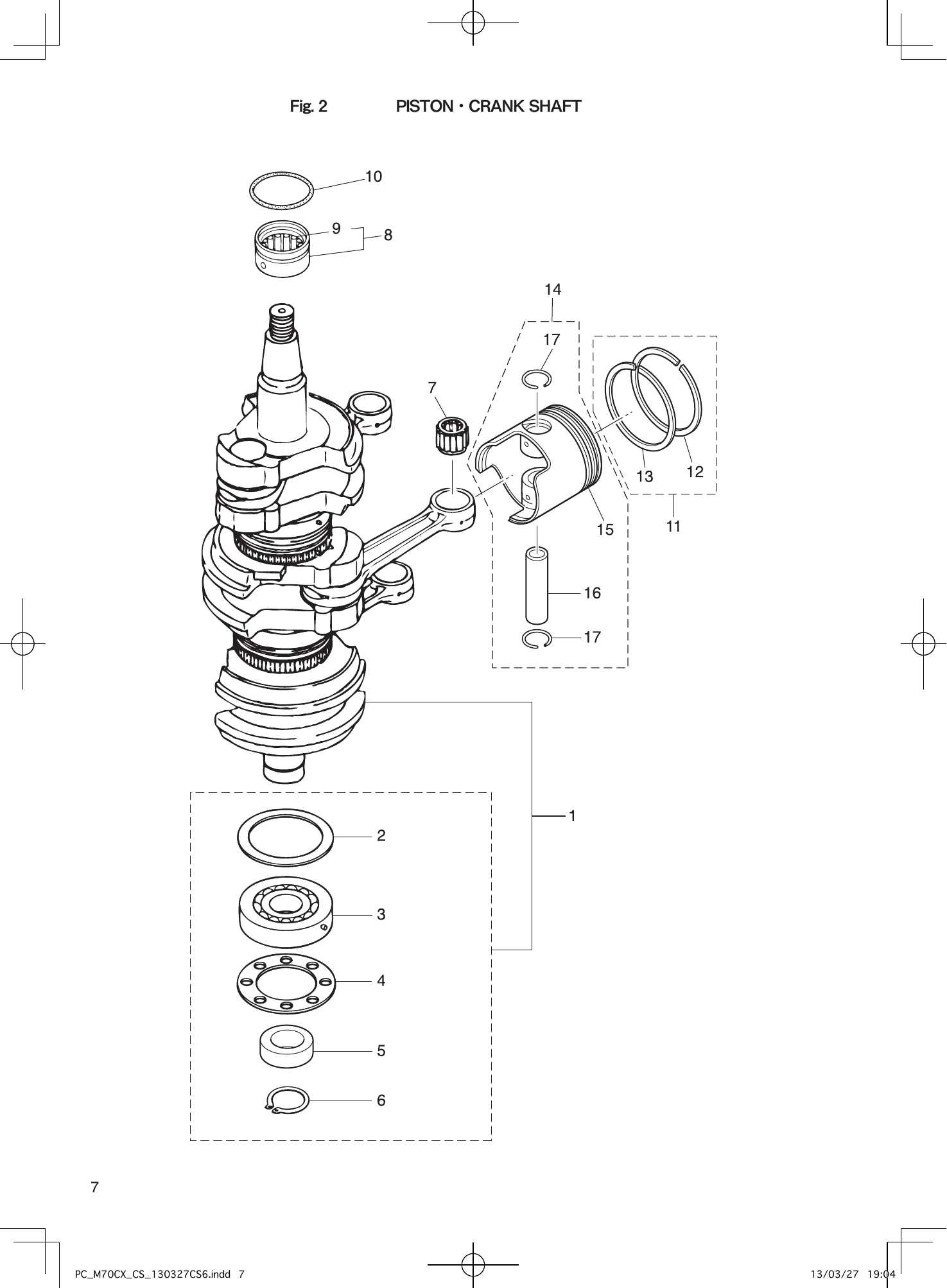

Fig. 2 — PISTON・CRANK SHAFT
22 items · 1 available products
Tohatsu M70CX INTAKE MANIFOLD・REED VALVE・INTAKE SILENCER parts diagram

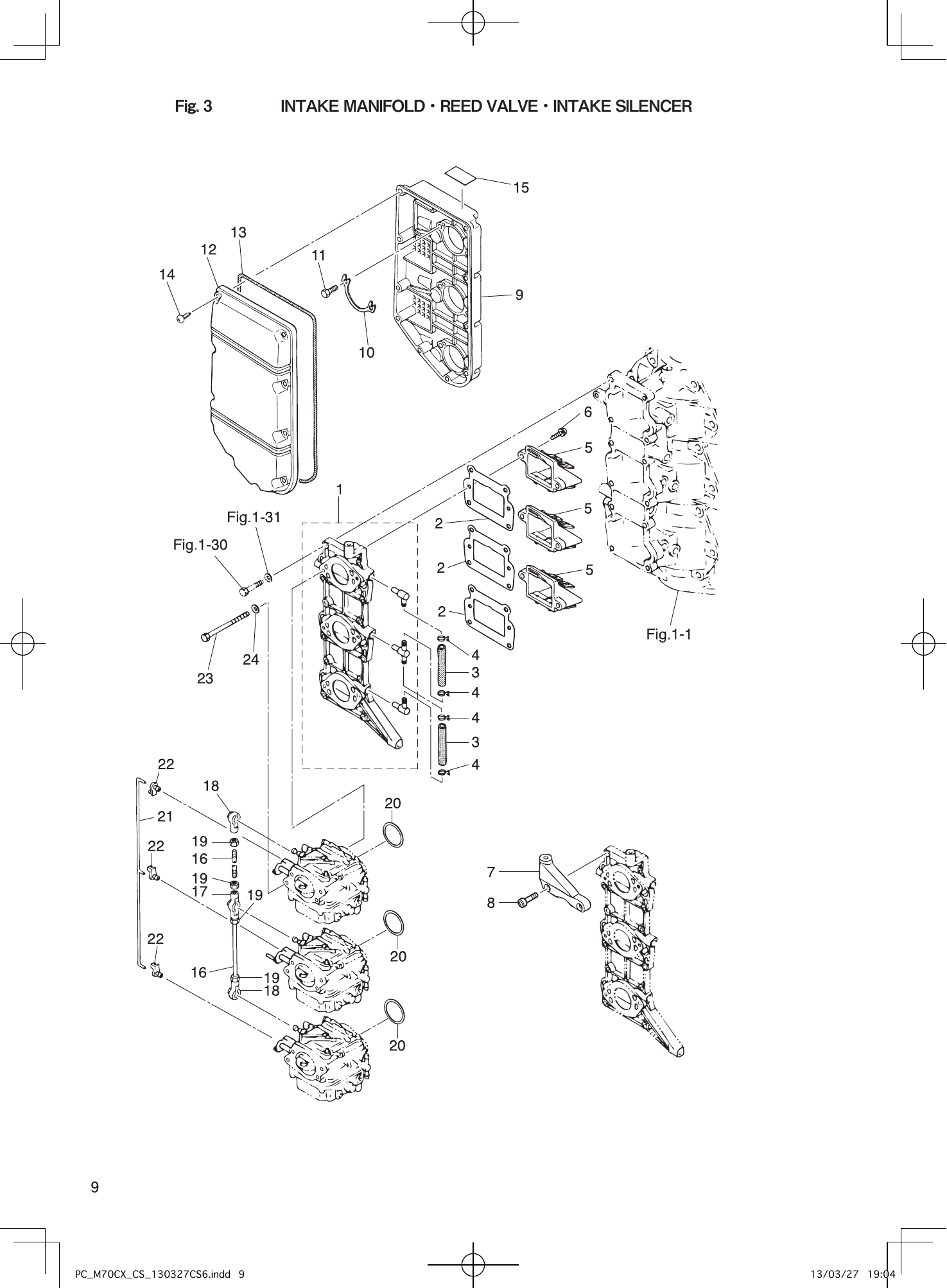

Fig. 3 — INTAKE MANIFOLD・REED VALVE・INTAKE SILENCER
24 items · 1 available products
Tohatsu M70CX CARBURETOR parts diagram

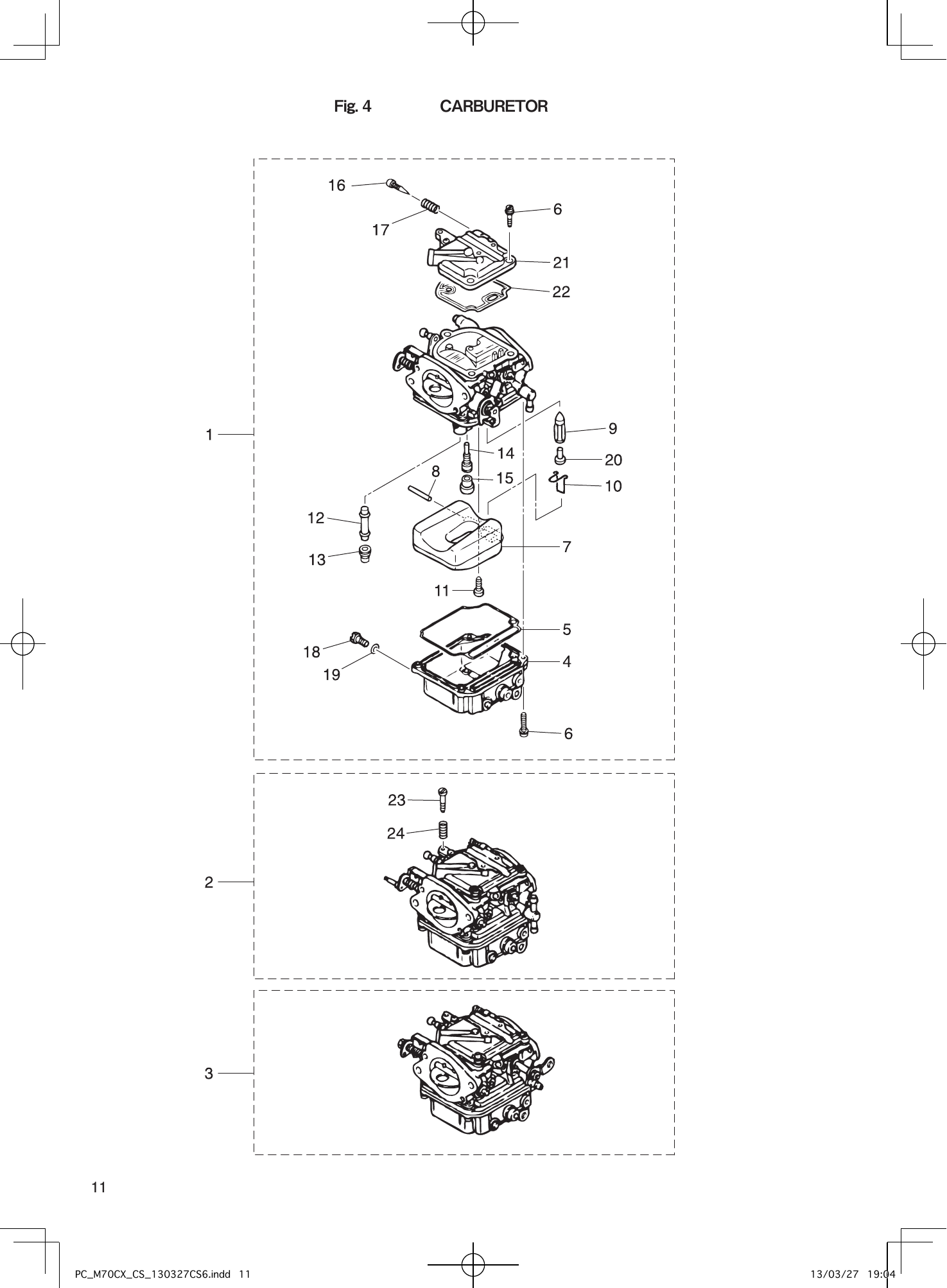

Fig. 4 — CARBURETOR
24 items · 1 available products
Tohatsu M70CX FUEL LINE parts diagram

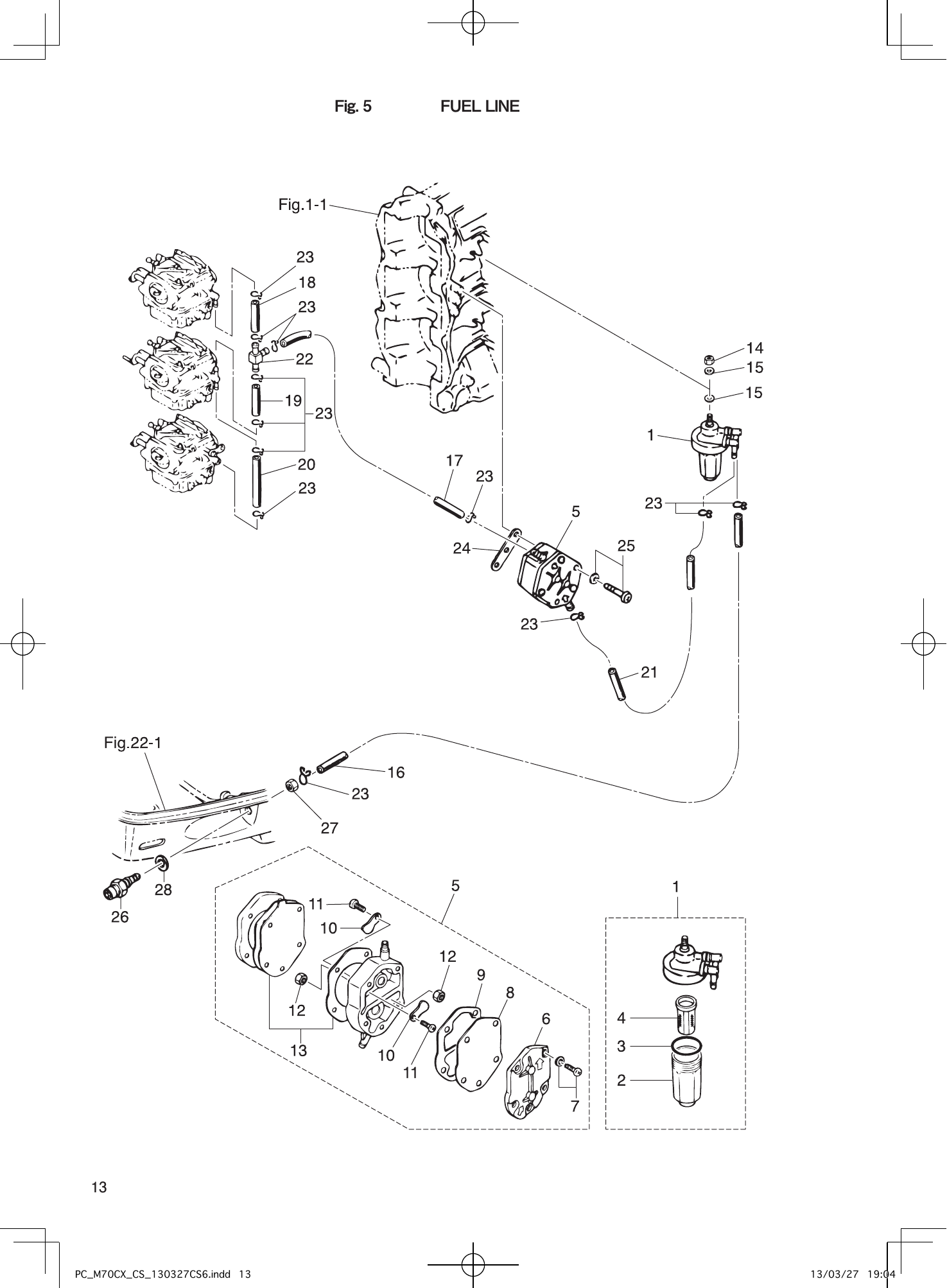

Fig. 5 — FUEL LINE
28 items · 2 available products
Tohatsu M70CX THROTTLE parts diagram

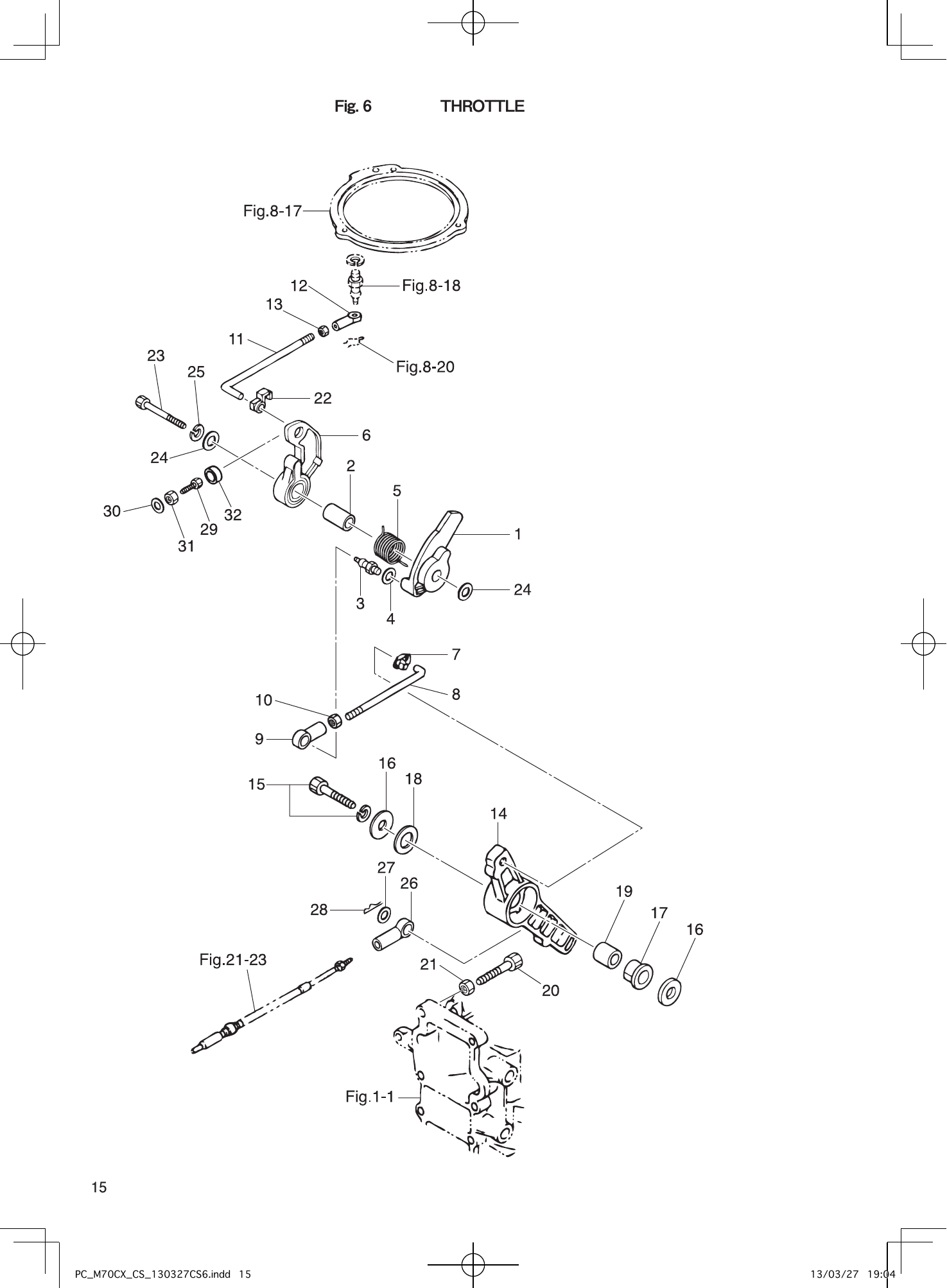

Fig. 6 — THROTTLE
32 items · 2 available products
Tohatsu M70CX RECOIL STARTER parts diagram

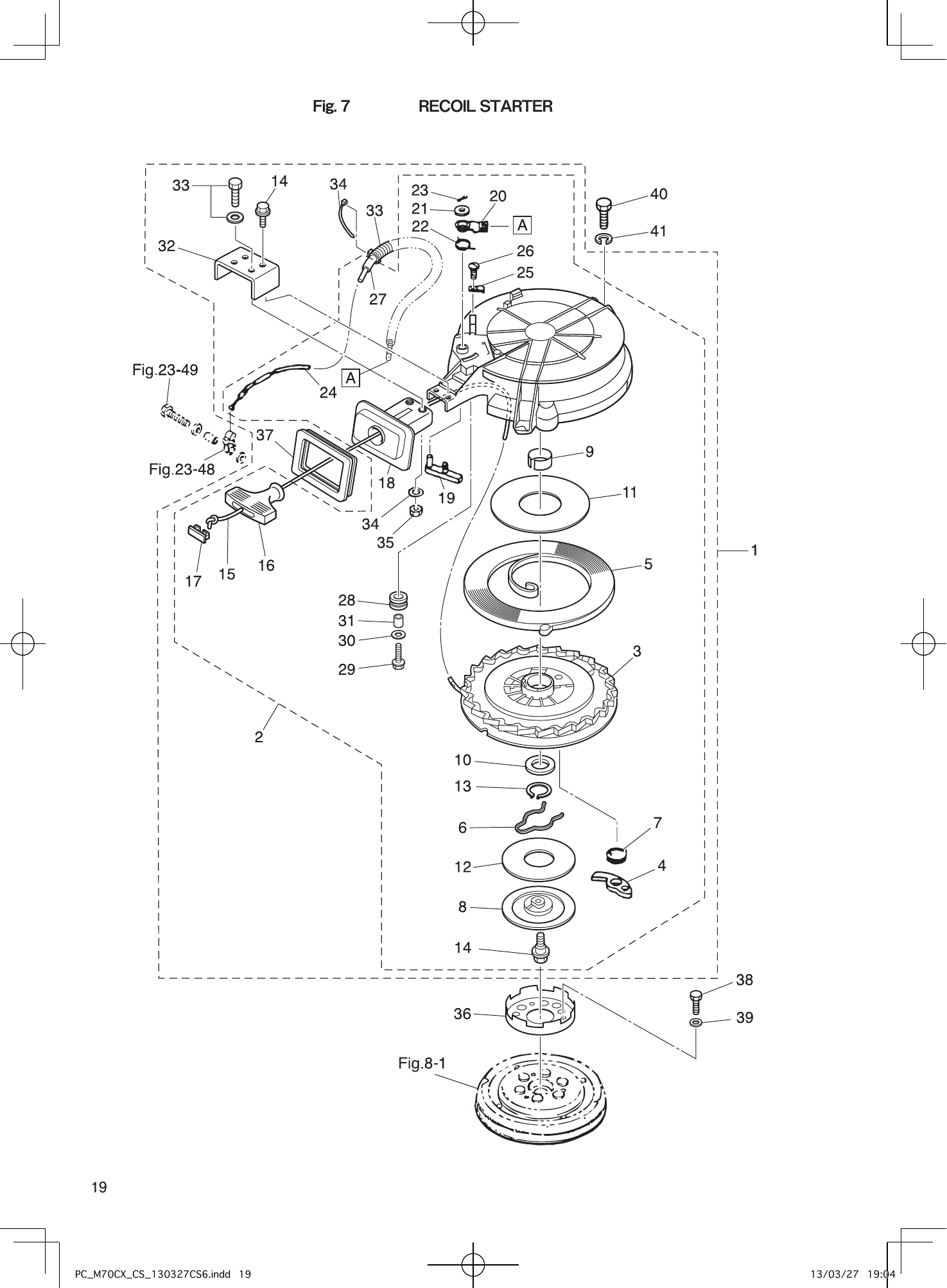

Fig. 7 — RECOIL STARTER
41 items · 2 available products
Tohatsu M70CX MAGNETO parts diagram

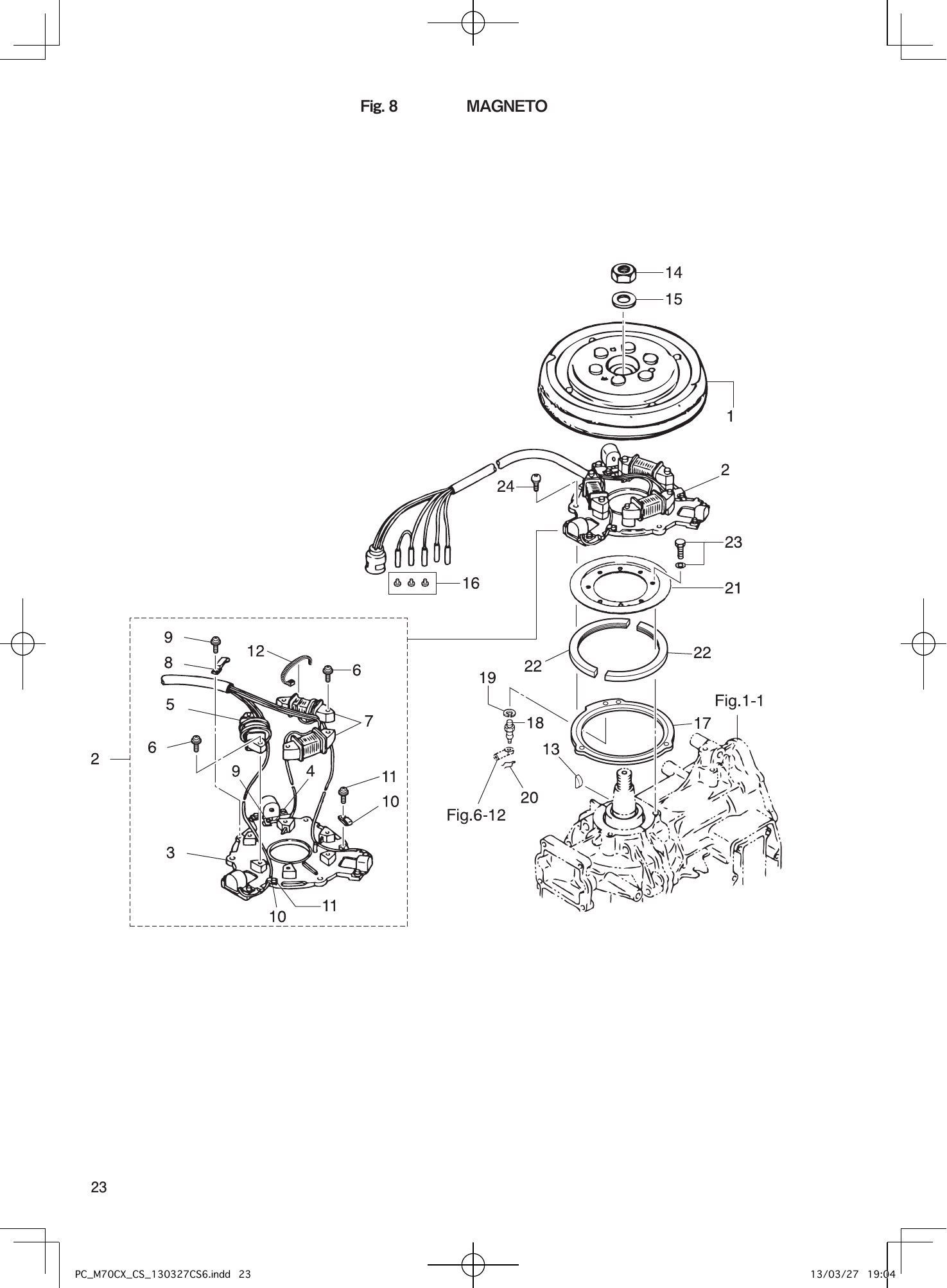

Fig. 8 — MAGNETO
24 items · 1 available products
Tohatsu M70CX ELECTRIC PARTS (C.D. UNIT) parts diagram

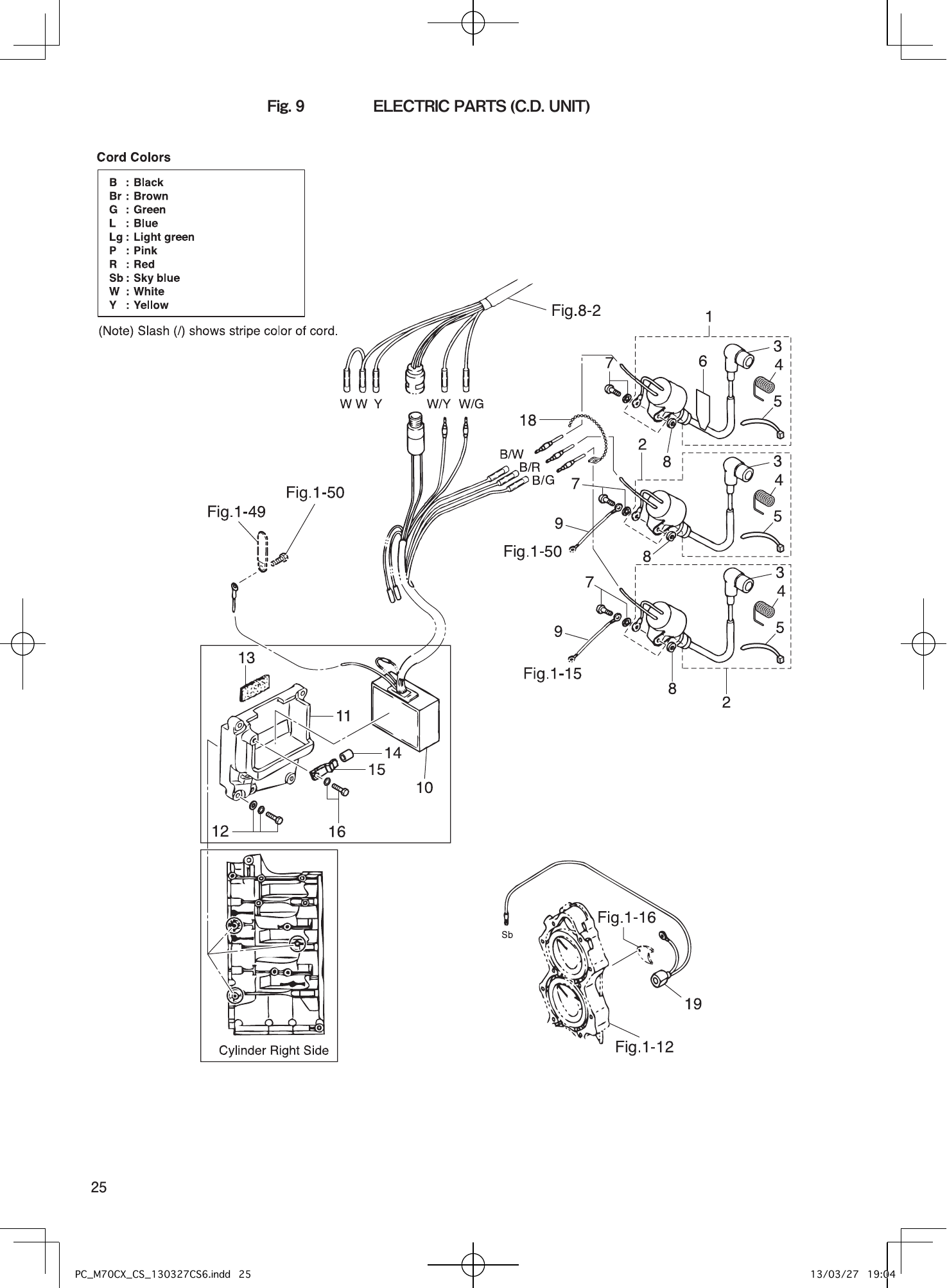

Fig. 9 — ELECTRIC PARTS (C.D. UNIT)
18 items · 2 available products
Tohatsu M70CX DRIVE SHAFT HOUSING parts diagram

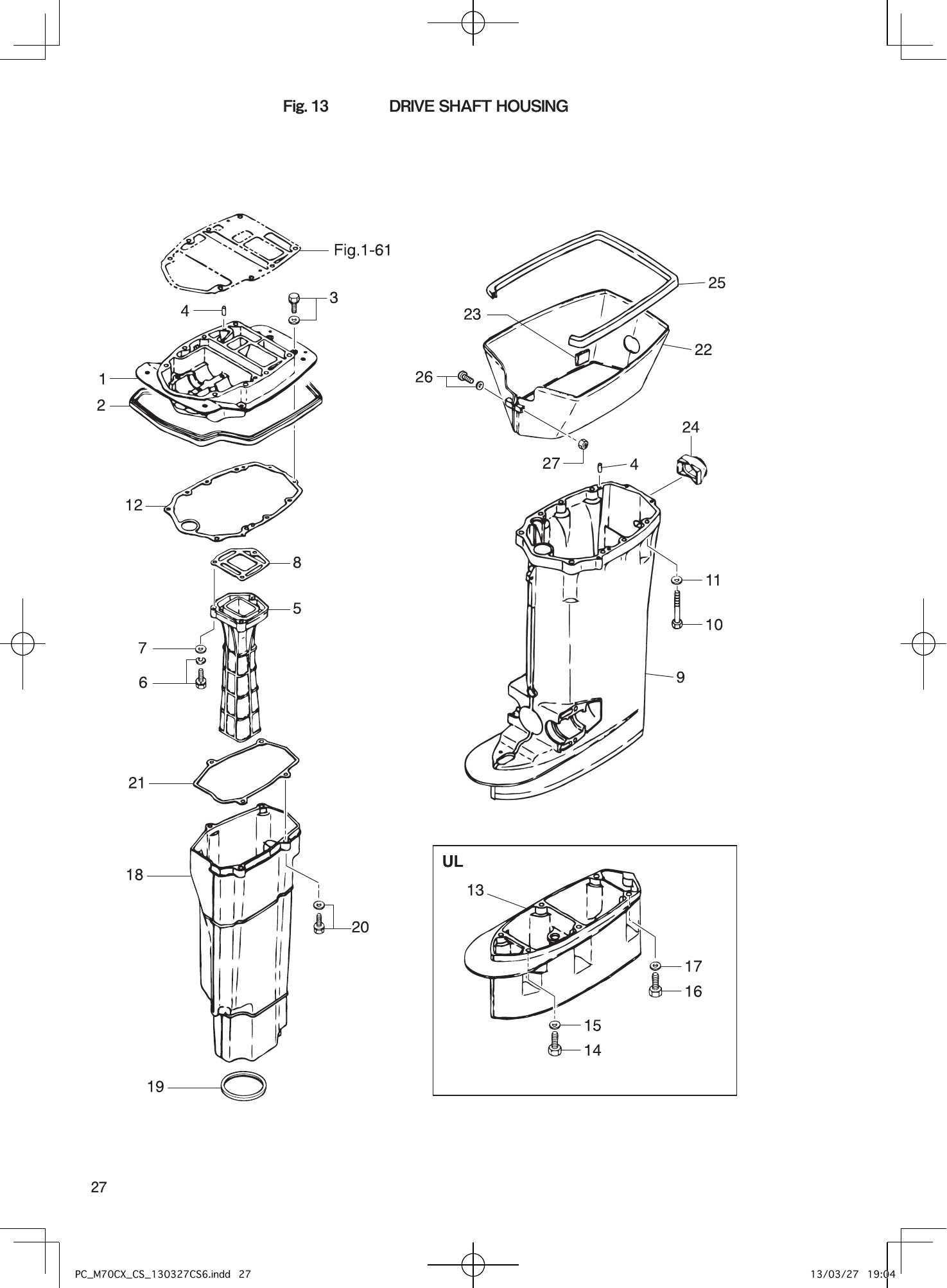

Fig. 13 — DRIVE SHAFT HOUSING
27 items · 3 available products
Tohatsu M70CX GEAR CASE (DRIVE SHAFT） parts diagram

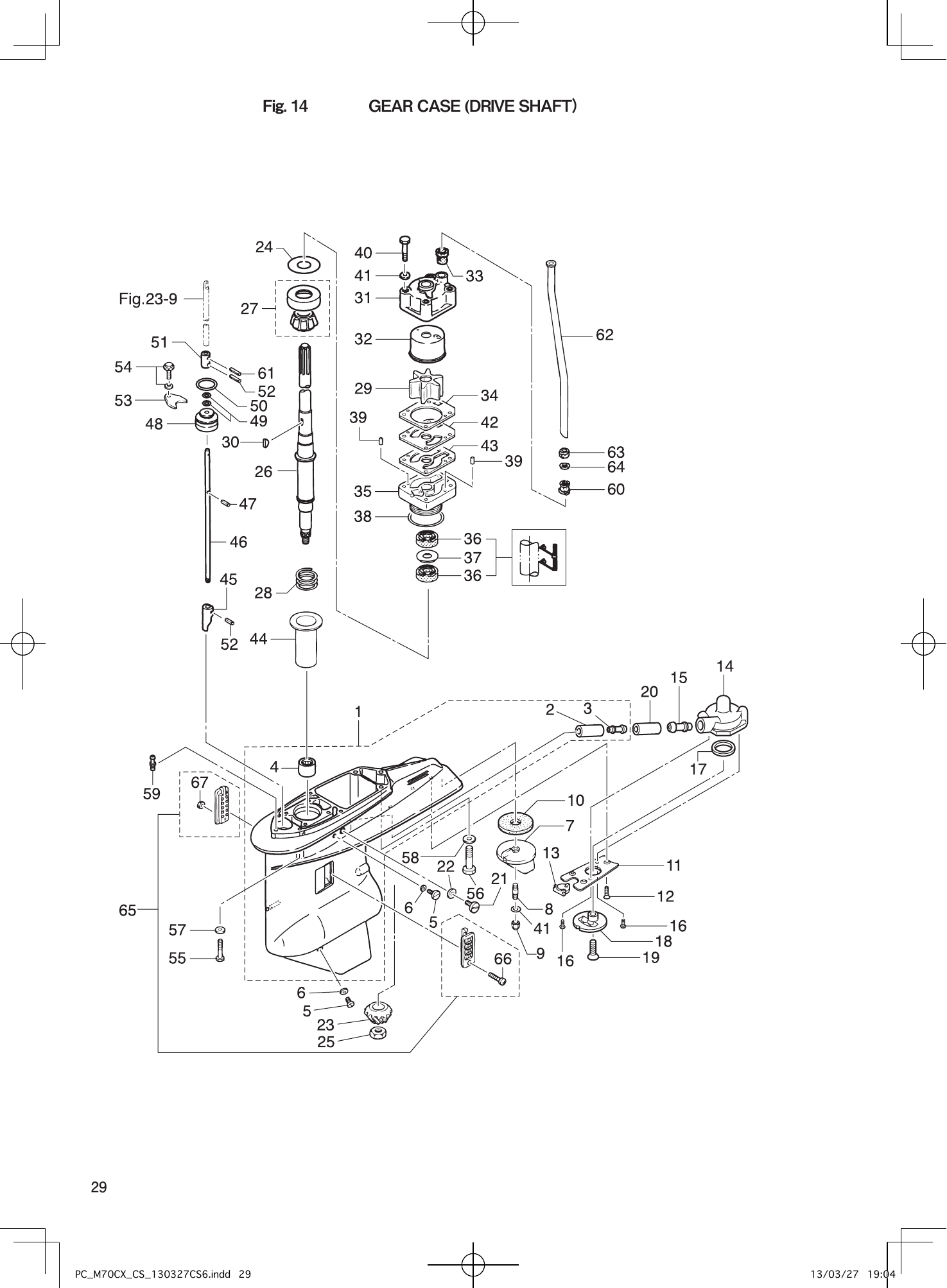

Fig. 14 — GEAR CASE (DRIVE SHAFT）
72 items · 9 available products
Tohatsu M70CX GEAR CASE (PROPELLER SHAFT） parts diagram

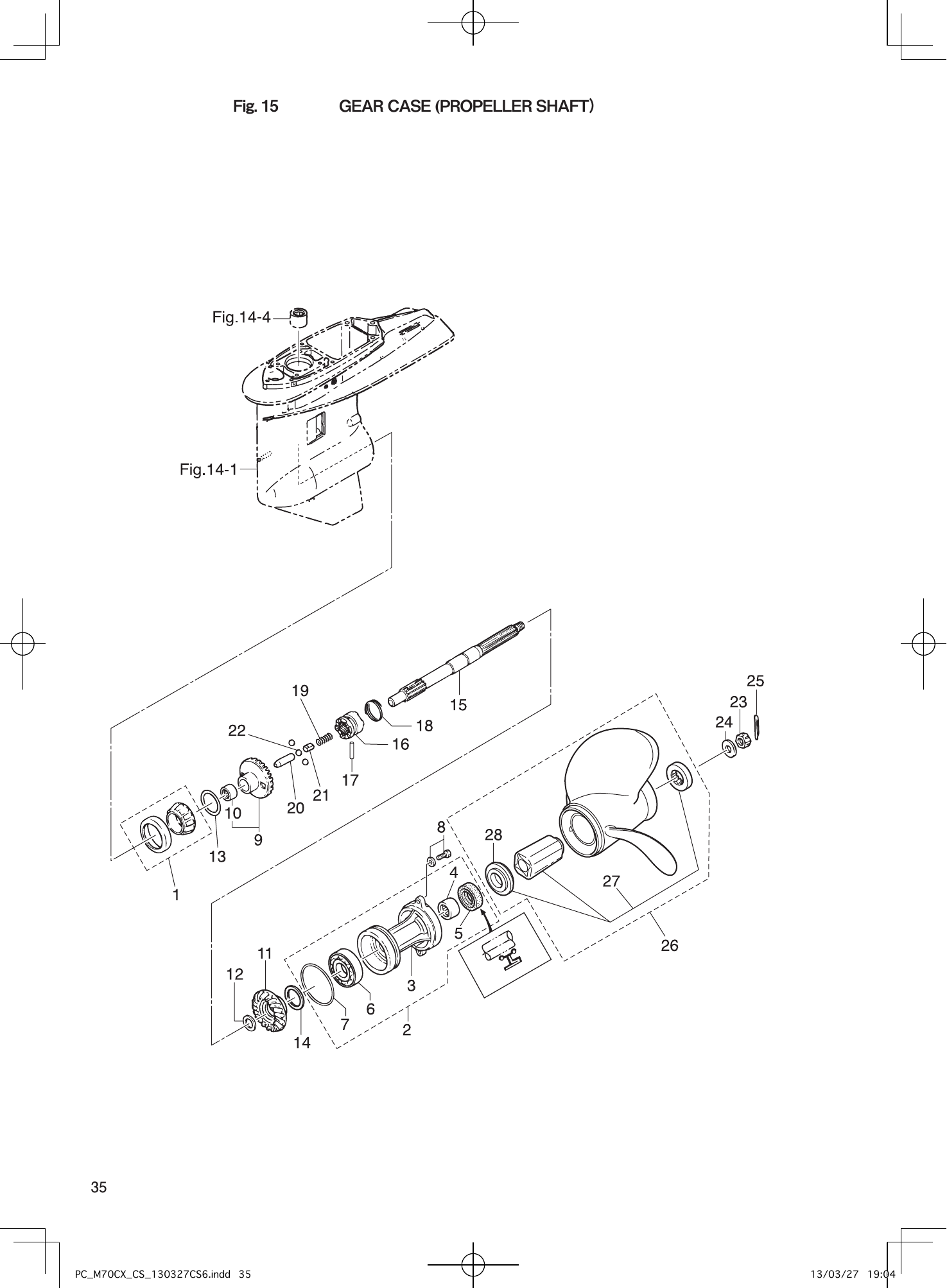

Fig. 15 — GEAR CASE (PROPELLER SHAFT）
38 items · 3 available products
Tohatsu M70CX BRACKET parts diagram

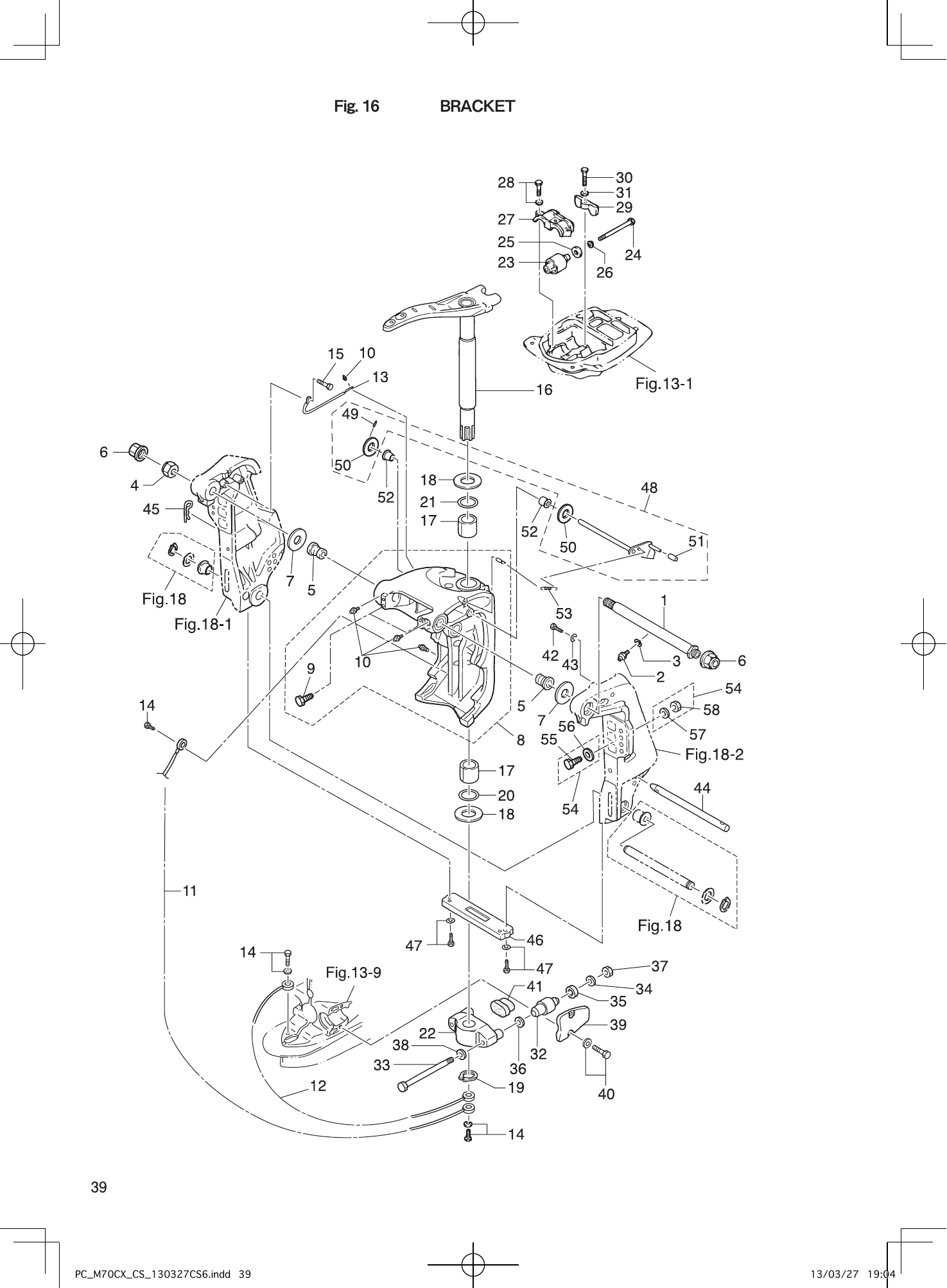

Fig. 16 — BRACKET
58 items · 9 available products
Tohatsu M70CX GAS SHOCK ABSORBER parts diagram

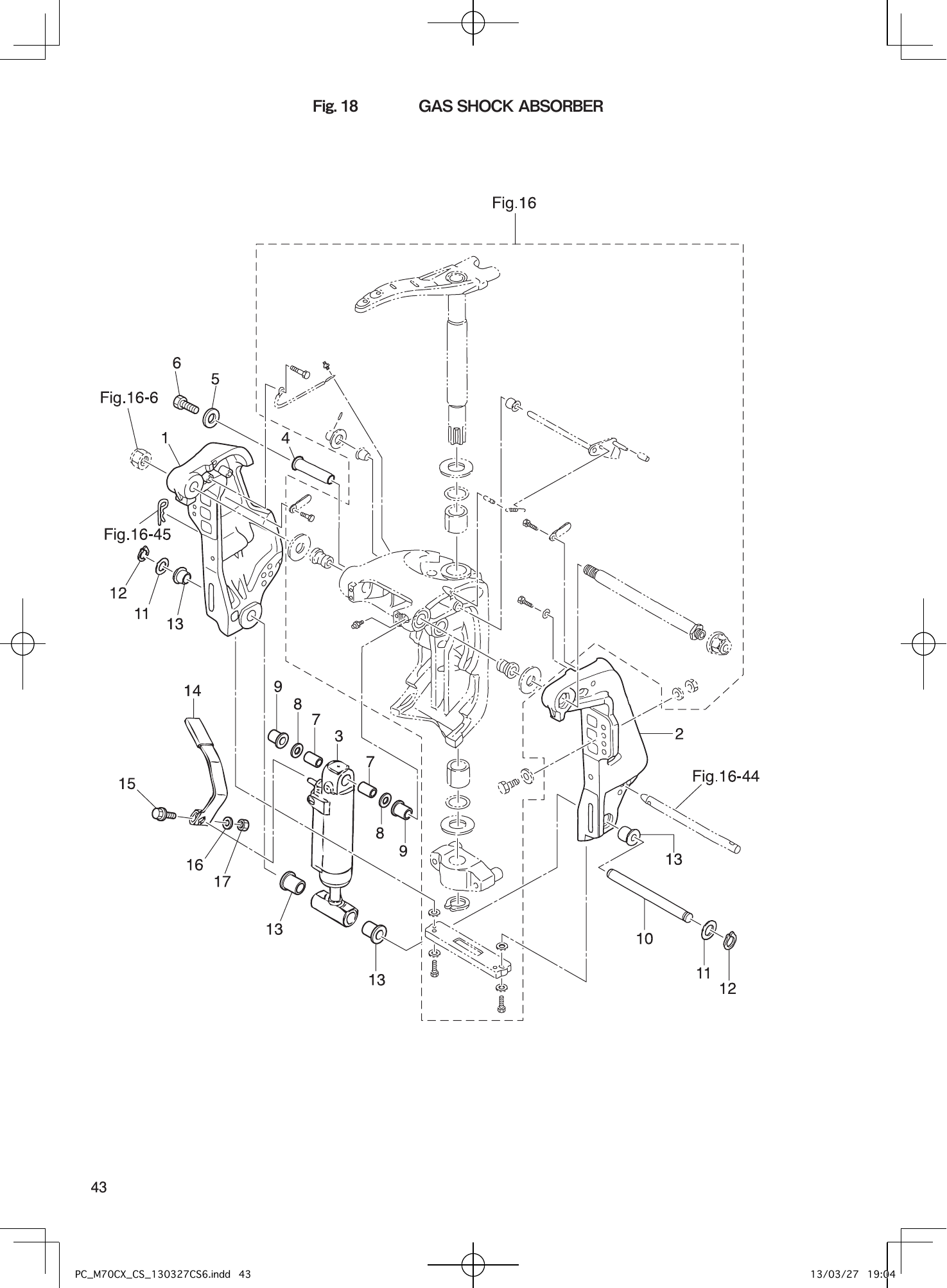

Fig. 18 — GAS SHOCK ABSORBER
17 items · 3 available products
Tohatsu M70CX TILLER HANDLE parts diagram

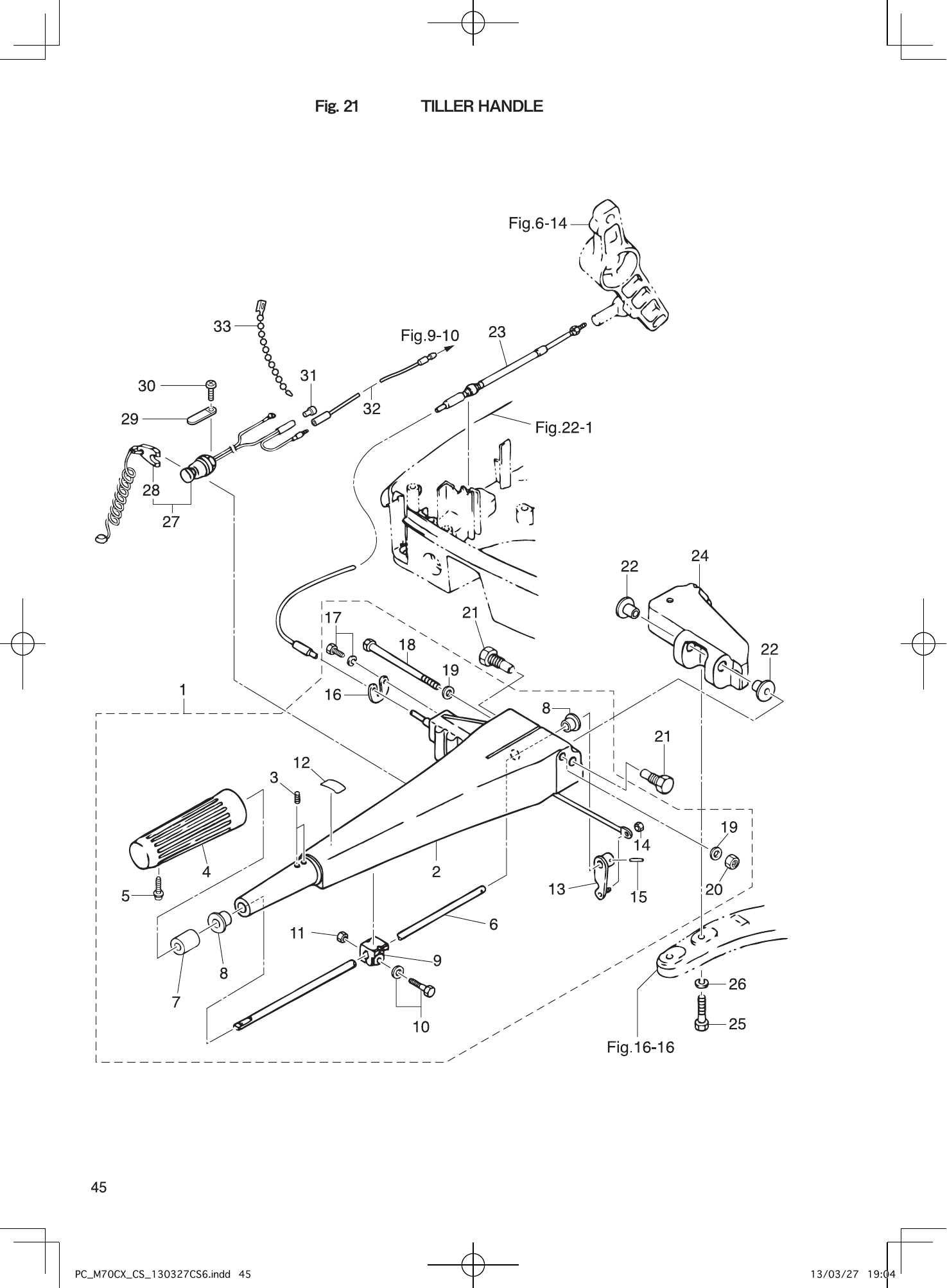

Fig. 21 — TILLER HANDLE
33 items · 4 available products
Tohatsu M70CX BOTTOM COWL parts diagram

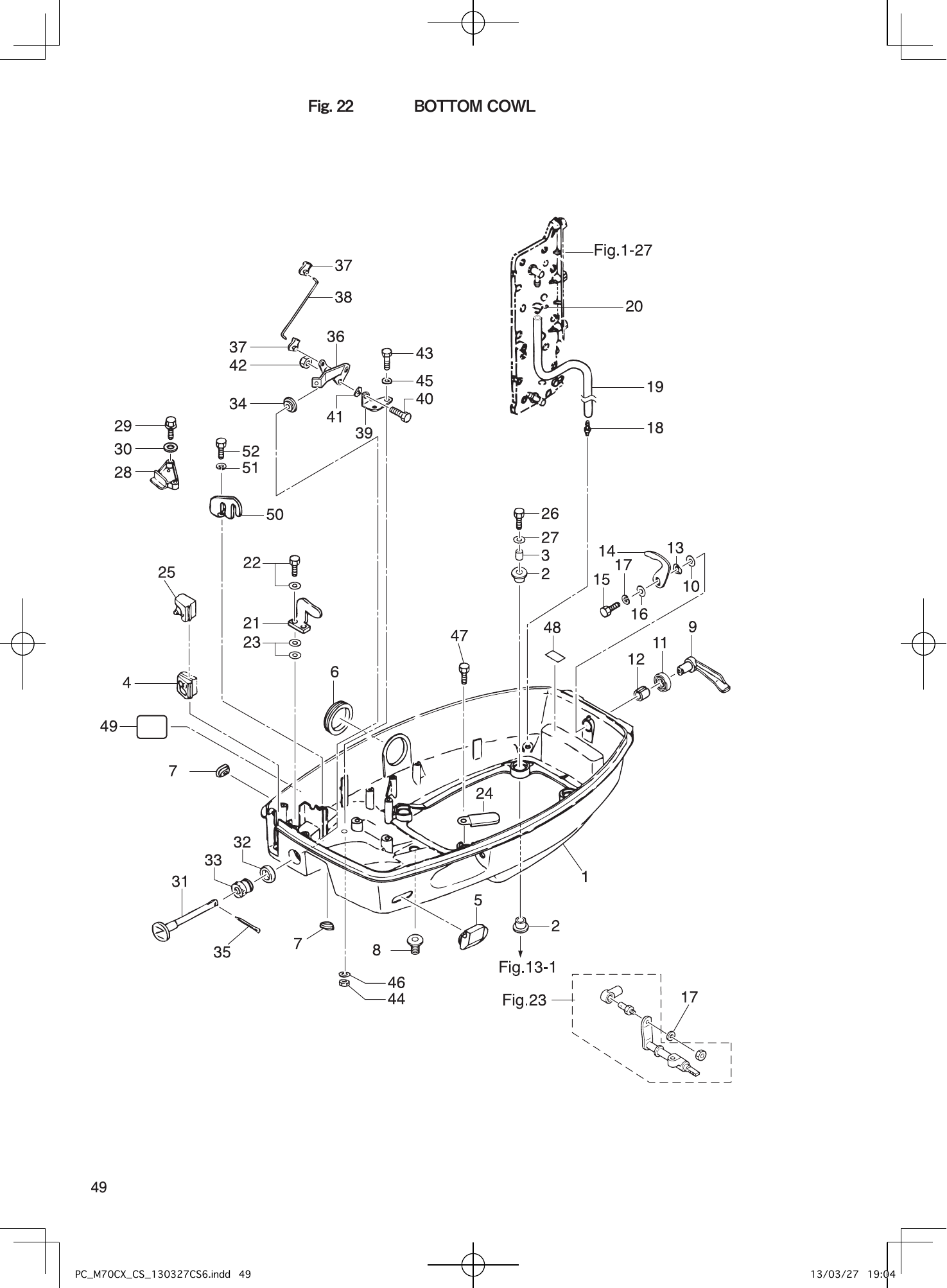

Fig. 22 — BOTTOM COWL
52 items · 8 available products
Tohatsu M70CX SHIFT parts diagram

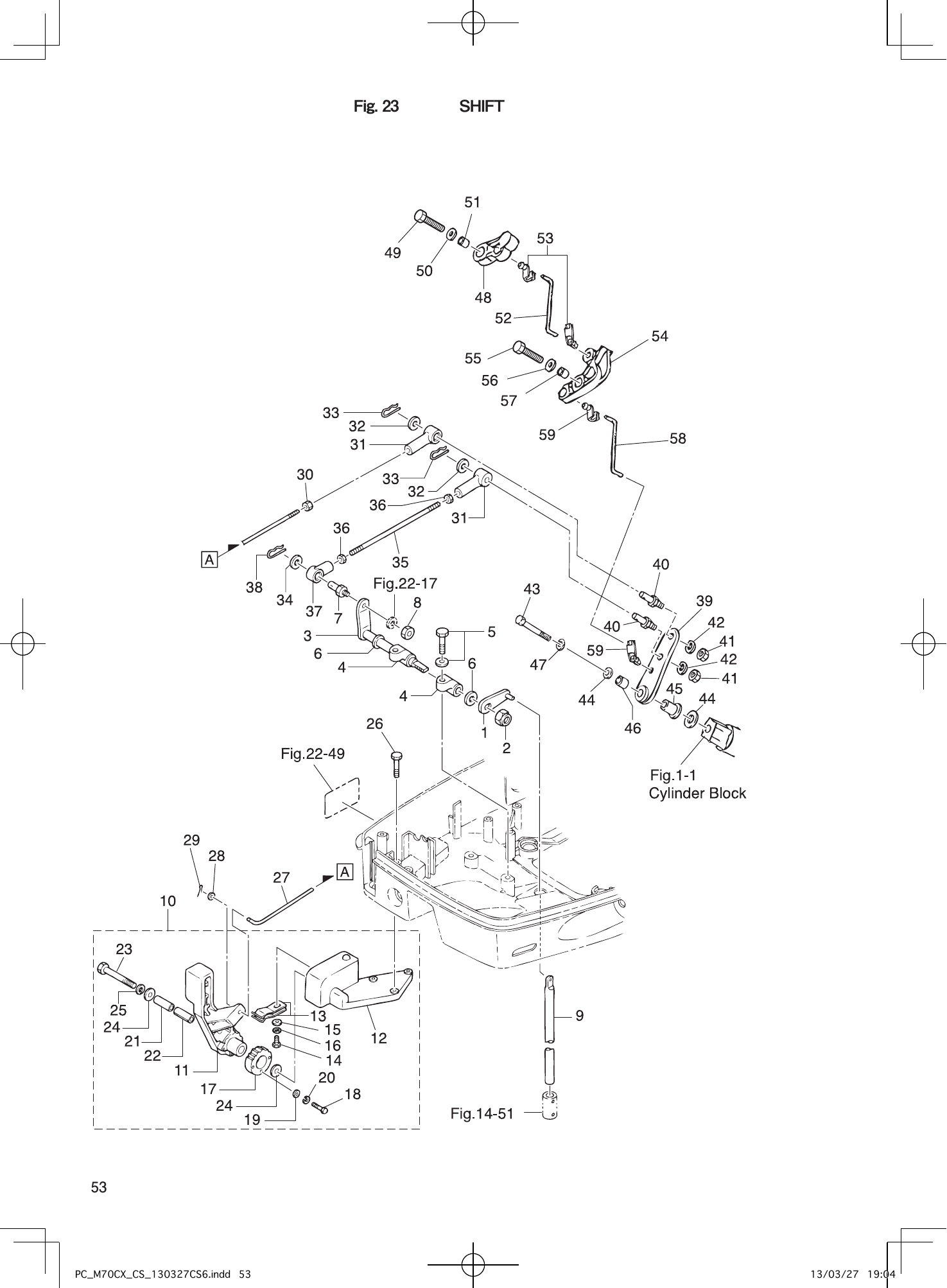

Fig. 23 — SHIFT
59 items · 5 available products
Tohatsu M70CX TOP COWL parts diagram

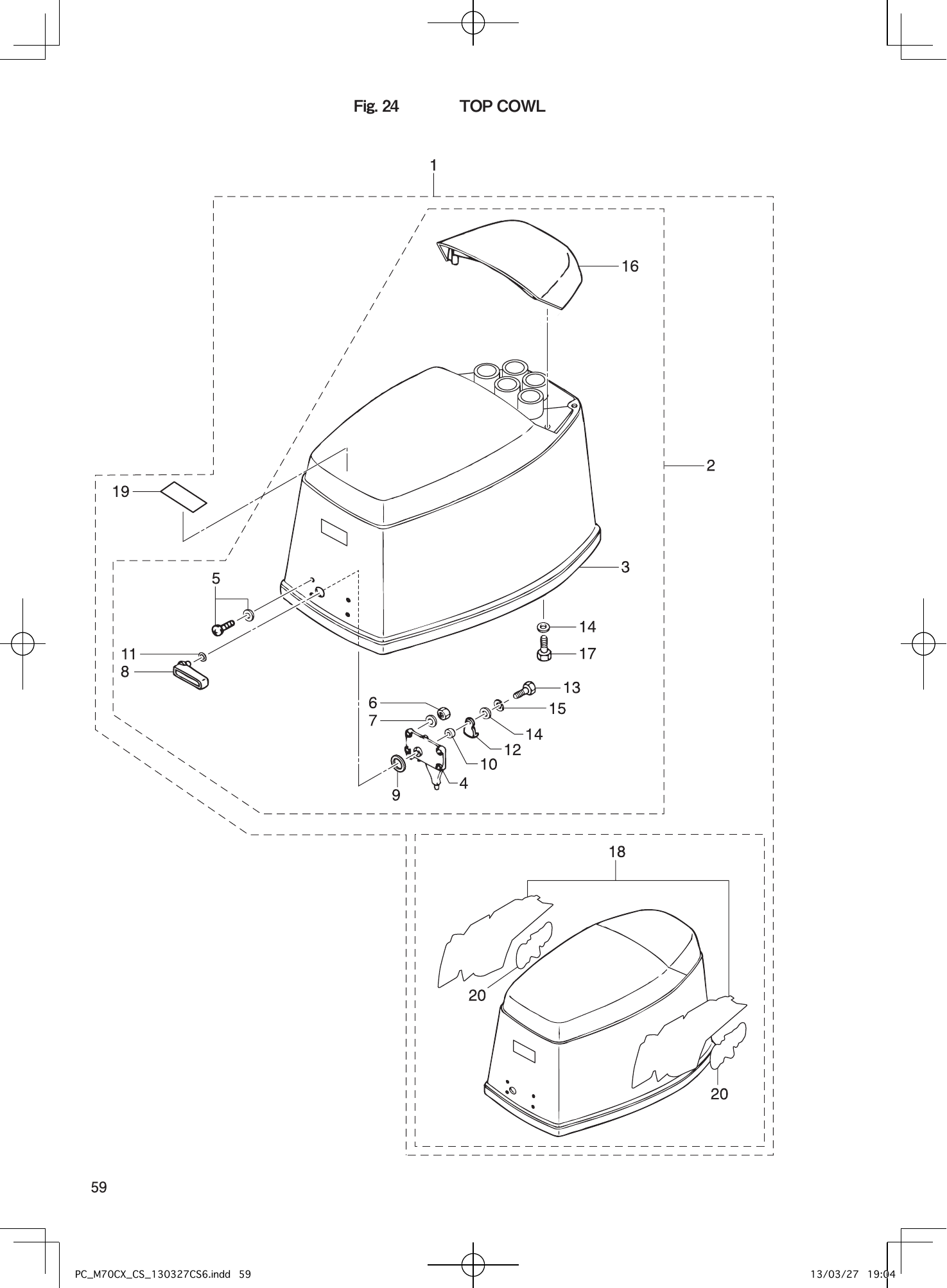

Fig. 24 — TOP COWL
20 items · 1 available products
Tohatsu M70CX FUEL TANK parts diagram

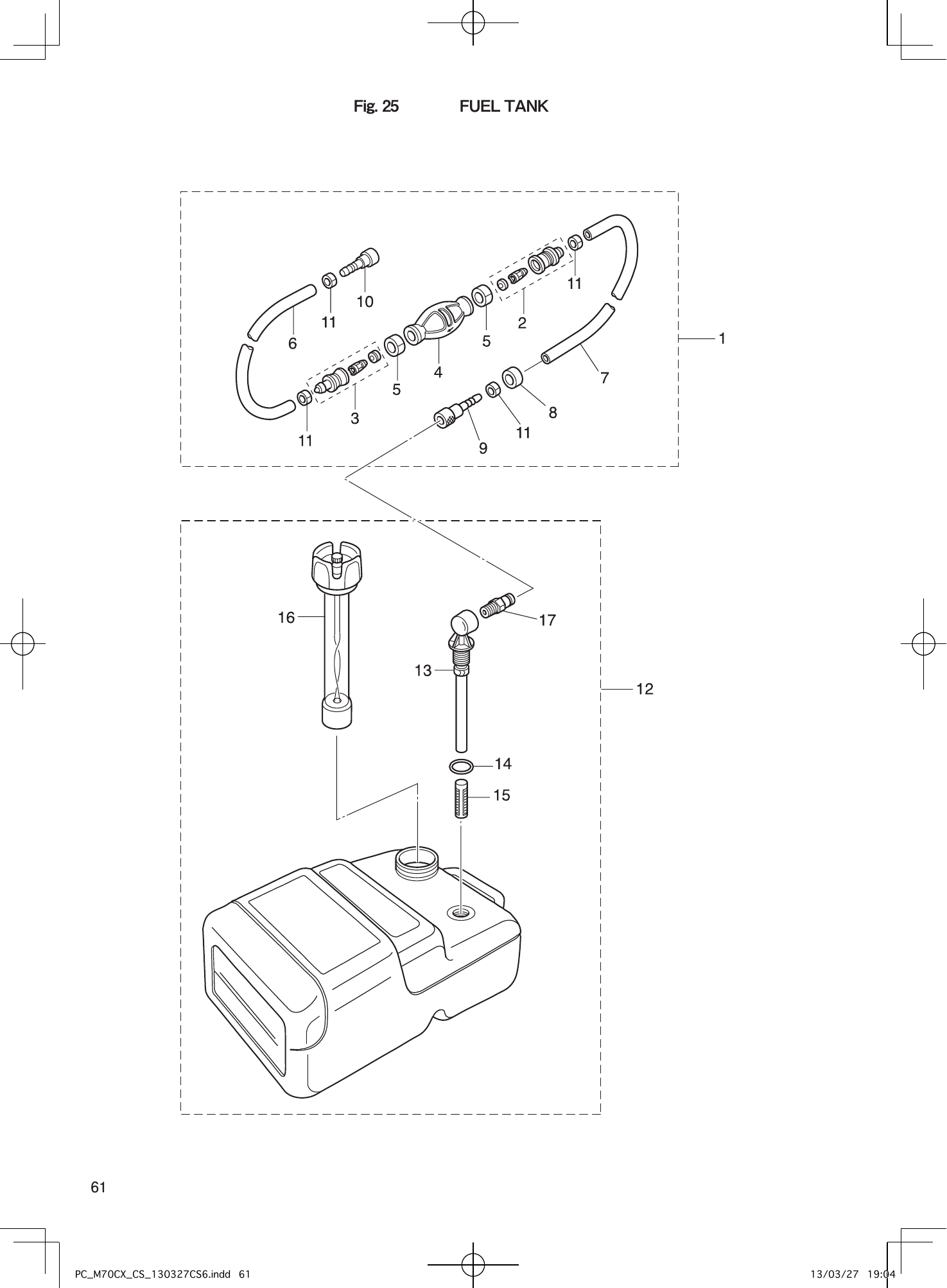

Fig. 25 — FUEL TANK
17 items · 4 available products
Tohatsu M70CX ACCESSORIES parts diagram

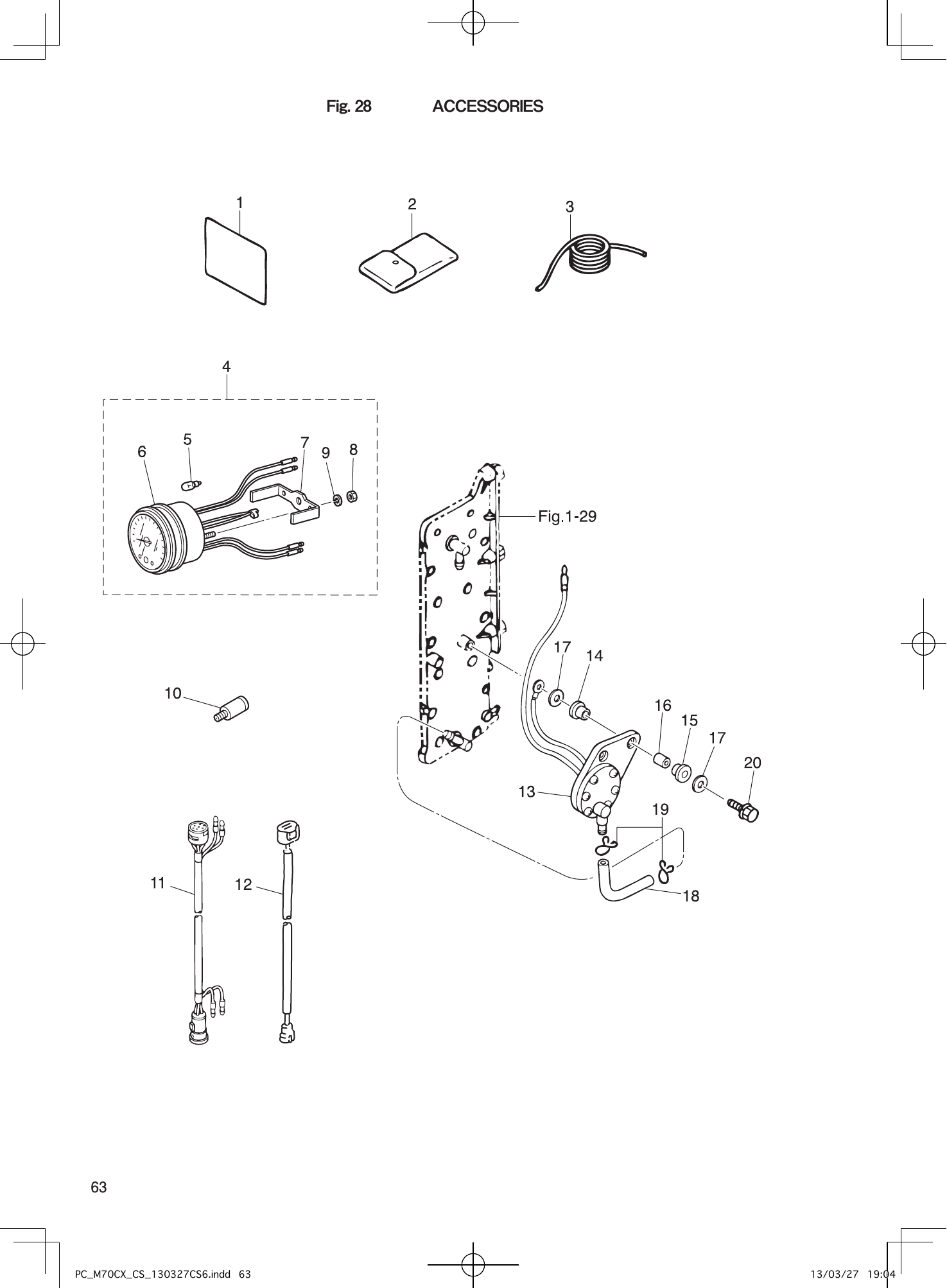

Fig. 28 — ACCESSORIES
20 items · 1 available products
Tohatsu M70CX OPTIONAL PARTS (1) parts diagram

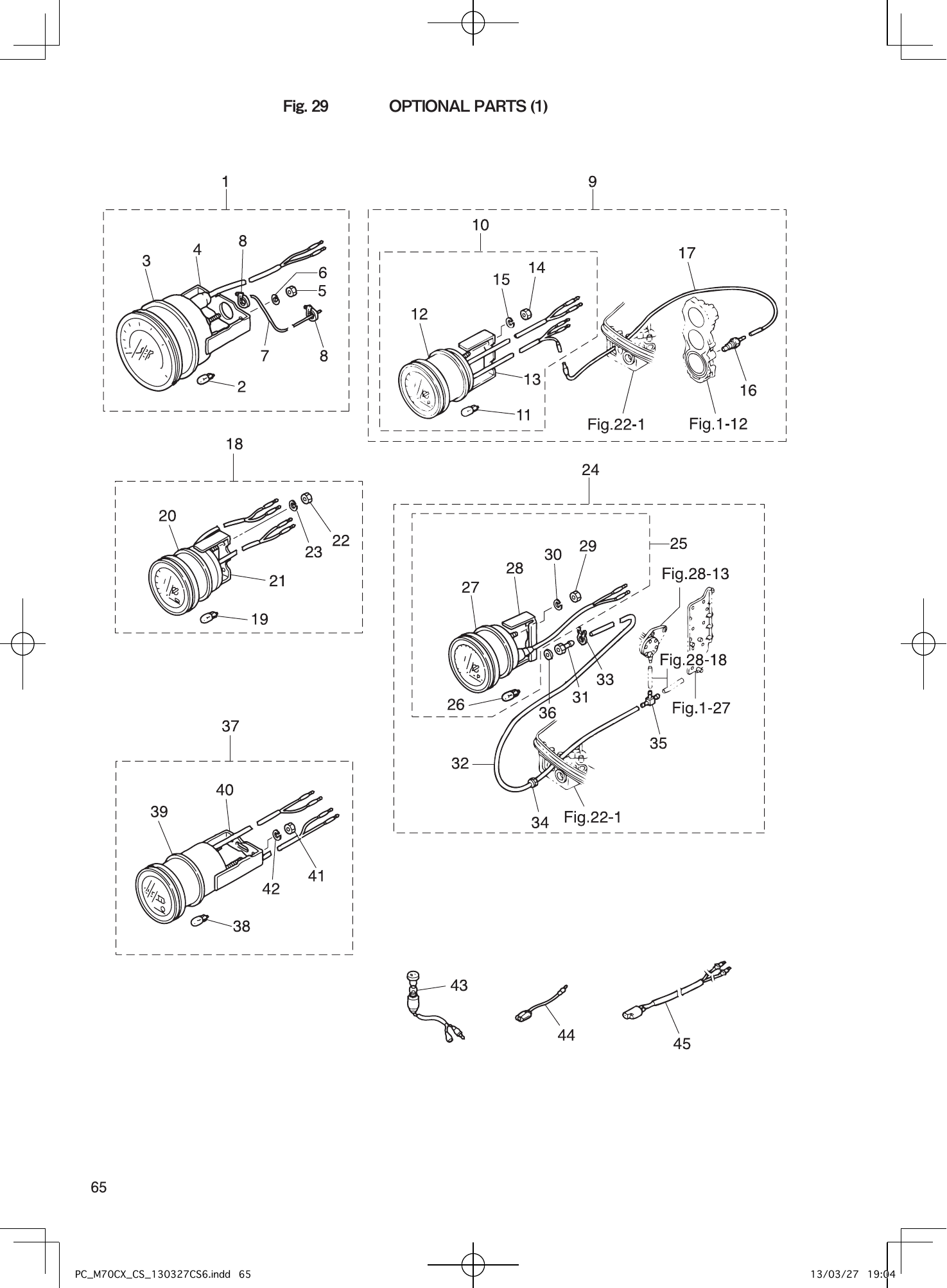

Fig. 29 — OPTIONAL PARTS (1)
48 items · 1 available products
Tohatsu M70CX ASSEMBLY・KIT PARTS parts diagram

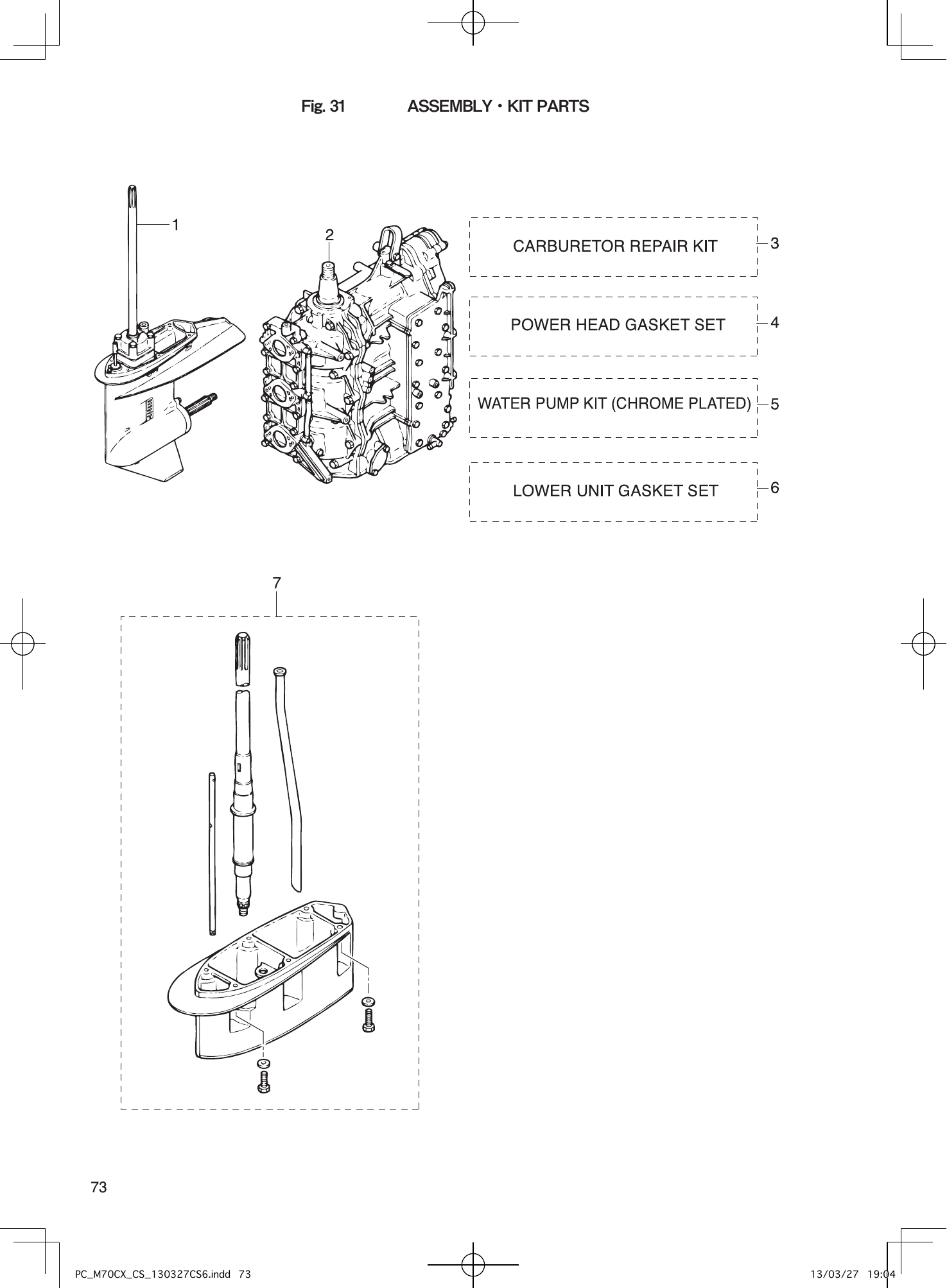

Fig. 31 — ASSEMBLY・KIT PARTS
66 items · 9 available products
