Tohatsu MFS25B, MFS30B Parts Catalog

Tohatsu MFS25B, MFS30B Outboard parts and diagrams

Tohatsu MFS25B, MFS30B outboard parts catalog includes CYLINDER・CRANK CASE, PISTON・CRANK SHAFT, CYLINDER HEAD・OIL PUMP, PULLEY・TIMING BELT, INTAKE MANIFOLD, FUEL SYSTEM, RECOIL STARTER, MAGNETO, ELECTRIC PARTS, DRIVE SHAFT HOUSING, BRACKET (MANUAL TILT), BRACKET (PTT ･ GAS ASSIST), POWER TILT, TILLER HANDLE, BOTTOM COWL, SHIFT ･ THROTTLE, REMOTE CONTROL, TOP COWL. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

96 linked store products are available across 23 catalog sections. 954 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

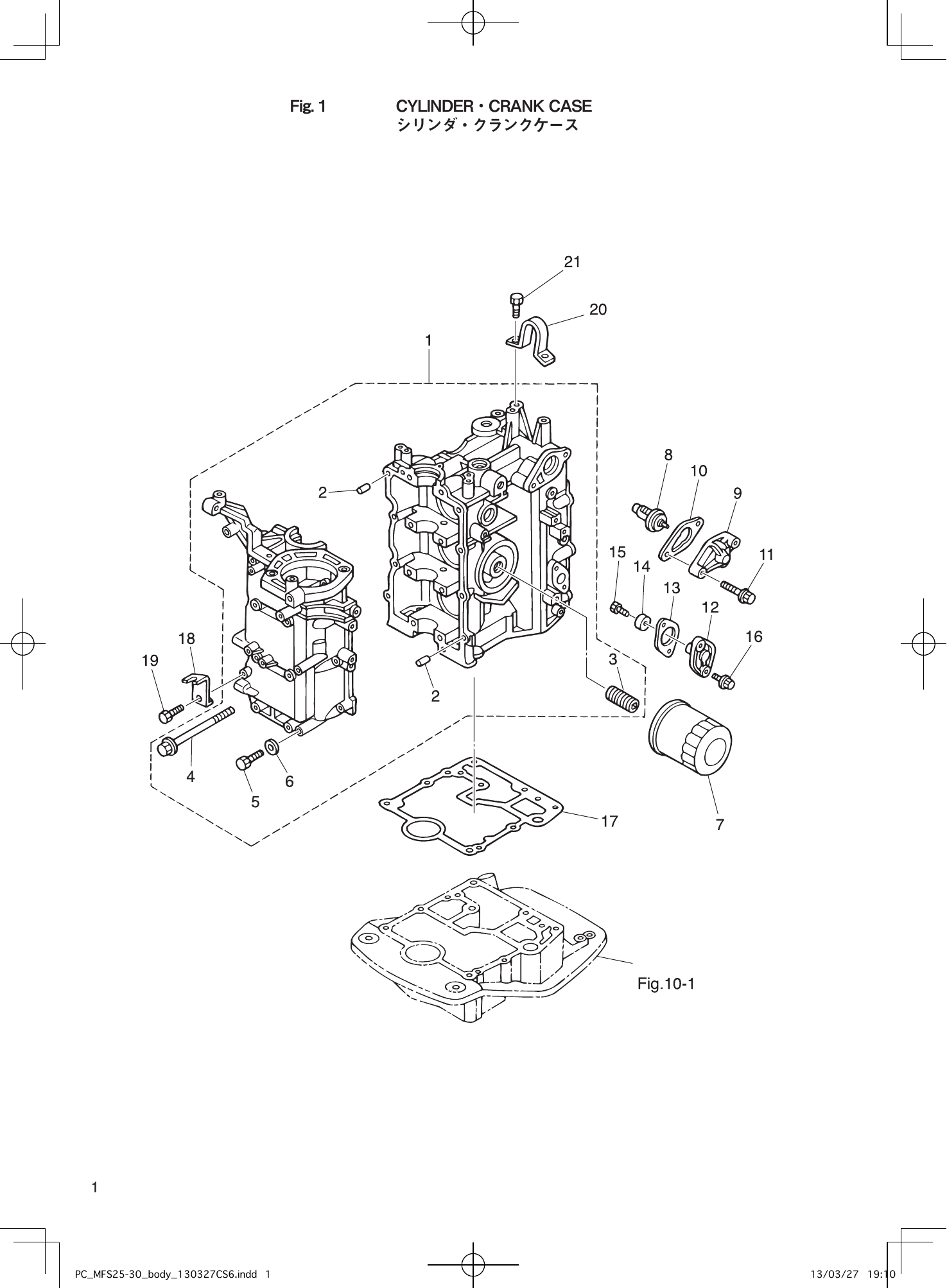

Tohatsu MFS25B, MFS30B CYLINDER・CRANK CASE parts diagram
Fig. 1 — CYLINDER・CRANK CASE
21 items · 2 available products

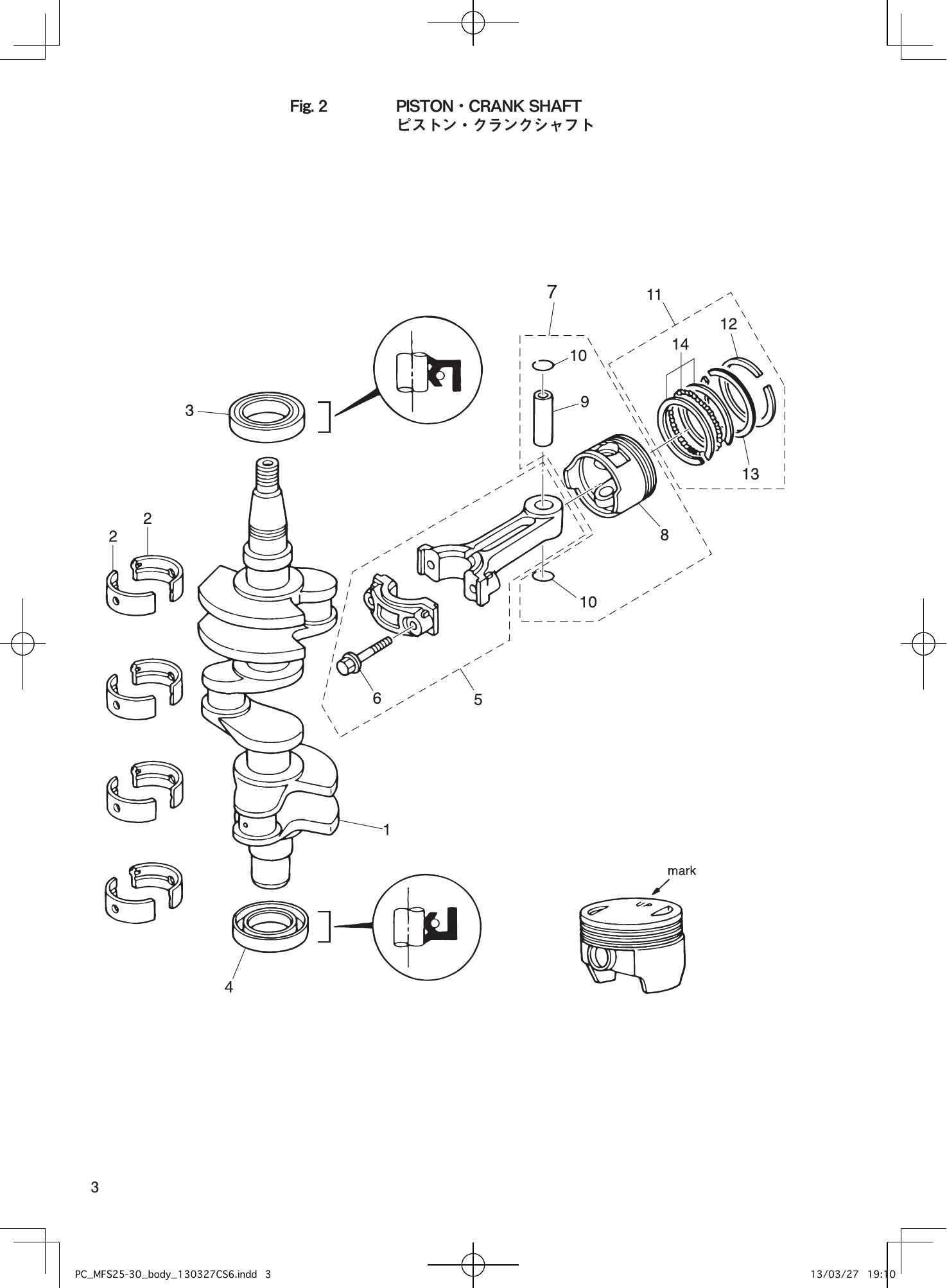

Tohatsu MFS25B, MFS30B PISTON・CRANK SHAFT parts diagram
Fig. 2 — PISTON・CRANK SHAFT
15 items · 5 available products

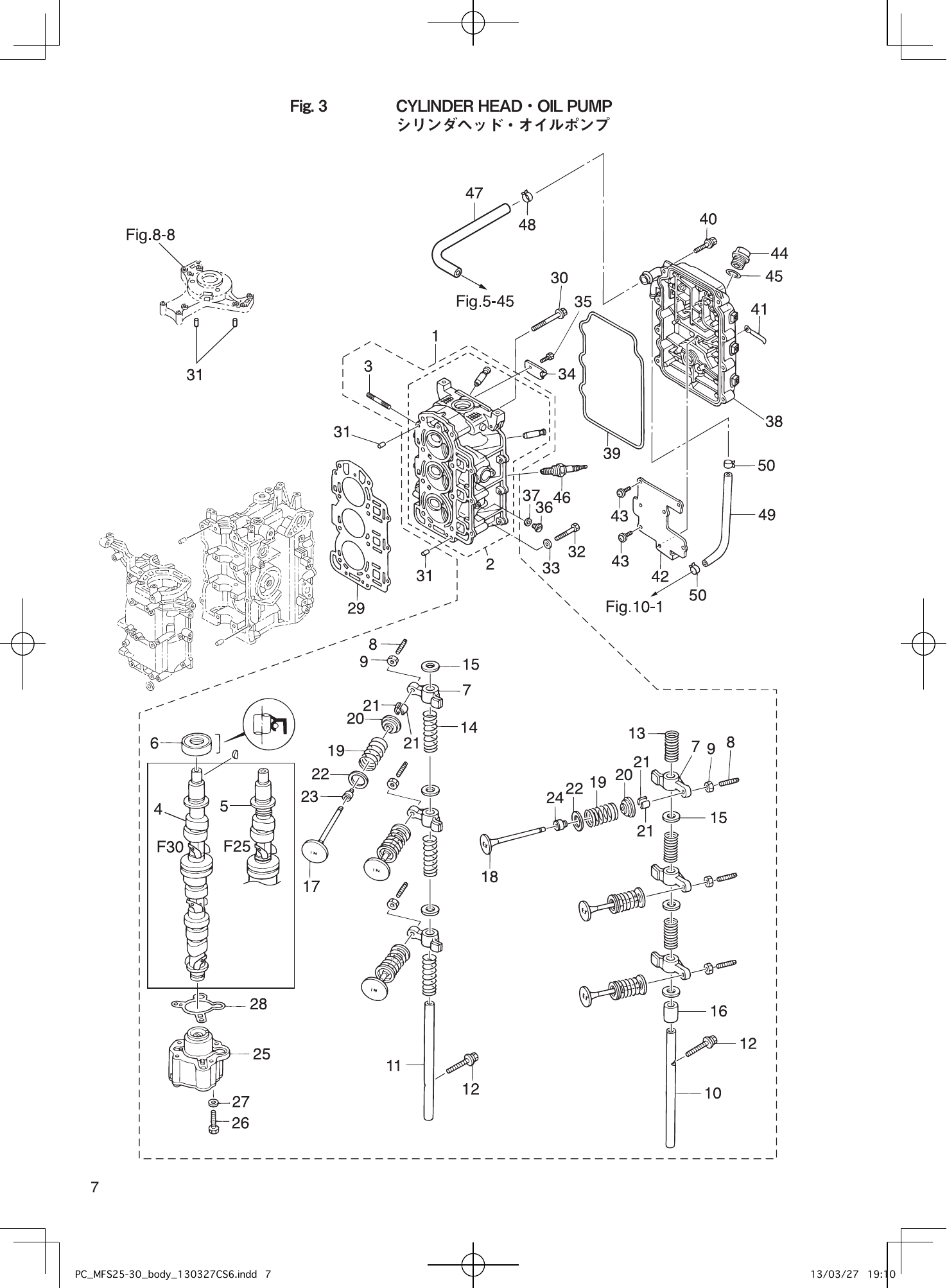

Tohatsu MFS25B, MFS30B CYLINDER HEAD・OIL PUMP parts diagram
Fig. 3 — CYLINDER HEAD・OIL PUMP
51 items · 4 available products

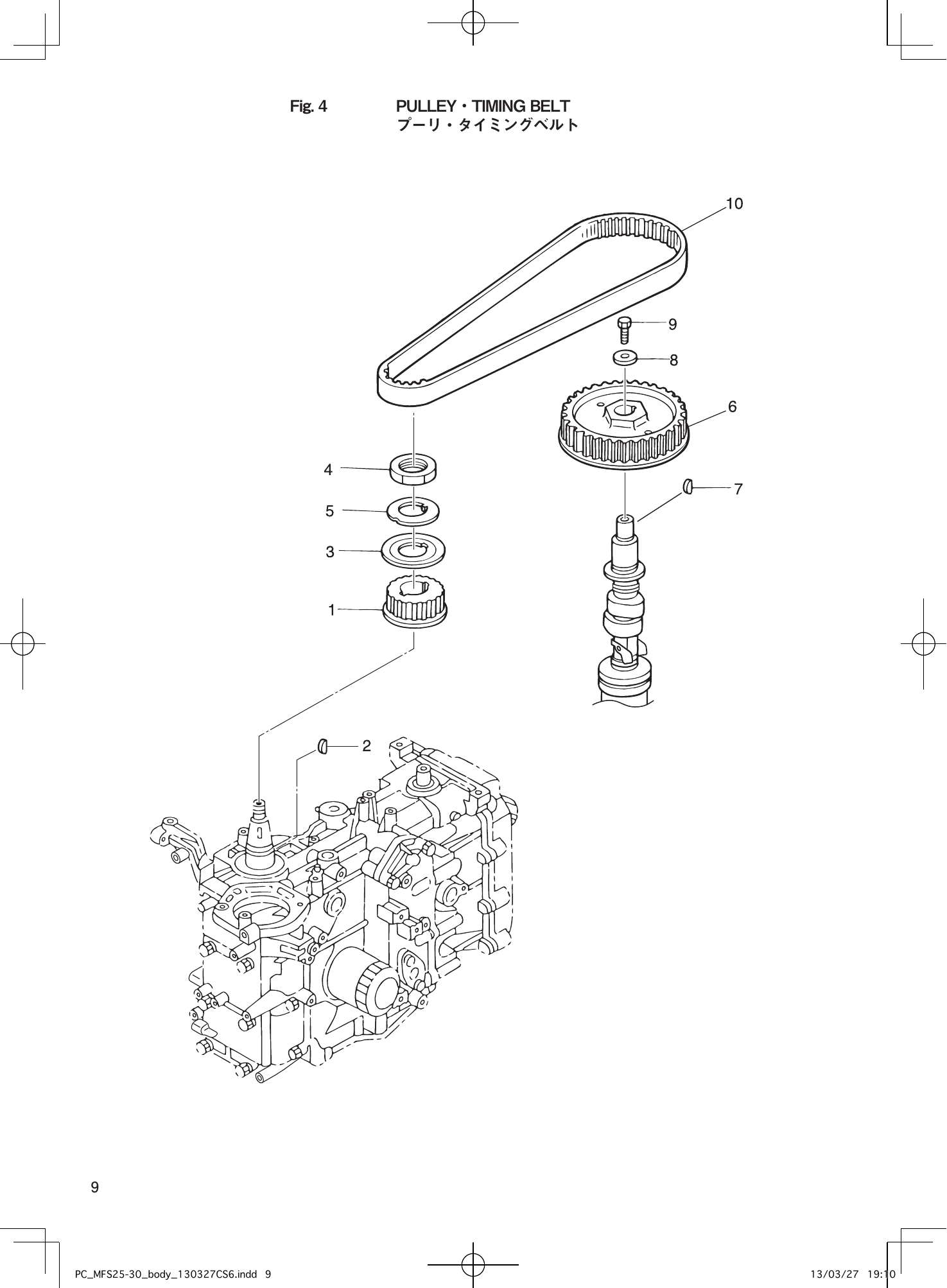

Tohatsu MFS25B, MFS30B PULLEY・TIMING BELT parts diagram
Fig. 4 — PULLEY・TIMING BELT
10 items · 1 available products

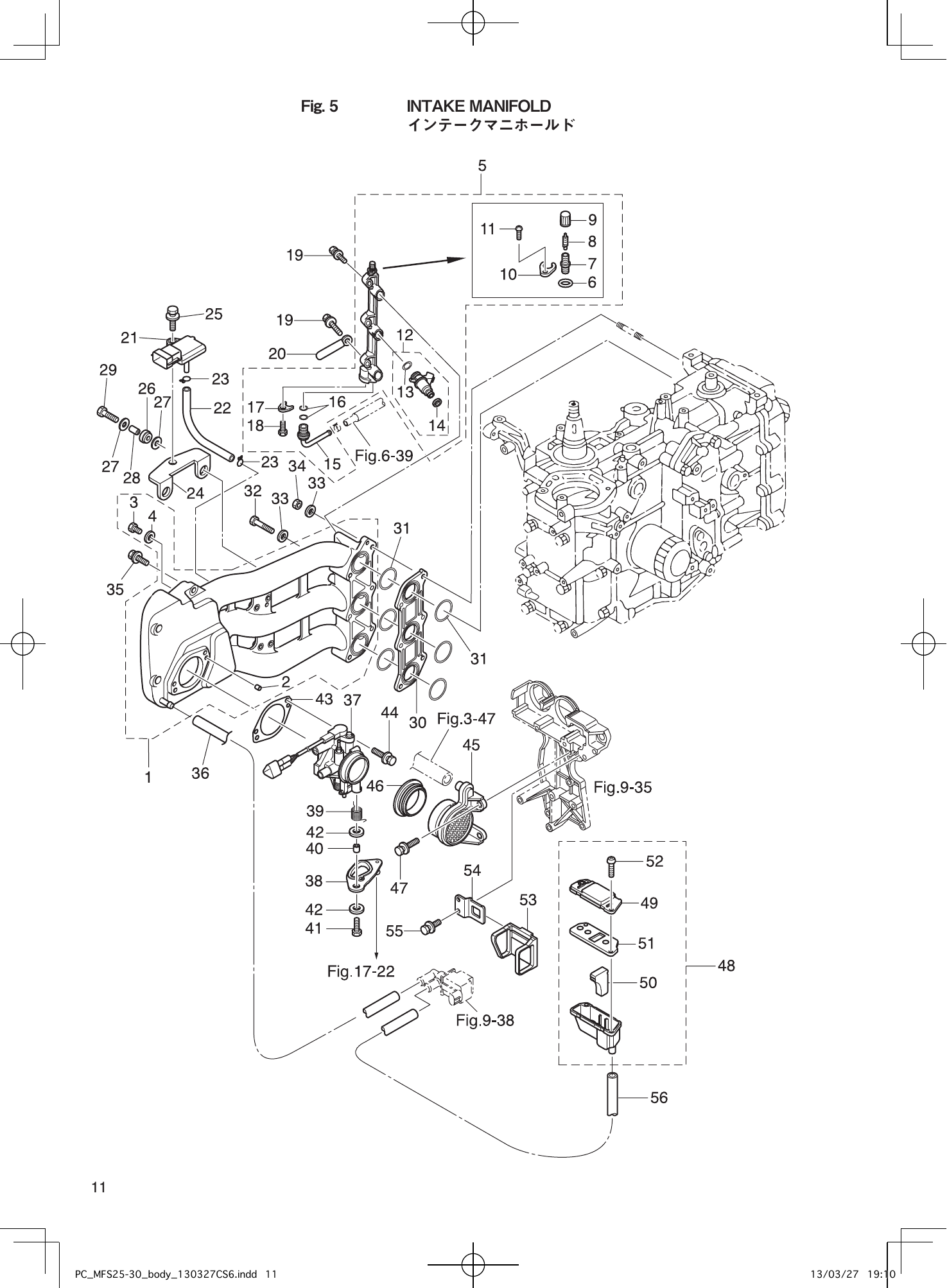

Tohatsu MFS25B, MFS30B INTAKE MANIFOLD parts diagram
Fig. 5 — INTAKE MANIFOLD
58 items · 6 available products

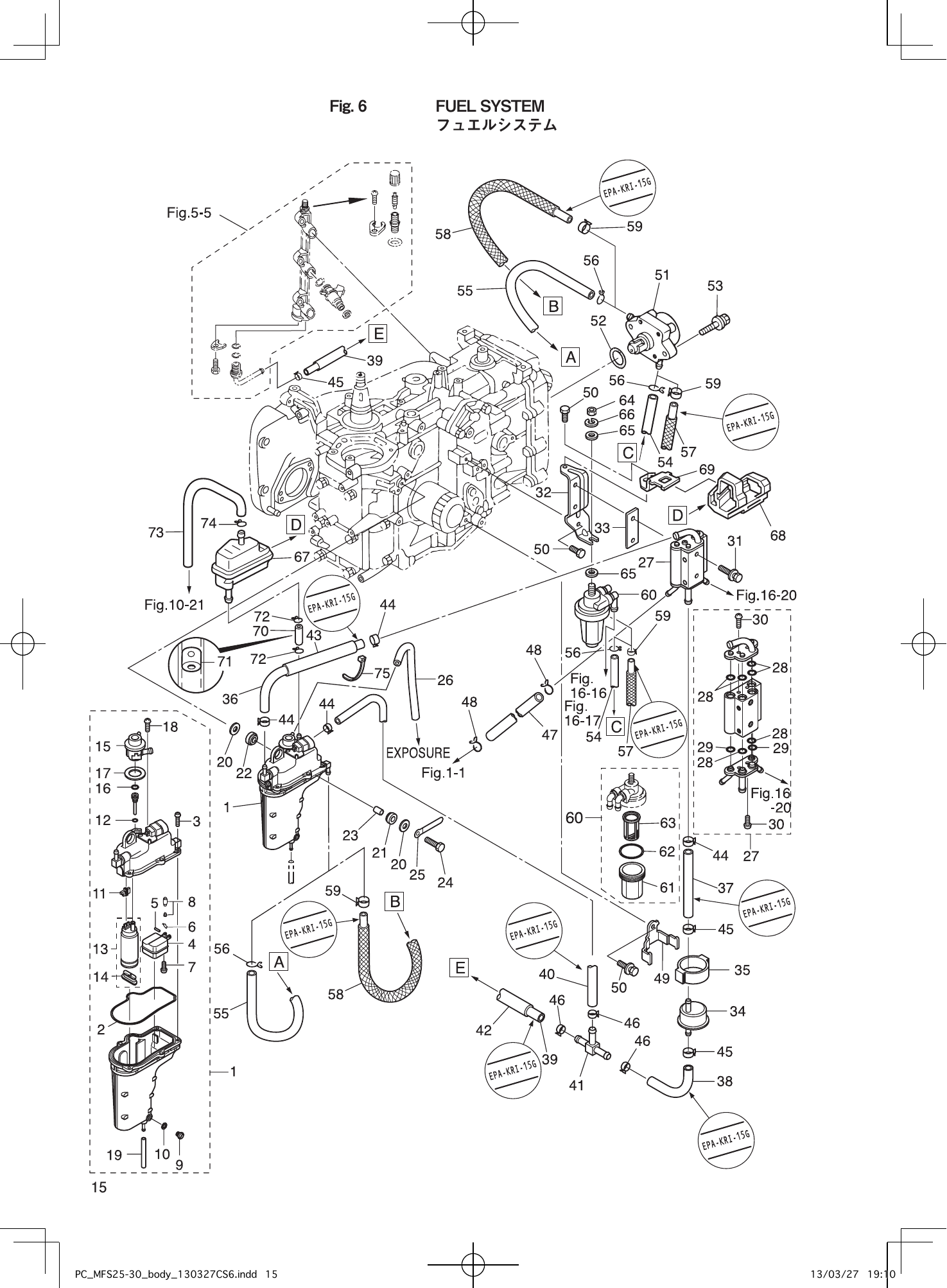

Tohatsu MFS25B, MFS30B FUEL SYSTEM parts diagram
Fig. 6 — FUEL SYSTEM
75 items · 5 available products

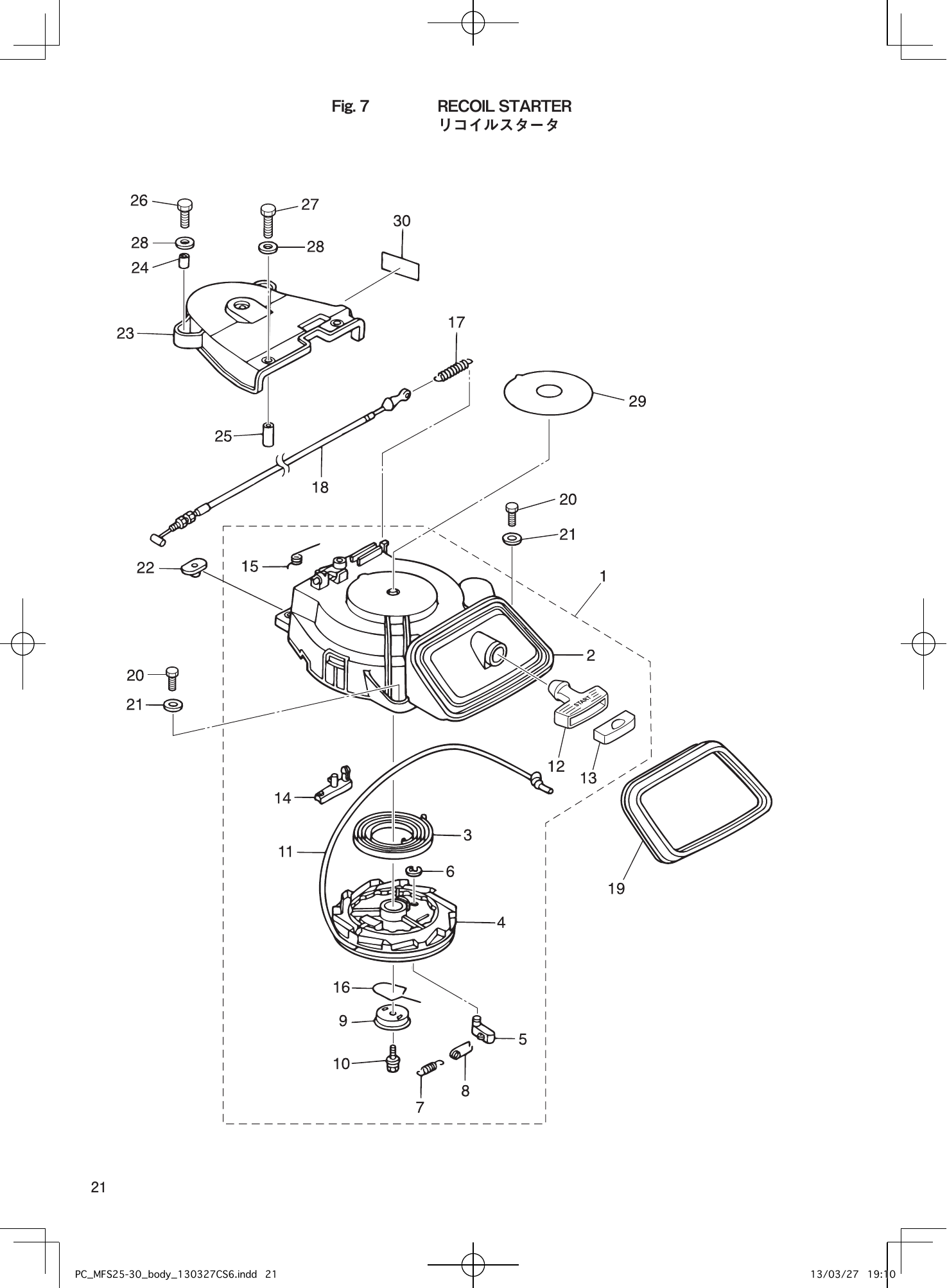

Tohatsu MFS25B, MFS30B RECOIL STARTER parts diagram
Fig. 7 — RECOIL STARTER
29 items · 1 available products

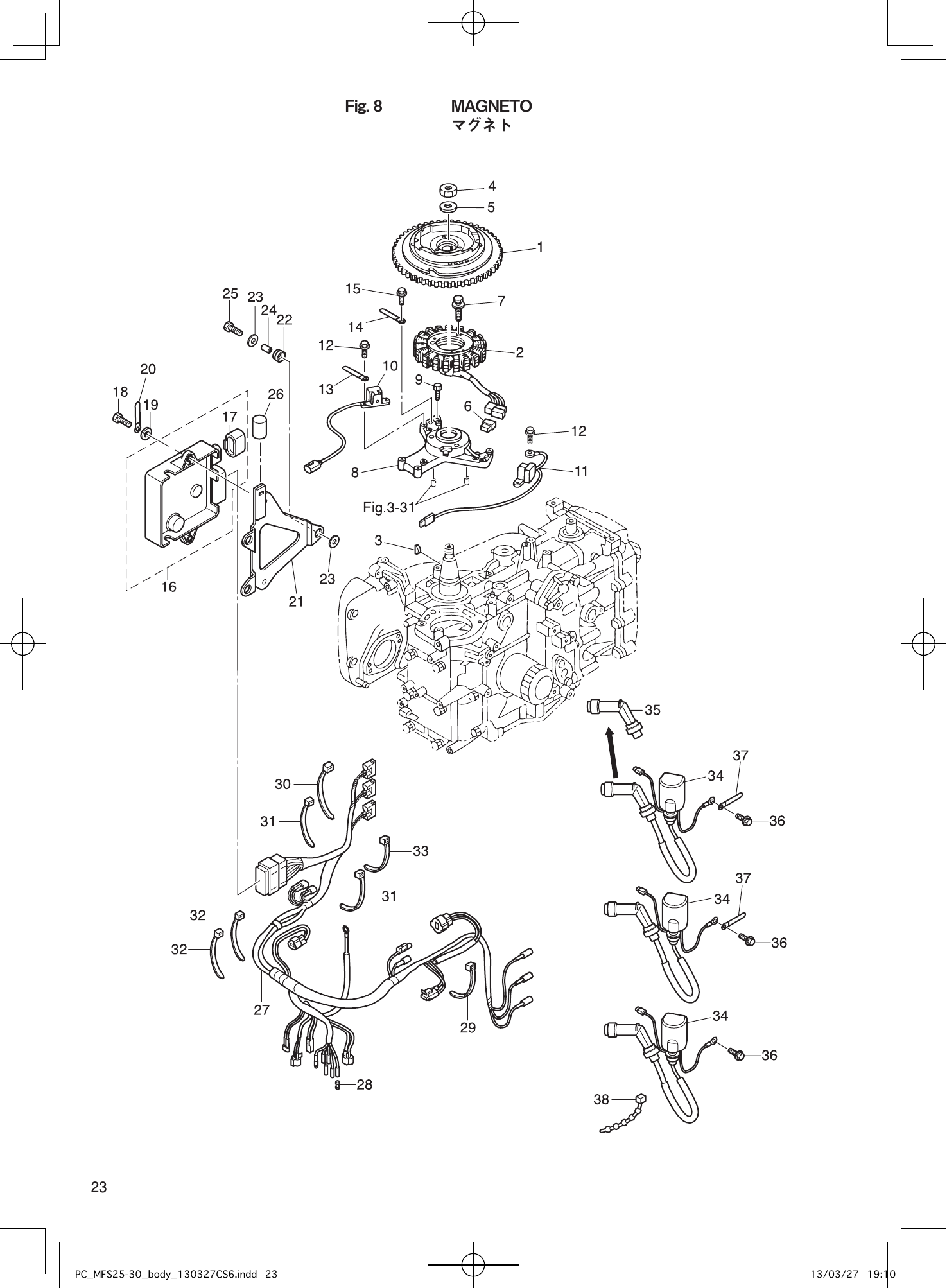

Tohatsu MFS25B, MFS30B MAGNETO parts diagram
Fig. 8 — MAGNETO
43 items

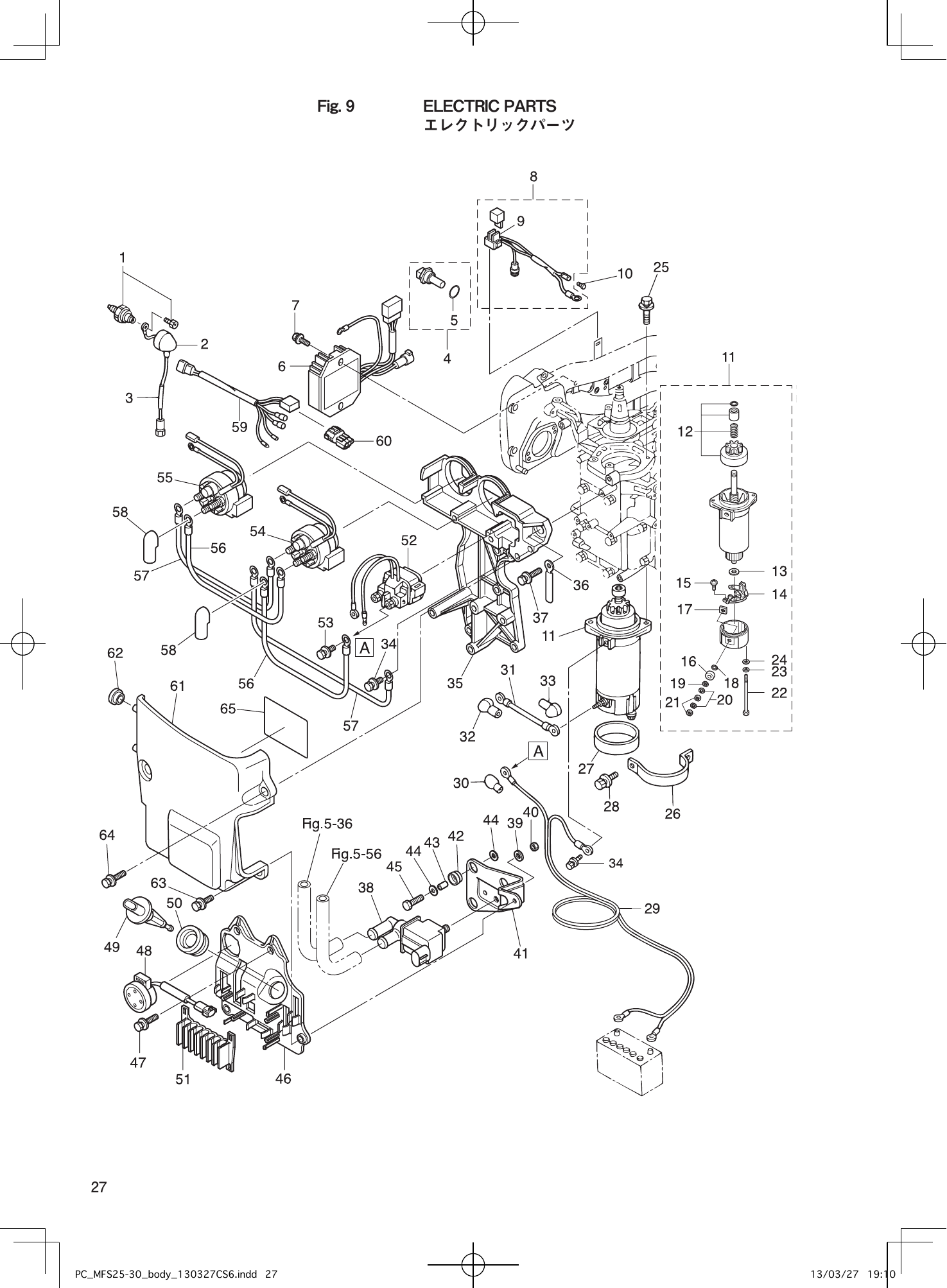

Tohatsu MFS25B, MFS30B ELECTRIC PARTS parts diagram
Fig. 9 — ELECTRIC PARTS
65 items · 6 available products

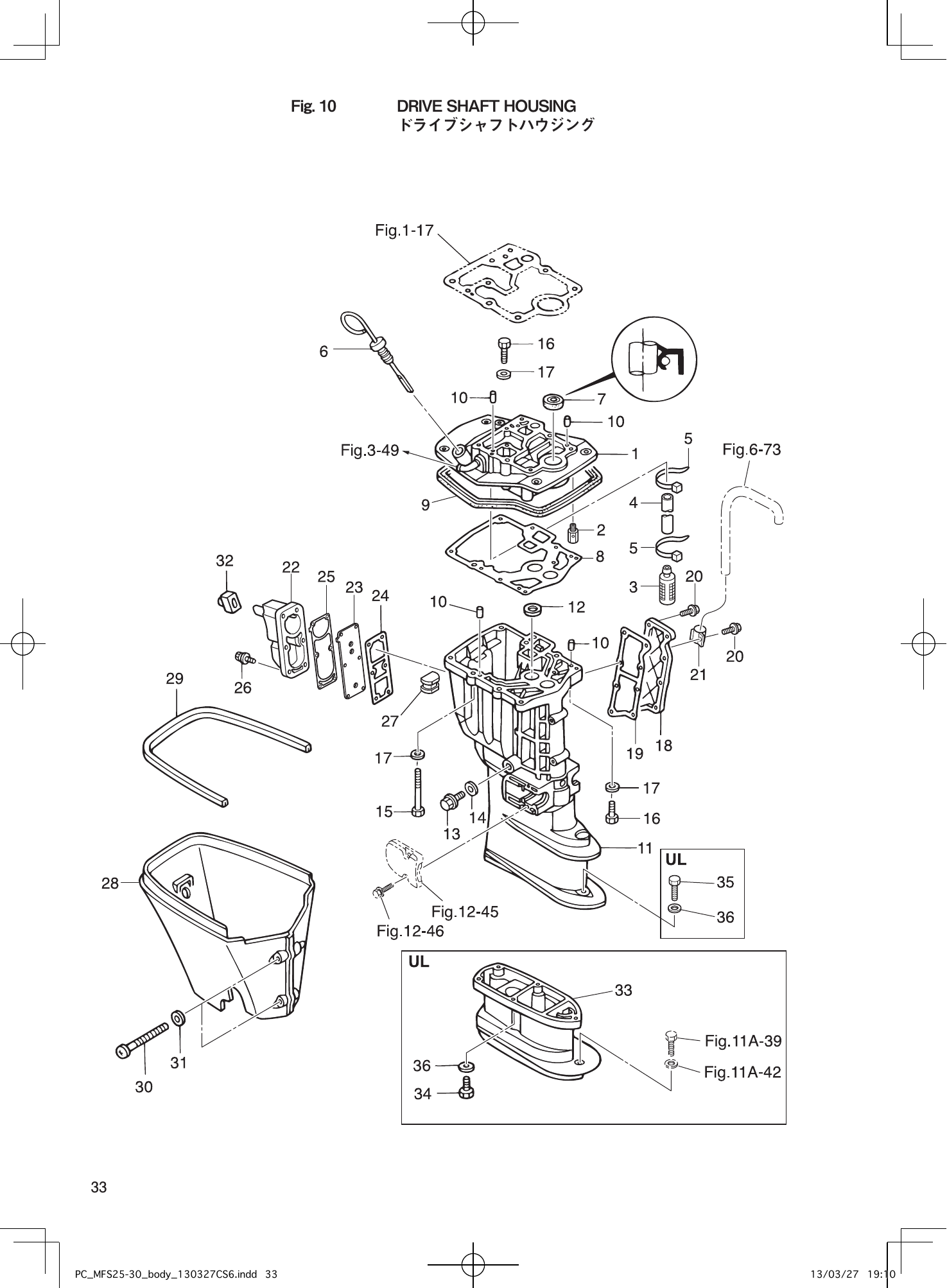

Tohatsu MFS25B, MFS30B DRIVE SHAFT HOUSING parts diagram
Fig. 10 — DRIVE SHAFT HOUSING
37 items · 4 available products

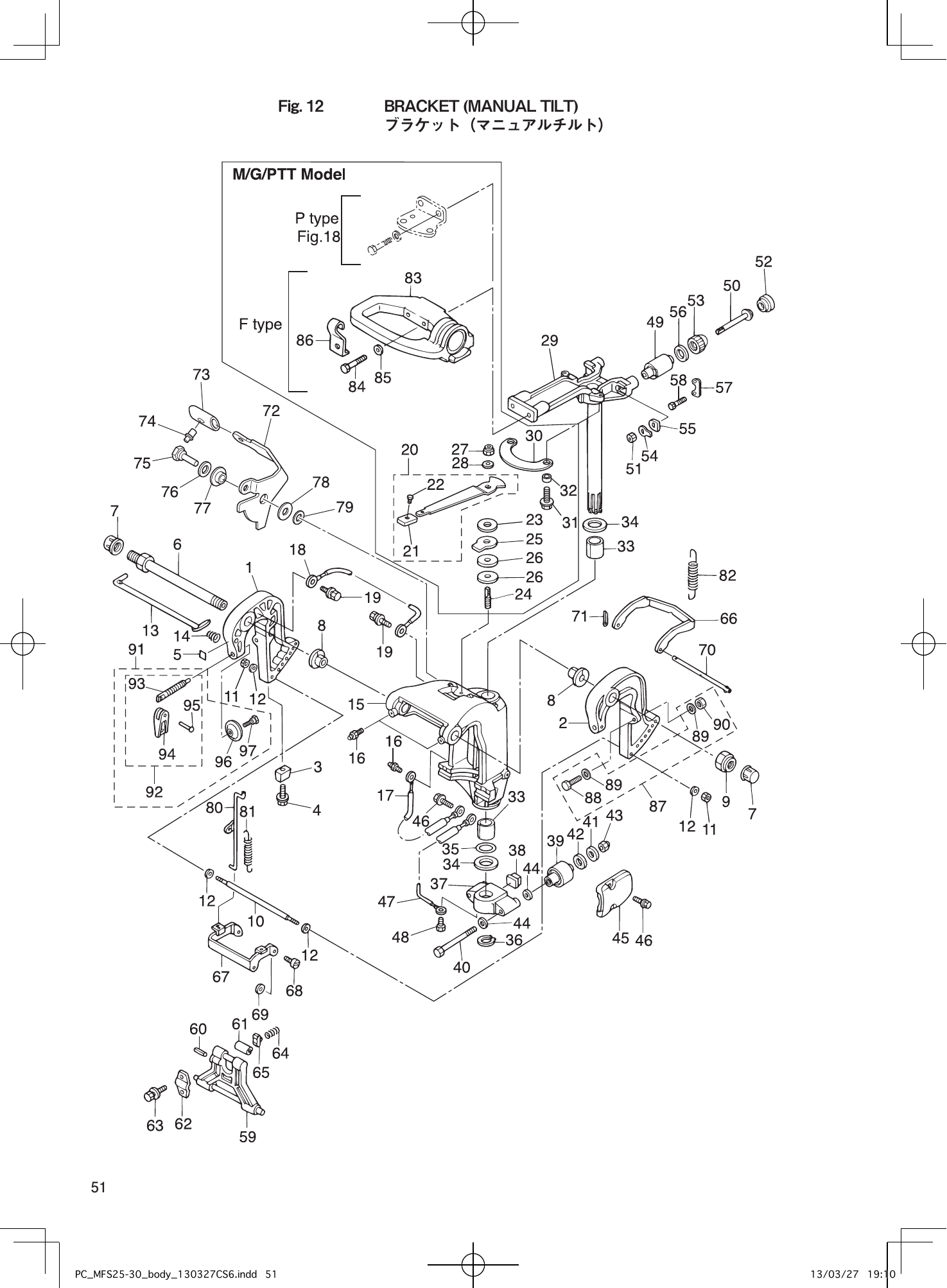

Tohatsu MFS25B, MFS30B BRACKET (MANUAL TILT) parts diagram
Fig. 12 — BRACKET (MANUAL TILT)
98 items · 16 available products

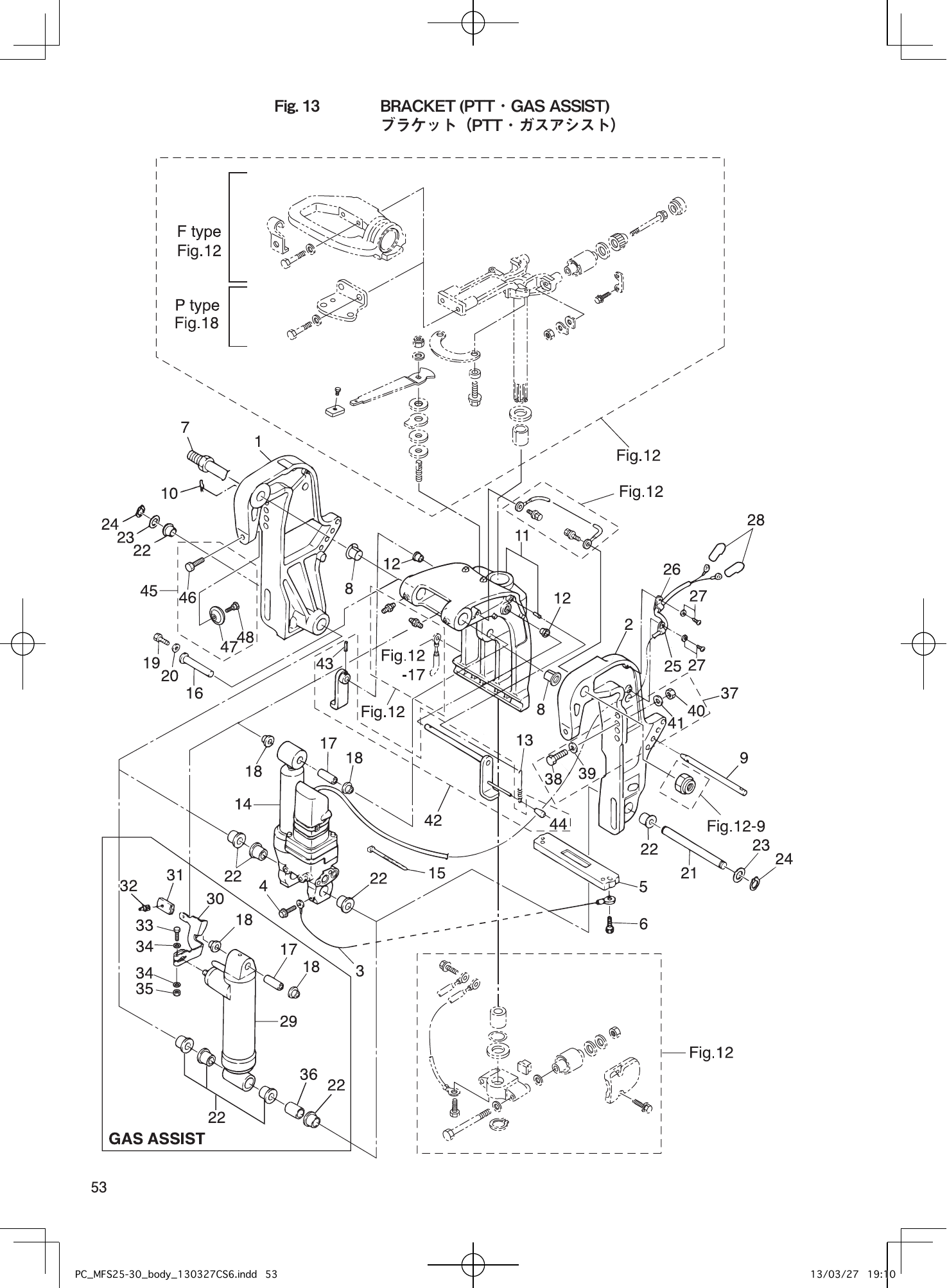

Tohatsu MFS25B, MFS30B BRACKET (PTT ･ GAS ASSIST) parts diagram
Fig. 13 — BRACKET (PTT ･ GAS ASSIST)
52 items · 8 available products

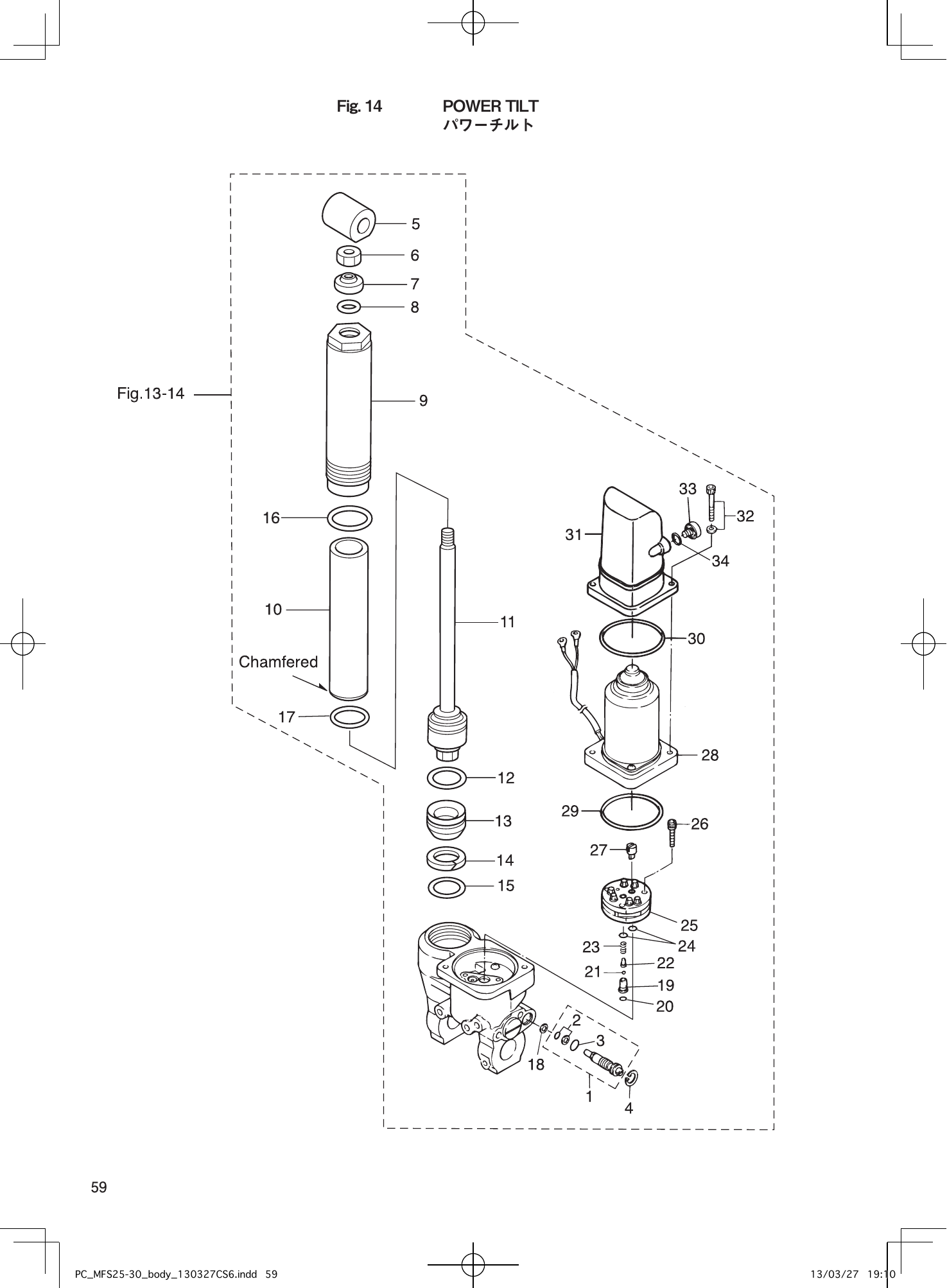

Tohatsu MFS25B, MFS30B POWER TILT parts diagram
Fig. 14 — POWER TILT
34 items

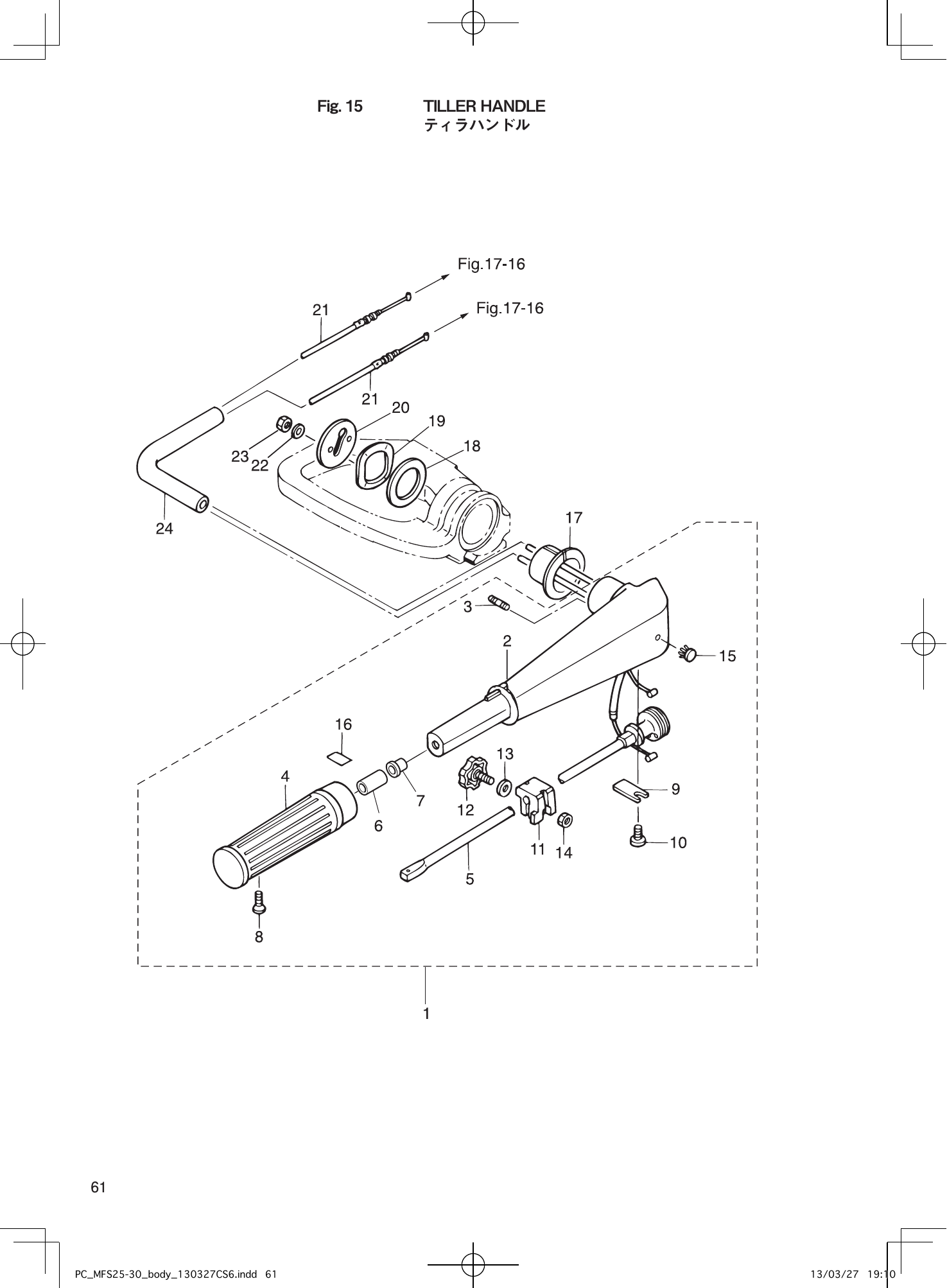

Tohatsu MFS25B, MFS30B TILLER HANDLE parts diagram
Fig. 15 — TILLER HANDLE
24 items · 1 available products

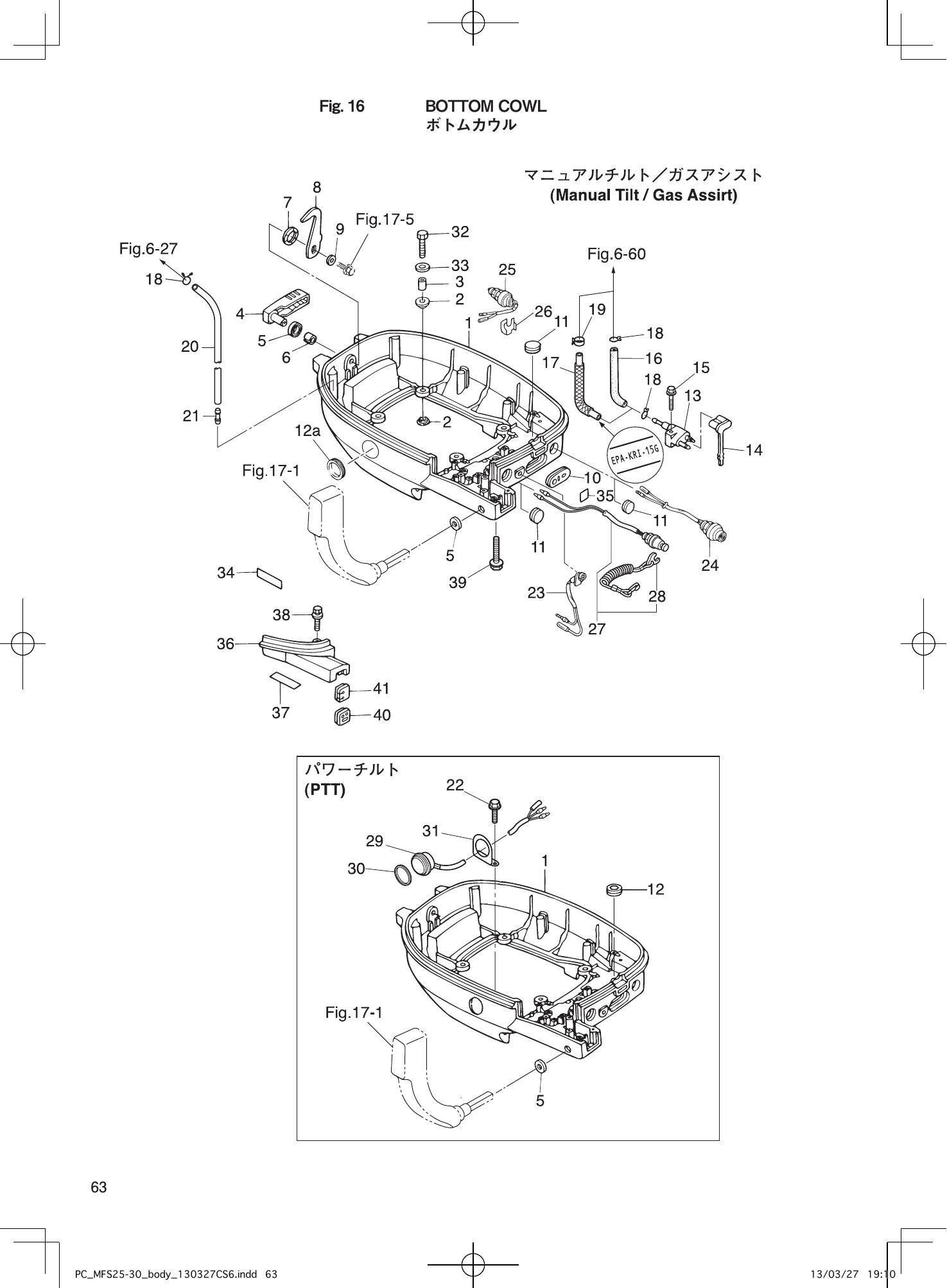

Tohatsu MFS25B, MFS30B BOTTOM COWL parts diagram
Fig. 16 — BOTTOM COWL
47 items · 7 available products

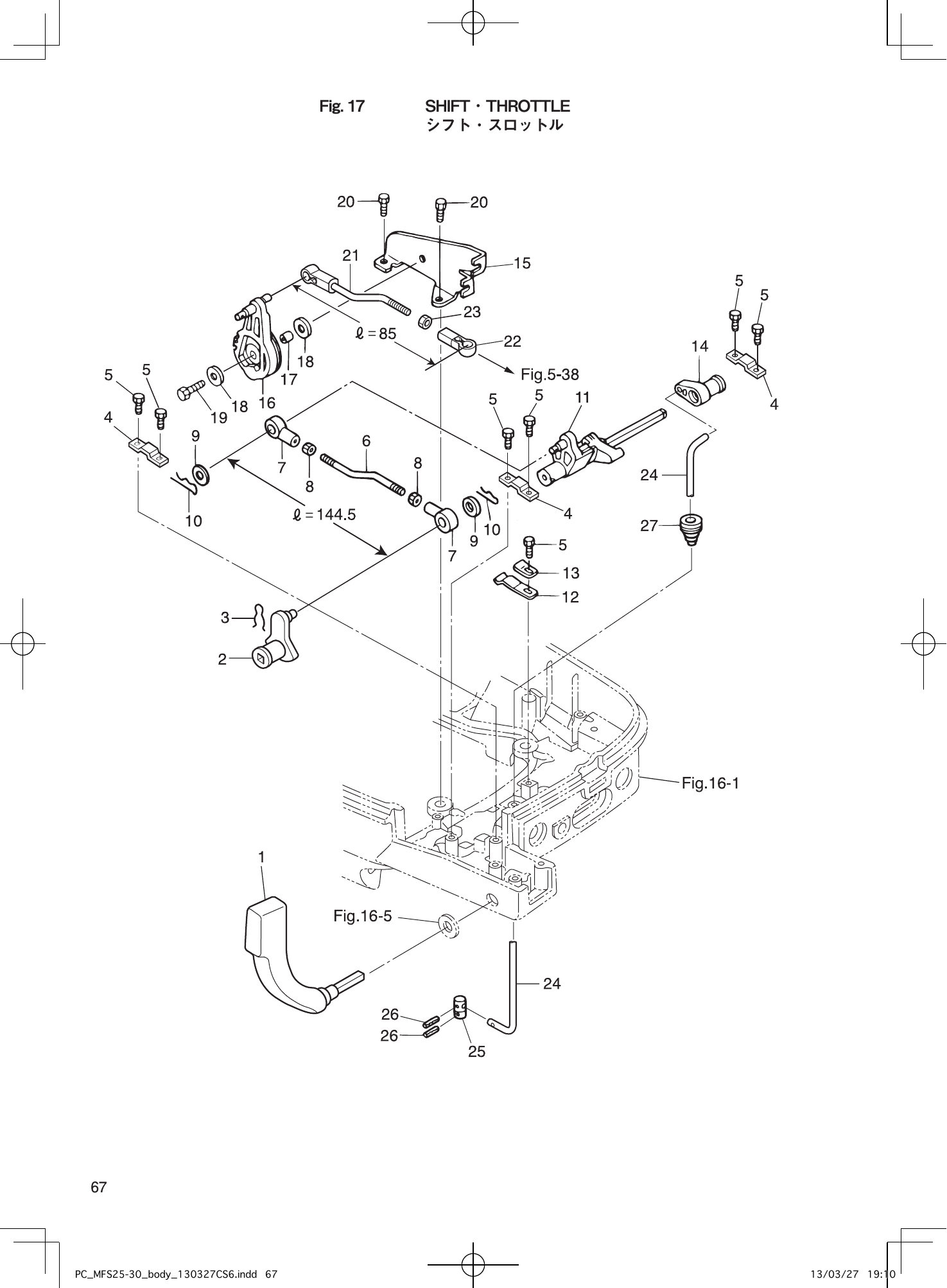

Tohatsu MFS25B, MFS30B SHIFT ･ THROTTLE parts diagram
Fig. 17 — SHIFT ･ THROTTLE
29 items · 1 available products

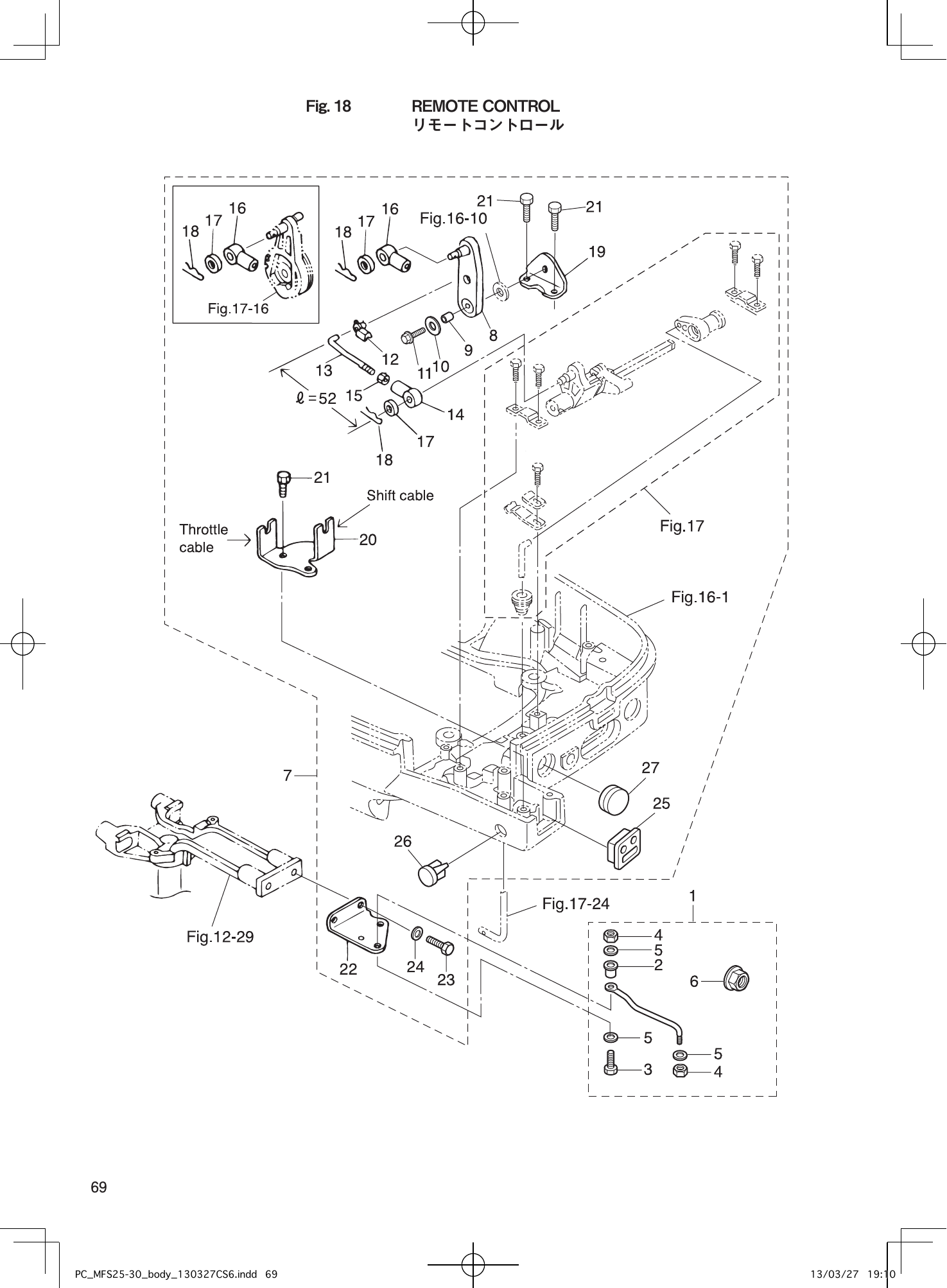

Tohatsu MFS25B, MFS30B REMOTE CONTROL parts diagram
Fig. 18 — REMOTE CONTROL
27 items · 3 available products

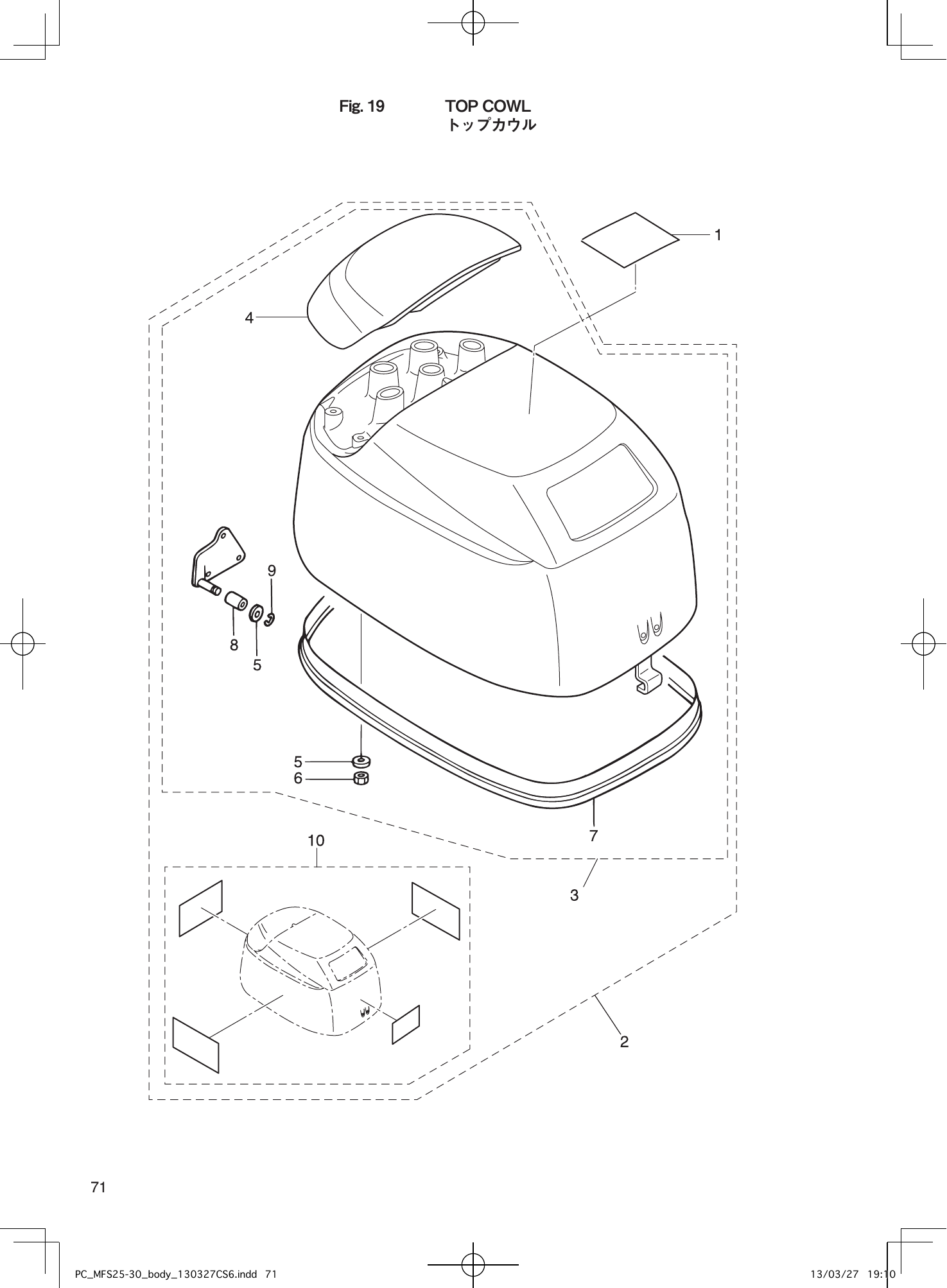

Tohatsu MFS25B, MFS30B TOP COWL parts diagram
Fig. 19 — TOP COWL
11 items · 2 available products

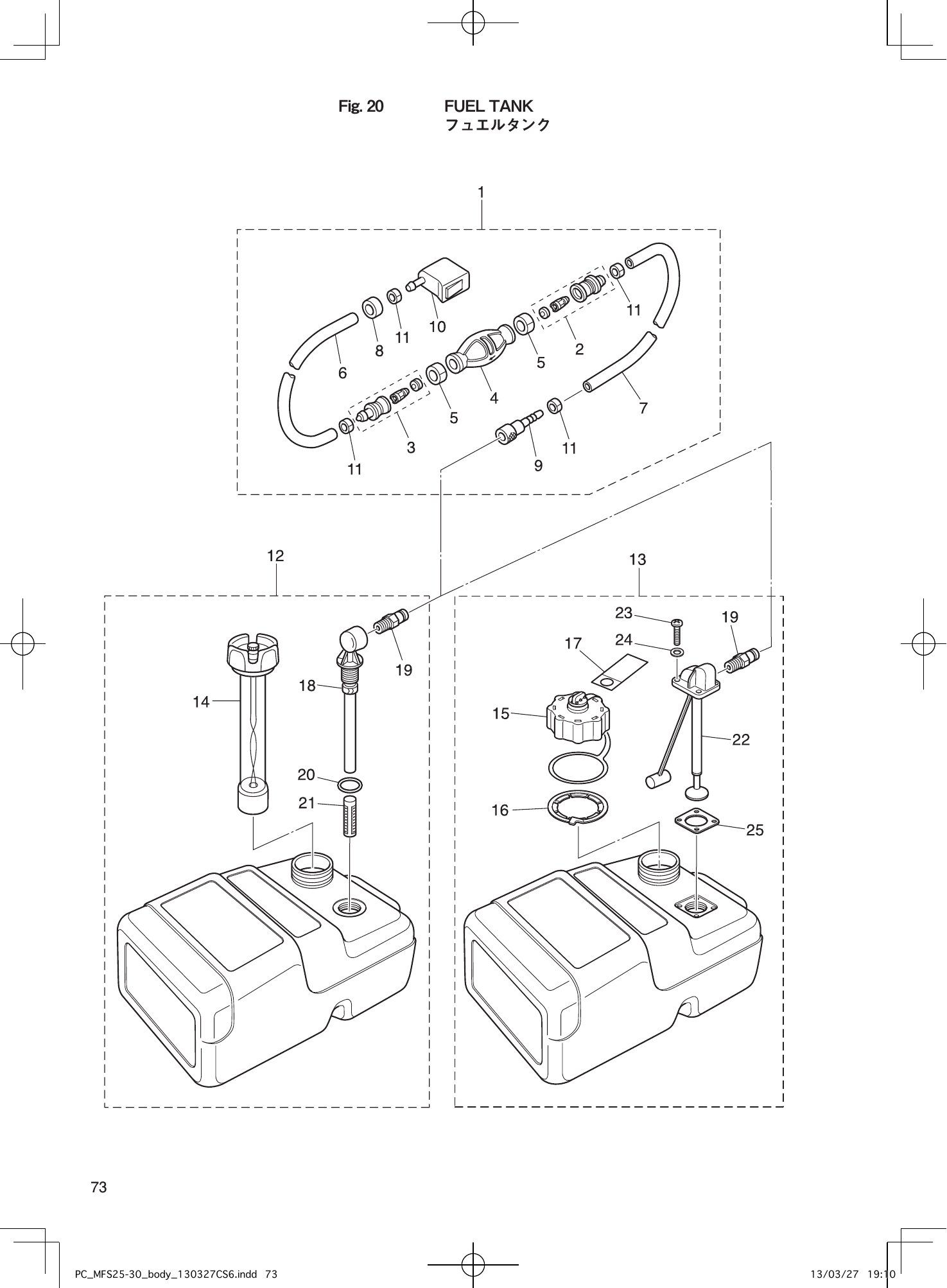

Tohatsu MFS25B, MFS30B FUEL TANK parts diagram
Fig. 20 — FUEL TANK
29 items · 5 available products

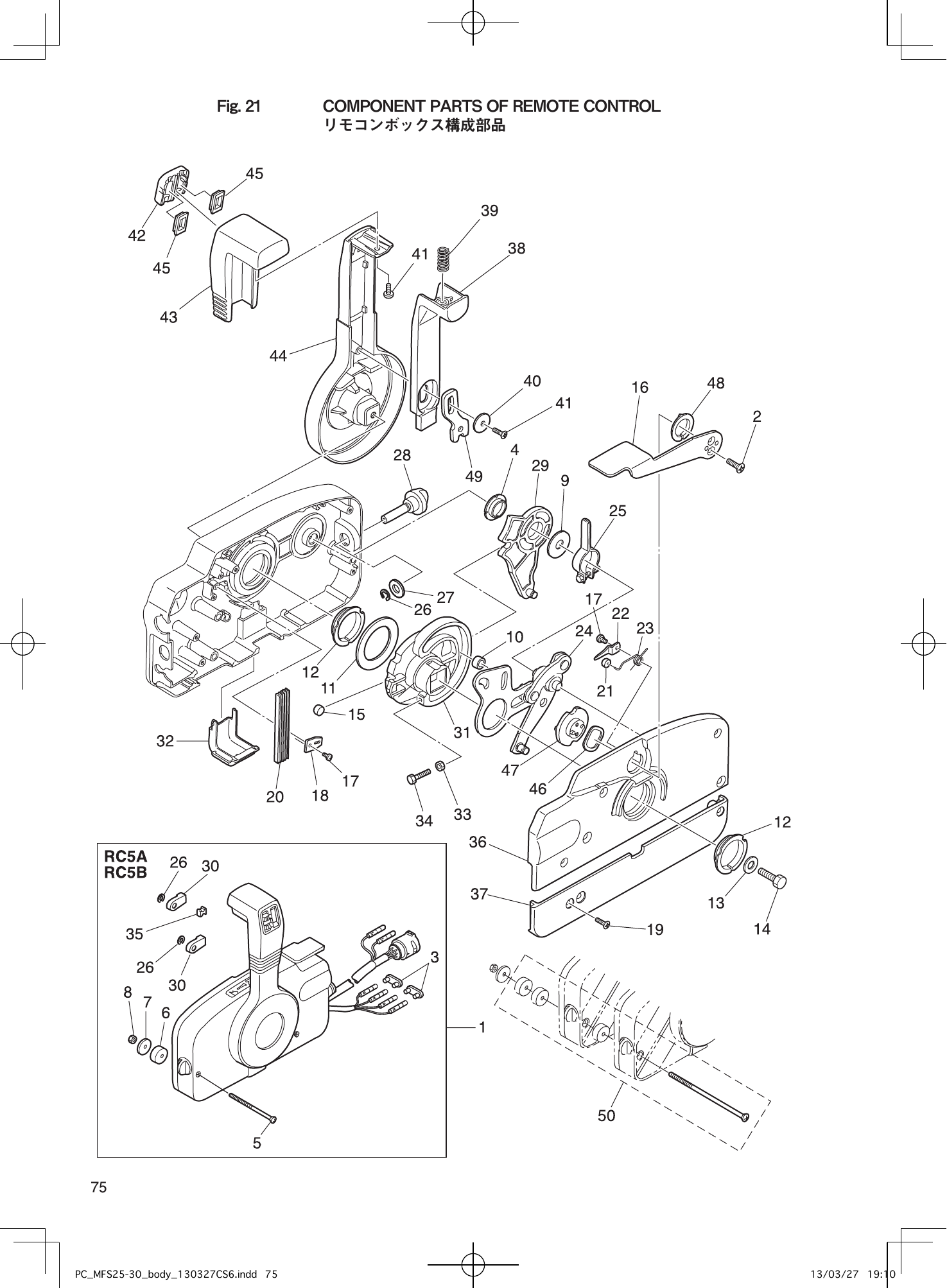

Tohatsu MFS25B, MFS30B COMPONENT PARTS OF REMOTE CONTROL parts diagram
Fig. 21 — COMPONENT PARTS OF REMOTE CONTROL
52 items · 1 available products

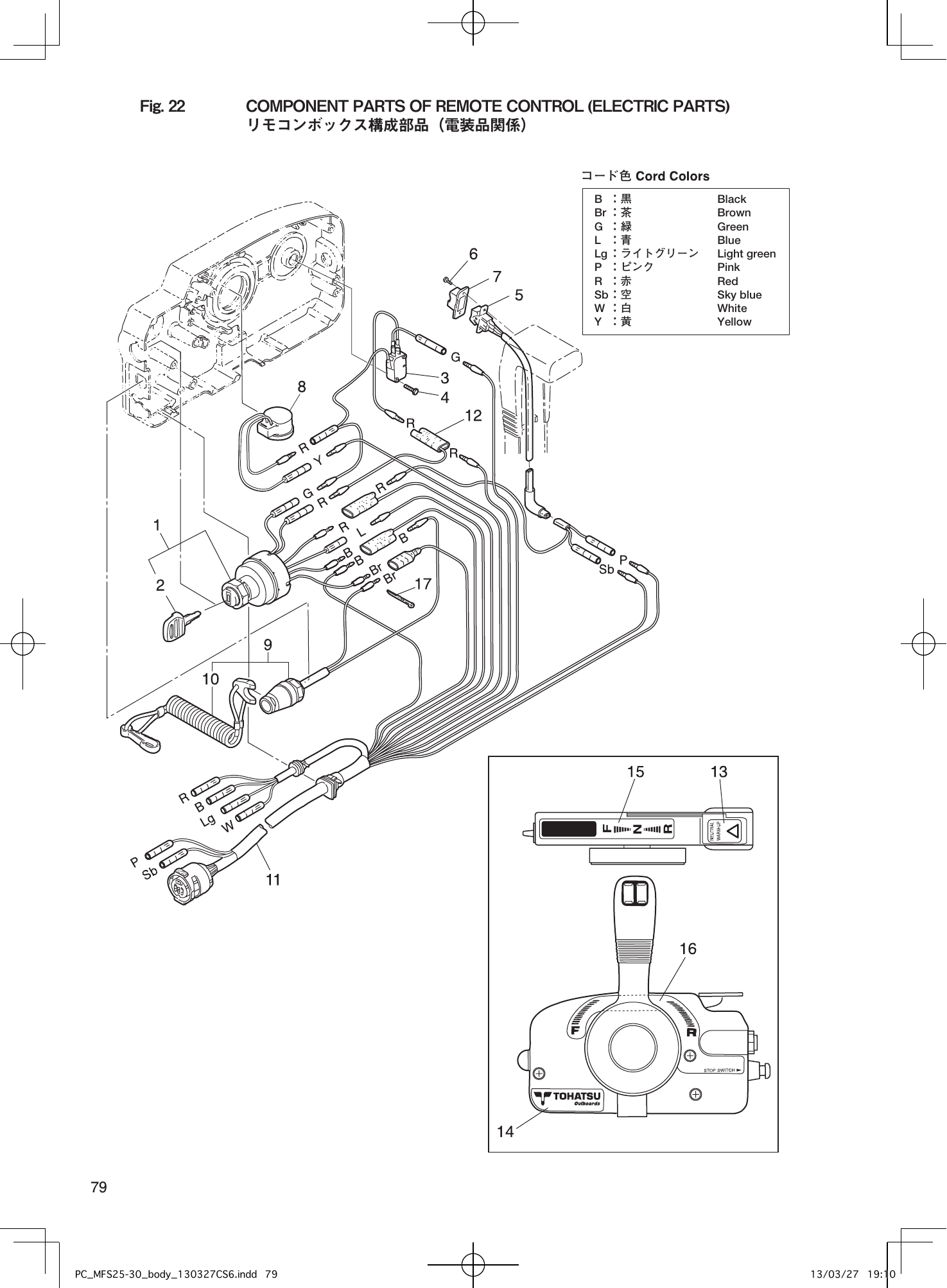

Tohatsu MFS25B, MFS30B COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS) parts diagram
Fig. 22 — COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
19 items · 2 available products

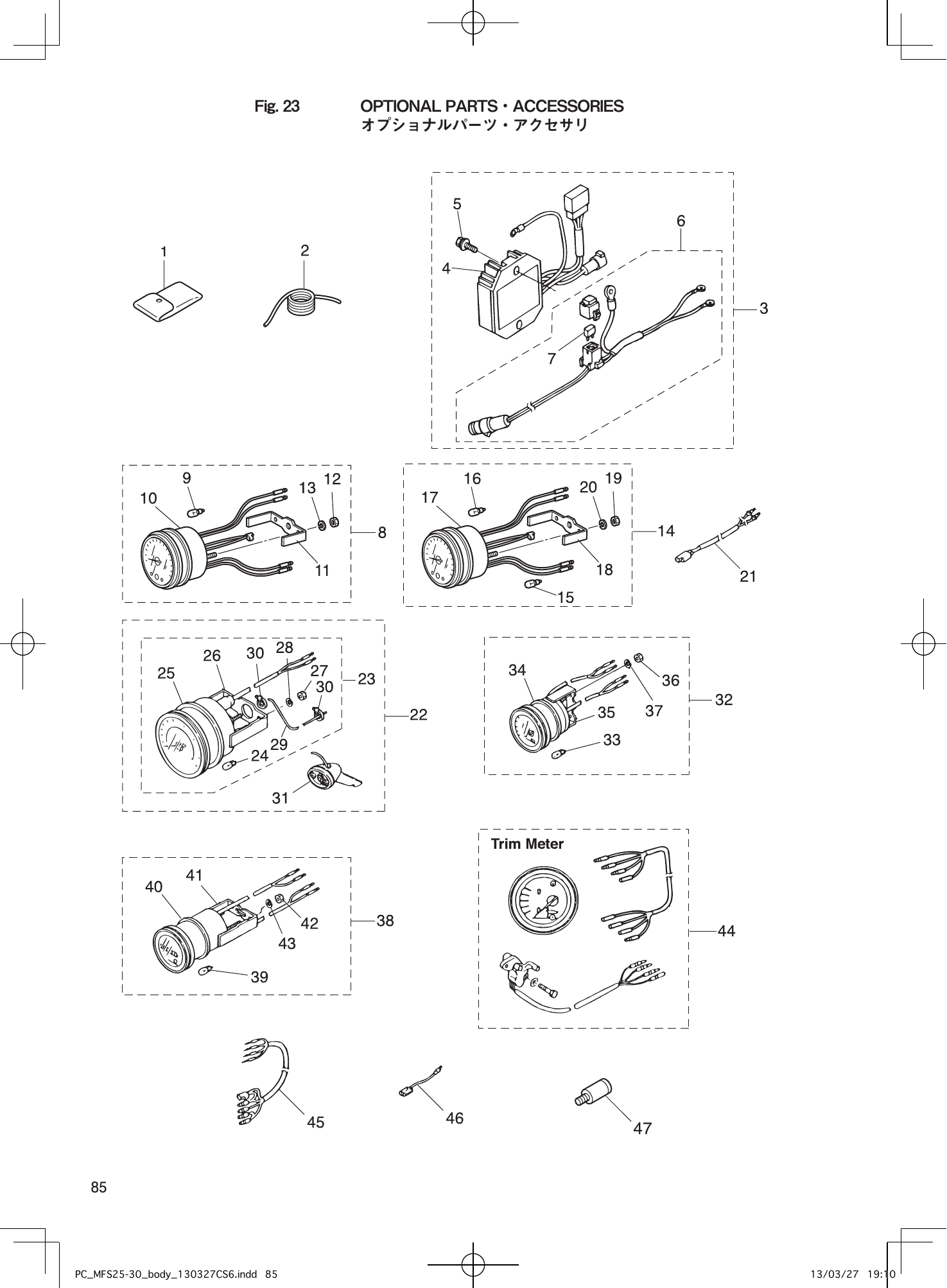

Tohatsu MFS25B, MFS30B OPTIONAL PARTS・ACCESSORIES parts diagram
Fig. 23 — OPTIONAL PARTS・ACCESSORIES
64 items · 6 available products

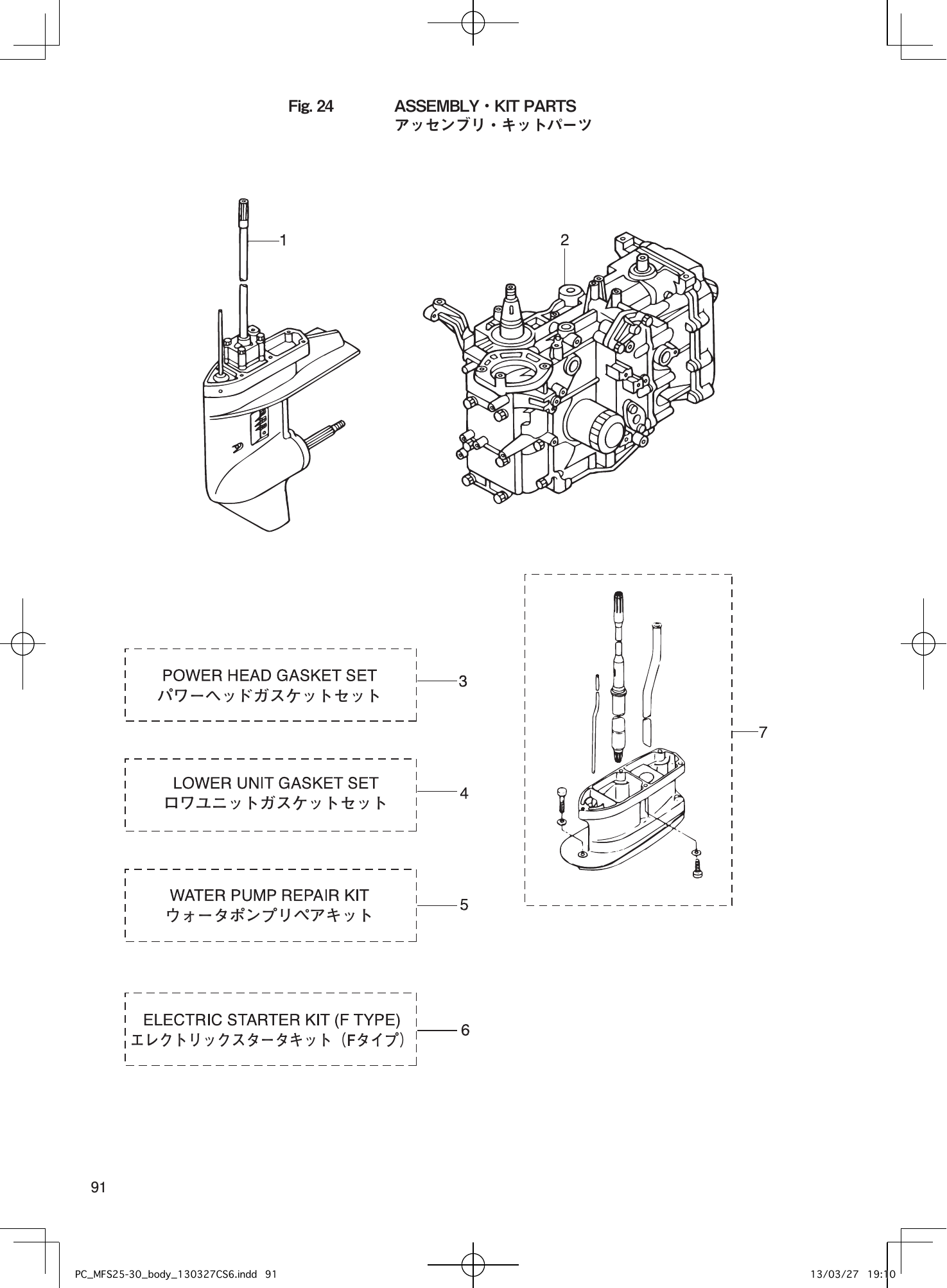

Tohatsu MFS25B, MFS30B ASSEMBLY・KIT PARTS parts diagram
Fig. 24 — ASSEMBLY・KIT PARTS
64 items · 10 available products
