Yamaha DE-DHD6U3 Parts Catalog

Yamaha DE-DHD6U3 Inboard parts and diagrams

Yamaha DE-DHD6U3 inboard parts catalog includes TRANSOM PLATE, GIMBAL HOUSING 1, GIMBAL HOUSING 2, TILT CYLINDER, POWER TILT BODY ASSY 1 (PREVIOUS MODEL), POWER TILT BODY ASSY 2, POWER STEERING CYLINDER ASSY, CONTROL, OUTBOARD DRIVE 1 (DE-DHD), OUTBOARD DRIVE 2 (DE-DHD), SELECTOR VALVE ASSY (DE-DHD), LOWER CASING. DRIVE 1 (DE-DHD), LOWER CASING. DRIVE 2 (DE-DHD), OUTBOARD DRIVE 1 (DE-DHT) (TRP), OUTBOARD DRIVE 2 (DE-DHT) (TRP), SELECTOR VALVE (DE-DHT) (TRP), LOWER CASING. DRIVE 1 (DE-DHT) (TRP), LOWER CASING. DRIVE 2 (DE-DHT) (TRP). Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

12 linked store products are available across 23 catalog sections. 593 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha DE-DHD6U3 TRANSOM PLATE parts diagram

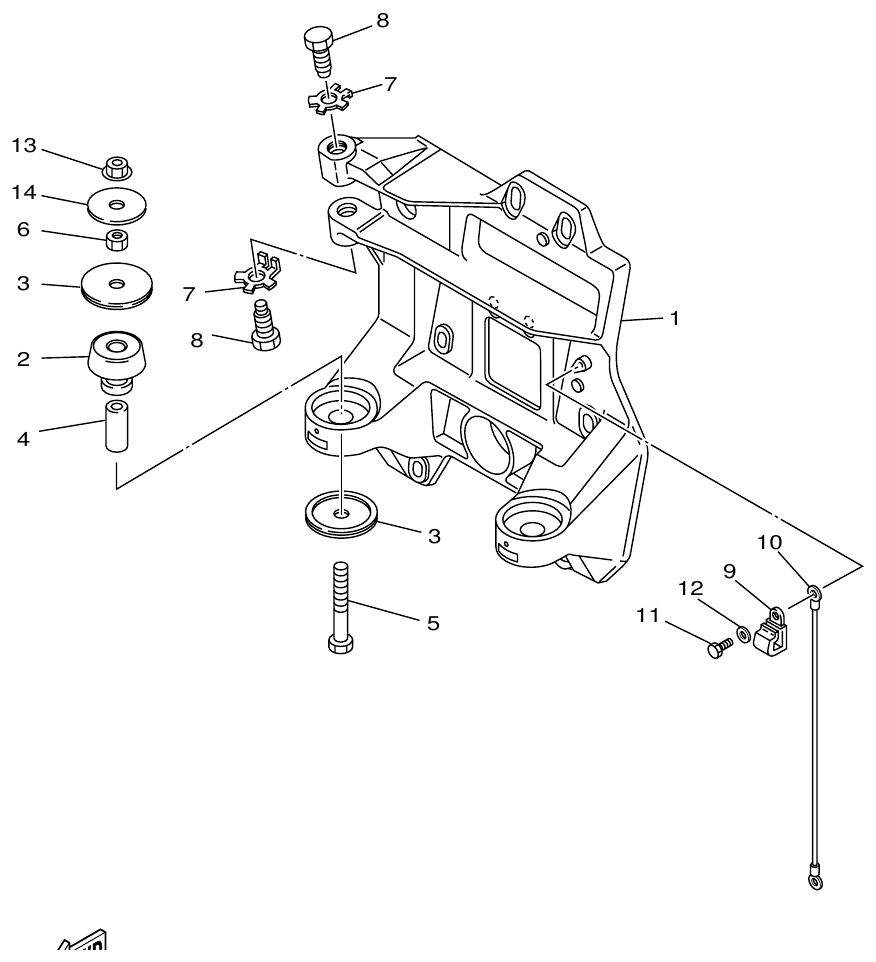

Fig. 1 — TRANSOM PLATE
4 items
Yamaha DE-DHD6U3 GIMBAL HOUSING 1 parts diagram

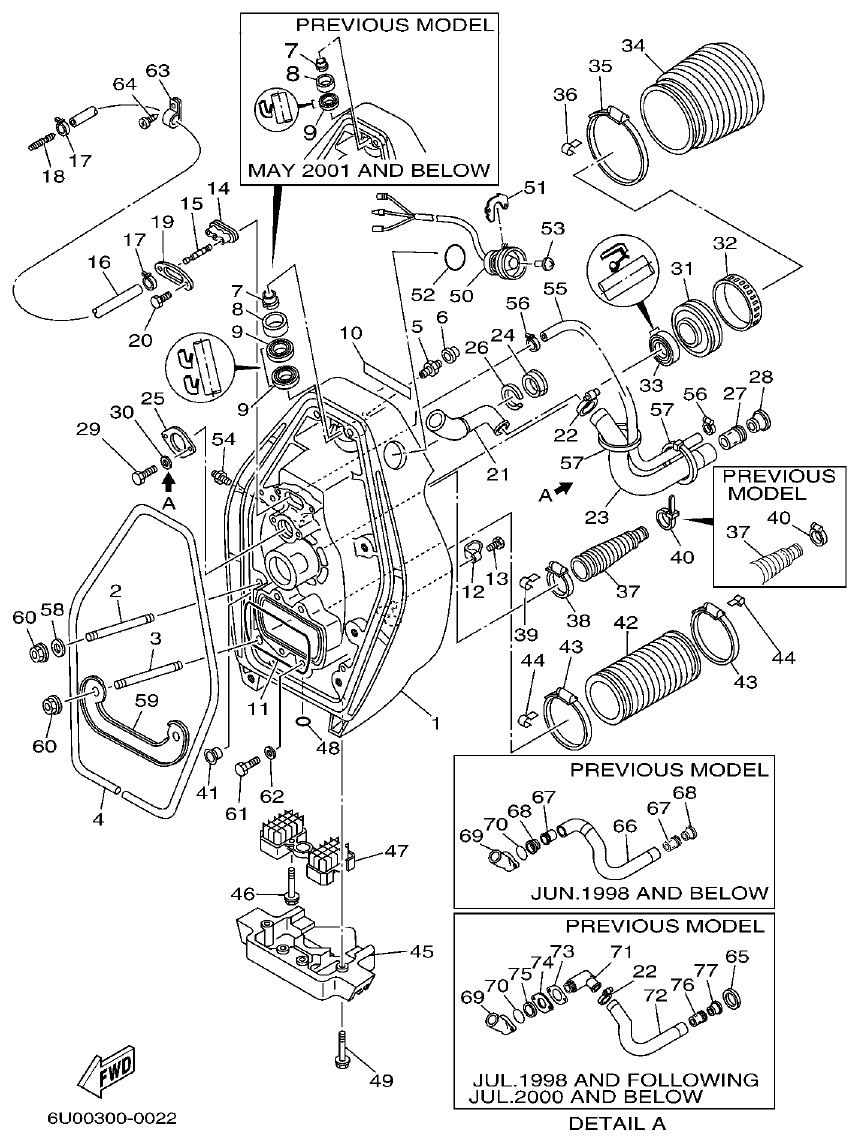

Fig. 2 — GIMBAL HOUSING 1
45 items · 1 available products
Yamaha DE-DHD6U3 GIMBAL HOUSING 2 parts diagram

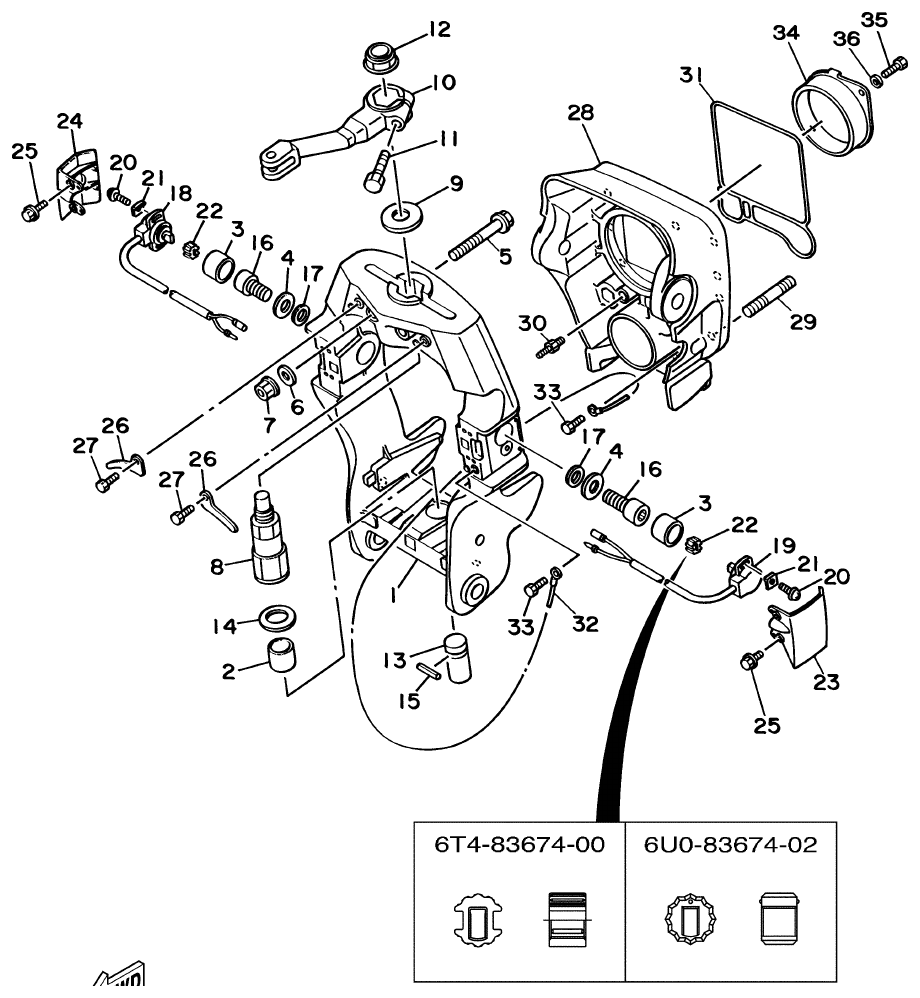

Fig. 3 — GIMBAL HOUSING 2
19 items · 1 available products
Yamaha DE-DHD6U3 TILT CYLINDER parts diagram

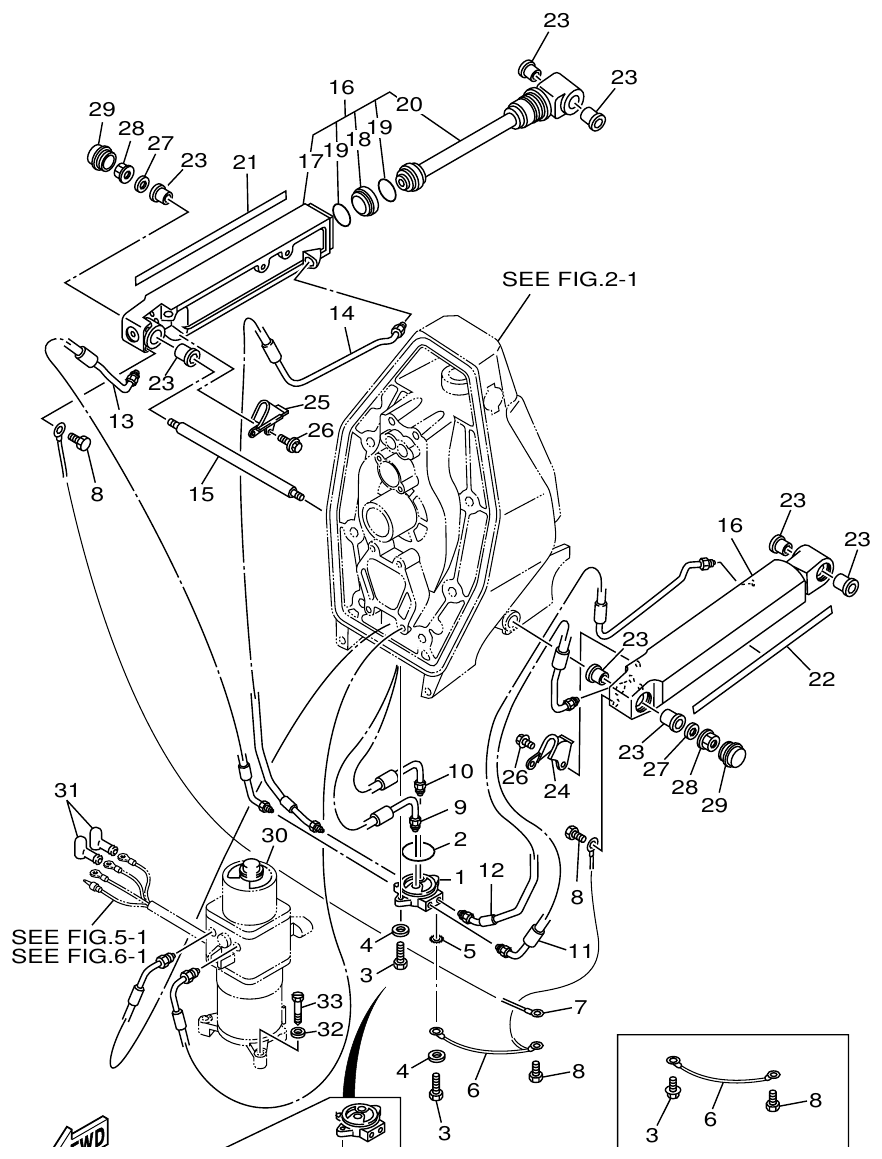

Fig. 4 — TILT CYLINDER
9 items · 1 available products
Yamaha DE-DHD6U3 POWER TILT BODY ASSY 1 (PREVIOUS MODEL) parts diagram

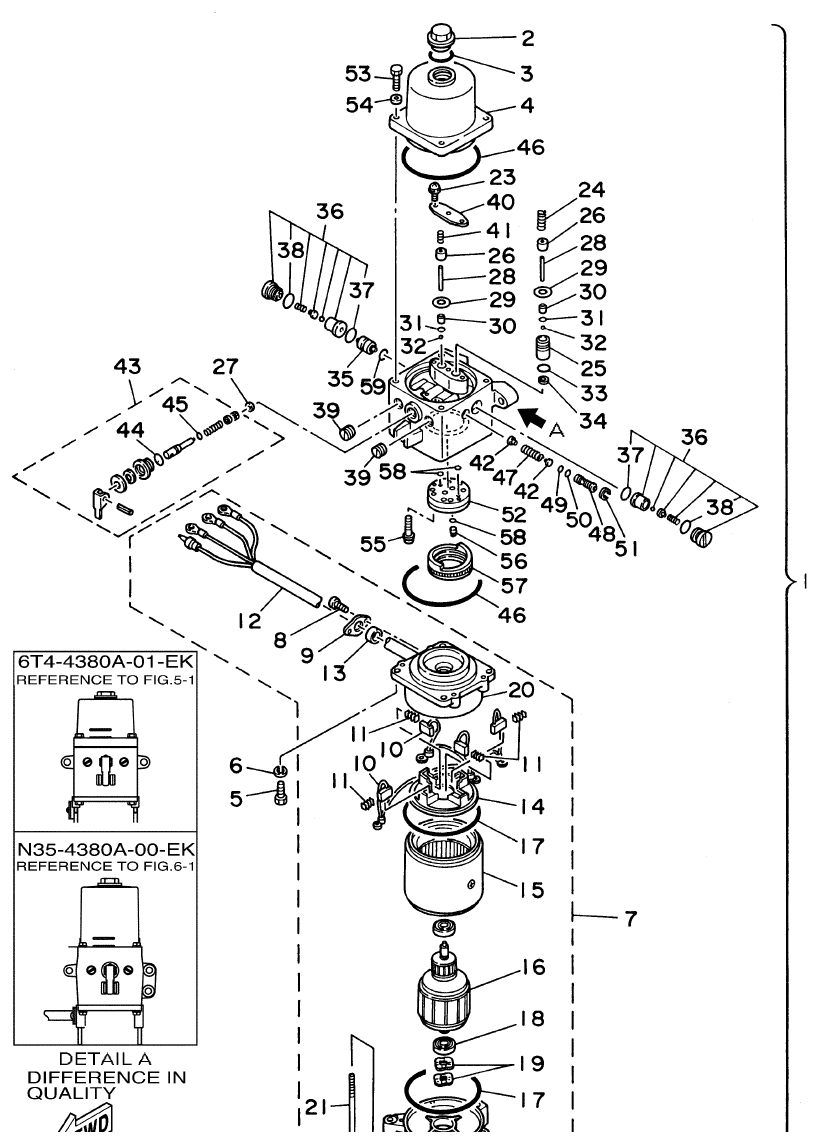

Fig. 5 — POWER TILT BODY ASSY 1 (PREVIOUS MODEL)
40 items · 3 available products
Yamaha DE-DHD6U3 POWER TILT BODY ASSY 2 parts diagram

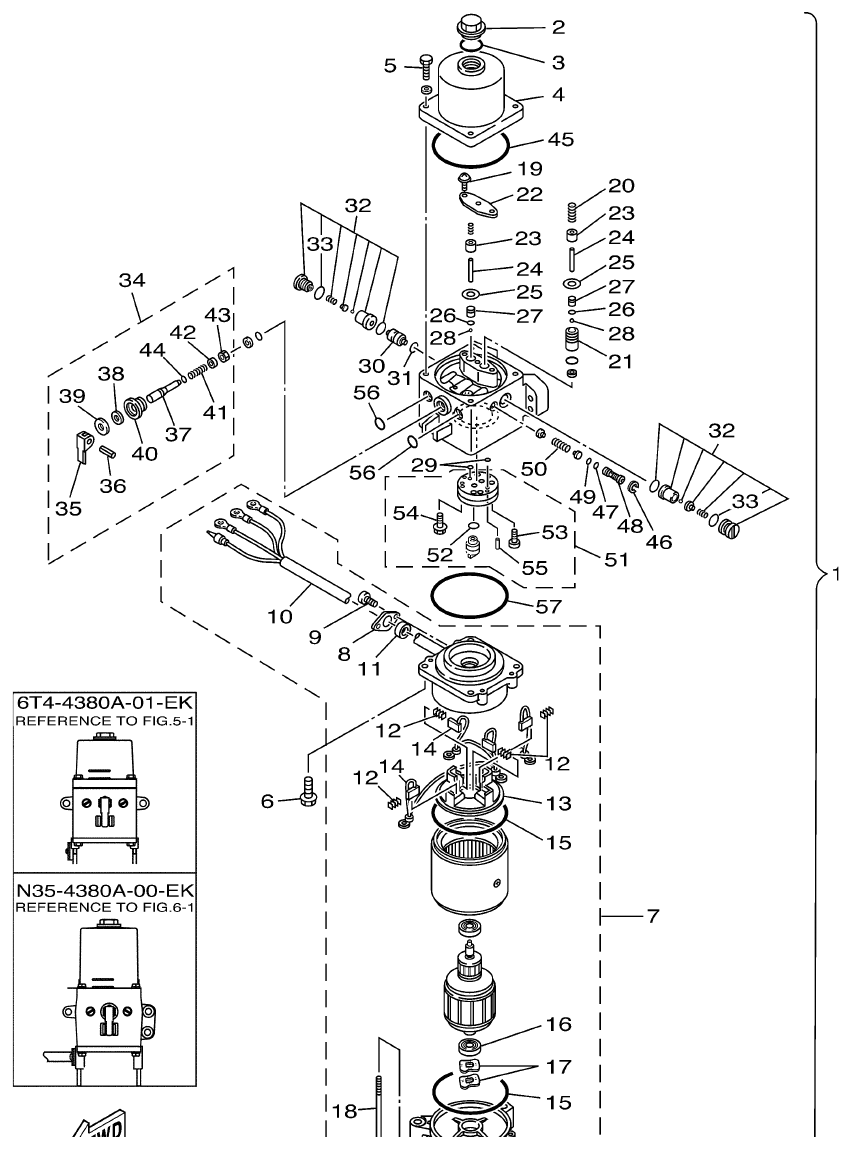

Fig. 6 — POWER TILT BODY ASSY 2
34 items · 1 available products
Yamaha DE-DHD6U3 POWER STEERING CYLINDER ASSY parts diagram

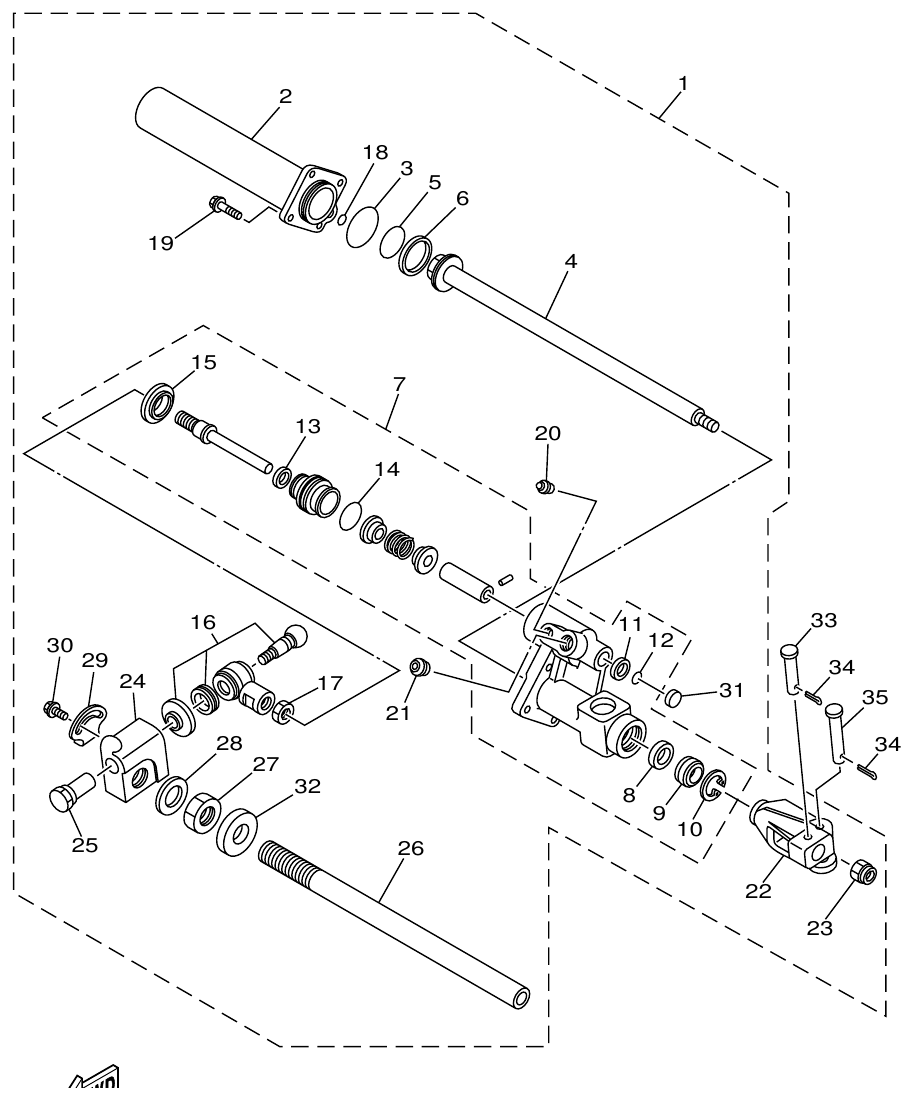

Fig. 7 — POWER STEERING CYLINDER ASSY
17 items
Yamaha DE-DHD6U3 CONTROL parts diagram

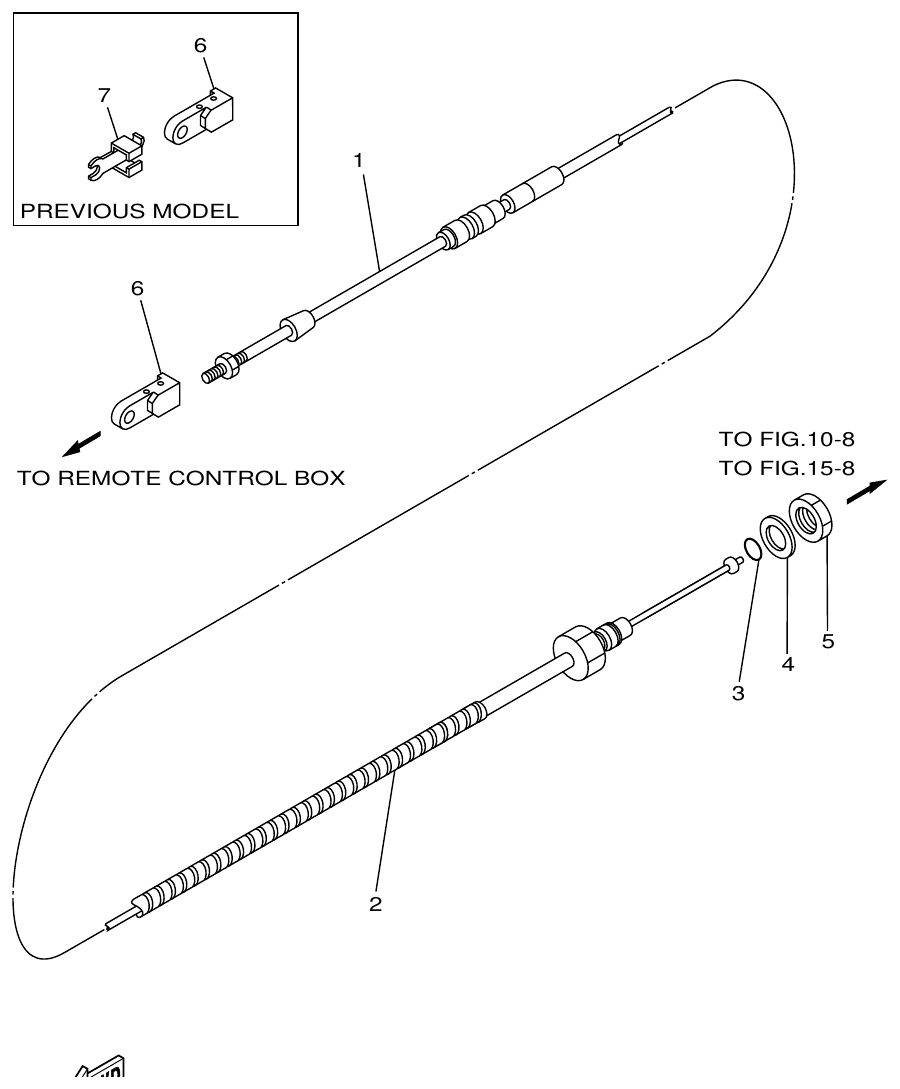

Fig. 8 — CONTROL
3 items · 1 available products
Yamaha DE-DHD6U3 OUTBOARD DRIVE 1 (DE-DHD) parts diagram

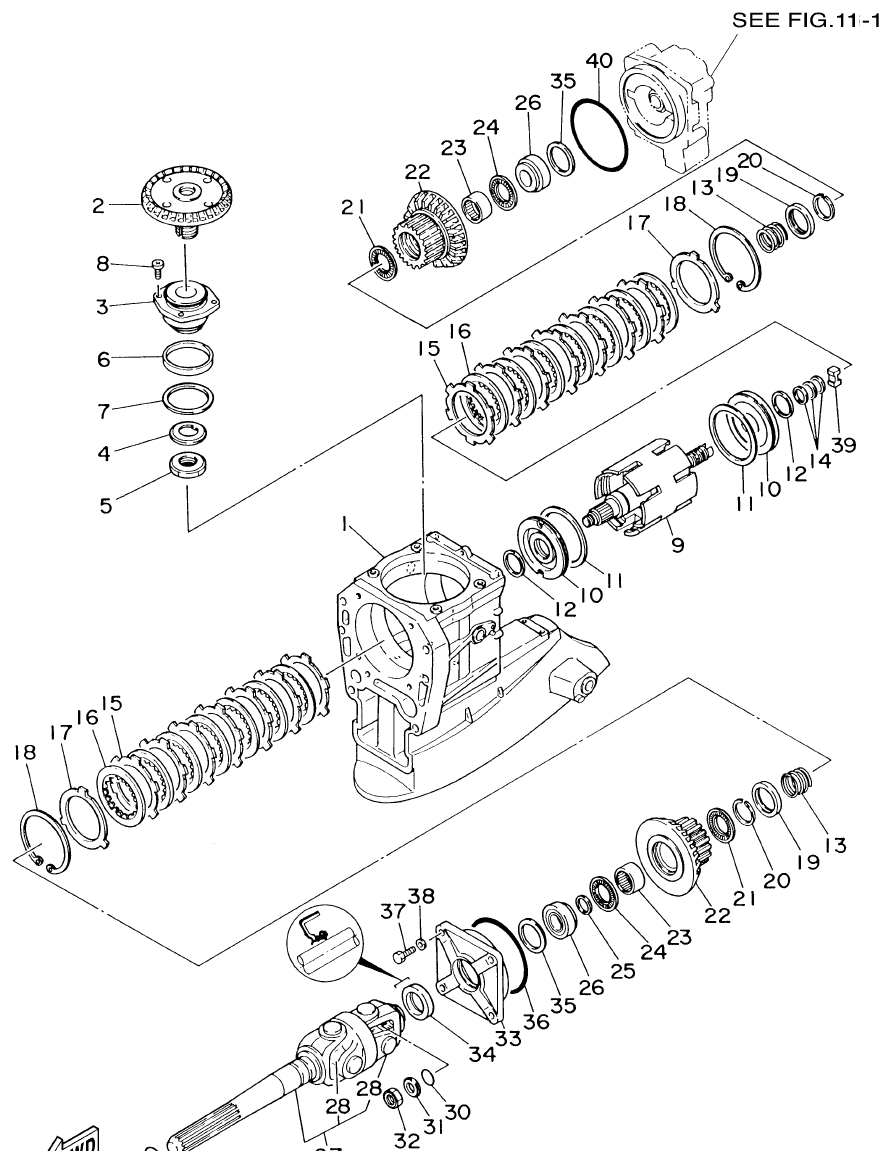

Fig. 9 — OUTBOARD DRIVE 1 (DE-DHD)
53 items
Yamaha DE-DHD6U3 OUTBOARD DRIVE 2 (DE-DHD) parts diagram

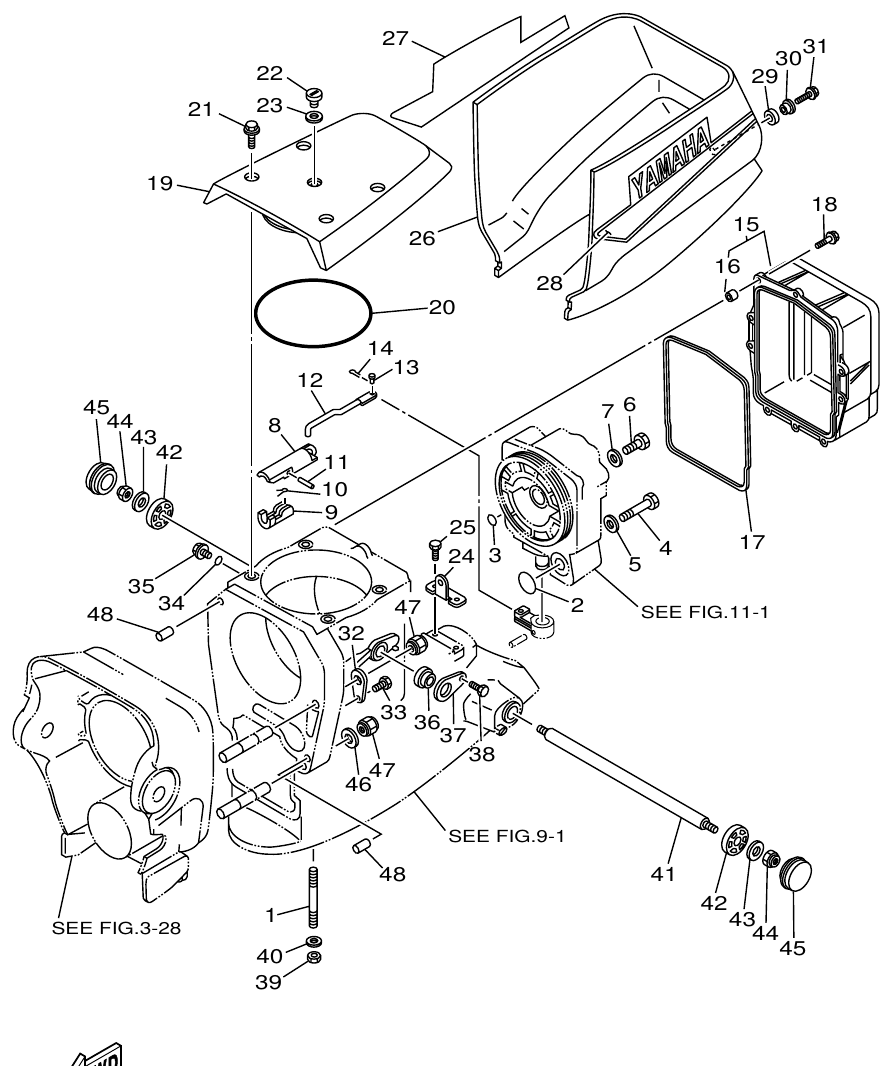

Fig. 10 — OUTBOARD DRIVE 2 (DE-DHD)
6 items
Yamaha DE-DHD6U3 SELECTOR VALVE ASSY (DE-DHD) parts diagram

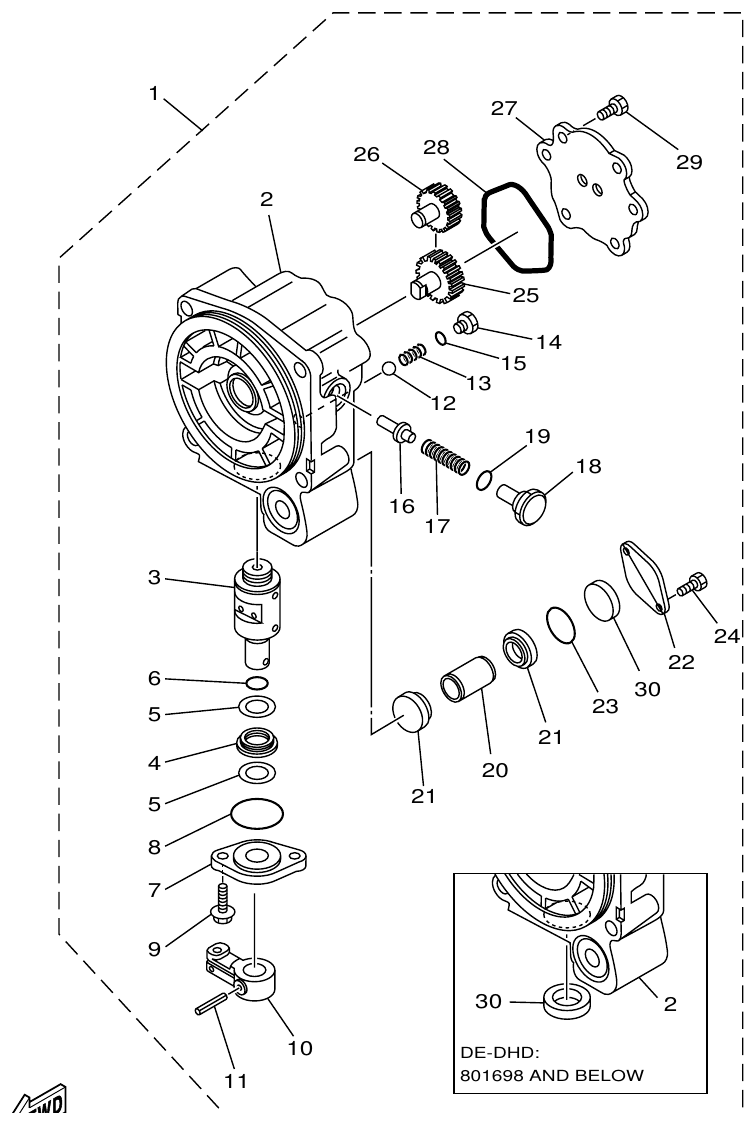

Fig. 11 — SELECTOR VALVE ASSY (DE-DHD)
13 items
Yamaha DE-DHD6U3 LOWER CASING. DRIVE 1 (DE-DHD) parts diagram

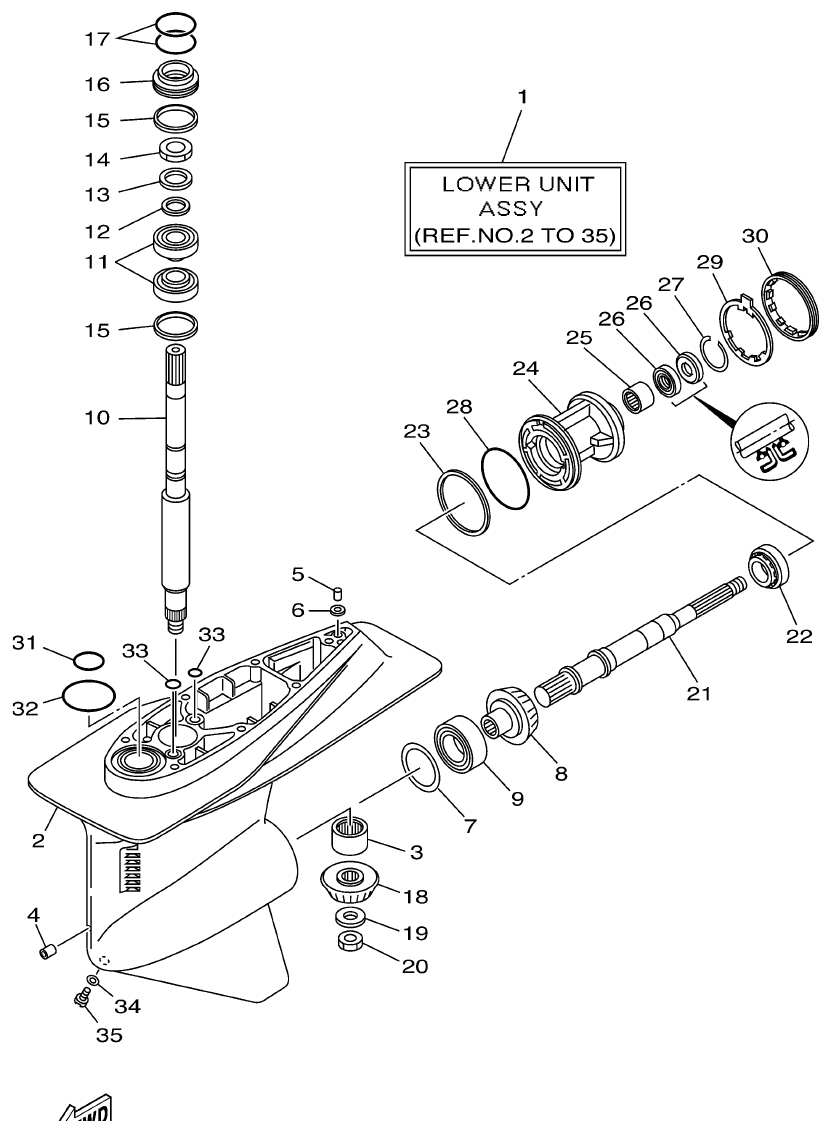

Fig. 12 — LOWER CASING. DRIVE 1 (DE-DHD)
38 items
Yamaha DE-DHD6U3 LOWER CASING. DRIVE 2 (DE-DHD) parts diagram

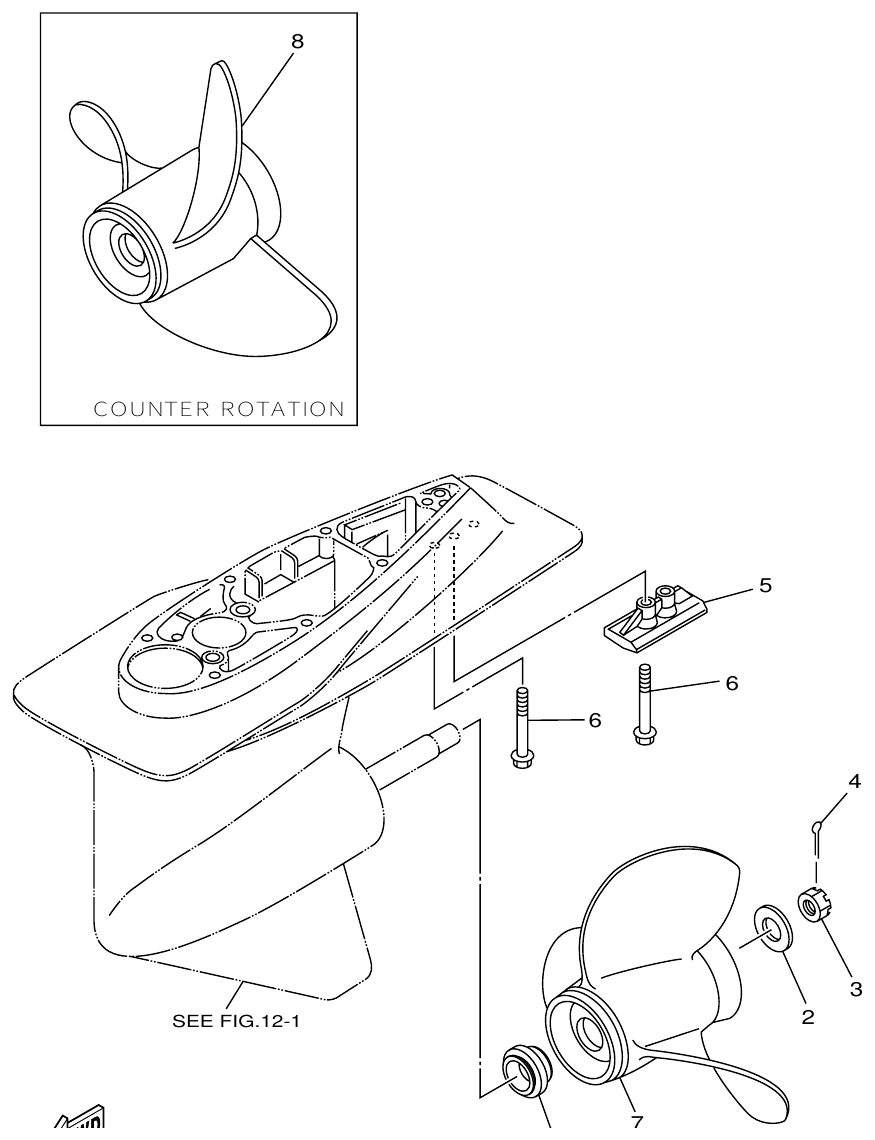

Fig. 13 — LOWER CASING. DRIVE 2 (DE-DHD)
20 items
Yamaha DE-DHD6U3 OUTBOARD DRIVE 1 (DE-DHT) (TRP) parts diagram

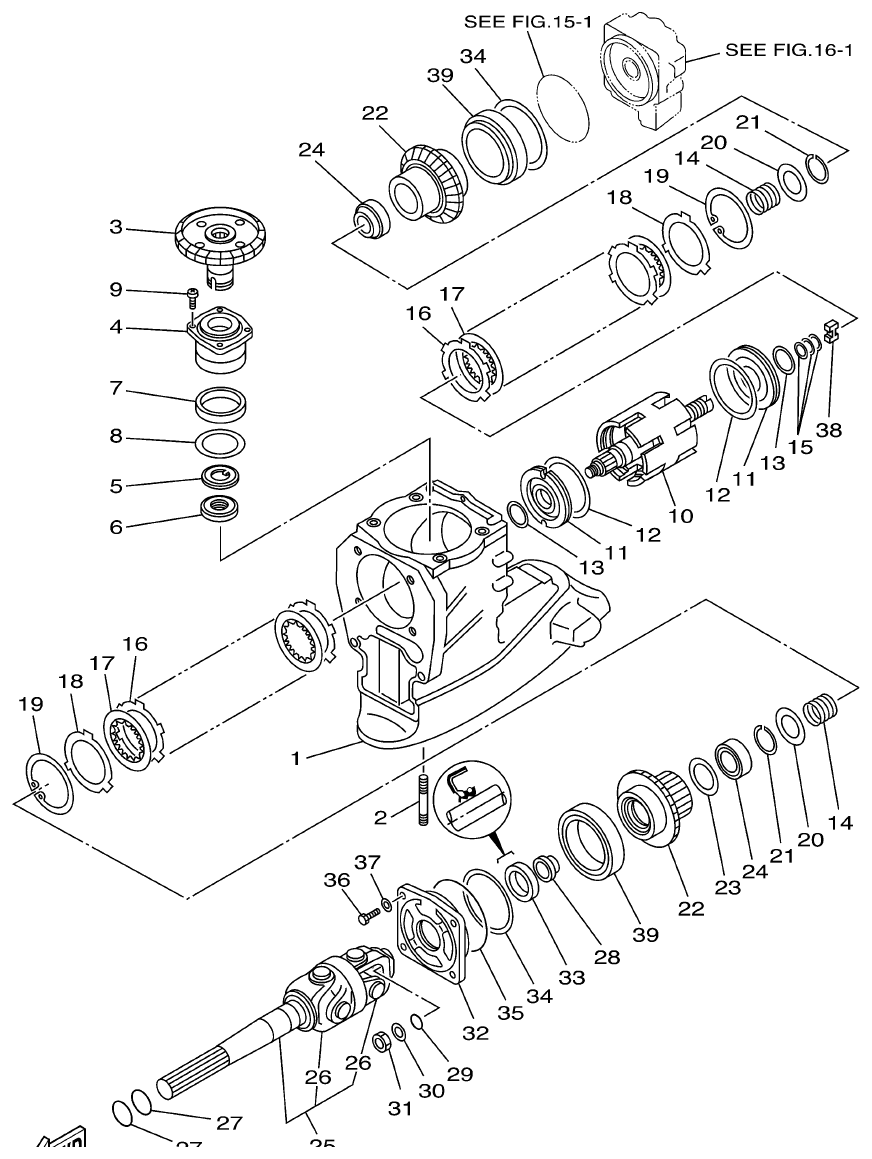

Fig. 14 — OUTBOARD DRIVE 1 (DE-DHT) (TRP)
39 items
Yamaha DE-DHD6U3 OUTBOARD DRIVE 2 (DE-DHT) (TRP) parts diagram

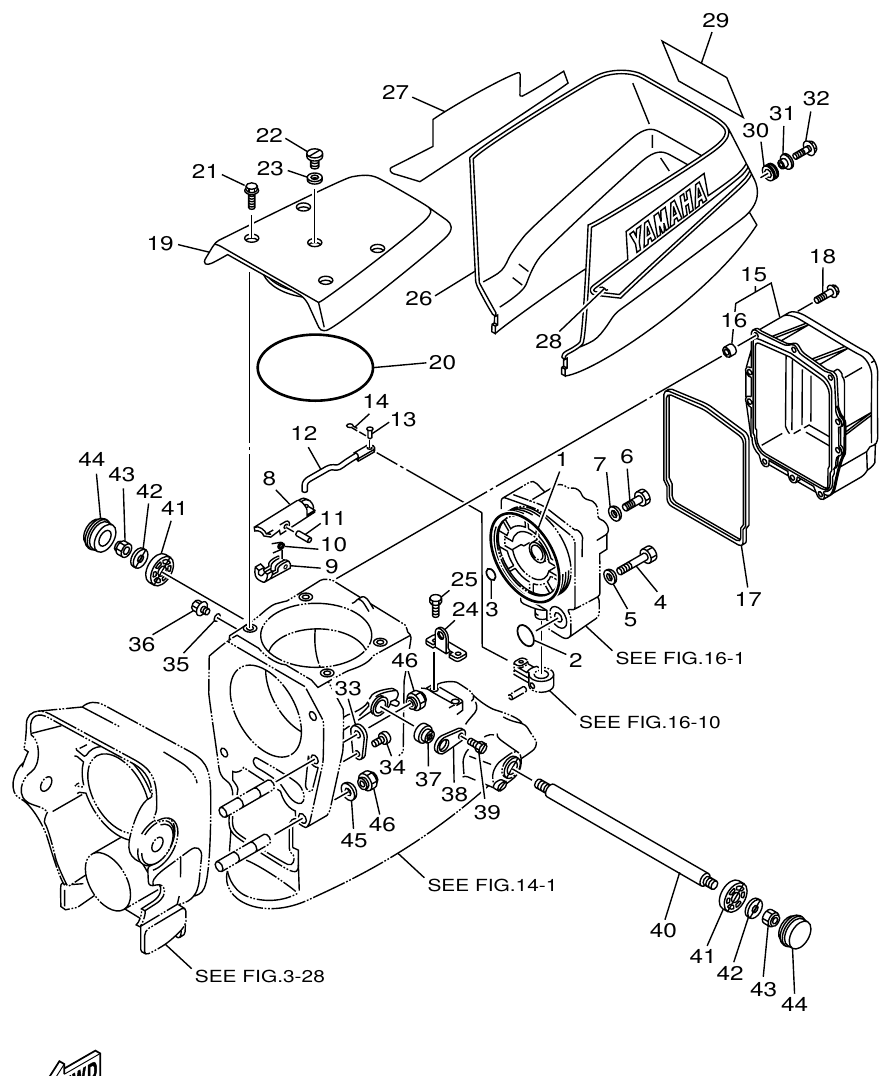

Fig. 15 — OUTBOARD DRIVE 2 (DE-DHT) (TRP)
8 items
Yamaha DE-DHD6U3 SELECTOR VALVE (DE-DHT) (TRP) parts diagram

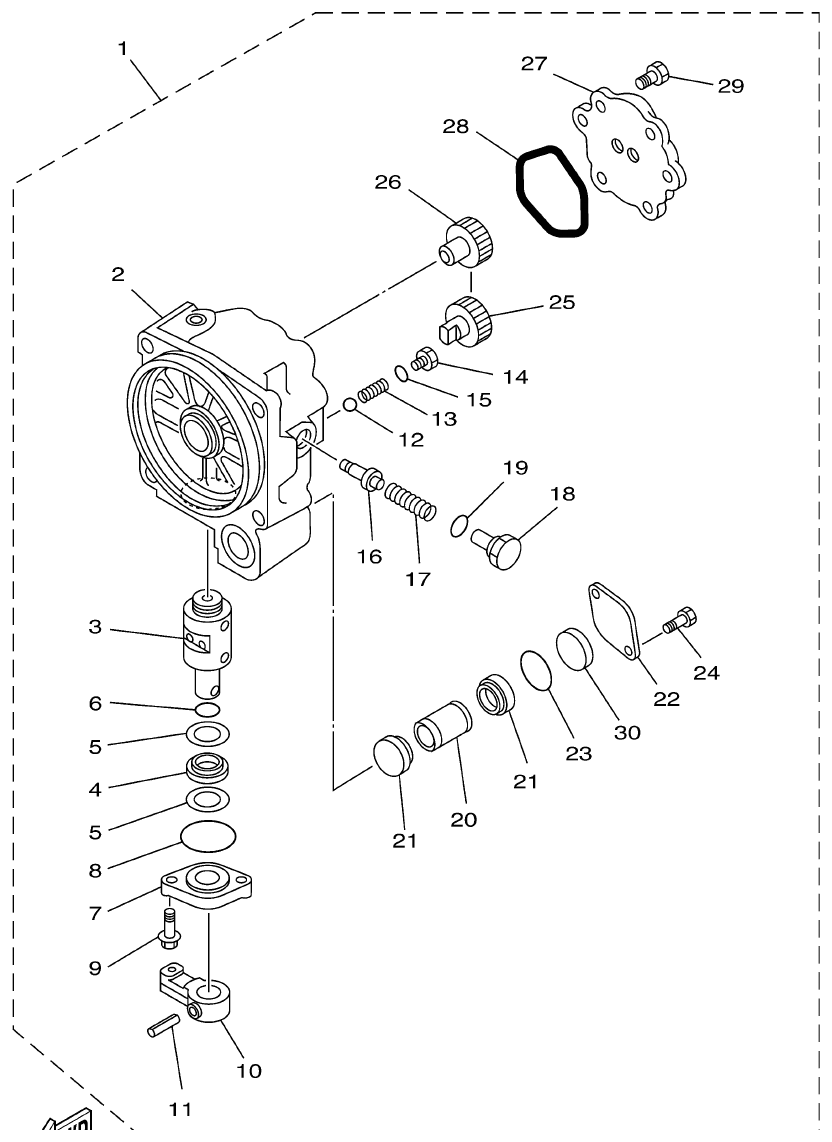

Fig. 16 — SELECTOR VALVE (DE-DHT) (TRP)
16 items · 1 available products
Yamaha DE-DHD6U3 LOWER CASING. DRIVE 1 (DE-DHT) (TRP) parts diagram

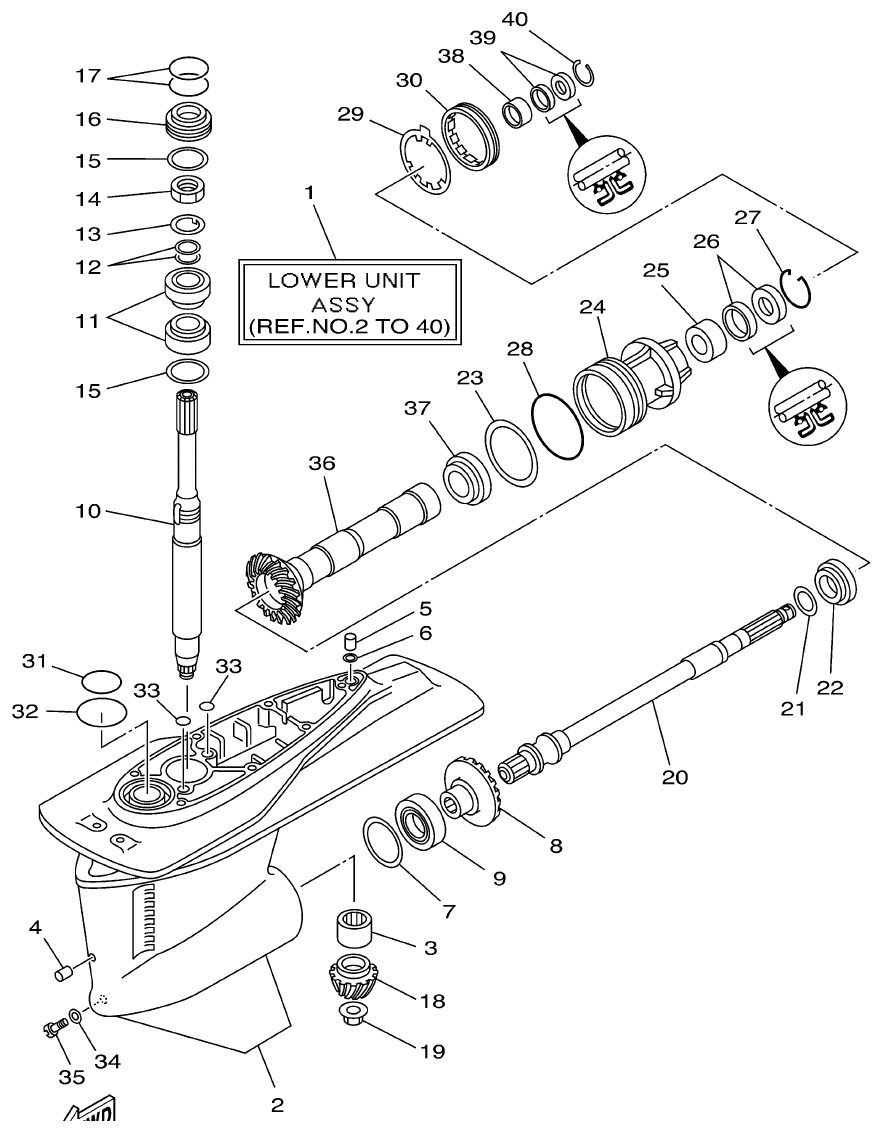

Fig. 17 — LOWER CASING. DRIVE 1 (DE-DHT) (TRP)
40 items
Yamaha DE-DHD6U3 LOWER CASING. DRIVE 2 (DE-DHT) (TRP) parts diagram

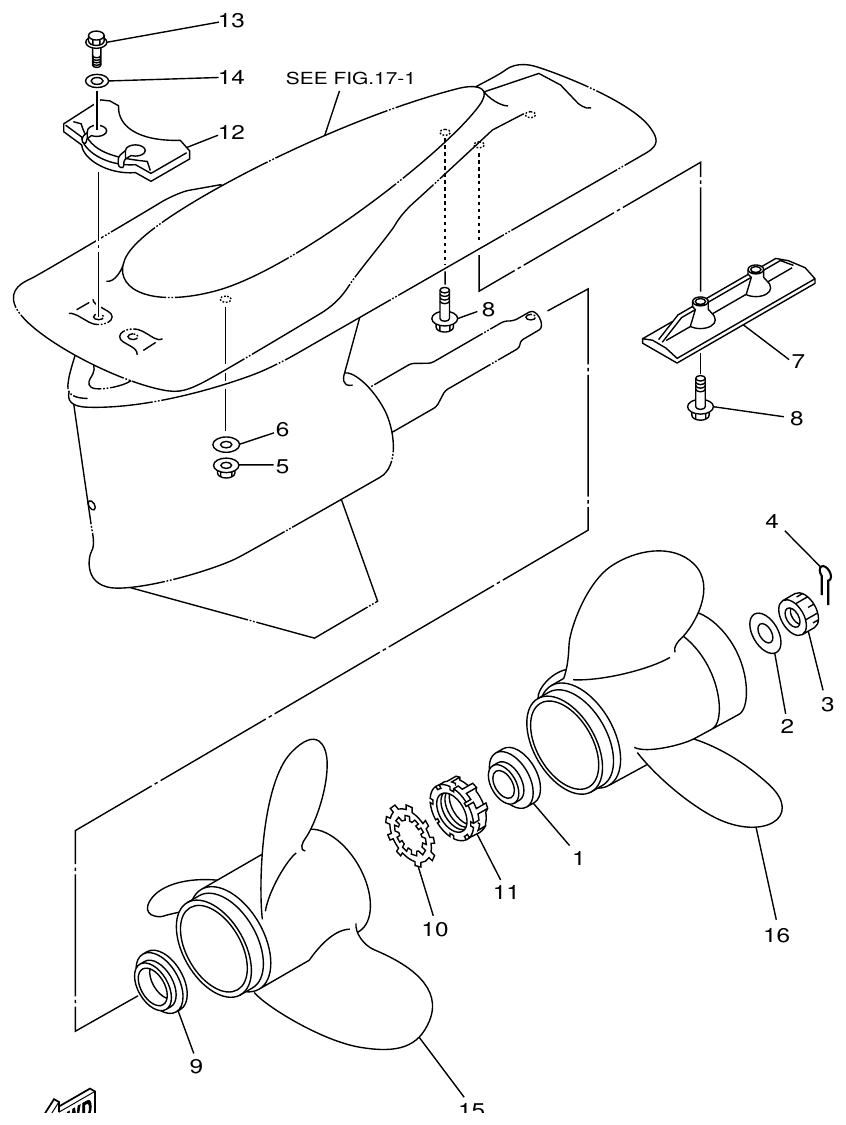

Fig. 18 — LOWER CASING. DRIVE 2 (DE-DHT) (TRP)
10 items
Yamaha DE-DHD6U3 REMOTE CONTROL parts diagram
Fig. 19 — REMOTE CONTROL
21 items · 1 available products
Yamaha DE-DHD6U3 REMOTE CONTROL ASSY 1 parts diagram

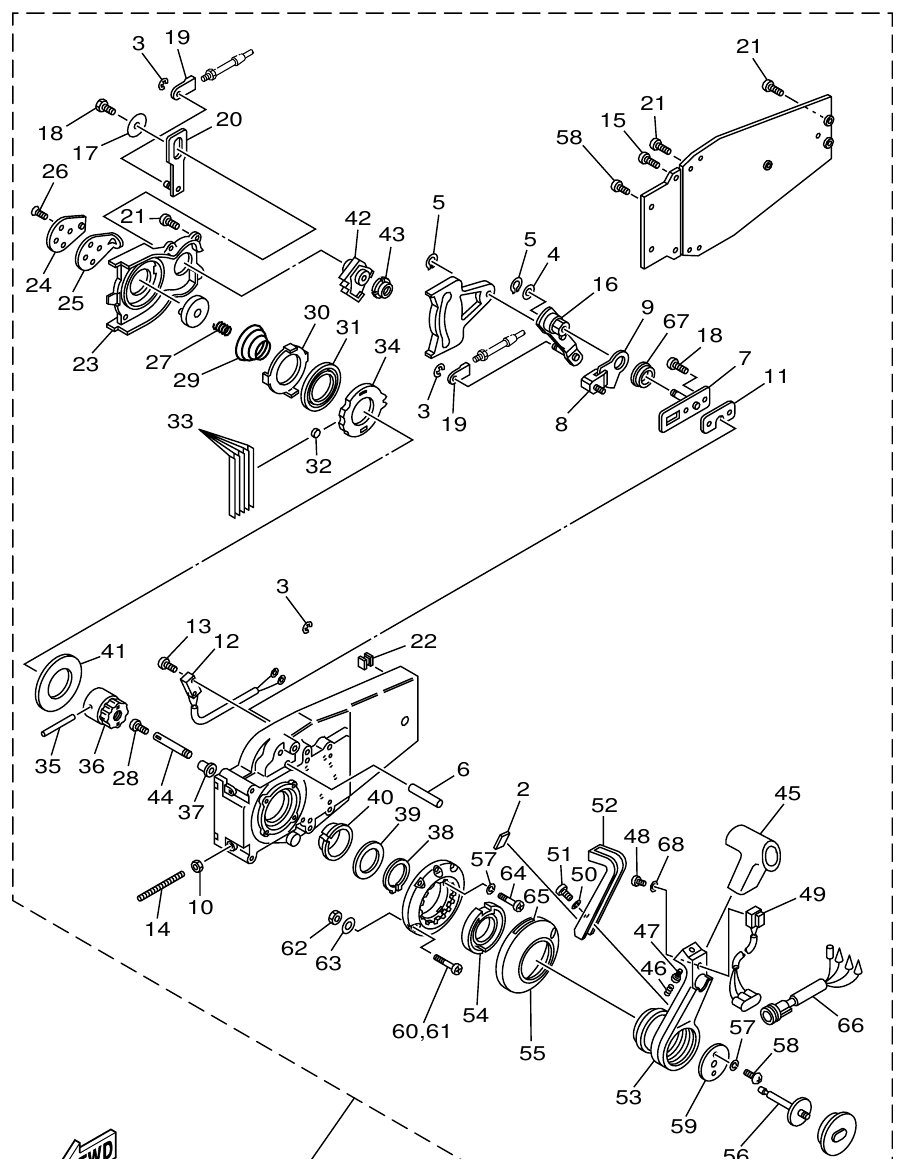

Fig. 20 — REMOTE CONTROL ASSY 1
21 items
Yamaha DE-DHD6U3 REMOTE CONTROL ASSY 2 parts diagram

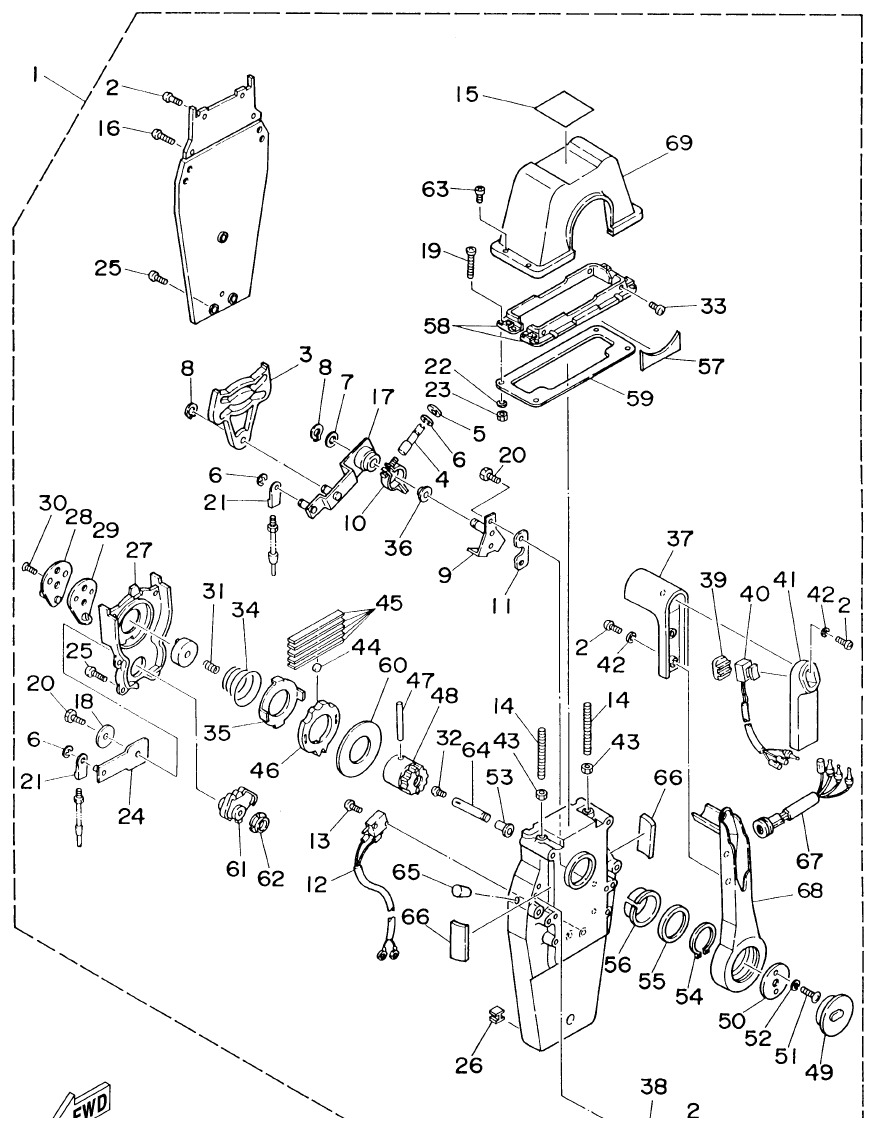

Fig. 21 — REMOTE CONTROL ASSY 2
56 items · 1 available products
Yamaha DE-DHD6U3 REMOTE CONTROL ASSY 3 parts diagram

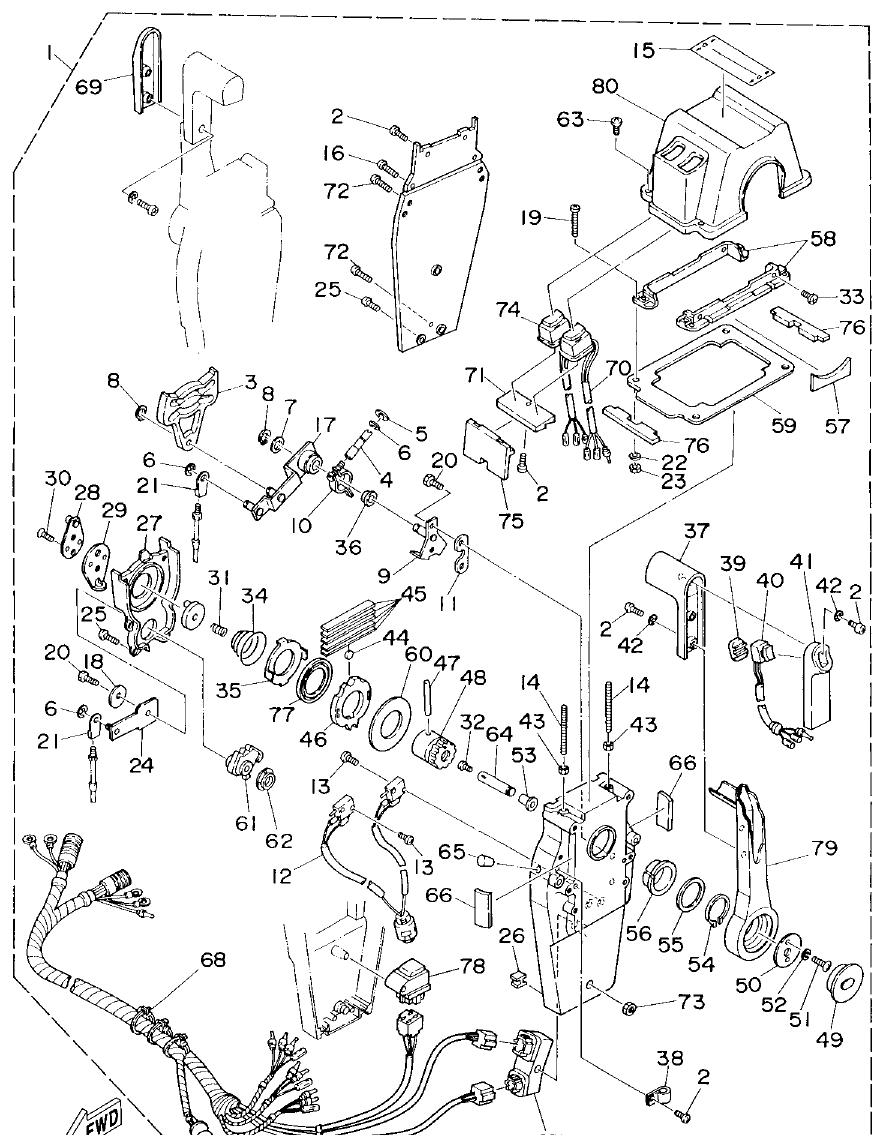

Fig. 22 — REMOTE CONTROL ASSY 3
69 items · 1 available products
Yamaha DE-DHD6U3 OPTIONAL PARTS parts diagram

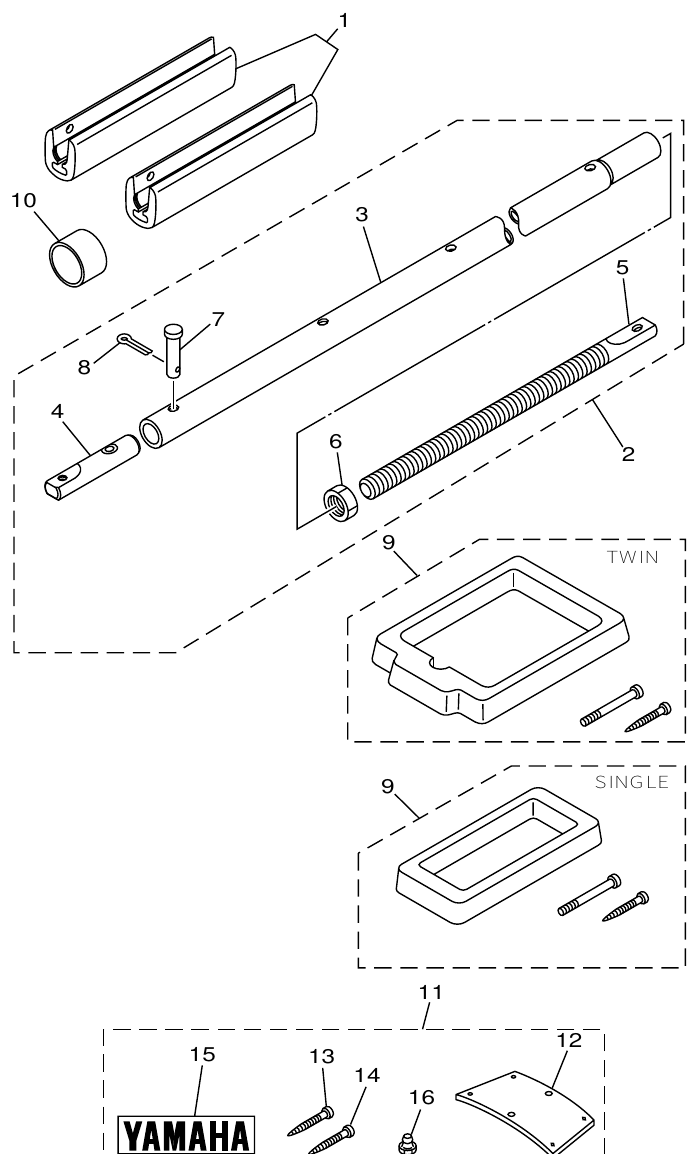

Fig. 23 — OPTIONAL PARTS
12 items
