Yamaha INT HDP HDL (6U00) Parts Catalog

Yamaha INT HDP HDL (6U00) Inboard parts and diagrams

Yamaha INT HDP HDL (6U00) inboard parts catalog includes TRANSOM PLATE, GIMBAL HOUSING 1, GIMBAL HOUSING 2, TILT CYLINDER, POWER TILT BODY ASSY 1 (PREVIOUS MODEL), POWER TILT BODY ASSY 2, POWER STEERING CYLINDER ASSY, CONTROL, REMOTE CONTROL, REMOTE CONTROL ASSY 1, REMOTE CONTROL ASSY 2, REMOTE CONTROL ASSY 3, OPTIONAL PARTS, or 12 REMOTE CONTROL ASSY 3 SECTION. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

14 linked store products are available across 14 catalog sections. 524 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha INT HDP HDL (6U00) TRANSOM PLATE parts diagram

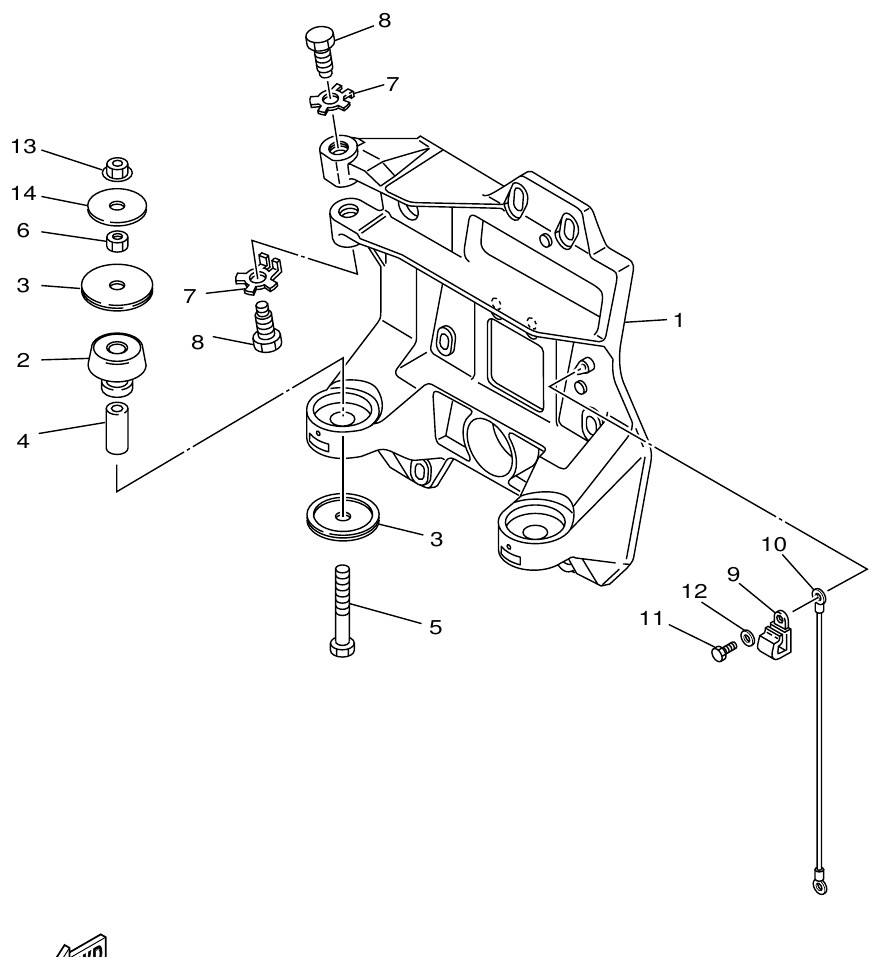

Fig. 1 — TRANSOM PLATE
11 items
Yamaha INT HDP HDL (6U00) GIMBAL HOUSING 1 parts diagram
Fig. 2 — GIMBAL HOUSING 1
85 items · 1 available products
Yamaha INT HDP HDL (6U00) GIMBAL HOUSING 2 parts diagram
Fig. 3 — GIMBAL HOUSING 2
43 items · 1 available products
Yamaha INT HDP HDL (6U00) TILT CYLINDER parts diagram
Fig. 4 — TILT CYLINDER
35 items · 4 available products
Yamaha INT HDP HDL (6U00) POWER TILT BODY ASSY 1 (PREVIOUS MODEL) parts diagram
Fig. 5 — POWER TILT BODY ASSY 1 (PREVIOUS MODEL)
59 items · 3 available products
Yamaha INT HDP HDL (6U00) POWER TILT BODY ASSY 2 parts diagram
Fig. 6 — POWER TILT BODY ASSY 2
58 items · 1 available products
Yamaha INT HDP HDL (6U00) POWER STEERING CYLINDER ASSY parts diagram

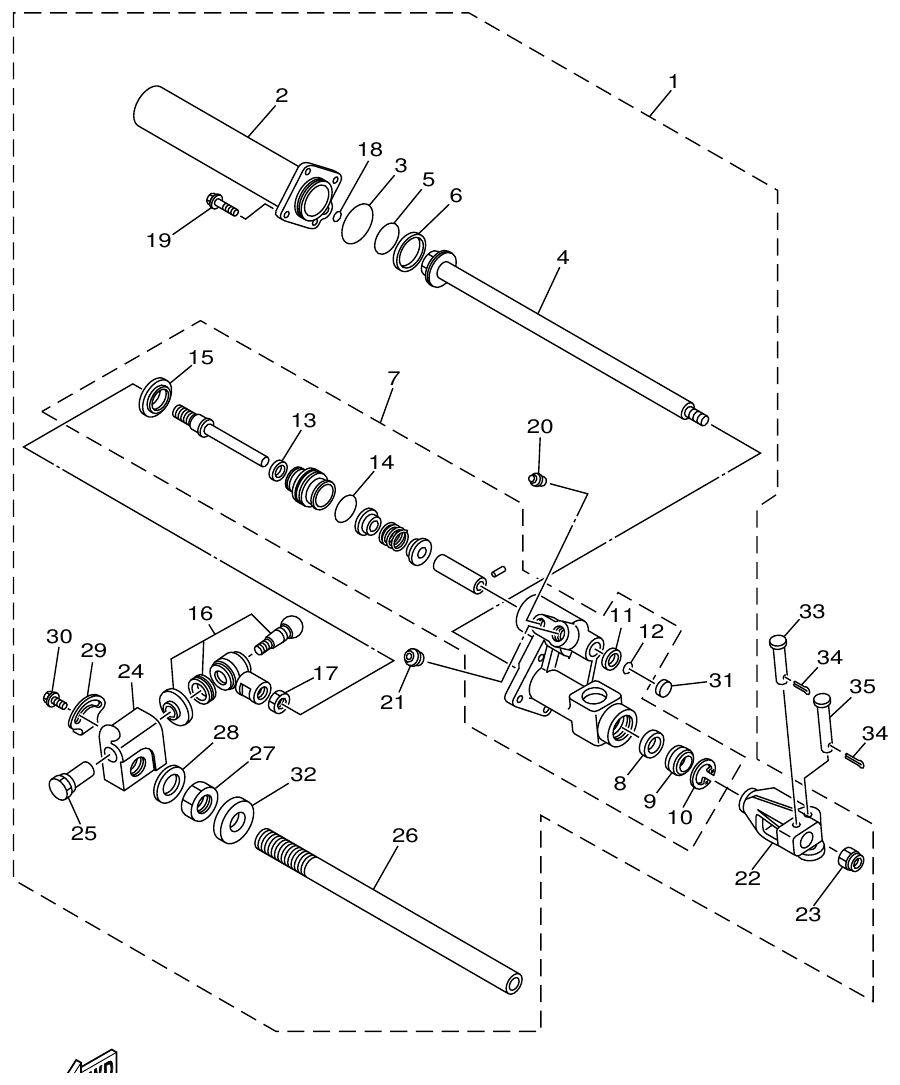

Fig. 7 — POWER STEERING CYLINDER ASSY
23 items
Yamaha INT HDP HDL (6U00) CONTROL parts diagram
Fig. 8 — CONTROL
6 items · 1 available products
Yamaha INT HDP HDL (6U00) REMOTE CONTROL parts diagram
Fig. 9 — REMOTE CONTROL
21 items · 1 available products
Yamaha INT HDP HDL (6U00) REMOTE CONTROL ASSY 1 parts diagram

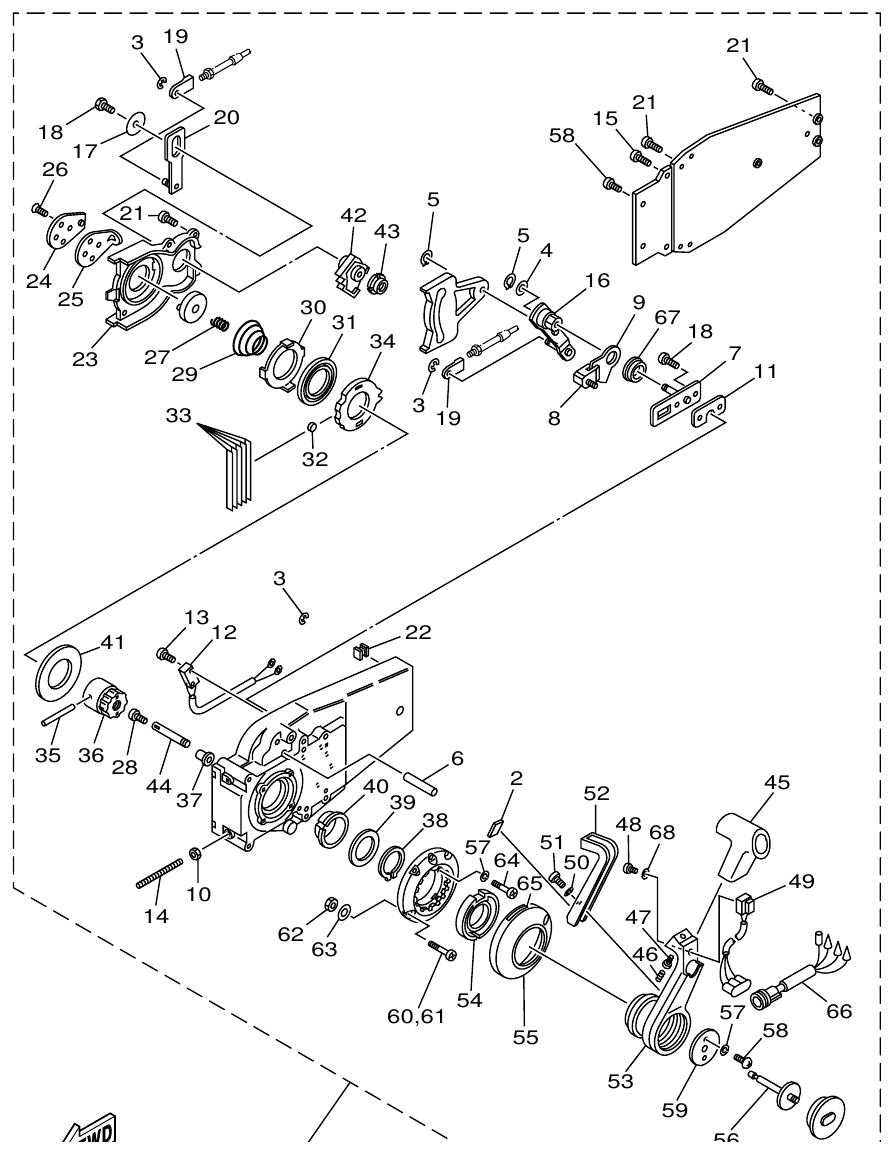

Fig. 10 — REMOTE CONTROL ASSY 1
18 items
Yamaha INT HDP HDL (6U00) REMOTE CONTROL ASSY 2 parts diagram
Fig. 11 — REMOTE CONTROL ASSY 2
69 items · 1 available products
Yamaha INT HDP HDL (6U00) REMOTE CONTROL ASSY 3 parts diagram
Fig. 12 — REMOTE CONTROL ASSY 3
80 items · 1 available products
Yamaha INT HDP HDL (6U00) OPTIONAL PARTS parts diagram

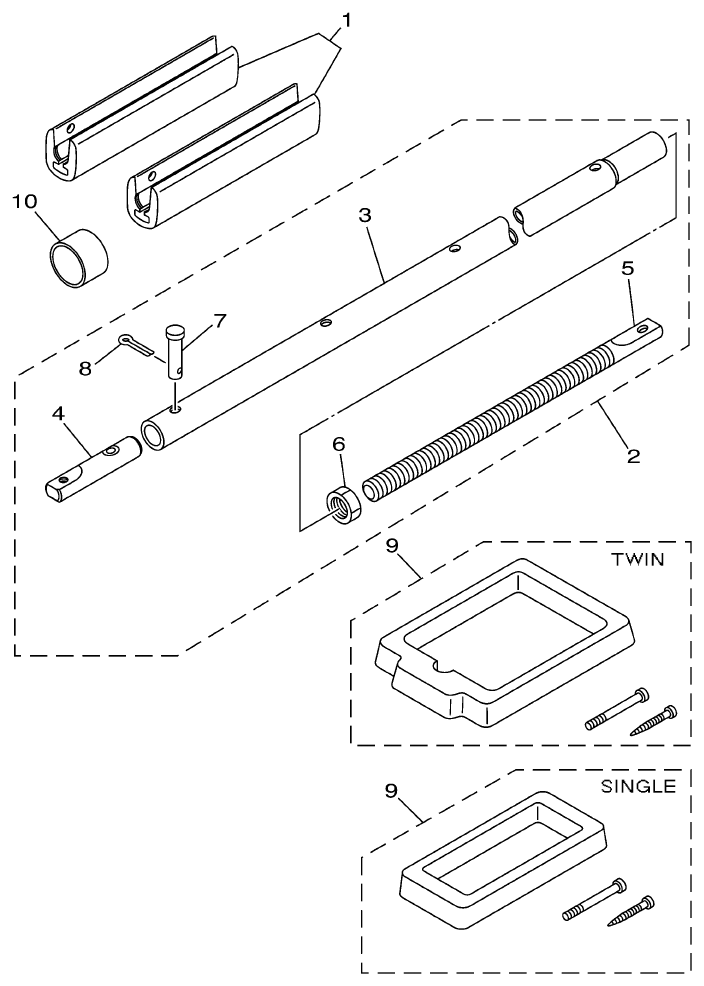

Fig. 13 — OPTIONAL PARTS
14 items

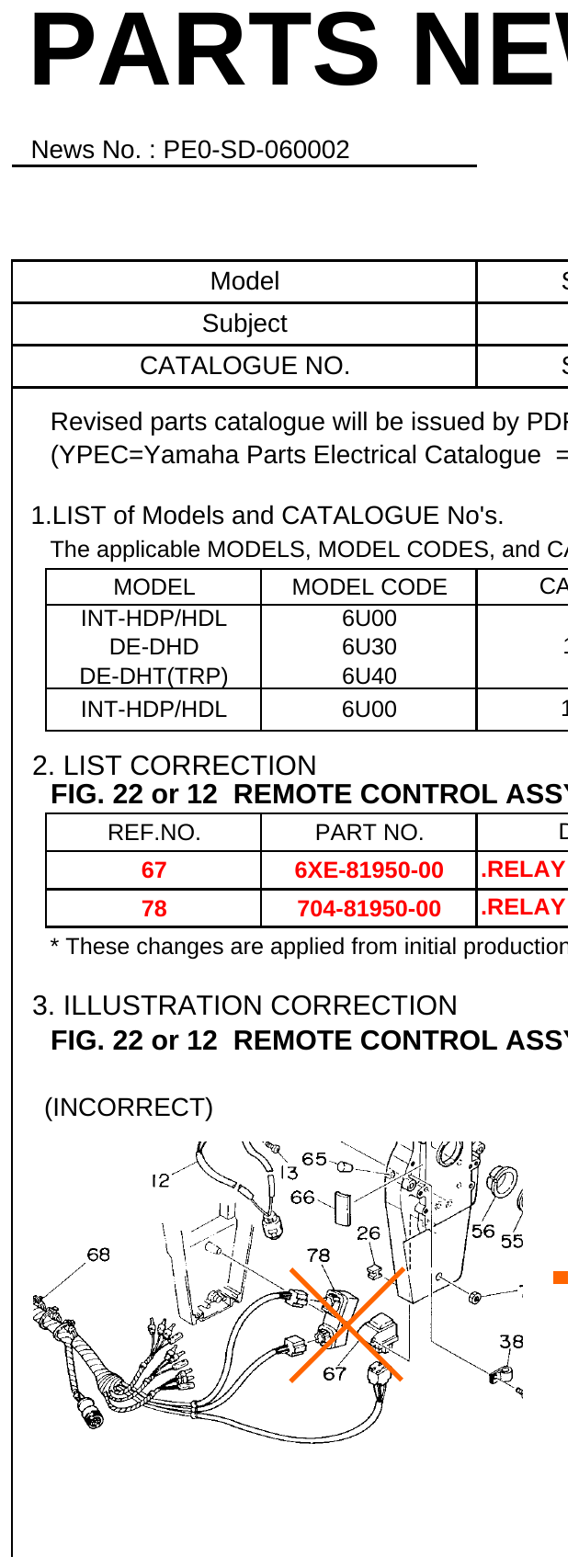

Yamaha INT HDP HDL (6U00) or 12 REMOTE CONTROL ASSY 3 SECTION parts diagram
Fig. 22 — or 12 REMOTE CONTROL ASSY 3 SECTION
2 items
