Yamaha 115B, 140B Parts Catalog

Yamaha 115B, 140B Outboard parts and diagrams

Yamaha 115B, 140B outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, INTAKE, CARBURETOR, FUEL, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, CONTROL, BRACKET 1, BRACKET 2, BRACKET 3, BRACKET 4, BRACKET 5. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

462 linked store products are available across 60 catalog sections. 2170 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

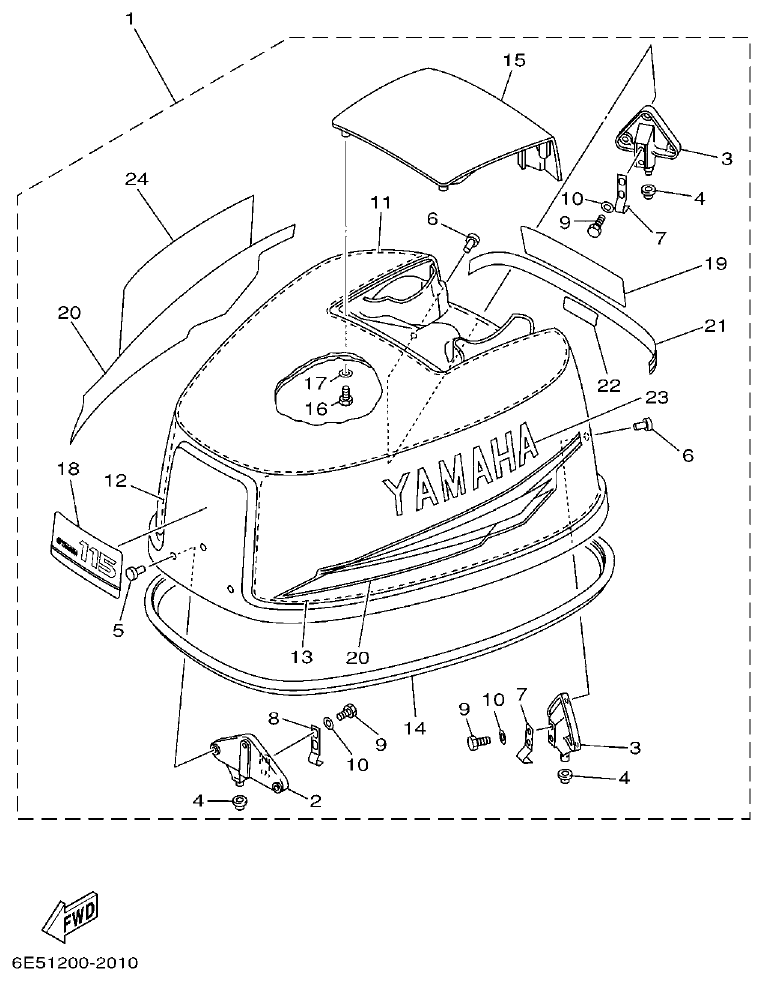

Yamaha 115B, 140B TOP COWLING parts diagram
Fig. 1 — TOP COWLING
27 items · 1 available products
Yamaha 115B, 140B CYLINDER & CRANKCASE 1 parts diagram

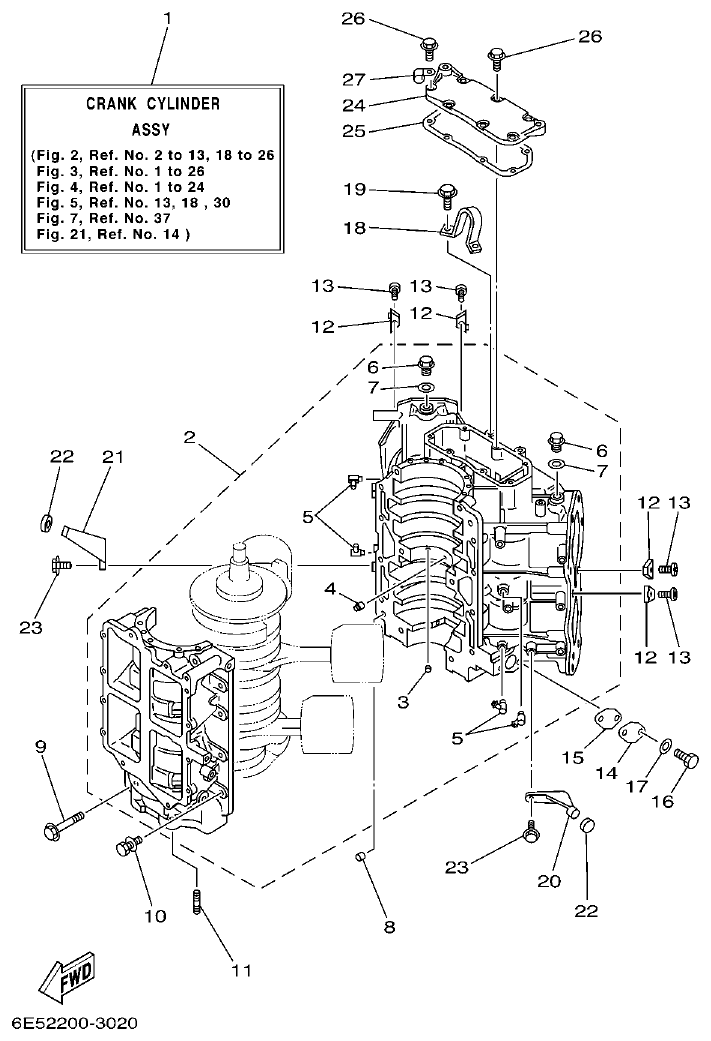

Fig. 2 — CYLINDER & CRANKCASE 1
29 items · 7 available products
Yamaha 115B, 140B CRANKSHAFT & PISTON parts diagram

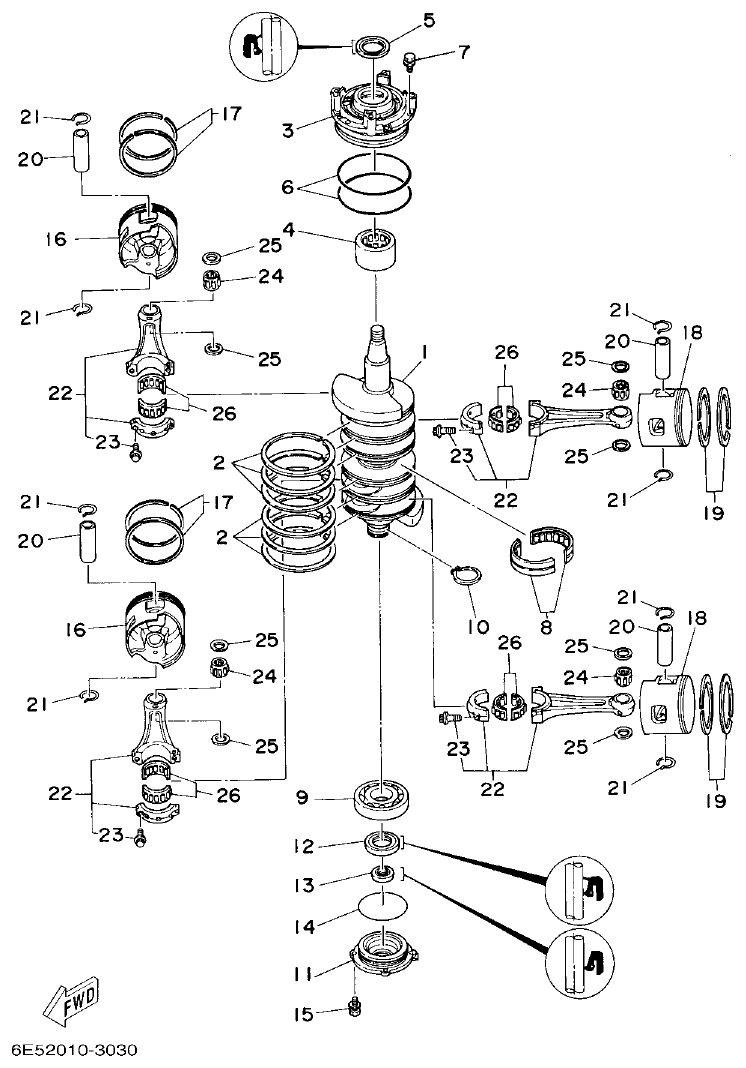

Fig. 3 — CRANKSHAFT & PISTON
34 items · 13 available products
Yamaha 115B, 140B CYLINDER & CRANKCASE 2 parts diagram

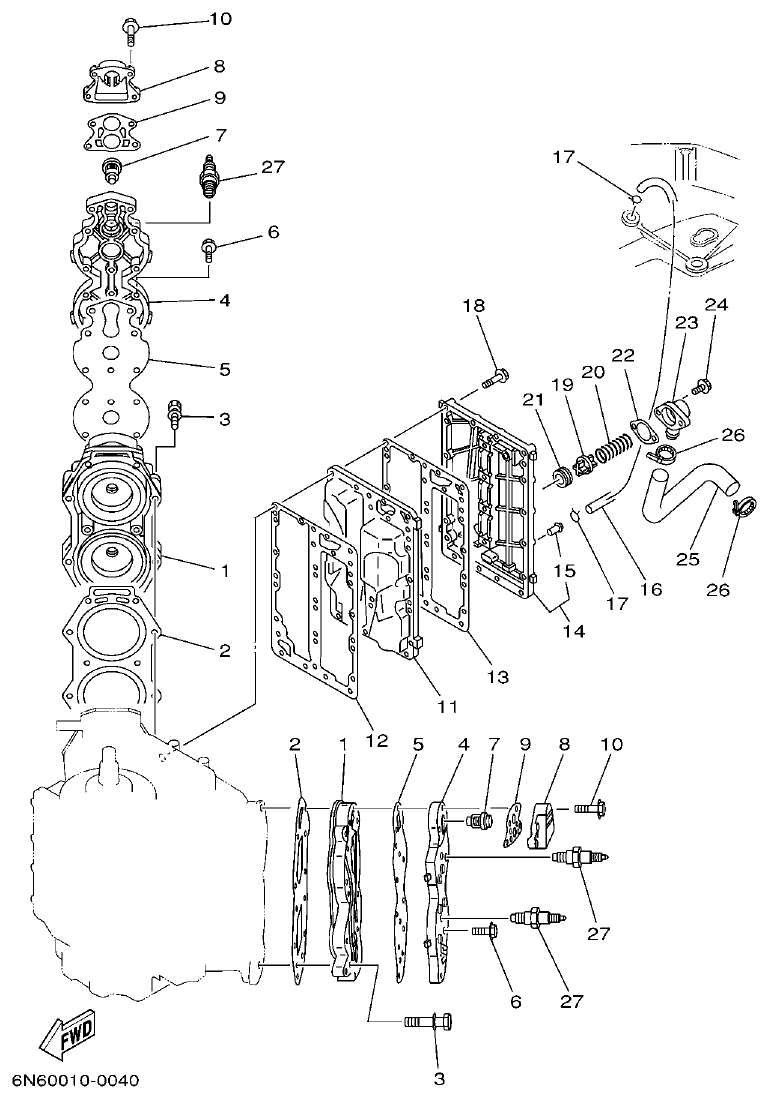

Fig. 4 — CYLINDER & CRANKCASE 2
32 items · 13 available products
Yamaha 115B, 140B INTAKE parts diagram

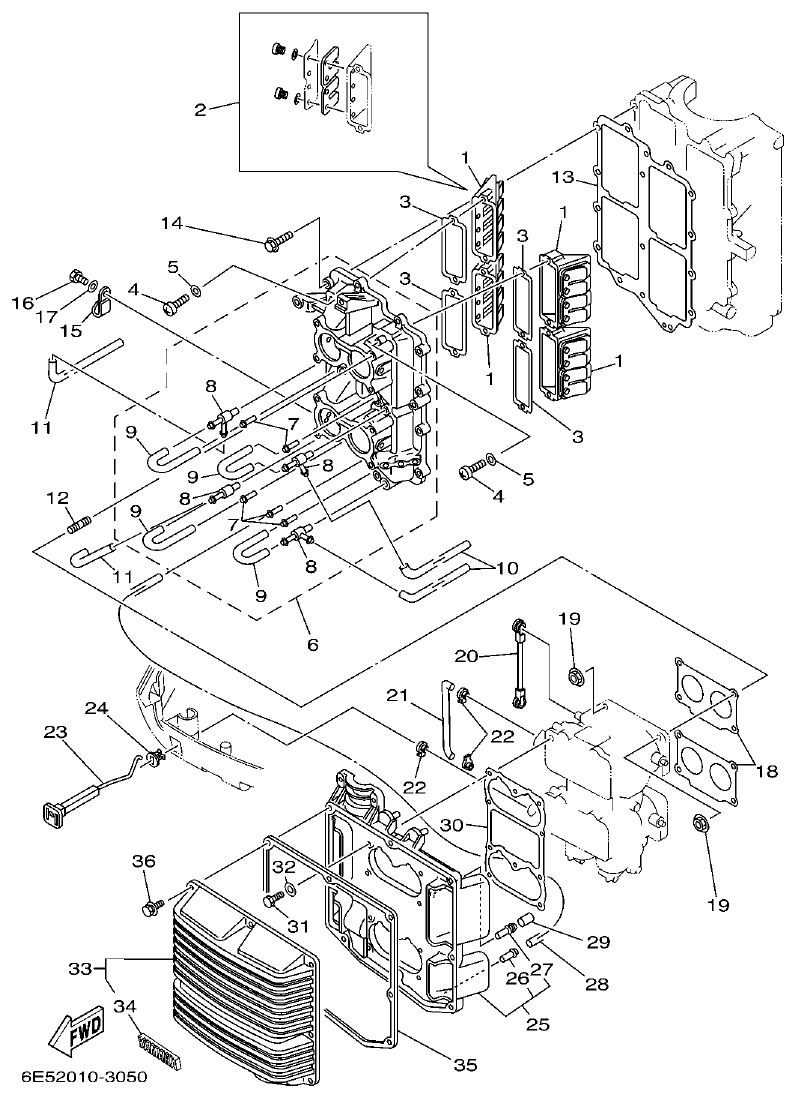

Fig. 5 — INTAKE
36 items · 9 available products
Yamaha 115B, 140B CARBURETOR parts diagram

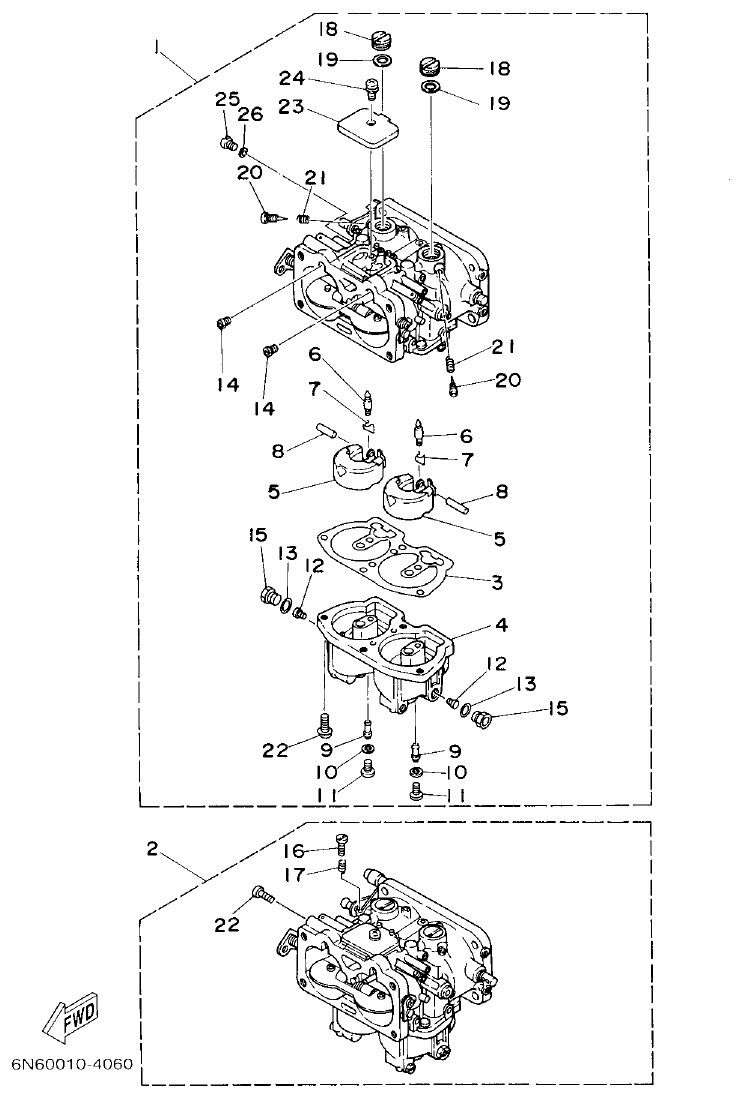

Fig. 6 — CARBURETOR
34 items · 11 available products

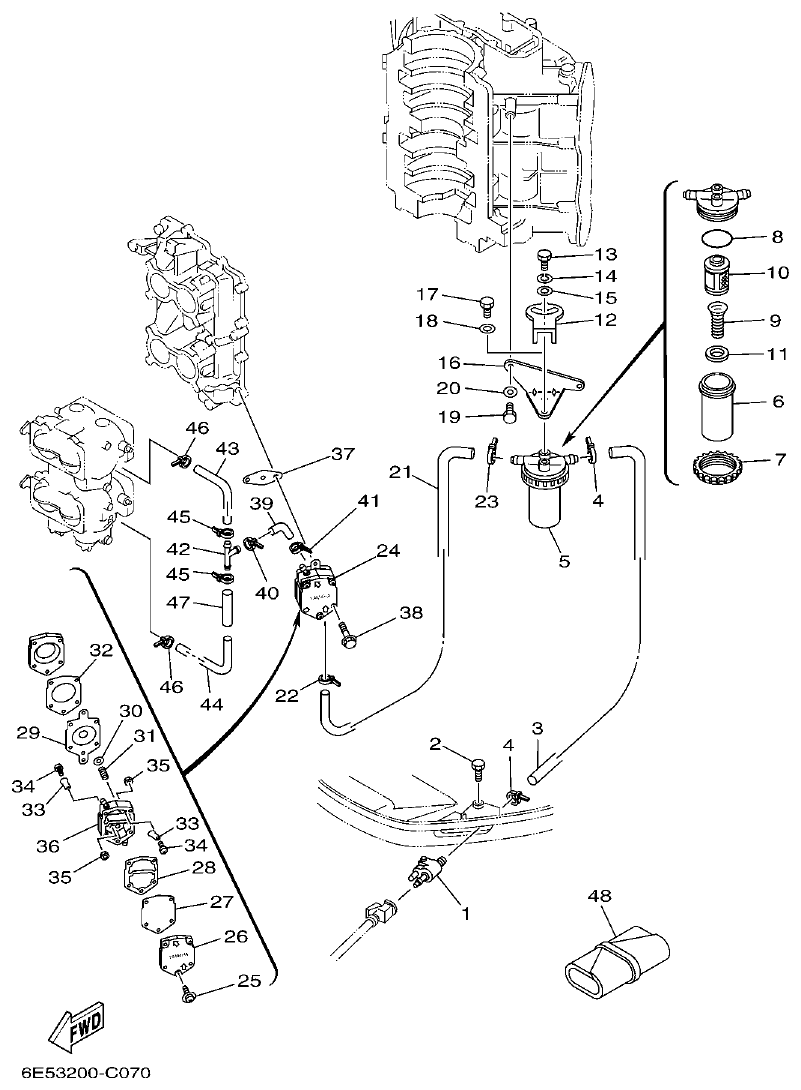

Yamaha 115B, 140B FUEL parts diagram
Fig. 7 — FUEL
48 items · 10 available products
Yamaha 115B, 140B GENERATOR parts diagram

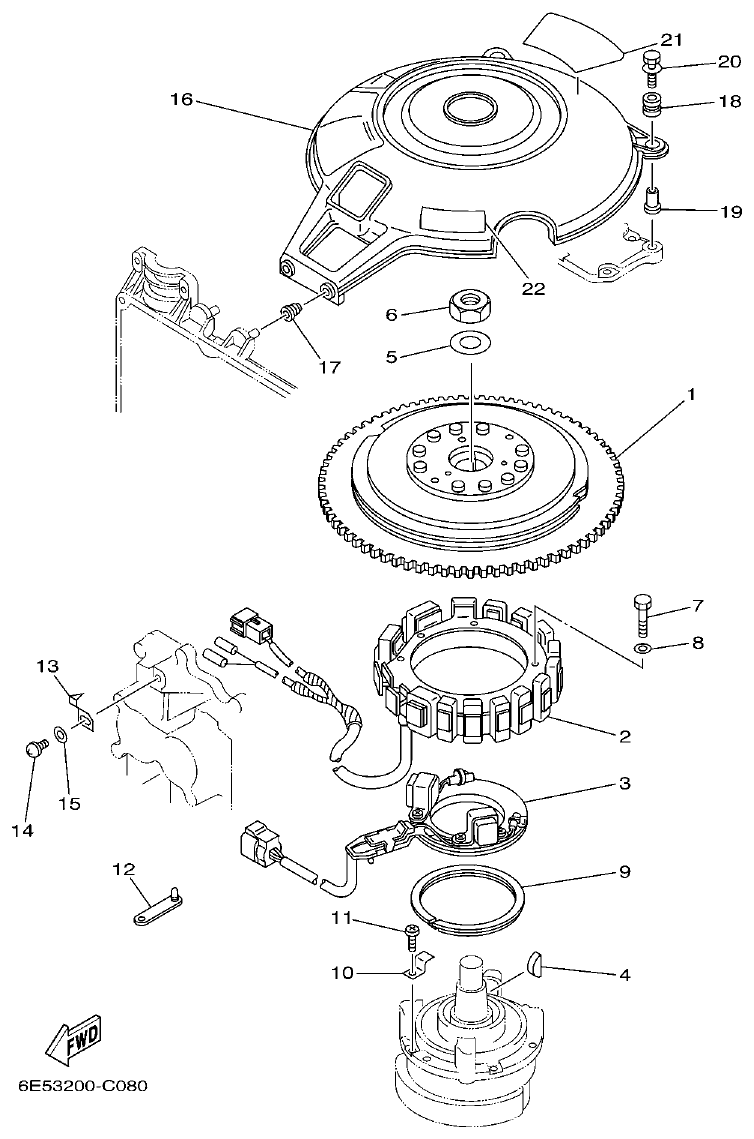

Fig. 8 — GENERATOR
22 items · 2 available products

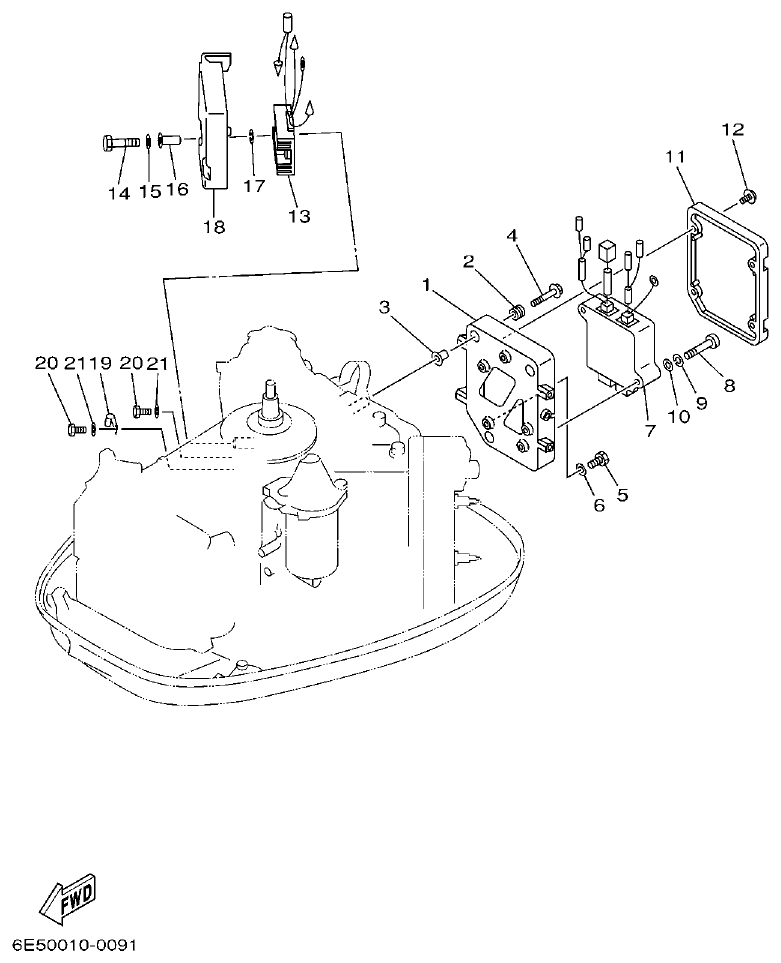

Yamaha 115B, 140B ELECTRICAL 1 parts diagram
Fig. 9 — ELECTRICAL 1
21 items · 1 available products

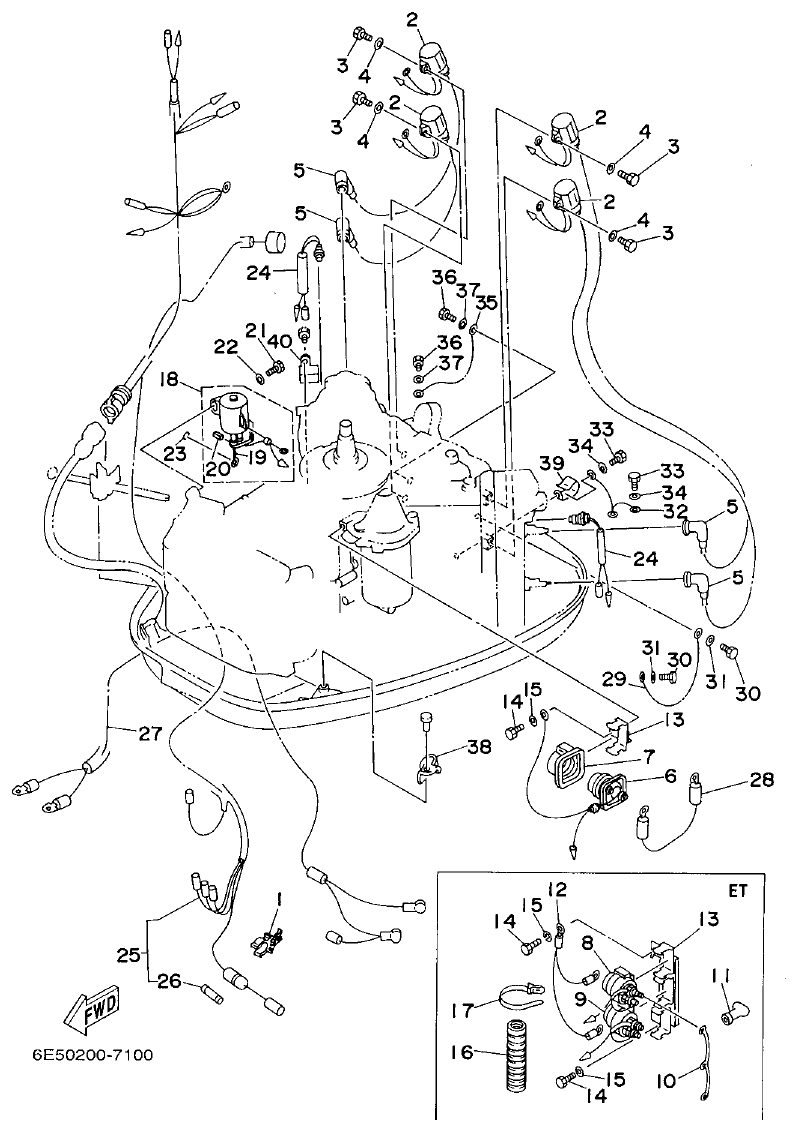

Yamaha 115B, 140B ELECTRICAL 2 parts diagram
Fig. 10 — ELECTRICAL 2
43 items · 9 available products
Yamaha 115B, 140B STARTING MOTOR parts diagram

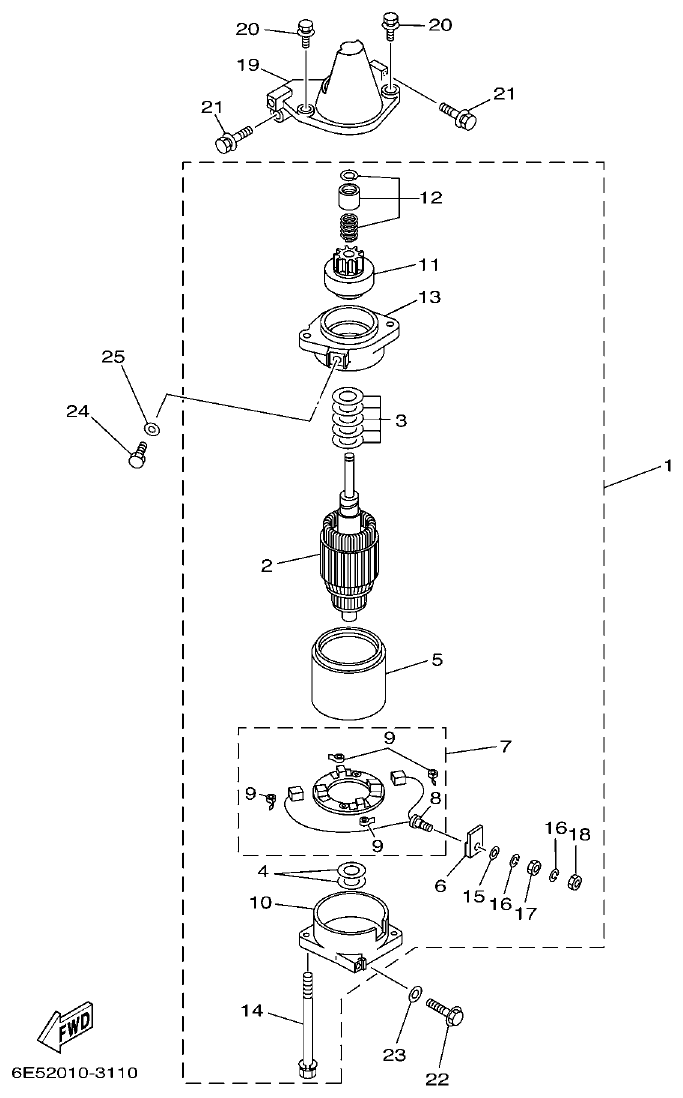

Fig. 11 — STARTING MOTOR
25 items · 8 available products
Yamaha 115B, 140B BOTTOM COWLING parts diagram

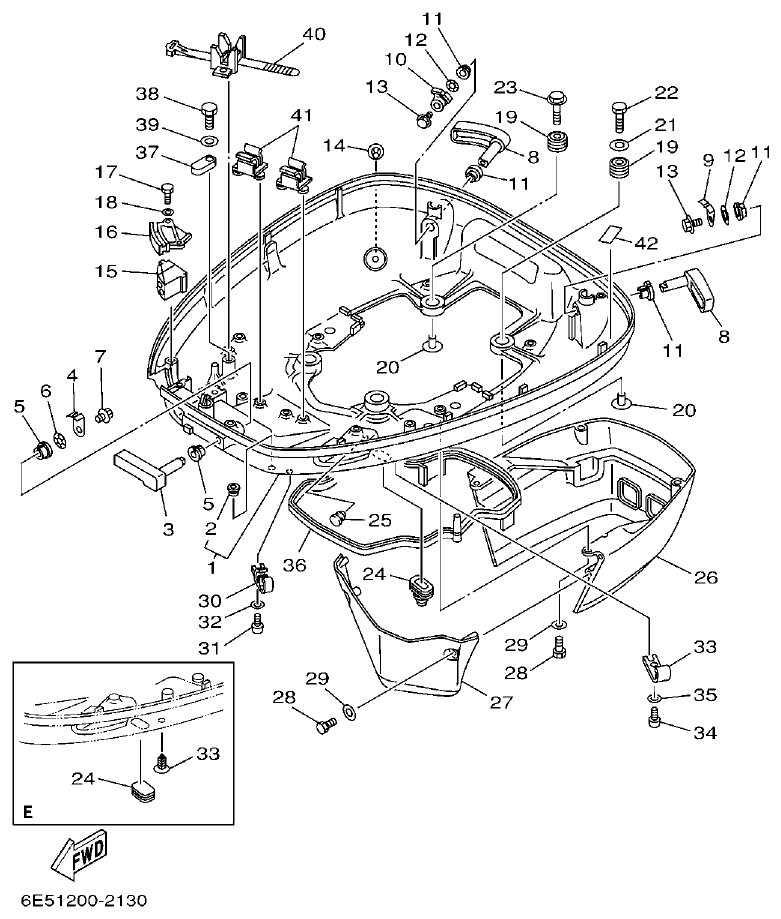

Fig. 12 — BOTTOM COWLING
47 items · 5 available products
Yamaha 115B, 140B CONTROL parts diagram

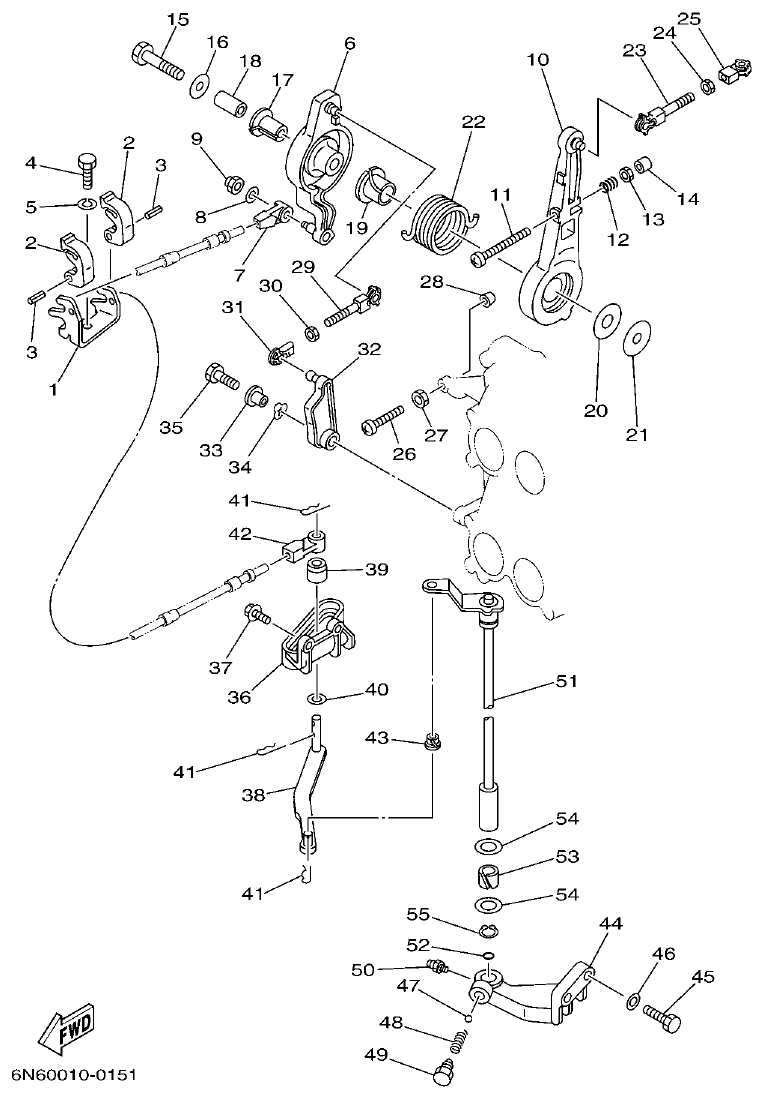

Fig. 13 — CONTROL
56 items · 7 available products
Yamaha 115B, 140B BRACKET 1 parts diagram

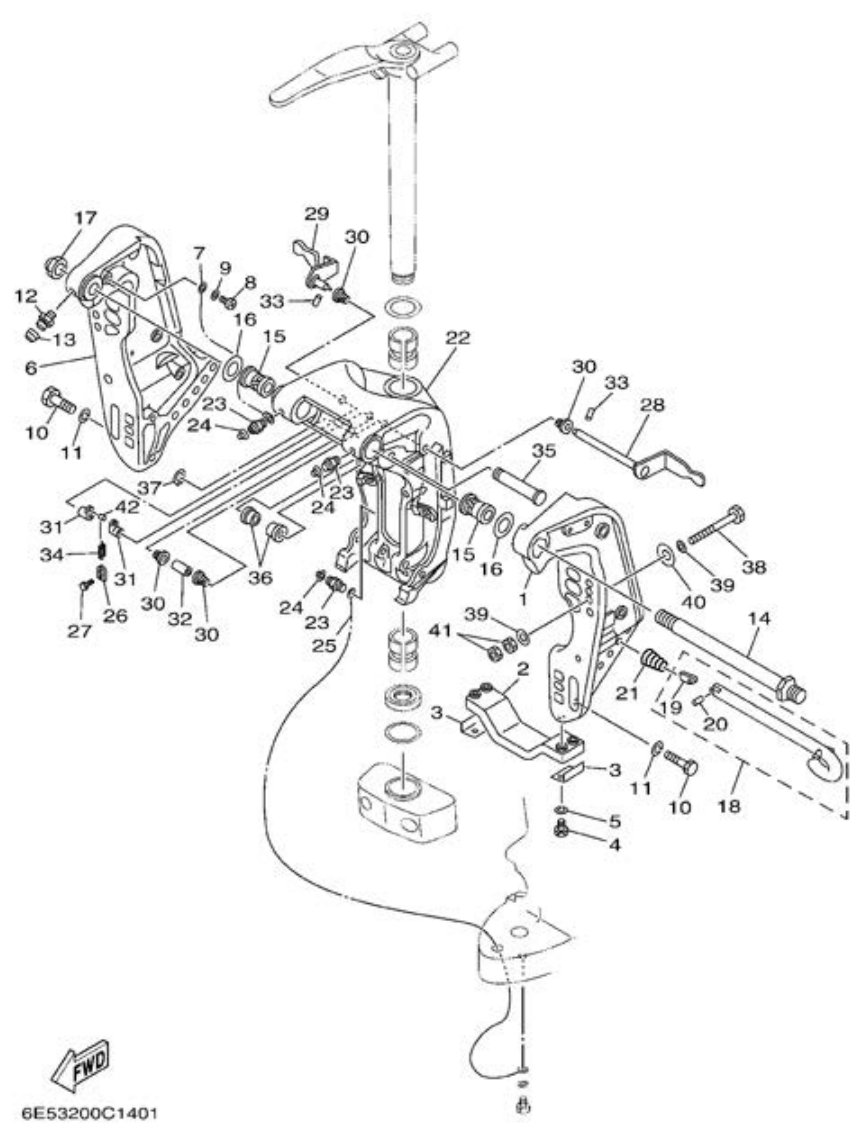

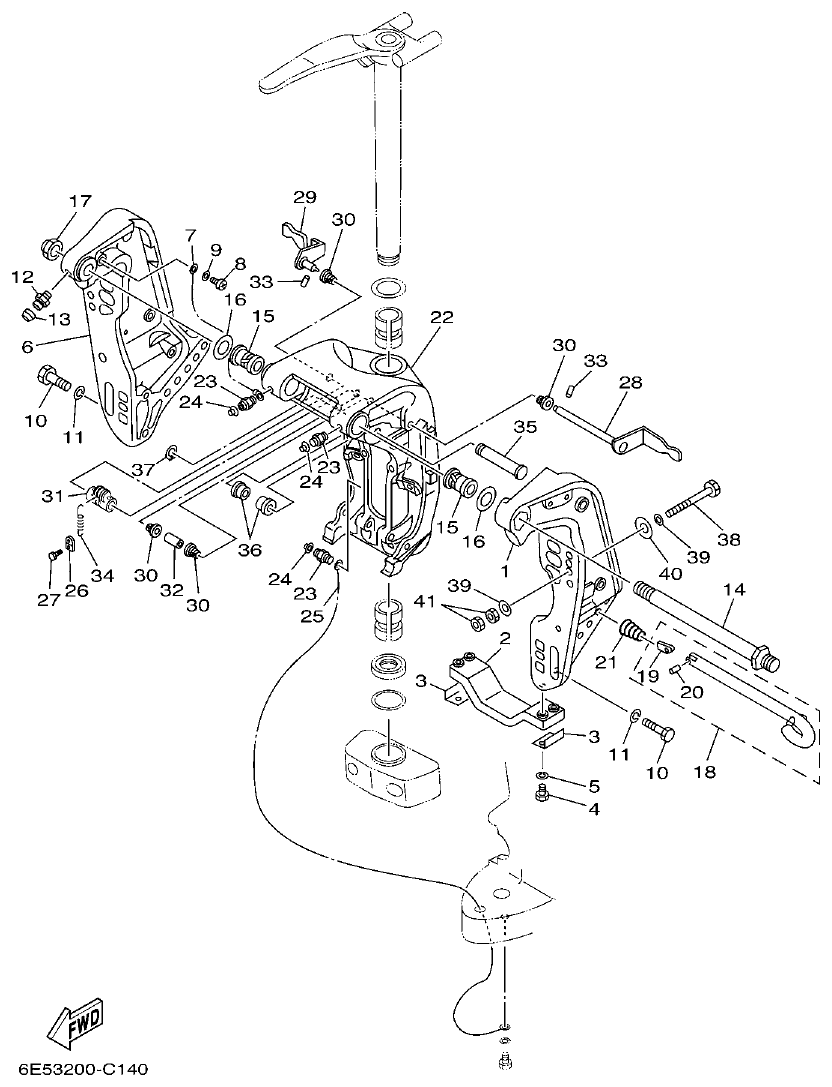

Fig. 14 — BRACKET 1
42 items · 7 available products
Yamaha 115B, 140B BRACKET 2 parts diagram

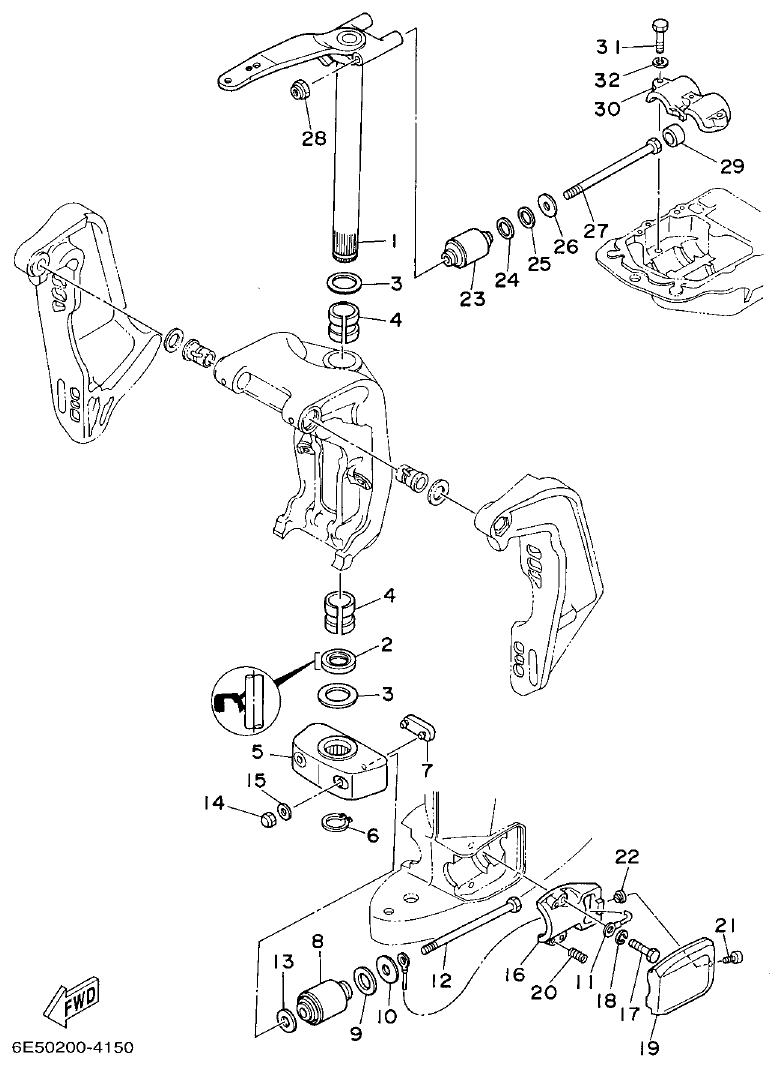

Fig. 15 — BRACKET 2
32 items · 3 available products
Yamaha 115B, 140B BRACKET 3 parts diagram

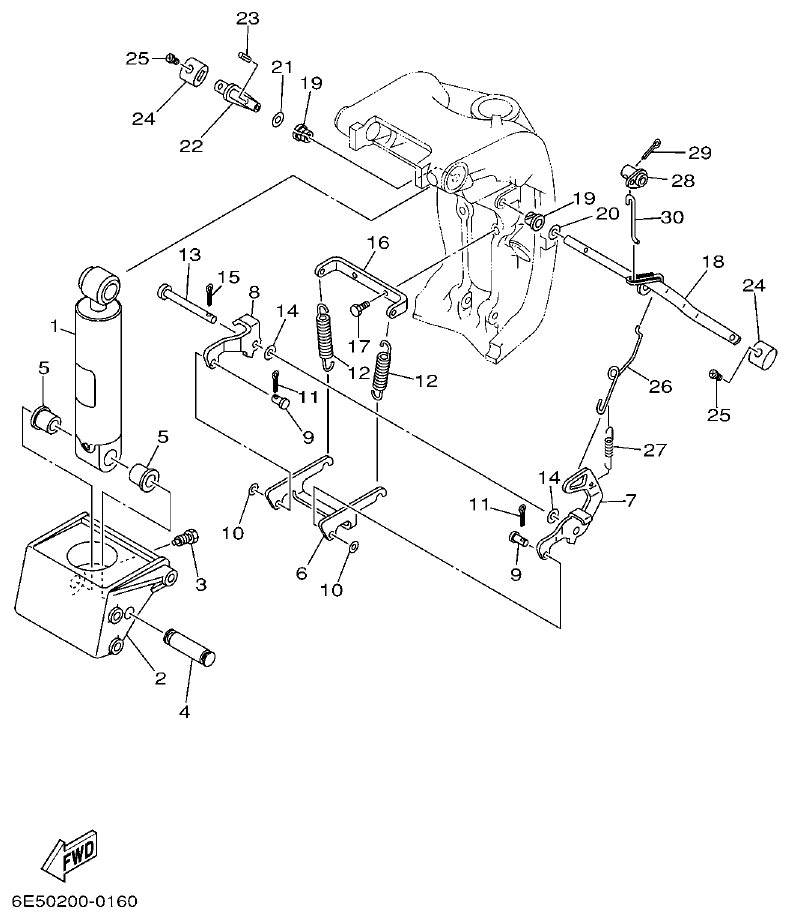

Fig. 16 — BRACKET 3
30 items
Yamaha 115B, 140B BRACKET 4 parts diagram

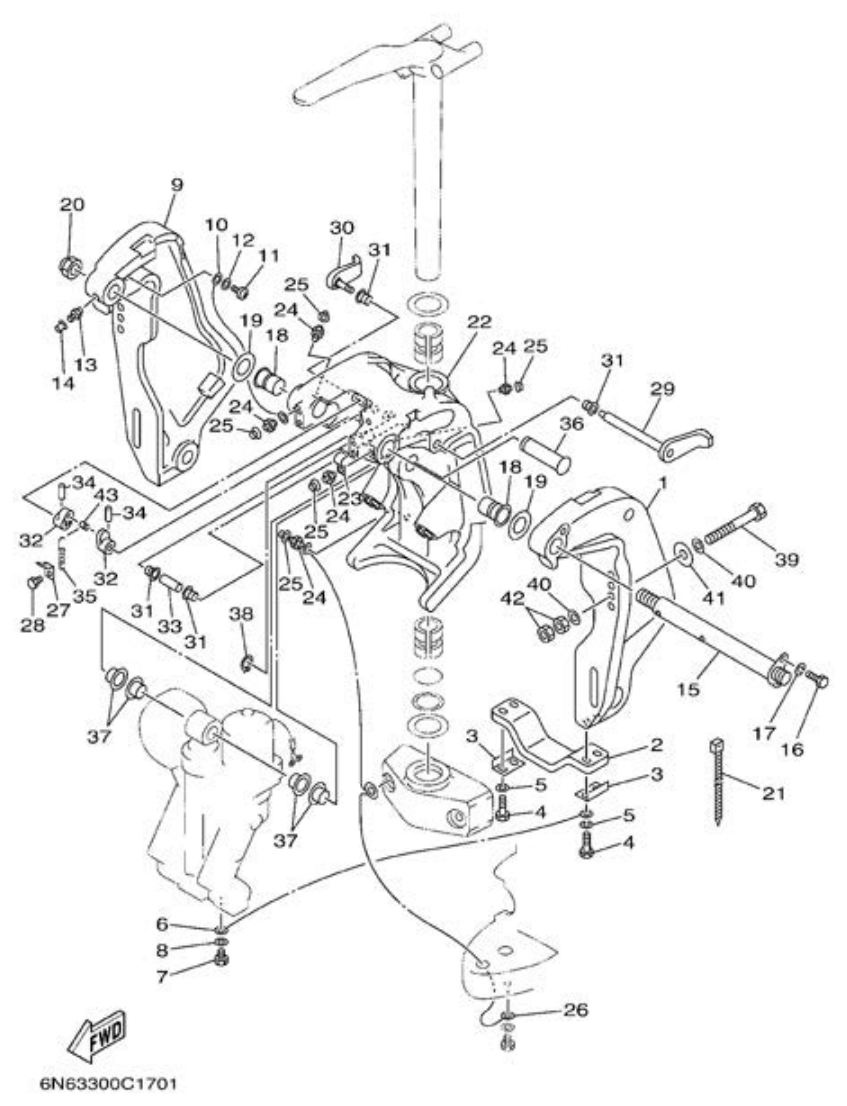

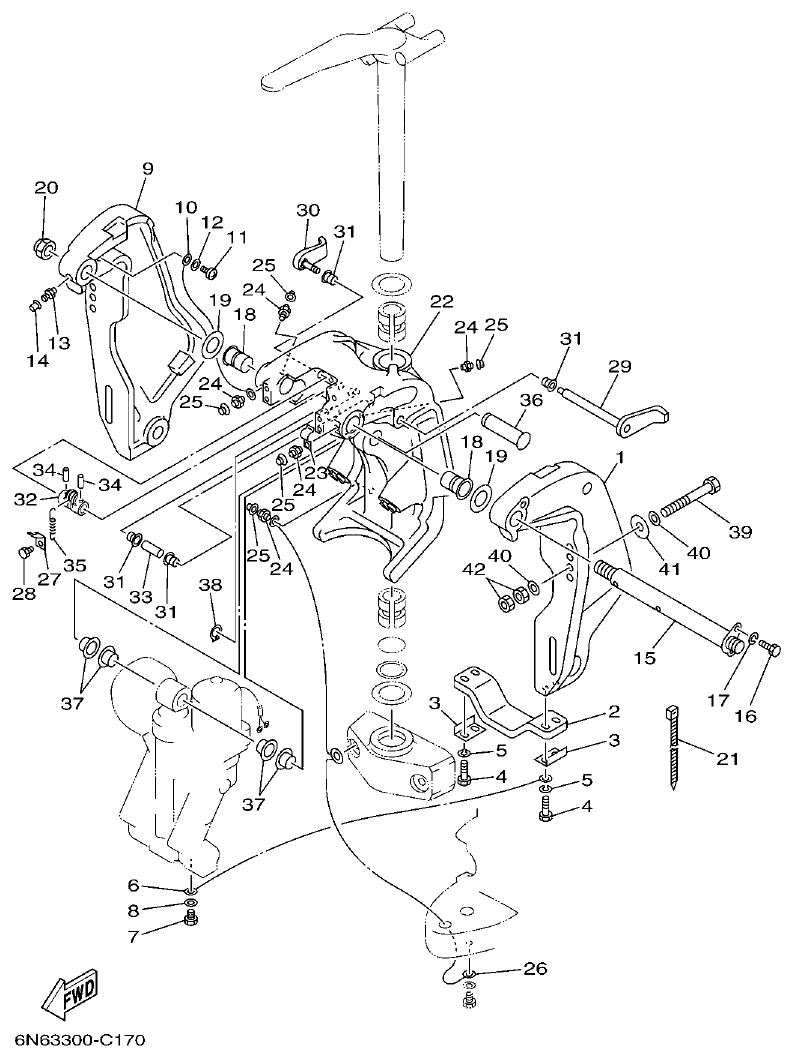

Fig. 17 — BRACKET 4
45 items · 10 available products
Yamaha 115B, 140B BRACKET 5 parts diagram

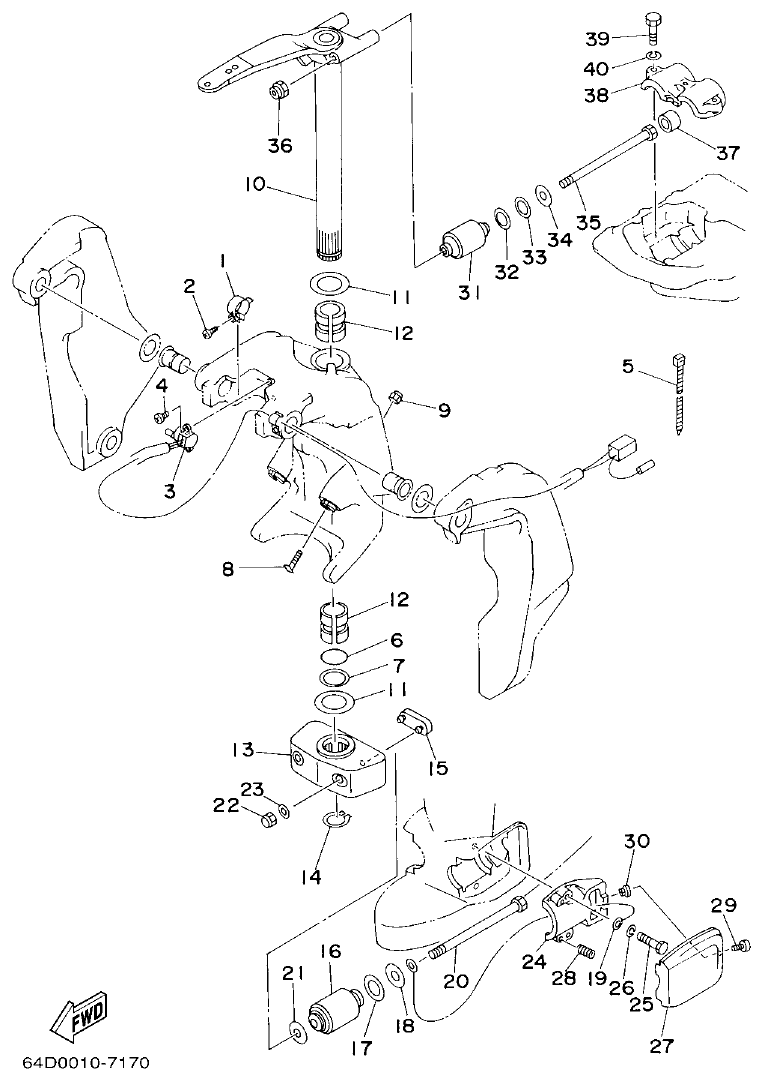

Fig. 18 — BRACKET 5
41 items · 5 available products
Yamaha 115B, 140B POWER TRIM & TILT ASSY 1 parts diagram

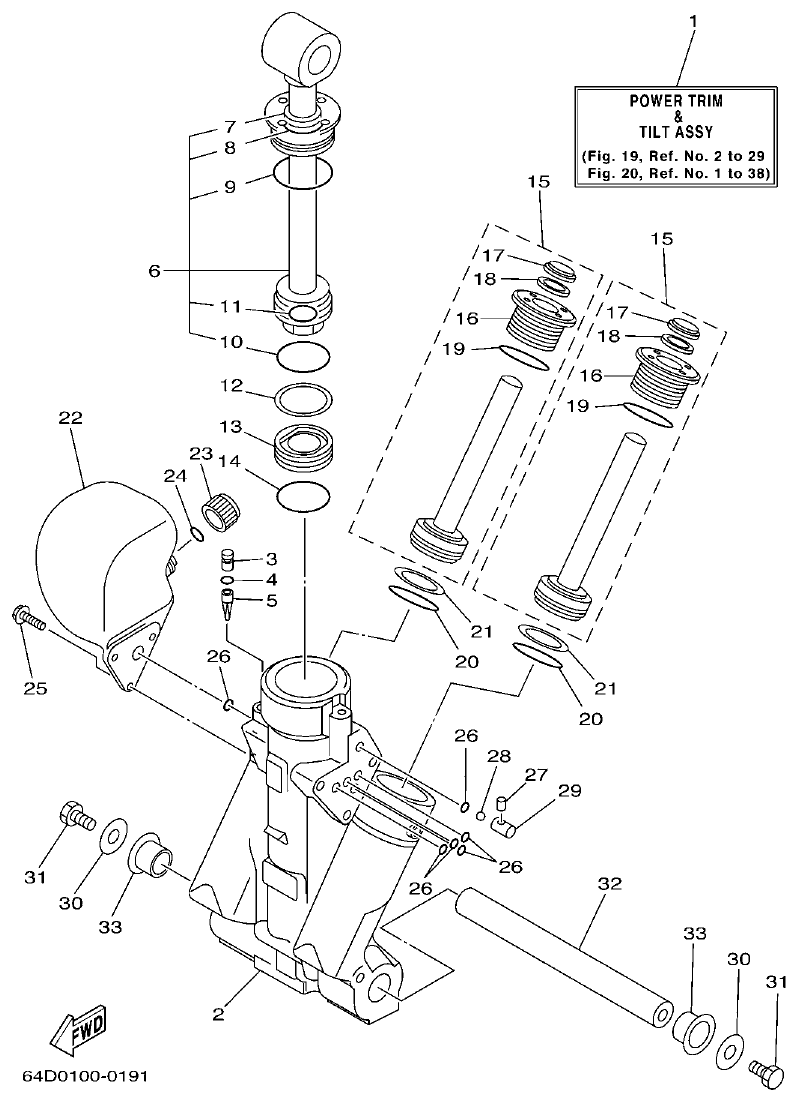

Fig. 19 — POWER TRIM & TILT ASSY 1
33 items · 8 available products
Yamaha 115B, 140B POWER TRIM & TILT ASSY 2 parts diagram

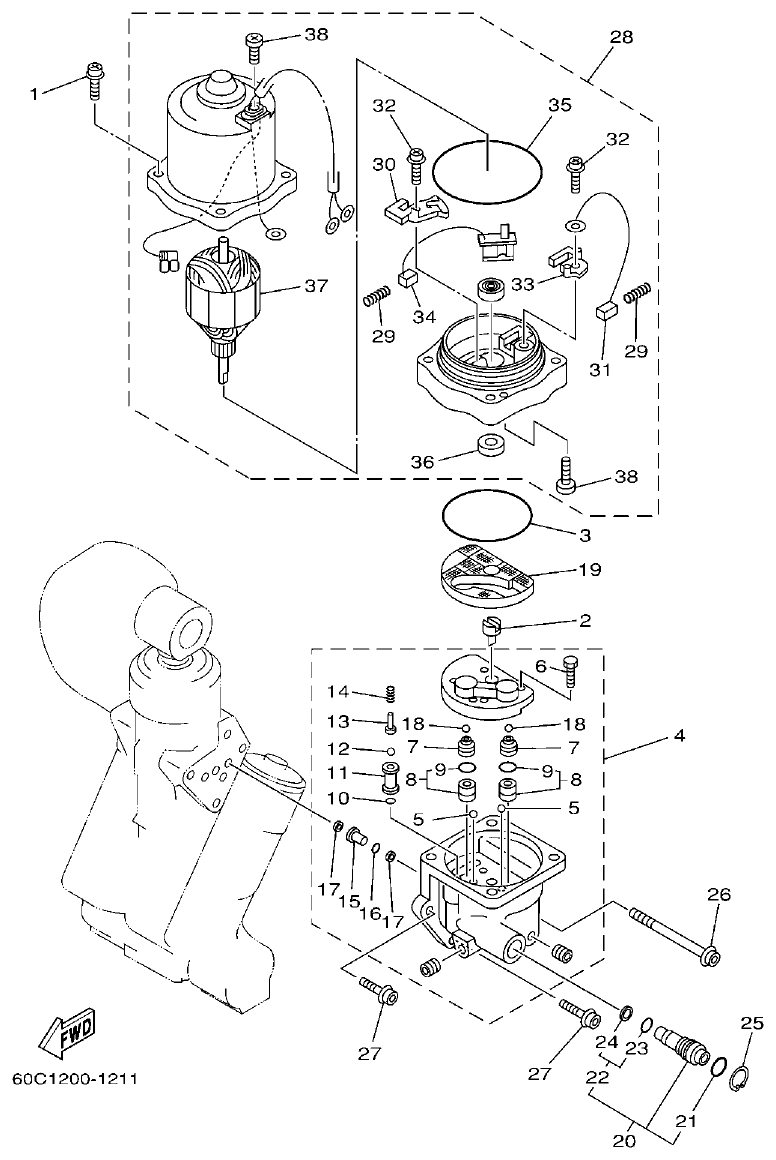

Fig. 20 — POWER TRIM & TILT ASSY 2
38 items · 9 available products

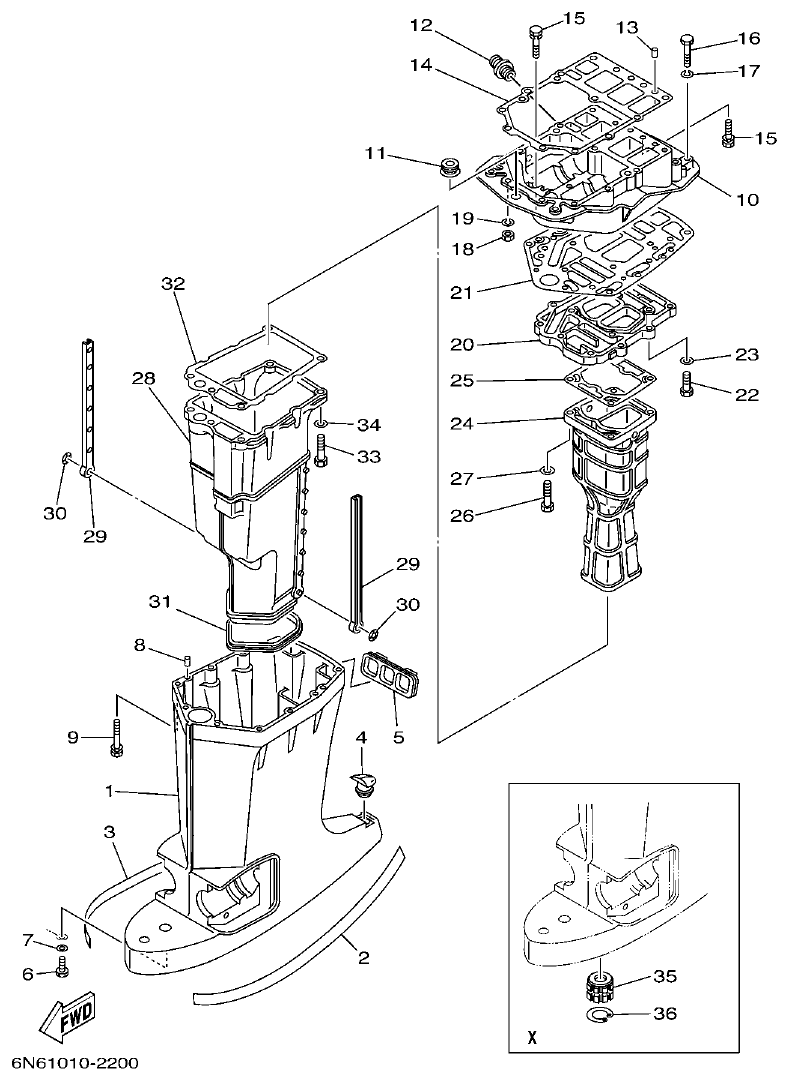

Yamaha 115B, 140B UPPER CASING parts diagram
Fig. 21 — UPPER CASING
39 items · 10 available products

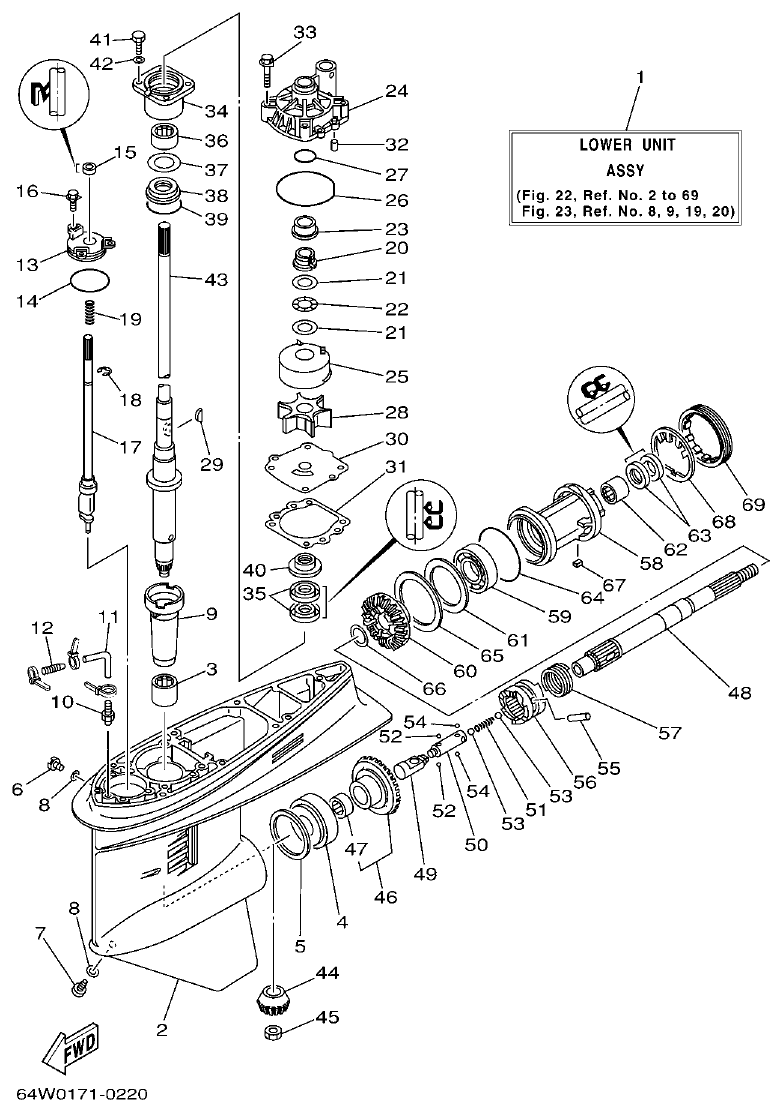

Yamaha 115B, 140B LOWER CASING & DRIVE 1 parts diagram
Fig. 22 — LOWER CASING & DRIVE 1
92 items · 21 available products
Yamaha 115B, 140B LOWER CASING & DRIVE 2 parts diagram

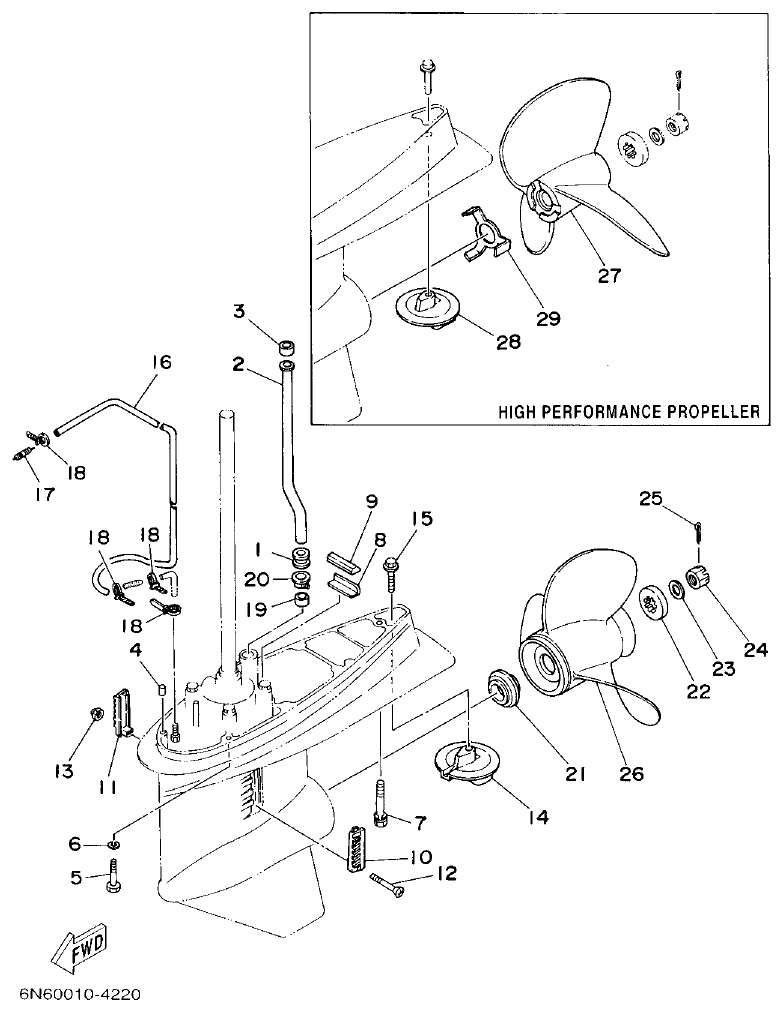

Fig. 23 — LOWER CASING & DRIVE 2
48 items · 15 available products
Yamaha 115B, 140B FUEL TANK parts diagram

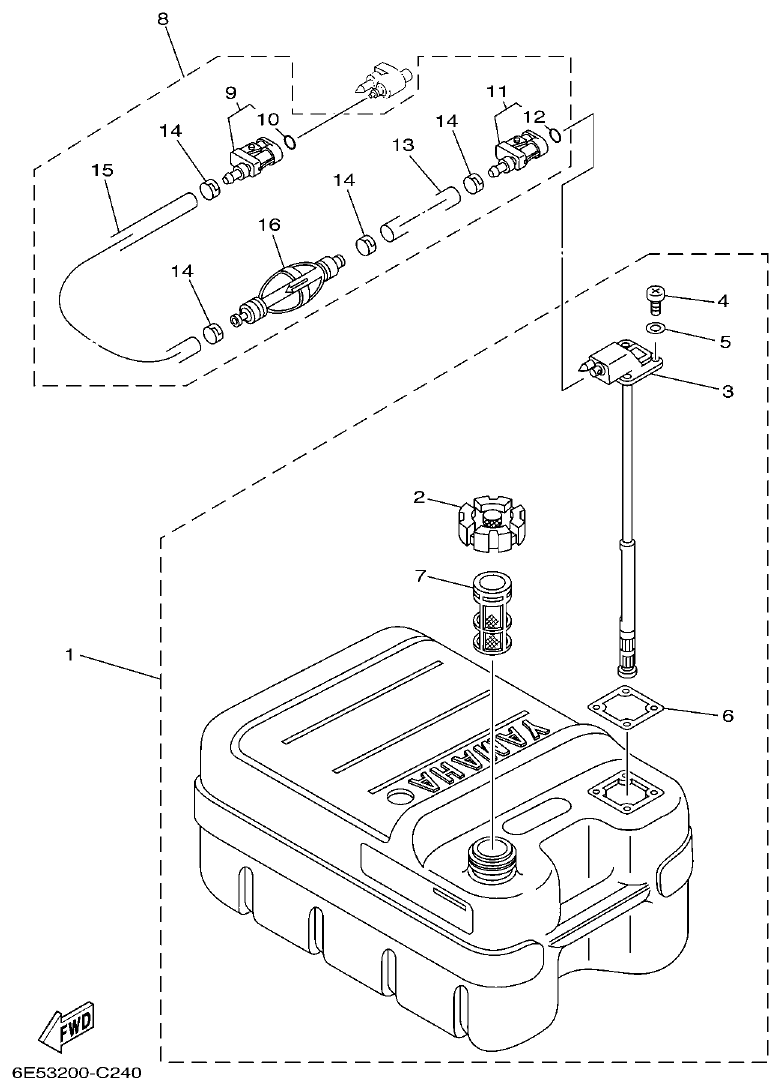

Fig. 24 — FUEL TANK
18 items · 2 available products
Yamaha 115B, 140B STEERING GUIDE parts diagram

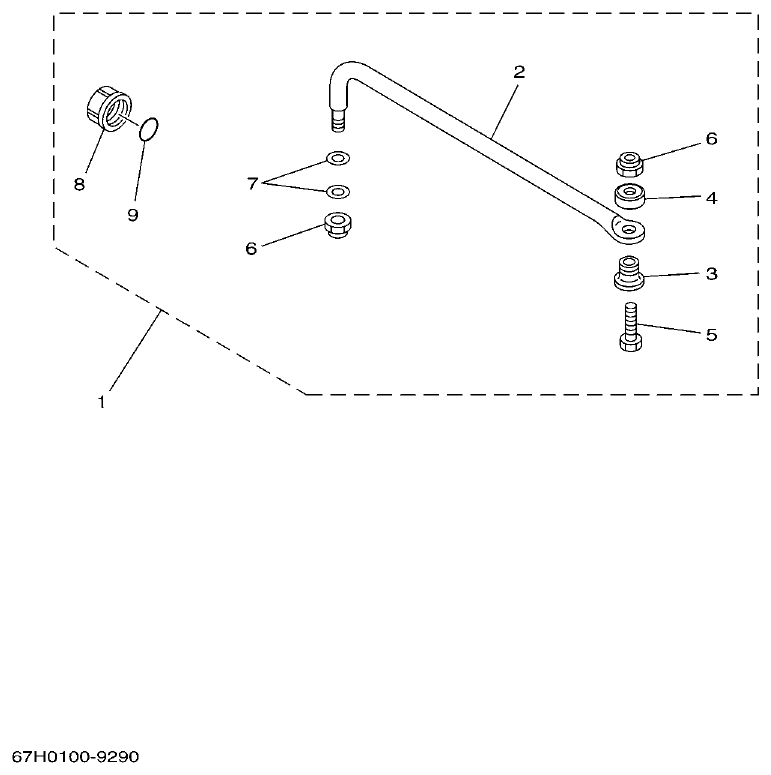

Fig. 25 — STEERING GUIDE
9 items · 2 available products
Yamaha 115B, 140B REMOTE CONTROL BOX parts diagram
Fig. 26 — REMOTE CONTROL BOX
5 items · 1 available products

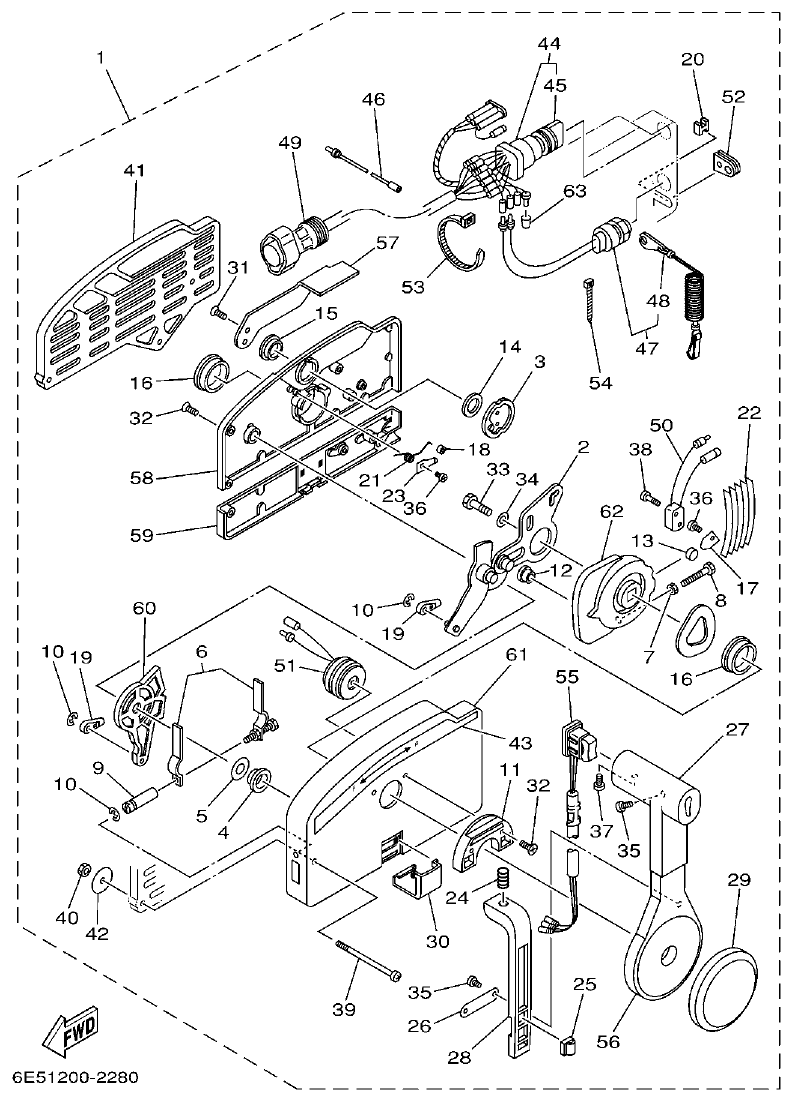

Yamaha 115B, 140B REMOTE CONTROL ASSY parts diagram
Fig. 27 — REMOTE CONTROL ASSY
65 items · 12 available products
Yamaha 115B, 140B METER parts diagram

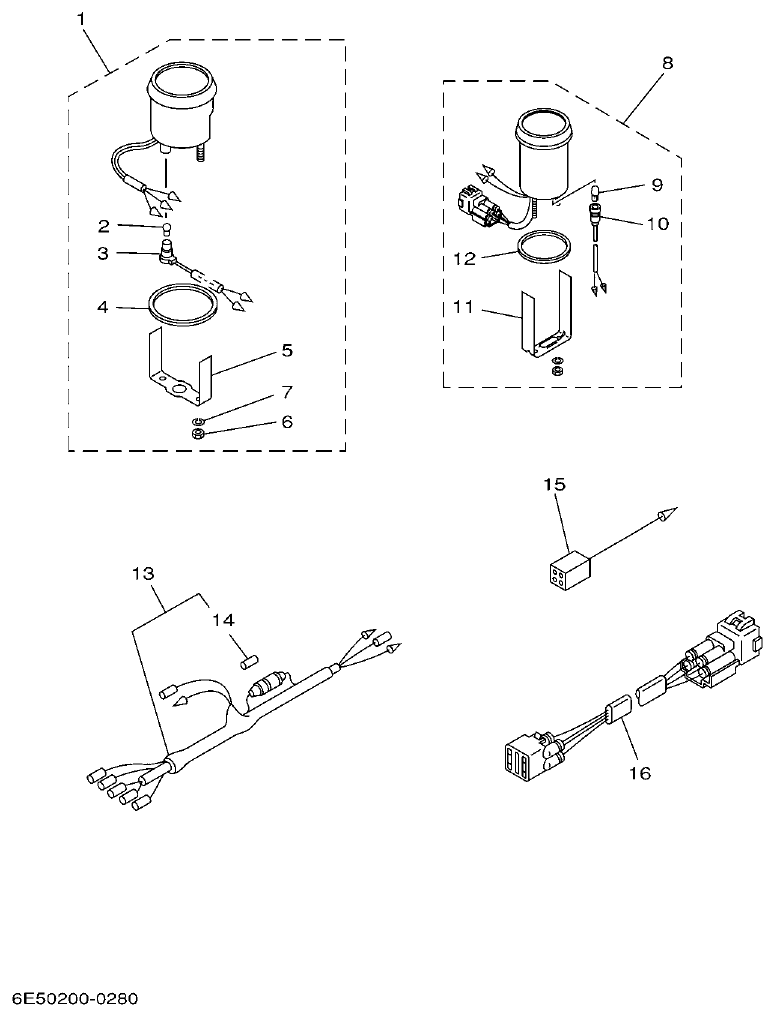

Fig. 28 — METER
16 items · 1 available products

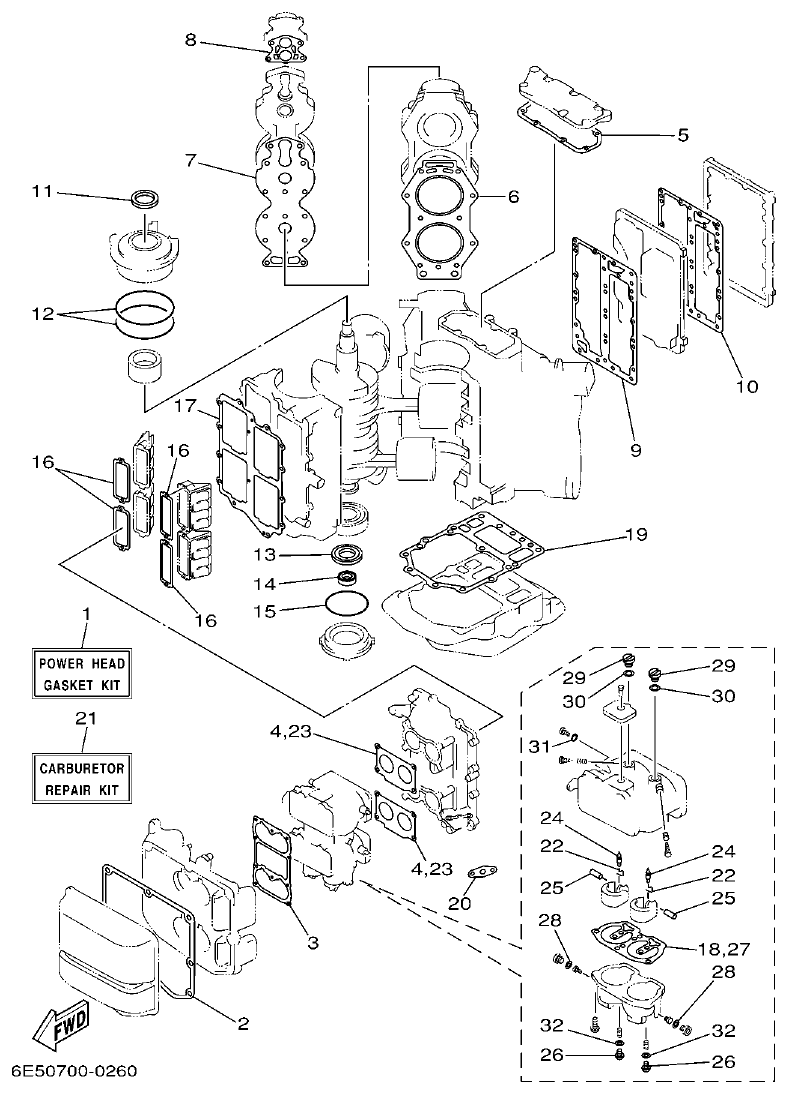

Yamaha 115B, 140B REPAIR KIT 1 parts diagram
Fig. 29 — REPAIR KIT 1
32 items · 19 available products
Yamaha 115B, 140B REPAIR KIT 2 parts diagram

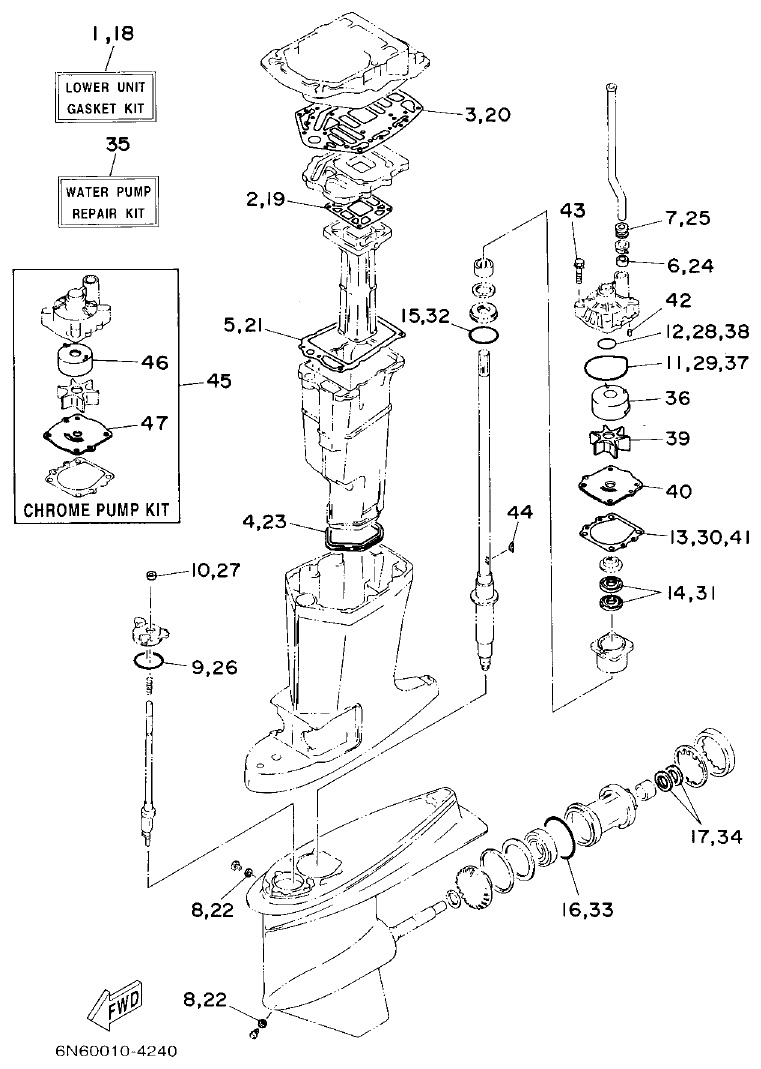

Fig. 30 — REPAIR KIT 2
47 items · 12 available products
