Yamaha 115C, 130B, L130B, L130BETO Parts Catalog

Yamaha 115C, 130B, L130B, L130BETO Outboard parts and diagrams

Yamaha 115C, 130B, L130B, L130BETO outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE 1, CRANKSHAFT. PISTON, CYLINDER. CRANKCASE 2, INTAKE, CARBURETOR, OIL PUMP, OIL TANK, FUEL 1, FUEL 2, FUEL 3, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, CONTROL, BRACKET 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

250 linked store products are available across 36 catalog sections. 1367 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

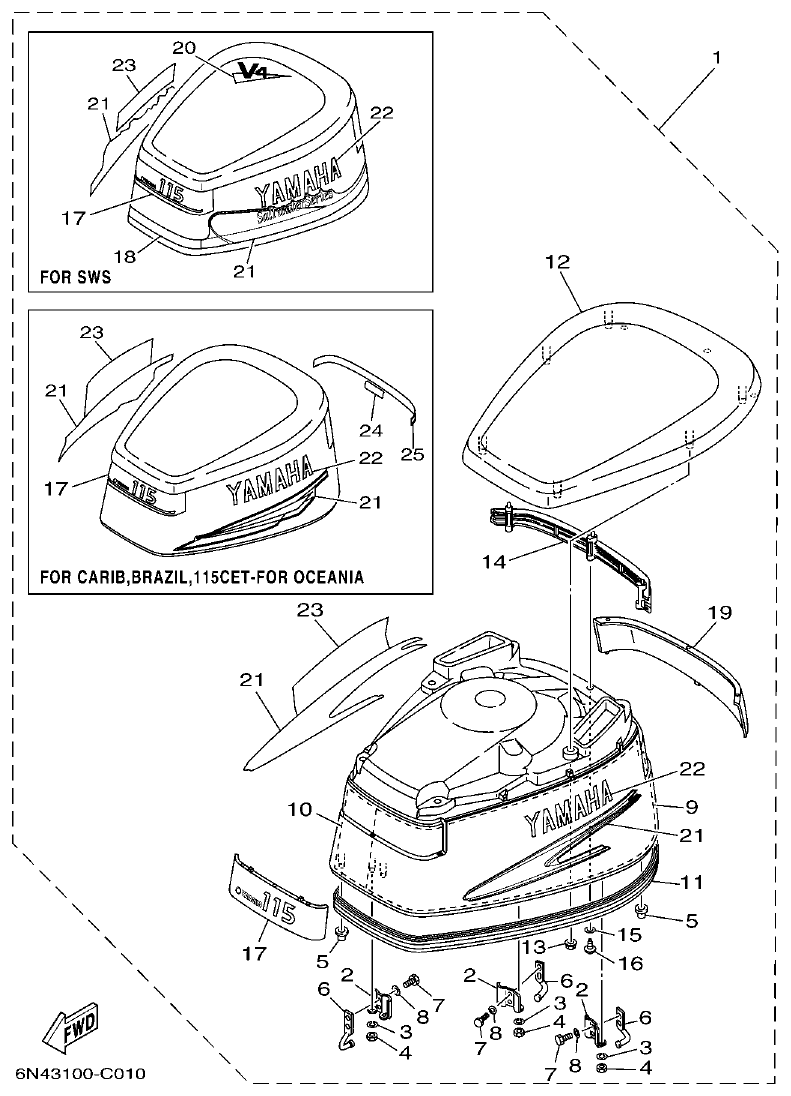

Yamaha 115C, 130B, L130B, L130BETO TOP COWLING parts diagram
Fig. 1 — TOP COWLING
43 items

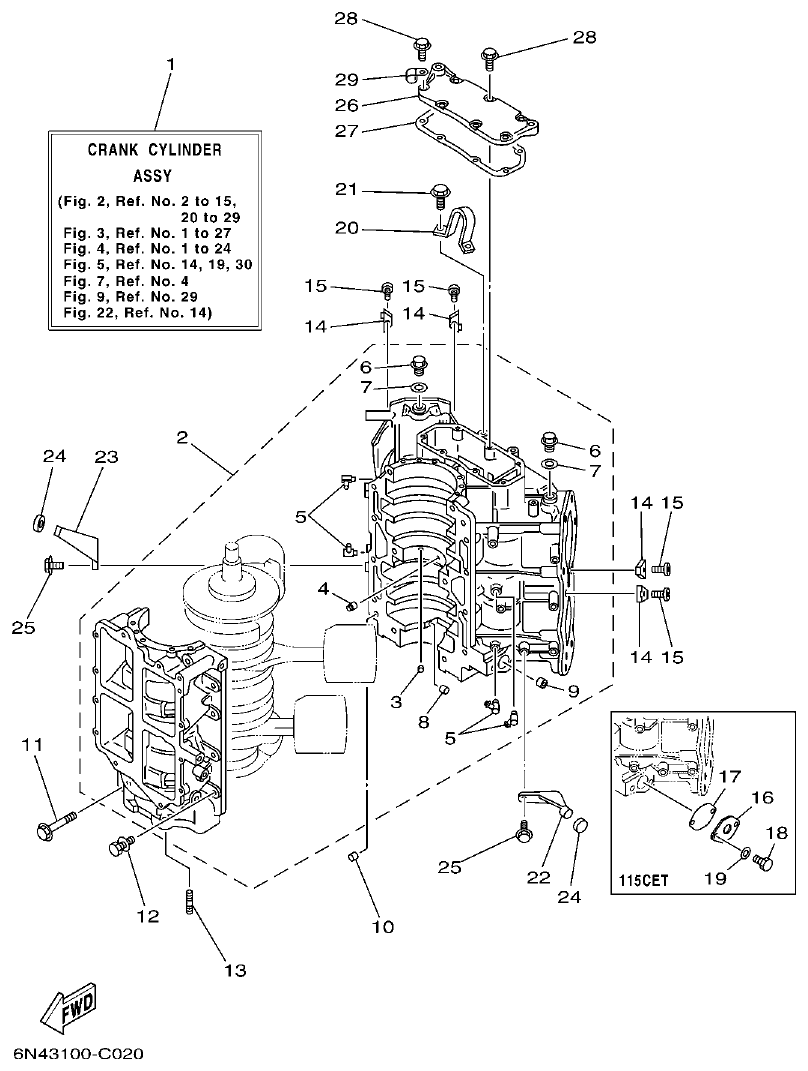

Yamaha 115C, 130B, L130B, L130BETO CYLINDER. CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER. CRANKCASE 1
31 items · 6 available products

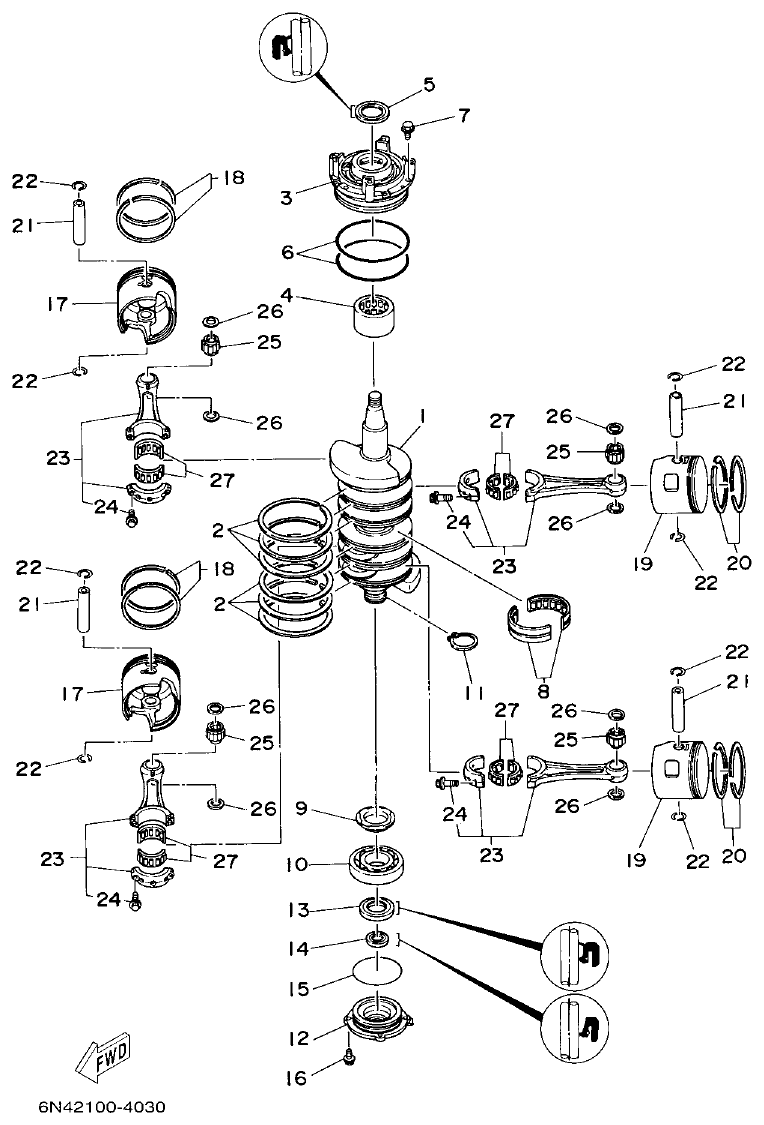

Yamaha 115C, 130B, L130B, L130BETO CRANKSHAFT. PISTON parts diagram
Fig. 3 — CRANKSHAFT. PISTON
35 items · 12 available products

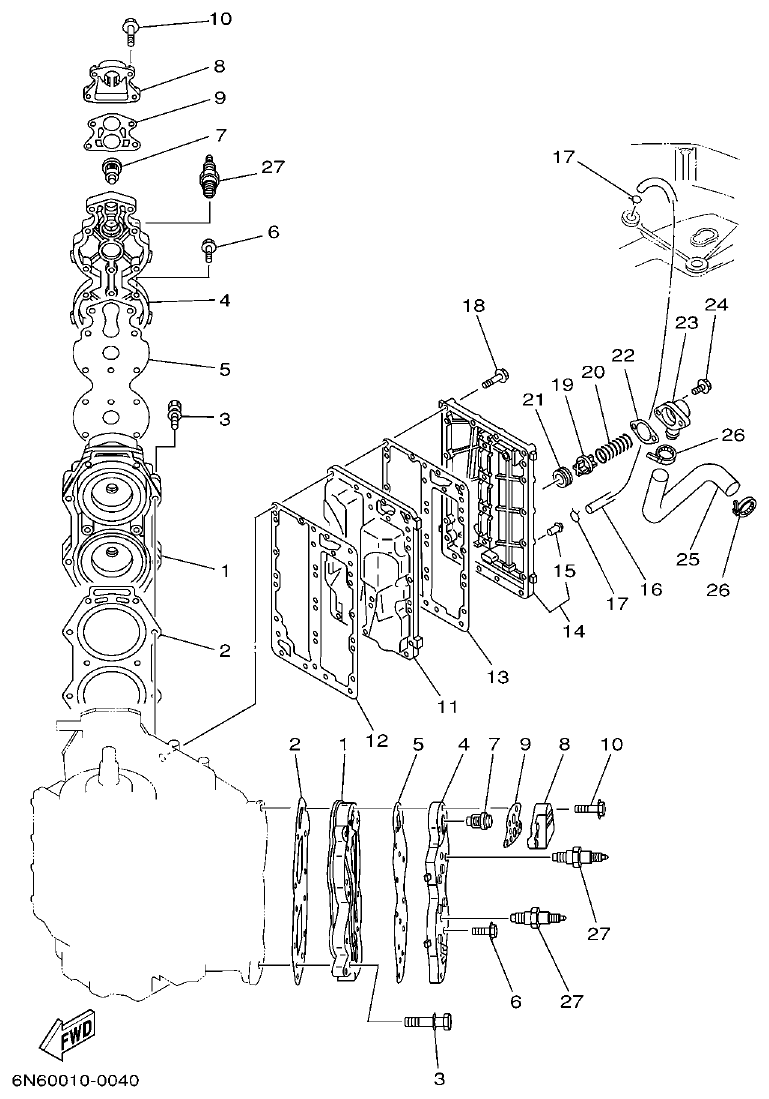

Yamaha 115C, 130B, L130B, L130BETO CYLINDER. CRANKCASE 2 parts diagram
Fig. 4 — CYLINDER. CRANKCASE 2
30 items · 13 available products

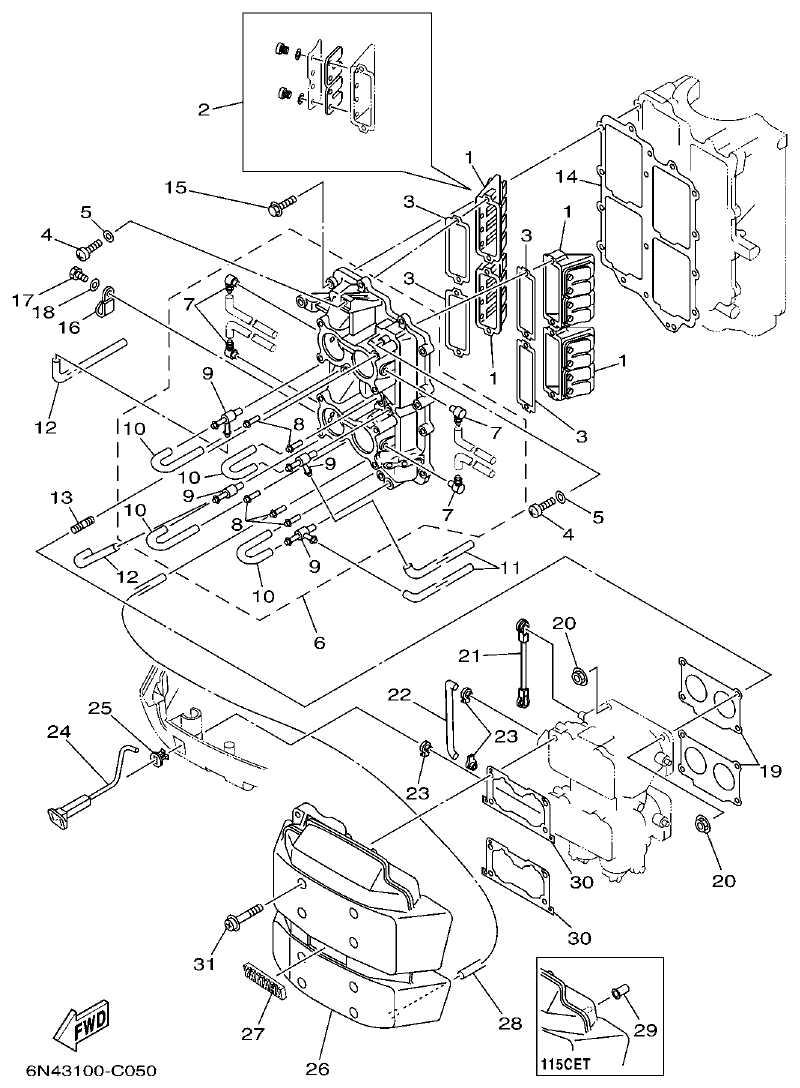

Yamaha 115C, 130B, L130B, L130BETO INTAKE parts diagram
Fig. 5 — INTAKE
32 items · 10 available products

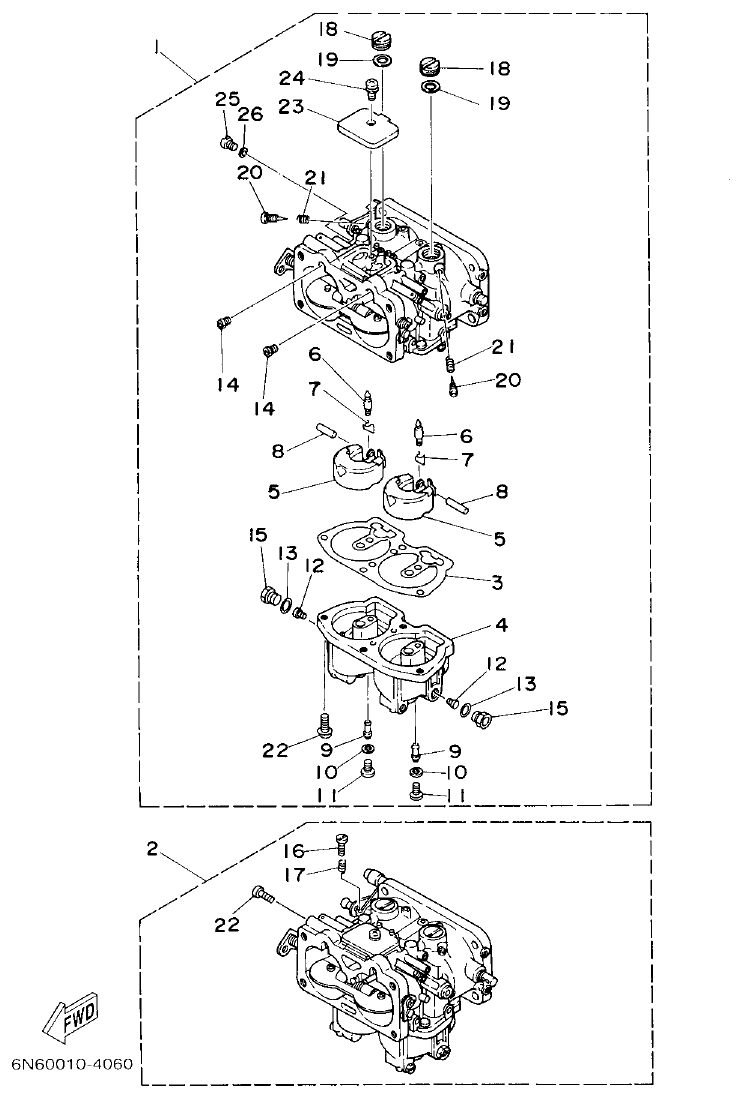

Yamaha 115C, 130B, L130B, L130BETO CARBURETOR parts diagram
Fig. 6 — CARBURETOR
34 items · 10 available products

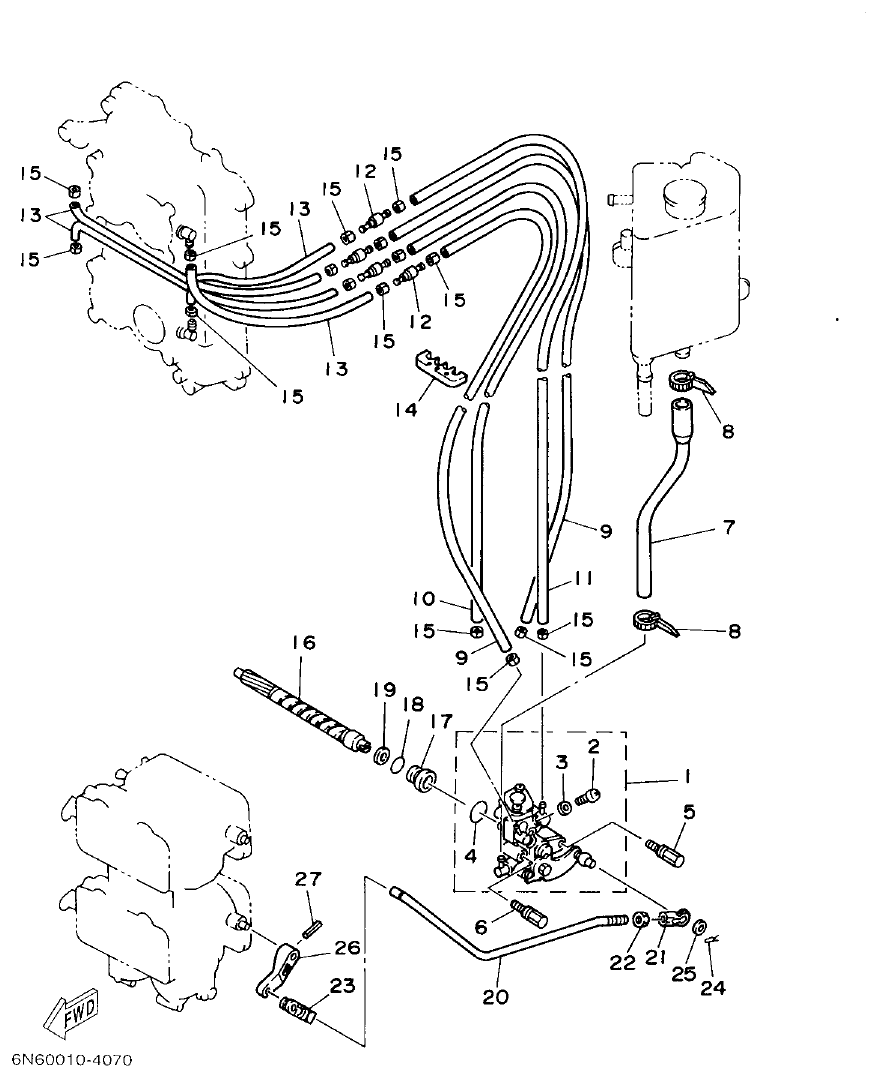

Yamaha 115C, 130B, L130B, L130BETO OIL PUMP parts diagram
Fig. 7 — OIL PUMP
28 items · 2 available products

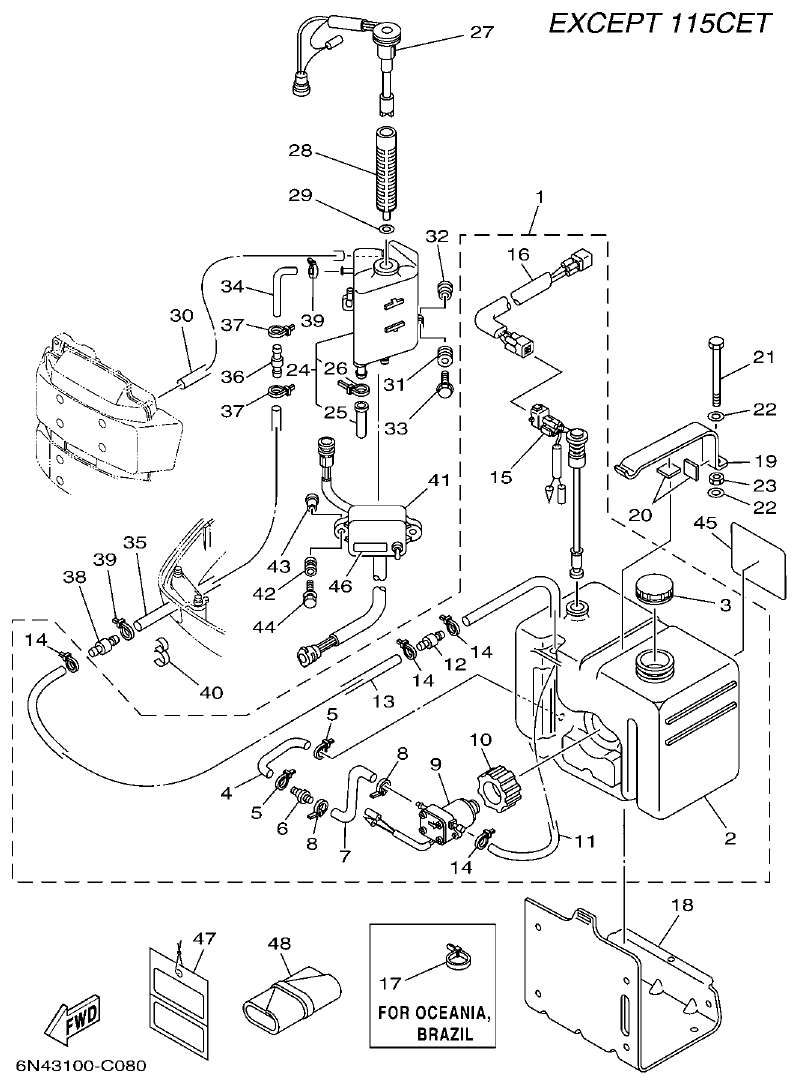

Yamaha 115C, 130B, L130B, L130BETO OIL TANK parts diagram
Fig. 8 — OIL TANK
55 items · 1 available products

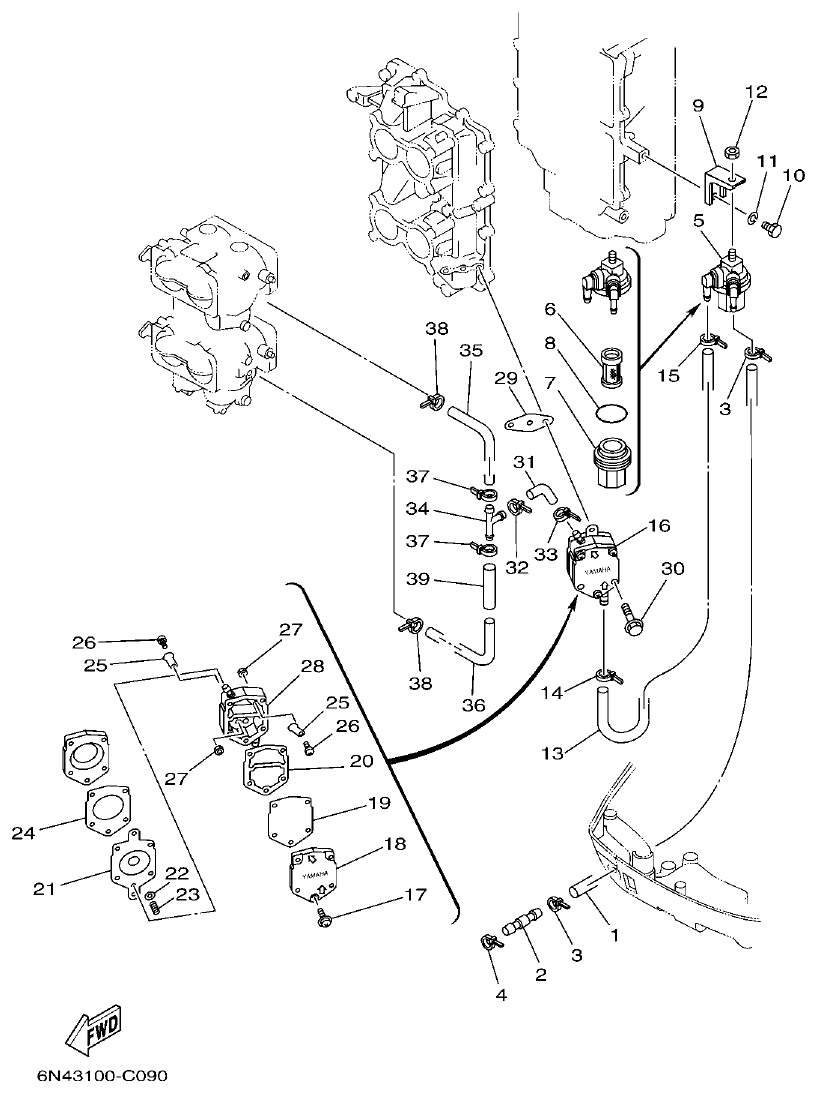

Yamaha 115C, 130B, L130B, L130BETO FUEL 1 parts diagram
Fig. 9 — FUEL 1
41 items · 6 available products

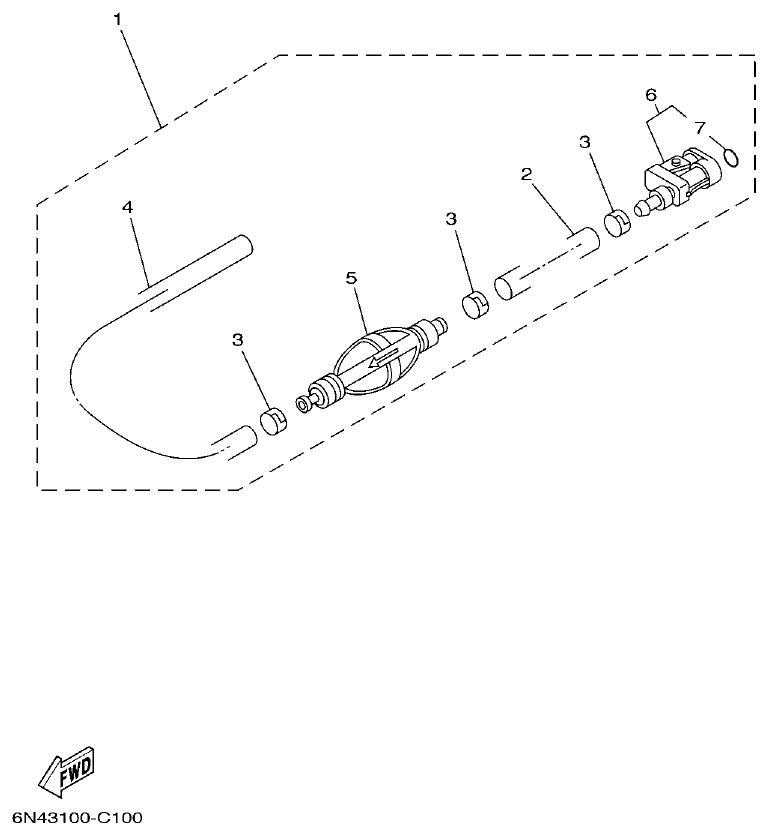

Yamaha 115C, 130B, L130B, L130BETO FUEL 2 parts diagram
Fig. 10 — FUEL 2
7 items · 2 available products

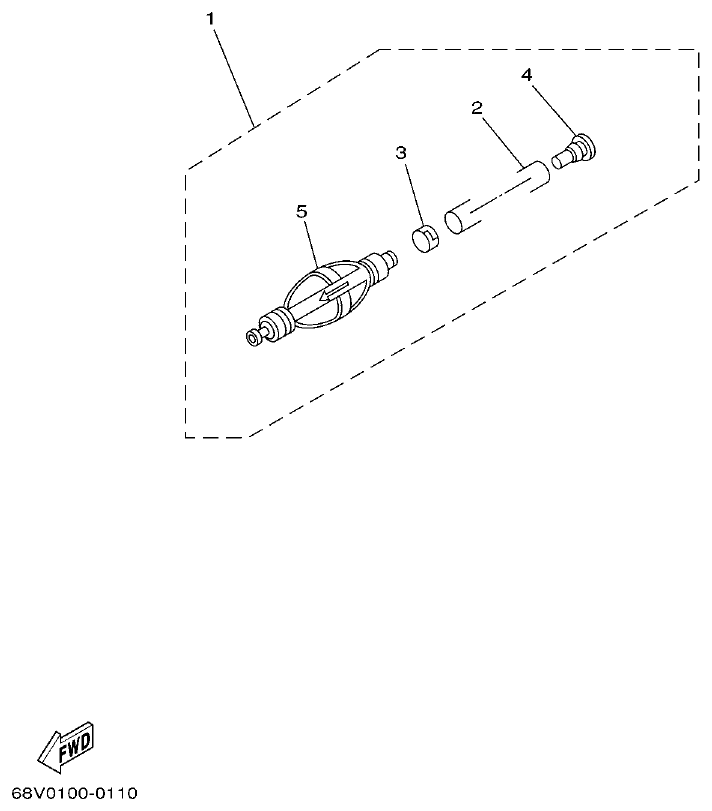

Yamaha 115C, 130B, L130B, L130BETO FUEL 3 parts diagram
Fig. 11 — FUEL 3
5 items · 2 available products

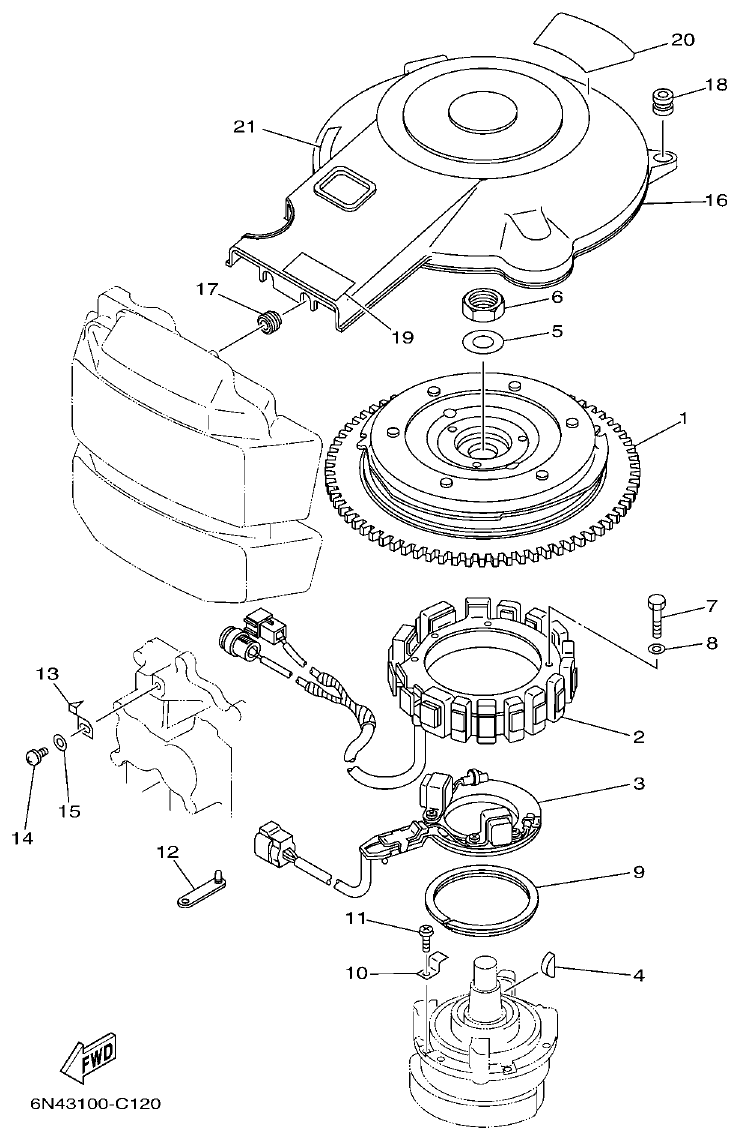

Yamaha 115C, 130B, L130B, L130BETO GENERATOR parts diagram
Fig. 12 — GENERATOR
22 items · 2 available products

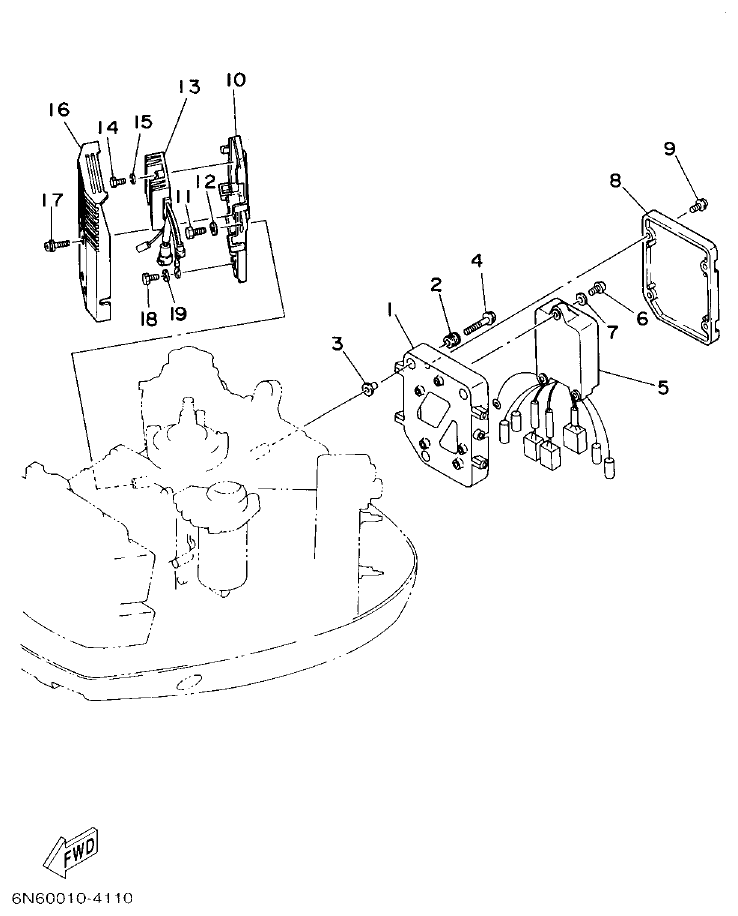

Yamaha 115C, 130B, L130B, L130BETO ELECTRICAL 1 parts diagram
Fig. 13 — ELECTRICAL 1
19 items

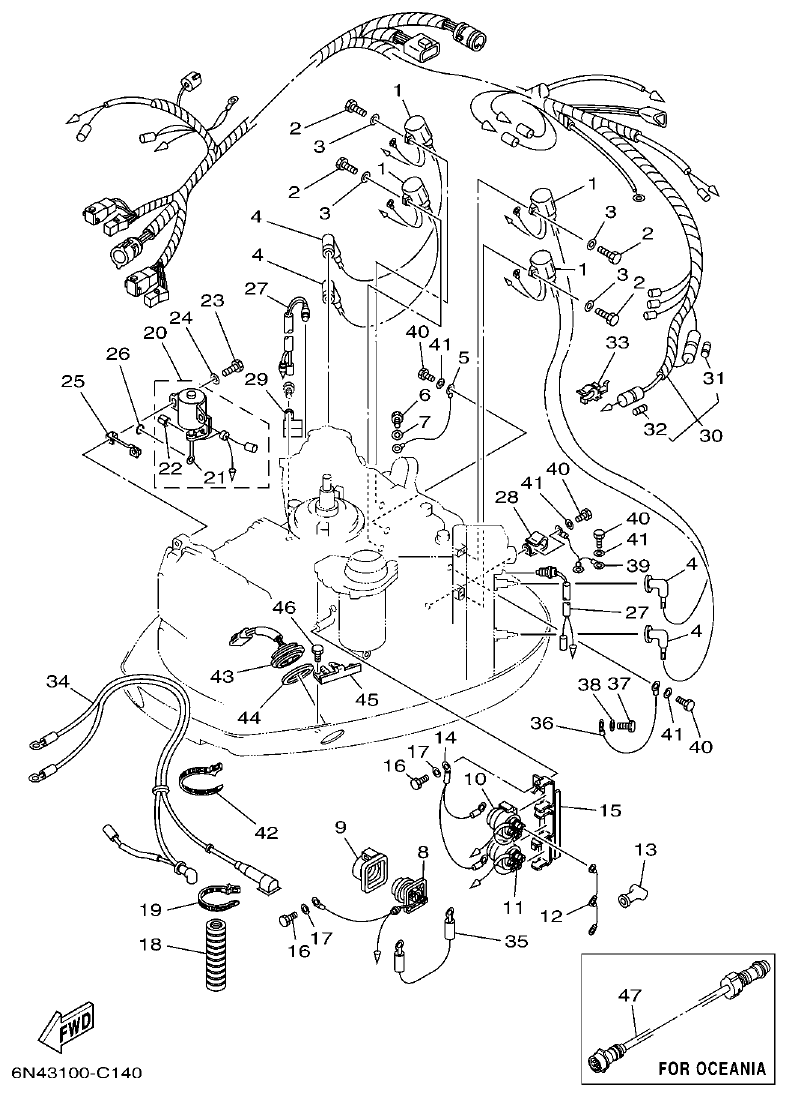

Yamaha 115C, 130B, L130B, L130BETO ELECTRICAL 2 parts diagram
Fig. 14 — ELECTRICAL 2
49 items · 10 available products

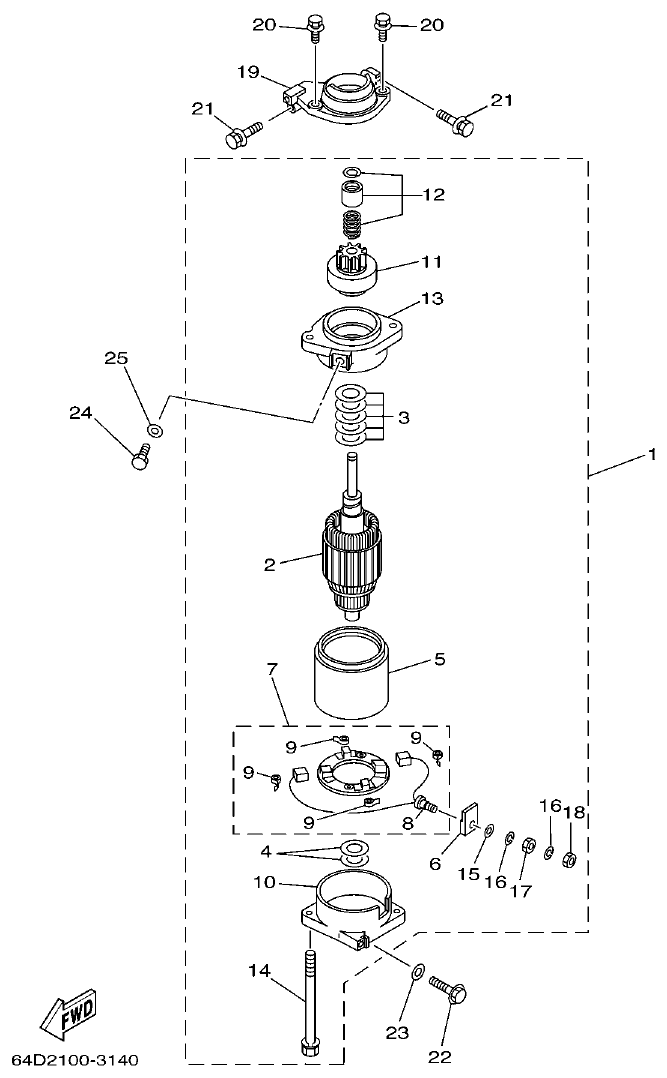

Yamaha 115C, 130B, L130B, L130BETO STARTING MOTOR parts diagram
Fig. 15 — STARTING MOTOR
25 items · 7 available products

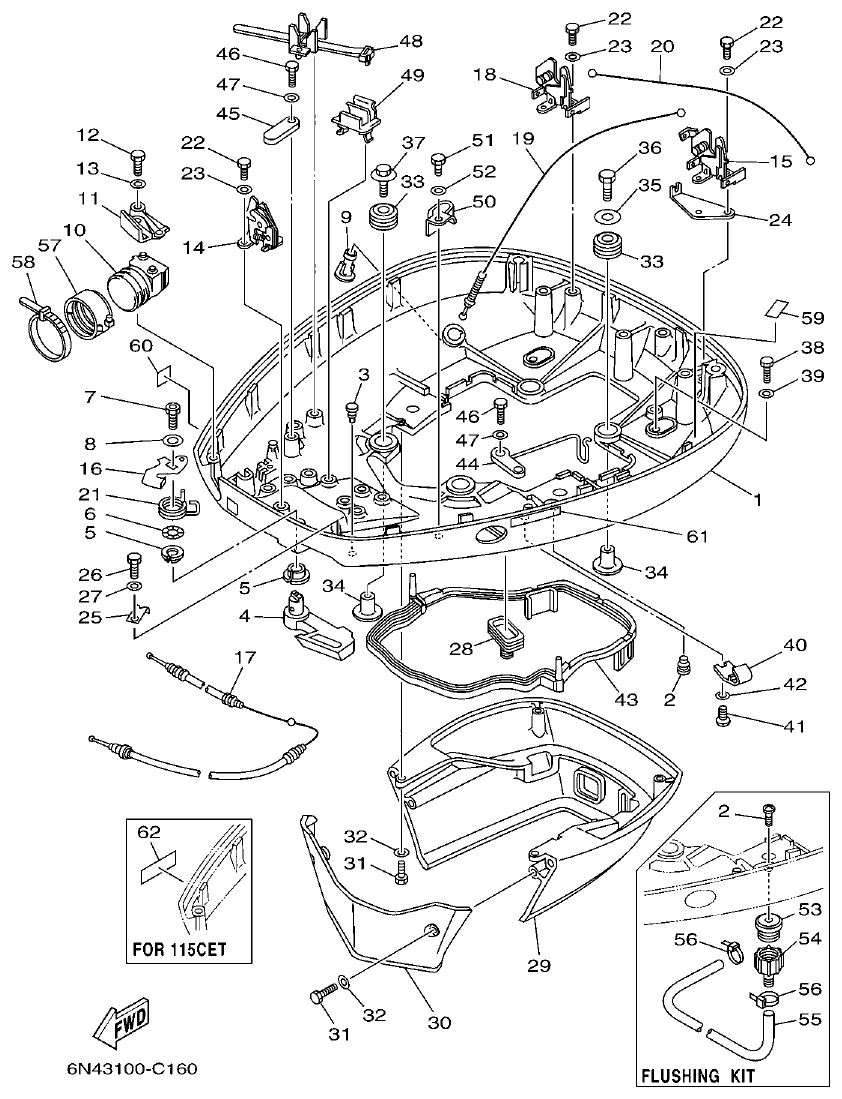

Yamaha 115C, 130B, L130B, L130BETO BOTTOM COWLING parts diagram
Fig. 16 — BOTTOM COWLING
68 items · 6 available products

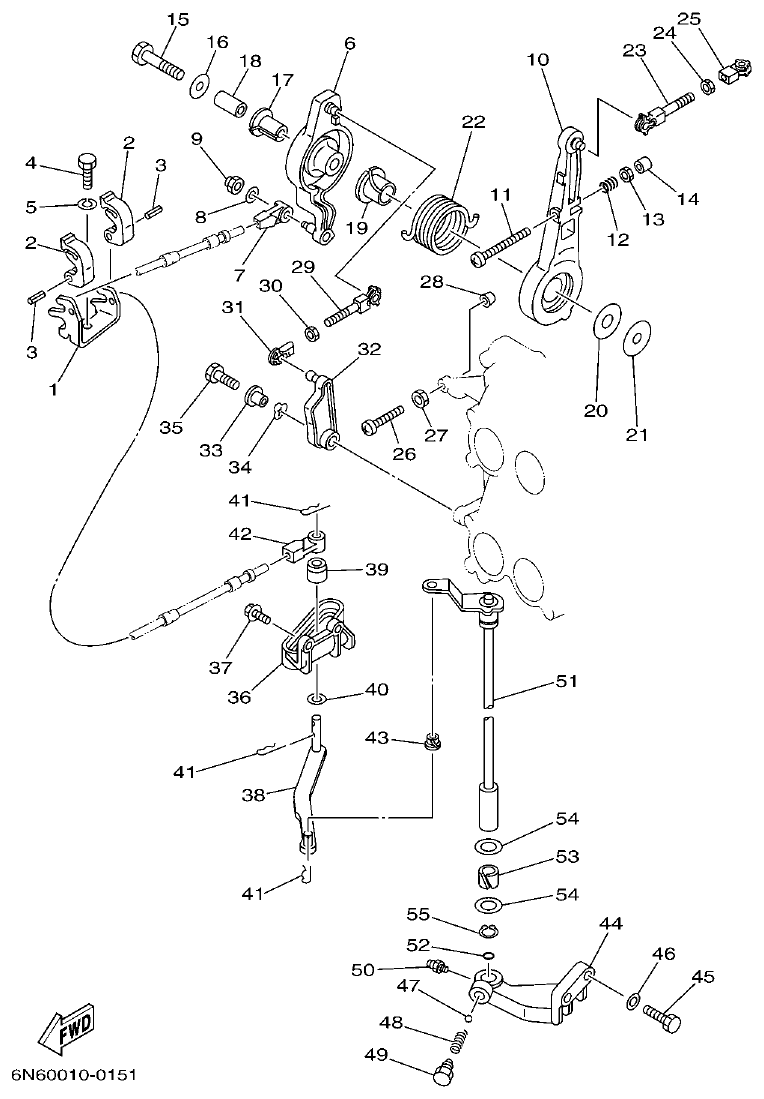

Yamaha 115C, 130B, L130B, L130BETO CONTROL parts diagram
Fig. 17 — CONTROL
56 items · 7 available products

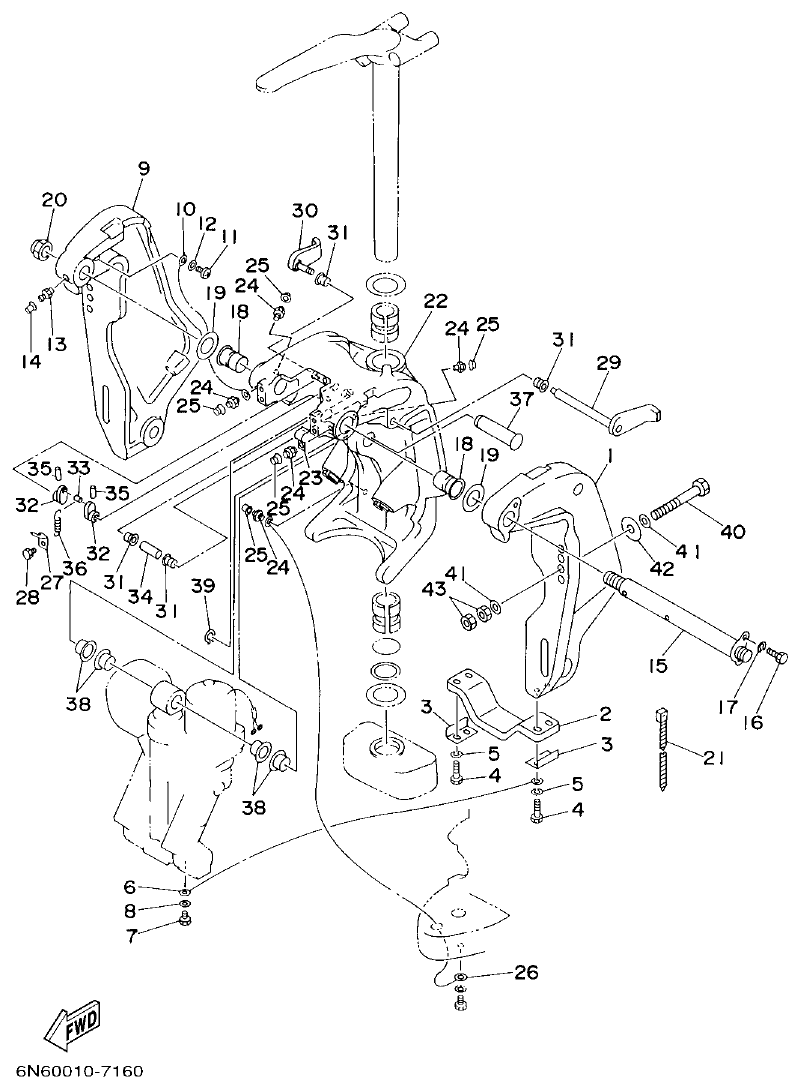

Yamaha 115C, 130B, L130B, L130BETO BRACKET 1 parts diagram
Fig. 18 — BRACKET 1
47 items · 10 available products

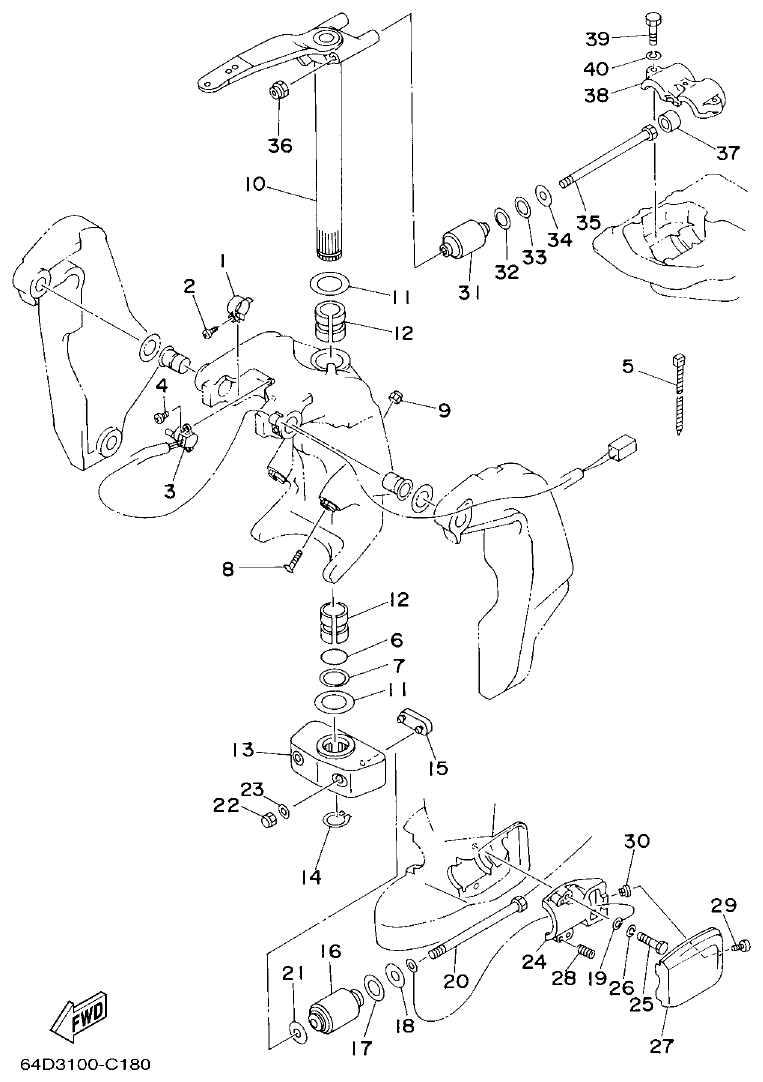

Yamaha 115C, 130B, L130B, L130BETO BRACKET 2 parts diagram
Fig. 19 — BRACKET 2
42 items · 3 available products

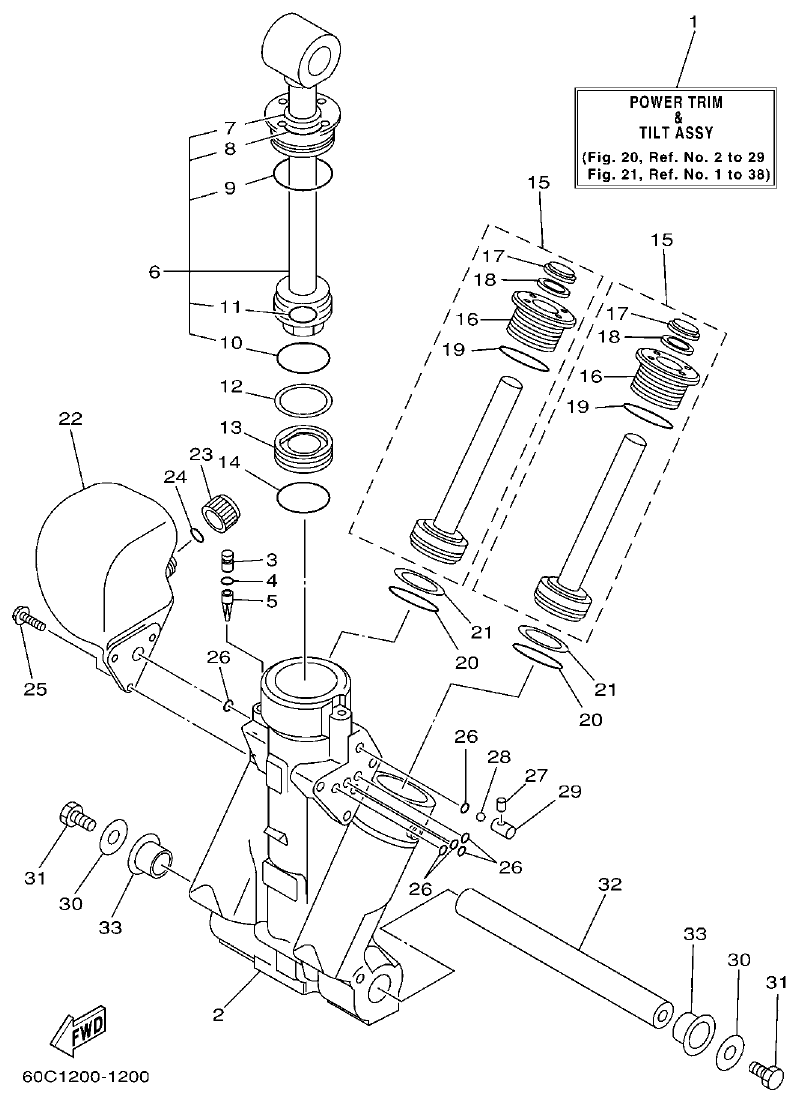

Yamaha 115C, 130B, L130B, L130BETO POWER TRIM & TILT ASSY 1 parts diagram
Fig. 20 — POWER TRIM & TILT ASSY 1
33 items · 8 available products

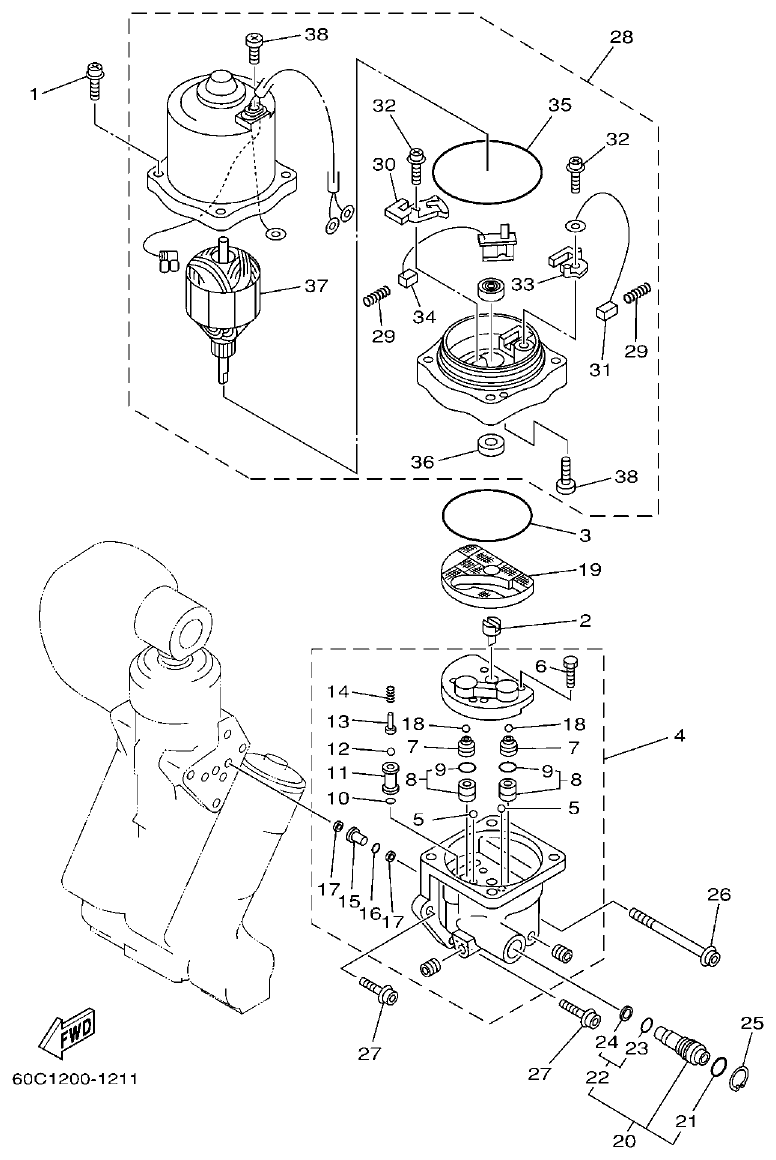

Yamaha 115C, 130B, L130B, L130BETO POWER TRIM & TILT ASSY 2 parts diagram
Fig. 21 — POWER TRIM & TILT ASSY 2
38 items · 9 available products

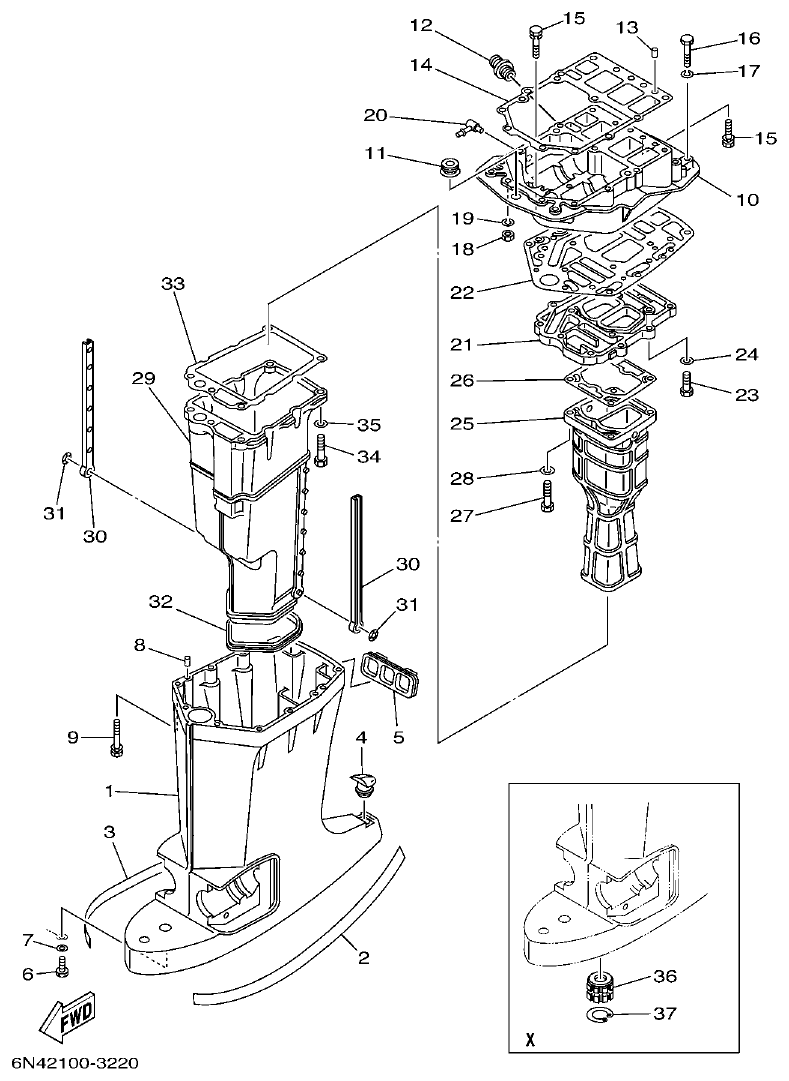

Yamaha 115C, 130B, L130B, L130BETO UPPER CASING parts diagram
Fig. 22 — UPPER CASING
41 items · 10 available products

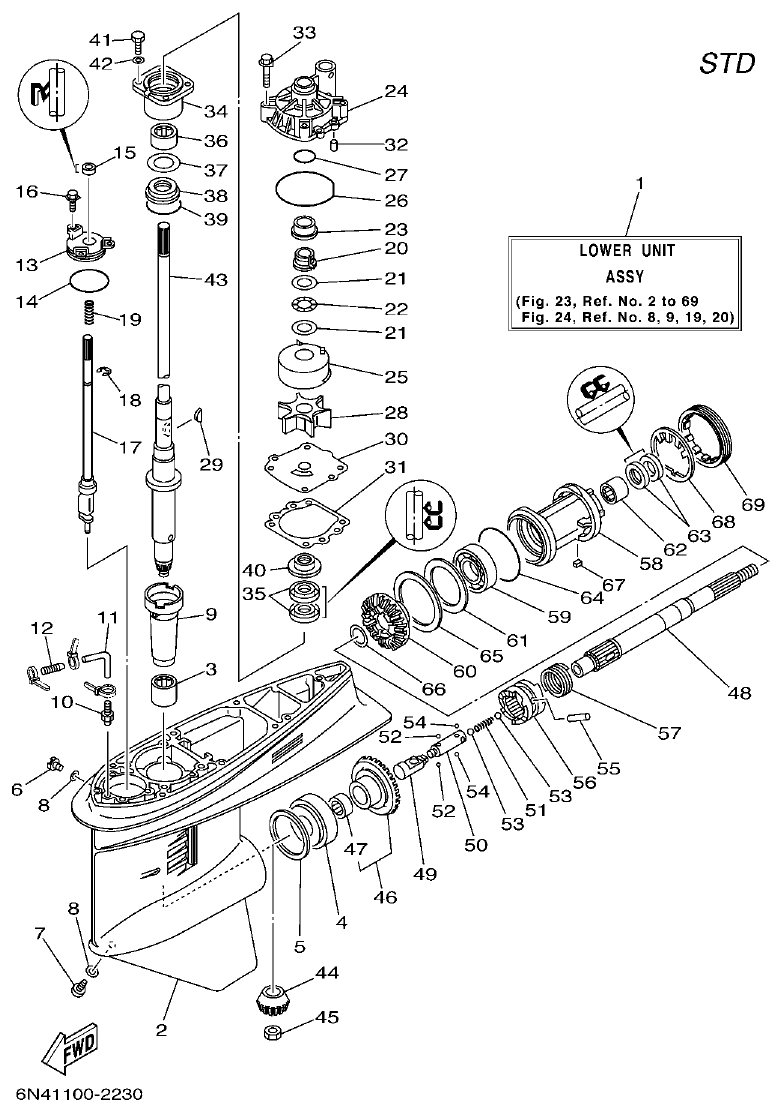

Yamaha 115C, 130B, L130B, L130BETO LOWER CASING. DRIVE 1 parts diagram
Fig. 23 — LOWER CASING. DRIVE 1
90 items · 20 available products

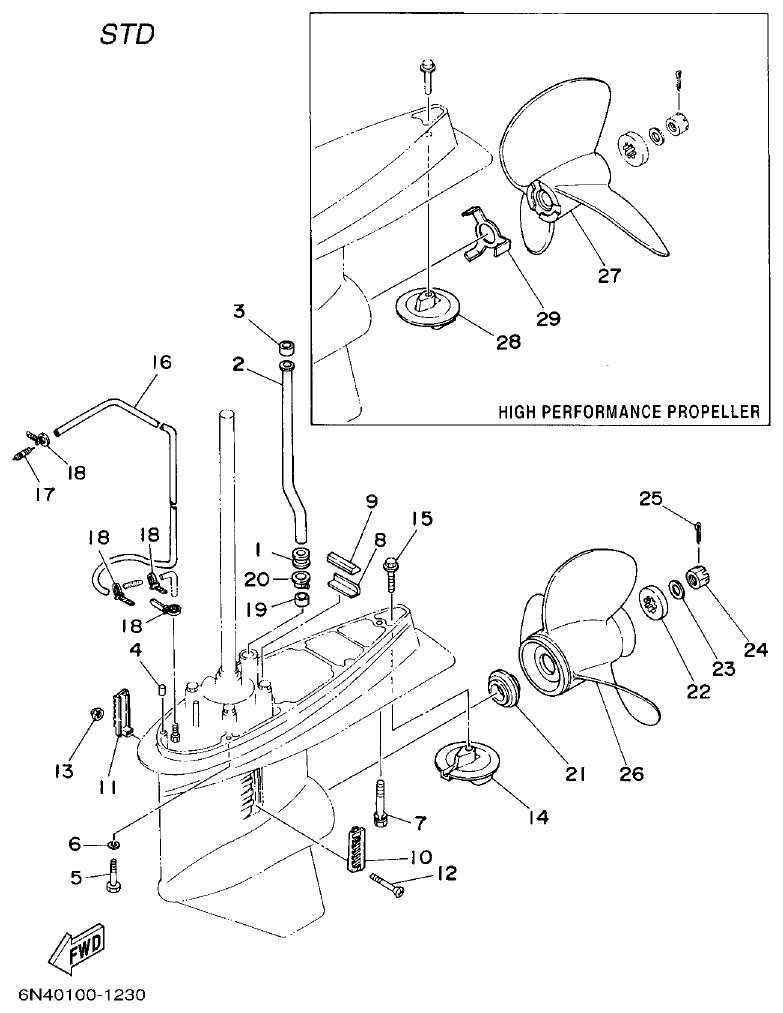

Yamaha 115C, 130B, L130B, L130BETO LOWER CASING. DRIVE 2 parts diagram
Fig. 24 — LOWER CASING. DRIVE 2
48 items · 15 available products
Yamaha 115C, 130B, L130B, L130BETO LOWER CASING. DRIVE 3 parts diagram
Fig. 25 — LOWER CASING. DRIVE 3
99 items · 18 available products

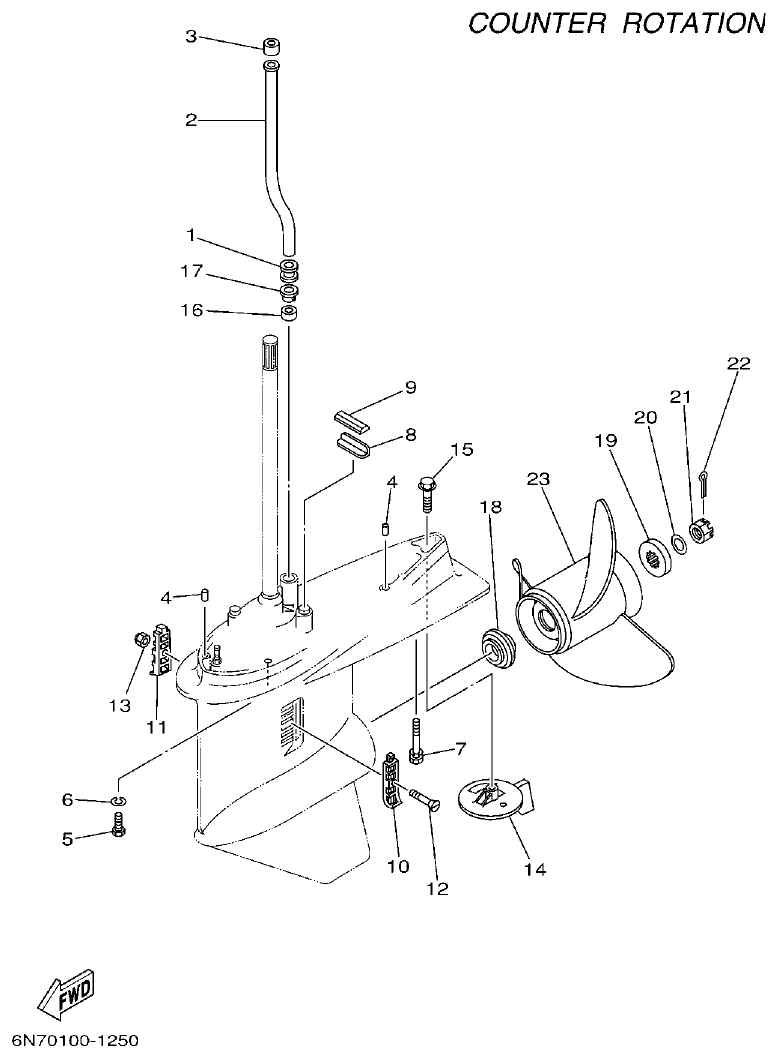

Yamaha 115C, 130B, L130B, L130BETO LOWER CASING. DRIVE 4 parts diagram
Fig. 26 — LOWER CASING. DRIVE 4
25 items · 8 available products

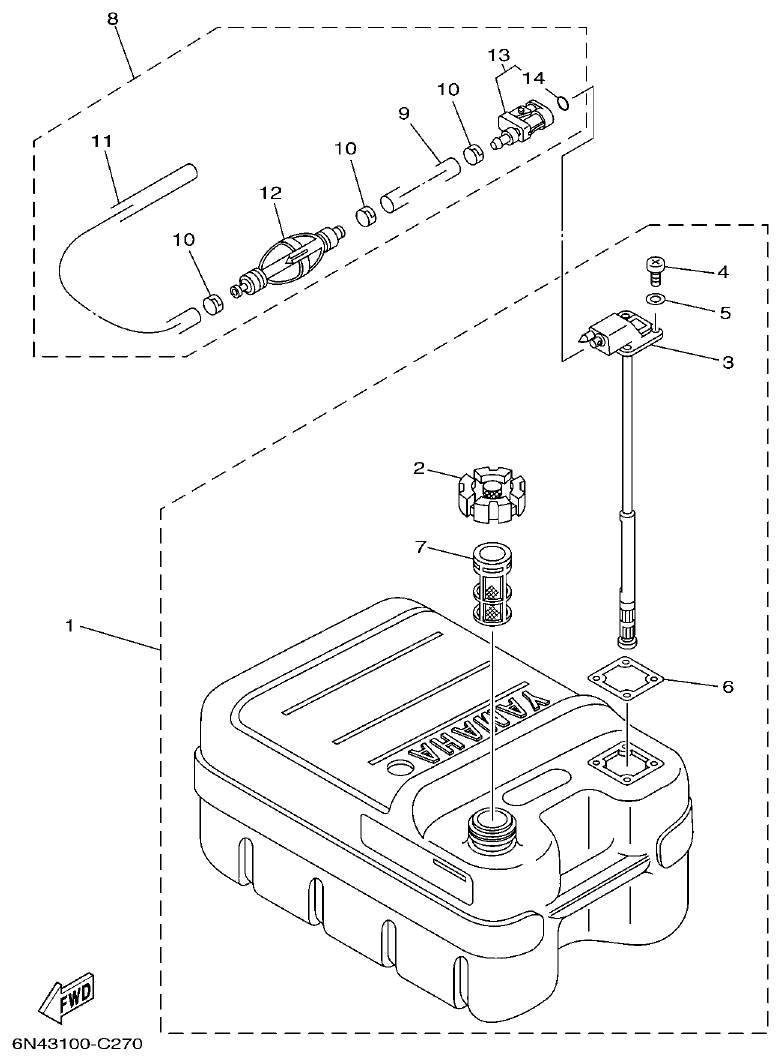

Yamaha 115C, 130B, L130B, L130BETO FUEL TANK parts diagram
Fig. 27 — FUEL TANK
14 items · 2 available products

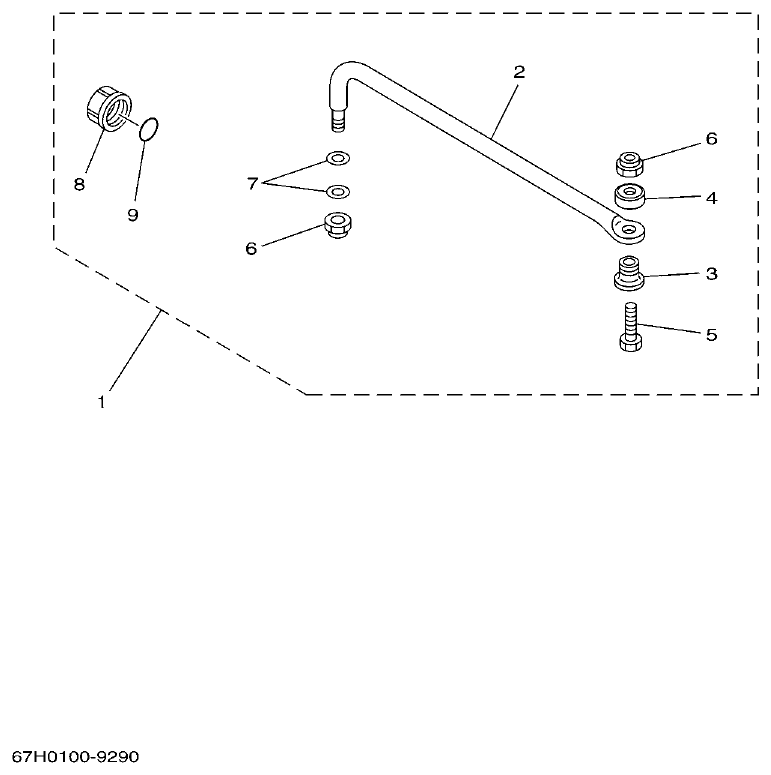

Yamaha 115C, 130B, L130B, L130BETO STEERING GUIDE ATTACHMENT 1 parts diagram
Fig. 28 — STEERING GUIDE ATTACHMENT 1
9 items · 2 available products

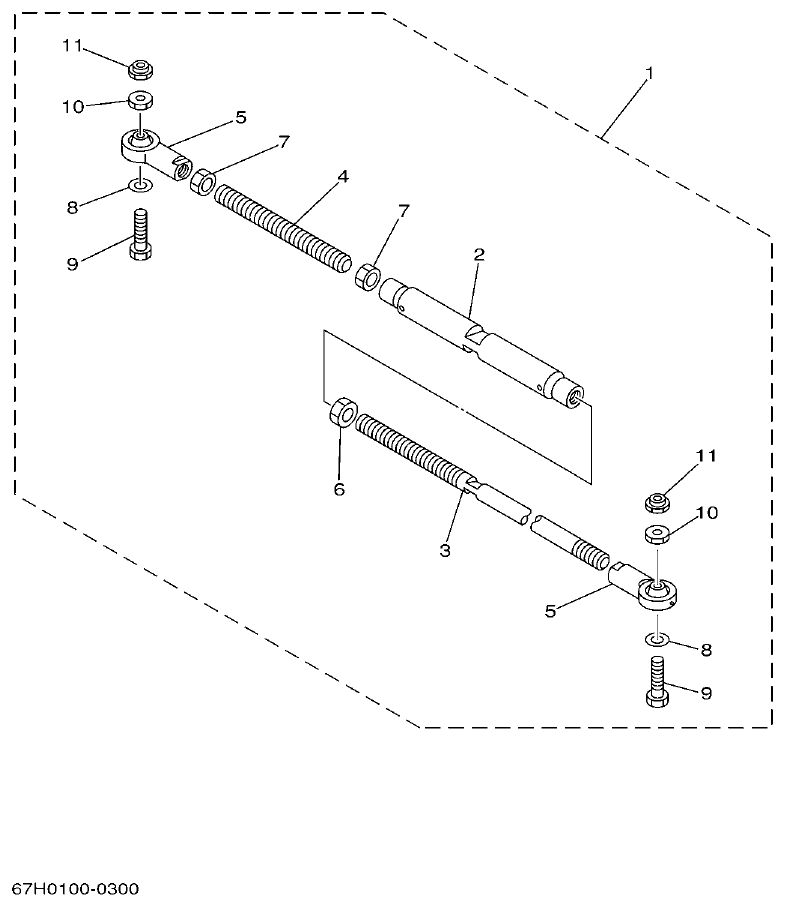

Yamaha 115C, 130B, L130B, L130BETO STEERING GUIDE ATTACHMENT 2 parts diagram
Fig. 29 — STEERING GUIDE ATTACHMENT 2
11 items · 1 available products

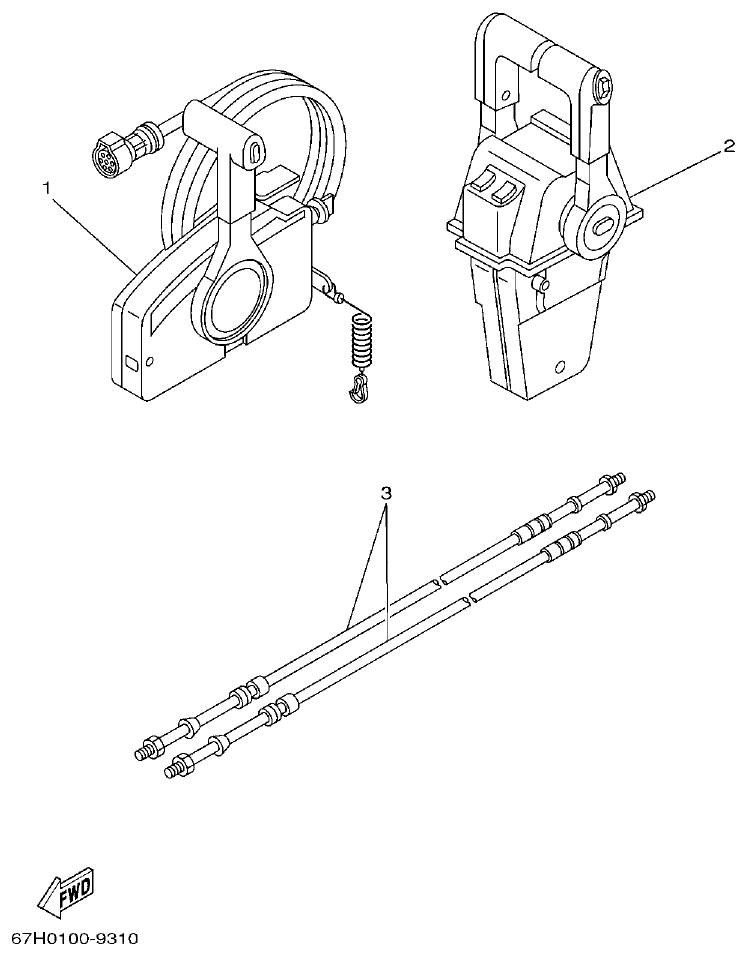

Yamaha 115C, 130B, L130B, L130BETO REMOTE CONTROL BOX parts diagram
Fig. 30 — REMOTE CONTROL BOX
9 items

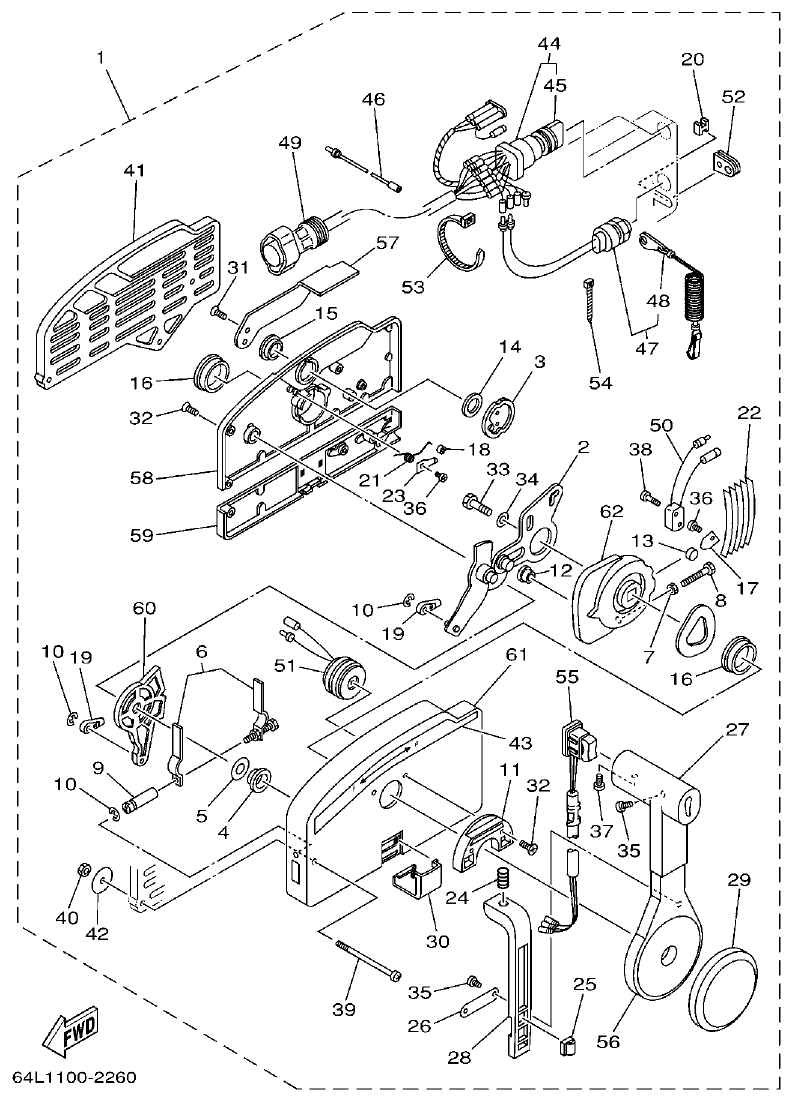

Yamaha 115C, 130B, L130B, L130BETO REMOTE CONTROL ASSY 1 parts diagram
Fig. 31 — REMOTE CONTROL ASSY 1
66 items · 12 available products

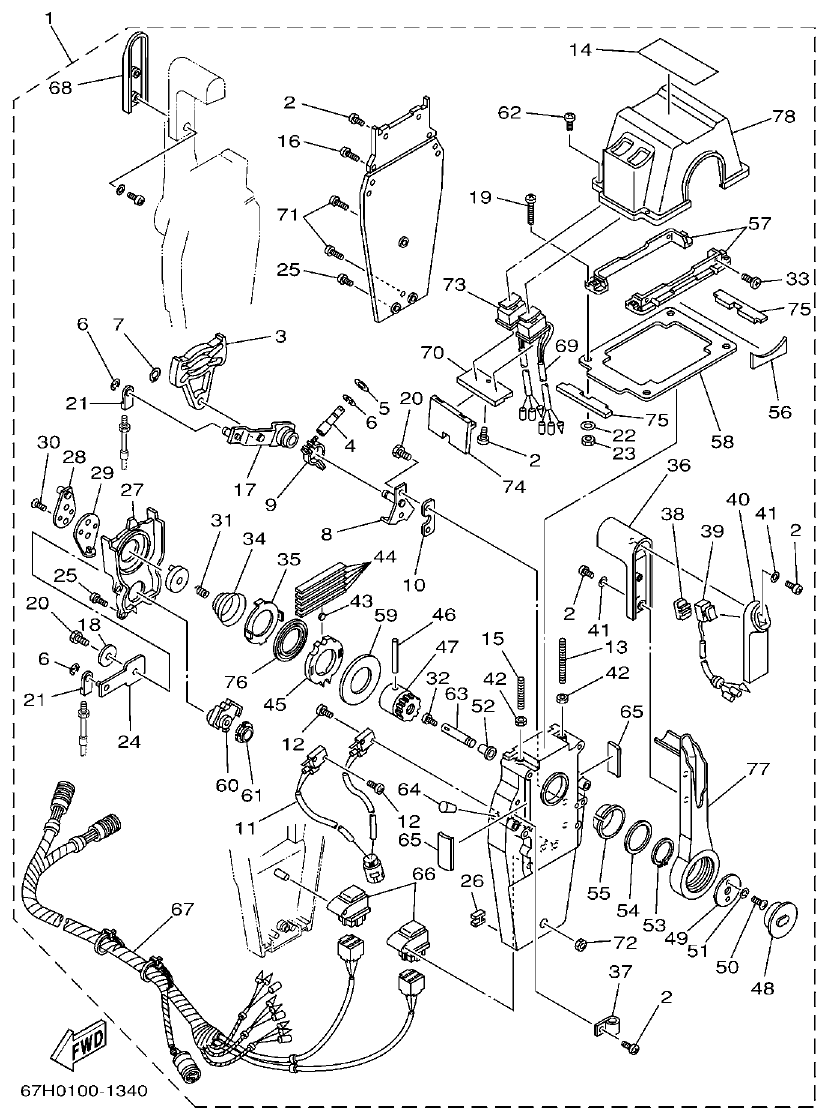

Yamaha 115C, 130B, L130B, L130BETO REMOTE CONTROL ASSY 2 parts diagram
Fig. 32 — REMOTE CONTROL ASSY 2
78 items · 2 available products

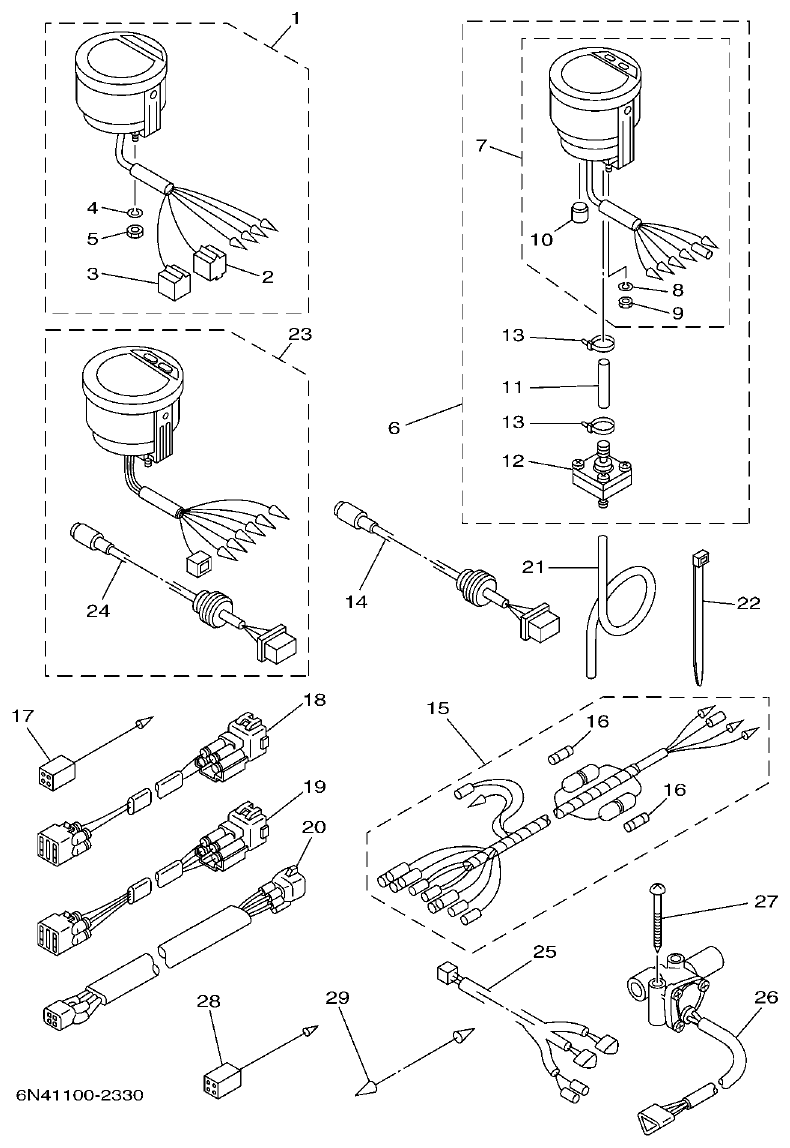

Yamaha 115C, 130B, L130B, L130BETO METER parts diagram
Fig. 33 — METER
36 items · 2 available products

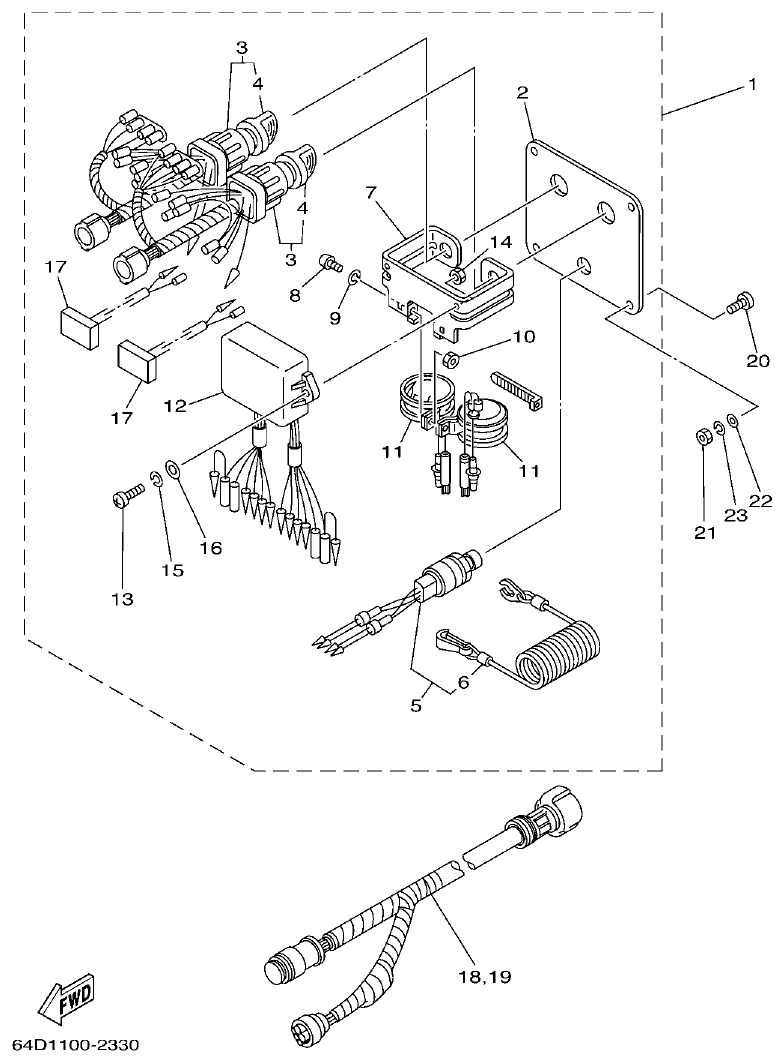

Yamaha 115C, 130B, L130B, L130BETO SWITCH. PANEL parts diagram
Fig. 34 — SWITCH. PANEL
23 items · 2 available products

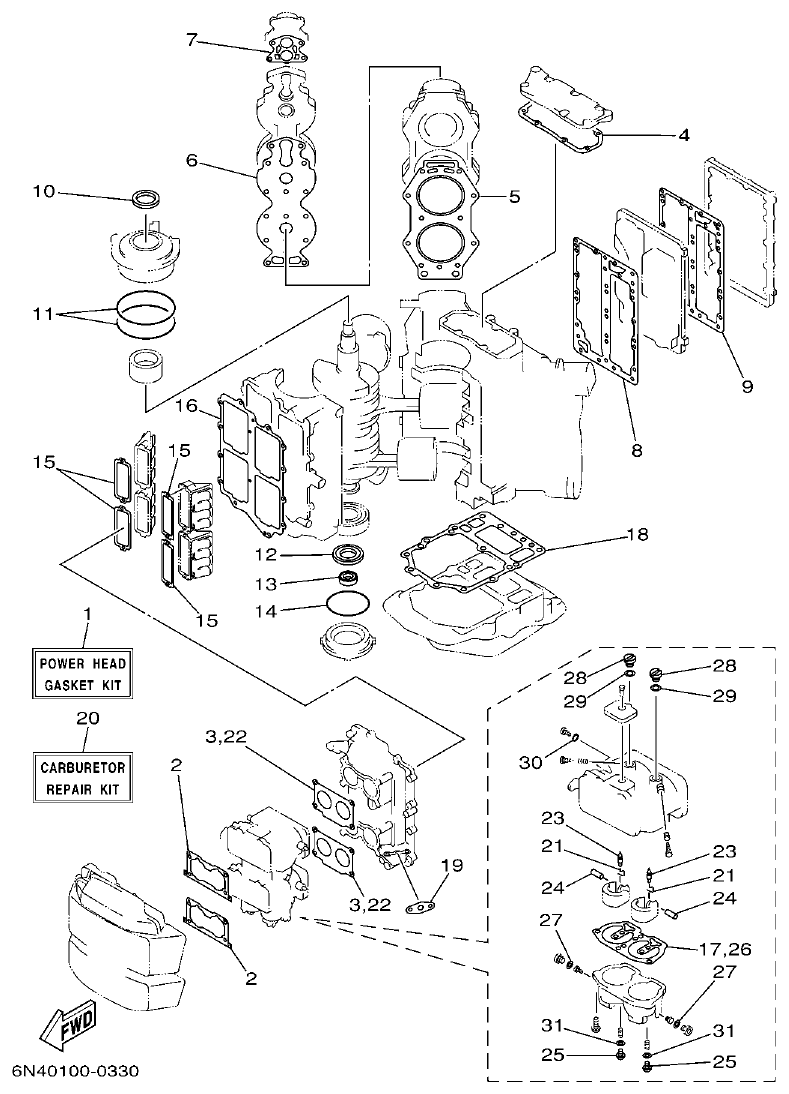

Yamaha 115C, 130B, L130B, L130BETO REPAIR KIT 1 parts diagram
Fig. 35 — REPAIR KIT 1
31 items · 18 available products

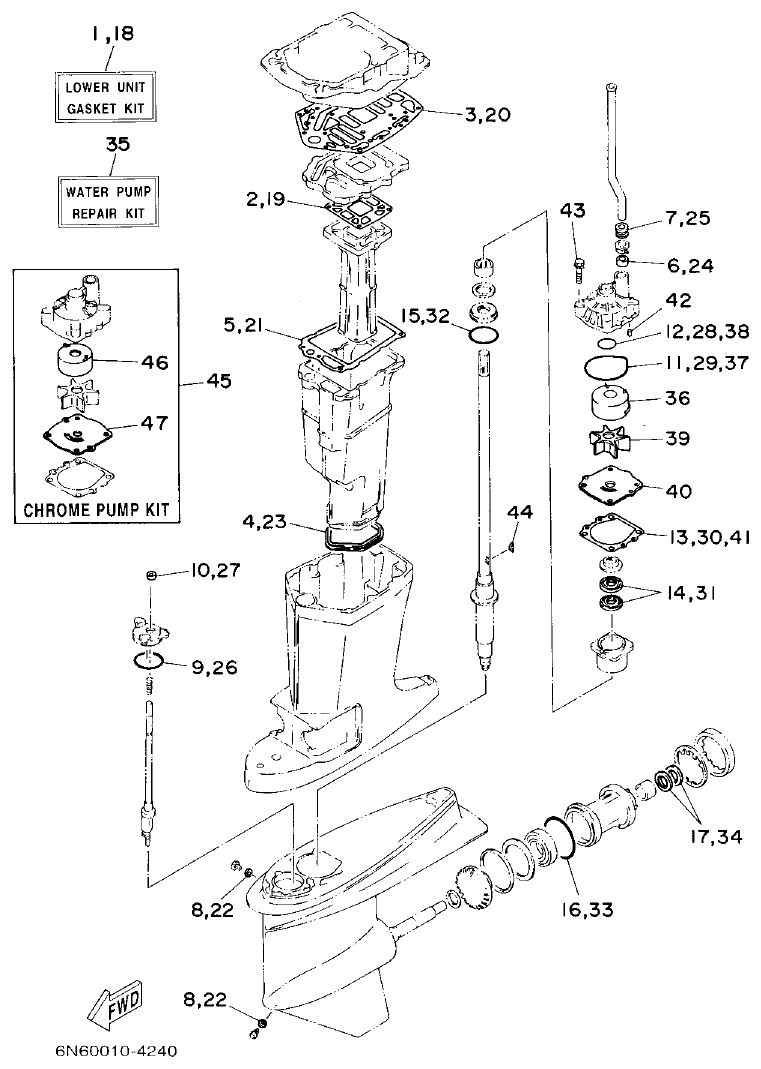

Yamaha 115C, 130B, L130B, L130BETO REPAIR KIT 2 parts diagram
Fig. 36 — REPAIR KIT 2
47 items · 12 available products
