Yamaha 150AET, 200AET, L150AET, L200AET Parts Catalog

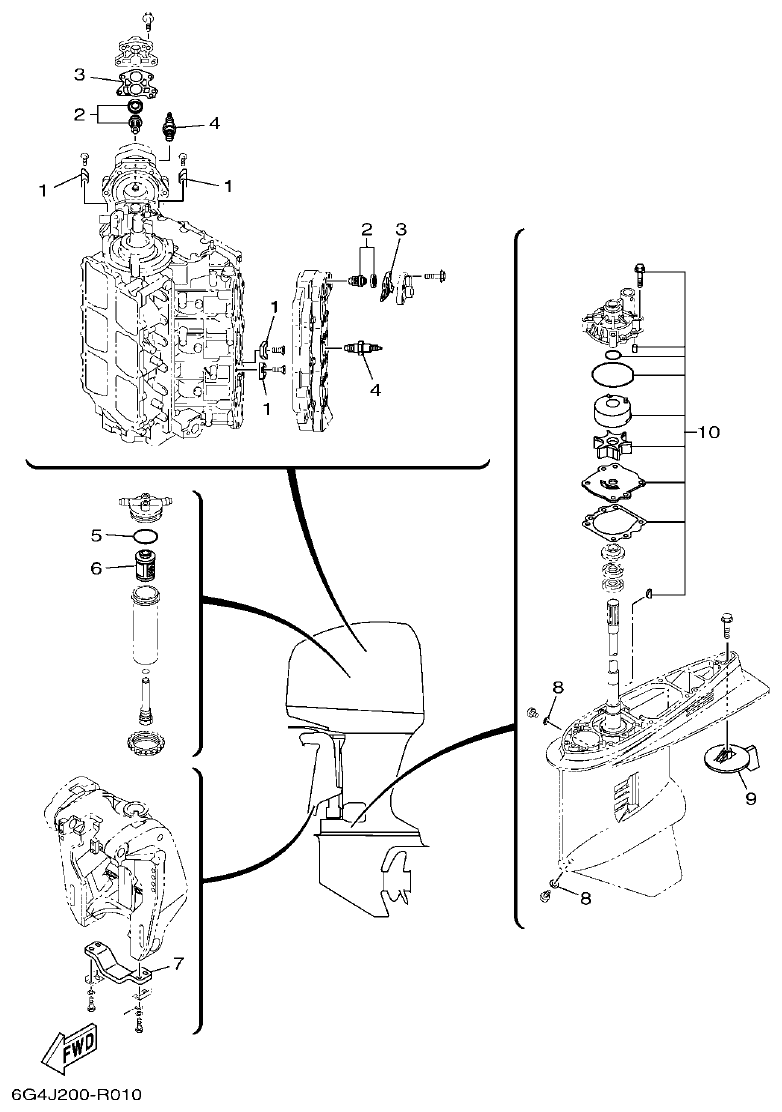

Yamaha 150AET, 200AET, L150AET, L200AET SCHEDULED SERVICE PARTS parts diagram
Fig. 1 β€” SCHEDULED SERVICE PARTS
12 items Β· 8 catalog-linked products

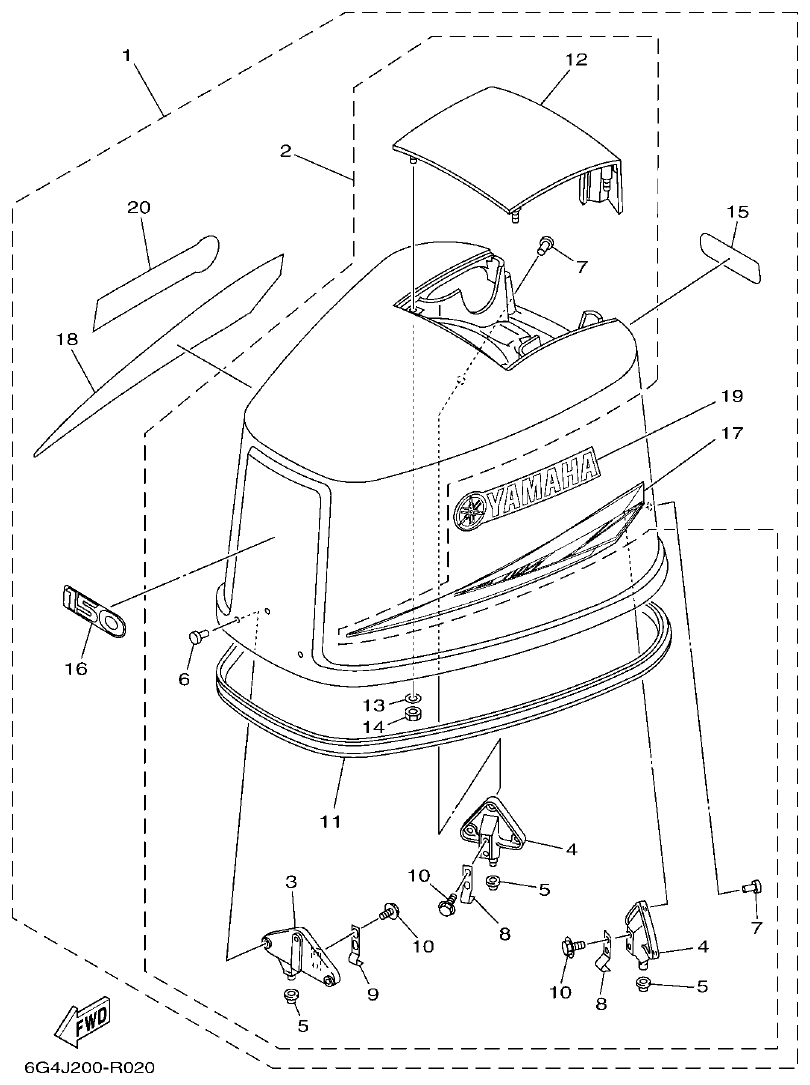

Yamaha 150AET, 200AET, L150AET, L200AET TOP COWLING parts diagram
Fig. 2 β€” TOP COWLING
23 items Β· 1 catalog-linked products

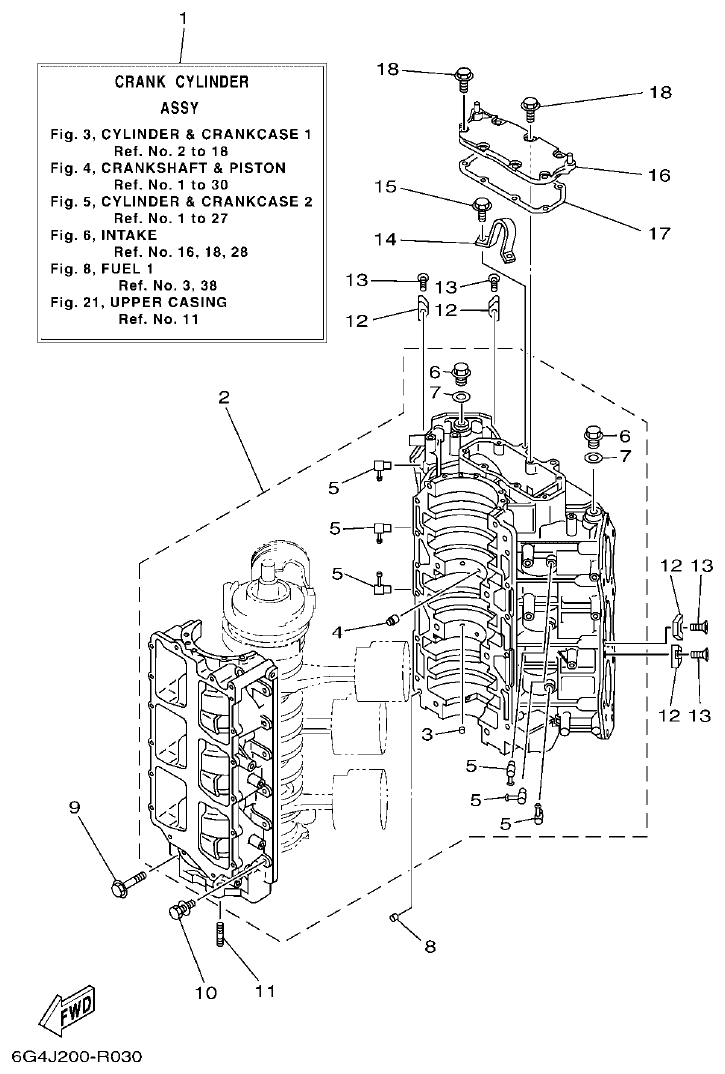

Yamaha 150AET, 200AET, L150AET, L200AET CYLINDER & CRANKCASE 1 parts diagram
Fig. 3 β€” CYLINDER & CRANKCASE 1
20 items Β· 6 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET CRANKSHAFT & PISTON parts diagram

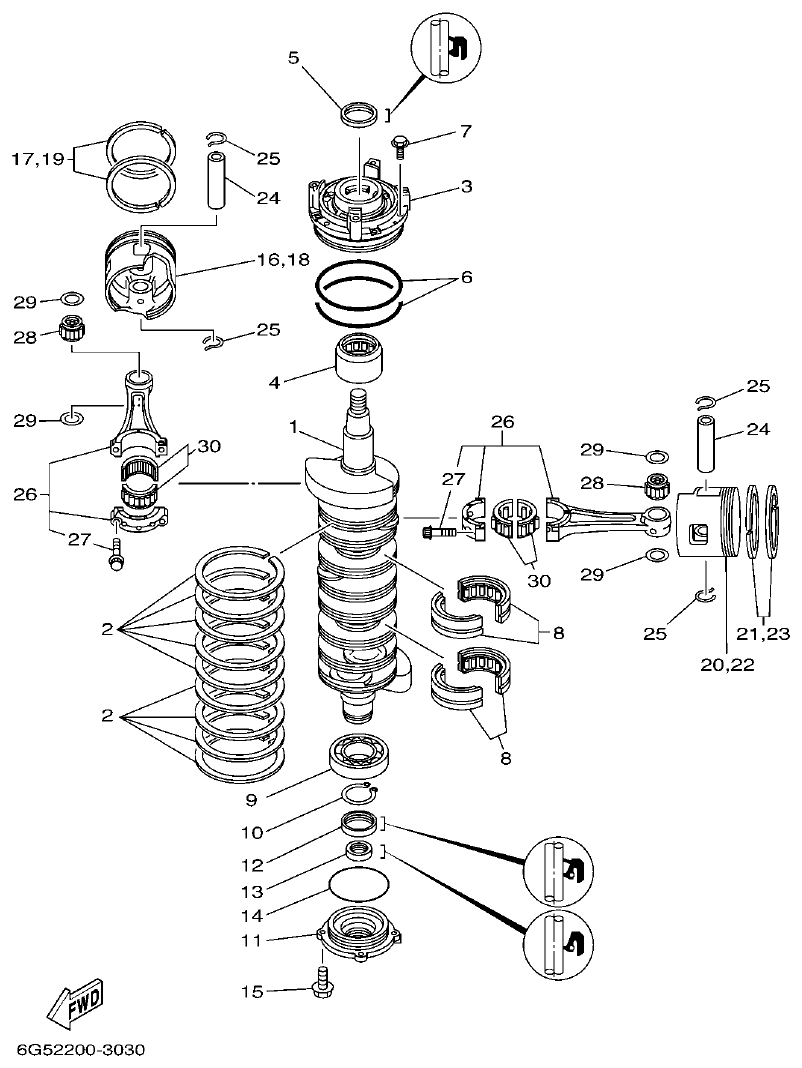

Fig. 4 β€” CRANKSHAFT & PISTON
46 items Β· 20 catalog-linked products

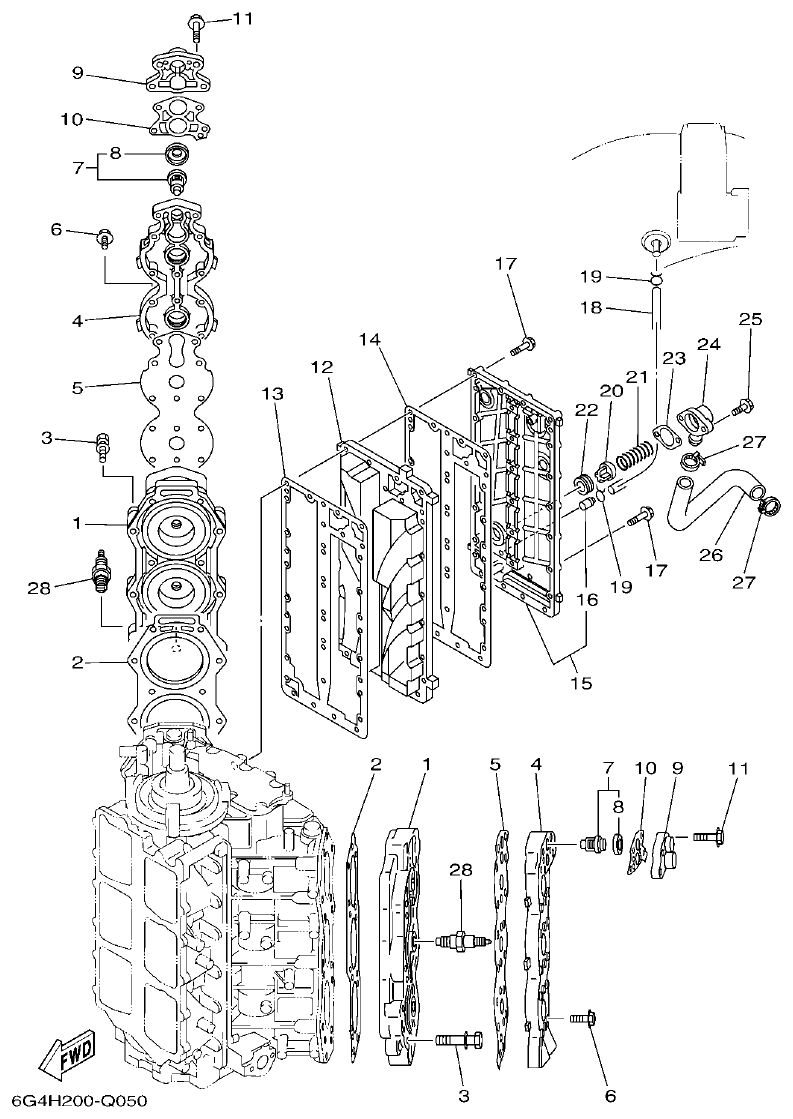

Yamaha 150AET, 200AET, L150AET, L200AET CYLINDER & CRANKCASE 2 parts diagram
Fig. 5 β€” CYLINDER & CRANKCASE 2
29 items Β· 15 catalog-linked products

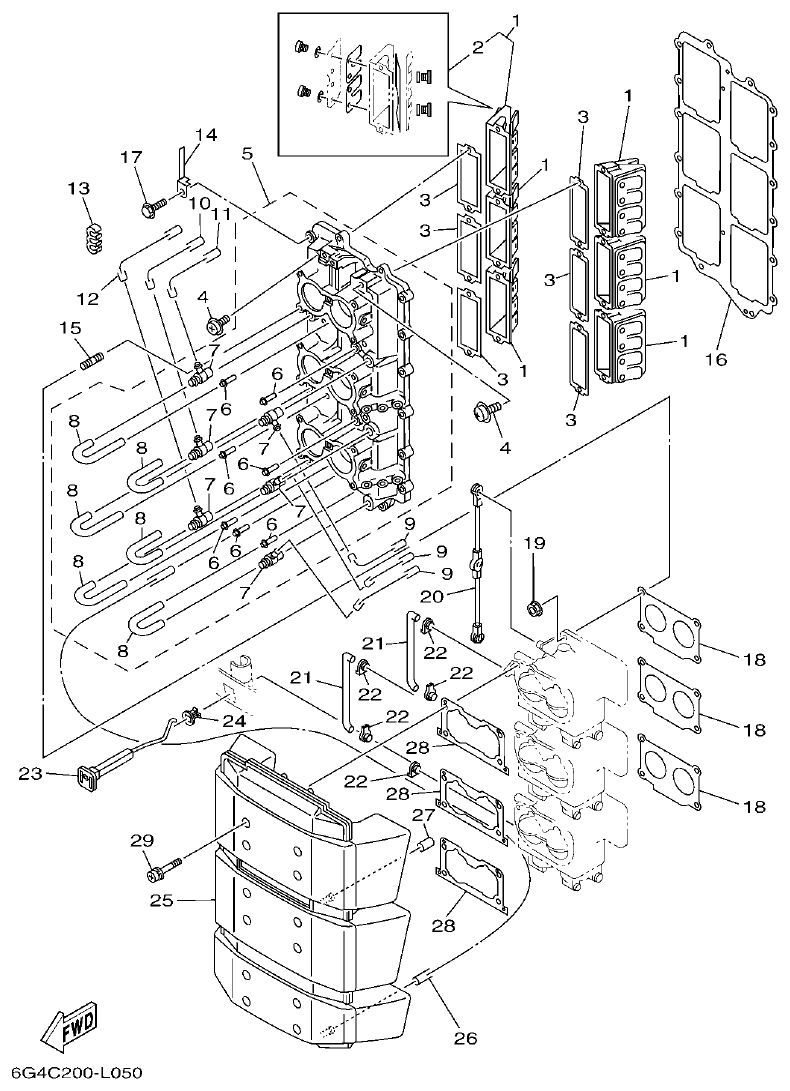

Yamaha 150AET, 200AET, L150AET, L200AET INTAKE parts diagram
Fig. 6 β€” INTAKE
30 items Β· 12 catalog-linked products

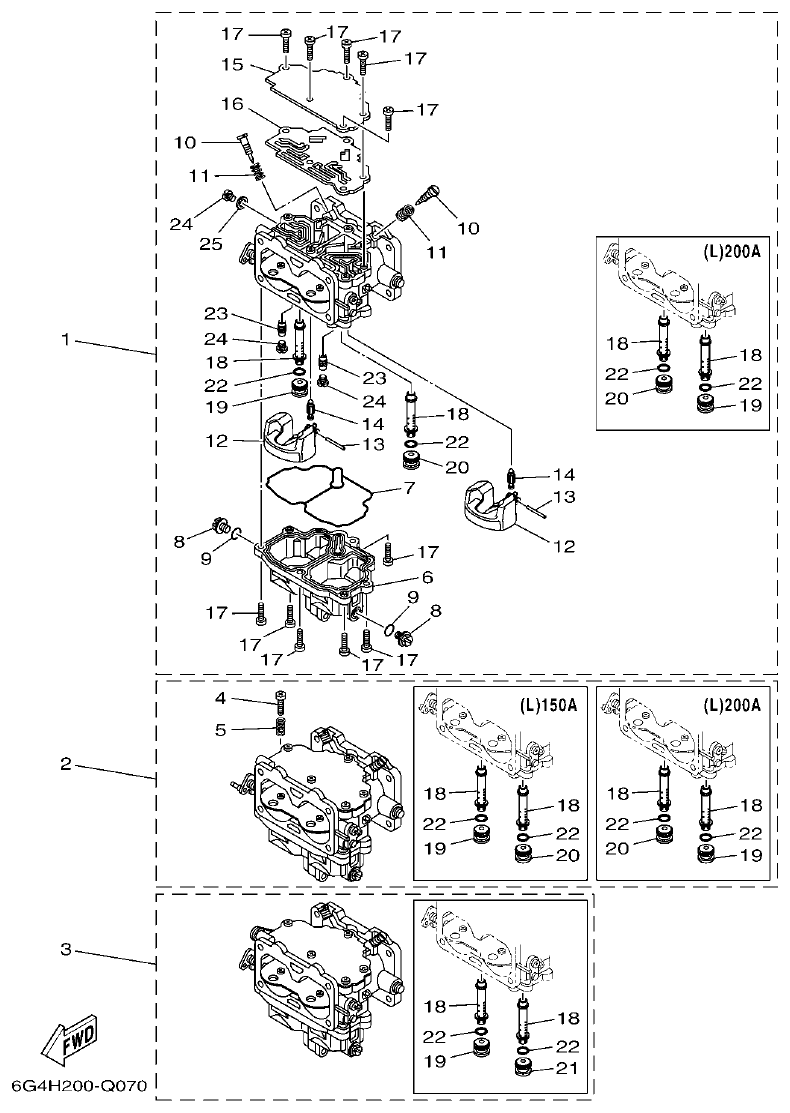

Yamaha 150AET, 200AET, L150AET, L200AET CARBURETOR parts diagram
Fig. 7 β€” CARBURETOR
32 items Β· 4 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET FUEL 1 parts diagram

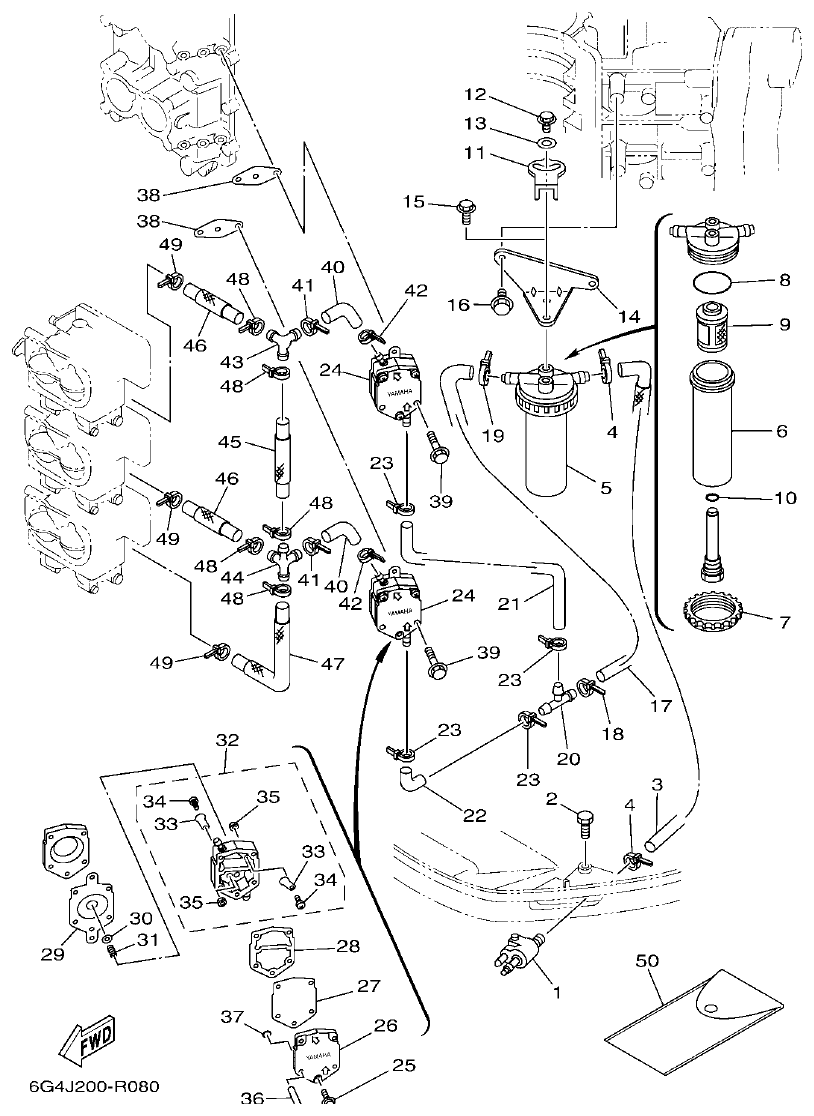

Fig. 8 β€” FUEL 1
50 items Β· 16 catalog-linked products

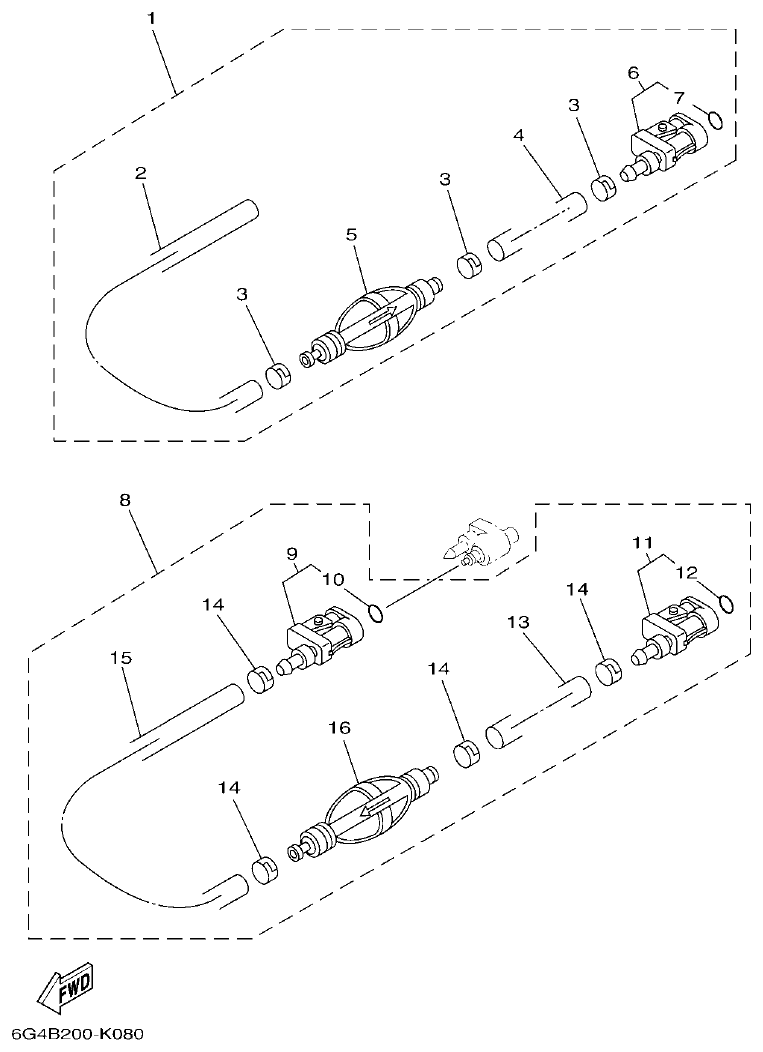

Yamaha 150AET, 200AET, L150AET, L200AET FUEL 2 parts diagram
Fig. 9 β€” FUEL 2
16 items Β· 4 catalog-linked products

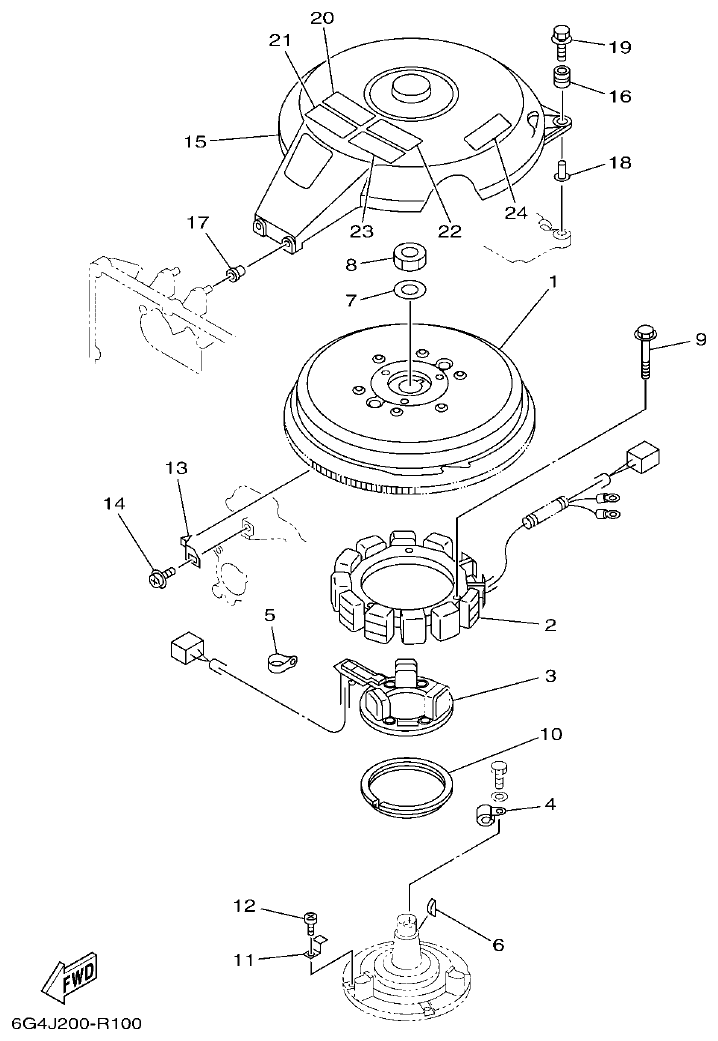

Yamaha 150AET, 200AET, L150AET, L200AET GENERATOR parts diagram
Fig. 10 β€” GENERATOR
24 items Β· 4 catalog-linked products

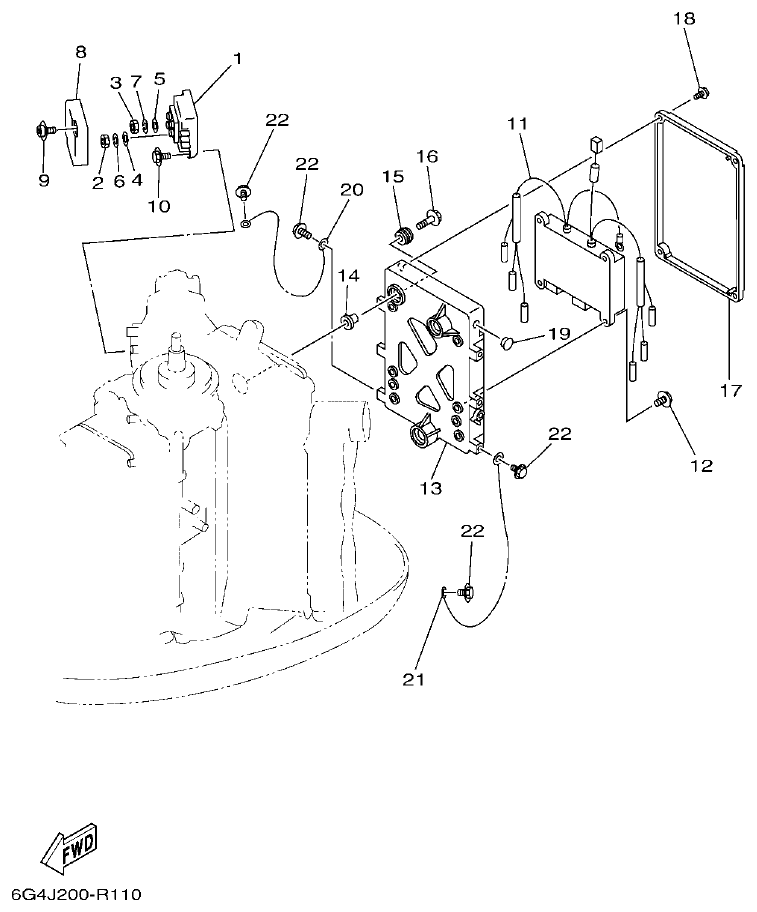

Yamaha 150AET, 200AET, L150AET, L200AET ELECTRICAL 1 parts diagram
Fig. 11 β€” ELECTRICAL 1
22 items Β· 6 catalog-linked products

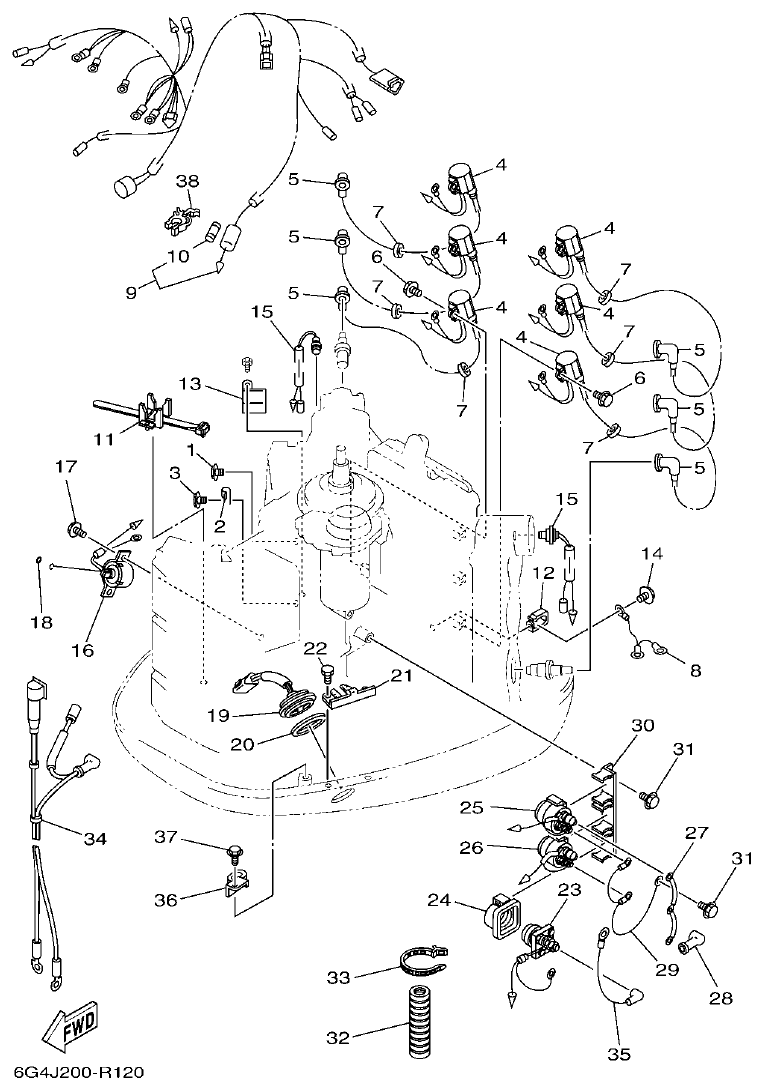

Yamaha 150AET, 200AET, L150AET, L200AET ELECTRICAL 2 parts diagram
Fig. 12 β€” ELECTRICAL 2
38 items Β· 11 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET ELECTRICAL 3 parts diagram
Fig. 13 β€” ELECTRICAL 3
7 items

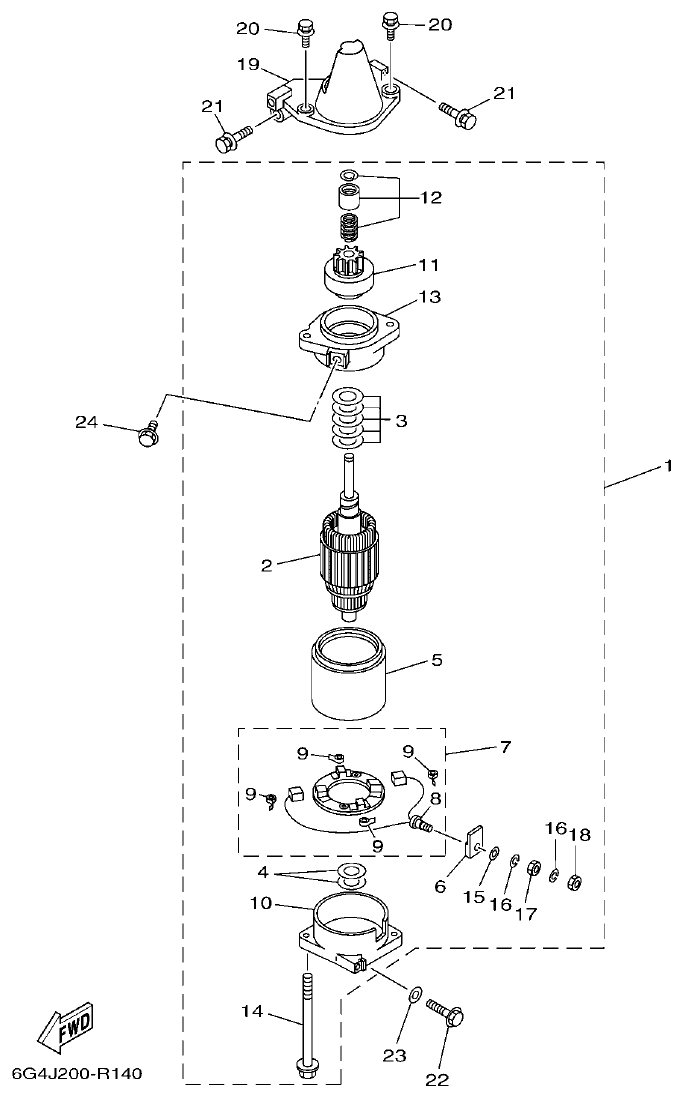

Yamaha 150AET, 200AET, L150AET, L200AET STARTING MOTOR parts diagram
Fig. 14 β€” STARTING MOTOR
24 items Β· 9 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET BOTTOM COWLING parts diagram
Fig. 15 β€” BOTTOM COWLING
39 items Β· 5 catalog-linked products

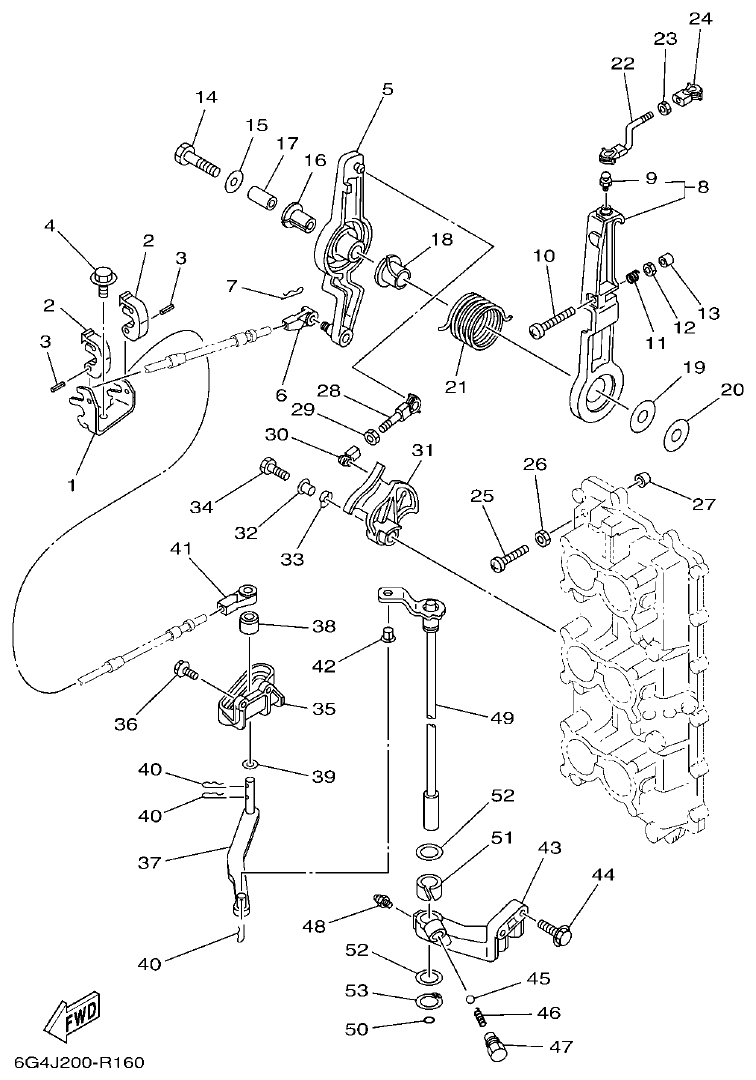

Yamaha 150AET, 200AET, L150AET, L200AET CONTROL parts diagram
Fig. 16 β€” CONTROL
54 items Β· 9 catalog-linked products

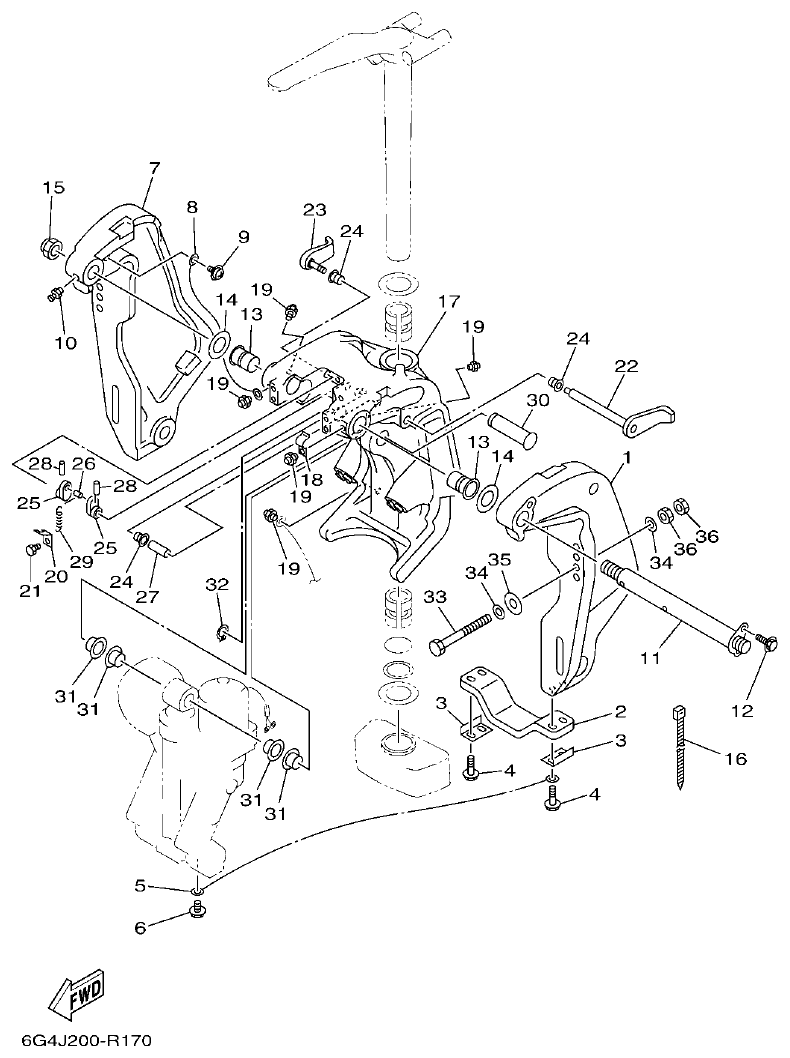

Yamaha 150AET, 200AET, L150AET, L200AET BRACKET 1 parts diagram
Fig. 17 β€” BRACKET 1
37 items Β· 9 catalog-linked products

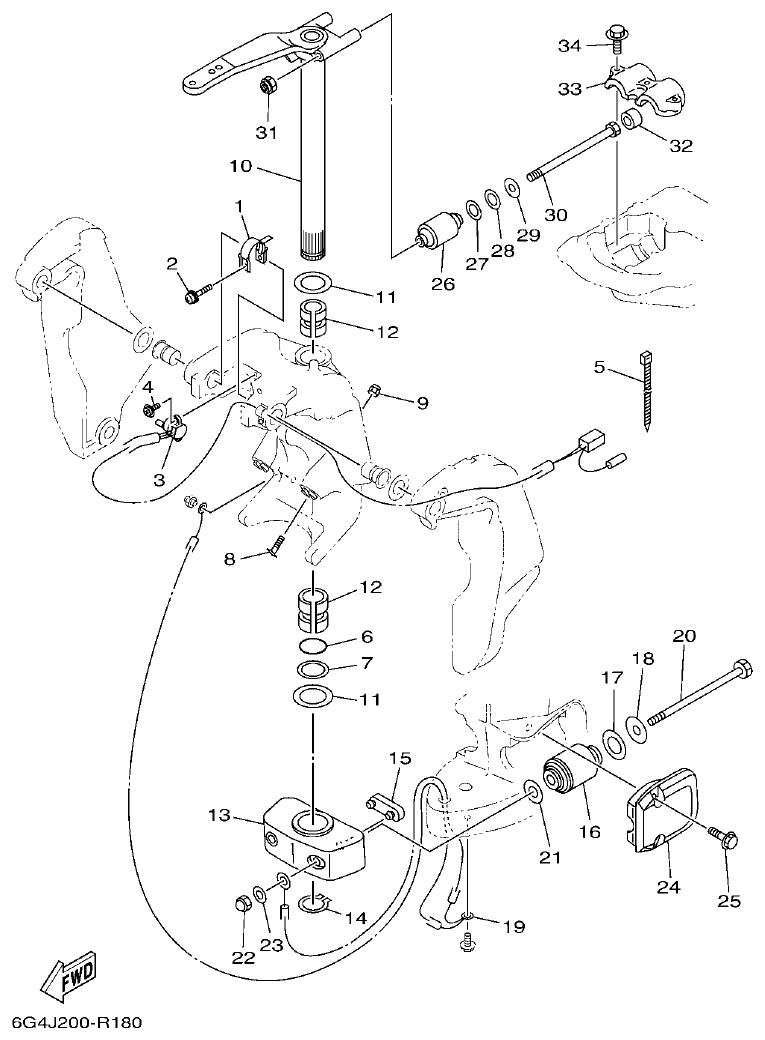

Yamaha 150AET, 200AET, L150AET, L200AET BRACKET 2 parts diagram
Fig. 18 β€” BRACKET 2
36 items Β· 7 catalog-linked products

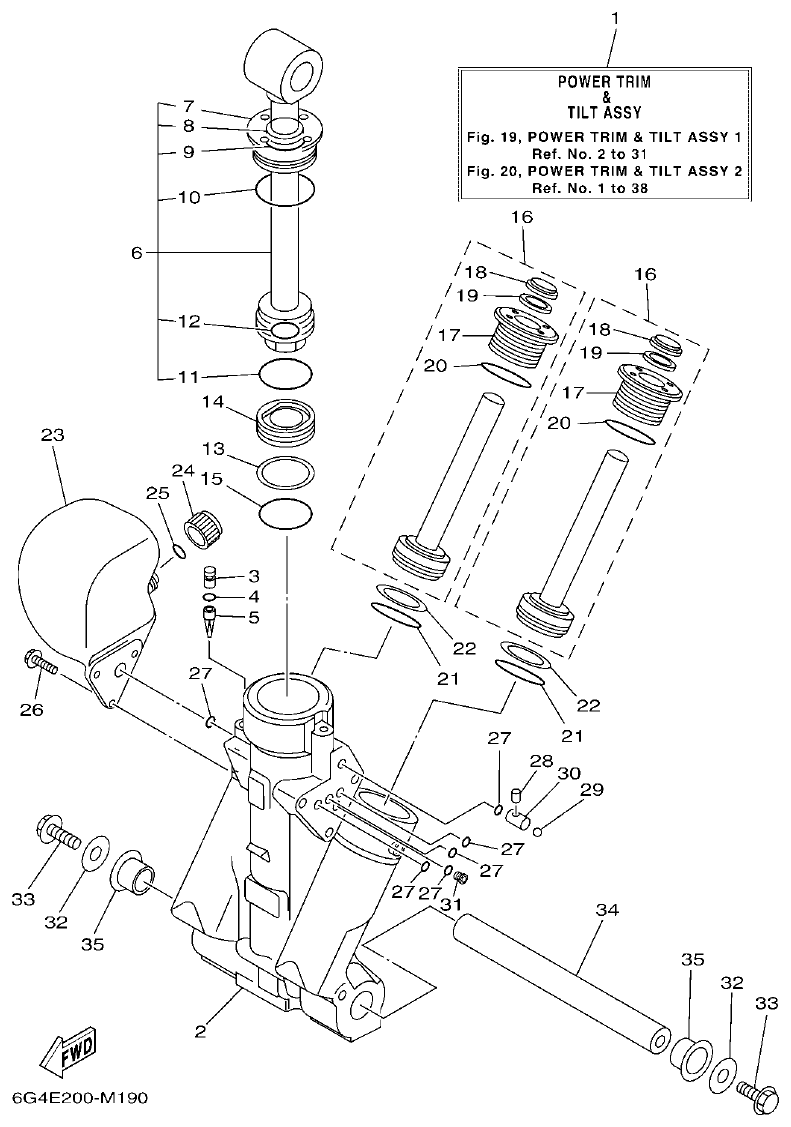

Yamaha 150AET, 200AET, L150AET, L200AET POWER TRIM & TILT ASSY 1 parts diagram
Fig. 19 β€” POWER TRIM & TILT ASSY 1
35 items Β· 16 catalog-linked products

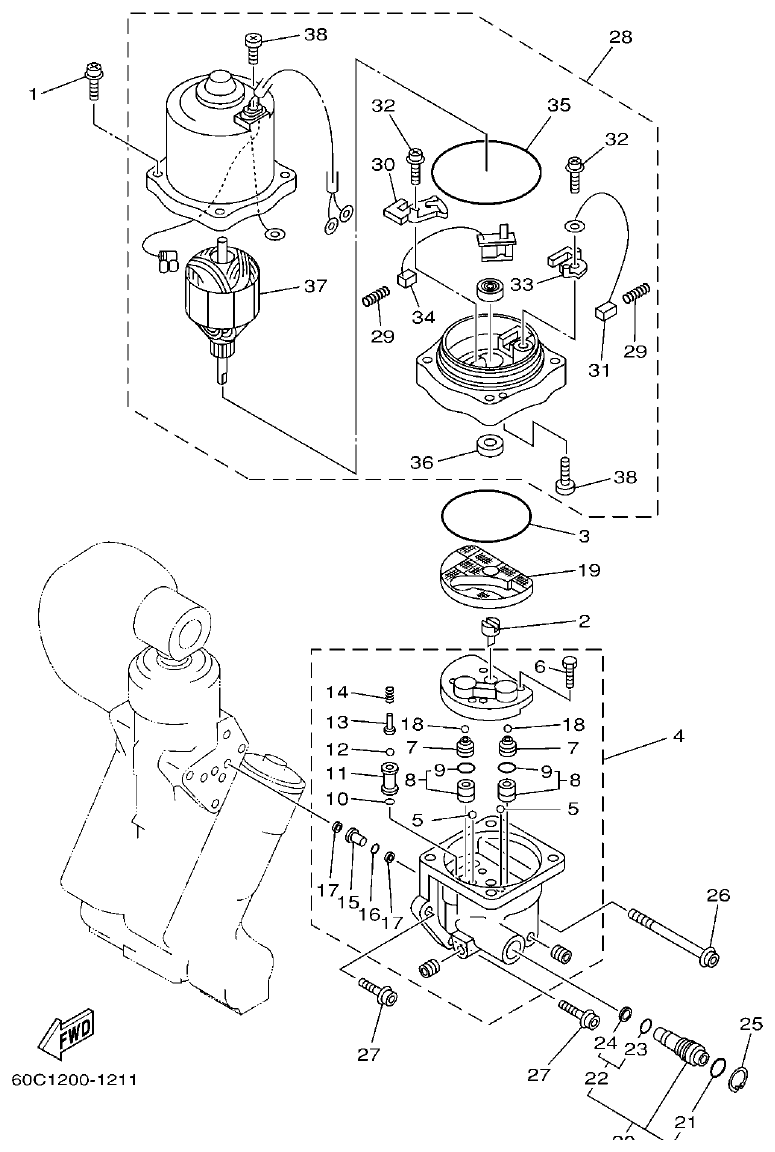

Yamaha 150AET, 200AET, L150AET, L200AET POWER TRIM & TILT ASSY 2 parts diagram
Fig. 20 β€” POWER TRIM & TILT ASSY 2
38 items Β· 14 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET UPPER CASING parts diagram

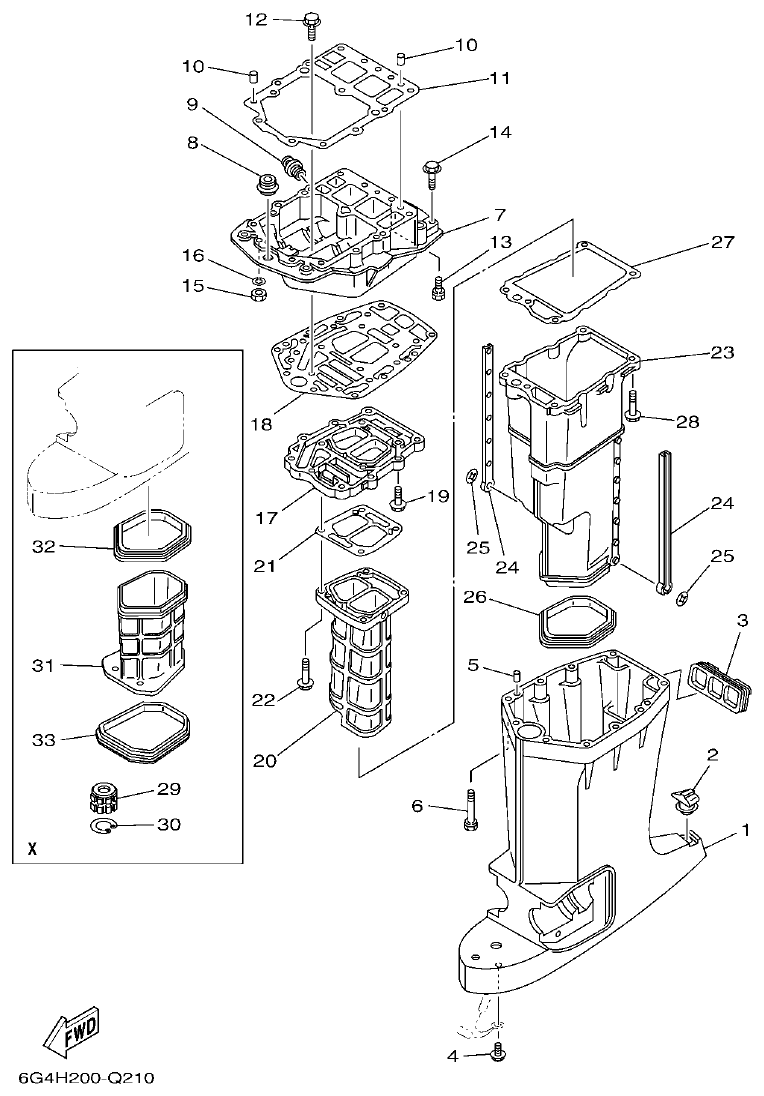

Fig. 21 β€” UPPER CASING
38 items Β· 16 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET LOWER CASING & DRIVE 1 parts diagram

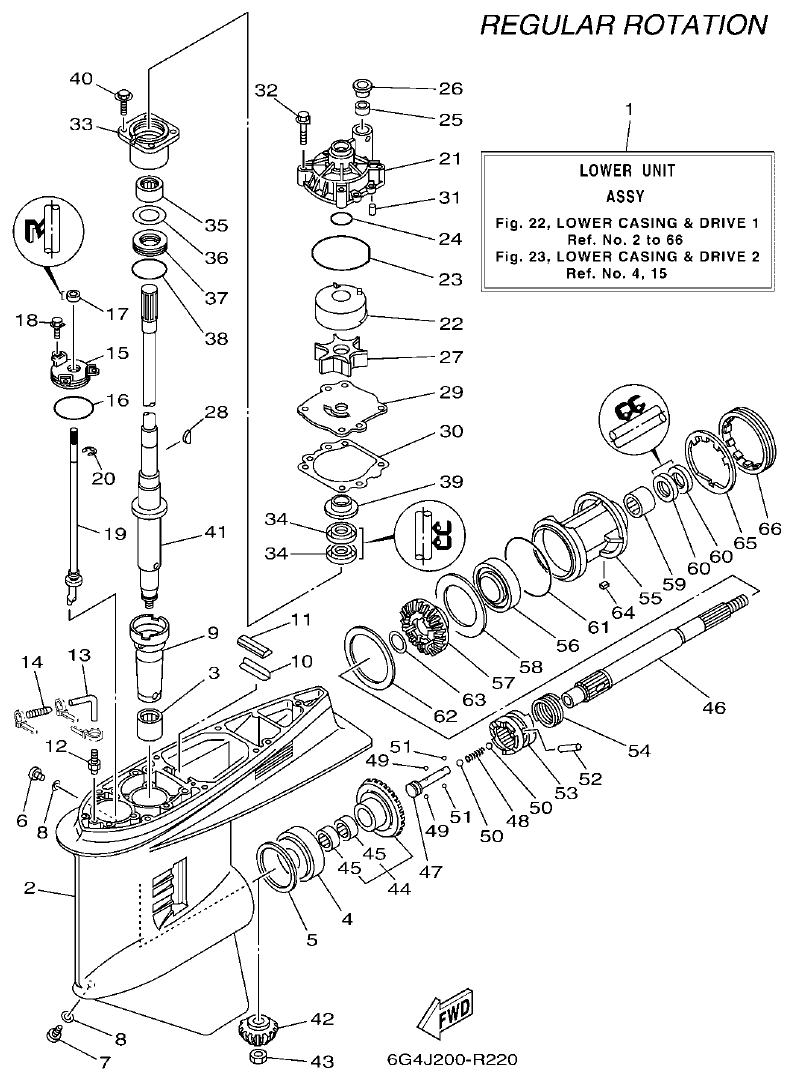

Fig. 22 β€” LOWER CASING & DRIVE 1
88 items Β· 45 catalog-linked products

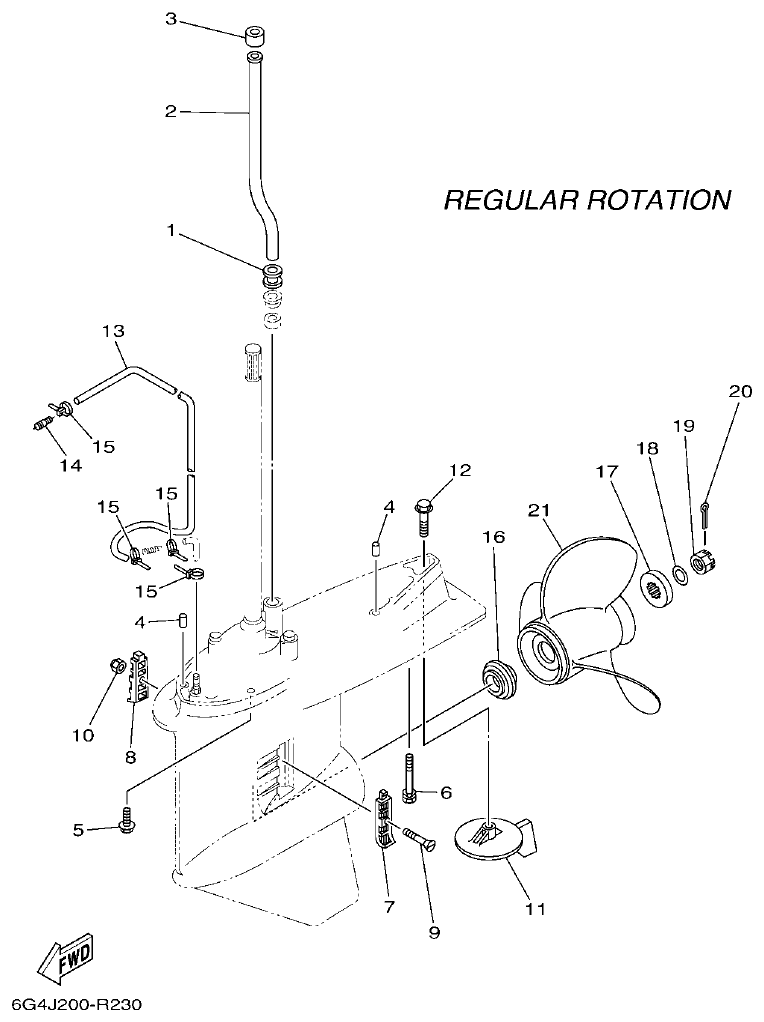

Yamaha 150AET, 200AET, L150AET, L200AET LOWER CASING & DRIVE 2 parts diagram
Fig. 23 β€” LOWER CASING & DRIVE 2
27 items Β· 11 catalog-linked products

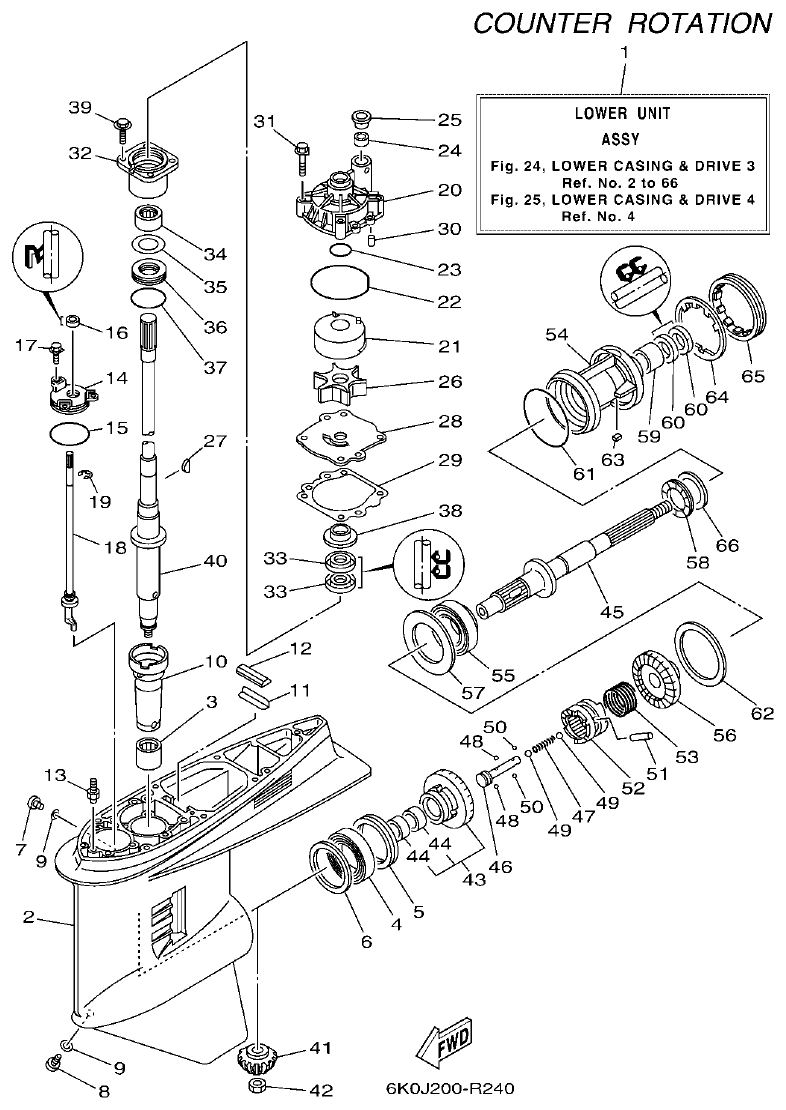

Yamaha 150AET, 200AET, L150AET, L200AET LOWER CASING & DRIVE 3 parts diagram
Fig. 24 β€” LOWER CASING & DRIVE 3
90 items Β· 48 catalog-linked products

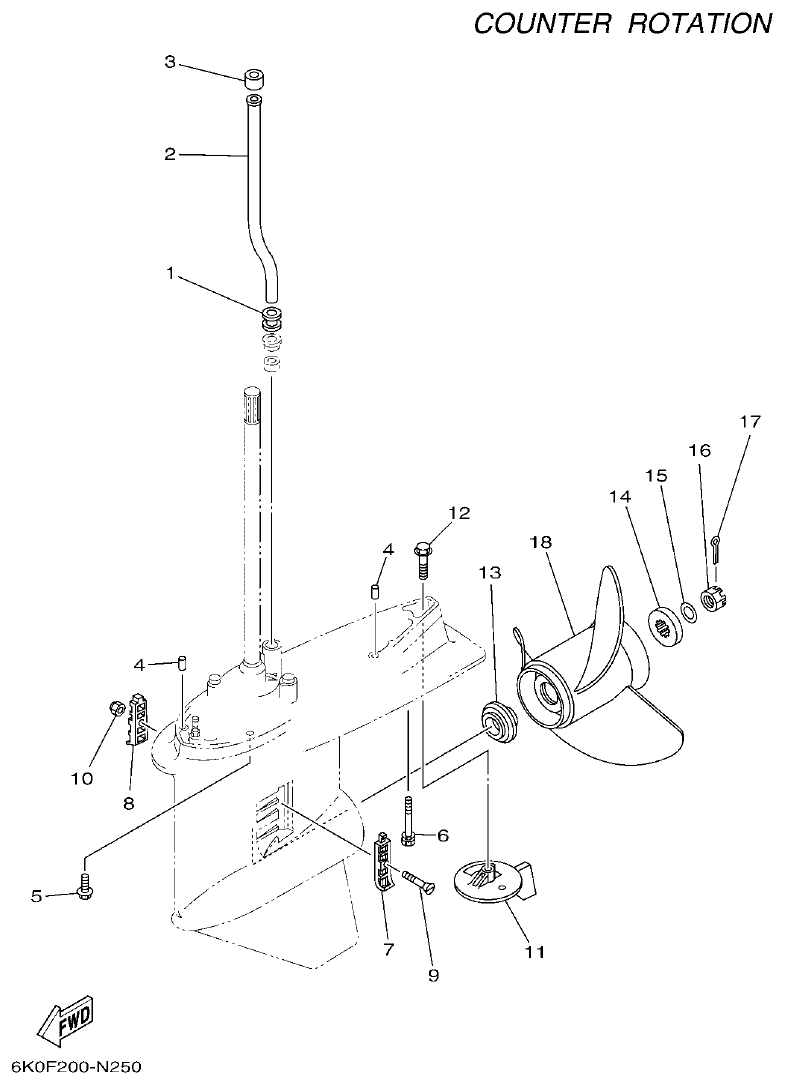

Yamaha 150AET, 200AET, L150AET, L200AET LOWER CASING & DRIVE 4 parts diagram
Fig. 25 β€” LOWER CASING & DRIVE 4
21 items Β· 10 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET STEERING GUIDE ATTACHMENT 1 parts diagram

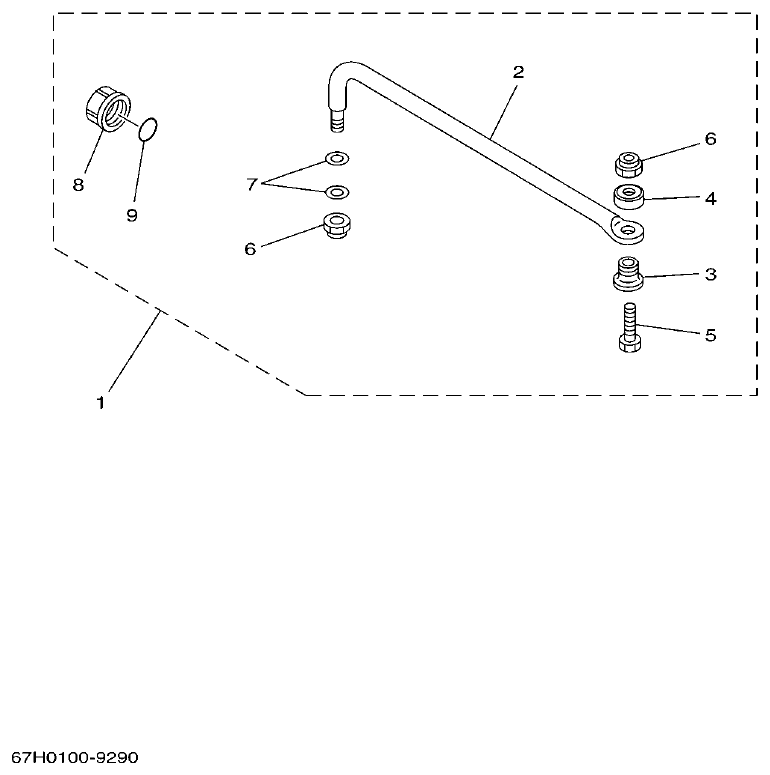

Fig. 26 β€” STEERING GUIDE ATTACHMENT 1
9 items Β· 2 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET STEERING GUIDE ATTACHMENT 2 parts diagram

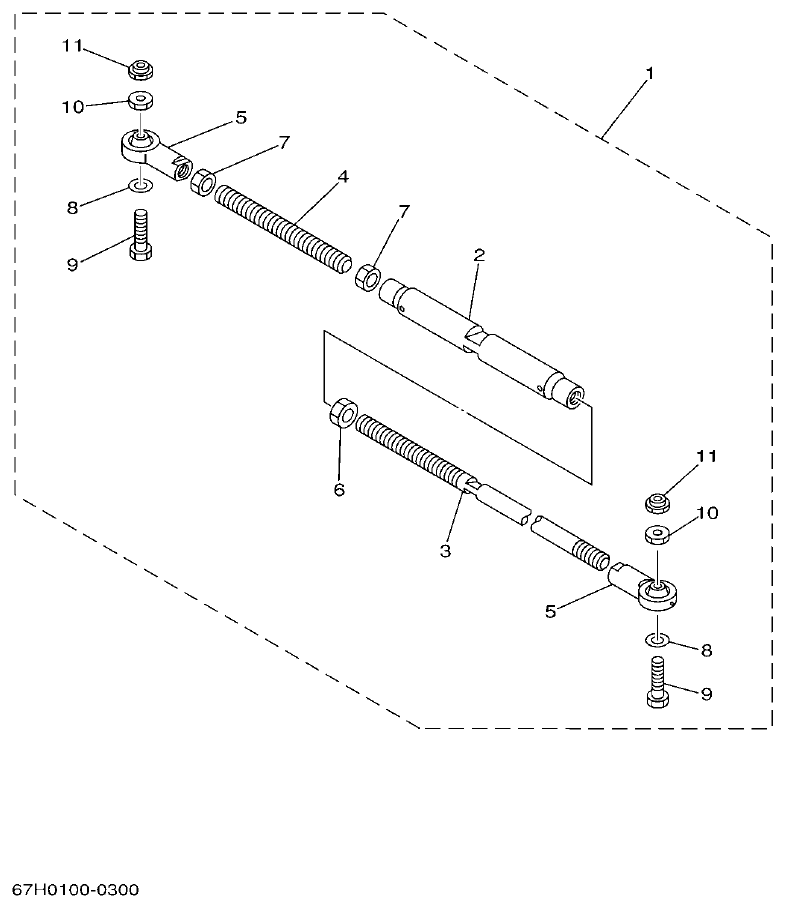

Fig. 27 β€” STEERING GUIDE ATTACHMENT 2
11 items Β· 1 catalog-linked products

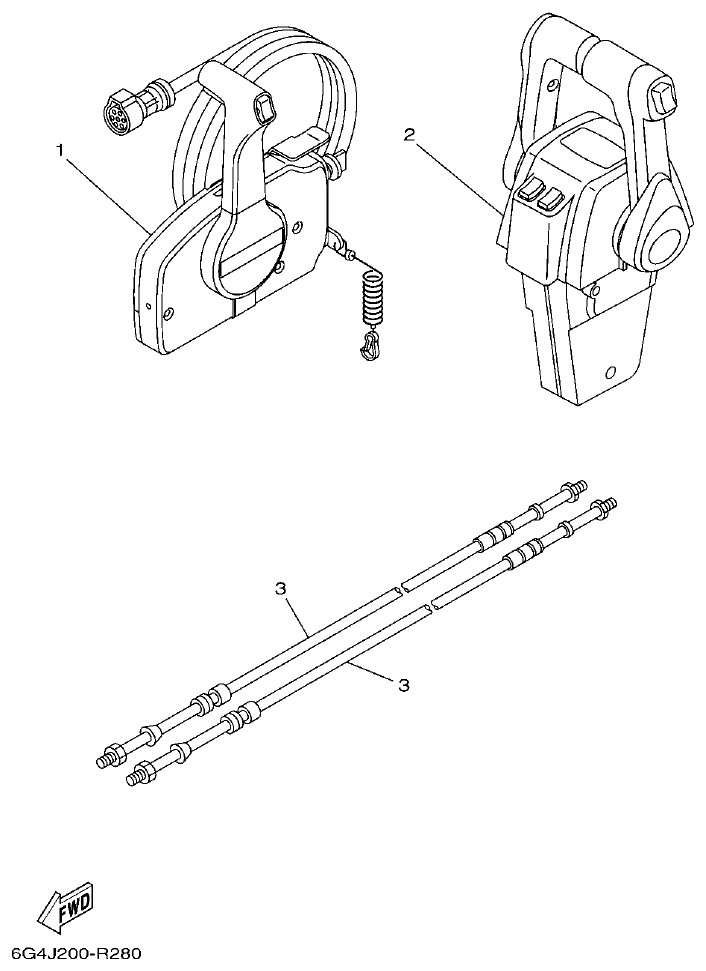

Yamaha 150AET, 200AET, L150AET, L200AET REMOTE CONTROL BOX parts diagram
Fig. 28 β€” REMOTE CONTROL BOX
7 items Β· 1 catalog-linked products

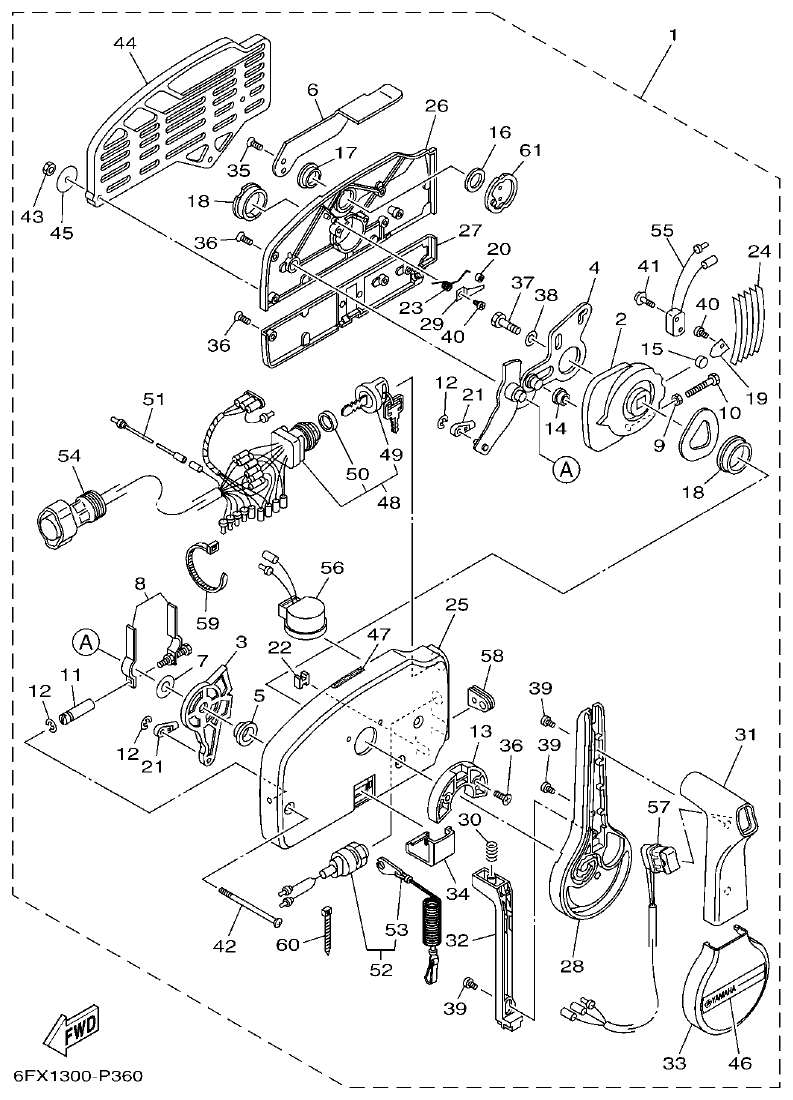

Yamaha 150AET, 200AET, L150AET, L200AET REMOTE CONTROL ASSY 1 parts diagram
Fig. 29 β€” REMOTE CONTROL ASSY 1
61 items Β· 11 catalog-linked products

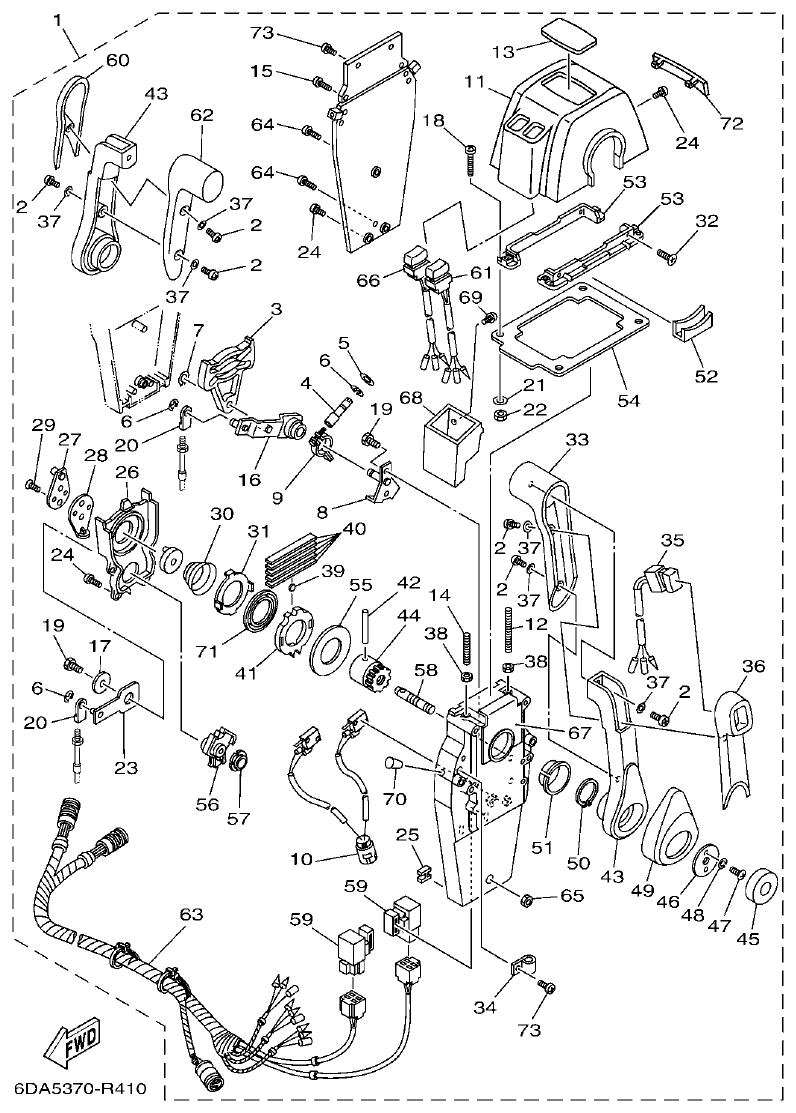

Yamaha 150AET, 200AET, L150AET, L200AET REMOTE CONTROL ASSY 2 parts diagram
Fig. 30 β€” REMOTE CONTROL ASSY 2
73 items Β· 5 catalog-linked products

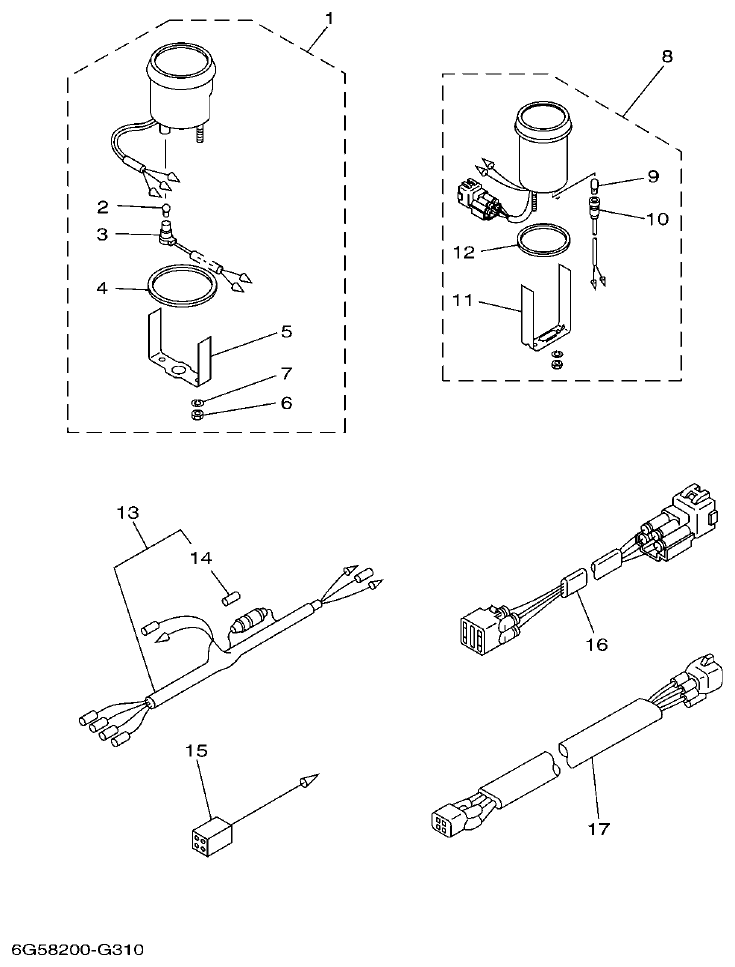

Yamaha 150AET, 200AET, L150AET, L200AET METER parts diagram
Fig. 31 β€” METER
18 items Β· 1 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET SWITCH & PANEL parts diagram

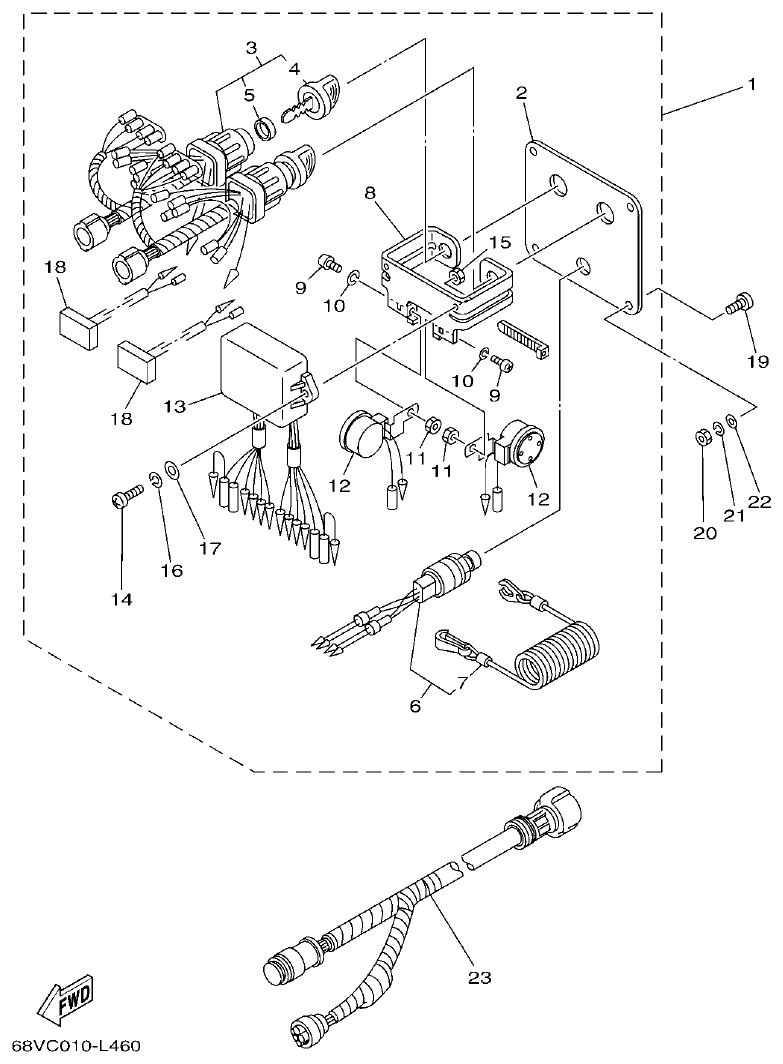

Fig. 32 β€” SWITCH & PANEL
23 items Β· 2 catalog-linked products

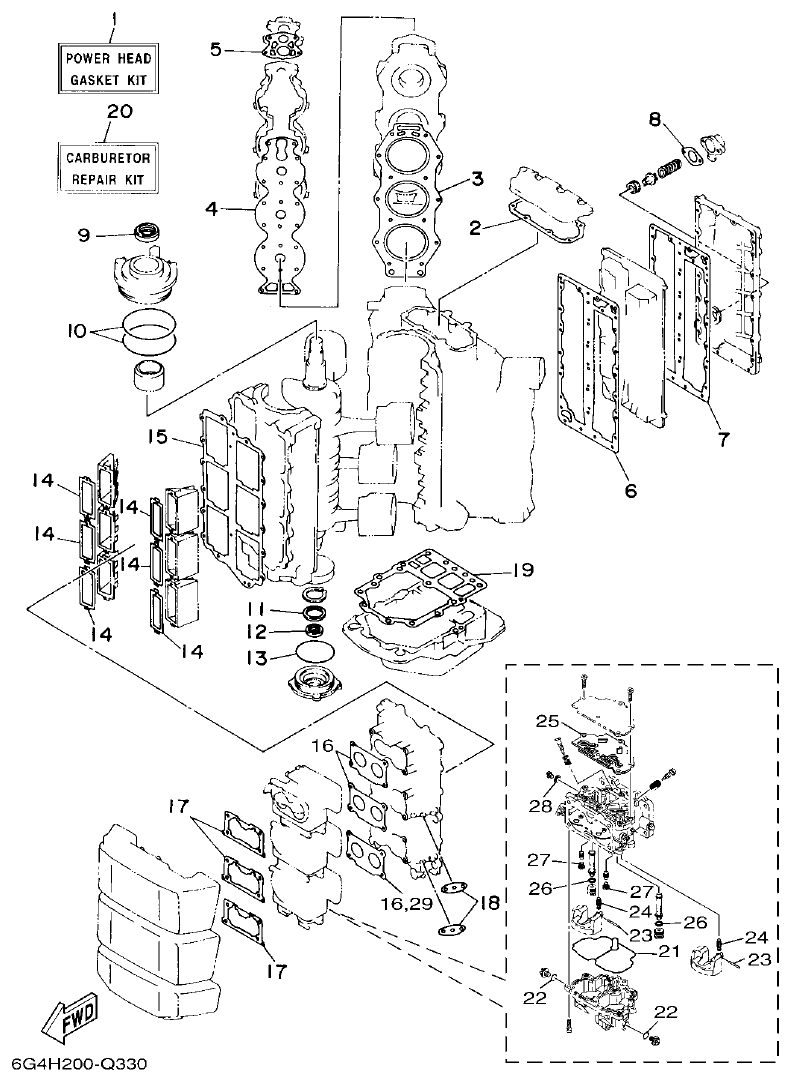

Yamaha 150AET, 200AET, L150AET, L200AET REPAIR KIT 1 parts diagram
Fig. 33 β€” REPAIR KIT 1
29 items Β· 15 catalog-linked products
Yamaha 150AET, 200AET, L150AET, L200AET REPAIR KIT 2 parts diagram

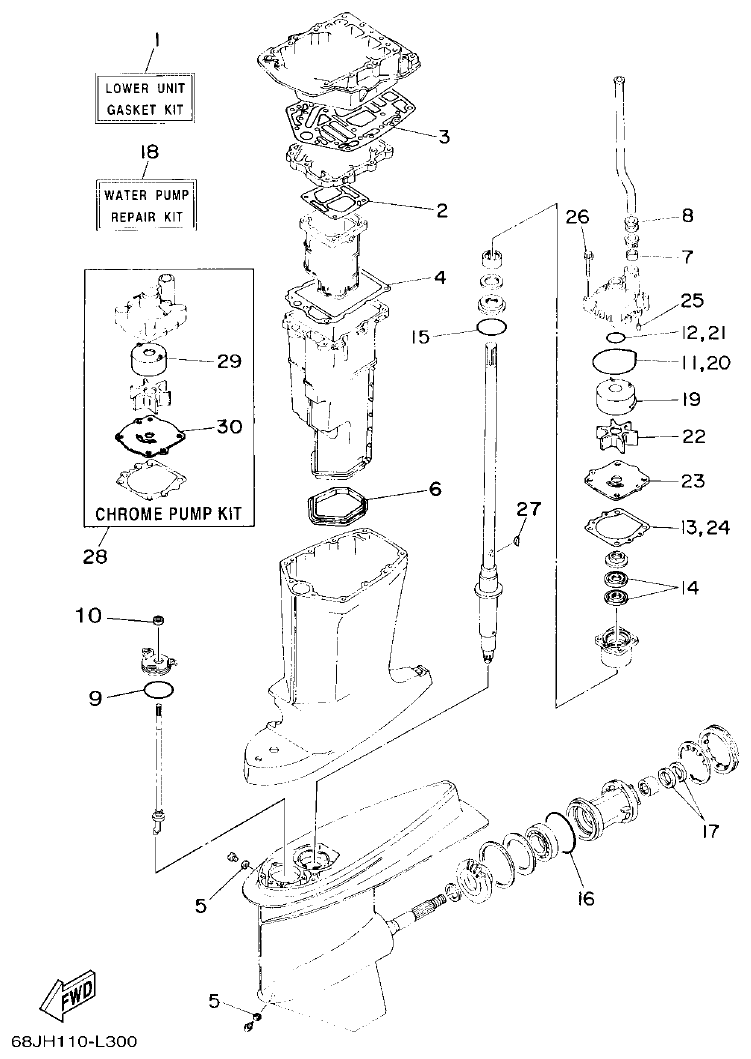

Fig. 34 β€” REPAIR KIT 2
30 items Β· 13 catalog-linked products

Yamaha 150AET, 200AET, L150AET, L200AET Outboard parts and diagrams

Yamaha 150AET, 200AET, L150AET, L200AET outboard parts catalog includes SCHEDULED SERVICE PARTS, TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, INTAKE, CARBURETOR, FUEL 1, FUEL 2, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, STARTING MOTOR, BOTTOM COWLING, CONTROL, BRACKET 1, BRACKET 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

357 linked store products are available across 34 catalog sections. 1137 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.
