Yamaha 250AETO, L250AETO Parts Catalog

Yamaha 250AETO, L250AETO Outboard parts and diagrams

Yamaha 250AETO, L250AETO outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, INTAKE, CARBURETOR, OIL PUMP, OIL TANK, FUEL 1, FUEL 2, FUEL 3, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, ELECTRICAL 4, STARTING MOTOR, BOTTOM COWLING. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

168 linked store products are available across 37 catalog sections. 1434 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

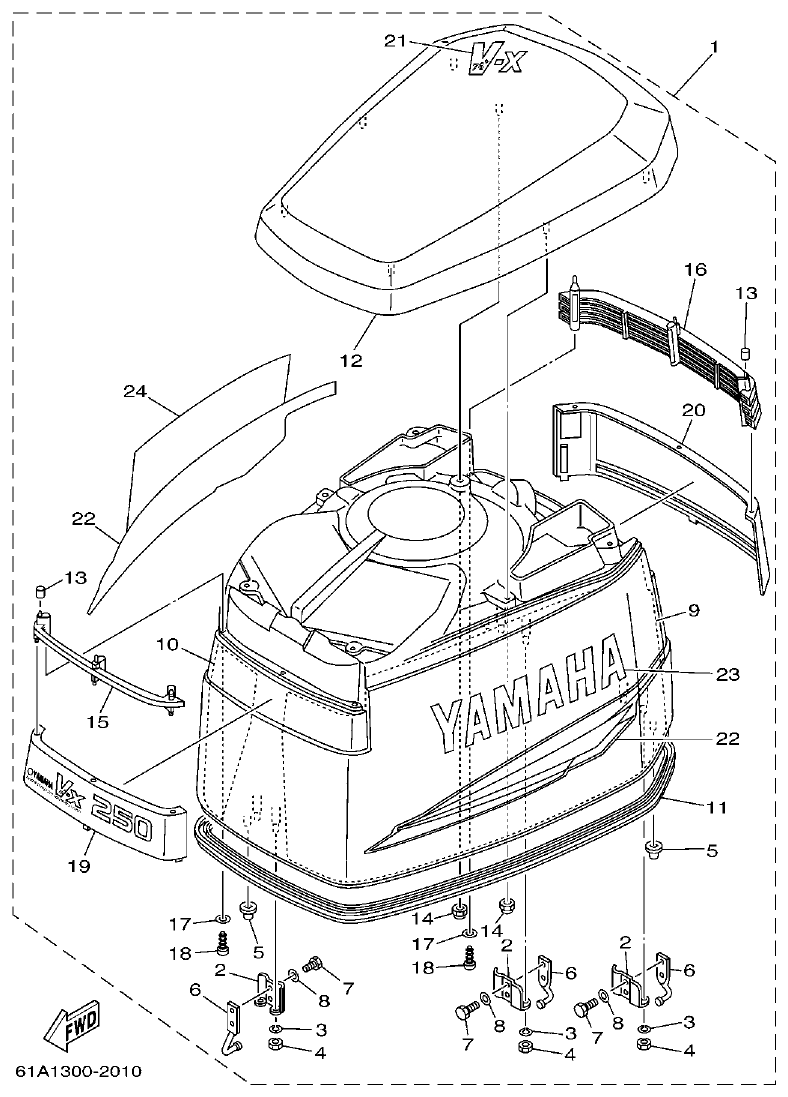

Yamaha 250AETO, L250AETO TOP COWLING parts diagram
Fig. 1 — TOP COWLING
24 items · 1 available products

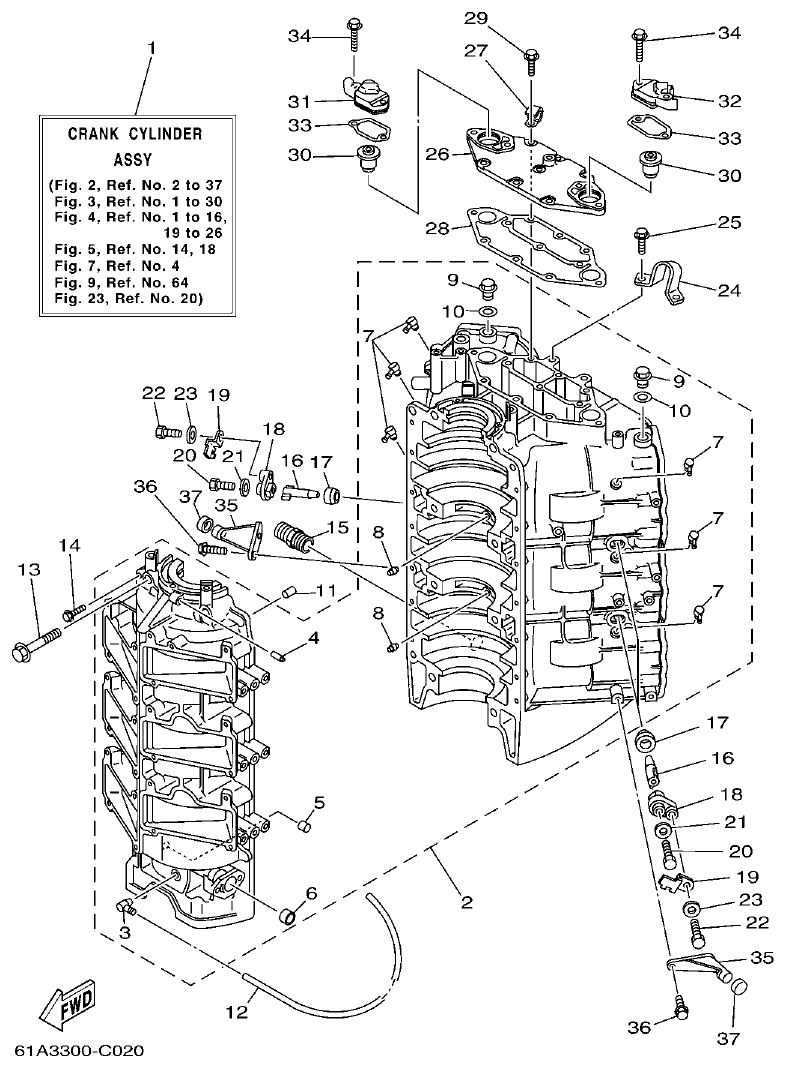

Yamaha 250AETO, L250AETO CYLINDER & CRANKCASE 1 parts diagram
Fig. 2 — CYLINDER & CRANKCASE 1
37 items · 5 available products

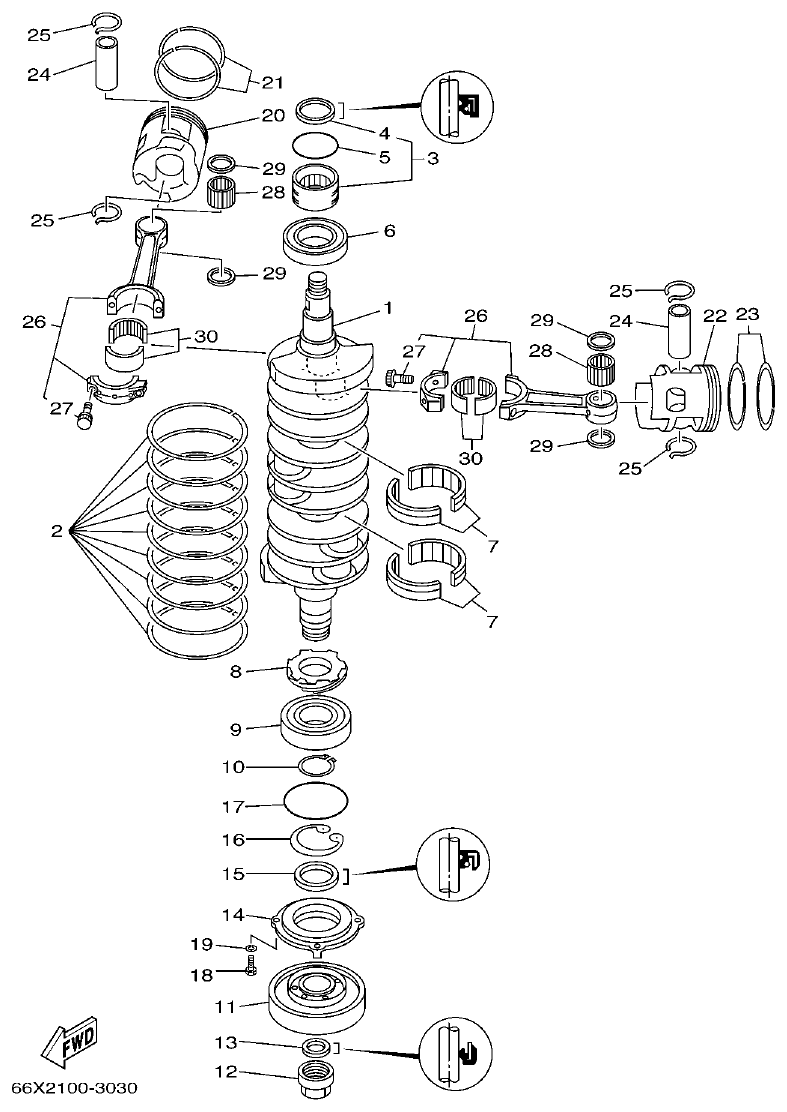

Yamaha 250AETO, L250AETO CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
38 items · 6 available products

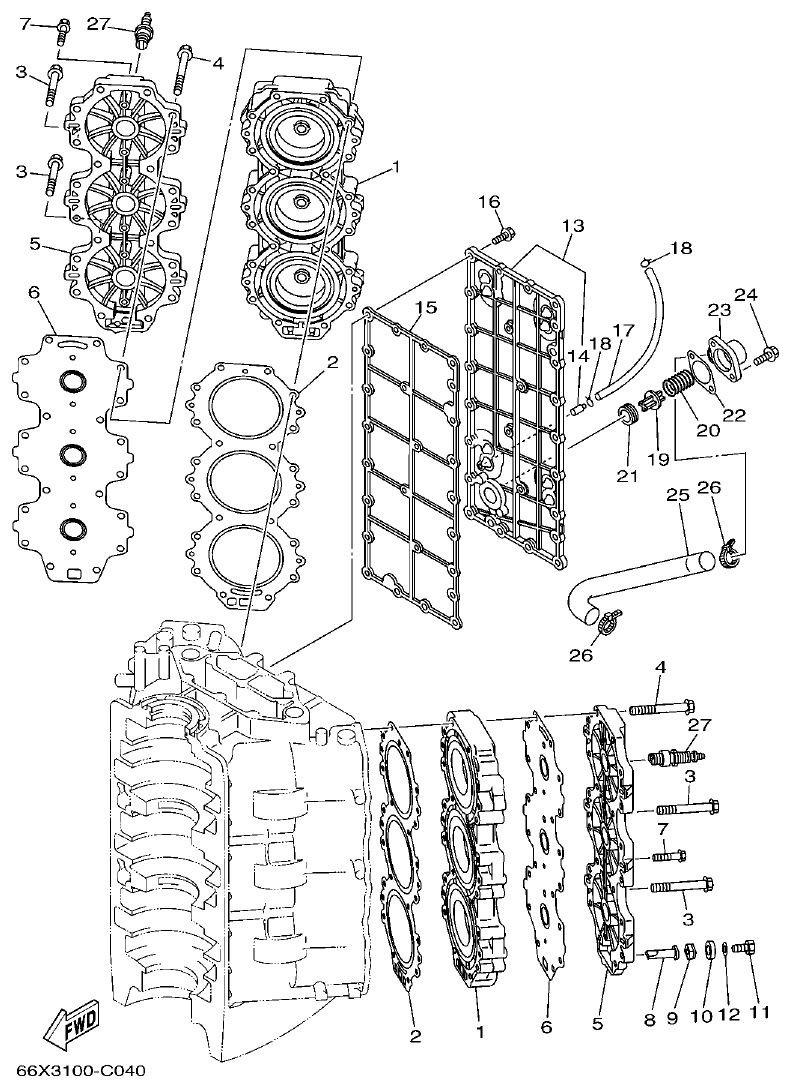

Yamaha 250AETO, L250AETO CYLINDER & CRANKCASE 2 parts diagram
Fig. 4 — CYLINDER & CRANKCASE 2
27 items · 4 available products

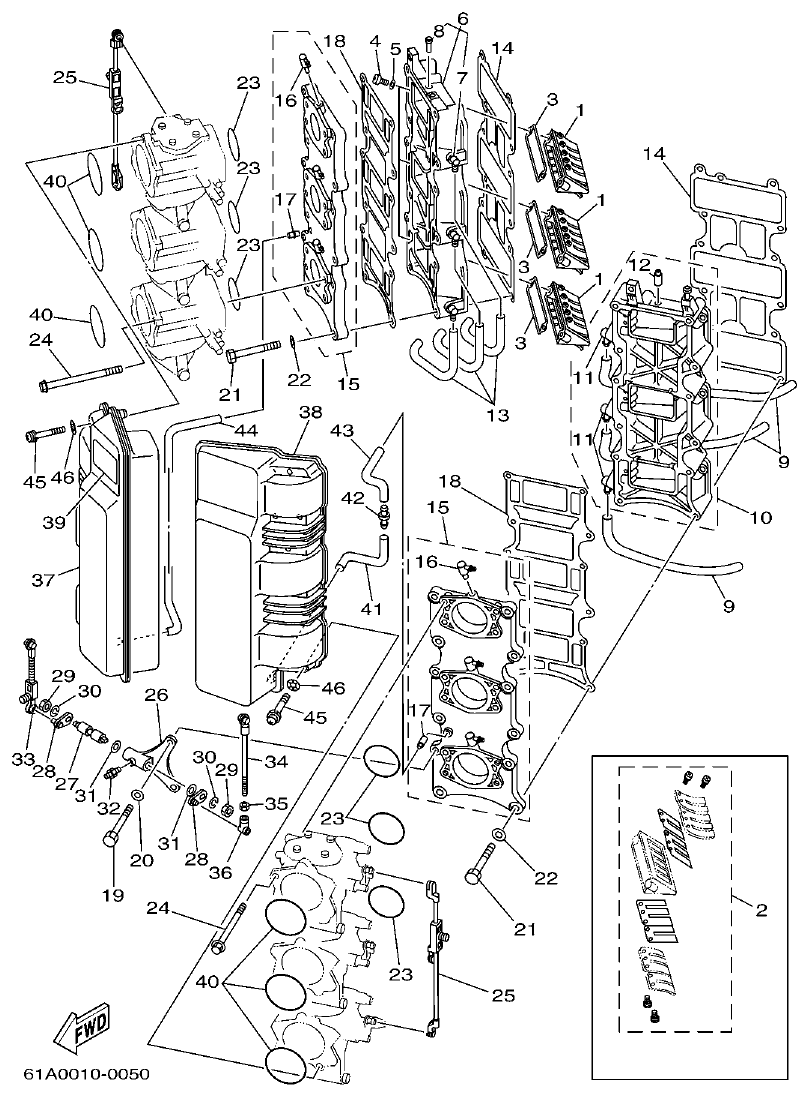

Yamaha 250AETO, L250AETO INTAKE parts diagram
Fig. 5 — INTAKE
46 items · 3 available products
Yamaha 250AETO, L250AETO CARBURETOR parts diagram

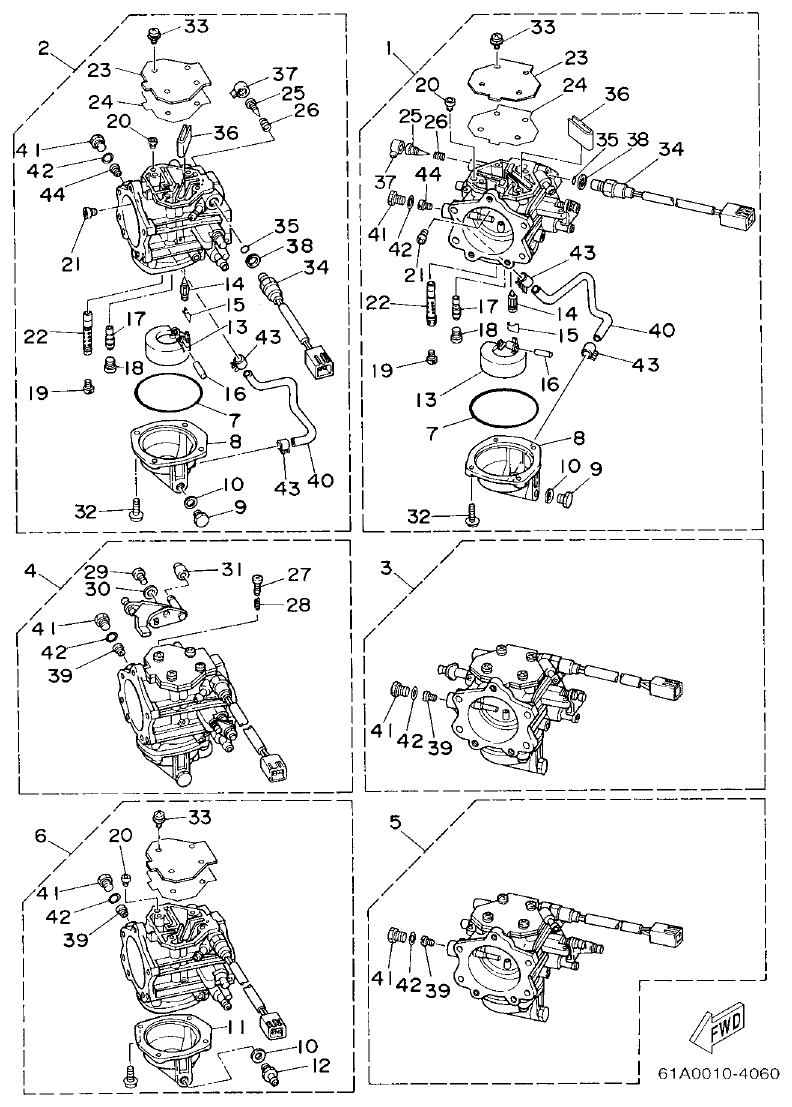

Fig. 6 — CARBURETOR
45 items · 3 available products

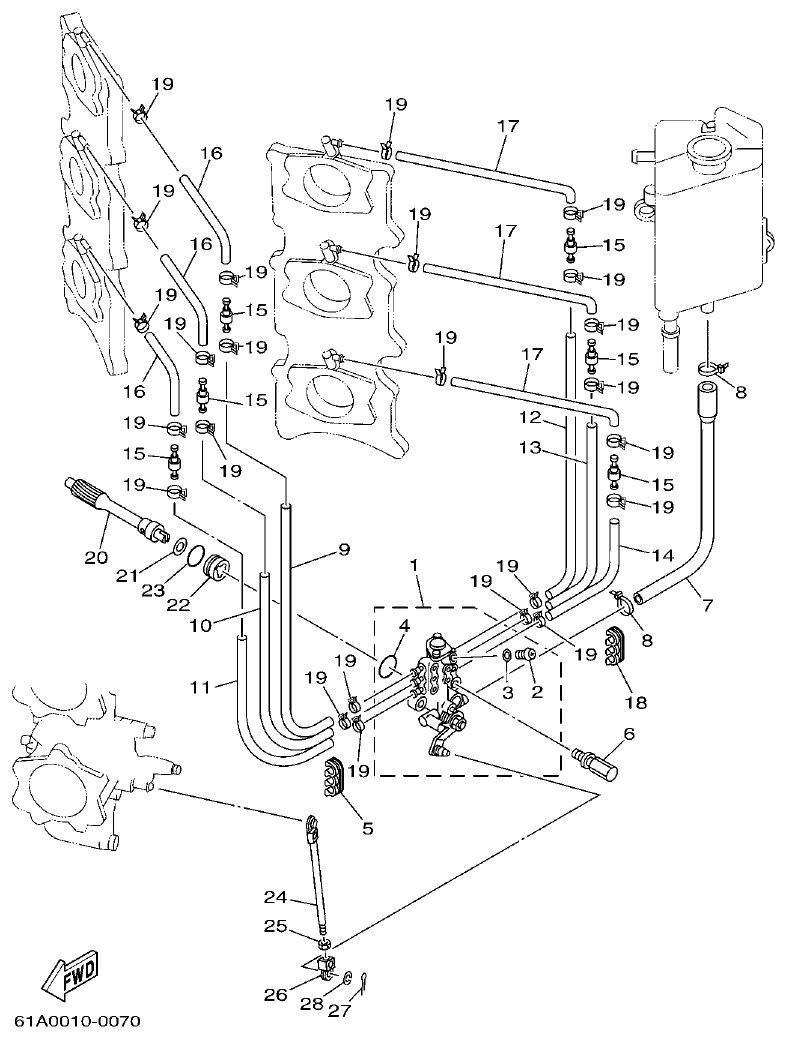

Yamaha 250AETO, L250AETO OIL PUMP parts diagram
Fig. 7 — OIL PUMP
28 items · 1 available products

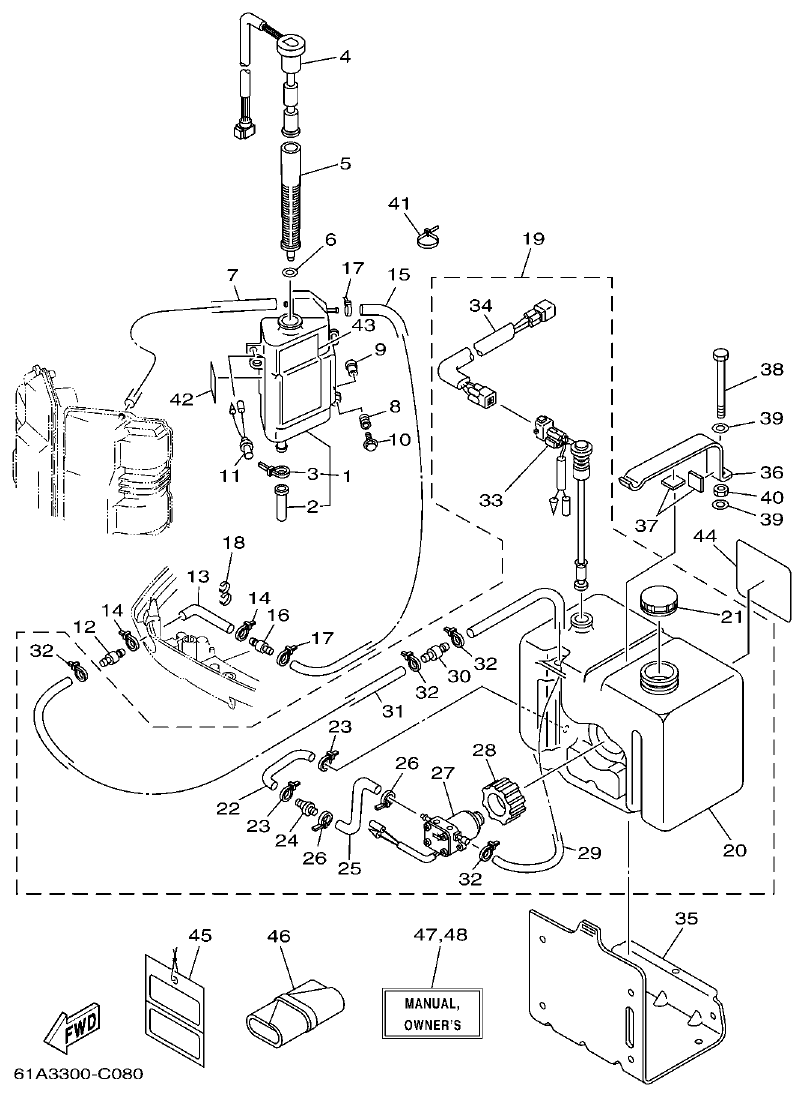

Yamaha 250AETO, L250AETO OIL TANK parts diagram
Fig. 8 — OIL TANK
50 items · 2 available products

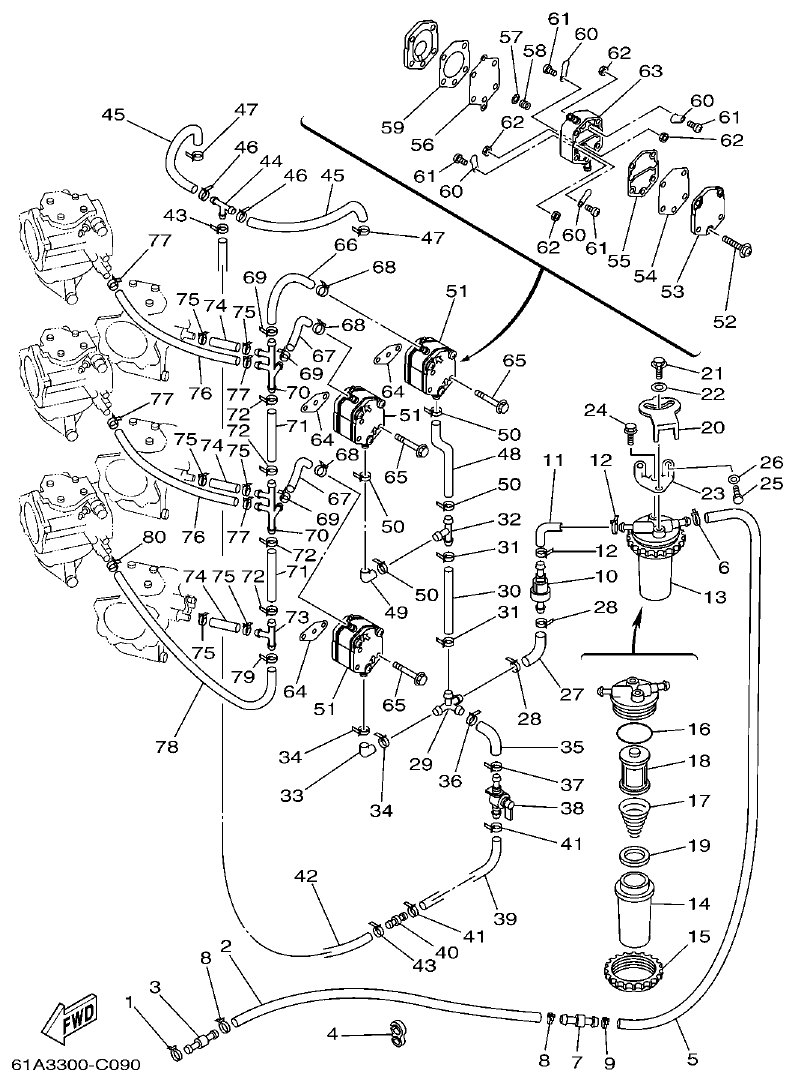

Yamaha 250AETO, L250AETO FUEL 1 parts diagram
Fig. 9 — FUEL 1
80 items · 12 available products
Yamaha 250AETO, L250AETO FUEL 2 parts diagram

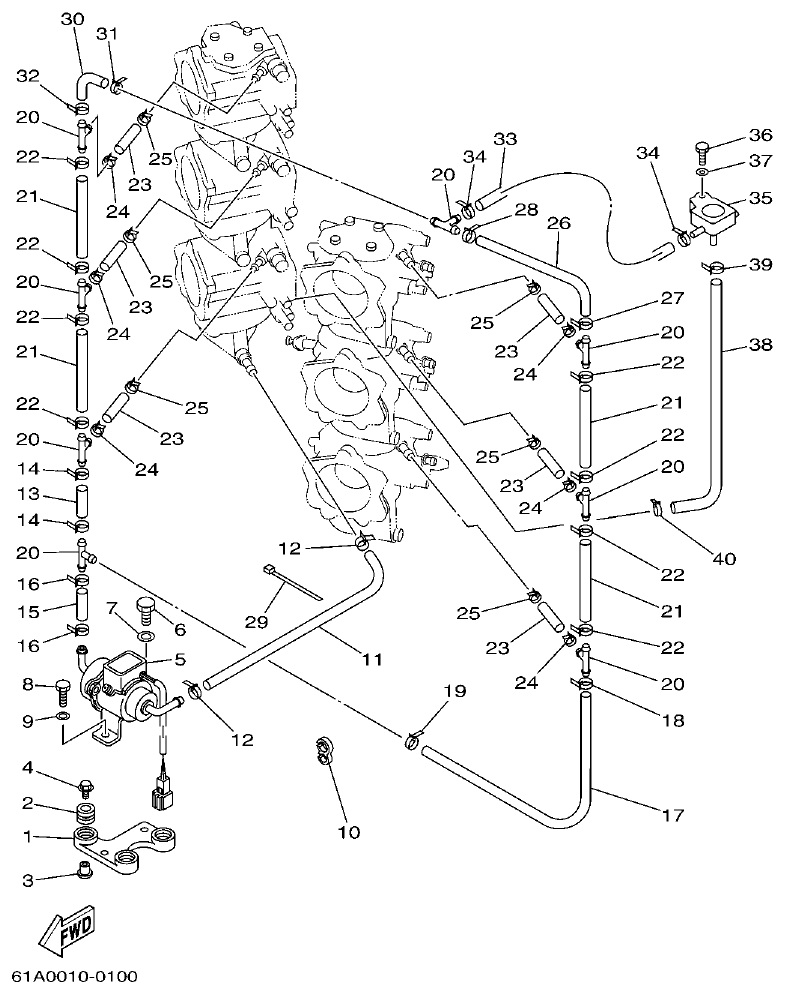

Fig. 10 — FUEL 2
40 items · 1 available products
Yamaha 250AETO, L250AETO FUEL 3 parts diagram

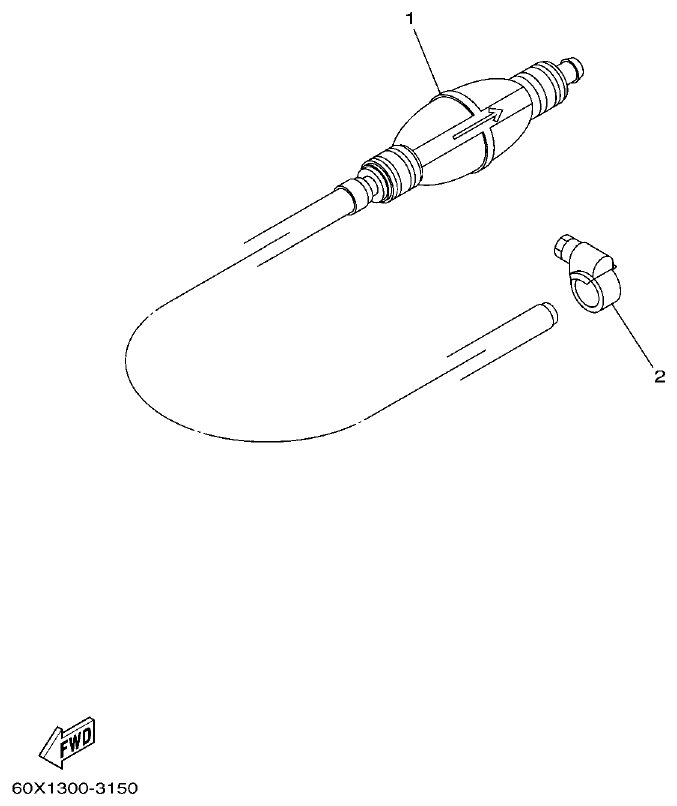

Fig. 11 — FUEL 3
2 items

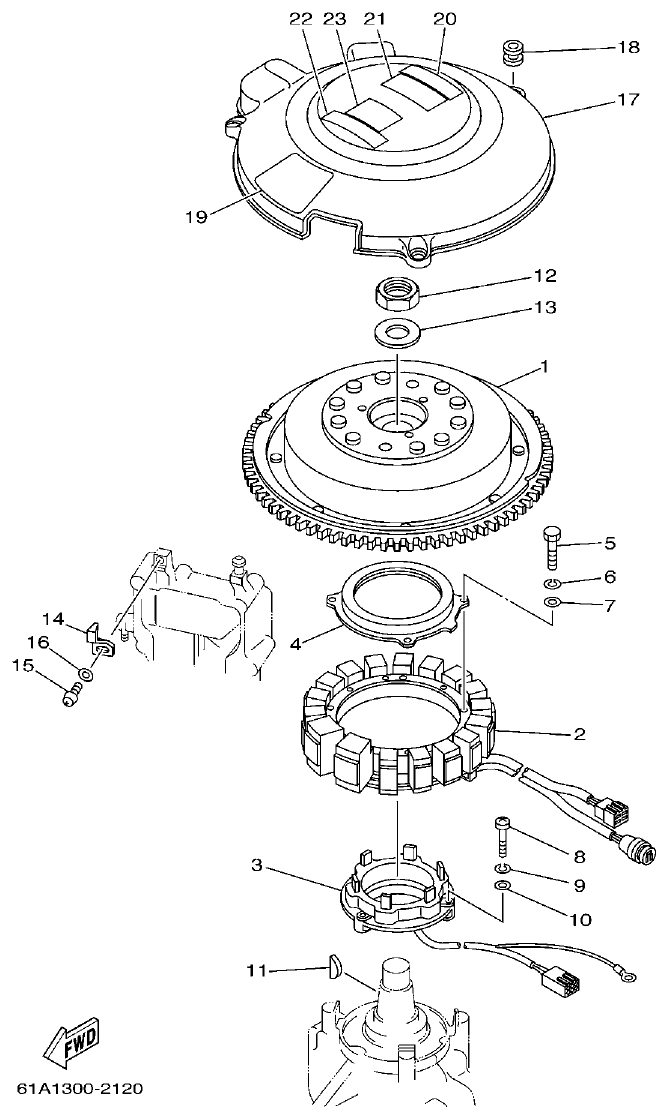

Yamaha 250AETO, L250AETO GENERATOR parts diagram
Fig. 12 — GENERATOR
23 items

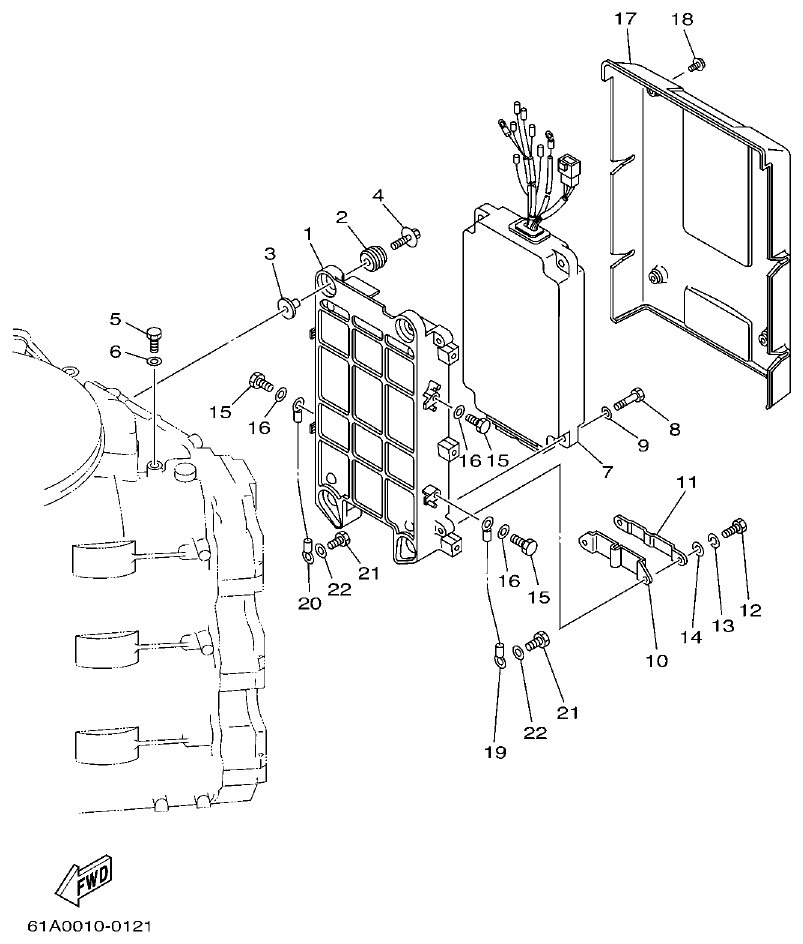

Yamaha 250AETO, L250AETO ELECTRICAL 1 parts diagram
Fig. 13 — ELECTRICAL 1
22 items

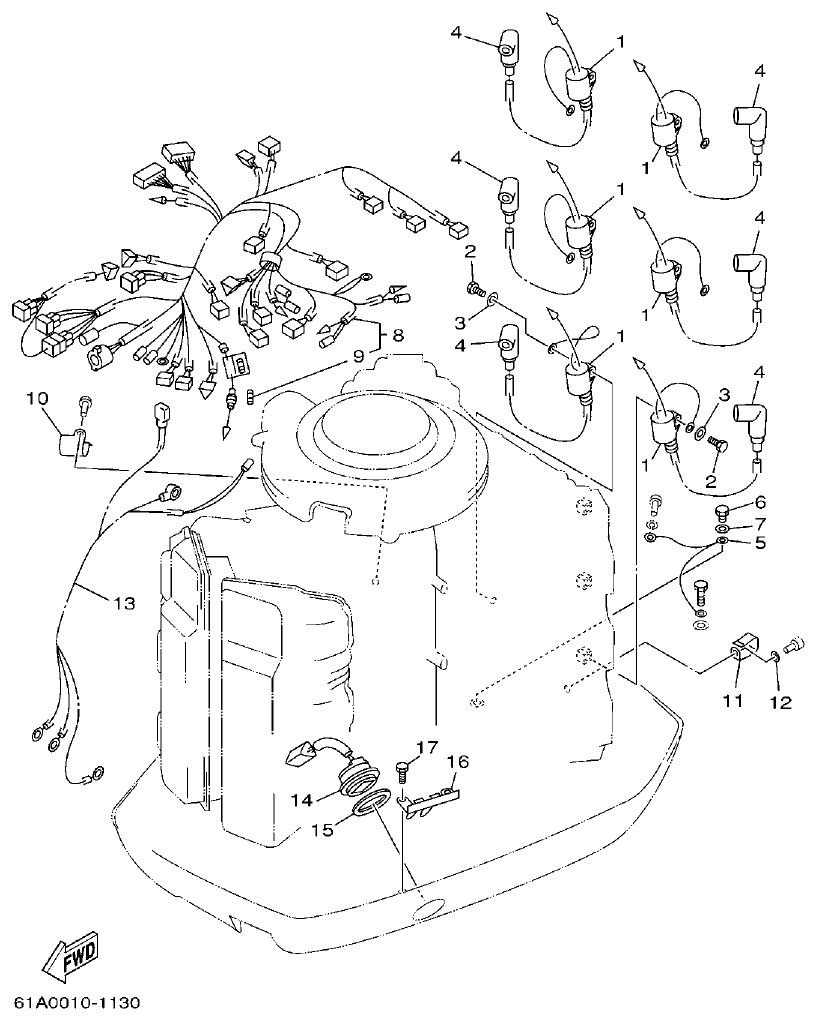

Yamaha 250AETO, L250AETO ELECTRICAL 2 parts diagram
Fig. 14 — ELECTRICAL 2
17 items · 1 available products
Yamaha 250AETO, L250AETO ELECTRICAL 3 parts diagram

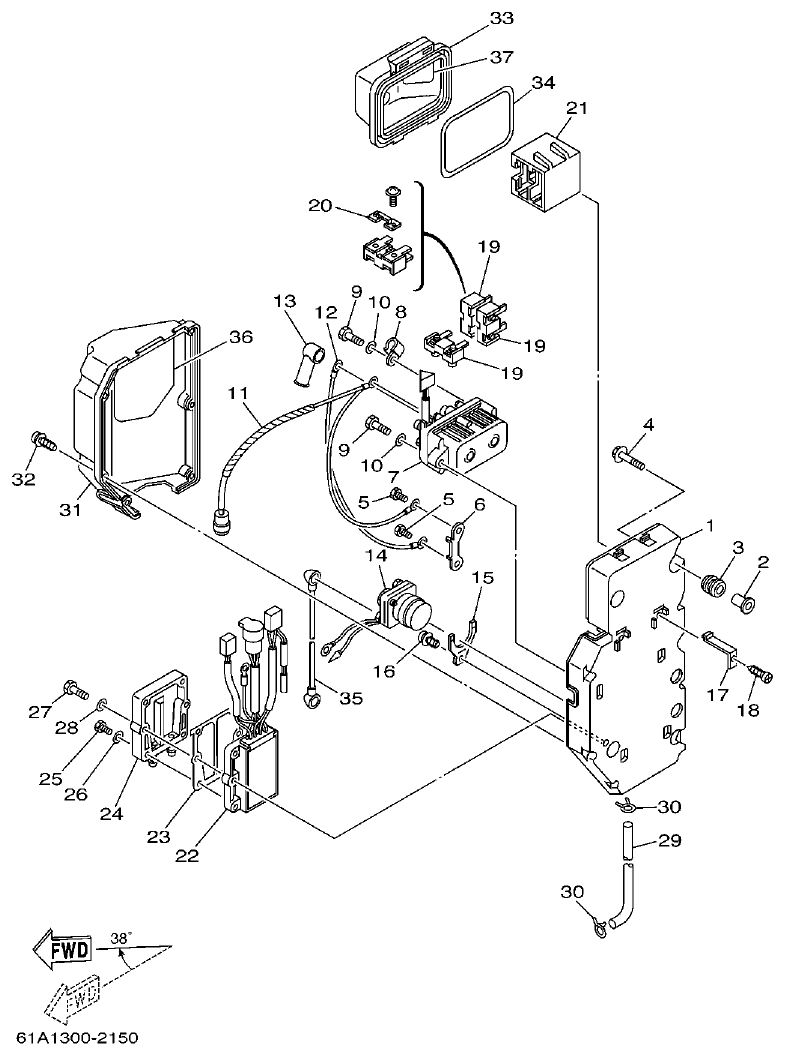

Fig. 15 — ELECTRICAL 3
37 items · 3 available products

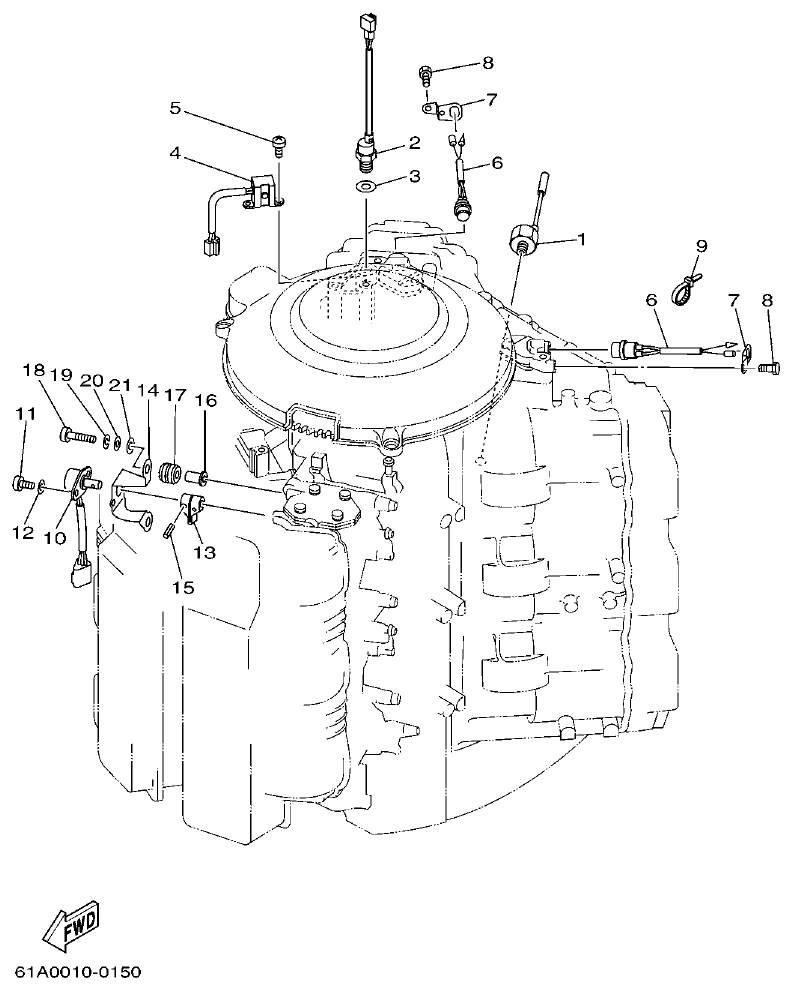

Yamaha 250AETO, L250AETO ELECTRICAL 4 parts diagram
Fig. 16 — ELECTRICAL 4
21 items · 2 available products

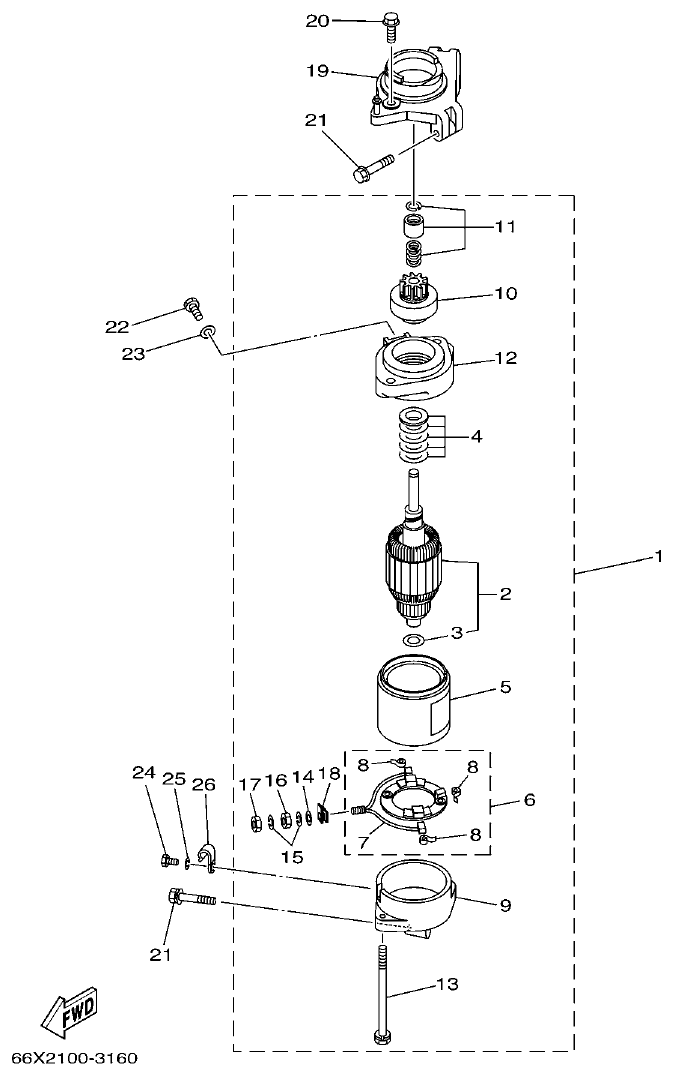

Yamaha 250AETO, L250AETO STARTING MOTOR parts diagram
Fig. 17 — STARTING MOTOR
26 items · 2 available products

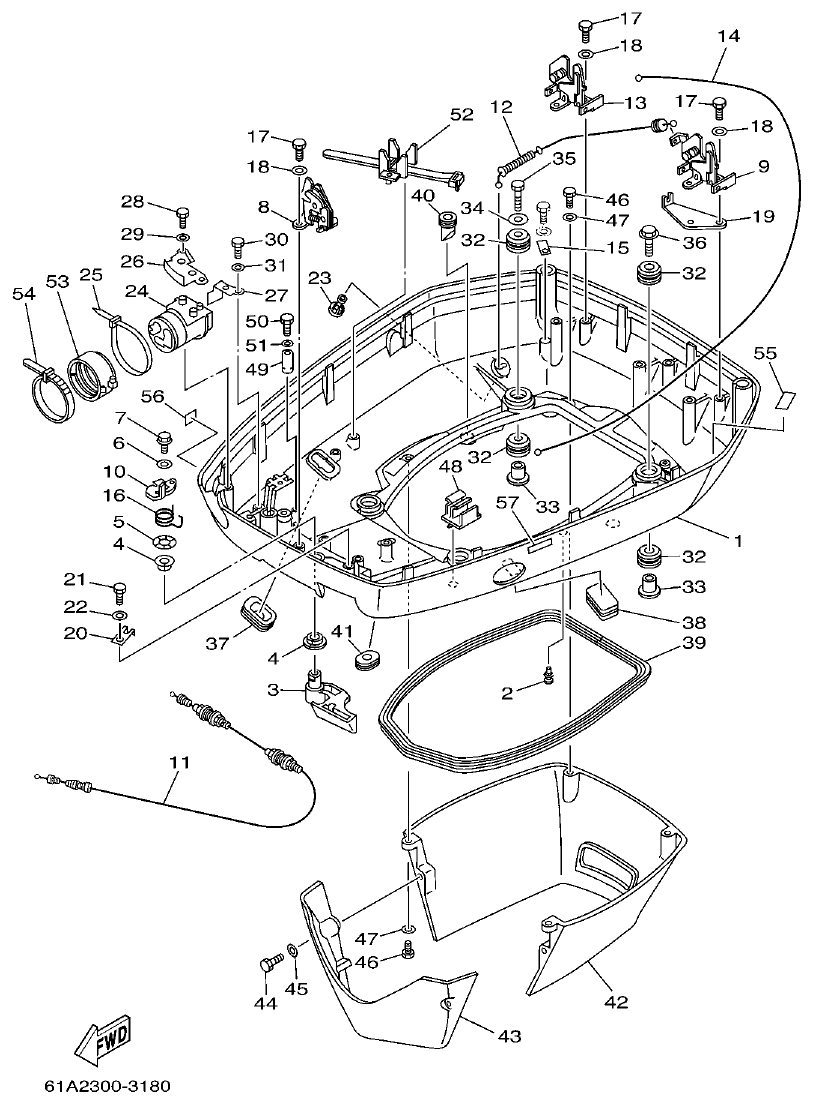

Yamaha 250AETO, L250AETO BOTTOM COWLING parts diagram
Fig. 18 — BOTTOM COWLING
57 items · 5 available products

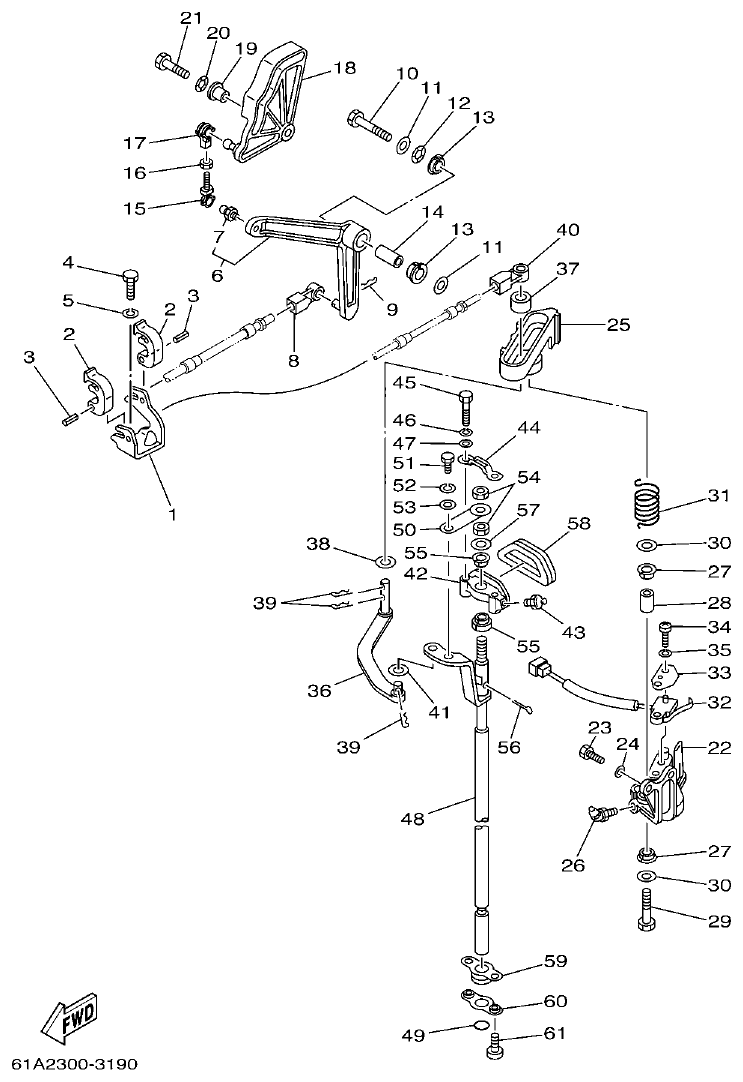

Yamaha 250AETO, L250AETO CONTROL parts diagram
Fig. 19 — CONTROL
61 items · 4 available products

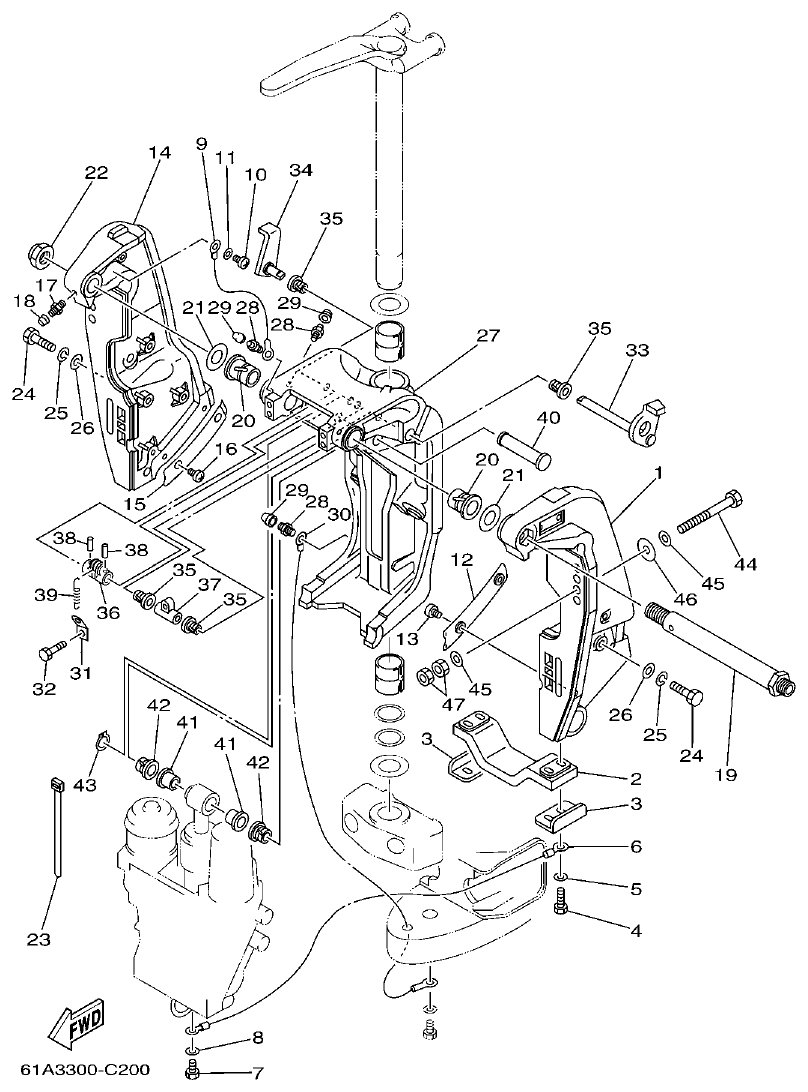

Yamaha 250AETO, L250AETO BRACKET 1 parts diagram
Fig. 20 — BRACKET 1
47 items · 7 available products

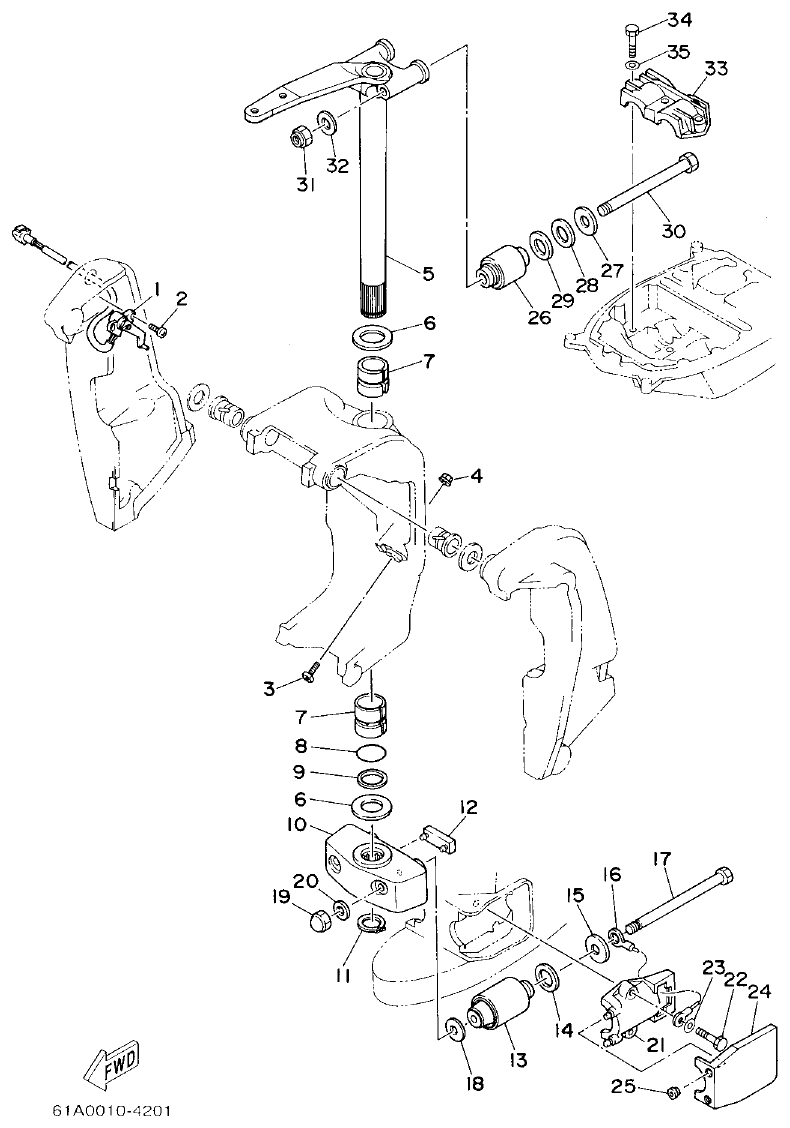

Yamaha 250AETO, L250AETO BRACKET 2 parts diagram
Fig. 21 — BRACKET 2
35 items · 3 available products
Yamaha 250AETO, L250AETO POWER TRIM & TILT ASSY parts diagram

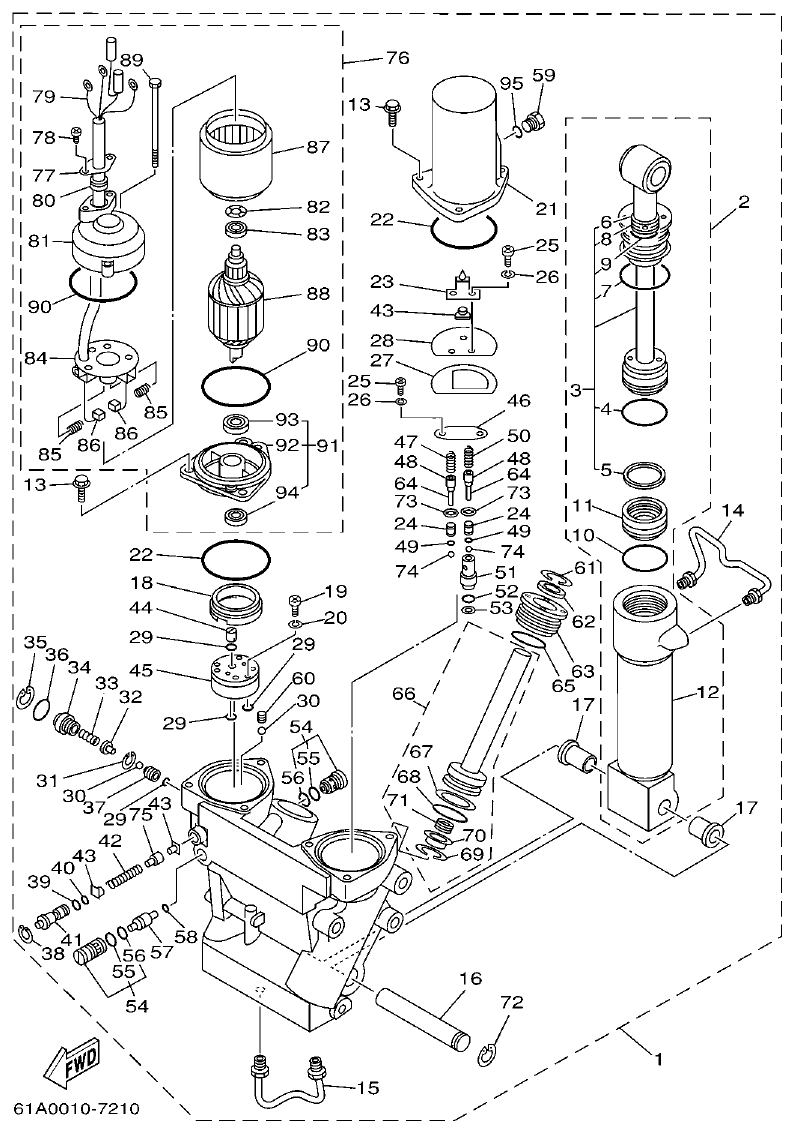

Fig. 22 — POWER TRIM & TILT ASSY
95 items · 15 available products

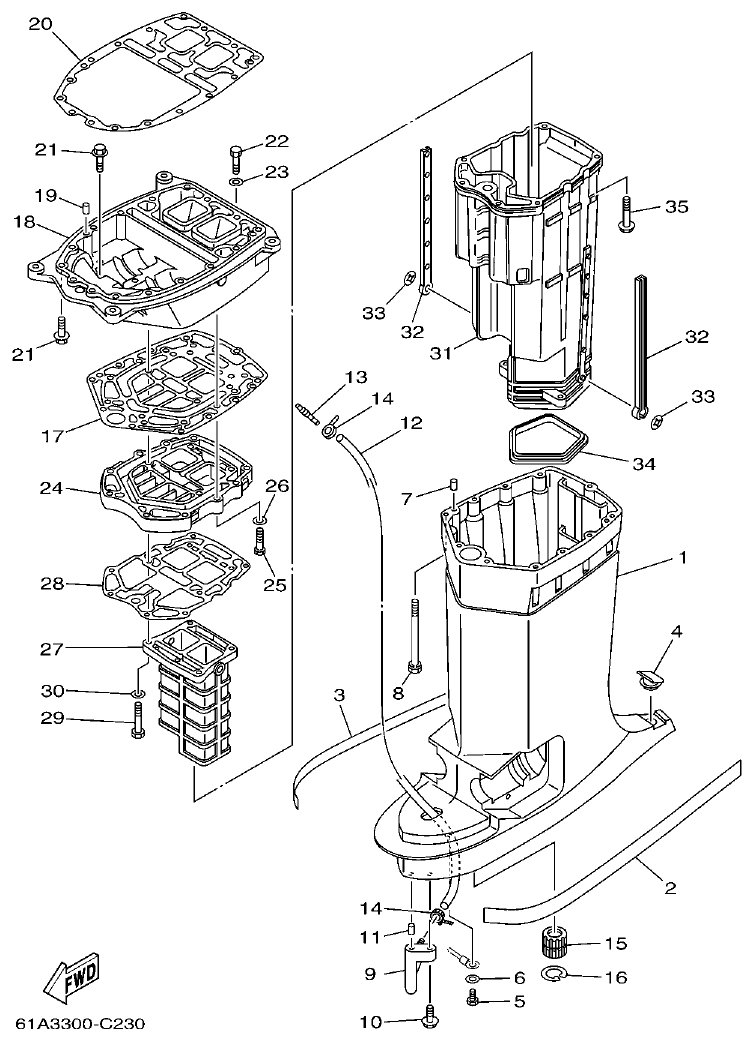

Yamaha 250AETO, L250AETO UPPER CASING parts diagram
Fig. 23 — UPPER CASING
35 items · 6 available products

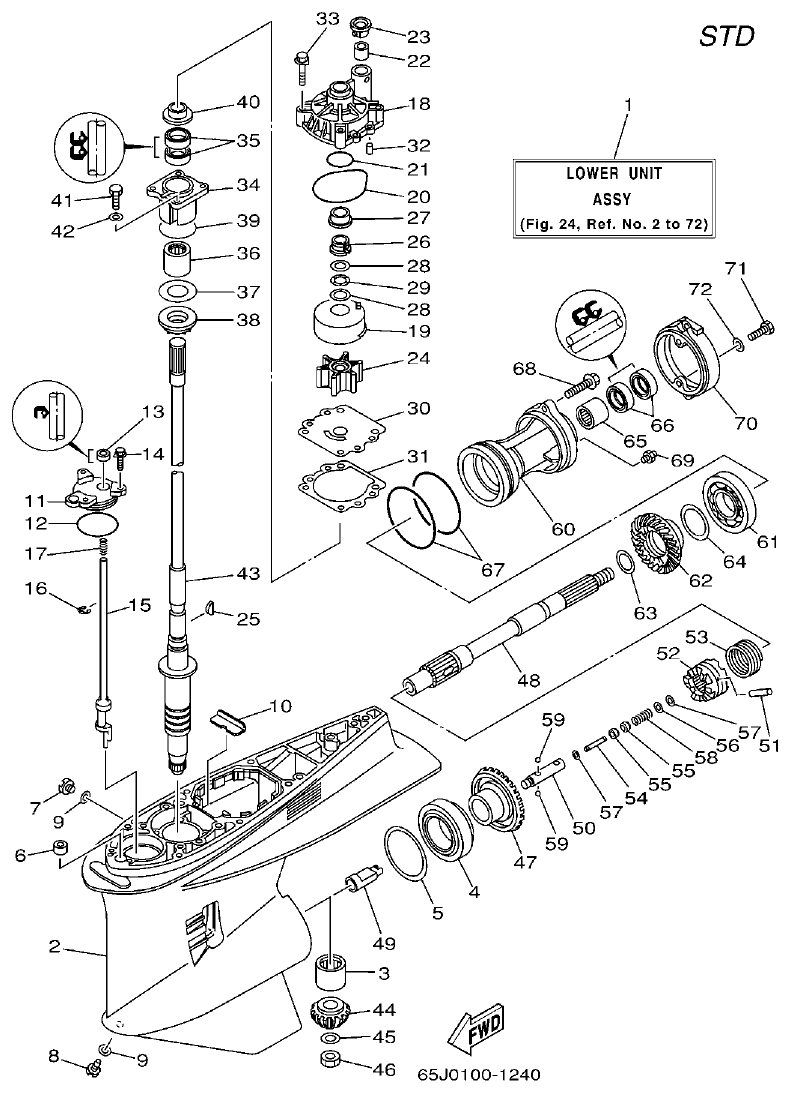

Yamaha 250AETO, L250AETO LOWER CASING & DRIVE 1 parts diagram
Fig. 24 — LOWER CASING & DRIVE 1
90 items · 21 available products

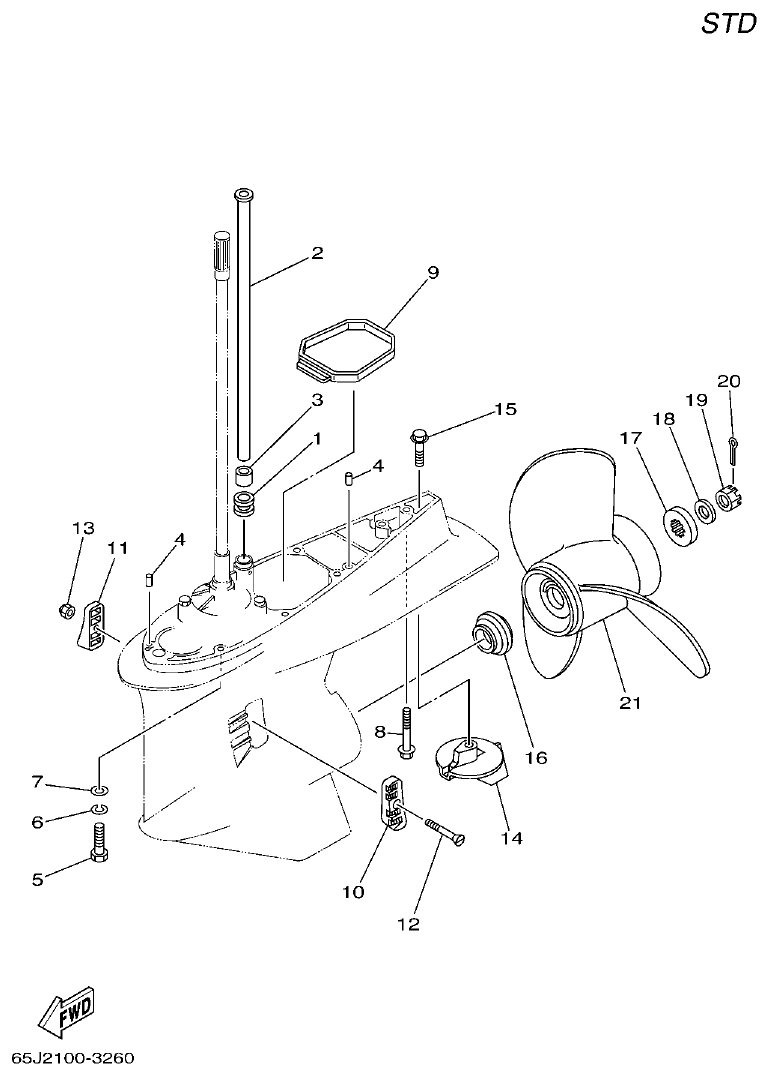

Yamaha 250AETO, L250AETO LOWER CASING & DRIVE 2 parts diagram
Fig. 25 — LOWER CASING & DRIVE 2
33 items · 4 available products

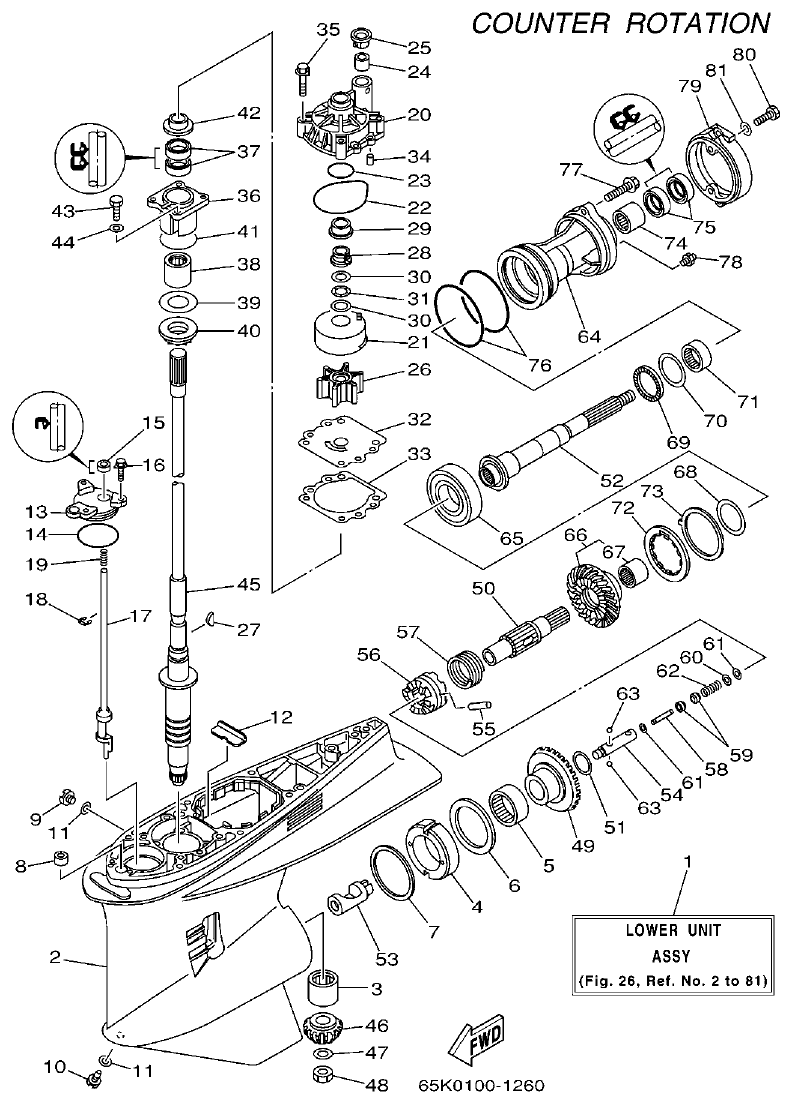

Yamaha 250AETO, L250AETO LOWER CASING & DRIVE 3 parts diagram
Fig. 26 — LOWER CASING & DRIVE 3
105 items · 18 available products

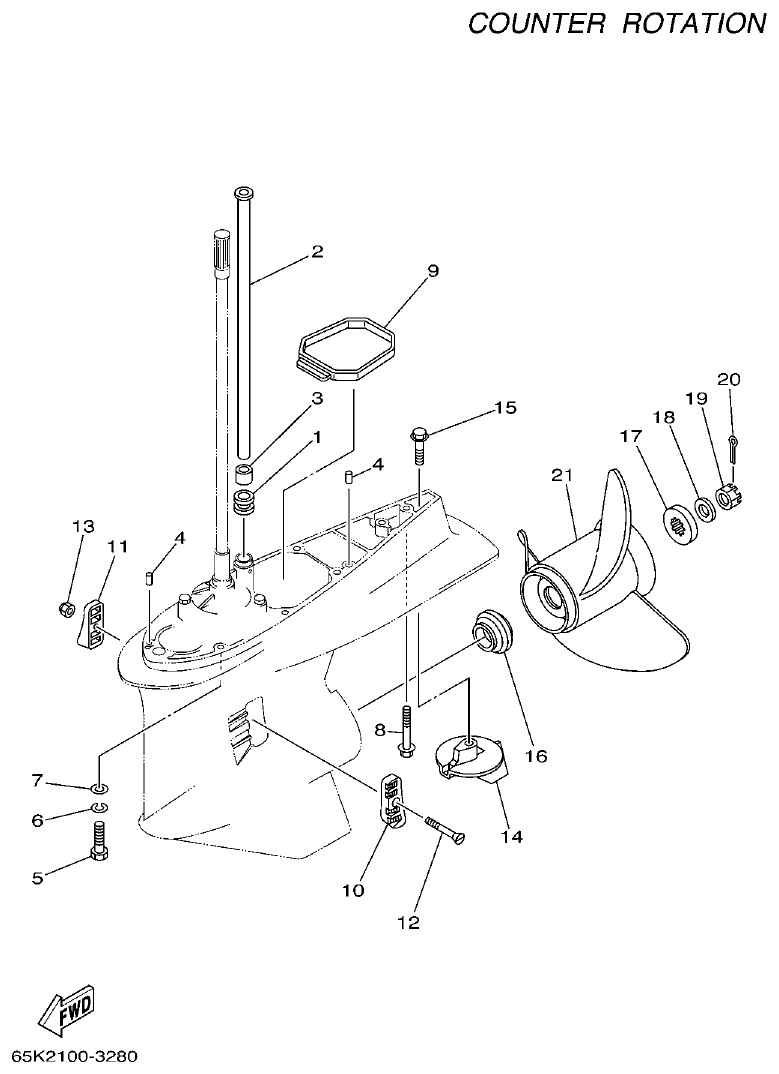

Yamaha 250AETO, L250AETO LOWER CASING & DRIVE 4 parts diagram
Fig. 27 — LOWER CASING & DRIVE 4
32 items · 3 available products

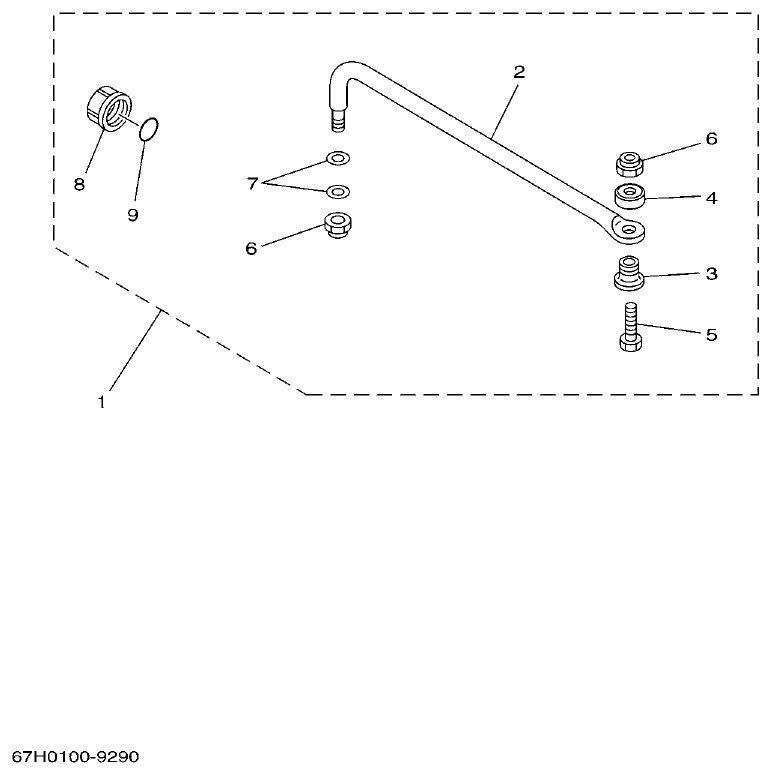

Yamaha 250AETO, L250AETO STEERING GUIDE ATTACHMENT 1 DIRECTION GUIDE ACCESSOIRE 1 parts diagram
Fig. 28 — STEERING GUIDE ATTACHMENT 1 DIRECTION GUIDE ACCESSOIRE 1
9 items · 2 available products

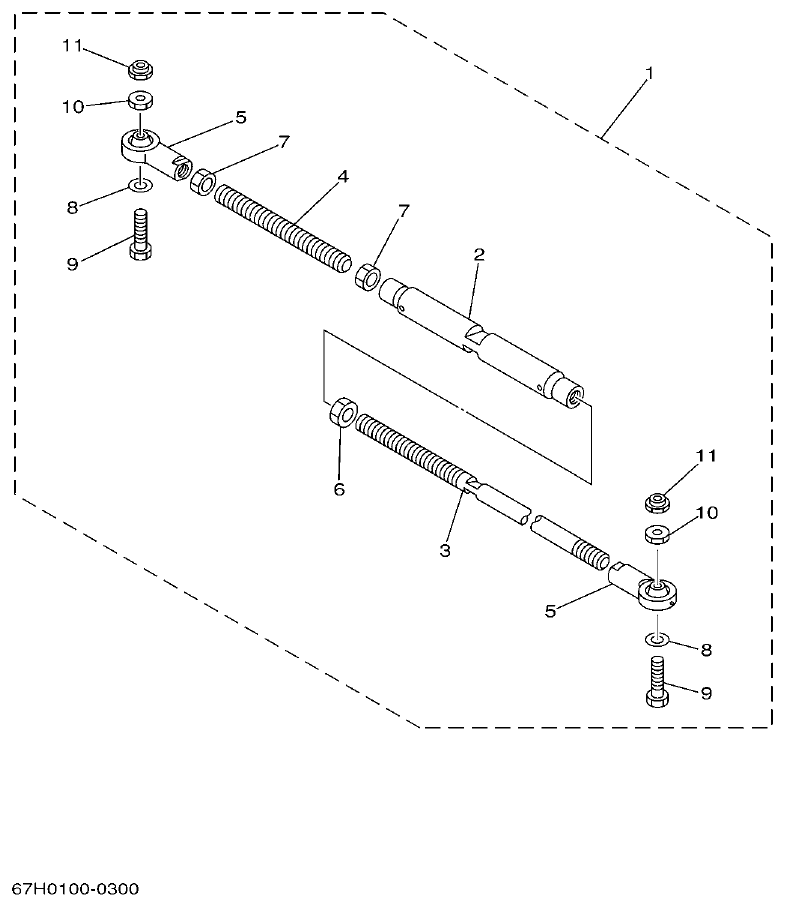

Yamaha 250AETO, L250AETO STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2 parts diagram
Fig. 29 — STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2
11 items · 1 available products
Yamaha 250AETO, L250AETO REMOTE CONTROL BOX parts diagram

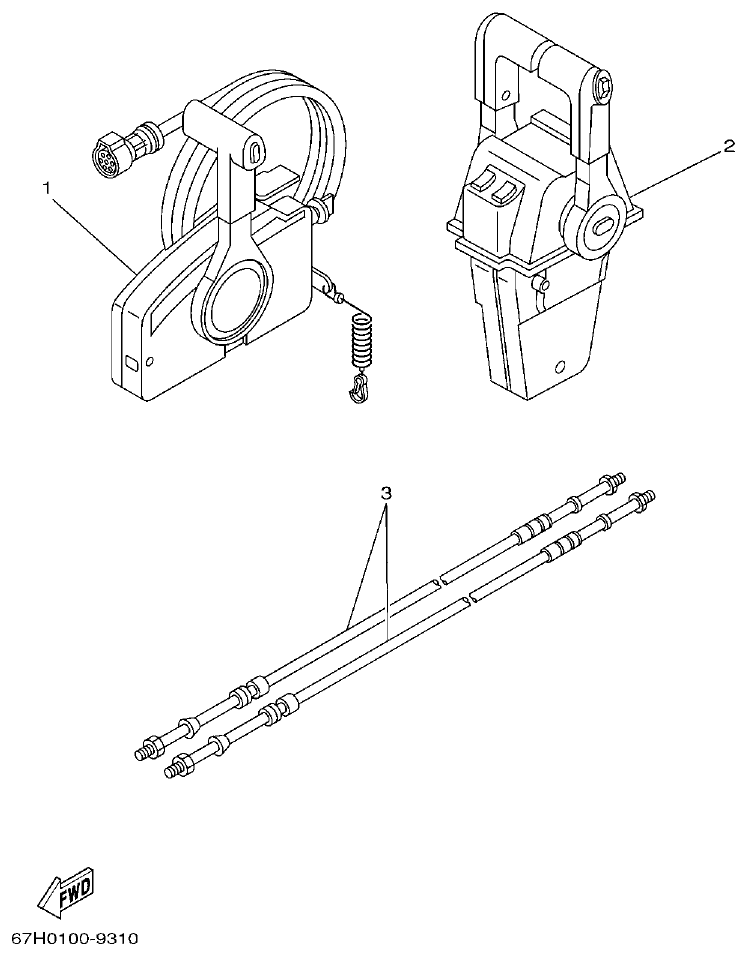

Fig. 30 — REMOTE CONTROL BOX
6 items

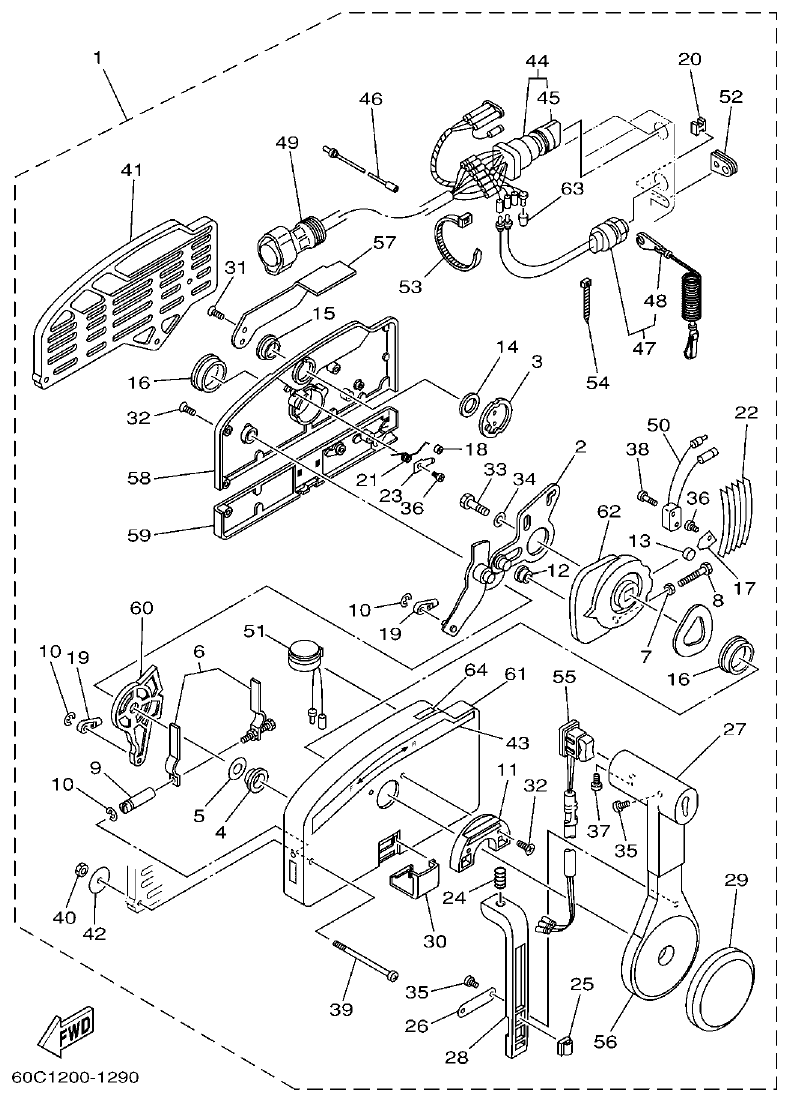

Yamaha 250AETO, L250AETO REMOTE CONTROL ASSY 1 parts diagram
Fig. 31 — REMOTE CONTROL ASSY 1
64 items · 11 available products

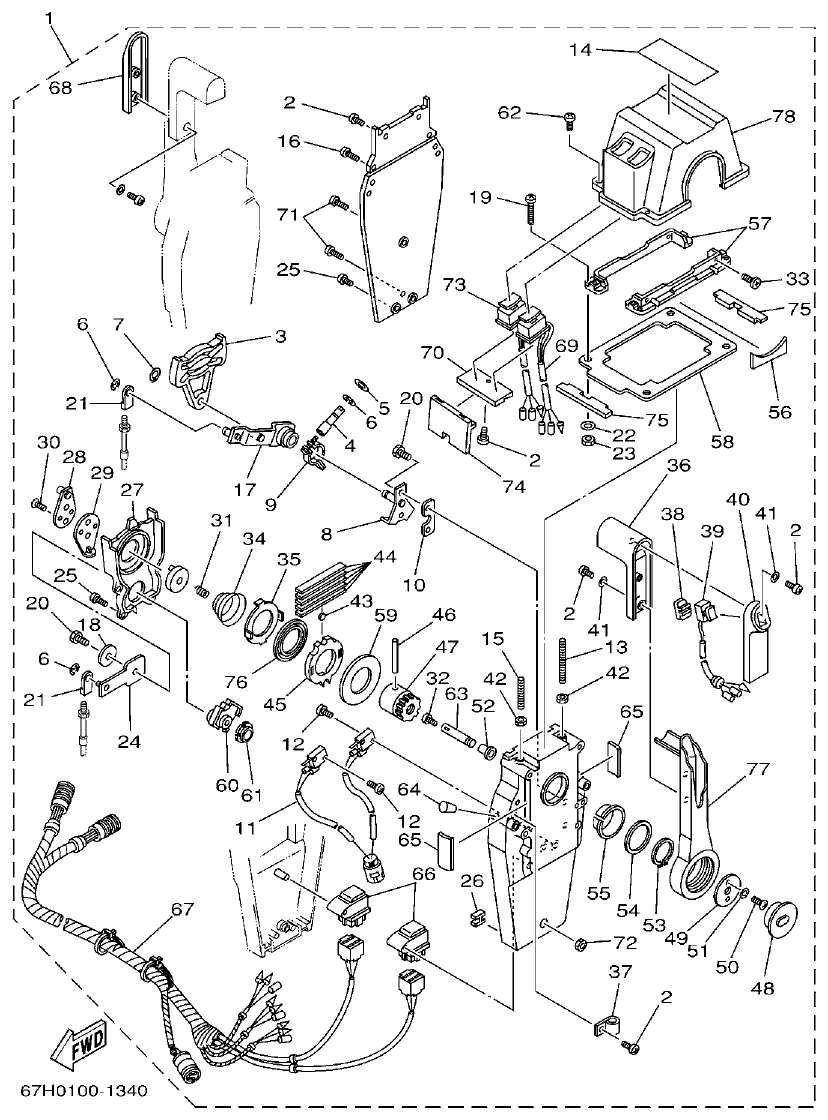

Yamaha 250AETO, L250AETO REMOTE CONTROL ASSY 2 parts diagram
Fig. 32 — REMOTE CONTROL ASSY 2
78 items · 2 available products

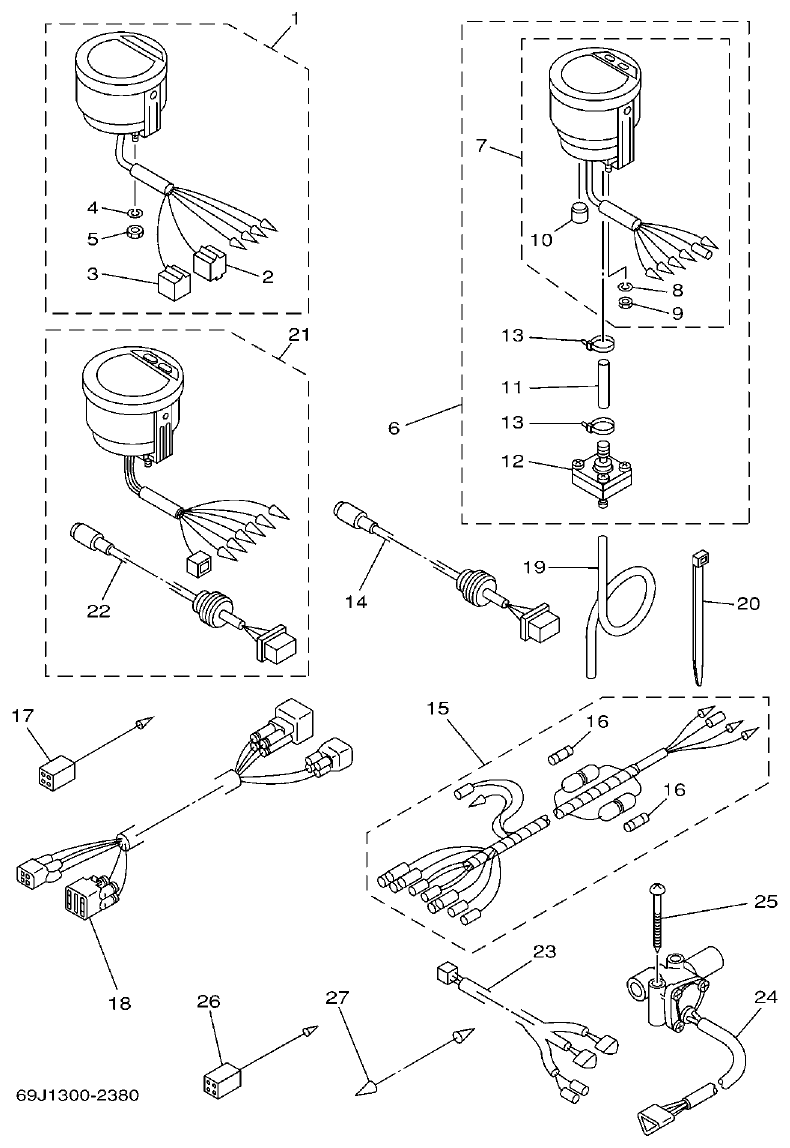

Yamaha 250AETO, L250AETO METER parts diagram
Fig. 33 — METER
30 items · 2 available products
Yamaha 250AETO, L250AETO SWITCH & PANEL parts diagram

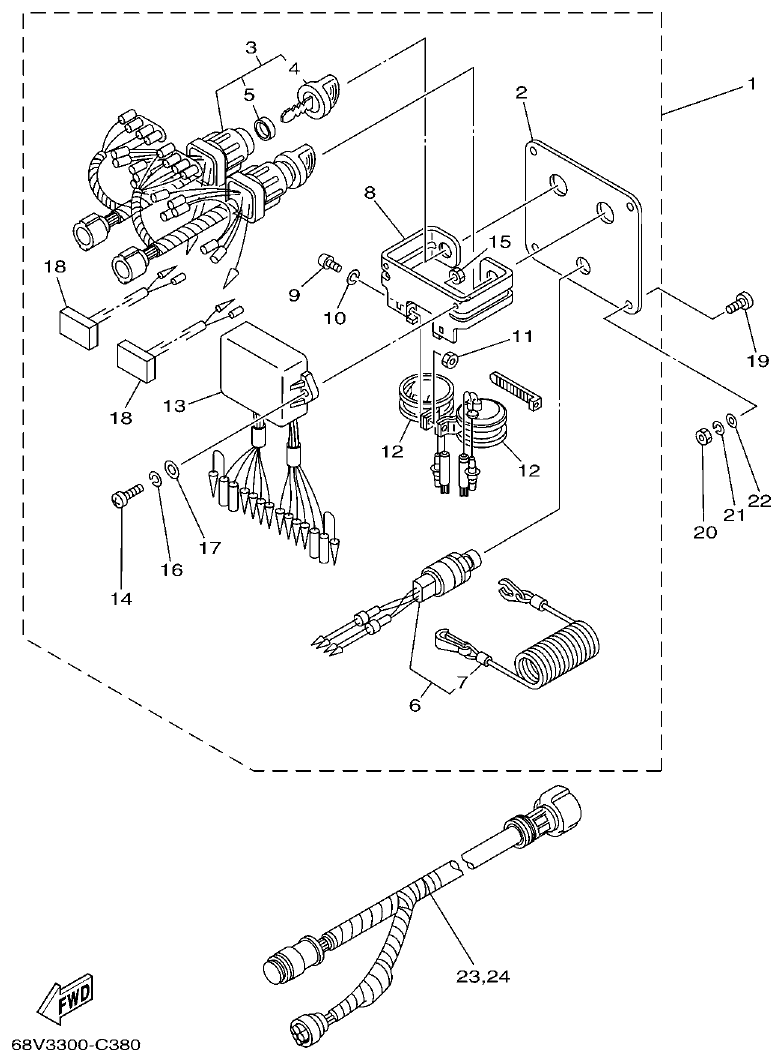

Fig. 34 — SWITCH & PANEL
24 items · 2 available products

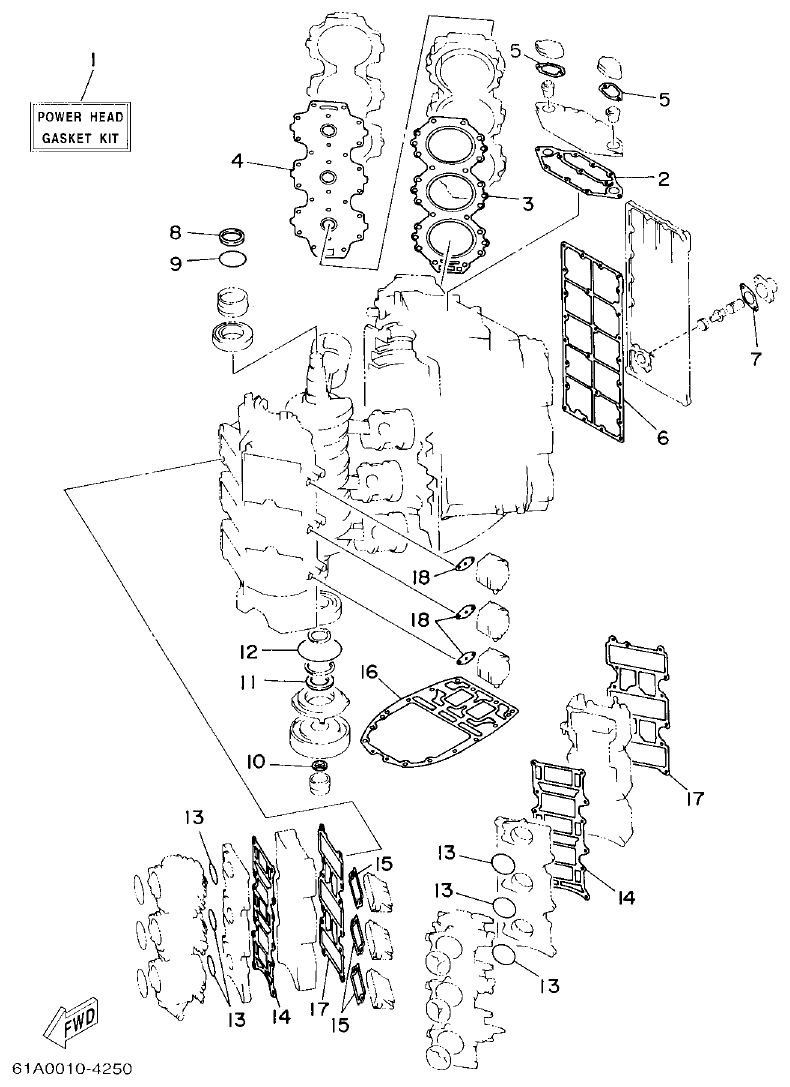

Yamaha 250AETO, L250AETO REPAIR KIT 1 parts diagram
Fig. 35 — REPAIR KIT 1
18 items · 5 available products

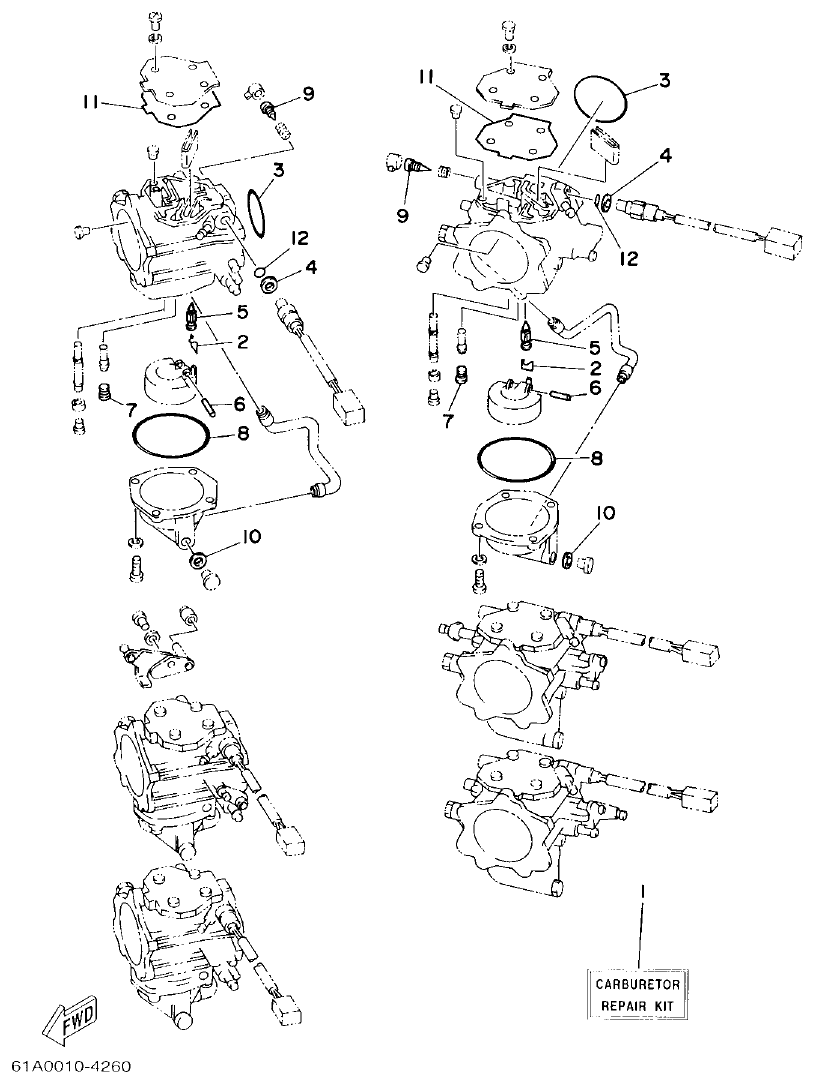

Yamaha 250AETO, L250AETO REPAIR KIT 2 parts diagram
Fig. 36 — REPAIR KIT 2
12 items · 3 available products
Yamaha 250AETO, L250AETO REPAIR KIT 3 parts diagram

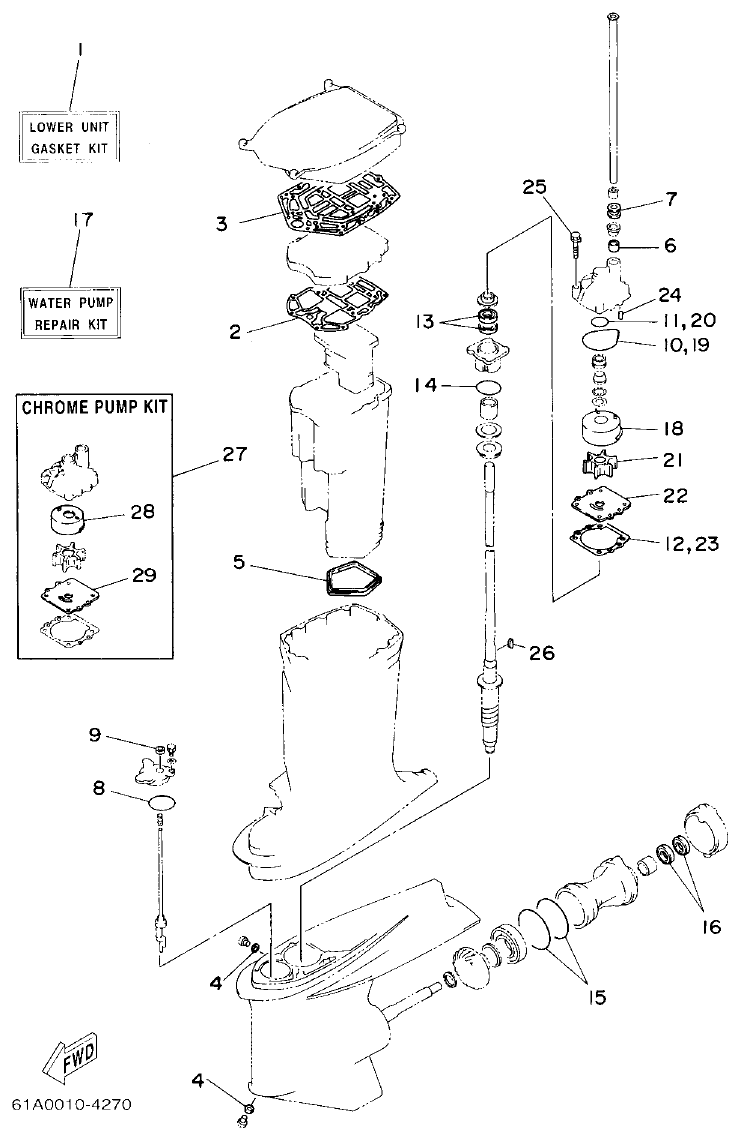

Fig. 37 — REPAIR KIT 3
29 items · 8 available products
