Yamaha 25B, 25X, 30H Parts Catalog

Yamaha 25B, 25X, 30H Outboard parts and diagrams

Yamaha 25B, 25X, 30H outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, STEERING, CONTROL 1, CONTROL 2, REMO CON ATTACHMENT, BRACKET 1, BRACKET 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

124 linked store products are available across 27 catalog sections. 855 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

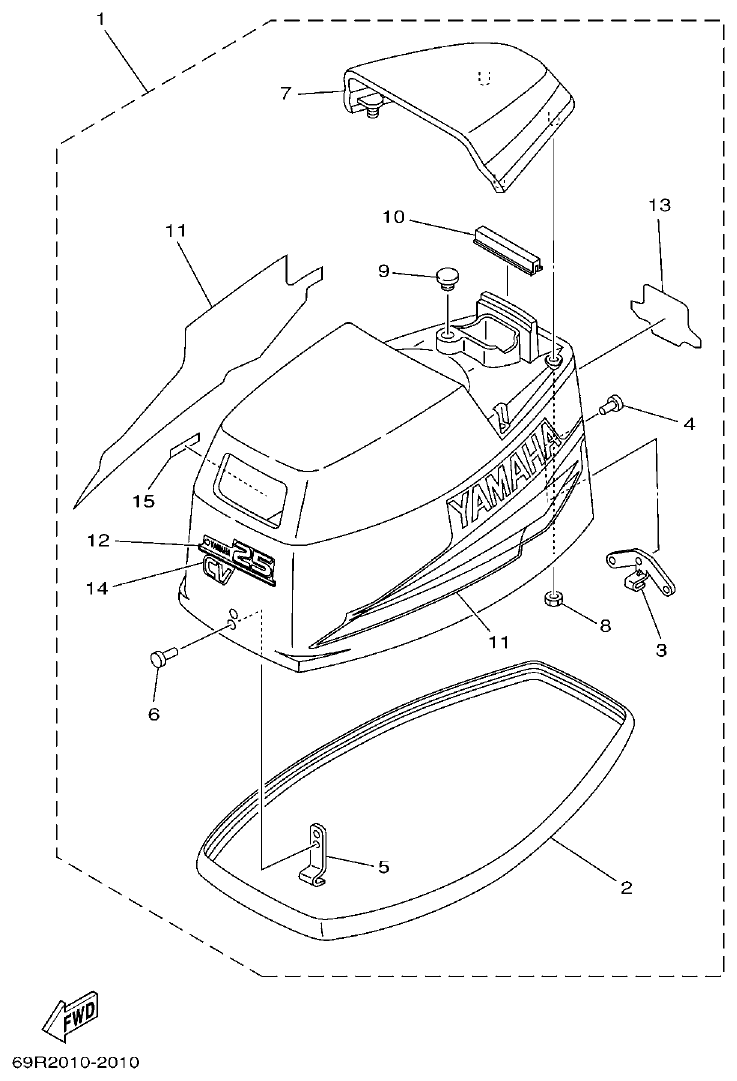

Yamaha 25B, 25X, 30H TOP COWLING parts diagram
Fig. 1 — TOP COWLING
19 items
Yamaha 25B, 25X, 30H CYLINDER & CRANKCASE parts diagram

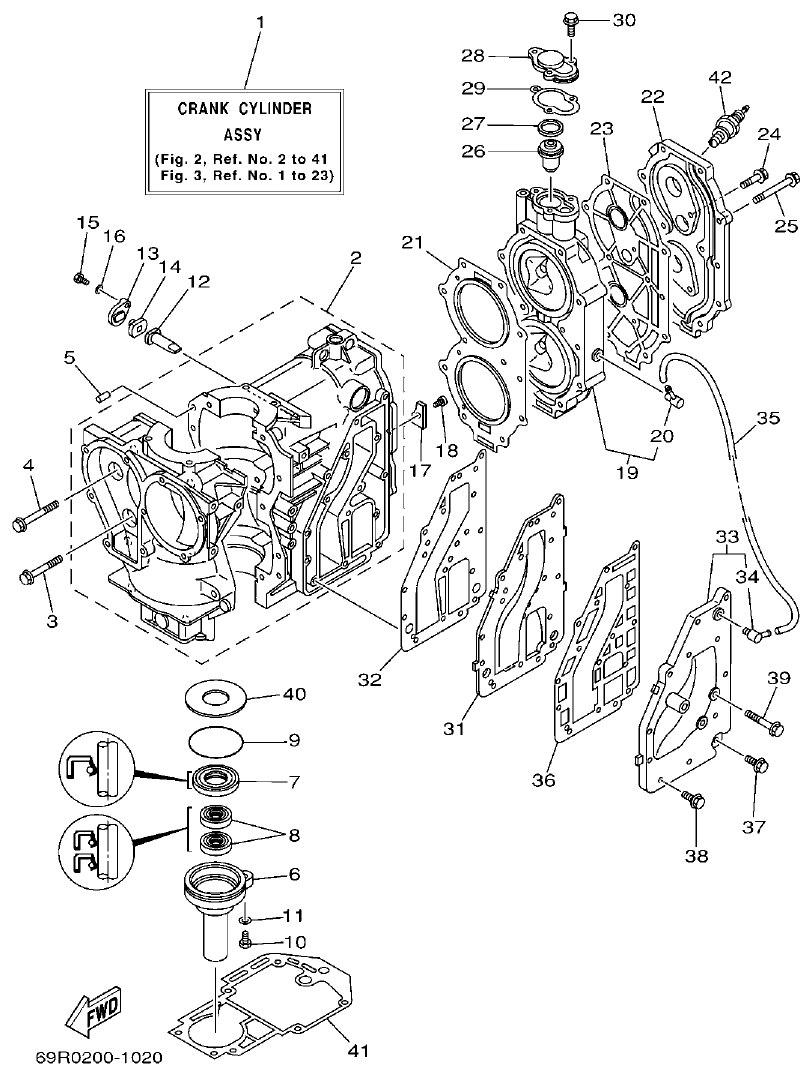

Fig. 2 — CYLINDER & CRANKCASE
45 items · 7 available products
Yamaha 25B, 25X, 30H CRANKSHAFT & PISTON parts diagram

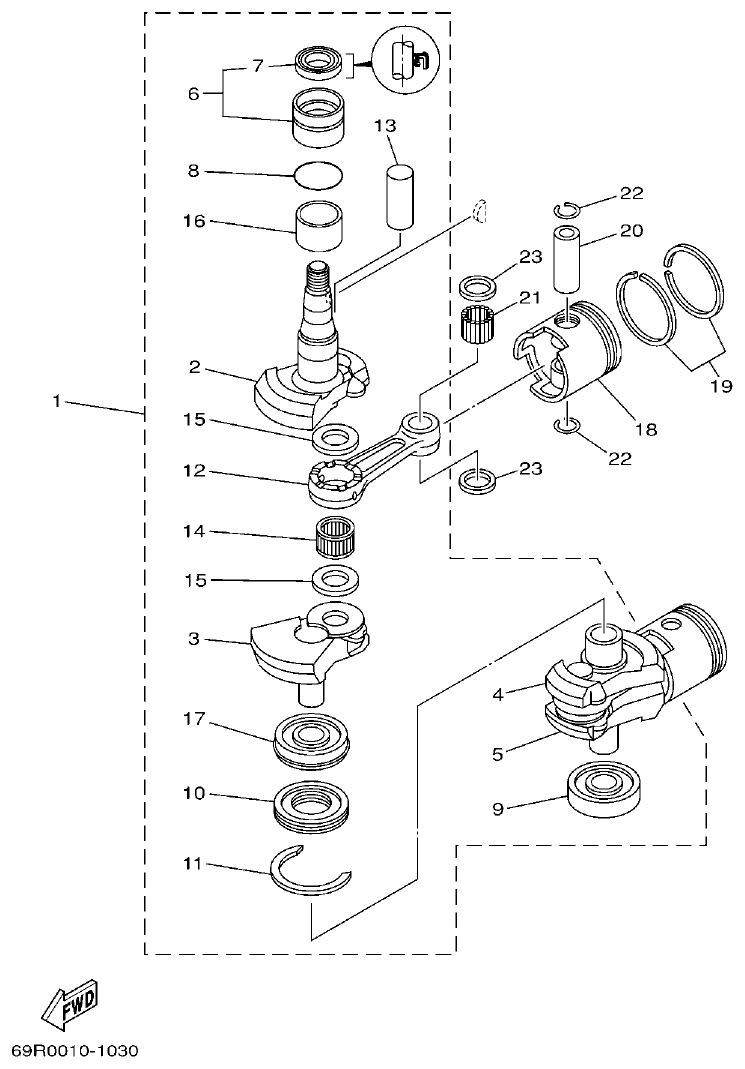

Fig. 3 — CRANKSHAFT & PISTON
27 items · 11 available products
Yamaha 25B, 25X, 30H INTAKE parts diagram

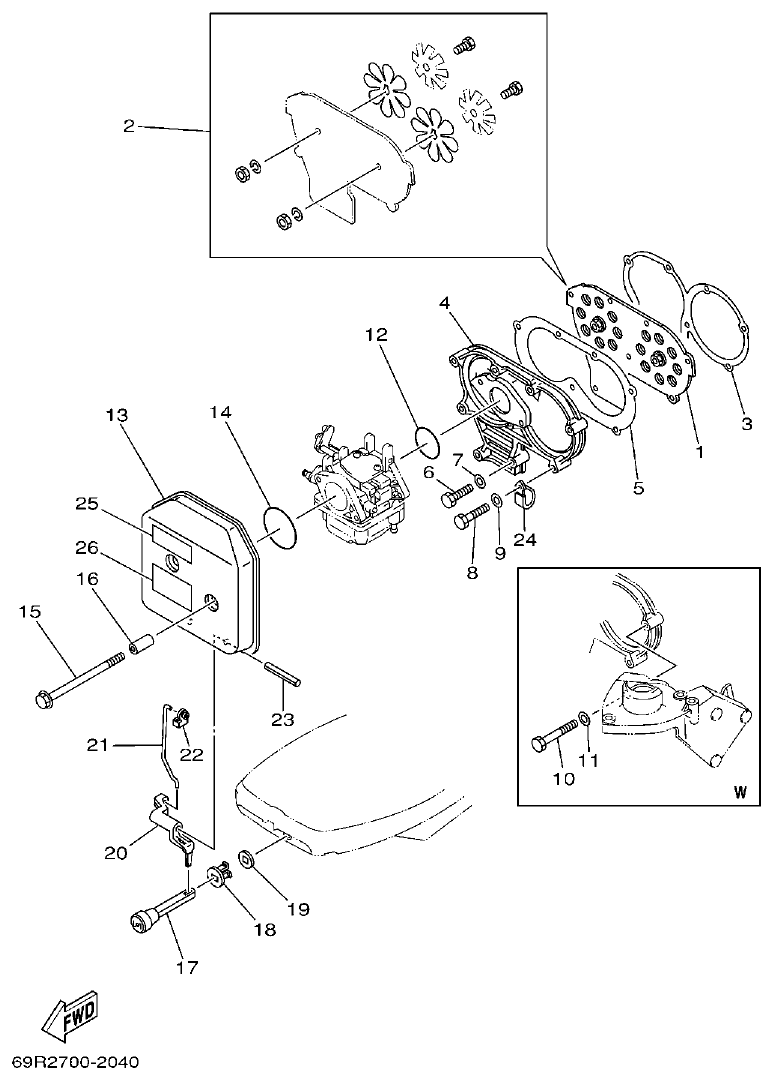

Fig. 4 — INTAKE
29 items · 6 available products
Yamaha 25B, 25X, 30H CARBURETOR parts diagram

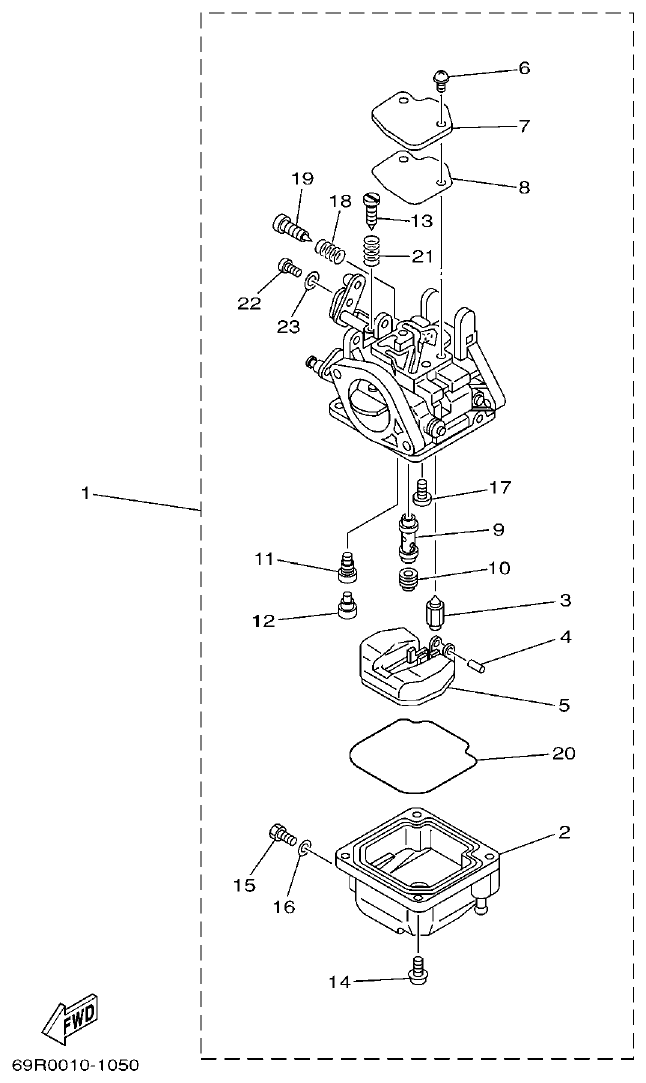

Fig. 5 — CARBURETOR
25 items · 2 available products
Yamaha 25B, 25X, 30H FUEL parts diagram

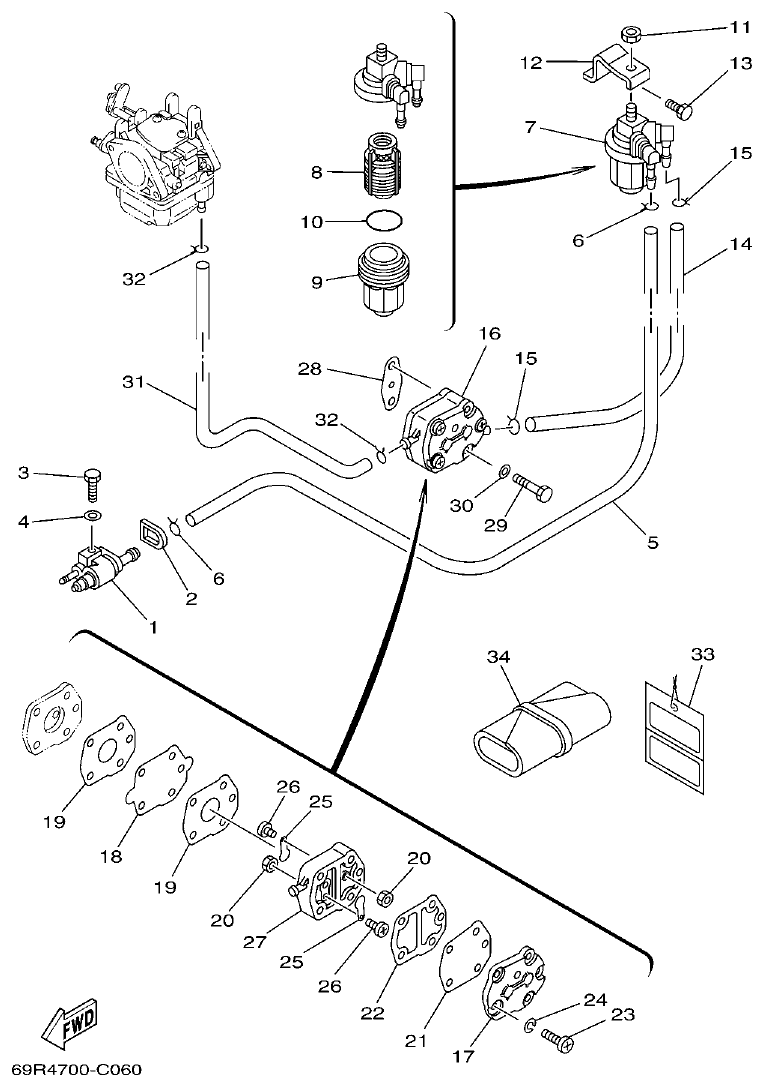

Fig. 6 — FUEL
34 items · 6 available products

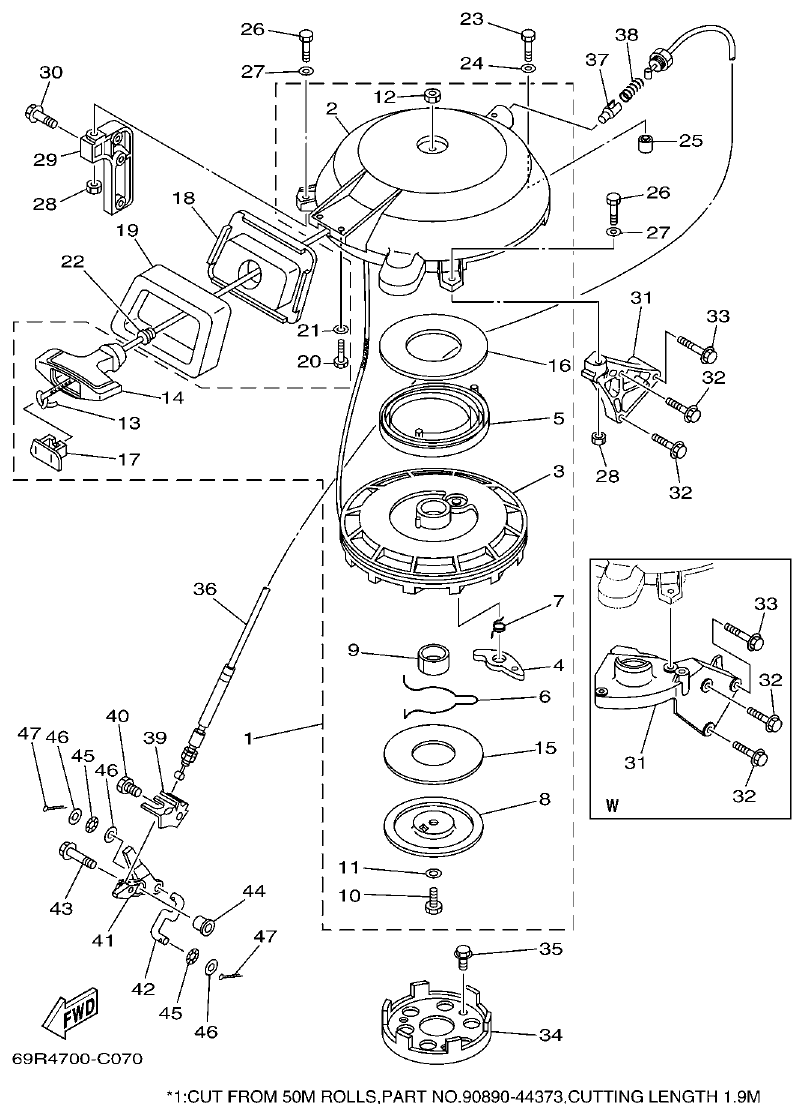

Yamaha 25B, 25X, 30H STARTER parts diagram
Fig. 7 — STARTER
49 items · 6 available products

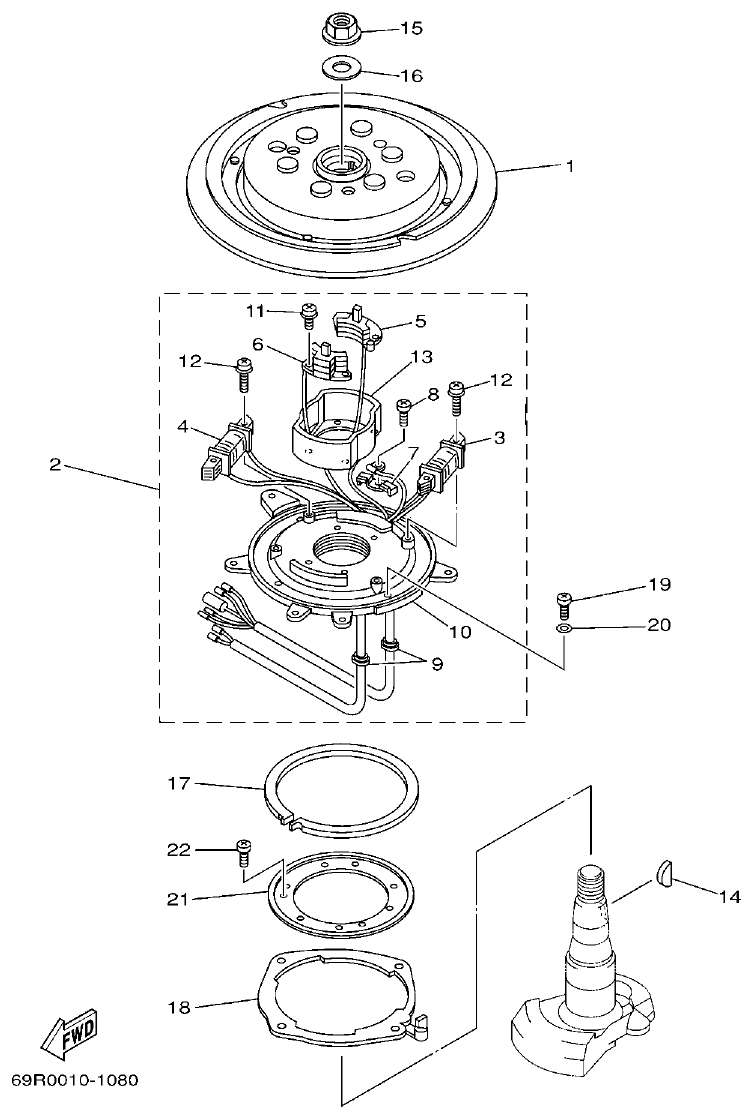

Yamaha 25B, 25X, 30H GENERATOR parts diagram
Fig. 8 — GENERATOR
23 items · 4 available products

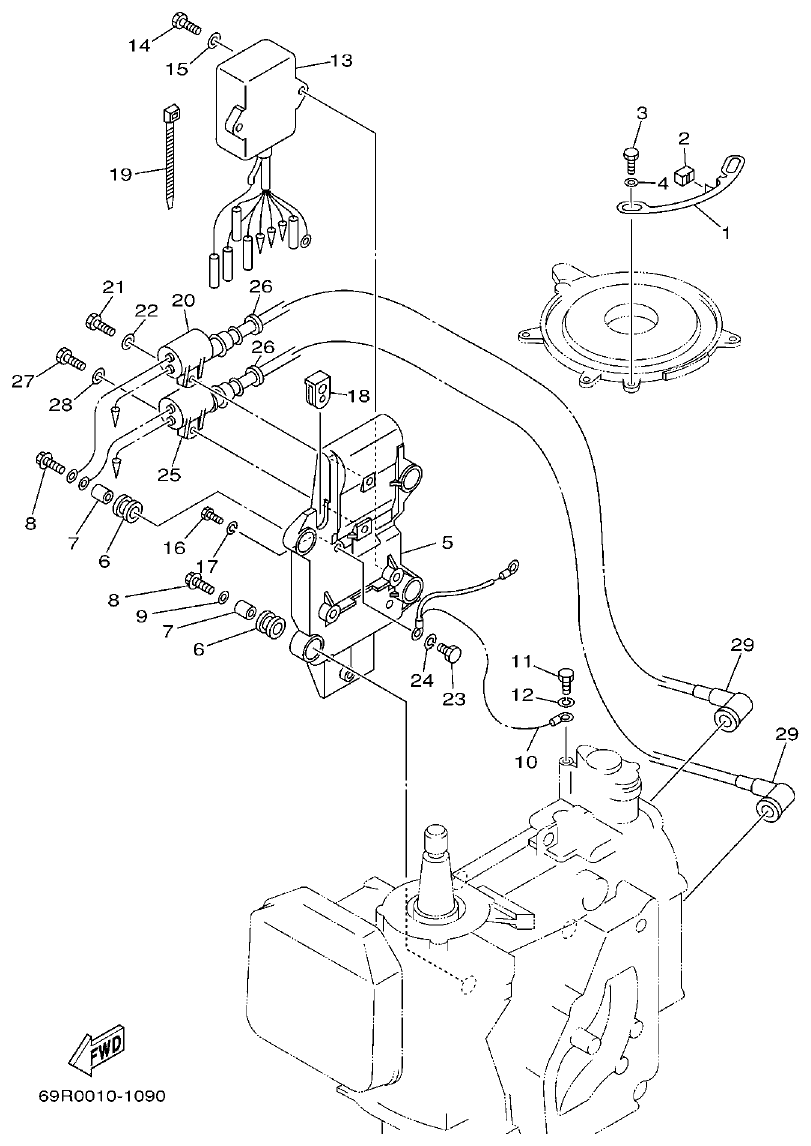

Yamaha 25B, 25X, 30H ELECTRICAL 1 parts diagram
Fig. 9 — ELECTRICAL 1
31 items · 3 available products
Yamaha 25B, 25X, 30H ELECTRICAL 2 parts diagram

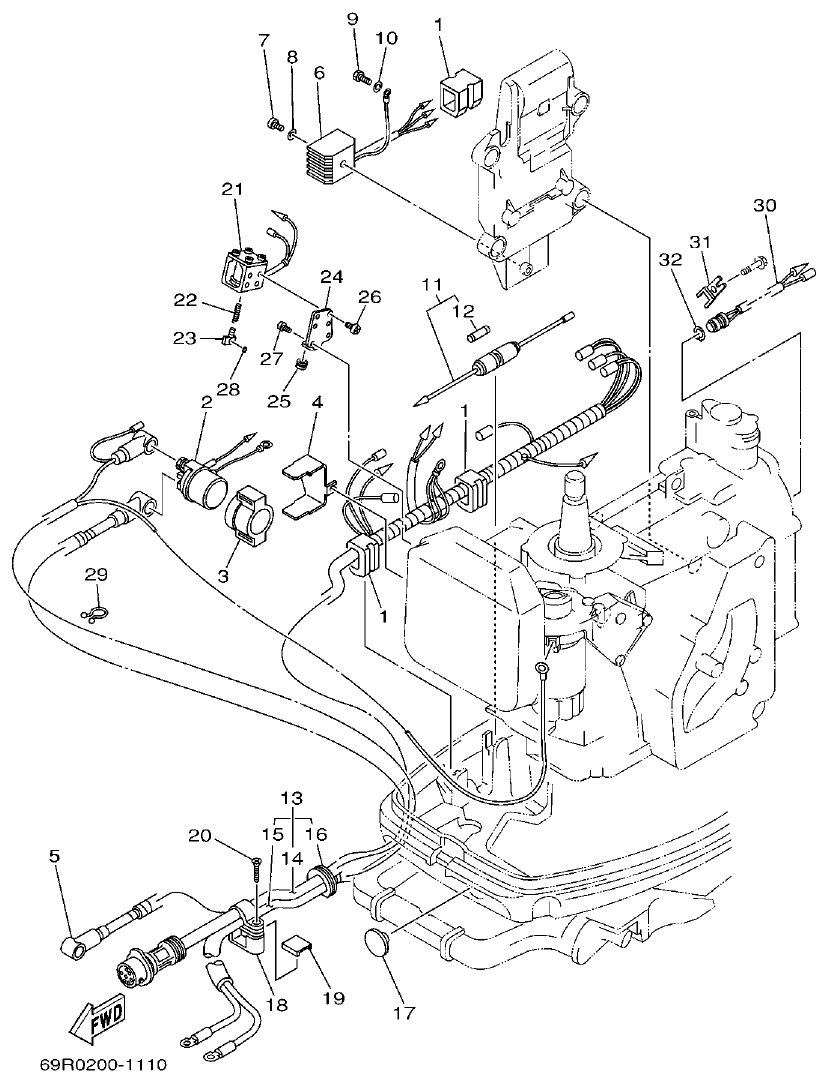

Fig. 10 — ELECTRICAL 2
32 items · 2 available products

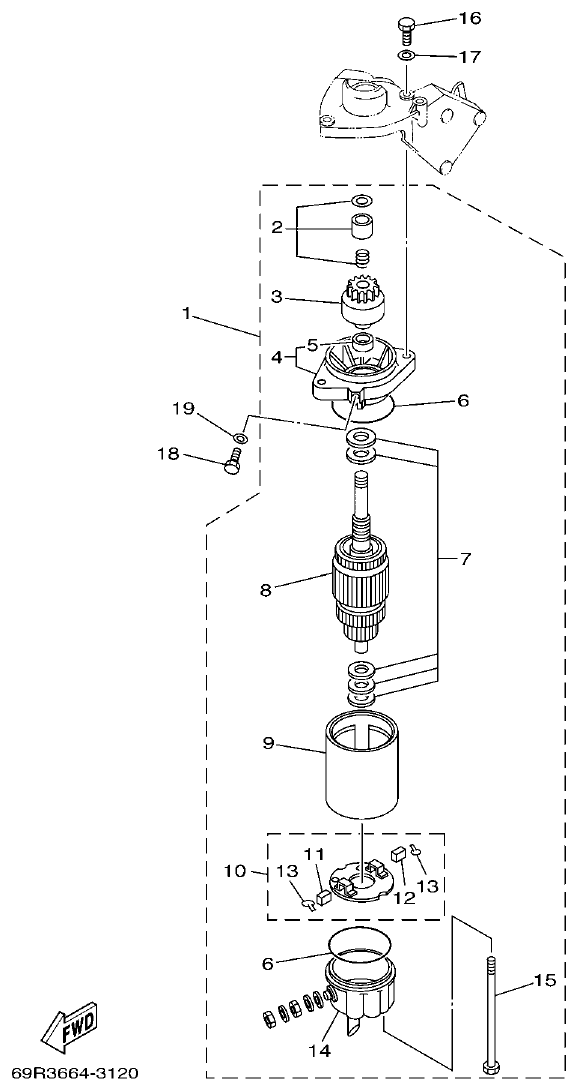

Yamaha 25B, 25X, 30H STARTING MOTOR parts diagram
Fig. 11 — STARTING MOTOR
19 items · 4 available products
Yamaha 25B, 25X, 30H BOTTOM COWLING parts diagram

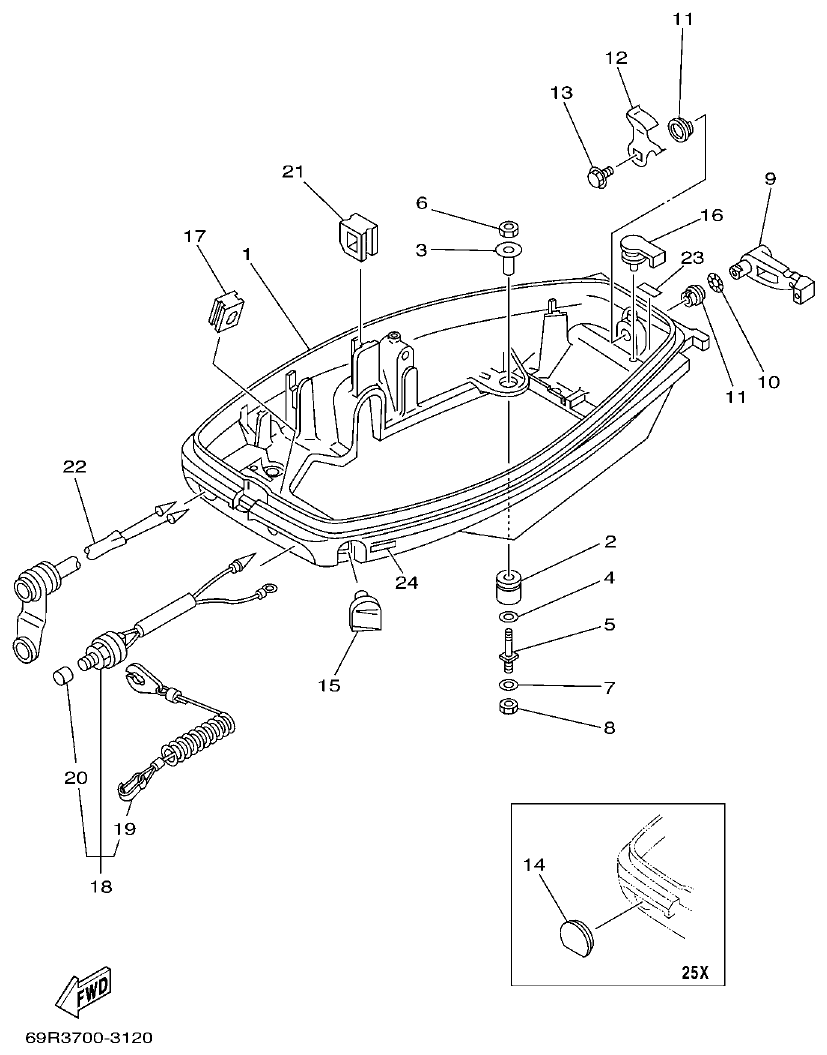

Fig. 12 — BOTTOM COWLING
26 items · 4 available products

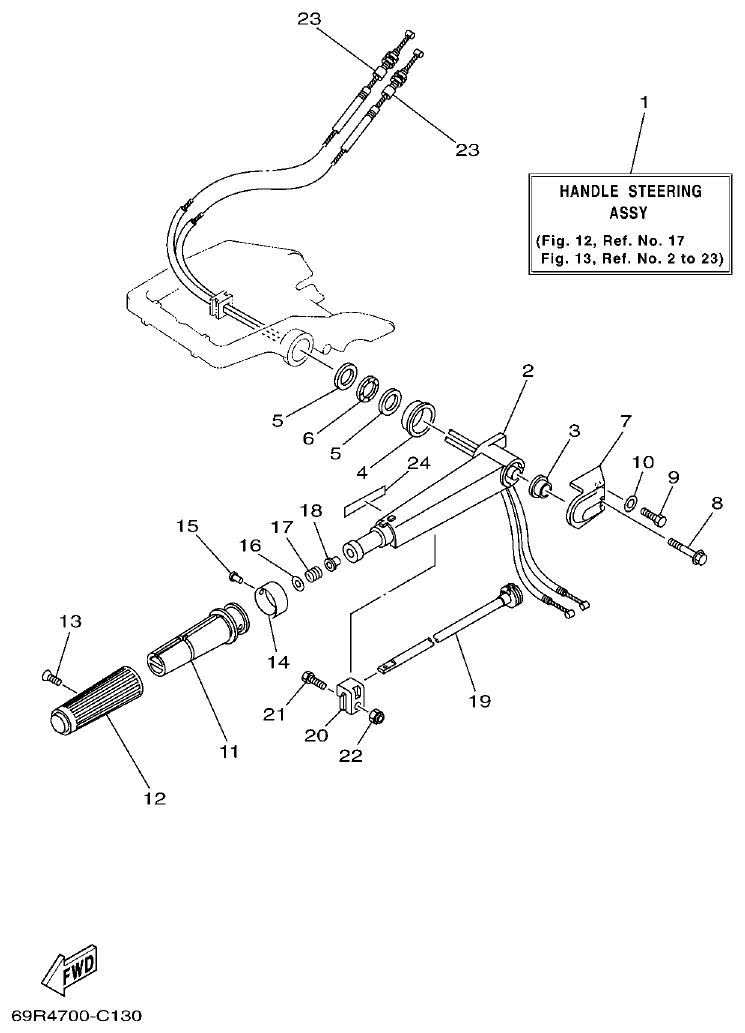

Yamaha 25B, 25X, 30H STEERING parts diagram
Fig. 13 — STEERING
24 items · 2 available products

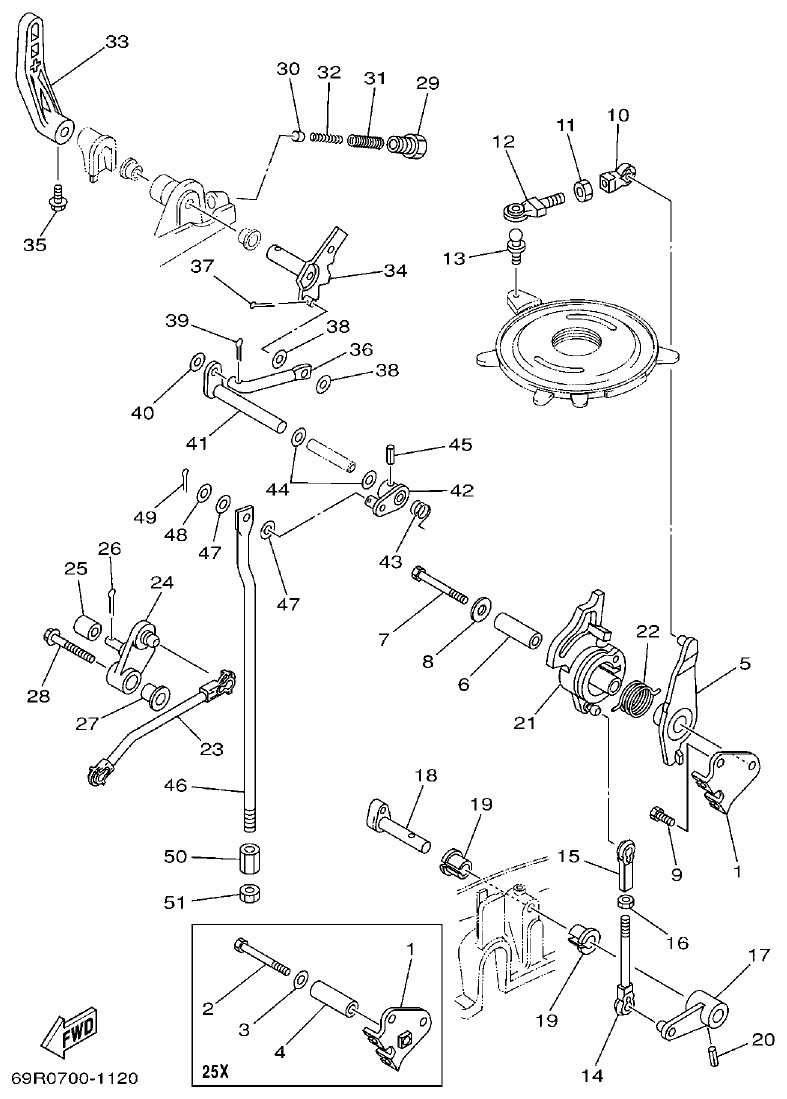

Yamaha 25B, 25X, 30H CONTROL 1 parts diagram
Fig. 14 — CONTROL 1
52 items · 7 available products

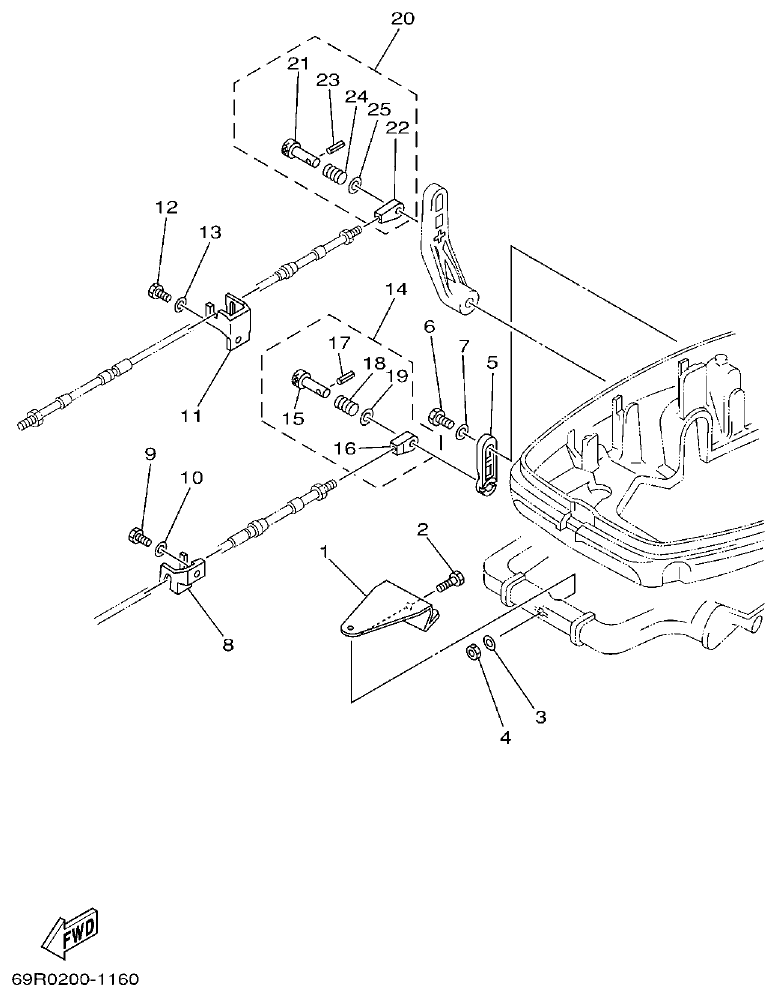

Yamaha 25B, 25X, 30H CONTROL 2 parts diagram
Fig. 15 — CONTROL 2
25 items
Yamaha 25B, 25X, 30H REMO CON ATTACHMENT parts diagram

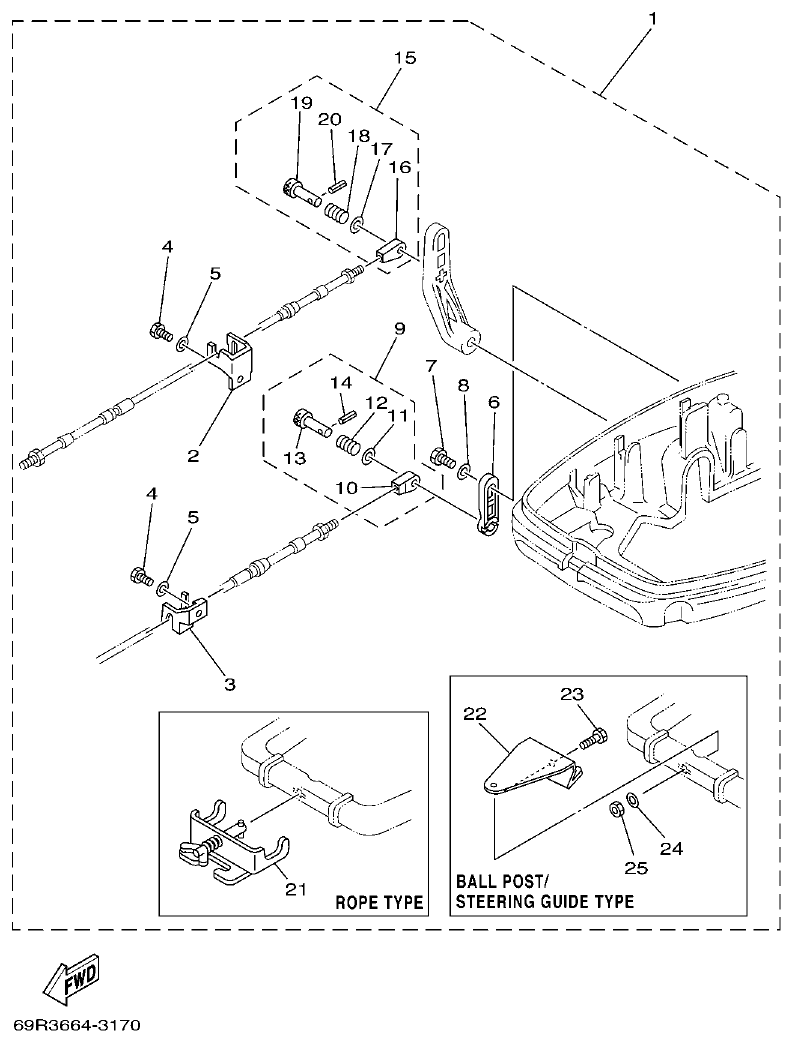

Fig. 16 — REMO CON ATTACHMENT
26 items

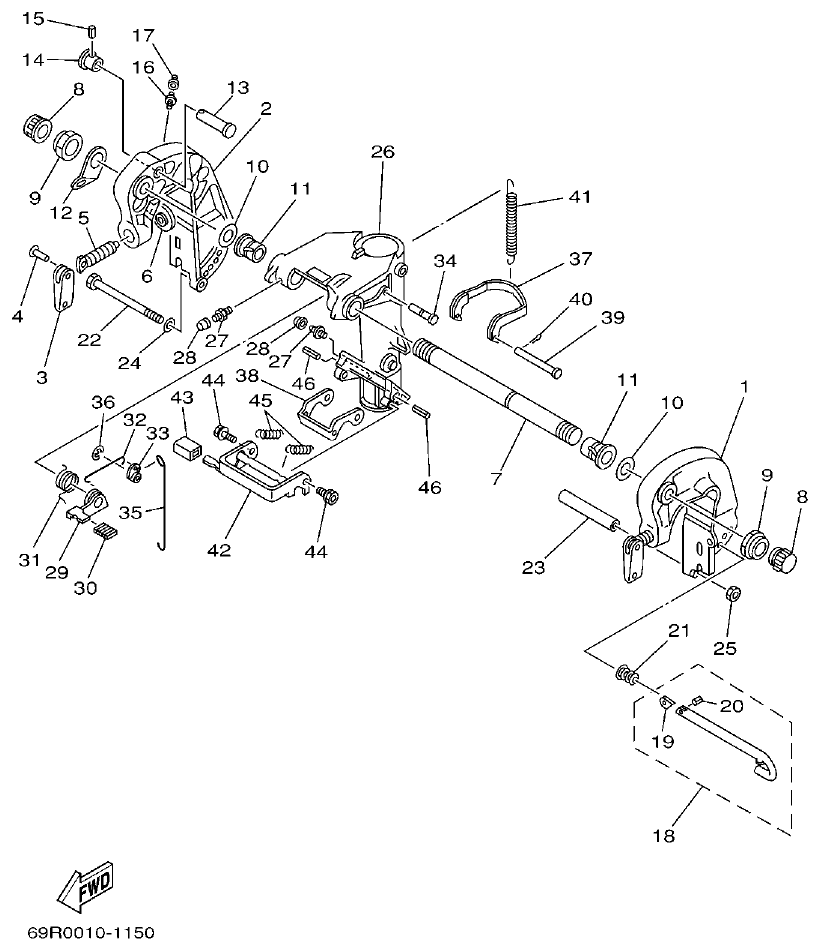

Yamaha 25B, 25X, 30H BRACKET 1 parts diagram
Fig. 17 — BRACKET 1
46 items · 11 available products

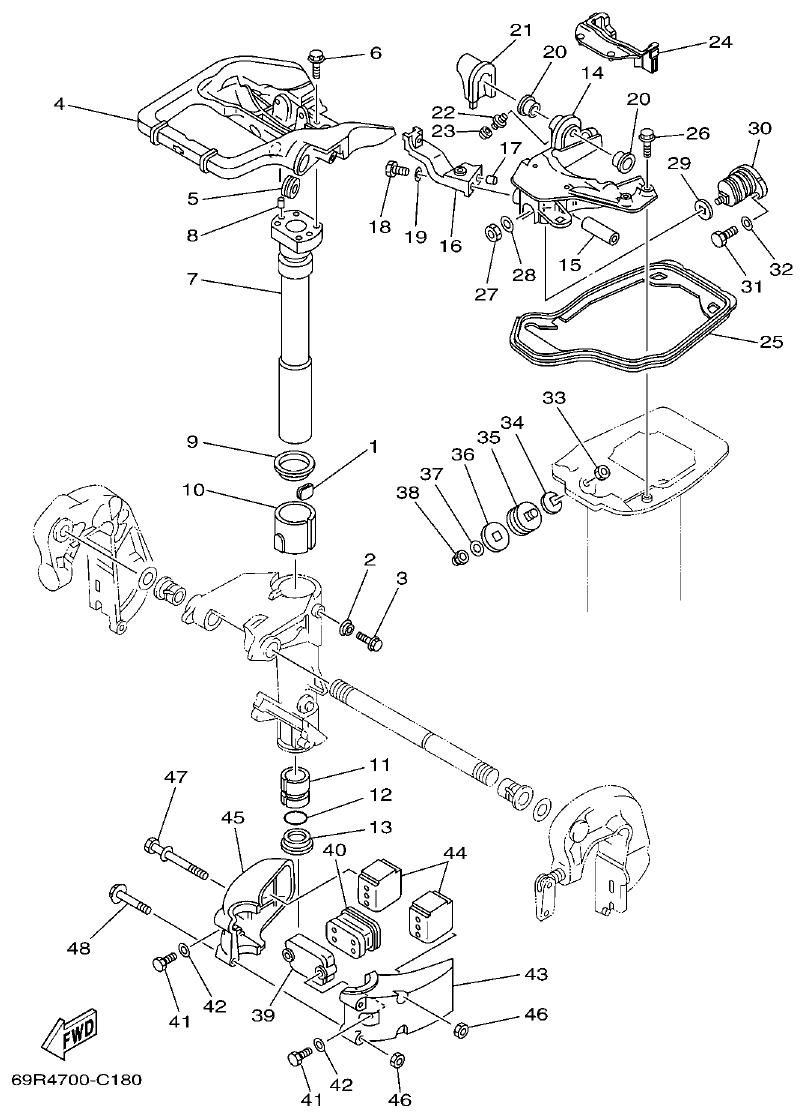

Yamaha 25B, 25X, 30H BRACKET 2 parts diagram
Fig. 18 — BRACKET 2
48 items · 2 available products
Yamaha 25B, 25X, 30H UPPER CASING parts diagram

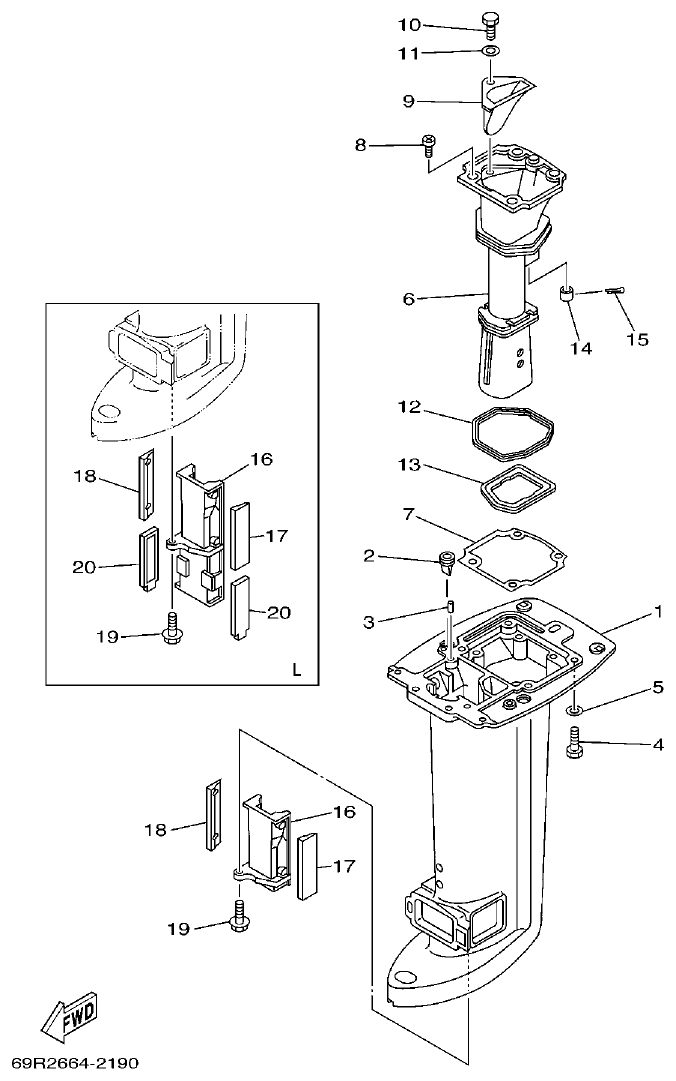

Fig. 19 — UPPER CASING
22 items
Yamaha 25B, 25X, 30H LOWER CASING & DRIVE 1 parts diagram

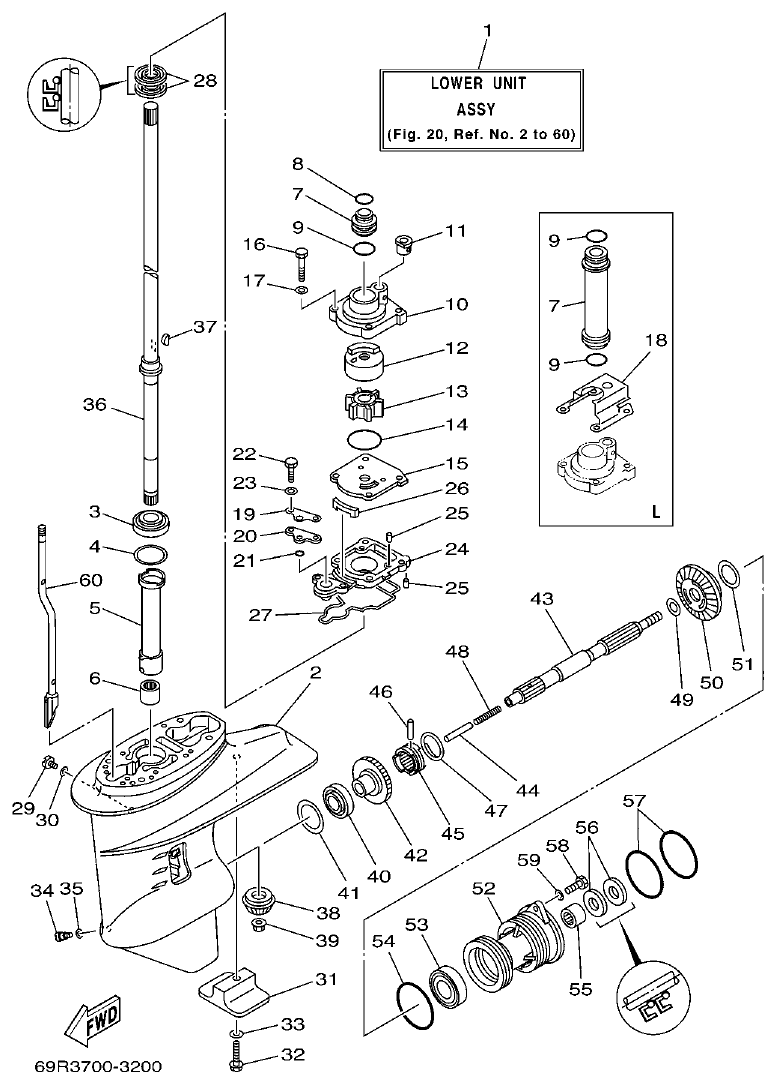

Fig. 20 — LOWER CASING & DRIVE 1
79 items · 16 available products

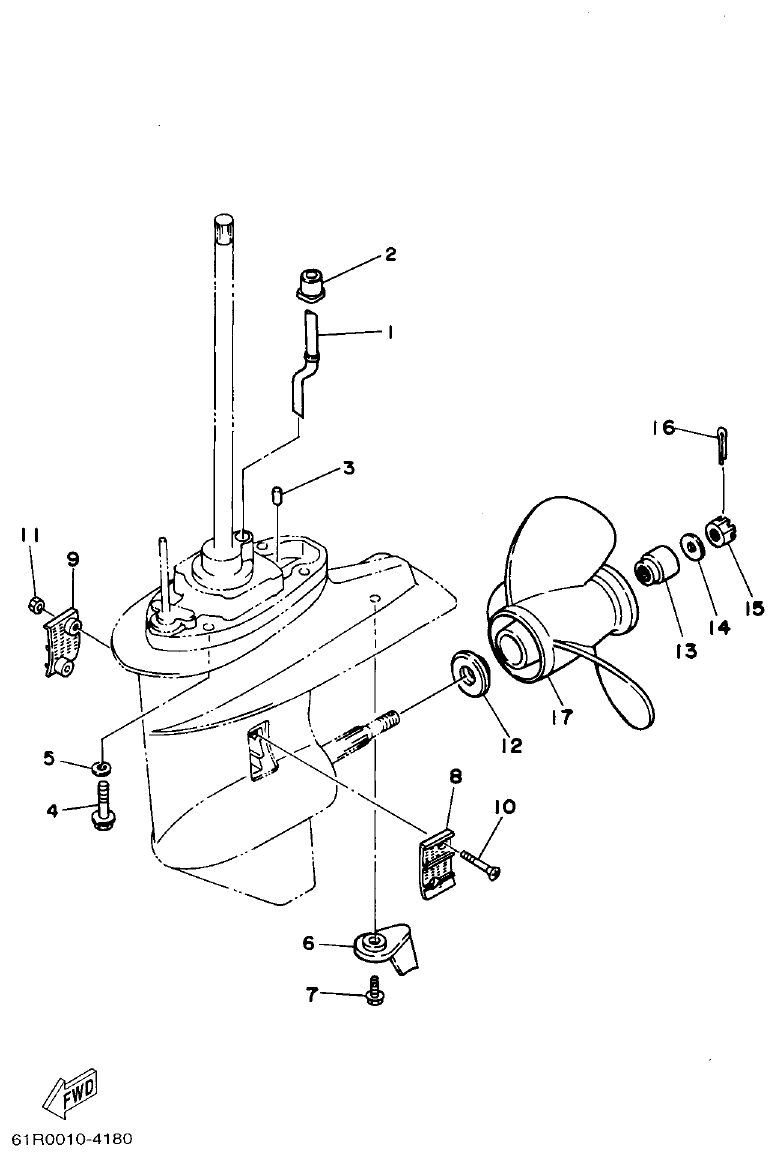

Yamaha 25B, 25X, 30H LOWER CASING & DRIVE 2 parts diagram
Fig. 21 — LOWER CASING & DRIVE 2
25 items · 6 available products

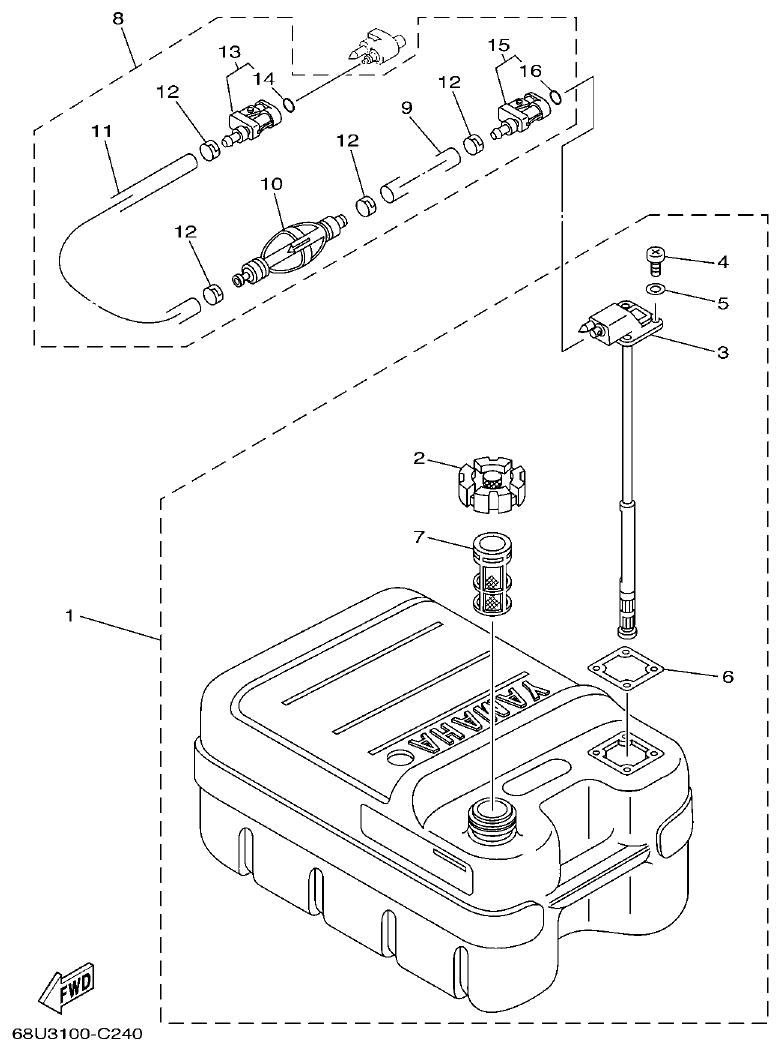

Yamaha 25B, 25X, 30H FUEL TANK parts diagram
Fig. 22 — FUEL TANK
16 items · 1 available products

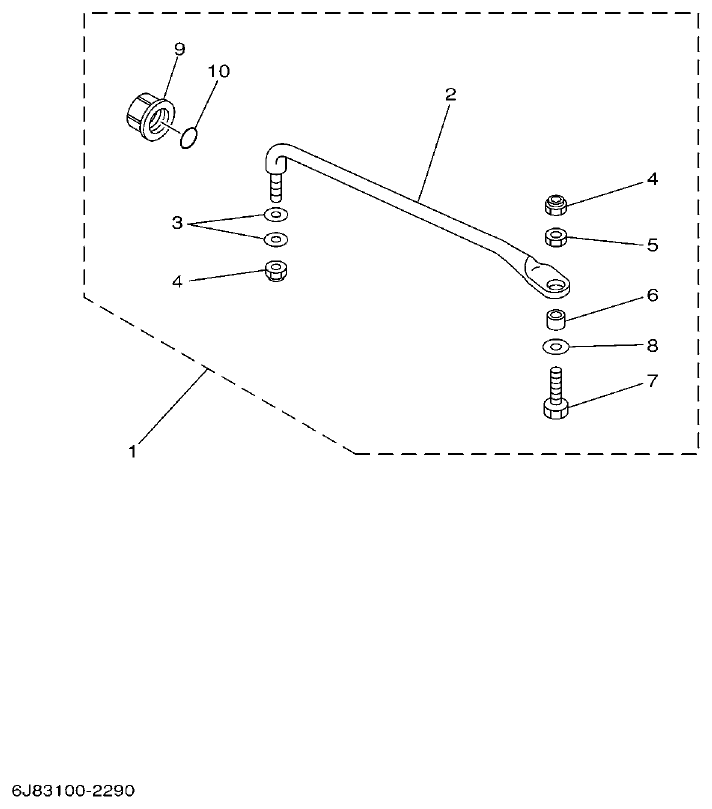

Yamaha 25B, 25X, 30H STEERING GUIDE parts diagram
Fig. 23 — STEERING GUIDE
10 items · 1 available products
Yamaha 25B, 25X, 30H REMOTE CONTROL BOX parts diagram
Fig. 24 — REMOTE CONTROL BOX
3 items

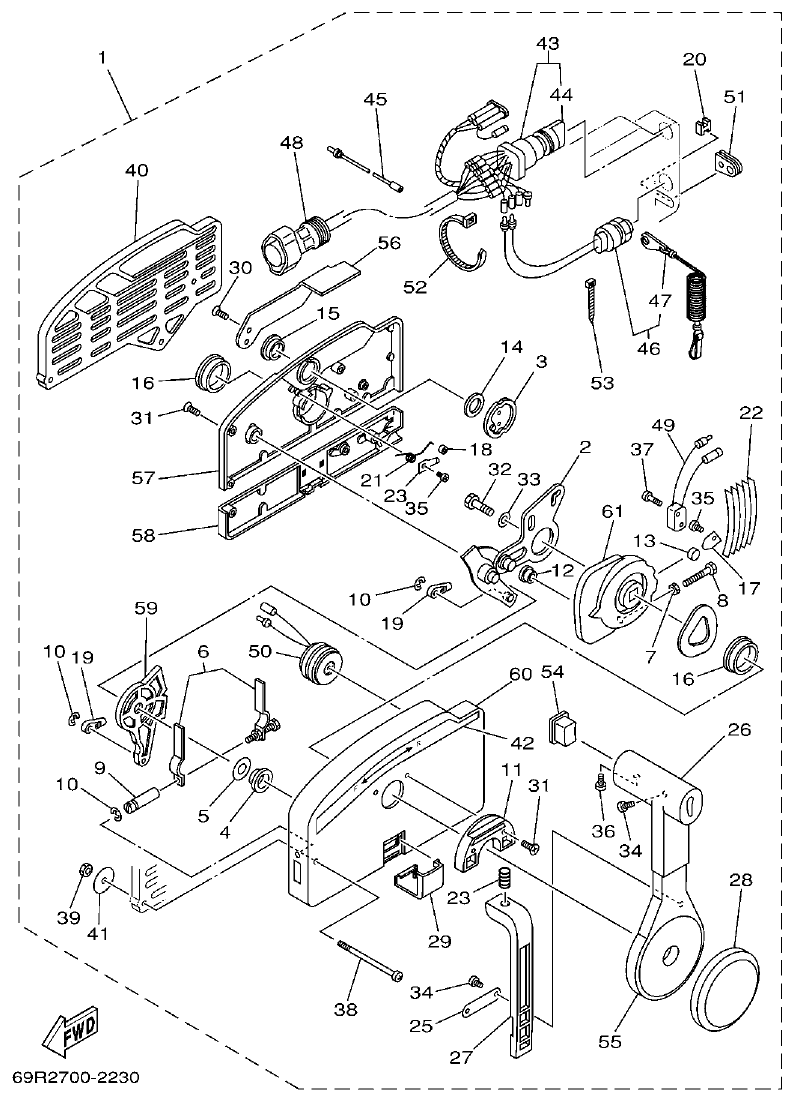

Yamaha 25B, 25X, 30H REMOTE CONTROL ASSY parts diagram
Fig. 25 — REMOTE CONTROL ASSY
61 items · 10 available products

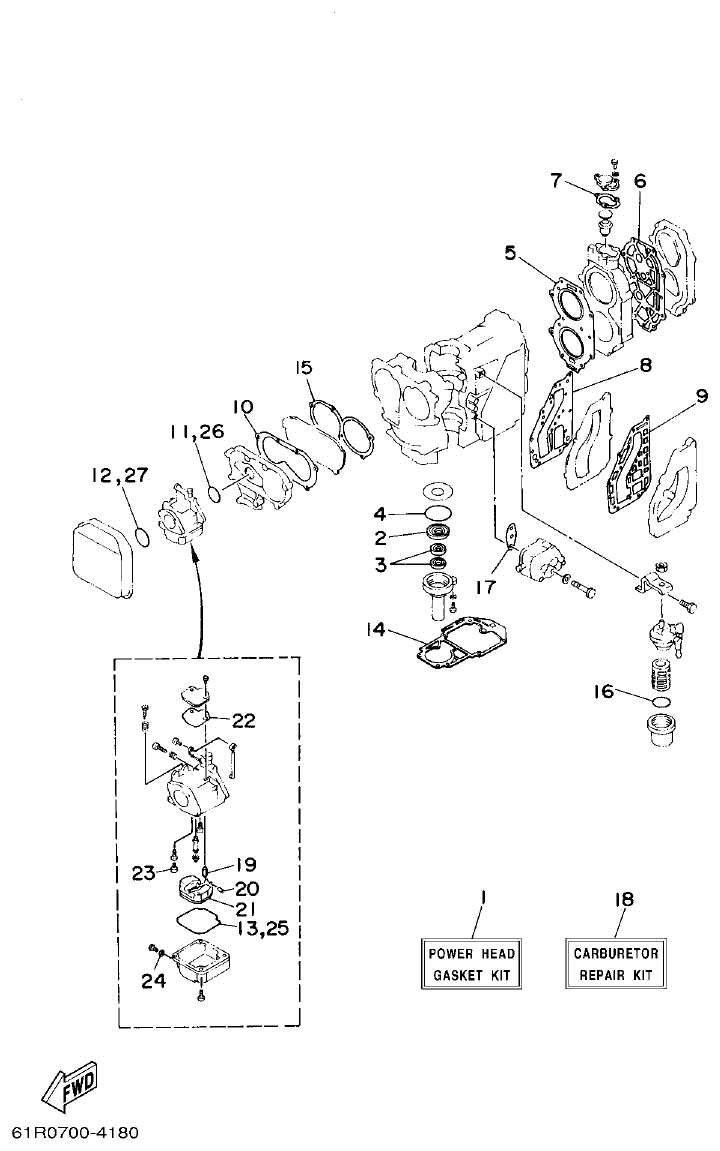

Yamaha 25B, 25X, 30H REPAIR KIT 1 parts diagram
Fig. 26 — REPAIR KIT 1
27 items · 9 available products

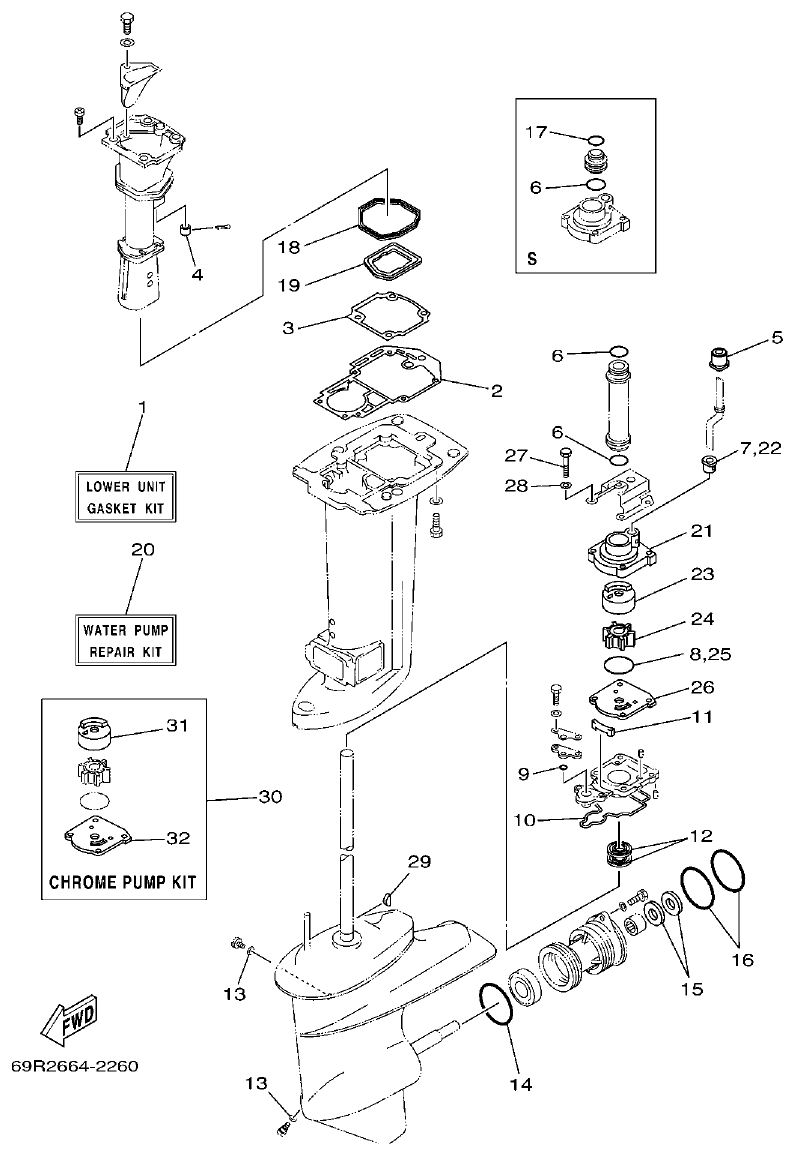

Yamaha 25B, 25X, 30H REPAIR KIT 2 parts diagram
Fig. 27 — REPAIR KIT 2
32 items · 4 available products
