Yamaha 30DE, 30DMH Parts Catalog

Yamaha 30DE, 30DMH Outboard parts and diagrams

Yamaha 30DE, 30DMH outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, STEERING, CONTROL 1, CONTROL 2, REMO CON ATTACHMENT, BRACKET 1, BRACKET 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

75 linked store products are available across 26 catalog sections. 824 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

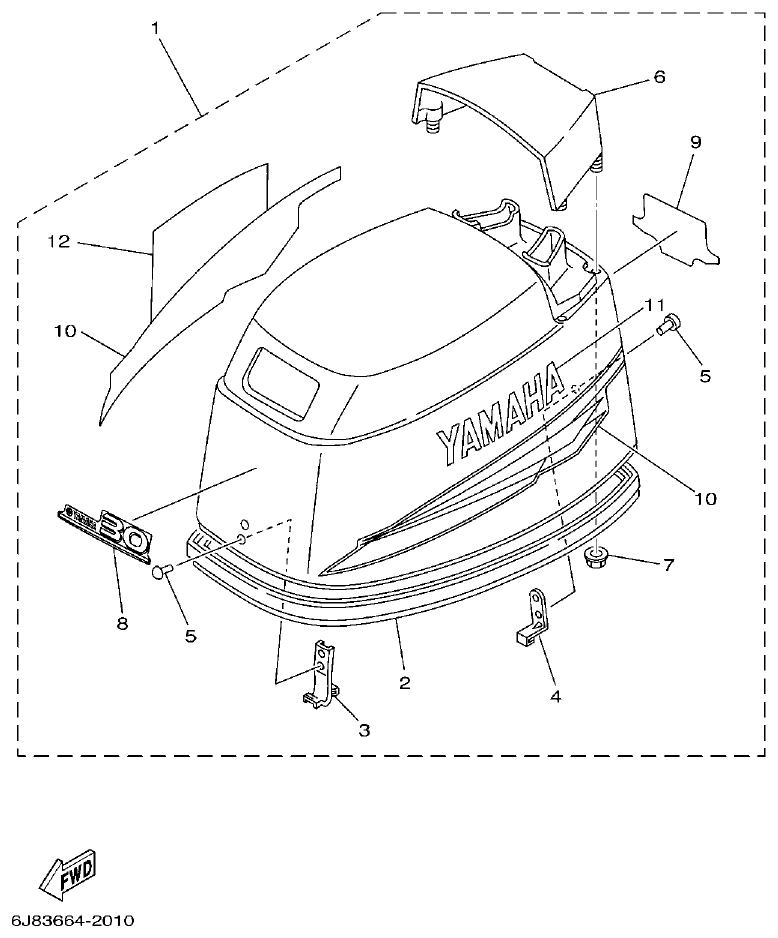

Yamaha 30DE, 30DMH TOP COWLING parts diagram
Fig. 1 — TOP COWLING
14 items · 1 available products
Yamaha 30DE, 30DMH CYLINDER & CRANKCASE parts diagram

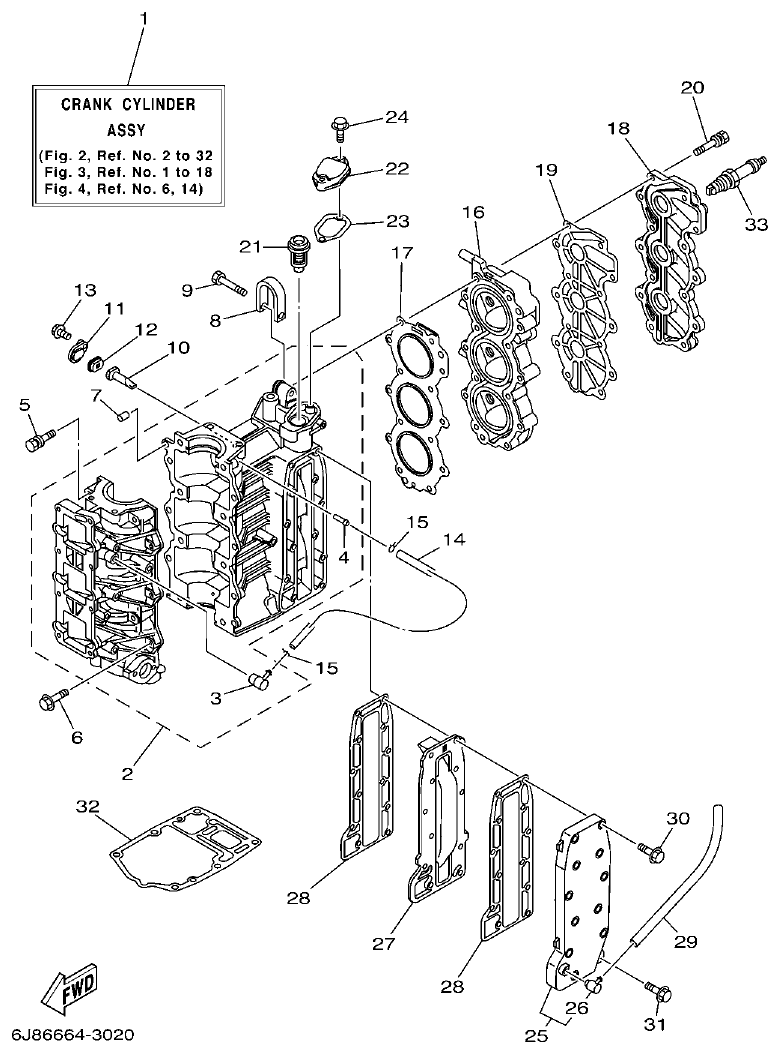

Fig. 2 — CYLINDER & CRANKCASE
33 items · 4 available products
Yamaha 30DE, 30DMH CRANKSHAFT & PISTON parts diagram

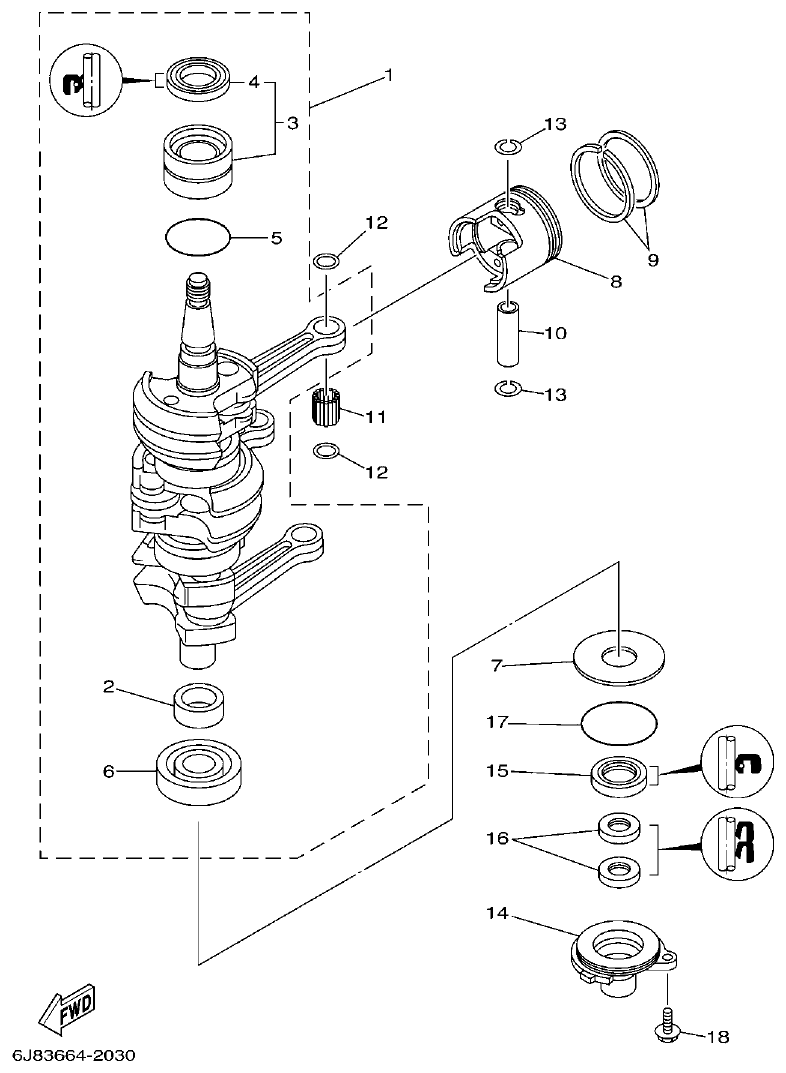

Fig. 3 — CRANKSHAFT & PISTON
22 items · 2 available products
Yamaha 30DE, 30DMH INTAKE parts diagram

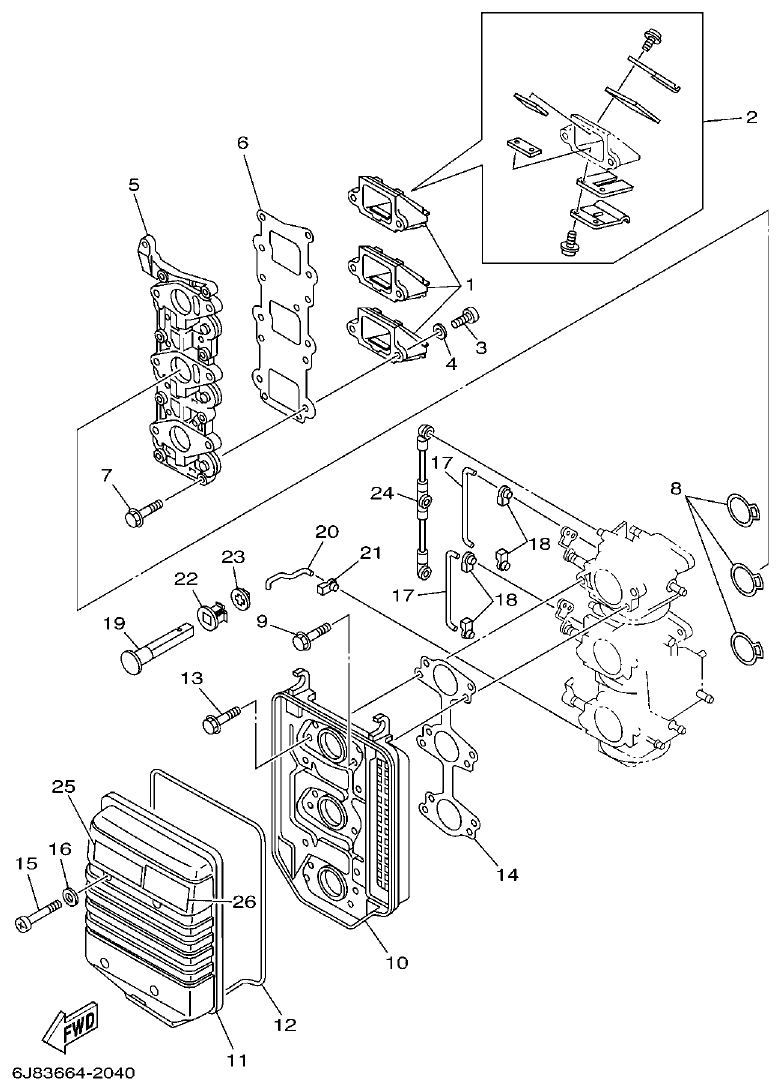

Fig. 4 — INTAKE
26 items · 4 available products
Yamaha 30DE, 30DMH CARBURETOR parts diagram

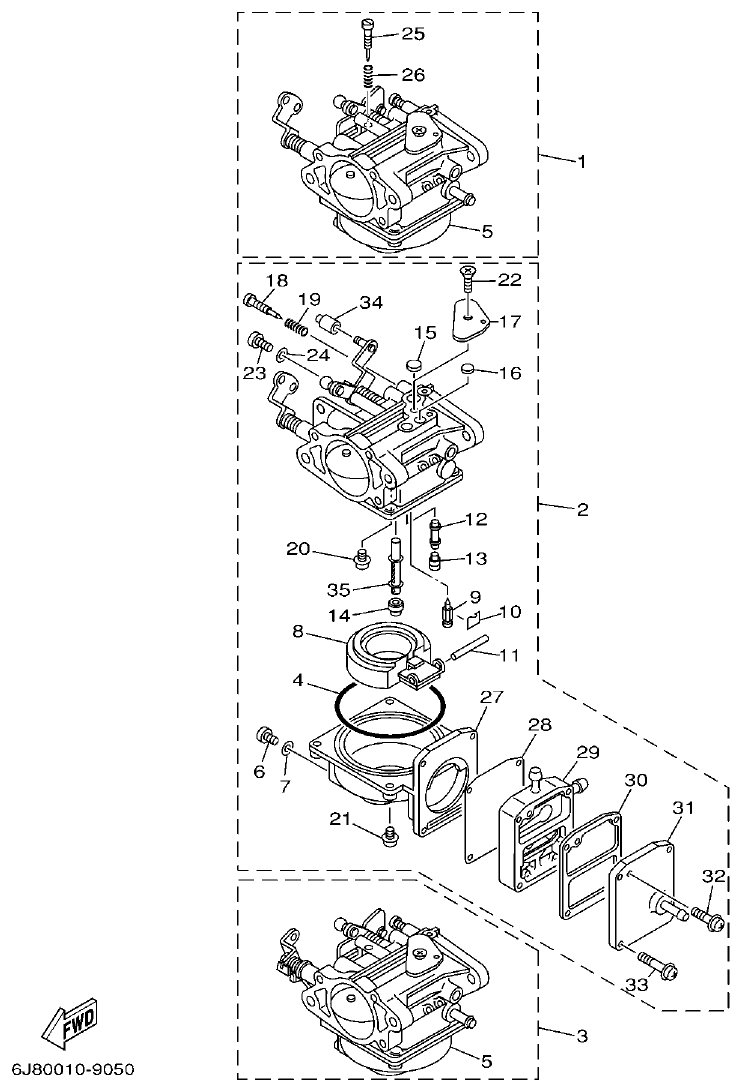

Fig. 5 — CARBURETOR
35 items · 2 available products

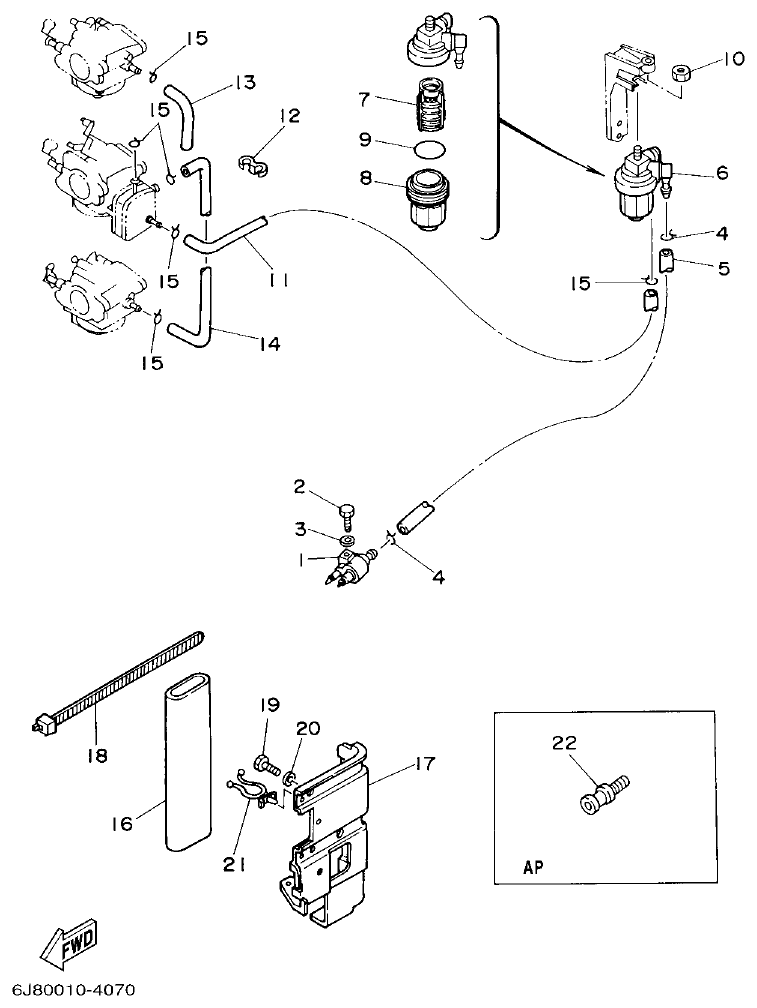

Yamaha 30DE, 30DMH FUEL parts diagram
Fig. 6 — FUEL
22 items · 2 available products
Yamaha 30DE, 30DMH STARTER parts diagram

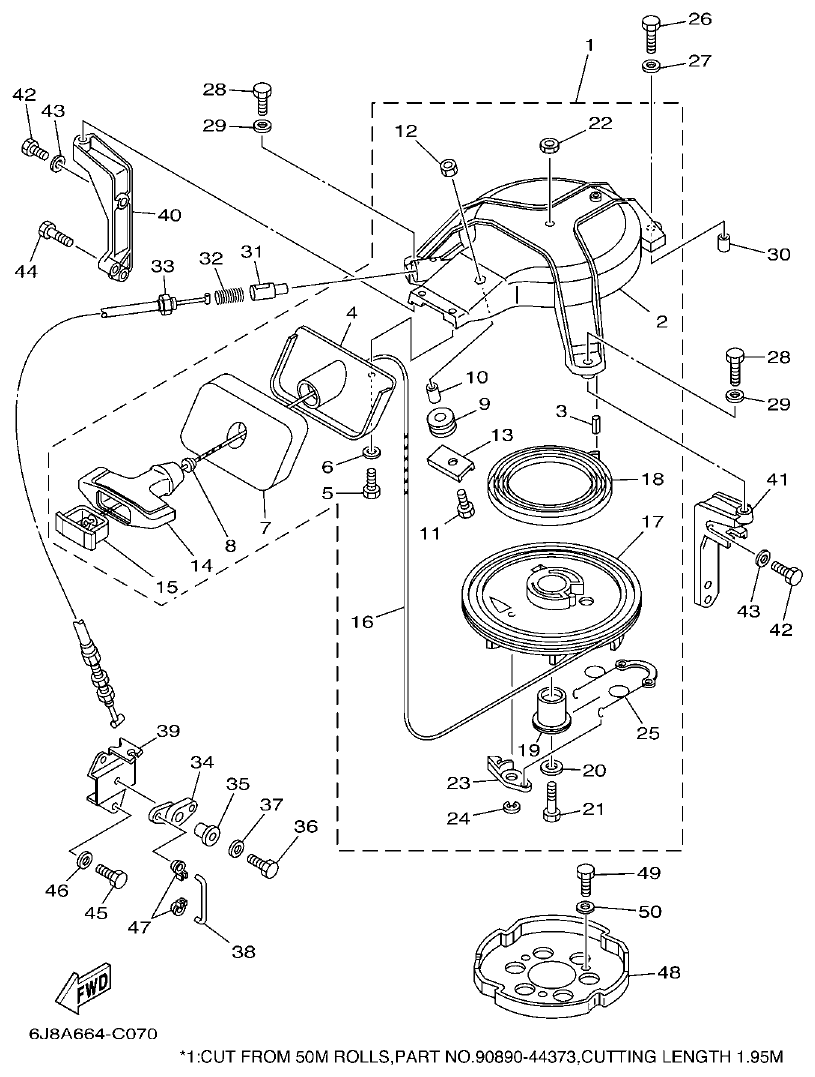

Fig. 7 — STARTER
49 items · 6 available products

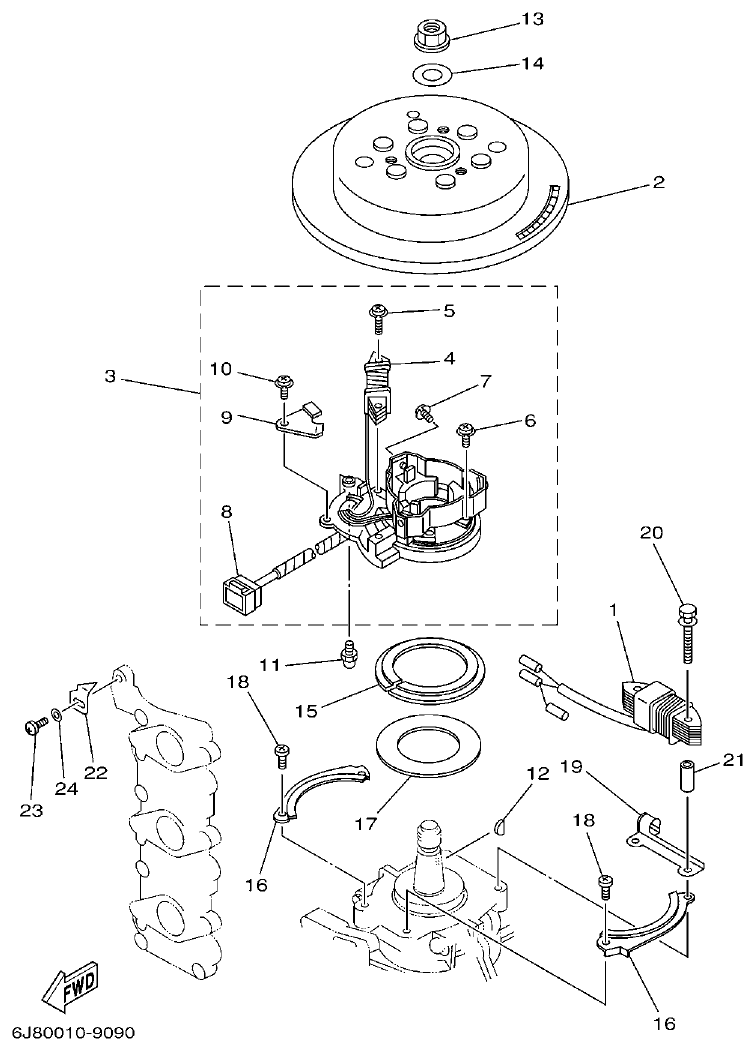

Yamaha 30DE, 30DMH GENERATOR parts diagram
Fig. 8 — GENERATOR
27 items

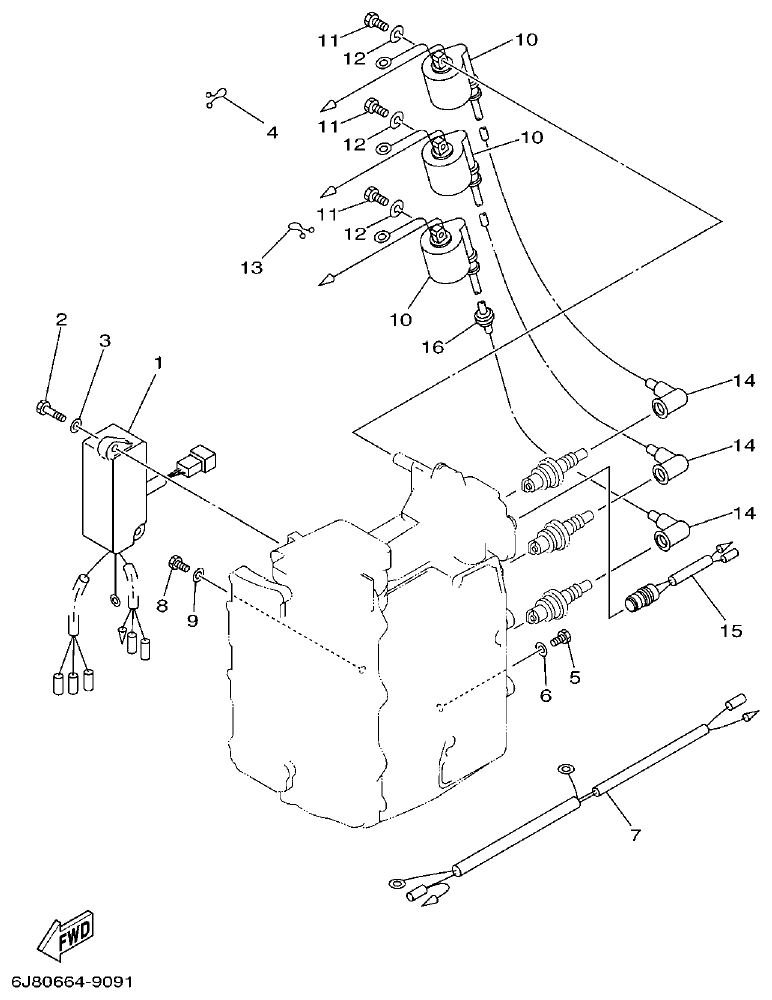

Yamaha 30DE, 30DMH ELECTRICAL 1 parts diagram
Fig. 9 — ELECTRICAL 1
16 items · 1 available products

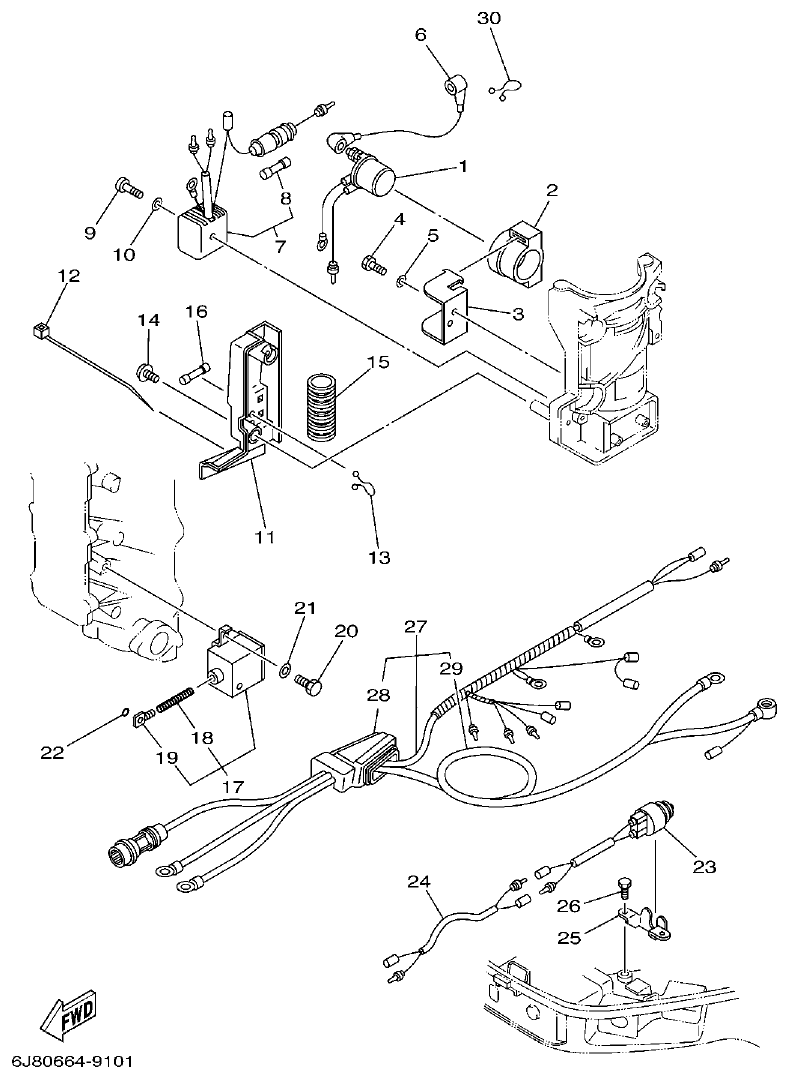

Yamaha 30DE, 30DMH ELECTRICAL 2 parts diagram
Fig. 10 — ELECTRICAL 2
30 items · 1 available products
Yamaha 30DE, 30DMH STARTING MOTOR parts diagram

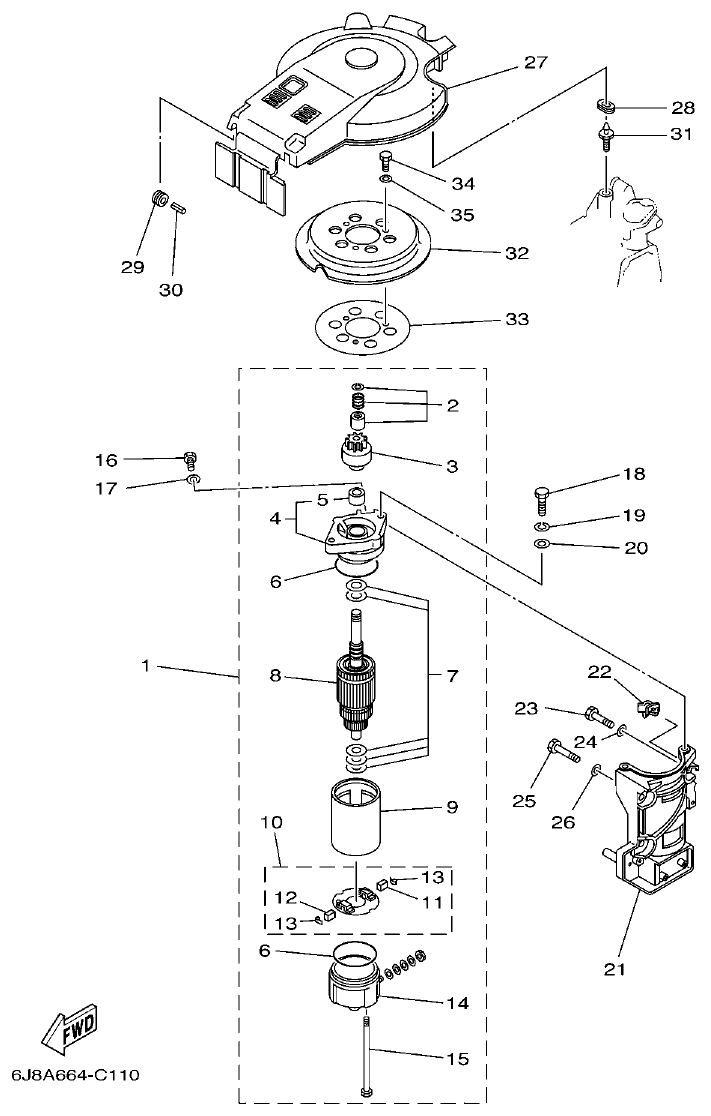

Fig. 11 — STARTING MOTOR
35 items · 4 available products
Yamaha 30DE, 30DMH BOTTOM COWLING parts diagram

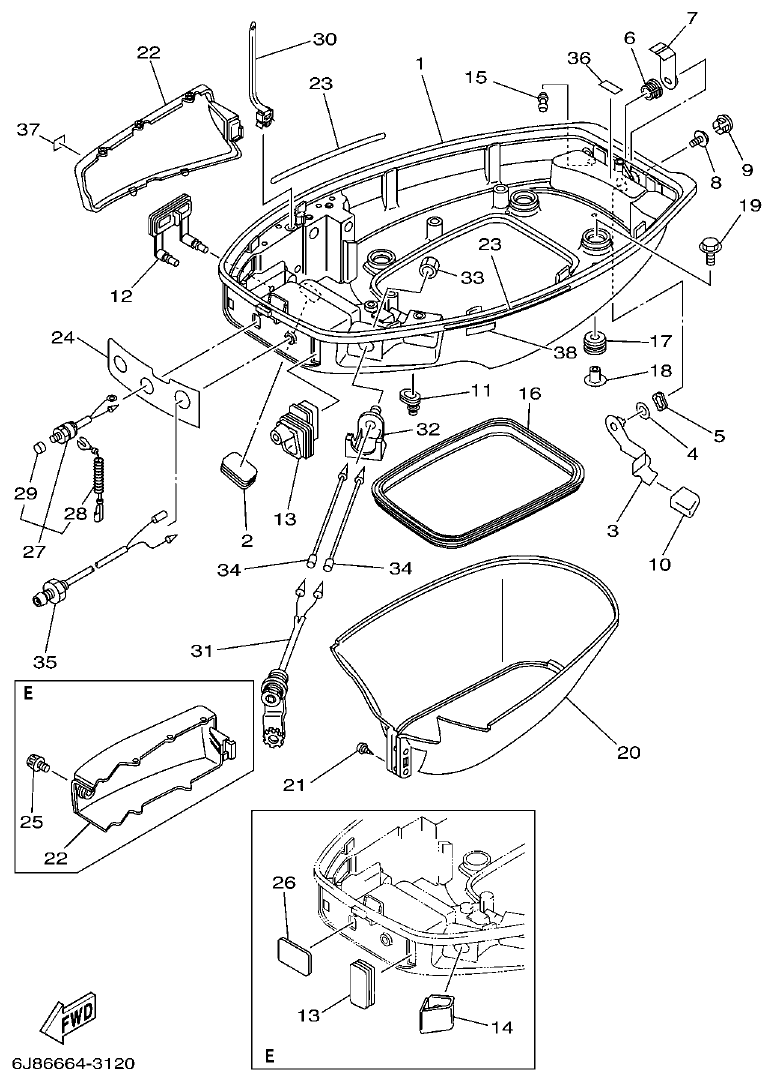

Fig. 12 — BOTTOM COWLING
40 items · 2 available products
Yamaha 30DE, 30DMH STEERING parts diagram

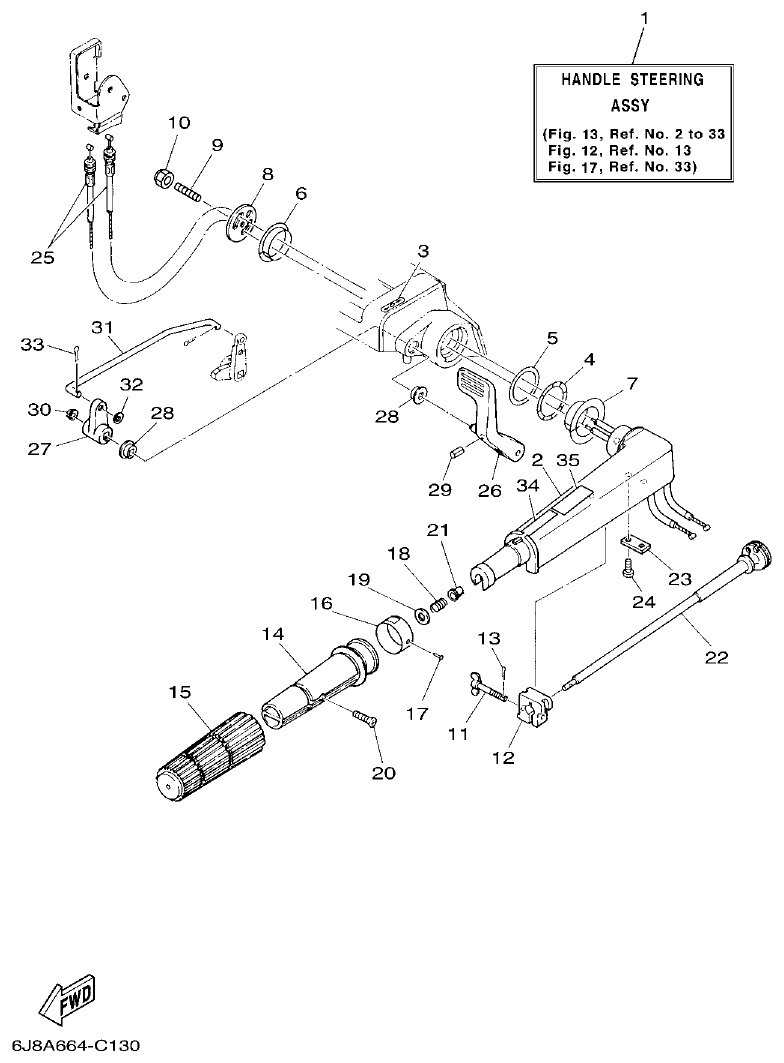

Fig. 13 — STEERING
35 items · 2 available products

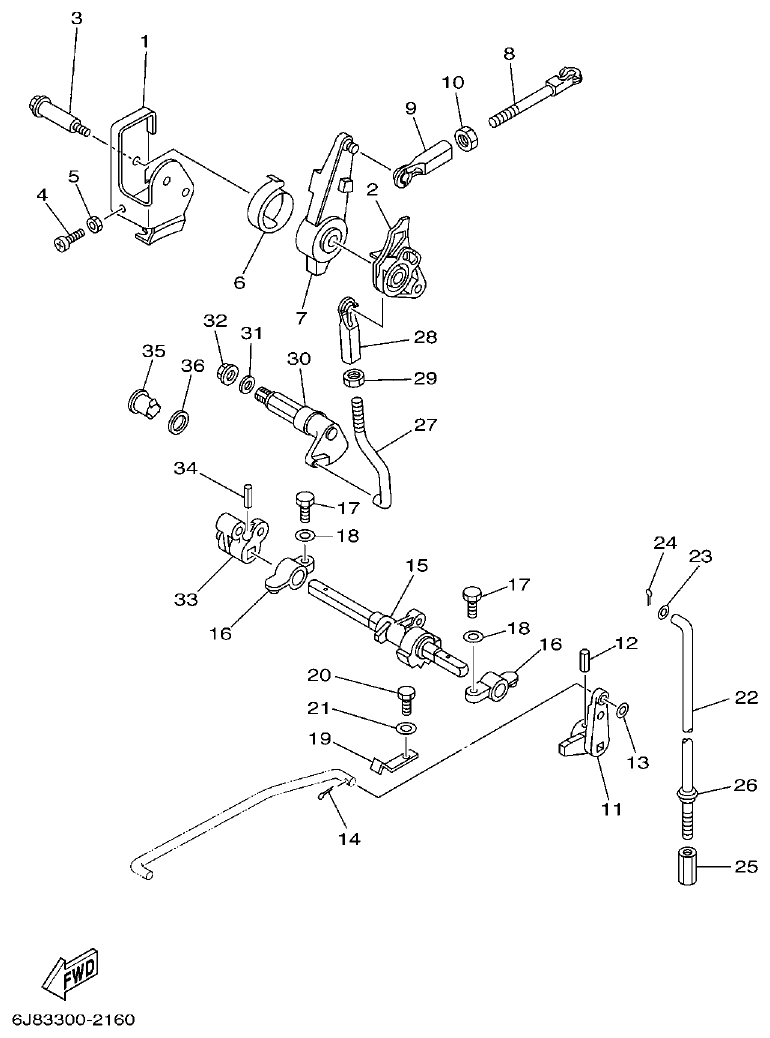

Yamaha 30DE, 30DMH CONTROL 1 parts diagram
Fig. 14 — CONTROL 1
36 items · 1 available products
Yamaha 30DE, 30DMH CONTROL 2 parts diagram

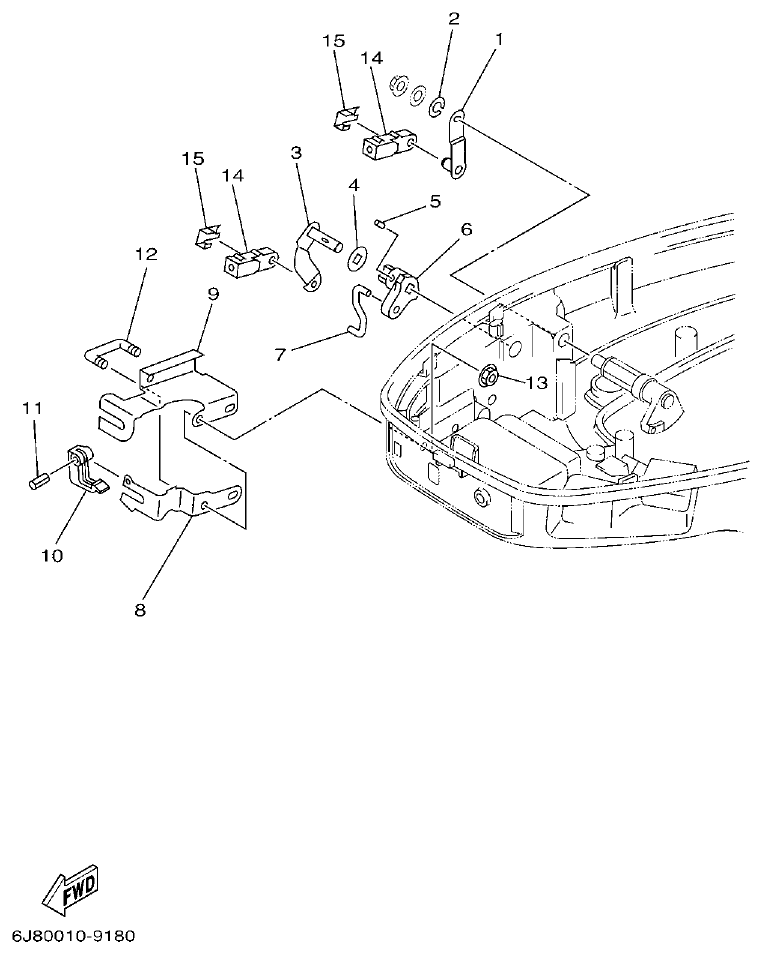

Fig. 15 — CONTROL 2
15 items · 1 available products
Yamaha 30DE, 30DMH REMO CON ATTACHMENT parts diagram

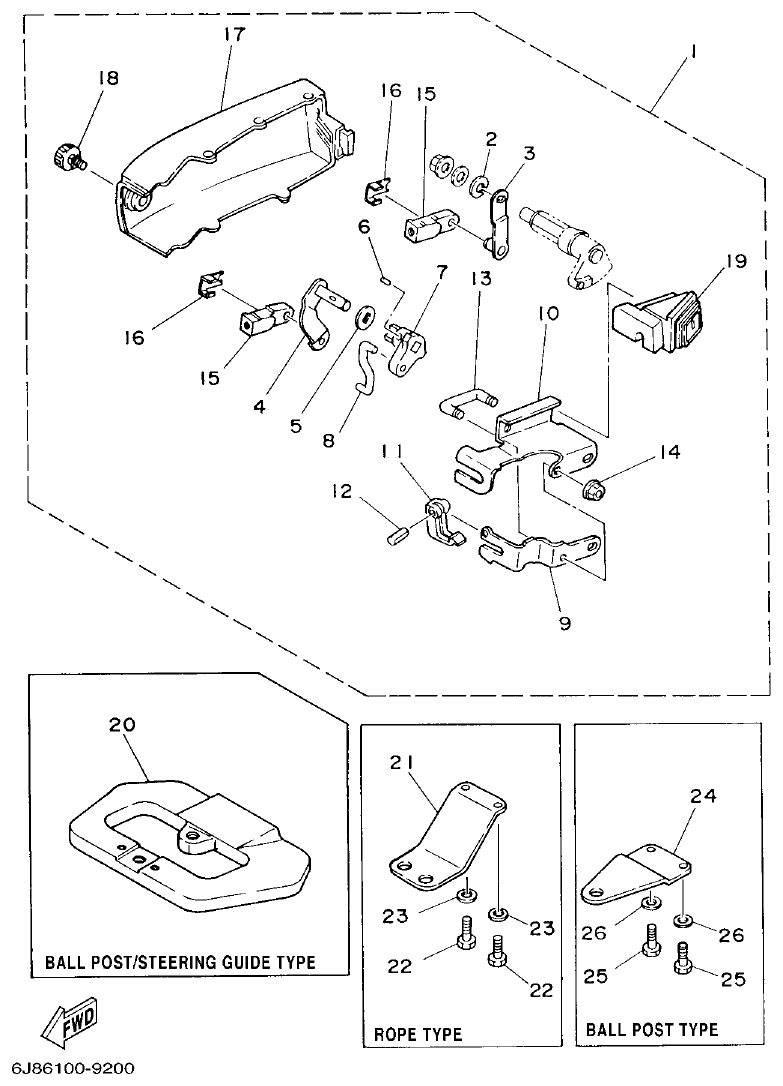

Fig. 16 — REMO CON ATTACHMENT
27 items · 1 available products
Yamaha 30DE, 30DMH BRACKET 1 parts diagram

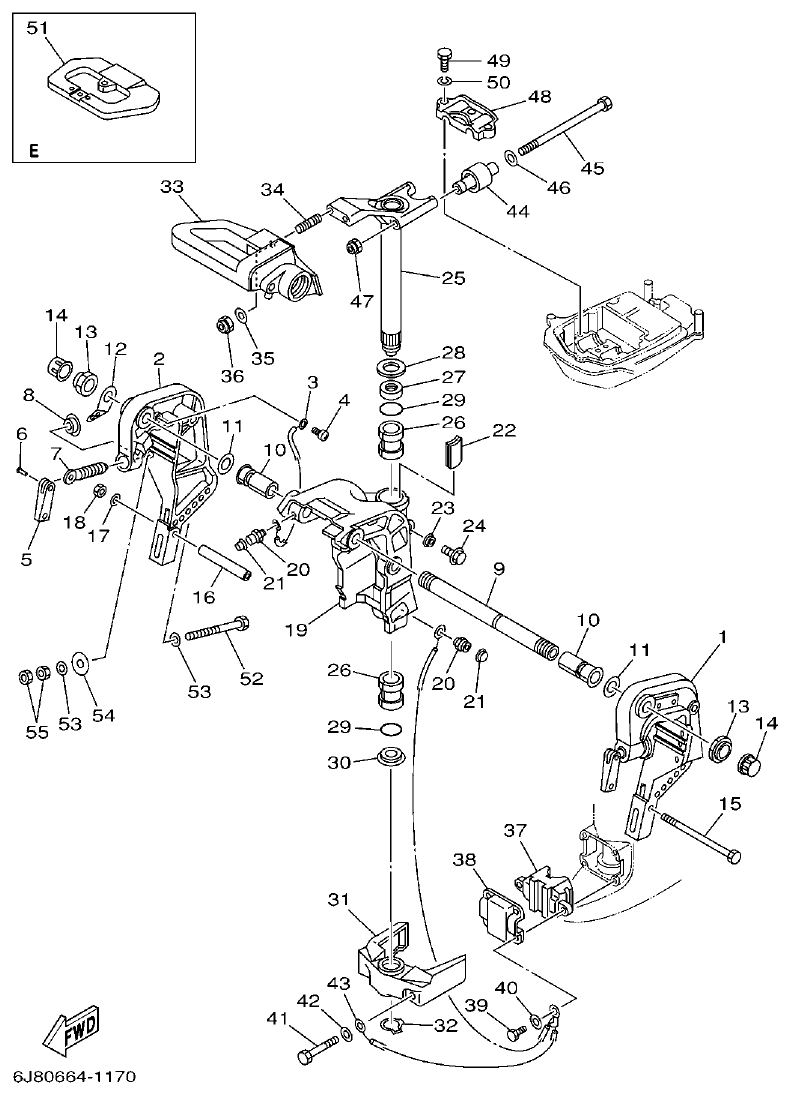

Fig. 17 — BRACKET 1
56 items · 5 available products
Yamaha 30DE, 30DMH BRACKET 2 parts diagram

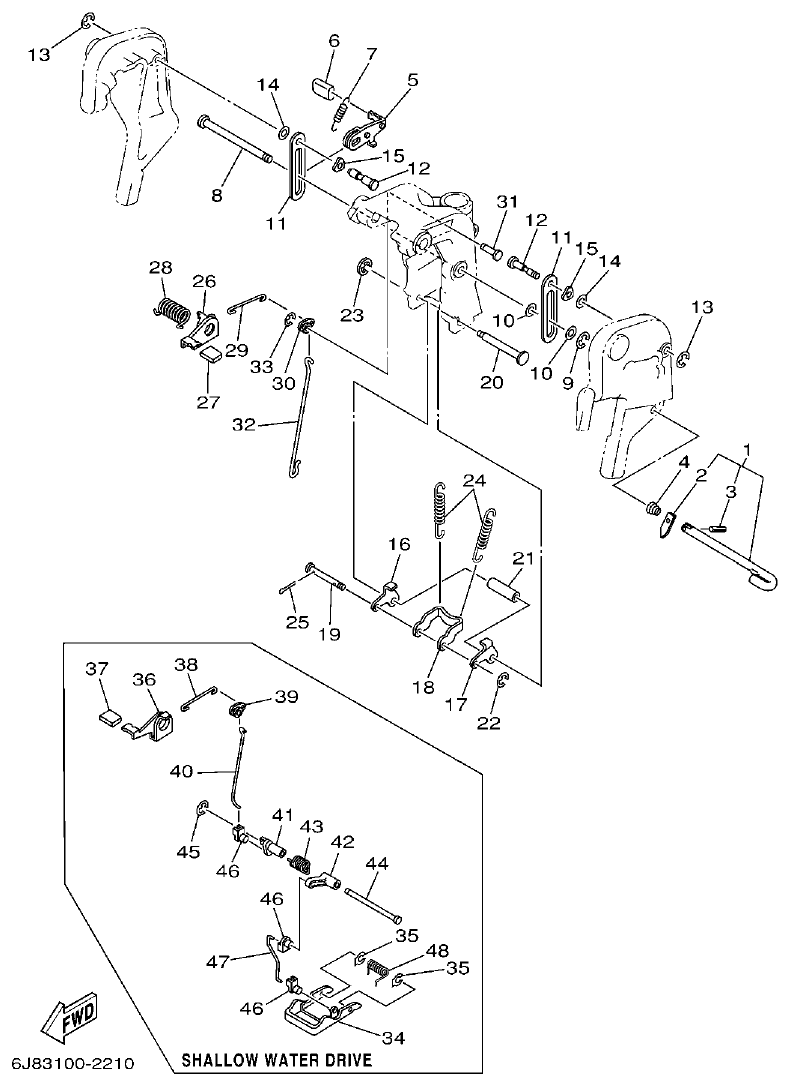

Fig. 18 — BRACKET 2
48 items · 1 available products

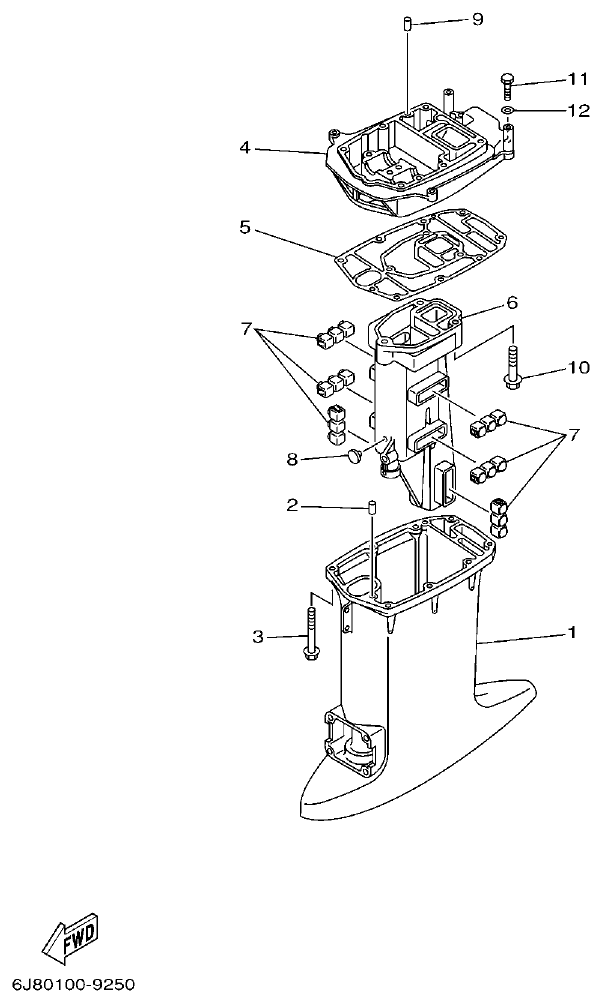

Yamaha 30DE, 30DMH UPPER CASING parts diagram
Fig. 19 — UPPER CASING
13 items
Yamaha 30DE, 30DMH LOWER CASING & DRIVE 1 parts diagram

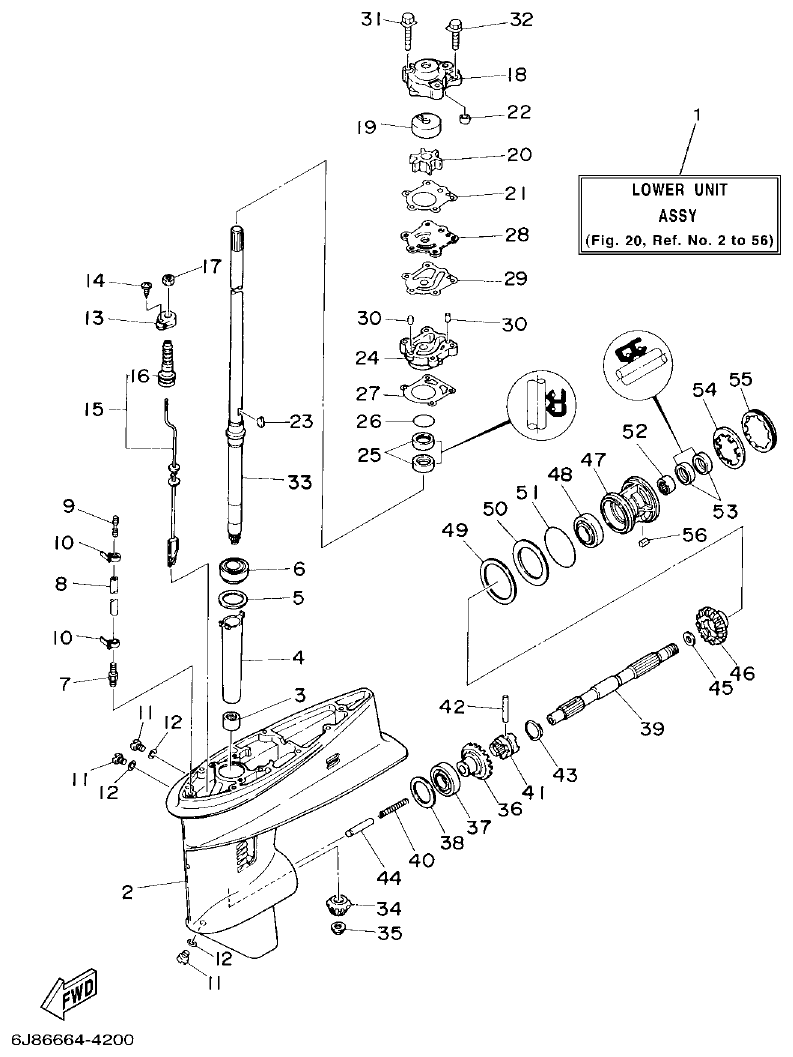

Fig. 20 — LOWER CASING & DRIVE 1
78 items · 11 available products
Yamaha 30DE, 30DMH LOWER CASING & DRIVE 2 parts diagram

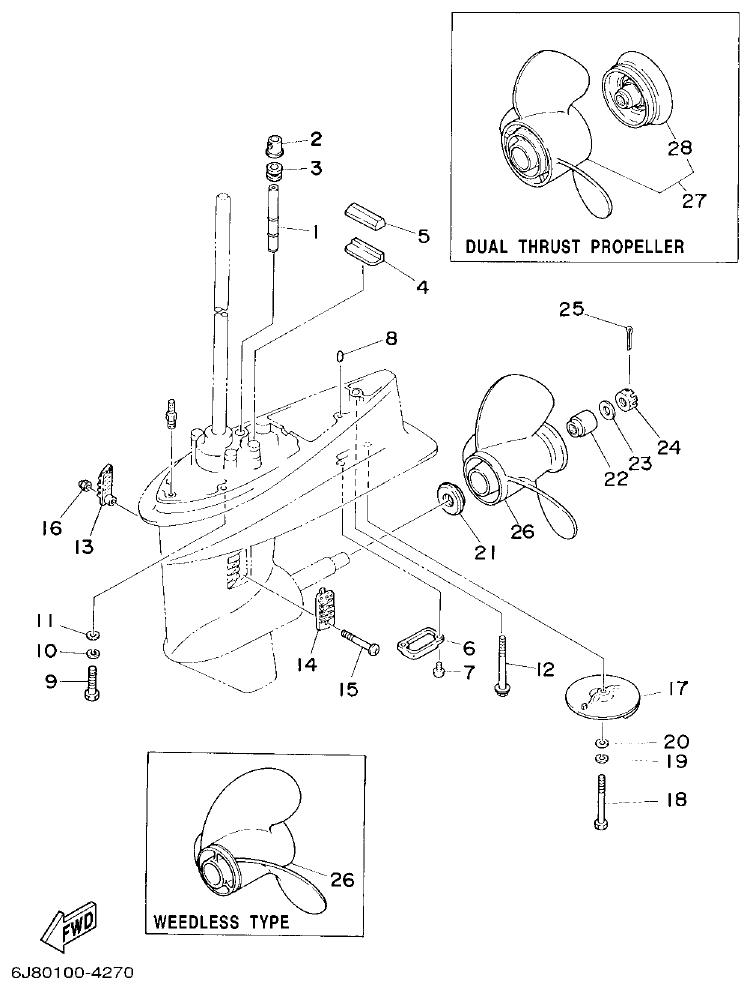

Fig. 21 — LOWER CASING & DRIVE 2
36 items · 4 available products
Yamaha 30DE, 30DMH FUEL TANK parts diagram

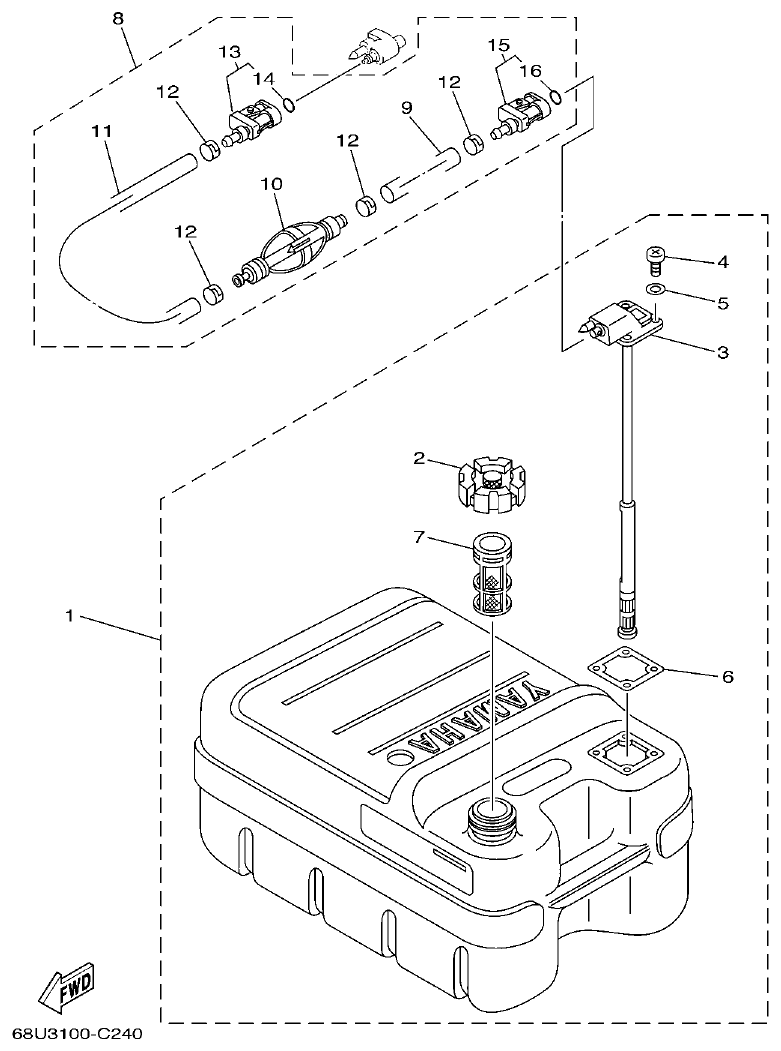

Fig. 22 — FUEL TANK
16 items · 2 available products
Yamaha 30DE, 30DMH REMOTE CONTROL BOX parts diagram
Fig. 23 — REMOTE CONTROL BOX
4 items
Yamaha 30DE, 30DMH REMOTE CONTROL ASSY parts diagram

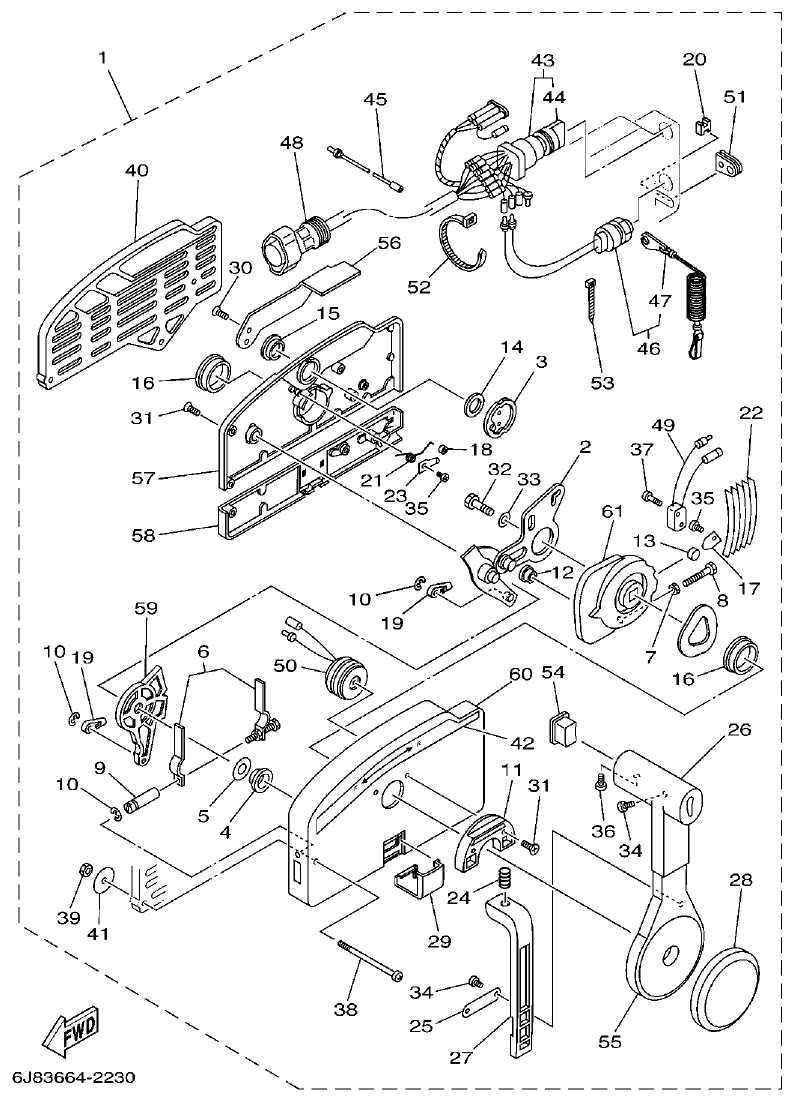

Fig. 24 — REMOTE CONTROL ASSY
61 items · 10 available products

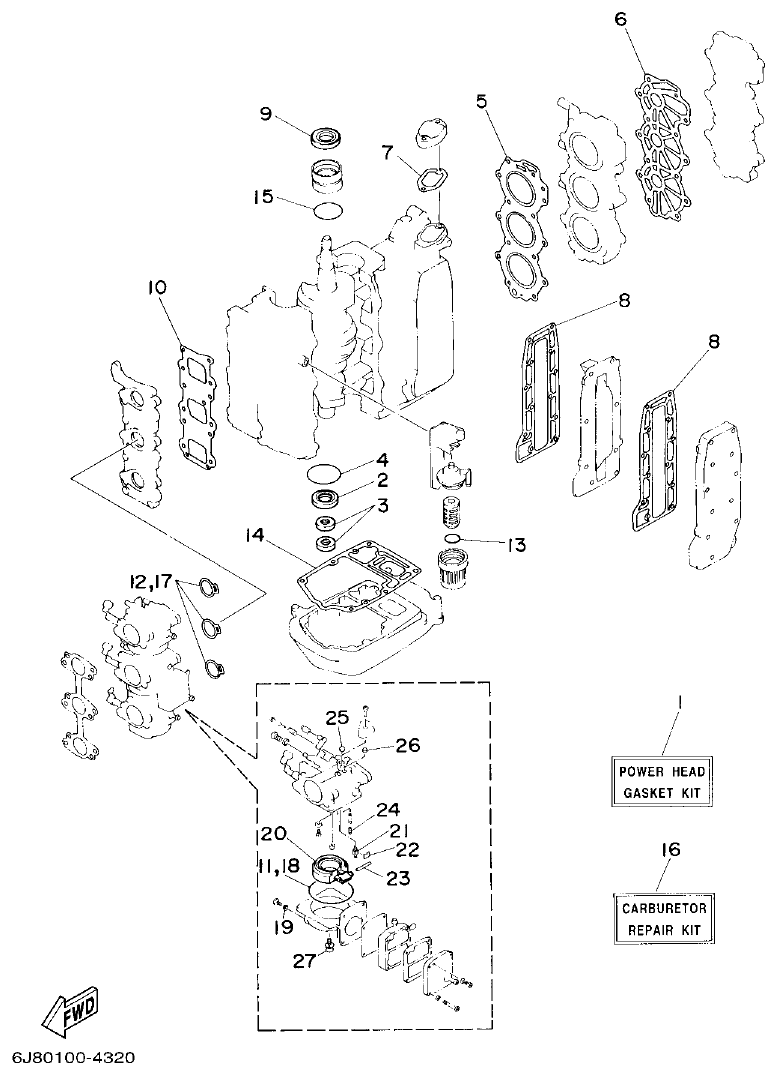

Yamaha 30DE, 30DMH REPAIR KIT 1 parts diagram
Fig. 25 — REPAIR KIT 1
27 items · 2 available products
Yamaha 30DE, 30DMH REPAIR KIT 2 parts diagram

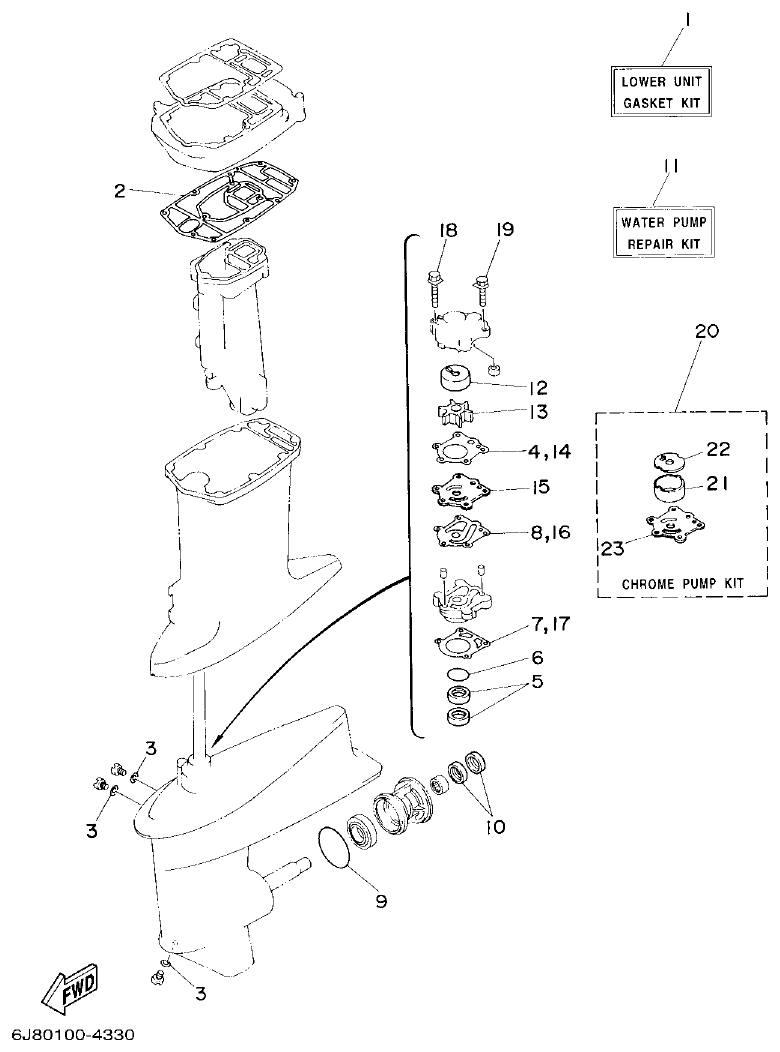

Fig. 26 — REPAIR KIT 2
23 items · 6 available products
