Yamaha 30DETO Parts Catalog

Yamaha 30DETO Outboard parts and diagrams

Yamaha 30DETO outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE, CRANKSHAFT. PISTON, INTAKE, CARBURETOR, OIL PUMP, FUEL 1, FUEL 2, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, ELECTRICAL 4, STARTING MOTOR, BOTTOM COWLING, STEERING, CONTROL 1. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

95 linked store products are available across 33 catalog sections. 1111 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha 30DETO TOP COWLING parts diagram

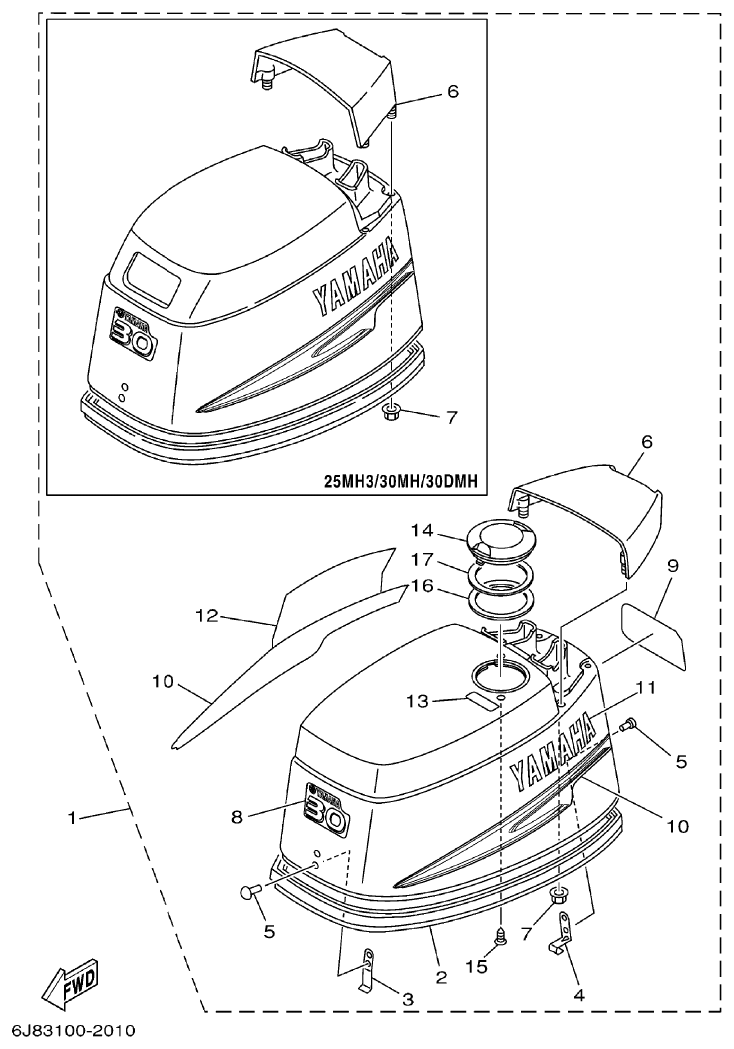

Fig. 1 — TOP COWLING
22 items · 1 available products
Yamaha 30DETO CYLINDER. CRANKCASE parts diagram

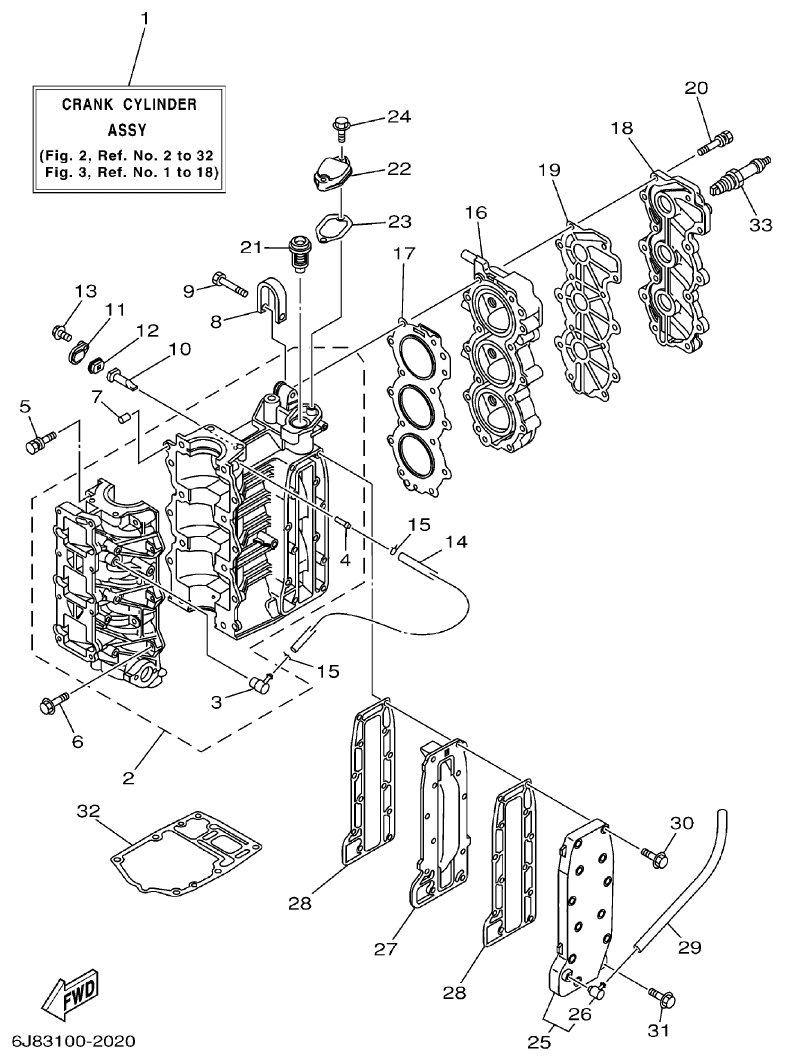

Fig. 2 — CYLINDER. CRANKCASE
36 items · 3 available products
Yamaha 30DETO CRANKSHAFT. PISTON parts diagram

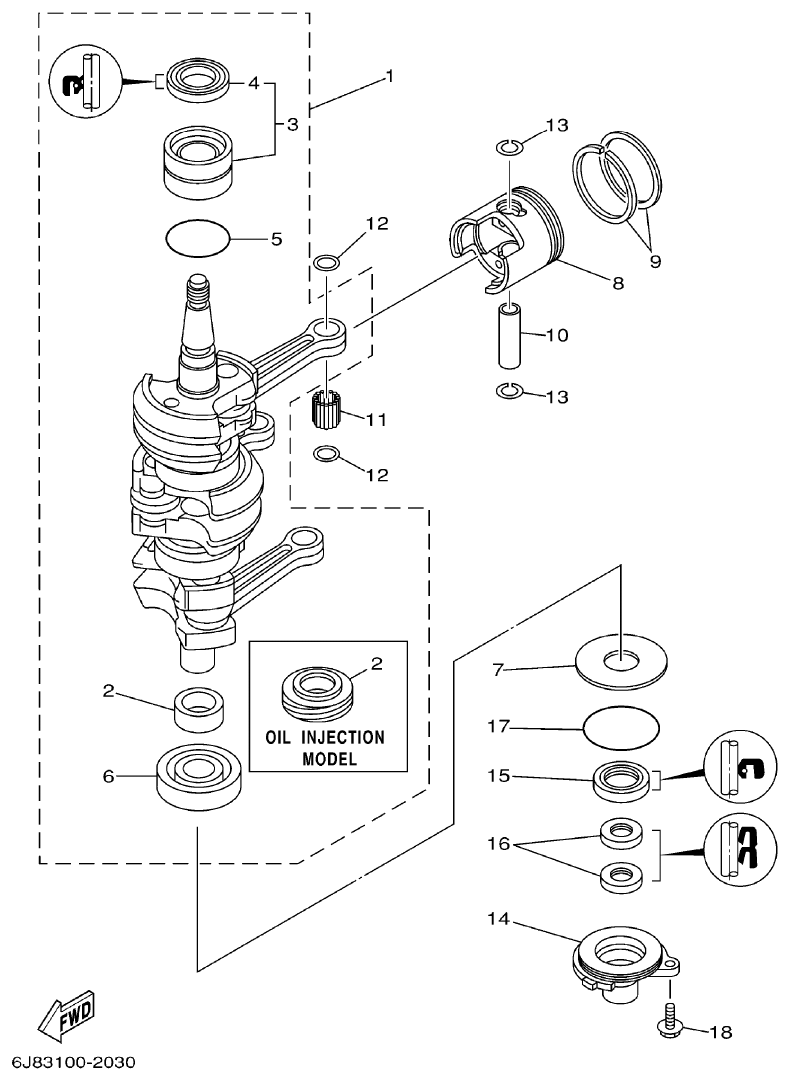

Fig. 3 — CRANKSHAFT. PISTON
24 items · 2 available products
Yamaha 30DETO INTAKE parts diagram

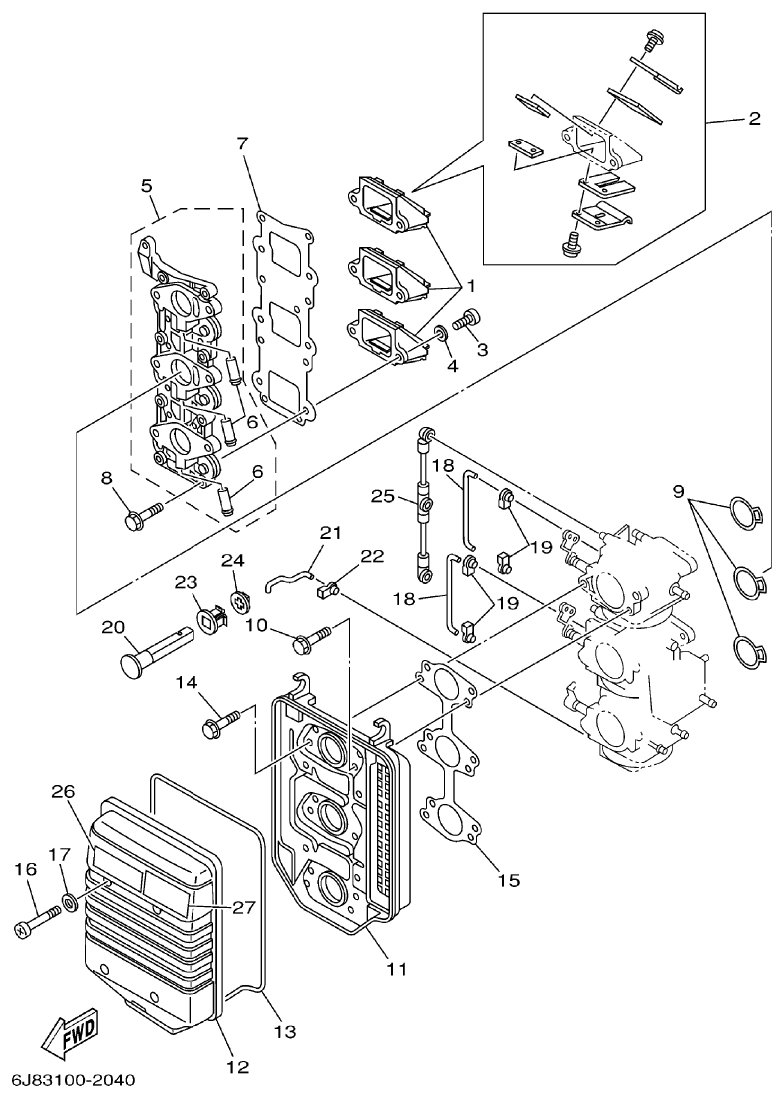

Fig. 4 — INTAKE
28 items · 4 available products
Yamaha 30DETO CARBURETOR parts diagram

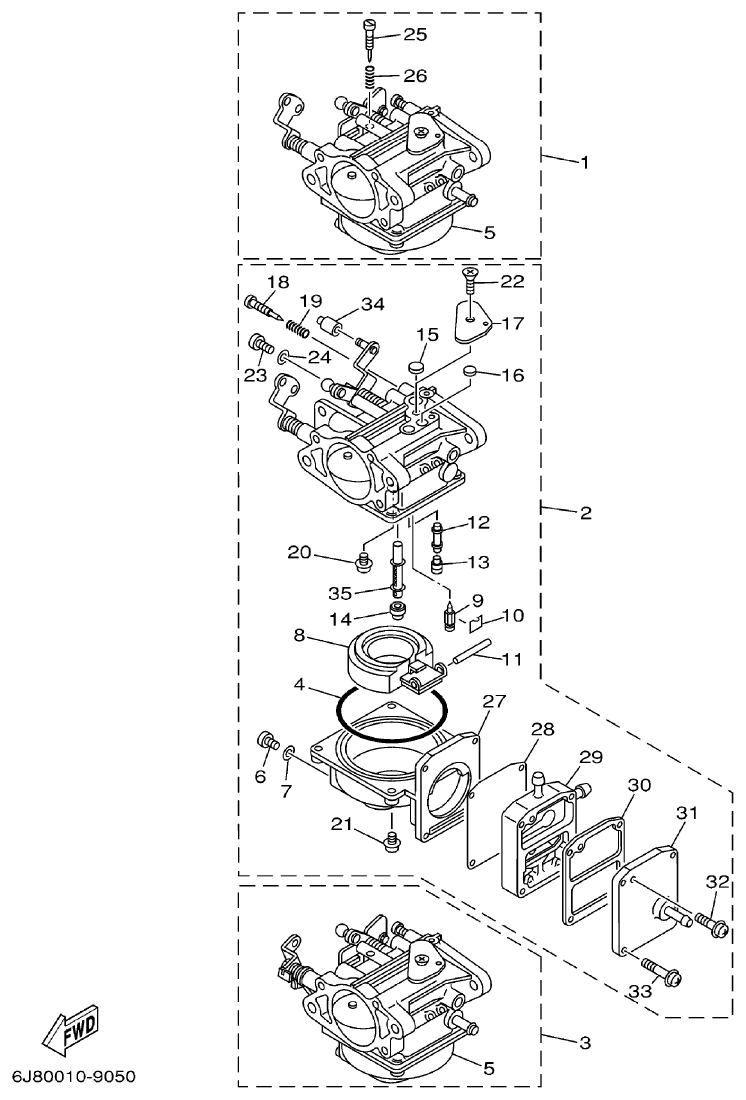

Fig. 5 — CARBURETOR
41 items · 2 available products
Yamaha 30DETO OIL PUMP parts diagram

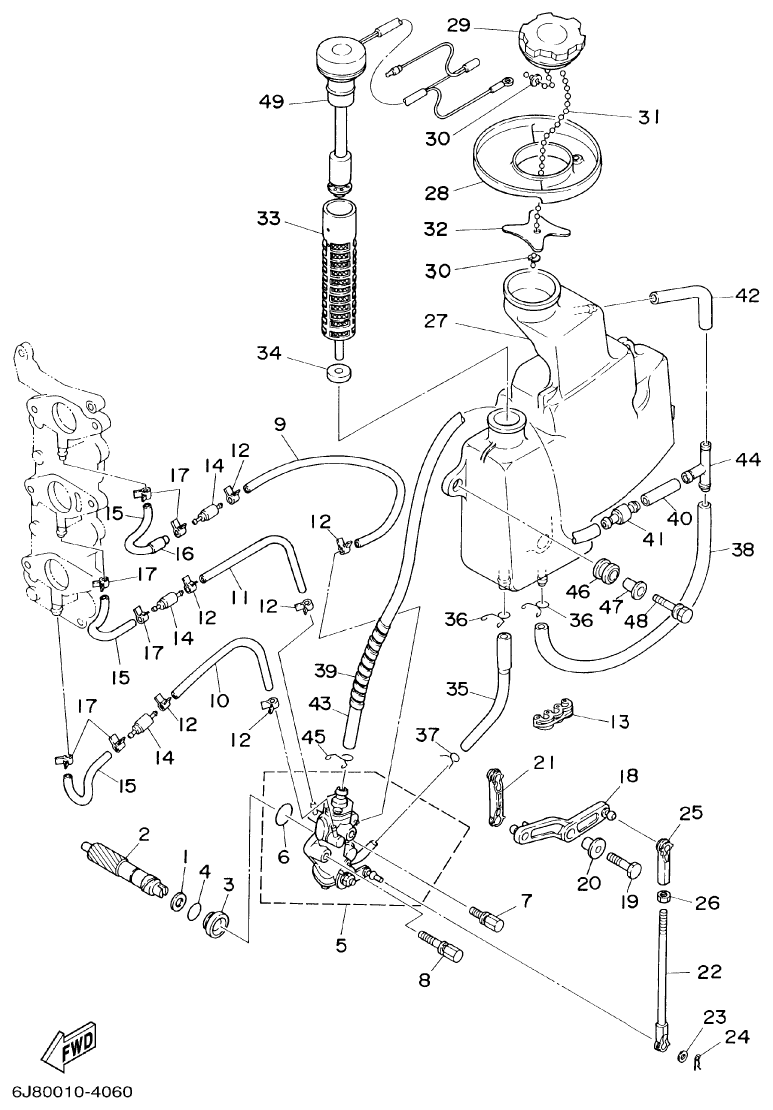

Fig. 6 — OIL PUMP
50 items · 2 available products
Yamaha 30DETO FUEL 1 parts diagram

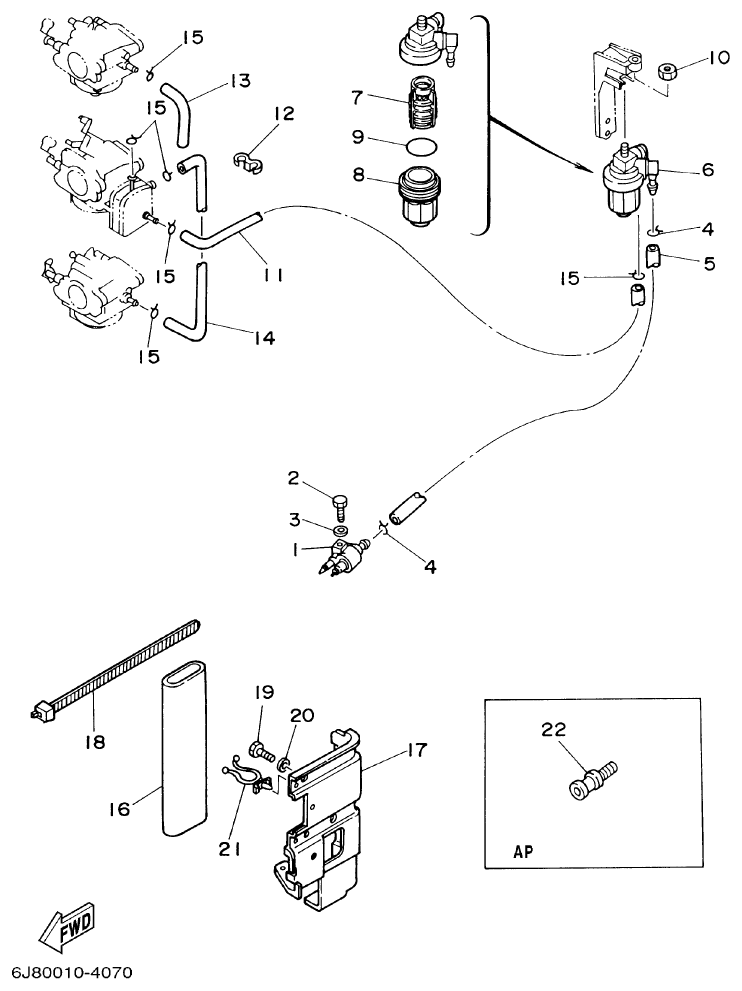

Fig. 7 — FUEL 1
22 items · 2 available products
Yamaha 30DETO FUEL 2 parts diagram

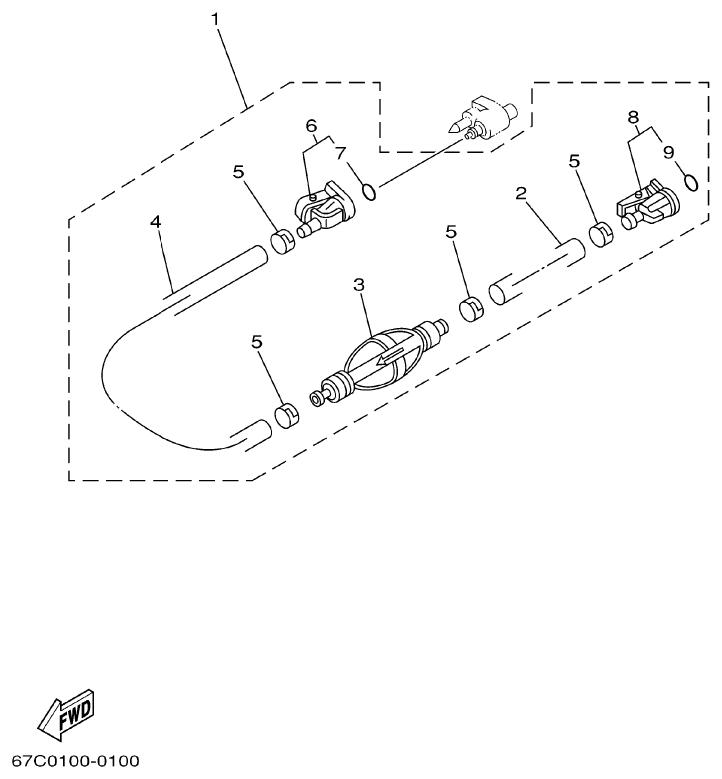

Fig. 8 — FUEL 2
9 items · 1 available products
Yamaha 30DETO STARTER parts diagram

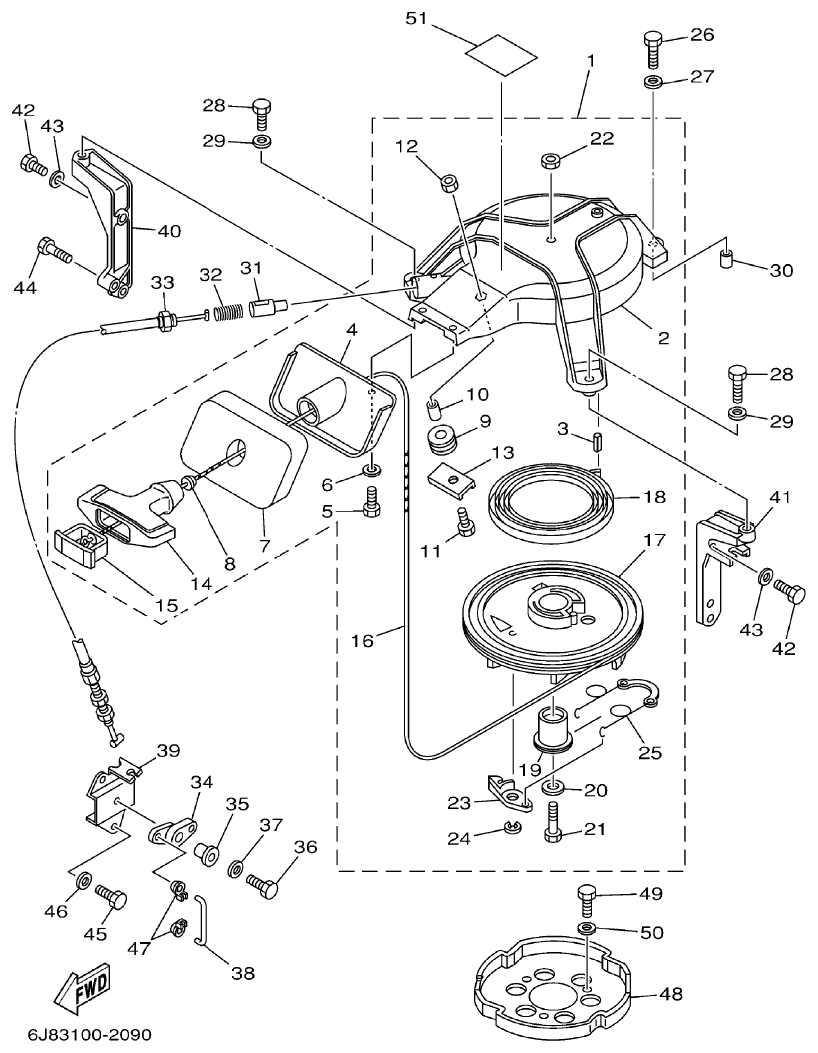

Fig. 9 — STARTER
51 items · 6 available products
Yamaha 30DETO GENERATOR parts diagram

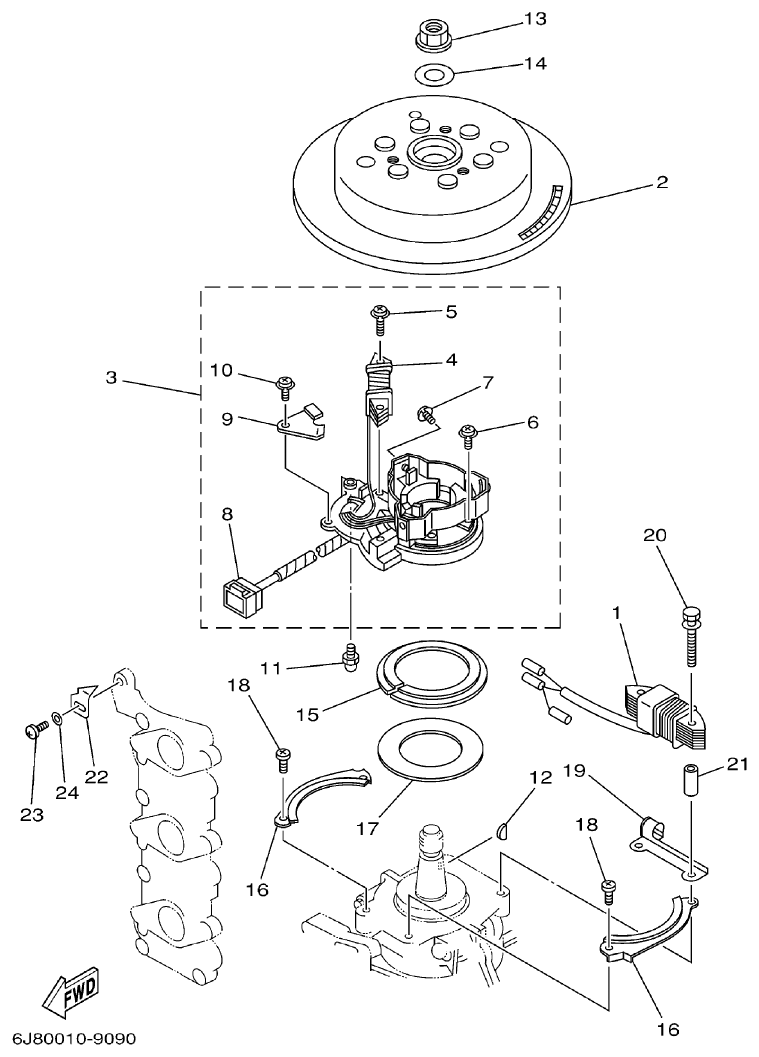

Fig. 10 — GENERATOR
27 items
Yamaha 30DETO ELECTRICAL 1 parts diagram

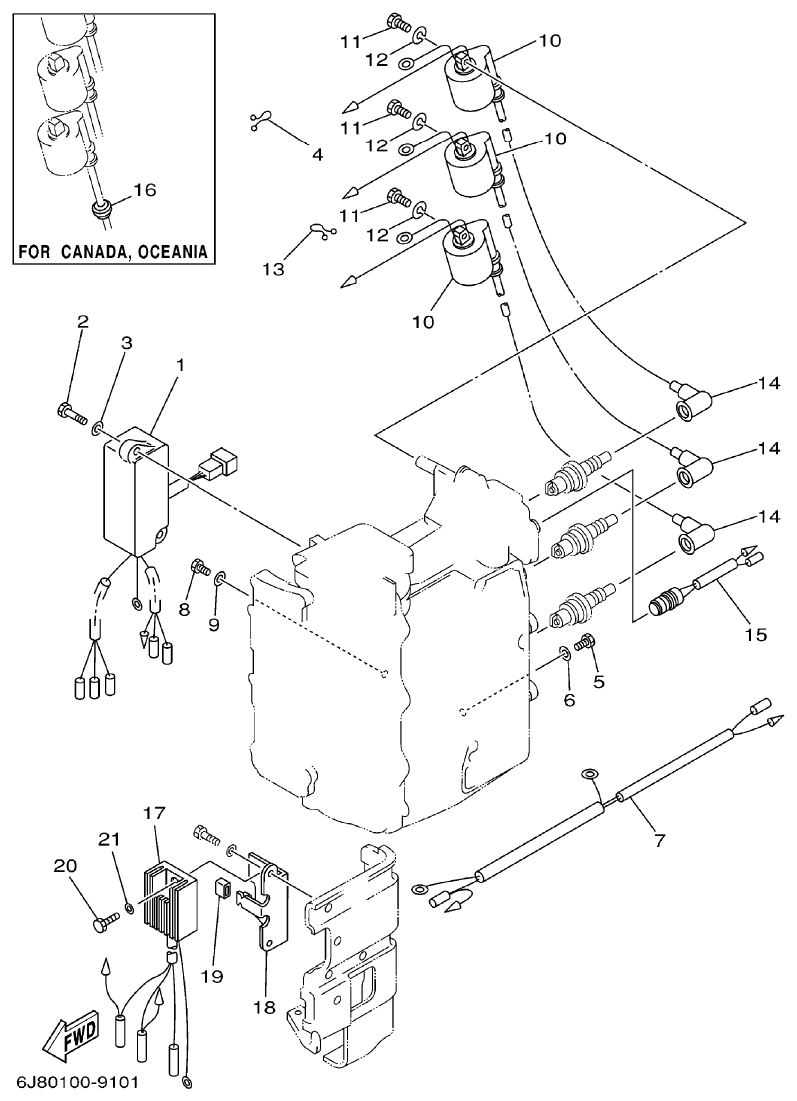

Fig. 11 — ELECTRICAL 1
22 items · 2 available products
Yamaha 30DETO ELECTRICAL 2 parts diagram

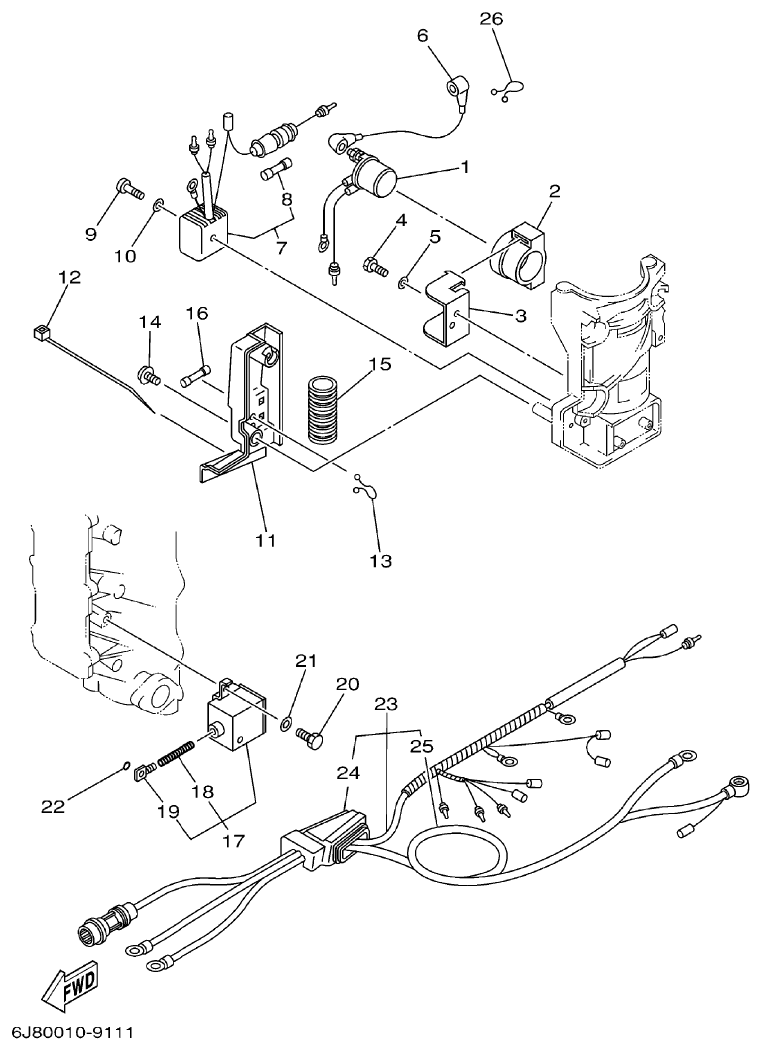

Fig. 12 — ELECTRICAL 2
26 items · 1 available products
Yamaha 30DETO ELECTRICAL 3 parts diagram

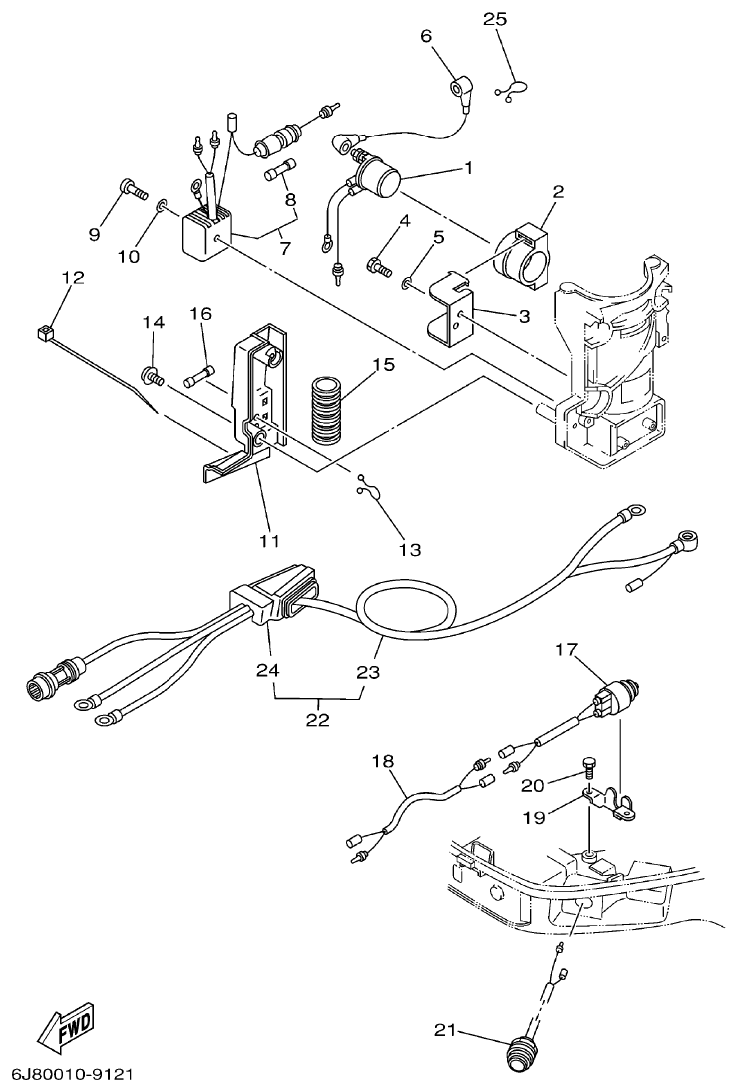

Fig. 13 — ELECTRICAL 3
25 items · 1 available products
Yamaha 30DETO ELECTRICAL 4 parts diagram

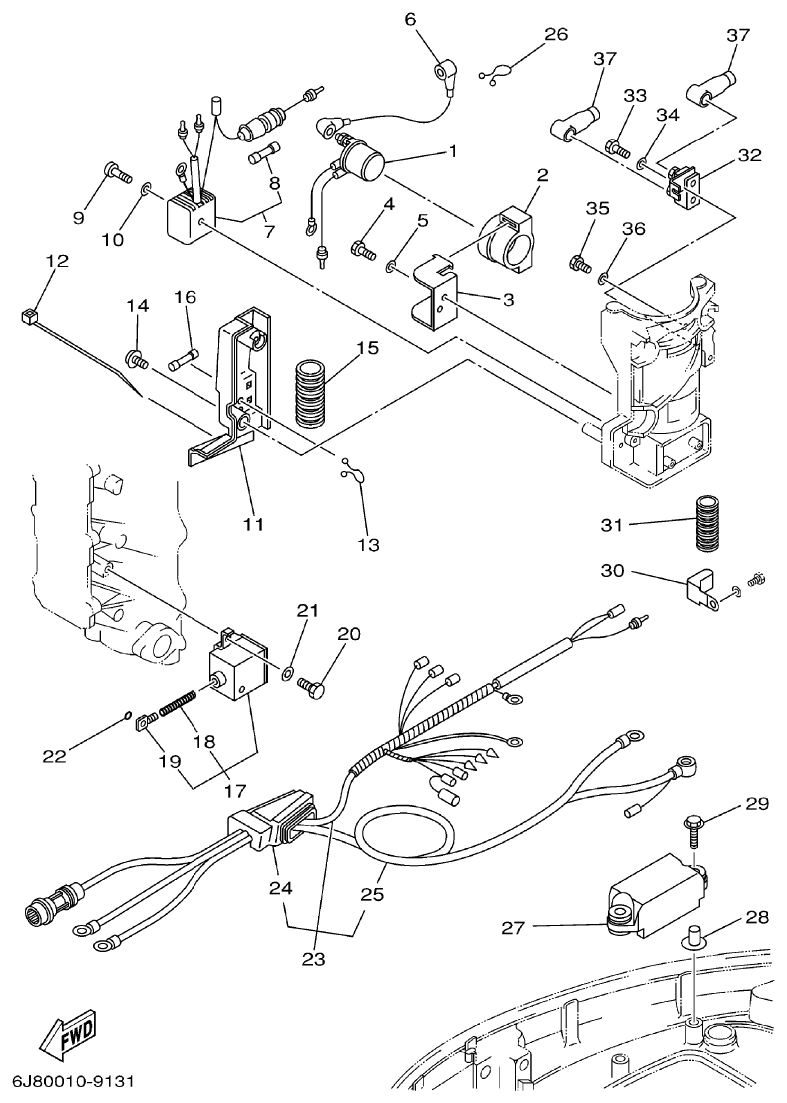

Fig. 14 — ELECTRICAL 4
37 items · 1 available products
Yamaha 30DETO STARTING MOTOR parts diagram

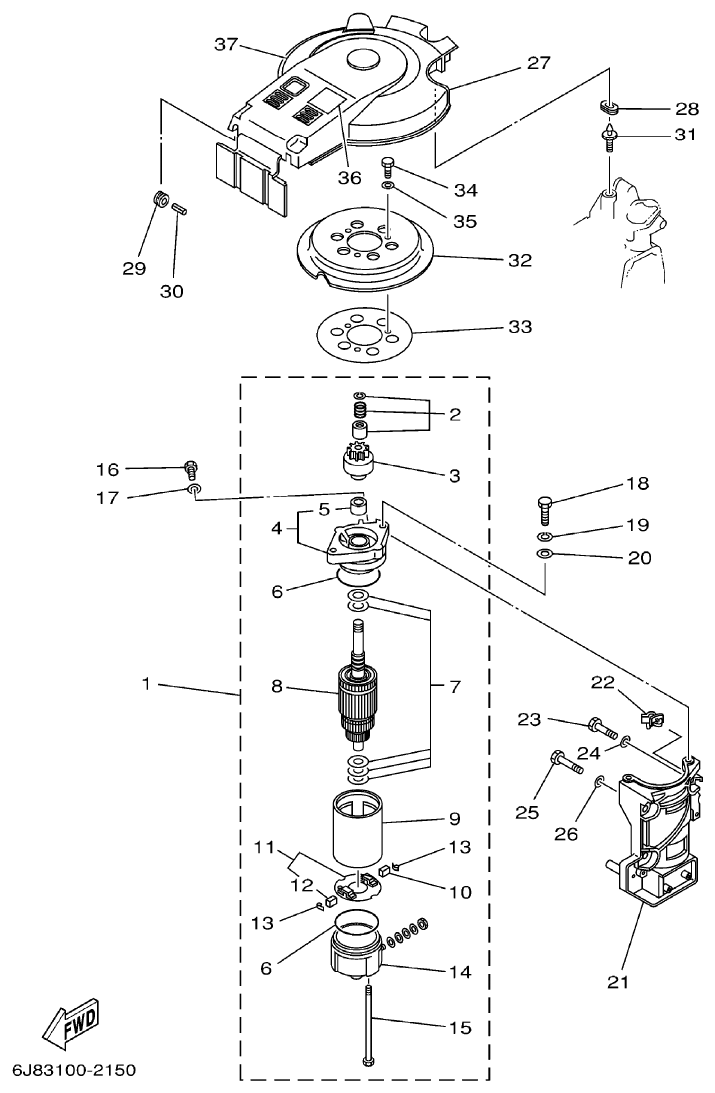

Fig. 15 — STARTING MOTOR
37 items · 4 available products
Yamaha 30DETO BOTTOM COWLING parts diagram

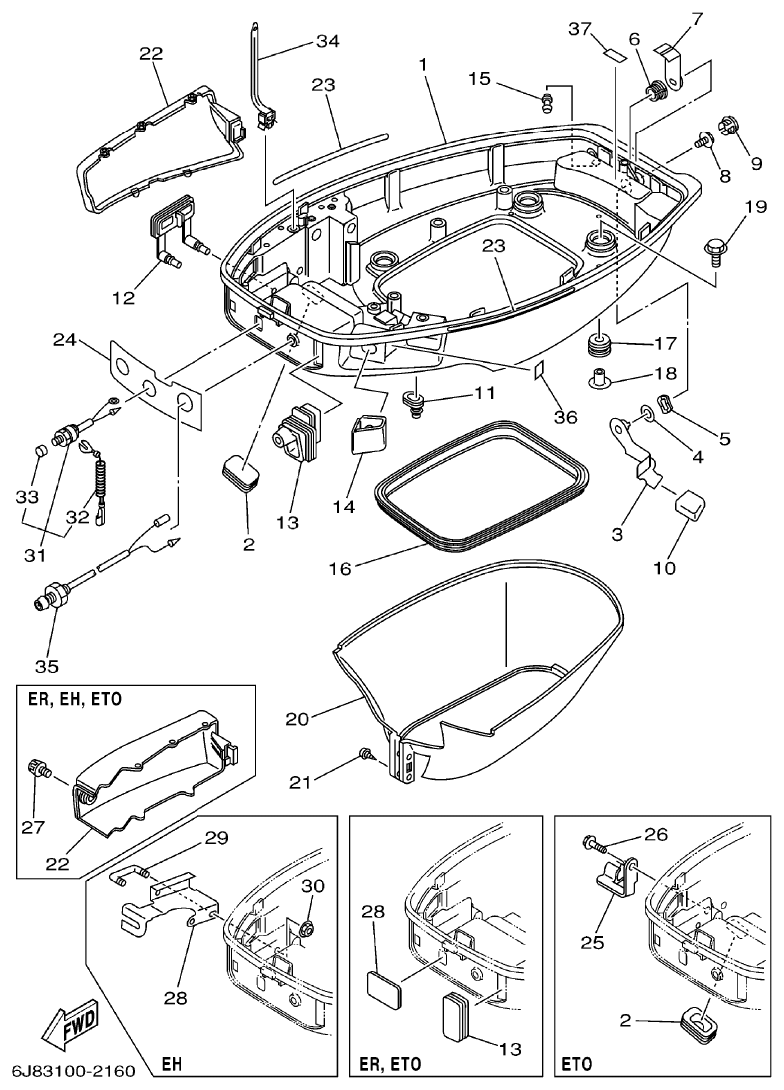

Fig. 16 — BOTTOM COWLING
44 items · 2 available products
Yamaha 30DETO STEERING parts diagram

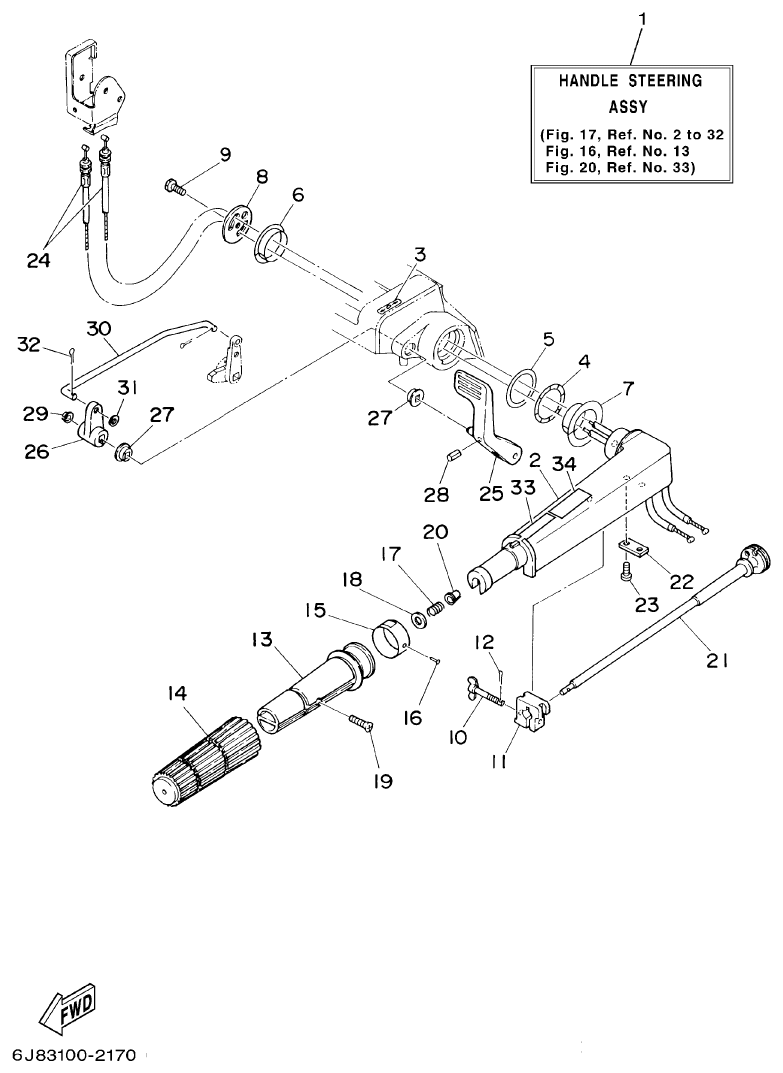

Fig. 17 — STEERING
34 items · 2 available products
Yamaha 30DETO CONTROL 1 parts diagram

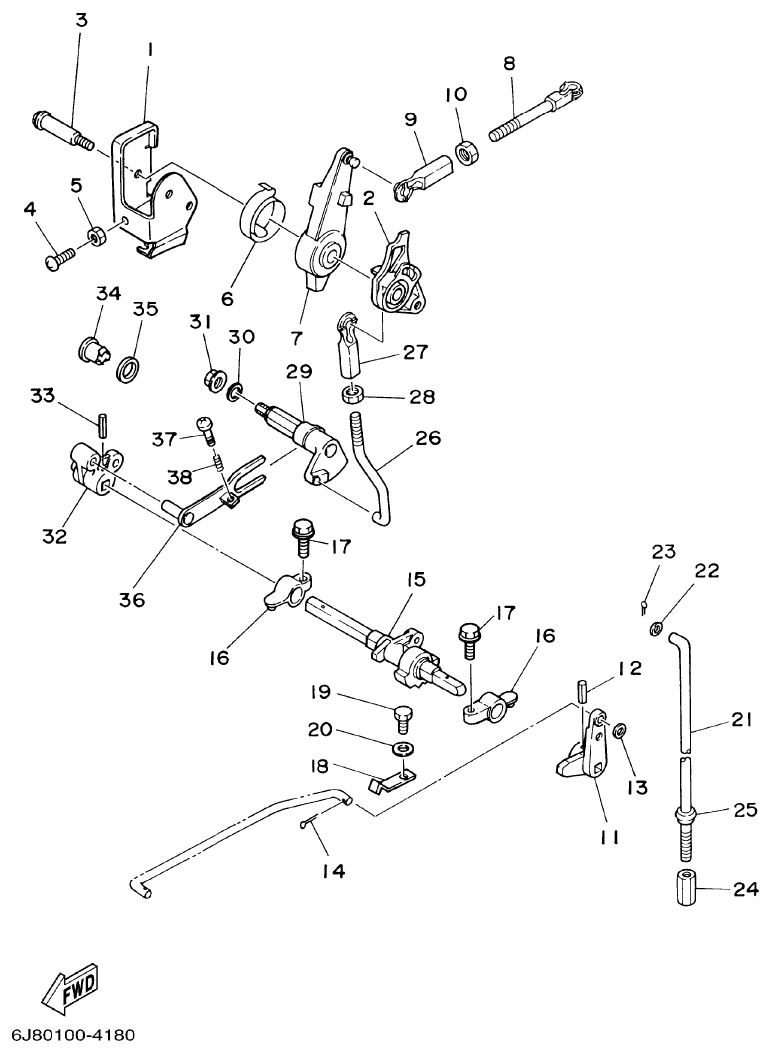

Fig. 18 — CONTROL 1
38 items · 1 available products
Yamaha 30DETO CONTROL 2 parts diagram

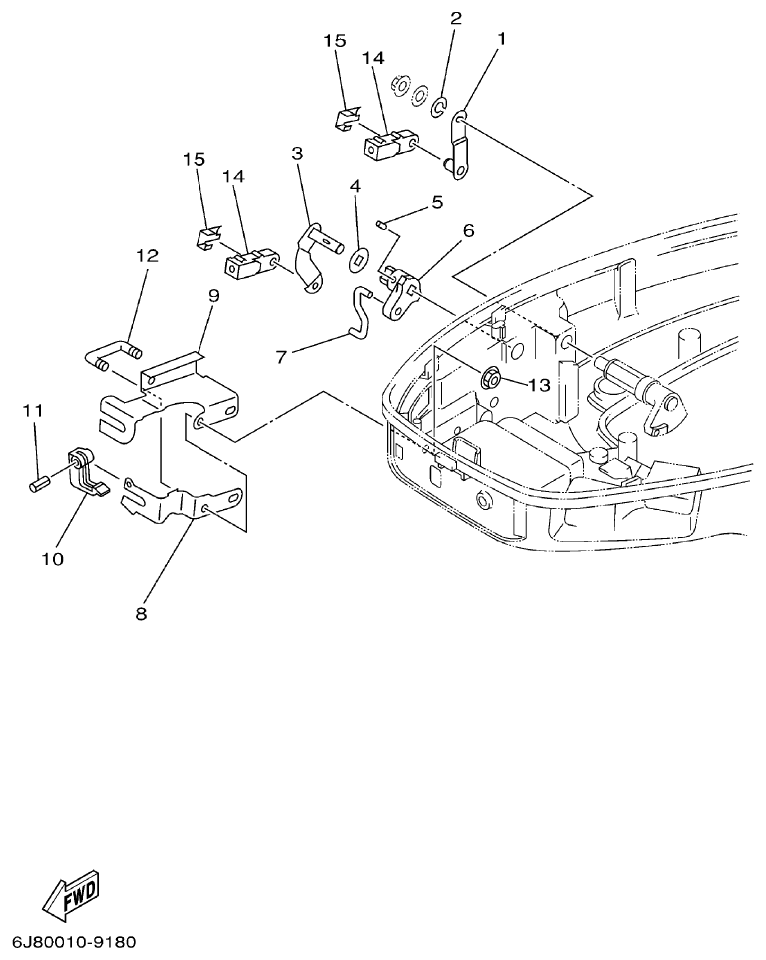

Fig. 19 — CONTROL 2
15 items · 1 available products
Yamaha 30DETO BRACKET 1 parts diagram

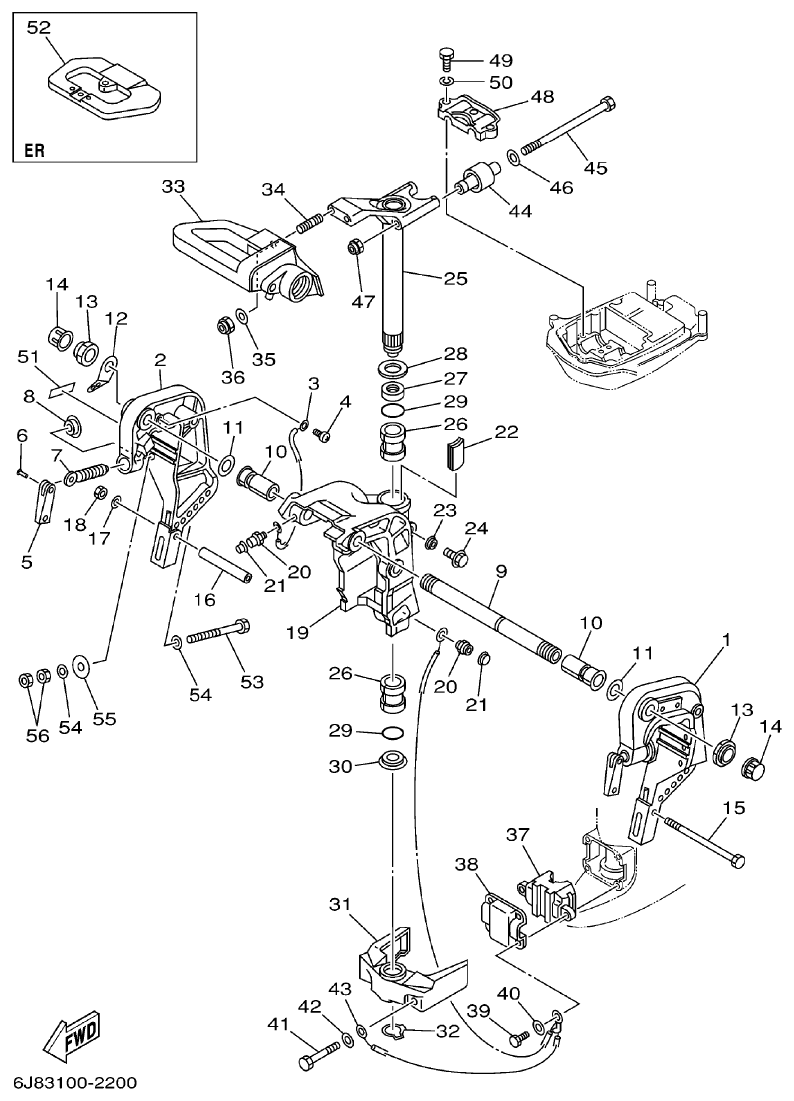

Fig. 20 — BRACKET 1
57 items · 5 available products
Yamaha 30DETO BRACKET 2 parts diagram

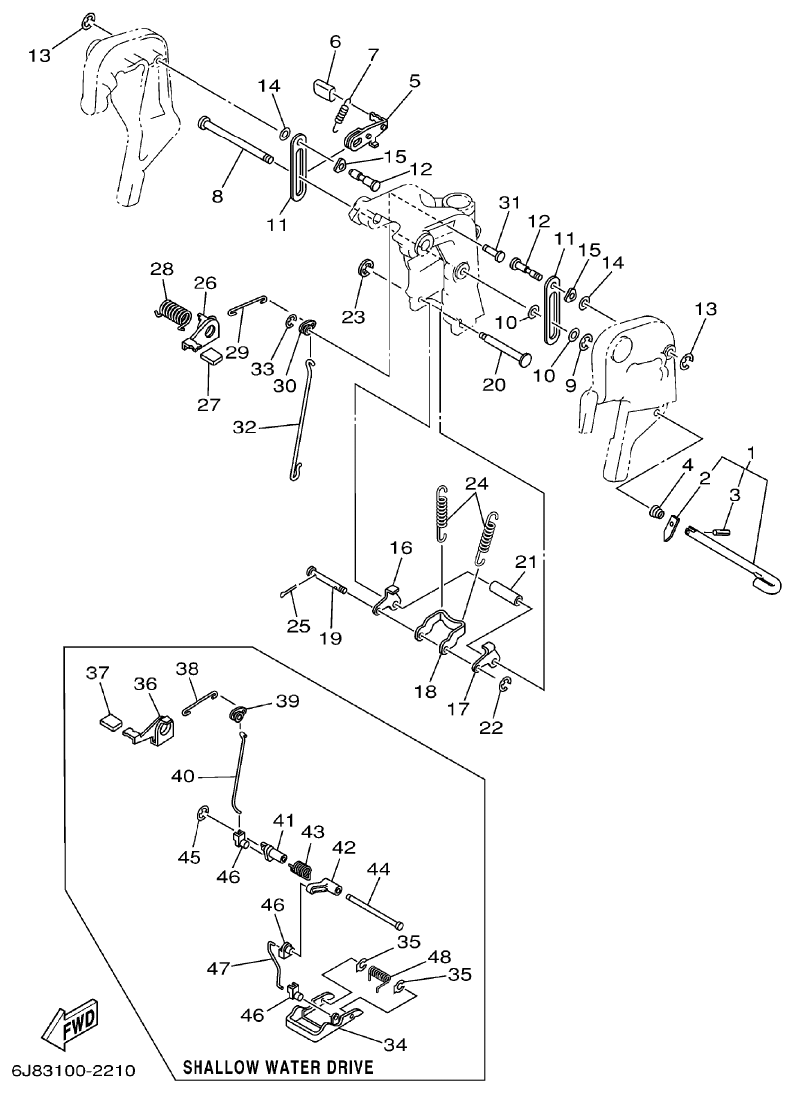

Fig. 21 — BRACKET 2
48 items · 1 available products
Yamaha 30DETO BRACKET 3 parts diagram

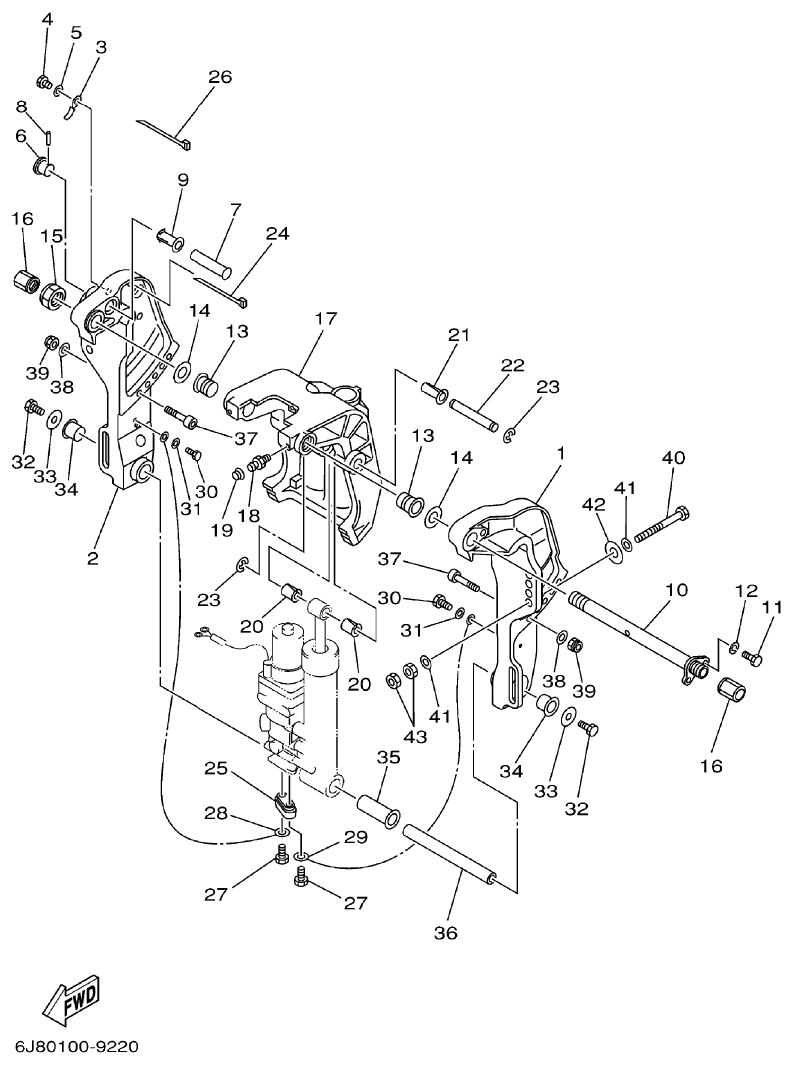

Fig. 22 — BRACKET 3
43 items · 4 available products
Yamaha 30DETO BRACKET 4 parts diagram

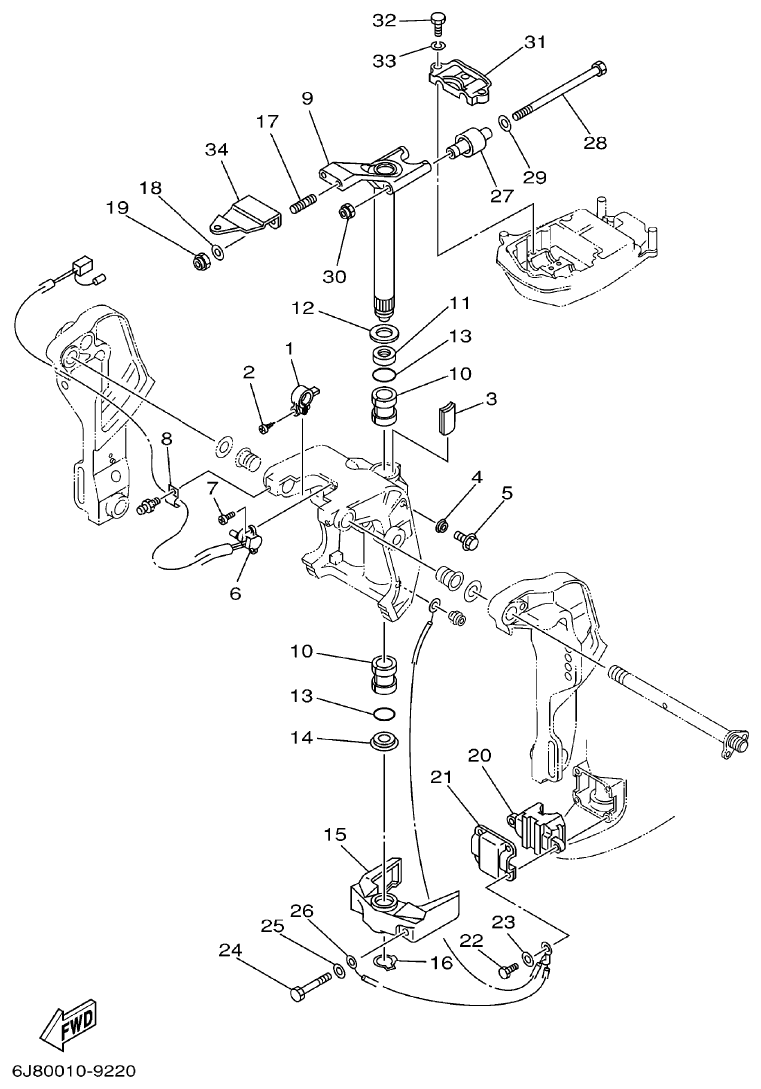

Fig. 23 — BRACKET 4
34 items
Yamaha 30DETO POWER TRIM & TILT ASSY parts diagram

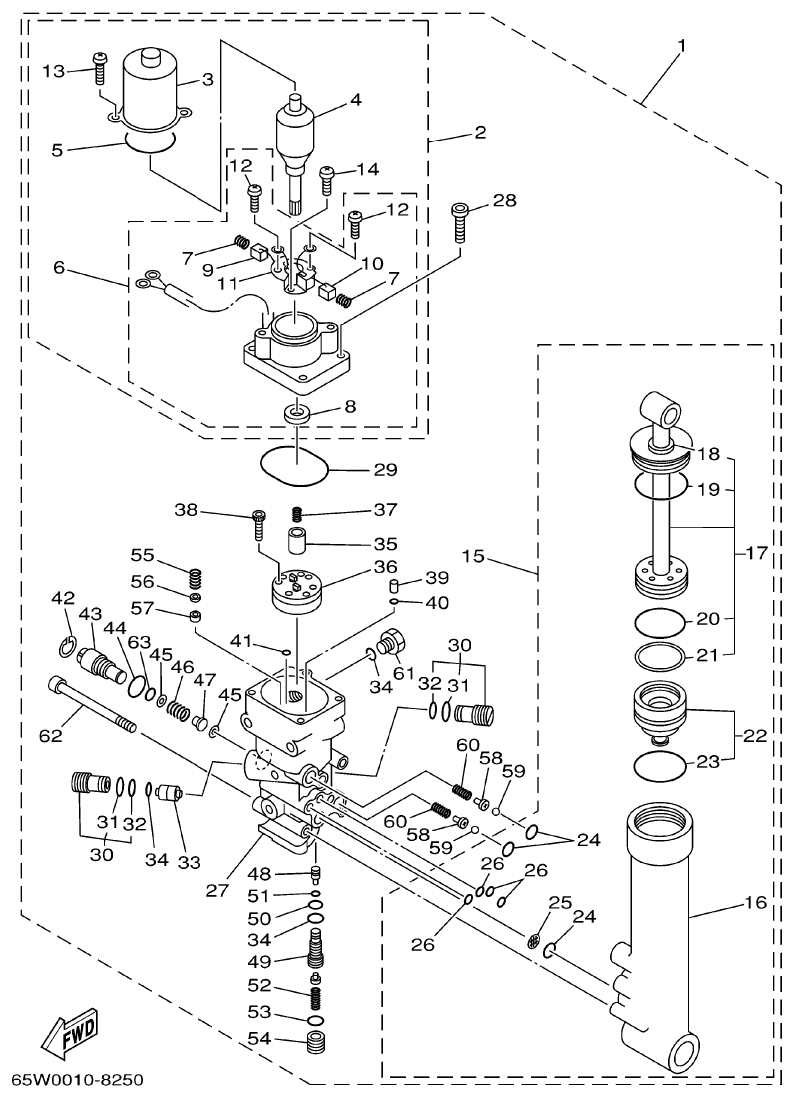

Fig. 24 — POWER TRIM & TILT ASSY
63 items · 8 available products
Yamaha 30DETO UPPER CASING parts diagram

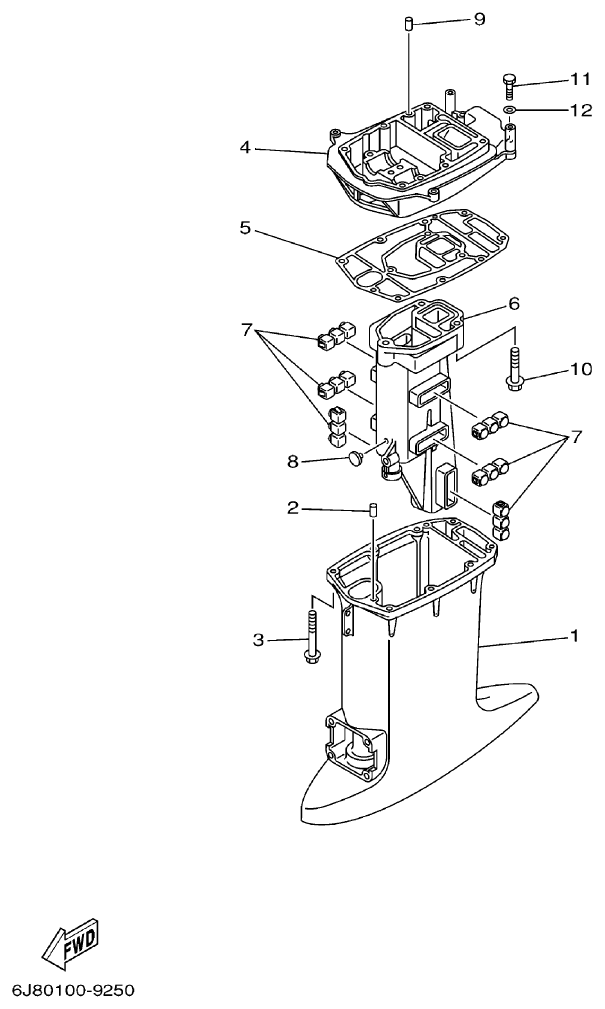

Fig. 25 — UPPER CASING
14 items
Yamaha 30DETO LOWER CASING. DRIVE 1 parts diagram

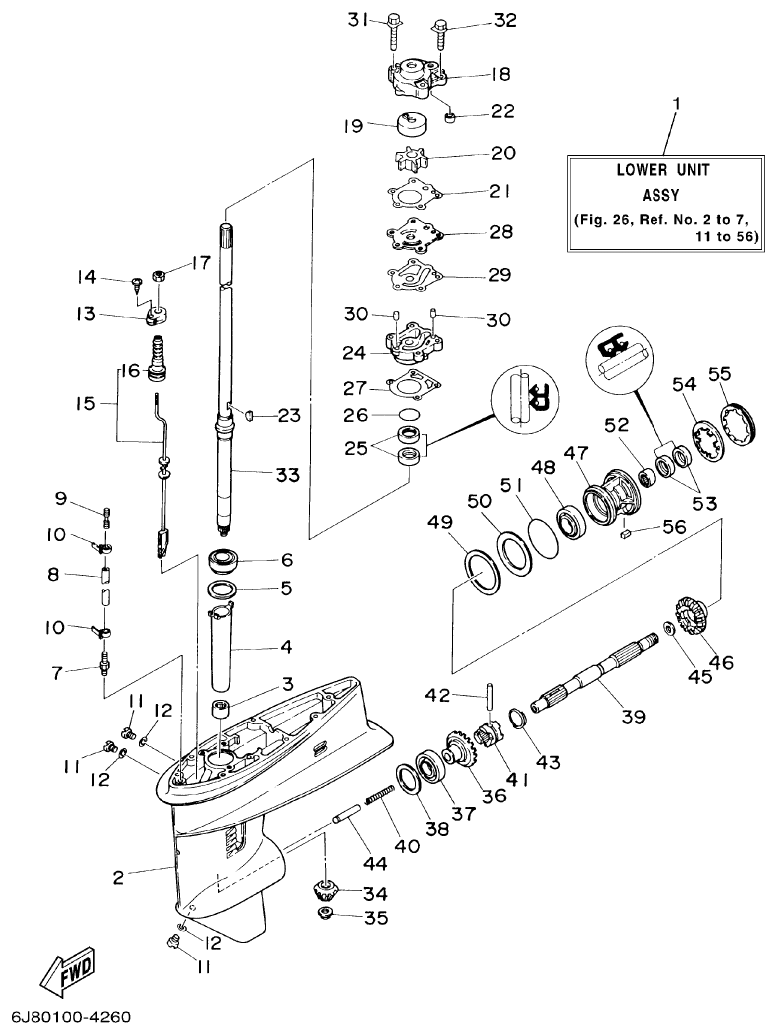

Fig. 26 — LOWER CASING. DRIVE 1
78 items · 11 available products
Yamaha 30DETO LOWER CASING. DRIVE 2 parts diagram

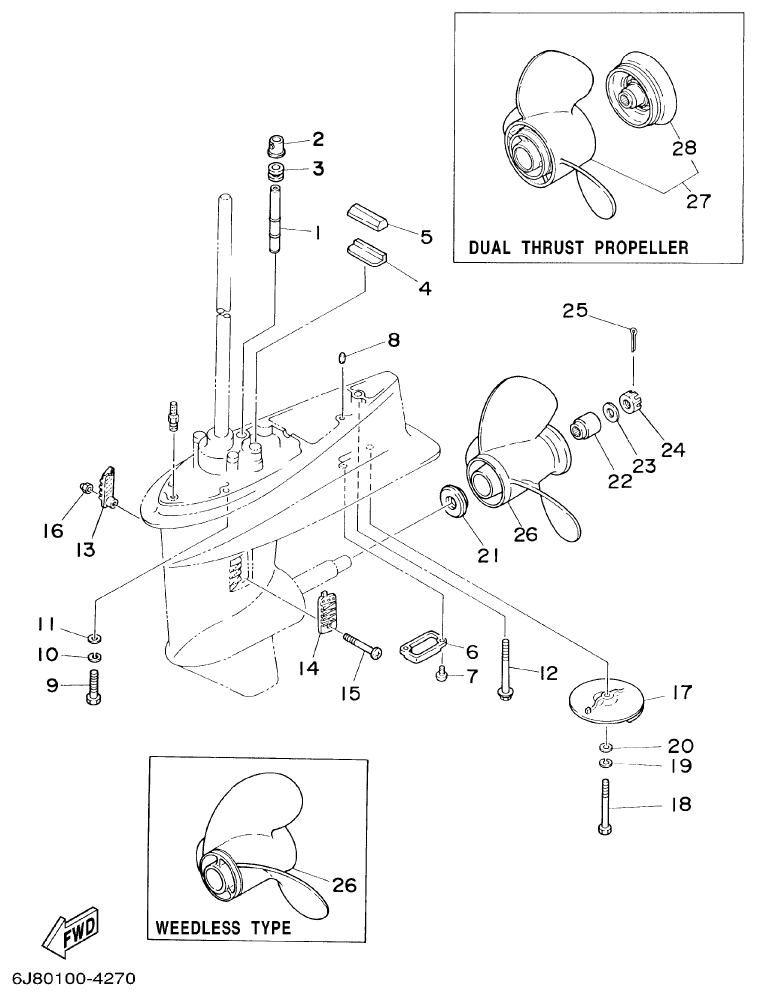

Fig. 27 — LOWER CASING. DRIVE 2
36 items · 4 available products
Yamaha 30DETO FUEL TANK parts diagram

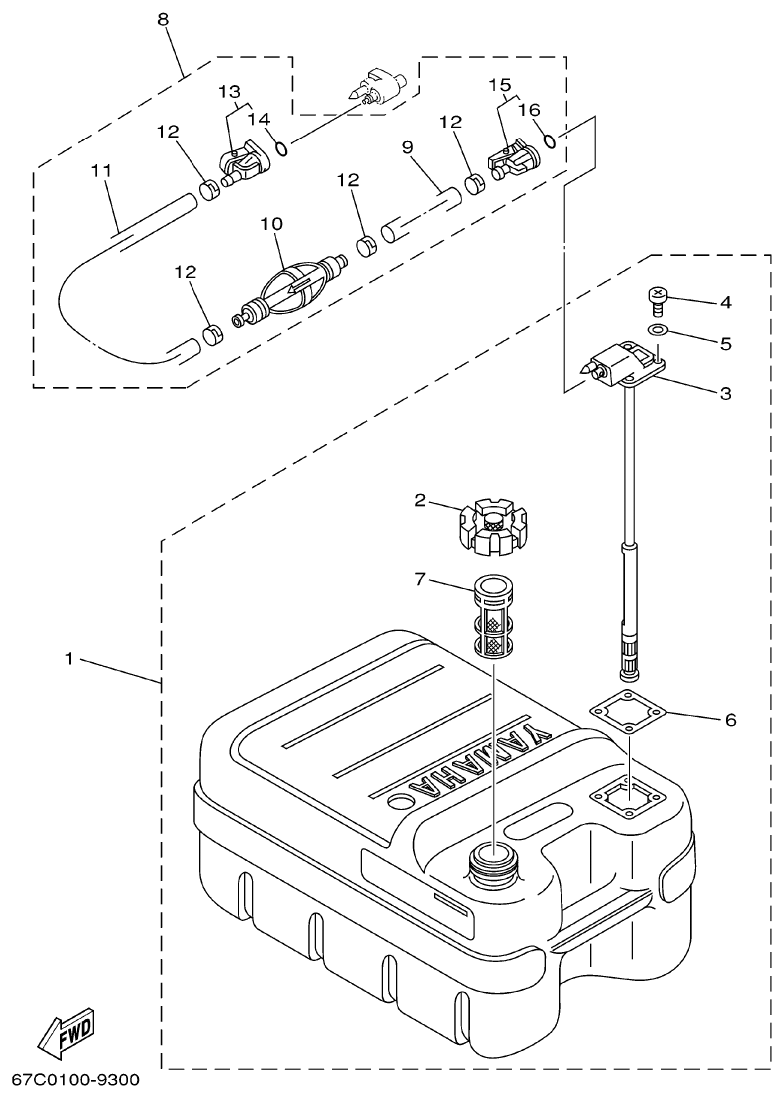

Fig. 28 — FUEL TANK
19 items · 3 available products
Yamaha 30DETO STEERING GUIDE parts diagram

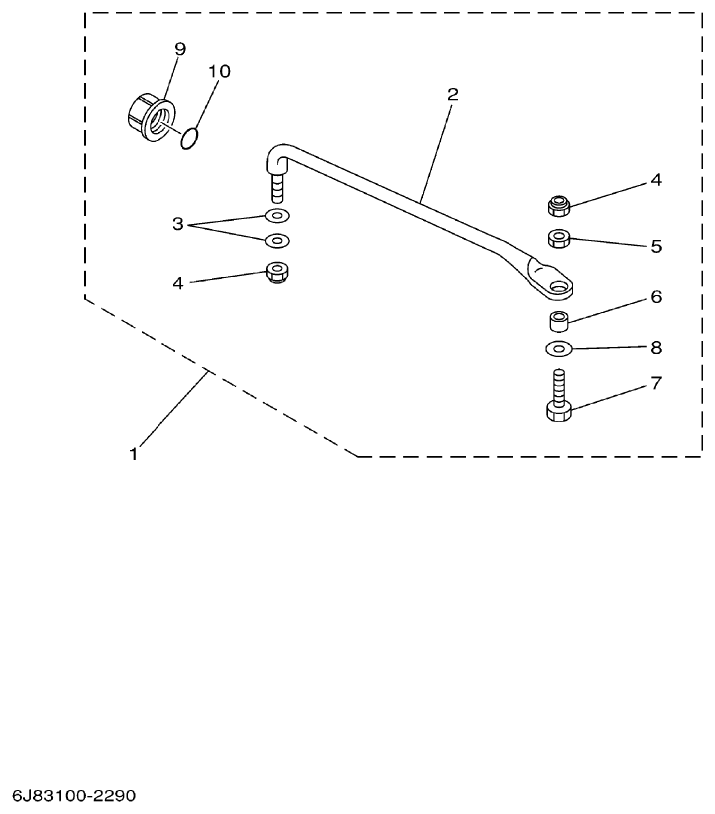

Fig. 29 — STEERING GUIDE
10 items · 1 available products
Yamaha 30DETO REMOTE CONTROL BOX parts diagram
Fig. 30 — REMOTE CONTROL BOX
5 items
Yamaha 30DETO REMOTE CONTROL ASSY parts diagram

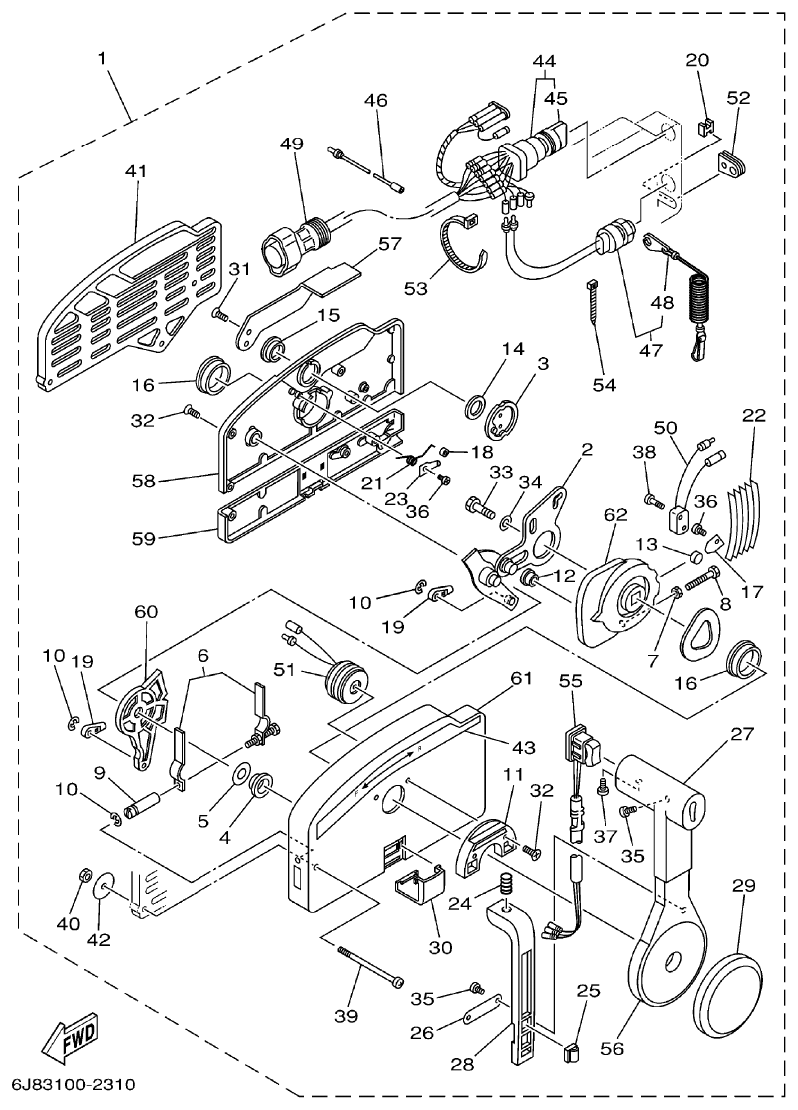

Fig. 31 — REMOTE CONTROL ASSY
66 items · 12 available products
Yamaha 30DETO REPAIR KIT 1 parts diagram

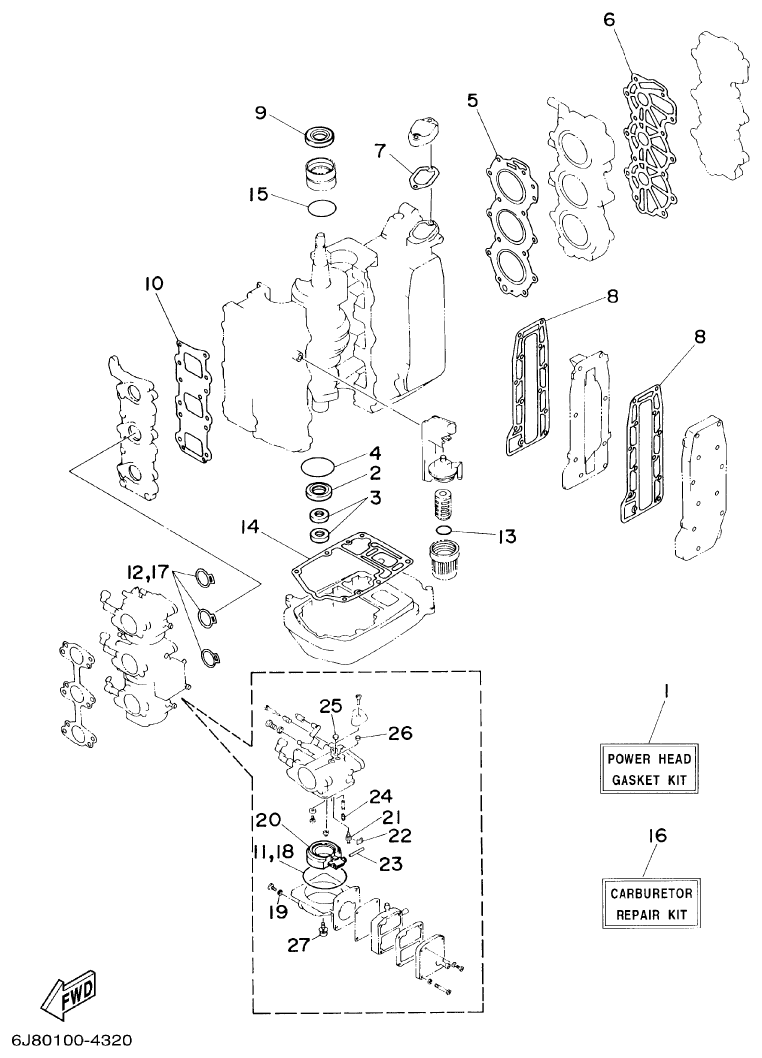

Fig. 32 — REPAIR KIT 1
27 items · 2 available products
Yamaha 30DETO REPAIR KIT 2 parts diagram
Fig. 33 — REPAIR KIT 2
23 items · 6 available products
