Yamaha 30G Parts Catalog

Yamaha 30G Outboard parts and diagrams

Yamaha 30G outboard parts catalog includes TOP COWLING, CYLINDER. CRANKCASE, CRANKSHAFT. PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, STEERING, CONTROL 1, CONTROL 2, BRACKET 1, BRACKET 2, UPPER CASING. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

114 linked store products are available across 25 catalog sections. 803 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha 30G TOP COWLING parts diagram

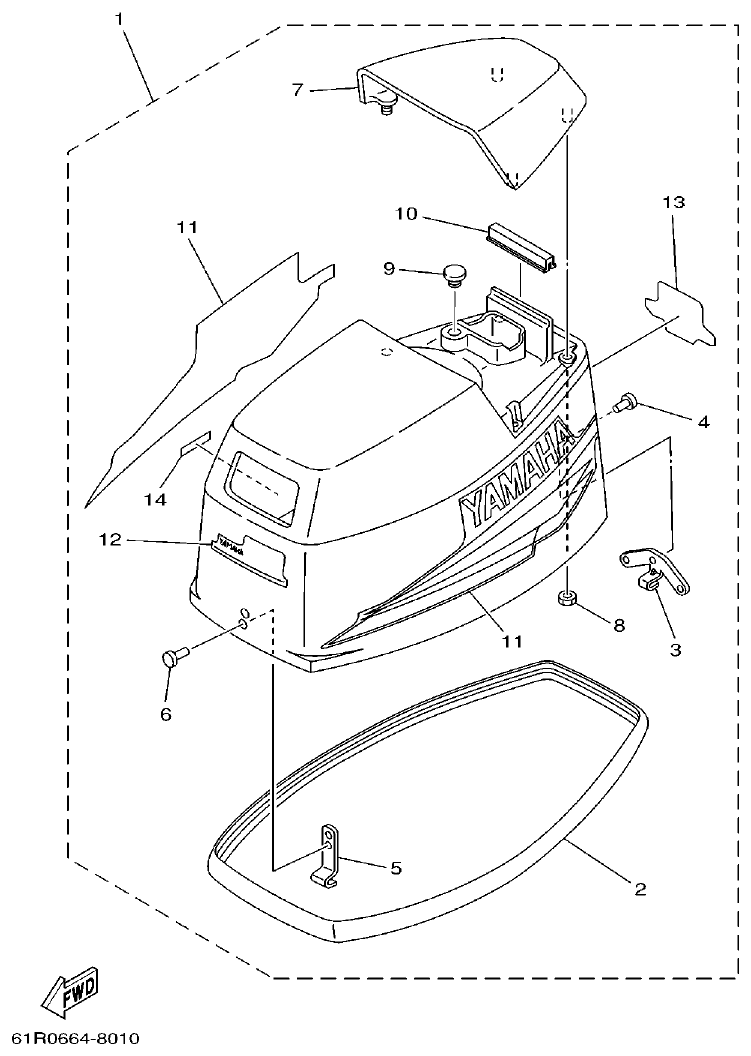

Fig. 1 — TOP COWLING
17 items
Yamaha 30G CYLINDER. CRANKCASE parts diagram

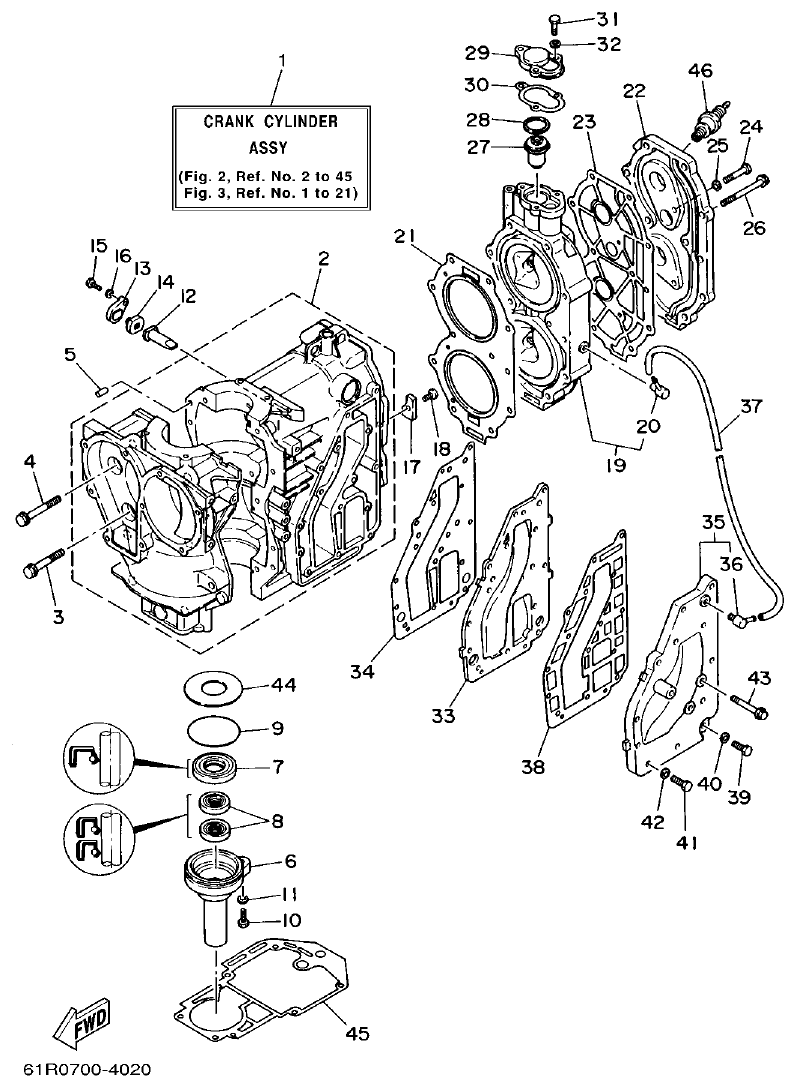

Fig. 2 — CYLINDER. CRANKCASE
49 items · 6 available products
Yamaha 30G CRANKSHAFT. PISTON parts diagram

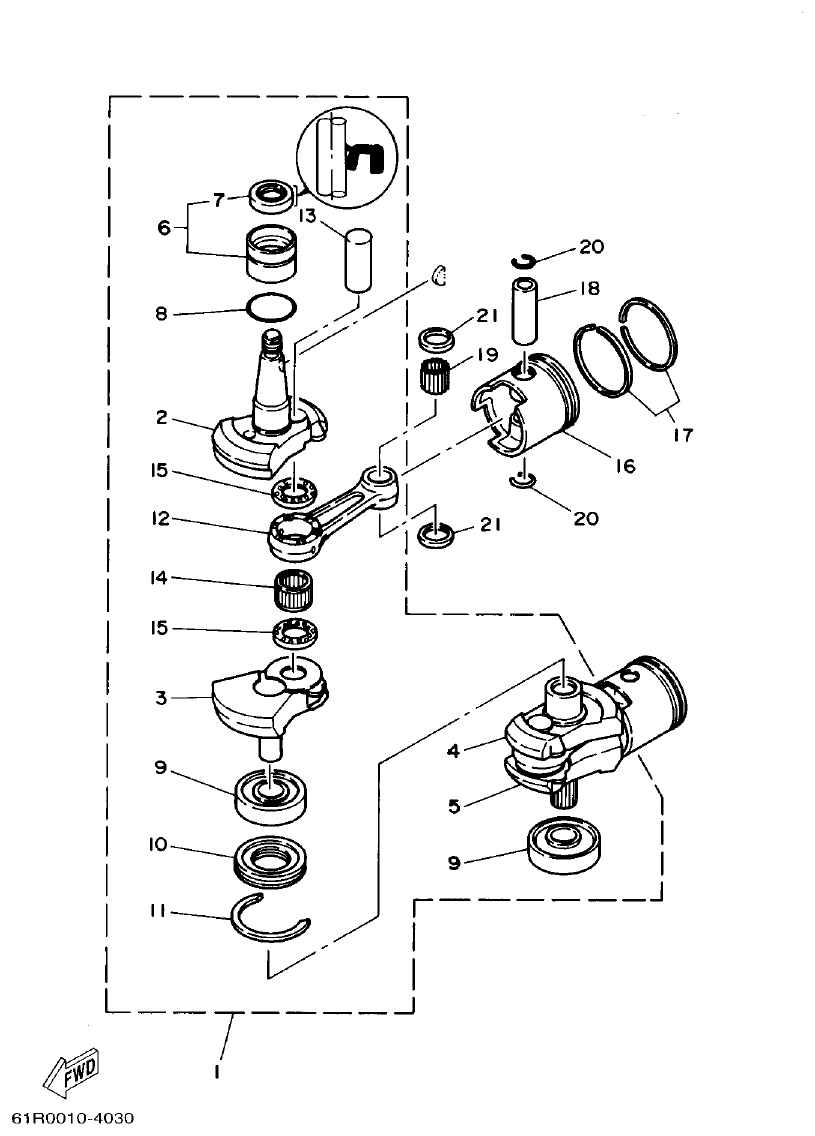

Fig. 3 — CRANKSHAFT. PISTON
25 items · 11 available products
Yamaha 30G INTAKE parts diagram

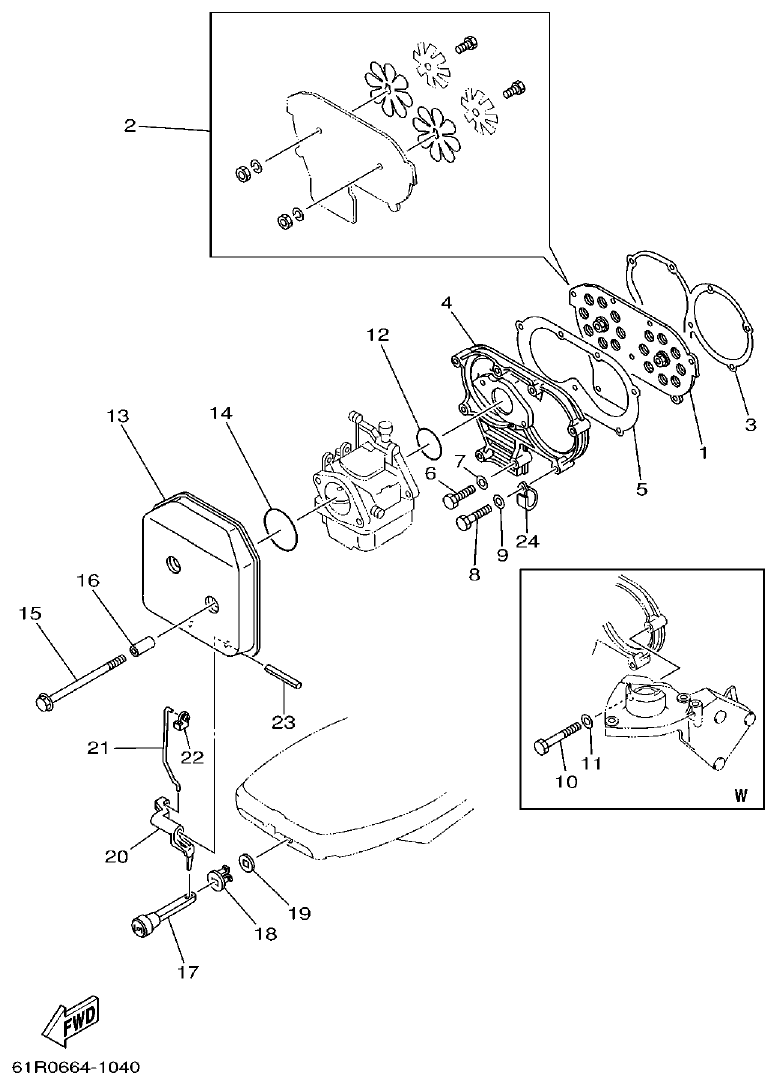

Fig. 4 — INTAKE
27 items · 6 available products
Yamaha 30G CARBURETOR parts diagram

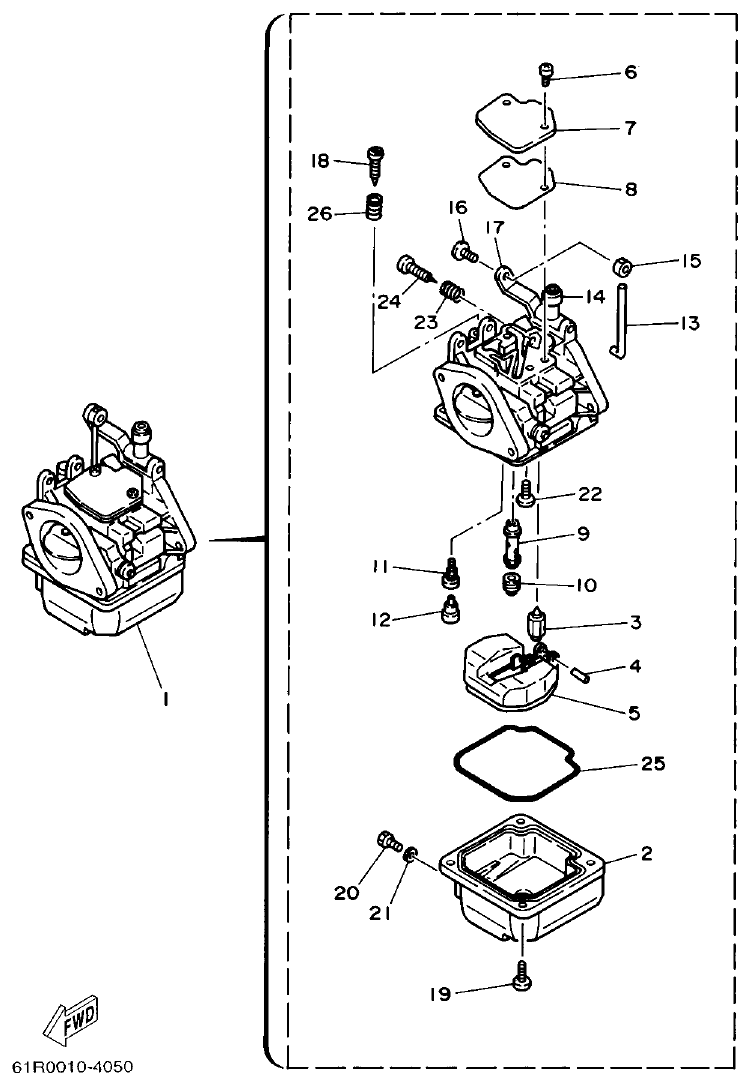

Fig. 5 — CARBURETOR
28 items · 2 available products
Yamaha 30G FUEL parts diagram

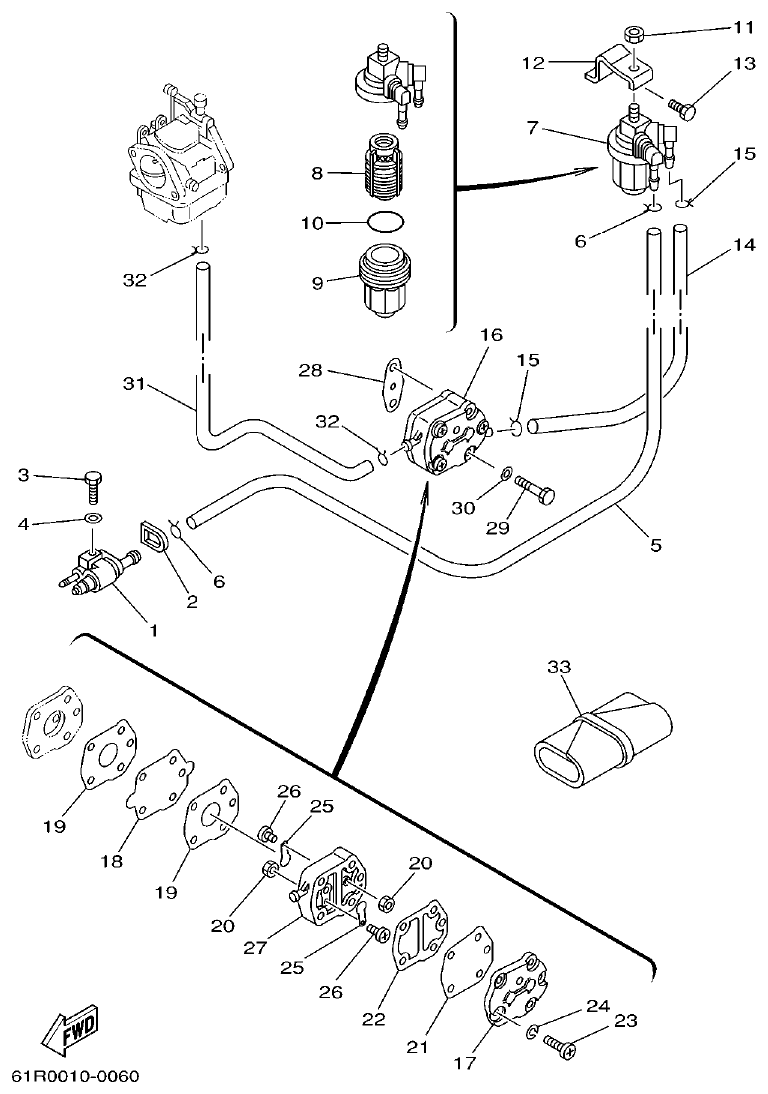

Fig. 6 — FUEL
33 items · 6 available products
Yamaha 30G STARTER parts diagram

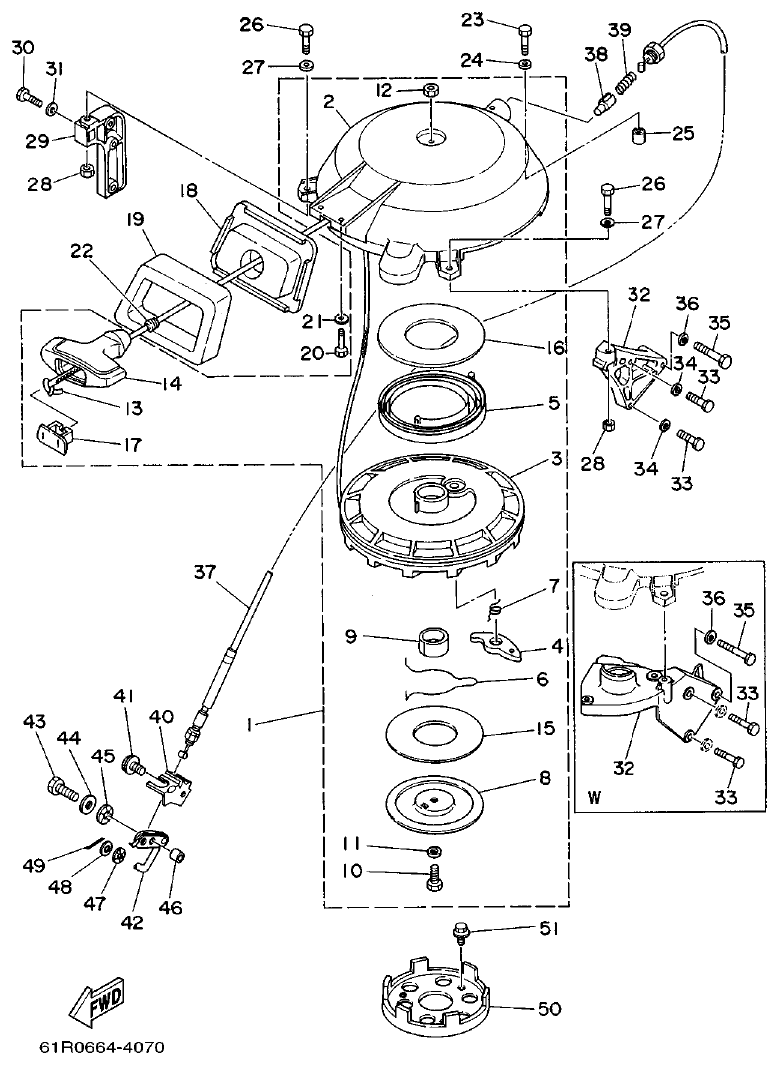

Fig. 7 — STARTER
53 items · 6 available products
Yamaha 30G GENERATOR parts diagram

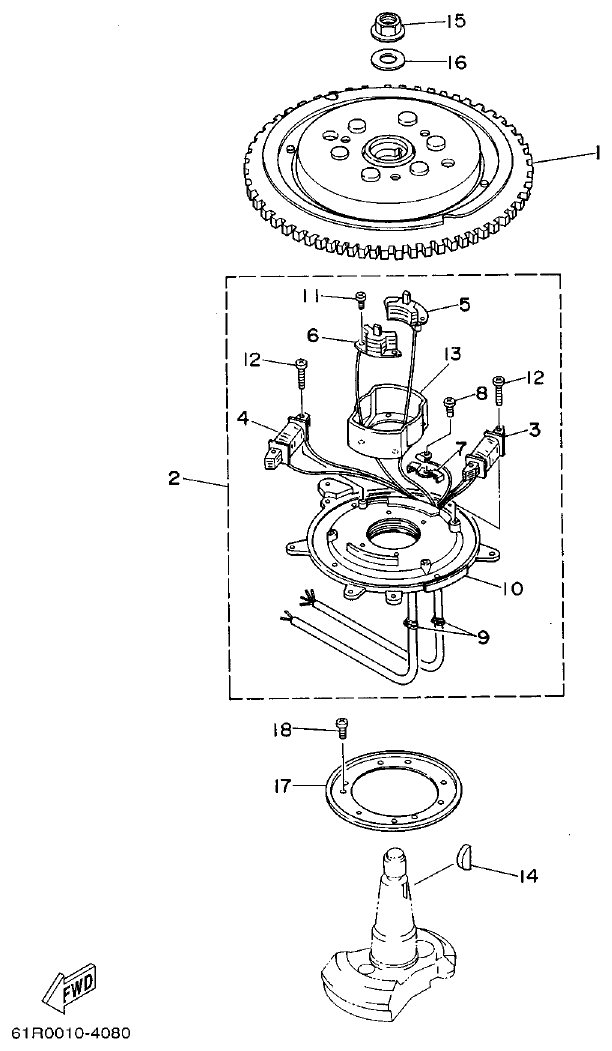

Fig. 8 — GENERATOR
18 items · 2 available products
Yamaha 30G ELECTRICAL 1 parts diagram

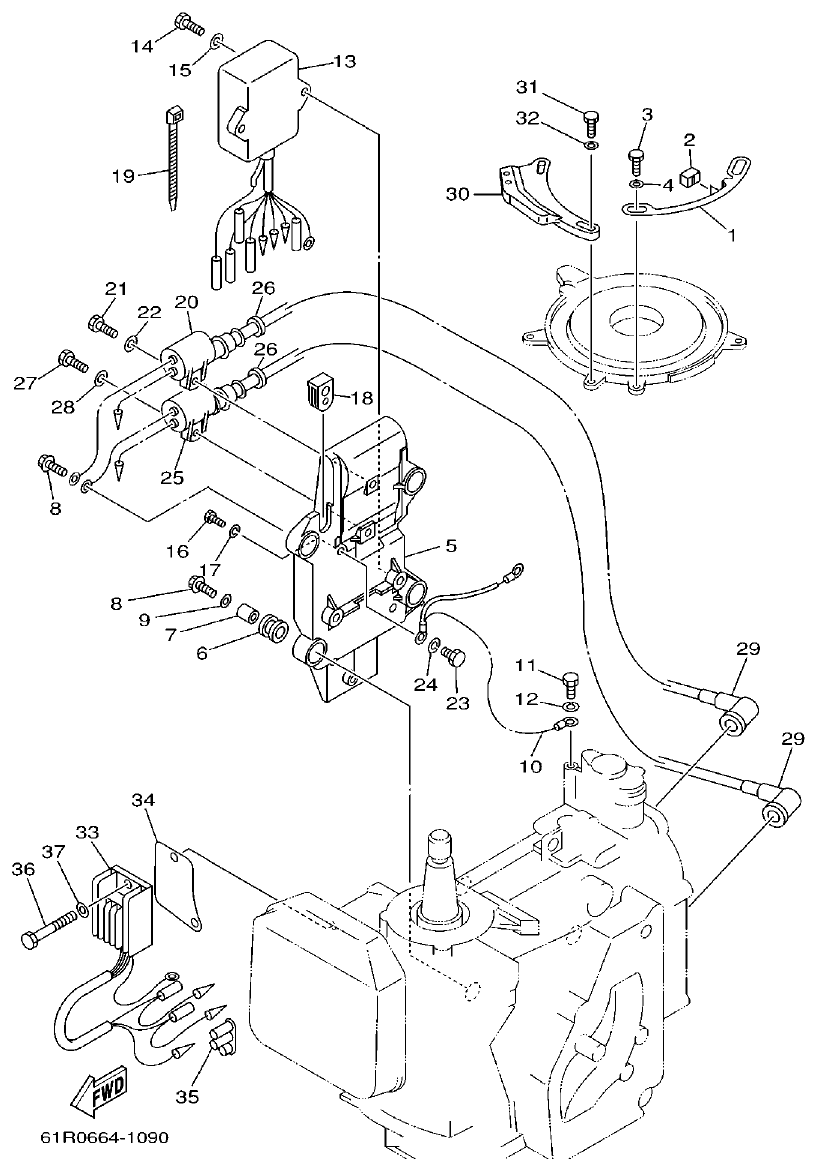

Fig. 9 — ELECTRICAL 1
38 items · 3 available products
Yamaha 30G ELECTRICAL 2 parts diagram

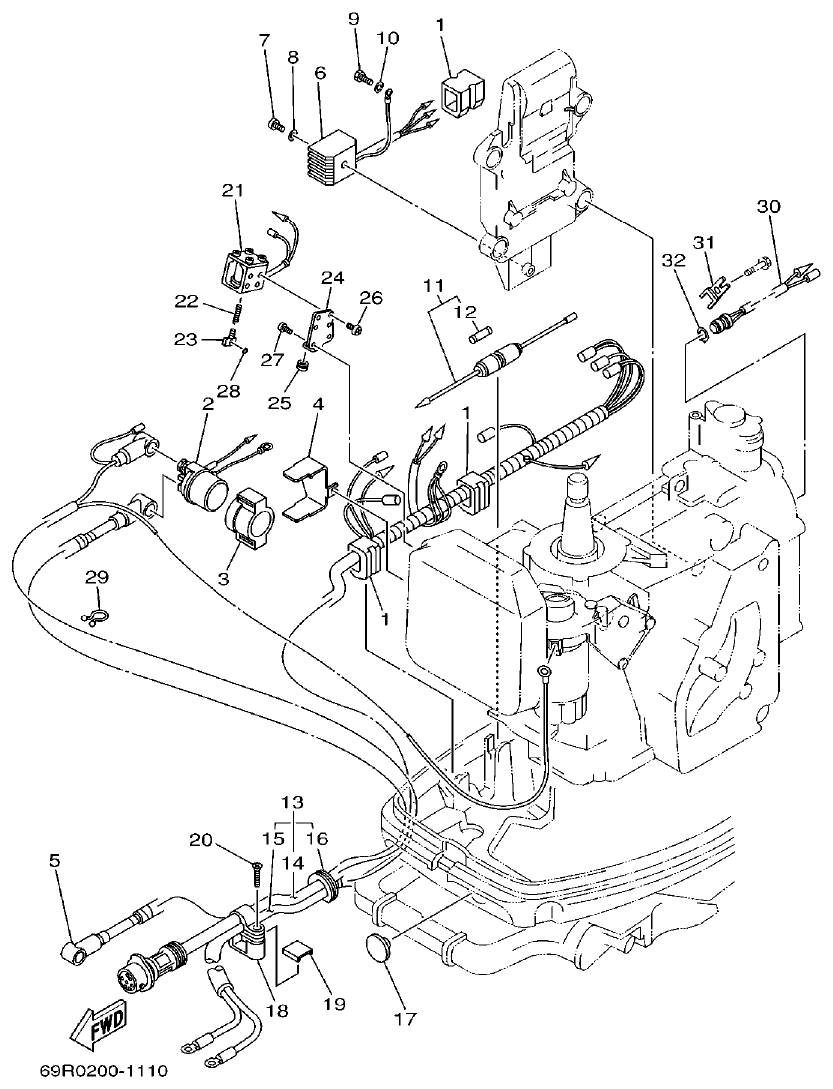

Fig. 10 — ELECTRICAL 2
32 items · 2 available products
Yamaha 30G STARTING MOTOR parts diagram

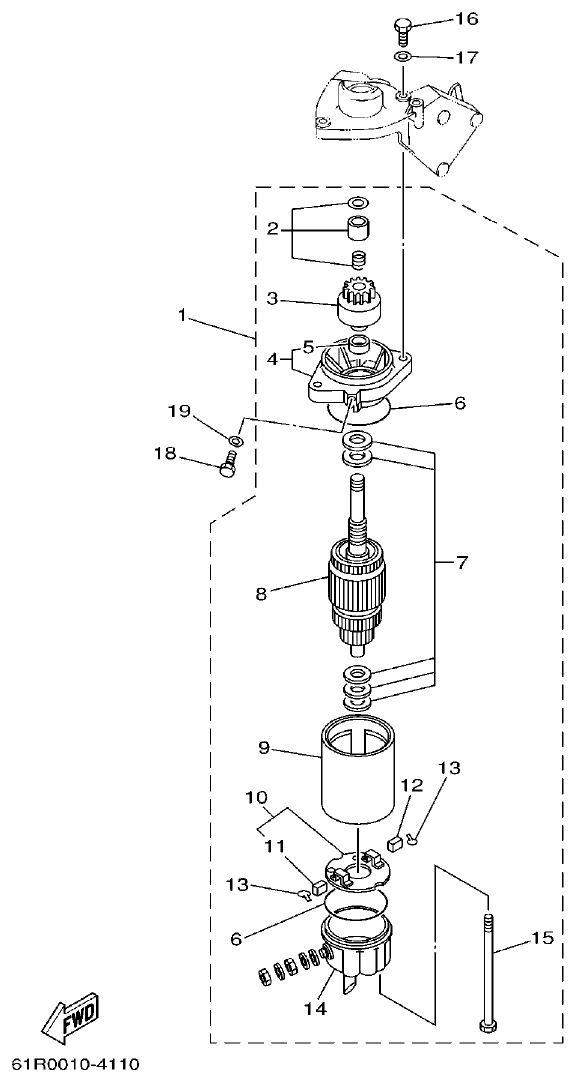

Fig. 11 — STARTING MOTOR
19 items · 4 available products
Yamaha 30G BOTTOM COWLING parts diagram

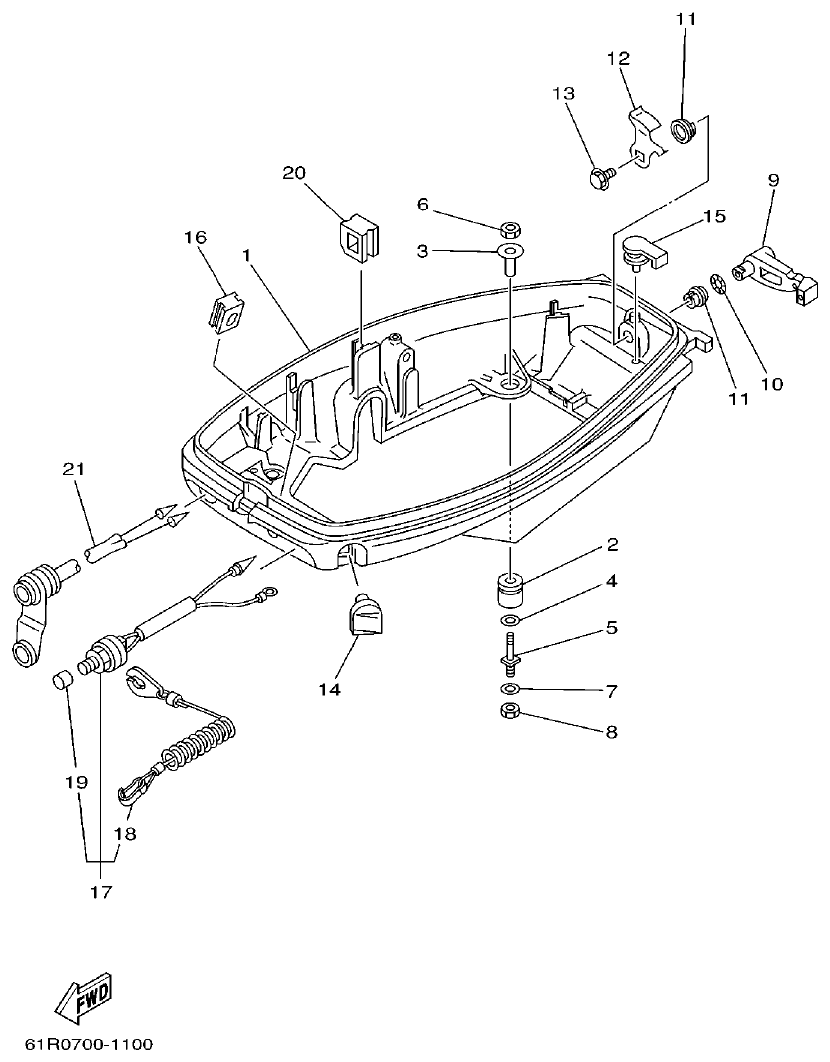

Fig. 12 — BOTTOM COWLING
23 items · 4 available products
Yamaha 30G STEERING parts diagram

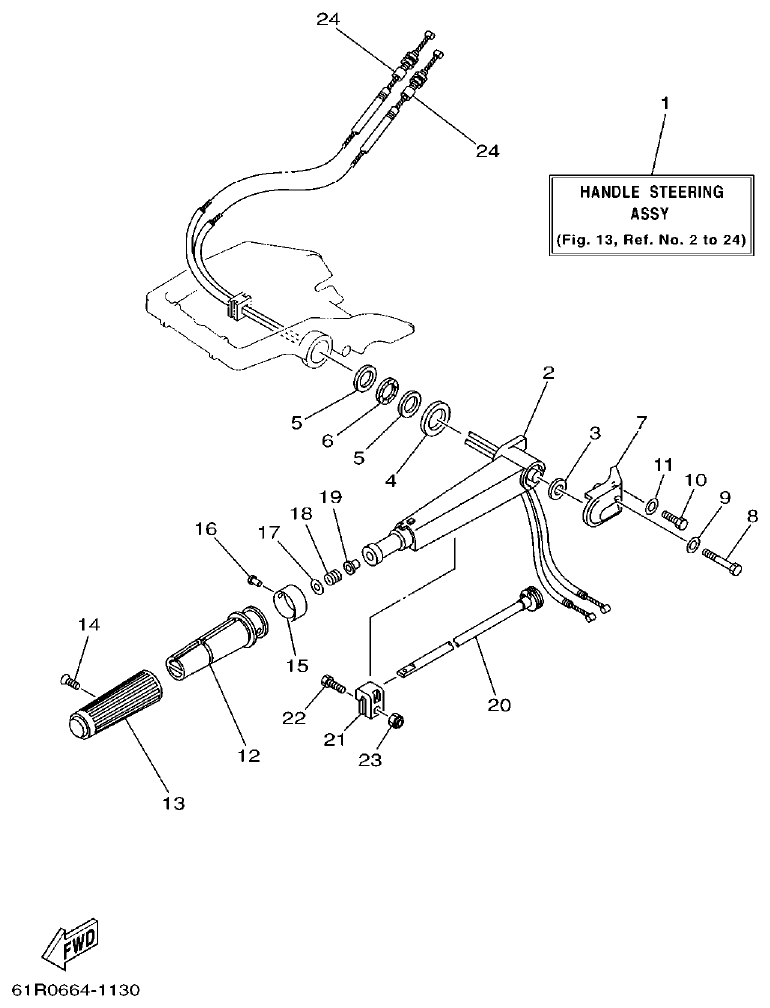

Fig. 13 — STEERING
24 items · 2 available products
Yamaha 30G CONTROL 1 parts diagram

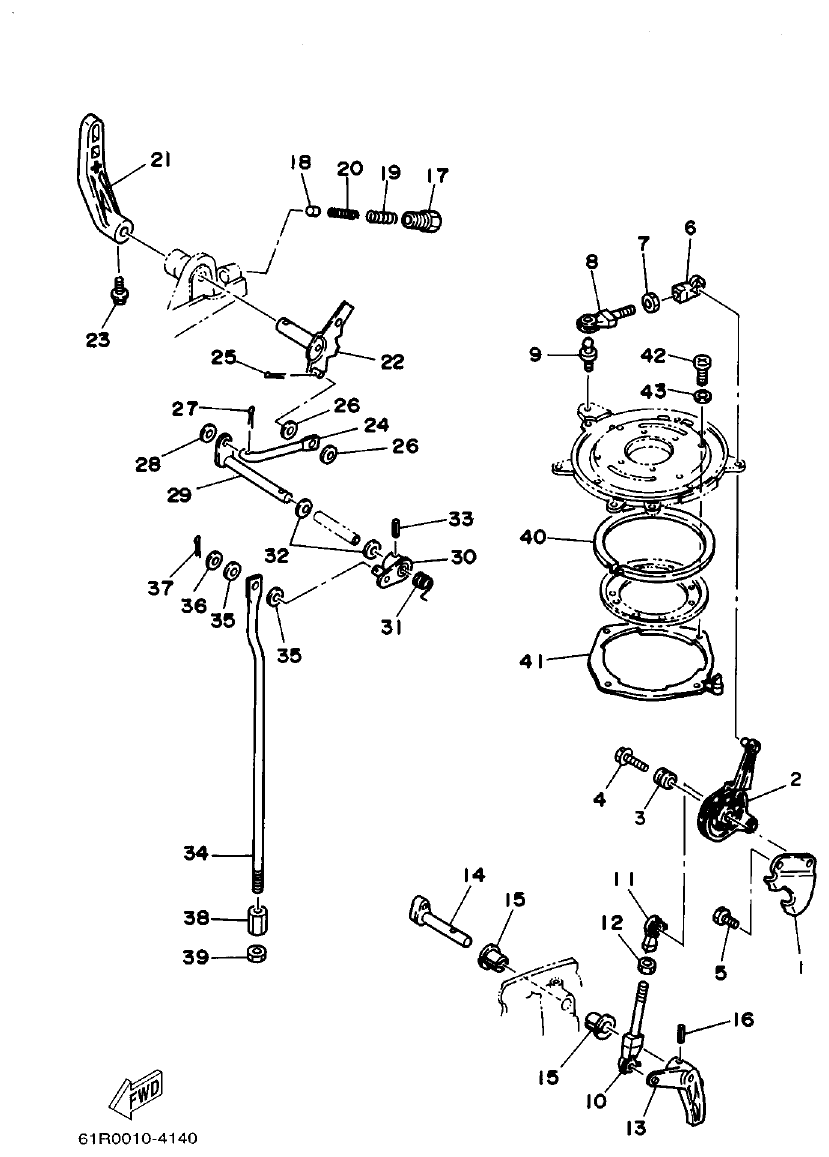

Fig. 14 — CONTROL 1
43 items · 4 available products
Yamaha 30G CONTROL 2 parts diagram

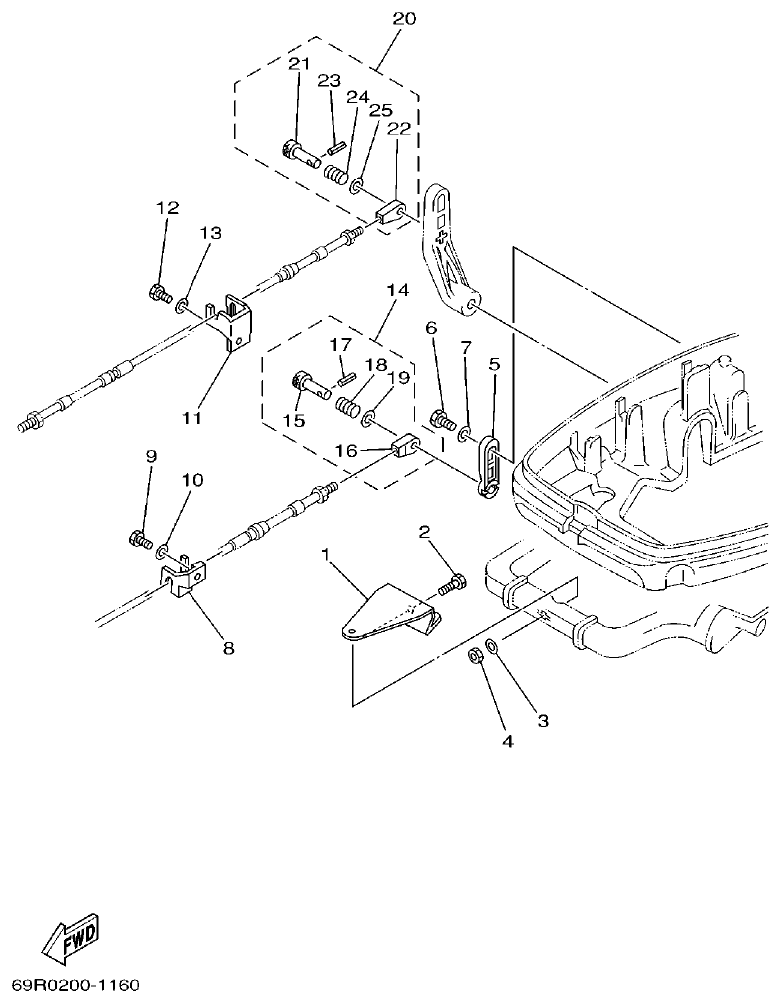

Fig. 15 — CONTROL 2
25 items
Yamaha 30G BRACKET 1 parts diagram

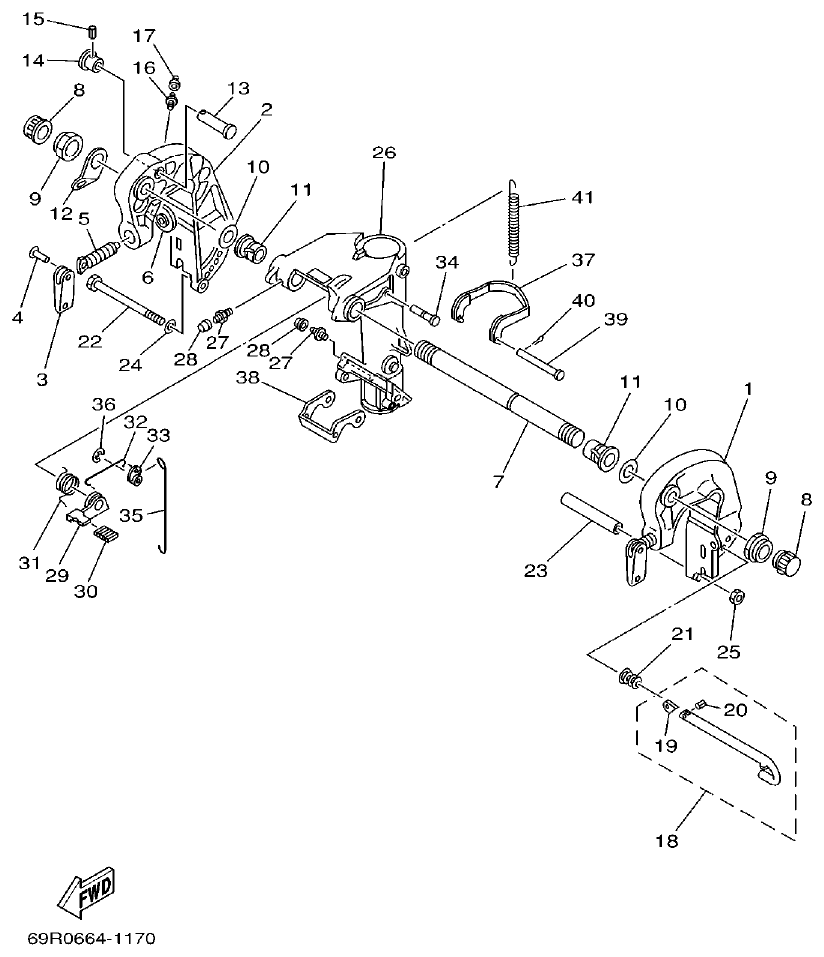

Fig. 16 — BRACKET 1
41 items · 11 available products
Yamaha 30G BRACKET 2 parts diagram

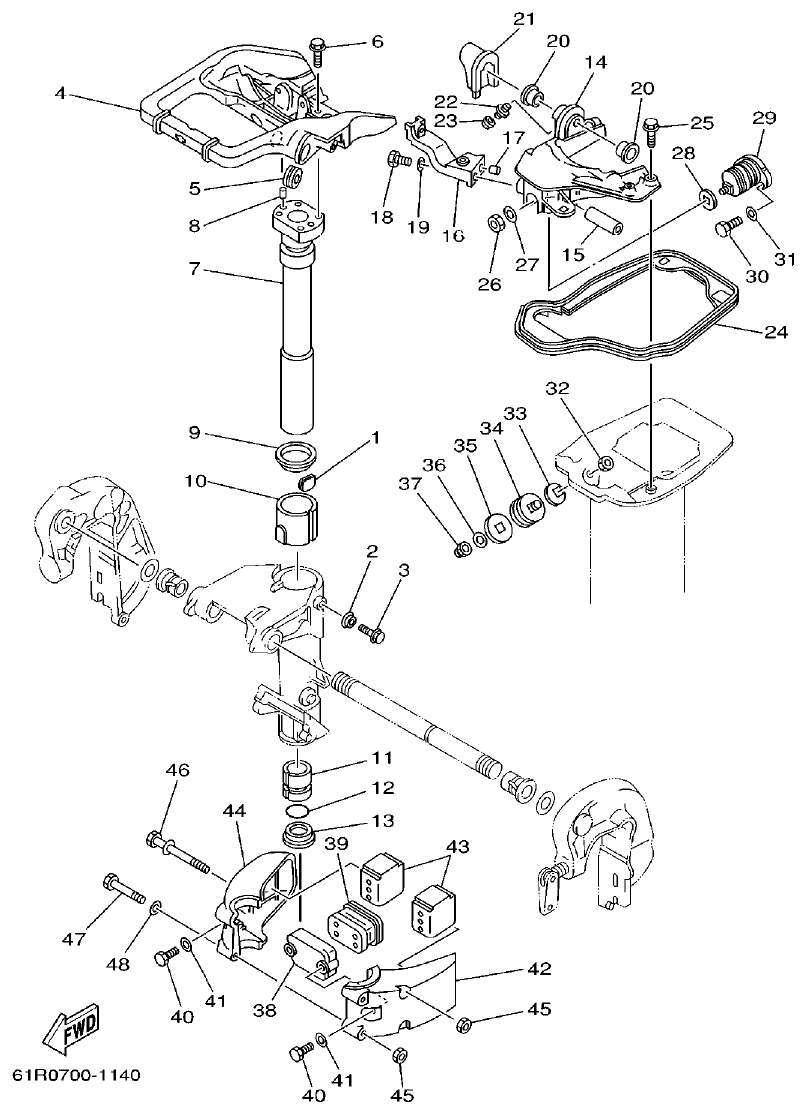

Fig. 17 — BRACKET 2
48 items · 2 available products
Yamaha 30G UPPER CASING parts diagram

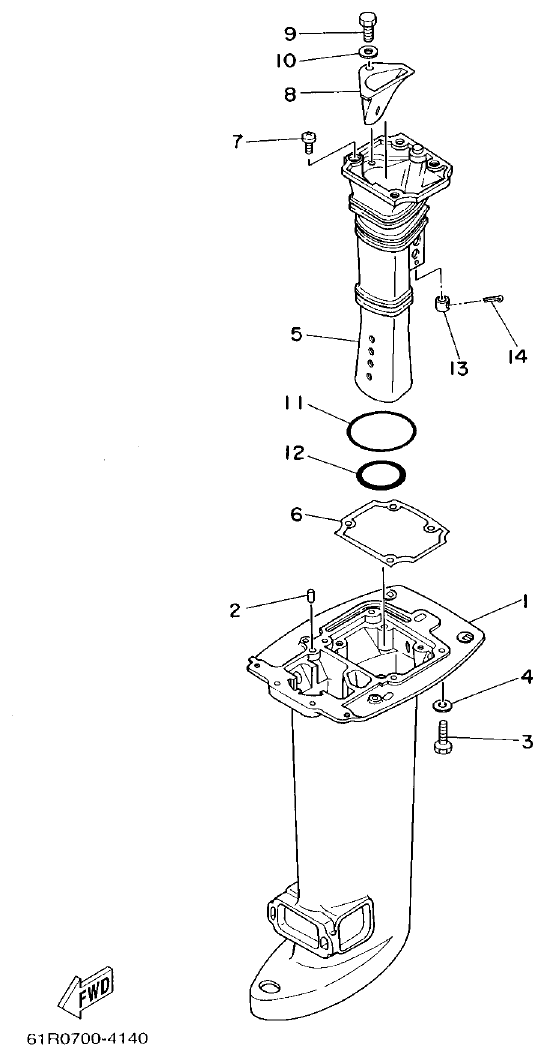

Fig. 18 — UPPER CASING
16 items
Yamaha 30G LOWER CASING. DRIVE 1 parts diagram

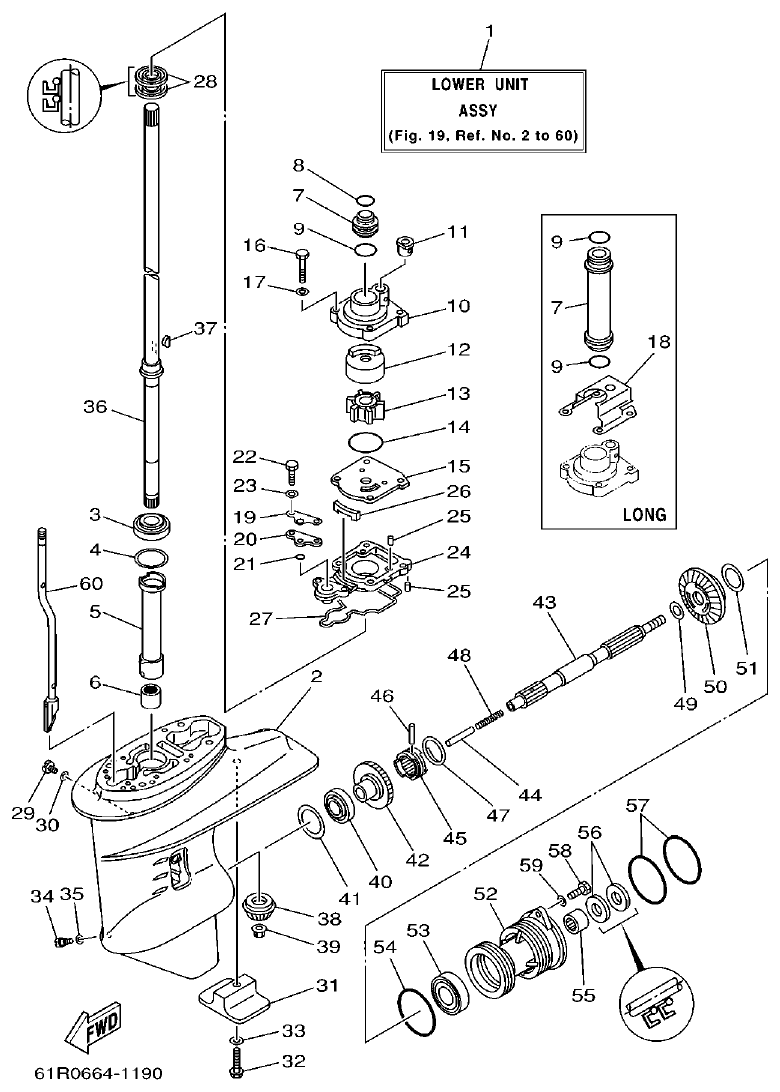

Fig. 19 — LOWER CASING. DRIVE 1
79 items · 13 available products
Yamaha 30G LOWER CASING. DRIVE 2 parts diagram

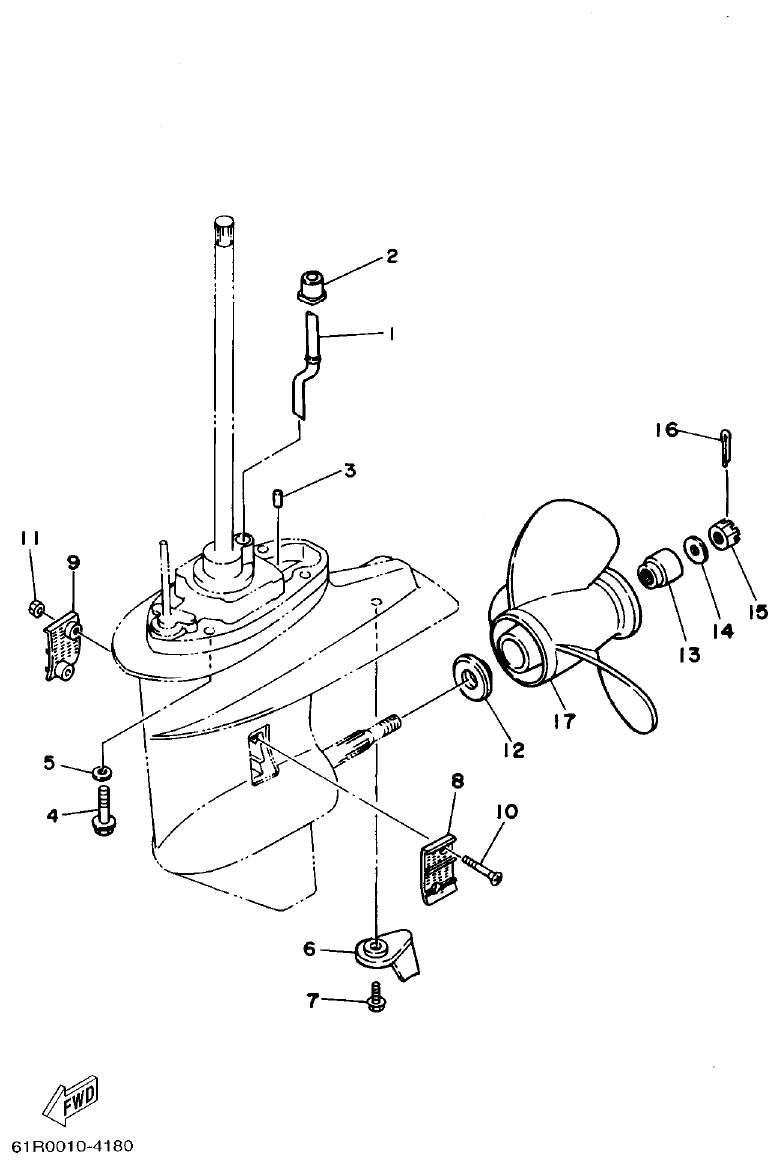

Fig. 20 — LOWER CASING. DRIVE 2
25 items · 6 available products
Yamaha 30G FUEL TANK parts diagram

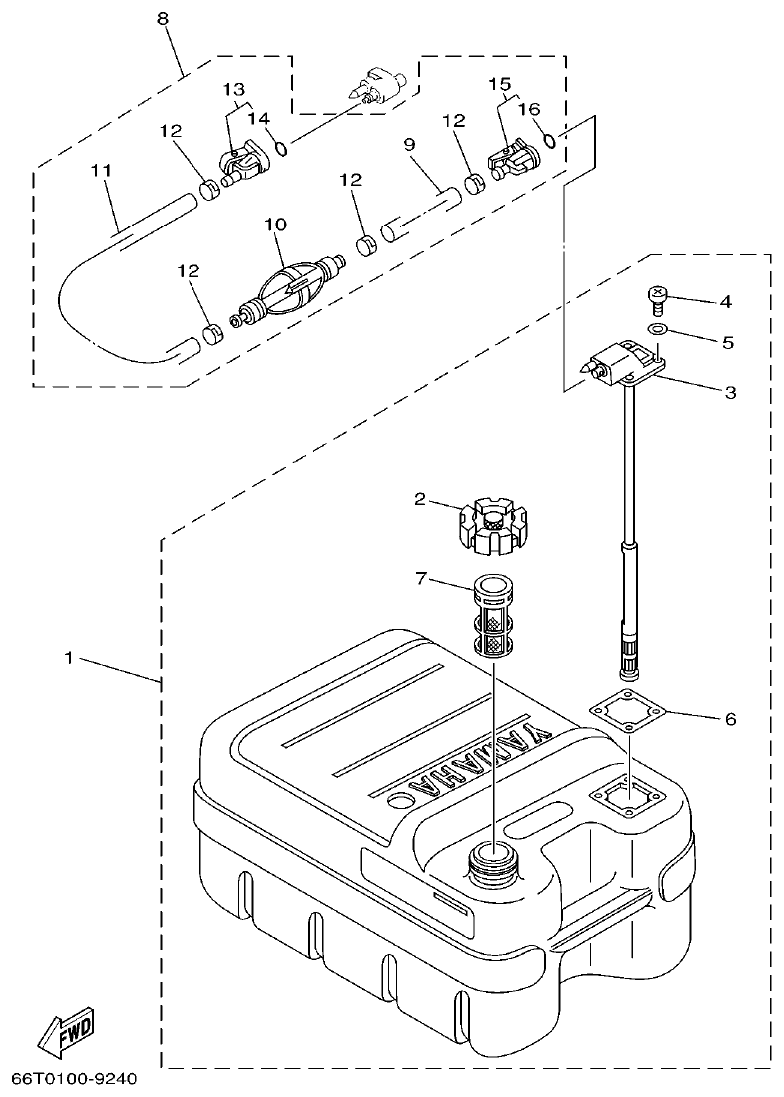

Fig. 21 — FUEL TANK
16 items · 2 available products
Yamaha 30G REMOTE CONTROL BOX parts diagram
Fig. 22 — REMOTE CONTROL BOX
3 items
Yamaha 30G REMOTE CONTROL ASSY parts diagram

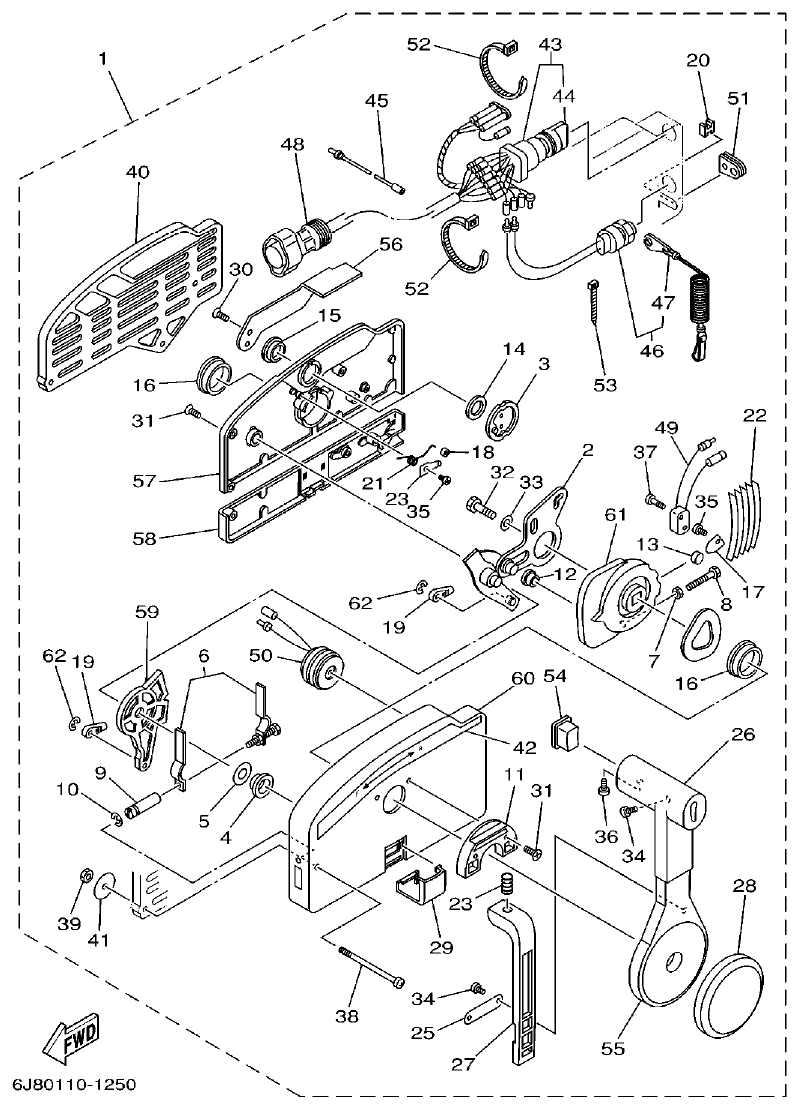

Fig. 23 — REMOTE CONTROL ASSY
62 items · 9 available products
Yamaha 30G REPAIR KIT 1 parts diagram

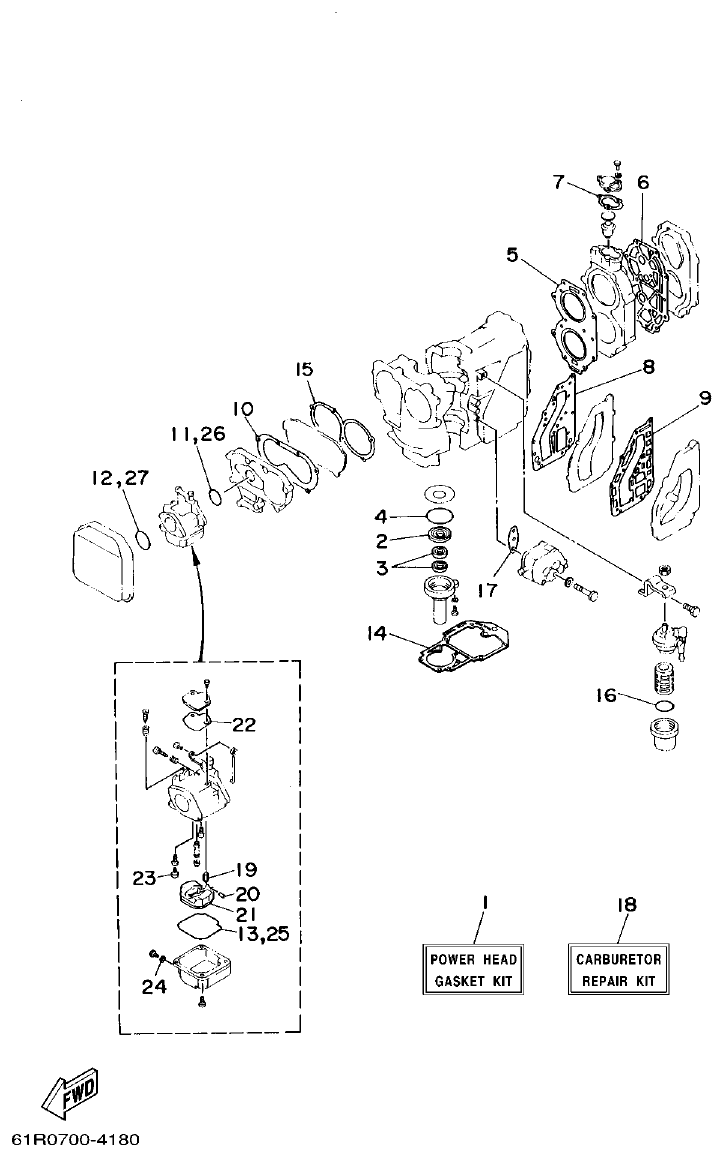

Fig. 24 — REPAIR KIT 1
27 items · 8 available products
Yamaha 30G REPAIR KIT 2 parts diagram

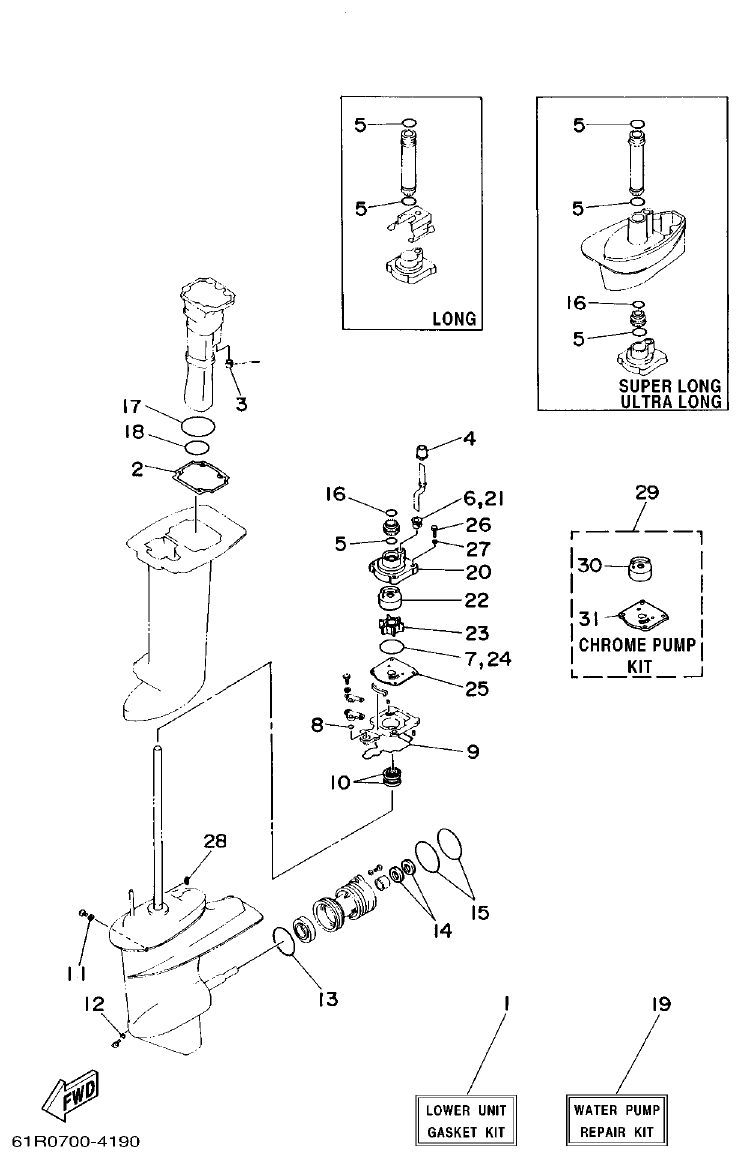

Fig. 25 — REPAIR KIT 2
32 items · 5 available products
