Yamaha 40VMHD, 50HMHD, 50HET Parts Catalog

Yamaha 40VMHD, 50HMHD, 50HET Outboard parts and diagrams

Yamaha 40VMHD, 50HMHD, 50HET outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, ELECTRICAL 3, STARTING MOTOR, BOTTOM COWLING, STEERING, STEERING FRICTION, CONTROL, BRACKET 1, BRACKET 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

133 linked store products are available across 29 catalog sections. 1031 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

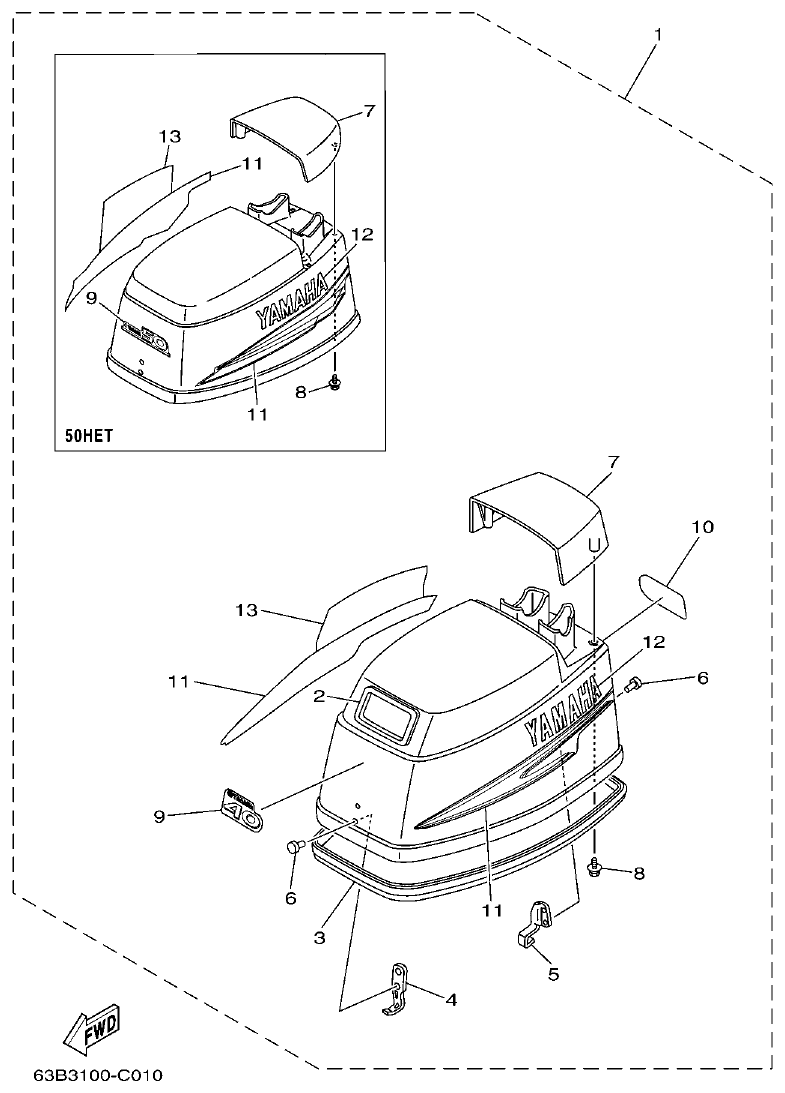

Yamaha 40VMHD, 50HMHD, 50HET TOP COWLING parts diagram
Fig. 1 — TOP COWLING
23 items
Yamaha 40VMHD, 50HMHD, 50HET CYLINDER & CRANKCASE parts diagram

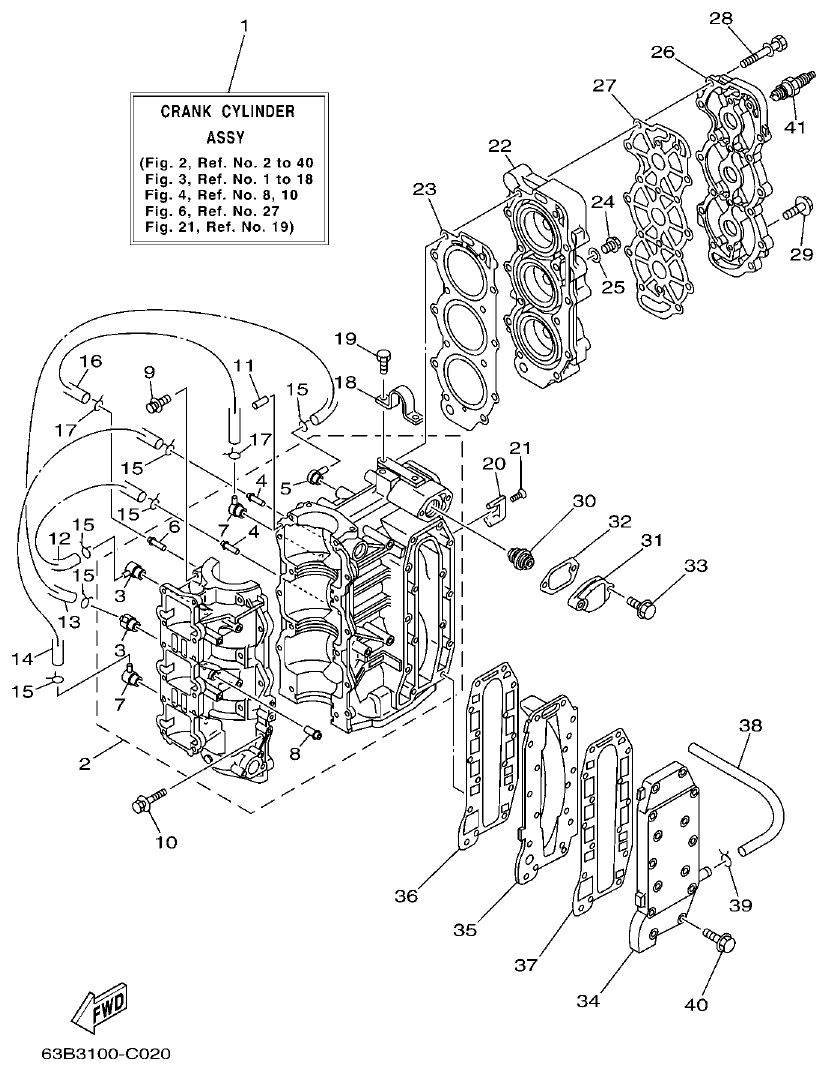

Fig. 2 — CYLINDER & CRANKCASE
44 items · 8 available products

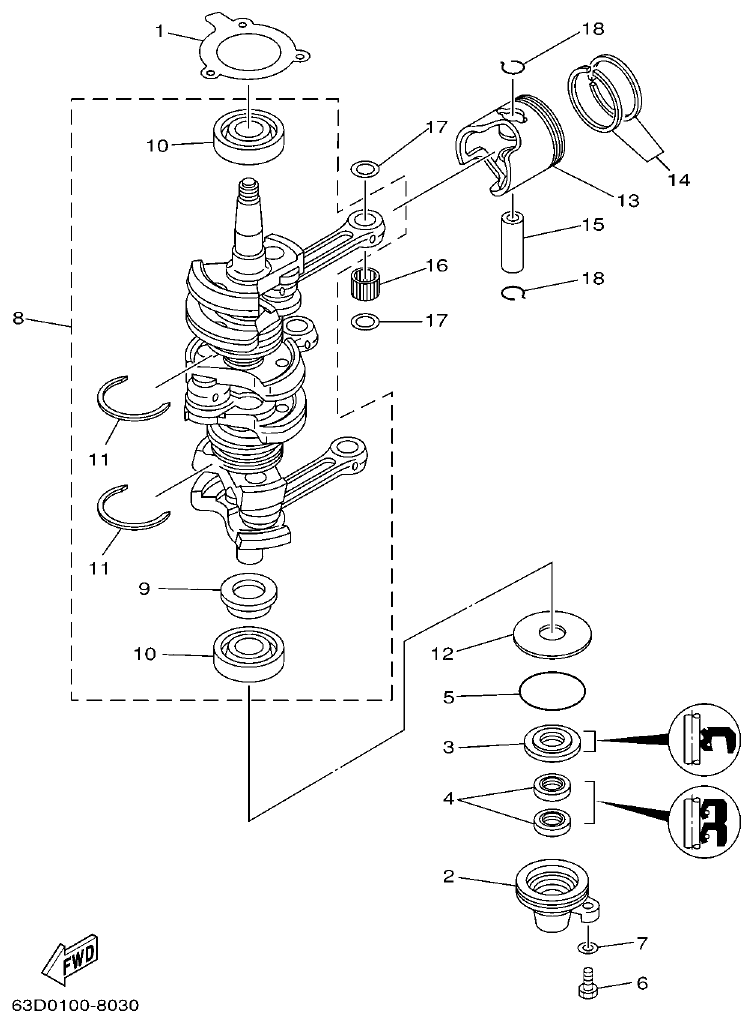

Yamaha 40VMHD, 50HMHD, 50HET CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
22 items · 8 available products

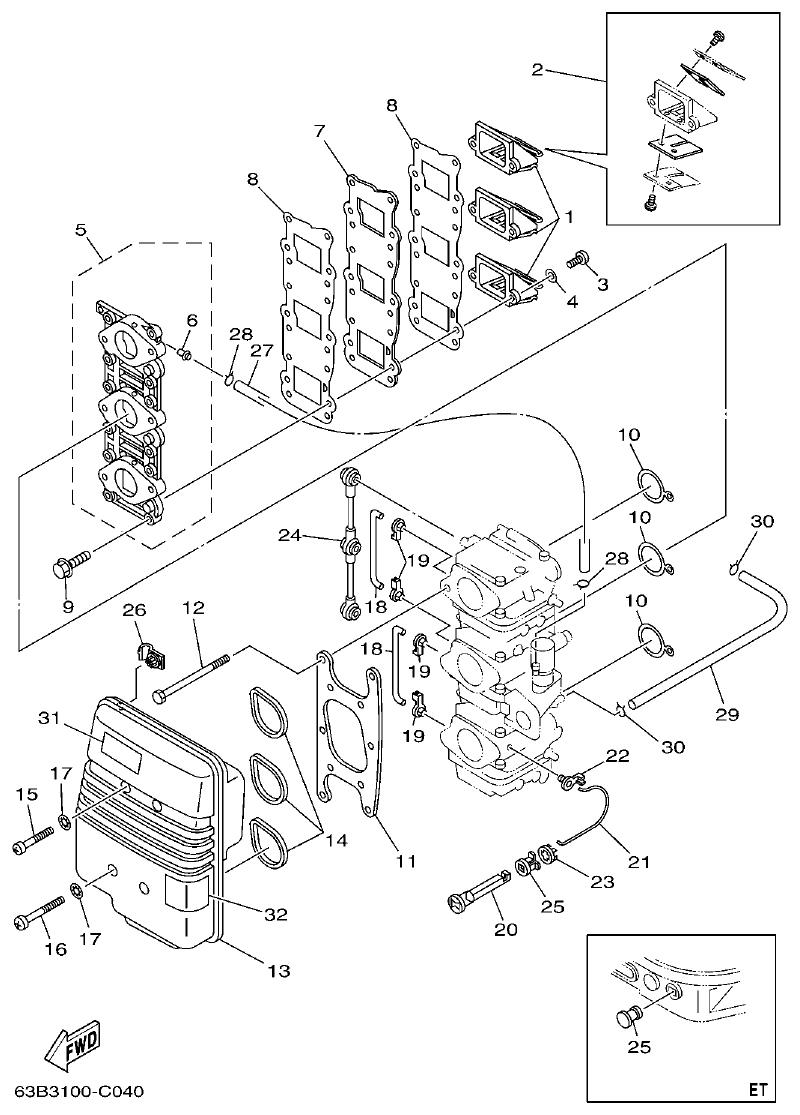

Yamaha 40VMHD, 50HMHD, 50HET INTAKE parts diagram
Fig. 4 — INTAKE
35 items · 5 available products

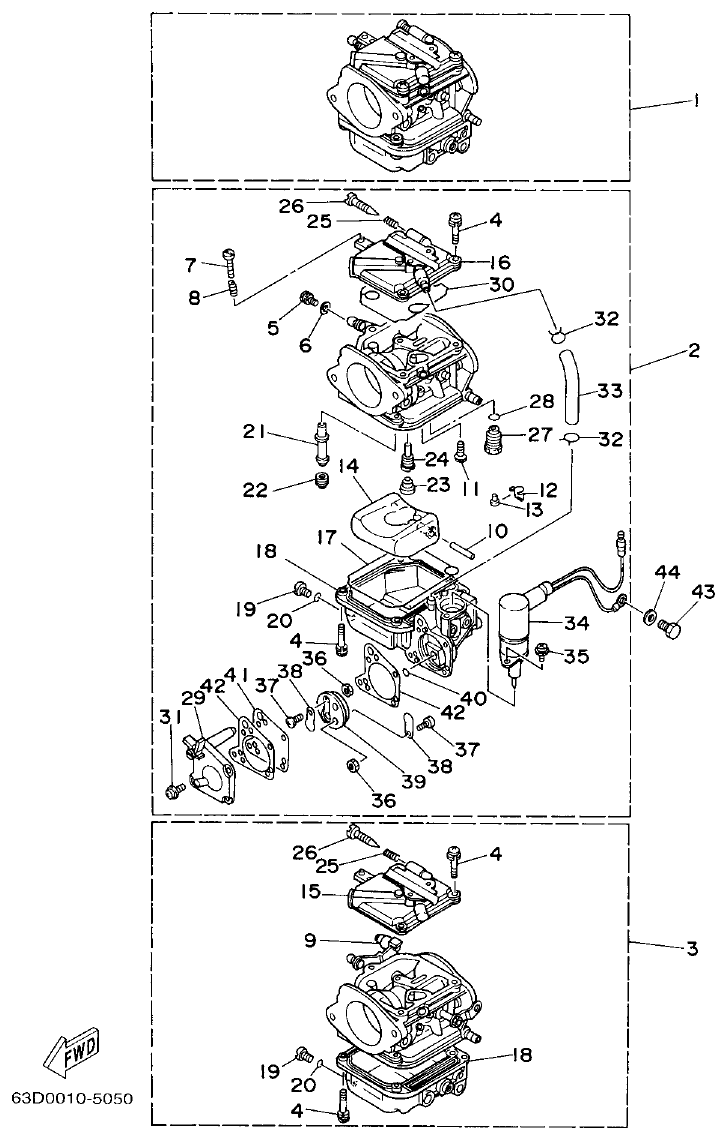

Yamaha 40VMHD, 50HMHD, 50HET CARBURETOR parts diagram
Fig. 5 — CARBURETOR
60 items · 8 available products

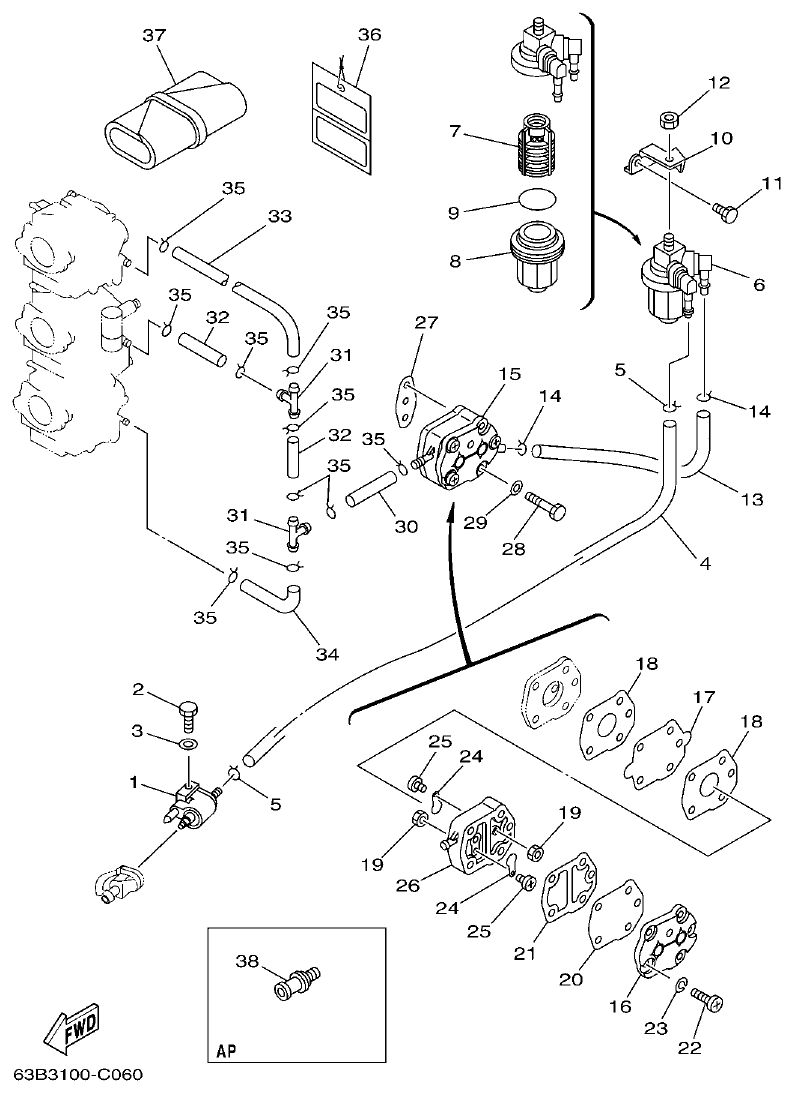

Yamaha 40VMHD, 50HMHD, 50HET FUEL parts diagram
Fig. 6 — FUEL
38 items · 7 available products
Yamaha 40VMHD, 50HMHD, 50HET STARTER parts diagram

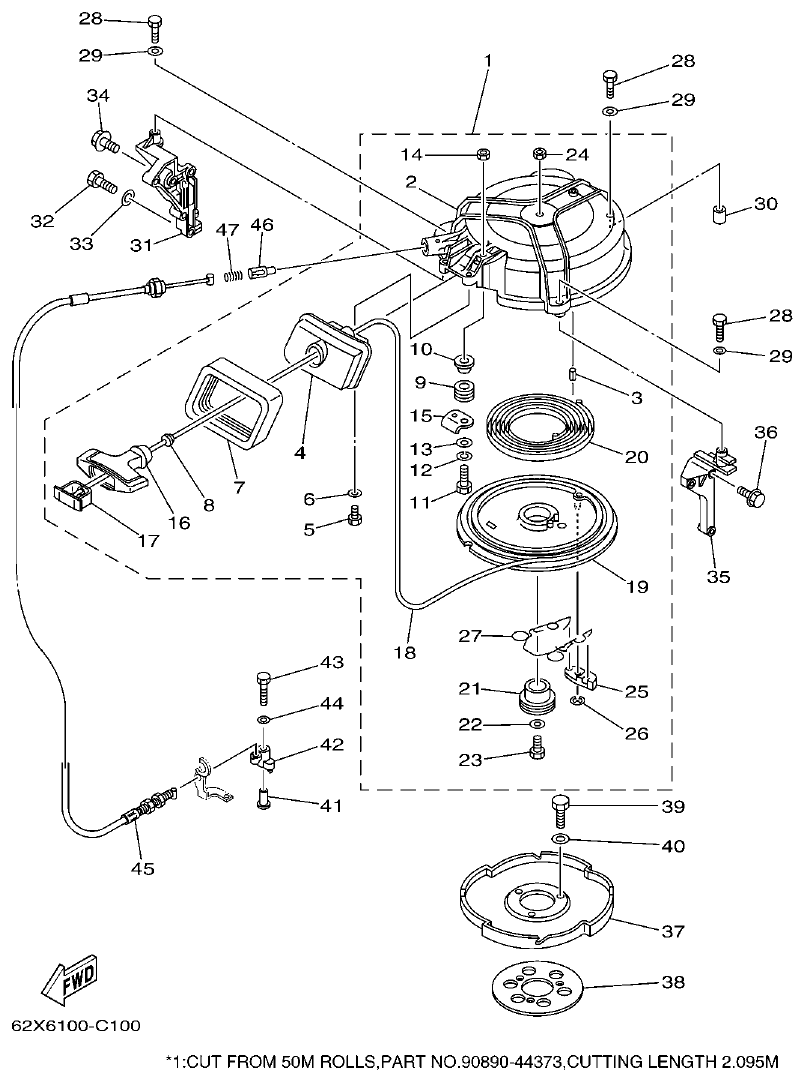

Fig. 7 — STARTER
46 items · 4 available products

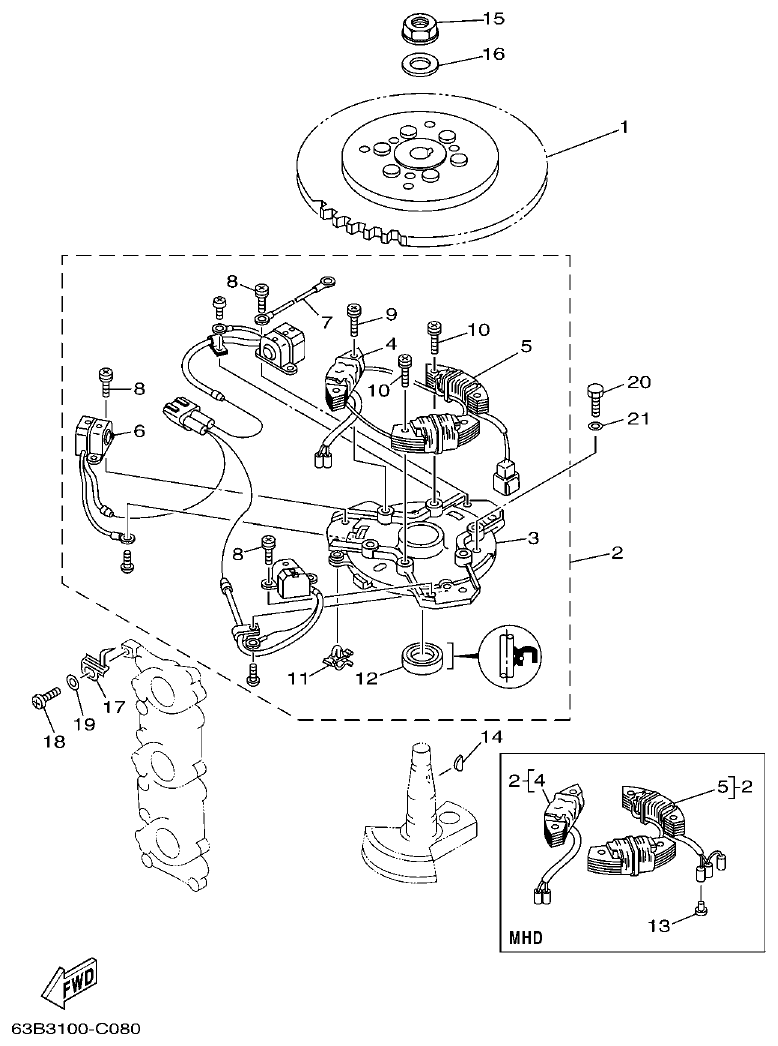

Yamaha 40VMHD, 50HMHD, 50HET GENERATOR parts diagram
Fig. 8 — GENERATOR
24 items
Yamaha 40VMHD, 50HMHD, 50HET ELECTRICAL 1 parts diagram

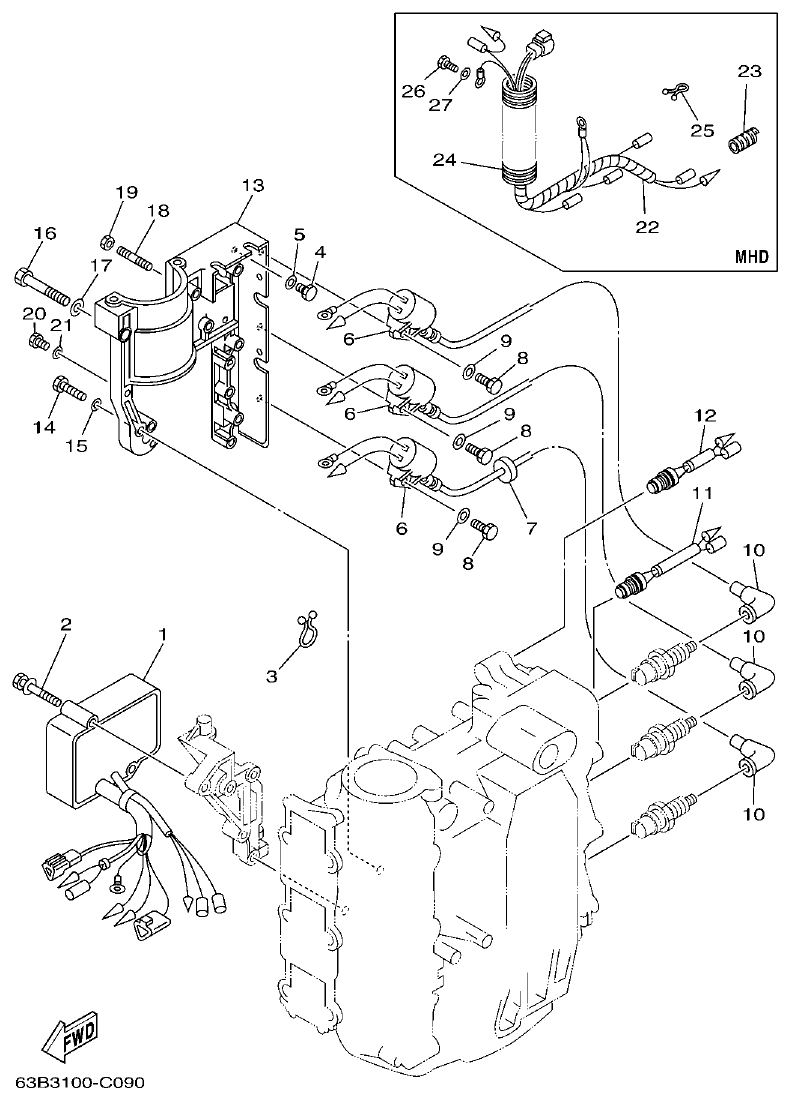

Fig. 9 — ELECTRICAL 1
27 items · 1 available products
Yamaha 40VMHD, 50HMHD, 50HET ELECTRICAL 2 parts diagram

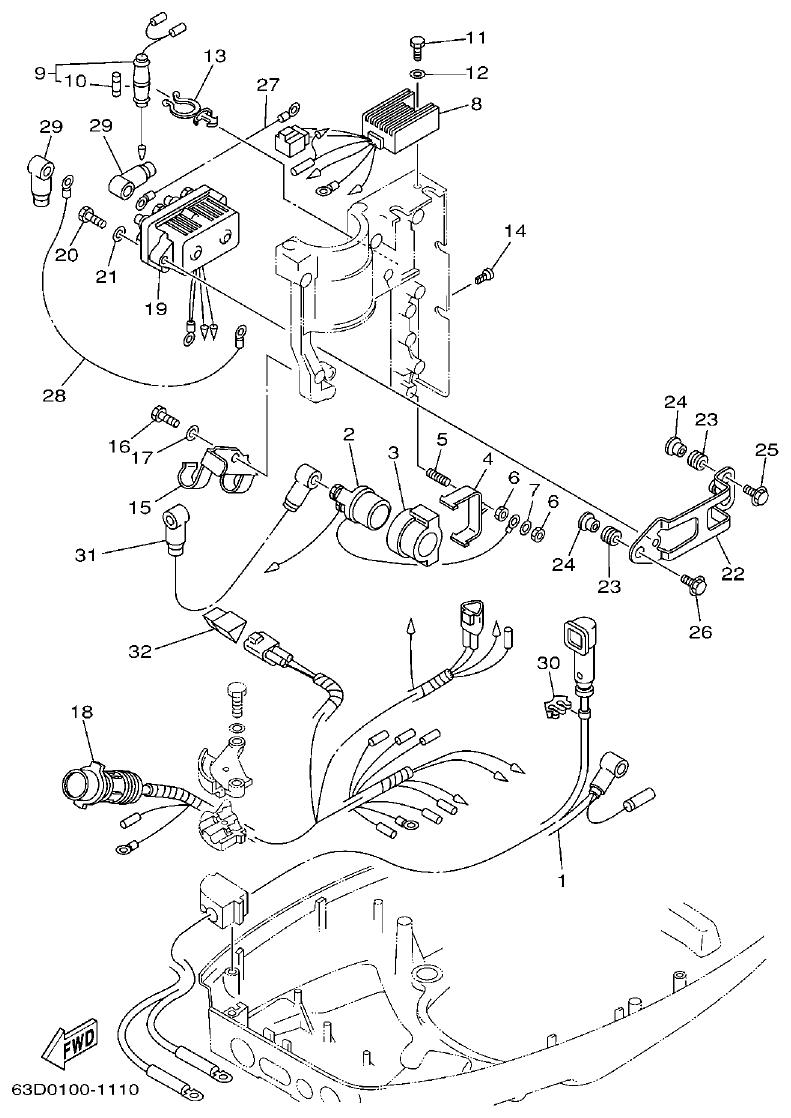

Fig. 10 — ELECTRICAL 2
32 items · 1 available products

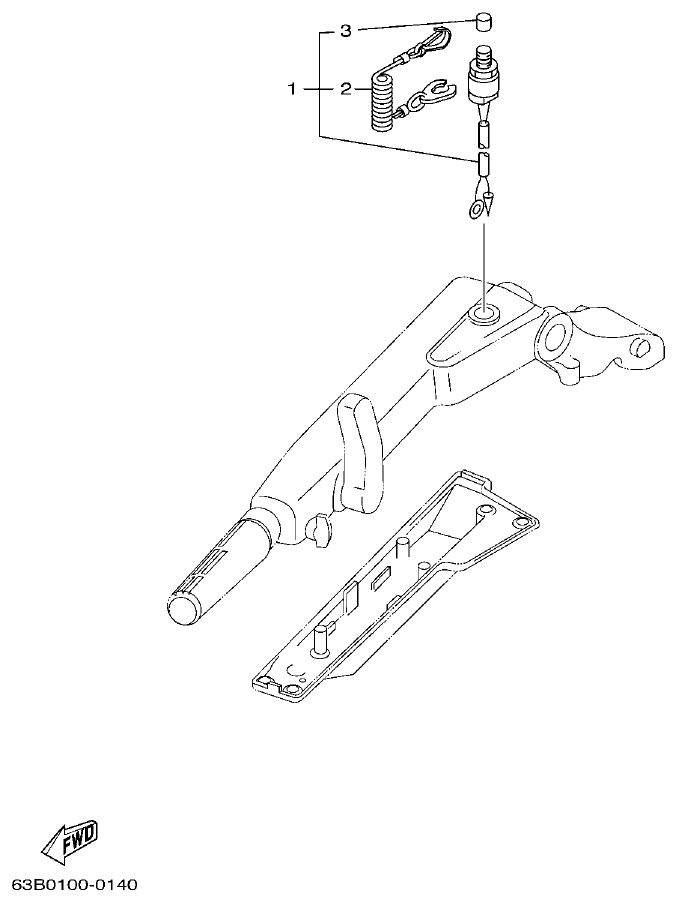

Yamaha 40VMHD, 50HMHD, 50HET ELECTRICAL 3 parts diagram
Fig. 11 — ELECTRICAL 3
3 items · 3 available products

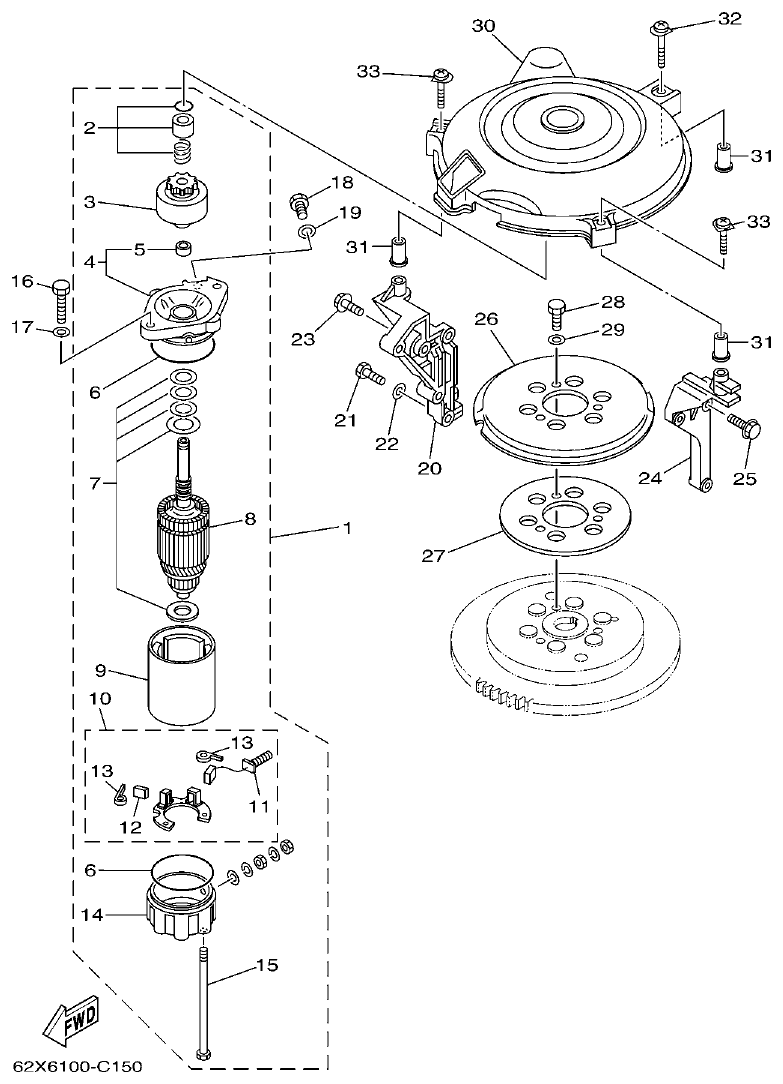

Yamaha 40VMHD, 50HMHD, 50HET STARTING MOTOR parts diagram
Fig. 12 — STARTING MOTOR
33 items · 4 available products
Yamaha 40VMHD, 50HMHD, 50HET BOTTOM COWLING parts diagram

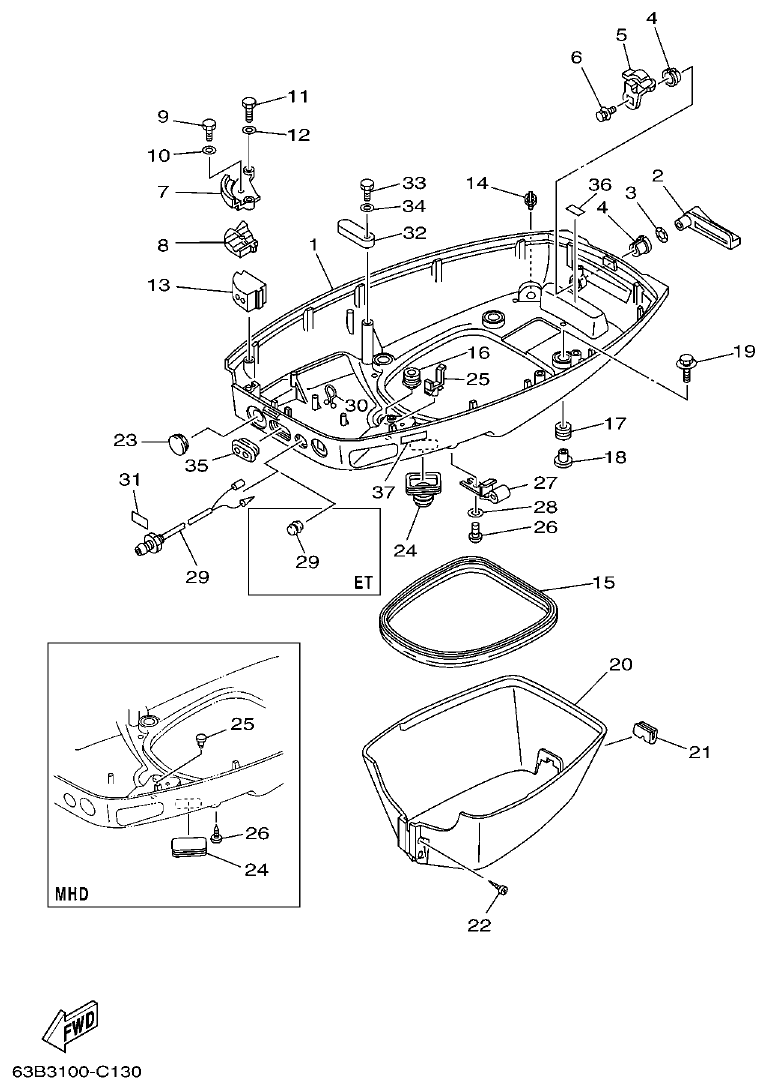

Fig. 13 — BOTTOM COWLING
44 items · 2 available products
Yamaha 40VMHD, 50HMHD, 50HET STEERING parts diagram

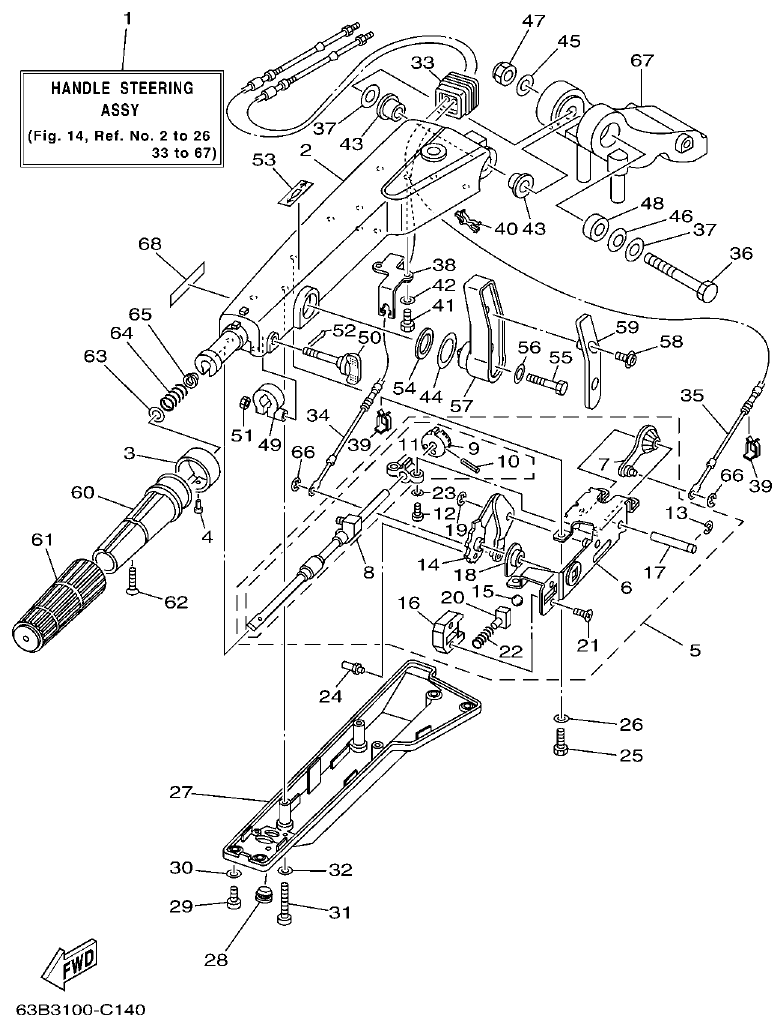

Fig. 14 — STEERING
68 items · 3 available products

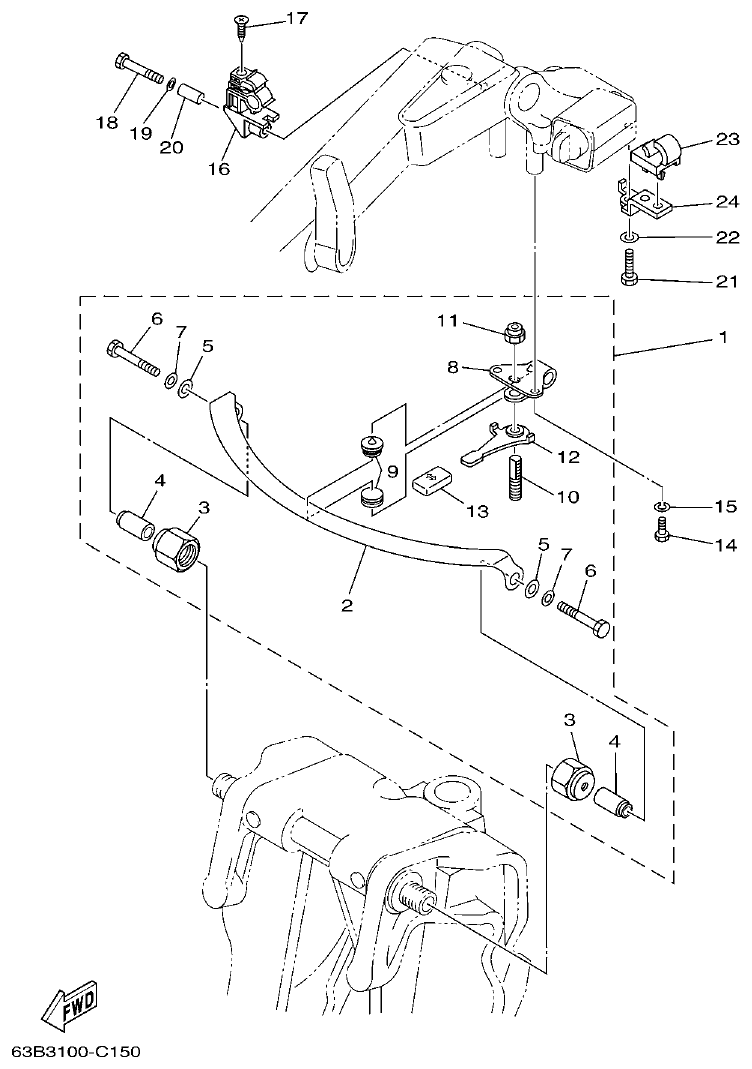

Yamaha 40VMHD, 50HMHD, 50HET STEERING FRICTION parts diagram
Fig. 15 — STEERING FRICTION
24 items

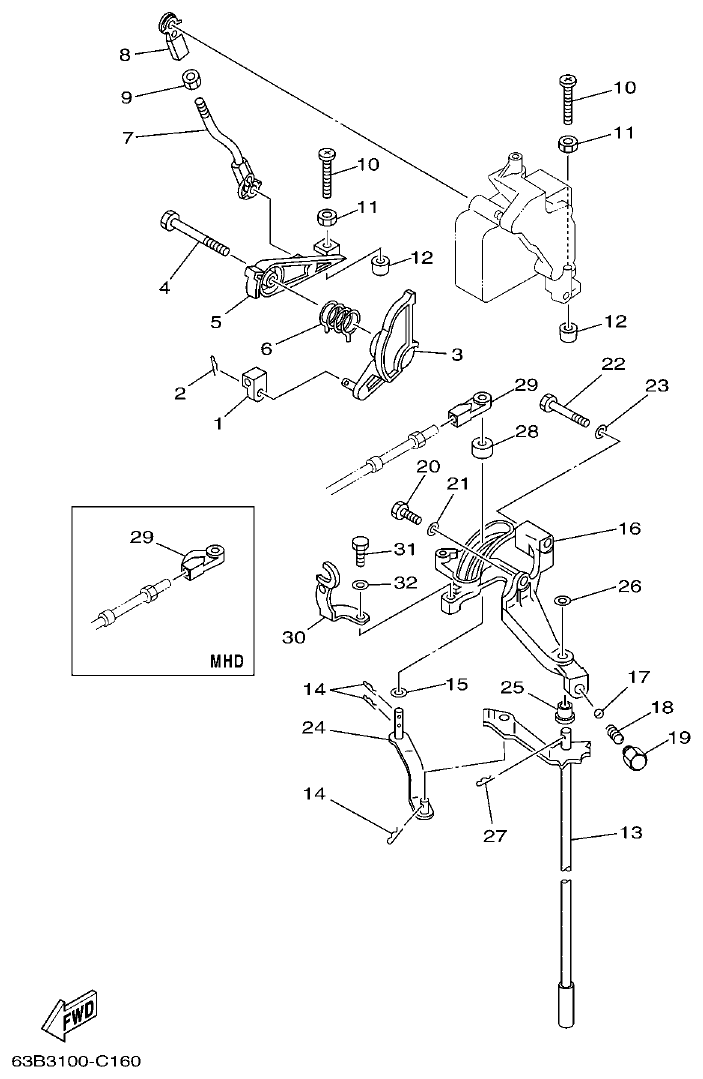

Yamaha 40VMHD, 50HMHD, 50HET CONTROL parts diagram
Fig. 16 — CONTROL
33 items · 3 available products
Yamaha 40VMHD, 50HMHD, 50HET BRACKET 1 parts diagram

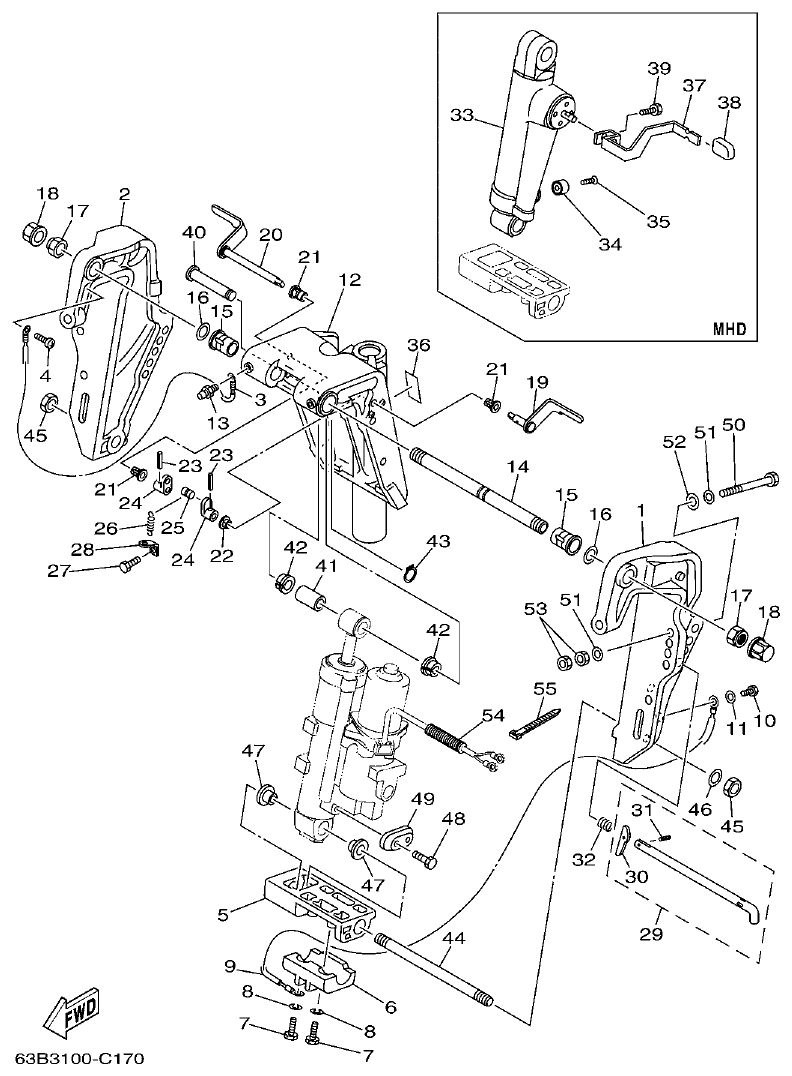

Fig. 17 — BRACKET 1
55 items · 7 available products

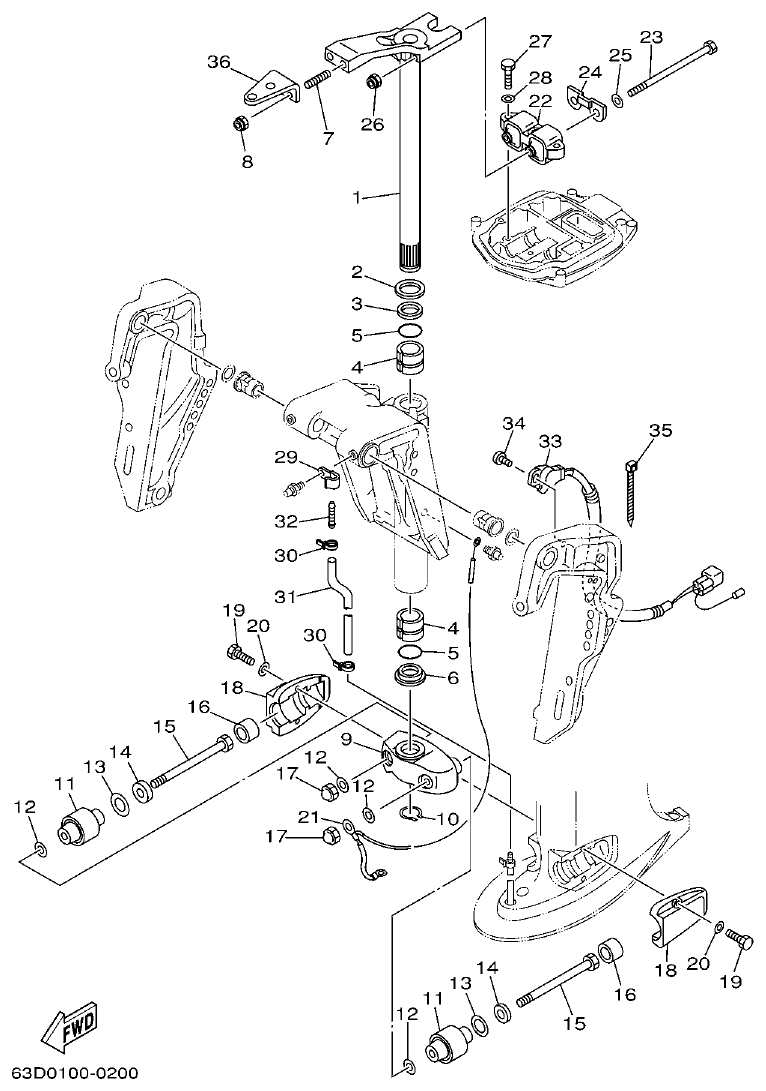

Yamaha 40VMHD, 50HMHD, 50HET BRACKET 2 parts diagram
Fig. 18 — BRACKET 2
36 items · 1 available products

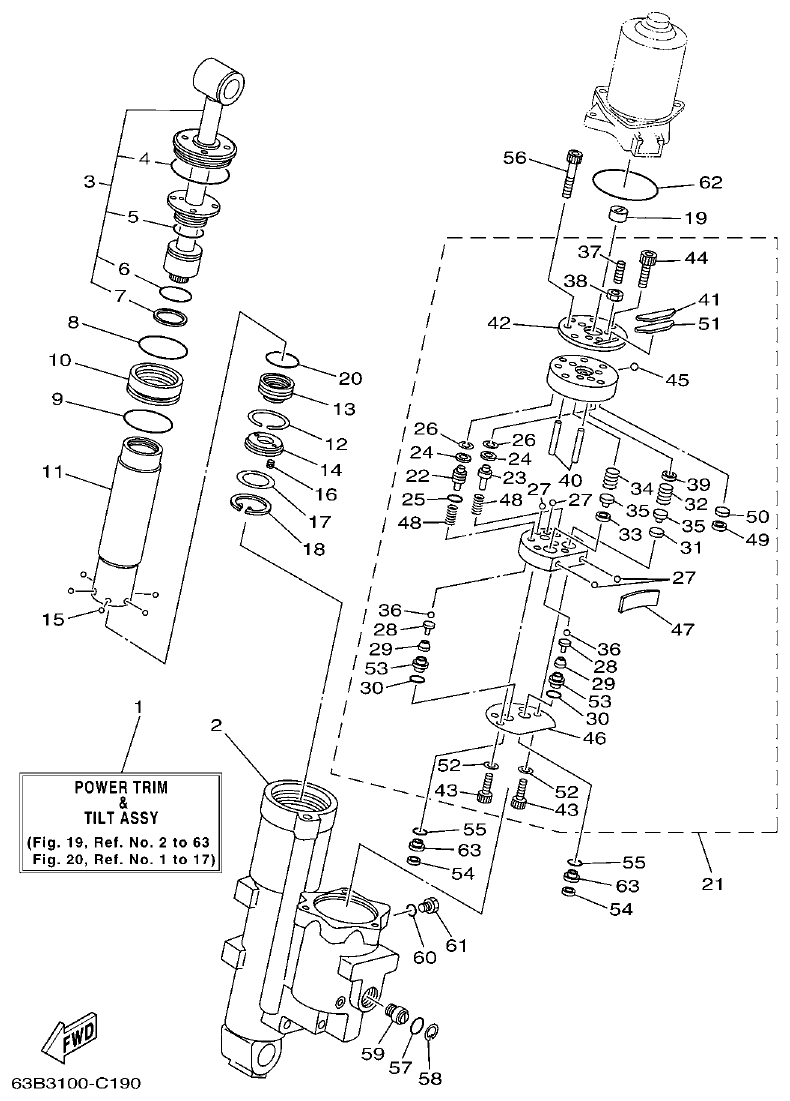

Yamaha 40VMHD, 50HMHD, 50HET POWER TRIM & TILT ASSY 1 parts diagram
Fig. 19 — POWER TRIM & TILT ASSY 1
63 items · 7 available products

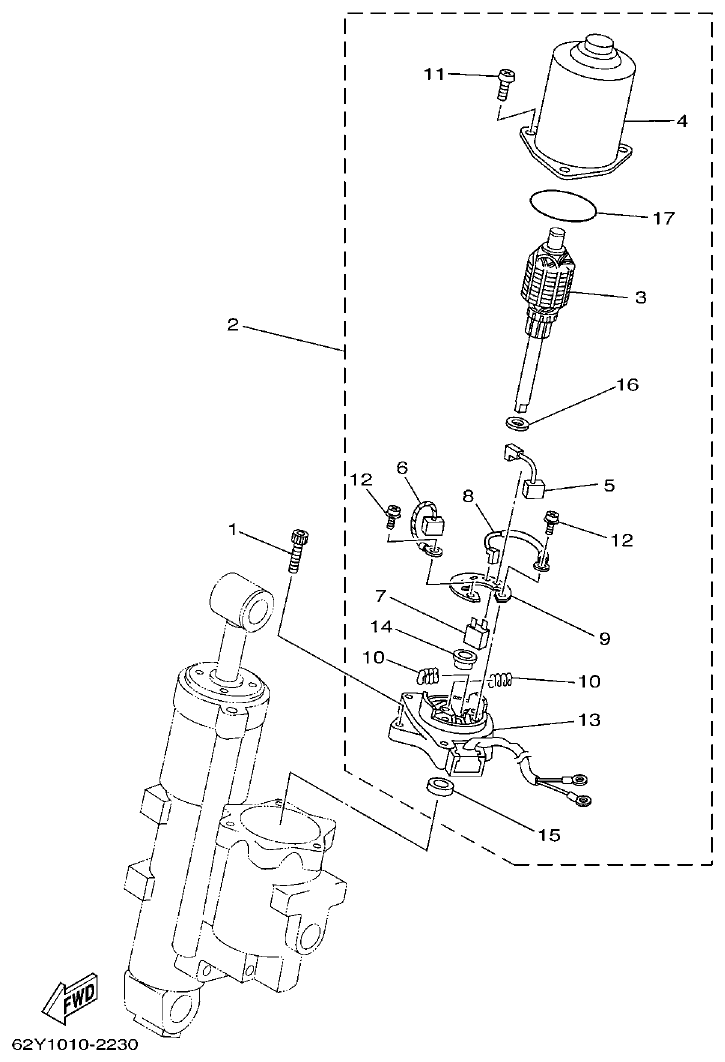

Yamaha 40VMHD, 50HMHD, 50HET POWER TRIM & TILT ASSY 2 parts diagram
Fig. 20 — POWER TRIM & TILT ASSY 2
17 items · 3 available products

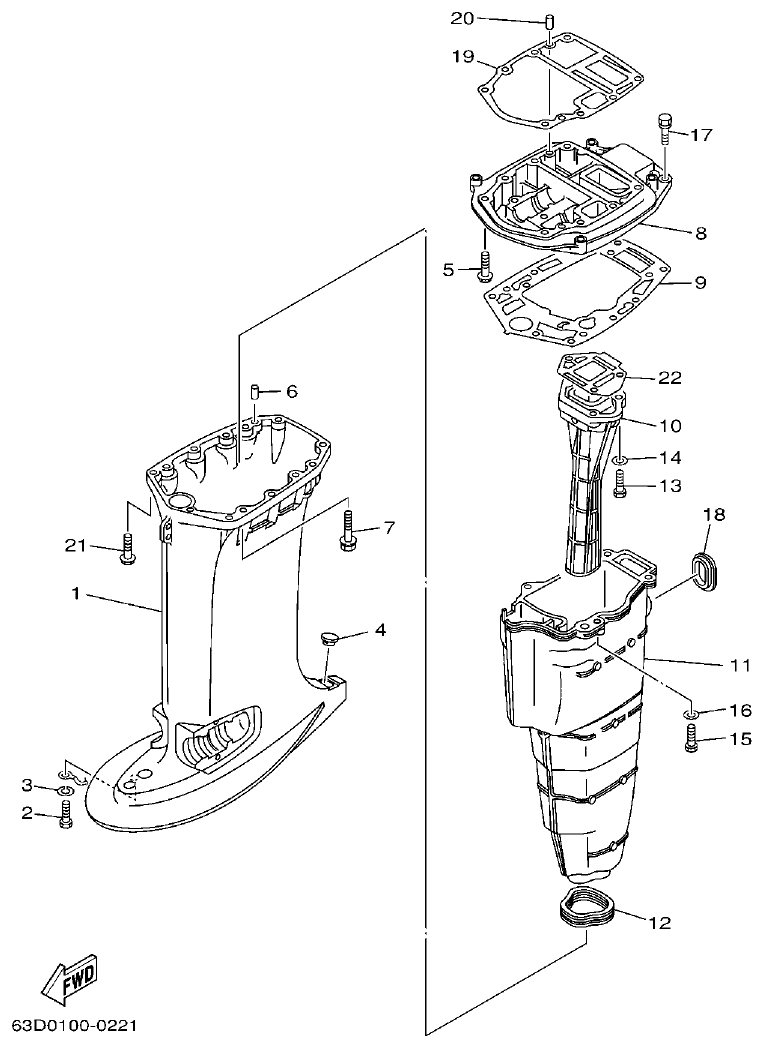

Yamaha 40VMHD, 50HMHD, 50HET UPPER CASING parts diagram
Fig. 21 — UPPER CASING
23 items · 1 available products

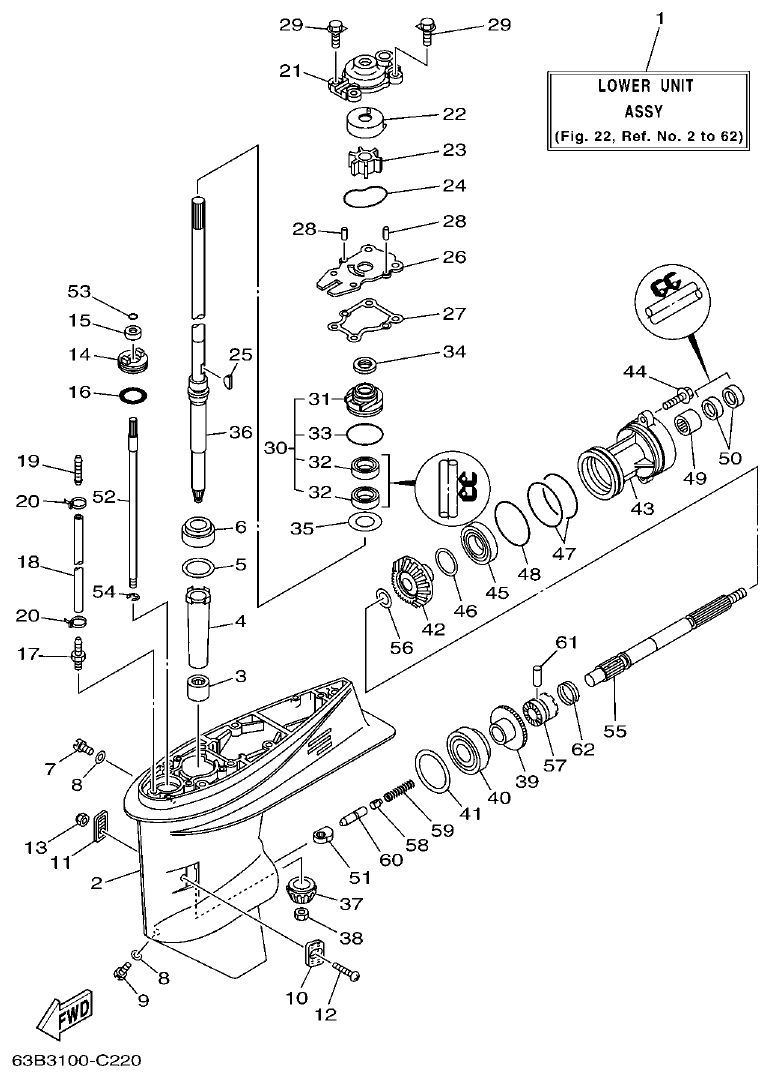

Yamaha 40VMHD, 50HMHD, 50HET LOWER CASING & DRIVE 1 parts diagram
Fig. 22 — LOWER CASING & DRIVE 1
81 items · 22 available products
Yamaha 40VMHD, 50HMHD, 50HET LOWER CASING & DRIVE 2 parts diagram

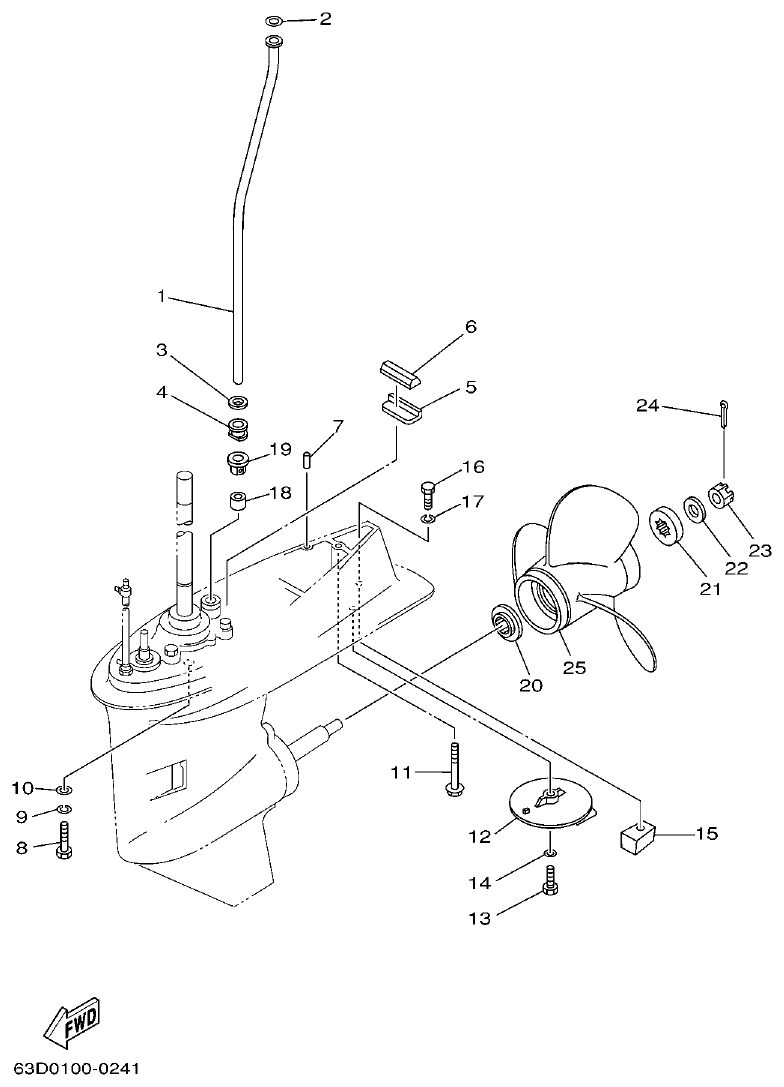

Fig. 23 — LOWER CASING & DRIVE 2
46 items · 5 available products

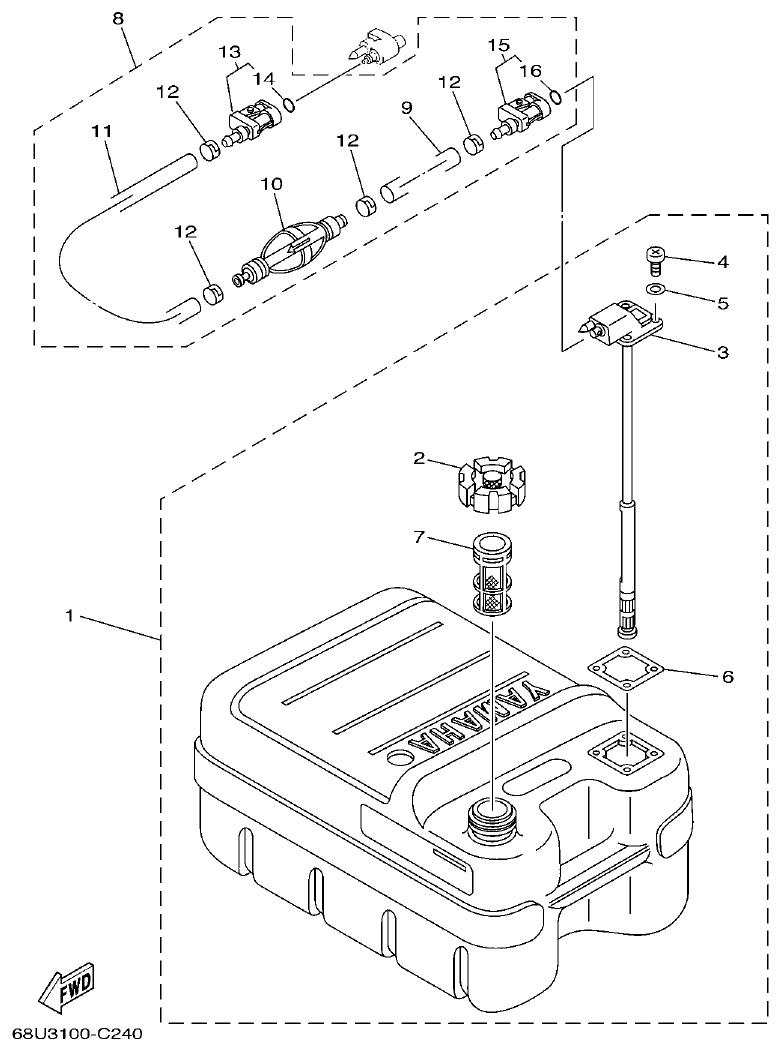

Yamaha 40VMHD, 50HMHD, 50HET FUEL TANK parts diagram
Fig. 24 — FUEL TANK
16 items · 1 available products

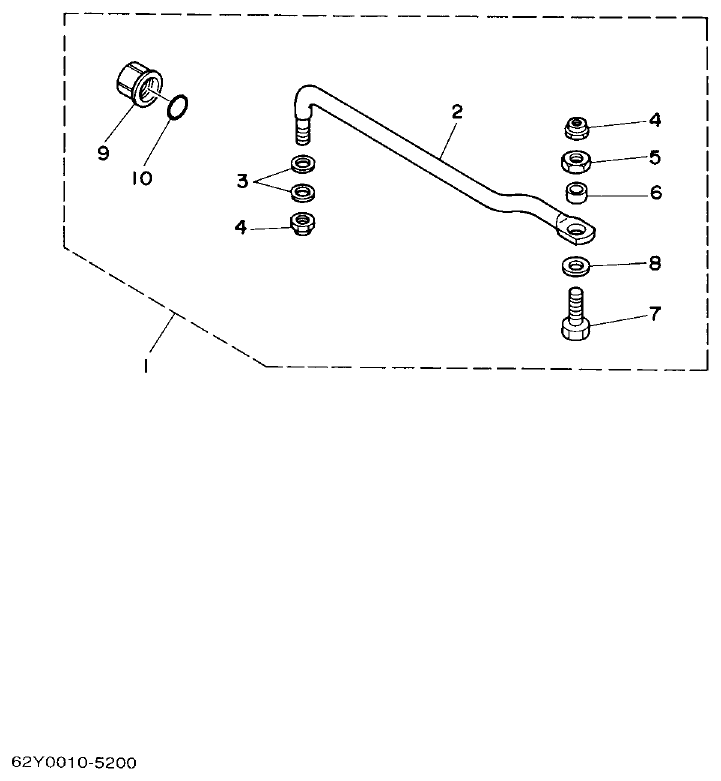

Yamaha 40VMHD, 50HMHD, 50HET STEERING GUIDE parts diagram
Fig. 25 — STEERING GUIDE
10 items
Yamaha 40VMHD, 50HMHD, 50HET REMOTE CONTROL BOX parts diagram
Fig. 26 — REMOTE CONTROL BOX
7 items

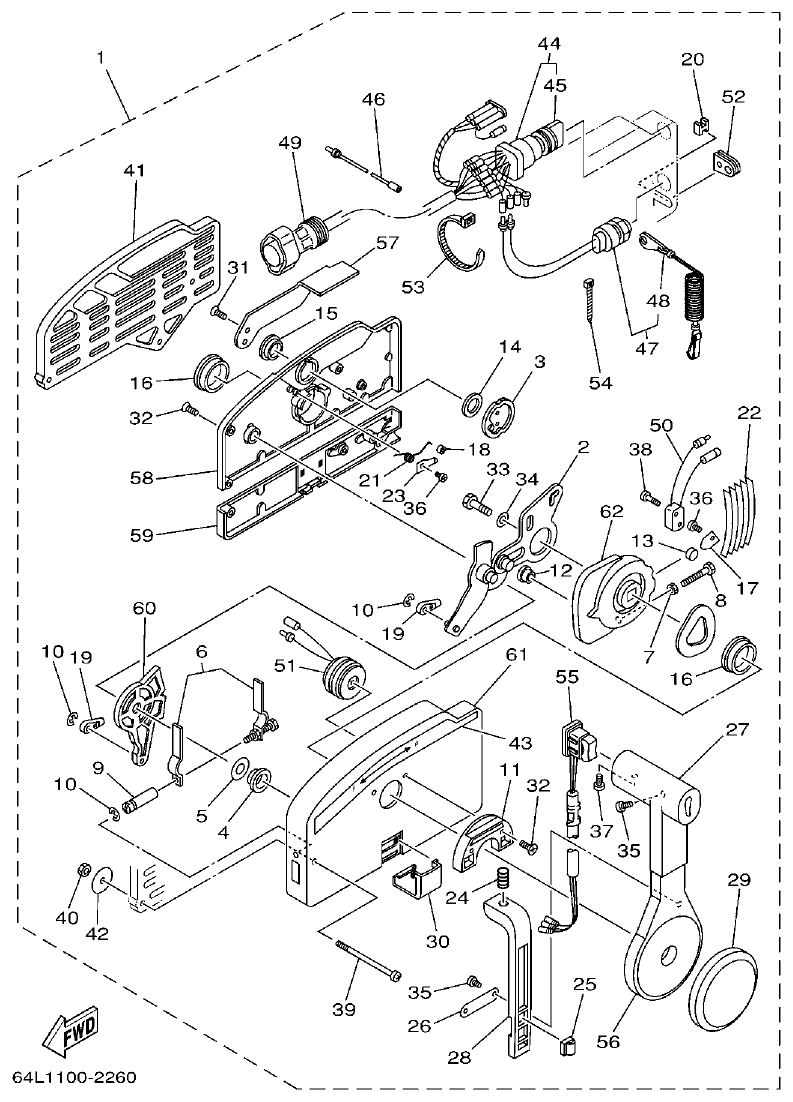

Yamaha 40VMHD, 50HMHD, 50HET REMOTE CONTROL ASSY parts diagram
Fig. 27 — REMOTE CONTROL ASSY
62 items · 12 available products

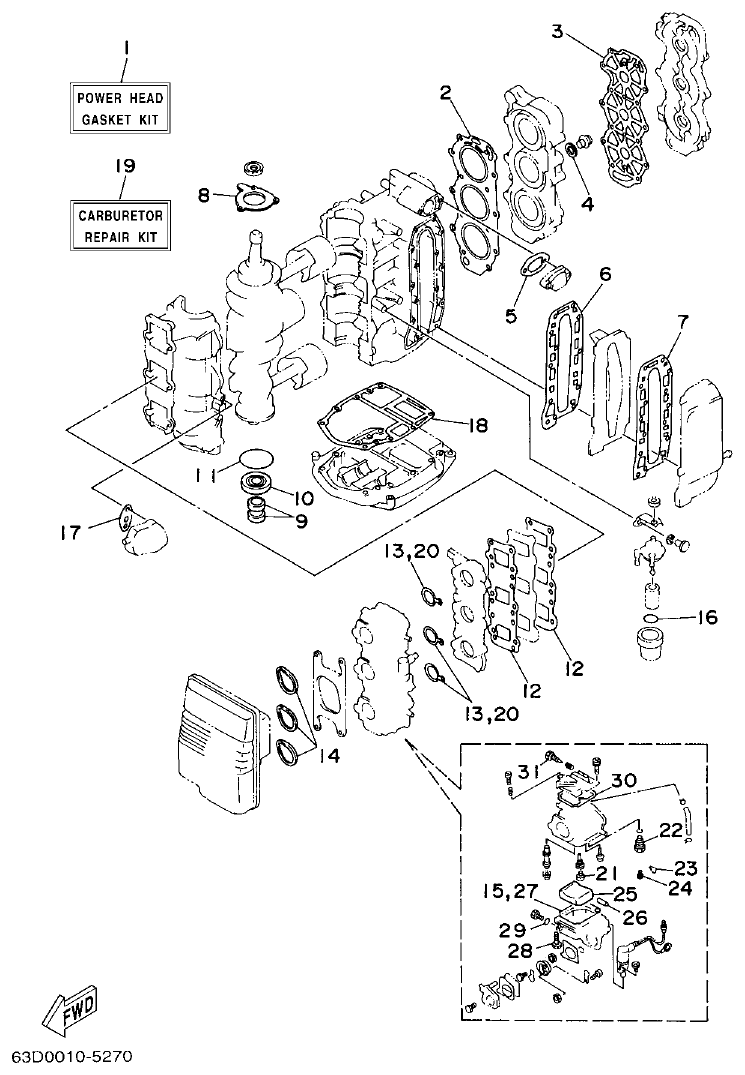

Yamaha 40VMHD, 50HMHD, 50HET REPAIR KIT 1 parts diagram
Fig. 28 — REPAIR KIT 1
31 items · 10 available products

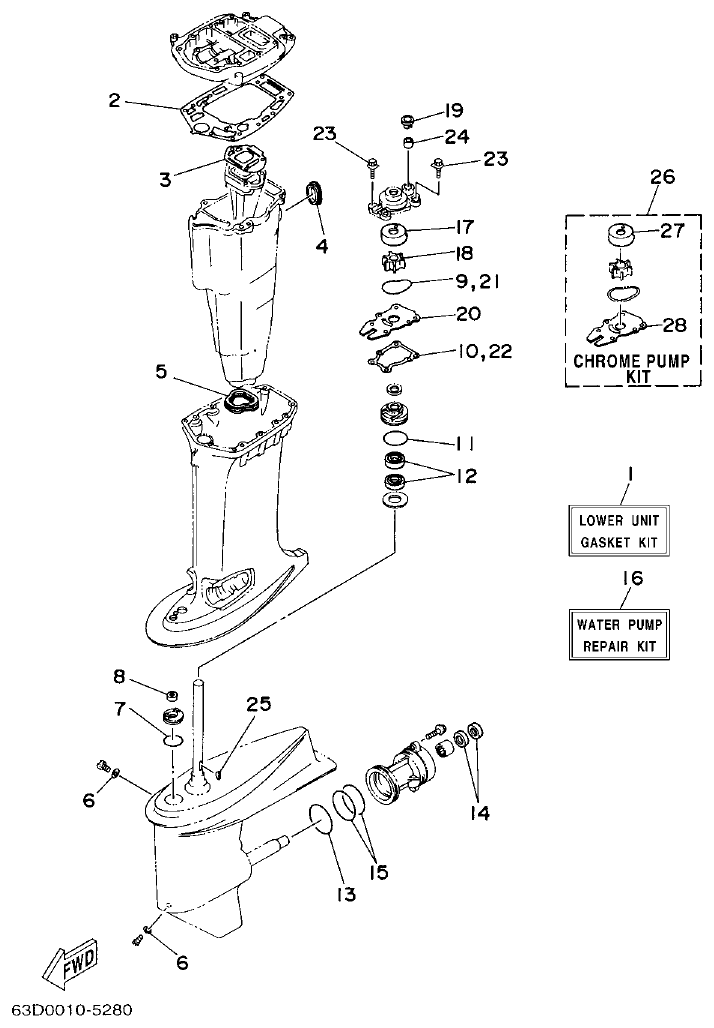

Yamaha 40VMHD, 50HMHD, 50HET REPAIR KIT 2 parts diagram
Fig. 29 — REPAIR KIT 2
28 items · 7 available products
