Yamaha 40XMH Parts Catalog

Yamaha 40XMH Outboard parts and diagrams

Yamaha 40XMH outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, FUEL, STARTER, GENERATOR, ELECTRICAL, BOTTOM COWLING, STEERING, CONTROL, REMO CON ATTACHMENT, BRACKET 1, BRACKET 2, UPPER CASING, LOWER CASING & DRIVE 1, LOWER CASING & DRIVE 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

322 linked store products are available across 53 catalog sections. 1632 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

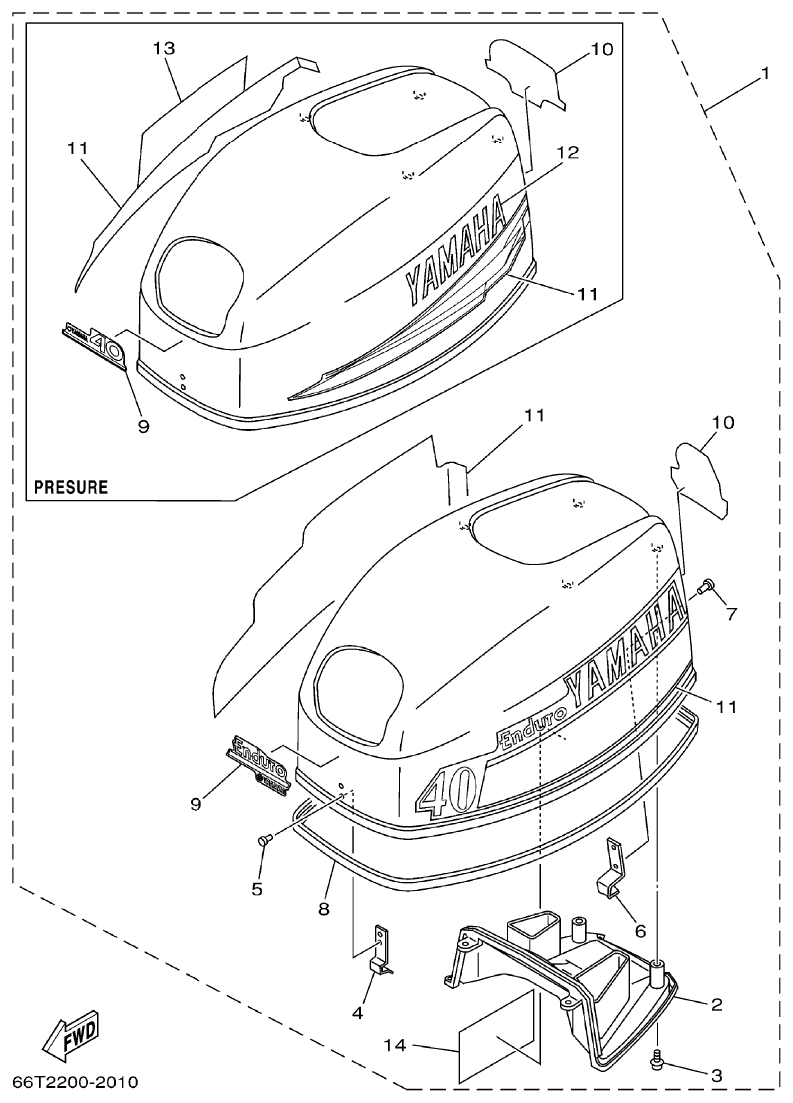

Yamaha 40XMH TOP COWLING parts diagram
Fig. 1 — TOP COWLING
13 items · 2 available products
Yamaha 40XMH CYLINDER & CRANKCASE parts diagram
Fig. 2 — CYLINDER & CRANKCASE
38 items · 11 available products
Yamaha 40XMH CRANKSHAFT & PISTON parts diagram

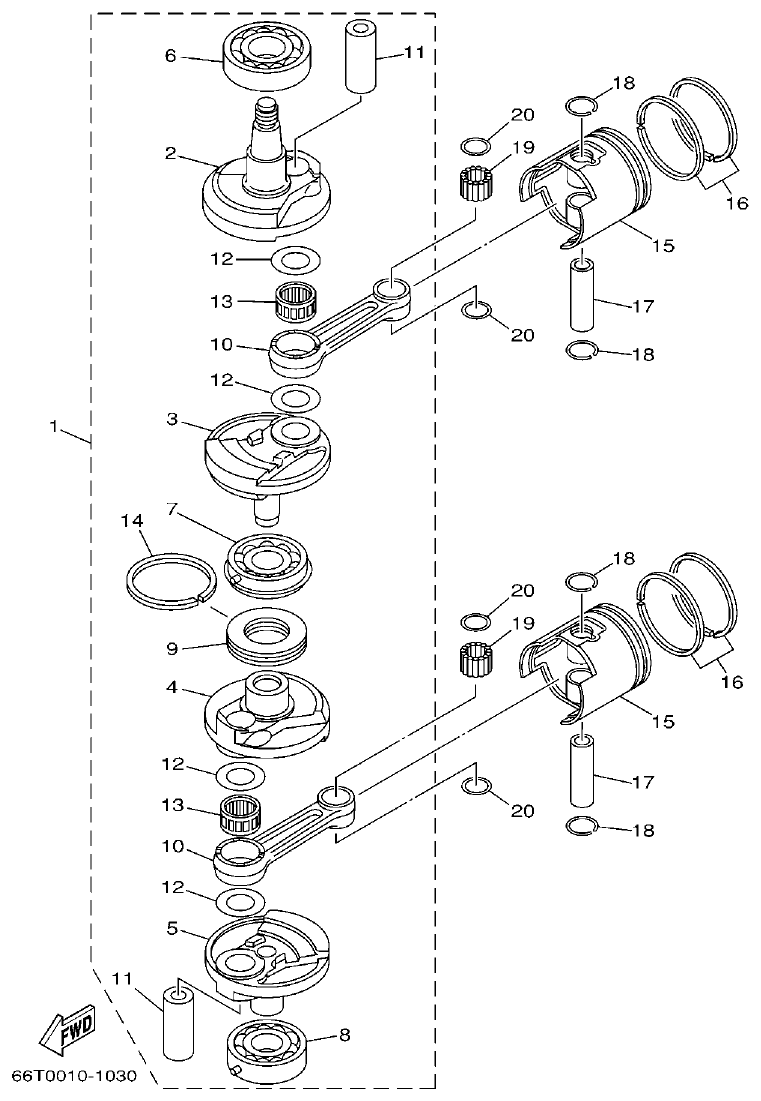

Fig. 3 — CRANKSHAFT & PISTON
24 items · 11 available products

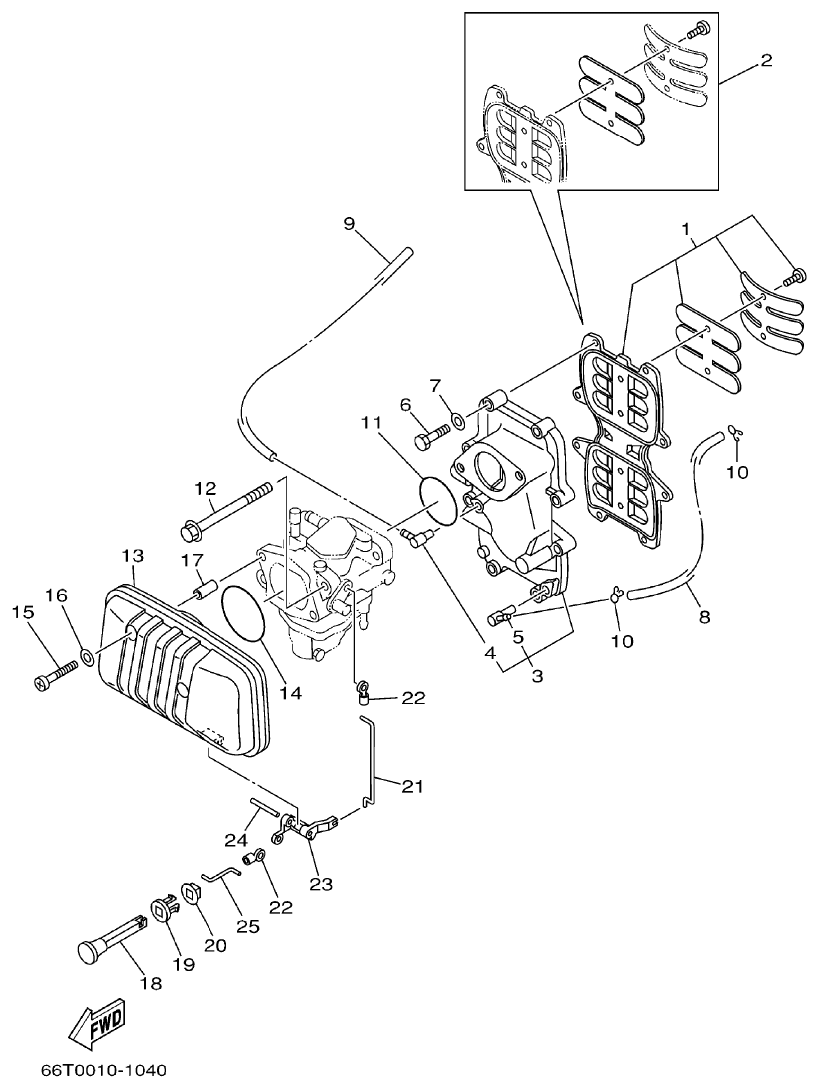

Yamaha 40XMH INTAKE parts diagram

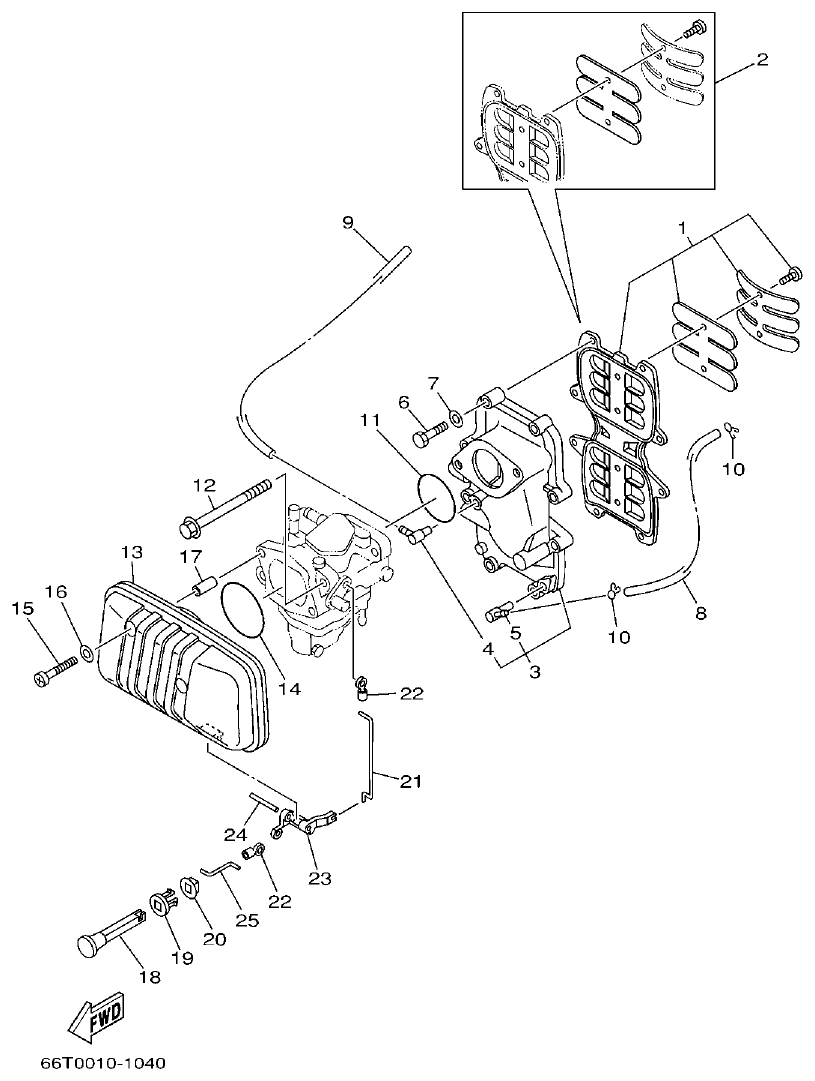

Fig. 4 — INTAKE
25 items · 9 available products

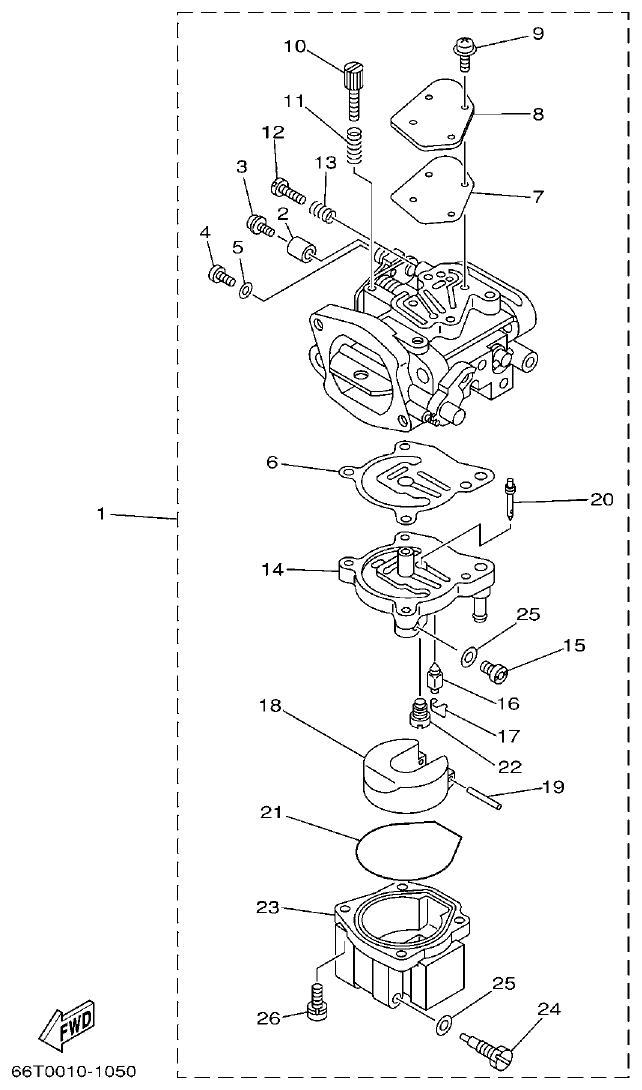

Yamaha 40XMH CARBURETOR parts diagram

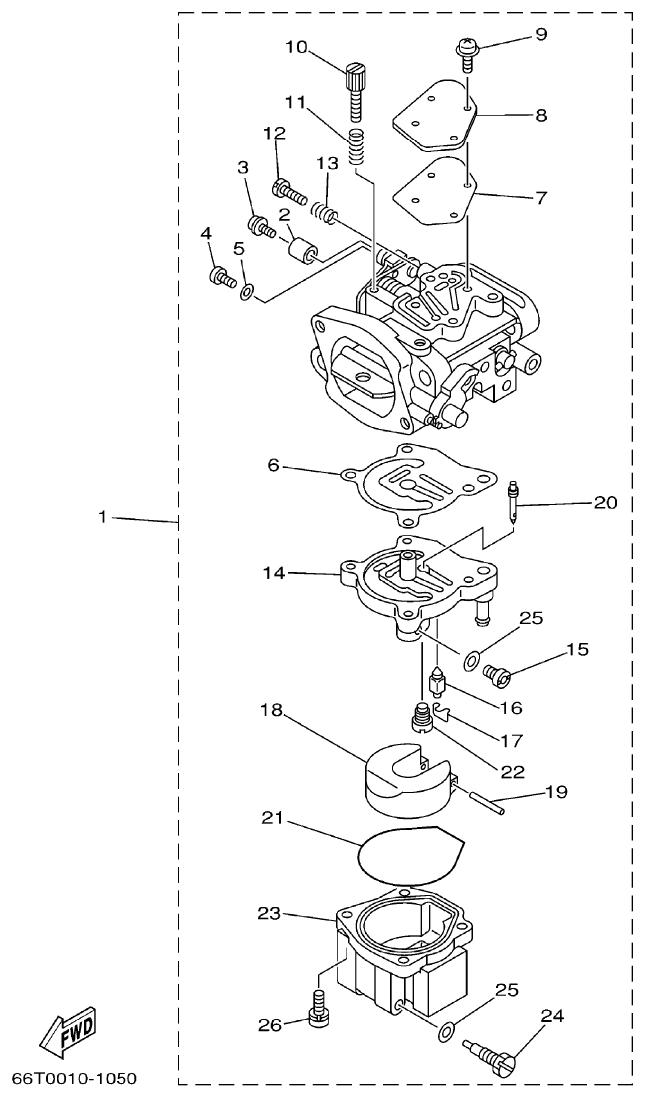

Fig. 5 — CARBURETOR
26 items · 8 available products

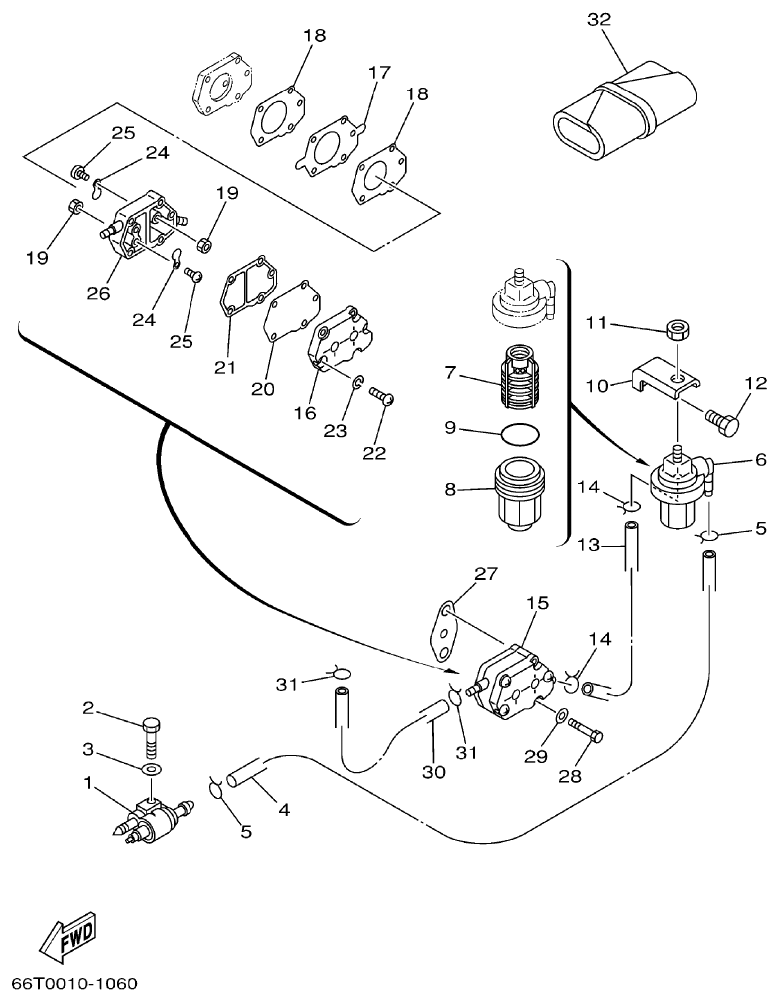

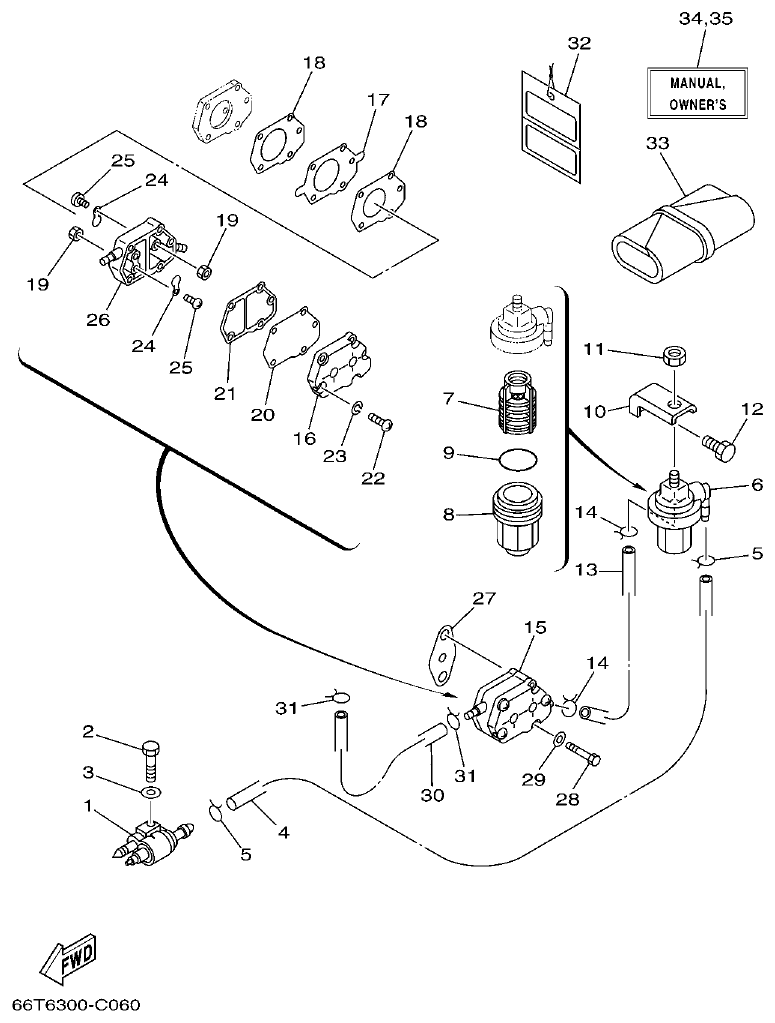

Yamaha 40XMH FUEL parts diagram
Fig. 6 — FUEL
37 items · 6 available products

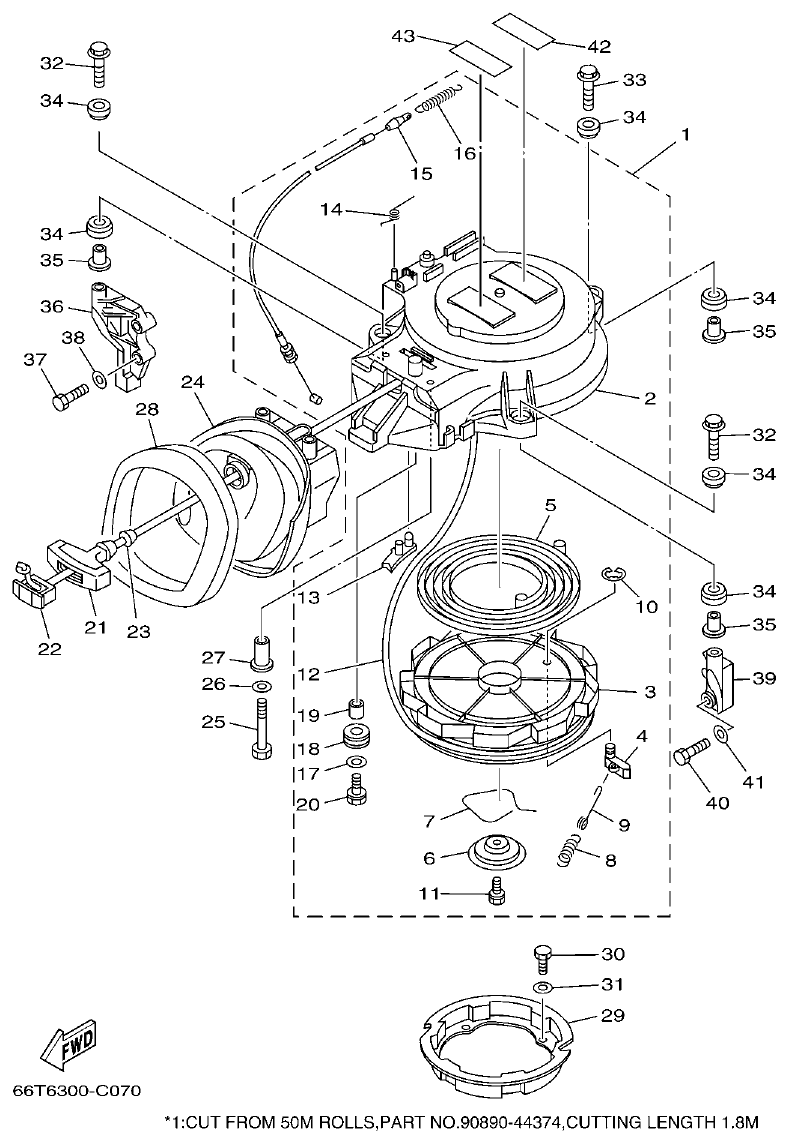

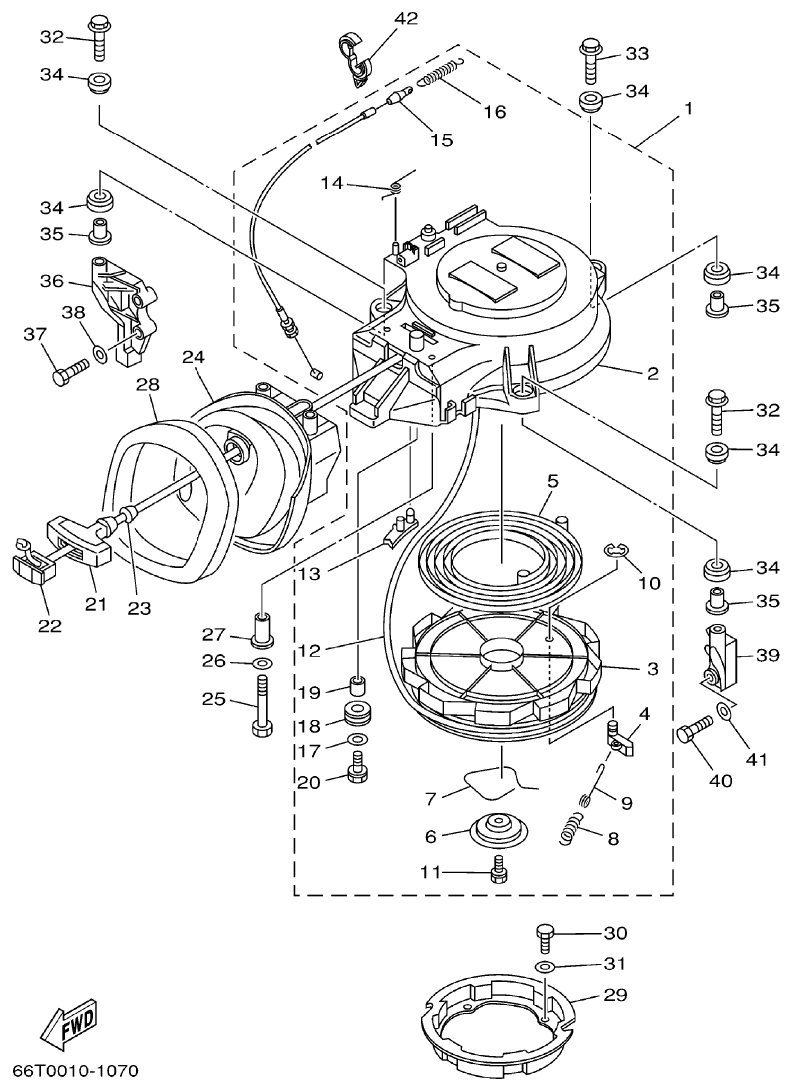

Yamaha 40XMH STARTER parts diagram
Fig. 7 — STARTER
42 items · 13 available products

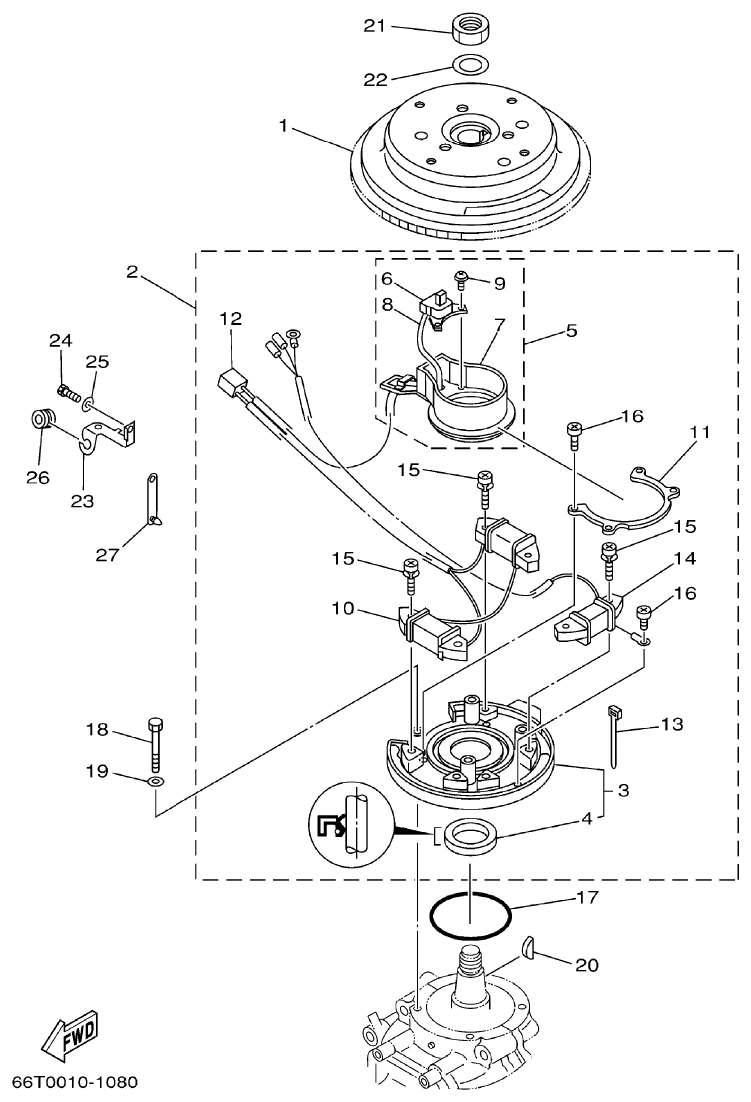

Yamaha 40XMH GENERATOR parts diagram

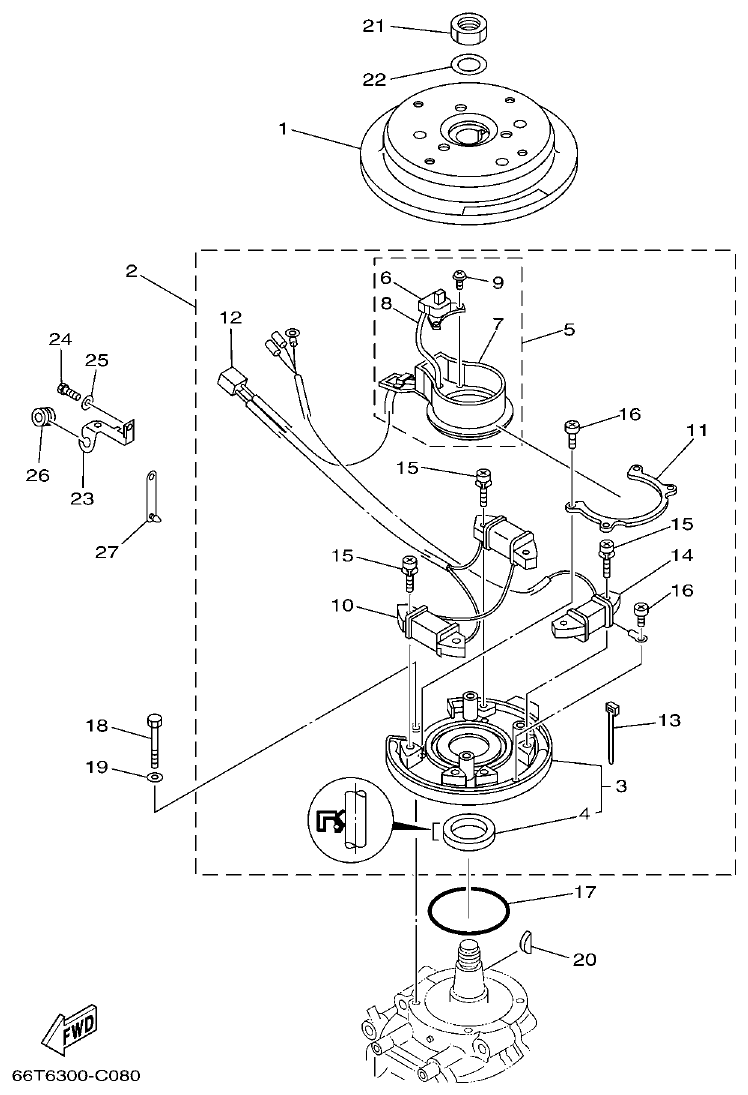

Fig. 8 — GENERATOR
27 items · 5 available products

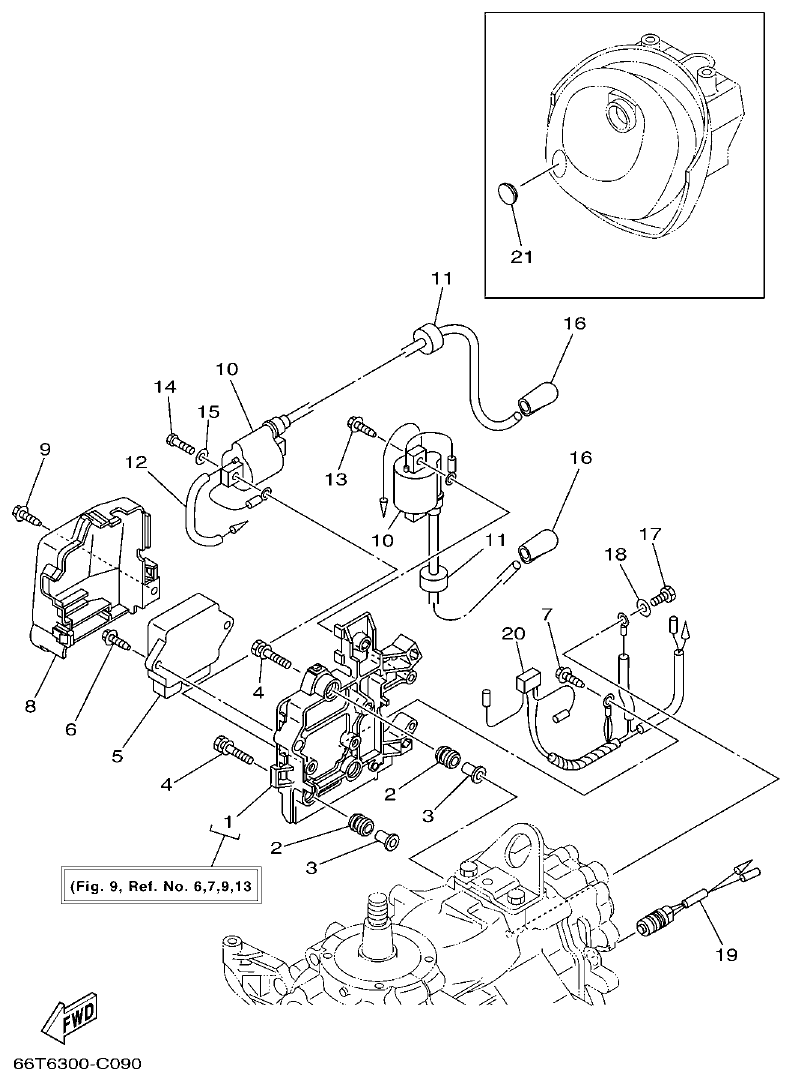

Yamaha 40XMH ELECTRICAL parts diagram
Fig. 9 — ELECTRICAL
21 items · 4 available products

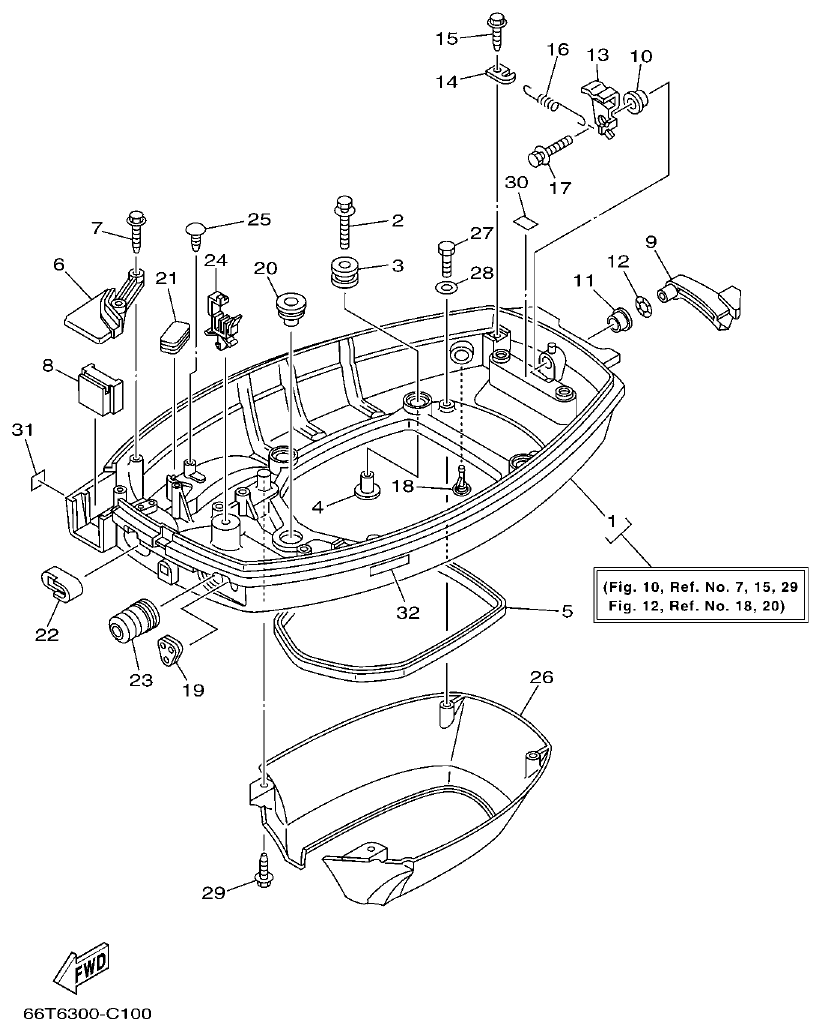

Yamaha 40XMH BOTTOM COWLING parts diagram
Fig. 10 — BOTTOM COWLING
32 items · 3 available products
Yamaha 40XMH STEERING parts diagram

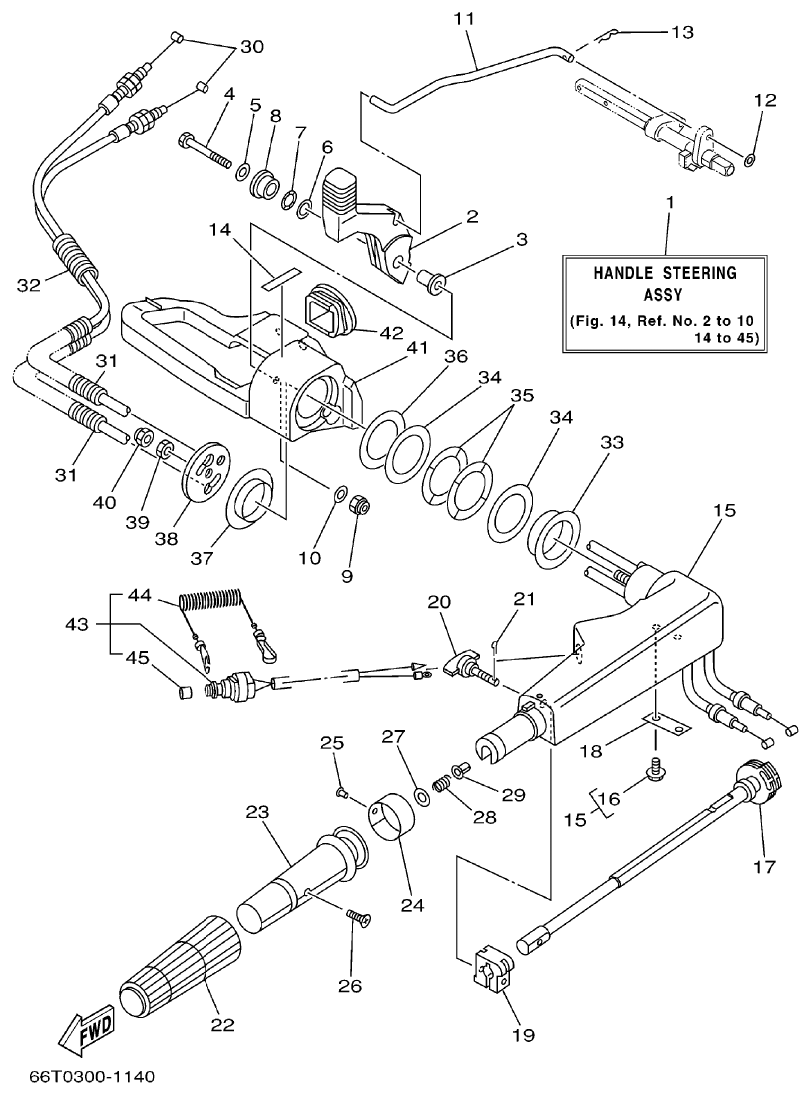

Fig. 11 — STEERING
46 items · 9 available products

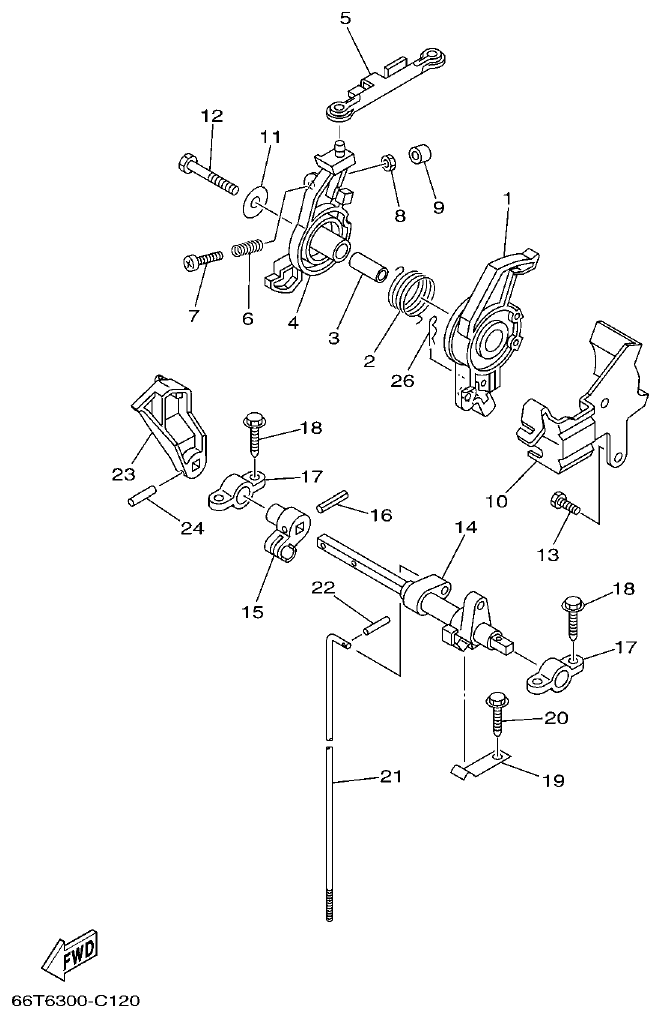

Yamaha 40XMH CONTROL parts diagram
Fig. 12 — CONTROL
24 items · 5 available products

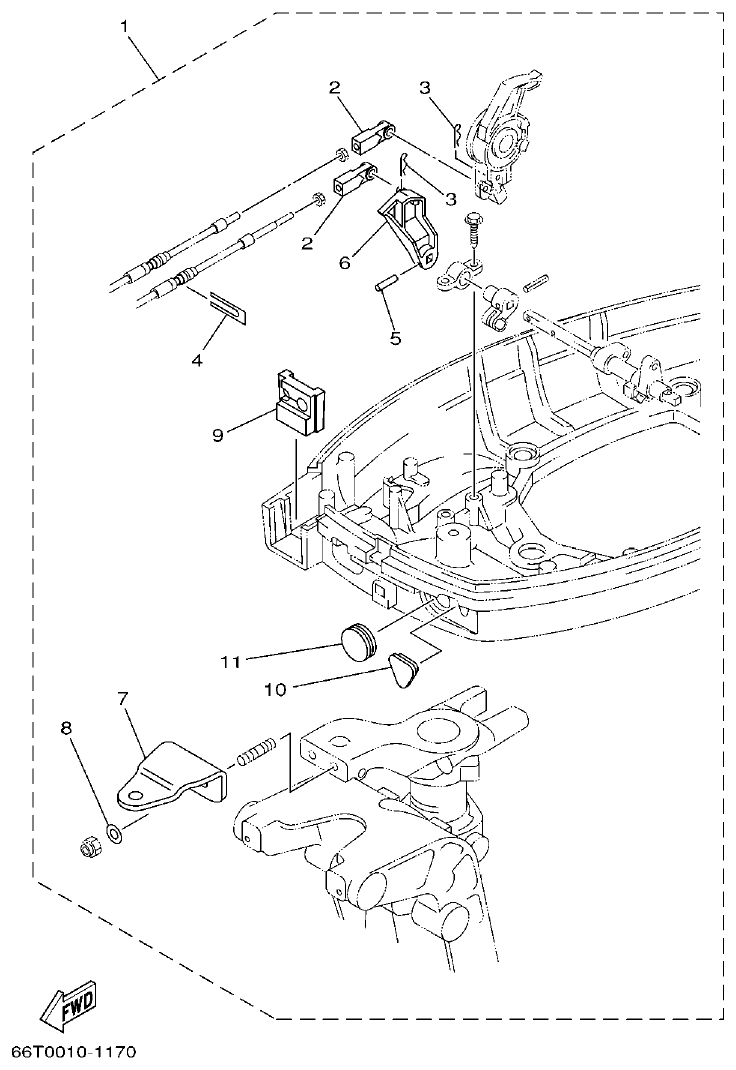

Yamaha 40XMH REMO CON ATTACHMENT parts diagram
Fig. 13 — REMO CON ATTACHMENT
11 items · 2 available products

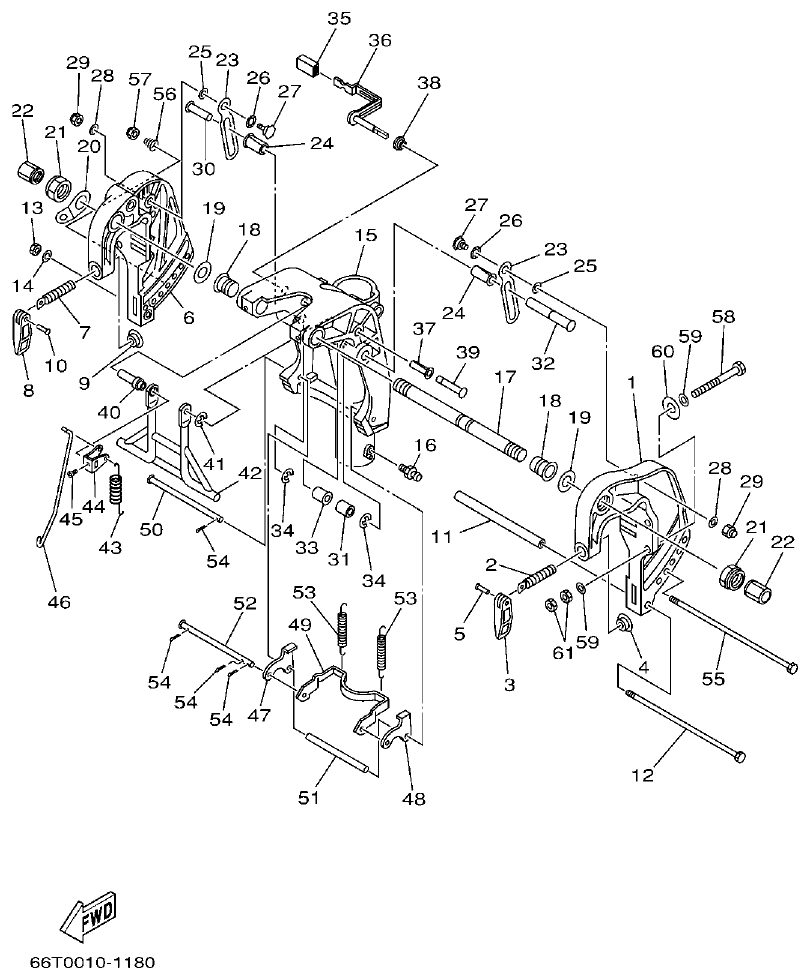

Yamaha 40XMH BRACKET 1 parts diagram

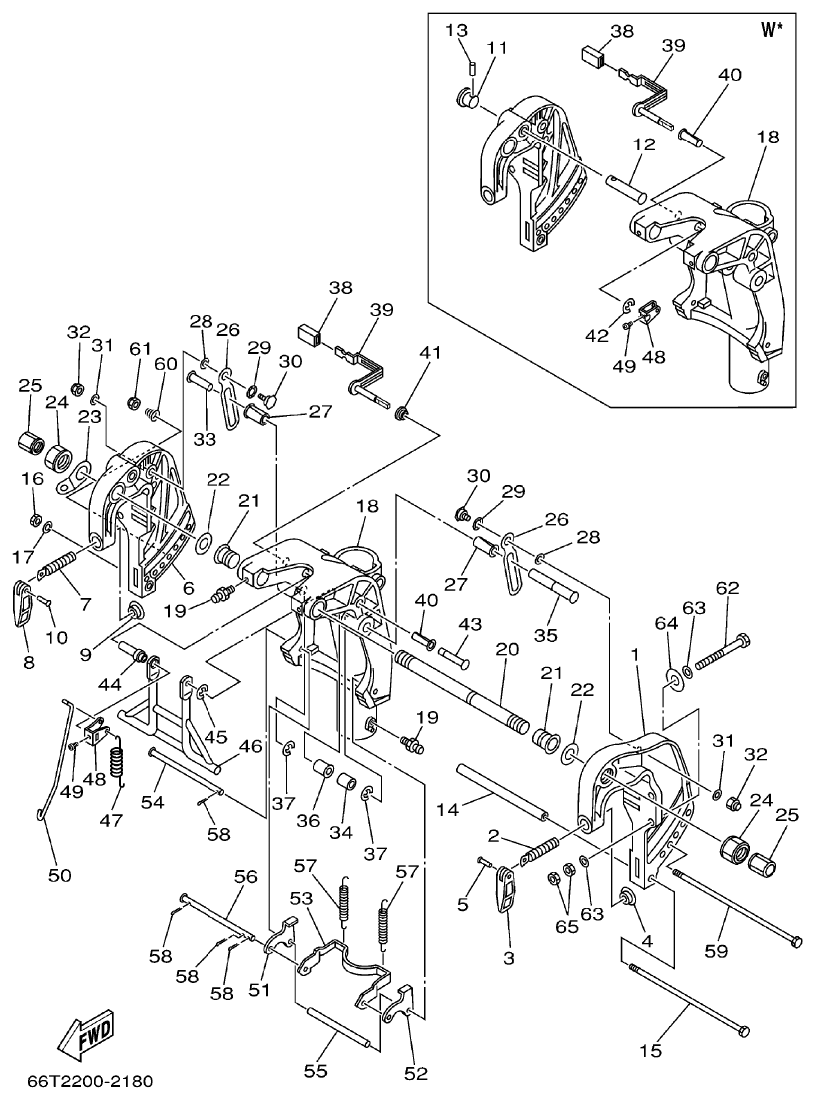

Fig. 14 — BRACKET 1
61 items · 3 available products

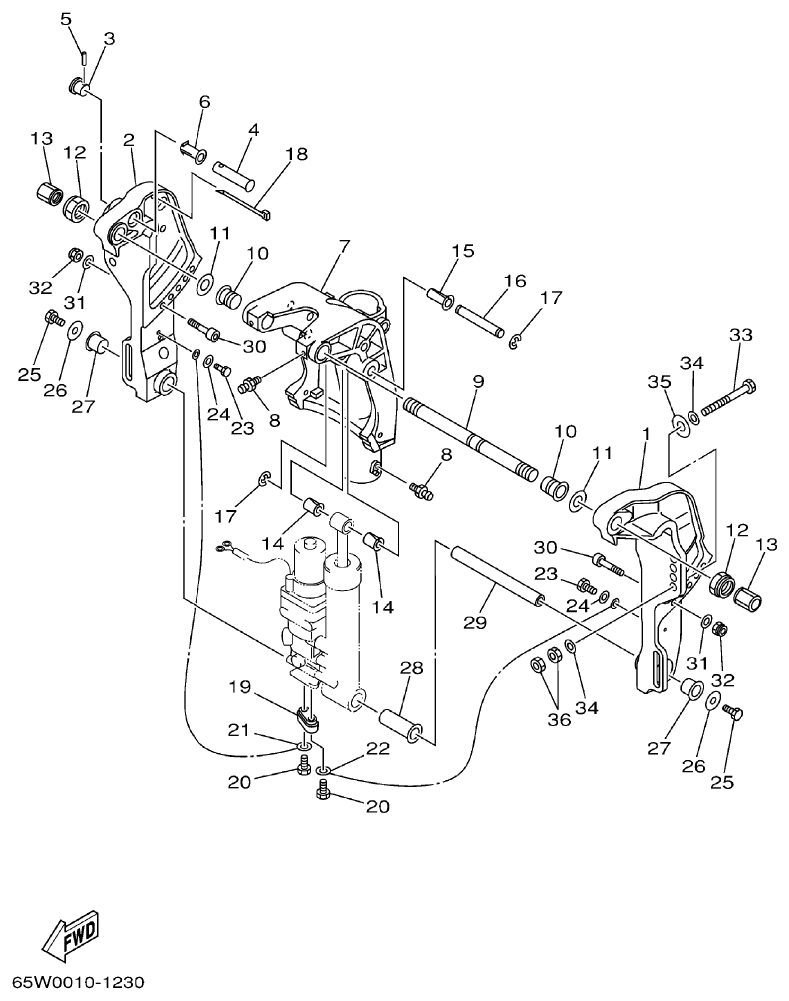

Yamaha 40XMH BRACKET 2 parts diagram

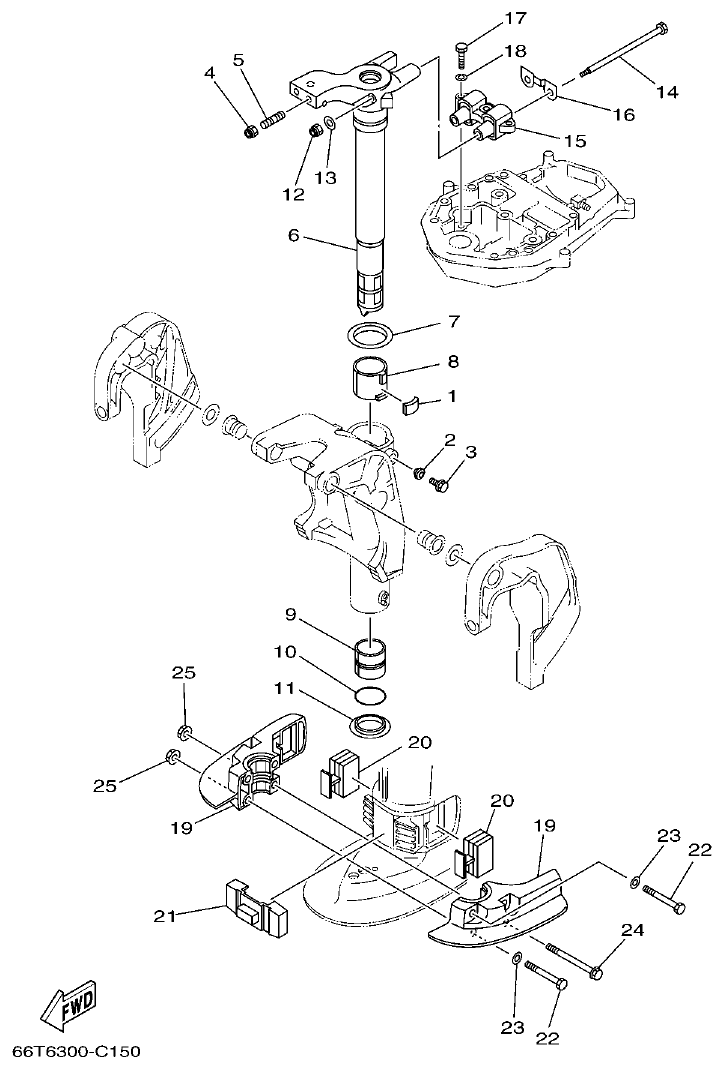

Fig. 15 — BRACKET 2
25 items · 1 available products
Yamaha 40XMH UPPER CASING parts diagram

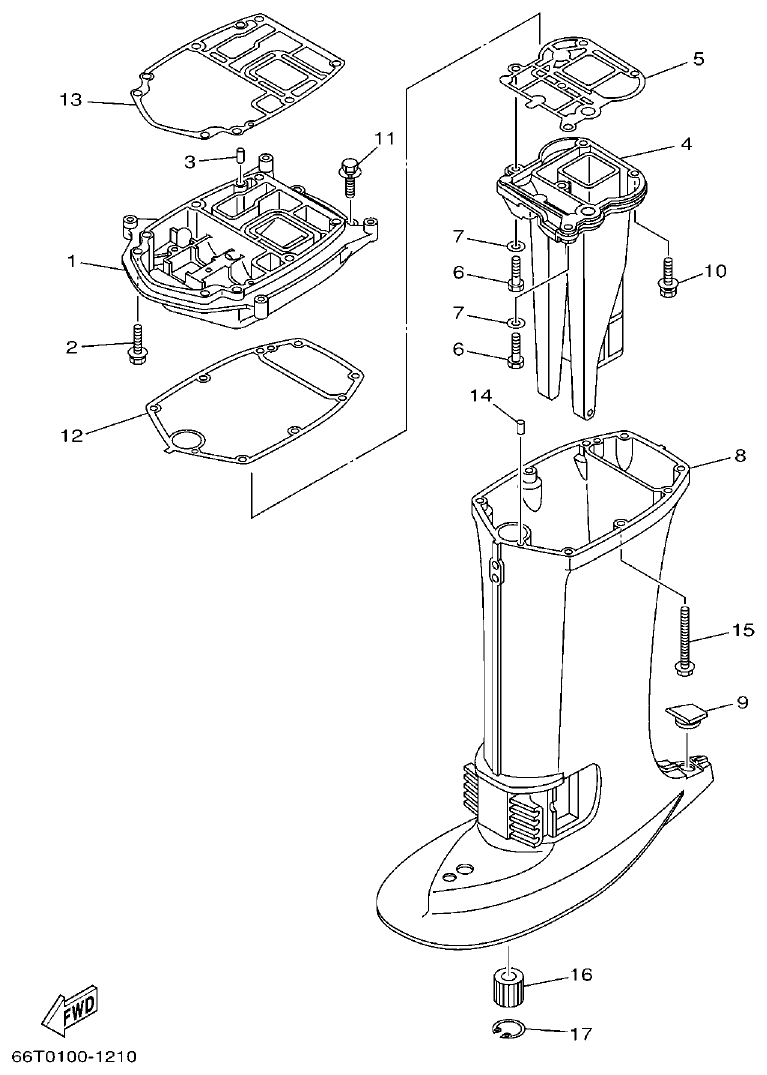

Fig. 16 — UPPER CASING
17 items · 4 available products

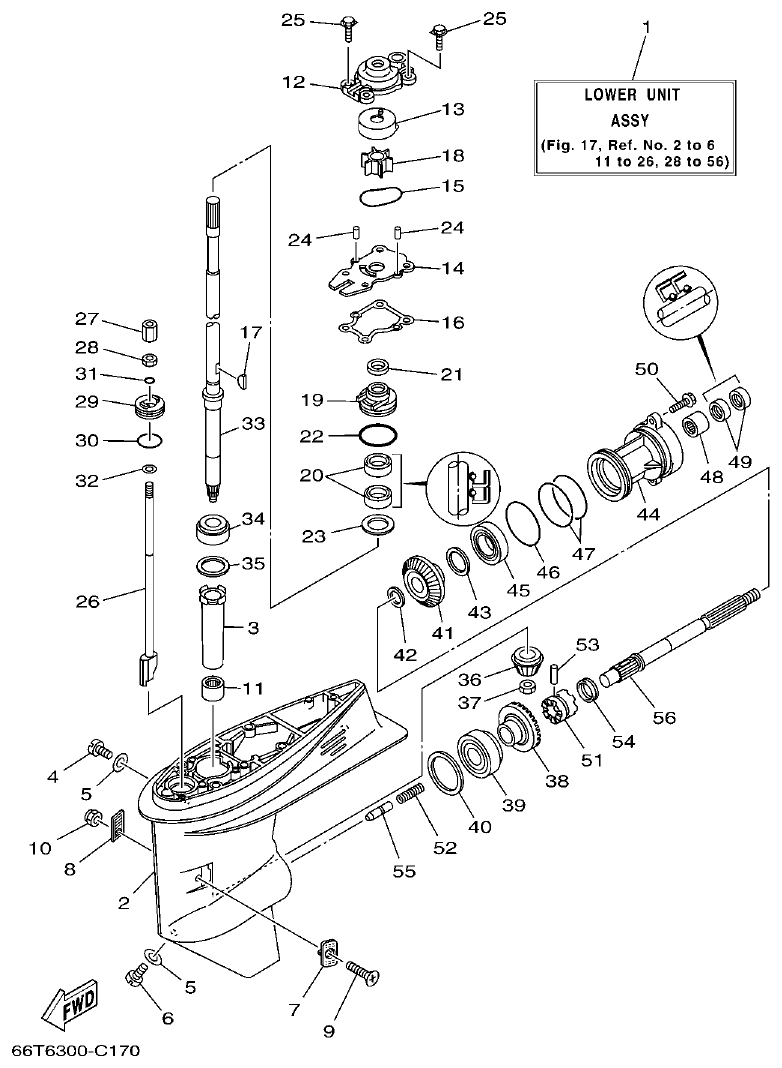

Yamaha 40XMH LOWER CASING & DRIVE 1 parts diagram
Fig. 17 — LOWER CASING & DRIVE 1
74 items · 21 available products

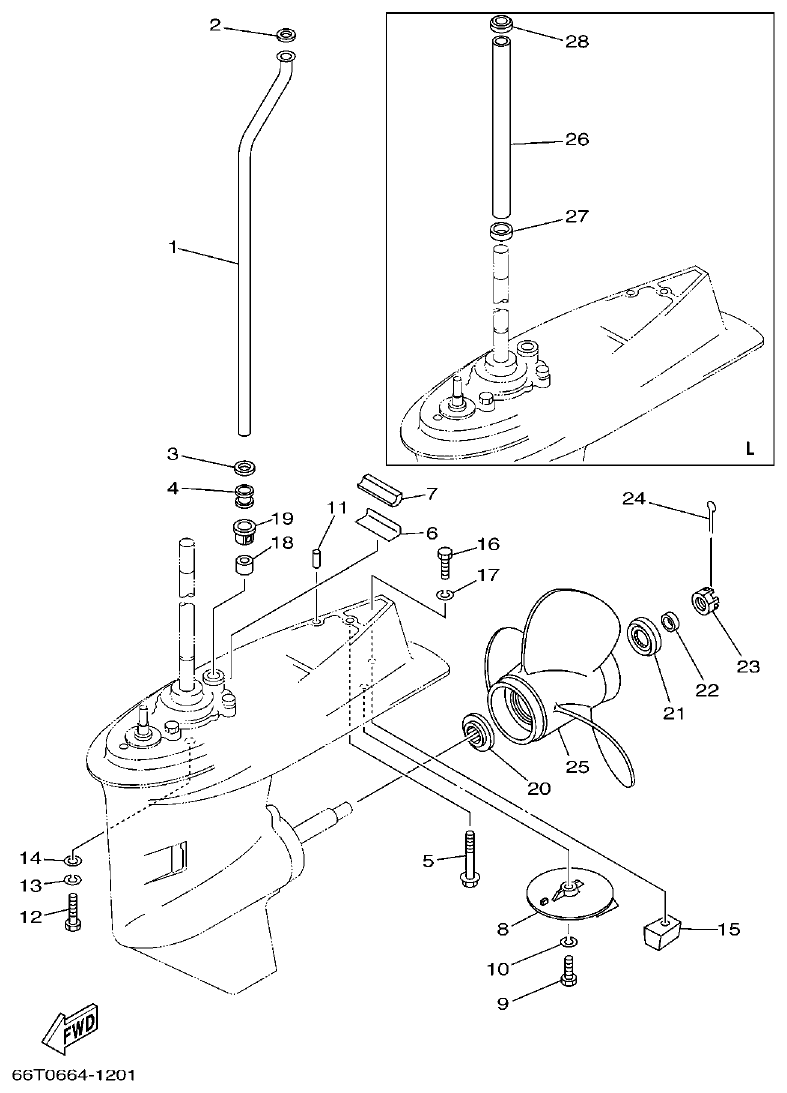

Yamaha 40XMH LOWER CASING & DRIVE 2 parts diagram
Fig. 18 — LOWER CASING & DRIVE 2
43 items · 6 available products

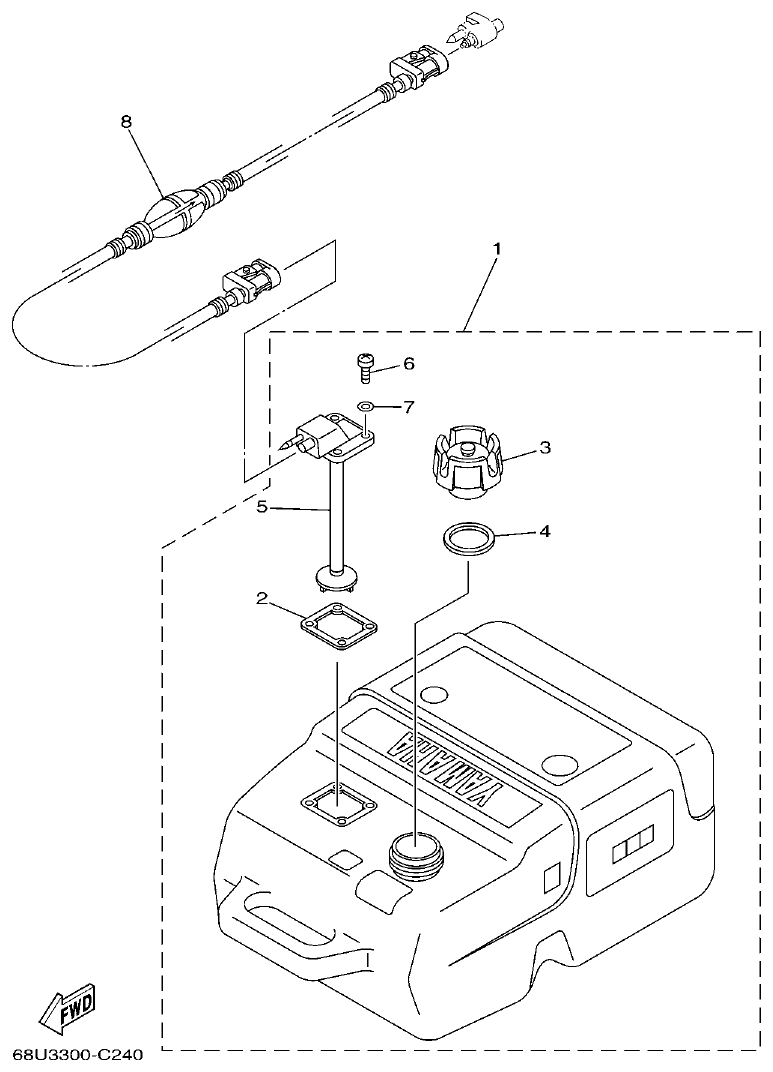

Yamaha 40XMH FUEL TANK parts diagram
Fig. 19 — FUEL TANK
8 items
Yamaha 40XMH REPAIR KIT 1 parts diagram
Fig. 20 — REPAIR KIT 1
28 items · 12 available products

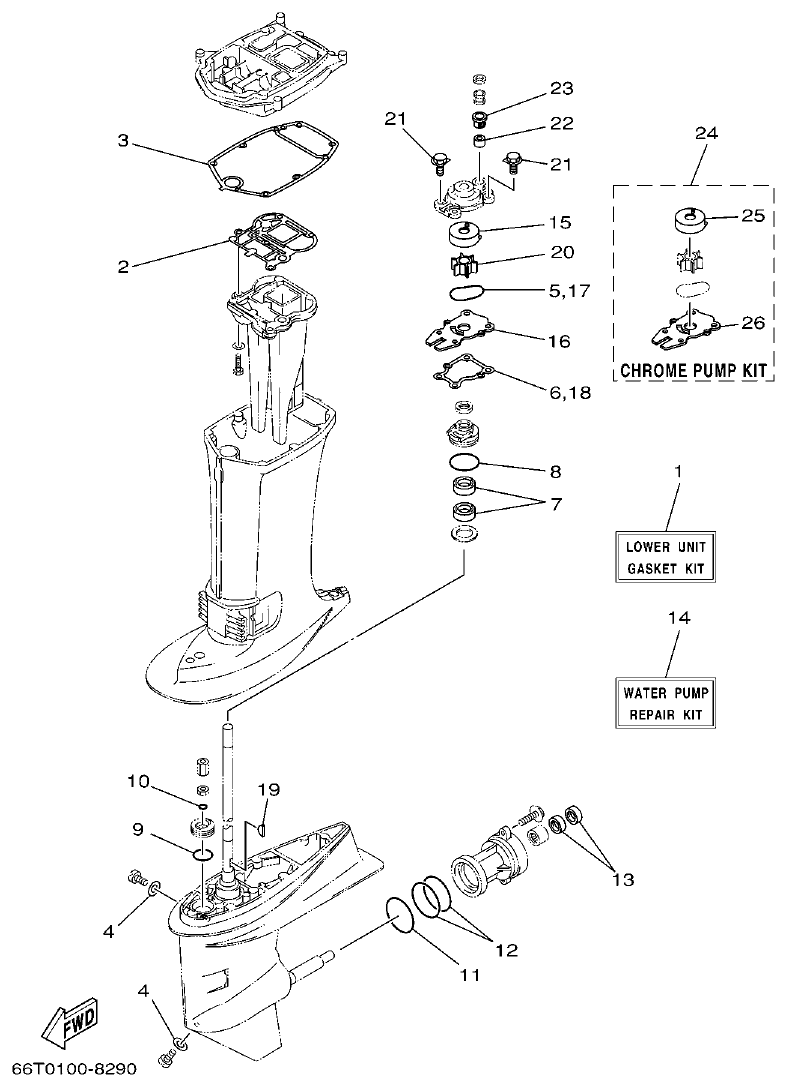

Yamaha 40XMH REPAIR KIT 2 parts diagram
Fig. 21 — REPAIR KIT 2
26 items · 8 available products
Yamaha 40XMH REPAIR KIT 3 parts diagram
Fig. 22 — REPAIR KIT 3
4 items · 1 available products

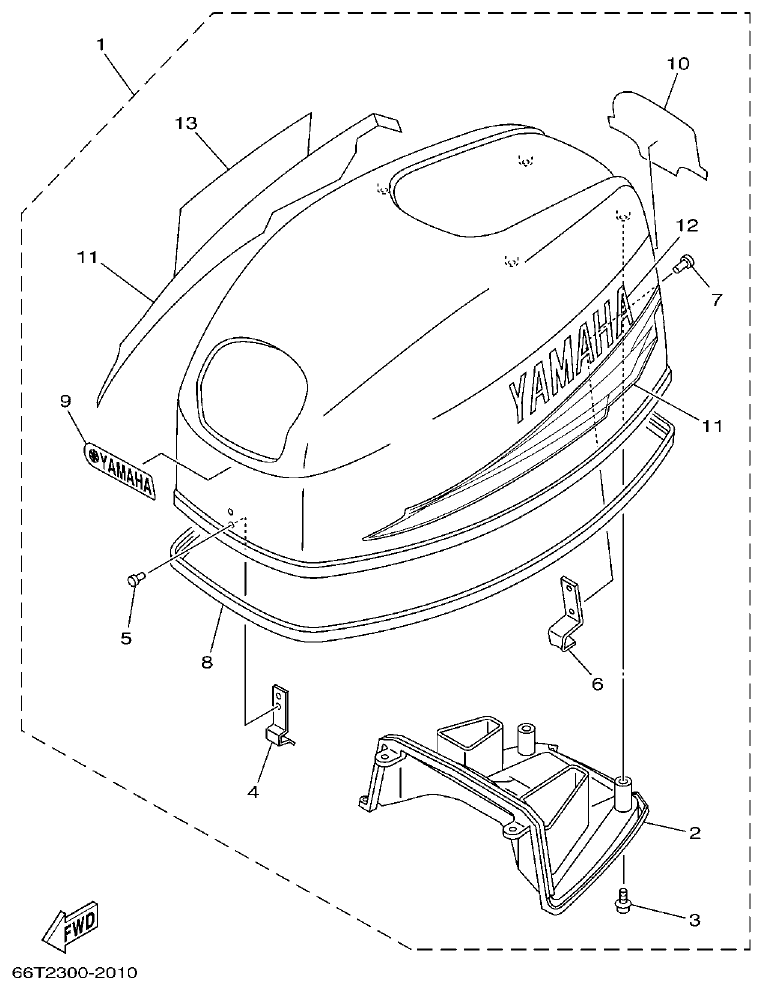

Yamaha 40XMH TOP COWLING parts diagram
Fig. 1 — TOP COWLING
18 items · 2 available products

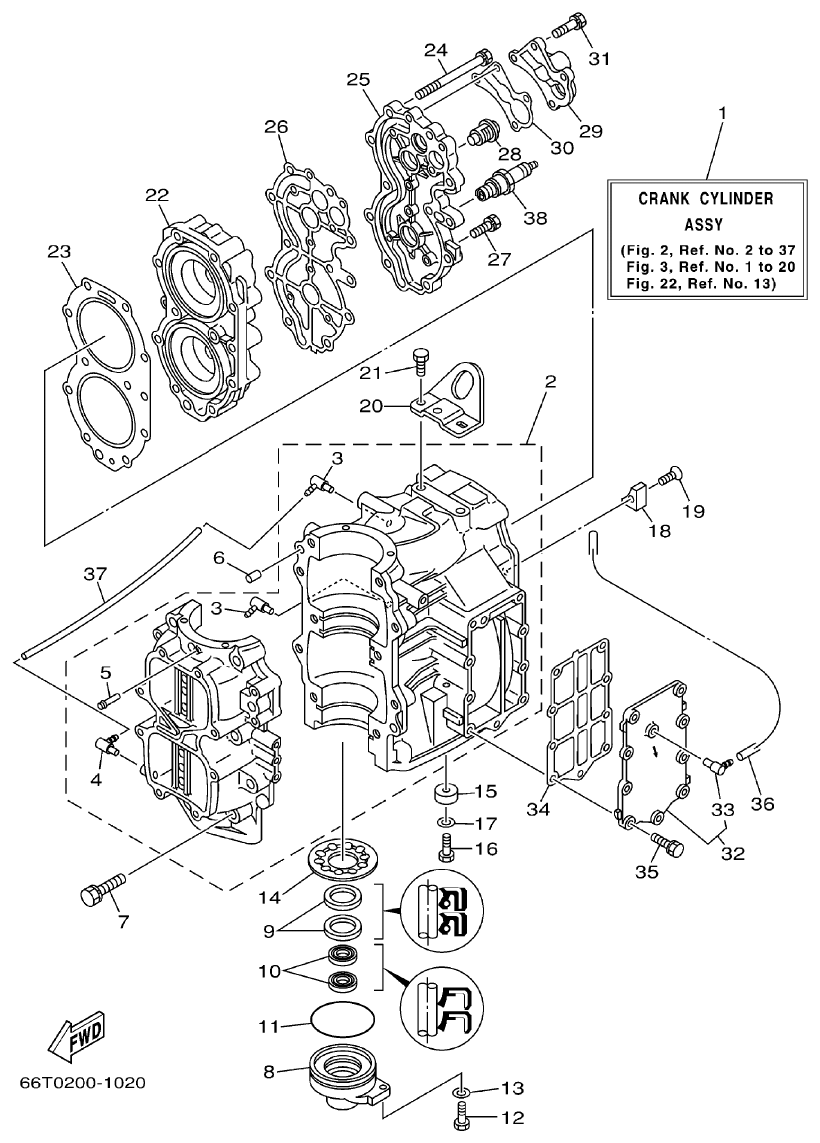

Yamaha 40XMH CYLINDER. CRANKCASE parts diagram
Fig. 2 — CYLINDER. CRANKCASE
39 items · 9 available products

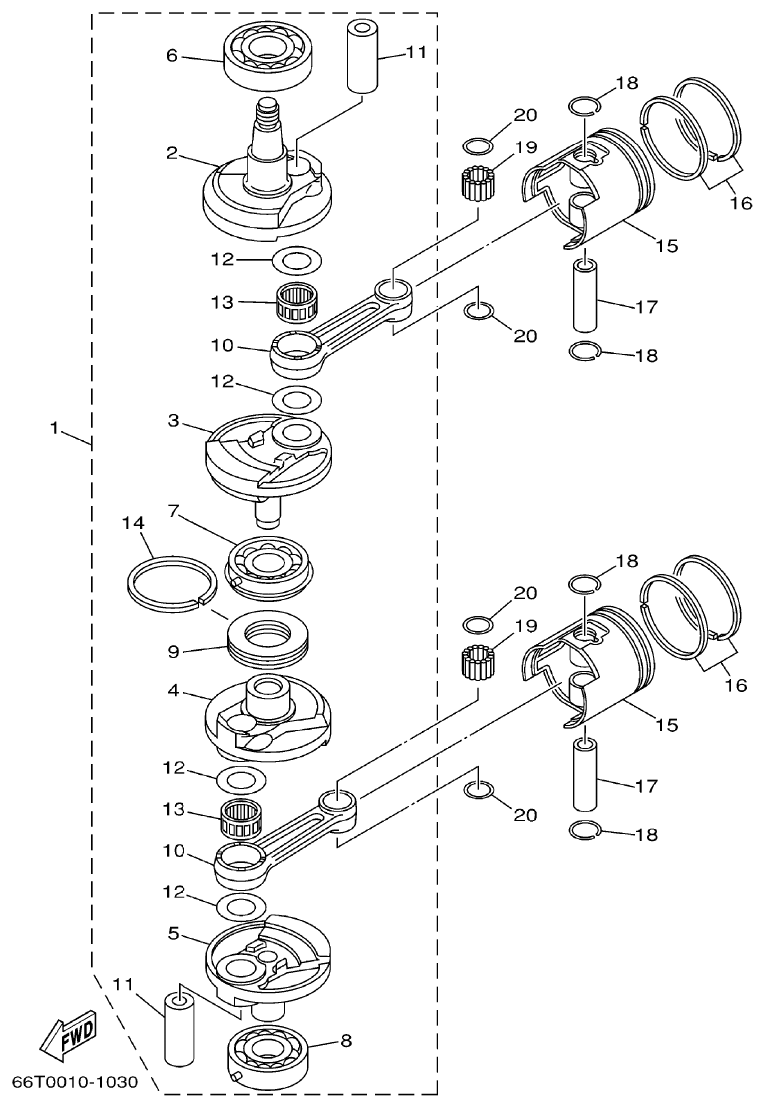

Yamaha 40XMH CRANKSHAFT. PISTON parts diagram
Fig. 3 — CRANKSHAFT. PISTON
24 items · 11 available products
Yamaha 40XMH INTAKE parts diagram
Fig. 4 — INTAKE
25 items · 8 available products
Yamaha 40XMH CARBURETOR parts diagram
Fig. 5 — CARBURETOR
31 items · 8 available products
Yamaha 40XMH FUEL parts diagram
Fig. 6 — FUEL
32 items · 6 available products
Yamaha 40XMH STARTER parts diagram
Fig. 7 — STARTER
41 items · 13 available products
Yamaha 40XMH GENERATOR parts diagram
Fig. 8 — GENERATOR
31 items · 5 available products

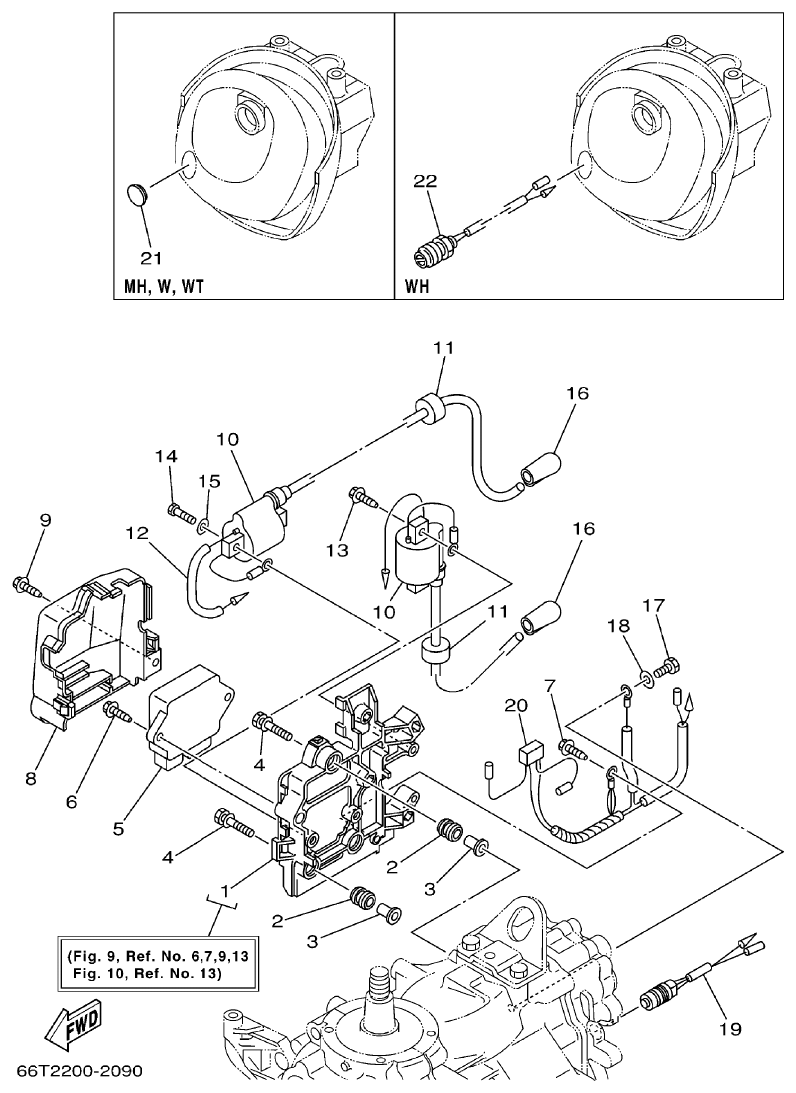

Yamaha 40XMH ELECTRICAL 1 parts diagram
Fig. 9 — ELECTRICAL 1
23 items · 5 available products

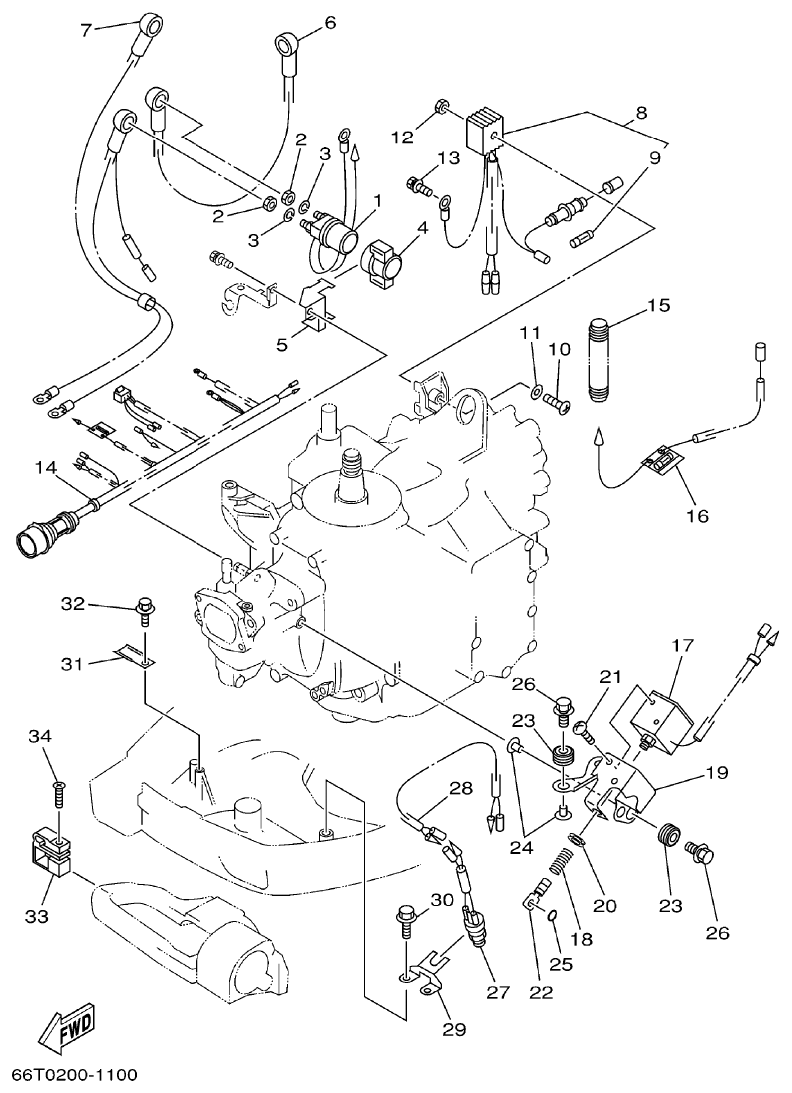

Yamaha 40XMH ELECTRICAL 2 parts diagram
Fig. 10 — ELECTRICAL 2
35 items
Yamaha 40XMH ELECTRICAL 3 parts diagram

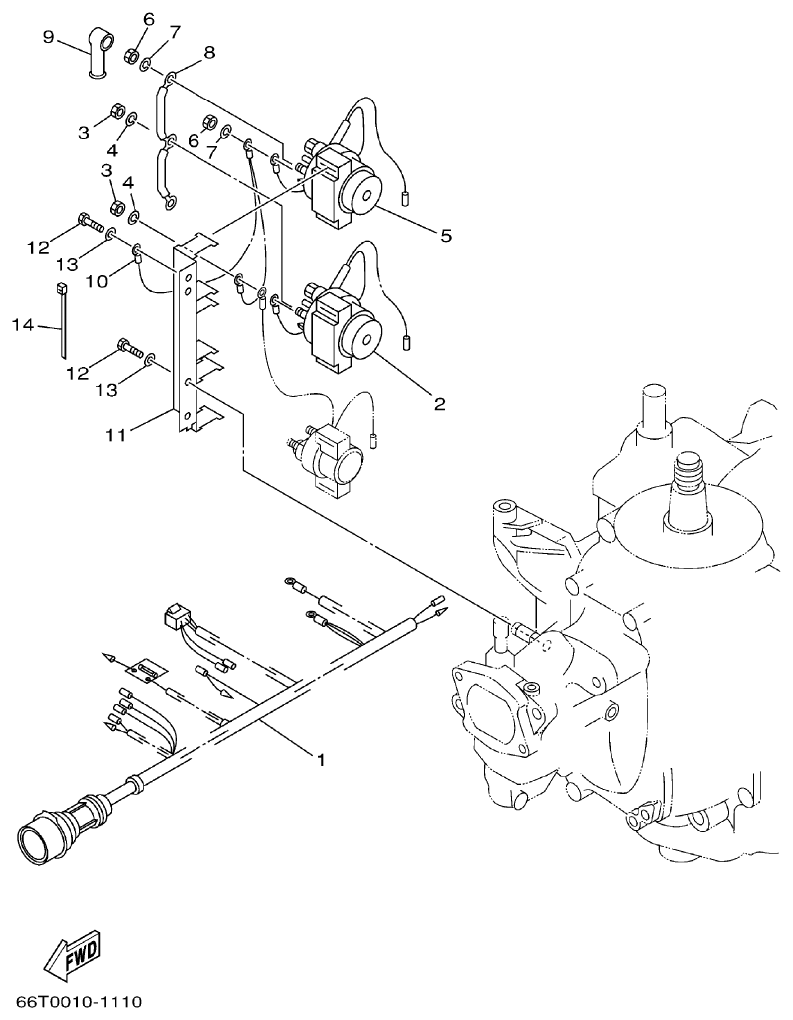

Fig. 11 — ELECTRICAL 3
14 items · 2 available products

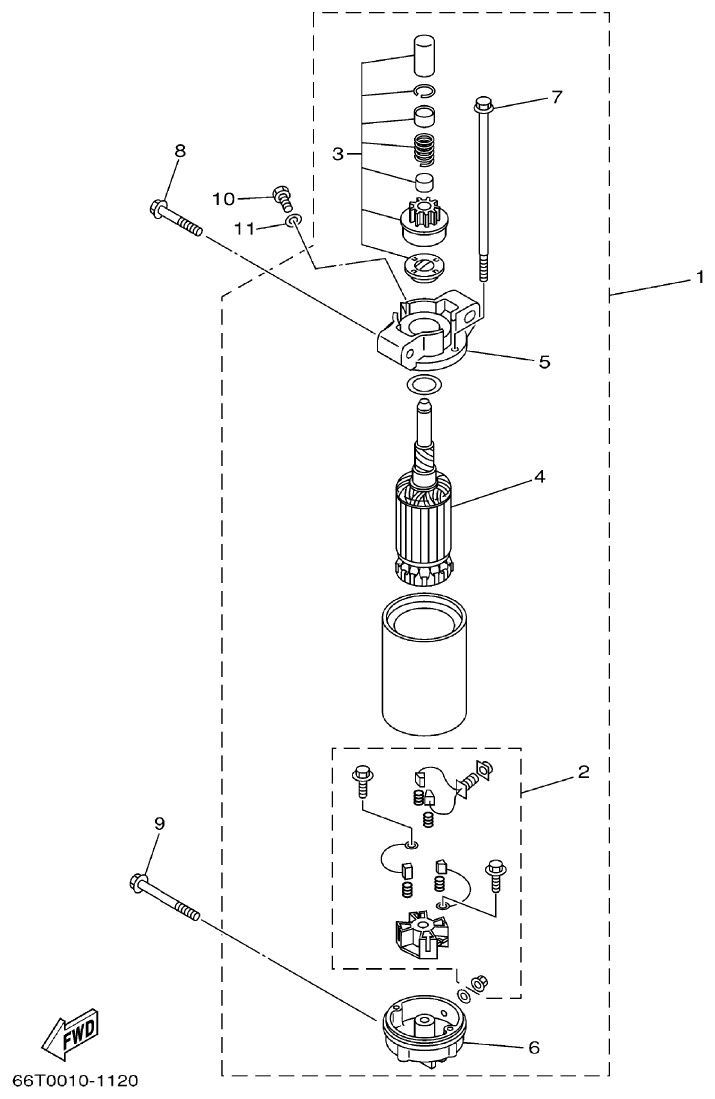

Yamaha 40XMH STARTING MOTOR parts diagram
Fig. 12 — STARTING MOTOR
11 items · 1 available products
Yamaha 40XMH BOTTOM COWLING parts diagram

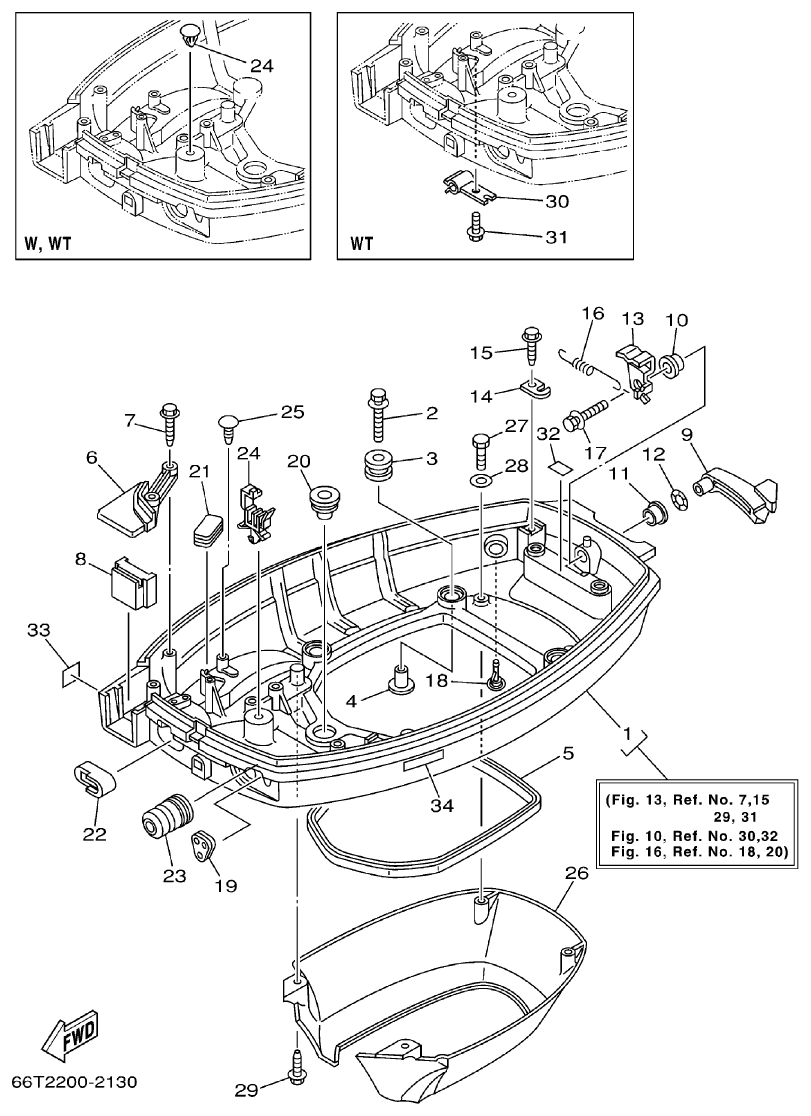

Fig. 13 — BOTTOM COWLING
41 items · 3 available products
Yamaha 40XMH STEERING parts diagram

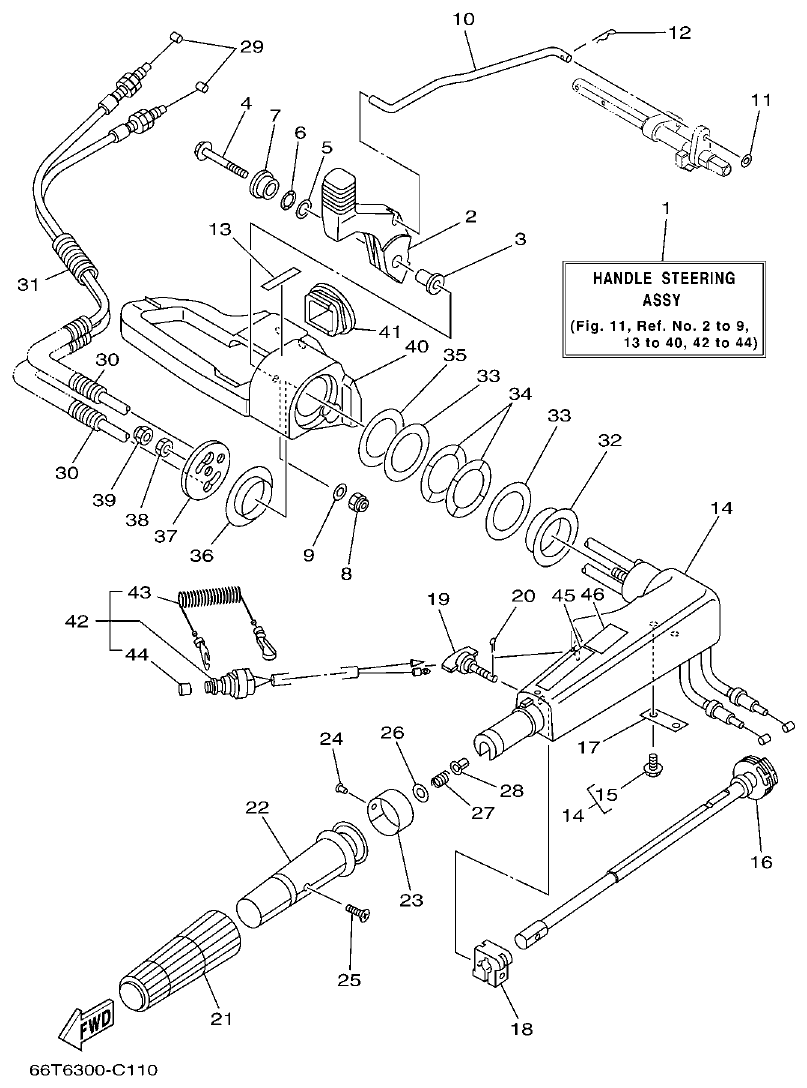

Fig. 14 — STEERING
45 items · 9 available products
Yamaha 40XMH STEERING FRICTION parts diagram

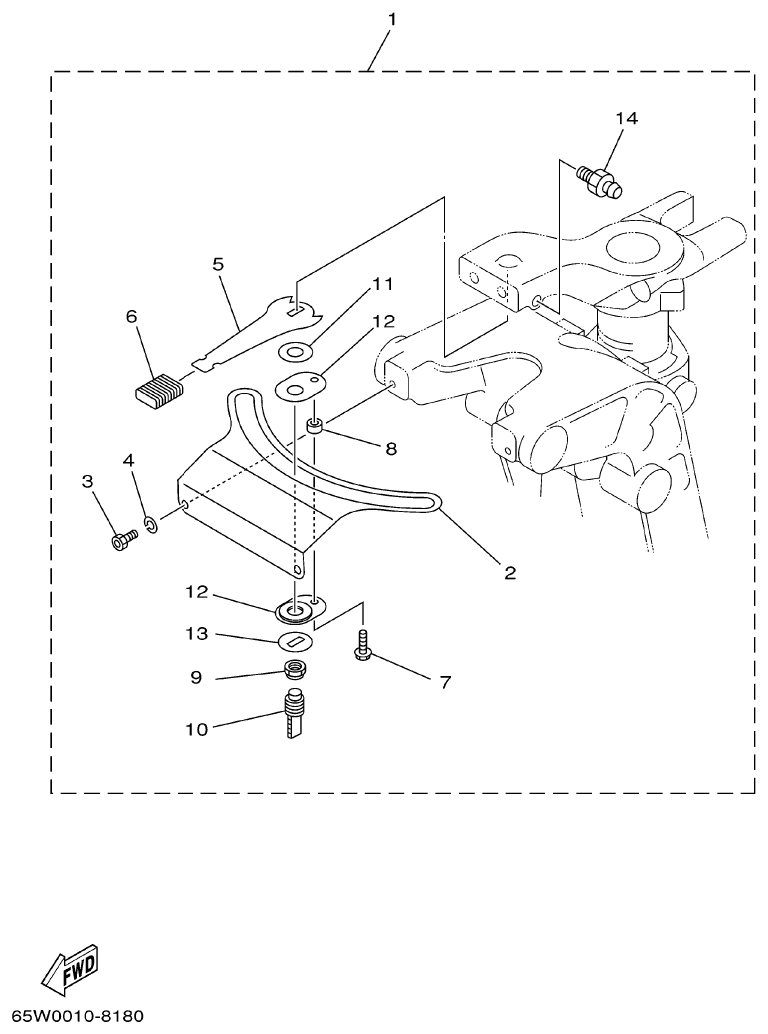

Fig. 15 — STEERING FRICTION
14 items

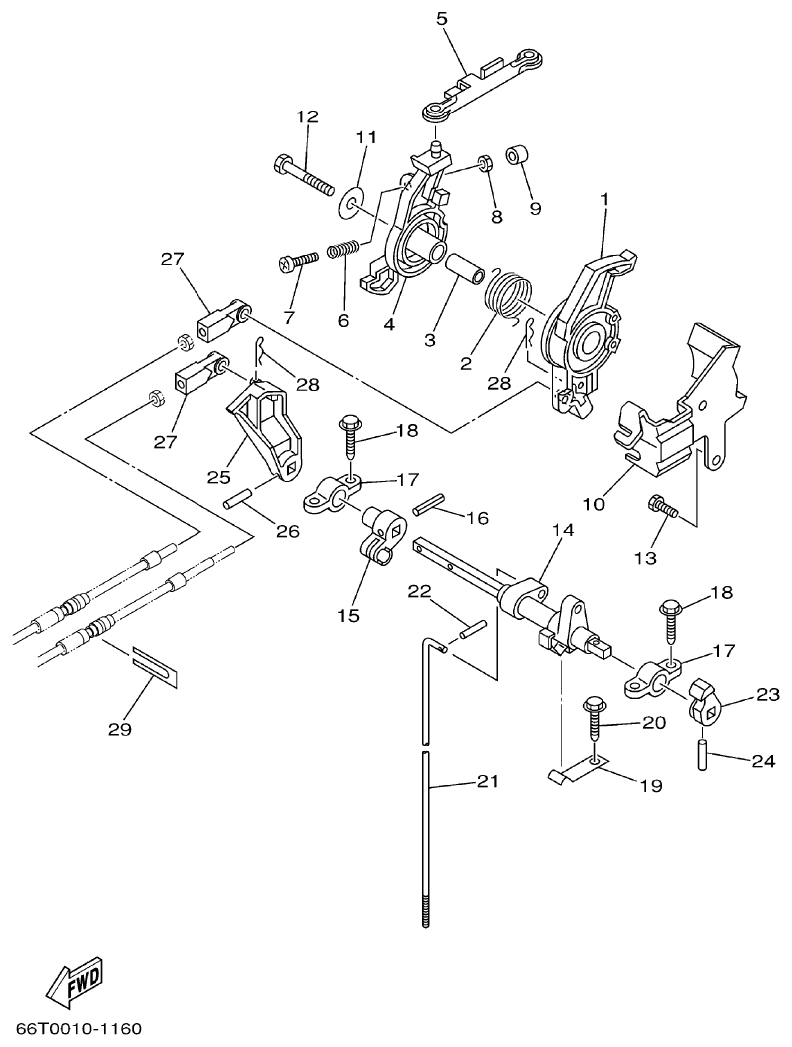

Yamaha 40XMH CONTROL parts diagram
Fig. 16 — CONTROL
30 items · 7 available products
Yamaha 40XMH REMO–CON ATTACHMENT parts diagram

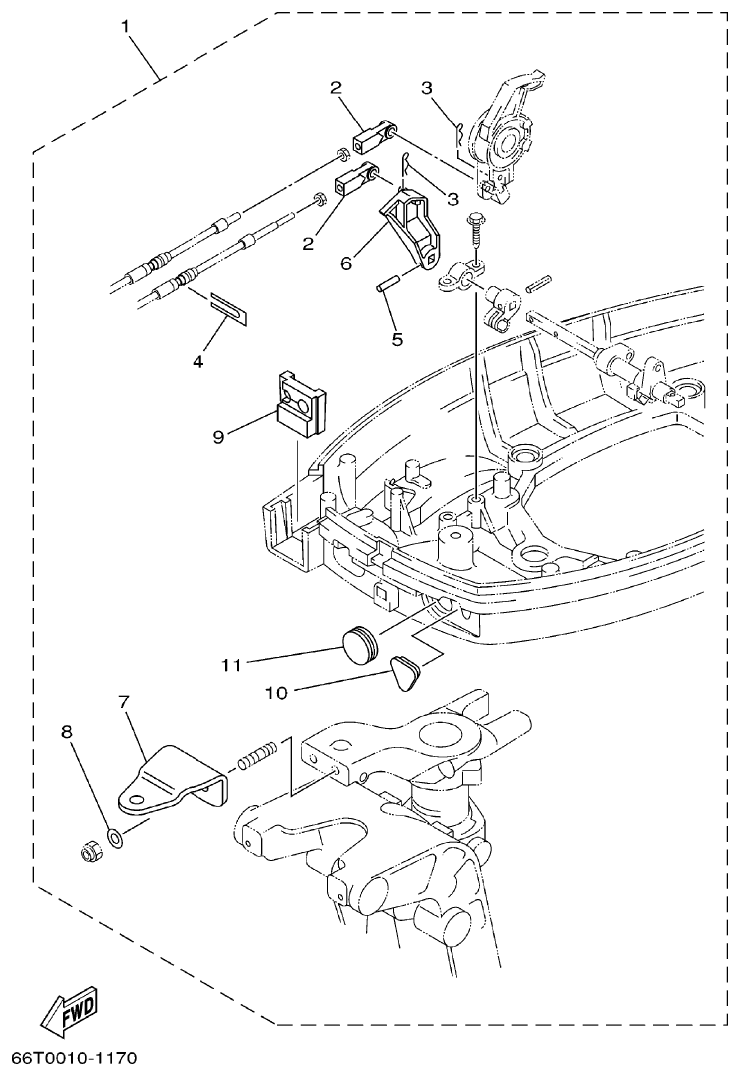

Fig. 17 — REMO–CON ATTACHMENT
11 items · 2 available products
Yamaha 40XMH BRACKET 1 parts diagram
Fig. 18 — BRACKET 1
70 items · 5 available products
Yamaha 40XMH BRACKET 2 parts diagram
Fig. 19 — BRACKET 2
36 items · 4 available products
Yamaha 40XMH BRACKET 3 parts diagram
Fig. 20 — BRACKET 3
33 items · 1 available products
Yamaha 40XMH POWER TRIM & TILT ASSY parts diagram

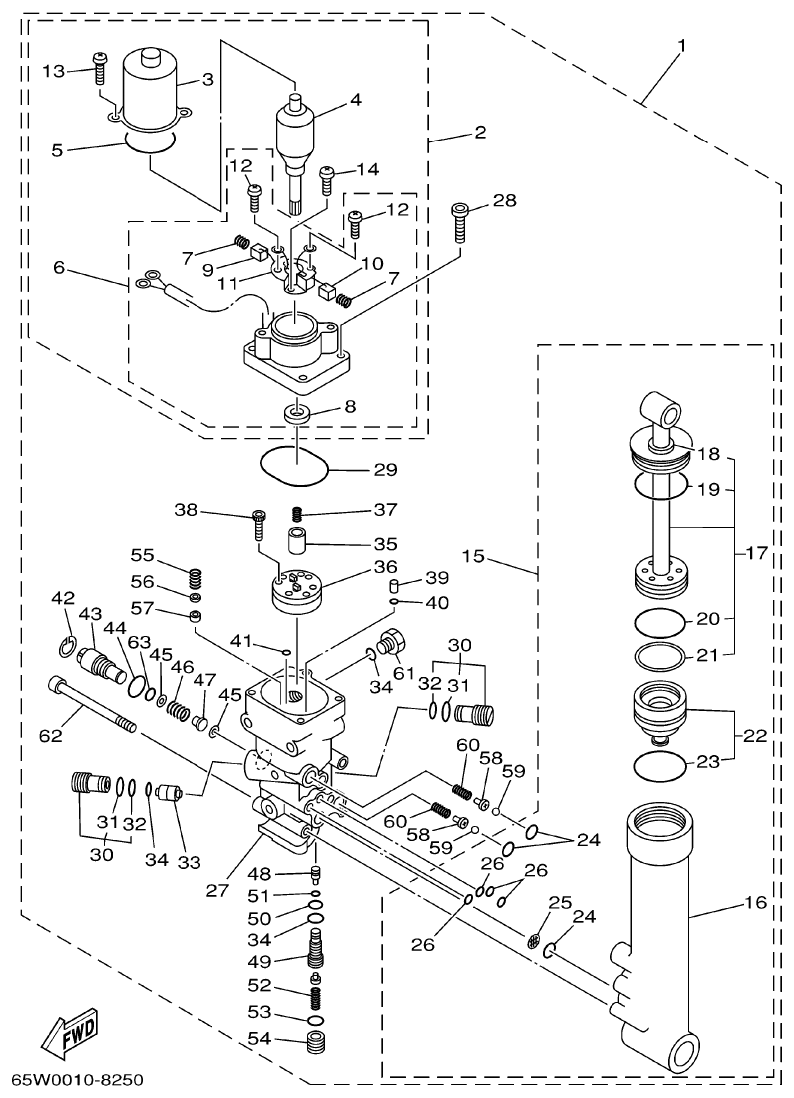

Fig. 21 — POWER TRIM & TILT ASSY
63 items · 8 available products
Yamaha 40XMH UPPER CASING parts diagram

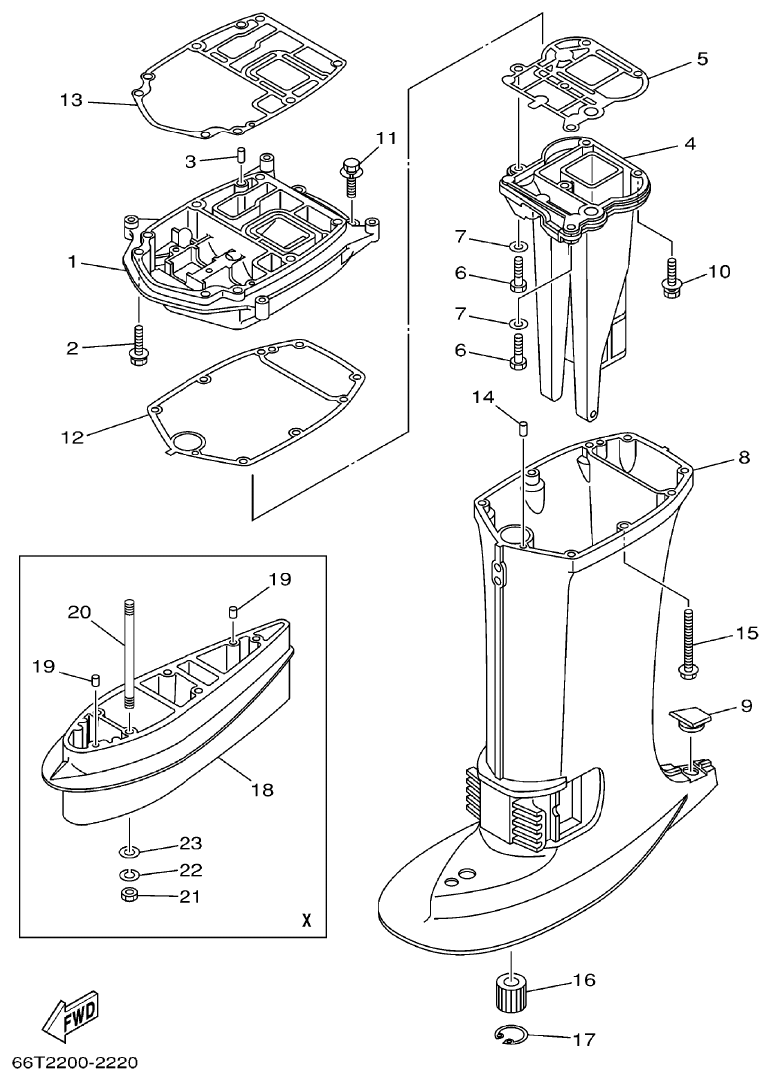

Fig. 22 — UPPER CASING
25 items · 4 available products

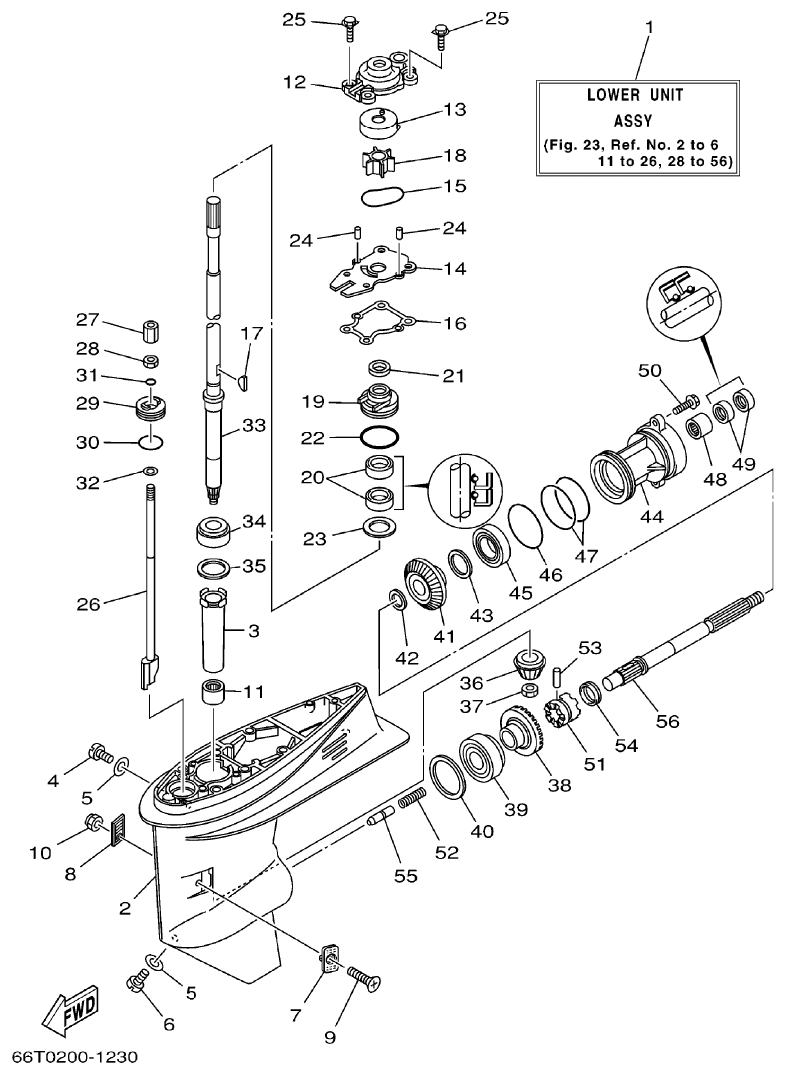

Yamaha 40XMH LOWER CASING. DRIVE 1 parts diagram
Fig. 23 — LOWER CASING. DRIVE 1
82 items · 23 available products

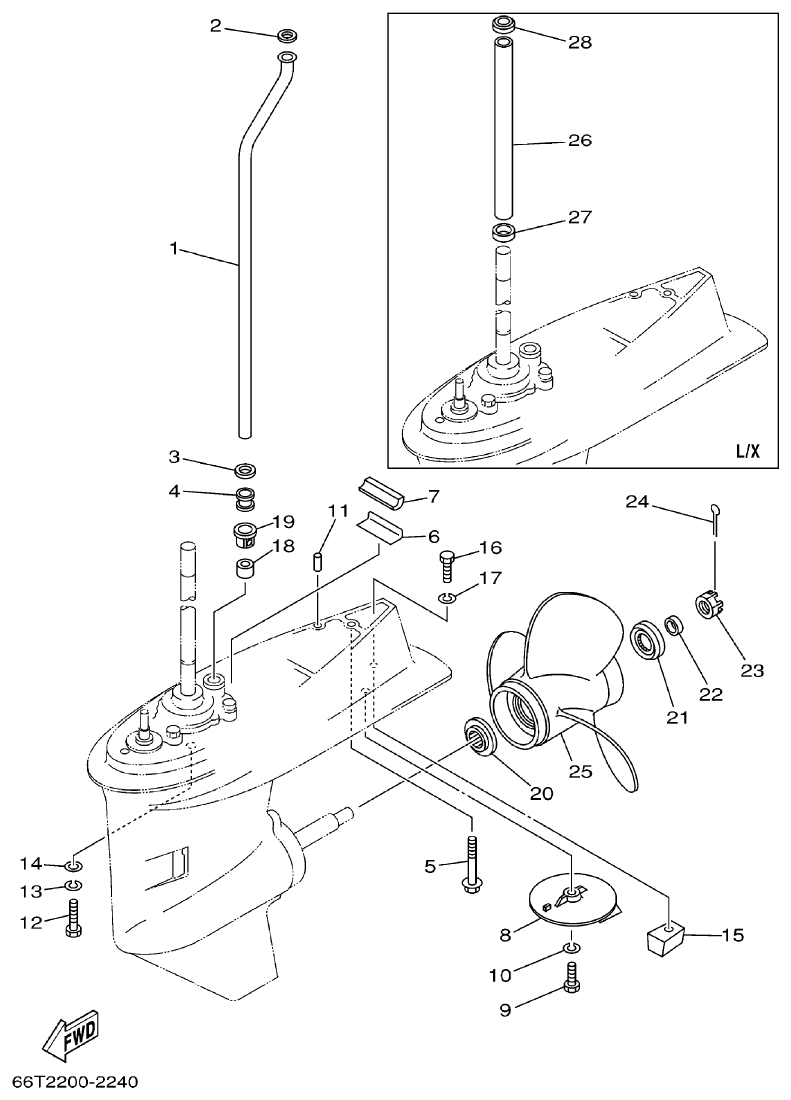

Yamaha 40XMH LOWER CASING. DRIVE 2 parts diagram
Fig. 24 — LOWER CASING. DRIVE 2
49 items · 7 available products

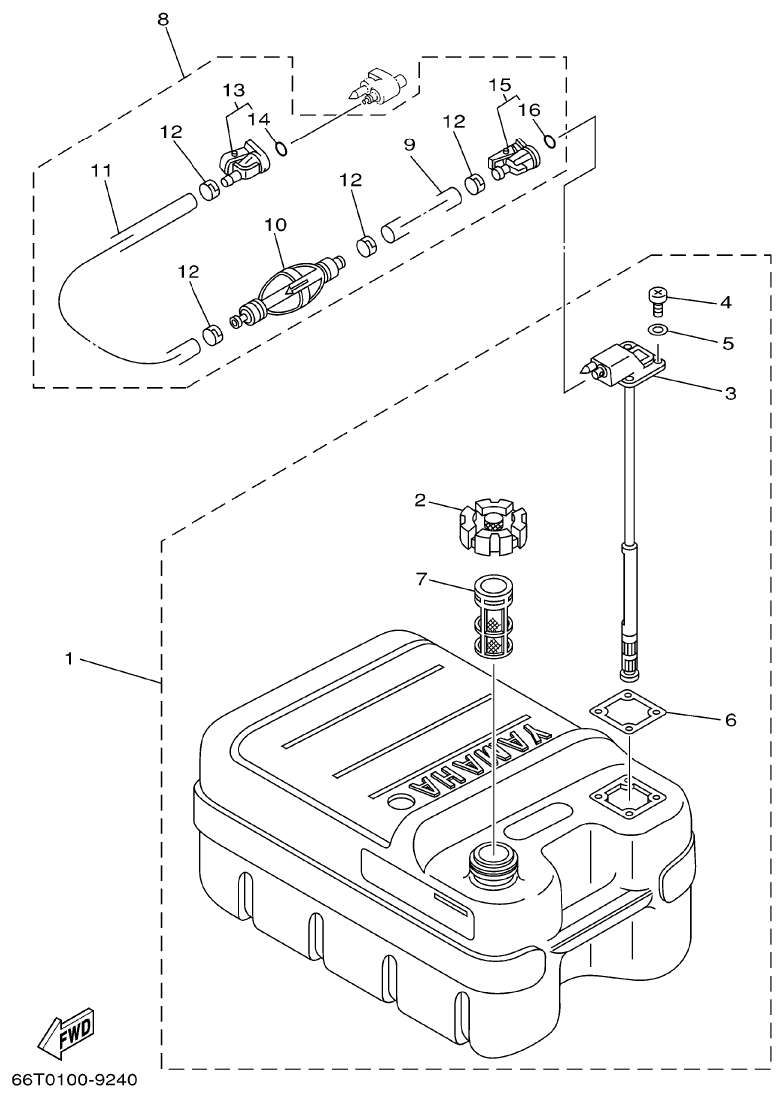

Yamaha 40XMH FUEL TANK parts diagram
Fig. 25 — FUEL TANK
18 items · 2 available products

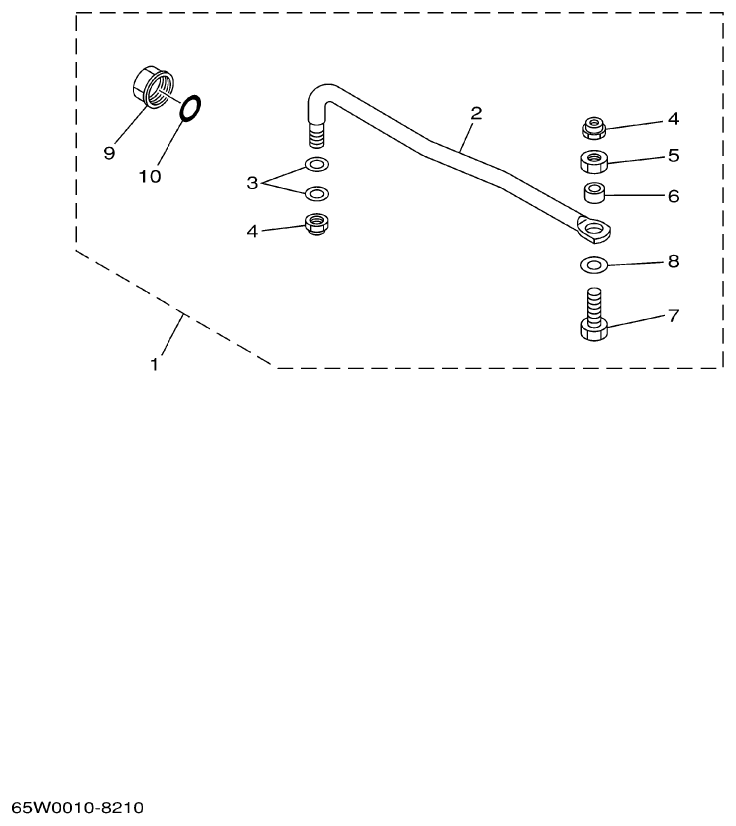

Yamaha 40XMH STEERING GUIDE parts diagram
Fig. 26 — STEERING GUIDE
10 items · 1 available products
Yamaha 40XMH REMOTE CONTROL BOX parts diagram
Fig. 27 — REMOTE CONTROL BOX
5 items

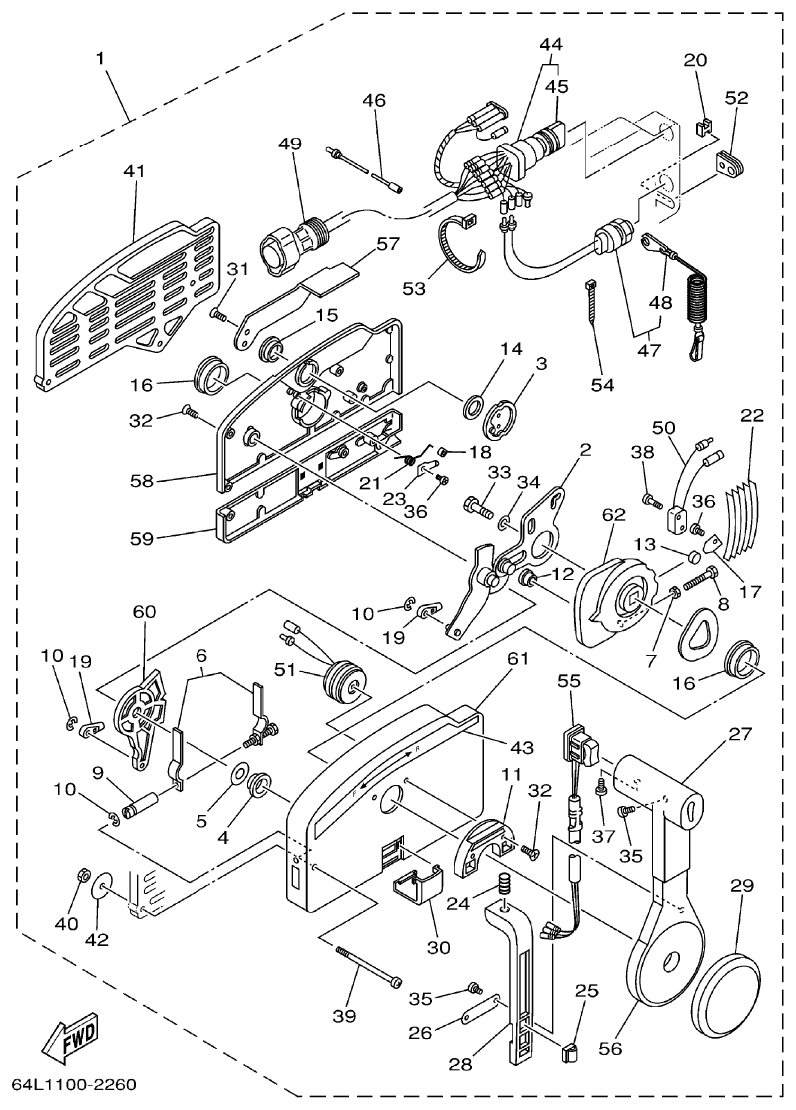

Yamaha 40XMH REMOTE CONTROL ASSY parts diagram
Fig. 28 — REMOTE CONTROL ASSY
66 items · 12 available products

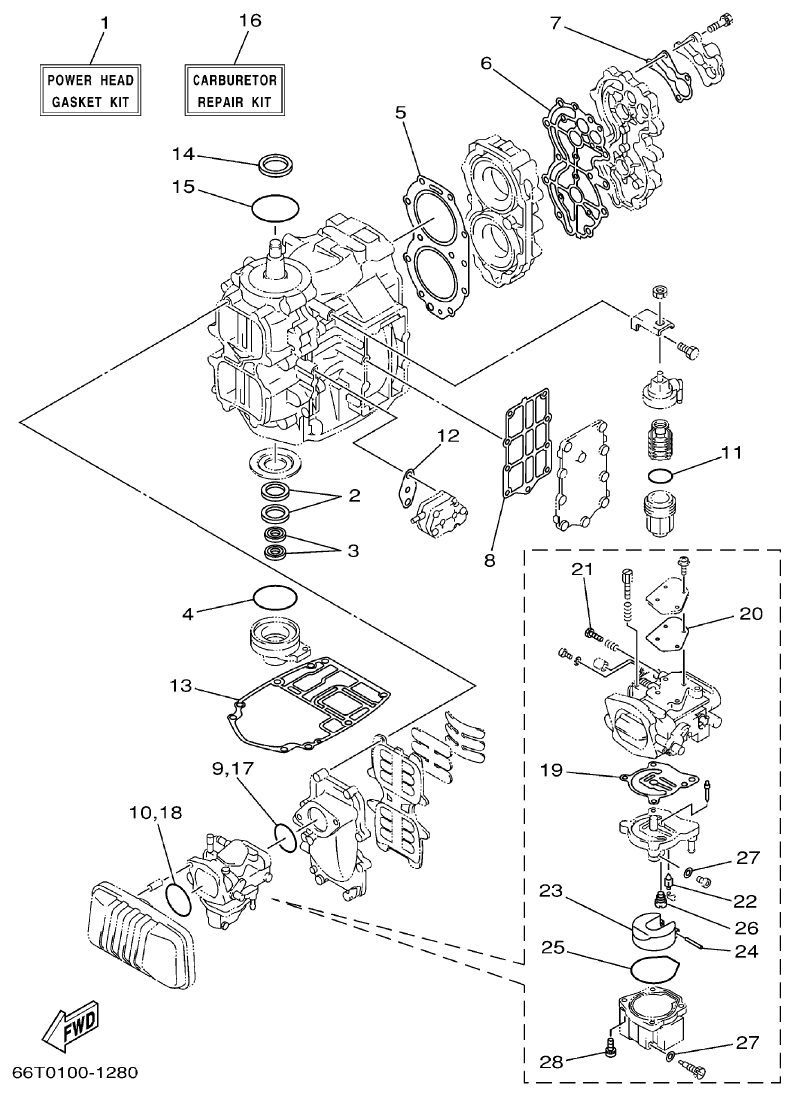

Yamaha 40XMH REPAIR KIT 1 parts diagram
Fig. 29 — REPAIR KIT 1
28 items · 11 available products

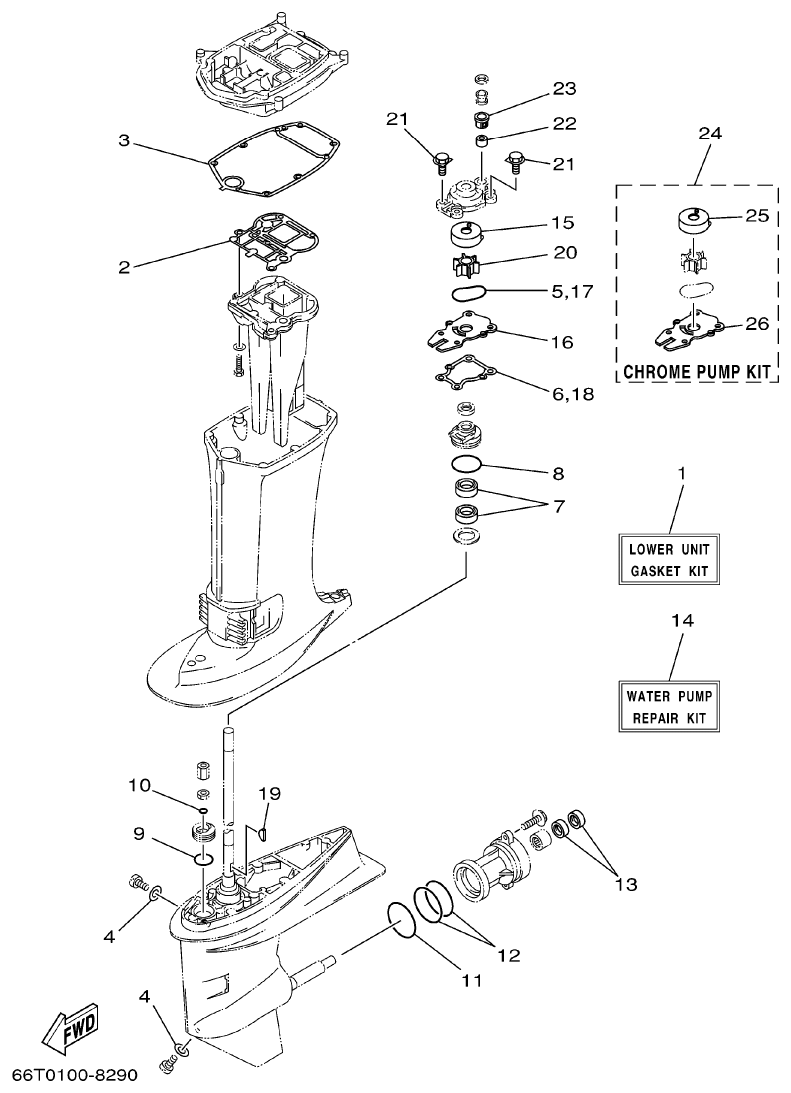

Yamaha 40XMH REPAIR KIT 2 parts diagram
Fig. 30 — REPAIR KIT 2
26 items · 8 available products
Yamaha 40XMH REPAIR KIT 3 parts diagram

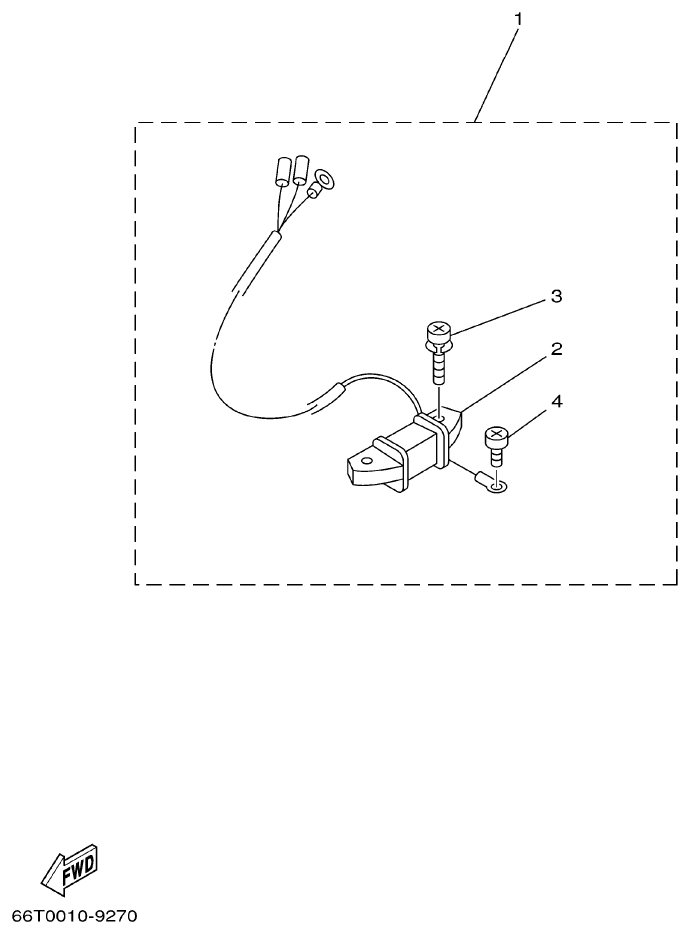

Fig. 31 — REPAIR KIT 3
4 items · 1 available products
