Yamaha 90AETO Parts Catalog

Yamaha 90AETO Outboard parts and diagrams

Yamaha 90AETO outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE, CRANKSHAFT & PISTON, INTAKE, CARBURETOR, OIL PUMP, FUEL, GENERATOR, ELECTRICAL, STARTING MOTOR, BOTTOM COWLING, CONTROL, BRACKET 1, BRACKET 2, POWER TRIM & TILT ASSY, UPPER CASING, LOWER CASING & DRIVE 1, LOWER CASING & DRIVE 2. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

177 linked store products are available across 25 catalog sections. 961 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

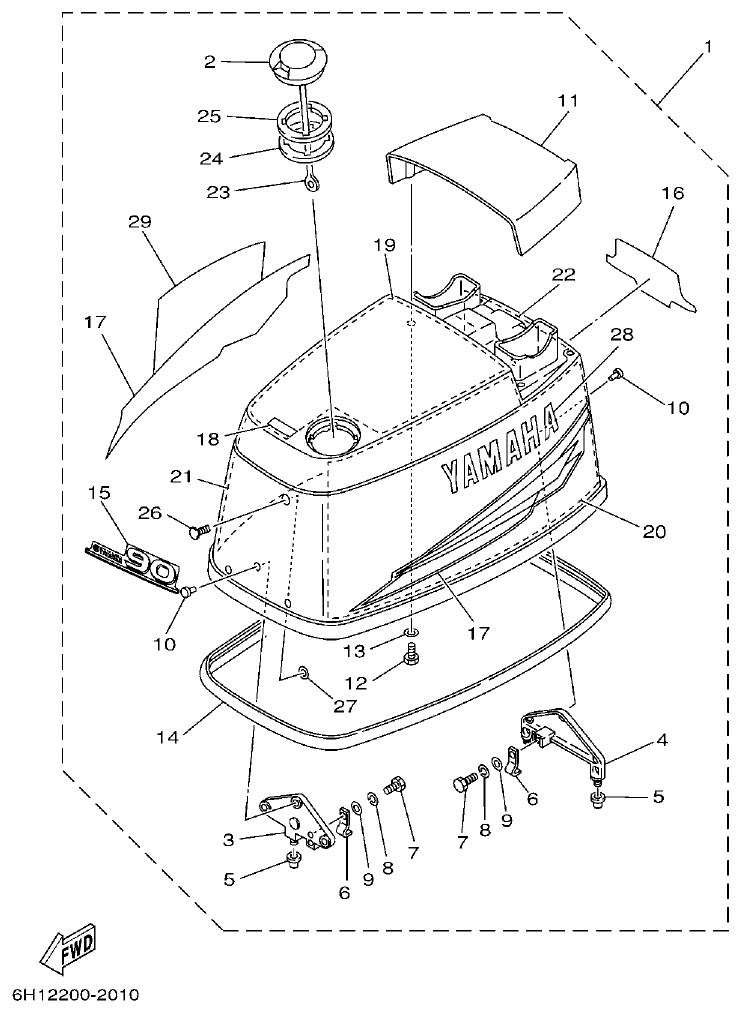

Yamaha 90AETO TOP COWLING parts diagram
Fig. 1 — TOP COWLING
29 items · 1 available products
Yamaha 90AETO CYLINDER & CRANKCASE parts diagram

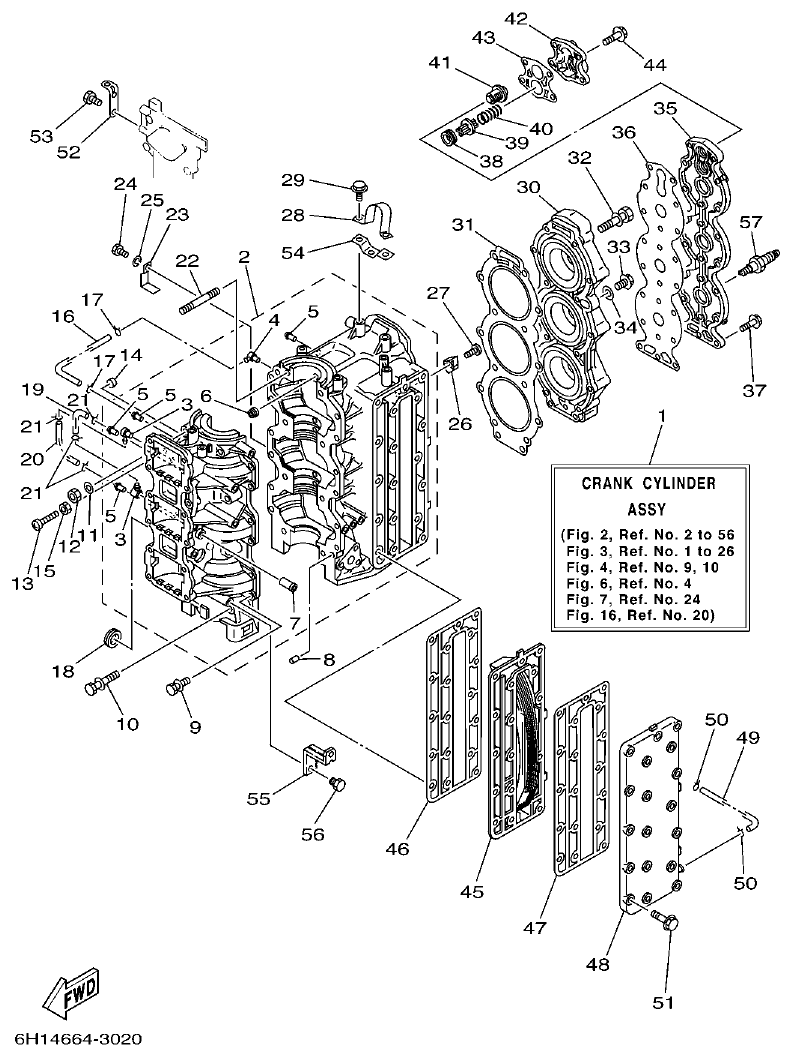

Fig. 2 — CYLINDER & CRANKCASE
57 items · 15 available products

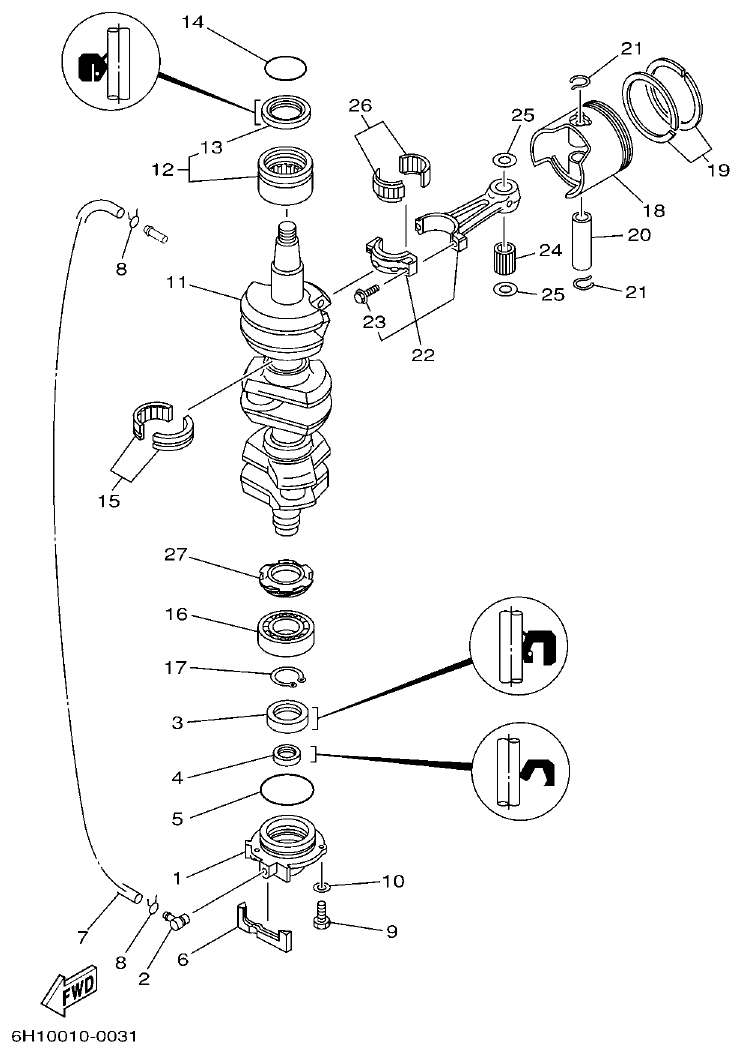

Yamaha 90AETO CRANKSHAFT & PISTON parts diagram
Fig. 3 — CRANKSHAFT & PISTON
31 items · 12 available products

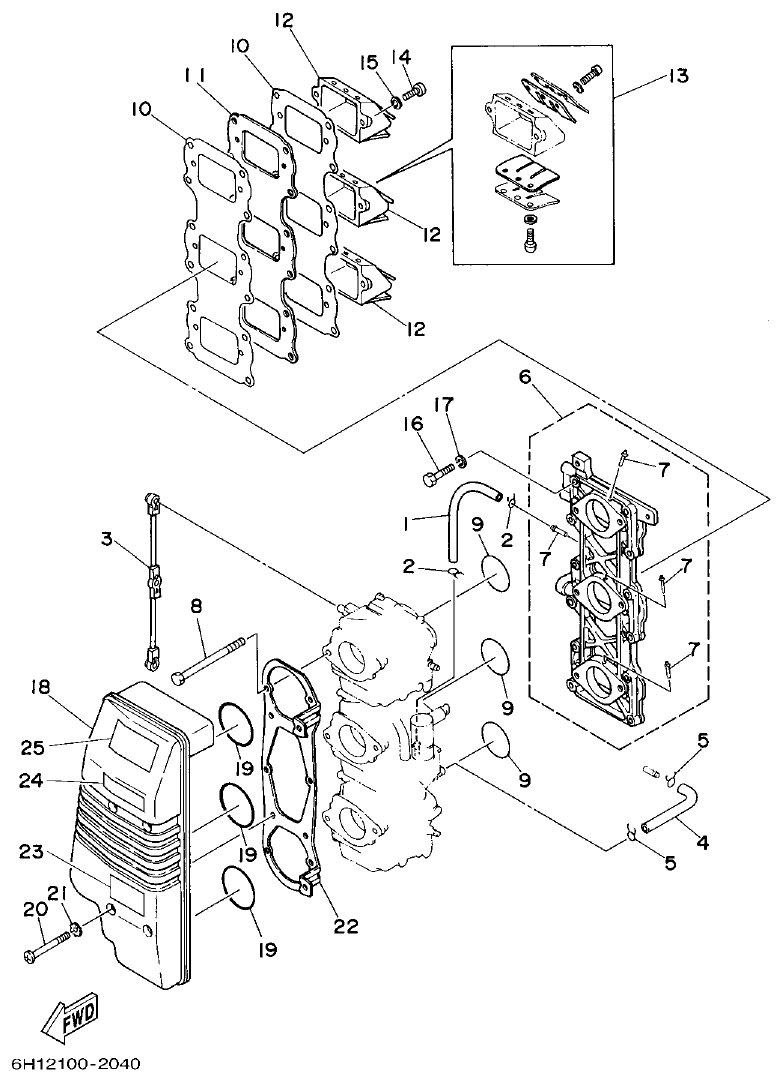

Yamaha 90AETO INTAKE parts diagram
Fig. 4 — INTAKE
25 items · 5 available products
Yamaha 90AETO CARBURETOR parts diagram

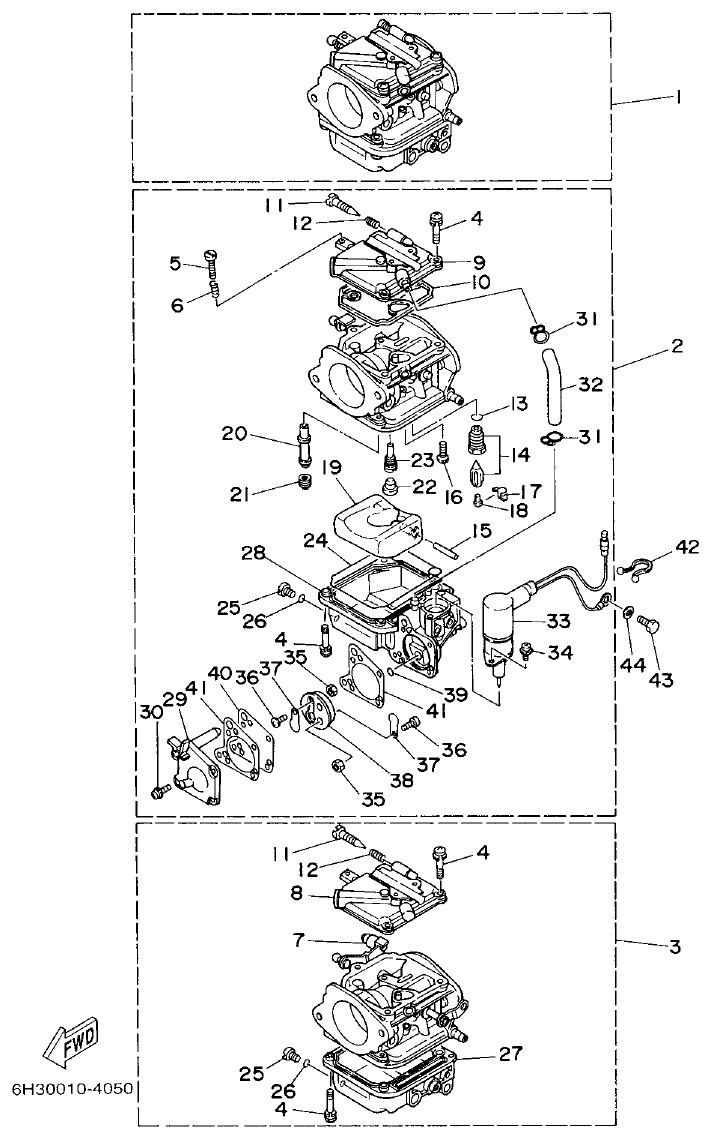

Fig. 5 — CARBURETOR
44 items · 8 available products

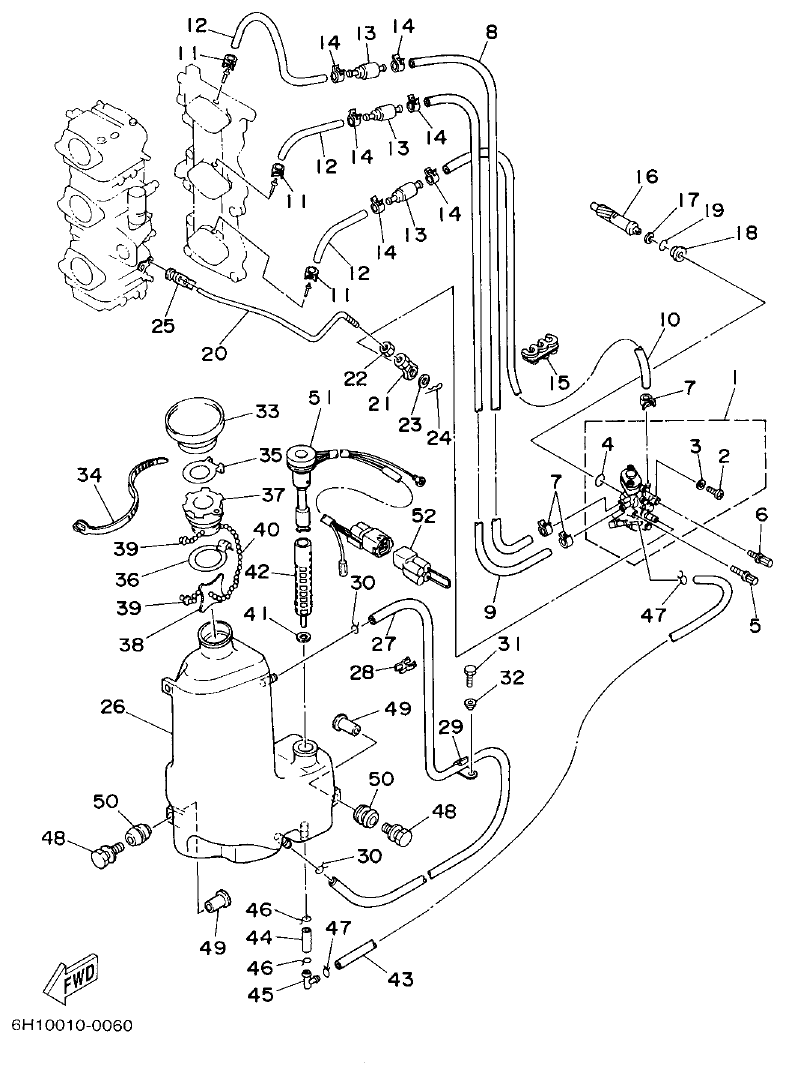

Yamaha 90AETO OIL PUMP parts diagram
Fig. 6 — OIL PUMP
52 items · 2 available products

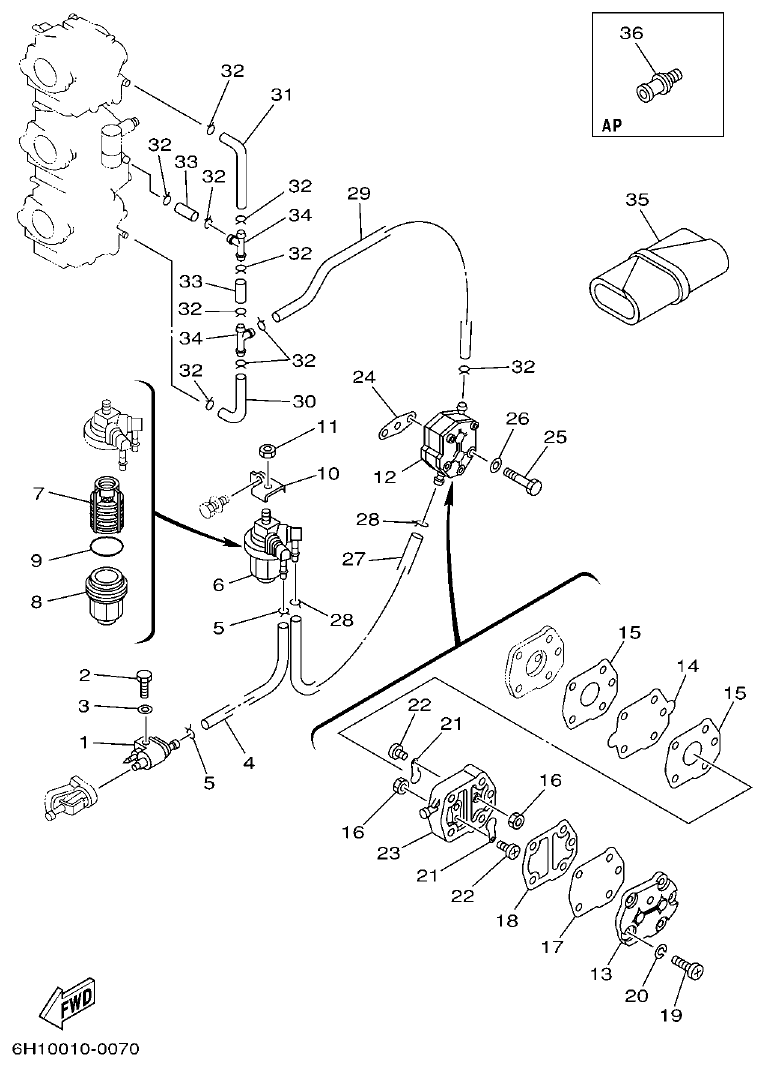

Yamaha 90AETO FUEL parts diagram
Fig. 7 — FUEL
36 items · 7 available products

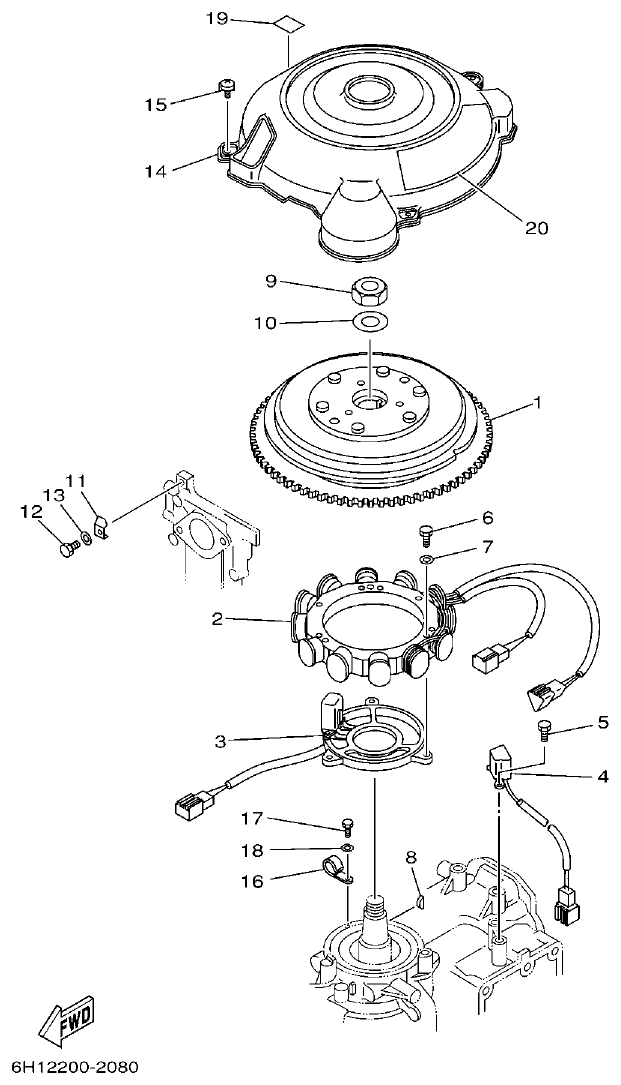

Yamaha 90AETO GENERATOR parts diagram
Fig. 8 — GENERATOR
20 items · 1 available products

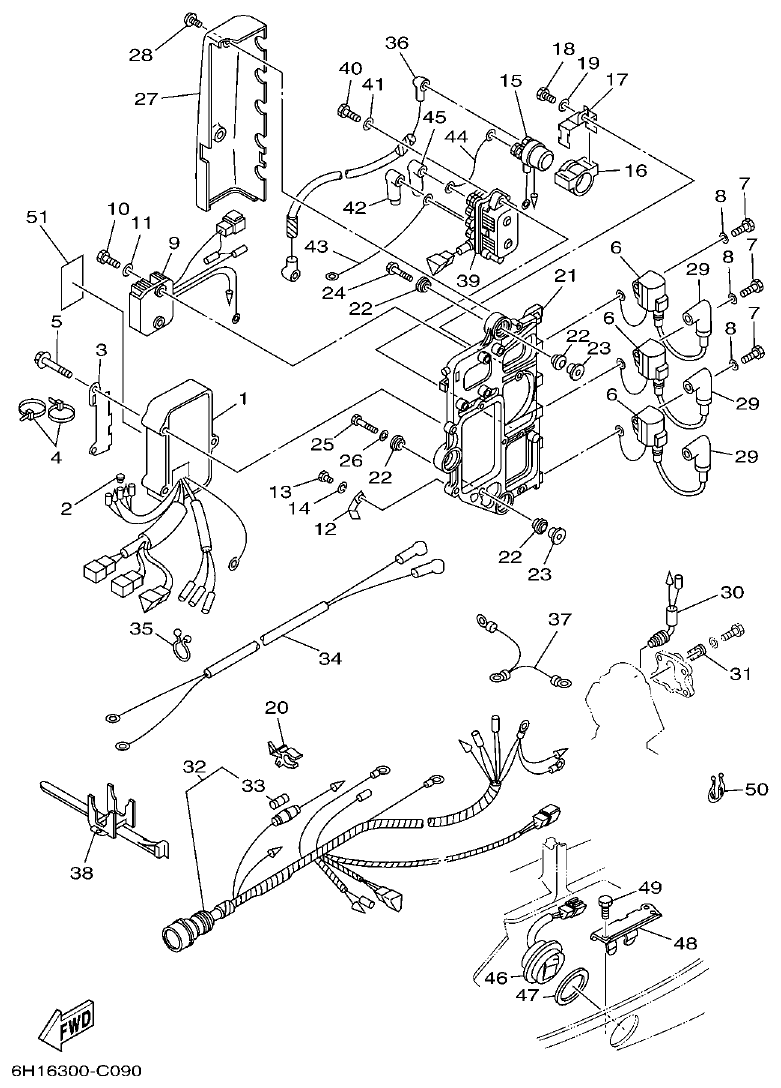

Yamaha 90AETO ELECTRICAL parts diagram
Fig. 9 — ELECTRICAL
51 items · 7 available products
Yamaha 90AETO STARTING MOTOR parts diagram

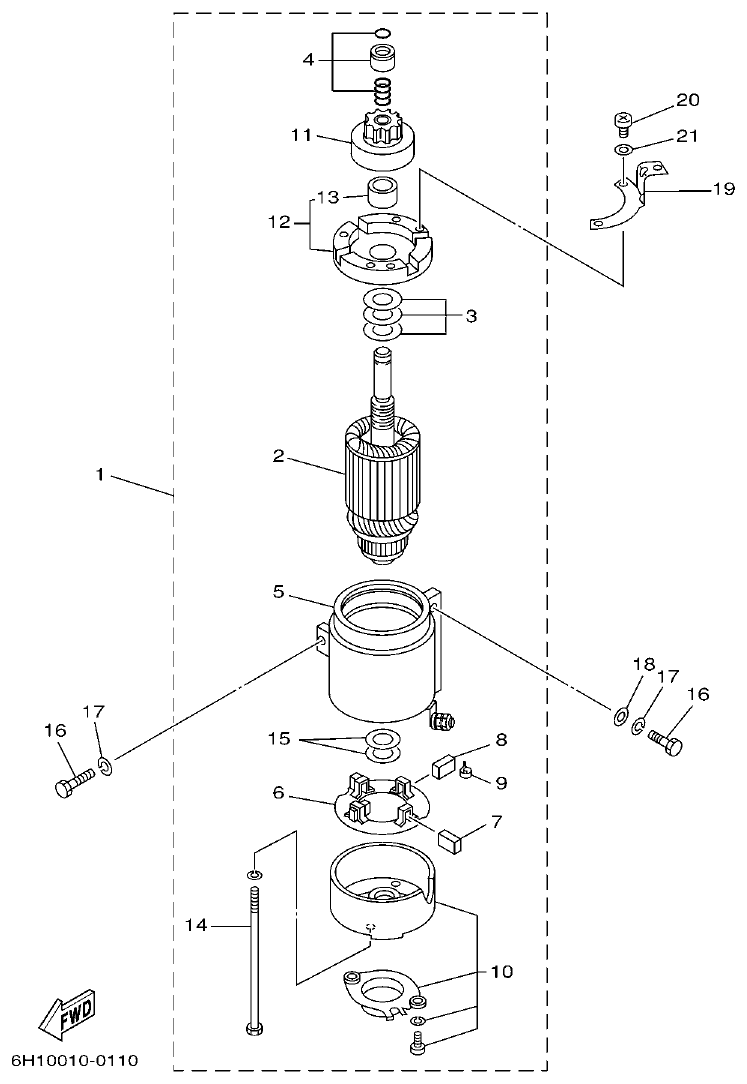

Fig. 10 — STARTING MOTOR
21 items · 6 available products

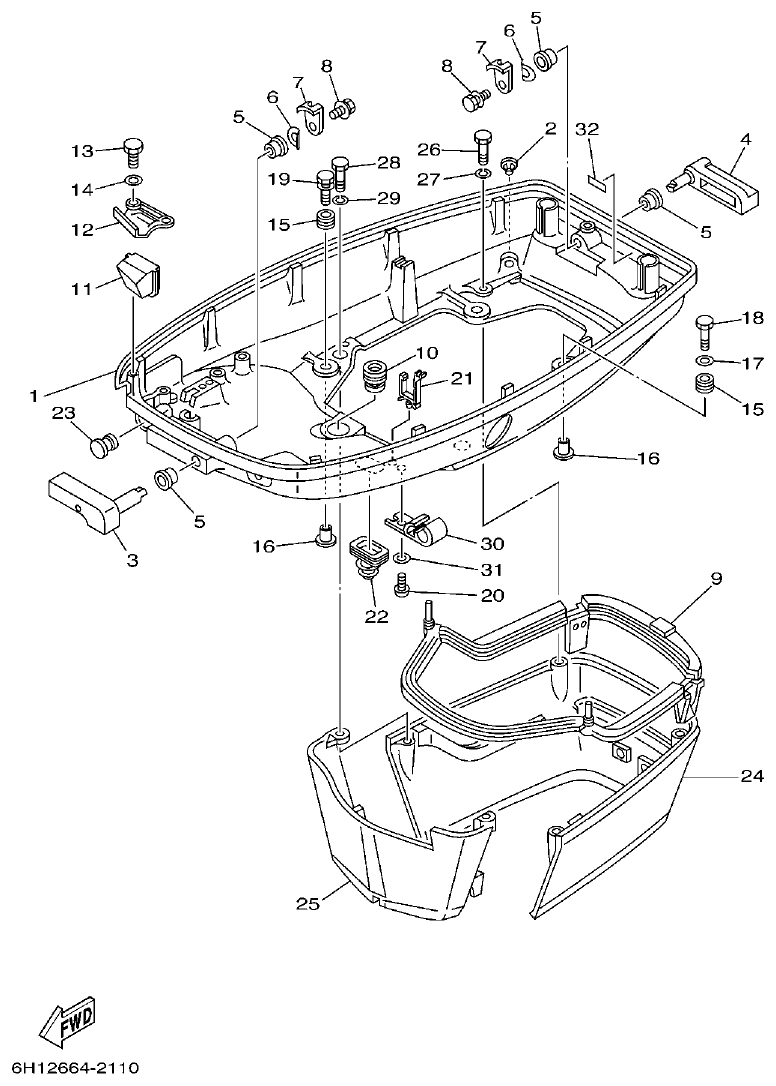

Yamaha 90AETO BOTTOM COWLING parts diagram
Fig. 11 — BOTTOM COWLING
32 items · 1 available products
Yamaha 90AETO CONTROL parts diagram

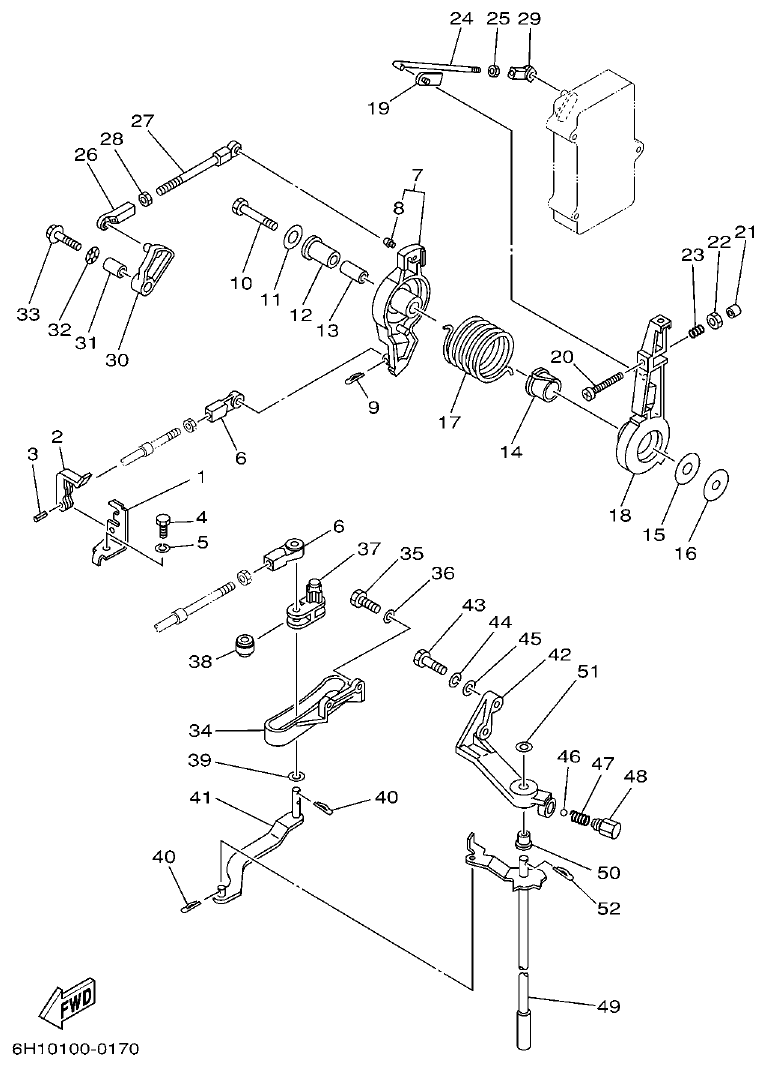

Fig. 12 — CONTROL
53 items · 5 available products

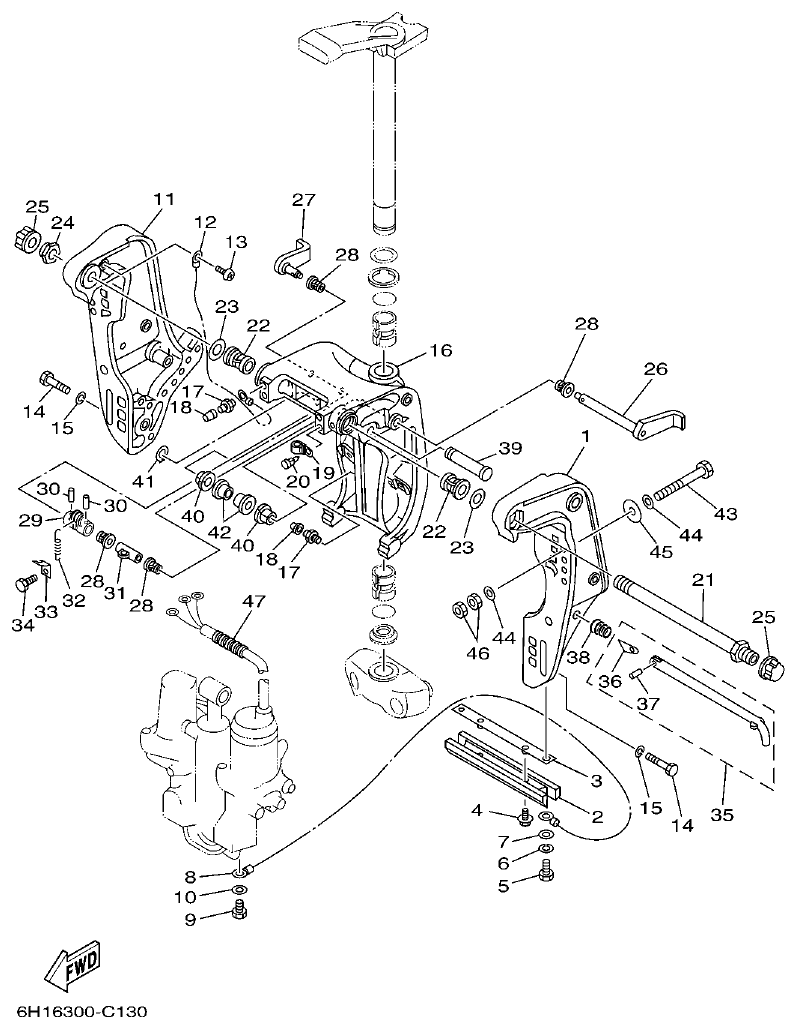

Yamaha 90AETO BRACKET 1 parts diagram
Fig. 13 — BRACKET 1
47 items · 6 available products
Yamaha 90AETO BRACKET 2 parts diagram

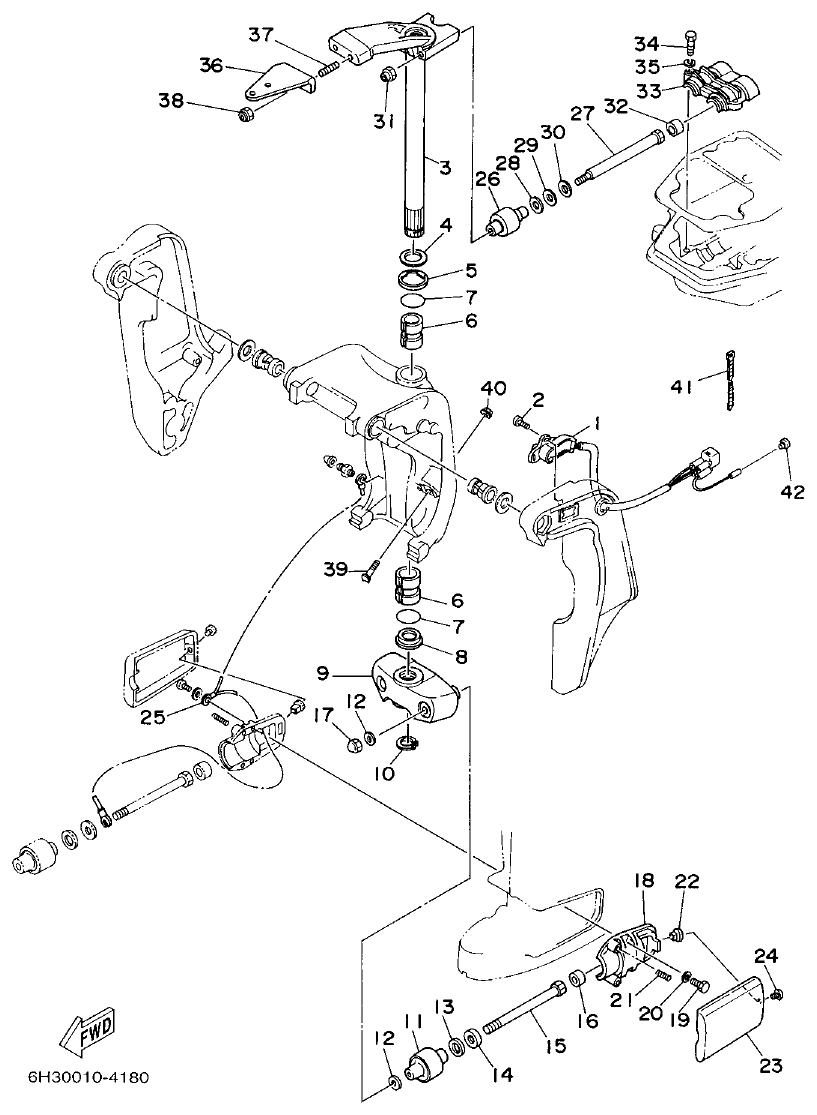

Fig. 14 — BRACKET 2
42 items

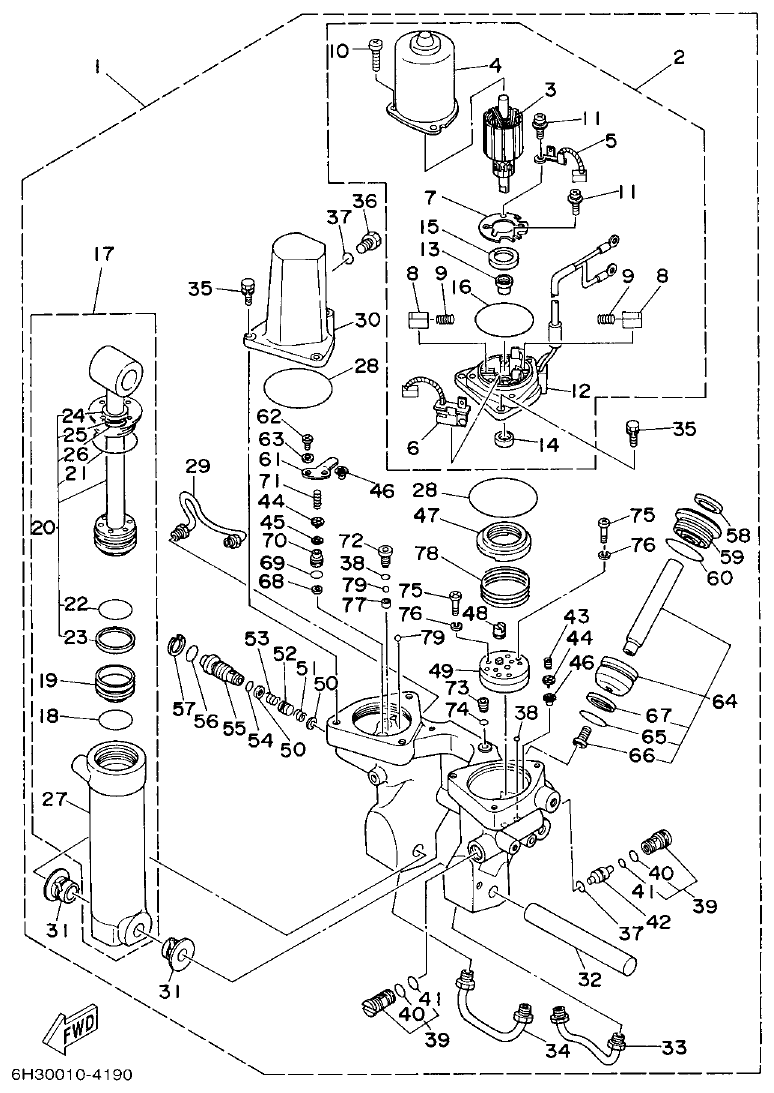

Yamaha 90AETO POWER TRIM & TILT ASSY parts diagram
Fig. 15 — POWER TRIM & TILT ASSY
79 items · 17 available products

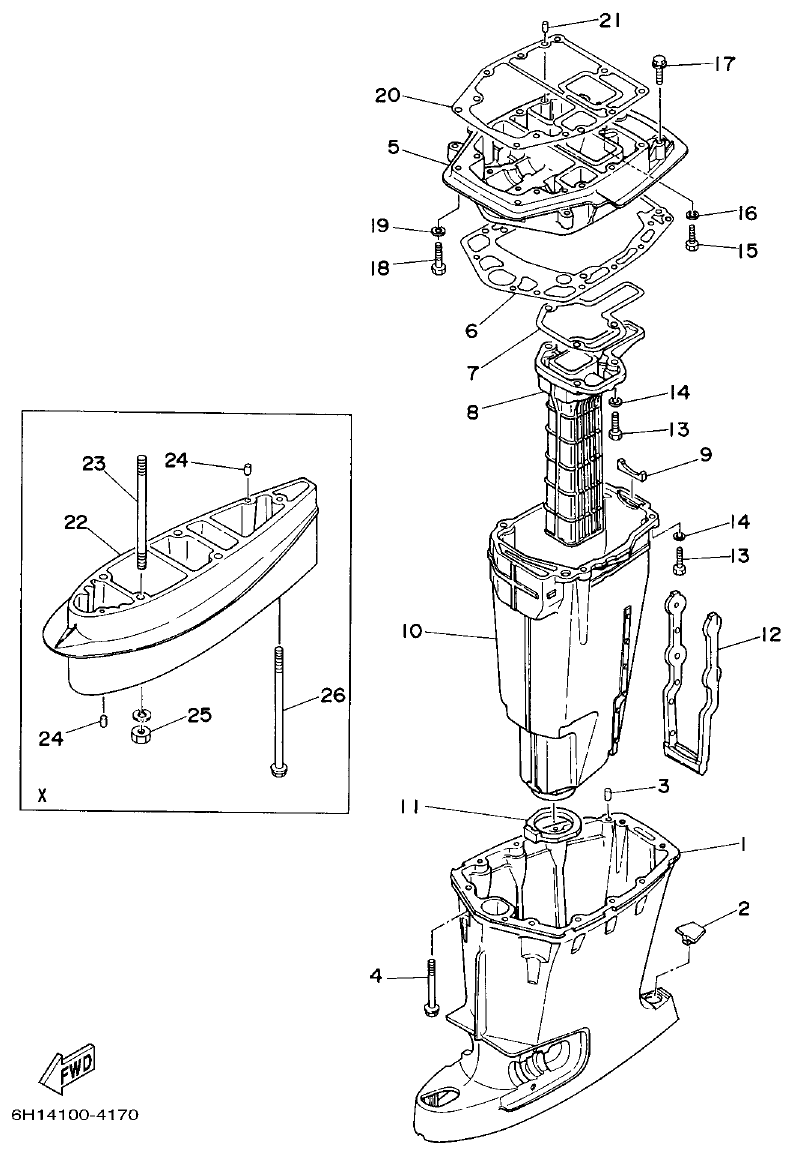

Yamaha 90AETO UPPER CASING parts diagram
Fig. 16 — UPPER CASING
26 items · 7 available products

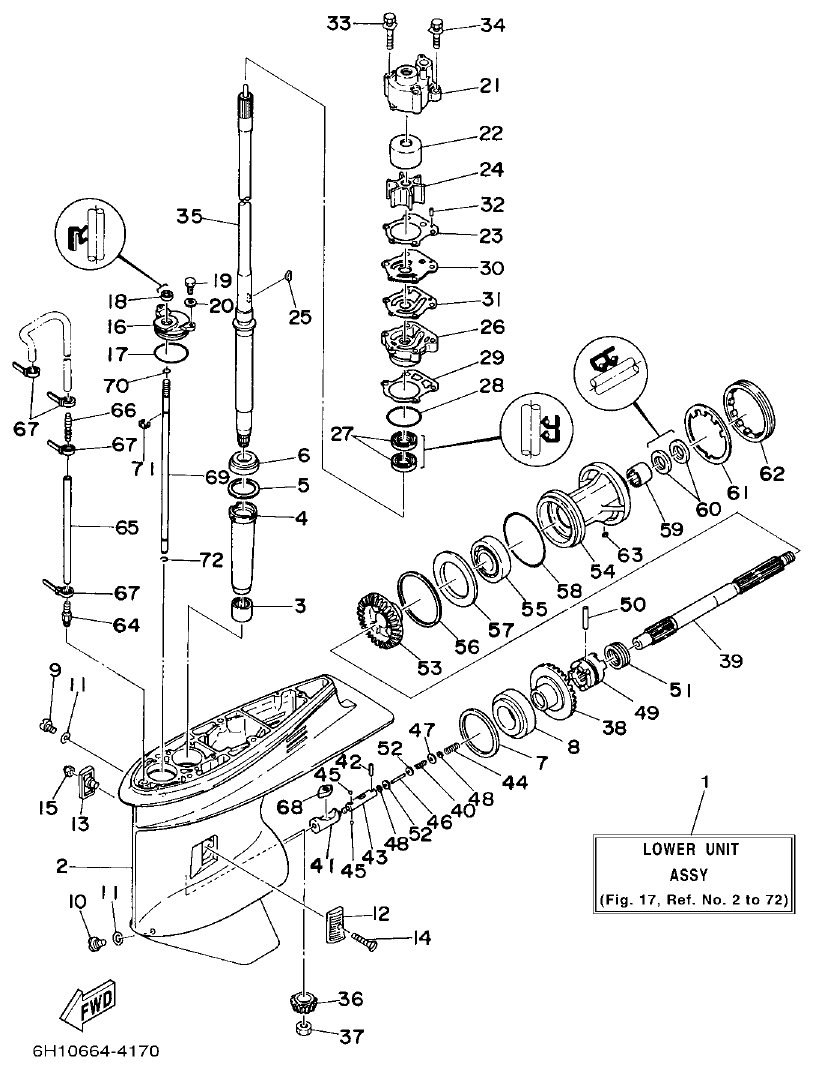

Yamaha 90AETO LOWER CASING & DRIVE 1 parts diagram
Fig. 17 — LOWER CASING & DRIVE 1
93 items · 22 available products

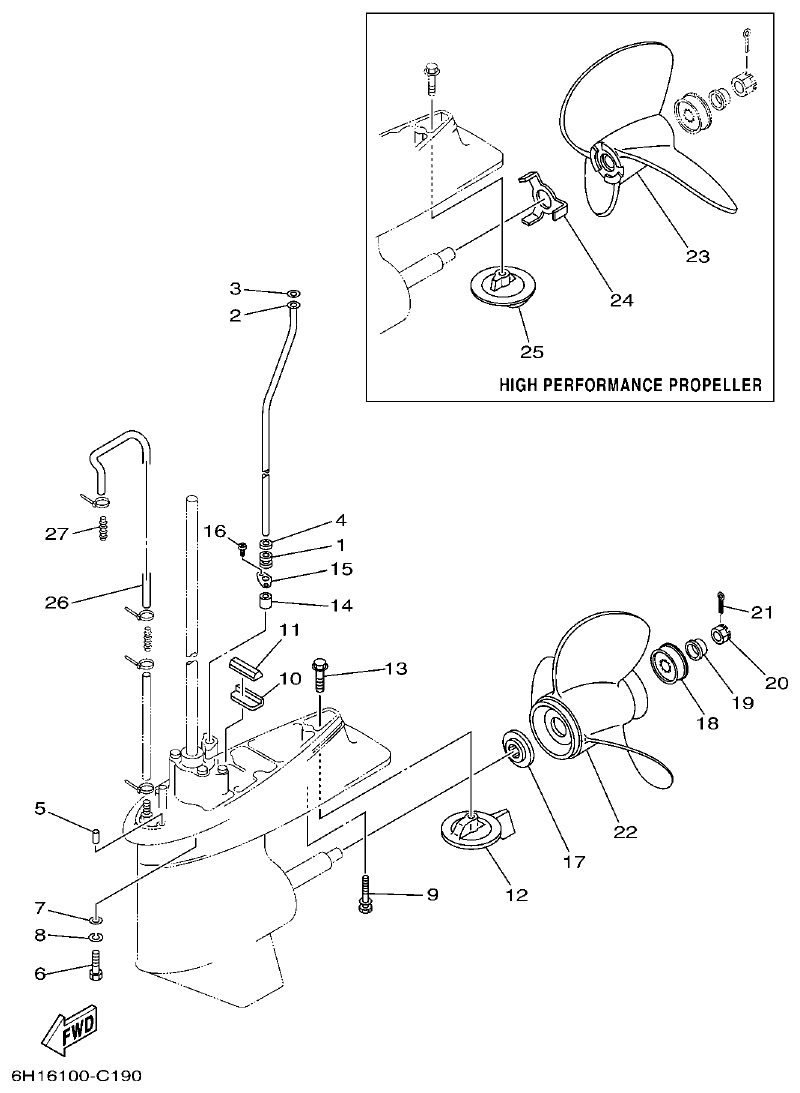

Yamaha 90AETO LOWER CASING & DRIVE 2 parts diagram
Fig. 18 — LOWER CASING & DRIVE 2
46 items · 12 available products
Yamaha 90AETO FUEL TANK parts diagram

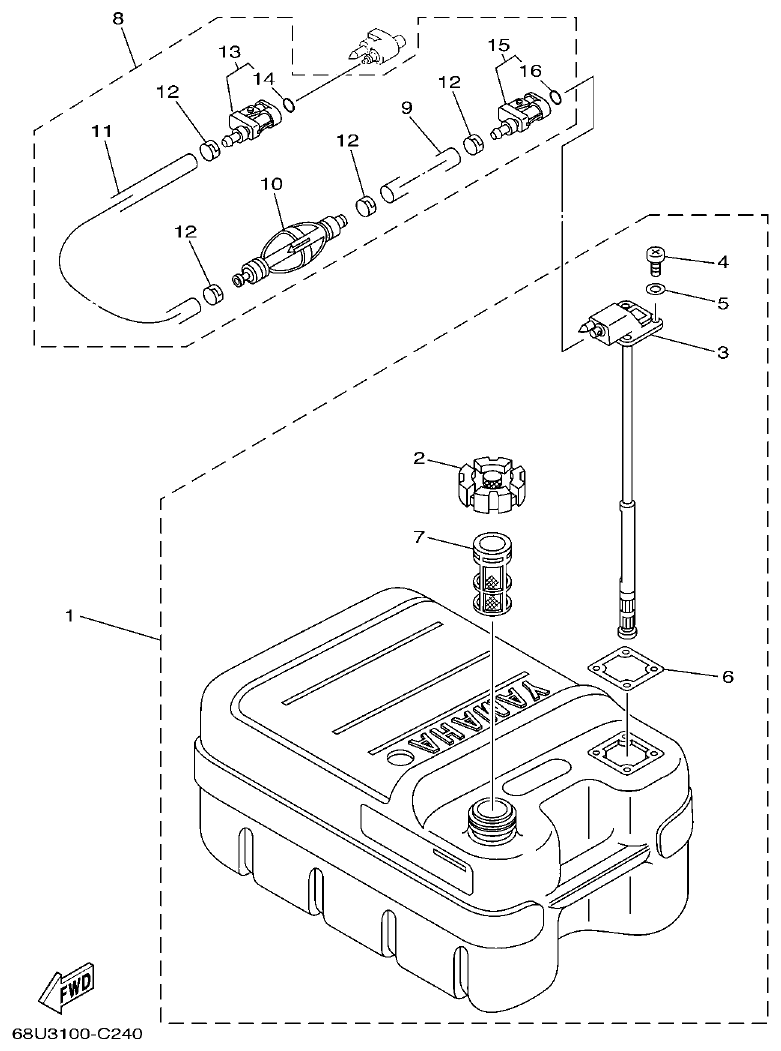

Fig. 19 — FUEL TANK
16 items · 2 available products

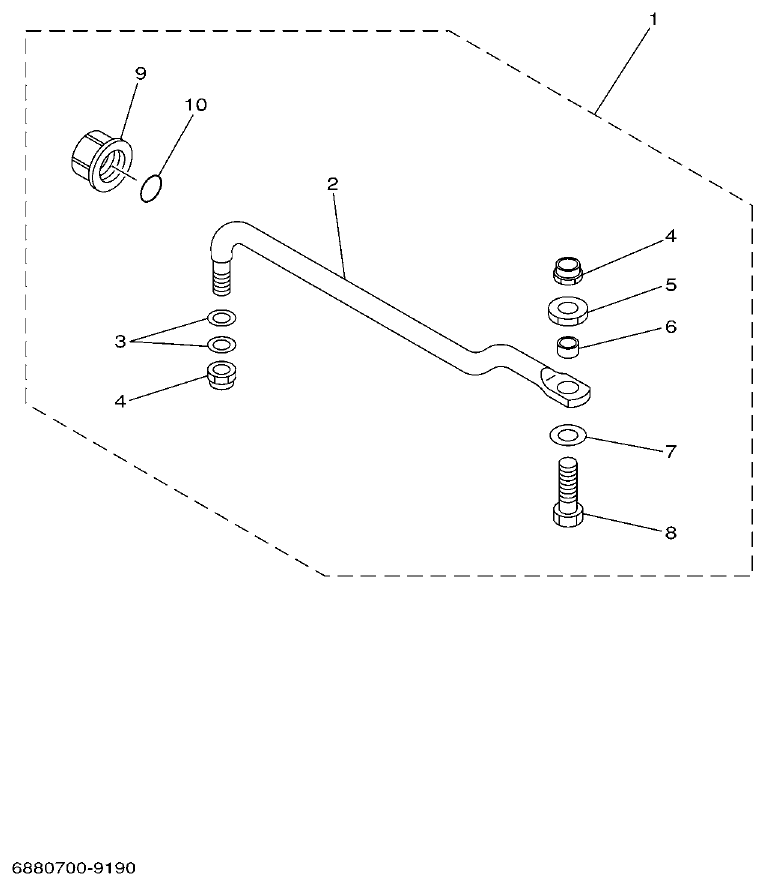

Yamaha 90AETO STEERING GUIDE parts diagram
Fig. 20 — STEERING GUIDE
10 items · 2 available products
Yamaha 90AETO REMOTE CONTROL BOX parts diagram
Fig. 21 — REMOTE CONTROL BOX
7 items
Yamaha 90AETO REMOTE CONTROL ASSY parts diagram

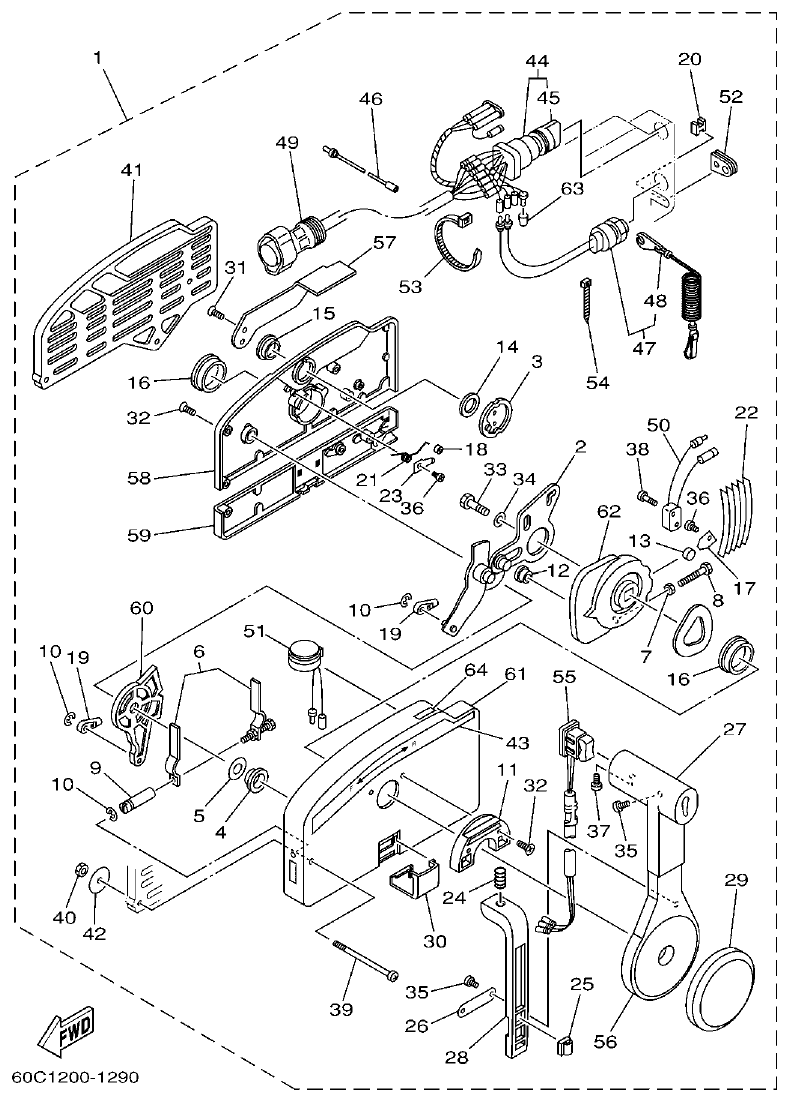

Fig. 22 — REMOTE CONTROL ASSY
64 items · 11 available products

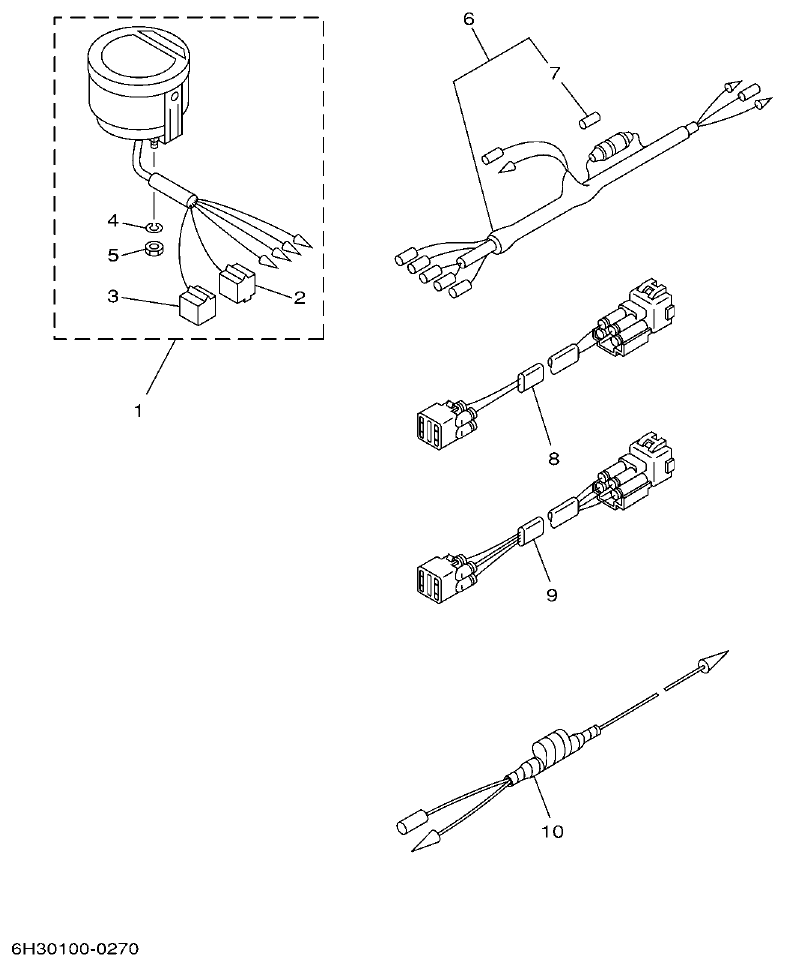

Yamaha 90AETO METER parts diagram
Fig. 23 — METER
10 items · 1 available products
Yamaha 90AETO REPAIR KIT 1 parts diagram

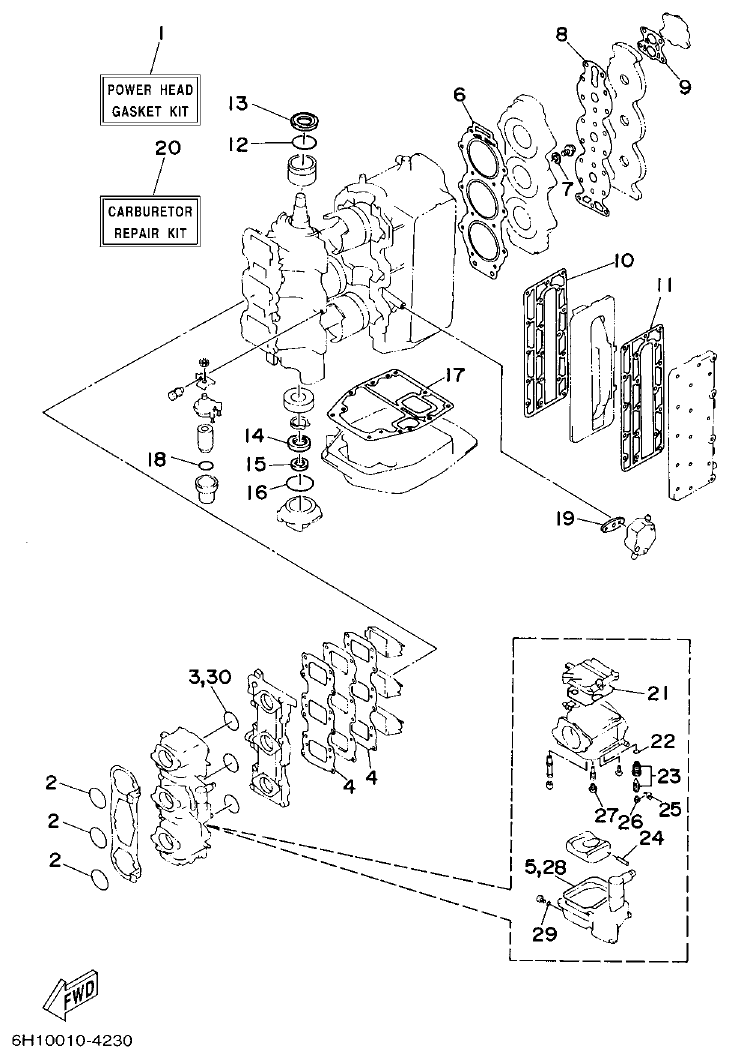

Fig. 24 — REPAIR KIT 1
30 items · 10 available products

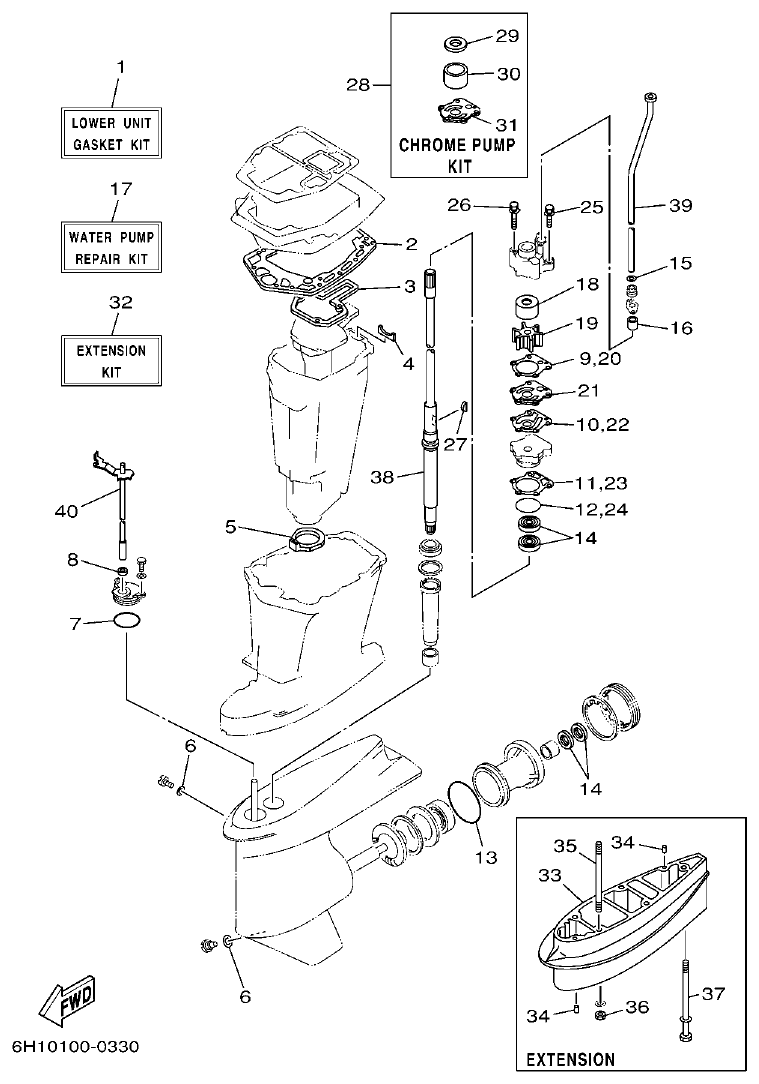

Yamaha 90AETO REPAIR KIT 2 parts diagram
Fig. 25 — REPAIR KIT 2
40 items · 17 available products
