Yamaha 9C, 5A, F15A Parts Catalog

Yamaha 9C, 5A, F15A Outboard parts and diagrams

Yamaha 9C, 5A, F15A outboard parts catalog includes TOP COWLING, CYLINDER & CRANKCASE 1, CRANKSHAFT & PISTON, CYLINDER & CRANKCASE 2, VALVE, INTAKE, CARBURETOR, OIL PUMP, FUEL, STARTER, GENERATOR, ELECTRICAL 1, ELECTRICAL 2, STARTING MOTOR, BOTTOM COWLING, STEERING, CONTROL, REMO CON ATTACHMENT. Open a section to view exploded diagrams, reference numbers, OEM article numbers, quantities and matched Marmoom Marine store products.

87 linked store products are available across 32 catalog sections. 905 catalog rows are listed for this model. Confirm the exact model, serial range and year before ordering marine engine parts.

Yamaha 9C, 5A, F15A TOP COWLING parts diagram

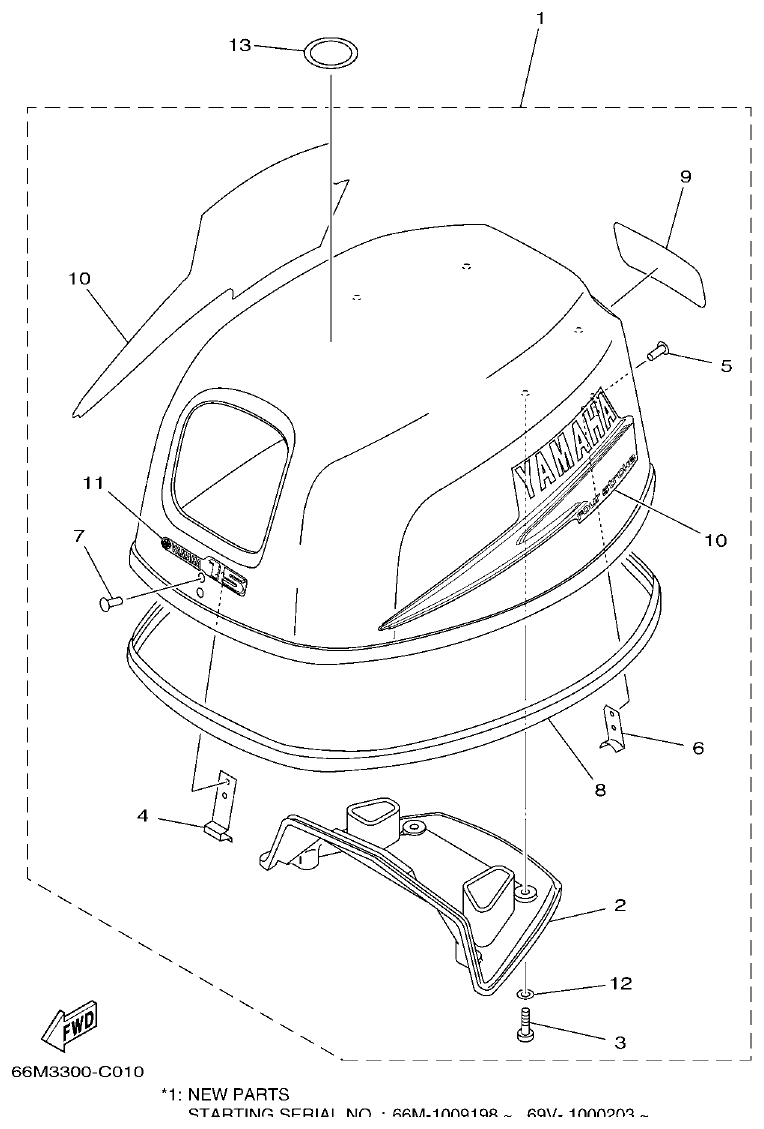

Fig. 1 — TOP COWLING
23 items
Yamaha 9C, 5A, F15A CYLINDER & CRANKCASE 1 parts diagram

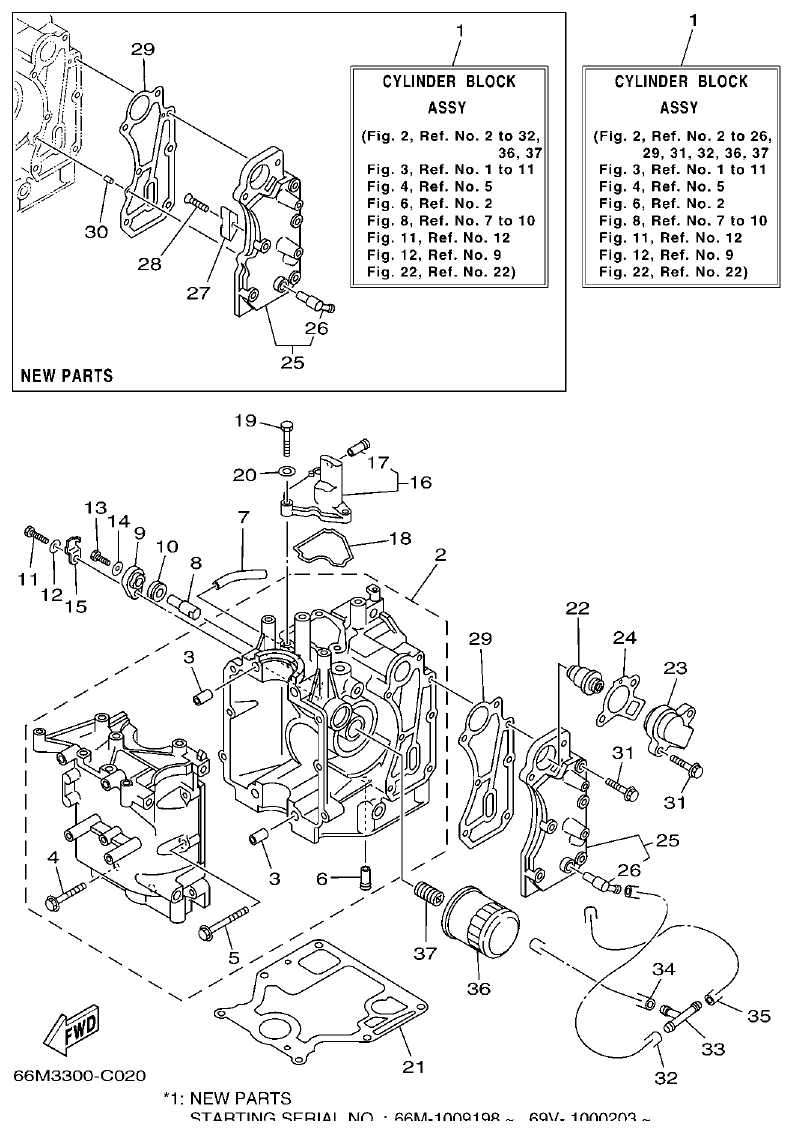

Fig. 2 — CYLINDER & CRANKCASE 1
42 items · 6 available products
Yamaha 9C, 5A, F15A CRANKSHAFT & PISTON parts diagram

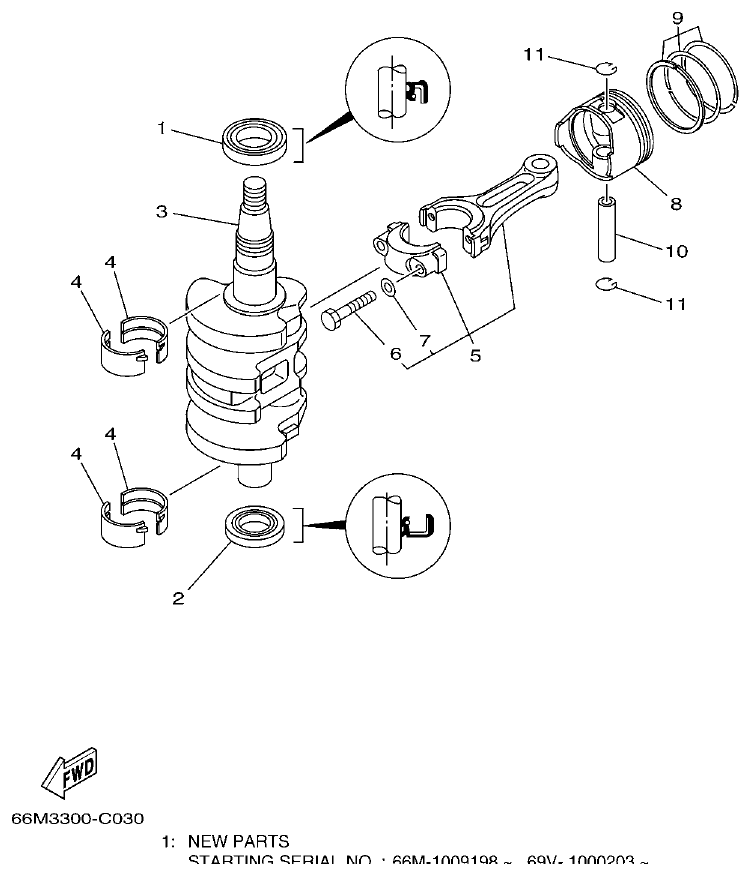

Fig. 3 — CRANKSHAFT & PISTON
20 items · 6 available products
Yamaha 9C, 5A, F15A CYLINDER & CRANKCASE 2 parts diagram

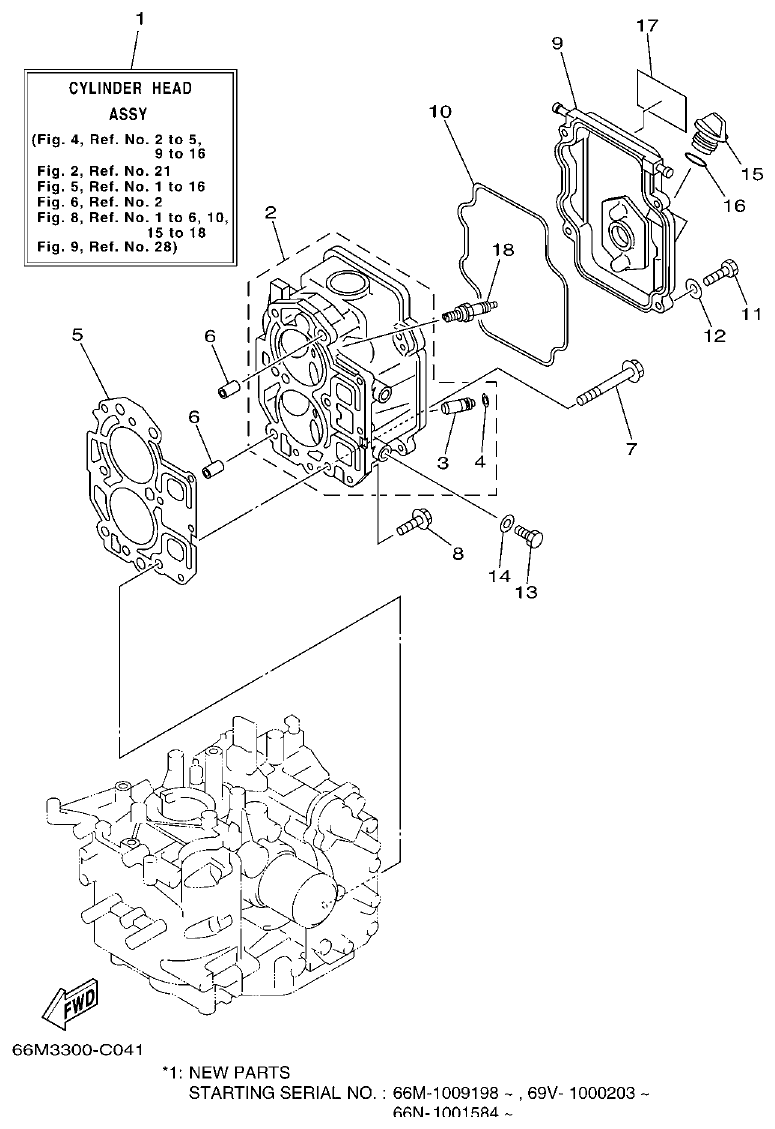

Fig. 4 — CYLINDER & CRANKCASE 2
21 items · 2 available products
Yamaha 9C, 5A, F15A VALVE parts diagram

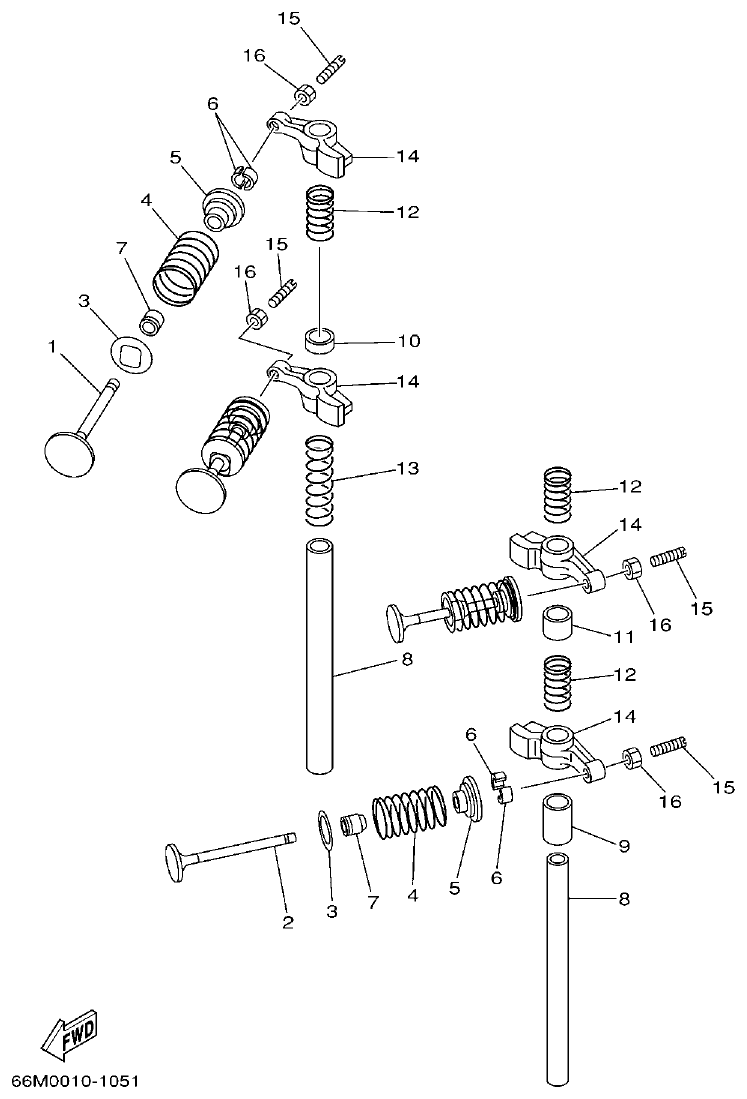

Fig. 5 — VALVE
16 items · 2 available products
Yamaha 9C, 5A, F15A INTAKE parts diagram

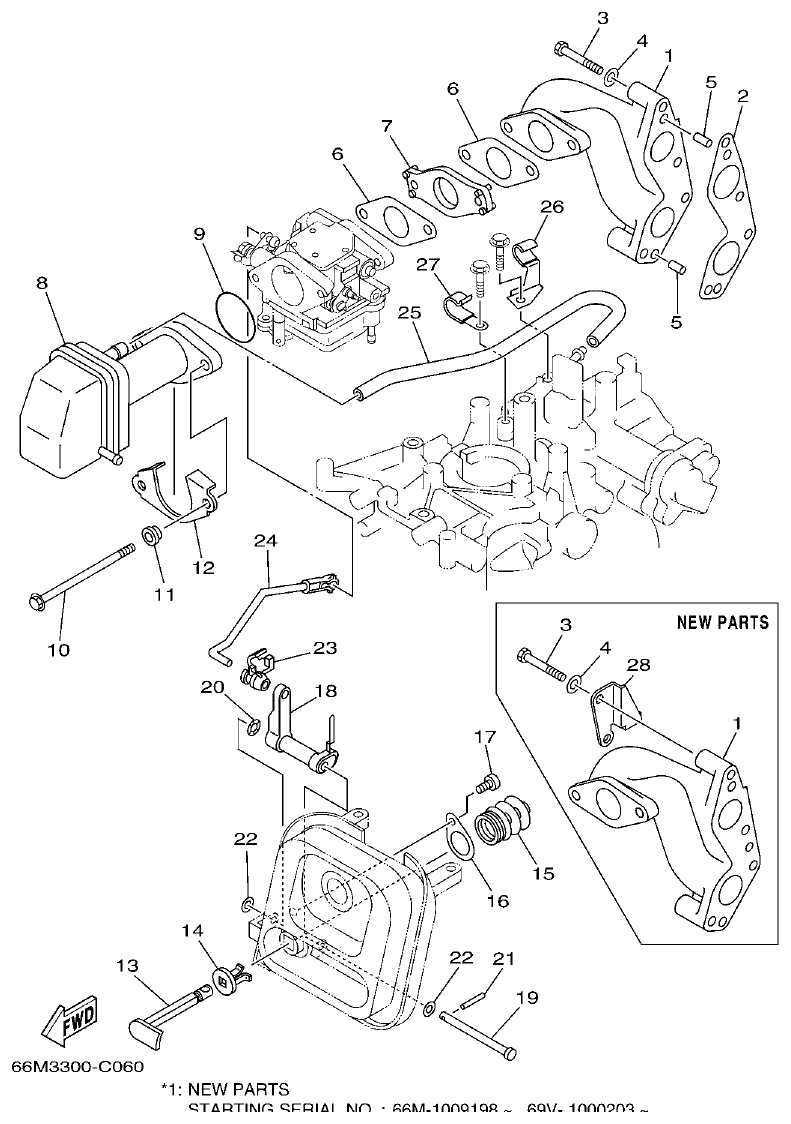

Fig. 6 — INTAKE
30 items · 2 available products

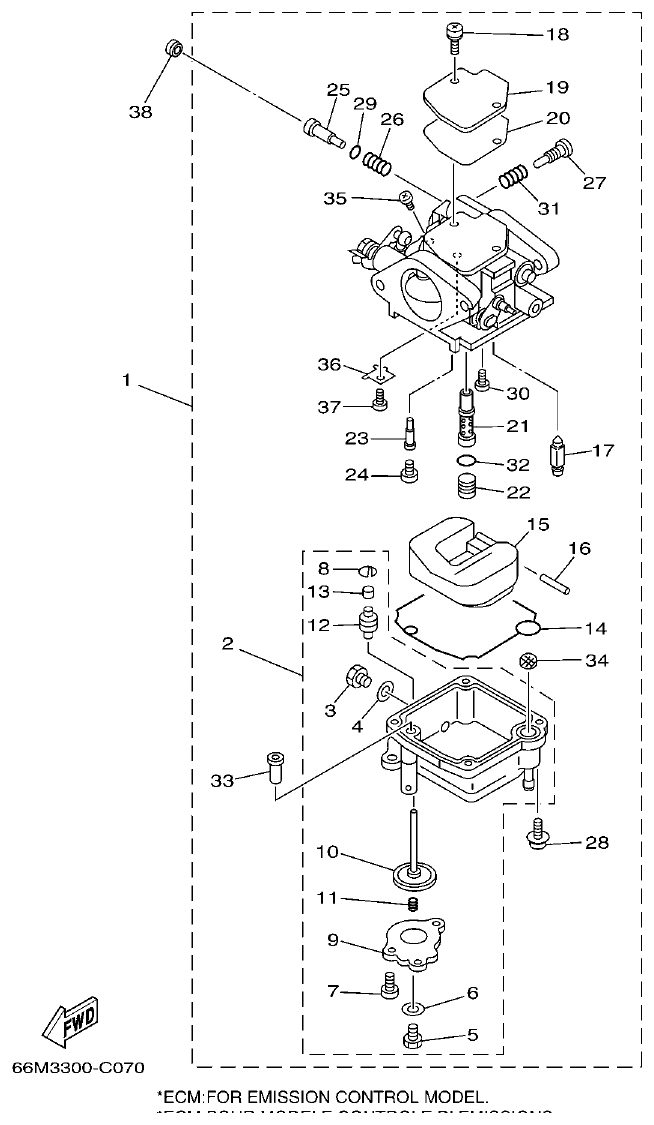

Yamaha 9C, 5A, F15A CARBURETOR parts diagram
Fig. 7 — CARBURETOR
47 items · 4 available products

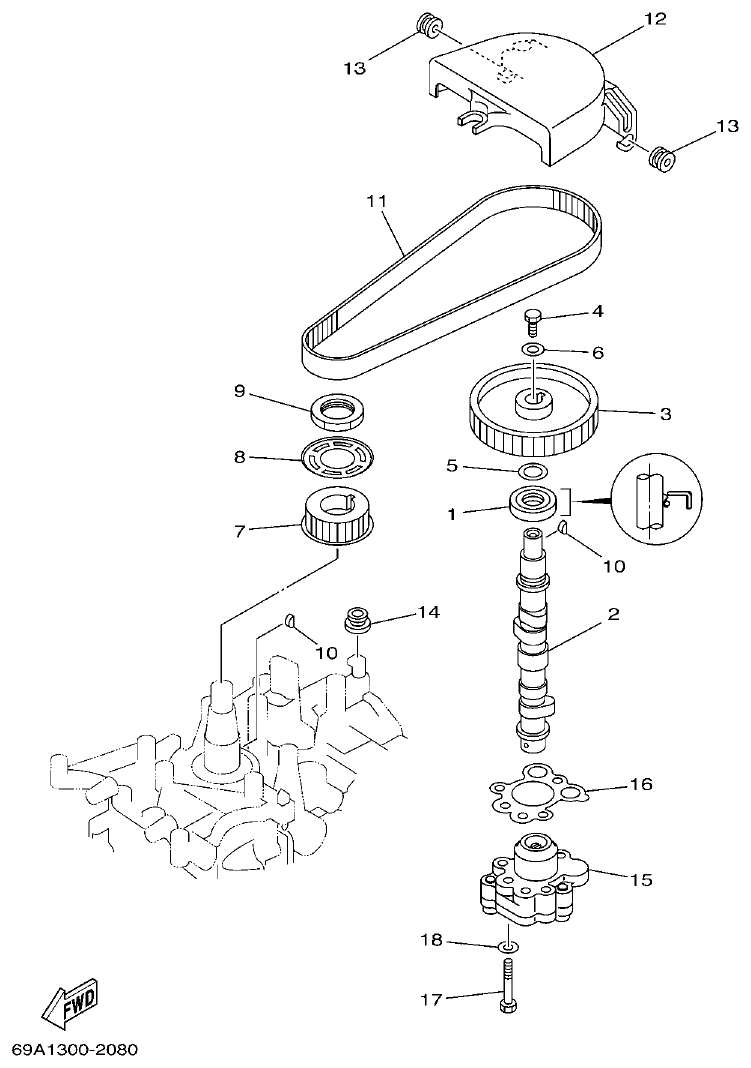

Yamaha 9C, 5A, F15A OIL PUMP parts diagram
Fig. 8 — OIL PUMP
19 items · 1 available products

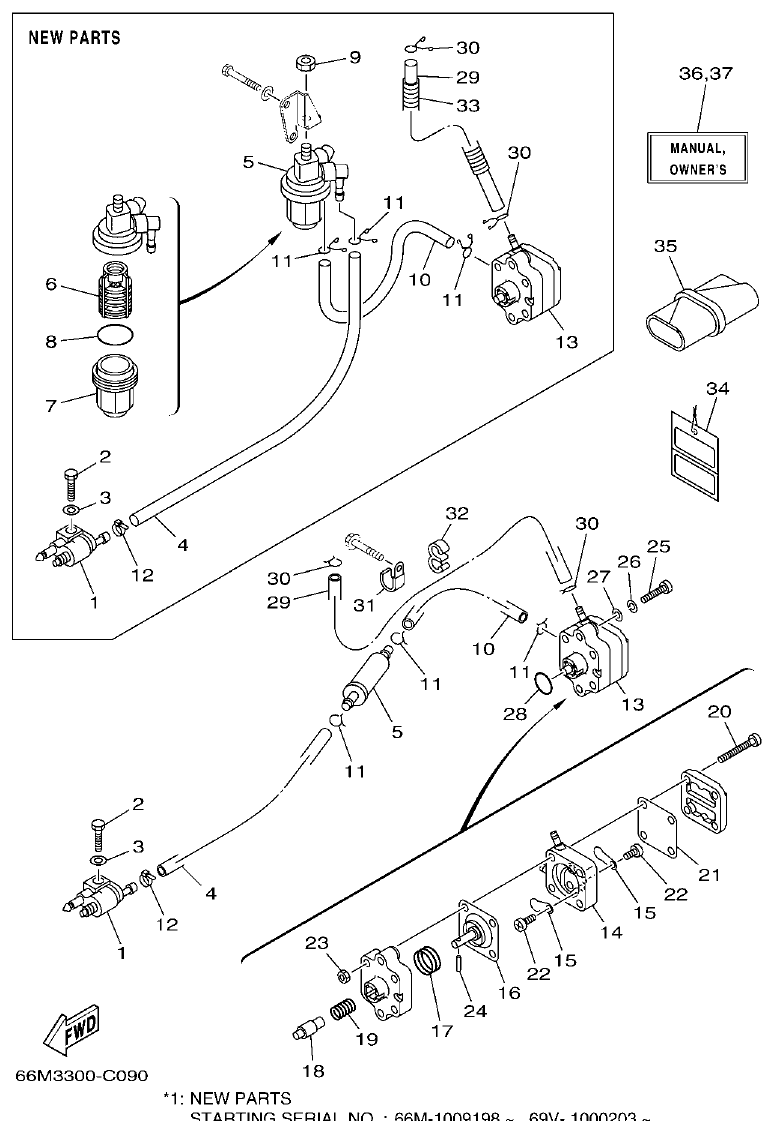

Yamaha 9C, 5A, F15A FUEL parts diagram
Fig. 9 — FUEL
44 items · 2 available products
Yamaha 9C, 5A, F15A STARTER parts diagram

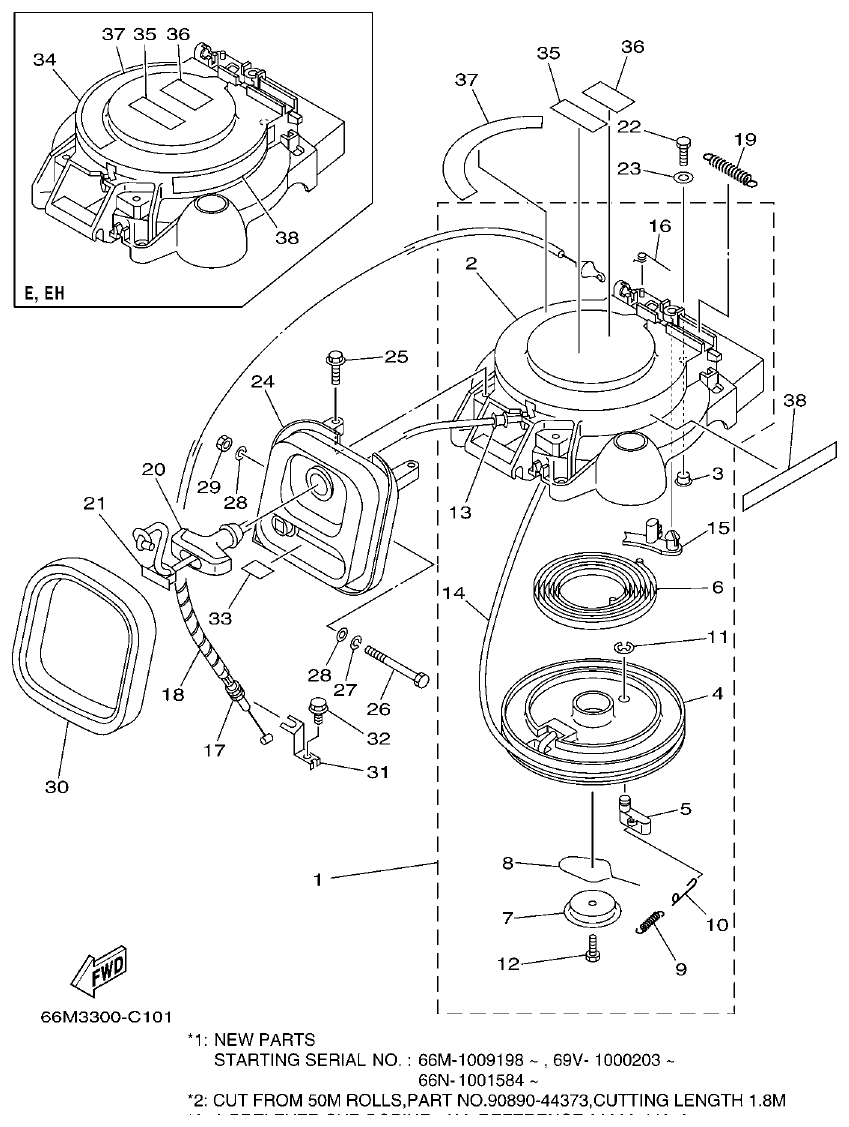

Fig. 10 — STARTER
39 items · 8 available products

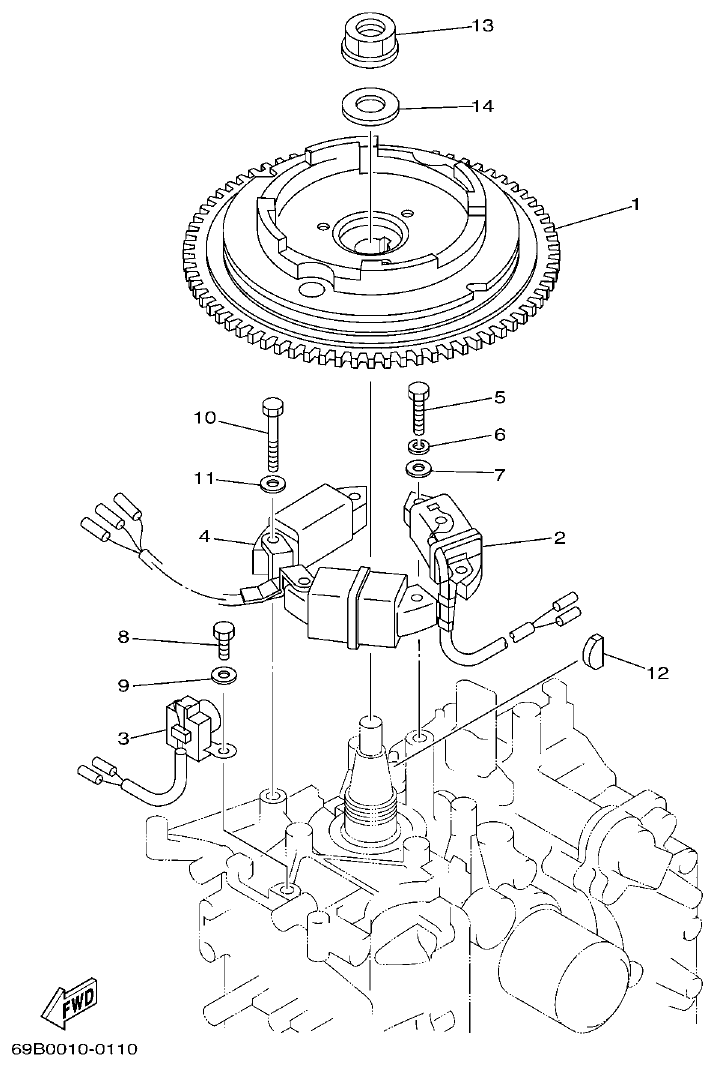

Yamaha 9C, 5A, F15A GENERATOR parts diagram
Fig. 11 — GENERATOR
17 items
Yamaha 9C, 5A, F15A ELECTRICAL 1 parts diagram

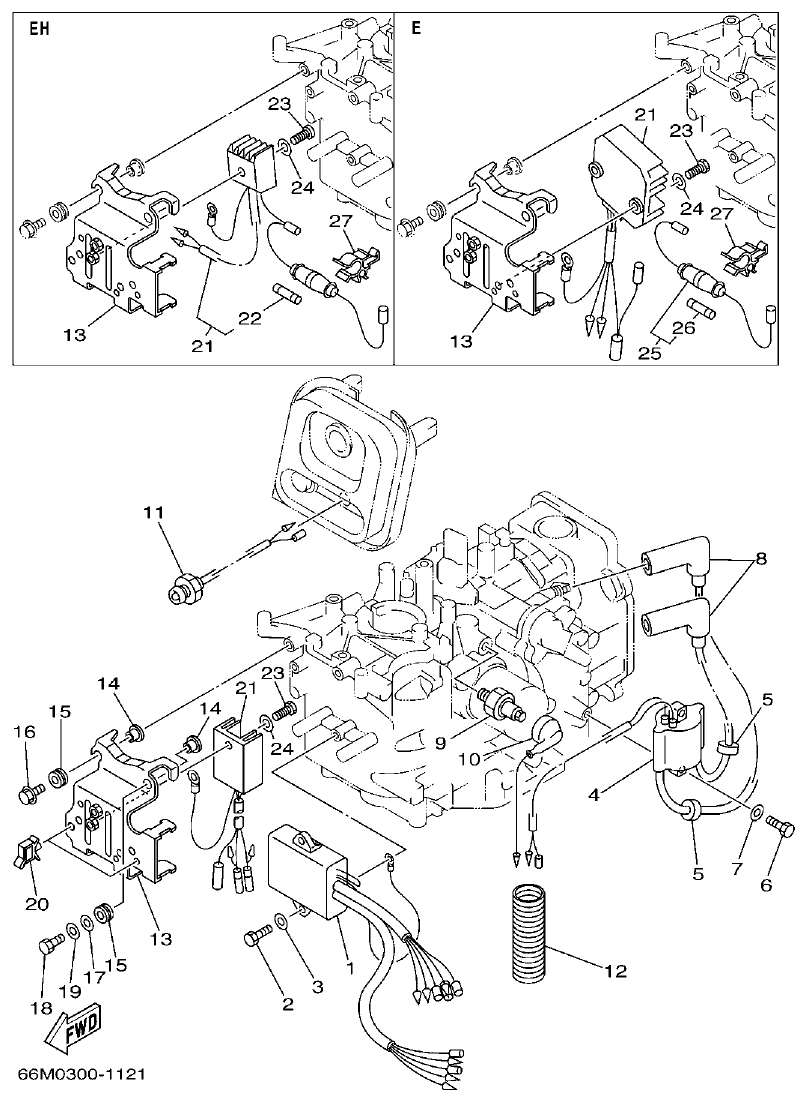

Fig. 12 — ELECTRICAL 1
35 items · 1 available products
Yamaha 9C, 5A, F15A ELECTRICAL 2 parts diagram

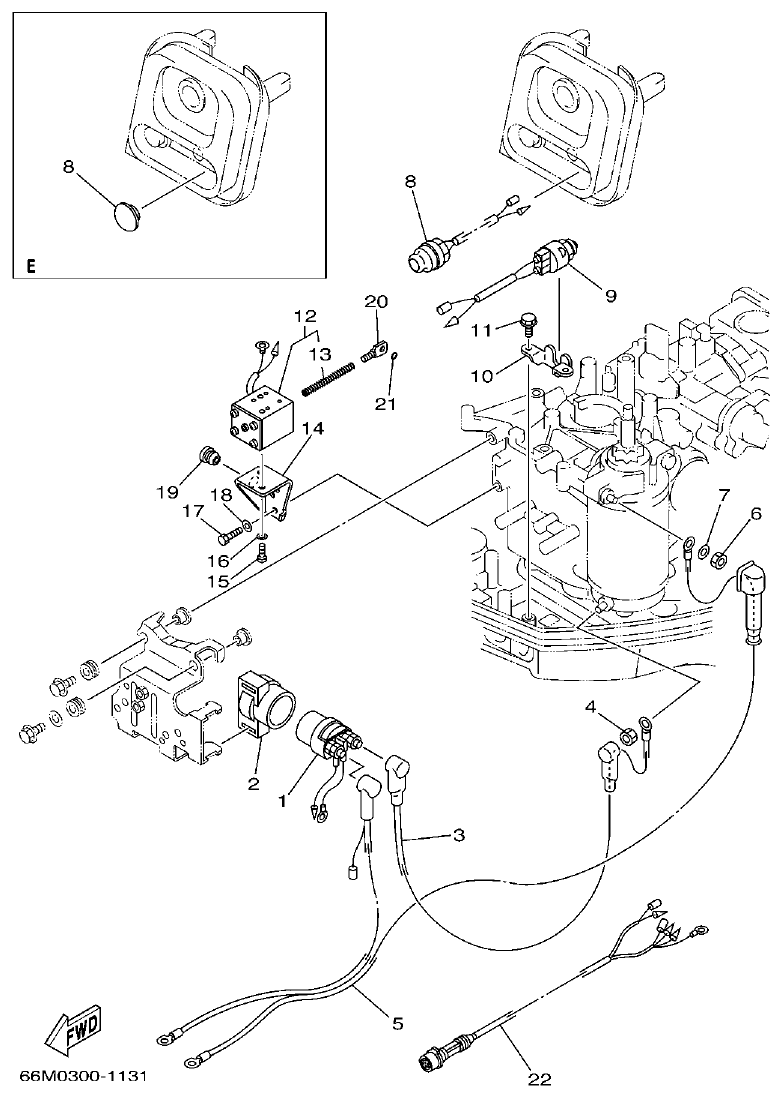

Fig. 13 — ELECTRICAL 2
23 items · 1 available products

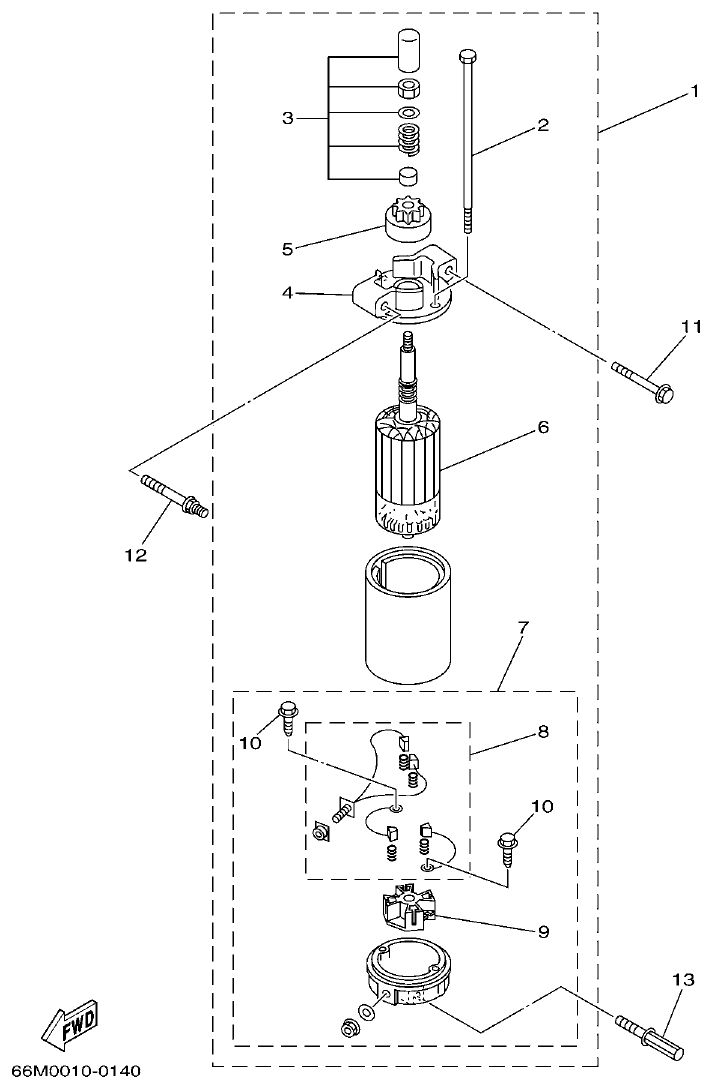

Yamaha 9C, 5A, F15A STARTING MOTOR parts diagram
Fig. 14 — STARTING MOTOR
13 items

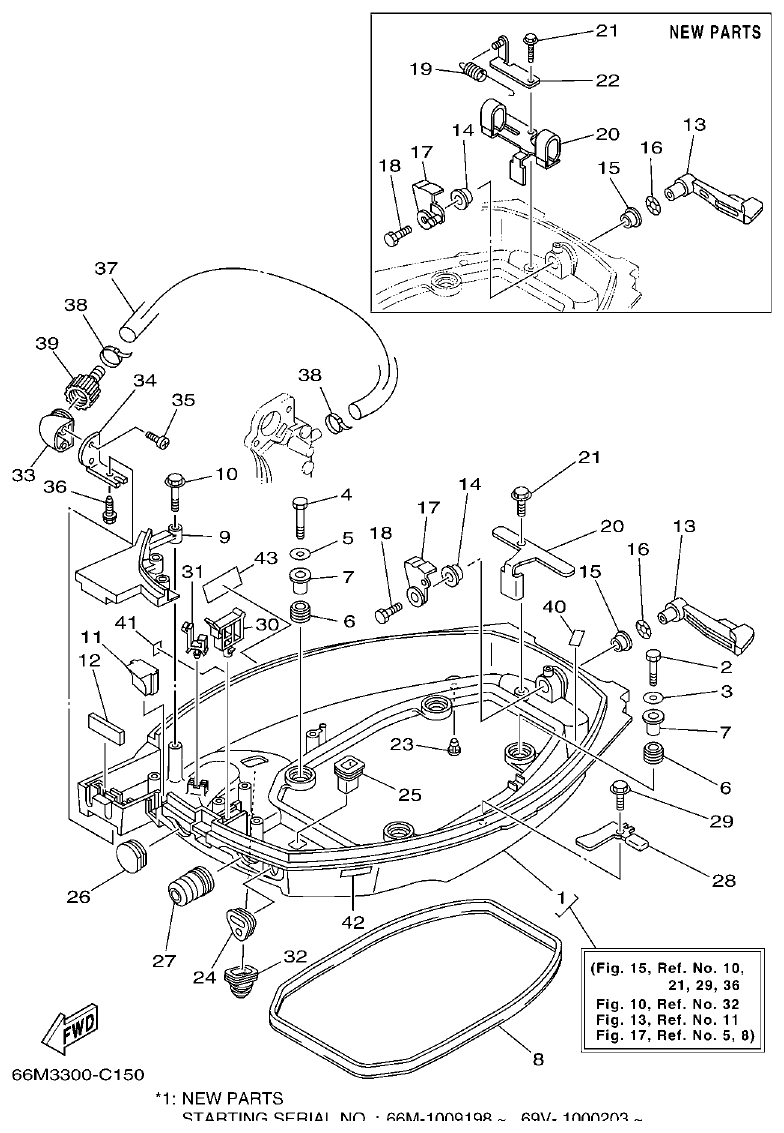

Yamaha 9C, 5A, F15A BOTTOM COWLING parts diagram
Fig. 15 — BOTTOM COWLING
53 items
Yamaha 9C, 5A, F15A STEERING parts diagram

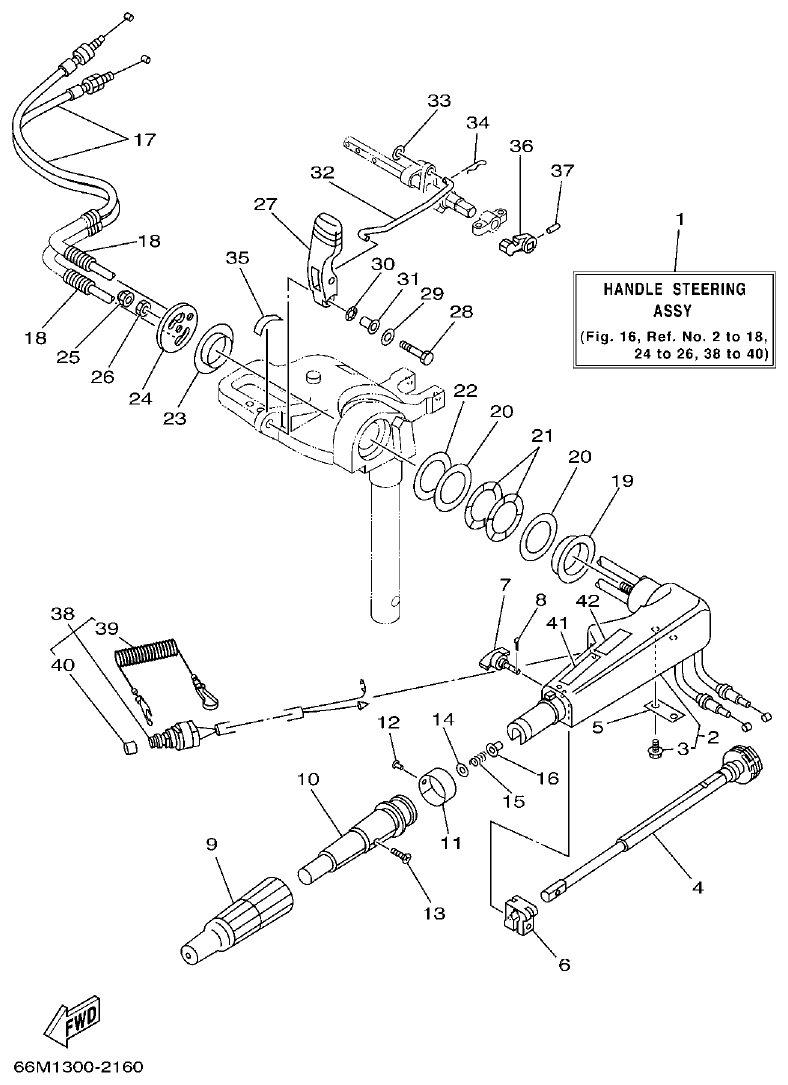

Fig. 16 — STEERING
42 items · 4 available products

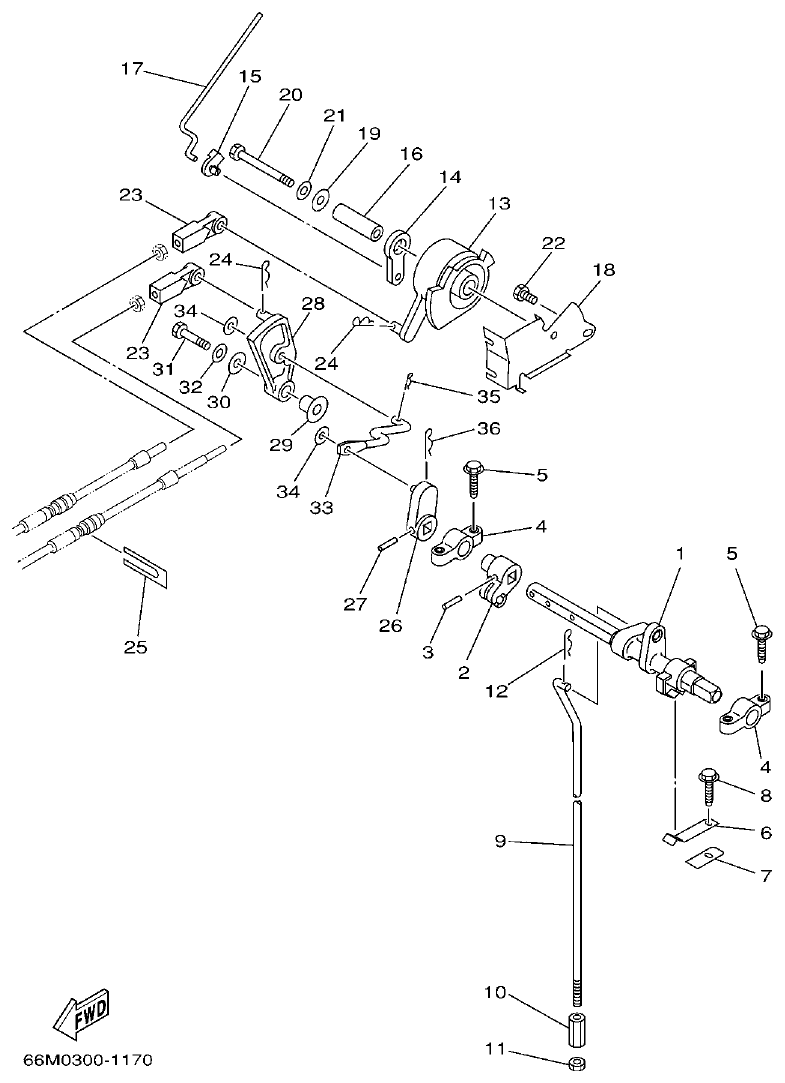

Yamaha 9C, 5A, F15A CONTROL parts diagram
Fig. 17 — CONTROL
37 items · 3 available products

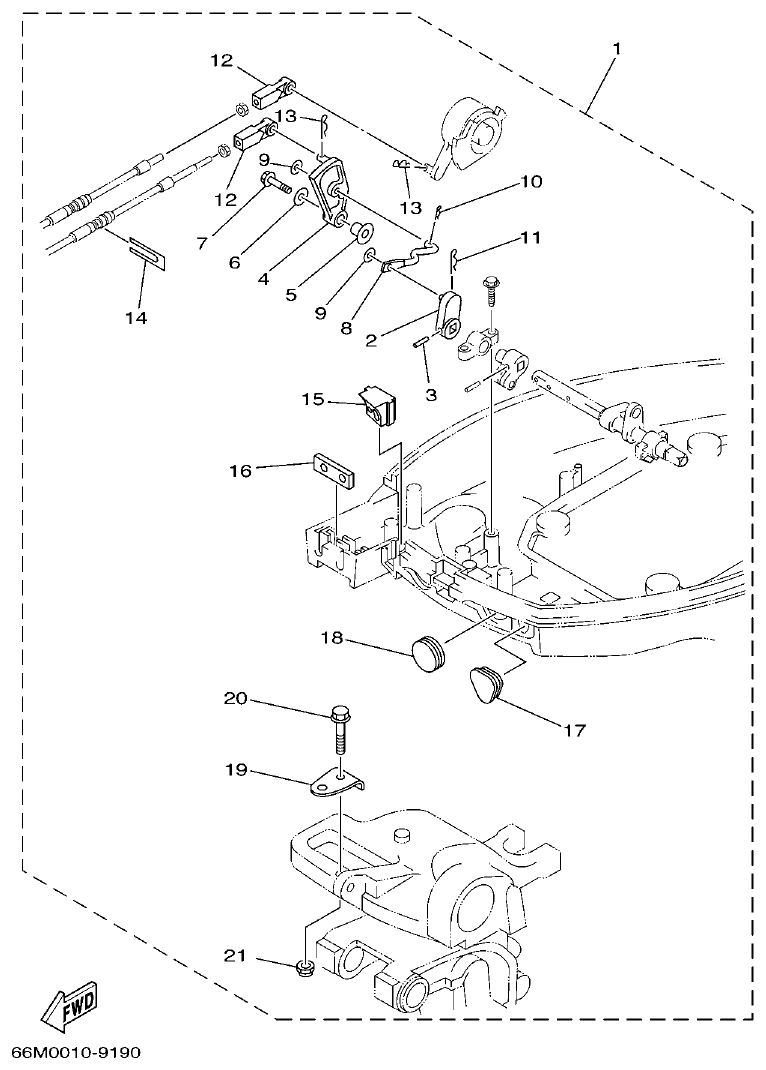

Yamaha 9C, 5A, F15A REMO CON ATTACHMENT parts diagram
Fig. 18 — REMO CON ATTACHMENT
21 items · 1 available products

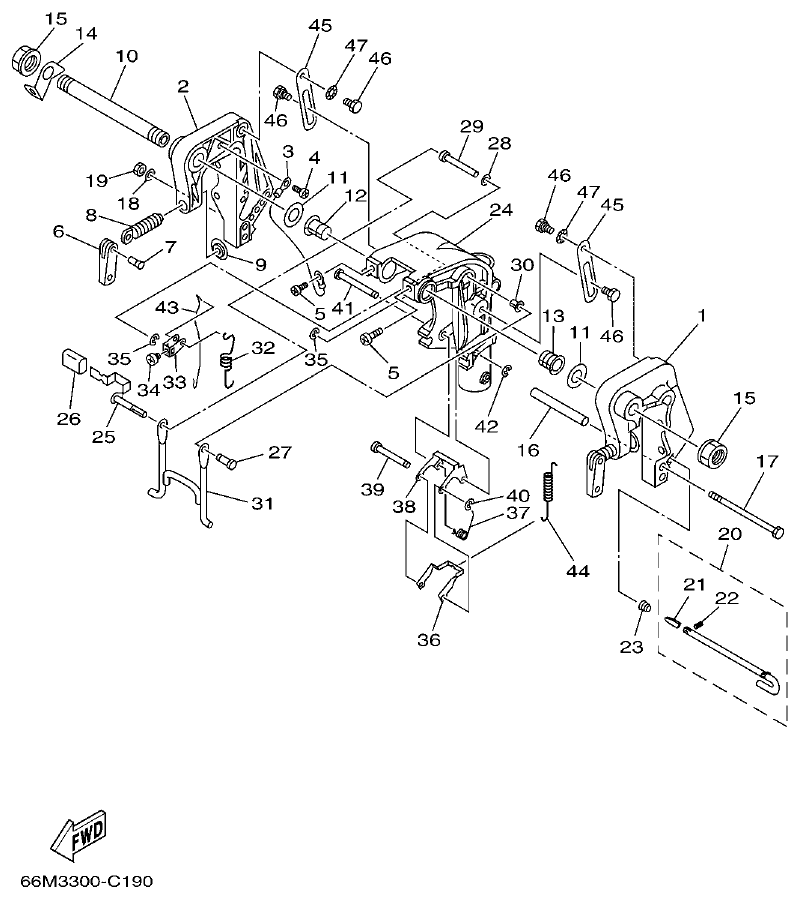

Yamaha 9C, 5A, F15A BRACKET 1 parts diagram
Fig. 19 — BRACKET 1
48 items · 3 available products
Yamaha 9C, 5A, F15A BRACKET 2 parts diagram

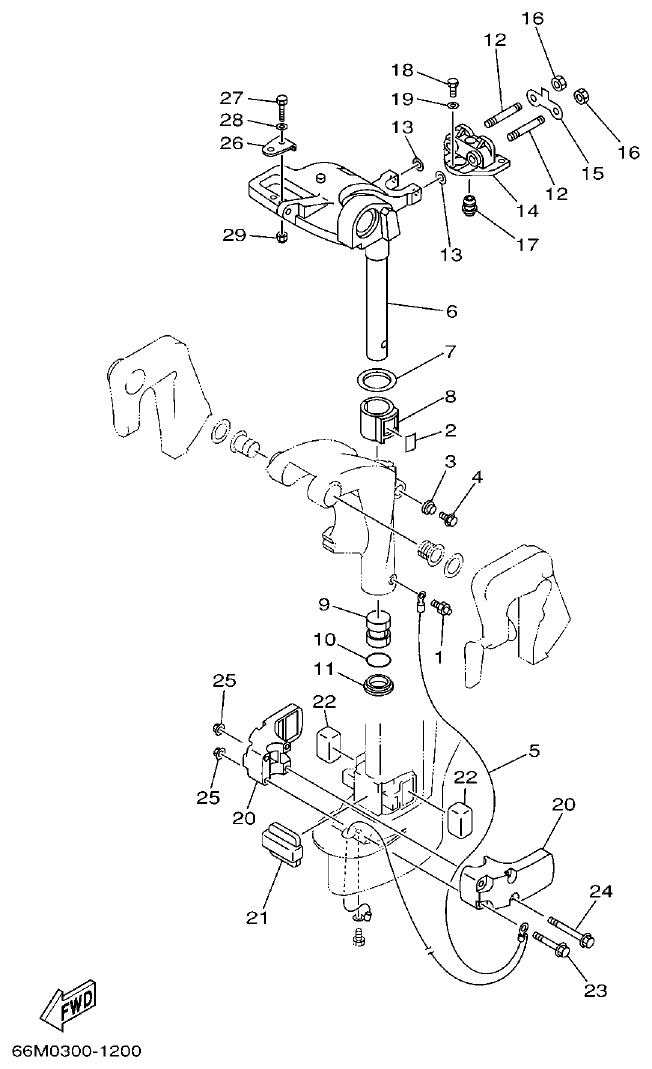

Fig. 20 — BRACKET 2
30 items · 1 available products
Yamaha 9C, 5A, F15A UPPER CASING parts diagram

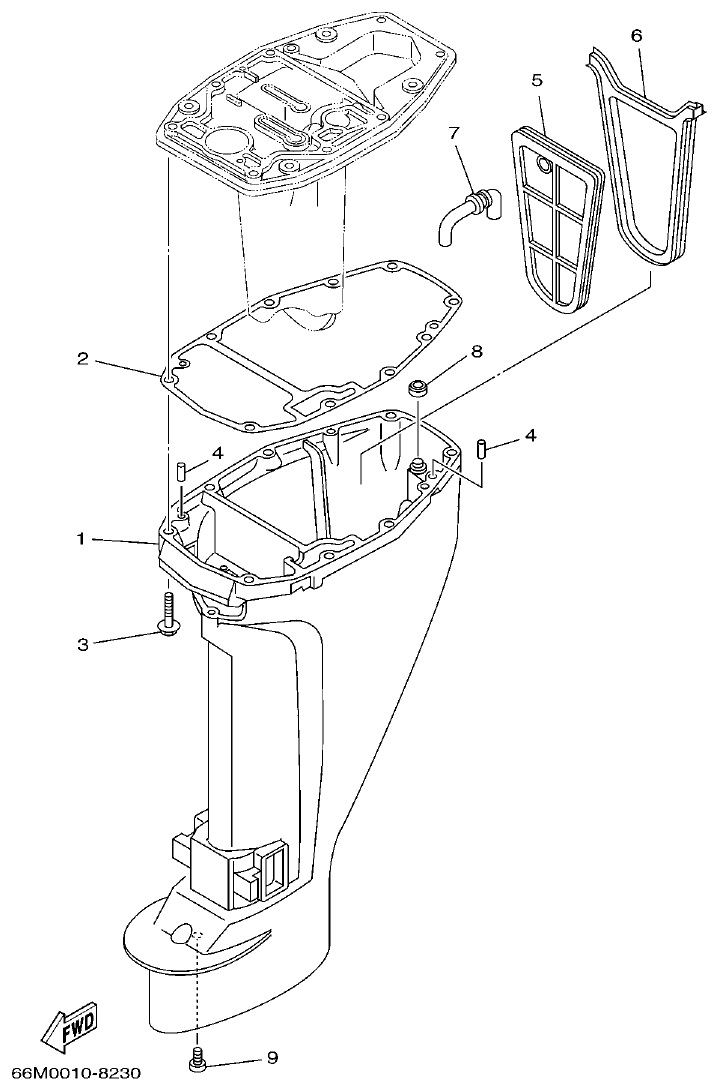

Fig. 21 — UPPER CASING
10 items
Yamaha 9C, 5A, F15A OIL PAN parts diagram

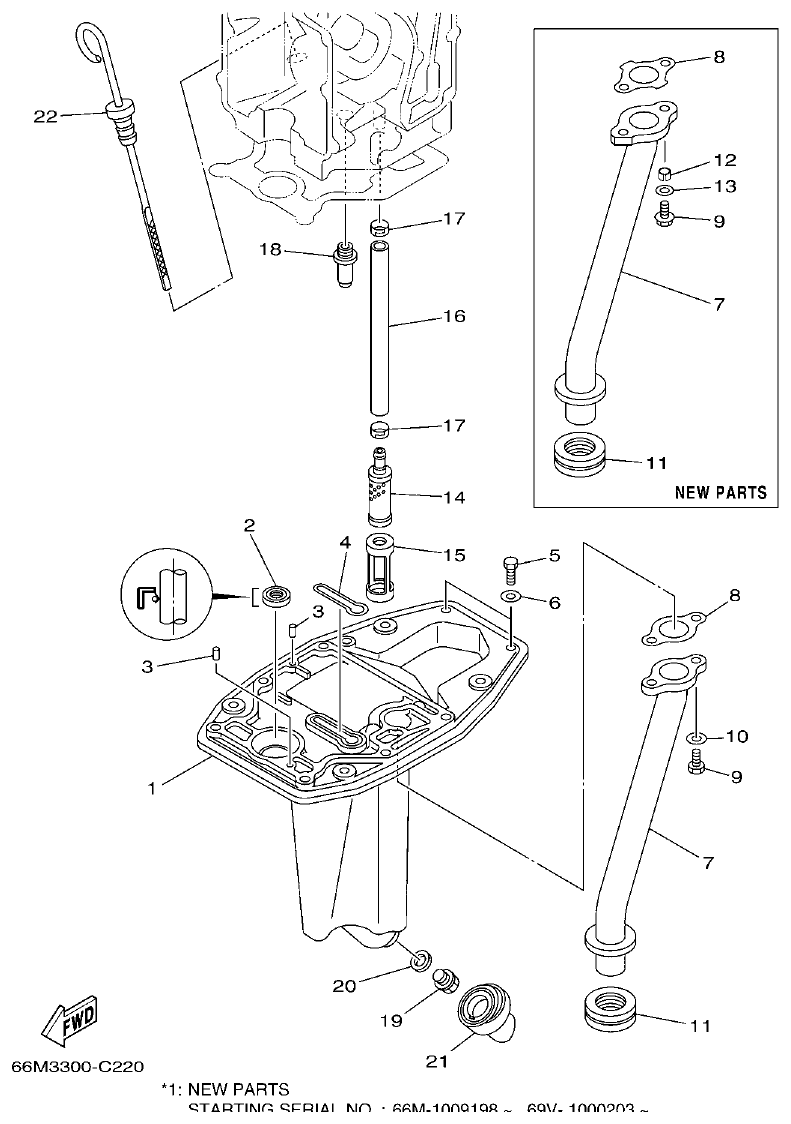

Fig. 22 — OIL PAN
26 items · 1 available products

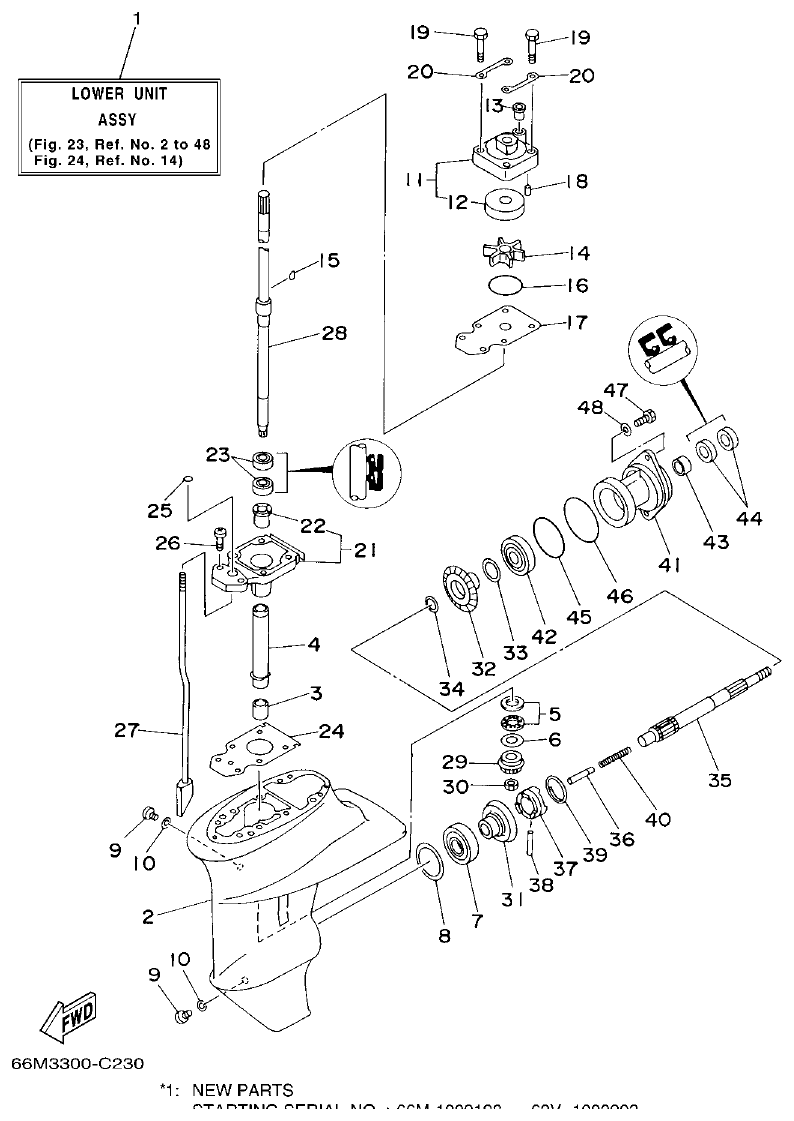

Yamaha 9C, 5A, F15A LOWER CASING & DRIVE 1 parts diagram
Fig. 23 — LOWER CASING & DRIVE 1
62 items · 15 available products
Yamaha 9C, 5A, F15A LOWER CASING & DRIVE 2 parts diagram

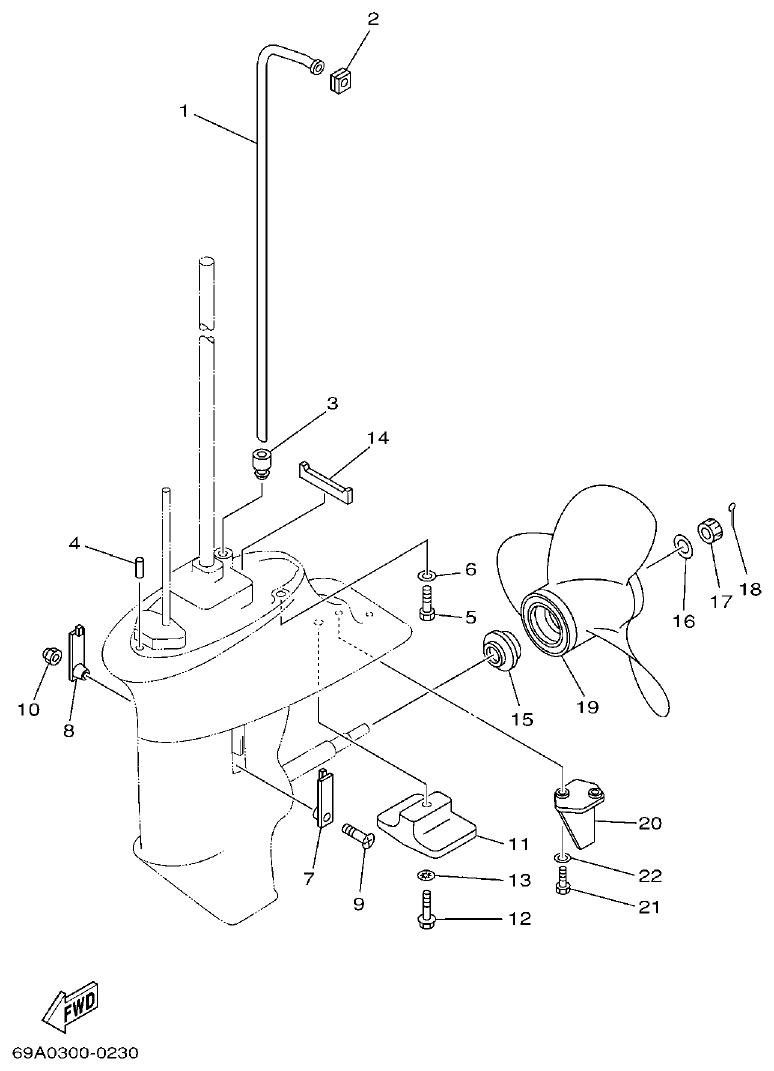

Fig. 24 — LOWER CASING & DRIVE 2
30 items · 3 available products

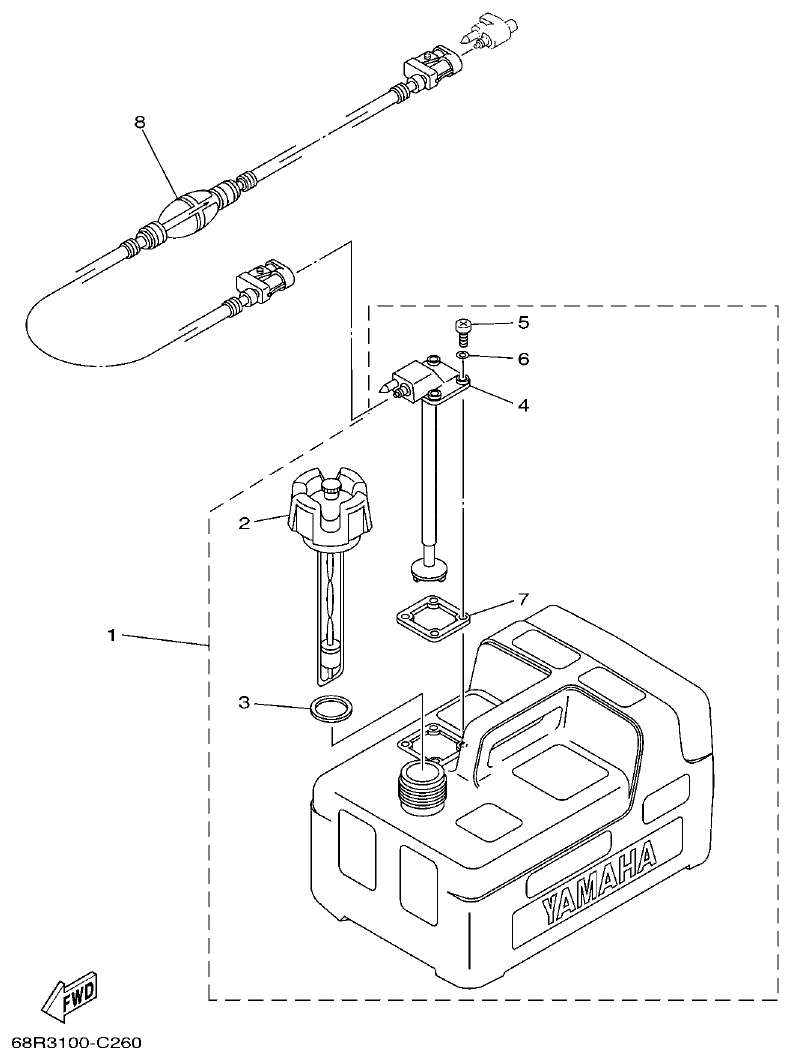

Yamaha 9C, 5A, F15A FUEL TANK 1 parts diagram
Fig. 25 — FUEL TANK 1
8 items

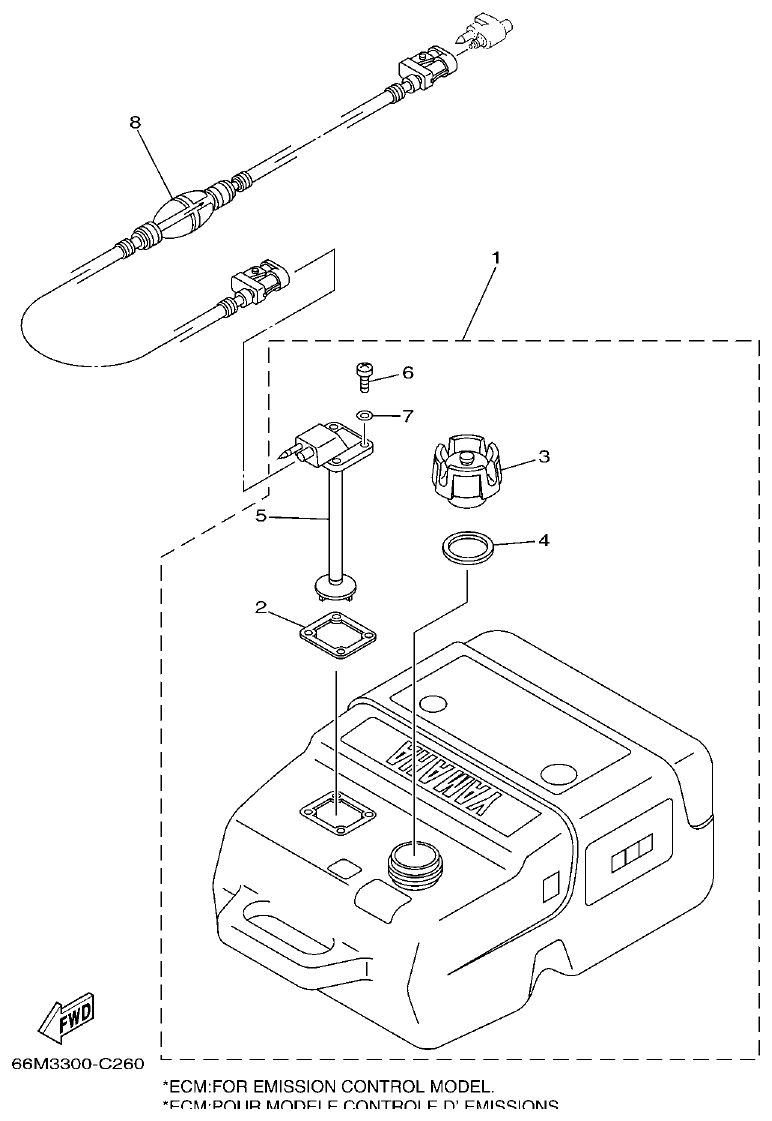

Yamaha 9C, 5A, F15A FUEL TANK 2 parts diagram
Fig. 26 — FUEL TANK 2
8 items

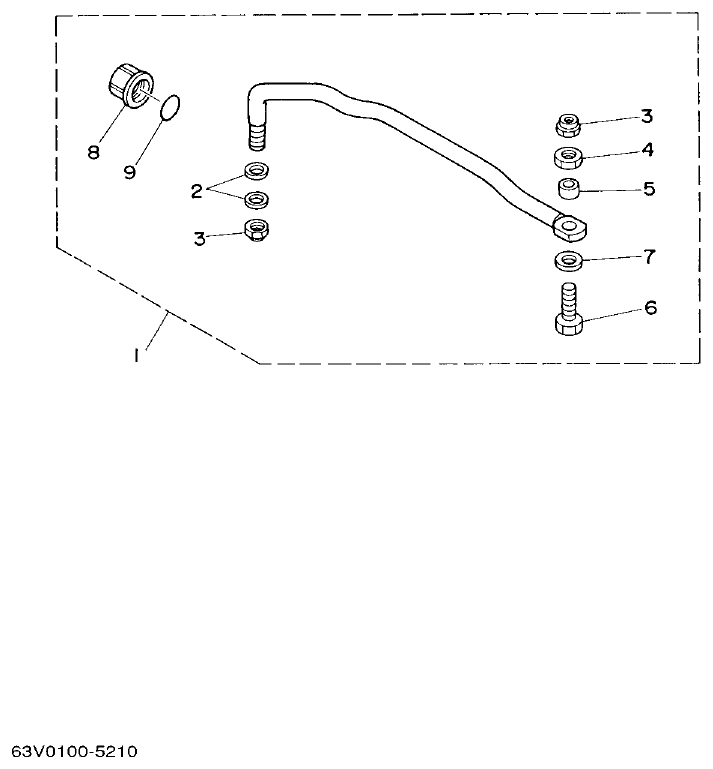

Yamaha 9C, 5A, F15A STEERING GUIDE parts diagram
Fig. 27 — STEERING GUIDE
9 items · 1 available products
Yamaha 9C, 5A, F15A REMOTE CONTROL BOX parts diagram
Fig. 28 — REMOTE CONTROL BOX
4 items

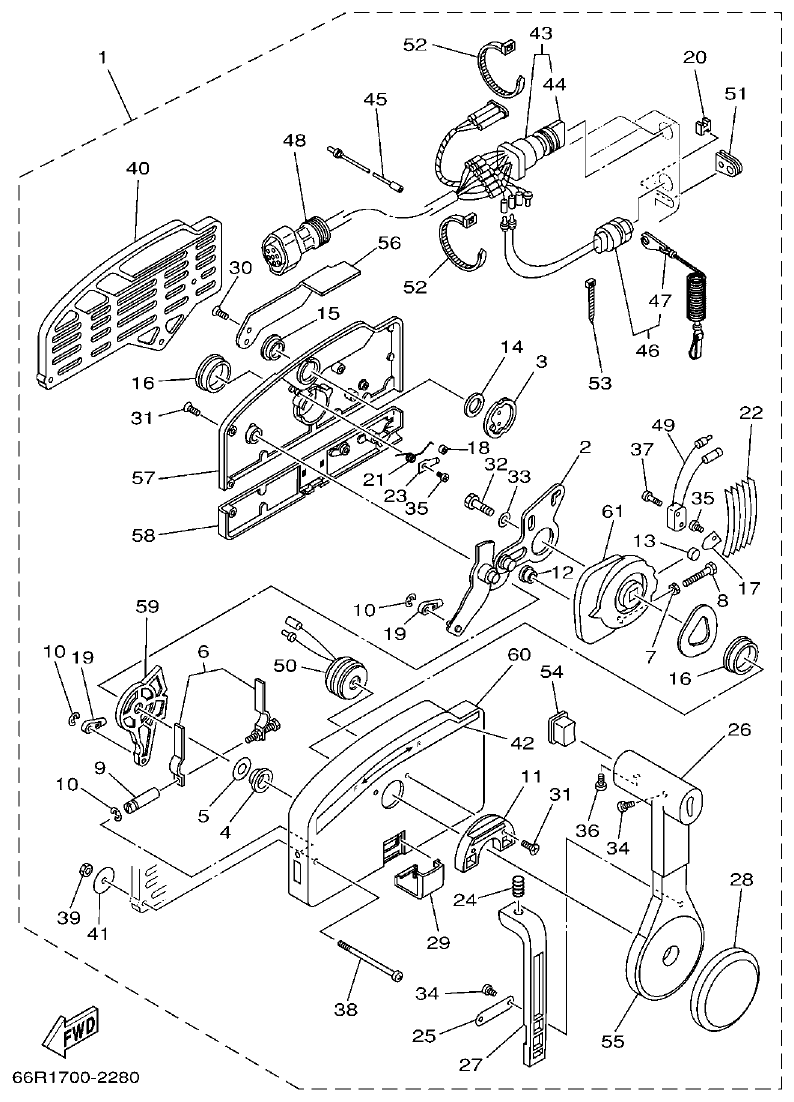

Yamaha 9C, 5A, F15A REMOTE CONTROL ASSY parts diagram
Fig. 29 — REMOTE CONTROL ASSY
61 items · 10 available products

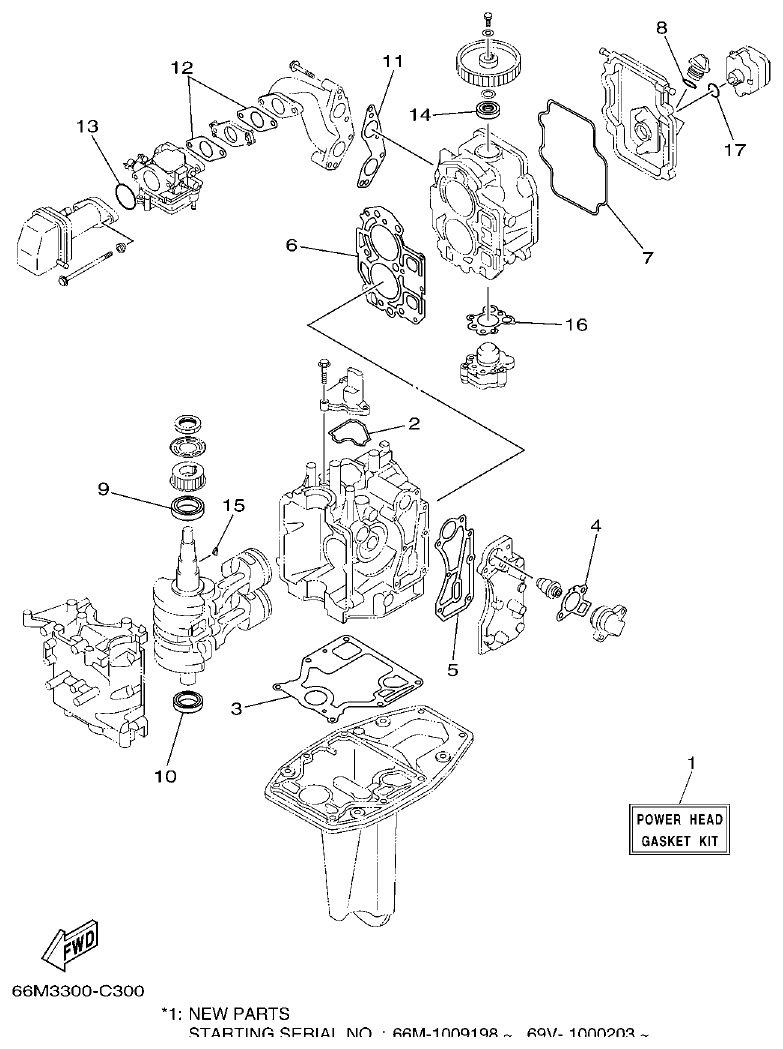

Yamaha 9C, 5A, F15A REPAIR KIT 1 parts diagram
Fig. 30 — REPAIR KIT 1
21 items · 2 available products
Yamaha 9C, 5A, F15A REPAIR KIT 2 parts diagram

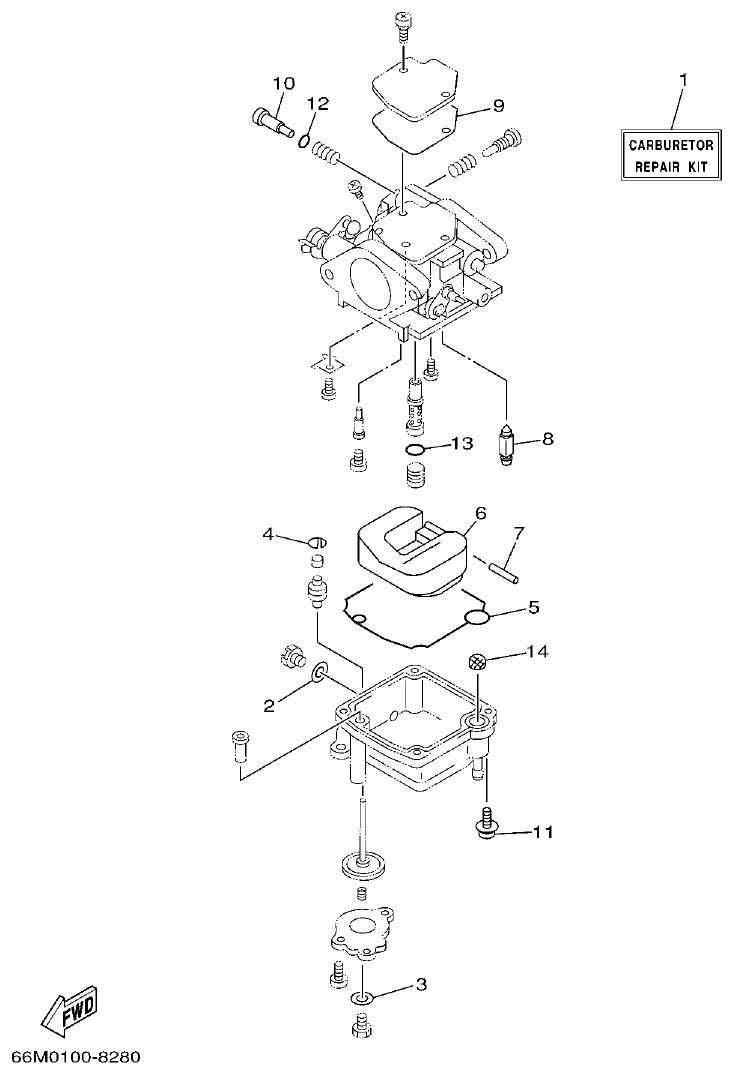

Fig. 31 — REPAIR KIT 2
14 items · 3 available products

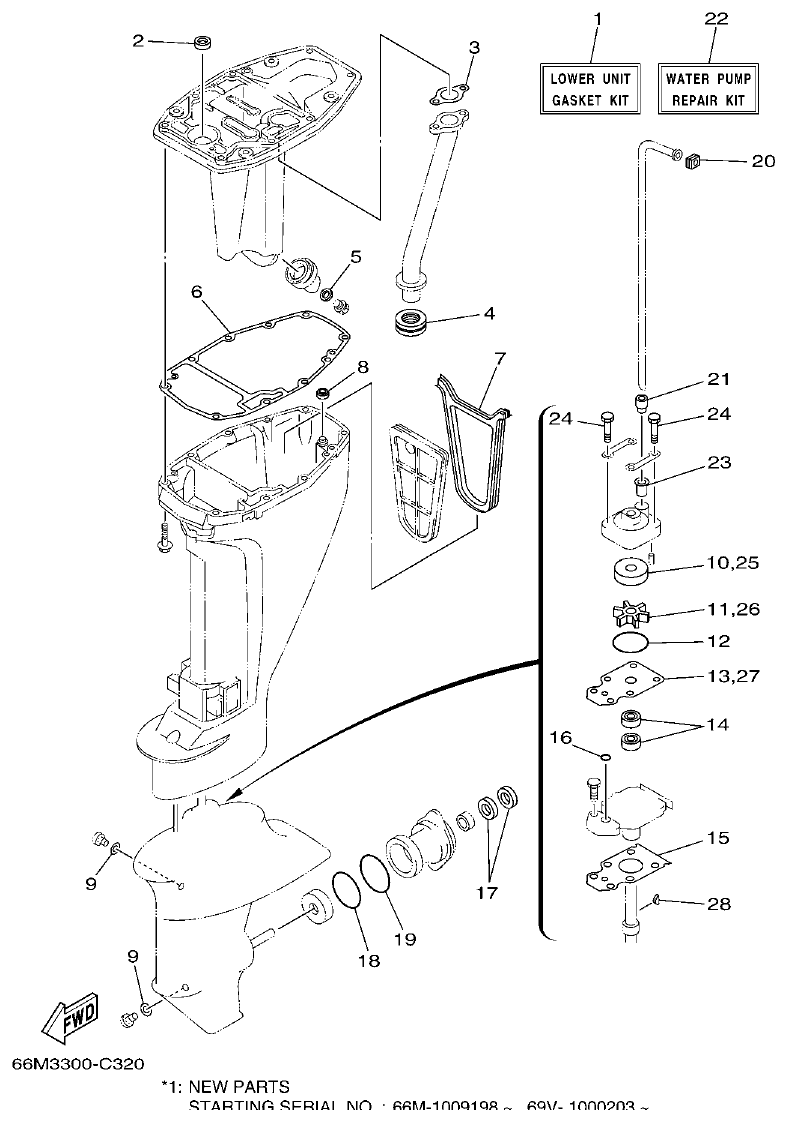

Yamaha 9C, 5A, F15A REPAIR KIT 3 parts diagram
Fig. 32 — REPAIR KIT 3
32 items · 5 available products
